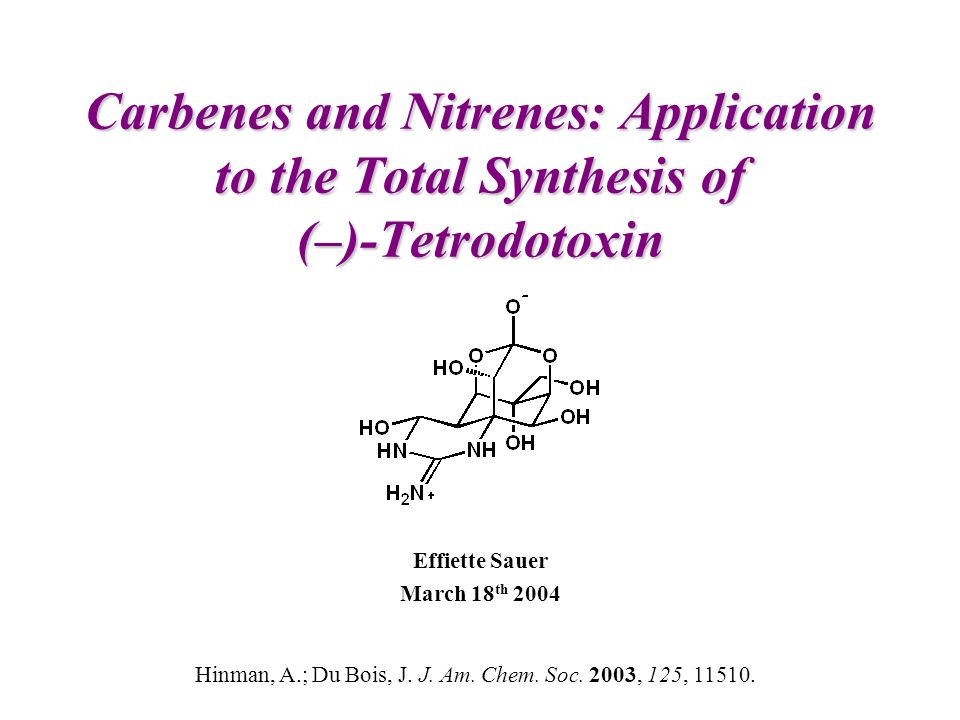

1. Carbenes and Nitrenes: Application to the Total Synthesis of (–)-Tetrodotoxin Effiette Sauer March 18 th 2004 Hinman, A.; Du Bois, J. J. Am. Chem. Soc. 2003, 125, 11510.

2. What are Carbenes? Nitrenes? Neutral, divalent carbon species containing six valence electrons Neutral, monovalent nitrogen species containing six valence electrons HighlyreactiveElectrondeficient 2

3. Carbene Formation Diazoalkanes Halides Sulfonylhydrazones 3

4. Reactions of Carbenes Addition reactions Ylide formation Insertion reactions 4

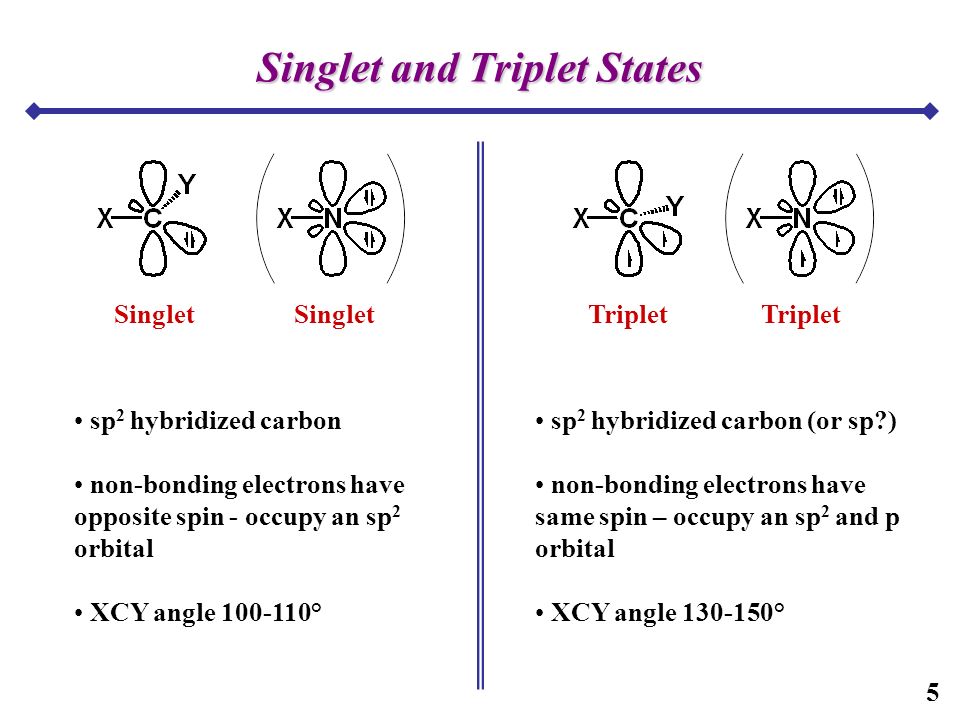

5. Singlet and Triplet States sp 2 hybridized carbon non-bonding electrons have opposite spin - occupy an sp 2 orbital XCY angle 100-110° sp 2 hybridized carbon (or sp?) non-bonding electrons have same spin – occupy an sp 2 and p orbital XCY angle 130-150° TripletSingletTriplet Singlet 5

6. Singlet and Triplet States TripletSingletTriplet Singlet 6

7. Relative Stability of Singlet and Triplet States Unless, added stabilization possible (X=O, N, S, halogen etc.) Triplet more stable than singlet (R=H, alkyl) 7 Triplet Singlet

8. Mode of Preparation – Singlet vs. Triplet Ionic Mechanism: Singlet Photolysis: SingletTriplet 8

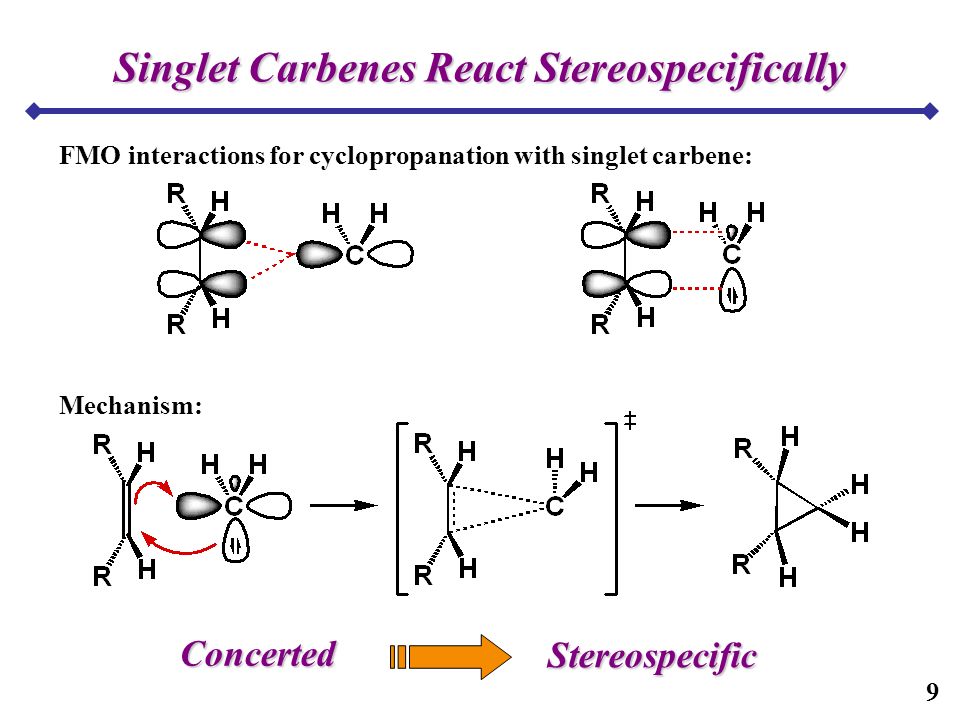

9. Singlet Carbenes React Stereospecifically FMO interactions for cyclopropanation with singlet carbene: Mechanism: Concerted Stereospecific 9

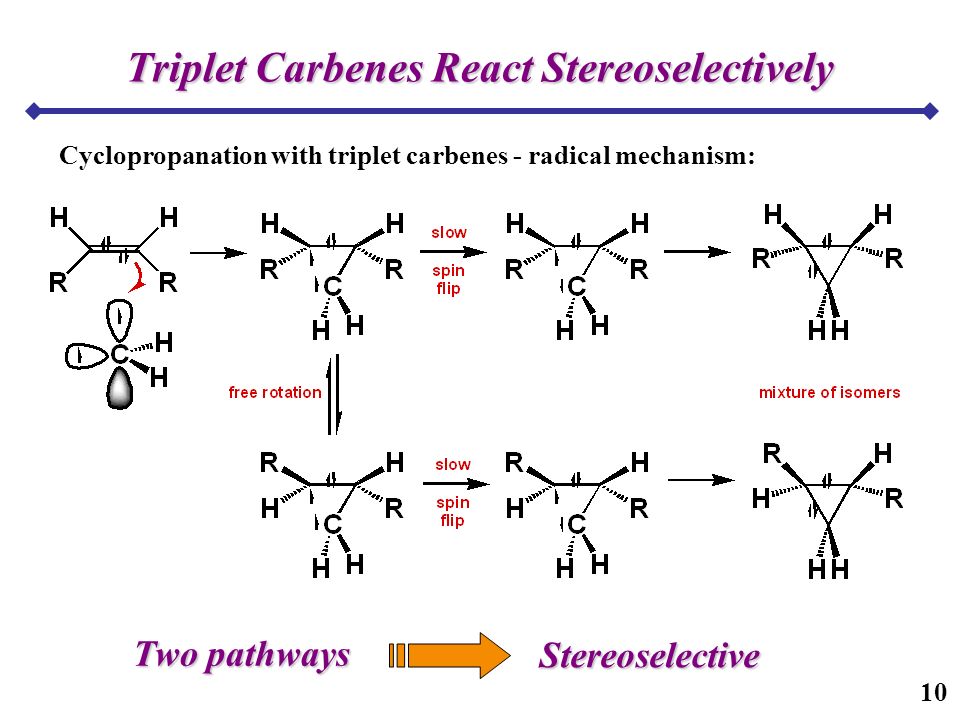

10. Triplet Carbenes React Stereoselectively Cyclopropanation with triplet carbenes - radical mechanism: Two pathways Stereoselective 10

11. Nitrene Formation Azides Iminoiodanes Sulfonamides 11

12. Reactions of Nitrenes 1 Lwowski, W. Angew. Chem. Int. Ed. Engl. 1967, 6, 897. 2 Albini, A.; Bettinetti, G.; Minoli, G. J. Am. Chem. Soc., 1997, 119, 7308. Ylide formation 2 Insertion reactions 1 Addition reactions 1 12

13. Free Carbenes/Nitrenes - Too Reactive 1 Zurawski, B.; Kutzelnigg, W. J. Am. Chem. Soc. 1978, 100, 2654. 2 Richardson, D. B..; Simmons, M. C.; Dvoretzky. I. J. Am. Chem. Soc. 1961, 83, 1934. Free carbenes/nitrenes are highly reactive species → low activation energy for product formation 1 : Generally too reactive to afford useful selectivity 2 : ~ 0 kcal A.E. 25% 13% 38% 24% 13

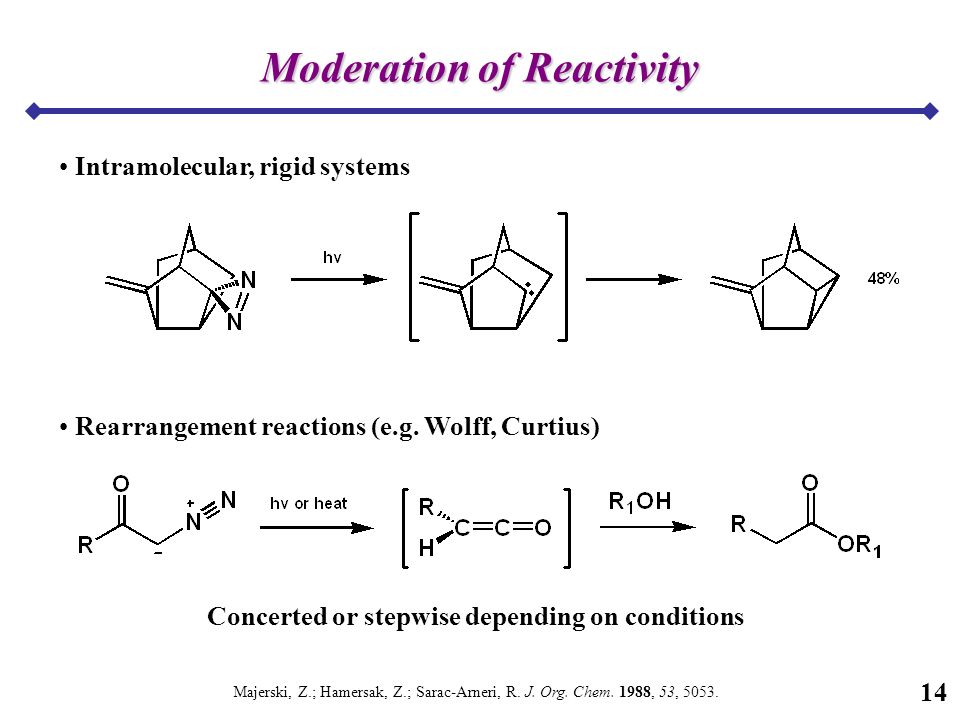

14. Moderation of Reactivity Intramolecular, rigid systems Rearrangement reactions (e.g. Wolff, Curtius) Majerski, Z.; Hamersak, Z.; Sarac-Arneri, R. J. Org. Chem. 1988, 53, 5053. Concerted or stepwise depending on conditions 14

15. Moderation of Reactivity Binding of carbene/nitrene with a metal Carbenoid Nitrenoid Tune reactivity by changing L, M, X, Y Different species for 1) addition 2) ylide formation 3) insertion reactions 4) and more (e.g. RCM) 15

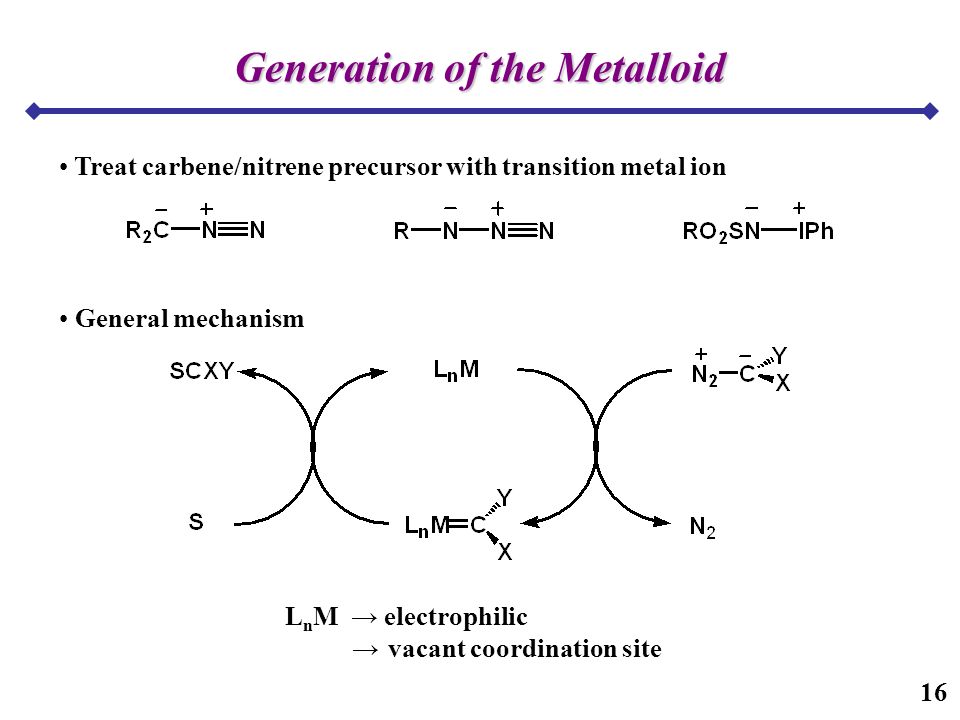

16. Generation of the Metalloid Treat carbene/nitrene precursor with transition metal ion General mechanism L n M → electrophilic → vacant coordination site 16

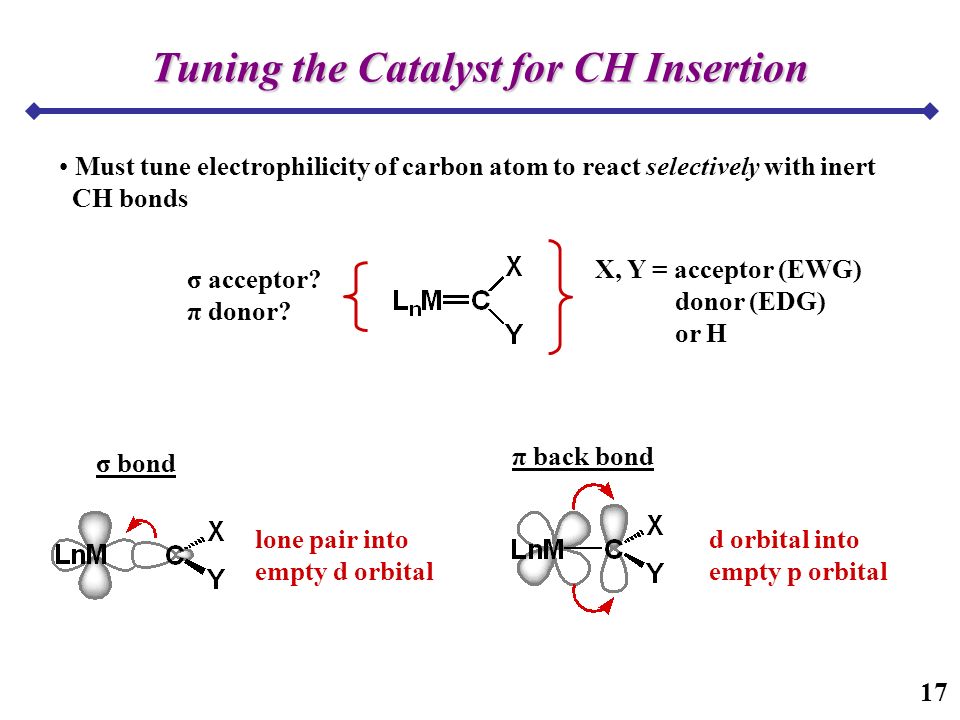

17. Tuning the Catalyst for CH Insertion X, Y = acceptor (EWG) donor (EDG) or H σ acceptor? π donor? Must tune electrophilicity of carbon atom to react selectively with inert CH bonds lone pair into empty d orbital d orbital into empty p orbital σ bond π back bond 17

18. Tuning the Catalyst for CH Insertion X, Y = acceptor (EWG) donor (EDG) or H σ acceptor? π donor? Must tune electrophilicity of carbon atom to react selectively with inert CH bonds 18

19. The Early Days Early investigations focus on copper catalysts (e.g. CuSO 4, CuOTf 2 ) → synthetic use confined to rigid systems 1,2 1 Burke, S. D.; Grieco, P. A. Org. React. 1979, 26, 361. 2 Burns, W.; McKervey, M. A.; Mitchell, T. R. B.; Rooney, J. J. J. Am. Chem. Soc. 1978, 100, 906. 19

20. The Early Days Early investigations focus on copper catalysts (e.g. CuSO 4, CuOTf 2 ) → synthetic use confined to rigid systems 1,2 Teyssie and coworkers introduce dirhodium (II) tetraacetate 3 → Scope and utility of carbenoid insertion reactions explode 4 3 Paulissenen, R.; Reimlinger, H.; Hayez, E.; Hubert, A. J.; Teyssie, P. Tetrahedron Lett. 1973, 2233. 4 Wenkert, E.; Davis, L. L.; Mylari, B. L.; Solomon, M. F.; Warnet, R. J.; Pellicciari, R. J. Org. Chem. 1982, 47, 3242. 20

21. Dirhodium (II) Catalysts Vacant site for carbene binding/ diazo decomposition Unique dirhodium bridge  one Rh binds carbene, other assists insertion 1,2 Electron withdrawing ligands  increase electrophilicity 1 Nakamura, E.; Yoshikai, N.; Yamanaka, M. J. Am. Chem. Soc. 2002, 124, 7181. 2 Pirrung, M. C.; Liu, H.; Morehead, A. T. Jr. J. Am. Chem. Soc. 2002, 124, 1014. 21

22. Insertion Mechanism Doyle, M. P.; Westrum, L. J.; Wolthuis,W. N. E.; See, M. M.; Boone, W. P; Bagheri, V.; Pearson, M. M. J. Am. Chem. Soc. 1993, 115, 958. 22

23. Insertion Mechanism Nakamura suggests Rh-Rh cleavage occurs during diazo decomposition giving rise to two simultaneous events at the transition state → Hydride Transfer → Regeneration of the Rh-Rh bond Nakamura, E.; Yoshikai, N.; Yamanaka, M. J. Am. Chem. Soc. 2002, 124, 7181. Role of dirhodium bridge is two-fold → Enhances electrophilicity of carbon → Assists in Rh-C cleavage 23

24. Insertion Mechanism Nakamura, E.; Yoshikai, N.; Yamanaka, M. J. Am. Chem. Soc. 2002, 124, 7181. 24

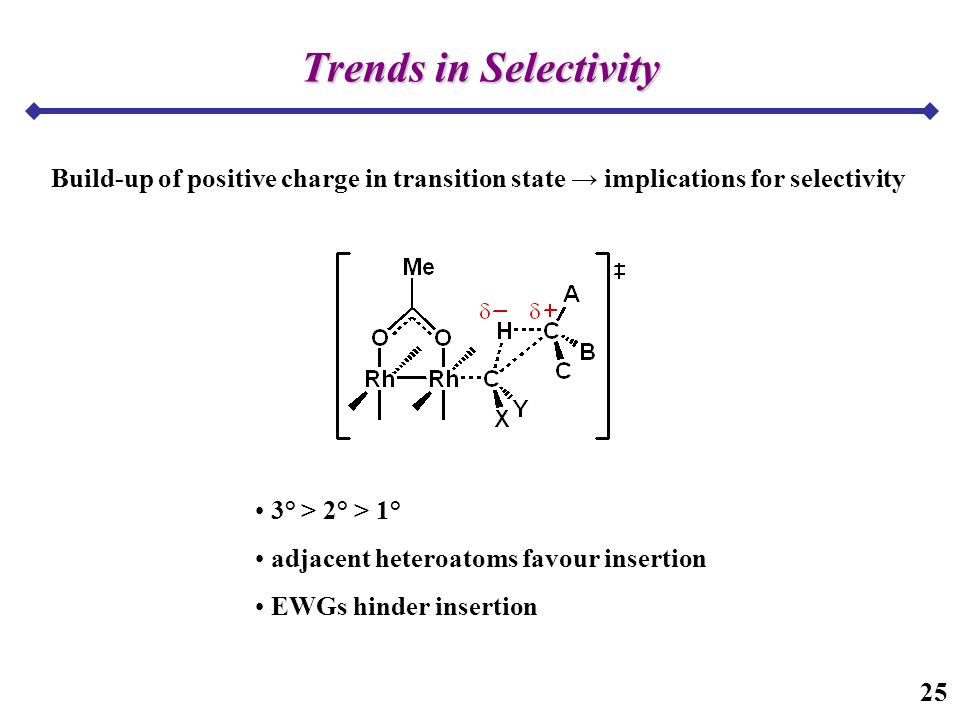

25. Trends in Selectivity Build-up of positive charge in transition state → implications for selectivity 3° > 2° > 1° adjacent heteroatoms favour insertion EWGs hinder insertion 25

26. Trends in Selectivity 231 1 Taber, D. F.; Ruckle, R. E. Jr. J. Am. Chem. Soc. 1986, 108, 7686. 2 Adams, J; Spero, D. M. Tetrahedron 1991, 47, 1765. 3 Wang, P.; Adams, J. J Am. Chem. Soc. 1994, 116, 3296. 26

27. Trends in Selectivity 1 Taber, D. F.; Ruckle, R. E. Jr. J. Am. Chem. Soc. 1986, 108, 7686. 2 Lee, E.; Choi, I.; Song, S. Y. J. Chem. Soc., Chem. Commun. 1995, 321. Five membered ring not observed → steric, electronic and conformational influences may override this preference 2 Five membered rings form preferentially Chair-like t.s. gives five membered ring product 1 27

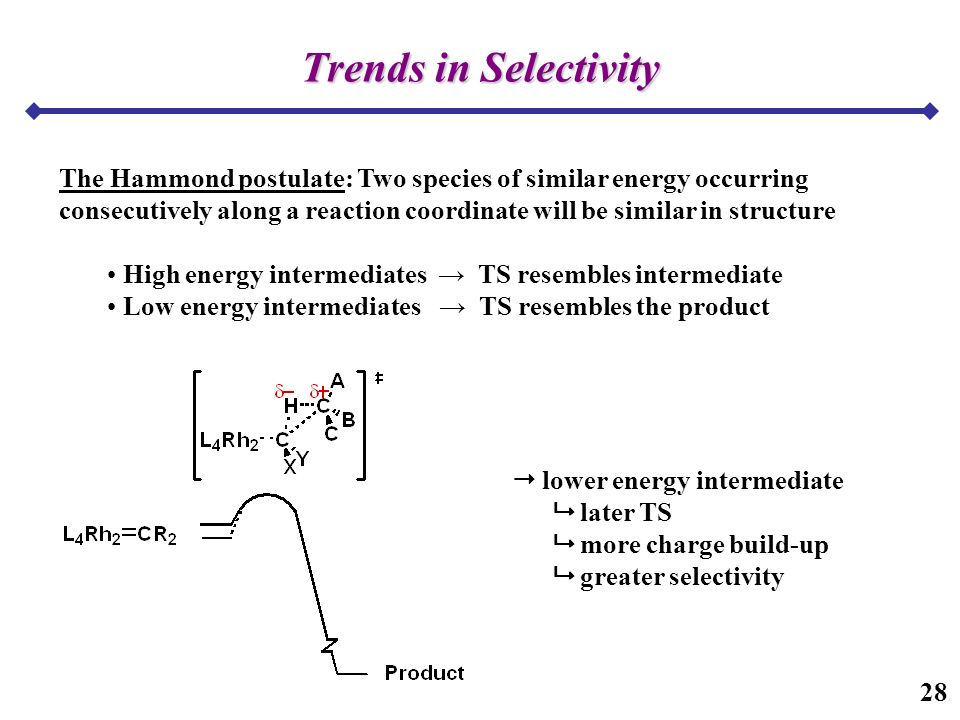

28. Trends in Selectivity The Hammond postulate: Two species of similar energy occurring consecutively along a reaction coordinate will be similar in structure High energy intermediates → TS resembles intermediate Low energy intermediates → TS resembles the product  lower energy intermediate  later TS  more charge build-up  greater selectivity 28

29. Trends in Selectivity Doyle, M. P.; Westrum, L. J.; Wolthuis, W. N. E. J. Am. Chem. Soc. 1993, 115, 958. Rh 2 (pfb) 4 32 68 Rh 2 (OAc) 4 53 47 Rh 2 (acam) 4 >99 <1 A B AB reactivity selectivity Rh 2 (pfb) 4 Rh 2 (OAc) 4 Rh 2 (acam) 4 29

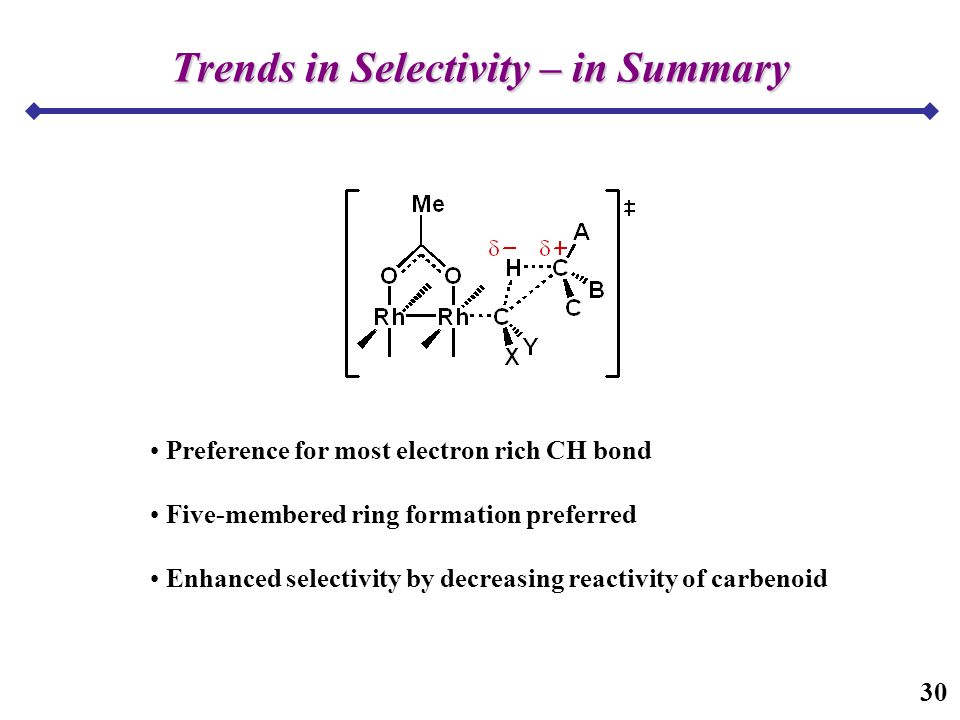

30. Trends in Selectivity – in Summary Preference for most electron rich CH bond Five-membered ring formation preferred Enhanced selectivity by decreasing reactivity of carbenoid 30

31. What about those Nitrenoids? Certain Fe, Mn, and Ru porphyrin complexes catalyze CH insertion 1 1 Yu, X.; Huang, J.; Zhou, X.; Che, C. Org. Lett. 2000, 2, 2233. 2 Au, S.; Huang, J.; Yu, W.; Fung, W.; Che, C. J. Am. Chem. Soc. 1999, 121, 9120. Mechanistic studies on Ru(Por)(NTs) 2 suggest a radical intermediate 2 31

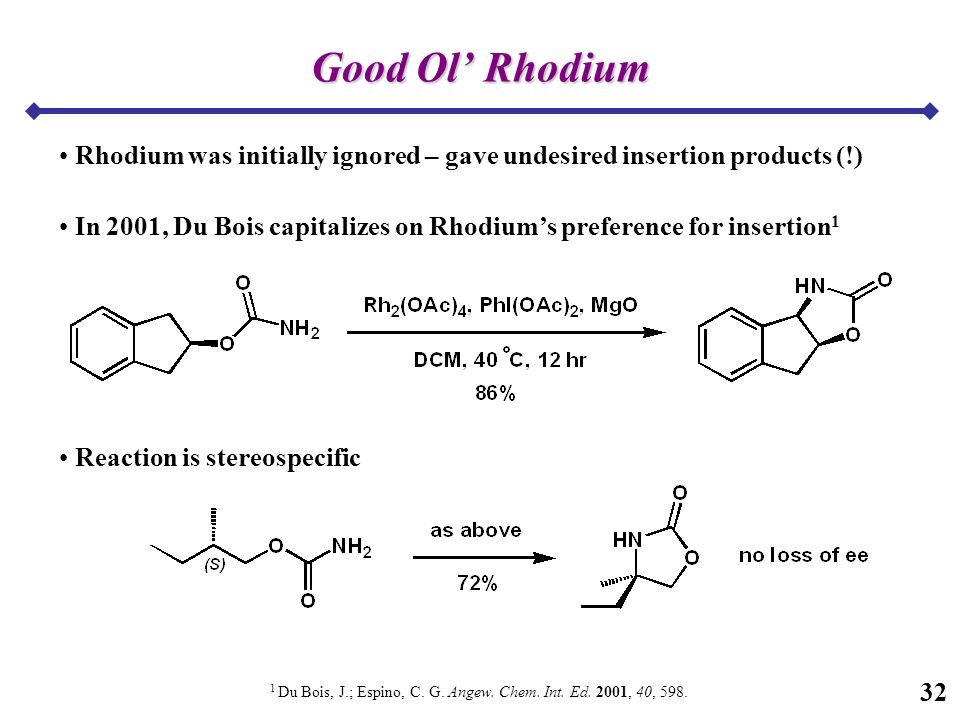

32. Good Ol’ Rhodium Rhodium was initially ignored – gave undesired insertion products (!) In 2001, Du Bois capitalizes on Rhodium’s preference for insertion 1 1 Du Bois, J.; Espino, C. G. Angew. Chem. Int. Ed. 2001, 40, 598. Reaction is stereospecific 32

33. (–)-Tetrodotoxin Isolated from the Japanese puffer fish (Sphaeroides rubripes) in 1909 1 Named after the puffer fish family Tetraodontidae LD50 = 10 ng/Kg mouse Current interest in TTX as a potent analgesic 1 Tahara, Y. J. Pharm. Soc. Jpn. 1909, 29, 587. 33

34. (–)-Tetrodotoxin Relative stereochemistry assigned in 1964 by Hiratu-Goto 1, Tsuda 2, and Woodward 3 Absolute stereochemistry established by X-ray in 1970 4 First racemic synthesis by Kishi in 1972 5 Enantioselective syntheses by Isobe 6 (Jan. 2003) and Du Bois 7 (June 2003) 1 Tetrahedron 1965, 21, 2059. 2 Chem. Pharm. Bull. 1964, 12, 1357. 3 Pure. Appl. Chem. 1964, 9, 49. 4 Bull. Chem. Soc. Jpn. 1970, 43, 3332. 5a J. Am. Chem. Soc. 1972, 94, 9217. 5b J. Am. Chem. Soc. 1972, 94, 9219. 6 J. Am. Chem. Soc. 2003, 125, 8798. 7 J. Am. Chem. Soc. 2003, 125, 11510. 34

35. Retrosynthesis 6 membered ring desired 35

36. Synthesis of (–)-Tetrodotoxin 36

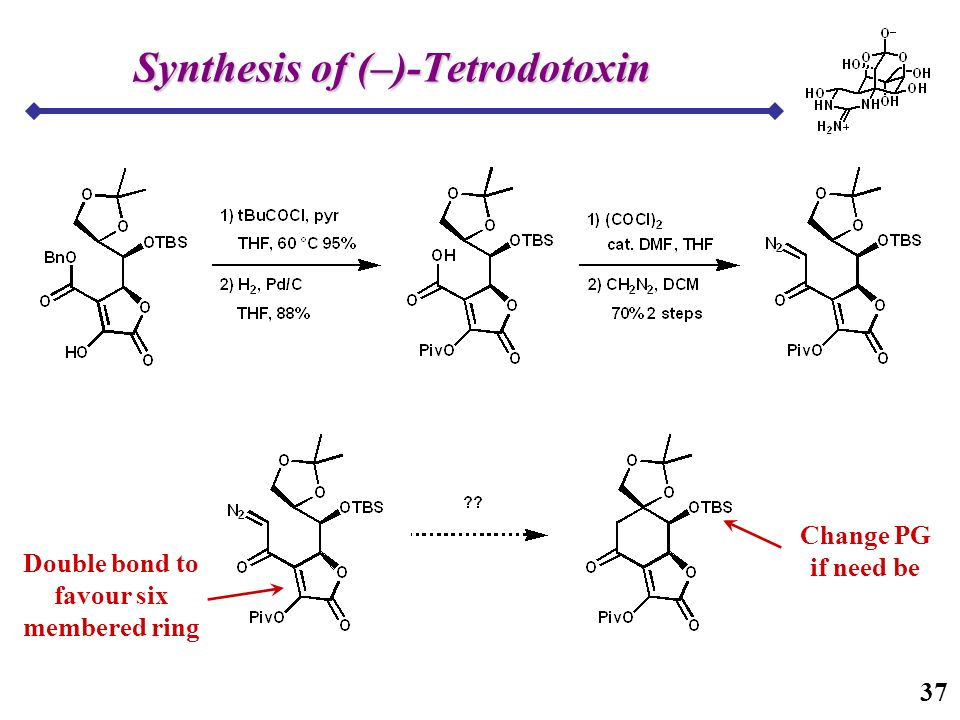

37. Synthesis of (–)-Tetrodotoxin Double bond to favour six membered ring Change PG if need be 37

38. Synthesis of (–)-Tetrodotoxin AB B via: 38

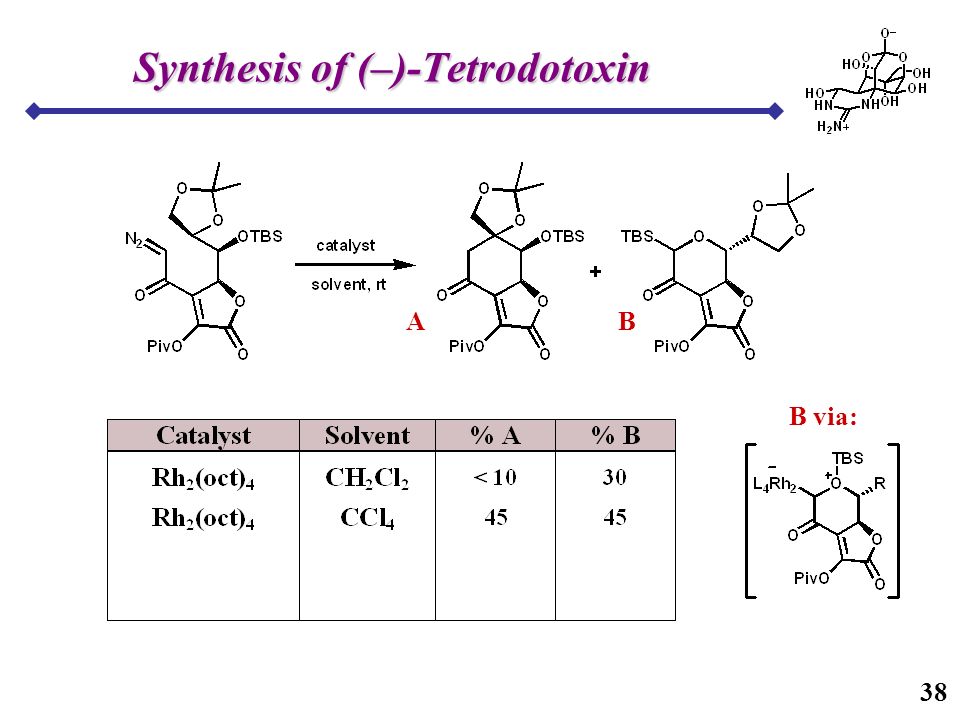

39. Synthesis of (–)-Tetrodotoxin AB B via: 38

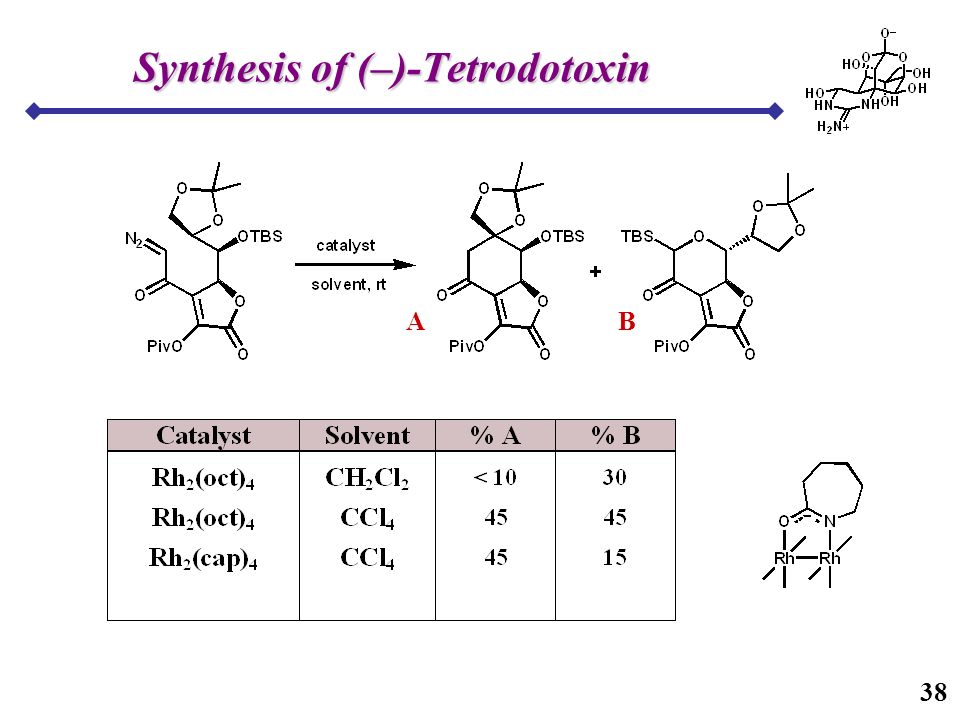

40. Synthesis of (–)-Tetrodotoxin AB 38

41. Synthesis of (–)-Tetrodotoxin AB 38

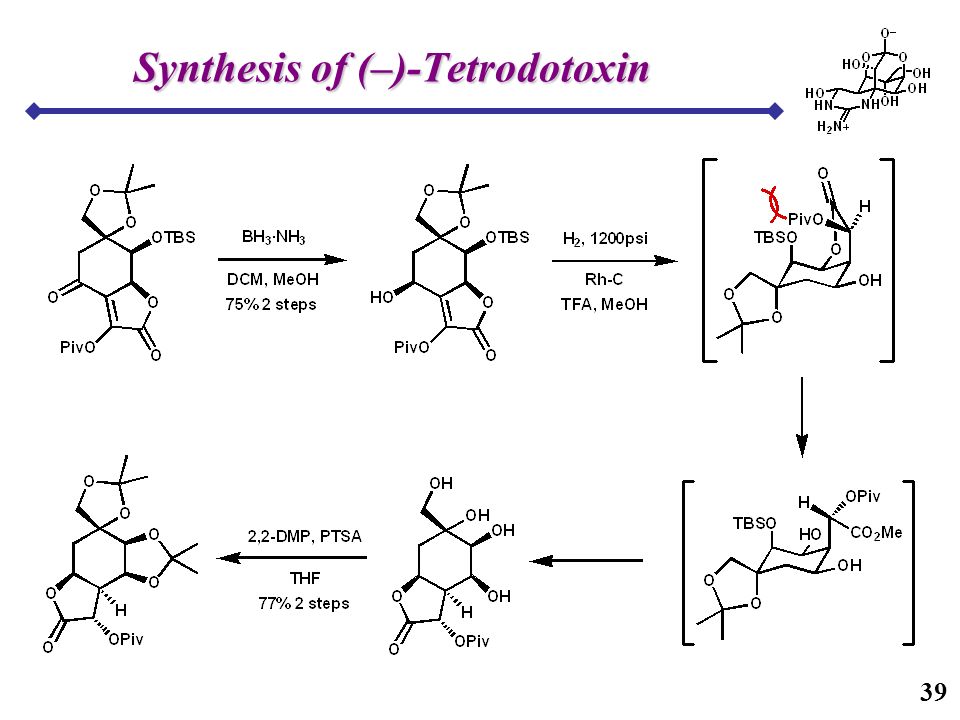

42. Synthesis of (–)-Tetrodotoxin 39

43. Synthesis of (–)-Tetrodotoxin 40

44. Synthesis of (–)-Tetrodotoxin 41

45. Synthesis of (–)-Tetrodotoxin Only product 42

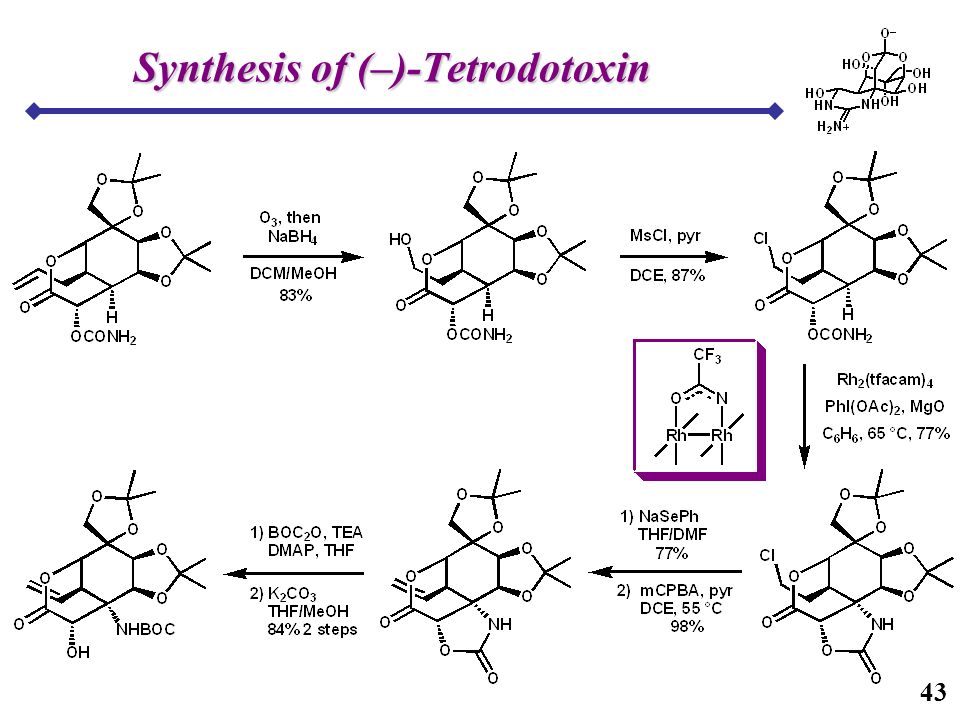

46. Synthesis of (–)-Tetrodotoxin 43

47. Synthesis of (–)-Tetrodotoxin 44

48. Conclusions Completed the synthesis of (–)-TTX in 32 steps, overall yield of 0.8%, average yield of 81% Used CH insertion to stereospecifically assemble quaternary carbon centre at C6 and six-membered core ring of TTX in >95% yield Demonstrated the viability of their recently developed CH amination reaction, forming the tertiary amine in 77% yield Reinforced the utility of carbenes and nitrenes as valuable intermediates in organic synthesis 45
