Chapter 11 Elimination Reactions of Alkyl Halides Competition Between Substitution and Elimination Organic Chemistry 4 th Edition Paula Yurkanis Bruice.

Similar presentations


Presentation on theme: "Chapter 11 Elimination Reactions of Alkyl Halides Competition Between Substitution and Elimination Organic Chemistry 4 th Edition Paula Yurkanis Bruice."— Presentation transcript:

1 Chapter 11 Elimination Reactions of Alkyl Halides Competition Between Substitution and Elimination Organic Chemistry 4 th Edition Paula Yurkanis Bruice Irene Lee Case Western Reserve University Cleveland, OH ©2004, Prentice Hall

2 In addition to substitution, an alkyl halide can undergo an elimination reaction

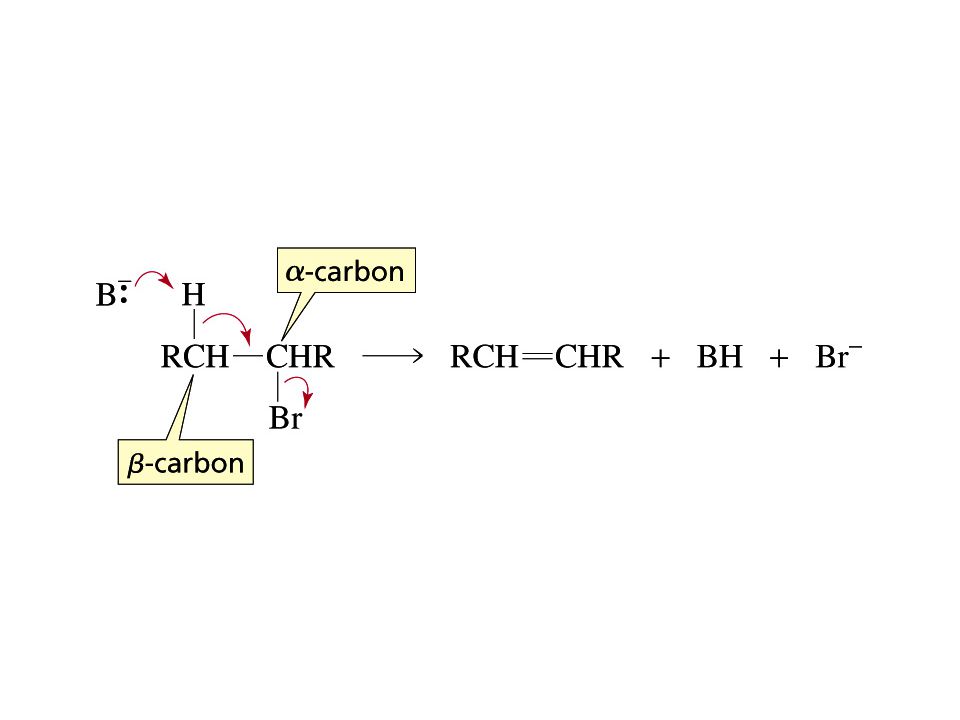

3 The E2 Reaction

4

5 The weaker the base, the better it is as a leaving group

6 The Regioselectivity of the E2 Reaction The major product of an E2 reaction is the most stable alkene The greater the number of substituents, the more stable is the alkene

7 Reaction coordinate diagram for the E2 reaction of 2-bromobutane and methoxide ion

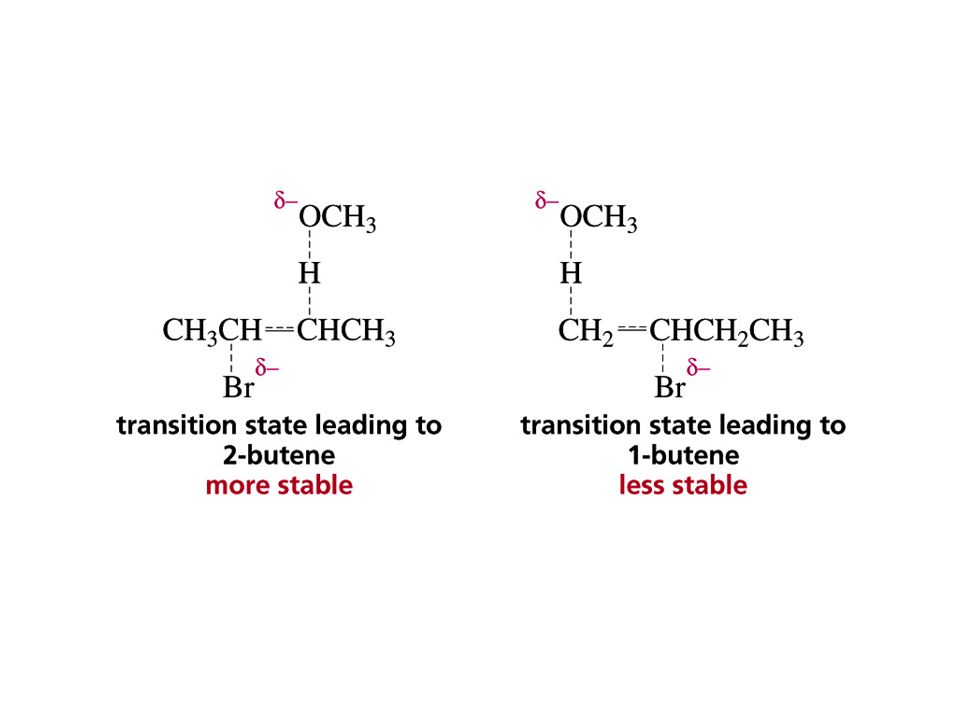

8

9 The Zaitsev Rule The more substituted alkene product is obtained when a proton is removed from the  -carbon that is bonded to the fewest hydrogens The most stable alkene is generally (but not always) the most substituted alkene

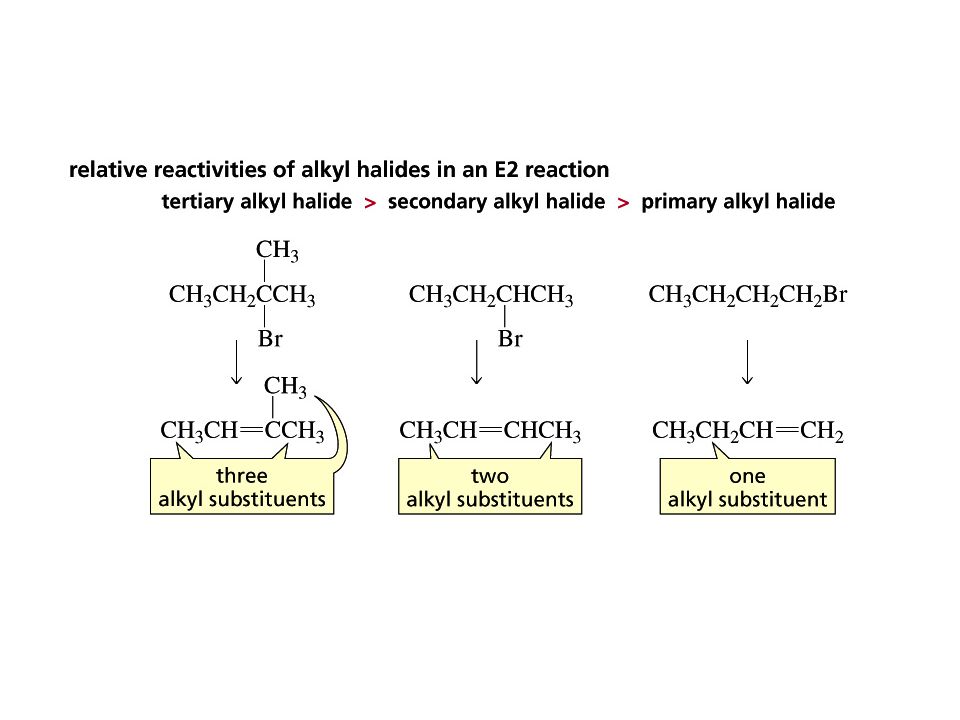

10

11 Conjugated alkene products are preferred over the more substituted alkene product Do not use Zaitsev’s rule to predict the major product in these cases

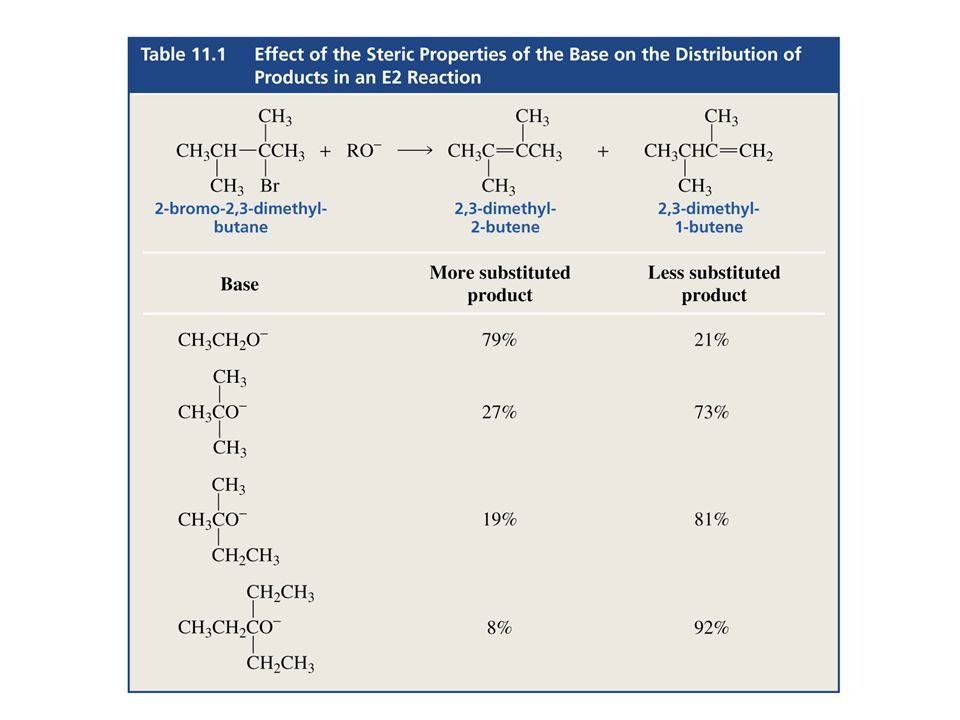

12 Steric hindrance also affects the product distribution

13

14 Another exception to Zaitsev’s rule

15 Consider the elimination of 2-fluoropentane …

16 A carbanion-like transition state

17 Relative stabilities of carbanions tertiary carbanion secondary carbanion primary carbanion methyl anion least stable most stable

18 The E1 Reaction

19 Reaction coordinate diagram for the E1 reaction of 2-chloro-2-methylbutane

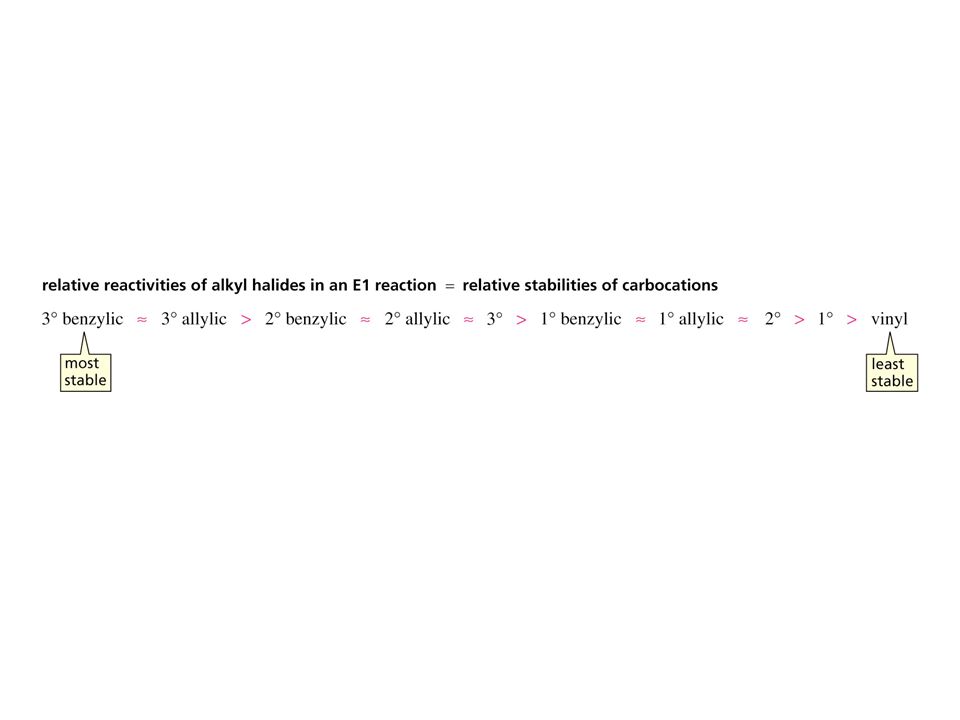

20

21

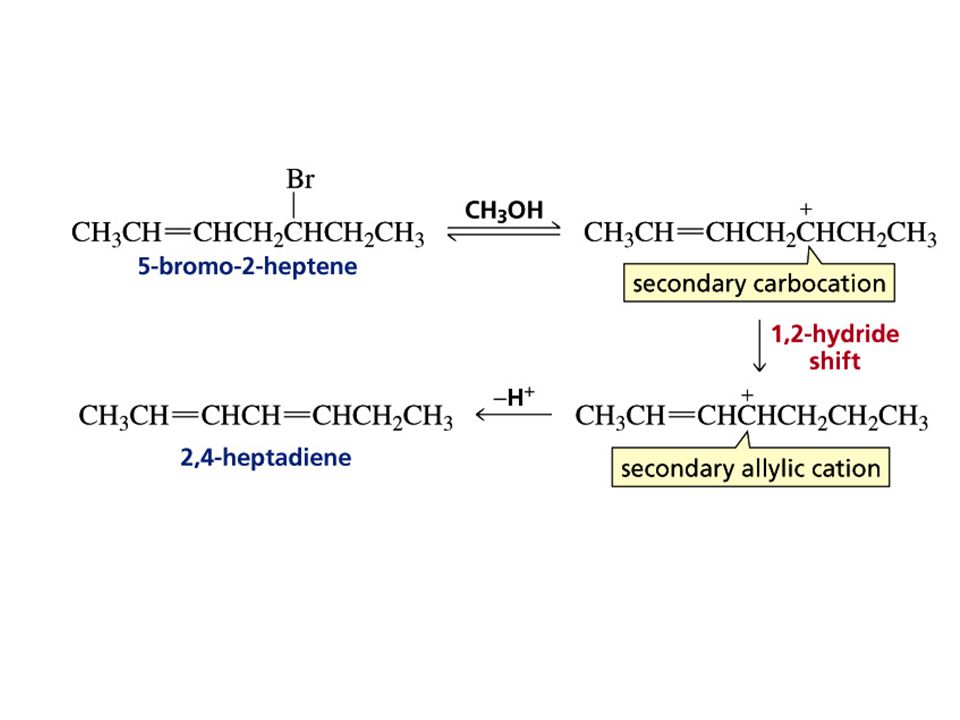

22 Because the E1 reaction forms a carbocation intermediate, we need to consider carbocation rearrangement

23

24 Competition Between E2 and E1 Reactions

25 Stereochemistry of the E2 Reaction The bonds to the eliminated groups (H and X) must be in the same plane The anti elimination is favored over the syn elimination H X H X the more stable conformation

26 Another view of the E2 reaction mechanism The best overlap of the interacting orbitals is achieved through back side attack Anti elimination avoids repulsion of the electron-rich base

27 Consider the regioselectivity of the E2 reaction The alkene with the bulkiest groups on opposite sides of the double bond will be formed in greater yield, because it is the more stable alkene

28

29 Reaction coordinate diagram for the E2 reaction of 2-bromopentane and ethoxide ion

30 The particular alkene isomer that is formed depends on the configuration of the reactant

31 Stereochemistry of the E1 Reaction

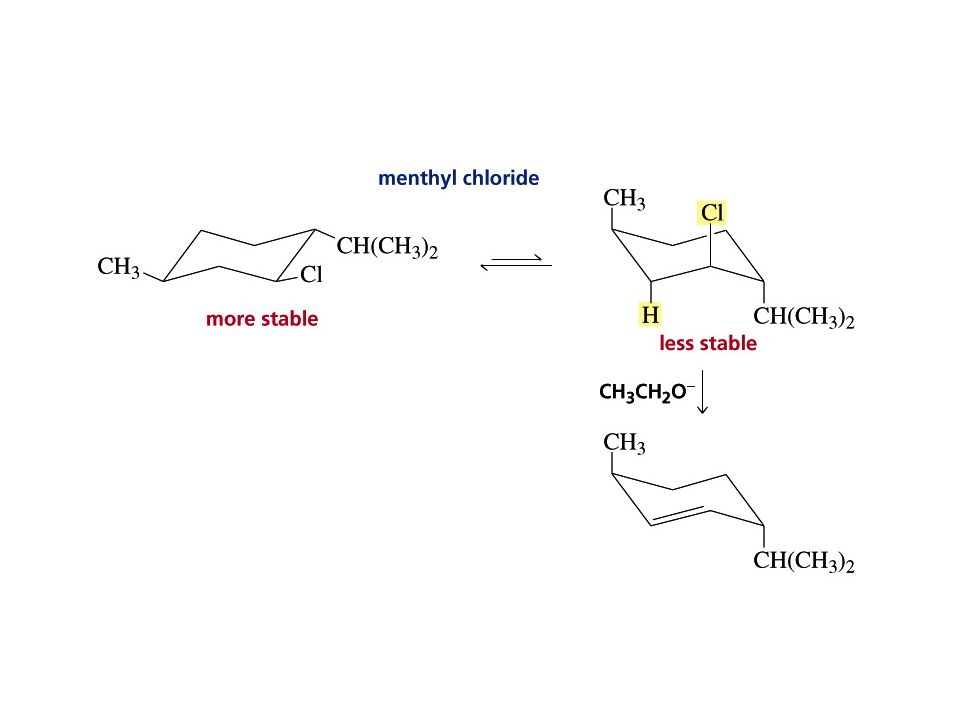

32 Elimination from Cyclic Compounds In an E2 reaction, groups to be eliminated must be trans to one another

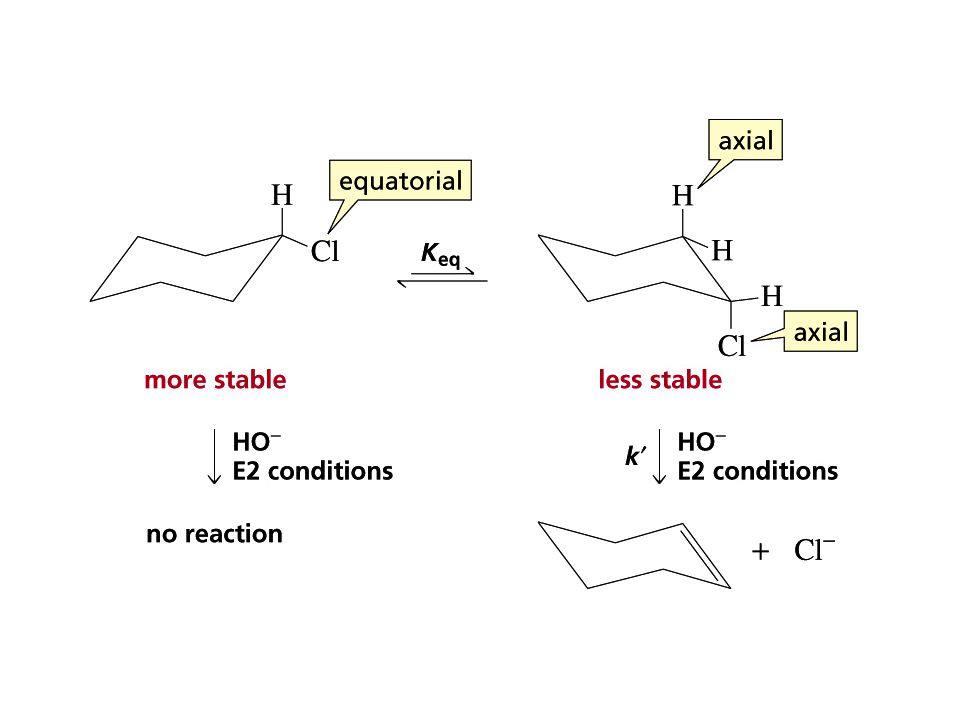

33

34

35

36 E1 Elimination from Cyclic Compounds An E1 reaction involves both syn and anti elimination

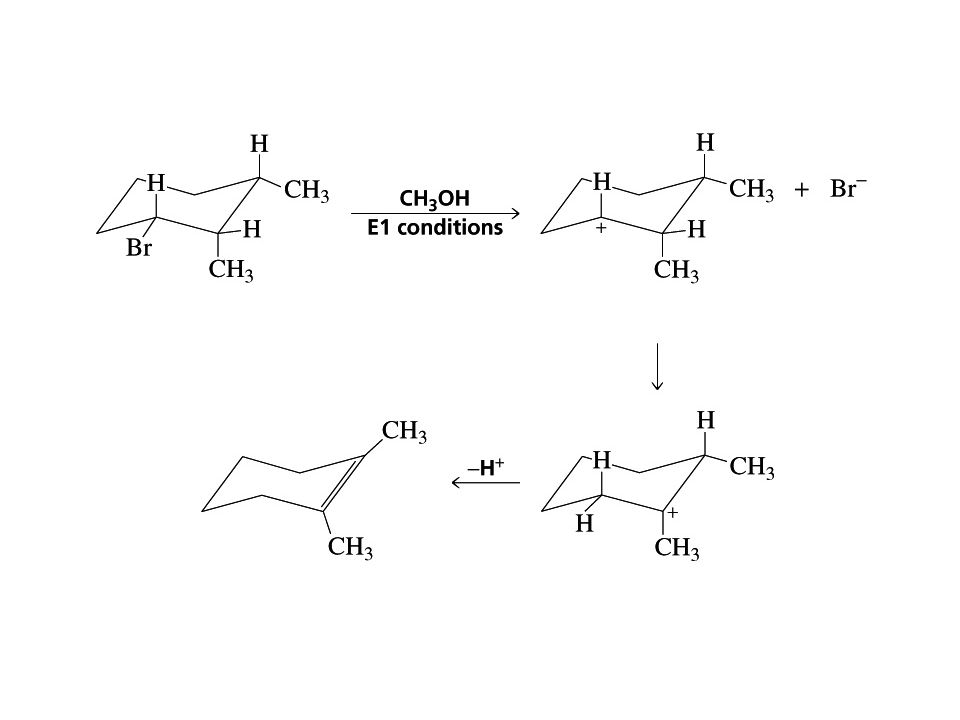

37

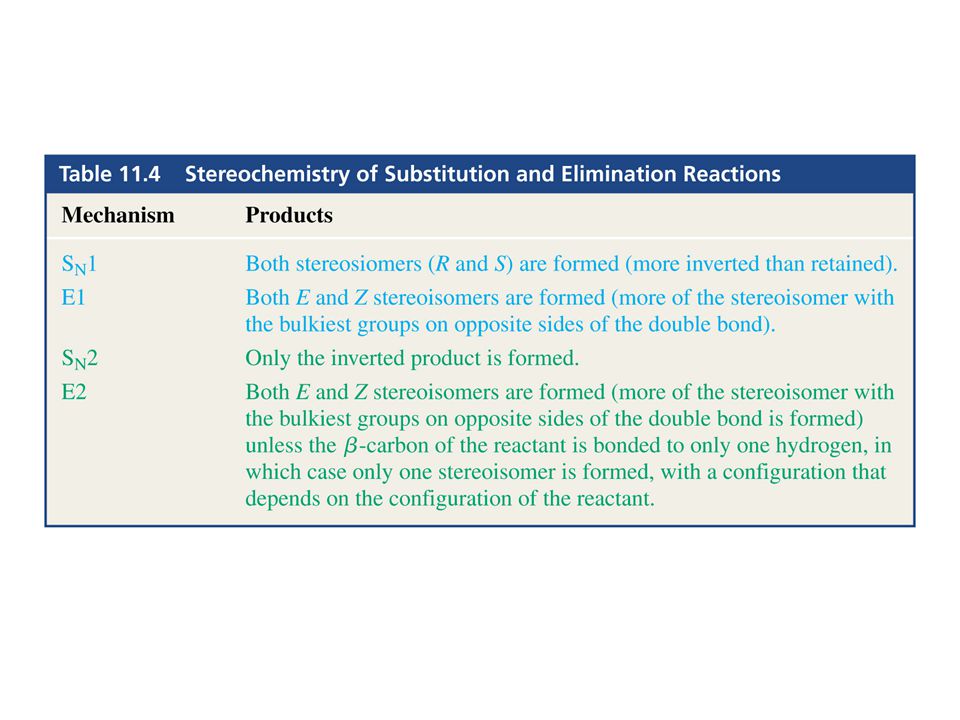

38

39 Utilization of kinetic isotope effect to study a reaction mechanism A carbon deuterium bond (C–D) is stronger than a carbon hydrogen bond (C–H) The deterium isotope is 7.1, indicating that C–H (or C–D) bond must be broken in the rate-determining step kHkH kDkD

40 Competition Between Substitution and Elimination Alkyl halides can undergo S N 2, S N 1, E2 and E1 1) decide whether the reaction conditions favor S N 2/E2 or S N 1/E1 S N 2/E2 reactions are favored by a high concentration of nucleophile/strong base S N 1/E1 reactions are favored by a poor nucleophile/weak base 2) decide how much of the product will be the substitution product and how much of the product will be the elimination product

41 Consider the S N 2/E2 conditions

42 A bulky base encourages elimination over substitution

43 A weak base encourages substitution over elimination strong base weak base

44 Consider S N 1/E1 conditions

45 Substitution and Elimination Reactions in Synthesis

46 In synthesizing an ether, the less hindered group should be provided by the alkyl halide

47 However, the most hindered alkyl halide should be used if you want to synthesize an alkene

48 Consecutive E2 Elimination Reactions

49 Intermolecular Versus Intramolecular Reactions A low concentration of reactant favors an intramolecular reaction The intramolecular reaction is also favored when a five- or six-membered ring is formed

50 Three- and four-membered rings are less easily formed Three-membered ring compounds are formed more easily than four-membered ring compounds The likelihood of the reacting groups finding each other decreases sharply when the groups are in compounds that would form seven-membered and larger rings.

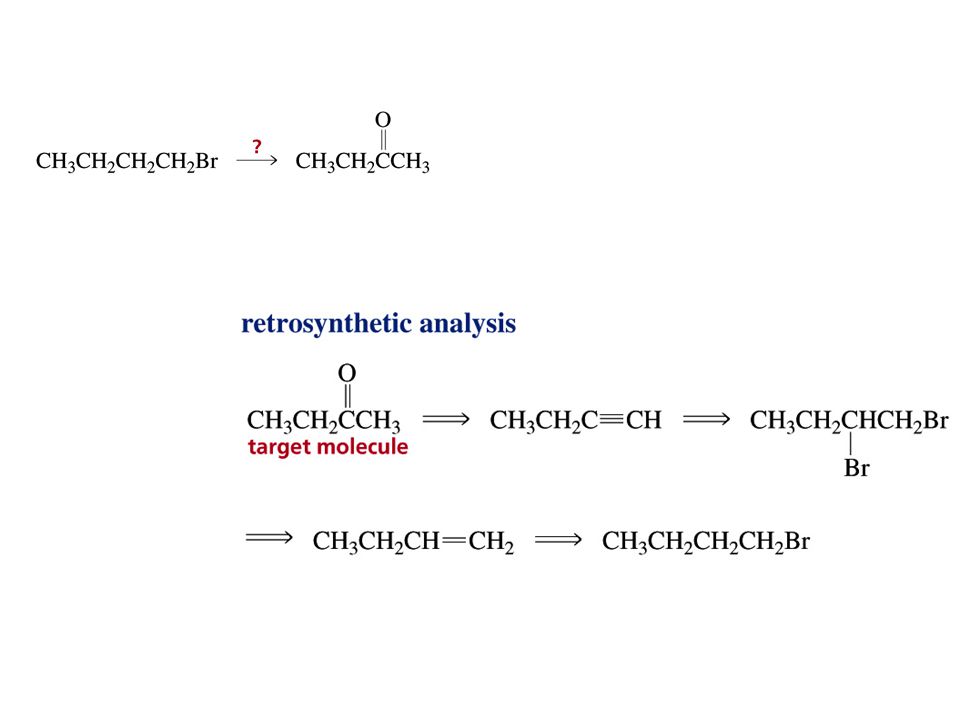

51 Now we can design a synthesis …

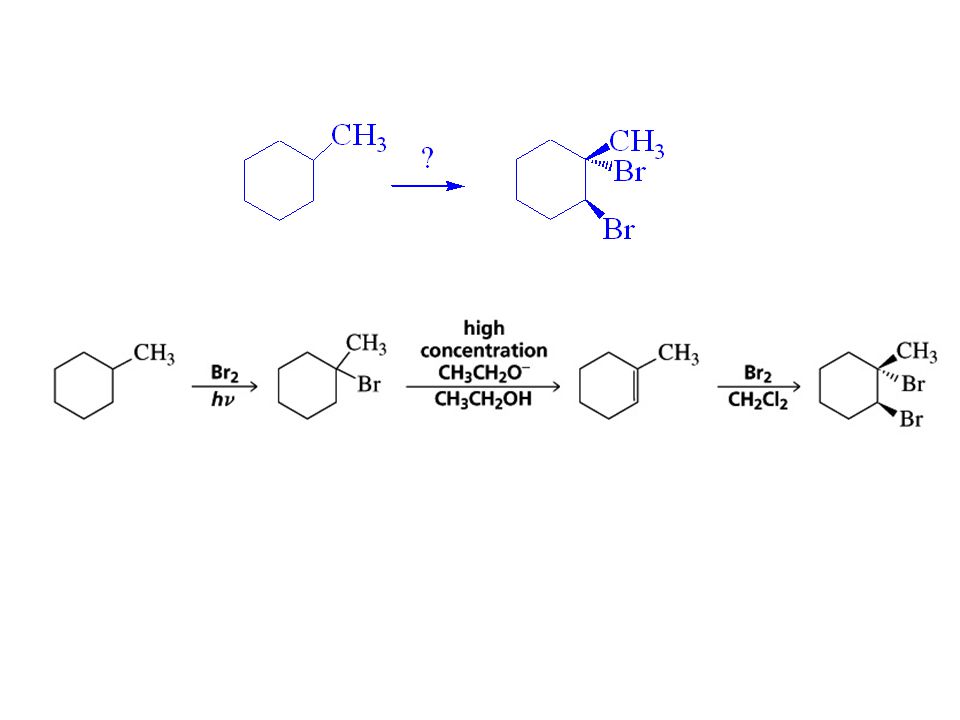

52

53

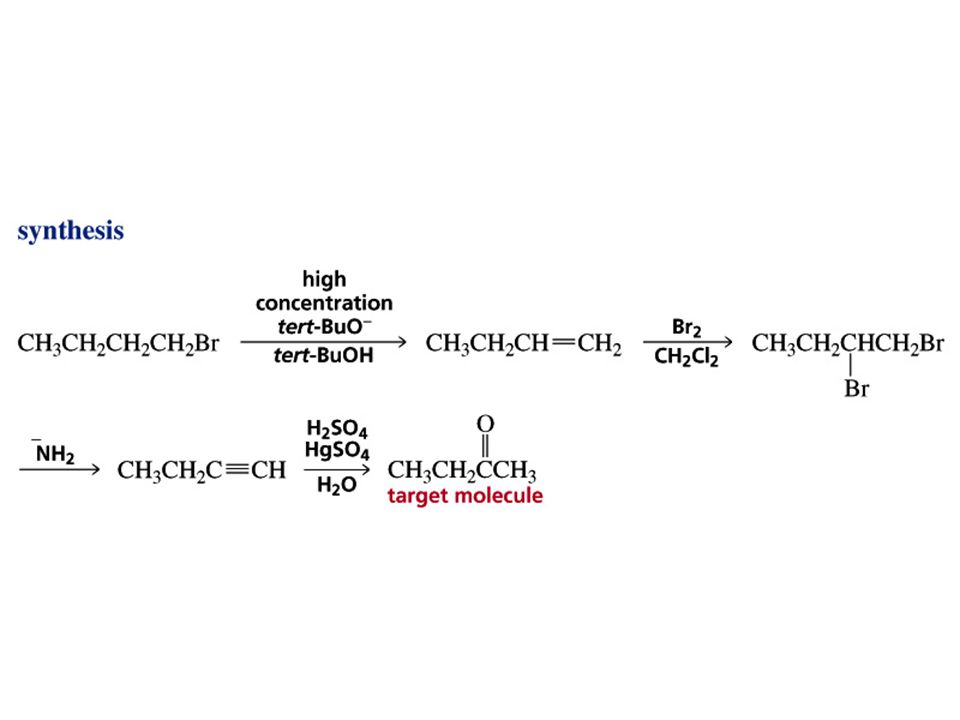

54
