1. Folding Technique: Compromising in Special Purpose Hardware Design
Ivan Milentijevic
Faculty of Electronic Engineering
University of Nis
Serbia and Montenegro

2. Outline Special purpose hardware design and DSP
DSP application demands and technologies
Representations of DSP algorithms and architectures
Compromising
Folding technique
Simple example – ad hoc folding
Folding equation and mathematical background
Preparation of source architecture for folding – problems
Case study 1: Folded Bit-Serial Multiplier
Case study 2: Configurable Folded FIR Filter Architecture

3. Special purpose hardware design and DSP
DSP systems can be realized using programmable processors or custom designed hardware circuits fabricated using very-large-scale-integrated (VLSI) circuit technology
Two import features that distinguish DSP from other general purpose computations are real-time throughput requirement and data driven property.

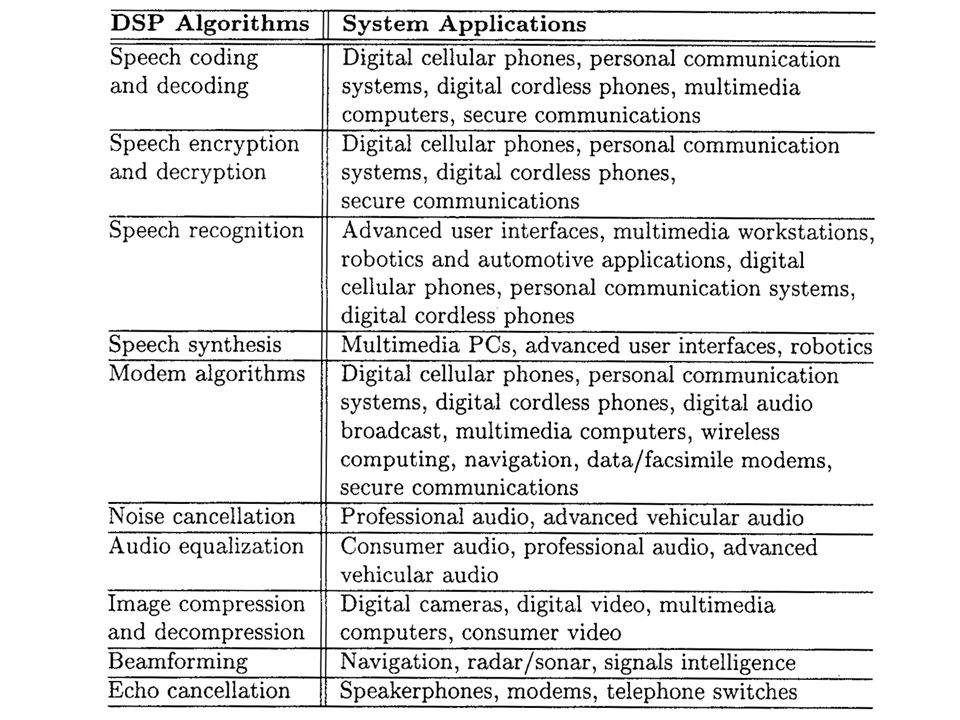

5. DSP application demands and technologies

6. Representations of DSP algorithms and architectures
DSP algorithms are initially described by mathematical formulas.
System architecture can be described by
Behavioral languages
Graphical representations
- BD
- SFG
- DFG
- DG
Applicative
- set of equations (not actions)
Prescriptive
- describe assigments
Descriptive
-VHDL, Verilog,...

7. Representations of DSP algorithms and architectures
Block diagram of a 3-tap FIR filter

8. Representations of DSP algorithms and architectures
Signal Flow Graph of a 3-tap FIR filter

9. Representations of DSP algorithms and architectures
Data Flow Graph of a 3-tap FIR filter

10. Representations of DSP algorithms and architectures
Dependence Graph of a 3-tap FIR filter

11. Compromising Area – Time – Power Area – Time Goal:
to achieve time (throughput) requirements with optimal chip area or optimal using of chip resources

12. Folding technique
Performances and cost of any digital circuit depend on circuit design style. Therefore, creating a given architecture, to establish optimal area-time-power tradeoff, a careful choice of circuit design style to use is necessary.
In synthesizing DSP architectures, it is important to minimize the silicon area of the integrated circuits, which is achieved by reducing the number of functional units (such as multipliers and adders), registers, multiplexers, and interconnection wires.

13. Folding technique
How?
By executing multiple algorithm operations on a single functional unit, the number of functional units in the implementation is reduced, resulting in integrated circuit with low silicon area.

14. Simple example – ad hoc folding
Two addition operations are folded to a single adder:
Folding factor* N=2
*Folding factor - the number of algorithm operations folded to a single functional unit

15. Clk
L.input
Up.input
Output
a(0)
b(0) - 1
a(0)+b(0)
c(0) 2
a(1)
b(1)
a(0)+b(0)+c(0) 3
a(1)+b(1)
c(1) 4
a(2)
b(2)
a(1)+b(1)+c(1) 5
a(2)+b(2)
c(2)

16. Folding equation and math. background
K. K. Parhi, VLSI Digital Signal Processing Systems (Design and Implementation), John Wiley & Sons, In., New York, 2000.
T. C. Denk, K. K. Parhi, Synthesis of Folded Pipelined Architectures for Multirate DSP Algorithms, IEEE Transaction on Very Large Scale Integration (VLSI) Systems, Vol. 6, No. 4, Dec. 1998, pp
The folding transformation provides a systematic technique for designing of control circuits in folded systems.

17. Folding equation and math. background
An edge with w(e) delays
The corresponding folded data path
The data begin at the functional unit , which has pipelining stages, pass through
delays, and are switched into the functional unit at the time instances , where N is the number of operations folded to a single functional unit (folding factor), while u and v are the folding orders of nodes U and V that satisfy

18. Folding equation and math. background
A folding set, S, is defined as an ordered set of operations, which contains N entries, executed by the same functional unit.
For a folded system to be realizable must hold for all of the edges in the DFG.

19. Preparation of source architecture for folding – problems
Important question: How to prepare the source architecture / DFG for the successful application of folding technique?

20. Preparation of source architecture for folding – problems
Once valid folding sets have been assigned, retiming can be used to satisfy this property or determine that the folding sets are not feasible.
Retiming is a transformation technique used to change the locations of delay elements without affecting the I/O characteristics of the circuit.
Retiming in synchronous circuit design can be directed towards:
Reducing the clock period,
Reducing the number of registers,
Reducing the power consumption, etc.

21. Preparation of source architecture for folding – problems
Using folding equations, a set of retiming inequalities can be obtained
Solution for architecture retiming can be found by mapping of set of inequalities onto constraint graph.
Algorithms: Bellman-Ford or Floyd-Warshall
Assigment of folding sets on functional units of retimed graph
Rechecking of folding condition

22. Case study 1: Folded Bit-Serial Multiplier
Public-key cryptography
special features are required for multiplier units.
RSA encryption and decryption, large integers (typically 1024 bits or more) must be multiplied,
Elliptic curve cryptosystems,
a multiplication in finite fields is required.

23. Source architecture: basic serial-parallel-serial multiplier
Case study 1: Folded Bit-Serial Multiplier
Source architecture: basic serial-parallel-serial multiplier

24. Case study 1: Folded Bit-Serial Multiplier
a3b0
a2b0
a1b0
a0b0

25. Case study 1: Folded Bit-Serial Multiplier
a3b0
a2b0
a1b0
a0b0 + + +
a3b1
a2b1
a1b1
a0b1

26. Case study 1: Folded Bit-Serial Multiplier
a3b0
a2b0
a1b0 + + +
a3b1
a2b1
a1b1
a0b1 + + +
a3b2
a2b2
a1b2
a0b2

27. Case study 1: Folded Bit-Serial Multiplier
a3b0
a2b0 + +
a3b1
a2b1
a1b1 + + +
a3b2
a2b2
a1b2
a0b2 + + +
a3b3
a2b3
a1b3
a0b3

28. Case study 1: Folded Bit-Serial Multiplier

29. Case study 1: Folding Set Assigment
(Sk-1|N-1)
(Sk-1|N-2)
(Sk-1|0)
(Sk-2|N-1)
(S0|1)
(S0|0)

30. Case study 1: Folding Equations
Two neighboring nodes that are folded onto one node
Df(i®i+1)=N× =N-1, i= N-1, 2N-1, … , La-N-1
Neighboring nodes that are folded onto different nodes
Df(i®i+1)=N×1-0+(N-1)-0=2N-1, i¹ N-1, 2N-1, … , La-N-1
Carry data paths
Df(i®i)=N× =N-1, i= 0, 1, … , La-1
Df(U®V)³0
Folded architecture contains max(N-1,2N-1)=2N-1 latches between nodes j and j+1 that will be used for data buffering

31. Case study 1: Folded Architecture

32. Case study 1: Functional Description for case N=2, k=2

33. Case study 1: Functional Description
a2b0
a0b0

34. Case study 1: Functional Description
a3b0
a2b0
a1b0
a0b0

35. Case study 1: Functional Description
a2b1 +
a3b0
a3b0
a2b0
a0b1 +
a1b0
a1b0
a0b0

36. Case study 1: Functional Description
a3b1
a2b1 +
a3b0
a3b0
a1b1 +
a2b0
a0b1 +
a1b0
a1b0

37. Case study 1: Functional Description
a2b2 +
a3b1
a3b1
a2b1 +
a3b0
a0b2 +
a2b0
a1b1
a2b0 +
a1b1
a0b1 +
a1b0

38. Case study 1: Implementation of Folded Architecture (Spartan II xc2s2000-5pq208 )
Basic multiplier
Folded multiplier
7.841 12 2 64
7.855 4 32
8.056 16 8
8.129
128
7.003 6
7.202
7.211
6.682
4.367
4.214
4.590
4.580
4.502
4.785
4.898
4.706
3.803
4.105
4.088 1
3.957
Clock period [ns]
Slices used
No. of PEs
Folding factor
Op. length

39. Case study 1: Conclusions
It provides the finding of optimal area-time solution for the given requirements.
Saprtan II “shift register” property was used to relax the constraints caused by relatively large number of lathes in folded architecture.
Generated architecture has kept almost all desirable features of source Bit-Serial architecture. The hardware reduction of active arithmetic elements for the factor N is done at the cost of execution time.

40. Case study 2:
Cellular-phone technology is changing rapidly. There is an increasing number of wireless-communications standards, including variants of the IEEE wireless LAN specification, etc…
Traditionally, devices need a separate chip to work with each standard.
Providers differentiate themselves by offering new features, such as multimedia capabilities.
Providing each feature typically requires a separate chip, or essence, multiple circuitry systems physically joined on a peace of silicon

41. Case study 2:
The additional circuitry adds cost, takes up space, increases power usage in mobile devices, and increase product-design time.

42. Case study 2: Configurable Folded FIR Filter Architecture
The synthesis of configurable folded bit-plane architecture for FIR filtering.
Why?
Wider application area
Finding of suitable A-T tradeoffs
Increasing of versatility of folded systems

43. Case study 2: FIR filtering
Output words {yi} of FIR filter are computed as
where are coefficients while {xi} are input words.
m – coefficient word length,
k – number of taps,
– bit of coefficient (with weight )
n – input word length.
The BPA is obtained by resorting of partial products of different multipliers.

45. Case study 2: Bit-plane FIR filter architecture
highly regular architecture
allows extensive pipelining
regular layout
high computational throughput
truncation of LSBs of intermediate results without any loss of accuracy
programmability of coefficients
[Noll 1986], [Reuver & Klar 1992]

46. Case study 2: DFG for the source BPA for case k=3 and m=4
The DFG for the basic BPA with k=3 and m=4

47. Case study 2: Assignment of folding sets
(Ss , r)
s= p mod k
r= p mod N

48. Case study 2: Assignment of folding sets
Folding set assignment enables the changing of operations in folding sets.
Different operations can be mapped onto the different hardware units in fixed array structure.
There are k folding sets where each folding set contains N operations.
For the coefficients, kc, and the coefficient length, mc, the total number of operations, L, is:
L=kc mc=k N

49. Case study 2: Folding equations and retiming
General form of Folding Equations:
Df (pp+1)=Nw(e)-0+[(p+1) mod N]-[p mod N] = =
The condition Df (UV)  0 is not satisfied for neighboring nodes U and V when for
the position p of node U the following is valid p mod (N-1) = 0 or p mod N = 0.

50. Case study 2: Folding equations and retiming
General form of retiming inequalities:
The general form of solution for r(p) is:
The existence of this solution provides the retiming of DFG and allows the application of folding technique.

51. Case study 2: Graphical representations of retiming
a) kc=1, mc=L;
b) kc=3, mc=L/3

52. Case study 2: Life cycle analysis

53. Case study 2: General allocation table

54. Case study 2: Module for input data entering

55. Case study 2: Folded FIR filter architecture

56. Case study 2: Functional block diagram
k=3, N=4, kc=2 and mc=6

57. Case study 2: Data flow for folded architecture
k=3, N=4, kc =2, mc=6
y0=
20 c00x0
+ 21 c01x0
+22 c02x0
+ 23 c03x0
+24 c04x0
+ 25 c05x0
= c0x0
y1=
20 c10x0
+ 21 c11x0
+22 c12x0
+ 23 c13x0
+24 c14x0
+ 25 c15x0
+20 c00x1
+ 21c01x1
+22c02x1
+ 23 c03x1
+24 c04x1
+ 25 c05x1
= c1x0 +c0x1
y2=
20 c10x1
+ 21 c11x1
+22 c12x1
+ 23 c13x1
+24 c14x1
+ 25 c15x1
+24 c14x1
+ 25 c15x1
+ … + = c1x1+ c0x2
y3=
+ … + = c0x2+ c1x3
20 c00x2
+ 21 c01x2
+22 c02x2
+ 23 c03x2

58. Case study 2: Implementation - Chip occupation as a function of maximal folding factor Nmax (Spartan II xc2s2000-5pq208 )

59. Case study 2: Implementation - Throughput as a function of chosen folding factor

60. Case study 2: Conclusions
Folding set assignment supports the changing of operations in folding sets.
The prerequisites for application of folding technique are satisfied.
Using of proposed folding set assignment, different operations can be mapped onto the different hardware units in the fixed structure array.

61. Case study 2: Conclusions
The derived folded processing array can be configured to perform FIR filtering with different number of taps and length of coefficients.
Synthesized architecture has kept desirable features of source architecture such as extensive pipelining, high regularity, truncation of LSBs of intermediate results without any loss of accuracy.
The number of basic cells is reduced to the number of basic cells in one plane of source architecture.
The obtained folded semi-systolic architecture is presented by DFG, allocation table, and data flow diagram.
