1. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 1 AllFusion Endevor Batch Migration Appendix B

2. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 2 MOVE Elements to QA  After successful Unit Testing, developer can MOVE Elements to QA Stage 1 TEST Stage 2 QA SMPLTESTSMPLPROD Stage 1 EMER Stage 2 PROD MOVE

3. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 3 ------------------ AllFusion Endevor Primary Options Panel ------------------- Option ===> 3 0 DEFAULTS - Specify CA-Endevor ISPF default parameters 1 DISPLAY - Perform Display functions 2 FOREGROUND - Execute Foreground Actions 3 BATCH - Perform Batch Action processing 4 ENVIRONMENT - Define or Modify Environment information 5 PACKAGE - Perform Foreground Package processing 6 BATCH PACKAGE - Perform Batch Package SCL Generation U USER MENU - Display user option menu T TUTORIAL - Display information about Endevor C CHANGES - Display summary of changes for this release of Endevor X EXIT - Exit the Endevor dialog Current environment: SMPLTEST (C) 2005 Computer Associates International, Inc. Use the EXIT option to terminate Endevor MOVE Elements to QA (continued)

4. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 4 BATCH -------------------- BATCH OPTIONS MENU ------------------------ OPTION ===> 1 1 BUILD SCL - Build batch SCL actions 2 EDIT - Edit request data set 3 SUBMIT - Submit job for batch processing 4 VALIDATE - Check request data set for syntax errors 5 BUILD JCL - Enter additional JCL to be included with the job REQUEST DATA SET: PROJECT ===> CLCS APPEND ===> N (Y/N) GROUP ===> userid INCLUDE JCL ===> N (Y/N) TYPE ===> NDVR STOPRC ===> 16(RC to stop next actions MEMBER ===> SCLMOVE <<< This field is for the scl only OTHER PARTITIONED OR SEQUENTIAL DATA SET: DSNAME ===> JOB STATEMENT INFORMATION: ===> //useridA JOB (000000000),'CLASS',MSGCLASS’=X,CLASS=A,NOTIFY=userid ===> MOVE Elements to QA (continued)

5. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 5 --------------------------- SCL GENERATION --------------------------- OPTION ===> 5 1 DISPLAY - Display an element 2 ADD/UPDATE - Add or update an element into stage 1 3 RETRIEVE - Retrieve or copy an element 4 GENERATE - Execute the Generate Processor for this element 5 MOVE - Move an element to the next inventory location 6 DELETE - Delete an element 7 PRINT ELEMENT - Print elements, changes and detail change history 8 SIGNIN - Explicitly sign-in an element 9 TRANSFER - Transfer elements between two Endevor locations 10 PRINT MEMBER - Print a compressed listing or member 11 LIST ELEMENT - Create List actions for Endevor elements 12 LIST MEMBER - Create List actions for external members 13 ARCHIVE - Archive elements REQUEST DATA SET: CLCS.userid.NDVR(SCLMOVE) APPEND: N MOVE Elements to QA (continued)

6. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 6 ------------------------------ MOVE ELEMENTS ---------------------------- OPTION ===> O ELEMENT DISPLAY OPTIONS: blank - Element list S - Summary B - Browse H - History O - Move element M - Master C - Changes FROM CA-Endevor: ACTION OPTIONS: ENVIRONMENT ===> SMPLTEST CCID ===> userid SYSTEM ===> FINANCE SYNC ===> N (Y/N) SUBSYSTEM ===> ACCTREC WITH HISTORY ===> N (Y/N) ELEMENT ===> RETAIN SIGNOUT ===> N (Y/N) TYPE ===> SIGNOUT TO ===> STAGE ===> T ACKNOWLEDGE ELM JUMP ===> N (Y/N) T - TEST Q - QA DELETE 'FROM' ELEMENT===> Y (Y/N) COMMENT ===> MOVE ELEMENTS TO QA LIST OPTIONS: DISPLAY LIST ===> Y (Y/N) WHERE CCID EQ ===> userid WHERE PROC GRP EQ ===> BUILD USING MAP ===> N (Y/N) MOVE Elements to QA (continued)

7. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 7 MOVE----------------------- ELEMENT SELECTION LIST ------ ROW 1 TO 4 OF 4 COMMAND ===> SCROLL ===> PAGE ELEMENT TYPE ENVIRON S SYSTEM SUBSYSTEM VV.LL RC O FINARP10 COBOL SMPLTEST T FINANCE ACCTREC 01.01 0000 FINARP02 COBOL SMPLTEST T FINANCE ACCTREC 01.00 0000 FINARP03 COBOL SMPLTEST T FINANCE ACCTREC 01.03 0012 O HEADER10 COPY SMPLTEST T FINANCE ACCTREC 01.01 0000 MOVE Elements to QA (continued)

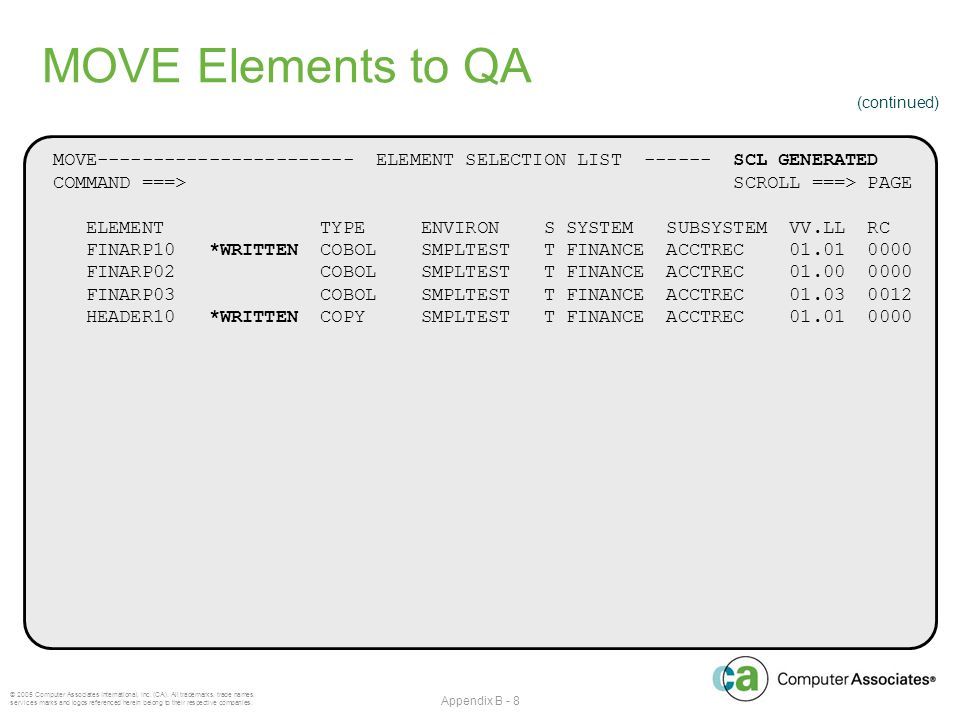

8. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 8 MOVE----------------------- ELEMENT SELECTION LIST ------ SCL GENERATED COMMAND ===> SCROLL ===> PAGE ELEMENT TYPE ENVIRON S SYSTEM SUBSYSTEM VV.LL RC FINARP10 *WRITTEN COBOL SMPLTEST T FINANCE ACCTREC 01.01 0000 FINARP02 COBOL SMPLTEST T FINANCE ACCTREC 01.00 0000 FINARP03 COBOL SMPLTEST T FINANCE ACCTREC 01.03 0012 HEADER10 *WRITTEN COPY SMPLTEST T FINANCE ACCTREC 01.01 0000 MOVE Elements to QA (continued)

9. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 9 BATCH ---------------- BATCH OPTIONS MENU ---------------------------- OPTION ===> 2 1 BUILD SCL - Build batch SCL actions 2 EDIT - Edit request data set 3 SUBMIT - Submit job for batch processing 4 VALIDATE - Check request data set for syntax errors 5 BUILD JCL - Enter additional JCL to be included with the job REQUEST DATA SET: PROJECT ===> CLCS APPEND ===> N (Y/N) GROUP ===> userid INCLUDE JCL ===> N (Y/N) TYPE ===> NDVR MEMBER ===> SCLMOVE <<< This field is for the scl only OTHER PARTITIONED OR SEQUENTIAL DATA SET: DSNAME ===> JOB STATEMENT INFORMATION: ===> //useridA JOB (000000000),MSGCLASS=X,CLASS=A,NOTIFY=userid ===> View SCL Created

10. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 10 EDIT - CLCS.userid.NDVR(SCLMOVE)--------------------------COLUMNS 001 072 COMMAND ===> SCROLL ===> CSR ******************************** TOP OF DATA **************************** 000001 MOVE ELEMENT 'FINARP10' 000002 FROM ENVIRONMENT 'SMPLTEST' SYSTEM 'FINANCE' SUBSYSTEM 'ACCTREC' 000003 TYPE 'COBOL' STAGE T 000004 OPTIONS CCID 'userid' COMMENTS 'MOVE ELEMENTS TO QA' 000005. 000006 MOVE ELEMENT 'HEADER10' 000007 FROM ENVIRONMENT 'SMPLTEST' SYSTEM 'FINANCE' SUBSYSTEM 'ACCTREC' 000008 TYPE 'COPY' STAGE T 000009 OPTIONS CCID 'userid' COMMENTS 'MOVE ELEMENTS TO QA' 000010. ******************************* BOTTOM OF DATA ************************** View SCL Created (continued)

11. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 11 BATCH ------------------ BATCH OPTIONS MENU -------------------------- OPTION ===> 3 1 BUILD SCL - Build batch SCL actions 2 EDIT - Edit request data set 3 SUBMIT - Submit job for batch processing 4 VALIDATE - Check request data set for syntax errors 5 BUILD JCL - Enter additional JCL to be included with the job REQUEST DATA SET: PROJECT ===> CLCS APPEND ===> N (Y/N) GROUP ===> userid INCLUDE JCL ===> N (Y/N) TYPE ===> NDVR MEMBER ===> SCLMOVE <<< This field is for the scl only OTHER PARTITIONED OR SEQUENTIAL DATA SET: DSNAME ===> JOB STATEMENT INFORMATION: ===> //useridA JOB (000000000),MSGCLASS=X,CLASS=A,NOTIFY=userid ===> Submit Batch Request

12. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 12 Module Activity Create SCL to MOVE Elements to QA  Purpose -Create SCL to MOVE Elements to QA  Procedure 1.Create SCLMOVE member in your dataset. a.MOVE both Elements from TEST using LIST OPTION- where CCID EQ to your userid. 2.Edit SCL to ensure that SCL for both Elements are contained in the request and validate SCL to ensure correct syntax. 3.Submit Batch Request.

13. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 13 Module Activity 4.View Batch Execution Log. 5.View Element and Component List for your program. (continued)

14. © 2005 Computer Associates International, Inc. (CA). All trademarks, trade names, services marks and logos referenced herein belong to their respective companies. Appendix B - 14 Hidden Slide
