1. Workbench Training Learning to use the Workbench. Department of Public Welfare Information Systems Application Development and Delivery

2. Introduction Workbench Background Maintenance Teams use many utilities in their day to day development activities. These utilities have their limitations. They did not provide for any type of version control. They were limited to their teams use.

3. Agenda Overview Terminology Interface Administration Main Menu Compile Screens ATMS Reports This presentation will cover the following topics:

4. Common Procedures After a brief overview of the workbench and the screens. There will be a walk through of the following common steps: Registration Checkout Compiling Checkin Migration Screens

5. Overview The workbench provides a solution that is independent of an application and dynamic enough for future changes. The following slides will provide enough background to understand the development procedures and how to do them utilizing the workbench.

6. Terminology Environment: A defined domain for the execution of Software. Registration: A profile of the software. Repository: A master copy of the software. Compile: Executing the necessary system utilities to create an executable. Migration: Transfer of source from the repository to a specified environment.

7. Interface White text is display only Blue fields are data entry fields. Green fields are transmit positions.

8. Common Screen Fields Registration is the process of adding the unique information for a program, proc, screen or environment Version control is the process of checkin or checkout for the purpose of identifying work in progress and keeping source versions. Migration refers to the transfer of programs, procs or screens from the workbench to a target environment

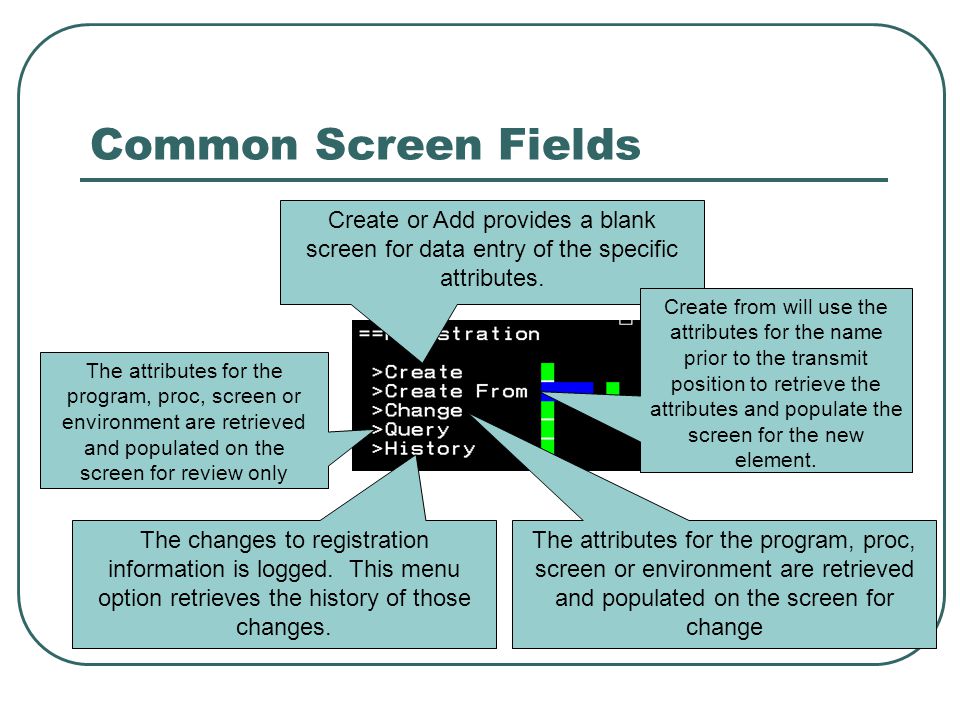

9. Common Screen Fields Create or Add provides a blank screen for data entry of the specific attributes. Create from will use the attributes for the name prior to the transmit position to retrieve the attributes and populate the screen for the new element. The attributes for the program, proc, screen or environment are retrieved and populated on the screen for change The attributes for the program, proc, screen or environment are retrieved and populated on the screen for review only The changes to registration information is logged. This menu option retrieves the history of those changes.

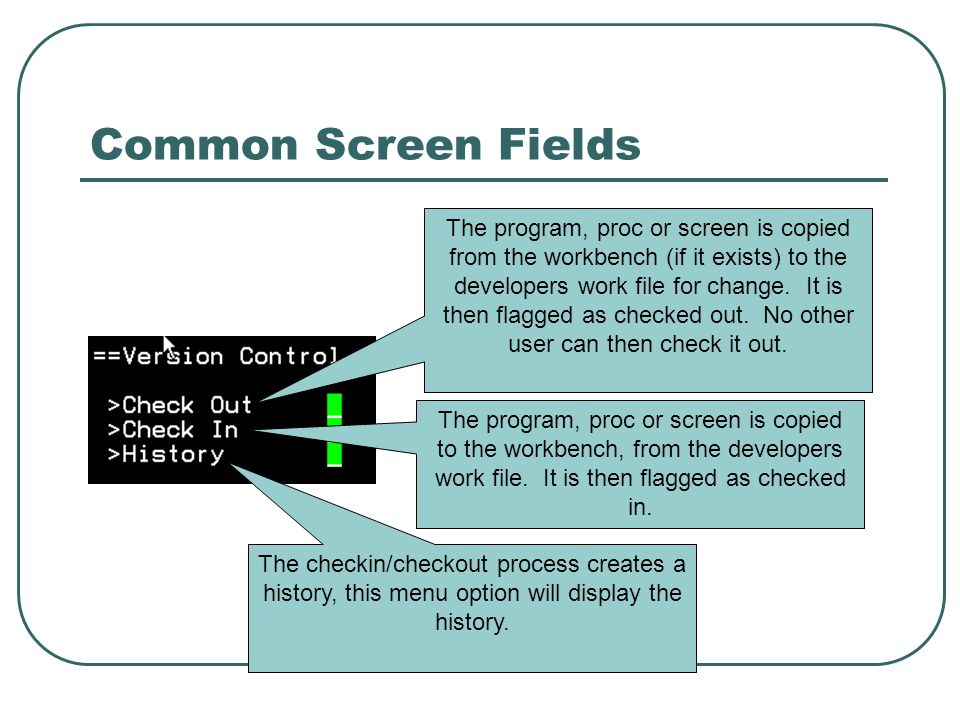

10. Common Screen Fields The program, proc or screen is copied from the workbench (if it exists) to the developers work file for change. It is then flagged as checked out. No other user can then check it out. The program, proc or screen is copied to the workbench, from the developers work file. It is then flagged as checked in. The checkin/checkout process creates a history, this menu option will display the history.

11. Common Screen Fields This is used to transfer a proc or screen from the workbench repository to a selected environment The history of migrations for the entered program, proc or screen

12. Function Keys Depress F1 after positioning the cursor on any field for help on that field. Depress F3 for a description of any screen Depress F8 on any screen to terminate that screen. If on a menu, the program will terminate Depress F2 on the BWBS16 screen to create a quick file of the source listed during that process.

13. Workbench Administration Severely Limited individual Access Define Environments Define Users Delete PROCS/Programs Pack Files

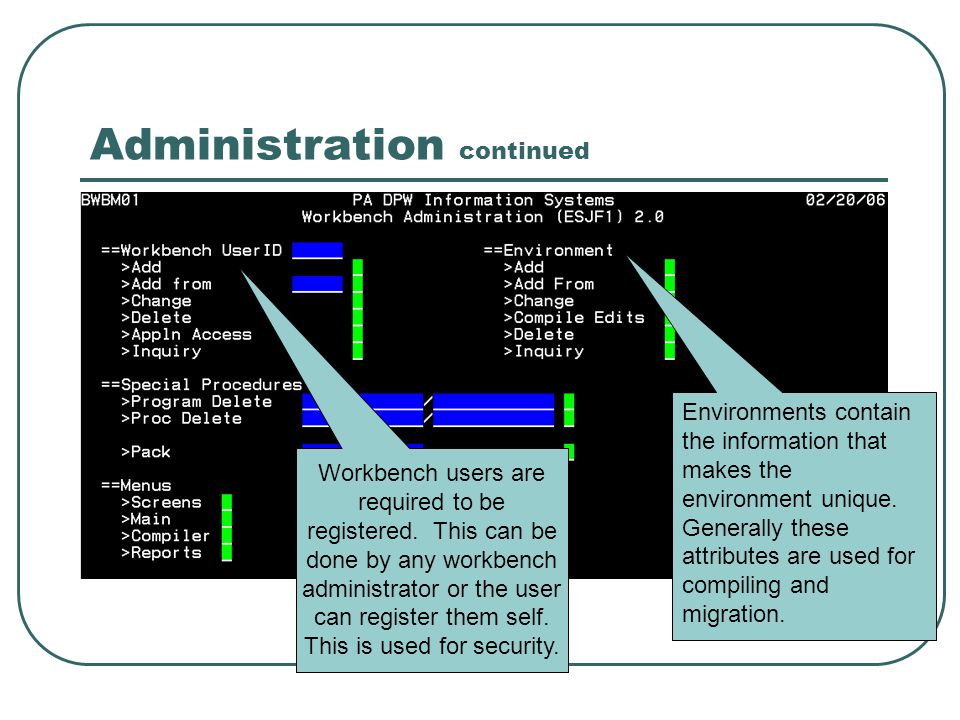

14. Administration continued Environments contain the information that makes the environment unique. Generally these attributes are used for compiling and migration. Workbench users are required to be registered. This can be done by any workbench administrator or the user can register them self. This is used for security.

15. User Administration The only required information on this screen is the name. The rest is optional. The WB Admin, Screen Admin and Version Control Admin fields are only available to WB Administrators.

16. User Environment Access The environments are listed. Enter a Y to give the user rights to that environment for: “G” - Programs “P” - PROCS “S” - Screens

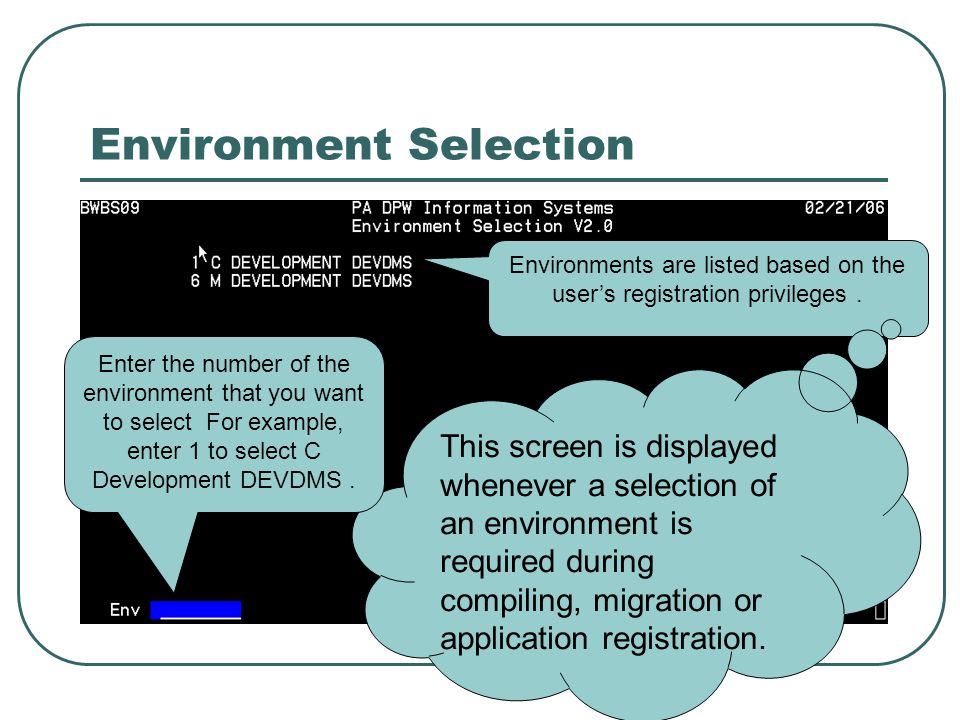

17. Environment Selection Environments are listed based on the user’s registration privileges. This screen is displayed whenever a selection of an environment is required during compiling, migration or application registration. Enter the number of the environment that you want to select For example, enter 1 to select C Development DEVDMS.

18. Environment Registration This screen contains the definition for an environment. Refer to the reference manual or use F1 for the values to enter in each field.

19. Environment Compile Edits During the compile process, the edits entered on this screen are applied to the source prior to compiling. This field is the value that needs changed from. The ~ (tilde) is a wild card. This field is the value that needs changed To. The ~ (tilde) is a wild card. To limit the location of the change in the source. The first example limits the change to columns 1 through 7.

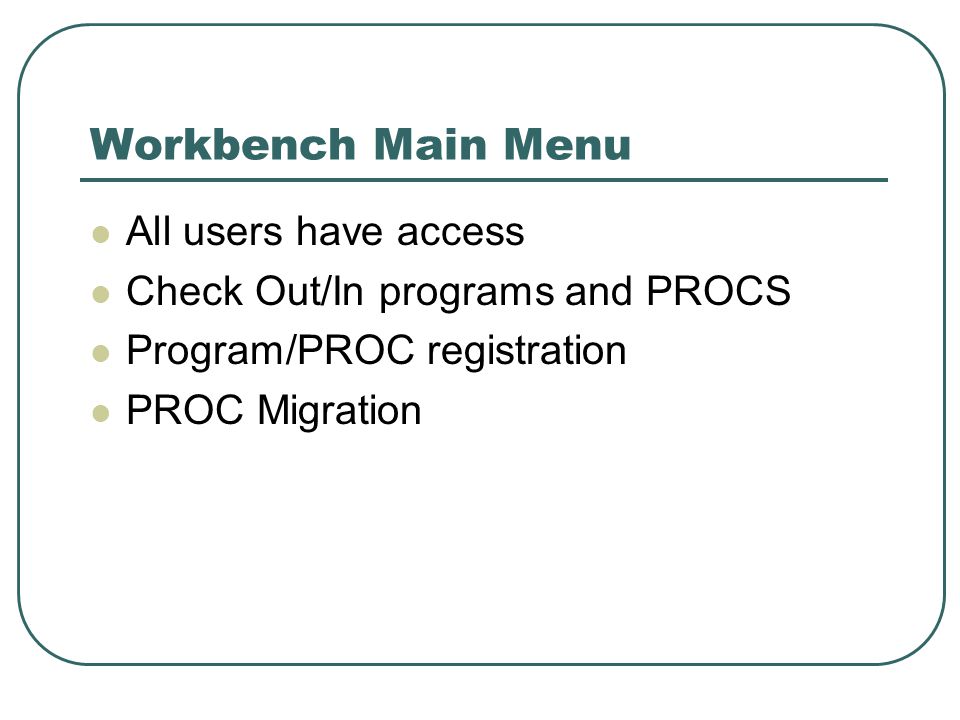

20. Workbench Main Menu All users have access Check Out/In programs and PROCS Program/PROC registration PROC Migration

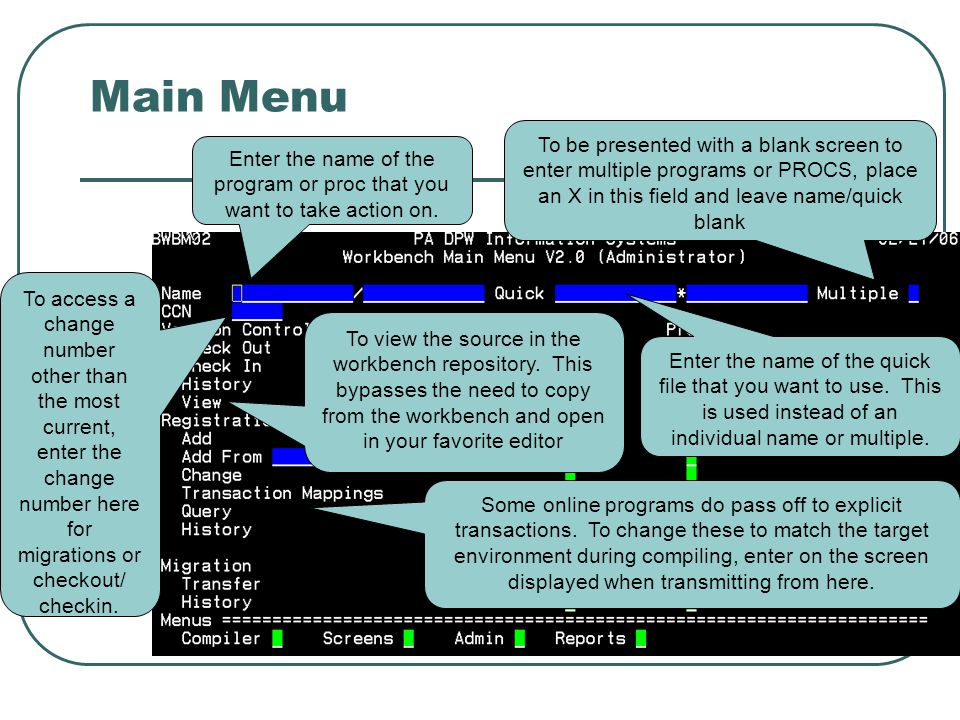

21. Main Menu Enter the name of the program or proc that you want to take action on. Enter the name of the quick file that you want to use. This is used instead of an individual name or multiple. To be presented with a blank screen to enter multiple programs or PROCS, place an X in this field and leave name/quick blank To view the source in the workbench repository. This bypasses the need to copy from the workbench and open in your favorite editor Some online programs do pass off to explicit transactions. To change these to match the target environment during compiling, enter on the screen displayed when transmitting from here. To access a change number other than the most current, enter the change number here for migrations or checkout/ checkin.

22. Check out Enter X to check out the source. Enter X to simply copy the source from the workbench repository. Enter the work file name that you want to have the source placed in.

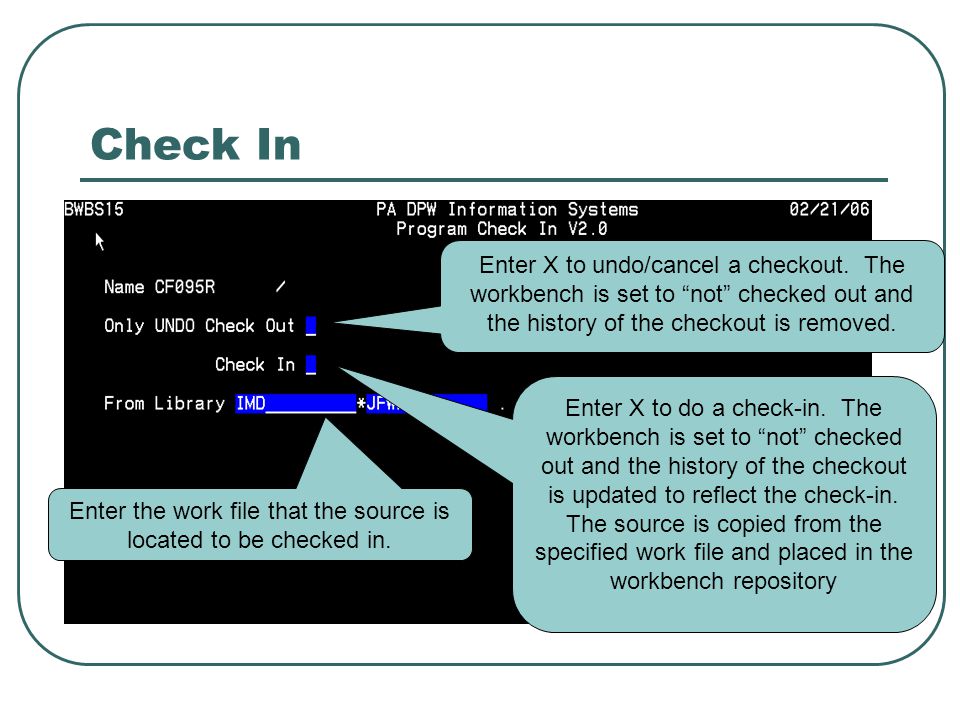

23. Check In Enter X to undo/cancel a checkout. The workbench is set to “not” checked out and the history of the checkout is removed. Enter X to do a check-in. The workbench is set to “not” checked out and the history of the checkout is updated to reflect the check-in. The source is copied from the specified work file and placed in the workbench repository Enter the work file that the source is located to be checked in.

24. Program Registration This screen contains the definition for a program. Refer to the reference manual or use F1 for the values to enter in each field.

25. Transaction Mappings Enter the transactions that you want changed when compiling for any environment EXCEPT production.

26. PROC Registration This screen contains the definition for a proc. Refer to the reference manual or use F1 for the values to enter in each field.

27. Compiler Menu All users have access Compile programs for development Compile programs for migration

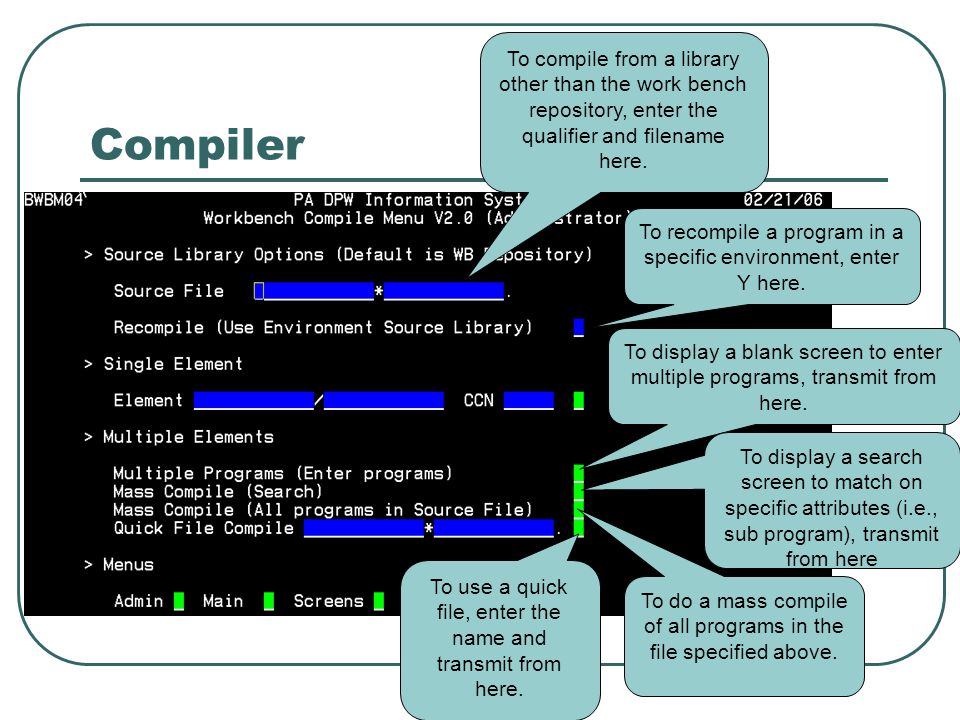

28. Compiler To compile from a library other than the work bench repository, enter the qualifier and filename here. To recompile a program in a specific environment, enter Y here. To display a blank screen to enter multiple programs, transmit from here. To display a search screen to match on specific attributes (i.e., sub program), transmit from here To use a quick file, enter the name and transmit from here. To do a mass compile of all programs in the file specified above.

29. Sample Quick File A sample quick file: @DATA,IQ IMD*MYQUICK. QUICK CF095R QUICK CF140R @EOF

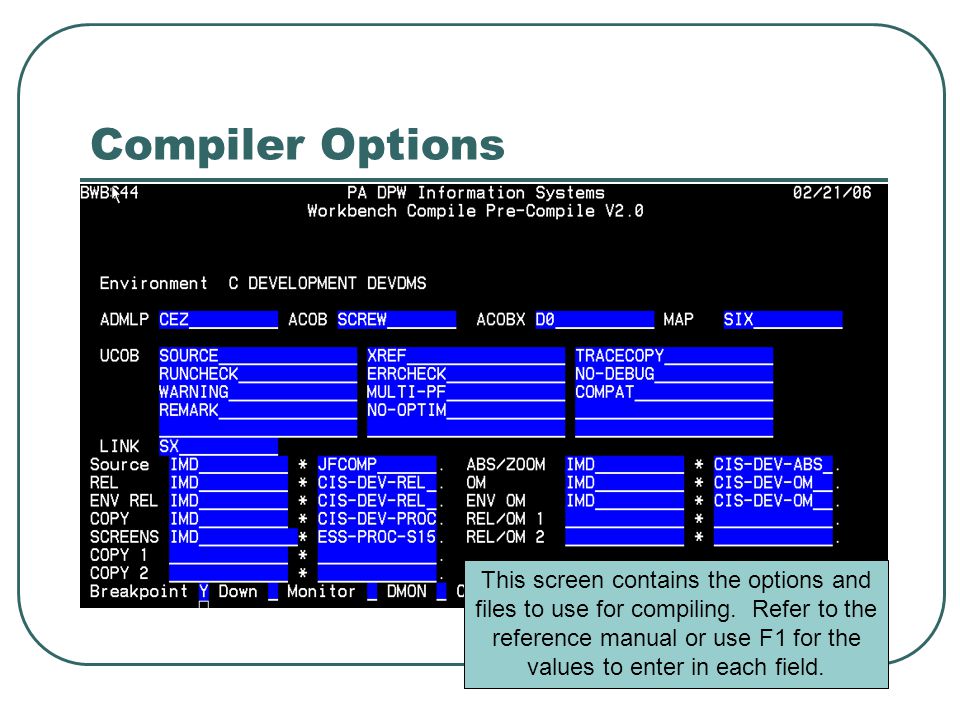

30. Compiler Options This screen contains the options and files to use for compiling. Refer to the reference manual or use F1 for the values to enter in each field.

31. Screens Menu Limited access Check Out/In screens Screen registration Screen Migration Generate WS Print Screen View Screen

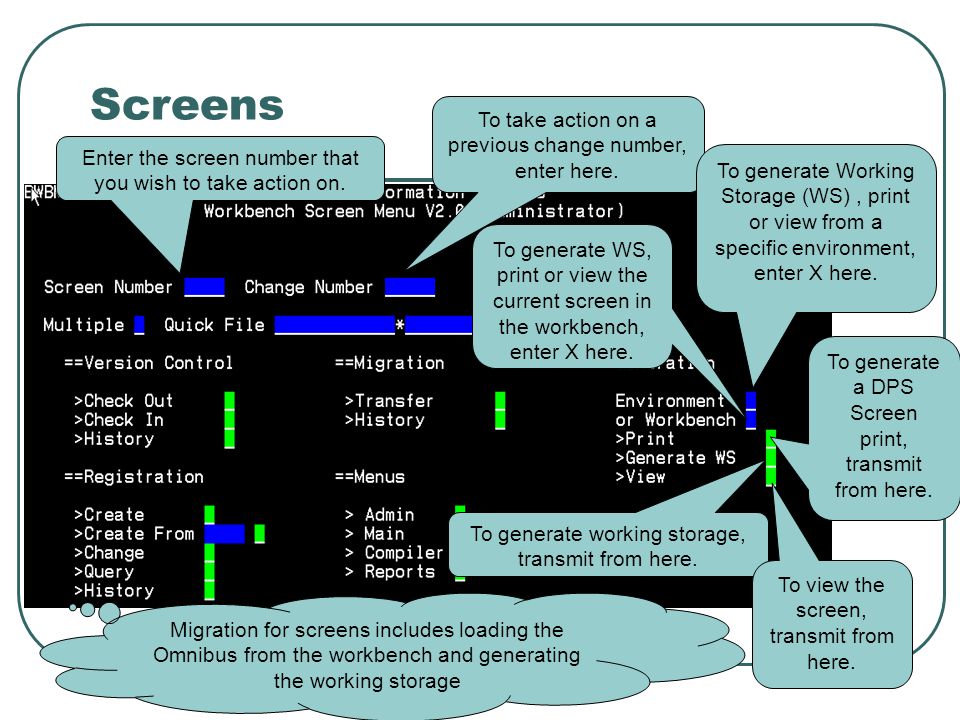

32. Screens Enter the screen number that you wish to take action on. To take action on a previous change number, enter here. To generate Working Storage (WS), print or view from a specific environment, enter X here. To generate WS, print or view the current screen in the workbench, enter X here. To generate a DPS Screen print, transmit from here. To generate working storage, transmit from here. To view the screen, transmit from here. Migration for screens includes loading the Omnibus from the workbench and generating the working storage

33. Screen Checkout Enter X to checkout Enter the work file to copy the omnibus element to.

34. Screen Checkin To undo/cancel a checkout, enter X here Enter the file to check in the omnibus from.

35. Screen Registration This screen contains the registration for screens. Refer to the reference manual or use F1 for the values to enter in each field.

36. ATMS Menu Limited access Migrate an ATMS Quick File

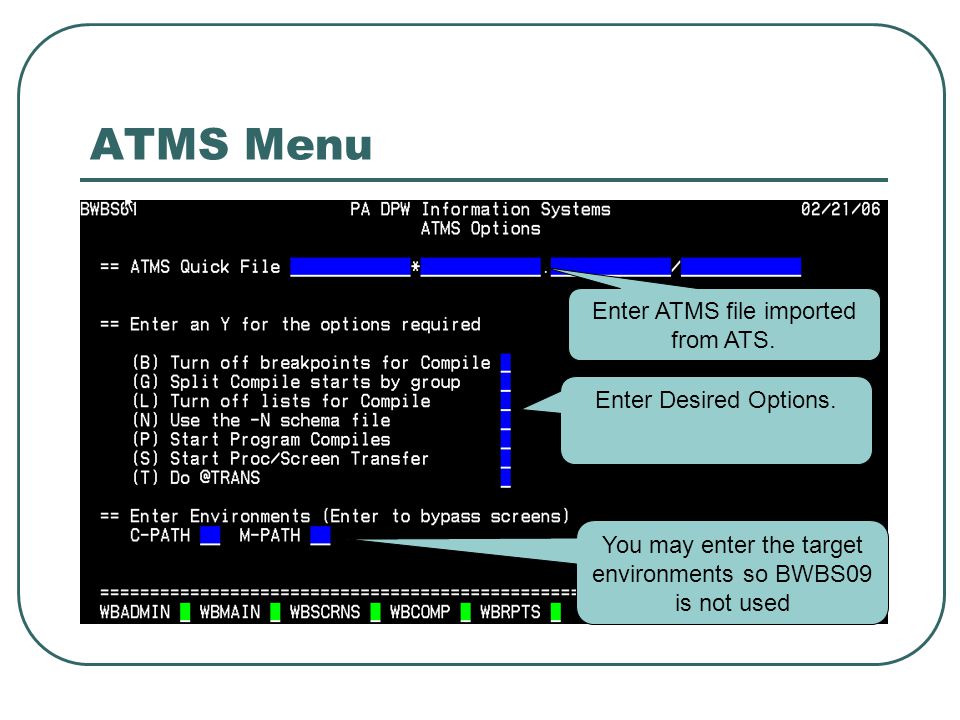

37. ATMS Menu Enter ATMS file imported from ATS. Enter Desired Options. You may enter the target environments so BWBS09 is not used

38. Reports Menu Access restricted to registered users Refer to the Workbench Reference manual for report samples.

39. Reports When requesting a CO/CI report, you can limit the report by dates in these fields When requesting a CO/CI report, you can limit the report to a specific userid When requesting a CO/CI report, you can limit the report to just PROCS, programs or screens. Enter a screen number to get the environment summary report Enter a proc or program name for an environment summary report. Enter a program name for a program summary report

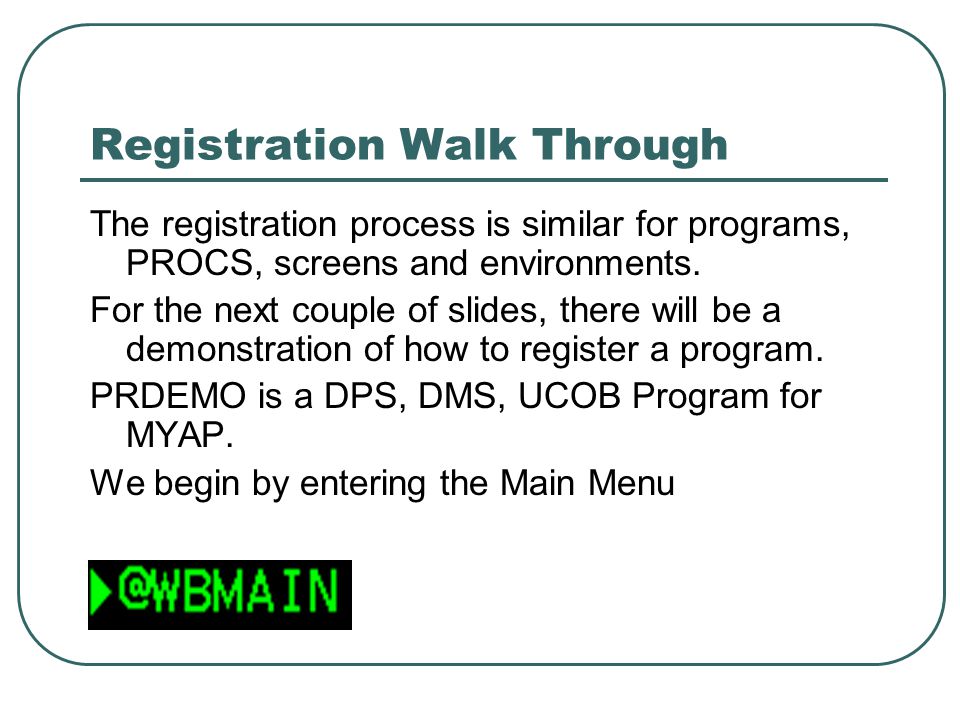

40. Registration Walk Through The registration process is similar for programs, PROCS, screens and environments. For the next couple of slides, there will be a demonstration of how to register a program. PRDEMO is a DPS, DMS, UCOB Program for MYAP. We begin by entering the Main Menu

41. Registration Walk Through Enter the program name Tab to the Add Program field and transmit

42. Registration Continued You are then presented with a blank screen, except for the program name.

43. Registration Continued Enter X for UCOB, DPS and DMS. Enter the subschema name. The keyword CIS is basically added as comment to state that this is a CIS transaction, hit transmit. Without error, you will return to the menu.

44. Check Out Walk Through The check out process is similar for programs, PROCS, screens and environments. For the next couple of slides, there will be a demonstration of how to check out a program. PRDEMO is the program we registered previously. We begin by entering the Main Menu

45. Check Out Walk Through Enter the program name Tab to the Check Out field and transmit

46. Check Out Since this is a new program, there is no source in the WB Repository to copy out to the work file. Enter X to Check Out. Enter the work file to copy the source to. In a new program, proc, etc, no copy will take place

47. History of Check Out The program is now checked out. Here it is reflected in the history.

48. Compile Walk Through The compile process is used to create relocateables, Object-Modules, ZOOM or absolutes based on the program registration. For the next couple of slides, there will be a demonstration of how to compile a program. PRDEMO is the program we registered previously. We begin by entering the Compile Menu:

49. Compile Menu Since we are developing, enter the work file name here Enter the program name here Transmit from here

50. Environment Selection Environments are listed based on the user’s registration privileges. This screen is displayed whenever a selection of an environment is required during compiling, migration or application registration. Enter the number of the environment that you want to select For example, enter 1 to select C Development DEVDMS.

51. Compile Options Change the work file to our work file There are no other files or parameters to change at this time, so transmit.

52. Compile Created and Started You will receive the above messages. There is a tab stop after the @@CONS and the ED,R statements for ease of monitoring and reviewing

53. Check In Walk Through The check in process is similar for programs, PROCS, screens and environments. For the next couple of slides, there will be a demonstration of how to check in a program. PRDEMO is the program we registered previously. We begin by entering the Main Menu

54. Check In Walk Through Enter the program name Tab to the Check In field and transmit

55. Check out Enter X to check in. Enter the work file name that you want to have the source copied from. It should already be the file name you check-out to. Then transmit

56. History of Check In The program is now checked in. Here it is reflected in the history.

57. Migration Walk Through The migration is similar for PROCS, screens and environments. For the next couple of slides, there will be a demonstration of how to Migrate a PROC. AE0001P is a registered PROC We begin by entering the Main Menu

58. Migration Walk Through Enter the PROC name Tab to the PROC Migrate field and transmit

59. Environment Selection Environments are listed based on the user’s registration privileges. This screen is displayed whenever a selection of an environment is required during compiling, migration or application registration. Enter the number of the environment that you want to select For example, enter 1 to select C Development DEVDMS.

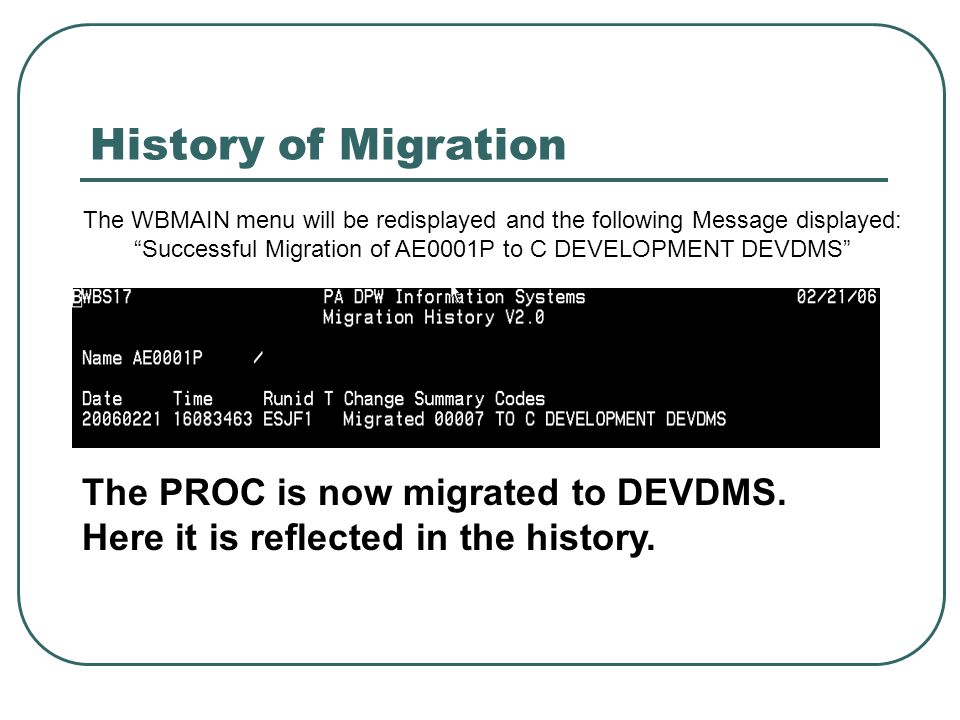

60. History of Migration The PROC is now migrated to DEVDMS. Here it is reflected in the history. The WBMAIN menu will be redisplayed and the following Message displayed: “Successful Migration of AE0001P to C DEVELOPMENT DEVDMS”

61. Screens The process of handling screens is entirely new. The old process used SSG utilities developed specifically for screen files. These were not versatile to handle the flexibility of environments without changing code. The new process is flexible and does not require code changes to handle new environments The following frames are described in more detail for that reason.

62. Screens Previously, screens were changed in the screen file using FORMGN processor. They were migrated from screen file to screen file. The working storage for that environment was generated during the transfer. Now, screens will be developed or changed in a work file. Following the concept of version control established; screens can be checked out and checked in. A history of versions is kept.

63. Screens, omnibus elements? UNISYS DPS allows for the generation of omnibus elements that contain the same information on a screen as that in a screen file. As a matter of fact, using the old process, an omnibus is generated from the originating screen file, then loaded into the target screen file. The workbench takes advantage of the omnibus element. These are kept in the workbench repository by change number.

64. Screens, Workbench Advantages The process of modifying omnibus elements prevents screens being modified in S15 before the program is ready. The migration to S15 can occur when the program is ready. Screens can be viewed through the workbench, this prevents accidental saves when developers view screens. Multiple versions are maintained, rollback is easier than trying to track down a previous screen.

65. Screens, check out Screens are checked out using the same basic Workbench procedures. First we start by entering the screens menu

66. Screens Enter the screen number 1. Transmit from here to check out screen 1

67. Screen Checkout Enter X to checkout Enter the work file to copy the omnibus element to.

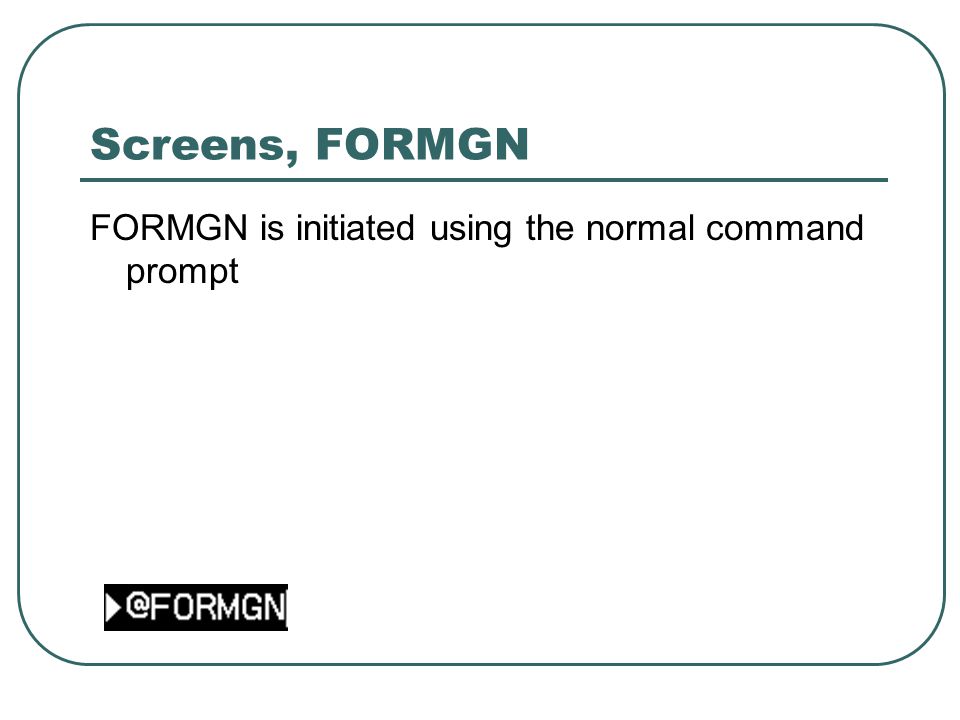

68. Screens, FORMGN FORMGN is initiated using the normal command prompt

69. Screens, FORMGN Options Change the file type to 0 (letter O) Enter your work file and transmit

70. Screens, FORMGN Do the same steps with FORMGN as was done when using a screen file. Modify the layout, change attributes, set colors, etc. As before, do a replace in the FORMGN menu or simply do an F5

71. Screens, check in Screens are checked in using the same basic Workbench procedures. First we start by entering the screens menu

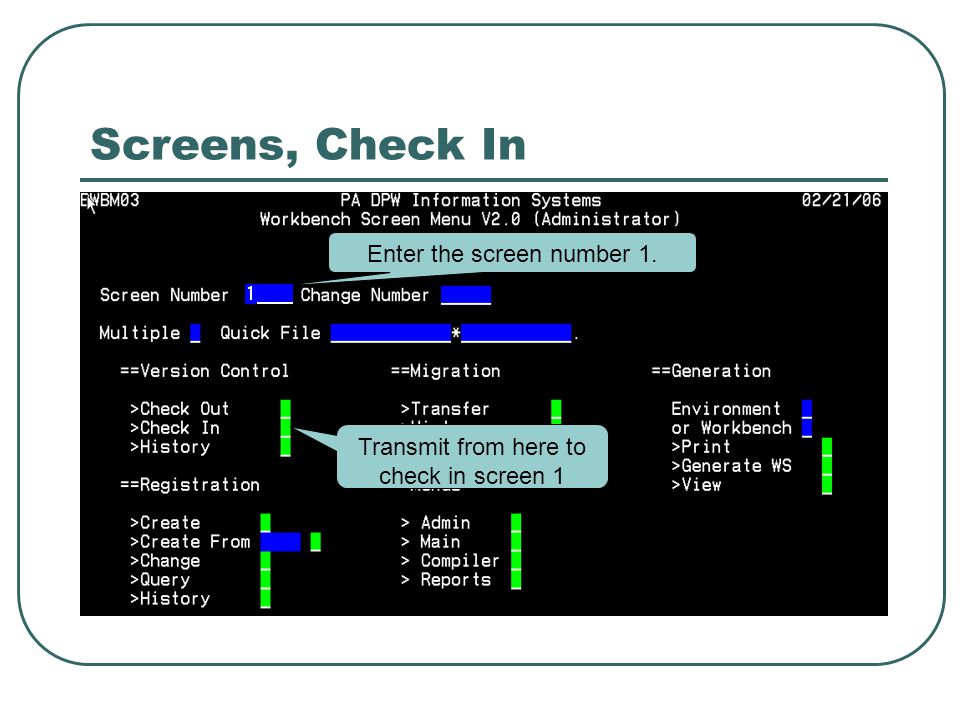

72. Screens, Check In Enter the screen number 1. Transmit from here to check in screen 1

73. Screen Checkin Verify or change the file to check in the omnibus from and transmit.

74. Screen Migration Screen migrations are handled in the typical manner of the workbench. The omnibus element is loaded into the target environment screen file, the working storage is generated and placed in the environment screen PROC file. Begin by enter WBSCRNS

75. Screens, Migration Enter the screen number 1. Transmit from here to migrate screen 1

76. Environment Selection Environments are listed based on the user’s registration privileges. This screen is displayed whenever a selection of an environment is required during compiling, migration or application registration. Enter the number of the environment that you want to select For example, enter 1 to select C Development DEVDMS.

77. Screens, Migration The migration process will complete and display a status of the migration. The migration history screen will reflect the migration. This is useful for verifying that a screen was transferred through the environments.

78. Summary The WB 2.0 reference manual details the workbench. The CIS Maintenance handout is written using the Workbench as an integrated module. This concludes this PowerPoint Presentation.
