1. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 CHAPTER 5 Microelectronic Design Technology

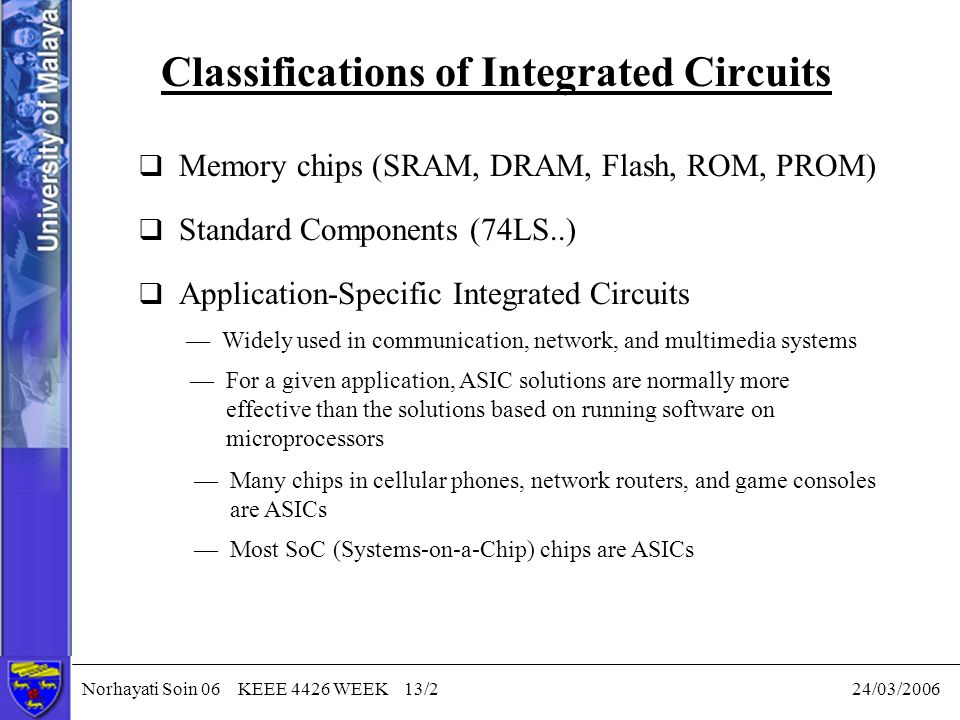

2. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Classifications of Integrated Circuits  Memory chips (SRAM, DRAM, Flash, ROM, PROM)  Standard Components (74LS..)  Application-Specific Integrated Circuits — Widely used in communication, network, and multimedia systems — For a given application, ASIC solutions are normally more effective than the solutions based on running software on microprocessors — Many chips in cellular phones, network routers, and game consoles are ASICs — Most SoC (Systems-on-a-Chip) chips are ASICs

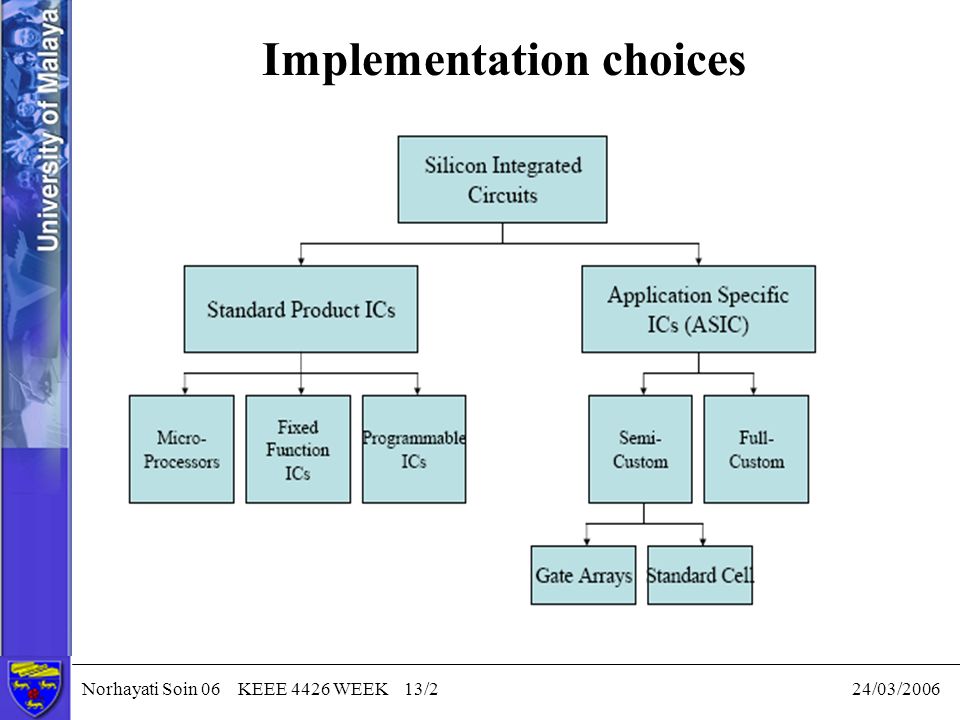

3. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Implementation choices

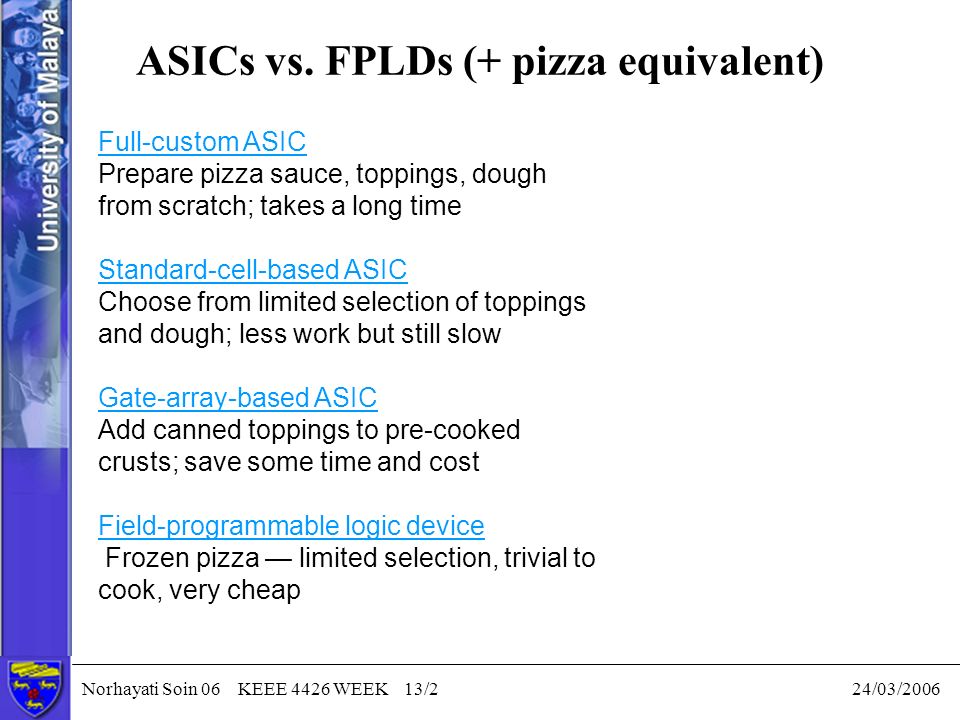

4. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 ASICs vs. FPLDs (+ pizza equivalent) Full-custom ASIC Prepare pizza sauce, toppings, dough from scratch; takes a long time Standard-cell-based ASIC Choose from limited selection of toppings and dough; less work but still slow Gate-array-based ASIC Add canned toppings to pre-cooked crusts; save some time and cost Field-programmable logic device Frozen pizza — limited selection, trivial to cook, very cheap

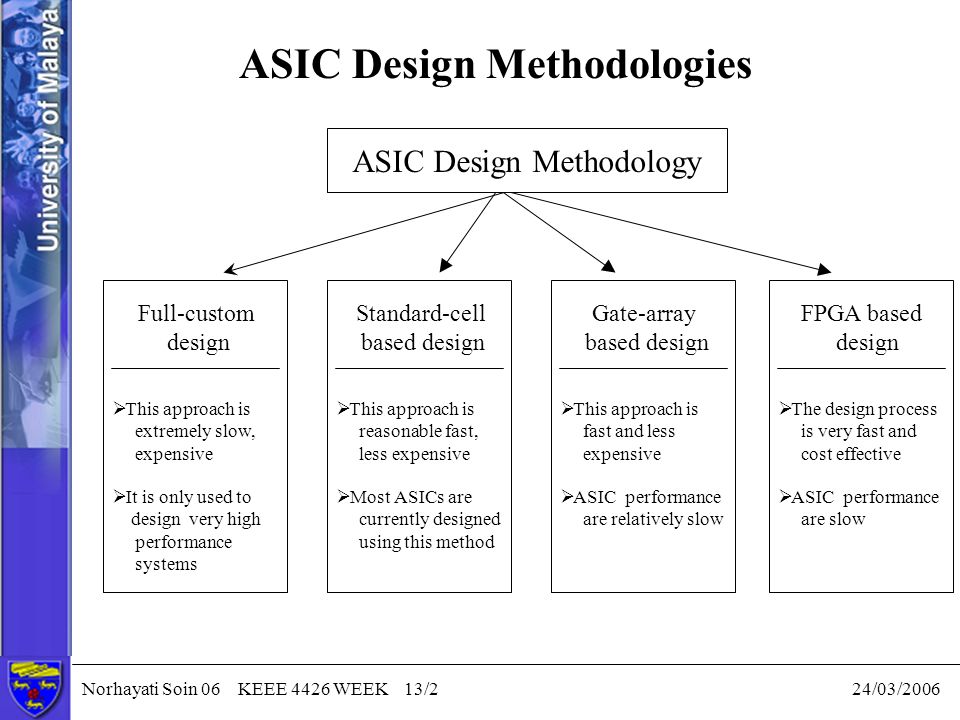

5. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 ASIC Design Methodologies ASIC Design Methodology  This approach is extremely slow, expensive  It is only used to design very high performance systems Full-custom design  This approach is reasonable fast, less expensive  Most ASICs are currently designed using this method Standard-cell based design  This approach is fast and less expensive  ASIC performance are relatively slow Gate-array based design  The design process is very fast and cost effective  ASIC performance are slow FPGA based design

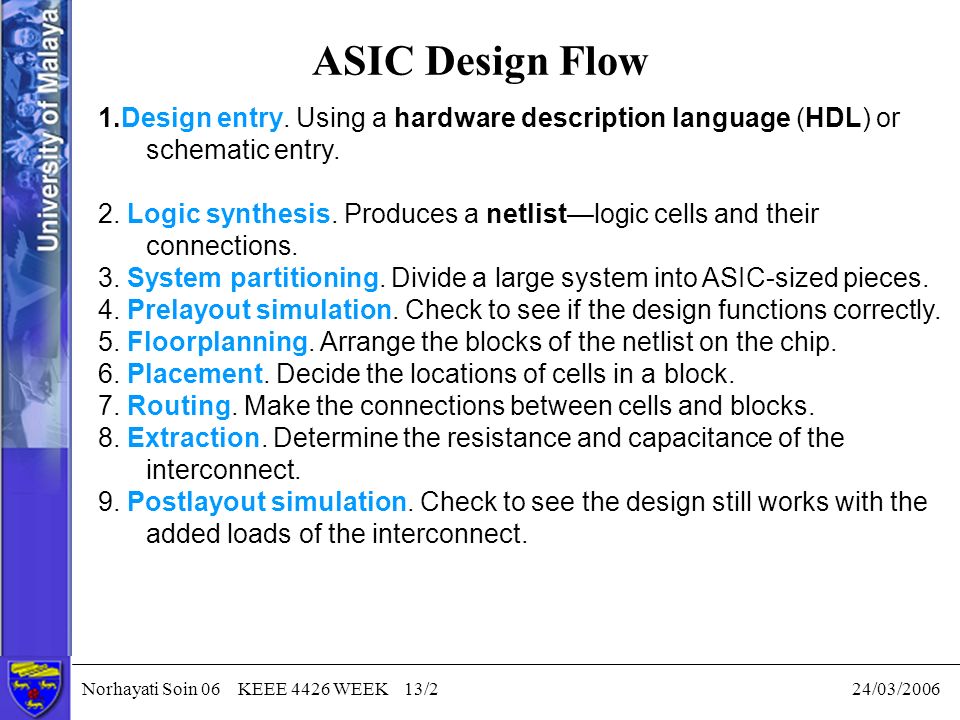

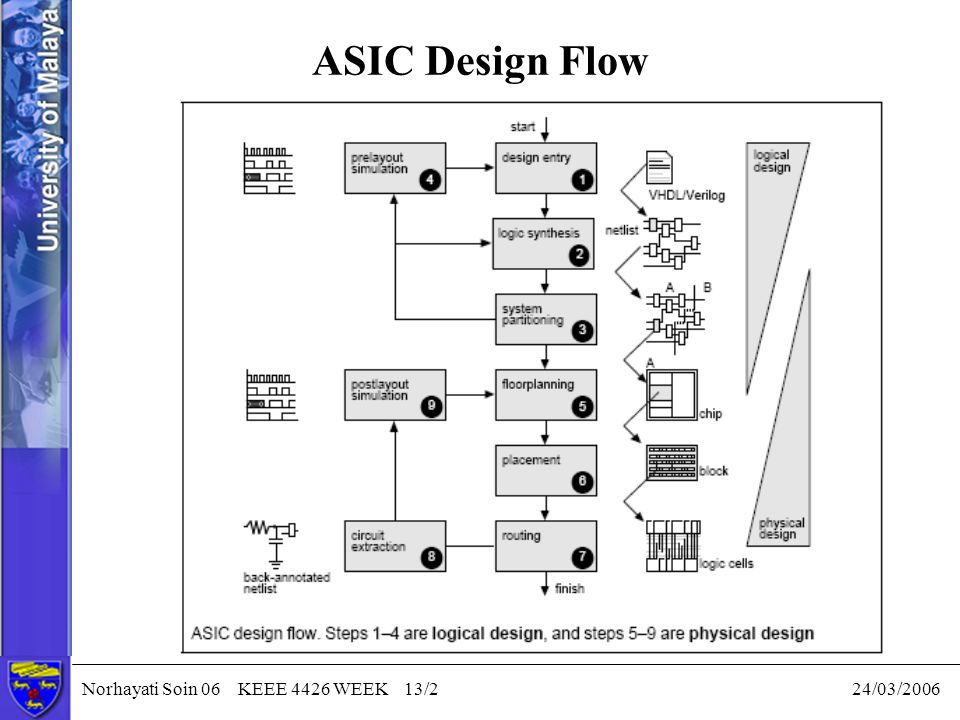

6. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 ASIC Design Flow 1.Design entry. Using a hardware description language (HDL) or schematic entry. 2. Logic synthesis. Produces a netlist—logic cells and their connections. 3. System partitioning. Divide a large system into ASIC-sized pieces. 4. Prelayout simulation. Check to see if the design functions correctly. 5. Floorplanning. Arrange the blocks of the netlist on the chip. 6. Placement. Decide the locations of cells in a block. 7. Routing. Make the connections between cells and blocks. 8. Extraction. Determine the resistance and capacitance of the interconnect. 9. Postlayout simulation. Check to see the design still works with the added loads of the interconnect.

7. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 ASIC Design Flow

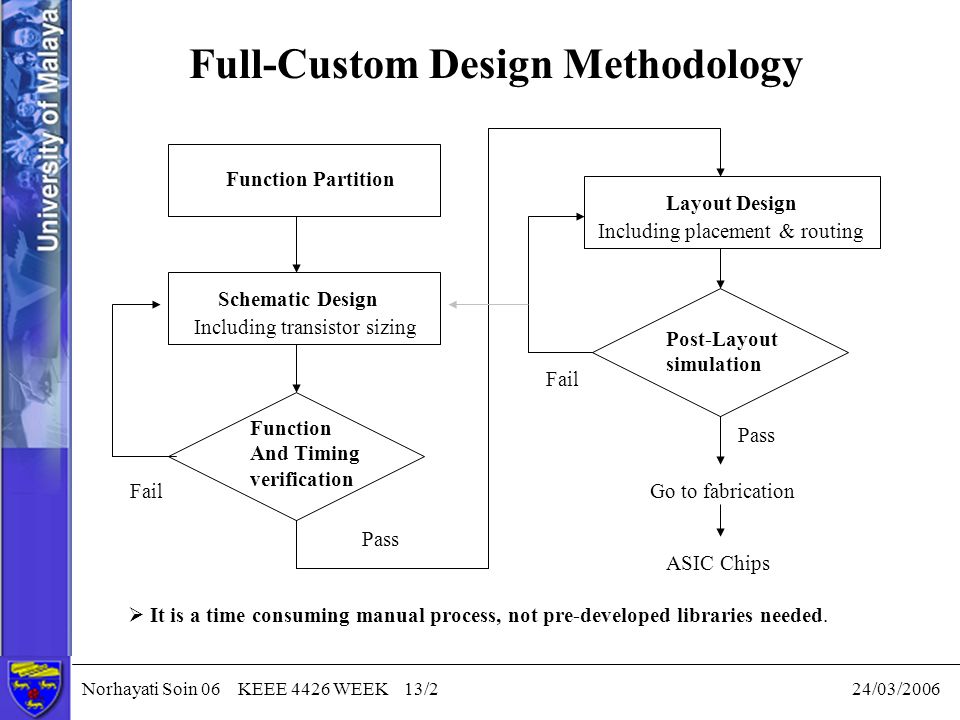

8. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Full-Custom Design Methodology Function Partition Schematic Design Function And Timing verification Pass Fail Including transistor sizing Layout Design Including placement & routing Post-Layout simulation Pass Fail Go to fabrication ASIC Chips  It is a time consuming manual process, not pre-developed libraries needed.

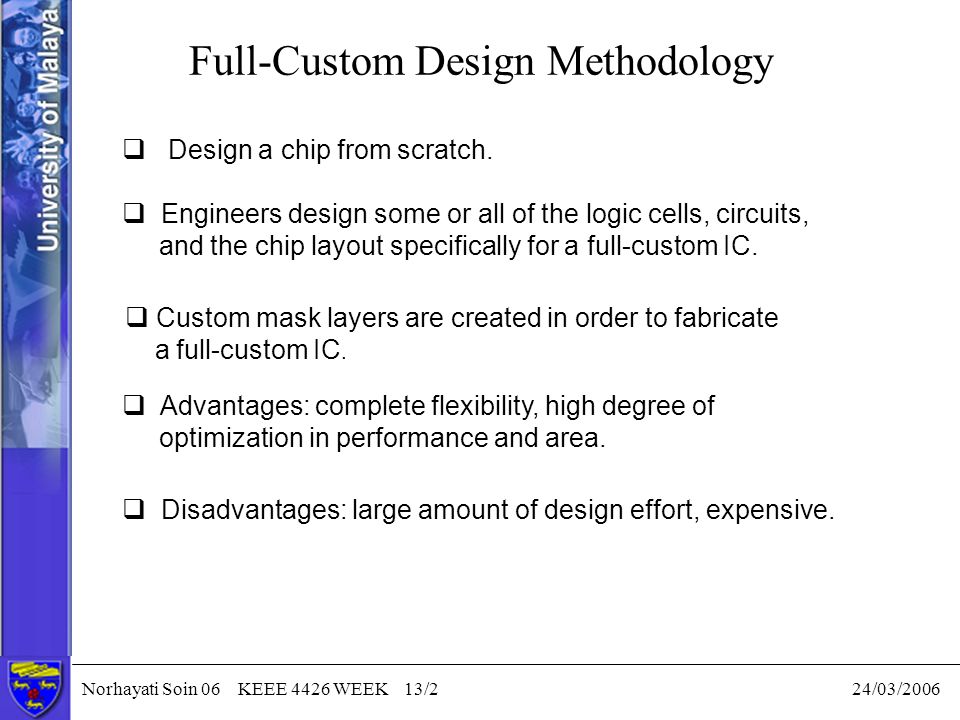

9. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Full-Custom Design Methodology  Design a chip from scratch.  Custom mask layers are created in order to fabricate a full-custom IC.  Engineers design some or all of the logic cells, circuits, and the chip layout specifically for a full-custom IC.  Advantages: complete flexibility, high degree of optimization in performance and area.  Disadvantages: large amount of design effort, expensive.

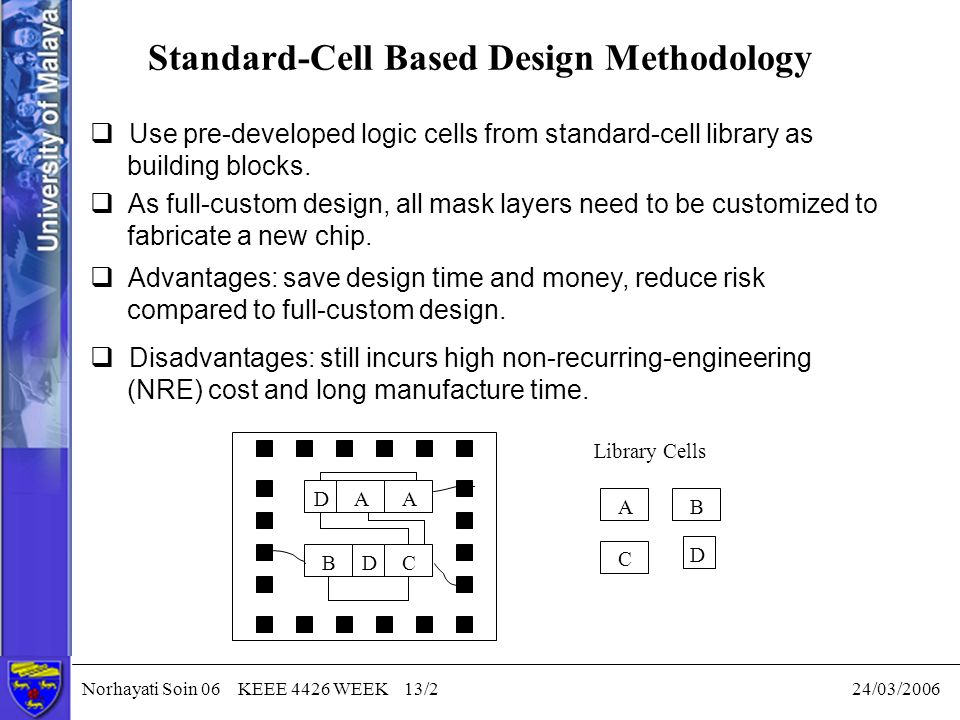

10. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Standard-Cell Based Design Methodology  Use pre-developed logic cells from standard-cell library as building blocks.  As full-custom design, all mask layers need to be customized to fabricate a new chip.  Advantages: save design time and money, reduce risk compared to full-custom design.  Disadvantages: still incurs high non-recurring-engineering (NRE) cost and long manufacture time. A BCD AD Library Cells D AB C

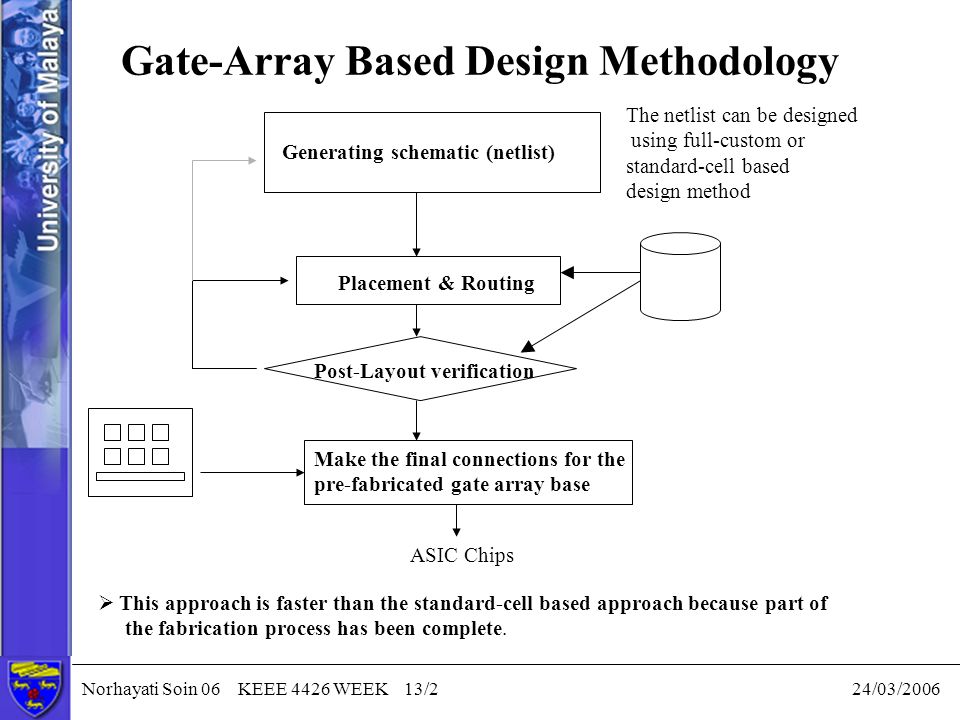

11. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Gate-Array Based Design Methodology Generating schematic (netlist) The netlist can be designed using full-custom or standard-cell based design method Placement & Routing Post-Layout verification Make the final connections for the pre-fabricated gate array base ASIC Chips  This approach is faster than the standard-cell based approach because part of the fabrication process has been complete.

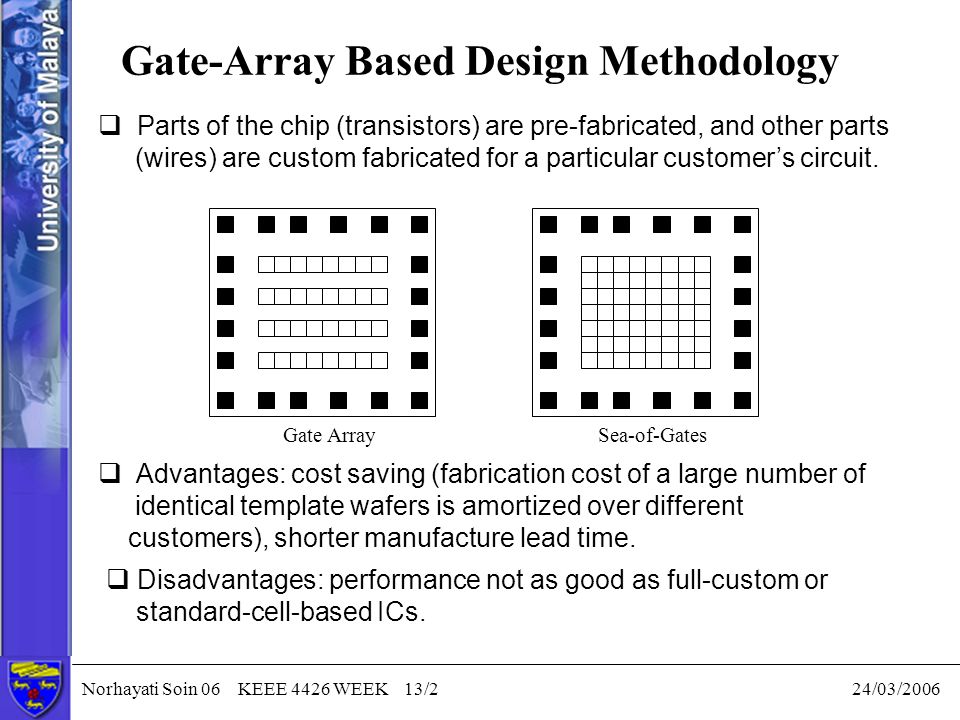

12. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Gate-Array Based Design Methodology

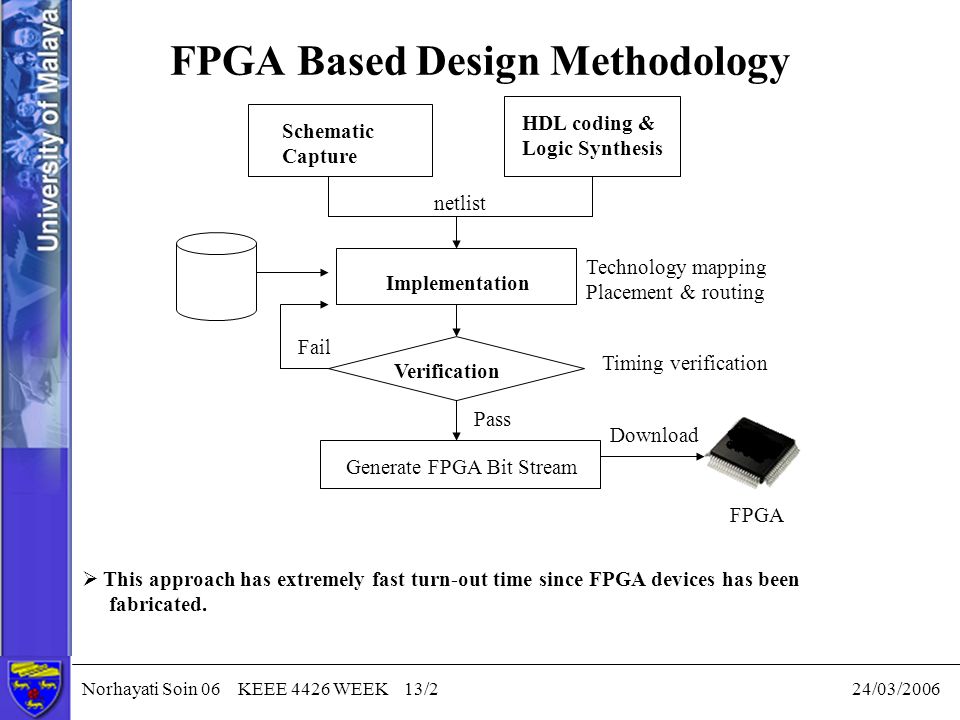

13. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 FPGA Based Design Methodology Schematic Capture HDL coding & Logic Synthesis netlist Implementation Technology mapping Placement & routing Verification Timing verification Pass Fail Generate FPGA Bit Stream Download FPGA  This approach has extremely fast turn-out time since FPGA devices has been fabricated.

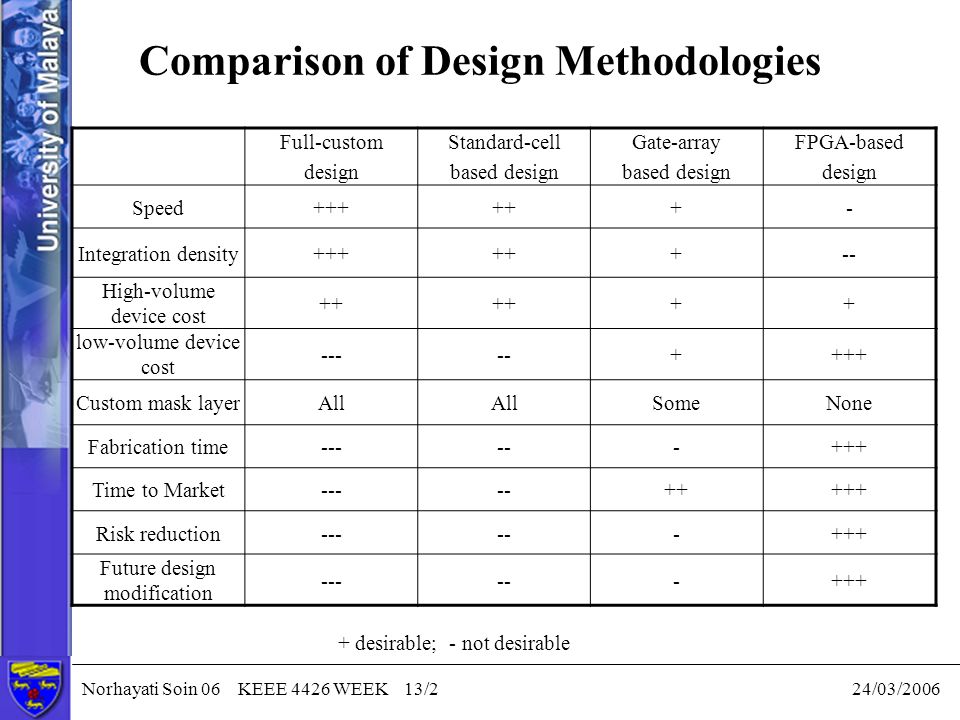

14. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Comparison of Design Methodologies Full-custom design Standard-cell based design Gate-array based design FPGA-based design Speed++++++- Integration density++++++-- High-volume device cost ++ ++ low-volume device cost -----++++ Custom mask layerAll SomeNone Fabrication time------+++ Time to Market-----+++++ Risk reduction------+++ Future design modification ------+++ + desirable; - not desirable

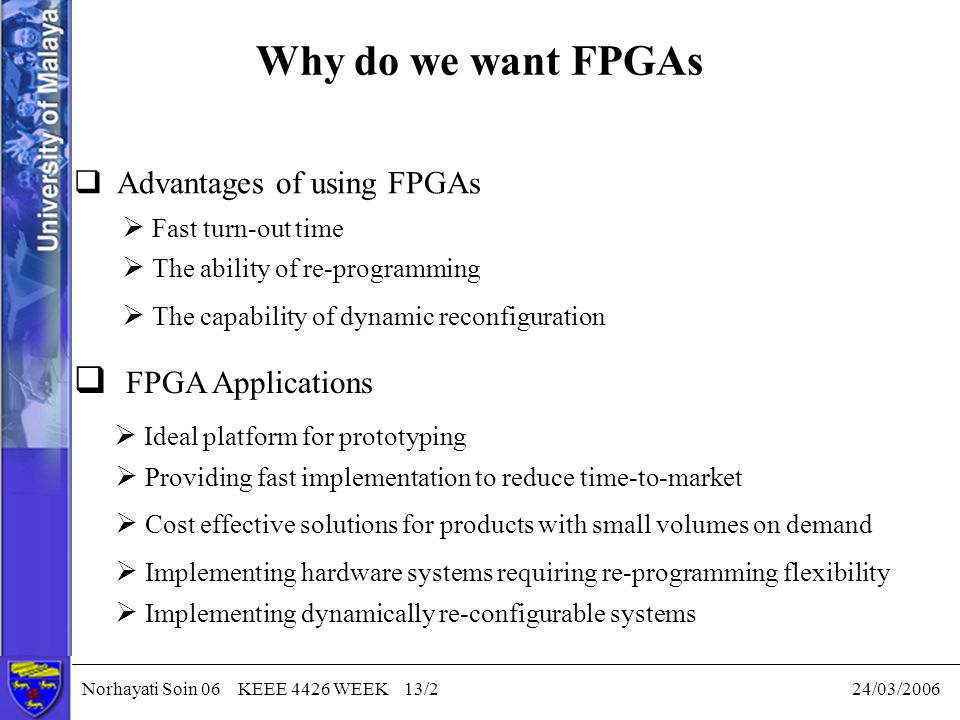

15. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Why do we want FPGAs  Fast turn-out time  The ability of re-programming  The capability of dynamic reconfiguration  Advantages of using FPGAs  FPGA Applications  Ideal platform for prototyping  Providing fast implementation to reduce time-to-market  Cost effective solutions for products with small volumes on demand  Implementing hardware systems requiring re-programming flexibility  Implementing dynamically re-configurable systems

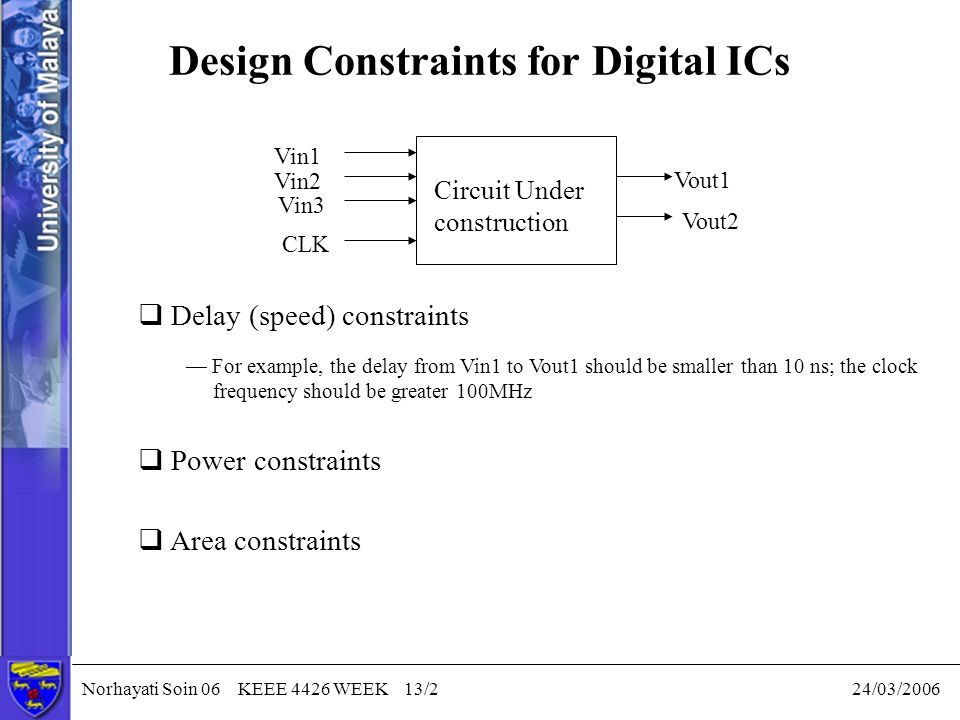

16. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Design Constraints for Digital ICs CLK Vin1 Vin2 Vin3 Vout1 Vout2  Delay (speed) constraints  Power constraints  Area constraints — For example, the delay from Vin1 to Vout1 should be smaller than 10 ns; the clock frequency should be greater 100MHz Circuit Under construction

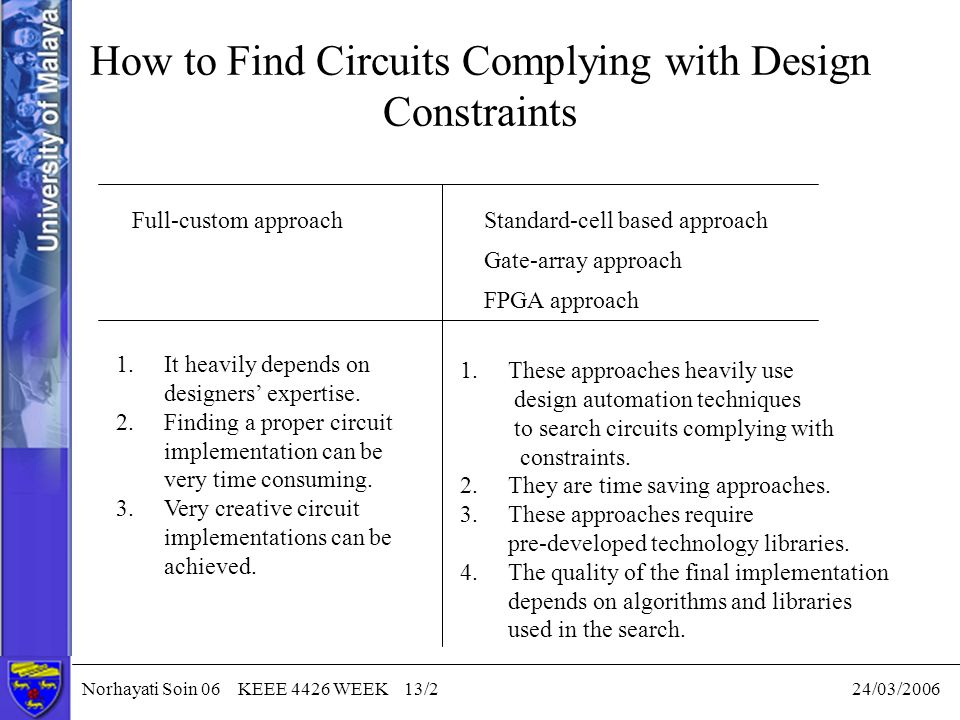

17. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 How to Find Circuits Complying with Design Constraints Full-custom approachStandard-cell based approach Gate-array approach FPGA approach 1.It heavily depends on designers’ expertise. 2.Finding a proper circuit implementation can be very time consuming. 3.Very creative circuit implementations can be achieved. 1.These approaches heavily use design automation techniques to search circuits complying with constraints. 2.They are time saving approaches. 3.These approaches require pre-developed technology libraries. 4.The quality of the final implementation depends on algorithms and libraries used in the search.

18. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Example: How to Search a Proper Circuit Implementation in FPGA Design Flow  Given Logic Function  FPGA Library Components  Design Constraints a b c d e — This circuit is either from schematic capture or from logic synthesis — The library contains five components — Three inverters at size 1, 3, 5 — Two two-input NAND gates at size 1 and 3 — The maximum delay between an input and an output should not exceed 5 ns

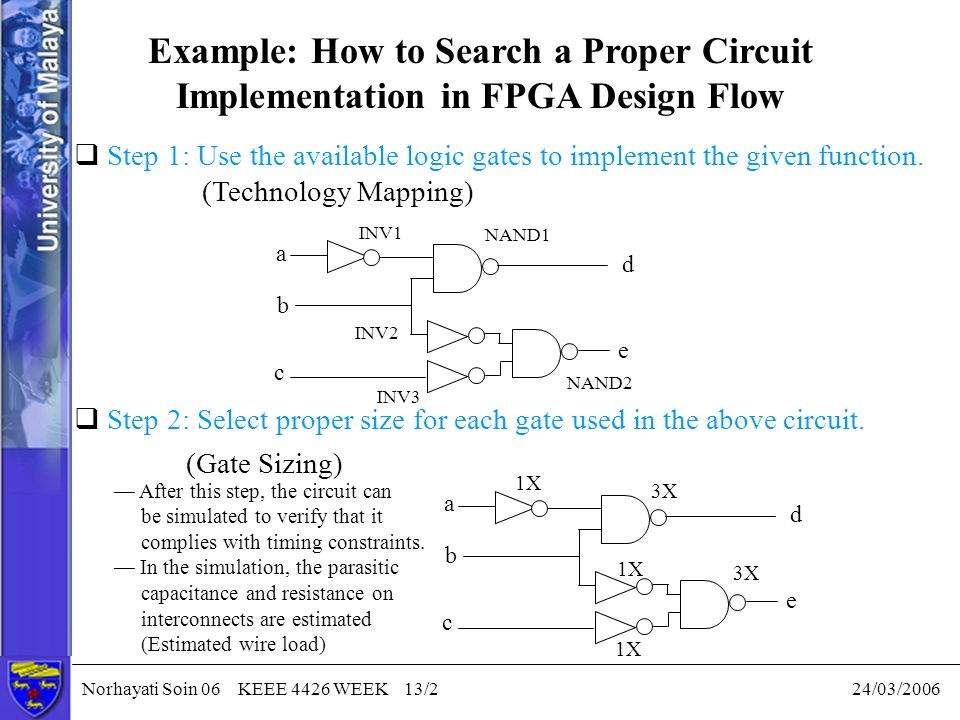

19. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Example: How to Search a Proper Circuit Implementation in FPGA Design Flow  Step 1: Use the available logic gates to implement the given function. (Technology Mapping)  Step 2: Select proper size for each gate used in the above circuit. (Gate Sizing) a b c d e 1X 3X 1X 3X — After this step, the circuit can be simulated to verify that it complies with timing constraints. — In the simulation, the parasitic capacitance and resistance on interconnects are estimated (Estimated wire load) a b c d e INV1 INV2 INV3 NAND1 NAND2

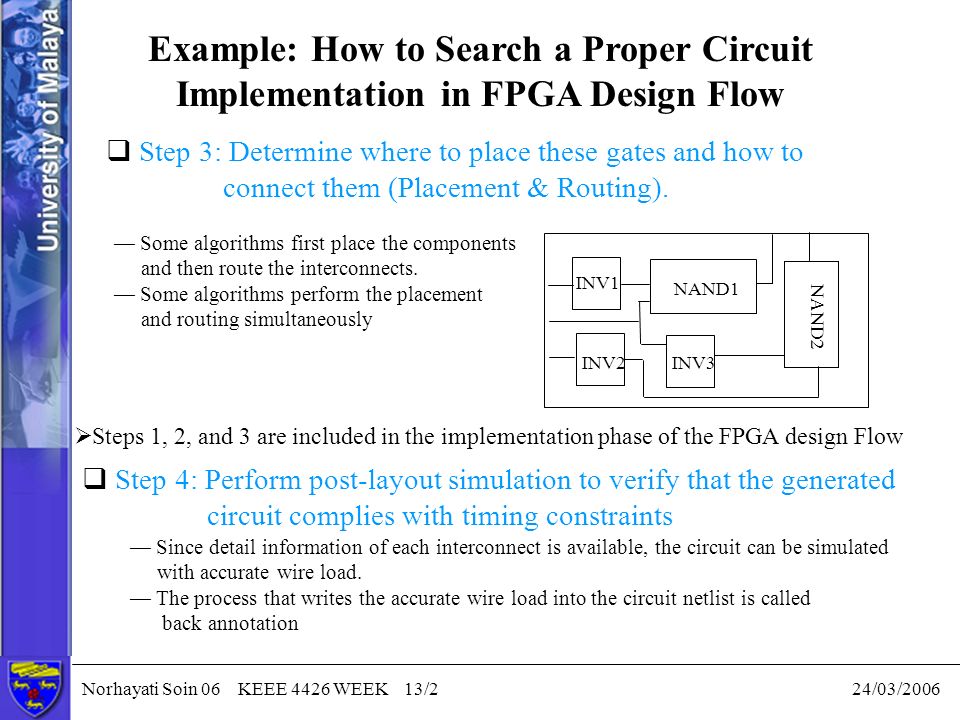

20. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Example: How to Search a Proper Circuit Implementation in FPGA Design Flow  Step 3: Determine where to place these gates and how to connect them (Placement & Routing). INV1 INV2INV3 NAND1 NAND2 — Some algorithms first place the components and then route the interconnects. — Some algorithms perform the placement and routing simultaneously  Steps 1, 2, and 3 are included in the implementation phase of the FPGA design Flow  Step 4: Perform post-layout simulation to verify that the generated circuit complies with timing constraints — Since detail information of each interconnect is available, the circuit can be simulated with accurate wire load. — The process that writes the accurate wire load into the circuit netlist is called back annotation

21. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programmable Logic Devices (PLDs)

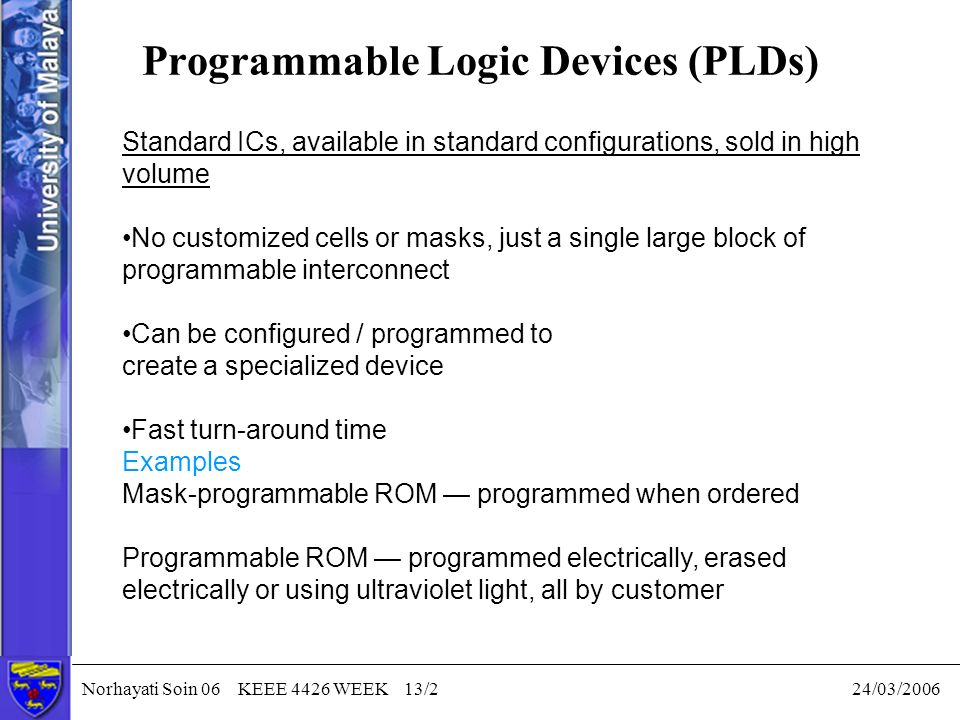

22. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programmable Logic Devices (PLDs) Standard ICs, available in standard configurations, sold in high volume No customized cells or masks, just a single large block of programmable interconnect Can be configured / programmed to create a specialized device Fast turn-around time Examples Mask-programmable ROM — programmed when ordered Programmable ROM — programmed electrically, erased electrically or using ultraviolet light, all by customer

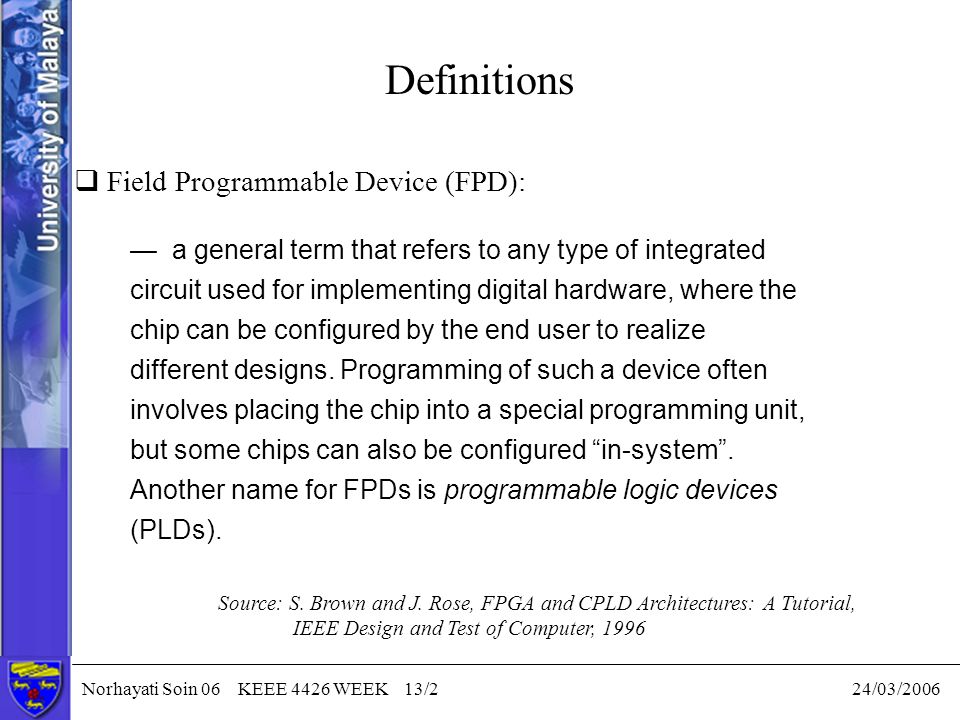

23. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Definitions  Field Programmable Device (FPD): — a general term that refers to any type of integrated circuit used for implementing digital hardware, where the chip can be configured by the end user to realize different designs. Programming of such a device often involves placing the chip into a special programming unit, but some chips can also be configured “in-system”. Another name for FPDs is programmable logic devices (PLDs). Source: S. Brown and J. Rose, FPGA and CPLD Architectures: A Tutorial, IEEE Design and Test of Computer, 1996

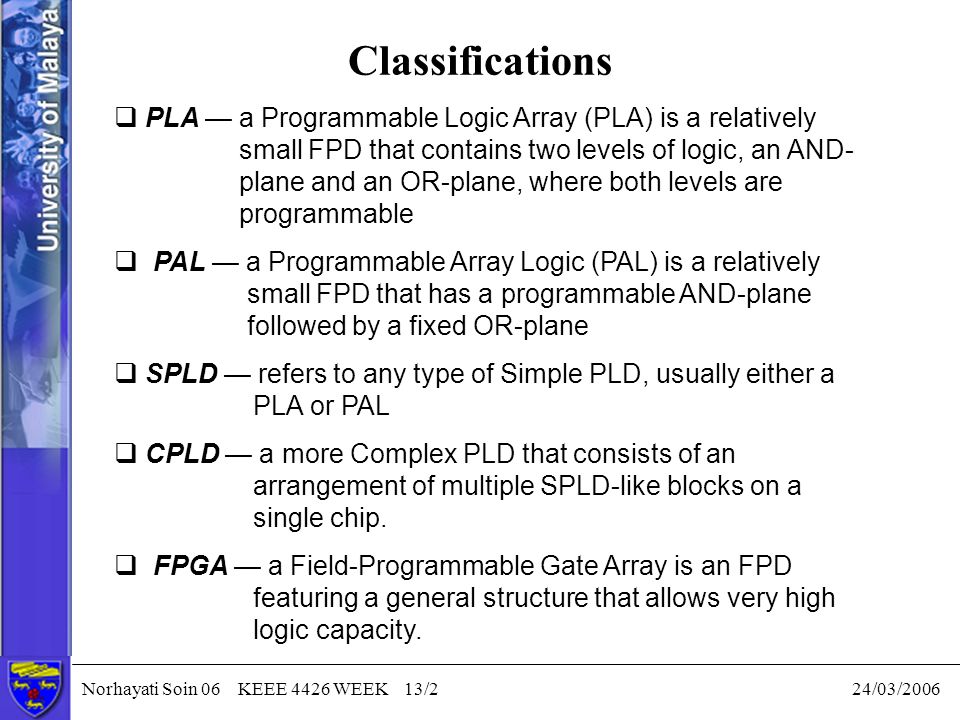

24. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Classifications  PLA — a Programmable Logic Array (PLA) is a relatively small FPD that contains two levels of logic, an AND- plane and an OR-plane, where both levels are programmable  PAL — a Programmable Array Logic (PAL) is a relatively small FPD that has a programmable AND-plane followed by a fixed OR-plane  SPLD — refers to any type of Simple PLD, usually either a PLA or PAL  CPLD — a more Complex PLD that consists of an arrangement of multiple SPLD-like blocks on a single chip.  FPGA — a Field-Programmable Gate Array is an FPD featuring a general structure that allows very high logic capacity.

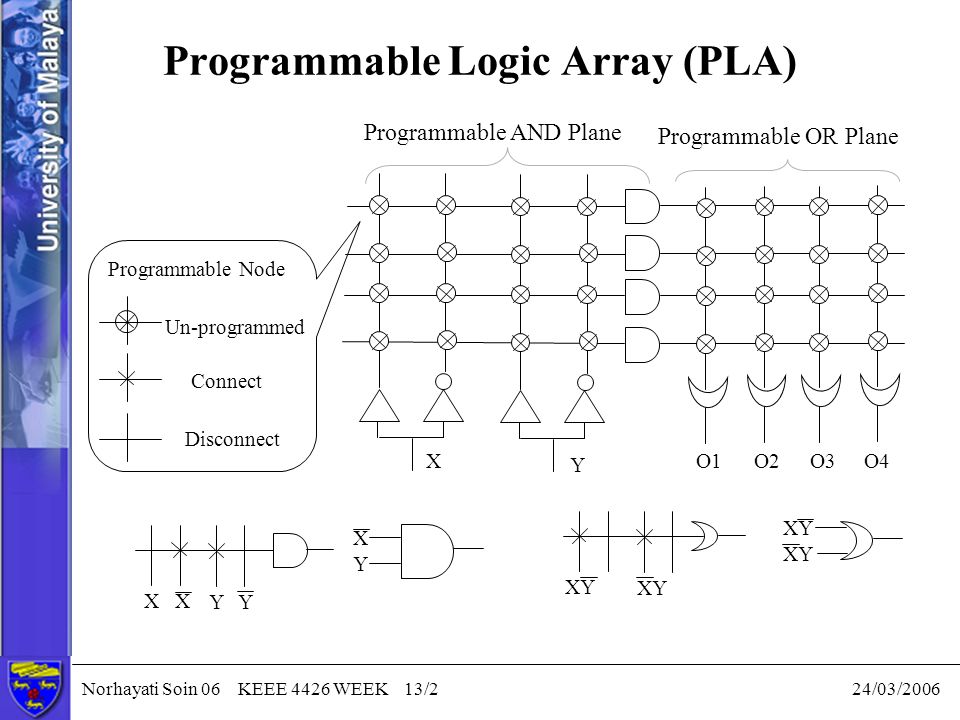

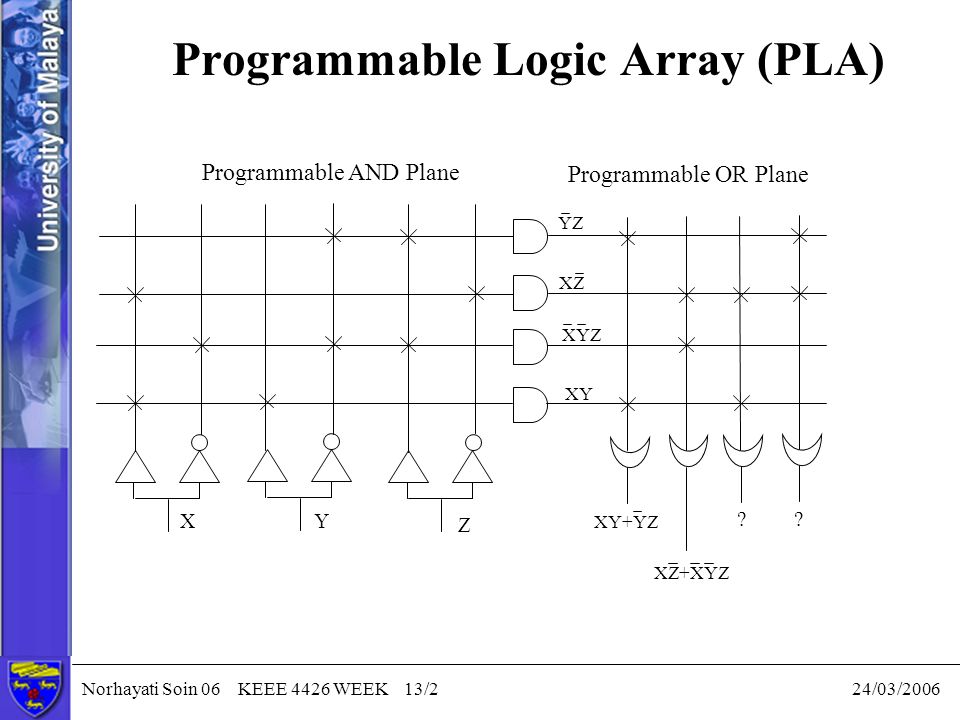

25. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programmable Logic Array (PLA)

26. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programmable Logic Array (PLA)

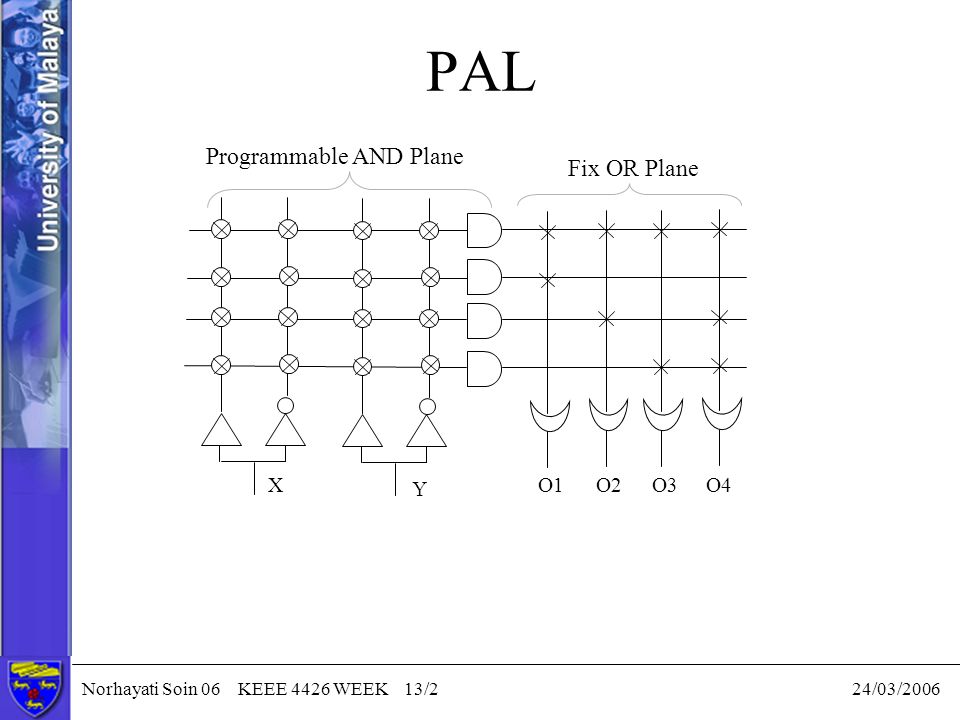

27. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 PAL Programmable AND Plane X Y O1O2O3O4 Fix OR Plane

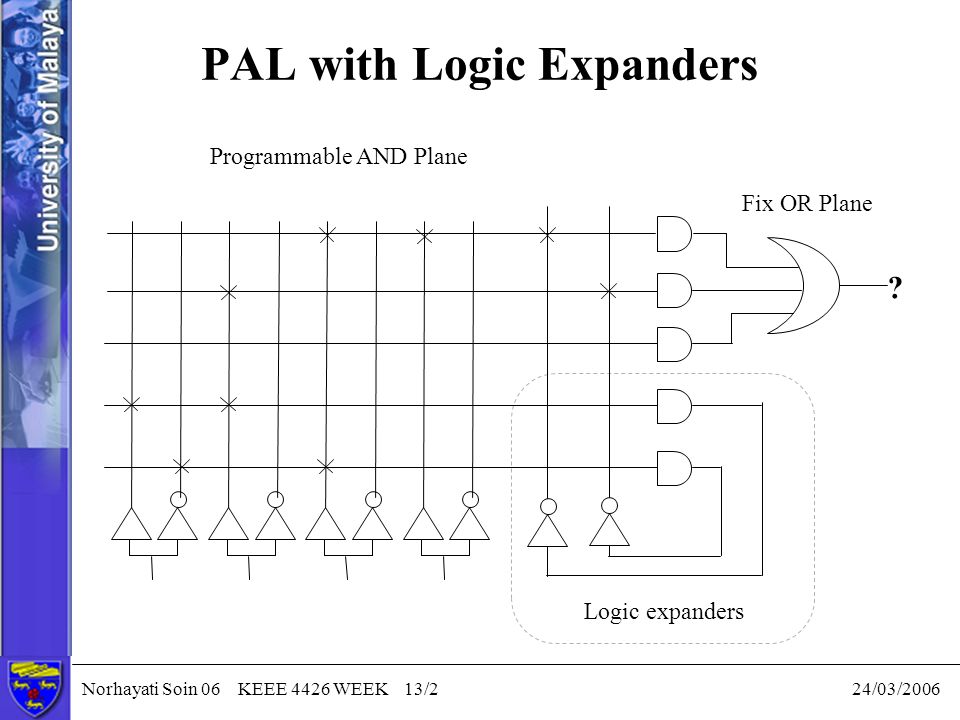

28. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 PAL with Logic Expanders Programmable AND Plane Logic expanders Fix OR Plane ?

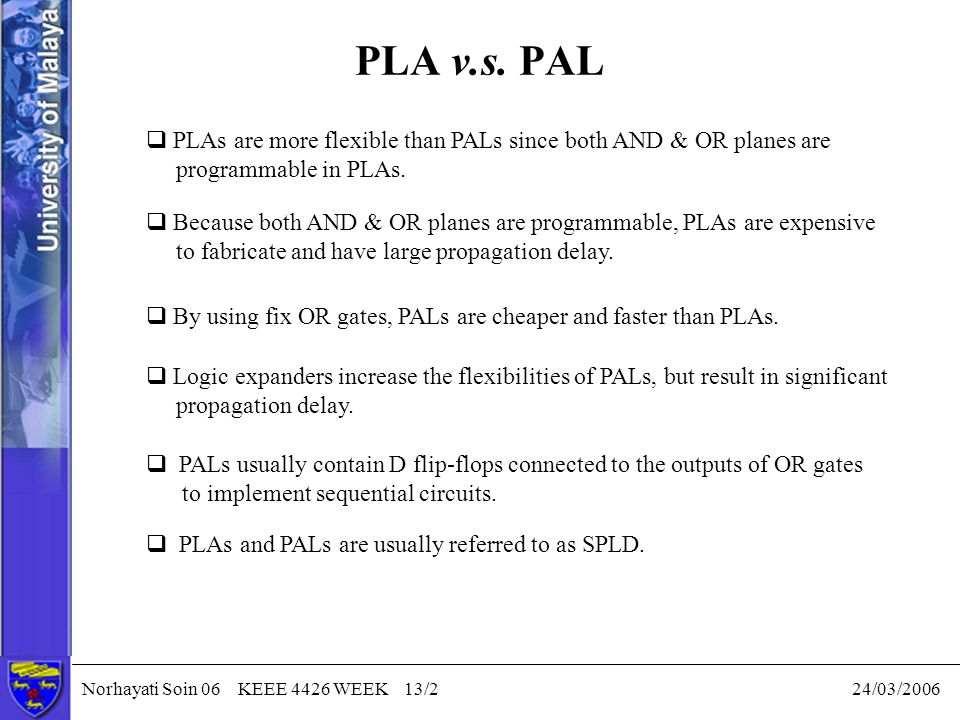

29. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 PLA v.s. PAL  PLAs are more flexible than PALs since both AND & OR planes are programmable in PLAs.  Because both AND & OR planes are programmable, PLAs are expensive to fabricate and have large propagation delay.  By using fix OR gates, PALs are cheaper and faster than PLAs.  Logic expanders increase the flexibilities of PALs, but result in significant propagation delay.  PALs usually contain D flip-flops connected to the outputs of OR gates to implement sequential circuits.  PLAs and PALs are usually referred to as SPLD.

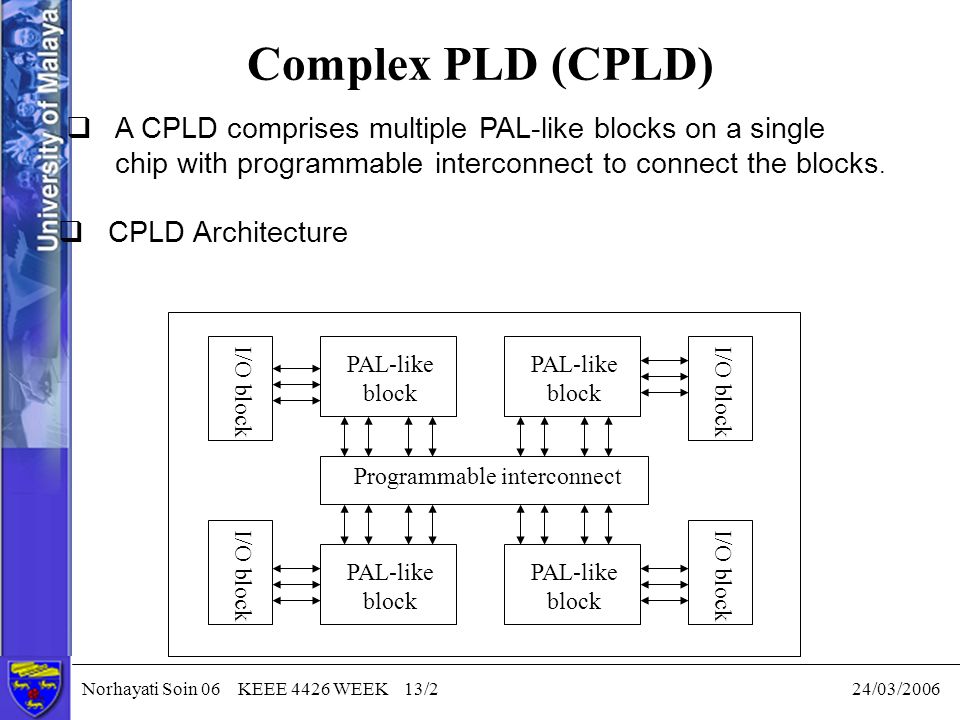

30. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Complex PLD (CPLD) PAL-like block PAL-like block PAL-like block PAL-like block I/O block Programmable interconnect  A CPLD comprises multiple PAL-like blocks on a single chip with programmable interconnect to connect the blocks.  CPLD Architecture

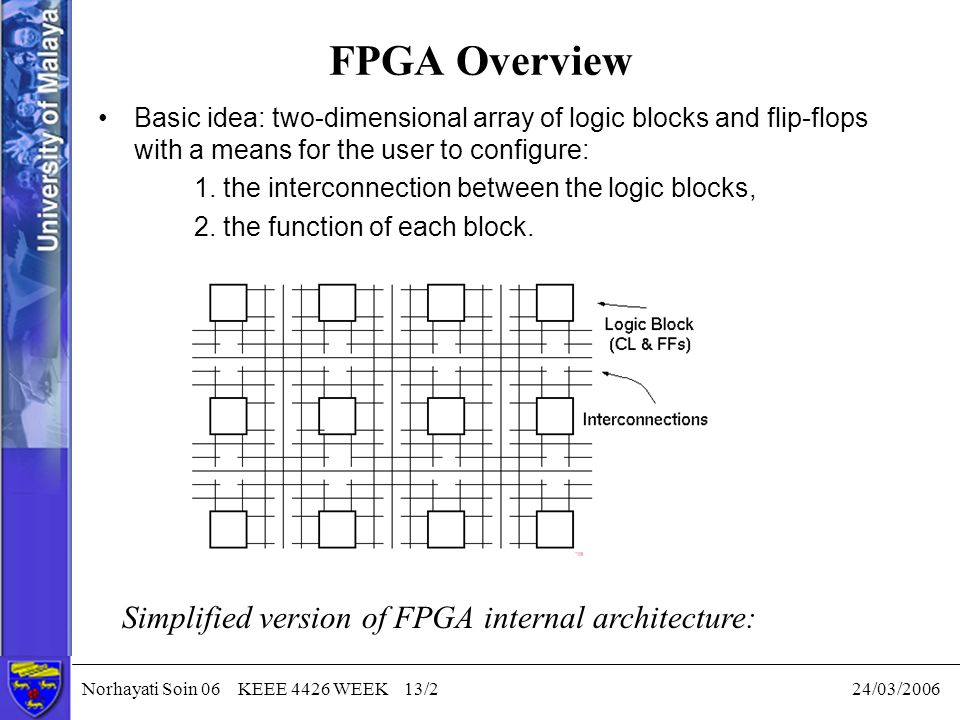

31. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 FPGA Overview Simplified version of FPGA internal architecture: Basic idea: two-dimensional array of logic blocks and flip-flops with a means for the user to configure: 1. the interconnection between the logic blocks, 2. the function of each block.

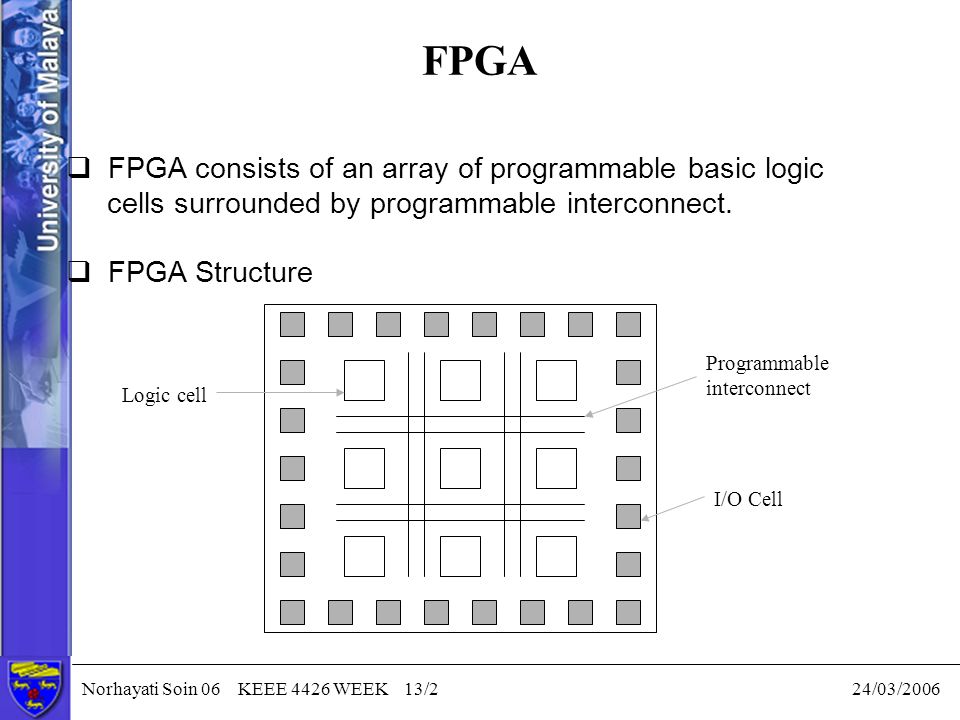

32. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 FPGA  FPGA consists of an array of programmable basic logic cells surrounded by programmable interconnect.  FPGA Structure Logic cell Programmable interconnect I/O Cell

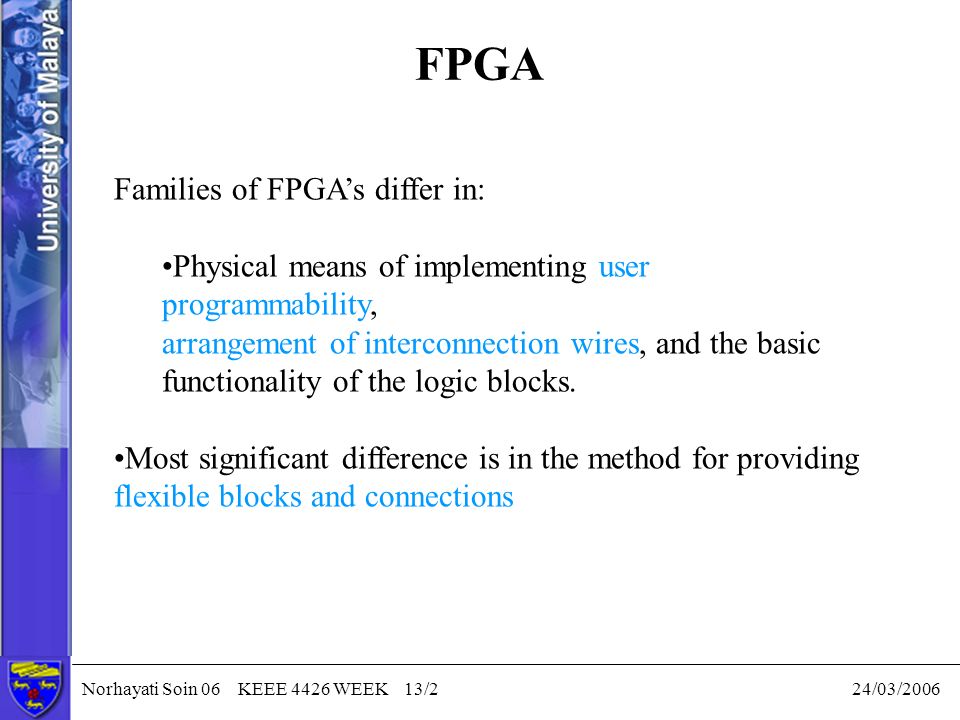

33. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 FPGA Families of FPGA’s differ in: Physical means of implementing user programmability, arrangement of interconnection wires, and the basic functionality of the logic blocks. Most significant difference is in the method for providing flexible blocks and connections

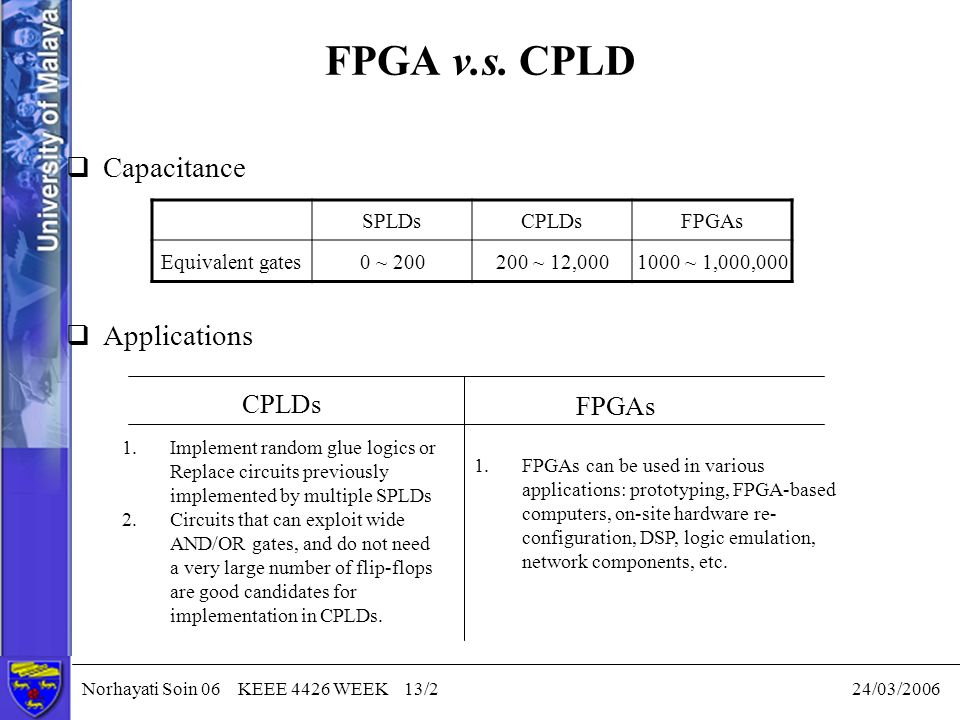

34. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 FPGA v.s. CPLD  Capacitance SPLDsCPLDsFPGAs Equivalent gates0 ~ 200200 ~ 12,0001000 ~ 1,000,000  Applications CPLDs FPGAs 1.Implement random glue logics or Replace circuits previously implemented by multiple SPLDs 2.Circuits that can exploit wide AND/OR gates, and do not need a very large number of flip-flops are good candidates for implementation in CPLDs. 1.FPGAs can be used in various applications: prototyping, FPGA-based computers, on-site hardware re- configuration, DSP, logic emulation, network components, etc.

35. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programming Technologies

36. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Programming Techniques in Configurable ICs  Poly-Diffusion Antifuse  Metal-Metal Antifuse  SRAM-Based Programming Technique  EPROM-based Programming Technique  EEPROM-based Programming Technique

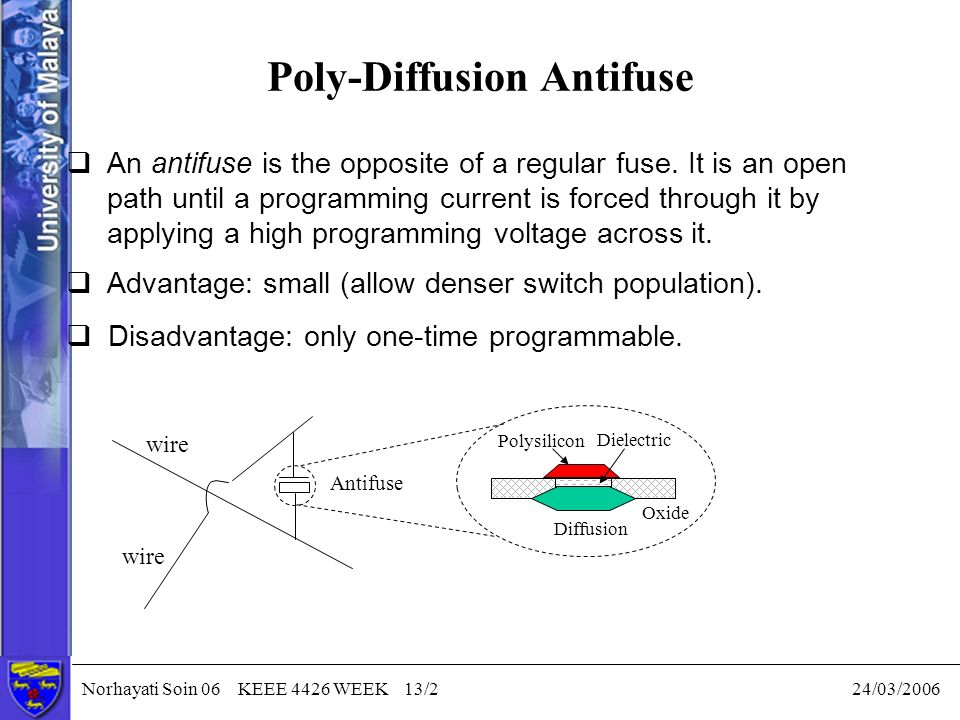

37. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Poly-Diffusion Antifuse  An antifuse is the opposite of a regular fuse. It is an open path until a programming current is forced through it by applying a high programming voltage across it.  Advantage: small (allow denser switch population).  Disadvantage: only one-time programmable. Antifuse wire Diffusion Oxide Polysilicon Dielectric

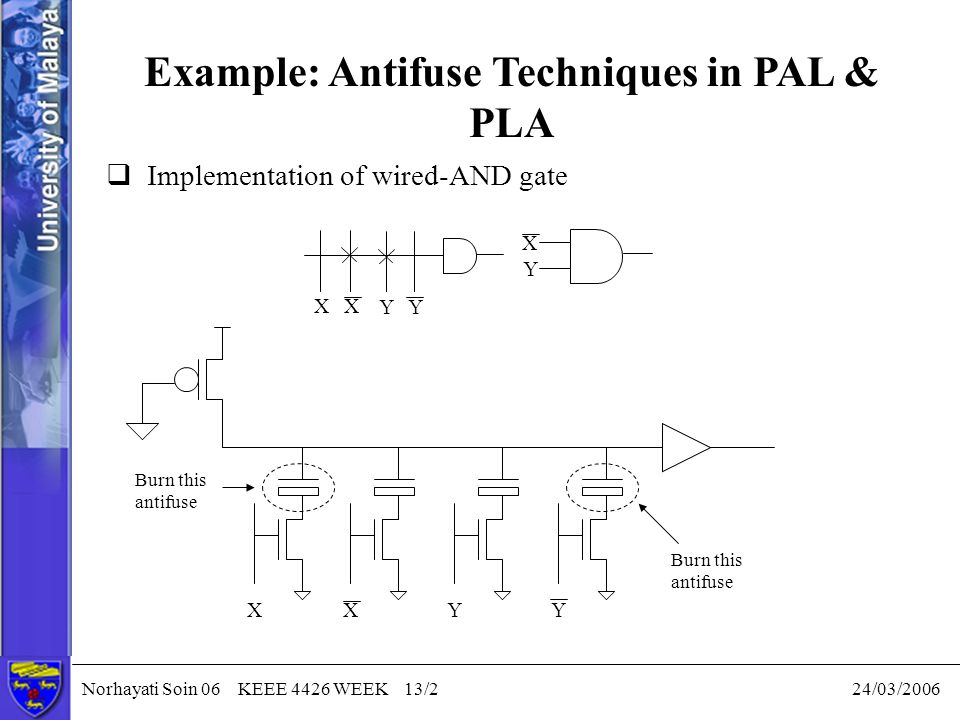

38. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Example: Antifuse Techniques in PAL & PLA XX YY X Y  Implementation of wired-AND gate XXYY Burn this antifuse Burn this antifuse

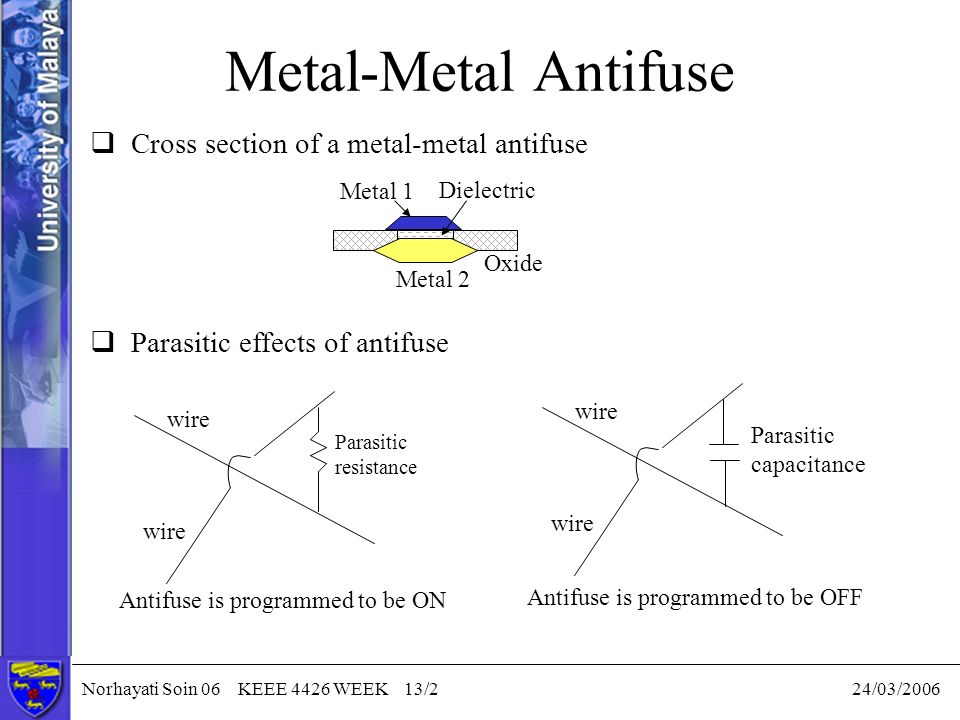

39. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Metal-Metal Antifuse  Cross section of a metal-metal antifuse Metal 2 Oxide Metal 1 Dielectric  Parasitic effects of antifuse wire Parasitic resistance Parasitic capacitance Antifuse is programmed to be ON Antifuse is programmed to be OFF

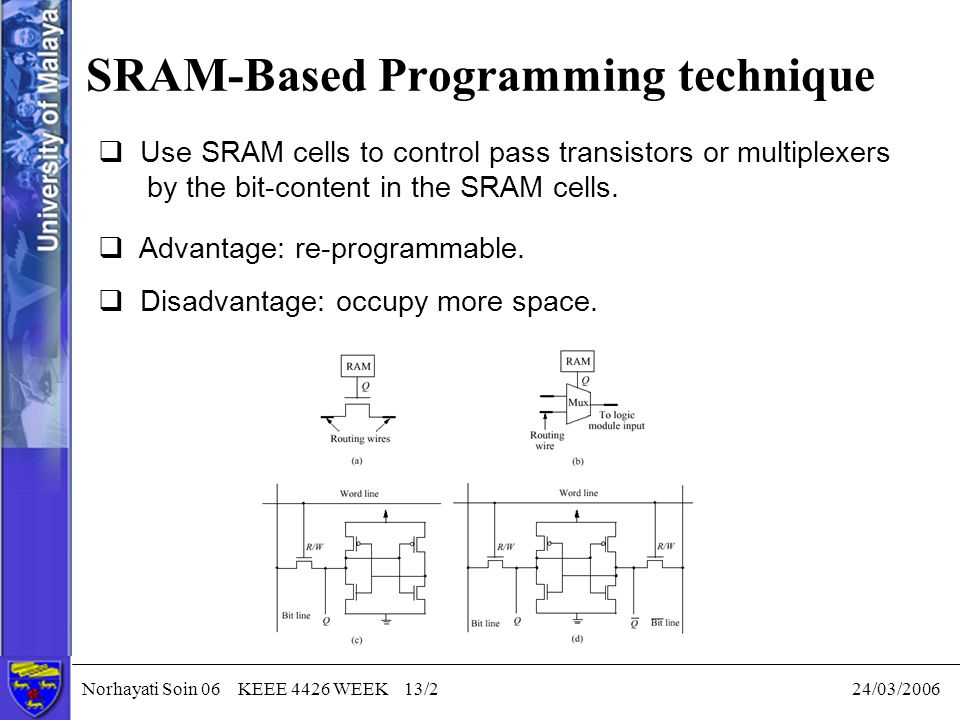

40. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 SRAM-Based Programming technique  Use SRAM cells to control pass transistors or multiplexers by the bit-content in the SRAM cells.  Advantage: re-programmable.  Disadvantage: occupy more space.

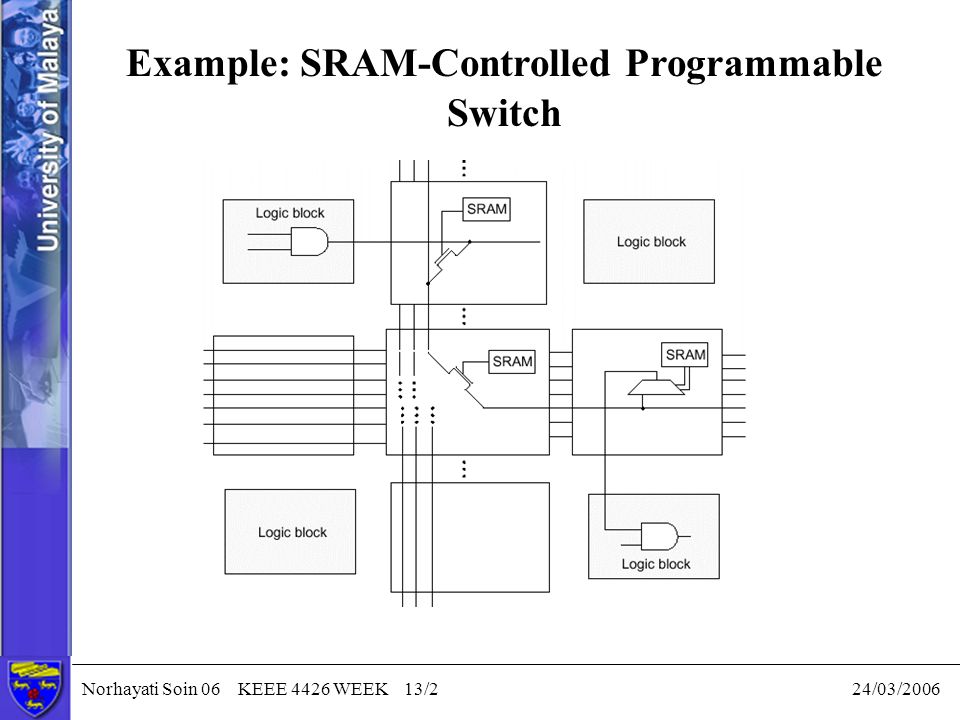

41. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Example: SRAM-Controlled Programmable Switch

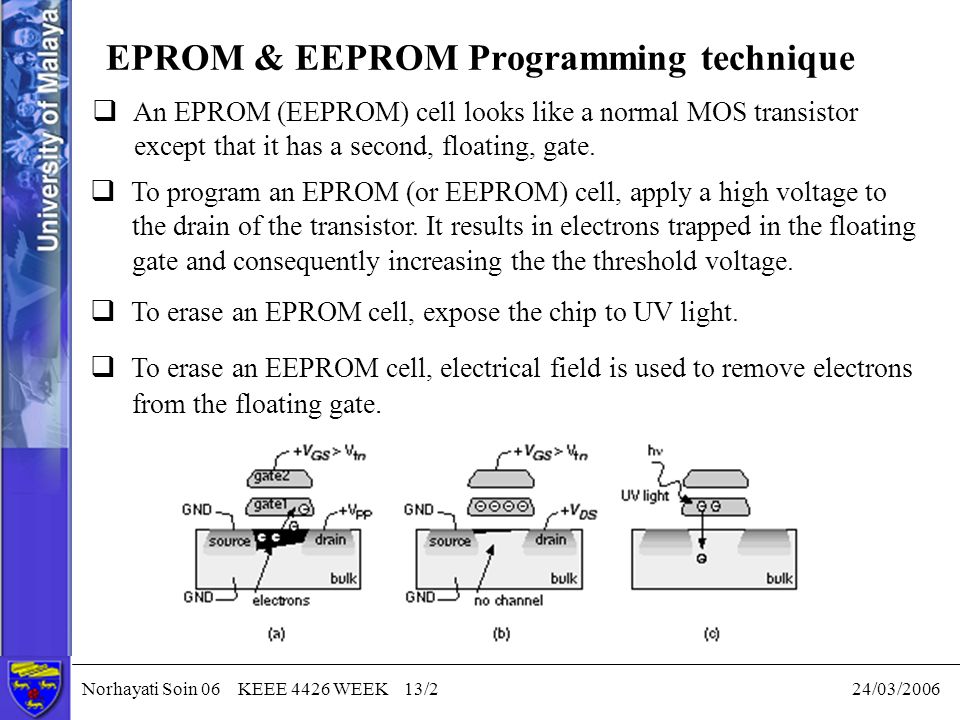

42. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 EPROM & EEPROM Programming technique  An EPROM (EEPROM) cell looks like a normal MOS transistor except that it has a second, floating, gate.  To program an EPROM (or EEPROM) cell, apply a high voltage to the drain of the transistor. It results in electrons trapped in the floating gate and consequently increasing the the threshold voltage.  To erase an EPROM cell, expose the chip to UV light.  To erase an EEPROM cell, electrical field is used to remove electrons from the floating gate.

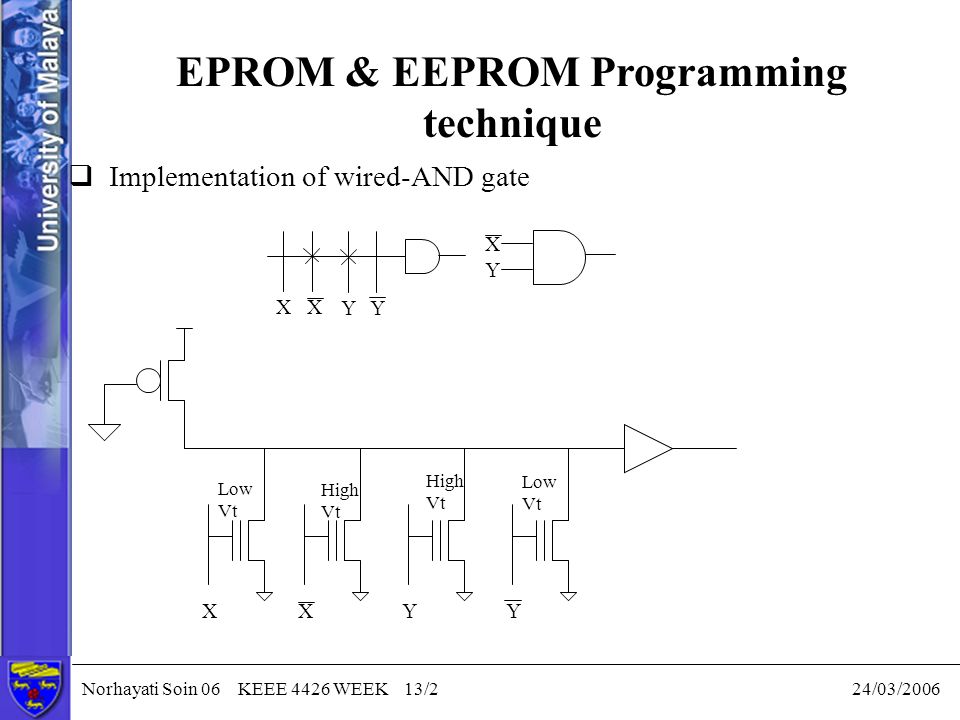

43. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 EPROM & EEPROM Programming technique XX YY X Y  Implementation of wired-AND gate XXYY High Vt Low Vt Low Vt High Vt

44. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 Comparison of Different Programming Techniques Programming technology SRAM Poly- Diffusion antifuse Metal-Meta antifuse EPROMEEPROM Manufacturing Complexity + ---- Re-programmable? Yes In circuit No Yes Out of circuit Yes In circuit Physical sizeLarge (12X)Small (2X)Small (1X)Small ON resistance (  ) 600–800100–50030–80 1-4K OFF capacitance (fF)10–503–51 10–50 Power consumption ++++-- Volatile?YesNo + Desirable; - no desirable

45. Norhayati Soin 06 KEEE 4426 WEEK 13/2 24/03/2006 ASICs vs. FPLDs
