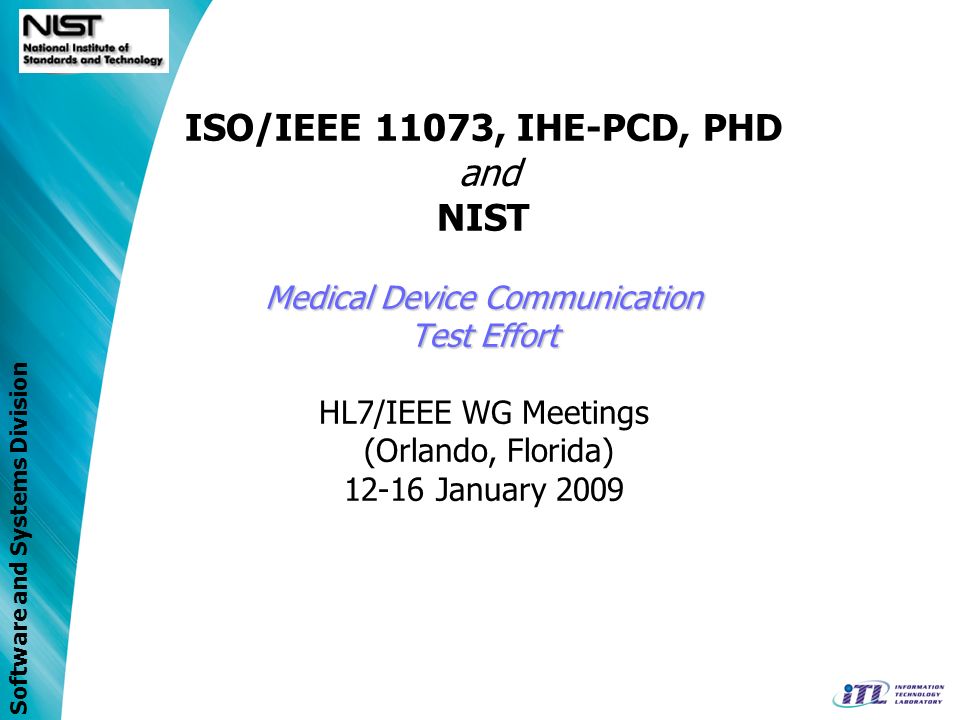

1. Software and Systems Division Medical Device Communication Test Effort ISO/IEEE 11073, IHE-PCD, PHD and NIST Medical Device Communication Test Effort HL7/IEEE WG Meetings (Orlando, Florida) 12-16 January 2009

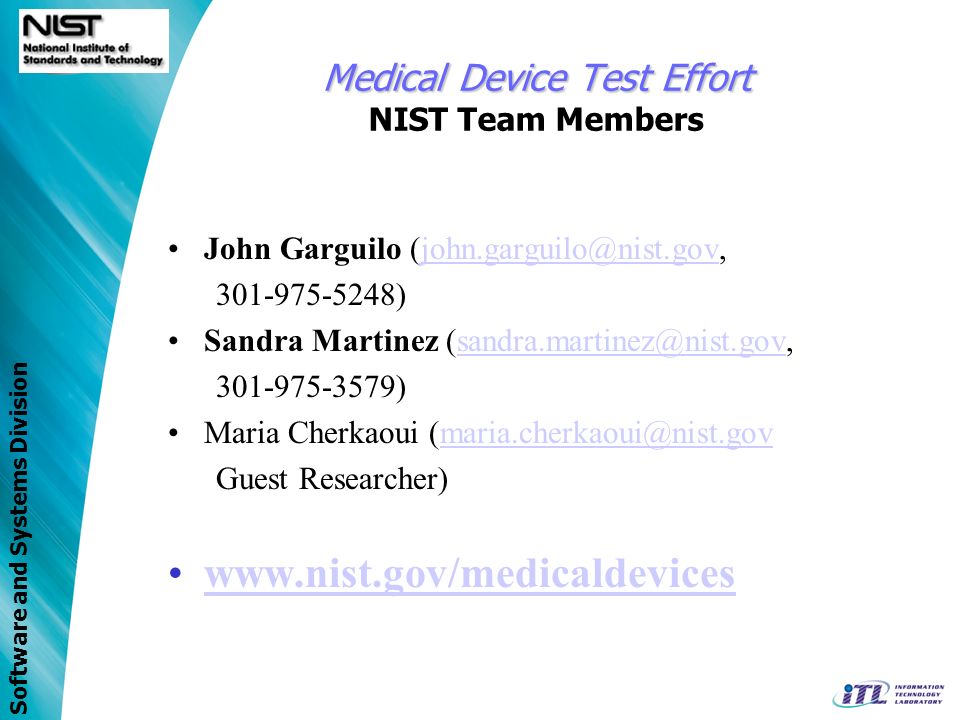

2. Software and Systems Division Medical Device Test Effort Medical Device Test Effort NIST Team Members John Garguilo (john.garguilo@nist.gov,john.garguilo@nist.gov 301-975-5248) Sandra Martinez (sandra.martinez@nist.gov,sandra.martinez@nist.gov 301-975-3579) Maria Cherkaoui (maria.cherkaoui@nist.govmaria.cherkaoui@nist.gov Guest Researcher) www.nist.gov/medicaldevices

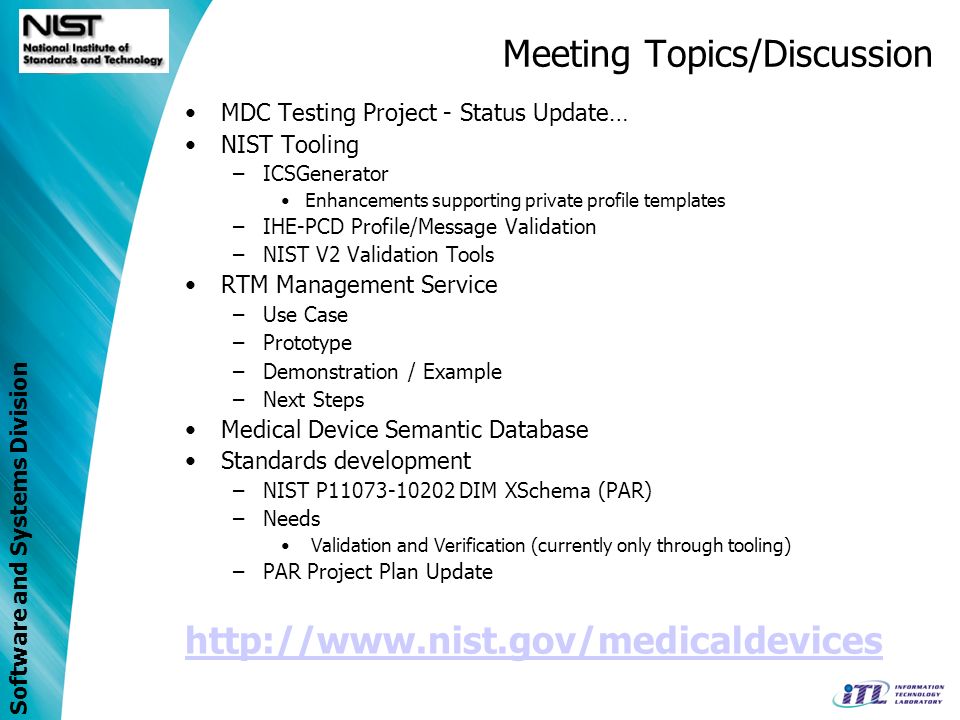

3. Software and Systems Division Meeting Topics/Discussion MDC Testing Project - Status Update… NIST Tooling –ICSGenerator Enhancements supporting private profile templates –IHE-PCD Profile/Message Validation –NIST V2 Validation Tools RTM Management Service –Use Case –Prototype –Demonstration / Example –Next Steps Medical Device Semantic Database Standards development –NIST P11073-10202 DIM XSchema (PAR) –Needs Validation and Verification (currently only through tooling) –PAR Project Plan Update http://www.nist.gov/medicaldevices

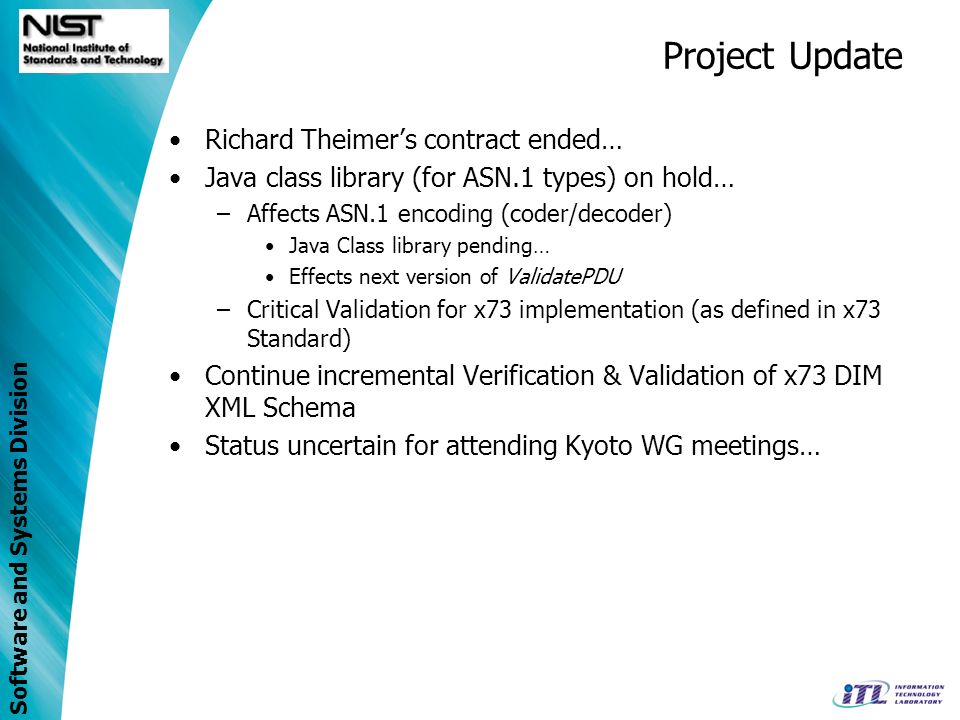

4. Software and Systems Division Project Update Richard Theimer’s contract ended… Java class library (for ASN.1 types) on hold… –Affects ASN.1 encoding (coder/decoder) Java Class library pending… Effects next version of ValidatePDU –Critical Validation for x73 implementation (as defined in x73 Standard) Continue incremental Verification & Validation of x73 DIM XML Schema Status uncertain for attending Kyoto WG meetings…

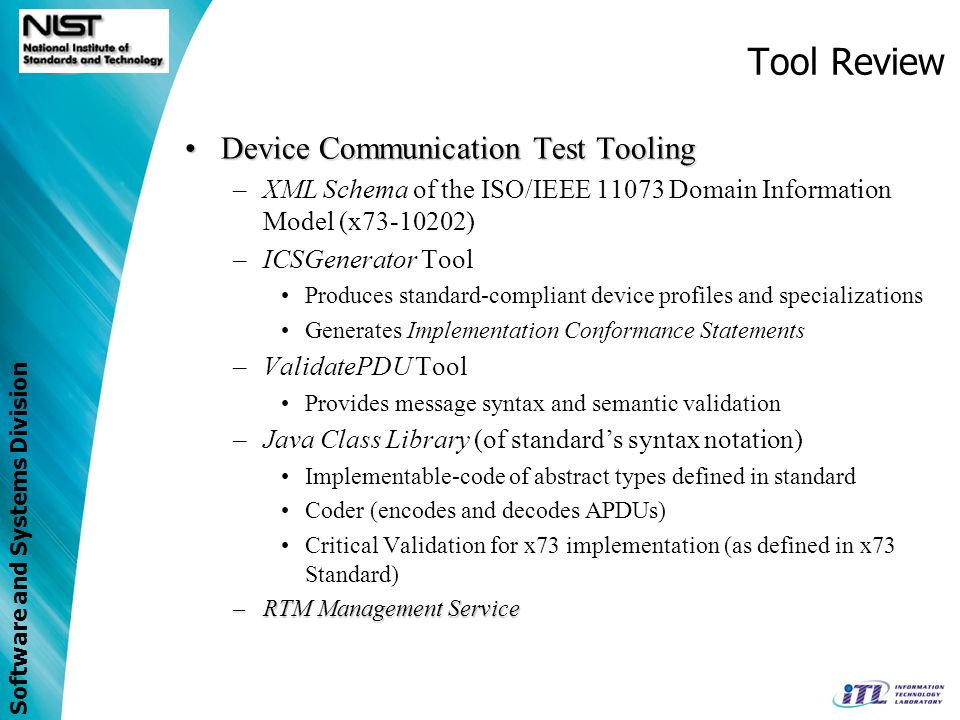

5. Software and Systems Division Tool Review Device Communication Test ToolingDevice Communication Test Tooling –XML Schema of the ISO/IEEE 11073 Domain Information Model (x73-10202) –ICSGenerator Tool Produces standard-compliant device profiles and specializations Generates Implementation Conformance Statements –ValidatePDU Tool Provides message syntax and semantic validation –Java Class Library (of standard’s syntax notation) Implementable-code of abstract types defined in standard Coder (encodes and decodes APDUs) Critical Validation for x73 implementation (as defined in x73 Standard) –RTM Management Service

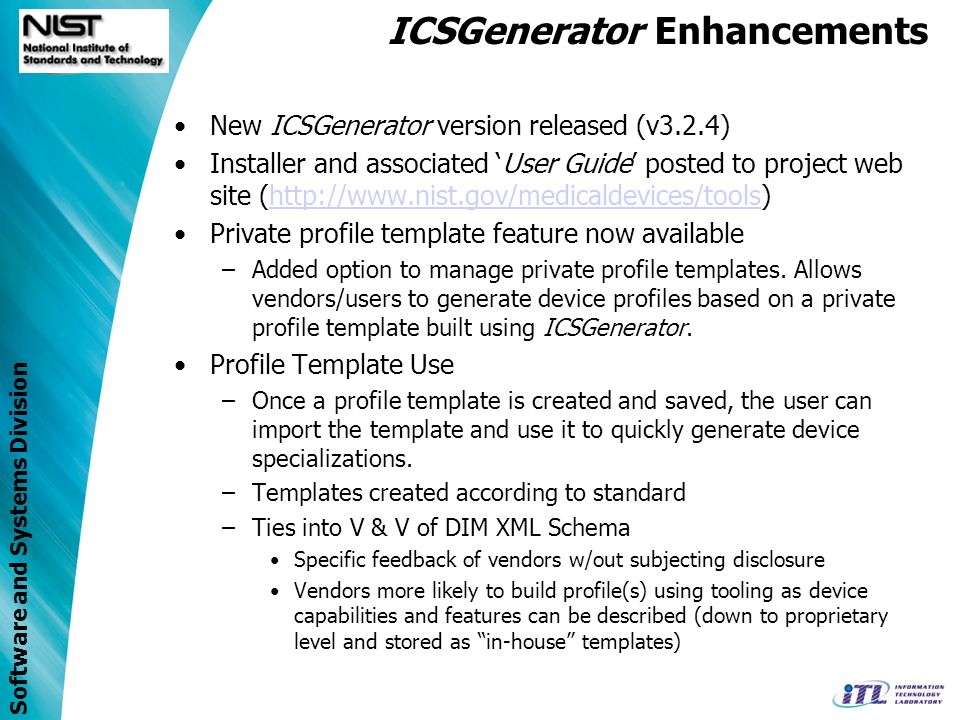

6. Software and Systems Division ICSGenerator Enhancements New ICSGenerator version released (v3.2.4) Installer and associated ‘User Guide’ posted to project web site (http://www.nist.gov/medicaldevices/tools)http://www.nist.gov/medicaldevices/tools Private profile template feature now available –Added option to manage private profile templates. Allows vendors/users to generate device profiles based on a private profile template built using ICSGenerator. Profile Template Use –Once a profile template is created and saved, the user can import the template and use it to quickly generate device specializations. –Templates created according to standard –Ties into V & V of DIM XML Schema Specific feedback of vendors w/out subjecting disclosure Vendors more likely to build profile(s) using tooling as device capabilities and features can be described (down to proprietary level and stored as “in-house” templates)

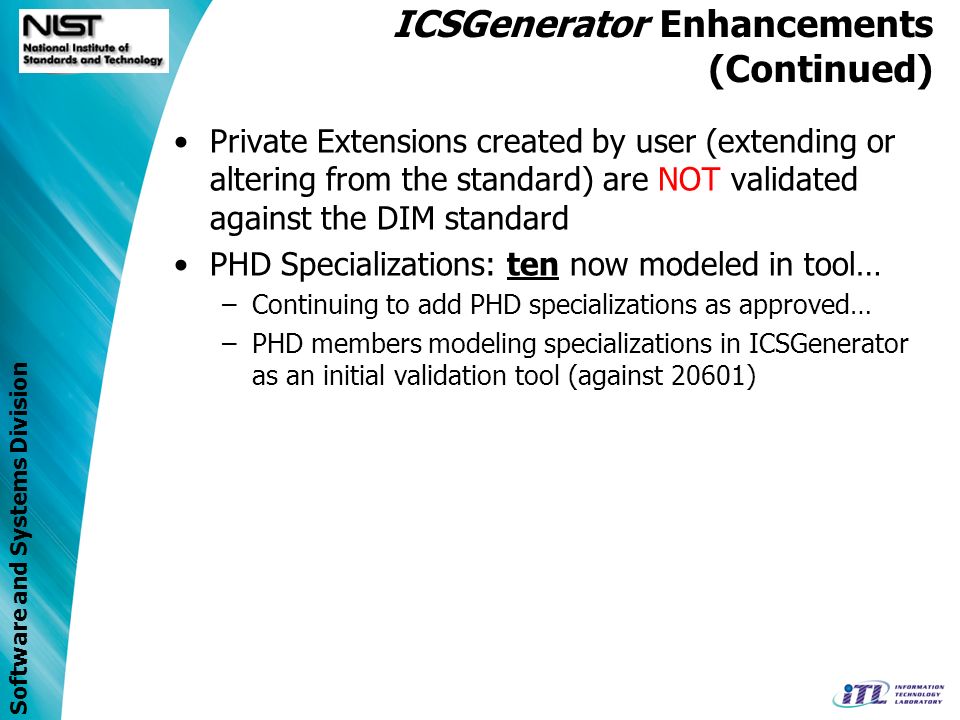

7. Software and Systems Division ICSGenerator Enhancements (Continued) Private Extensions created by user (extending or altering from the standard) are NOT validated against the DIM standard PHD Specializations: ten now modeled in tool… –Continuing to add PHD specializations as approved… –PHD members modeling specializations in ICSGenerator as an initial validation tool (against 20601)

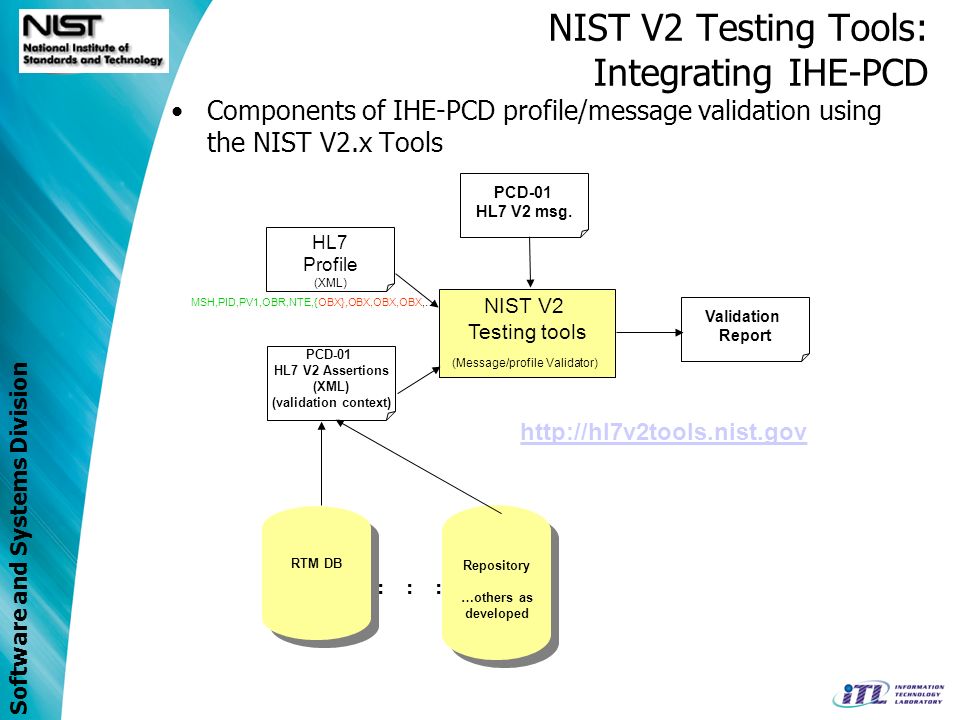

8. Software and Systems Division Repository …others as developed Repository …others as developed NIST V2 Testing Tools: Integrating IHE-PCD Components of IHE-PCD profile/message validation using the NIST V2.x Tools NIST V2 Testing tools (Message/profile Validator) PCD-01 HL7 V2 msg. Validation Report PCD-01 HL7 V2 Assertions (XML) (validation context) HL7 Profile (XML) MSH,PID,PV1,OBR,NTE,{ OBX},OBX,OBX,OBX,… RTM DB RTM DB...... http://hl7v2tools.nist.gov

9. Software and Systems Division Validation of IHE-PCD message(s) and corresponding HL7 Profile(s) Validation of message syntax and semantic content –Against HL7 V2 message (e.g., PCD-01) Message structure (e.g., MSH,PID,PV1,OBR,NTE,{OBX},OBX,OBX,OBX,…}) –Against HL7 profile (Msg_type^Event_type^ e.g., ORU^R01^…) –Against HL7 and/or user provided tables Example of user provided table is RTM for units, ref_ids, etc. –Against ‘validation context’, including specific values Defined in XML (more to come…) NIST V2 Testing Tools: IHE-PCD Types of Testing

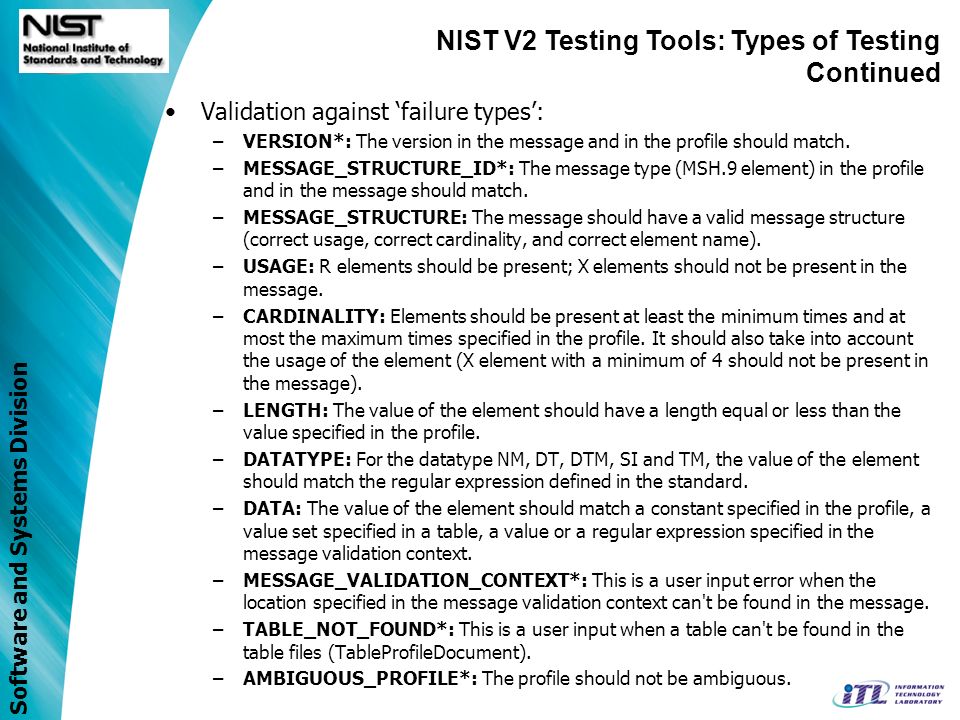

10. Software and Systems Division Validation against ‘failure types’: –VERSION*: The version in the message and in the profile should match. –MESSAGE_STRUCTURE_ID*: The message type (MSH.9 element) in the profile and in the message should match. –MESSAGE_STRUCTURE: The message should have a valid message structure (correct usage, correct cardinality, and correct element name). –USAGE: R elements should be present; X elements should not be present in the message. –CARDINALITY: Elements should be present at least the minimum times and at most the maximum times specified in the profile. It should also take into account the usage of the element (X element with a minimum of 4 should not be present in the message). –LENGTH: The value of the element should have a length equal or less than the value specified in the profile. –DATATYPE: For the datatype NM, DT, DTM, SI and TM, the value of the element should match the regular expression defined in the standard. –DATA: The value of the element should match a constant specified in the profile, a value set specified in a table, a value or a regular expression specified in the message validation context. –MESSAGE_VALIDATION_CONTEXT*: This is a user input error when the location specified in the message validation context can't be found in the message. –TABLE_NOT_FOUND*: This is a user input when a table can't be found in the table files (TableProfileDocument). –AMBIGUOUS_PROFILE*: The profile should not be ambiguous. NIST V2 Testing Tools: Types of Testing Continued

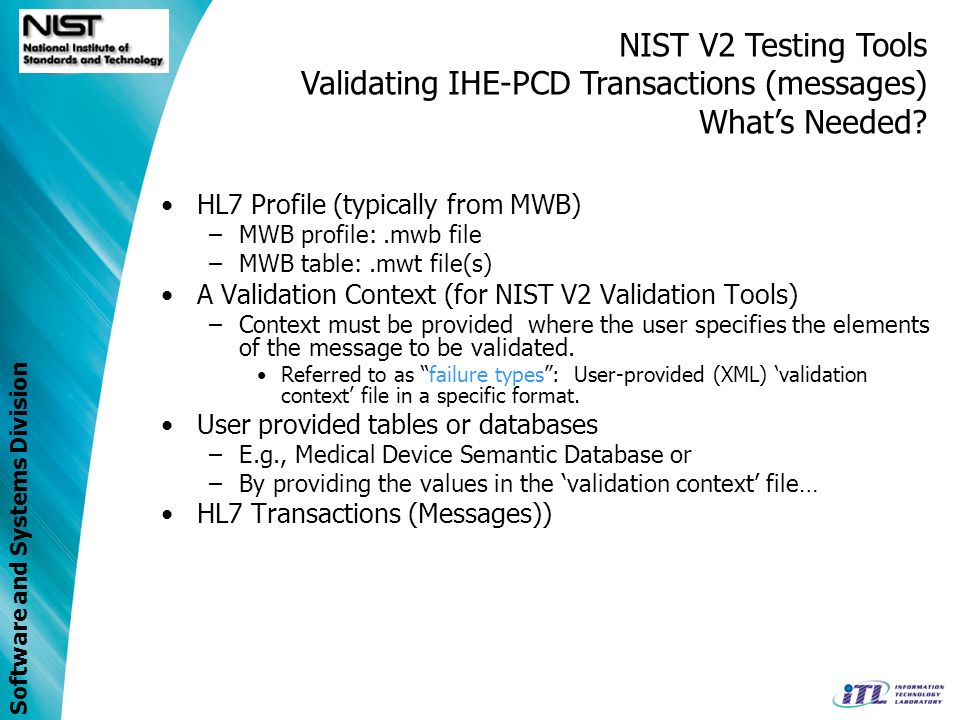

11. Software and Systems Division HL7 Profile (typically from MWB) –MWB profile:.mwb file –MWB table:.mwt file(s) A Validation Context (for NIST V2 Validation Tools) –Context must be provided where the user specifies the elements of the message to be validated. Referred to as “failure types”: User-provided (XML) ‘validation context’ file in a specific format. User provided tables or databases –E.g., Medical Device Semantic Database or –By providing the values in the ‘validation context’ file… HL7 Transactions (Messages)) NIST V2 Testing Tools Validating IHE-PCD Transactions (messages) What’s Needed?

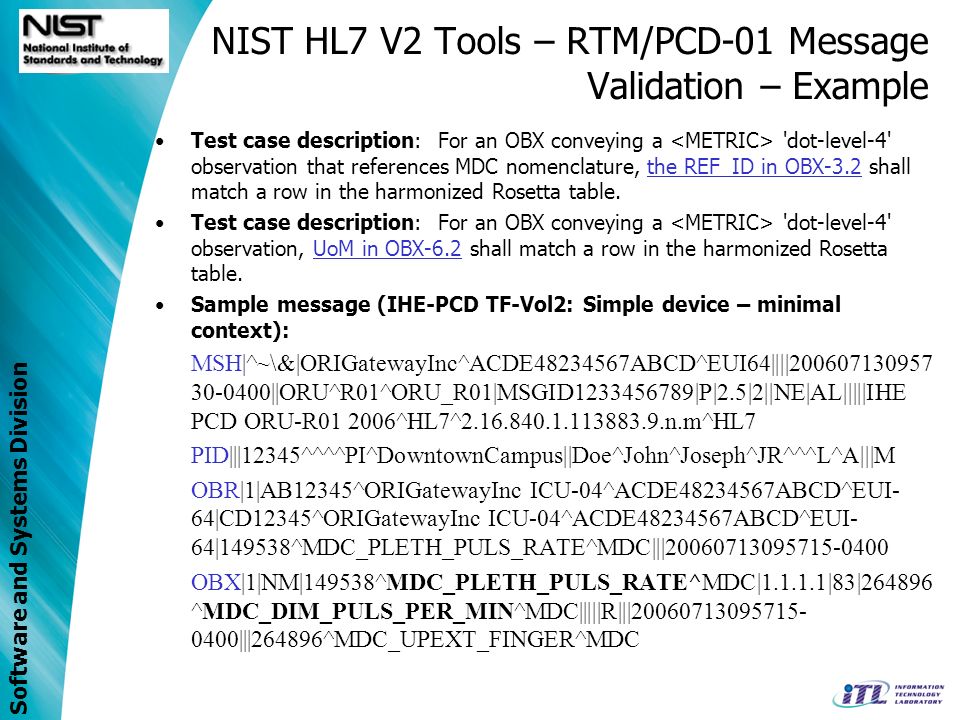

12. Software and Systems Division NIST HL7 V2 Tools – RTM/PCD-01 Message Validation – Example Test case description: For an OBX conveying a 'dot-level-4' observation that references MDC nomenclature, the REF_ID in OBX-3.2 shall match a row in the harmonized Rosetta table. Test case description: For an OBX conveying a 'dot-level-4' observation, UoM in OBX-6.2 shall match a row in the harmonized Rosetta table. Sample message (IHE-PCD TF-Vol2: Simple device – minimal context): MSH|^~\&|ORIGatewayInc^ACDE48234567ABCD^EUI64||||200607130957 30-0400||ORU^R01^ORU_R01|MSGID1233456789|P|2.5|2||NE|AL|||||IHE PCD ORU-R01 2006^HL7^2.16.840.1.113883.9.n.m^HL7 PID|||12345^^^^PI^DowntownCampus||Doe^John^Joseph^JR^^^L^A|||M OBR|1|AB12345^ORIGatewayInc ICU-04^ACDE48234567ABCD^EUI- 64|CD12345^ORIGatewayInc ICU-04^ACDE48234567ABCD^EUI- 64|149538^MDC_PLETH_PULS_RATE^MDC|||20060713095715-0400 OBX|1|NM|149538^MDC_PLETH_PULS_RATE^MDC|1.1.1.1|83|264896 ^MDC_DIM_PULS_PER_MIN^MDC|||||R|||20060713095715- 0400|||264896^MDC_UPEXT_FINGER^MDC

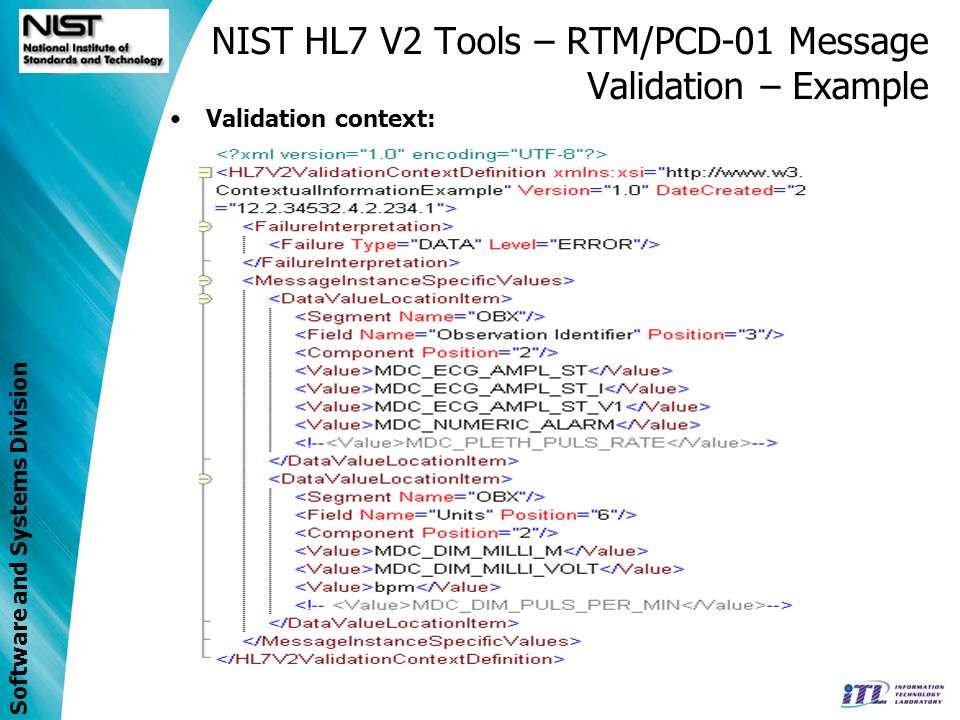

13. Software and Systems Division NIST HL7 V2 Tools – RTM/PCD-01 Message Validation – Example Validation context:

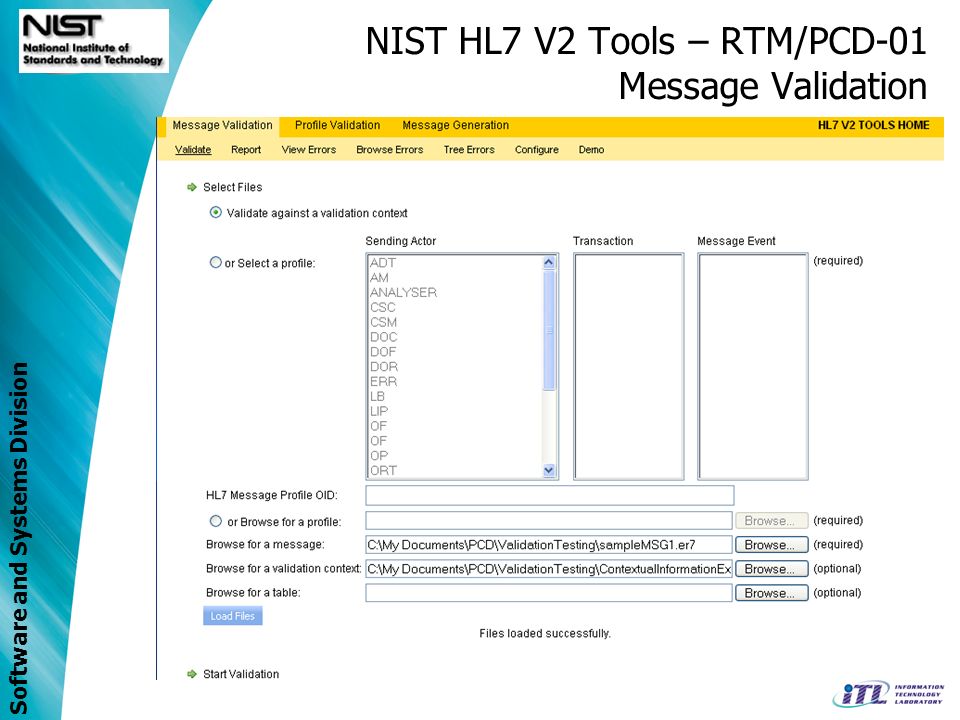

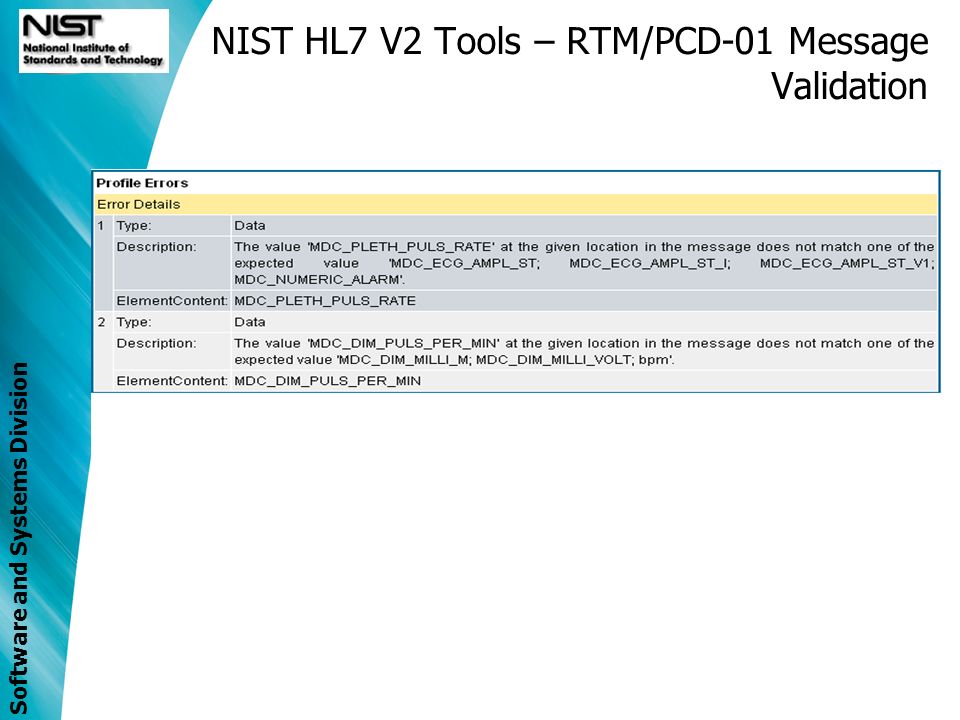

14. Software and Systems Division NIST HL7 V2 Tools – RTM/PCD-01 Message Validation

15. Software and Systems Division NIST HL7 V2 Tools – RTM/PCD-01 Message Validation

16. Software and Systems Division NIST HL7 V2 Tools – RTM/PCD-01 Message Next Steps Enable conditional testing (via context validation??) Continue to work with IHE-PCD domain over ’09 virtual, pre- and connectathon cycle to improve process and capabilities Provide tutorial of NIST V2 tools to IHE-PCD (and others interested) Define/Design context specification service –To work with NIST tools (and MWB?)

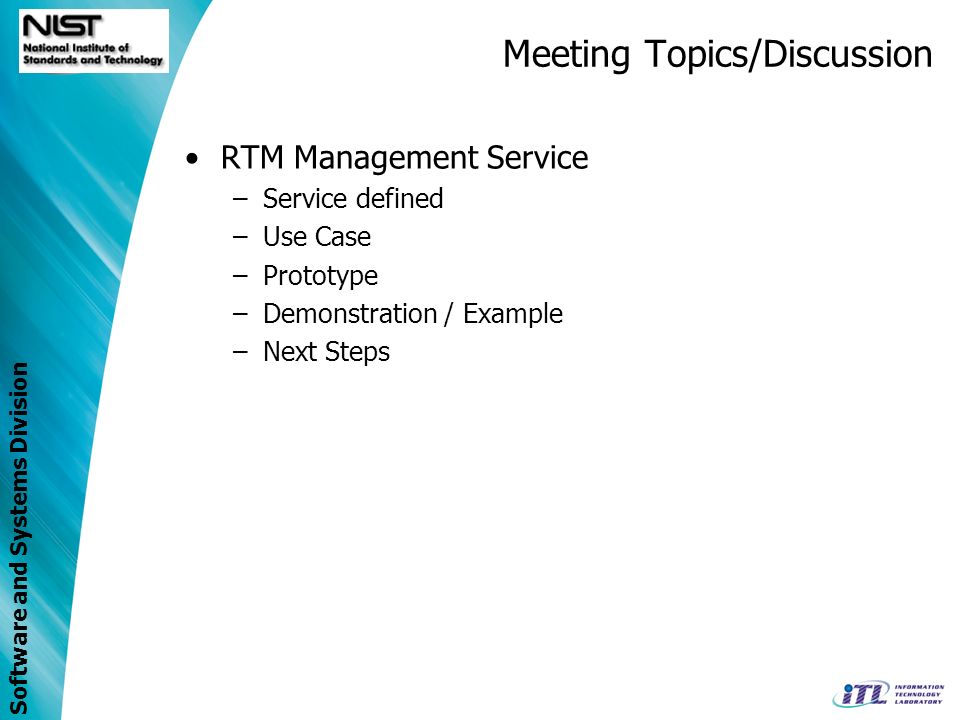

17. Software and Systems Division Meeting Topics/Discussion RTM Management Service –Service defined –Use Case –Prototype –Demonstration / Example –Next Steps

18. Software and Systems Division NIST Tooling To Support RTM Process “RTM Management Service” A web application that allows vendors and reviewers access, retrieval, and reporting of Rosetta Tables over the internet in conformance to RTM. The tool will provide the capability of saving the data in the xml format as defined by RTM. Aid in The harmonization process by: –Identifying missing terms –Facilitate the proposal of new terms. –Automatic generation of the “Harmonized Rosetta Table”

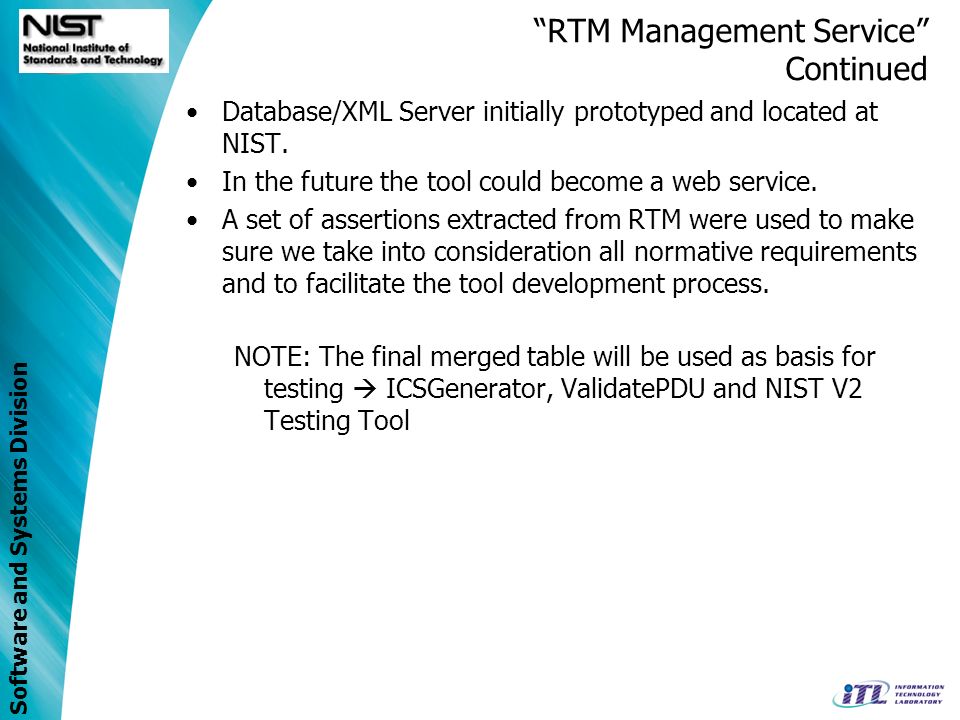

19. Software and Systems Division “RTM Management Service” Continued Database/XML Server initially prototyped and located at NIST. In the future the tool could become a web service. A set of assertions extracted from RTM were used to make sure we take into consideration all normative requirements and to facilitate the tool development process. NOTE: The final merged table will be used as basis for testing  ICSGenerator, ValidatePDU and NIST V2 Testing Tool

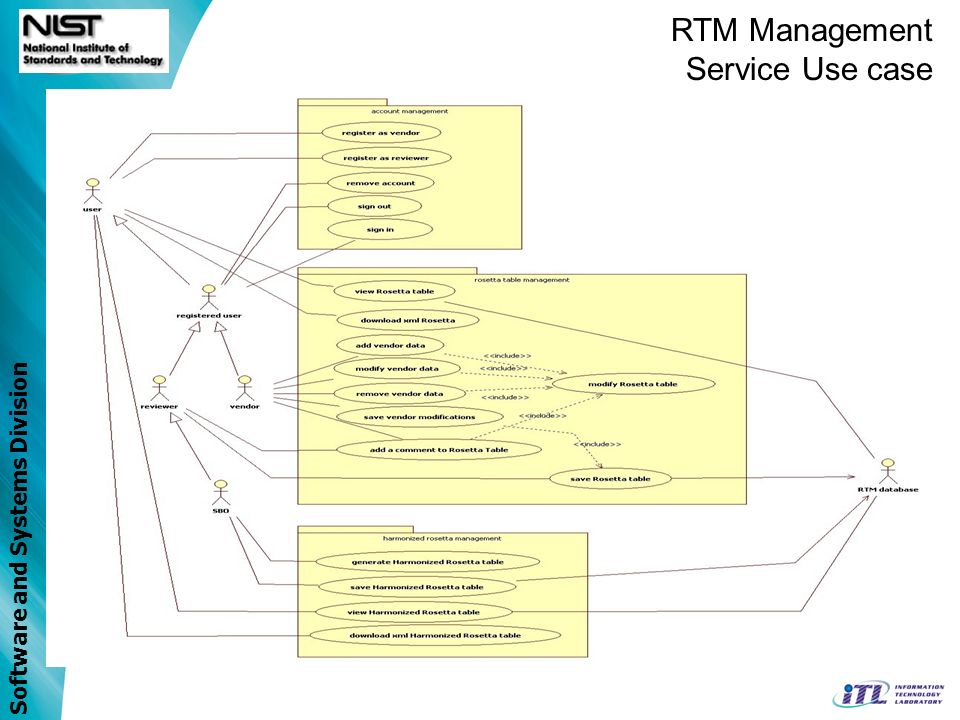

20. Software and Systems Division RTM Management Service Use case

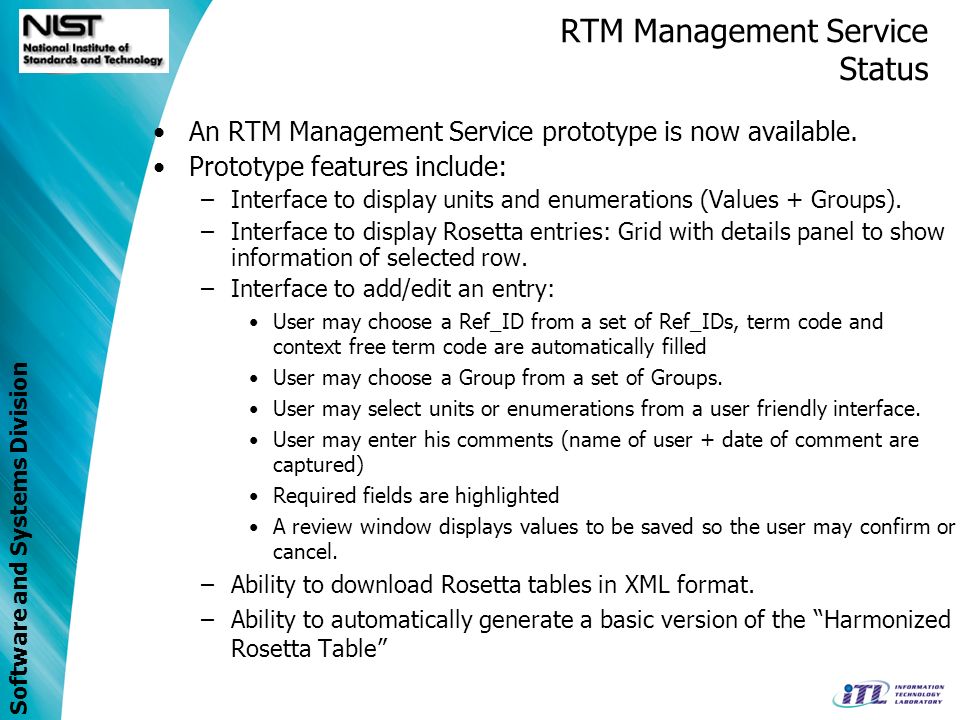

21. Software and Systems Division RTM Management Service Status An RTM Management Service prototype is now available. Prototype features include: –Interface to display units and enumerations (Values + Groups). –Interface to display Rosetta entries: Grid with details panel to show information of selected row. –Interface to add/edit an entry: User may choose a Ref_ID from a set of Ref_IDs, term code and context free term code are automatically filled User may choose a Group from a set of Groups. User may select units or enumerations from a user friendly interface. User may enter his comments (name of user + date of comment are captured) Required fields are highlighted A review window displays values to be saved so the user may confirm or cancel. –Ability to download Rosetta tables in XML format. –Ability to automatically generate a basic version of the “Harmonized Rosetta Table”

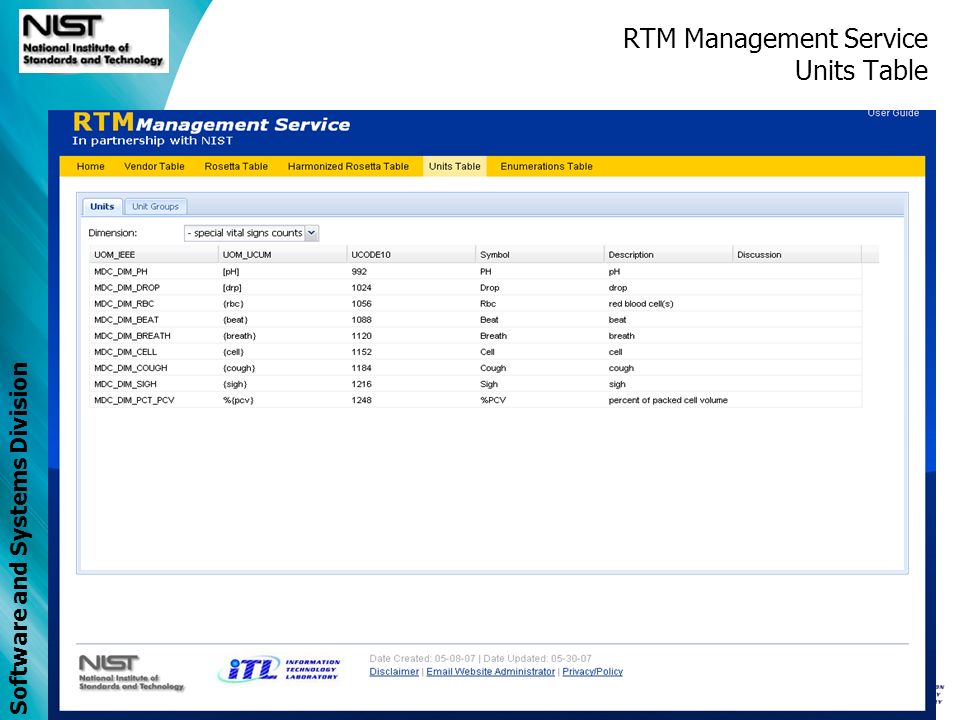

22. Software and Systems Division RTM Management Service Units Table

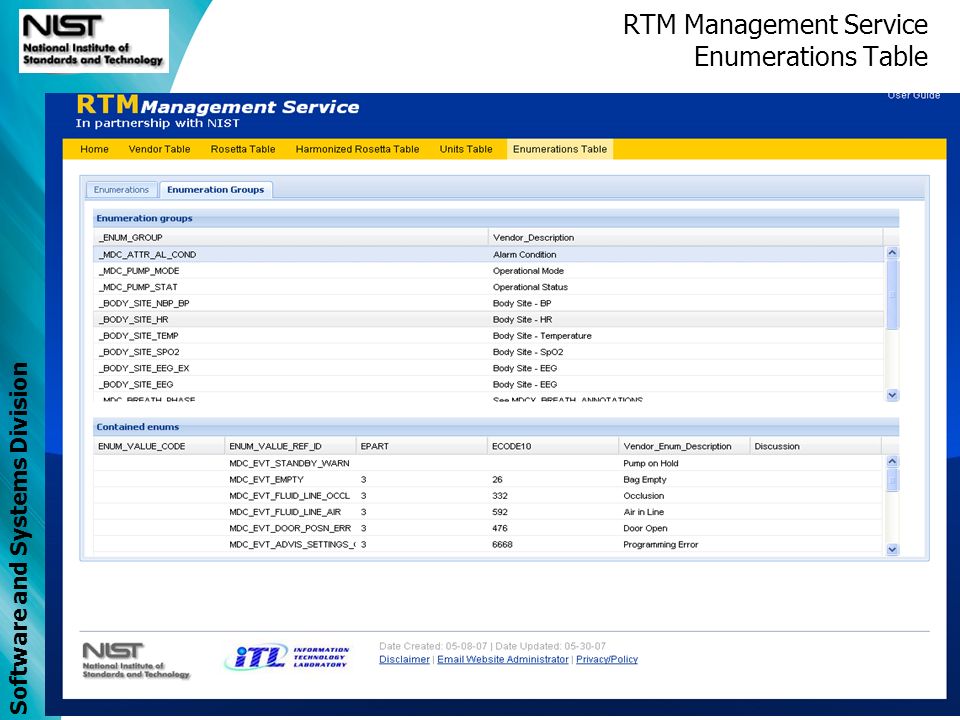

23. Software and Systems Division RTM Management Service Enumerations Table

24. Software and Systems Division RTM Management Service Vendors Table

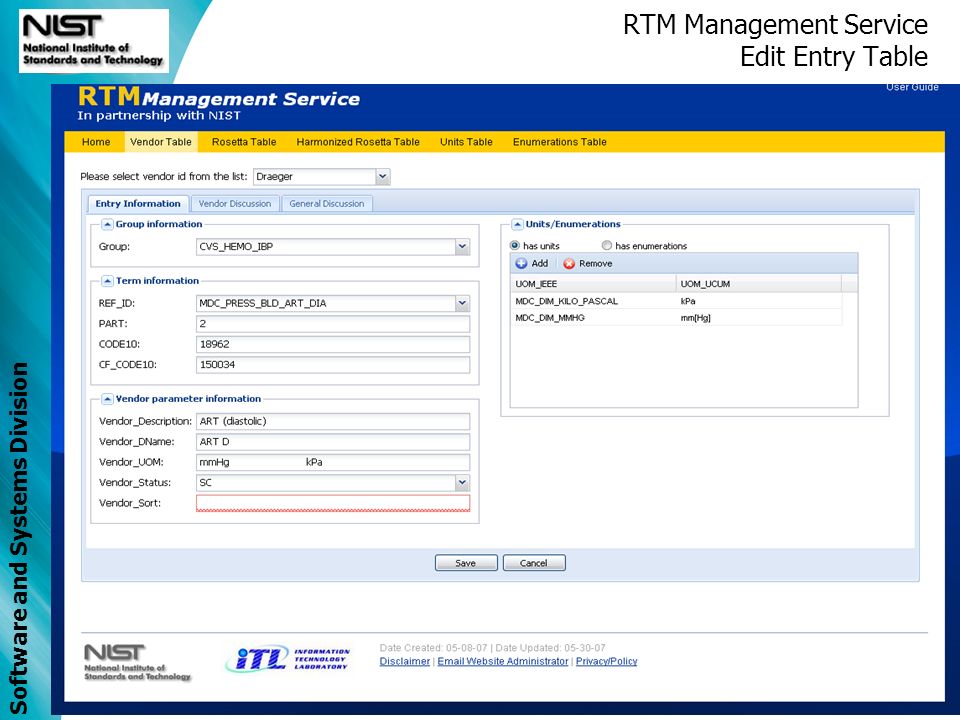

25. Software and Systems Division RTM Management Service Edit Entry Table

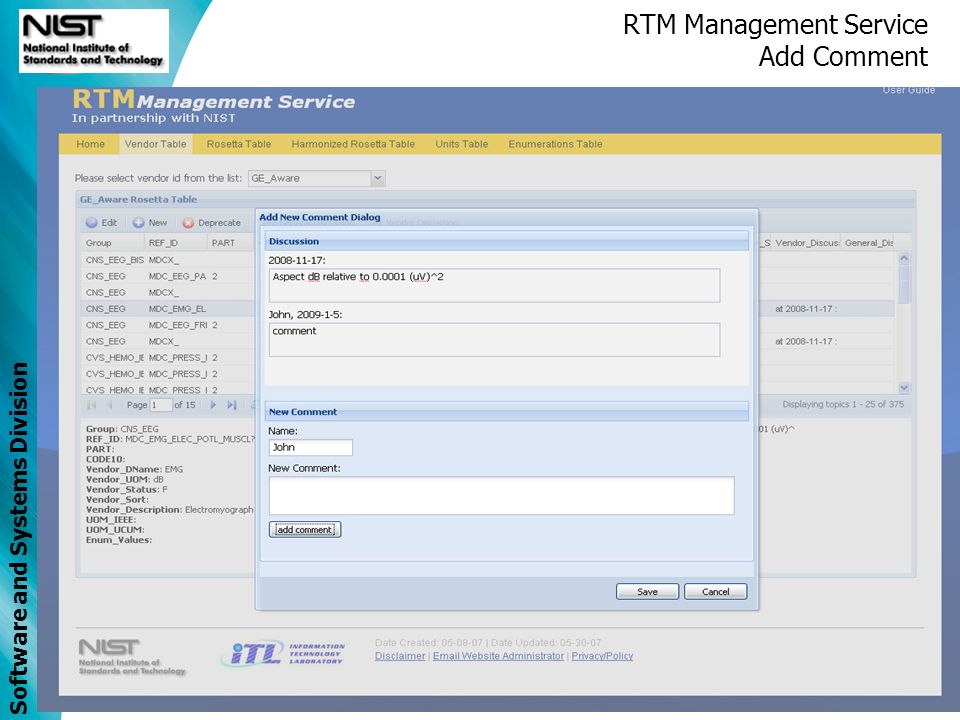

26. Software and Systems Division RTM Management Service Add Comment

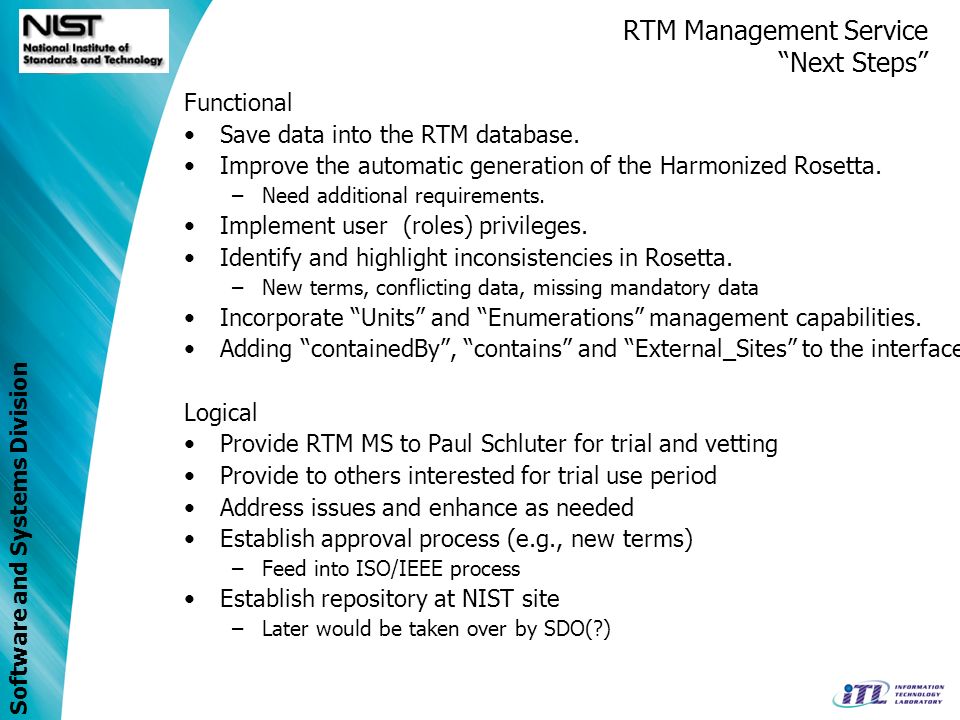

27. Software and Systems Division RTM Management Service “Next Steps” Functional Save data into the RTM database. Improve the automatic generation of the Harmonized Rosetta. –Need additional requirements. Implement user (roles) privileges. Identify and highlight inconsistencies in Rosetta. –New terms, conflicting data, missing mandatory data Incorporate “Units” and “Enumerations” management capabilities. Adding “containedBy”, “contains” and “External_Sites” to the interface. Logical Provide RTM MS to Paul Schluter for trial and vetting Provide to others interested for trial use period Address issues and enhance as needed Establish approval process (e.g., new terms) –Feed into ISO/IEEE process Establish repository at NIST site –Later would be taken over by SDO(?)

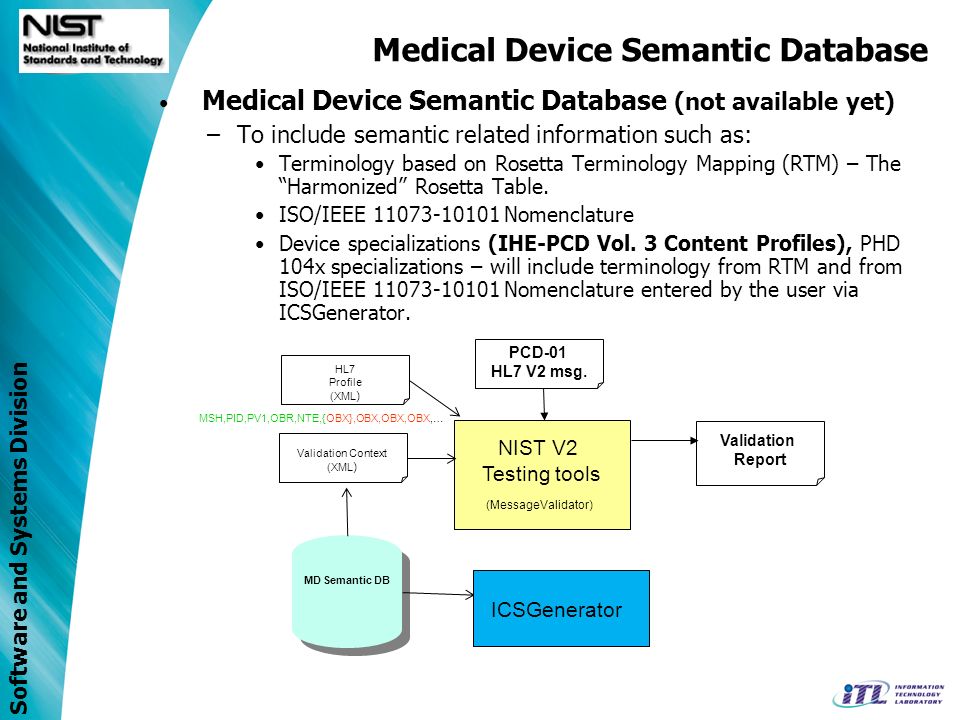

28. Software and Systems Division Medical Device Semantic Database Medical Device Semantic Database (not available yet) –To include semantic related information such as: Terminology based on Rosetta Terminology Mapping (RTM) – The “Harmonized” Rosetta Table. ISO/IEEE 11073-10101 Nomenclature Device specializations (IHE-PCD Vol. 3 Content Profiles), PHD 104x specializations – will include terminology from RTM and from ISO/IEEE 11073-10101 Nomenclature entered by the user via ICSGenerator. NIST V2 Testing tools (MessageValidator) PCD-01 HL7 V2 msg. Validation Report HL7 Profile (XML ) MSH,PID,PV1,OBR,NTE,{ OBX},OBX,OBX,OBX,… MD Semantic DB MD Semantic DB ICSGenerator Validation Context (XML )

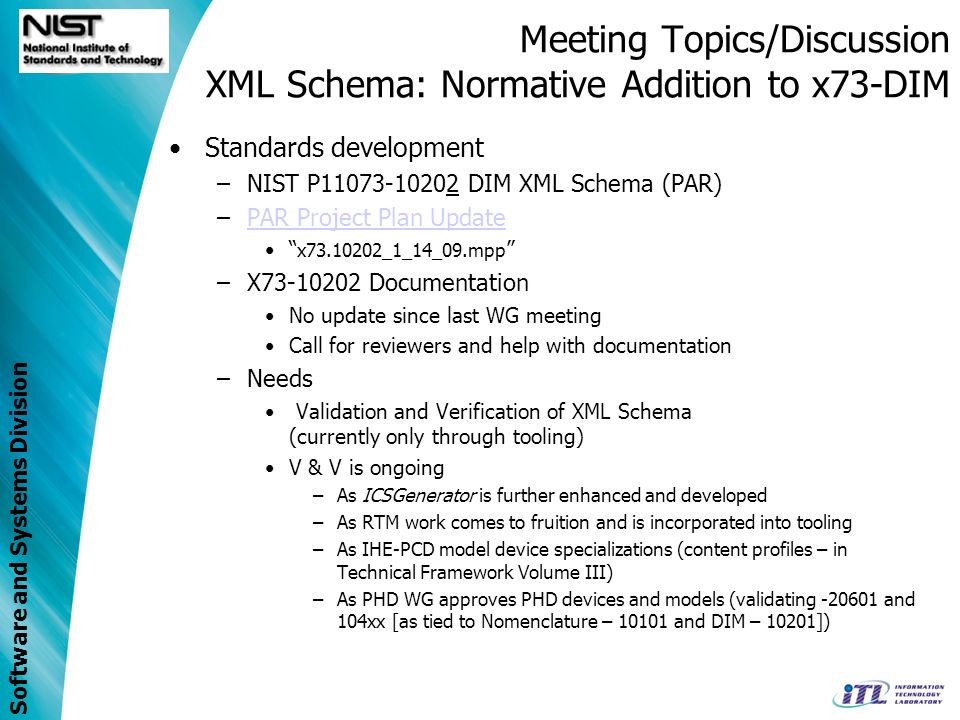

29. Software and Systems Division Meeting Topics/Discussion XML Schema: Normative Addition to x73-DIM Standards development –NIST P11073-10202 DIM XML Schema (PAR) –PAR Project Plan UpdatePAR Project Plan Update “ x73.10202_1_14_09.mpp ” –X73-10202 Documentation No update since last WG meeting Call for reviewers and help with documentation –Needs Validation and Verification of XML Schema (currently only through tooling) V & V is ongoing –As ICSGenerator is further enhanced and developed –As RTM work comes to fruition and is incorporated into tooling –As IHE-PCD model device specializations (content profiles – in Technical Framework Volume III) –As PHD WG approves PHD devices and models (validating -20601 and 104xx [as tied to Nomenclature – 10101 and DIM – 10201])

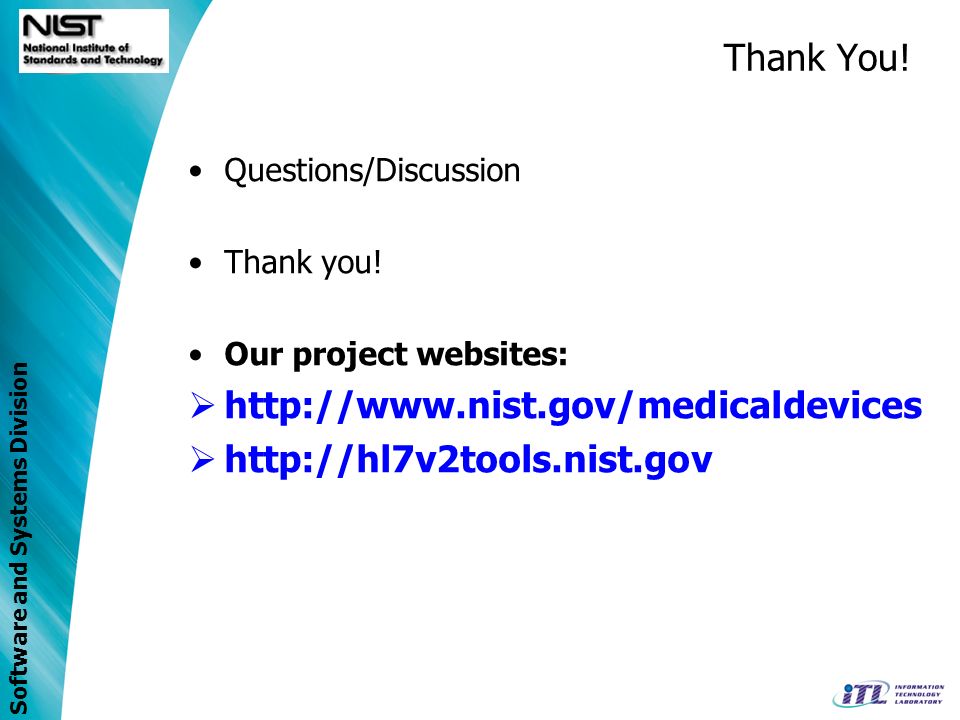

30. Software and Systems Division Thank You! Questions/Discussion Thank you! Our project websites:  http://www.nist.gov/medicaldevices  http://hl7v2tools.nist.gov

31. Software and Systems Division Extra Slides

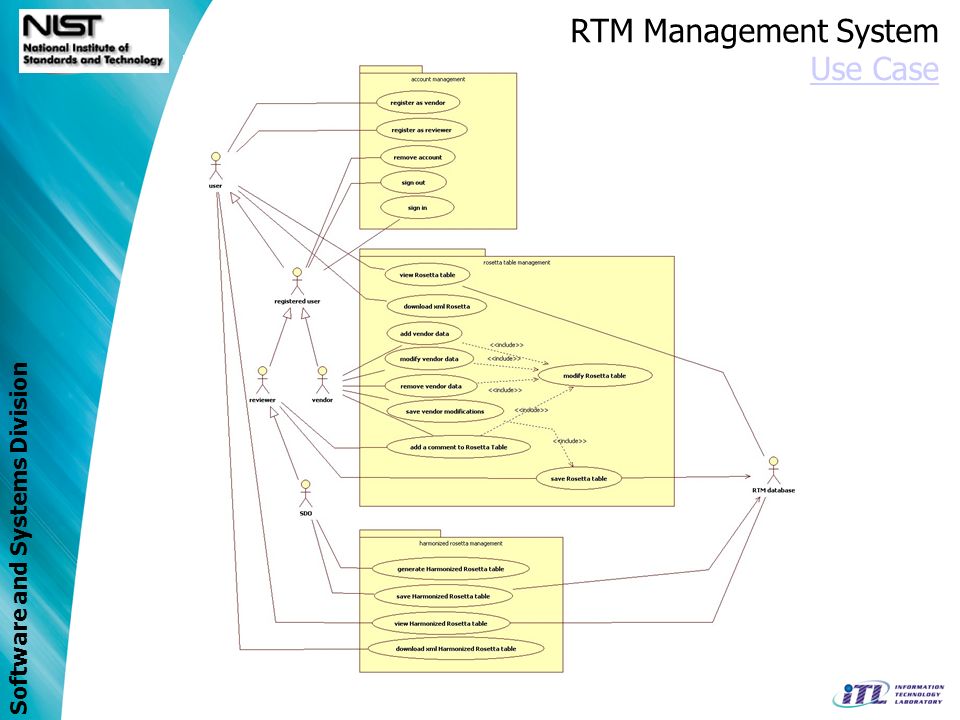

32. Software and Systems Division RTM Management System Use Case Use Case

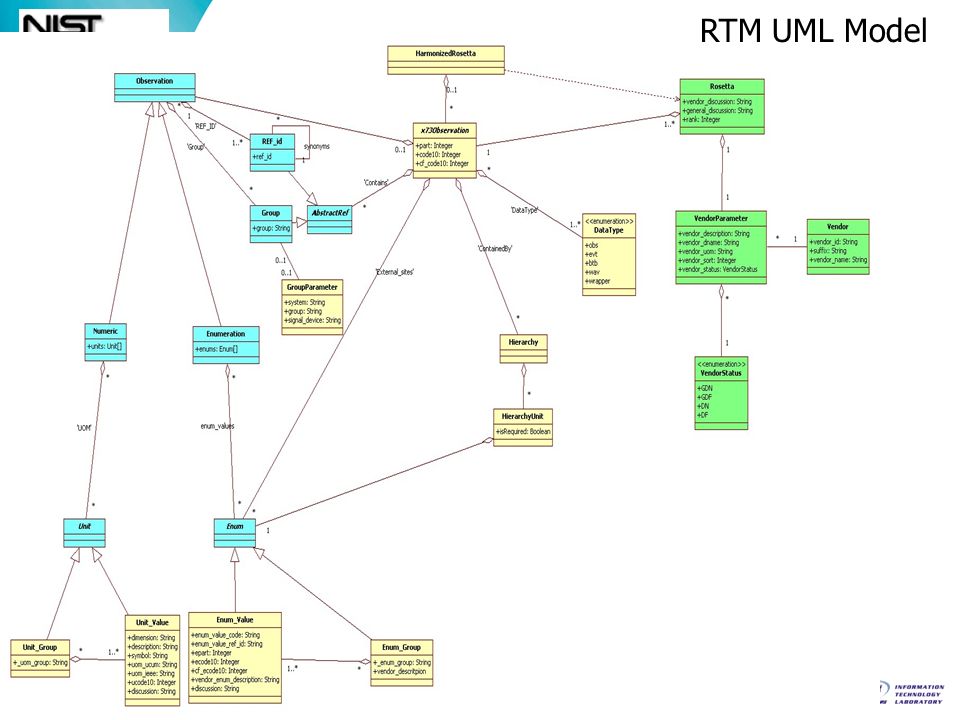

33. Software and Systems Division RTM UML Model

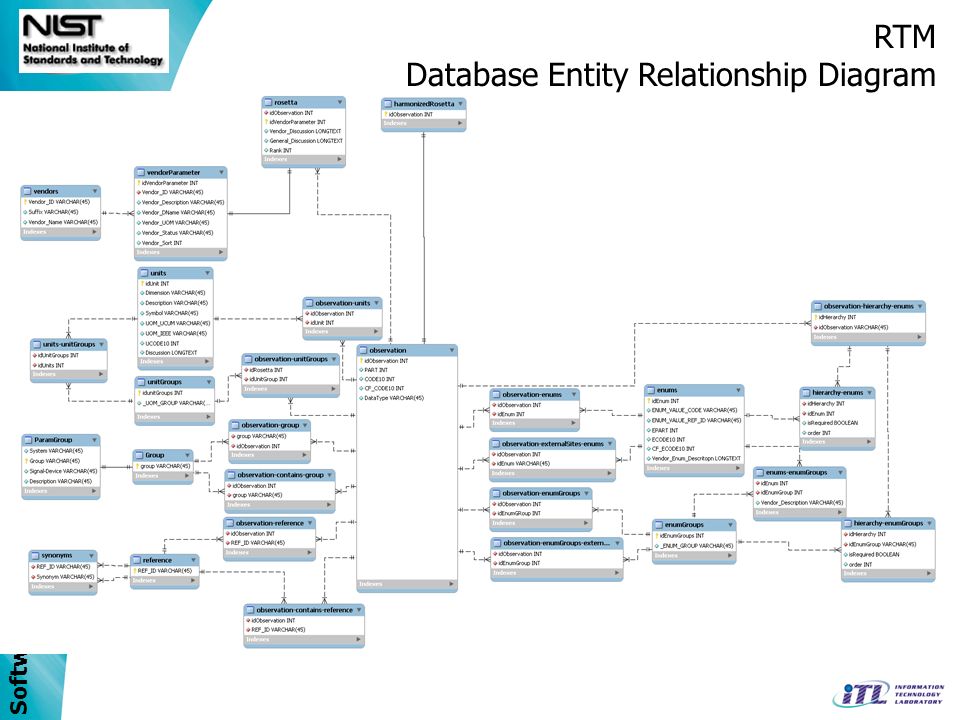

34. Software and Systems Division RTM Database Entity Relationship Diagram

35. Software and Systems Division ICSGenerator, DIM XSchema and PHD-DIM Specialization Profiles

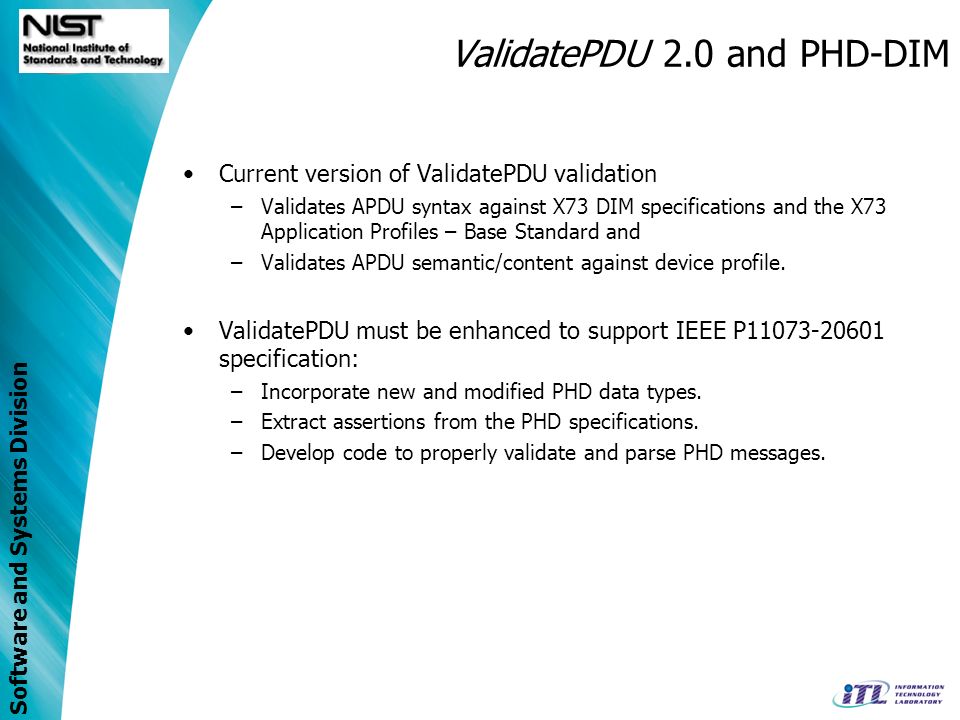

36. Software and Systems Division ValidatePDU 2.0 and PHD-DIM Current version of ValidatePDU validation –Validates APDU syntax against X73 DIM specifications and the X73 Application Profiles – Base Standard and –Validates APDU semantic/content against device profile. ValidatePDU must be enhanced to support IEEE P11073-20601 specification: –Incorporate new and modified PHD data types. –Extract assertions from the PHD specifications. –Develop code to properly validate and parse PHD messages.
