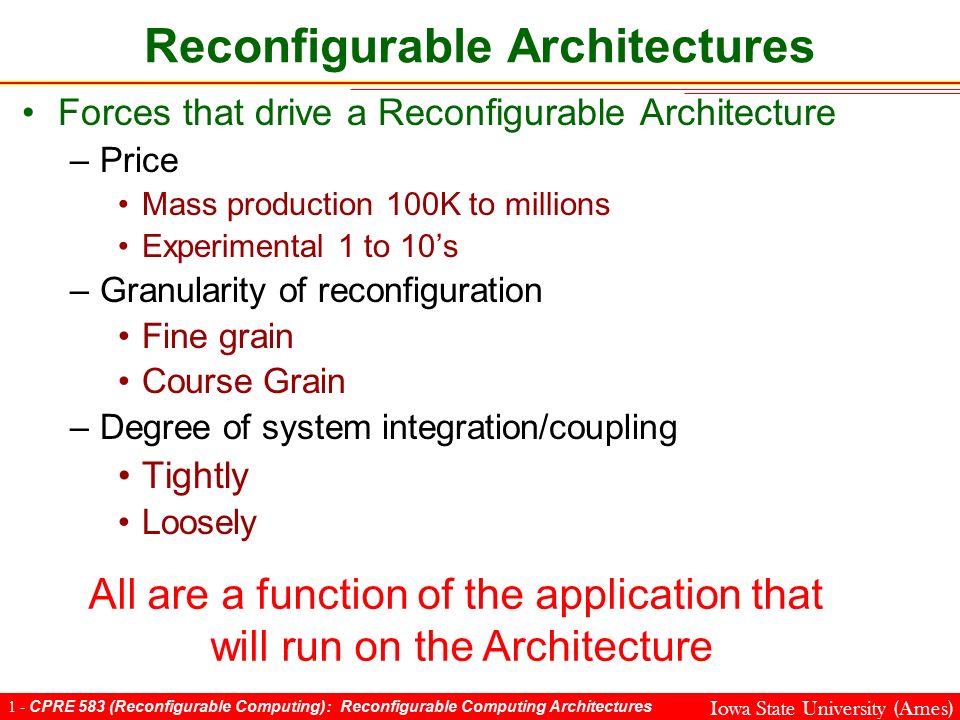

1. 1 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Reconfigurable Architectures Forces that drive a Reconfigurable Architecture –Price Mass production 100K to millions Experimental 1 to 10’s –Granularity of reconfiguration Fine grain Course Grain –Degree of system integration/coupling Tightly Loosely All are a function of the application that will run on the Architecture

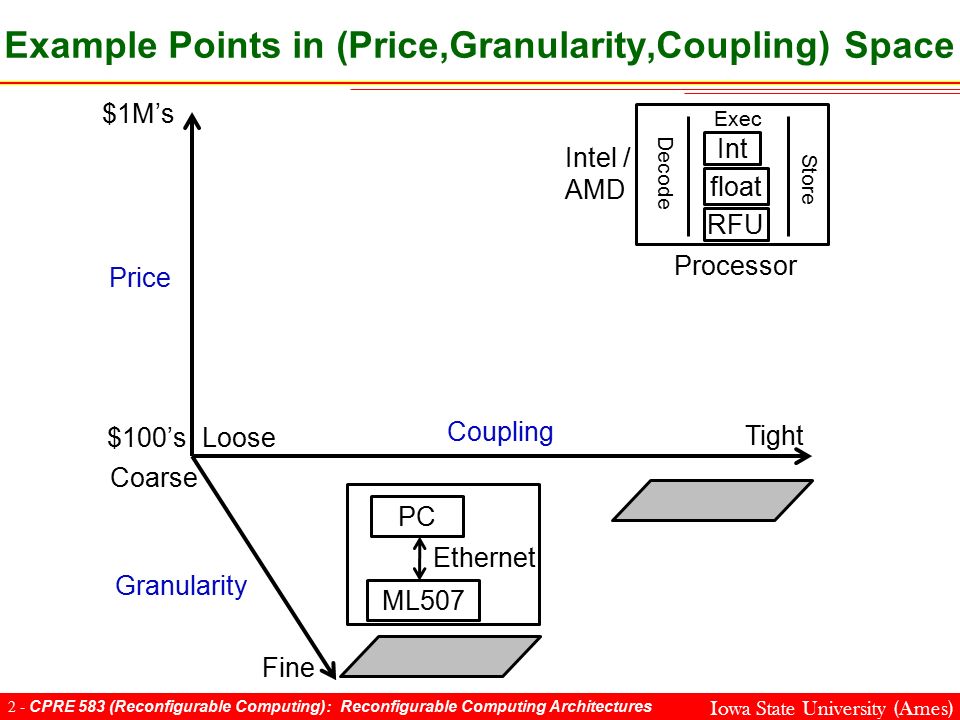

2. 2 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Example Points in (Price,Granularity,Coupling) Space Price $100’s $1M’s Granularity Coarse Fine Coupling Loose Tight Intel / AMD Int float RFU Processor PC ML507 Ethernet Decode Exec Store

3. 3 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) What’s the point of a Reconfigurable Architecture Performance metrics –Computational Throughput Latency –Power Total power dissipation Thermal –Reliability Recovery from faults Increase application performance!

4. 4 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Typical Approach for Increasing Performance Application/algorithm implemented in software –Often easier to write an application in software Profile application (e.g. gprof) –Determine where the application is spending its time Identify kernels of interest –e.g. application spends 90% of its time in function matrix_multiply() Design custom hardware/instruction to accelerate kernel(s) –Analysis to kernel to determine how to extract fine/coarse grain parallelism (does any parallelism even exist?) Amdahl’s Law!

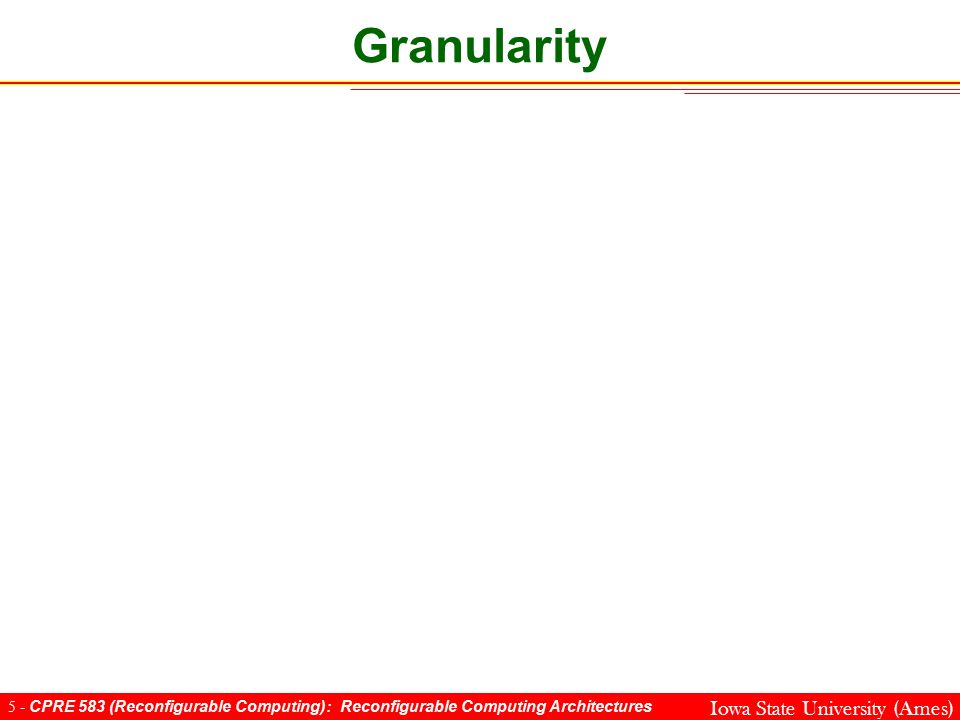

5. 5 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity

6. 6 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Coarse Grain rDPA: reconfigurable Data Path Array Function Units with programmable interconnects ALU Example

7. 7 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Coarse Grain rDPA: reconfigurable Data Path Array Function Units with programmable interconnects ALU Example

8. 8 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Coarse Grain rDPA: reconfigurable Data Path Array Function Units with programmable interconnects ALU Example

9. 9 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Fine Grain FPGA: Field Programmable Gate Array Sea of general purpose logic gates CLB Configurable Logic Block

10. 10 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Fine Grain FPGA: Field Programmable Gate Array Sea of general purpose logic gates CLB Configurable Logic Block

11. 11 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Fine Grain FPGA: Field Programmable Gate Array Sea of general purpose logic gates CLB Configurable Logic Block

12. 12 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor

13. 13 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor 4 3 3 A B op 3

14. 14 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor 4 3 3 A B op 3 4 3 3 A B 3 4 3 3 A B 3

15. 15 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor 4 3 3 A B op 3 4 3 3 A B 3 3 3 3 A B

16. 16 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor 4 3 3 A B op 3

17. 17 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants

18. 18 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants (A and “1100”) or (B or “1000”)

19. 19 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants (A and “1100”) or (B or “1000”) A B

20. 20 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants (A and “1100”) or (B or “1000”) A AND OR 1 0 B 4 4 It’s much worse, each 10-LUT only has one output Area that was required using 2-LUTS

21. 21 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: Example Architectures Fine grain: GARP Course grain: PipeRench

22. 22 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP CPU RFU Garp chip Memory I-cache D-cache Config cache

23. 23 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP CPU RFU Garp chip Memory I-cache D-cache Config cache RFU control (1) Execution (16, 2-bit) N PE (Processing Element)

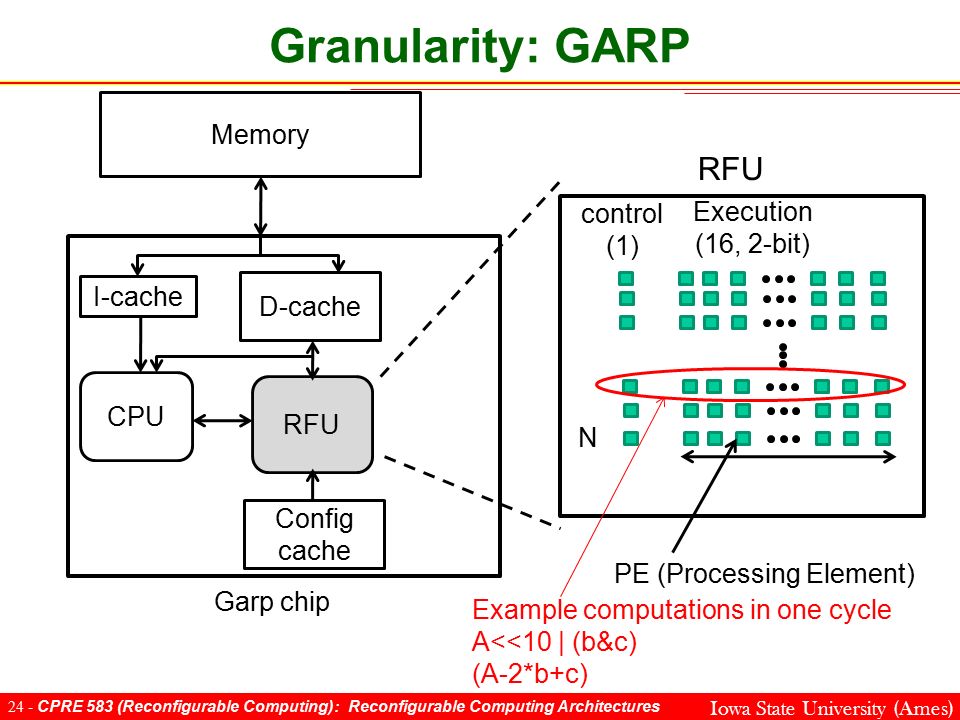

24. 24 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP CPU RFU Garp chip Memory I-cache D-cache Config cache RFU control (1) Execution (16, 2-bit) N PE (Processing Element) Example computations in one cycle A<<10 | (b&c) (A-2*b+c)

25. 25 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP CPU RFU Garp chip Memory I-cache D-cache Config cache Impact of configuration size 1 GHz bus frequency 128-bit memory bus 512Kbits of configuration size On a RFU context switch how long to load a new full configuration? 4 microseconds An estimate of amount of time for the CPU perform a context switch is ~5 microseconds ~2x increase context switch latency!!

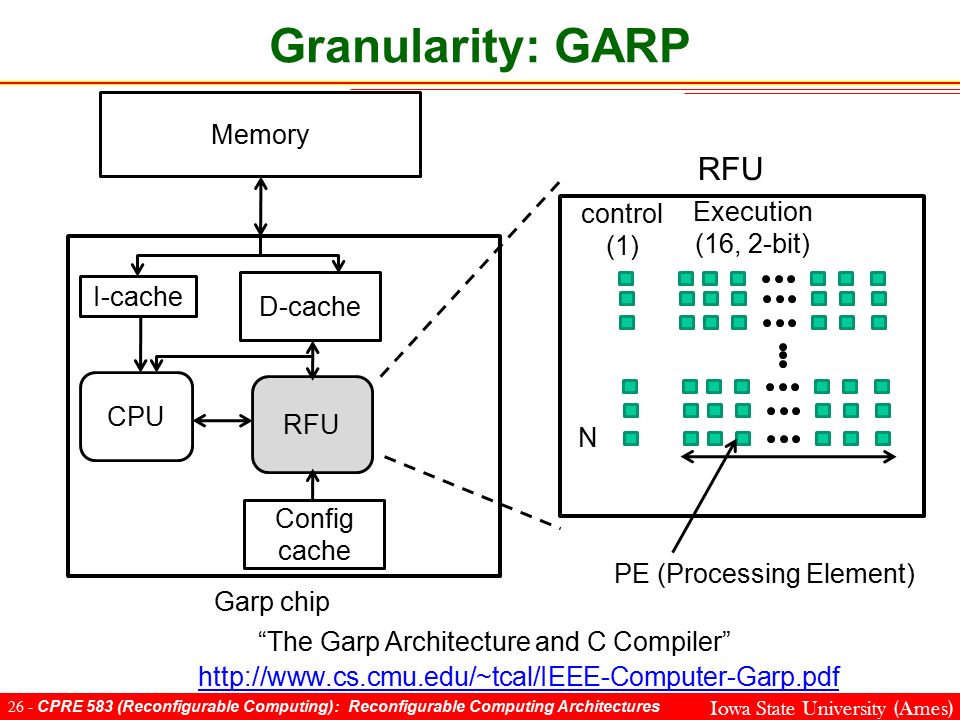

26. 26 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP CPU RFU Garp chip Memory I-cache D-cache Config cache RFU control (1) Execution (16, 2-bit) N PE (Processing Element) “The Garp Architecture and C Compiler” http://www.cs.cmu.edu/~tcal/IEEE-Computer-Garp.pdf

27. 27 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench Coarse granularity Higher (higher) level programming Reference papers PipeRench: A Coprocessor for Streaming Multimedia Acceleration (ISCA 1999): http://www.cs.cmu.edu/~mihaib/research/isca99.pdfhttp://www.cs.cmu.edu/~mihaib/research/isca99.pdf PipeRench Implementation of the Instruction Path Coprocessor (Micro 2000): http://class.ee.iastate.edu/cpre583/papers/piperench_Micro_2000. pdf http://class.ee.iastate.edu/cpre583/papers/piperench_Micro_2000. pdf

28. 28 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench Interconnect 8-bit ALU Reg file PE 8-bit ALU Reg file PE 8-bit ALU Reg file PE Interconnect 8-bit ALU Reg file PE 8-bit ALU Reg file PE 8-bit ALU Reg file PE 8-bit ALU Reg file PE 8-bit ALU Reg file PE 8-bit ALU Reg file PE Global bus

29. 29 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE Cycle Pipeline stage 1 2 3 4 5 6 0123401234

30. 30 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234

31. 31 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1

32. 32 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2

33. 33 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3

34. 34 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4

35. 35 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4

36. 36 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 Cycle Pipeline stage 1 2 3 4 5 6 012012

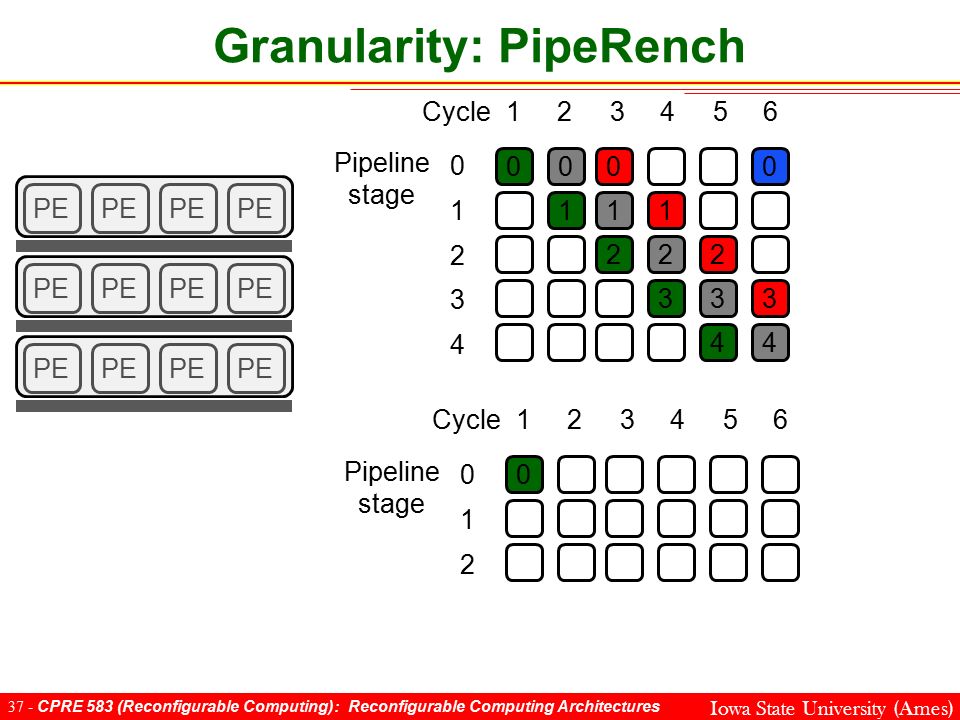

37. 37 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012

38. 38 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012 0 1

39. 39 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012 0 1 0 1 2

40. 40 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012 0 1 0 1 2 3 1 2

41. 41 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012 0 1 0 1 2 3 1 2 3 4 2

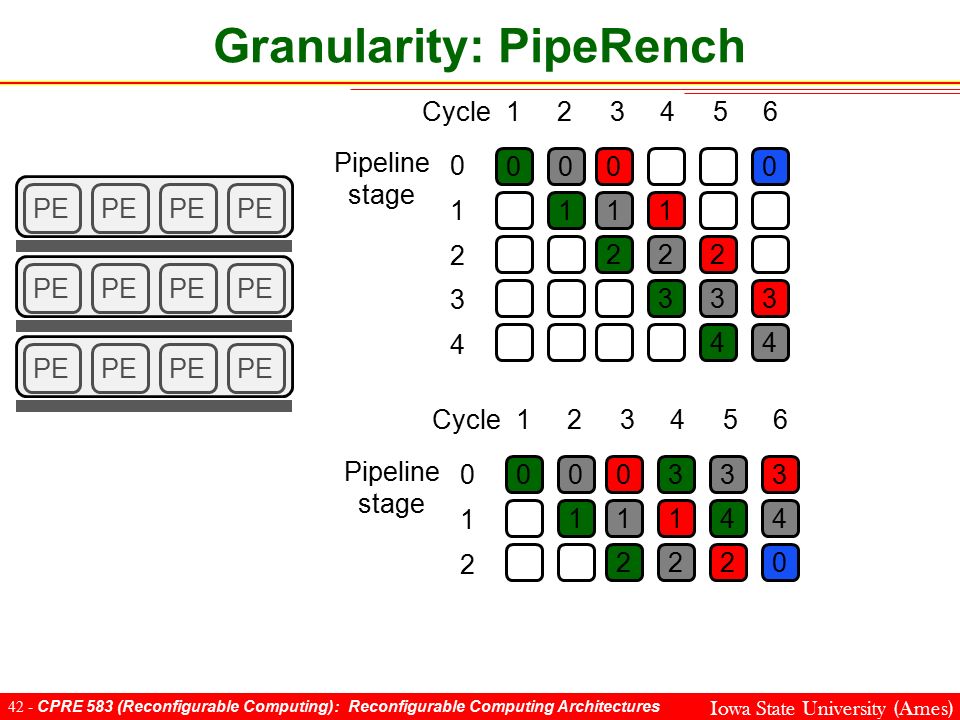

42. 42 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench PE 0 Cycle Pipeline stage 1 2 3 4 5 6 0123401234 0 1 0 1 2 1 2 3 2 3 4 0 3 4 0 Cycle Pipeline stage 1 2 3 4 5 6 012012 0 1 0 1 2 3 1 2 3 4 2 3 4 0

43. 43 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Independent Reconfigurable Coprocessor –Reconfigurable Fabric does not have direct communication with the CPU Processor + Reconfigurable Processing Fabric –Loosely coupled on the same chip –Tightly coupled on the same chip

44. 44 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU

45. 45 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RPF

46. 46 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RPF

47. 47 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RPF Config I/F

48. 48 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RPF Config I/F

49. 49 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RPF I/O Config I/F

50. 50 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Degree of Integration/Coupling Main Memory CPU Fetch Decode Execute Memory Write Back L1 Cache L2 Cache Memory Controller DMA Controller I/O Controller USB PCI PCI-ExpressSATA Hard Drive NIC ALU FPU RFU

51. 51 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames)

52. 52 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Next Class Reconfiguration Management –Chapter 4

53. 53 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Questions/Comments/Concerns Write down –Main point of lecture –One thing that’s still not quite clear –If everything is clear, then give an example of how to apply something from lecture OR

54. 54 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Lecture notes

55. 55 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: PipeRench Scheduling virtual stage on to physical Partial/Dynamically reconfig (each cycle)

56. 56 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Granularity: GARP Impact of configuration size on performance Context switching Garp feature Dynamic reconfigurable Store multiple configurations in an on chip cache (4) One configuration at a time Example app mapping to GARP (loop) Amdahl's Law The Garp Architecture and C Compiler http://www.cs.cmu.edu/~tcal/IEEE-Computer-Garp.pdf

57. 57 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Overview Dimensions –Price –Granularity –Coupling –To optimize App Performance (compute (throughput, latency), Power, reliability) RPF to efficiently implement VICs –Main picture authors' wants to convey What’s the point or having a Reconfigure arch –Example (Increase App performance) App -> SW/CPU Profile ID kernels of intense compute Design custom hardware/instruction (Amdels law) –Intel FPL paper, great example for reading by Friday

58. 58 - CPRE 583 (Reconfigurable Computing): Reconfigurable Computing Architectures Iowa State University (Ames) Reconfigurable Architectures RPF -> VIC (short slide)
