George Mason University ECE 545 – Introduction to VHDL Variables, Functions, Memory, File I/O ECE 545 Lecture 7.

Published byDale Anthony Modified over 8 years ago

Similar presentations

Presentation on theme: "George Mason University ECE 545 – Introduction to VHDL Variables, Functions, Memory, File I/O ECE 545 Lecture 7."— Presentation transcript:

1 George Mason University ECE 545 – Introduction to VHDL Variables, Functions, Memory, File I/O ECE 545 Lecture 7

2 2ECE 545 – Introduction to VHDL Variables

3 3ECE 545 – Introduction to VHDL Variable – Example (1) LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY Numbits IS PORT ( X : IN STD_LOGIC_VECTOR(1 TO 3) ; Count : OUT INTEGER RANGE 0 TO 3) ; END Numbits ;

4 4ECE 545 – Introduction to VHDL Variable – Example (2) ARCHITECTURE Behavior OF Numbits IS BEGIN PROCESS(X) – count the number of bits in X equal to 1 VARIABLE Tmp: INTEGER; BEGIN Tmp := 0; FOR i IN 1 TO 3 LOOP IF X(i) = ‘1’ THEN Tmp := Tmp + 1; END IF; END LOOP; Count <= Tmp; END PROCESS; END Behavior ;

5 5ECE 545 – Introduction to VHDL Variables - features Can only be declared within processes and subprograms (functions & procedures) Initial value can be explicitly specified in the declaration When assigned take an assigned value immediately Variable assignments represent the desired behavior, not the structure of the circuit Should be avoided, or at least used with caution in a synthesizable code

6 6ECE 545 – Introduction to VHDL Variables vs. Signals

7 7ECE 545 – Introduction to VHDL Variable – Example ARCHITECTURE Behavior OF Numbits IS BEGIN PROCESS(X) – count the number of bits in X equal to 1 VARIABLE Tmp: INTEGER; BEGIN Tmp := 0; FOR i IN 1 TO 3 LOOP IF X(i) = ‘1’ THEN Tmp := Tmp + 1; END IF; END LOOP; Count <= Tmp; END PROCESS; END Behavior ;

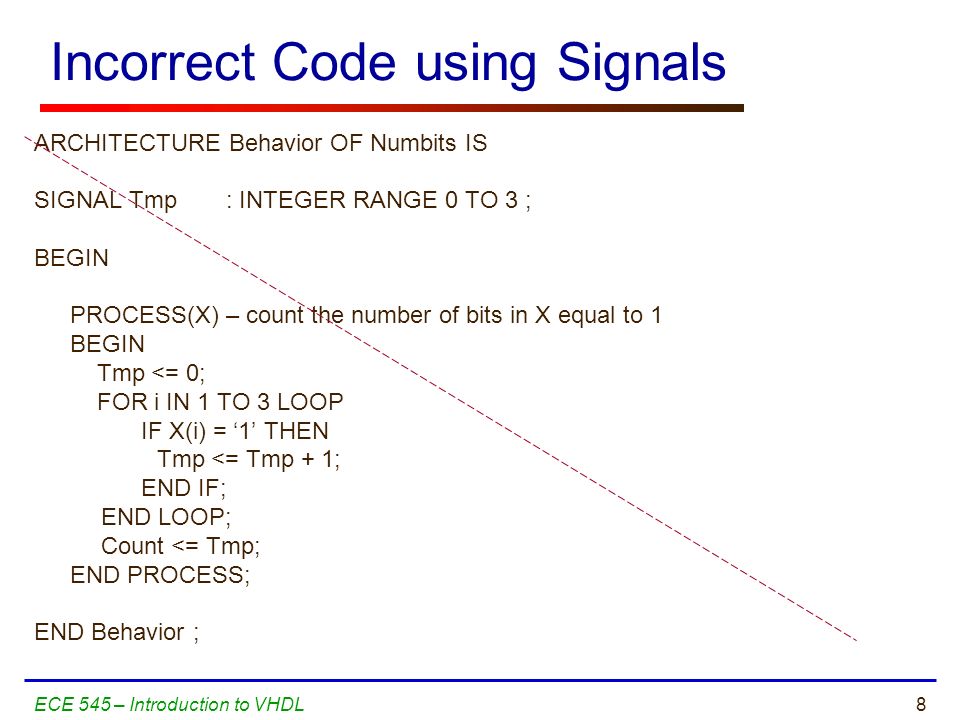

8 8ECE 545 – Introduction to VHDL Incorrect Code using Signals ARCHITECTURE Behavior OF Numbits IS SIGNAL Tmp : INTEGER RANGE 0 TO 3 ; BEGIN PROCESS(X) – count the number of bits in X equal to 1 BEGIN Tmp <= 0; FOR i IN 1 TO 3 LOOP IF X(i) = ‘1’ THEN Tmp <= Tmp + 1; END IF; END LOOP; Count <= Tmp; END PROCESS; END Behavior ;

9 9ECE 545 – Introduction to VHDL Parity generator entity library ieee; use ieee.std_logic_1164.all; entity oddParityLoop is generic ( width : integer := 8 ); port ( ad: in std_logic_vector (width - 1 downto 0); oddParity : out std_logic ) ; end oddParityLoop ;

10 10ECE 545 – Introduction to VHDL Parity generator architecture using variables architecture behavioral of oddParityLoop is begin process (ad) variable loopXor: std_logic; begin loopXor := '0'; for i in 0 to width -1 loop loopXor := loopXor xor ad( i ) ; end loop ; oddParity <= loopXor ; end process; end behavioral ;

11 11ECE 545 – Introduction to VHDL Parity generator architecture using signals architecture dataflow of oddParityGen is signal genXor: std_logic_vector(width downto 0); begin genXor(0) <= '0'; parTree: for i in 1 to width generate genXor(i) <= genXor(i - 1) XOR ad(i - 1); end generate; oddParity <= genXor(width) ; end dataflow ;

12 12ECE 545 – Introduction to VHDL N-bit NAND library ieee; use ieee.std_logic_1164.all; ENTITY NANDn IS GENERIC (n: INTEGER := 4) PORT ( X: IN STD_LOGIC_VECTOR(1 TO n); Y : OUT STD_LOGIC); END NANDn;

13 13ECE 545 – Introduction to VHDL N-bit NAND architecture using variables ARCHITECTURE behavioral1 OF NANDn IS BEGIN PROCESS (X) VARIABLE Tmp: STD_LOGIC; BEGIN Tmp := X(1); AND_bits: FOR i IN 2 TO n LOOP Tmp := Tmp AND X( i ) ; END LOOP AND_bits ; Y <= NOT Tmp ; END PROCESS; END behavioral1 ;

14 14ECE 545 – Introduction to VHDL Incorrect N-bit NAND architecture using signals ARCHITECTURE behavioral2 OF NANDn IS SIGNAL Tmp: STD_LOGIC; BEGIN PROCESS (X) BEGIN Tmp <= X(1); AND_bits: FOR i IN 2 TO n LOOP Tmp <= Tmp AND X( i ) ; END LOOP AND_bits ; Y <= NOT Tmp ; END PROCESS; END behavioral2 ;

15 15ECE 545 – Introduction to VHDL Correct N-bit NAND architecture using signals ARCHITECTURE dataflow1 OF NANDn IS SIGNAL Tmp: STD_LOGIC_VECTOR(1 TO n); BEGIN Tmp(1) <= X(1); AND_bits: FOR i IN 2 TO n LOOP Tmp(i) <= Tmp(i-1) AND X( i ) ; END LOOP AND_bits ; Y <= NOT Tmp(n) ; END dataflow1 ;

16 16ECE 545 – Introduction to VHDL Correct N-bit NAND architecture using signals ARCHITECTURE dataflow2 OF NANDn IS SIGNAL Tmp: STD_LOGIC_VECTOR(1 TO n); BEGIN Tmp 1); Y <= ‘0’ WHEN X = Tmp ELSE ‘1’; END dataflow2 ;

17 17ECE 545 – Introduction to VHDL Functions

18 18ECE 545 – Introduction to VHDL Functions – basic features Functions never modify parameters passed to them always return a single value as a result are always used in some expression, and not called on their own

19 19ECE 545 – Introduction to VHDL User-defined Functions

20 20ECE 545 – Introduction to VHDL Function – example (1) library IEEE; use IEEE.std_logic_1164.all; ENTITY powerOfFour IS PORT( X : IN INTEGER; Y : OUT INTEGER; ); END powerOfFour;

21 21ECE 545 – Introduction to VHDL Function – example (2) ARCHITECTURE behavioral OF powerOfFour IS FUNCTION Pow( N, Exp : INTEGER) RETURN INTEGER IS VARIABLE Result : INTEGER := 1; BEGIN FOR i IN 1 TO Exp LOOP Result := Result * N; END LOOP; RETURN( Result ); END Pow; BEGIN Y <= Pow(X, 4); END behavioral;

22 22ECE 545 – Introduction to VHDL User-defined Functions – basic features User-defined Functions are declared between the architecture declaration statement and the BEGIN statement of that architecture, just like components are called using formal and actual parameters the same way as components may be defined in package bodies

23 23ECE 545 – Introduction to VHDL Package containing a function (1) LIBRARY IEEE; USE IEEE.std_logic_1164.all; PACKAGE specialFunctions IS FUNCTION Pow( N, Exp : INTEGER) RETURN INTEGER; END specialFunctions

24 24ECE 545 – Introduction to VHDL Package containing a function (2) PACKAGE BODY specialFunctions IS FUNCTION Pow( N, Exp : INTEGER) RETURN INTEGER IS VARIABLE Result : INTEGER := 1; BEGIN FOR i IN 1 TO Exp LOOP Result := Result * N; END LOOP; RETURN( Result ); END Pow; END specialFunctions

25 25ECE 545 – Introduction to VHDL User-defined Procedures

26 26ECE 545 – Introduction to VHDL Procedure – example (1) library IEEE; use IEEE.std_logic_1164.all; use work.decProcs.all; entity decoder is port ( decIn: in std_logic_vector(1 downto 0); decOut: out std_logic_vector(3 downto 0) ); end decoder;

27 27ECE 545 – Introduction to VHDL Procedure – example (2) architecture simple of decoder is procedure DEC2x4 (inputs : in std_logic_vector(1 downto 0); decode: out std_logic_vector(3 downto 0) ) is begin case inputs is when "11" => decode := "1000"; when "10" => decode := "0100"; when "01" => decode := "0010"; when "00" => decode := "0001"; when others => decode := "0001"; end case; end DEC2x4; begin DEC2x4(decIn,decOut); end simple;

28 28ECE 545 – Introduction to VHDL Memories

29 29ECE 545 – Introduction to VHDL RAM16X1S O D WE WCLK A0 A1 A2 A3 RAM32X1S O D WE WCLK A0 A1 A2 A3 A4 RAM16X2S O1 D0 WE WCLK A0 A1 A2 A3 D1 O0 = = LUT or LUT RAM16X1D SPO D WE WCLK A0 A1 A2 A3 DPRA0DPO DPRA1 DPRA2 DPRA3 or Distributed RAM CLB LUT configurable as Distributed RAM A LUT equals 16x1 RAM Implements Single and Dual- Ports Cascade LUTs to increase RAM size Synchronous write Synchronous/Asynchronous read Accompanying flip-flops used for synchronous read

30 30ECE 545 – Introduction to VHDL RAM 16x1 (1) library IEEE; use IEEE.STD_LOGIC_1164.all; library UNISIM; use UNISIM.all; entity RAM_16X1_DISTRIBUTED is port( CLK : in STD_LOGIC; WE : in STD_LOGIC; ADDR : in STD_LOGIC_VECTOR(3 downto 0); DATA_IN : in STD_LOGIC; DATA_OUT : out STD_LOGIC ); end RAM_16X1_DISTRIBUTED;

31 31ECE 545 – Introduction to VHDL RAM 16x1 (2) architecture RAM_16X1_DISTRIBUTED_STRUCTURAL of RAM_16X1_DISTRIBUTED is attribute INIT : string; attribute INIT of RAM16X1_S_1: label is "F0C1"; -- Component declaration of the "ram16x1s(ram16x1s_v)" unit -- File name contains "ram16x1s" entity:./src/unisim_vital.vhd component ram16x1s generic( INIT : BIT_VECTOR(15 downto 0) := X"0000"); port( O : out std_ulogic; A0 : in std_ulogic; A1 : in std_ulogic; A2 : in std_ulogic; A3 : in std_ulogic; D : in std_ulogic; WCLK : in std_ulogic; WE : in std_ulogic); end component;

32 32ECE 545 – Introduction to VHDL RAM 16x1 (3) begin RAM_16X1_S_1: ram16x1s generic map (INIT => X"F0C1") port map (O=>DATA_OUT, A0=>ADDR(0), A1=>ADDR(1), A2=>ADDR(2), A3=>ADDR(3), D=>DATA_IN, WCLK=>CLK, WE=>WE ); end RAM_16X1_DISTRIBUTED_STRUCTURAL;

33 33ECE 545 – Introduction to VHDL RAM 16x8 (1) library IEEE; use IEEE.STD_LOGIC_1164.all; library UNISIM; use UNISIM.all; entity RAM_16X8_DISTRIBUTED is port( CLK : in STD_LOGIC; WE : in STD_LOGIC; ADDR : in STD_LOGIC_VECTOR(3 downto 0); DATA_IN : in STD_LOGIC_VECTOR(7 downto 0); DATA_OUT : out STD_LOGIC_VECTOR(7 downto 0) ); end RAM_16X8_DISTRIBUTED;

34 34ECE 545 – Introduction to VHDL RAM 16x8 (2) architecture RAM_16X8_DISTRIBUTED_STRUCTURAL of RAM_16X8_DISTRIBUTED is attribute INIT : string; attribute INIT of RAM16X1_S_1: label is "0000"; -- Component declaration of the "ram16x1s(ram16x1s_v)" unit -- File name contains "ram16x1s" entity:./src/unisim_vital.vhd component ram16x1s generic( INIT : BIT_VECTOR(15 downto 0) := X"0000"); port( O : out std_ulogic; A0 : in std_ulogic; A1 : in std_ulogic; A2 : in std_ulogic; A3 : in std_ulogic; D : in std_ulogic; WCLK : in std_ulogic; WE : in std_ulogic); end component;

35 35ECE 545 – Introduction to VHDL RAM 16x8 (3) begin GENERATE_MEMORY: for I in 0 to 7 generate RAM_16X1_S_1: ram16x1s generic map (INIT => X"0000") port map (O=>DATA_OUT(I), A0=>ADDR(0), A1=>ADDR(1), A2=>ADDR(2), A3=>ADDR(3), D=>DATA_IN(I), WCLK=>CLK, WE=>WE ); end generate; end RAM_16X8_DISTRIBUTED_STRUCTURAL;

36 36ECE 545 – Introduction to VHDL ROM 16x1 (1) library IEEE; use IEEE.STD_LOGIC_1164.all; library UNISIM; use UNISIM.all; entity ROM_16X1_DISTRIBUTED is port( ADDR : in STD_LOGIC_VECTOR(3 downto 0); DATA_OUT : out STD_LOGIC ); end ROM_16X1_DISTRIBUTED;

37 37ECE 545 – Introduction to VHDL ROM 16x1 (2) architecture ROM_16X1_DISTRIBUTED_STRUCTURAL of ROM_16X1_DISTRIBUTED is attribute INIT : string; attribute INIT of ROM16X1_S_1: label is "F0C1"; component ram16x1s generic( INIT : BIT_VECTOR(15 downto 0) := X"0000"); port( O : out std_ulogic; A0 : in std_ulogic; A1 : in std_ulogic; A2 : in std_ulogic; A3 : in std_ulogic; D : in std_ulogic; WCLK : in std_ulogic; WE : in std_ulogic); end component; signal Low : std_ulogic := ‘0’;

38 38ECE 545 – Introduction to VHDL ROM 16x1 (3) begin ROM_16X1_S_1: ram16x1s generic map (INIT => X"F0C1") port map (O=>DATA_OUT, A0=>ADDR(0), A1=>ADDR(1), A2=>ADDR(2), A3=>ADDR(3), D=>Low, WCLK=>Low, WE=>Low ); end ROM_16X1_DISTRIBUTED_STRUCTURAL;

39 39ECE 545 – Introduction to VHDL File I/O

40 40ECE 545 – Introduction to VHDL Design Under Test (1) library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity loadCnt is port ( data: in std_logic_vector (7 downto 0); load: in std_logic; clk: in std_logic; rst: in std_logic; q: out std_logic_vector (7 downto 0) ); end loadCnt;

41 41ECE 545 – Introduction to VHDL Design Under Test (2) architecture rtl of loadCnt is signal cnt: std_logic_vector (7 downto 0); begin counter: process (clk, rst) begin if (rst = '1') then cnt '0'); elsif (clk'event and clk = '1') then if (load = '1') then cnt <= data; else cnt <= cnt + 1; end if; end process; q <= cnt; end rtl;

42 42ECE 545 – Introduction to VHDL Test vector file (1) #Format is Rst, Load, Data, Q #load the counter to all 1s 011111111111111111 #reset the counter 101010101000000000 #now perform load/increment for each bit 011111111011111110 001111111011111111 # 011111110111111101 001111110111111110 # 011111101111111011 001111101111111100 # 011111011111110111 001111011111111000

43 43ECE 545 – Introduction to VHDL Test vector file (2) # 011110111111101111 001110111111110000 # 011101111111011111 001101111111100000 # 011011111110111111 001011111111000000 # 010111111101111111 00 0111111110000000 # #check roll-over case 011111111111111111 001111111100000000 # # End vectors

44 44ECE 545 – Introduction to VHDL Testbench (1) library IEEE; use IEEE.std_logic_1164.all; use ieee.STD_LOGIC_TEXTIO.all; use std.textio.all; entity loadCntTB is end loadCntTB;

45 45ECE 545 – Introduction to VHDL Testbench (2) architecture testbench of loadCntTB is component loadCnt port ( data: in std_logic_vector (7 downto 0); load: in std_logic; clk: in std_logic; rst: in std_logic; q: out std_logic_vector (7 downto 0) ); end component;

46 46ECE 545 – Introduction to VHDL Testbench (3) file vectorFile: text is in "vectorfile"; type vectorType is record data: std_logic_vector(7 downto 0); load: std_logic; rst: std_logic; q: std_logic_vector(7 downto 0); end record; signal testVector: vectorType; signal TestClk: std_logic := '0'; signal Qout: std_logic_vector(7 downto 0);

47 47ECE 545 – Introduction to VHDL Testbench (4) constant ClkPeriod: time := 100 ns; begin -- File reading and stimulus application readVec: process variable VectorLine: line; variable VectorValid: boolean; variable vRst: std_logic; variable vLoad: std_logic; variable vData: std_logic_vector(7 downto 0); variable vQ: std_logic_vector(7 downto 0);

48 48ECE 545 – Introduction to VHDL Testbench (5) begin while not endfile (vectorFile) loop readline(vectorFile, VectorLine); read(VectorLine, vRst, good => VectorValid); next when not VectorValid; read(VectorLine, vLoad); read(VectorLine, vData); read(VectorLine, vQ); wait for ClkPeriod/4; testVector.Rst <= vRst; testVector.Load <= vLoad; testVector.Data <= vData; testVector.Q <= vQ; wait for (ClkPeriod/4) * 3; end loop;

49 49ECE 545 – Introduction to VHDL Testbench (6) assert false report "Simulation complete" severity note; wait; end process; -- Free running test clock TestClk <= not TestClk after ClkPeriod/2; -- Instance of design being tested u1: loadCnt port map (Data => testVector.Data, load => testVector.Load, clk => TestClk, rst => testVector.Rst, q => Qout );

50 50ECE 545 – Introduction to VHDL Testbench (7) -- Process to verify outputs verify: process (TestClk) variable ErrorMsg: line; begin if (TestClk'event and TestClk = '0') then if Qout /= testVector.Q then write(ErrorMsg, string'("Vector failed ")); write(ErrorMsg, now); writeline(output, ErrorMsg); end if; end process; end testbench;

51 51ECE 545 – Introduction to VHDL Hex format In order to read/write data in the hexadecimal notation, replace read with hread, and write with hwrite
