1. CSCI 660 EEGN-CSCI 660 Introduction to VLSI Design Lecture 3 Khurram Kazi Some of the slides were taken from K Gaj ’ s lecture slides from GMU ’ s VHDL course webpage

2. CSCI 660 2 Anatomy of a Process [label:] process [(sensitivity list)] [VARIABLE name type [range] [:= initial_value;]] begin (sequential code) end process [label]; OPTIONAL

3. CSCI 660 3 Process: Statement Part Contains Sequential Statements to be Executed Each Time the Process Is Activated Typically a process is activated by any activity on the signals listed in the sensitivity list Condition related to WAIT is fulfilled

4. CSCI 660 4 A process can be given a unique name using an optional LABEL This is followed by the keyword PROCESS The keyword BEGIN is used to indicate the start of the process All statements within the process are executed SEQUENTIALLY. Hence, order of statements is important. A process must end with the keywords END PROCESS. TESTING: process begin TEST_VECTOR<=“00”; wait for 10 ns; TEST_VECTOR<=“01”; wait for 10 ns; TEST_VECTOR<=“10”; wait for 10 ns; TEST_VECTOR<=“11”; wait for 10 ns; end process;  A process is a sequence of instructions referred to as sequential statements. What is a PROCESS? The Keyword PROCESS

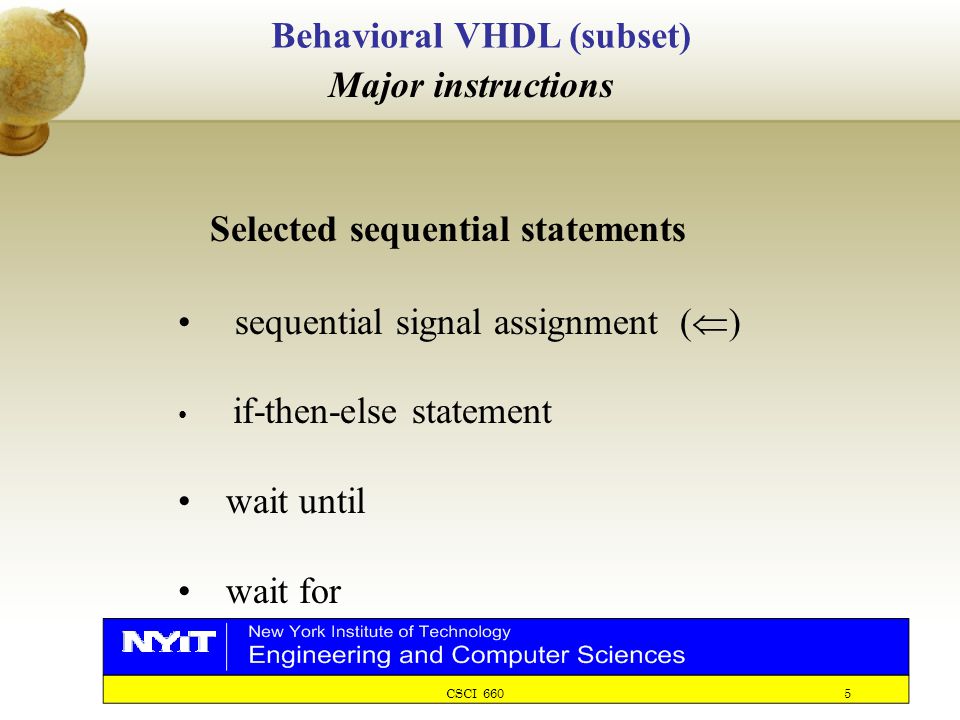

5. CSCI 660 5 Behavioral VHDL (subset) sequential signal assignment (  ) if-then-else statement wait until wait for Major instructions Selected sequential statements

6. CSCI 660 6 PROCESS with a SENSITIVITY LIST  List of signals to which the process is sensitive.  Whenever there is an event on any of the signals in the sensitivity list, the process fires.  Every time the process fires, it will run in its entirety.  WAIT statements are NOT ALLOWED in a processes with SENSITIVITY LIST. label: process ( sensitivity list ) declaration part begin statement part end process;

7. CSCI 660 7 Processes in VHDL Processes Describe Sequential Behavior Processes in VHDL Are Very Powerful Statements Allow to define an arbitrary behavior that may be difficult to represent by a real circuit Not every process can be synthesized Use Processes with Caution in the Code to Be Synthesized Use Processes Freely in Testbenches

8. CSCI 660 8 Component Equivalent of a Process All signals which appear on the left of signal assignment statement (<=) are outputs e.g. y, z All signals which appear on the right of signal assignment statement (<=) or in logic expressions are inputs e.g. w, a, b, c All signals which appear in the sensitivity list are inputs e.g. clk Note that not all inputs need to be included in the sensitivity list priority: PROCESS (clk) BEGIN IF w(3) = '1' THEN y <= "11" ; ELSIF w(2) = '1' THEN y <= "10" ; ELSIF w(1) = c THEN y <= a and b; ELSE z <= "00" ; END IF ; END PROCESS ; w a y z priority b c clk

9. CSCI 660 9 Registers

10. CSCI 660 10 ClockD 0 1 1 – 0 1 0 1 Truth table Graphical symbol t 1 t 2 t 3 t 4 Time Clock D Q Timing diagram Q(t+1) Q(t) D latch D Q Clock

11. CSCI 660 11 Clk D   0 1 0 1 Truth table t 1 t 2 t 3 t 4 Time Clock D Q Timing diagram Q(t+1) Q(t) D flip-flop D Q Clock Graphical symbol 0 – Q(t) 1 –

12. CSCI 660 12 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY latch IS PORT ( D, Clock : IN STD_LOGIC ; Q : OUT STD_LOGIC) ; END latch ; ARCHITECTURE Behavior OF latch IS BEGIN PROCESS ( D, Clock ) BEGIN IF Clock = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior; D latch D Q Clock

13. CSCI 660 13 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY flipflop IS PORT ( D, Clock: INSTD_LOGIC ; Q: OUTSTD_LOGIC) ; END flipflop ; ARCHITECTURE Behavior_1 OF flipflop IS BEGIN PROCESS ( Clock ) BEGIN IF Clock'EVENT AND Clock = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior_1 ; D flip-flop D Q Clock

14. CSCI 660 14 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY flipflop IS PORT ( D, Clock: INSTD_LOGIC ; Q: OUTSTD_LOGIC) ; END flipflop ; ARCHITECTURE Behavior_2 OF flipflop IS BEGIN PROCESS BEGIN WAIT UNTIL Clock'EVENT AND Clock = '1' ; Q <= D ; END PROCESS ; END Behavior_2 ; D flip-flop D Q Clock

15. CSCI 660 15 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY flipflop IS PORT ( D, Resetn, Clock : IN STD_LOGIC ; Q : OUT STD_LOGIC) ; END flipflop ; ARCHITECTURE Behavior OF flipflop IS BEGIN PROCESS ( Resetn, Clock ) BEGIN IF Resetn = '0' THEN Q <= '0' ; ELSIF Clock'EVENT AND Clock = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior ; D flip-flop with asynchronous reset D Q Clock Resetn

16. CSCI 660 16 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY flipflop IS PORT ( D, Resetn, Clock : IN STD_LOGIC ; Q : OUT STD_LOGIC) ; END flipflop ; ARCHITECTURE Behavior OF flipflop IS BEGIN PROCESS BEGIN WAIT UNTIL Clock'EVENT AND Clock = '1' ; IF Resetn = '0' THEN Q <= '0' ; ELSE Q <= D ; END IF ; END PROCESS ; END Behavior ; D flip-flop with synchronous reset D Q Clock Resetn

17. CSCI 660 17 8-bit register with asynchronous reset LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY reg8 IS PORT ( D: IN STD_LOGIC_VECTOR(7 DOWNTO 0) ; Resetn, Clock: IN STD_LOGIC ; Q : OUT STD_LOGIC_VECTOR(7 DOWNTO 0) ) ; END reg8 ; ARCHITECTURE Behavior OF reg8 IS BEGIN PROCESS ( Resetn, Clock ) BEGIN IF Resetn = '0' THEN Q <= "00000000" ; ELSIF Clock'EVENT AND Clock = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior ;` Resetn Clock reg8 88 DQ

18. CSCI 660 18 N-bit register with asynchronous reset LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY regn IS GENERIC ( N : INTEGER := 16 ) ; PORT ( D: IN STD_LOGIC_VECTOR(N-1 DOWNTO 0) ; Resetn, Clock: IN STD_LOGIC ; Q: OUT STD_LOGIC_VECTOR(N-1 DOWNTO 0) ) ; END regn ; ARCHITECTURE Behavior OF regn IS BEGIN PROCESS ( Resetn, Clock ) BEGIN IF Resetn = '0' THEN Q '0') ; ELSIF Clock'EVENT AND Clock = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior ; Resetn Clock regn NN DQ

19. CSCI 660 19 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY regn IS GENERIC ( N : INTEGER := 8 ) ; PORT (D : IN STD_LOGIC_VECTOR(N-1 DOWNTO 0) ; Enable, Clock: IN STD_LOGIC ; Q : OUT STD_LOGIC_VECTOR(N-1 DOWNTO 0) ) ; END regn ; ARCHITECTURE Behavior OF regn IS BEGIN PROCESS (Clock) BEGIN IF (Clock'EVENT AND Clock = '1' ) THEN IF Enable = '1' THEN Q <= D ; END IF ; END PROCESS ; END Behavior ; N-bit register with enable Q D Enable Clock regn NN

20. CSCI 660 20 LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_arith.all; USE ieee.std_logic_unsigned.all ; ENTITY upcount IS PORT ( Clock, Resetn, Enable : IN STD_LOGIC ; Q: OUT STD_LOGIC_VECTOR (7 DOWNTO 0)) ; END upcount ; 8-bit up-counter with asynchronous reset (1) Q Enable Clock upcount 8 Resetn

21. CSCI 660 21 ARCHITECTURE Behavior OF upcount IS SIGNAL Count : integer ; BEGIN PROCESS ( Clock, Resetn ) BEGIN IF Resetn = '0' THEN Count <= 0 ; ELSIF (Clock'EVENT AND Clock = '1') THEN IF Enable = '1' THEN Count <= Count + 1 ; END IF ; END PROCESS ; Q <= conv_std_logic_vector (Count, 8) ; END Behavior ; 8-bit up-counter with asynchronous reset (2) Q Enable Clock upcount 4 Resetn

22. CSCI 660 22 If Statement

23. CSCI 660 23 Sequential Statements (1) If Statement else and elsif are optional if boolean expression then statements elsif boolean expression then statements else boolean expression then statements end if;

24. CSCI 660 24 SELECTOR: process begin WAIT UNTIL Clock'EVENT AND Clock = '1' ; IF Sel = “00” THEN f <= x1; ELSIF Sel = “10” THEN f <= x2; ELSE f <= x3; END IF; end process; If Statement - Example

25. CSCI 660 25 Shift Registers

26. CSCI 660 26 Shift register DQ Sin Clock DQDQDQ Q(3) Q(2) Q(1)Q(0) Enable

27. CSCI 660 27 Shift Register With Parallel Load D(3) DQ Clock Enable Sin D(2) DQ D(1) DQ D(0) DQ Q(0)Q(1)Q(2)Q(3) Load

28. CSCI 660 28 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY shift4 IS PORT ( D : IN STD_LOGIC_VECTOR(3 DOWNTO 0) ; Enable: IN STD_LOGIC ; Load: IN STD_LOGIC ; Sin : IN STD_LOGIC ; Clock : IN STD_LOGIC ; Q : BUFFER STD_LOGIC_VECTOR(3 DOWNTO 0) ) ; END shift4 ; 4-bit shift register with parallel load (1) Q Enable Clock shift4 4 D Load Sin 4

29. CSCI 660 29 ARCHITECTURE Behavior_1 OF shift4 IS BEGIN PROCESS (Clock) BEGIN IF Clock'EVENT AND Clock = '1' THEN IF Load = '1' THEN Q <= D ; ELSIF Enable = ‘1’ THEN Q(0) <= Q(1) ; Q(1) <= Q(2); Q(2) <= Q(3) ; Q(3) <= Sin; END IF ; END PROCESS ; END Behavior_1 ; 4-bit shift register with parallel load (2) Q Enable Clock shift4 4 D Load Sin 4 Another way of writing the code Q(2 downto 0) <= Q(3 downto 1) Q(3) <= Sin;

30. CSCI 660 30 LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY shiftn IS GENERIC ( N : INTEGER := 8 ) ; PORT (D : IN STD_LOGIC_VECTOR(N-1 DOWNTO 0) ; Enable: IN STD_LOGIC ; Load: IN STD_LOGIC ; Sin : IN STD_LOGIC ; Clock : IN STD_LOGIC ; Q : BUFFER STD_LOGIC_VECTOR(N-1 DOWNTO 0) ) ; END shiftn ; N-bit shift register with parallel load (1) Q Enable Clock shiftn N D Load Sin N VHDL allows this, but not recommended when writing code for synthesis

31. CSCI 660 31 ARCHITECTURE Behavior OF shiftn IS BEGIN PROCESS (Clock) BEGIN IF (Clock'EVENT AND Clock = '1' ) THEN IF Load = '1' THEN Q <= D ; ELSIF Enable = ‘1’ THEN Genbits: FOR i IN 0 TO N-2 LOOP Q(i) <= Q(i+1) ; END LOOP ; Q(N-1) <= Sin ; END IF; END PROCESS ; END Behavior ; N-bit shift register with parallel load (2) Q Enable Clock shiftn N D Load Sin N Keep in mind this shift register DOES NOT have reset.

32. CSCI 660 32 4 bit Shift Register (1) library ieee; use ieee.std_logic_1164.all; ENTITY shiftreg is generic(N : integer := 4); port(clk: in STD_LOGIC; sin: in STD_LOGIC; enable: in STD_LOGIC; SOUT : out std_logic); end shiftreg; architecture ssr of shiftreg is begin p0: process (clk, enable) variable REG : std_logic_vector(N-1 downto 0); begin if (ENABLE = '0') then SOUT <= '0'; REG := (others => '0'); elsif rising_edge(CLK) then REG := REG(N-2 downto 0) & SIN; SOUT <= REG(N-1); end if; end process p0; end ssr;

33. CSCI 660 33 LIBRARY ieee ; USE ieee.std_logic_1164.all ; USE ieee.std_logic_arith.all; USE ieee.std_logic_unsigned.all ; ENTITY upcount IS PORT (Clock,:IN STD_LOGIC; Resetn: IN STD_LOGIC; Enable : IN STD_LOGIC ; Q: OUT STD_LOGIC_VECTOR (7 DOWNTO 0); Decode_7: OUT STD_LOGIC ) ; END upcount ; ARCHITECTURE Behavior OF upcount IS SIGNAL Count : integer ; BEGIN PROCESS ( Clock, Resetn ) BEGIN IF Resetn = '0' THEN Count <= 0 ; ELSIF (Clock'EVENT AND Clock = '1') THEN IF Enable = '1' THEN Count <= Count + 1 ; END IF; END PROCESS ; Q <= conv_std_logic_vector (Count, 8) ; 8-bit up-counter with some decoded outputs RawDecode: Process (count) Begin IF (count = 7) then Decode_7 <= ‘1’; ELSE Decode_7 <= ‘0’; END IF; END Process; END Behavior ; ClockedDecode: Process (clk) Begin if (clock’event and clock = ‘1’) then IF (count = 7) then Decode_7 <= ‘1’; ELSE Decode_7 <= ‘0’; END IF; end if; END Process; What is the difference between the 2 processes?

34. CSCI 660 34 Arrays  Arrays are collection of objects of the same type. They can be one-dimensional (1D), two-dimensional (2D), or one-dimensional- by-one-dimensional (1Dx1D). 00 1 0 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 Scalar1D1D x 1D 0101 1000 0100 1010 2D data arays

35. CSCI 660 35 Arrays  Scalars: BIT, STD_LOGIC, STD_ULOGIC and BOOLEAN  Vectors: BIT_VECTOR, STD_LOGIC_VECTOR, STD_ULOGIC_VECTOR, INTEGER, SIGNED, and UNSIGNED  There are no pre-defined 2D or 1D x 1D arrays  Hence need to be specified by the user  To do so, a TYPE must be first defined, then the new SIGNAL, VARIABLE or CONSTANT can be declared using that data type.

36. CSCI 660 36 Arrays: Syntax of defining an array To specify a new array type: TYPE type_name IS ARRAY (specificaiton) of data_type; To make use of the new array type: SIGNAL signal_name: type_name [:= initial value]; Example: TYPE row IS ARRAY (7 downto 0) OF STD_LOGIC; -- 1D array TYPE matrix IS ARRAY (0 to 3) of row; -- 1Dx1D array SIGNAL x: matrix -- 1Dx1D signal

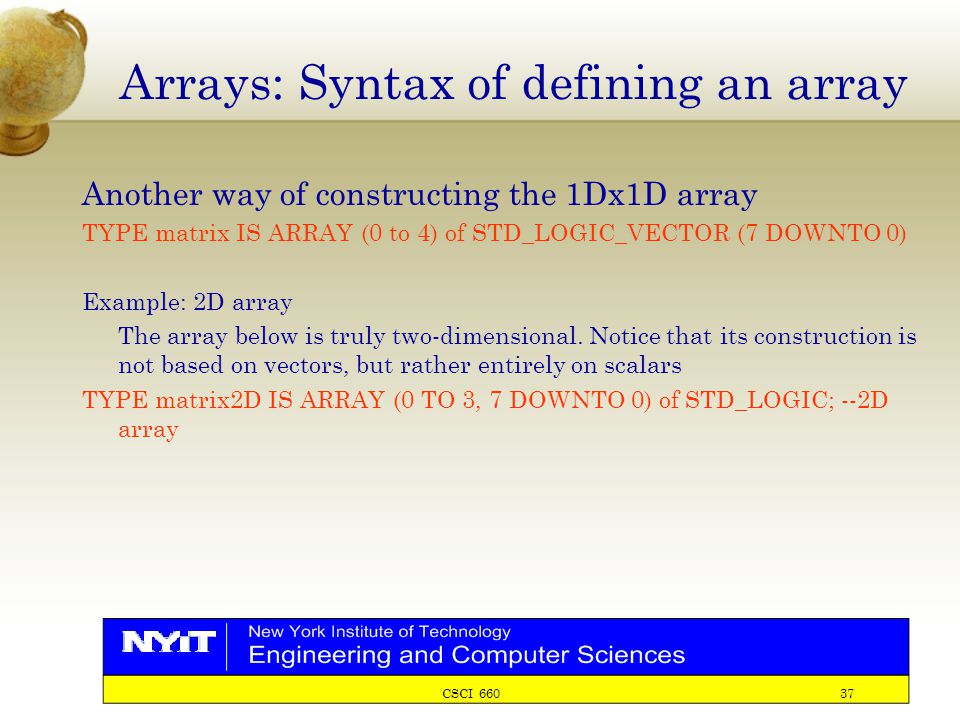

37. CSCI 660 37 Arrays: Syntax of defining an array Another way of constructing the 1Dx1D array TYPE matrix IS ARRAY (0 to 4) of STD_LOGIC_VECTOR (7 DOWNTO 0) Example: 2D array The array below is truly two-dimensional. Notice that its construction is not based on vectors, but rather entirely on scalars TYPE matrix2D IS ARRAY (0 TO 3, 7 DOWNTO 0) of STD_LOGIC; --2D array

38. CSCI 660 38 ROM (Read Only Memory) LIBRARY ieee; USE ieee.std_logic_1164.all; ENTITY rom is GENERIC ( bits: INTEGER := 8 -- # of bits per word words: INTEGER := 8 ); -- # of words in the memory PORT ( addr : IN INTEGER RANGE 0 to words - 1; data : OUT STD_LOGIC_VECTOR (bits-1 DOWNTO 0)); END rom; ARCHITECTURE rom of rom IS TYPE vector_array is ARRAY (0 to words -1) of STD_LOGIC_VECTOR (bits-1 DOWNTO 0); CONSTANT memory: vector_array := ( "00000000", "00000010", "00000100", "00001000", "00010000", "00100000", "00000010", "01000000", "10000000",); BEGIN data <= memory(addr); END rom;

39. CSCI 660 39 RAM (Random Access Memory) LIBRARY ieee; USE ieee.std_logic_1164.all; ENTITY ram is GENERIC ( bits: INTEGER := 8 -- # of bits per word words: INTEGER := 8 ); -- # of words in the memory PORT ( wr_ena: IN STD_LOGIC; -- write enable clk: IN STD_LOGIC; -- clock addr: IN INTEGER RANGE 0 to words -1; data_in:: IN STD_LOGIC_VECTOR (bits - 1 DOWNTO 0); data_out : OUT STD_LOGIC_VECTOR (bits -1 DOWNTO 0)); END ram ARCHITECTURE ram of ram IS TYPE vector_array is ARRAY (0 to words -1) of STD_LOGIC_VECTOR (bits-1 DOWNTO 0); signal memory: vector_array; BEGIN PROCESS (clk, wr_ena) BEGIN IF (clk'EVENT AND clk = '1') THEN IF (wr_ena = '1') THEN memory(addr) <= data_in; END IF; END PROCESS; data_out <= memory(addr); END ram;

40. CSCI 660 40 CASE: conditional statements CASE is another statement intended exclusively for sequential code (along with IF, LOOP, and WAIT) CASE identifier IS WHEN value => assignments; …….. END CASE; CASE control IS WHEN “00” => x <= a; y <= b; WHEN “01” => x <= b; y <= a; WHEN OTHERS => x <= “0000”; y <= “zzzz”; END CASE;

41. CSCI 660 41 RANGE  RANGE <> is used to indicate that the range is unconstrainded  INTEGER range is -214783648 to + 214783648  NATURAL RANGE <>, on the other hand, indicates that the only restriction is that the range must fall within the NATRUAL RANGE  Natural range is 0 to +214783648

42. CSCI 660 42 CASE: Two-digit Counter with Seven Segment Display

43. CSCI 660 43 CASE: Two-digit Counter with Seven Segment Display LIBRARY ieee; USE ieee.std_logic_1164.all; ENTITY counter IS PORT (clk, reset: std_logic; digit1, digit1 : OUT STD_LOGIC_VECTOR (6 DOWNTO 0)); END counter; ARCHITECTURE counter of counter IS BEGIN PROCESS (clk, reset) VARIABLE temp1: INTEGER RANGE 0 TO 10; VARIABLE temp2: INTEGER RANGE 0 TO 10; Begin IF (reset = '1') THEN temp1 := 0; temp2 := 0; ELSIF (clk'event and clk = '1') THEN temp1 := temp1 + 1; IF (temp1 = 10) THEN temp1 := 0; temp2 := temp2 + 1; IF (temp2 := 10) THEN temp2 := 0; END IF; CASE temp1 IS WHEN 0 => digit1 <= "1111110";--7E WHEN 1 => digit1 <= "0110000";--30 WHEN 2 => digit1 <= "1101101";--6D WHEN 3 => digit1 <= "1111001";--79 WHEN 4 => digit1 <= "0110011";--33 WHEN 5 => digit1 <= "1011011";--5B WHEN 6 => digit1 <= "1011111";--5F WHEN 7 => digit1 <= "1110000";--70 WHEN 8 => digit1 <= "1111111";--7F WHEN 9 => digit1 <= "1111011--7B WHEN OTHERS => NULL; END CASE; CASE temp2 IS WHEN 0 => digit2 <= "1111110";--7E WHEN 1 => digit2 <= "0110000";--30 WHEN 2 => digit2 <= "1101101";--6D WHEN 3 => digit2 <= "1111001";--79 WHEN 4 => digit2 <= "0110011";--33 WHEN 5 => digit2 <= "1011011";--5B WHEN 6 => digit2 <= "1011111";--5F WHEN 7 => digit2 <= "1110000";--70 WHEN 8 => digit2 <= "1111111";--7F WHEN 9 => digit2 <= "1111011--7B WHEN OTHERS => NULL; END CASE; END PROCESS; END COUNTER;

44. CSCI 660 44 As the name says, LOOP is useful when a piece of code must be instantiated several times. There are several ways of using LOOP FOR/LOOP: The loop is repeated for a fixed number of times [label:] FOR identifier IN range LOOP (sequential statements) END LOOP [label]; FOR i IN 0 TO 5 LOOP x(i) <= enable AND w(i+2); y(i) <= w(i); END LOOP MyLoop; In the code the loop will be repeated unconditionally until it reaches 5 (i.e. six times) LOOP

45. CSCI 660 45 WHILE/LOOP: The loop is repeated until a condition no longer holds [label:] WHILE condition LOOP (sequential statements) END LOOP [label]; WHILE (I < 10) LOOP WAIT UNTIL clk’EVENT and clk = ‘1’; (other statements) END LOOP; In the code the loop will be repeated as long as i < 10 condition holds. LOOP

46. CSCI 660 46 EXIT: Used for ending the loop [label:] EXIT [label] [WHEN condition]; FOR i IN data’RANGE LOOP CASE data(i) IS WHEN ‘0’ => count := count + 1; WHEN OTHERS => EXIT; END CASE; END LOOP; LOOP

47. CSCI 660 47 NEXT: Used for skipping loop steps [label:] NEXT [label] [WHEN condition]; FOR I IN 0 TO 15 LOOP NEXT WHEN i = 10; (……..) END LOOP; In this example, NEXT causes LOOP to skip one iteration when i = 10 LOOP

48. CSCI 660 48 The design counts the number of leading 0s in a binary vector, starting from the left end. This solutions shows the usage of LOOP/EXIT. In this example, the loop will end as soon as a ‘1’ is found in the data vector. Therefore, it is appropriate for counting the number of zeros that precede the first one. LOOP: Example: Leading Zeros

49. CSCI 660 49 LIBRARY ieee; USE ieee.std_logic_1164.all; ENTITY LeadignZeros IS PORT (data: IN STD_LOGIC_VECTOR (7 DOWNTO 0); zeros : OUT INTEGER RANGE 0 TO 8 ); END LeadingZeros; ARCHITECTURE behavior of LeadingZeros IS BEGIN PROCESS (data VARIABLE count: INTEGER RANGE 0 TO 8; BEGIN count := 0; FOR i IN data'RANGE LOOP CASE data(i) IS WHEN '0' => count := count + 1; WHEN others => EXIT; END CASE; END LOOP; zeros <= count; END PROCESS; END behavior; Simulation results should be: With data = “00000000” (decimal 0), 8 zeros are detected; when data = “000000001”, seven zeros are encountered LOOP: Example: Leading Zeros

50. CSCI 660 50 VHDL Assertion Statement assert boolean-expression report string-expression severity severity-level; If the boolean-expression is false, then the string-expression is displayed on the monitor along with the severity level. Severity-level can be note, warning, error, failure. Action taken depends on the simulator. Example - suppose VHDL model is supposed to generate data with even parity with ack_test: wait until ack_test = '1'; parity := test_data(3) XOR test_data(2) XOR test_data(1) XOR test_data(0); assert parity = '0' report "Parity Error" severity error; Example 2: assert (error_flag = '1') report "There was an error; simulation has halted." severity FAILURE;
