2. Power Systems Conference 2005 Clemson University Doug Staszesky Director – Product Management Automation Systems Division S&C Electric Company Automatic Reconfiguration Schemes to Improve Reliability

3. Overview High-Reliability Distribution SystemHigh-Reliability Distribution System IntelliTEAM IIIntelliTEAM II

4. High-Reliability Distribution System High-speed fault clearingHigh-speed fault clearing Open or closed loop applicationOpen or closed loop application “No outage” operation in closed loop mode“No outage” operation in closed loop mode Up and runningUp and running –International Drive – Orlando –UCSB – California –Danvers – Virginia –Greater Toronto Airport

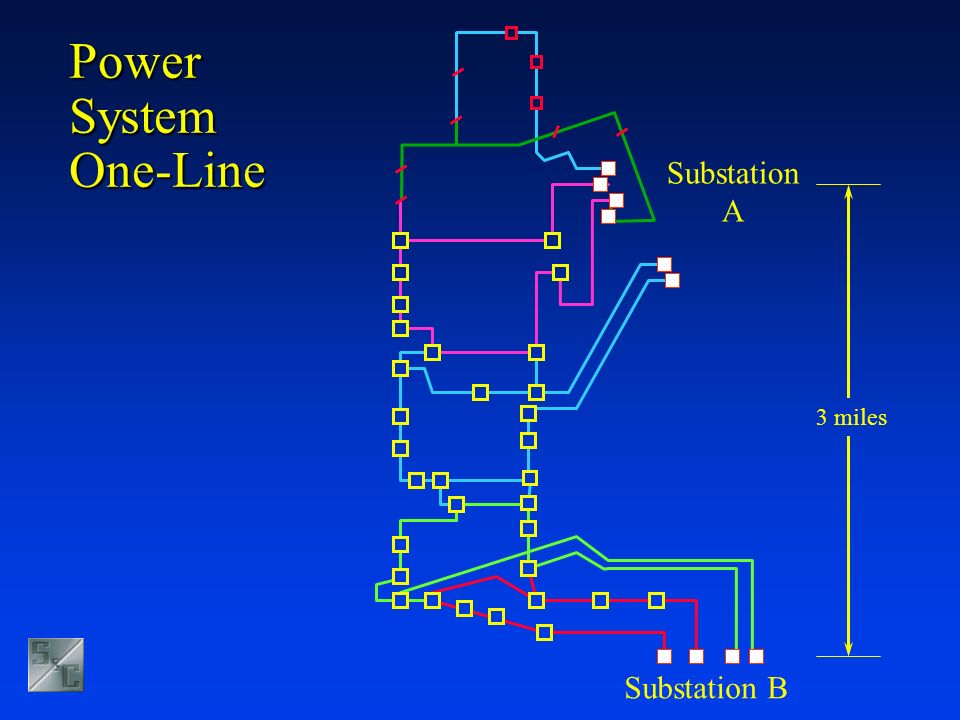

5. Power System One-Line Substation B Substation A 3 miles

6. UG Primary Network (closed loop) Normal Condition T = 0 sec Each loop can have any number of switches

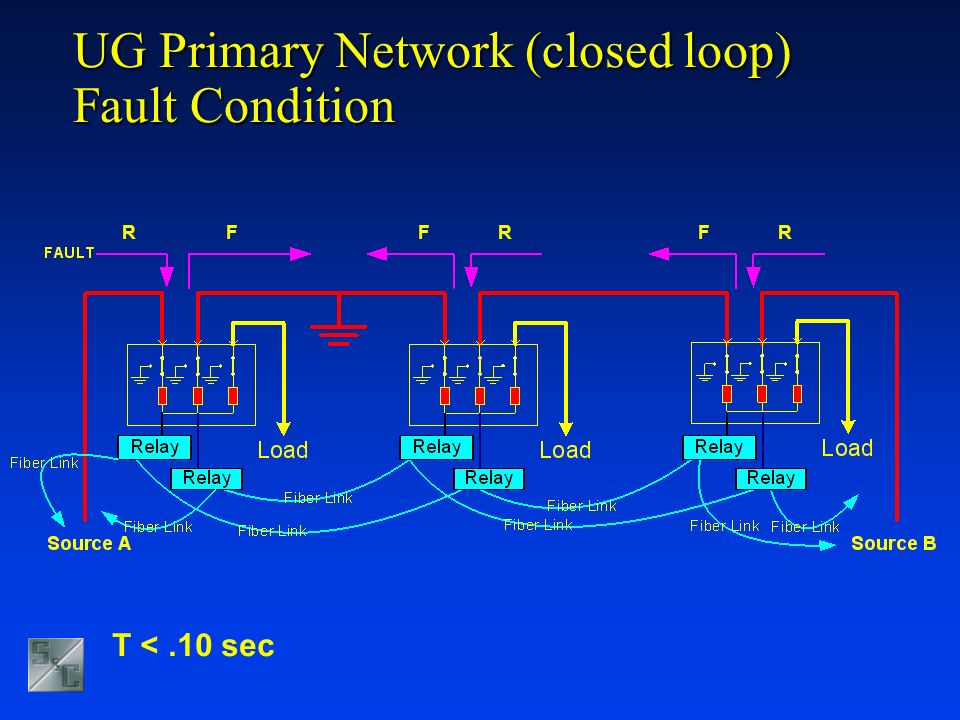

7. UG Primary Network (closed loop) Fault Condition T <.10 sec RFFRRF

8. UG Primary Network (closed loop) Fault Cleared T =.10 sec

9. IntelliTEAM II Automatic fault isolation and load restorationAutomatic fault isolation and load restoration Distributed intelligence – utilizing “agents”Distributed intelligence – utilizing “agents” Scalable, building block approachScalable, building block approach Supports complex systems of virtually any sizeSupports complex systems of virtually any size Does not require SCADA – but supports integration with SCADA systemsDoes not require SCADA – but supports integration with SCADA systems Utilizes peer-to-peer mesh communication networkUtilizes peer-to-peer mesh communication network Builds on legacy IntelliTEAM system which has been installed at utilities since 1997Builds on legacy IntelliTEAM system which has been installed at utilities since 1997

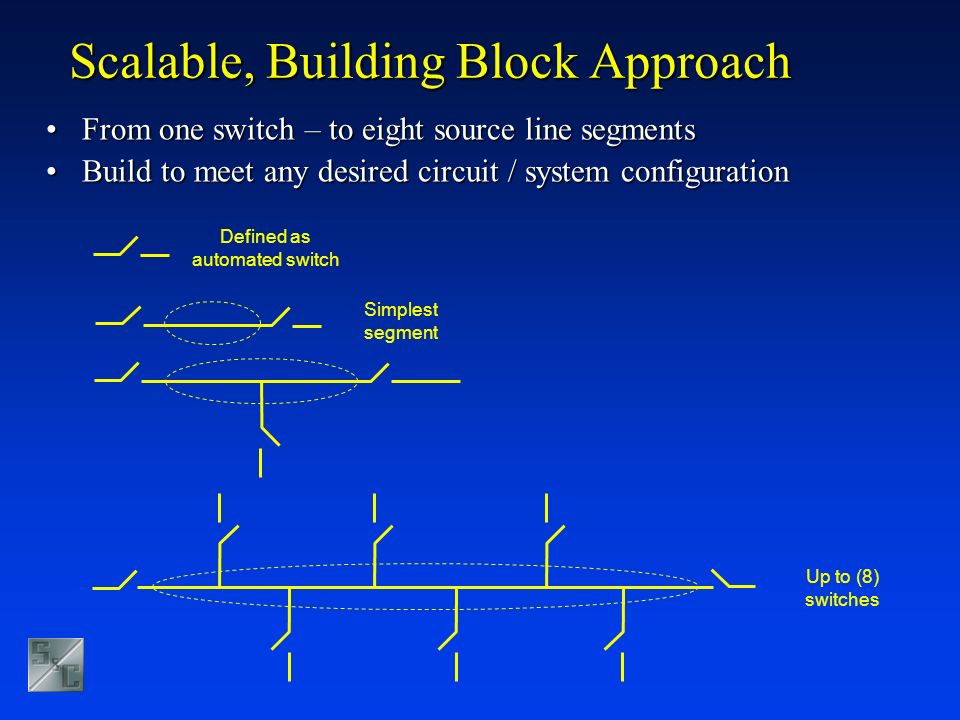

10. From one switch – to eight source line segmentsFrom one switch – to eight source line segments Build to meet any desired circuit / system configurationBuild to meet any desired circuit / system configuration Defined as automated switch Simplest segment Up to (8) switches Scalable, Building Block Approach

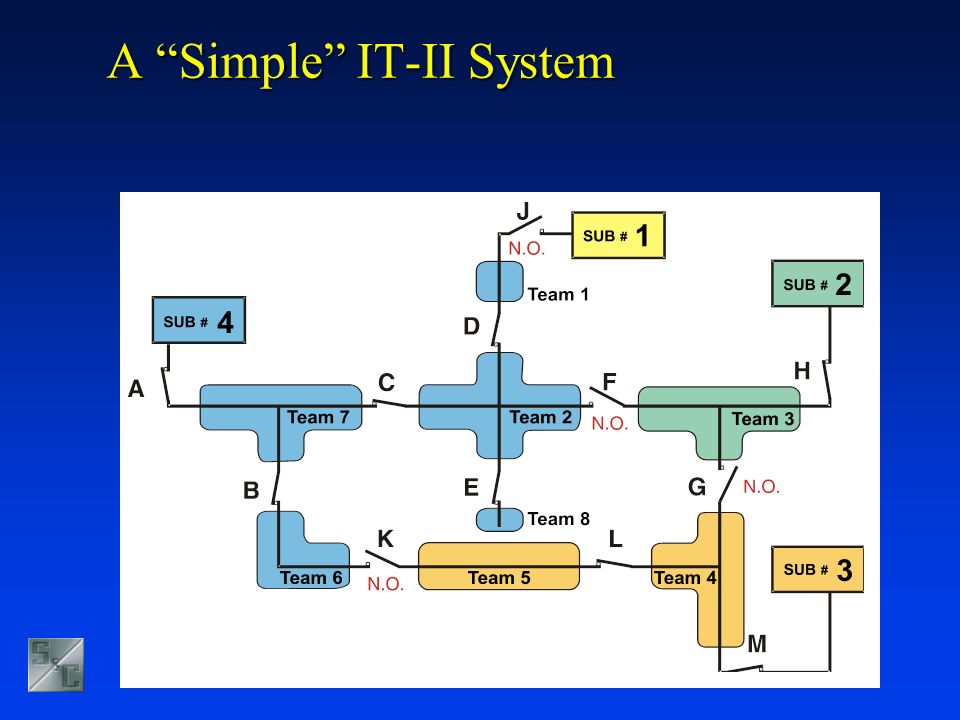

11. A “Simple” IT-II System

12. Maximize Assets System uses real-time load monitoring to prevent overloading during restoration switching.System uses real-time load monitoring to prevent overloading during restoration switching. Enables higher normal circuit loadingEnables higher normal circuit loading The excess capacity of adjacent sources can be used to restore service to unfaulted segments, helping defer the need for system upgrades and allowing your customer to tie circuits that traditional planning criteria would not permitThe excess capacity of adjacent sources can be used to restore service to unfaulted segments, helping defer the need for system upgrades and allowing your customer to tie circuits that traditional planning criteria would not permit

13. IT-II at a Co-op

14. Fully Scalable IntelliTEAM II monitors real-time current and voltage throughout the system and uses this information to make smart switching decisionsIntelliTEAM II monitors real-time current and voltage throughout the system and uses this information to make smart switching decisions Accommodates tie points from multiple sources to assure a restoration solution.Accommodates tie points from multiple sources to assure a restoration solution.

15. Phase I Targeted Feeders Shown as IntelliTEAM II Circuits (customer drawing) A “Real” IT-II System

16. N.O. 1 23 4 56 7 8 23 910 1513 12 38 37 36 33 34 35 19 31 32 28 2930 26 27 22 21 17 18 25241614 20 S1 S2 S3 S4 F11 F12 F13 F21 F22 F31 F32 F33 F42 F41 11 39 Team F Team E Team D Team M Team A Team B Team C Team O Team P Team Q Team G Team H Team L Team K Team J Team I Team R Team S Team T Team U Team V Team W Team X Team Y Team N

17. Safety Multiple blocking methods ensure that automatic operation is prevented when crews are working on the line

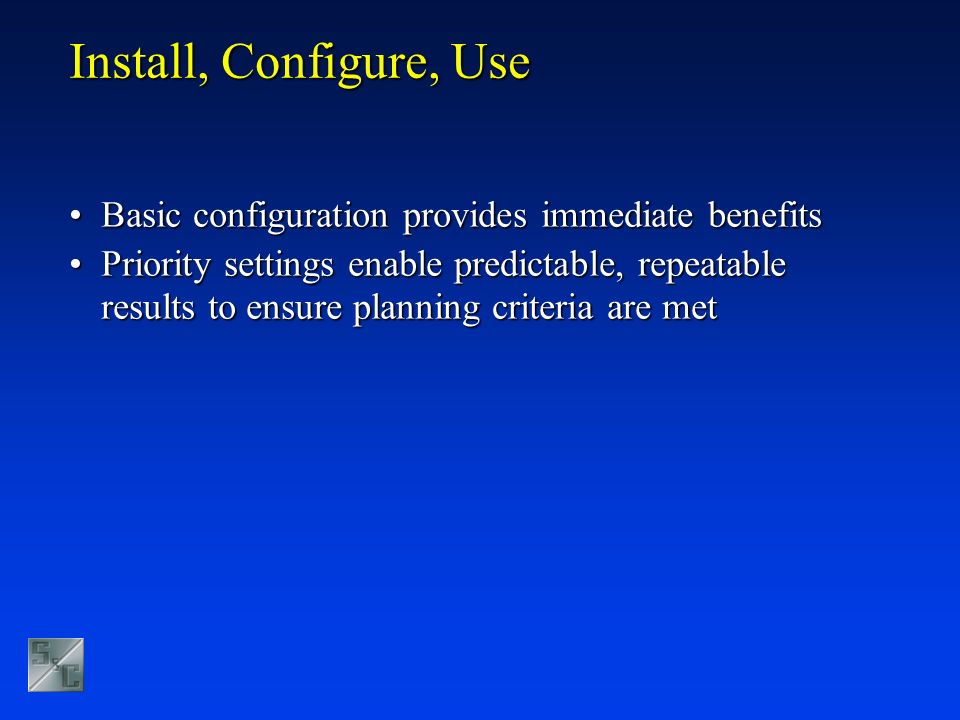

18. Install, Configure, Use Basic configuration provides immediate benefitsBasic configuration provides immediate benefits Priority settings enable predictable, repeatable results to ensure planning criteria are metPriority settings enable predictable, repeatable results to ensure planning criteria are met

19. Here Now FPL – FloridaFPL – Florida Progress Energy – FloridaProgress Energy – Florida Blue Ridge Electric Cooperative – North CarolinaBlue Ridge Electric Cooperative – North Carolina Enmax – CanadaEnmax – Canada

20. Example

21. IntelliTEAM II Installations: Southeast utility in USA Reacting to a corporate directive, engineers set out to improve customer reliabilityReacting to a corporate directive, engineers set out to improve customer reliability The Goals:The Goals: –To provide a higher level of service –To be distinguished as a premier supplier of electricity among all US utilities Expected Benefits:Expected Benefits: –Increased customer as well as regulatory support –Reduced costs from fewer service complaints/investigations –Eventual revenue expansion from customers attracted to high reliability service area

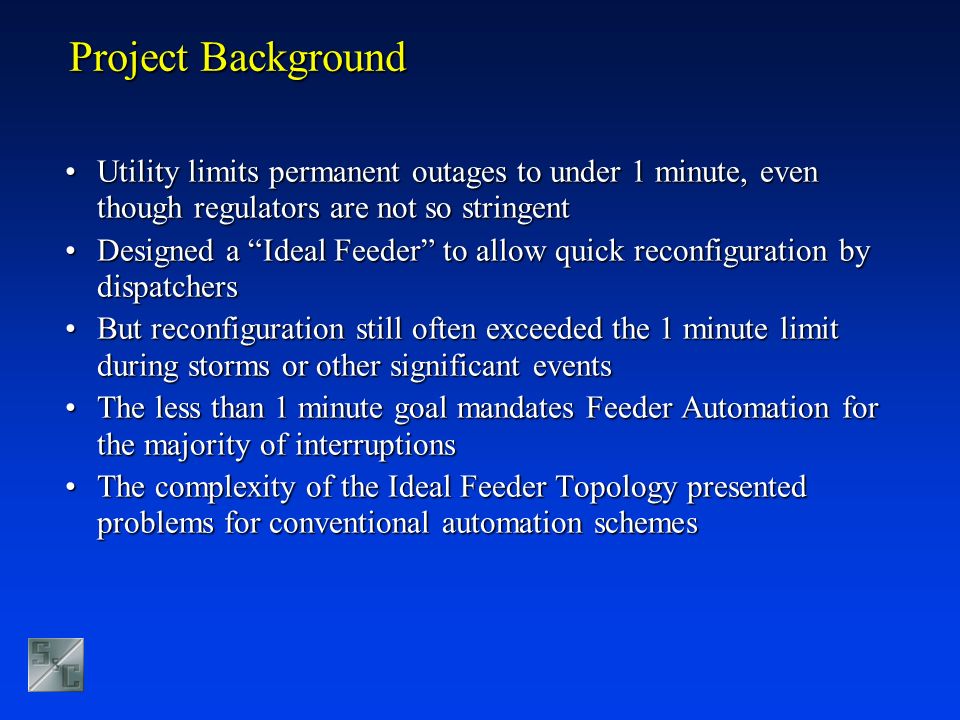

22. Project Background Utility limits permanent outages to under 1 minute, even though regulators are not so stringentUtility limits permanent outages to under 1 minute, even though regulators are not so stringent Designed a “Ideal Feeder” to allow quick reconfiguration by dispatchersDesigned a “Ideal Feeder” to allow quick reconfiguration by dispatchers But reconfiguration still often exceeded the 1 minute limit during storms or other significant eventsBut reconfiguration still often exceeded the 1 minute limit during storms or other significant events The less than 1 minute goal mandates Feeder Automation for the majority of interruptionsThe less than 1 minute goal mandates Feeder Automation for the majority of interruptions The complexity of the Ideal Feeder Topology presented problems for conventional automation schemesThe complexity of the Ideal Feeder Topology presented problems for conventional automation schemes

23. Model Feeder Implications This logic is manageable by veteran dispatchers in typical outages, but becomes time-consuming in widely distributed outagesThis logic is manageable by veteran dispatchers in typical outages, but becomes time-consuming in widely distributed outages This logic is not easily automated with traditional toolsThis logic is not easily automated with traditional tools Ideal Feeder logic could also not be managed by the linear orientation of standard IntelliTEAMIdeal Feeder logic could also not be managed by the linear orientation of standard IntelliTEAM IntelliTEAM II was deployed in Jan, 2003IntelliTEAM II was deployed in Jan, 2003 Over 100 overhead switches/controls now in operationOver 100 overhead switches/controls now in operation

24. IntelliTEAM II Installations: CANADA A multiple-year, Feeder Automation (FA) project is now underway Phase I (to complete in Nov, 03) involves 7 subs, 19 feeders and 46 switches (32 overhead & 14 underground)Phase I (to complete in Nov, 03) involves 7 subs, 19 feeders and 46 switches (32 overhead & 14 underground) Completion will include over 200 switching points and automate over 80 feedersCompletion will include over 200 switching points and automate over 80 feeders The primary requirement is automatic circuit reconfiguration in less than 60 secondsThe primary requirement is automatic circuit reconfiguration in less than 60 seconds

25. Project Background Key Project Requirements: 1.Reconfiguration in under 1 minute on fault or loss of voltage 2.Minimum availability for each FA feeder over 99.9% 3.FA System must detect Under-Voltage & Under-Frequency Load Shedding & disable auto-reconfiguration in affected area 4.Station breakers must also participate in reconfiguration, despite most having electro-mechanical relays and 1-shot to Lockout 5.Project to include a Communication Management System (CMS) to enable operators to monitor, interrogate & control the operation of all components in the FA System

26. INTELLITEAM II: PRINCIPLES OF OPERATION

27. IntelliTEAM II — Teams Teams are the switches bounding the line segmentsTeams are the switches bounding the line segments A team may have one to eight switchesA team may have one to eight switches A switch can belong to one or two teamsA switch can belong to one or two teams Each switch is defined as a specific switch type for each team that it is inEach switch is defined as a specific switch type for each team that it is in

28. IntelliTEAM II — Systems Build up system of line segmentsBuild up system of line segments Share team members at connection pointsShare team members at connection points Set automatic operation values (no programming)Set automatic operation values (no programming) Set optional source priorities and strategiesSet optional source priorities and strategies

29. IntelliTEAM II — Systems Coordinate with breaker settings, number of shotsCoordinate with breaker settings, number of shots Can order ties in priorityCan order ties in priority Can limit number of segments picked upCan limit number of segments picked up Can set loading limitsCan set loading limits

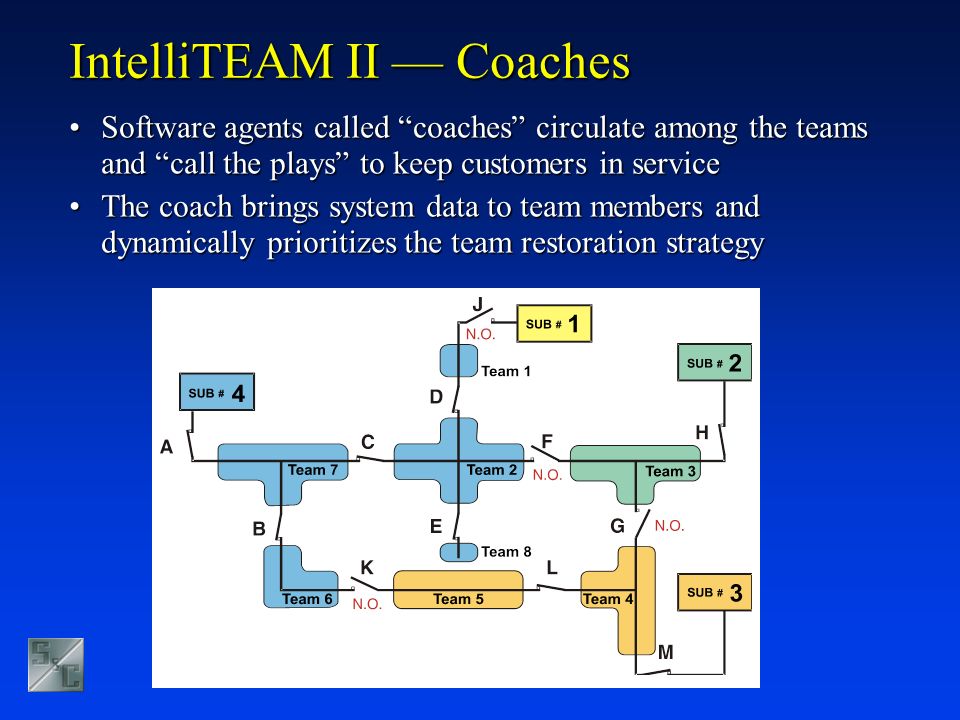

30. IntelliTEAM II — Coaches Software agents called “coaches” circulate among the teams and “call the plays” to keep customers in serviceSoftware agents called “coaches” circulate among the teams and “call the plays” to keep customers in service The coach brings system data to team members and dynamically prioritizes the team restoration strategyThe coach brings system data to team members and dynamically prioritizes the team restoration strategy

31. IntelliTEAM II — Coaches A team’s coach works to keep the team energized by negotiating with adjacent coaches – and can close switches that teams share when both coaches agreeA team’s coach works to keep the team energized by negotiating with adjacent coaches – and can close switches that teams share when both coaches agree When an outage or line fault occurs, the coach of each affected team reads the situation and develops a restoration strategyWhen an outage or line fault occurs, the coach of each affected team reads the situation and develops a restoration strategy

32. How IntelliTEAM II Works — Details Coach must check on each team member within a predetermined time interval If a team member does not hear from the coach in this period of time, error condition is flagged Team members notify the coach and other team members when events occur that will affect the line segment

33. IntelliTEAM II — Return to Normal When normal power has been restored or the fault has been corrected, the system will return to its normal configuration, either manually, automatically, or via SCADA command.

34. IntelliTEAM II — Contracts Contracts are optional and are used with segment limits to “look” ahead and prevent circuit overload in case of multiple faults

35. Peer to Peer Radio Communications Spread-spectrum technology 902- to 928-MHz range. Mesh networking Secure and reliable UtiliNet ®

36. Advanced Distribution Circuit Reliability Techniques SCADA Standard Source Transfer IntelliTEAM II HRDS Open- Loop HRDS Closed- Loop Power Electronic Switching 5-60 min 2-5 sec 10-60 sec 3 sec No-OutageNo-Outage Extended Outage Impacts SAIDI, SAIFI, CAIDI Spot Solution Area Solution Only Customers Beyond Fault Impacted No-OutageTactical Power Quality Dispatcher Required Self-Powered or Battery Powered Distributed Intelligence Unlimited Units - Universal Application Unlimited Units - Universal Application Unlimited Units - Special Application Unlimited Units - Special Application UPS - 30 sec Ride-through

37. For More Information Contact Doug Staszesky Director – Product Management S&C Electric Company 6601 North Ridge Blvd. Chicago, IL 60626 773-338-1000 x 2560 www.sandc.com For Demo of IntelliTEAM II www.sandc.com/products/Energyline/IntelliTEAM/it2_demo.asp
