1. The Process That Feeds the Biosphere Photosynthesis is the process that converts solar energy into chemical energy Directly or indirectly, photosynthesis nourishes almost the entire living world

2. Autotrophs sustain themselves without eating anything derived from other organisms Autotrophs are the producers of the biosphere, producing organic molecules from CO 2 and other inorganic molecules Almost all plants are photoautotrophs, using the energy of sunlight to make organic molecules from water and carbon dioxide

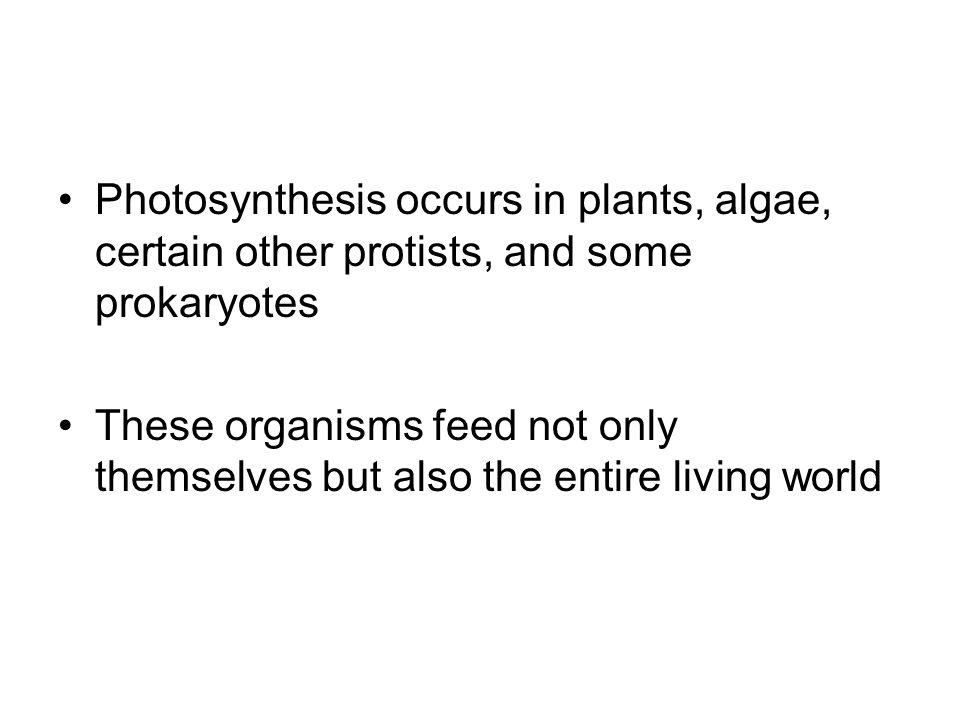

4. Photosynthesis occurs in plants, algae, certain other protists, and some prokaryotes These organisms feed not only themselves but also the entire living world

5. Plants Unicellular protist Multicellular algaeCyanobacteria Purple sulfur bacteria 10 µm 1.5 µm 40 µm

6. Heterotrophs obtain their organic material from other organisms Heterotrophs are the consumers of the biosphere Almost all heterotrophs, including humans, depend on photoautotrophs for food and oxygen

7. Photosynthesis converts light energy to the chemical energy of food Chloroplasts are organelles that are responsible for feeding the vast majority of organisms Chloroplasts are present in a variety of photosynthesizing organisms

8. Chloroplasts Leaves are the major locations of photosynthesis Their green color is from chlorophyll, the green pigment within chloroplasts Light energy absorbed by chlorophyll drives the synthesis of organic molecules in the chloroplast Through microscopic pores called stomata, CO 2 enters the leaf and O 2 exits

9. Chloroplasts are found mainly in cells of the mesophyll, the interior tissue of the leaf A typical mesophyll cell has 30-40 chloroplasts The chlorophyll is in the membranes of thylakoids (connected sacs in the chloroplast); thylakoids may be stacked in columns called grana Chloroplasts also contain stroma

10. Leaf cross section Vein Mesophyll Stomata CO 2 O2O2 Mesophyll cell Chloroplast 5 µm Outer membrane Intermembrane space Inner membrane Thylakoid space Thylakoid GranumStroma 1 µm

11. Tracking Atoms Through Photosynthesis: Scientific Inquiry Photosynthesis can be summarized as the following equation: 6 CO 2 + 12 H 2 O + Light energy  C 6 H 12 O 6 + 6 O 2 + 6 H 2 O

12. The Splitting of Water Chloroplasts split water into hydrogen and oxygen, incorporating the electrons of hydrogen into sugar molecules

13. Reactants: Products: 6 CO 2 12 H 2 O C 6 H 12 O 6 6 H 2 O 6 O 2

14. Photosynthesis as a Redox Process Photosynthesis is a redox process in which water is oxidized and carbon dioxide is reduced

15. Two Stages of Photosynthesis Photosynthesis consists of the light reactions (the photo part) and Calvin cycle (the synthesis part) The light reactions (in the thylakoids) split water, release O 2, produce ATP, and form NADPH The Calvin cycle (in the stroma) forms sugar from CO 2, using ATP and NADPH The Calvin cycle begins with carbon fixation, incorporating CO 2 into organic molecules

16. H2OH2O LIGHT REACTIONS Chloroplast Light

17. H2OH2O LIGHT REACTIONS Chloroplast Light ATP NADPH O2O2

18. H2OH2O LIGHT REACTIONS Chloroplast Light ATP NADPH O2O2 NADP + CO 2 ADP P + i CALVIN CYCLE [CH 2 O] (sugar)

19. The light reactions convert solar energy to the chemical energy of ATP and NADPH Chloroplasts are solar-powered chemical factories Their thylakoids transform light energy into the chemical energy of ATP and NADPH

20. The Nature of Sunlight Light is a form of electromagnetic energy, also called electromagnetic radiation Like other electromagnetic energy, light travels in rhythmic waves Wavelength = distance between crests of waves Wavelength determines the type of electromagnetic energy Light also behaves as though it consists of discrete particles, called photons

21. The electromagnetic spectrum is the entire range of electromagnetic energy, or radiation Visible light consists of colors we can see, including wavelengths that drive photosynthesis

22. LE 10-6 Visible light Gamma rays X-rays UV Infrared Micro- waves Radio waves 10 –5 nm 10 –3 nm 1 nm 10 3 nm10 6 nm 1 m (10 9 nm) 10 3 m 380 450 500550600 650 700 750 nm Longer wavelength Lower energy Shorter wavelength Higher energy

23. Photosynthetic Pigments: The Light Receptors Pigments are substances that absorb visible light Different pigments absorb different wavelengths Wavelengths that are not absorbed are reflected or transmitted Leaves appear green because chlorophyll reflects and transmits green light

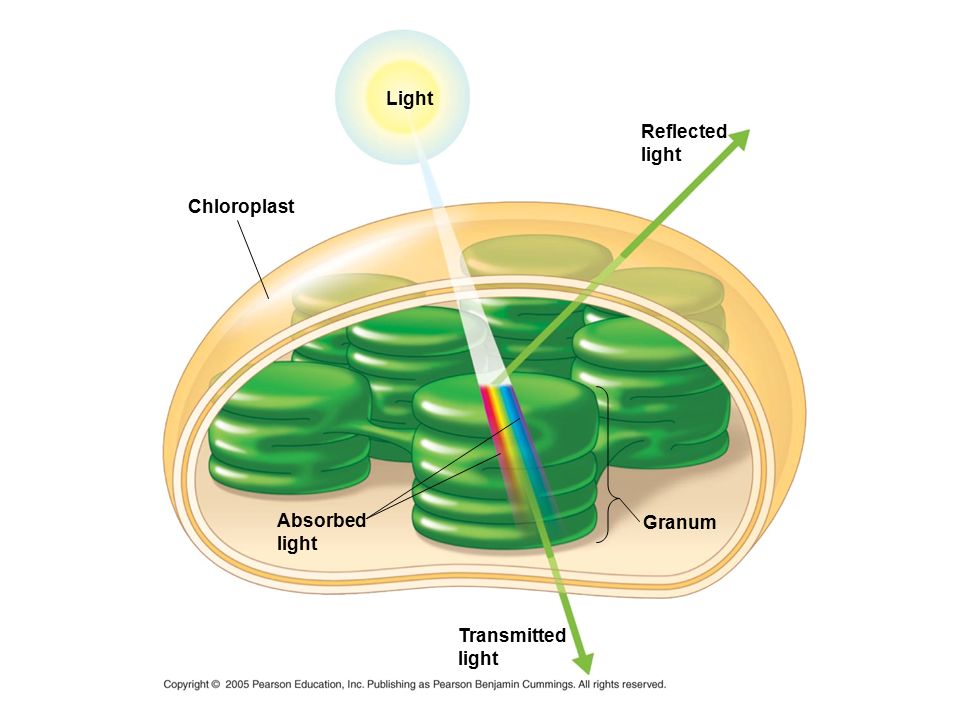

24. Chloroplast Light Reflected light Absorbed light Transmitted light Granum

25. A spectrophotometer measures a pigment’s ability to absorb various wavelengths This machine sends light through pigments and measures the fraction of light transmitted at each wavelength

26. White light Refracting prism Chlorophyll solution Photoelectric tube Galvanometer The high transmittance (low absorption) reading indicates that chlorophyll absorbs very little green light. Green light Slit moves to pass light of selected wavelength 0 100

27. White light Refracting prism Chlorophyll solution Photoelectric tube The low transmittance (high absorption) reading indicates that chlorophyll absorbs most blue light. Blue light Slit moves to pass light of selected wavelength 0 100

28. An absorption spectrum is a graph plotting a pigment’s light absorption versus wavelength The absorption spectrum of chlorophyll a suggests that violet-blue and red light work best for photosynthesis An action spectrum profiles the relative effectiveness of different wavelengths of radiation in driving a process

29. Chlorophyll a Chlorophyll b Carotenoids Wavelength of light (nm) Absorption spectra Absorption of light by chloroplast pigments 400 500600 700

30. Action spectrum Rate of photo- synthesis (measured by O 2 release)

31. The action spectrum of photosynthesis was first demonstrated in 1883 by Thomas Engelmann In his experiment, he exposed different segments of a filamentous alga to different wavelengths Areas receiving wavelengths favorable to photosynthesis produced excess O 2 He used aerobic bacteria clustered along the alga as a measure of O 2 production

32. Engelmann’s experiment 400 500 600 700 Aerobic bacteria Filament of algae

33. Chlorophyll a is the main photosynthetic pigment Accessory pigments, such as chlorophyll b, broaden the spectrum used for photosynthesis Accessory pigments called carotenoids absorb excessive light that would damage chlorophyll

34. CH 3 CHO in chlorophyll a in chlorophyll b Porphyrin ring: light-absorbing “head” of molecule; note magnesium atom at center Hydrocarbon tail: interacts with hydrophobic regions of proteins inside thylakoid membranes of chloroplasts; H atoms not shown
