1. E4014 Construction Surveying Road Construction Plans

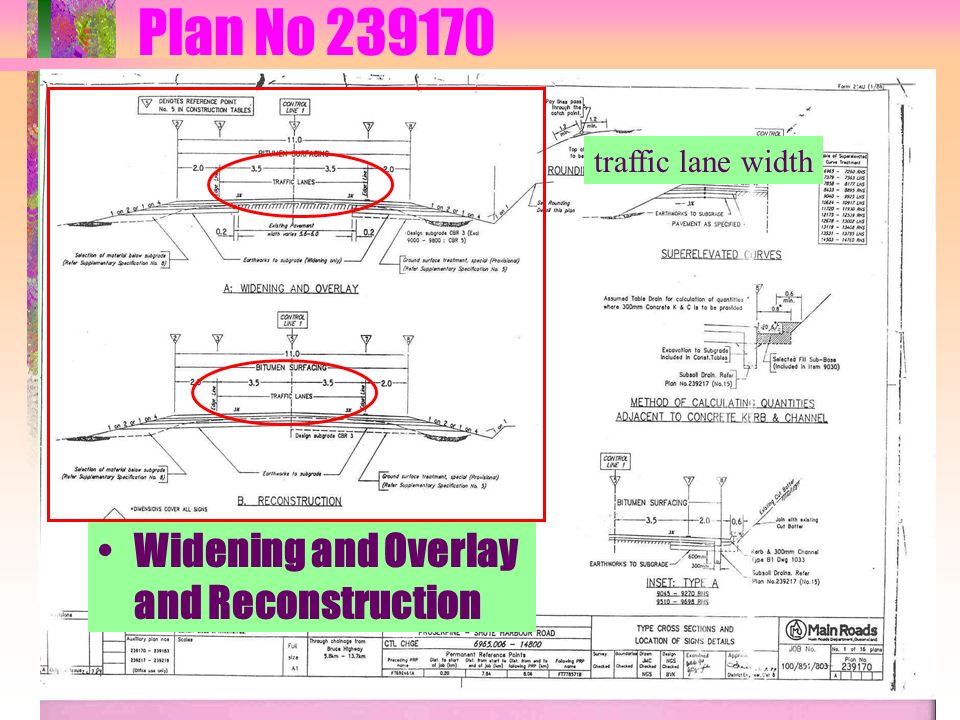

2. Plan No 239170 Widening and Overlay and Reconstruction traffic lane width

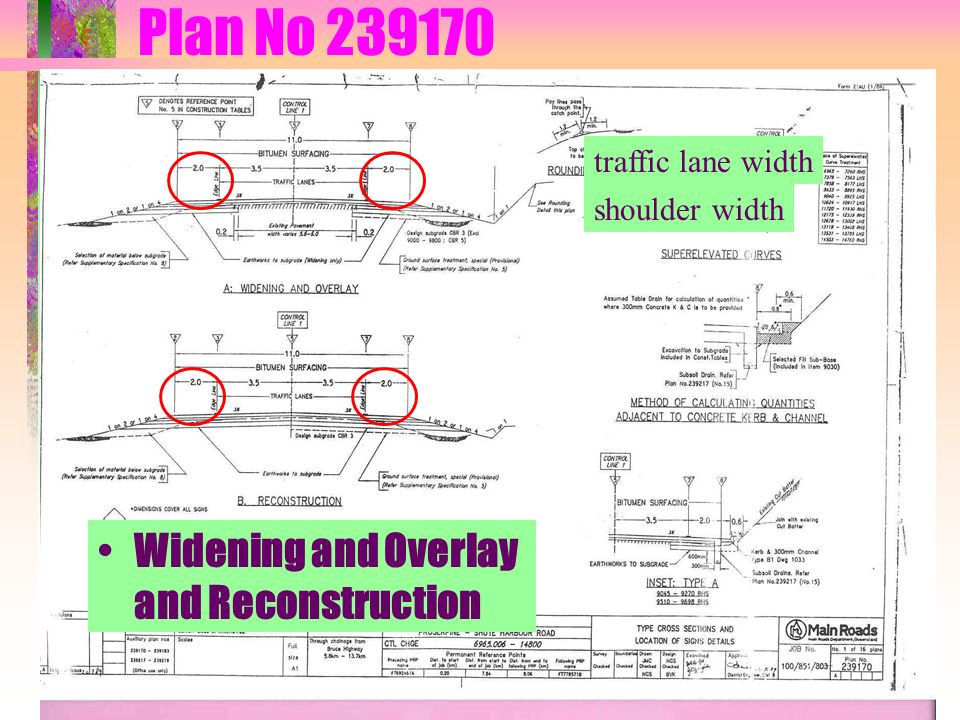

3. Plan No 239170 Widening and Overlay and Reconstruction traffic lane width shoulder width

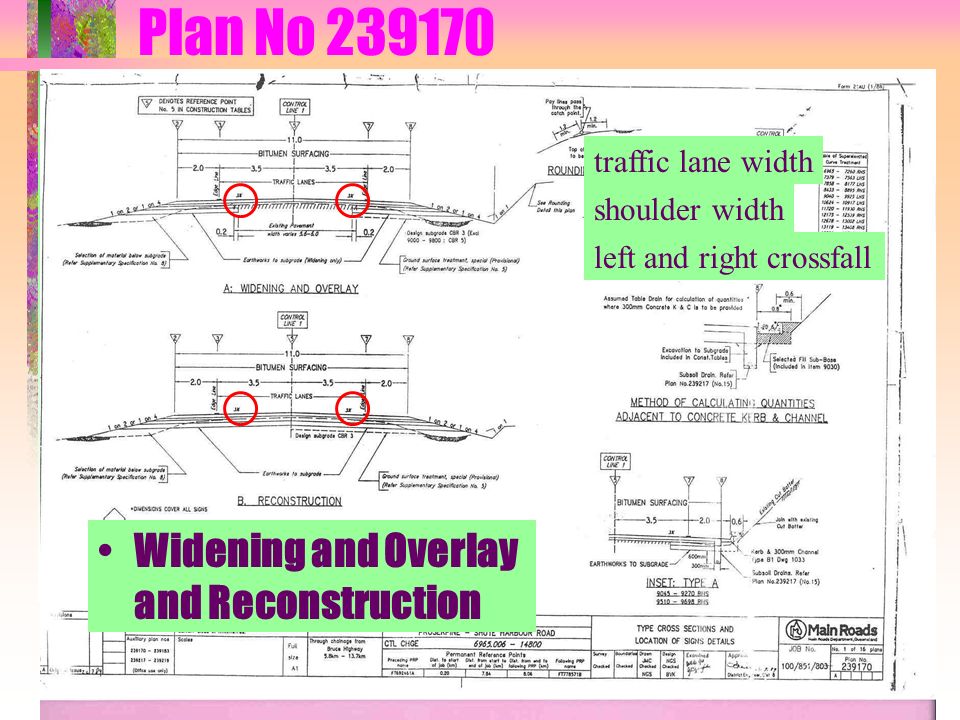

4. Plan No 239170 Widening and Overlay and Reconstruction traffic lane width shoulder width left and right crossfall

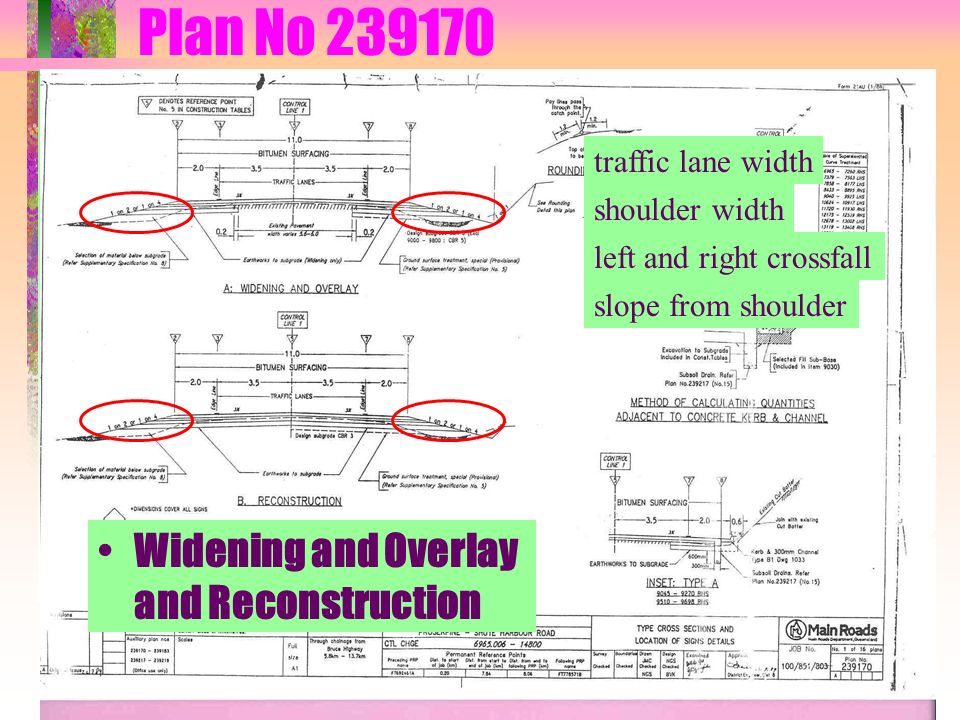

5. Plan No 239170 Widening and Overlay and Reconstruction traffic lane width shoulder width left and right crossfall slope from shoulder

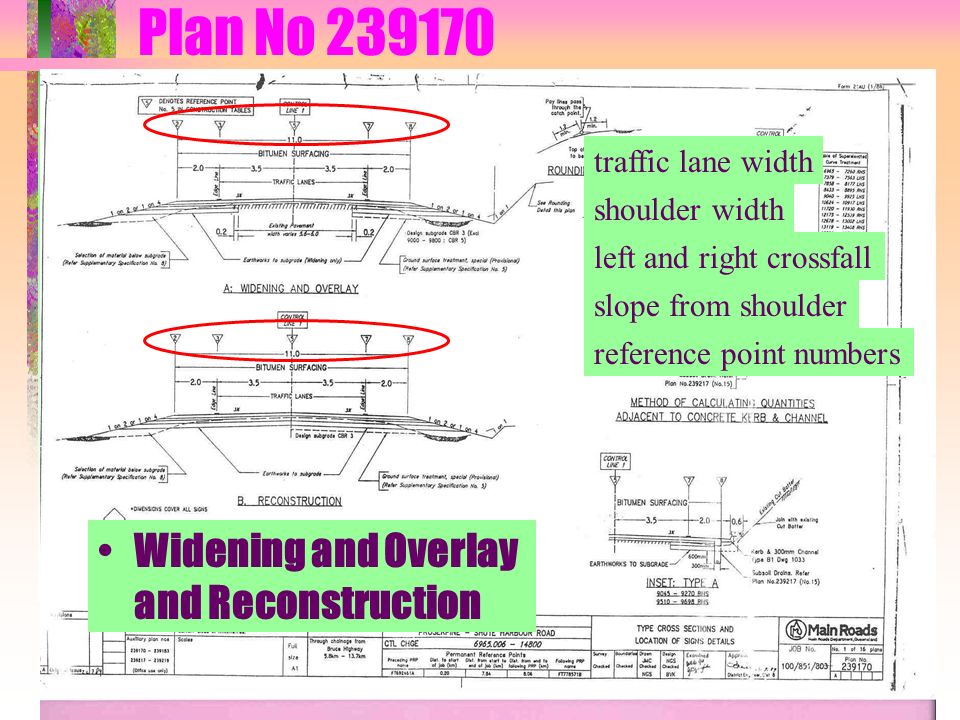

6. Plan No 239170 Widening and Overlay and Reconstruction traffic lane width shoulder width left and right crossfall slope from shoulder reference point numbers

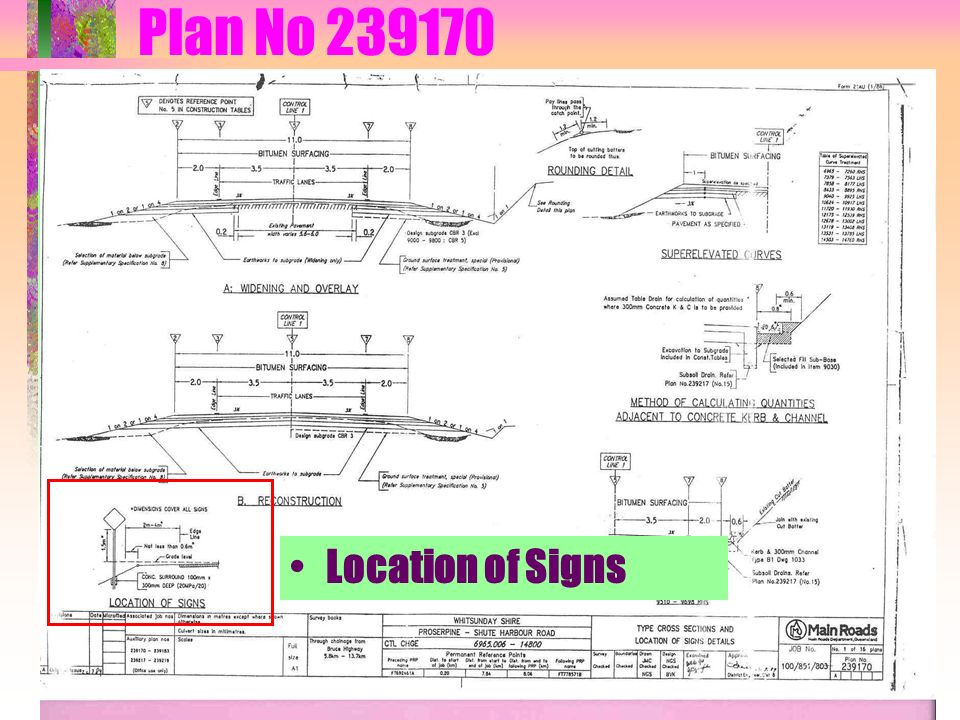

7. Plan No 239170 Location of Signs

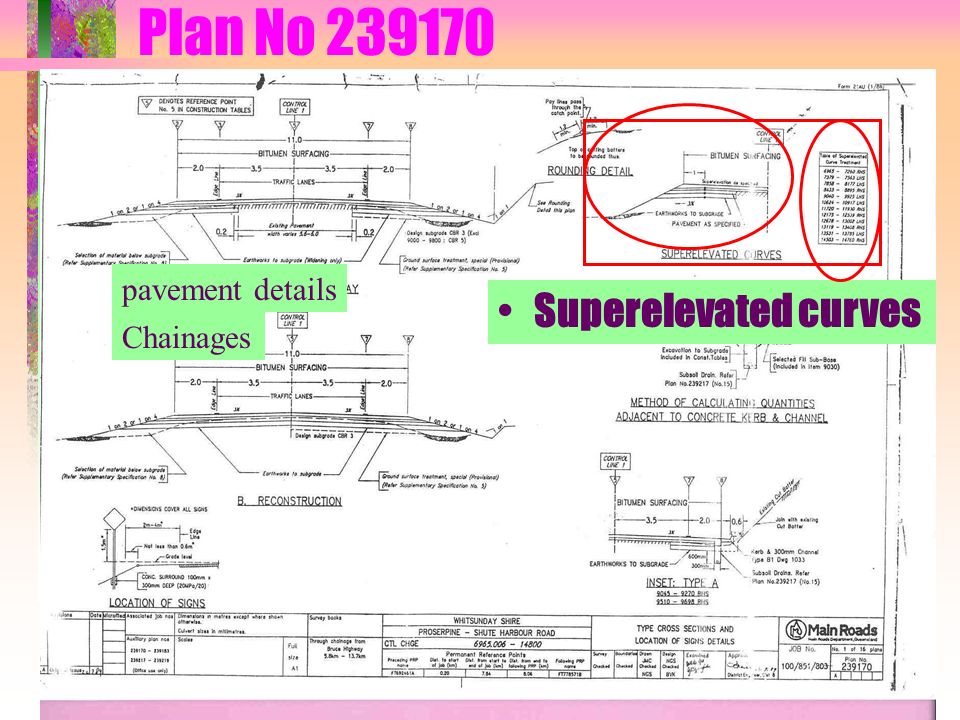

8. Plan No 239170 Superelevated curves pavement details Chainages

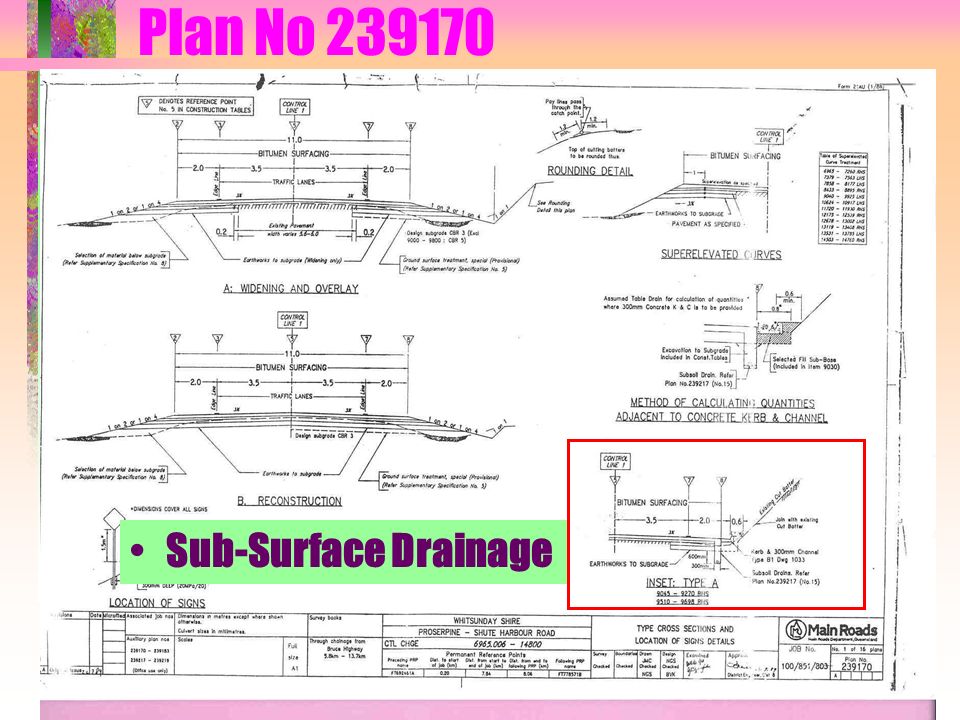

9. Plan No 239170 Sub-Surface Drainage

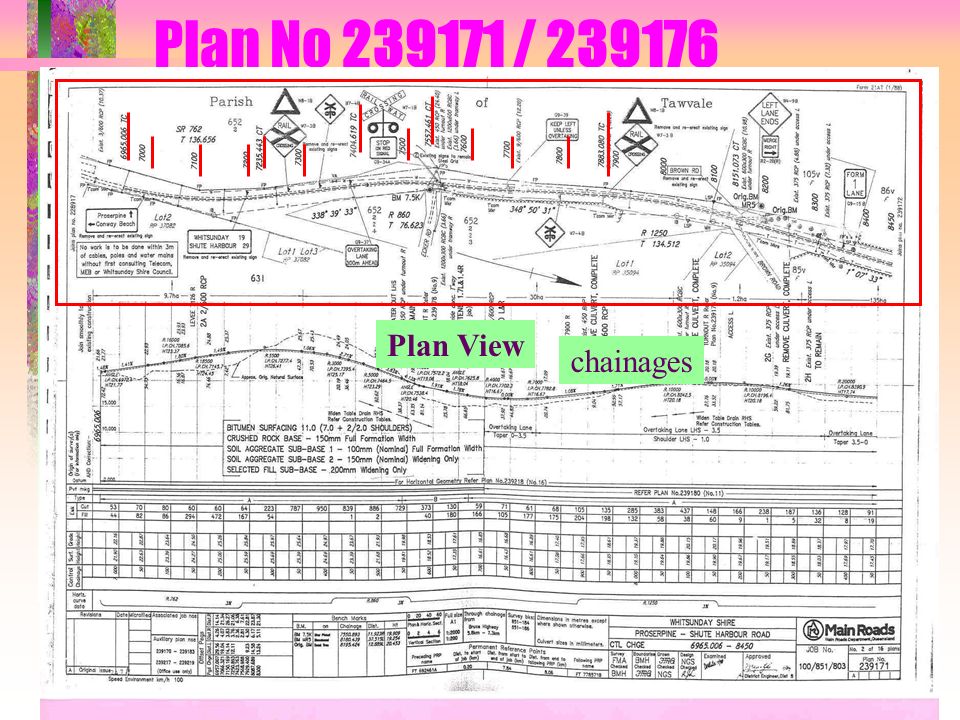

10. Plan No 239171 / 239176 Plan View chainages

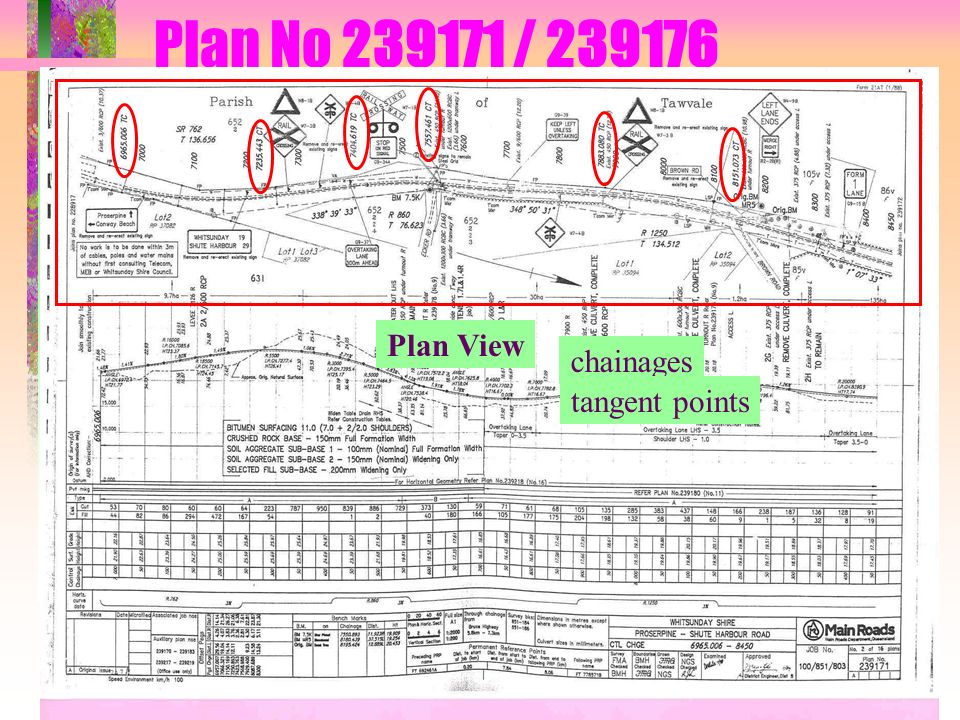

11. Plan No 239171 / 239176 Plan View chainages tangent points

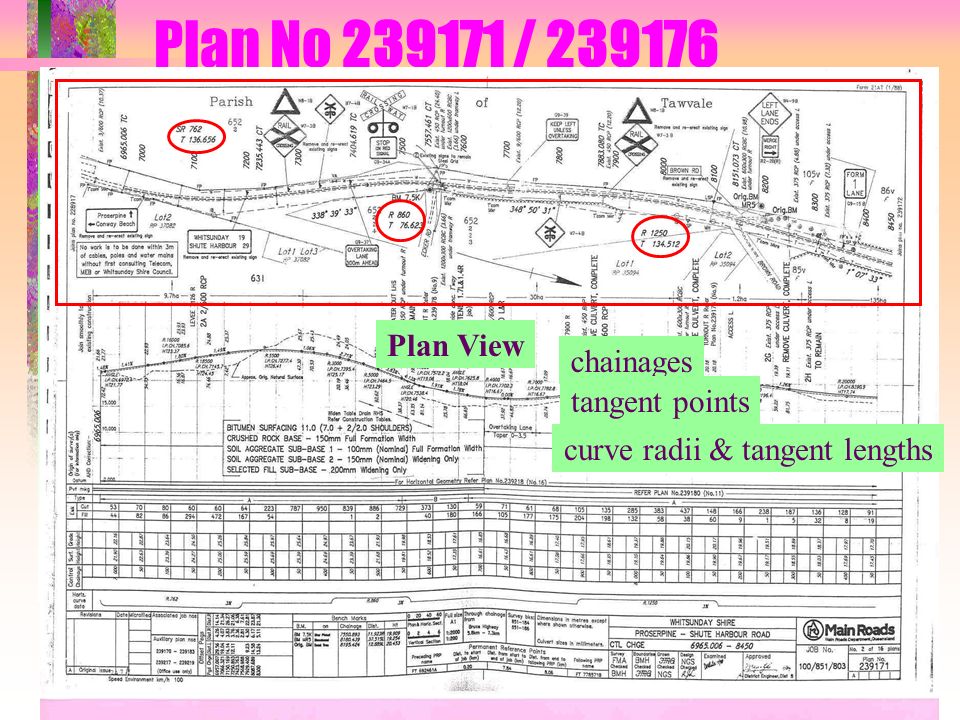

12. Plan No 239171 / 239176 Plan View chainages tangent points curve radii & tangent lengths

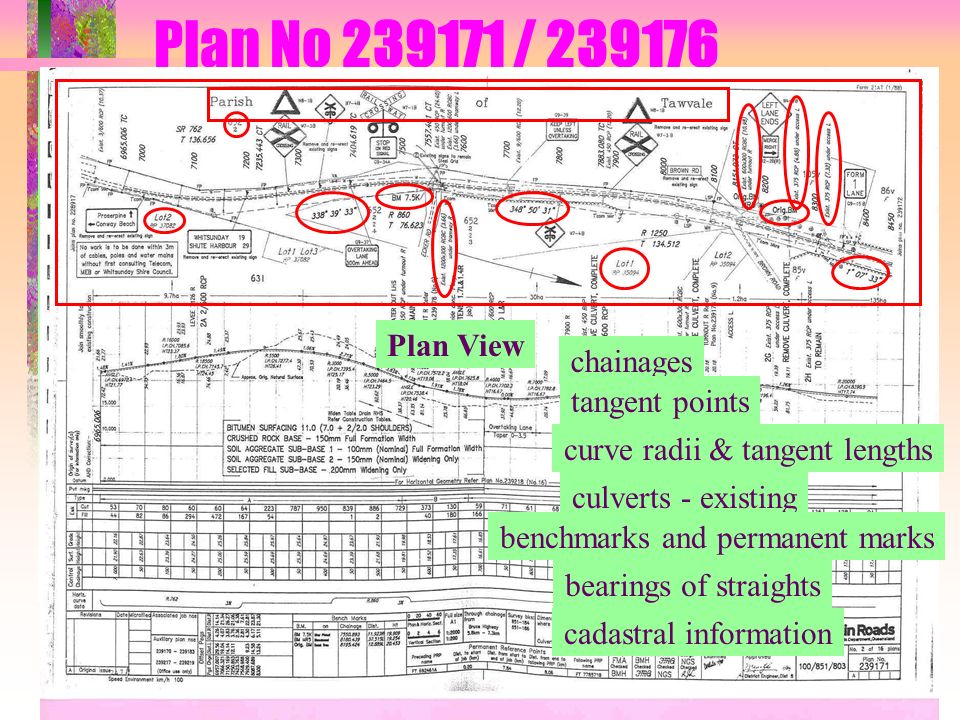

13. Plan No 239171 / 239176 Plan View chainages tangent points curve radii & tangent lengths culverts - existing benchmarks and permanent marks bearings of straights cadastral information

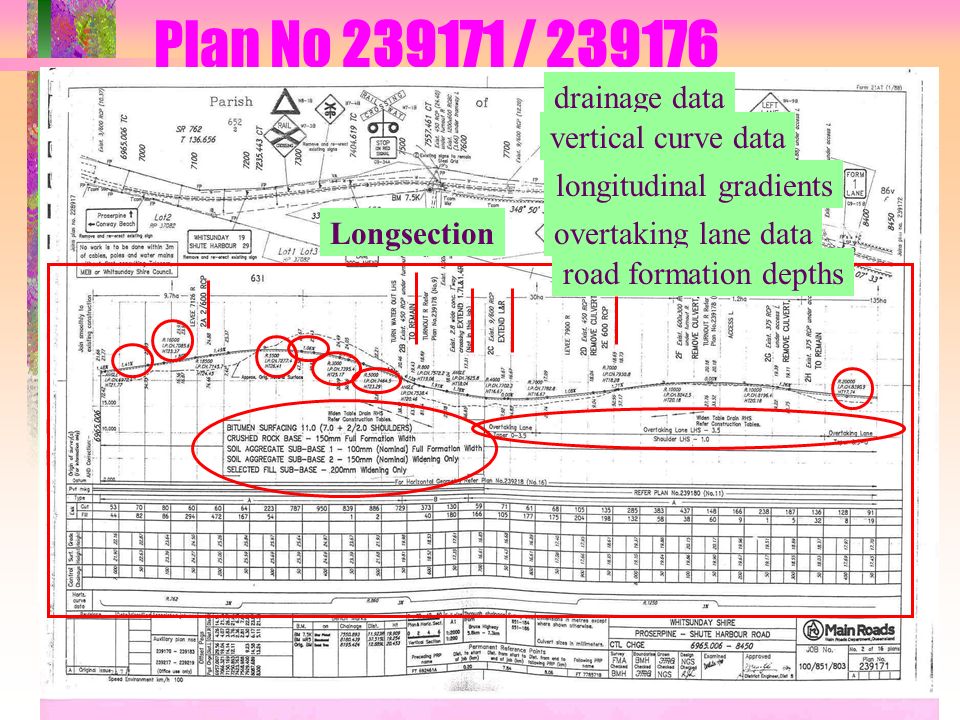

14. Plan No 239171 / 239176 Longsection drainage data vertical curve data longitudinal gradients overtaking lane data road formation depths

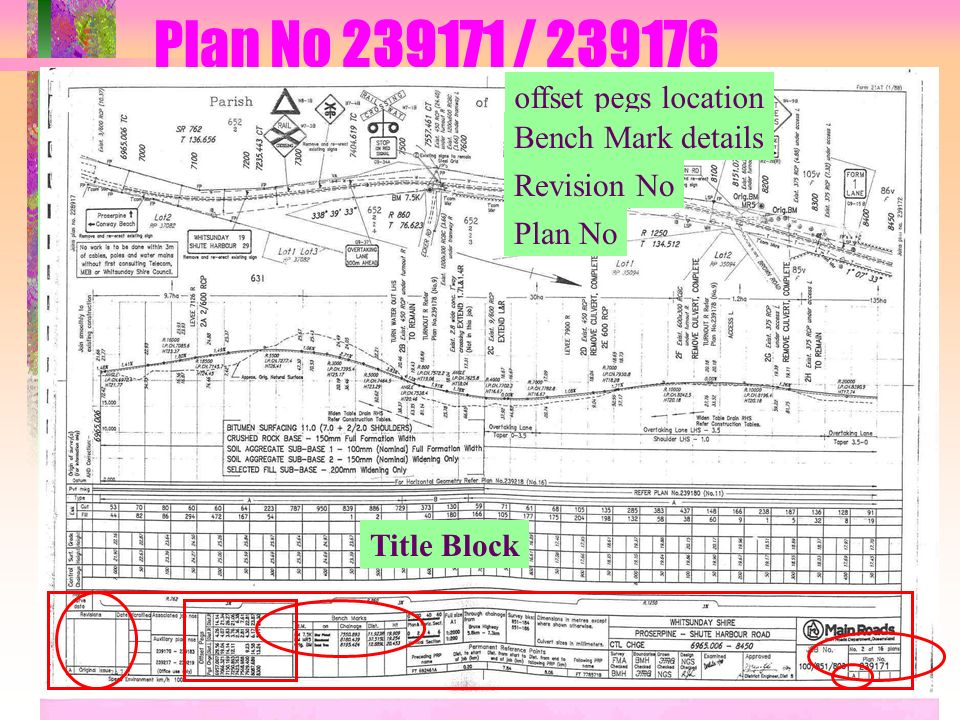

15. Plan No 239171 / 239176 Title Block offset pegs location Bench Mark details Revision No Plan No

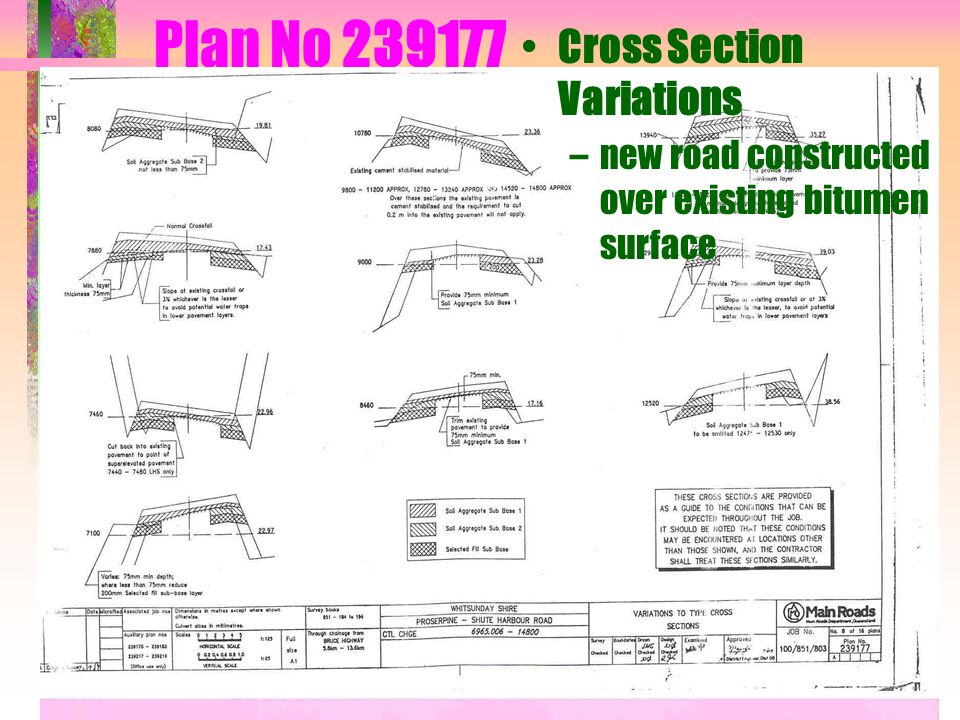

16. Plan No 239177 Cross Section Variations –new road constructed over existing bitumen surface

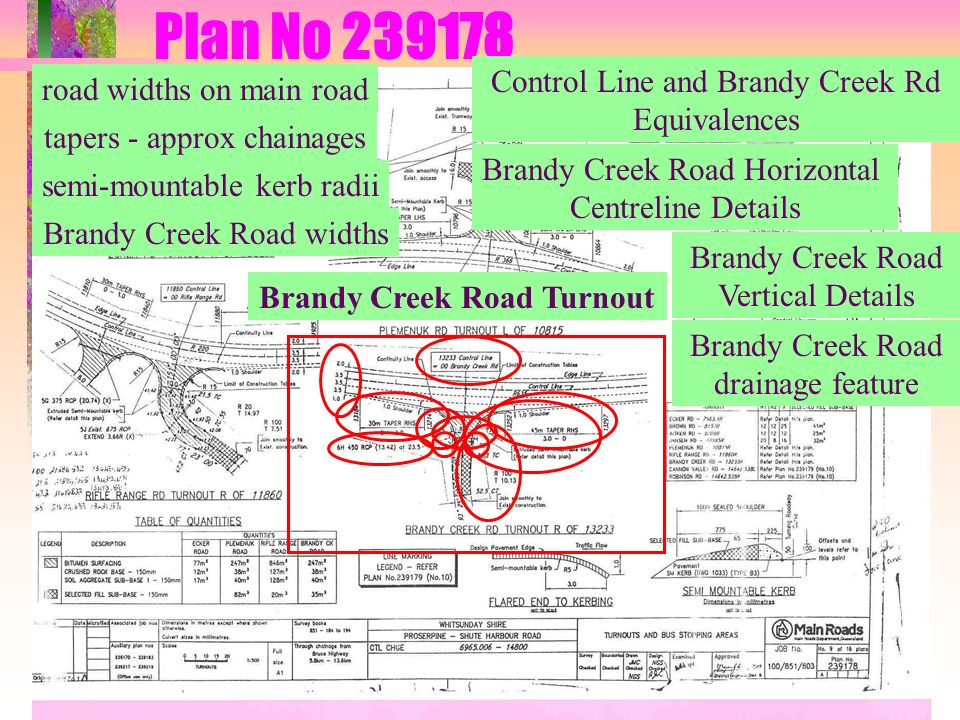

17. Plan No 239178 Brandy Creek Road Turnout road widths on main road tapers - approx chainages semi-mountable kerb radii Brandy Creek Road widths Control Line and Brandy Creek Rd Equivalences Brandy Creek Road Horizontal Centreline Details Brandy Creek Road Vertical Details Brandy Creek Road drainage feature

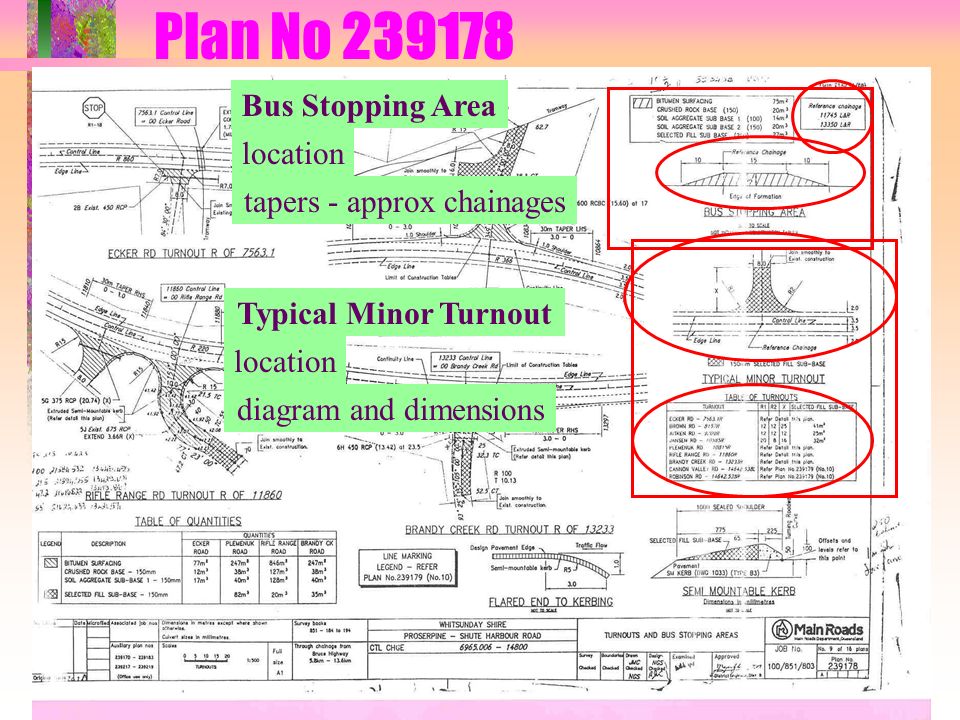

18. Plan No 239178 Bus Stopping Area location tapers - approx chainages Typical Minor Turnout location diagram and dimensions

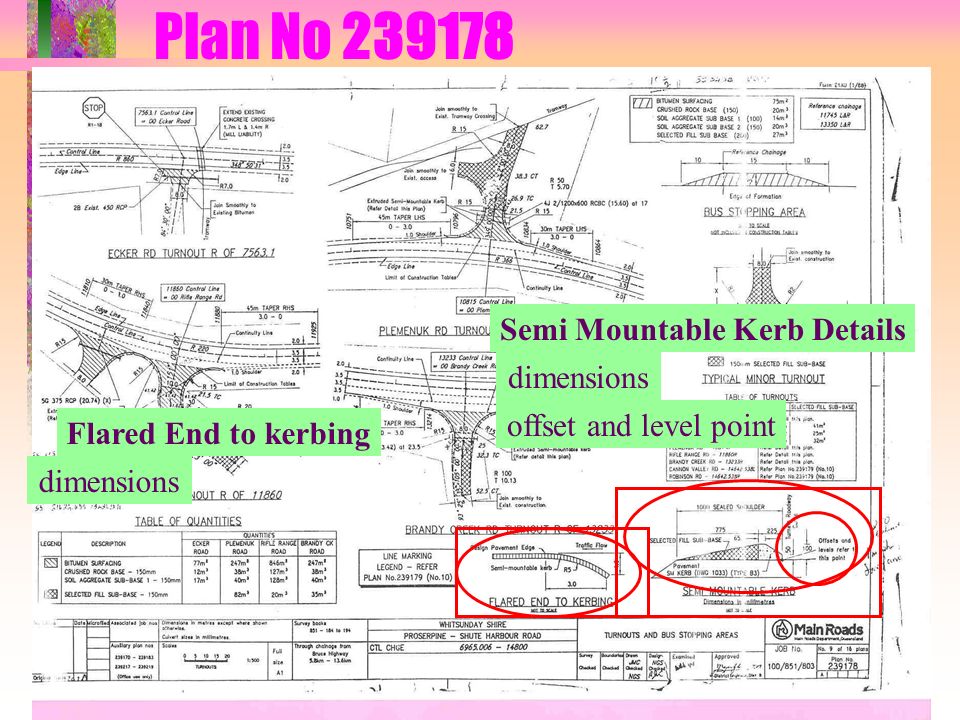

19. Plan No 239178 Semi Mountable Kerb Details dimensions offset and level point Flared End to kerbing dimensions

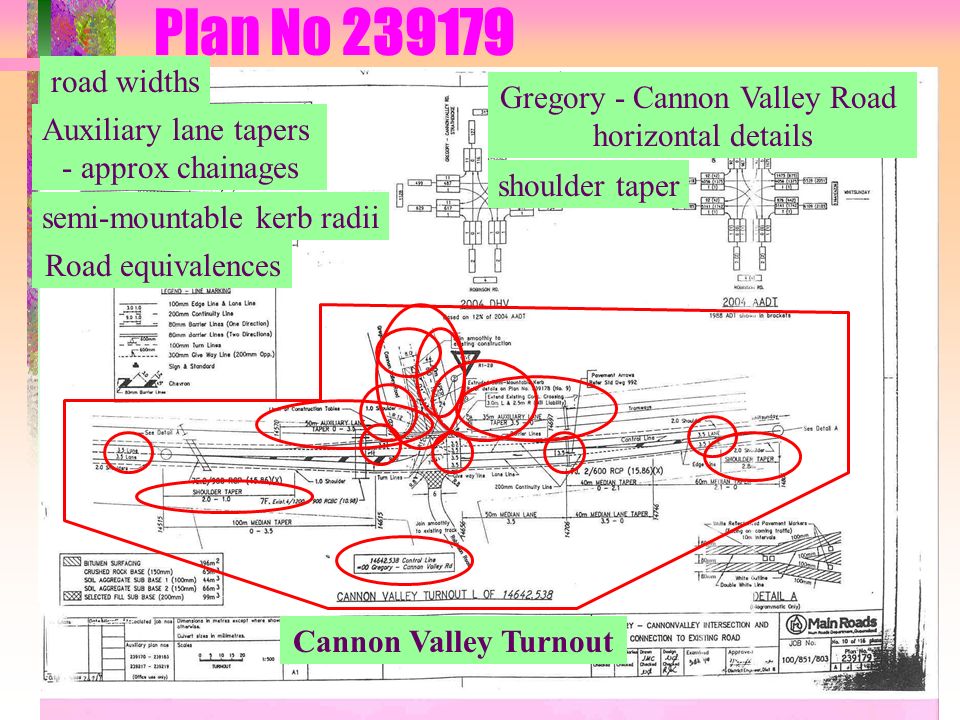

20. Plan No 239179 Cannon Valley Turnout road widths Auxiliary lane tapers - approx chainages semi-mountable kerb radii Road equivalences Gregory - Cannon Valley Road horizontal details shoulder taper

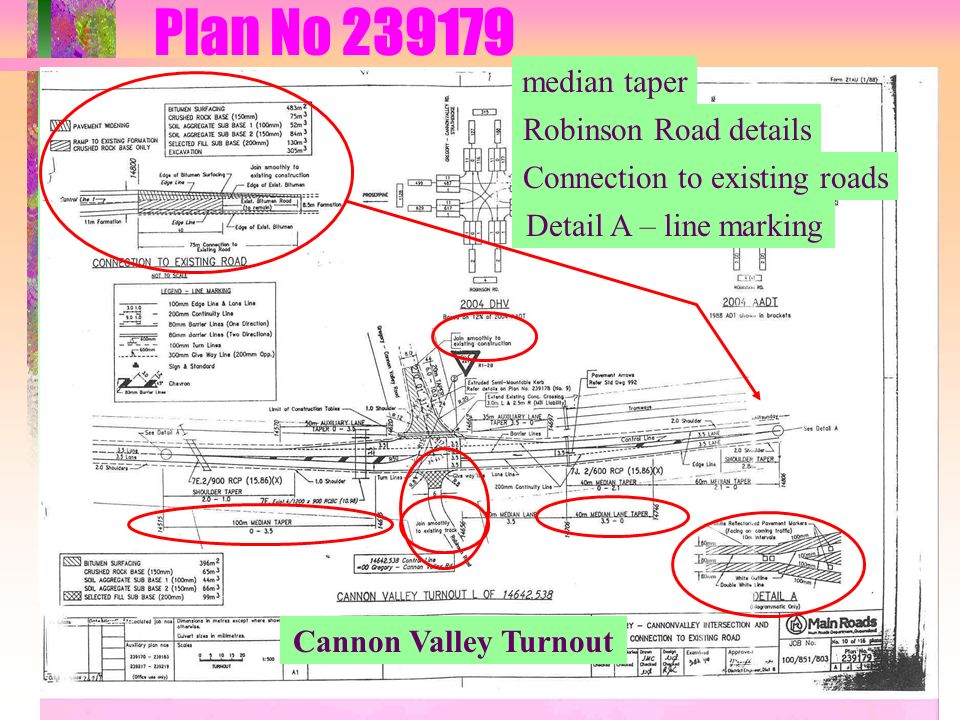

21. Plan No 239179 Cannon Valley Turnout median taper Robinson Road details Connection to existing roads Detail A – line marking

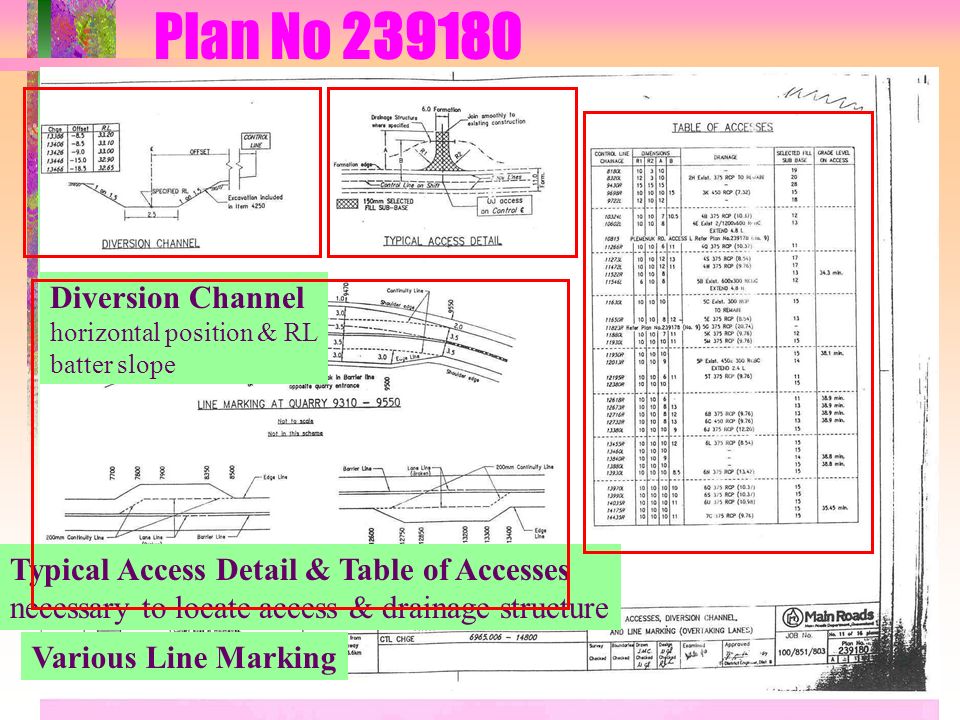

22. Plan No 239180 Diversion Channel horizontal position & RL batter slope Typical Access Detail & Table of Accesses necessary to locate access & drainage structure Various Line Marking

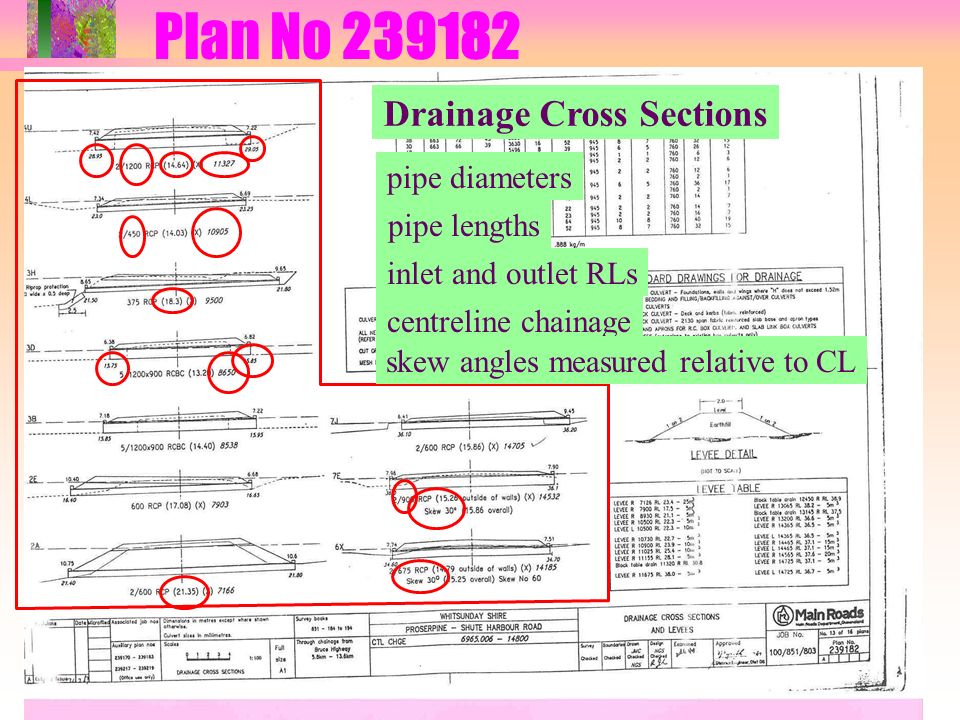

23. Plan No 239182 Drainage Cross Sections pipe diameters pipe lengths inlet and outlet RLs centreline chainage skew angles measured relative to CL

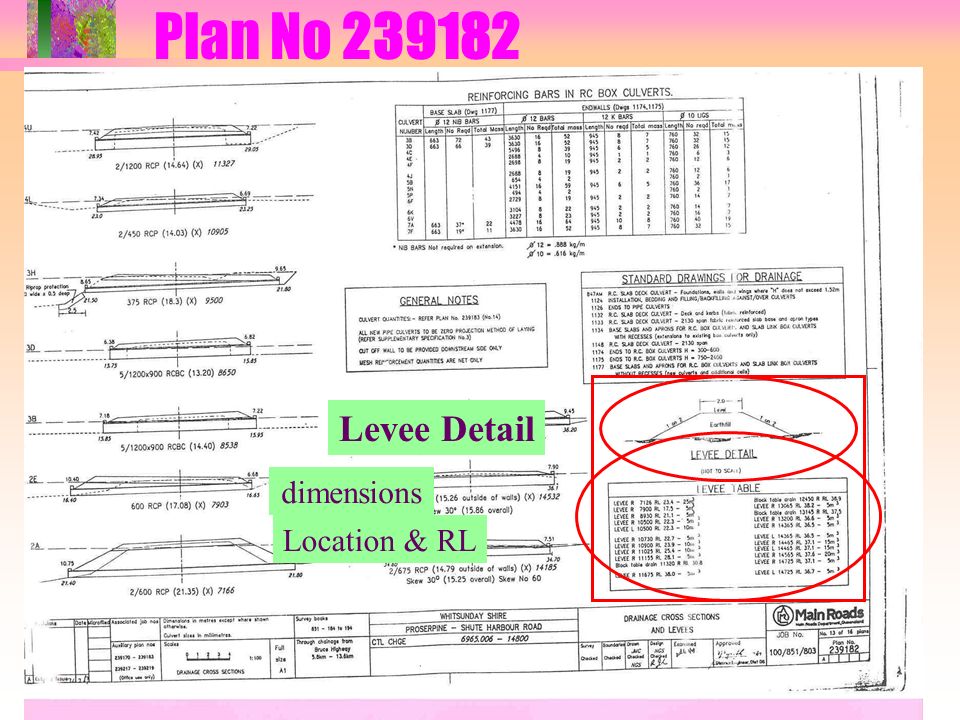

24. Plan No 239182 Levee Detail dimensions Location & RL

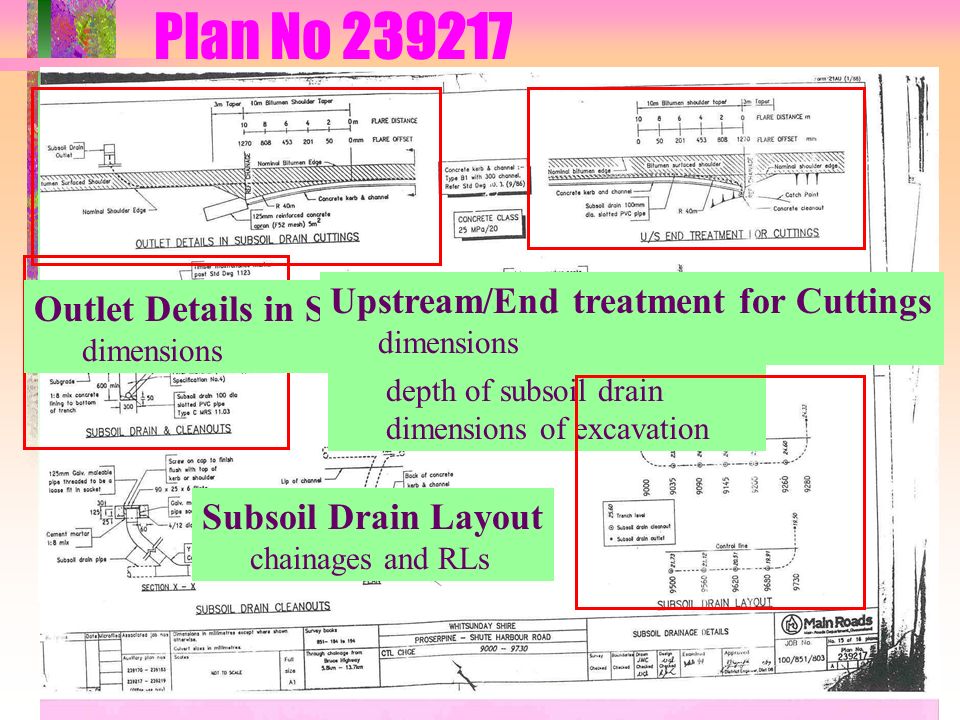

25. Plan No 239217 Subsoil Drain & cleanouts depth of subsoil drain dimensions of excavation Outlet Details in Subsoil Drain Cuttings dimensions Upstream/End treatment for Cuttings dimensions Subsoil Drain Layout chainages and RLs

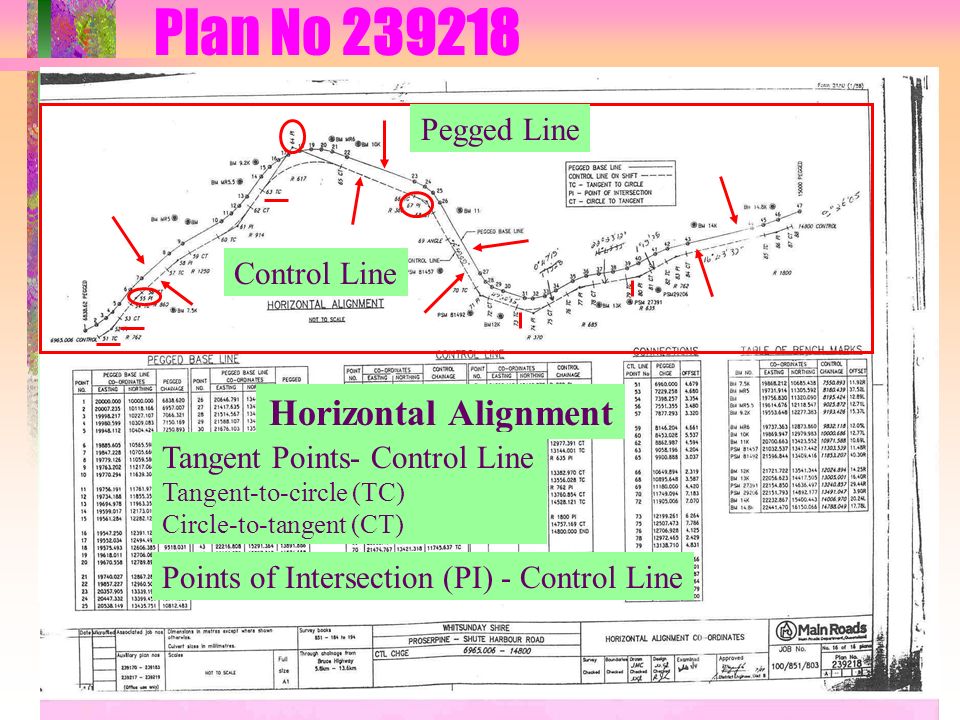

26. Plan No 239218 Horizontal Alignment Control Line Pegged Line Tangent Points- Control Line Tangent-to-circle (TC) Circle-to-tangent (CT) Points of Intersection (PI) - Control Line

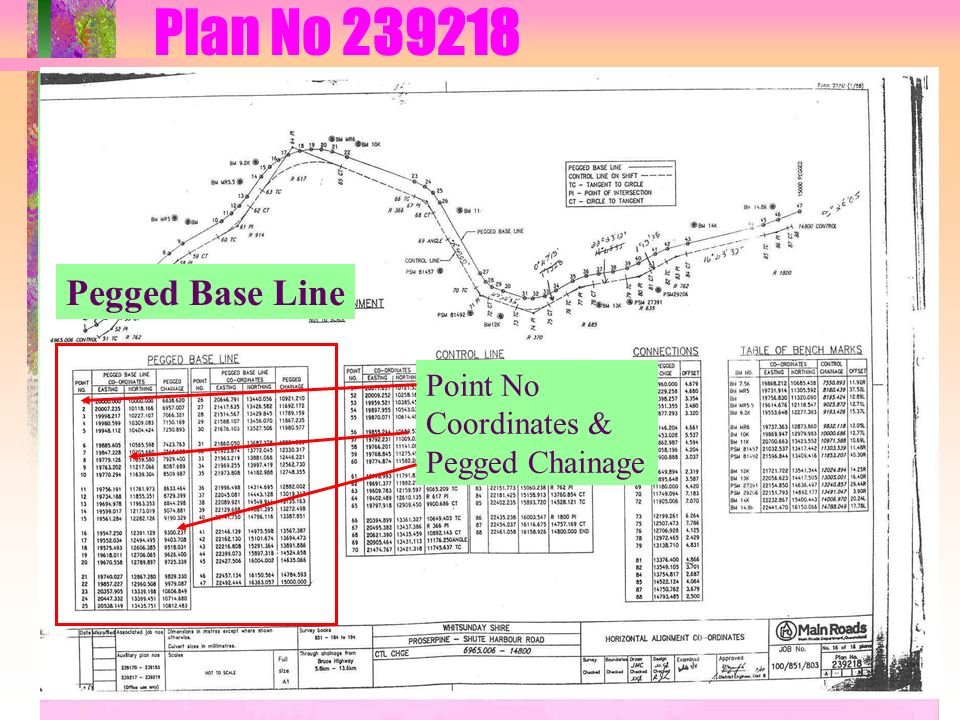

27. Plan No 239218 Pegged Base Line Point No Coordinates & Pegged Chainage

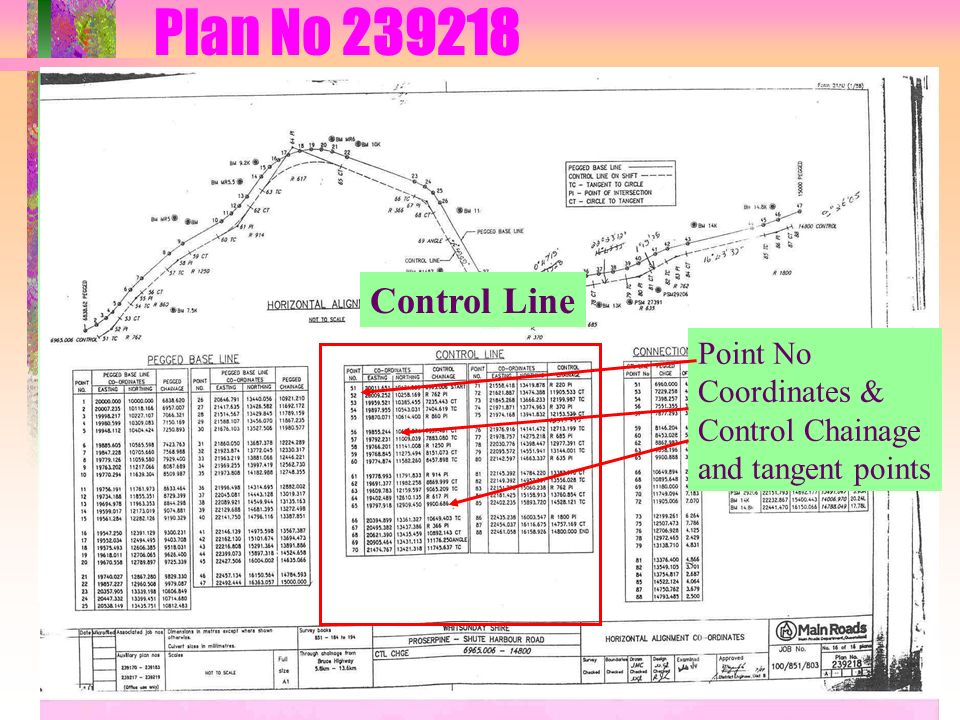

28. Plan No 239218 Control Line Point No Coordinates & Control Chainage and tangent points

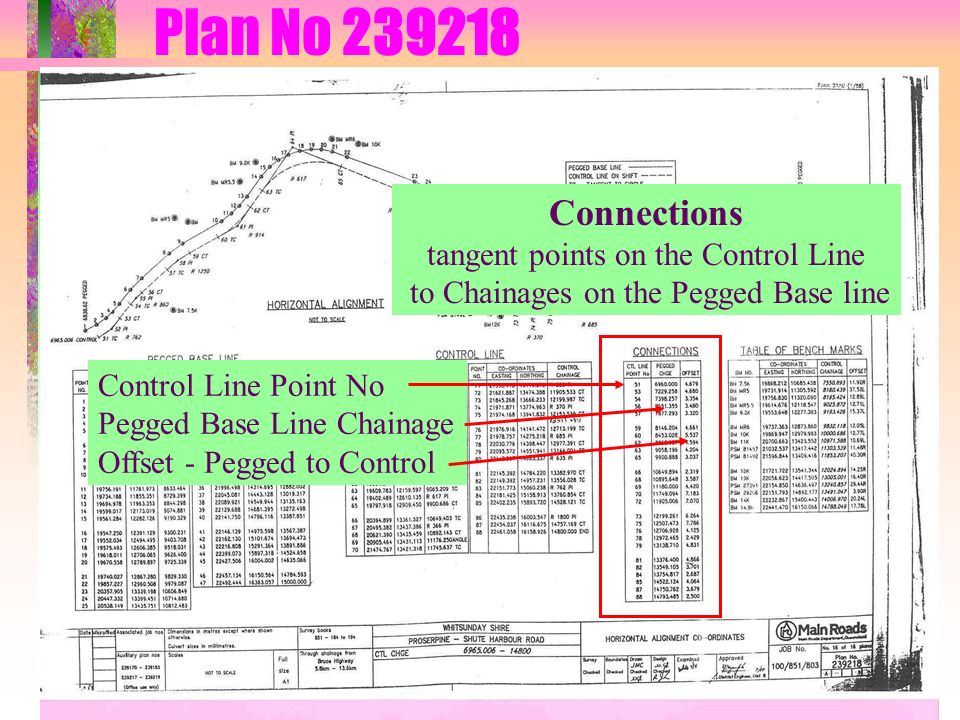

29. Plan No 239218 Connections tangent points on the Control Line to Chainages on the Pegged Base line Control Line Point No Pegged Base Line Chainage Offset - Pegged to Control

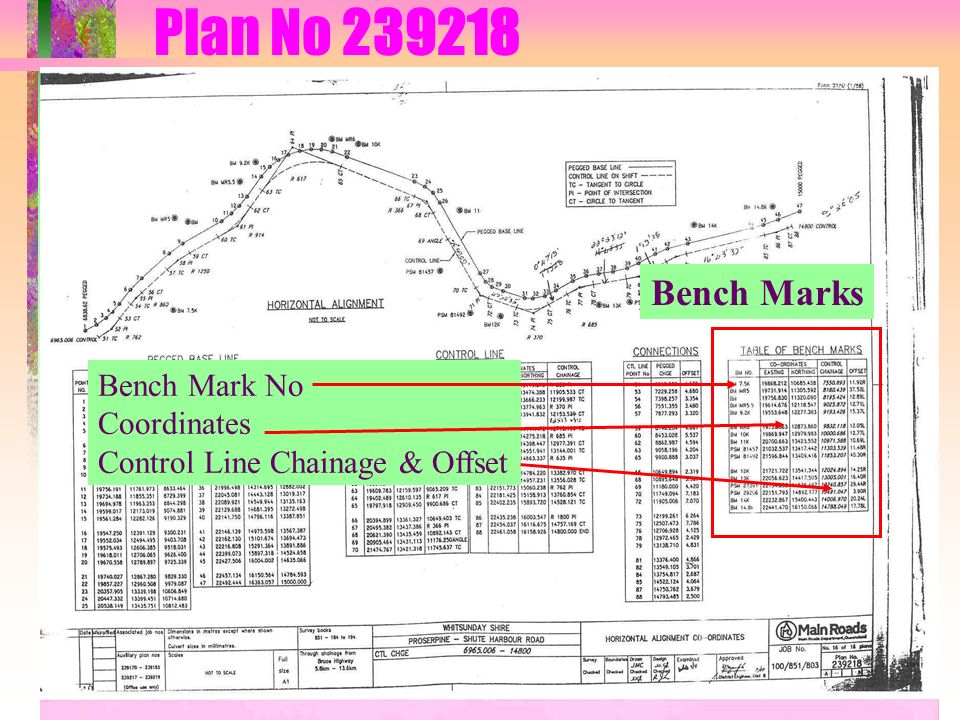

30. Plan No 239218 Bench Marks Bench Mark No Coordinates Control Line Chainage & Offset

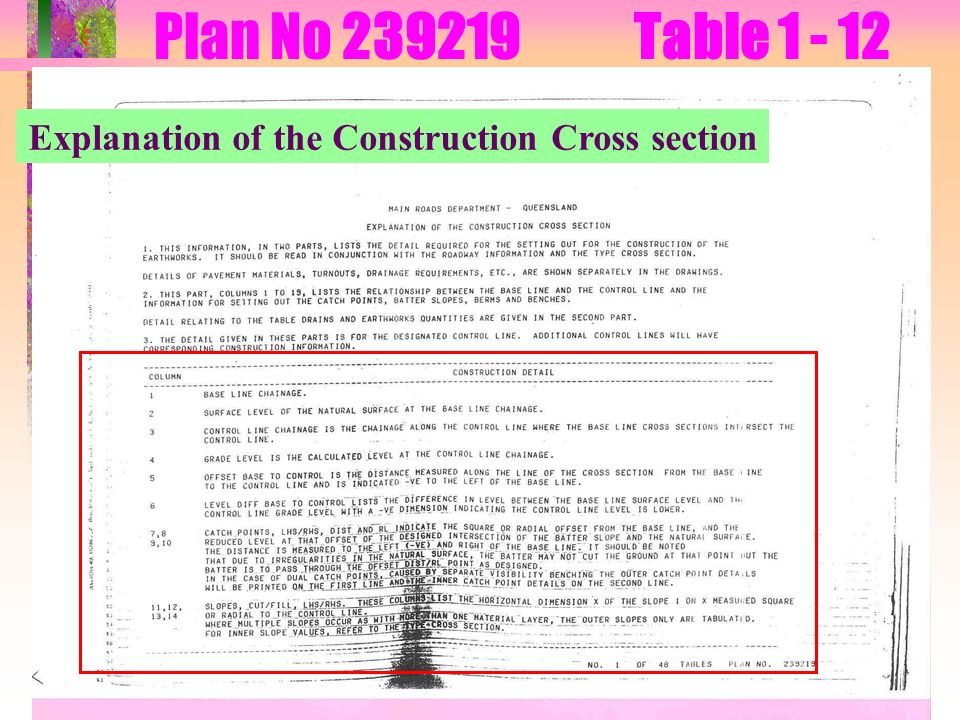

31. Plan No 239219 Table 1 - 12 Explanation of the Construction Cross section

32. Plan No 239219 Table 1 - 12 Explanation of Construction Cross section lists the relationship between the base line and the control line –columns 1 - 6

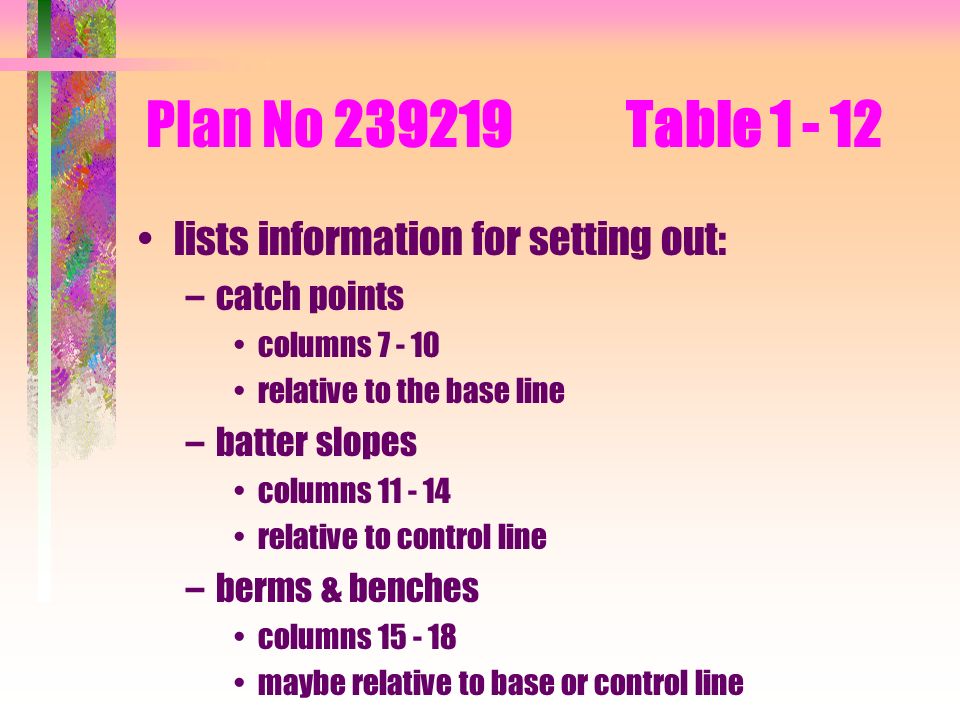

33. Plan No 239219Table 1 - 12 lists information for setting out: –catch points columns 7 - 10 relative to the base line –batter slopes columns 11 - 14 relative to control line –berms & benches columns 15 - 18 maybe relative to base or control line

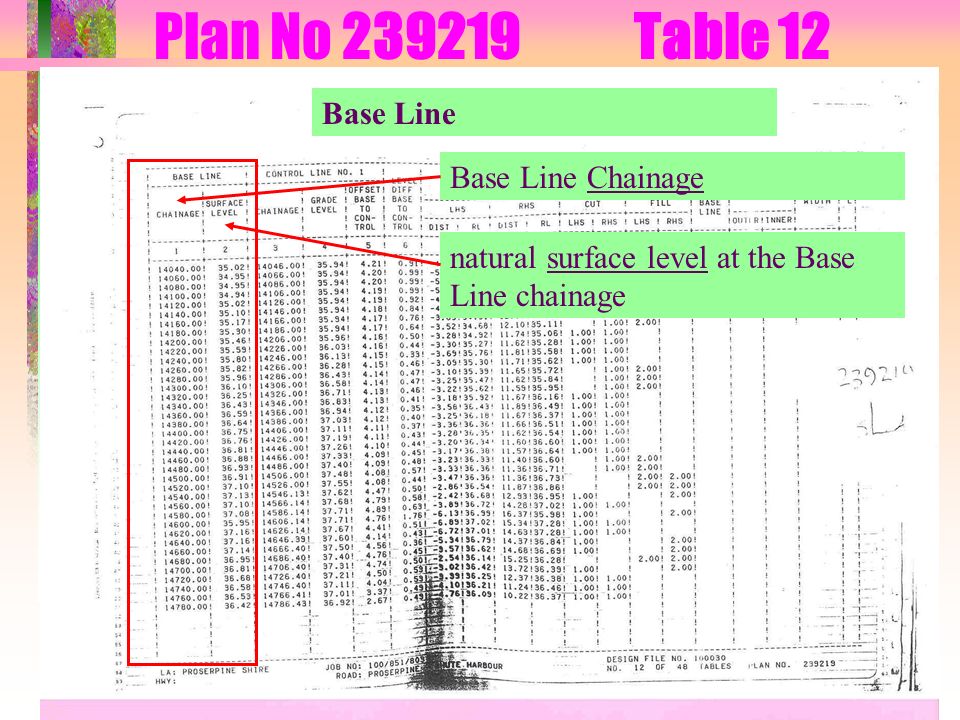

34. Plan No 239219Table 12 Base Line Chainage Base Line natural surface level at the Base Line chainage

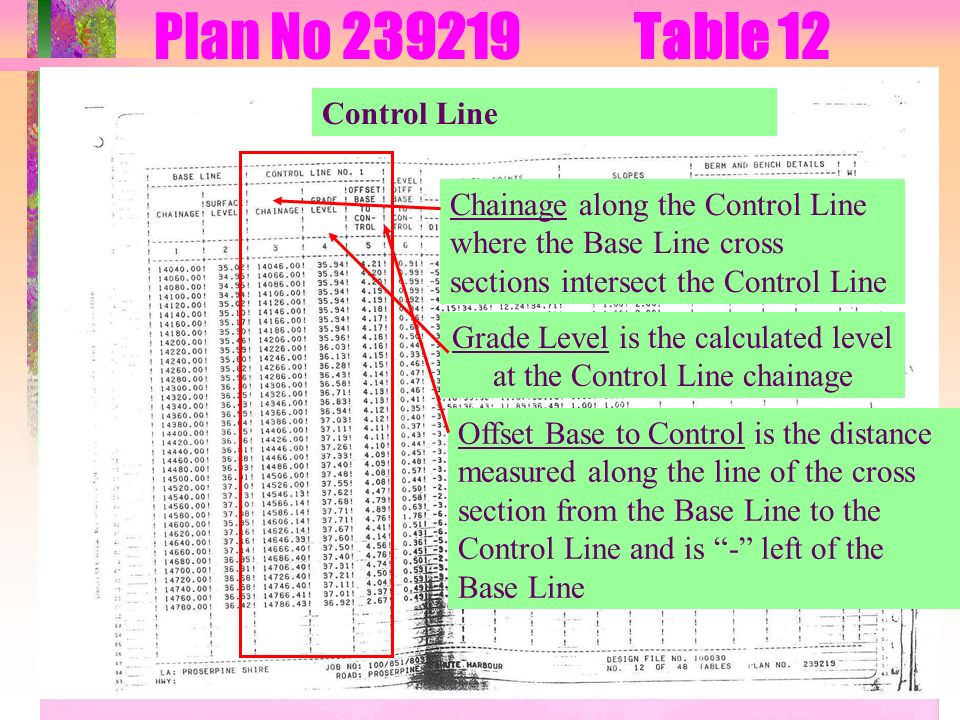

35. Plan No 239219Table 12 Chainage along the Control Line where the Base Line cross sections intersect the Control Line Offset Base to Control is the distance measured along the line of the cross section from the Base Line to the Control Line and is “-” left of the Base Line Control Line Grade Level is the calculated level at the Control Line chainage

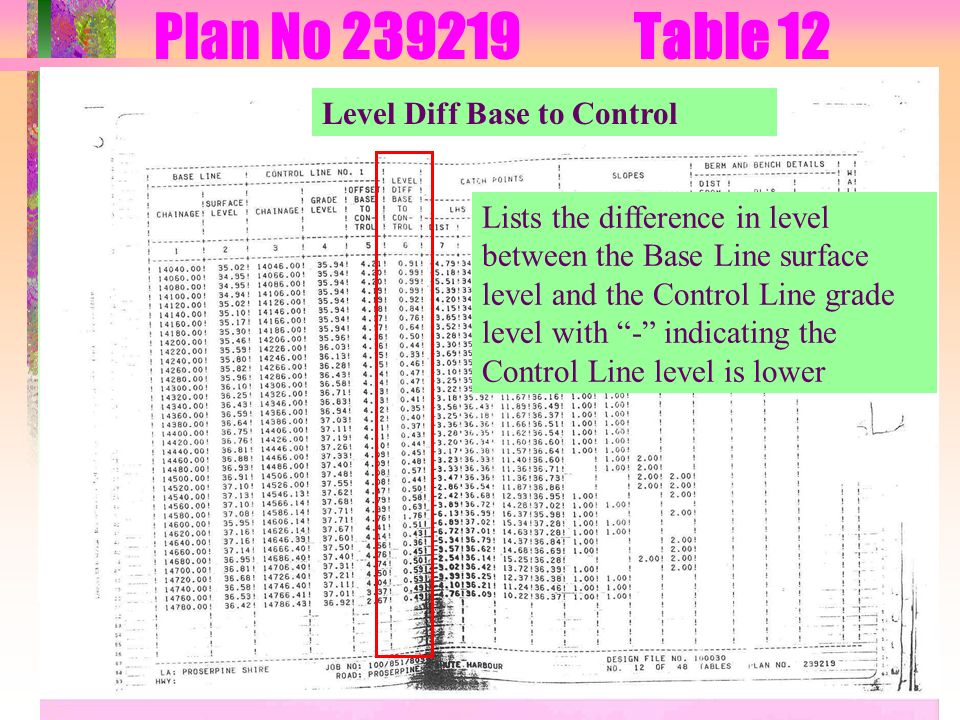

36. Plan No 239219Table 12 Lists the difference in level between the Base Line surface level and the Control Line grade level with “-” indicating the Control Line level is lower Level Diff Base to Control

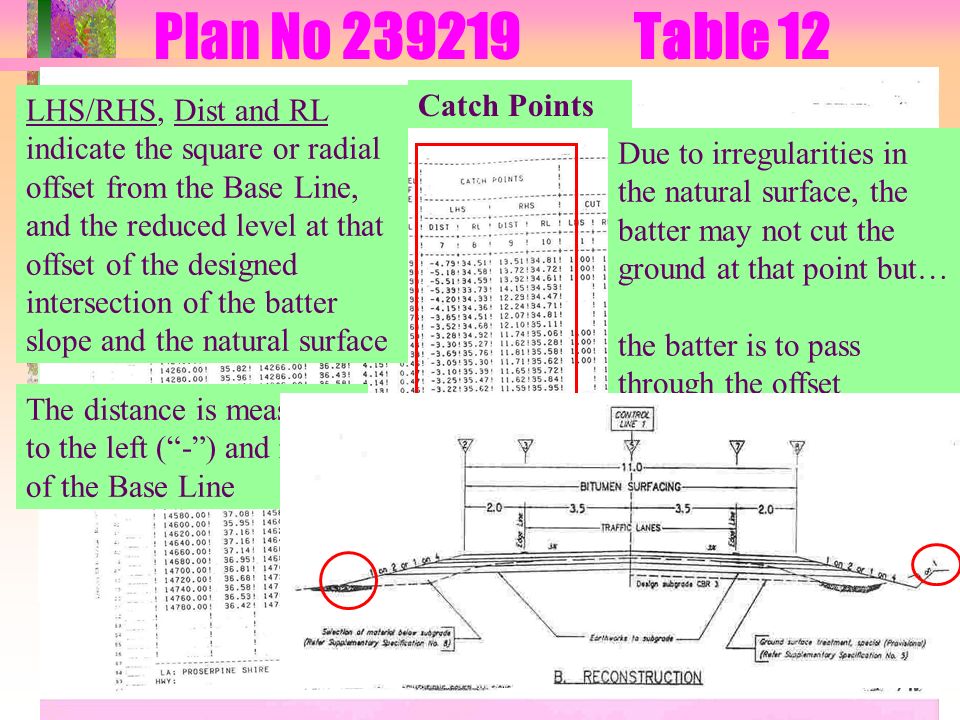

37. Plan No 239219Table 12 LHS/RHS, Dist and RL indicate the square or radial offset from the Base Line, and the reduced level at that offset of the designed intersection of the batter slope and the natural surface Catch Points The distance is measured to the left (“-”) and right of the Base Line Due to irregularities in the natural surface, the batter may not cut the ground at that point but… the batter is to pass through the offset DIST/RL point as designed

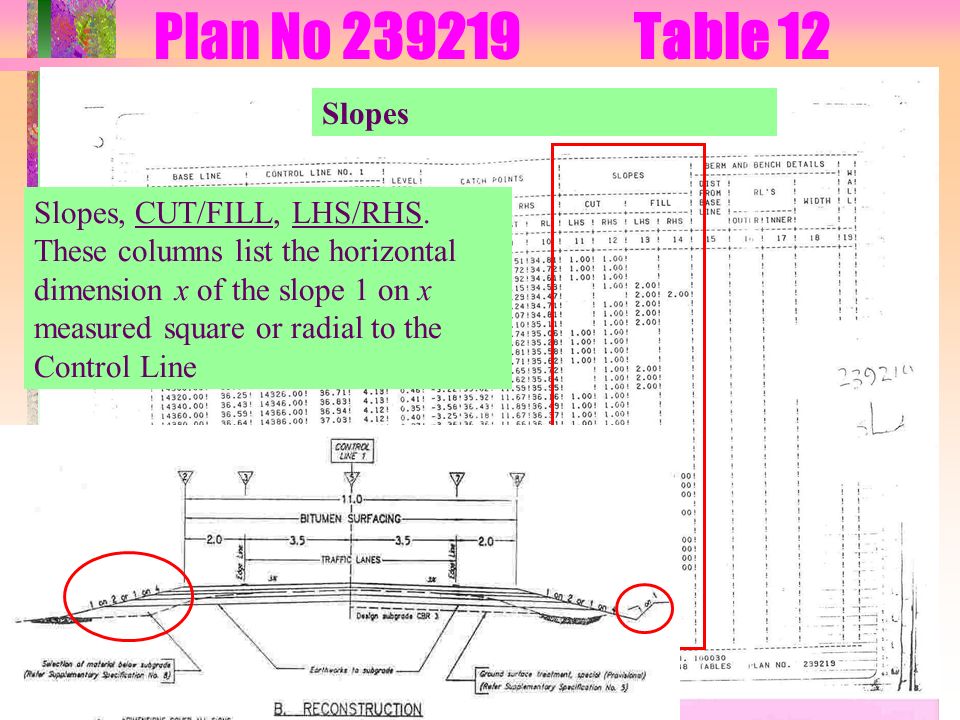

38. Plan No 239219Table 12 Slopes, CUT/FILL, LHS/RHS. These columns list the horizontal dimension x of the slope 1 on x measured square or radial to the Control Line Slopes

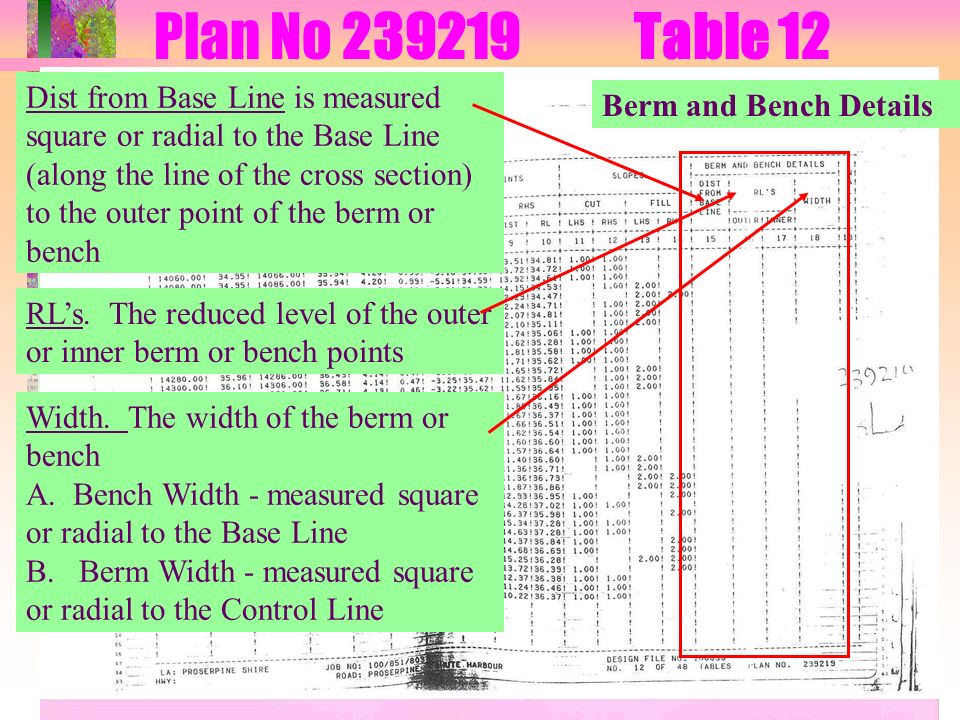

39. Plan No 239219Table 12 Dist from Base Line is measured square or radial to the Base Line (along the line of the cross section) to the outer point of the berm or bench Berm and Bench Details RL’s. The reduced level of the outer or inner berm or bench points Width. The width of the berm or bench A. Bench Width - measured square or radial to the Base Line B. Berm Width - measured square or radial to the Control Line

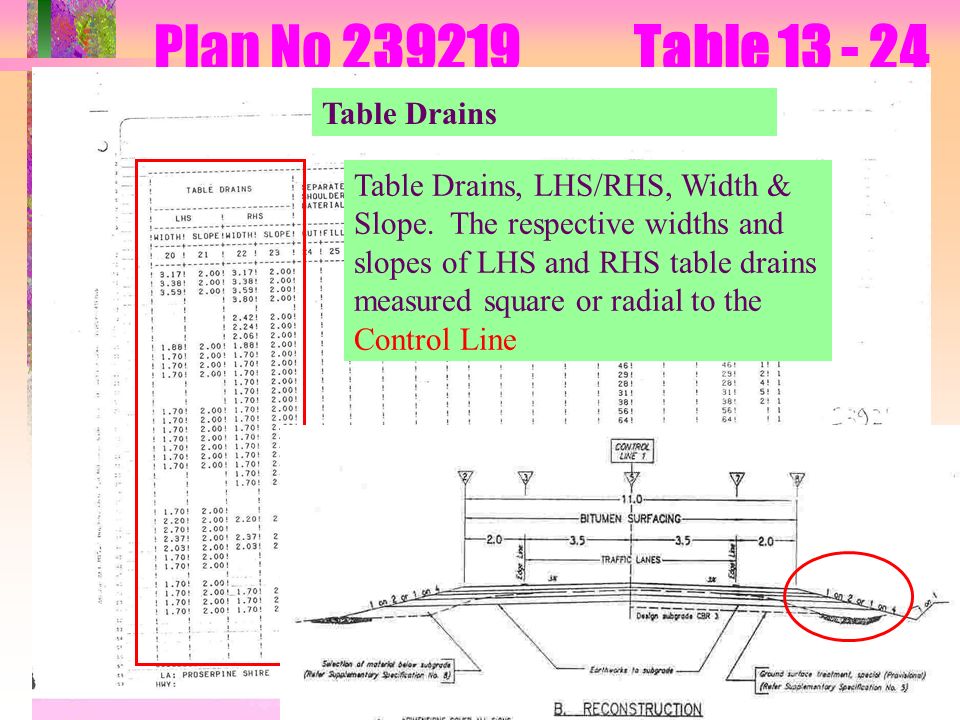

40. Plan No 239219Table 13 - 24 Table Drains Table Drains, LHS/RHS, Width & Slope. The respective widths and slopes of LHS and RHS table drains measured square or radial to the Control Line

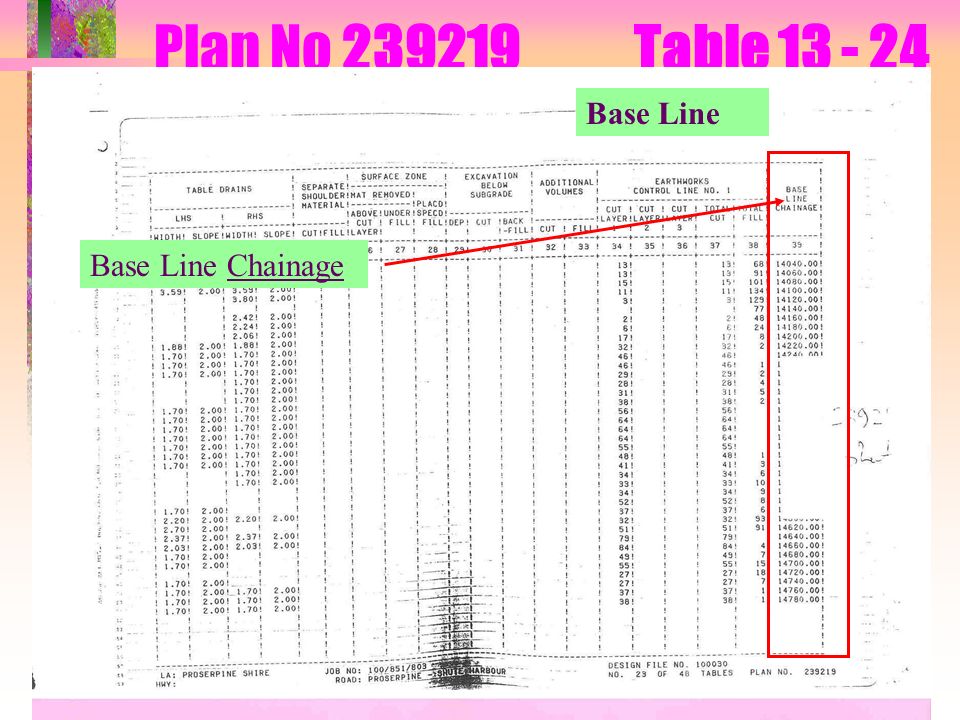

41. Plan No 239219Table 13 - 24 Base Line Chainage Base Line

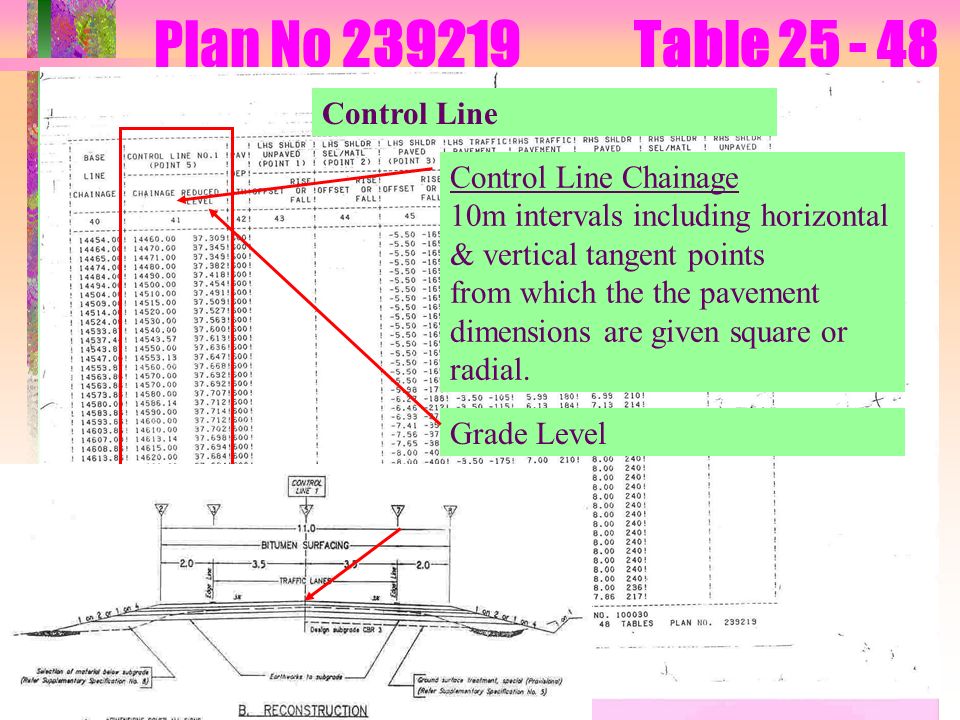

42. Plan No 239219Table 25 - 48 Control Line Grade Level Control Line Chainage 10m intervals including horizontal & vertical tangent points from which the the pavement dimensions are given square or radial.

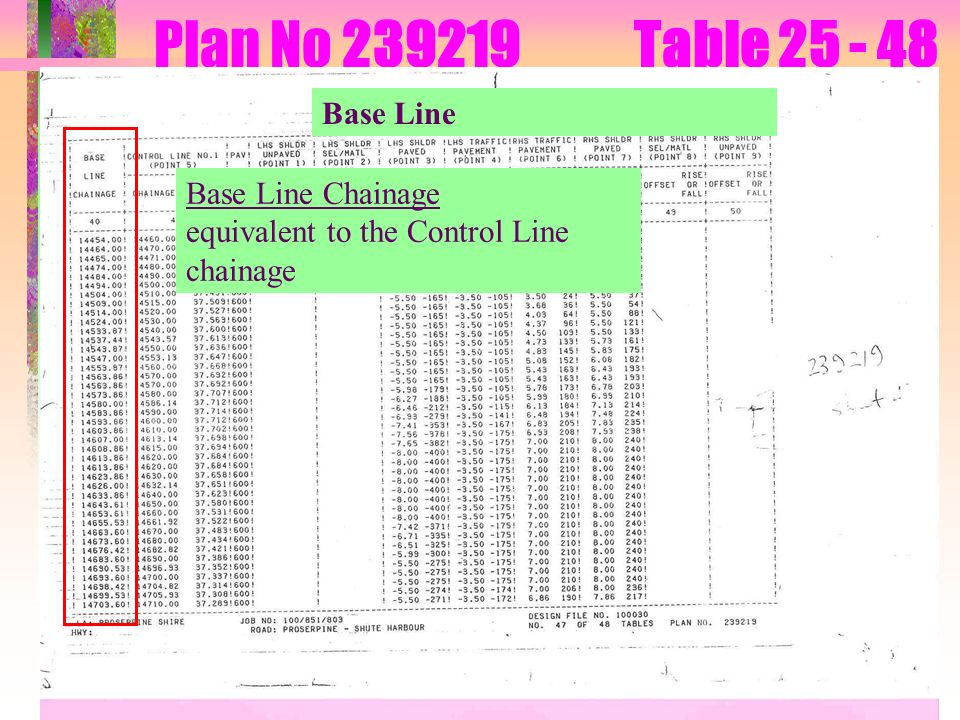

43. Plan No 239219Table 25 - 48 Base Line Base Line Chainage equivalent to the Control Line chainage

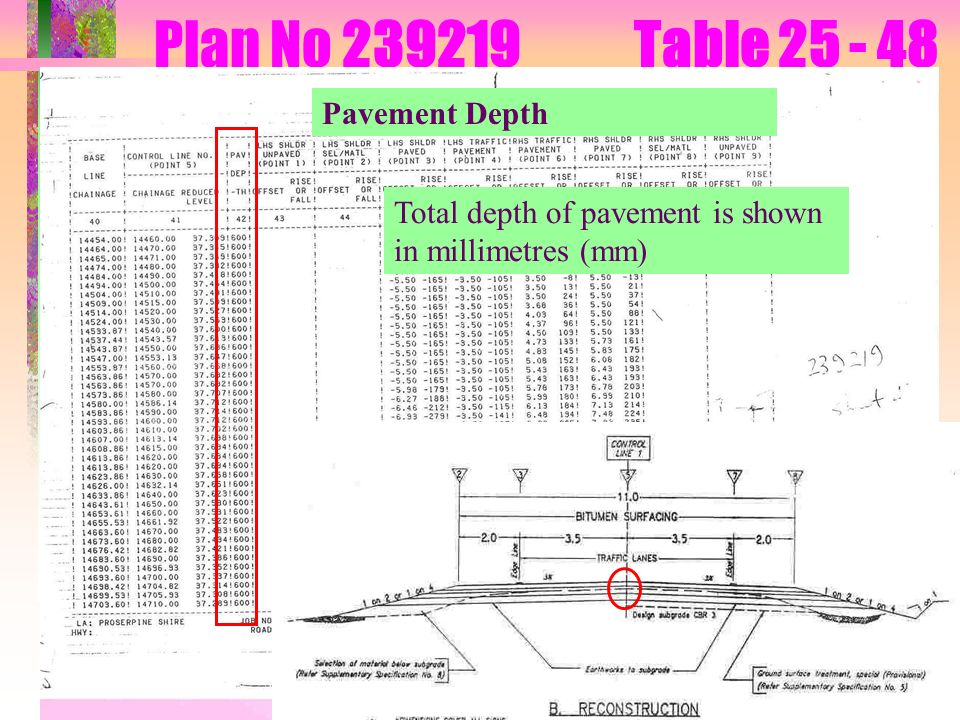

44. Plan No 239219Table 25 - 48 Pavement Depth Total depth of pavement is shown in millimetres (mm)

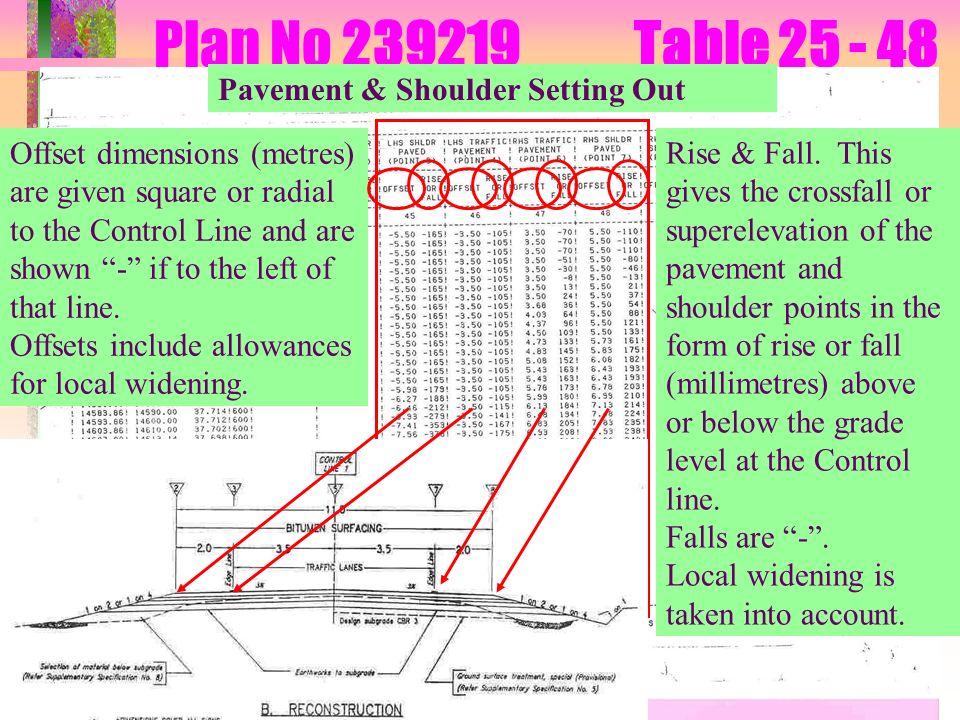

45. Plan No 239219Table 25 - 48 Pavement & Shoulder Setting Out Offset dimensions (metres) are given square or radial to the Control Line and are shown “-” if to the left of that line. Offsets include allowances for local widening. Rise & Fall. This gives the crossfall or superelevation of the pavement and shoulder points in the form of rise or fall (millimetres) above or below the grade level at the Control line. Falls are “-”. Local widening is taken into account.
