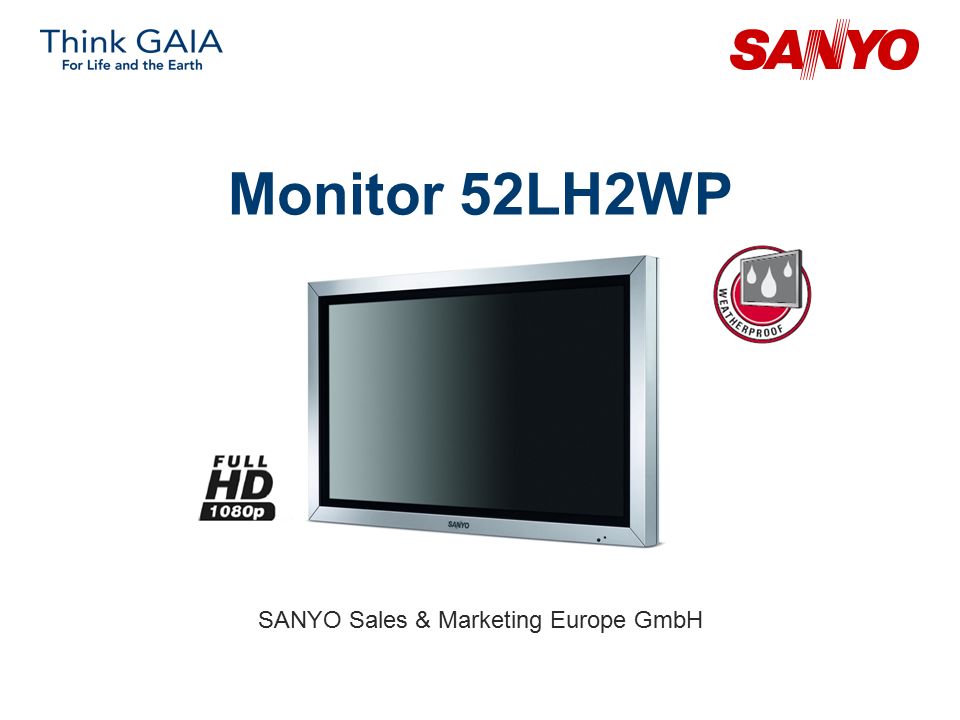

1. Monitor 52LH2WP SANYO Sales & Marketing Europe GmbH

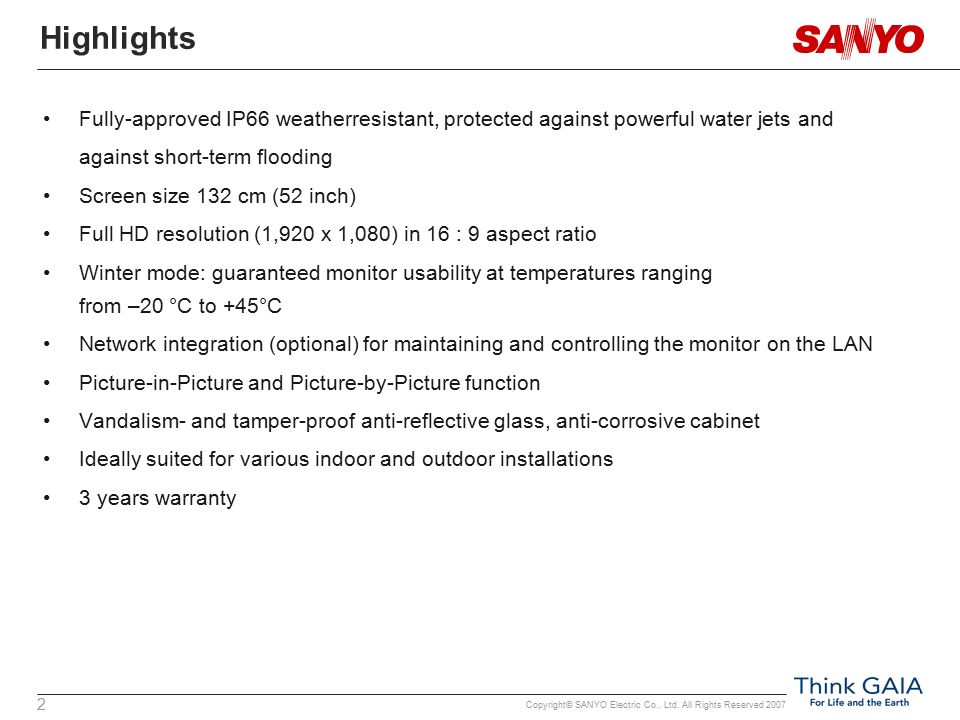

2. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 2 Highlights Fully-approved IP66 weatherresistant, protected against powerful water jets and against short-term flooding Screen size 132 cm (52 inch) Full HD resolution (1,920 x 1,080) in 16 : 9 aspect ratio Winter mode: guaranteed monitor usability at temperatures ranging from –20 °C to +45°C Network integration (optional) for maintaining and controlling the monitor on the LAN Picture-in-Picture and Picture-by-Picture function Vandalism- and tamper-proof anti-reflective glass, anti-corrosive cabinet Ideally suited for various indoor and outdoor installations 3 years warranty

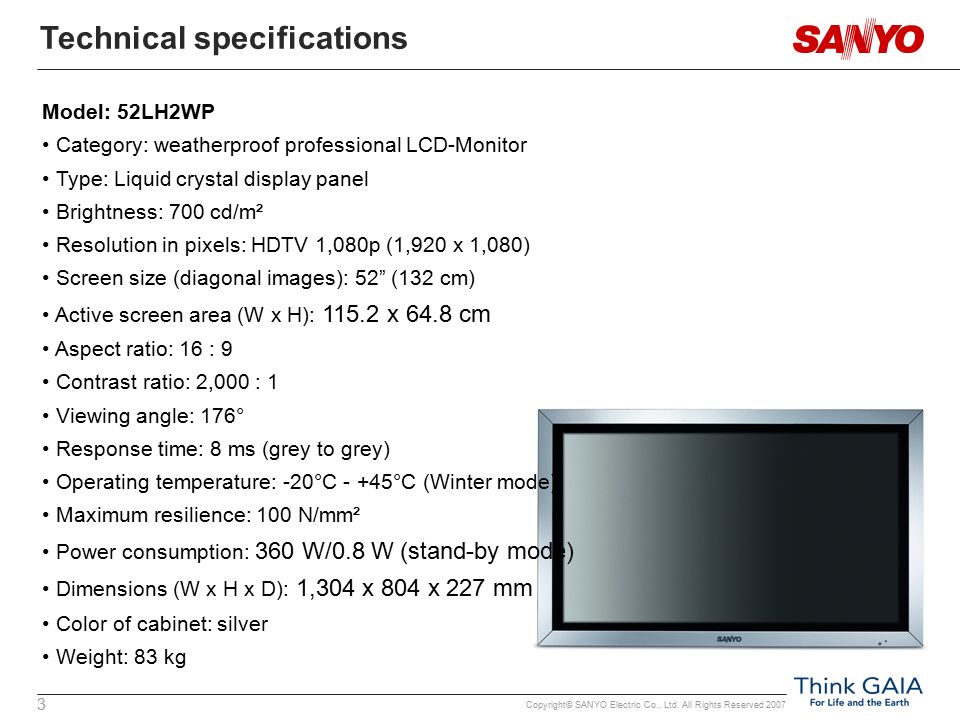

3. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 3 Technical specifications Model: 52LH2WP Category: weatherproof professional LCD-Monitor Type: Liquid crystal display panel Brightness: 700 cd/m² Resolution in pixels: HDTV 1,080p (1,920 x 1,080) Screen size (diagonal images): 52” (132 cm) Active screen area (W x H): 115.2 x 64.8 cm Aspect ratio: 16 : 9 Contrast ratio: 2,000 : 1 Viewing angle: 176° Response time: 8 ms (grey to grey) Operating temperature: -20°C - +45°C (Winter mode) Maximum resilience: 100 N/mm² Power consumption: 360 W/0.8 W (stand-by mode) Dimensions (W x H x D): 1,304 x 804 x 227 mm Color of cabinet: silver Weight: 83 kg

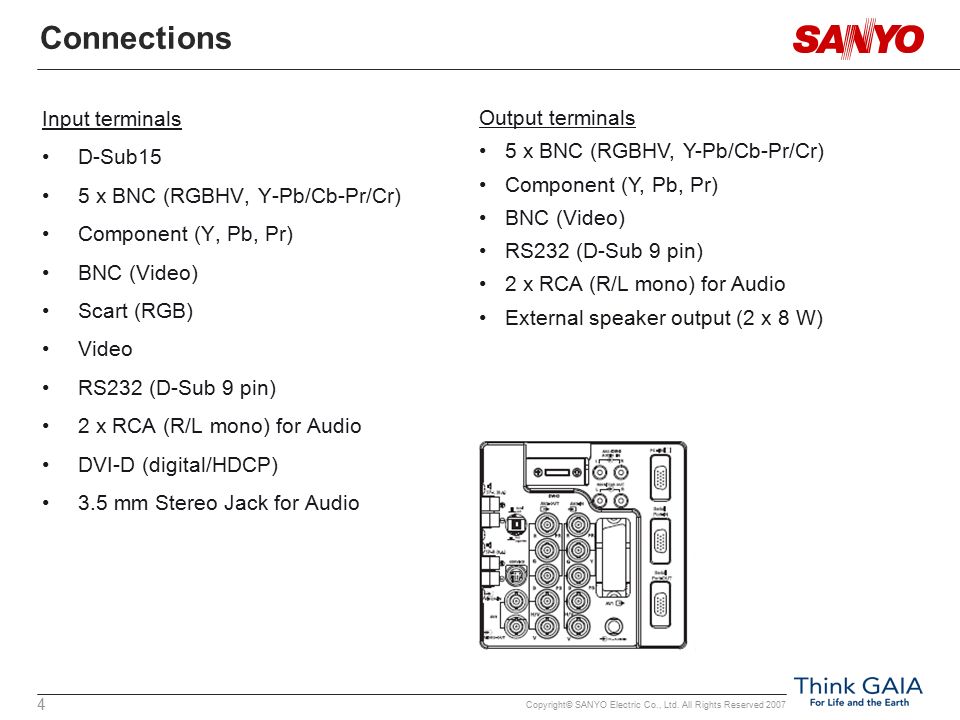

4. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 4 Connections Input terminals D-Sub15 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) Component (Y, Pb, Pr) BNC (Video) Scart (RGB) Video RS232 (D-Sub 9 pin) 2 x RCA (R/L mono) for Audio DVI-D (digital/HDCP) 3.5 mm Stereo Jack for Audio Output terminals 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) Component (Y, Pb, Pr) BNC (Video) RS232 (D-Sub 9 pin) 2 x RCA (R/L mono) for Audio External speaker output (2 x 8 W)

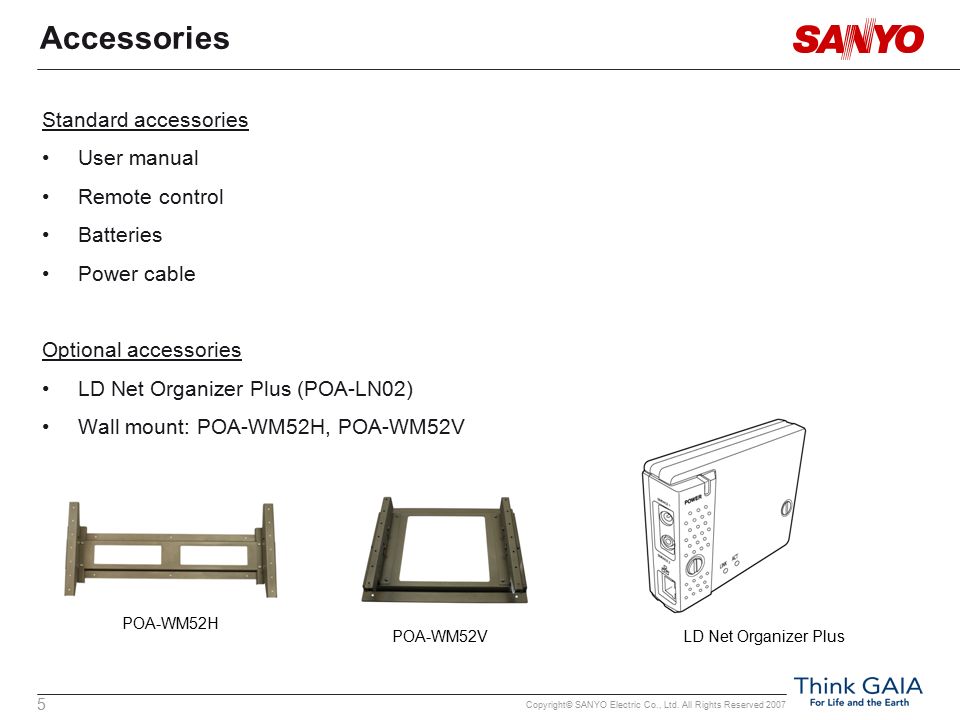

5. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 5 Accessories Standard accessories User manual Remote control Batteries Power cable Optional accessories LD Net Organizer Plus (POA-LN02) Wall mount: POA-WM52H, POA-WM52V LD Net Organizer Plus POA-WM52H POA-WM52V

6. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2010 6 POA-WM52H Supports up to: 90 kg Vesa-mounting standard: 997 x 420 mm Dimensions: 110.0 x 48.0 x 15.0 cm Weight (netto): 13.9 kg Color: silver-grey Warranty: 2 years Product features: Wall mount with tilting function for weatherproof and robust SANYO-Monitors (52") Angle of inclination of 10° enables optimised positioning of the monitor for a convenient viewing experience Anti-corrosive aluminium cabinet: Suitable for all indoor- and outdoor-installations Landscape-function LCD monitors Accessories for professional monitors

7. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2010 7 POA-WM52V Supports up to: 90 kg Vesa-mounting standard: 420 x 516 mm Dimensions: 51.7 x 12.7 x 63.0 cm Weight (netto): 11.5 kg Color: silver-grey Warranty: 2 years Product features: Wall mount with tilting function for weatherproof and robust SANYO-Monitors (52") Angle of inclination of 10° enables optimised positioning of the monitor for a convenient viewing experience Anti-corrosive aluminium cabinet: Suitable for all indoor- and outdoor-installations Portrait-function LCD monitors Accessories for professional monitors

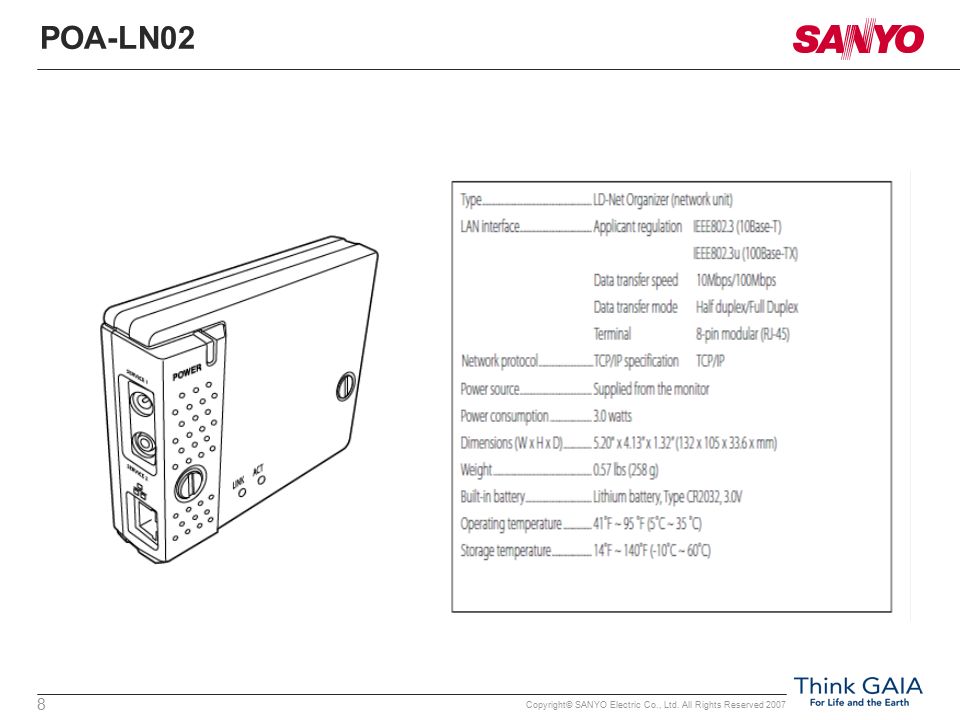

8. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 8 POA-LN02

9. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 9 POA-LN02 - Operating Environment

10. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 10 POA-LN02 - Features

11. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 11 POA-LN02 - Features

12. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 12 Video wall function Allows one image to be expanded and displayed over multiple screens (up to 25) through a distribution amplifier. Video Wall: up to 5 x 5 (horizontal and vertical) 6.5 m 4 m

13. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2010 13 Product features: LCD monitors Also available with daylight readable technology Comprehensive protection from water, contact and foreign particles as per industry standard IP66 Winter mode for use up to –20 °C Brightness up to 1,500 cd/m 2 HD-ready with full HD resolution (1,920 x 1,080) or with W-XGA resolution (1,366 x 768) Front screen protected against vandalism Corrosion-resistant aluminium case Range of interfaces and user-friendly operation Picture-in-picture and picture-by-picture function for all 52" monitors

14. Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2007 14 Weatherproof monitors Overview: Degree of protection
