1. EDI or DIE Stuart Richler President G.T.R. Data Inc.

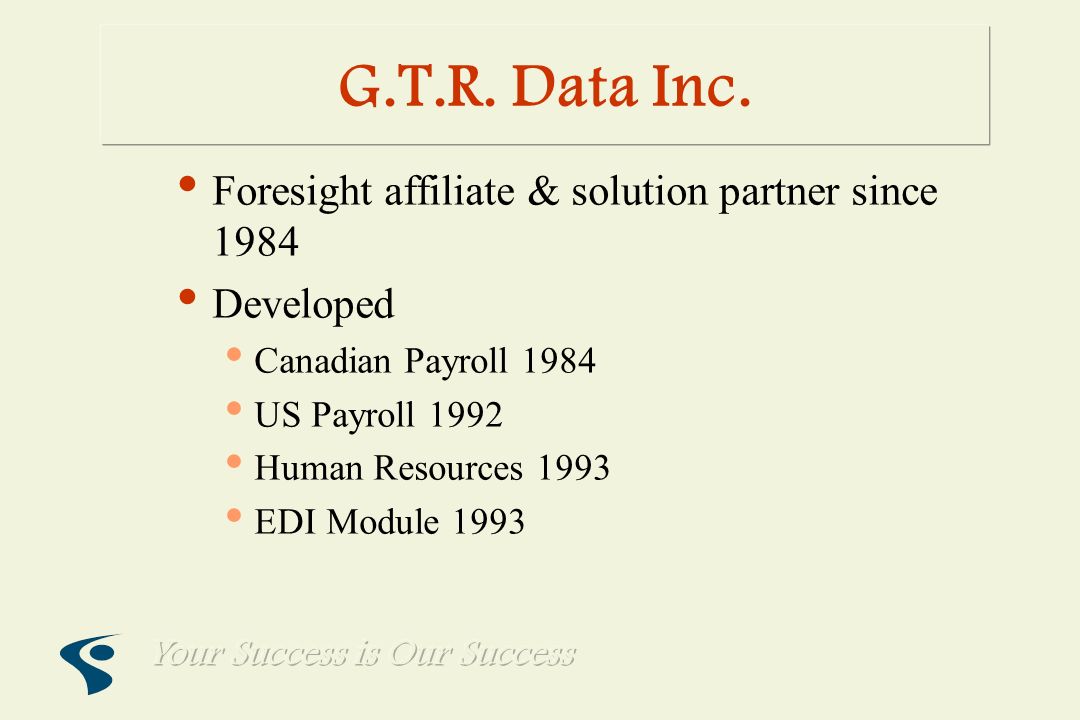

2. Foresight affiliate & solution partner since 1984 Developed Canadian Payroll 1984 US Payroll 1992 Human Resources 1993 EDI Module 1993

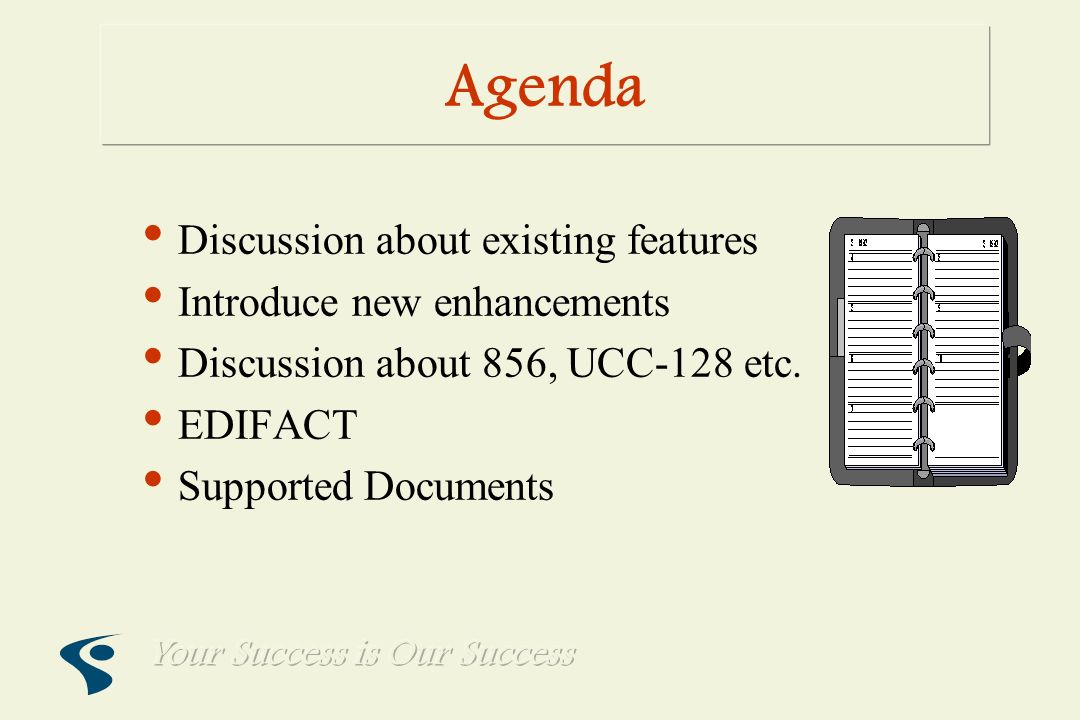

3. Agenda Discussion about existing features Introduce new enhancements Discussion about 856, UCC-128 etc. EDIFACT Supported Documents

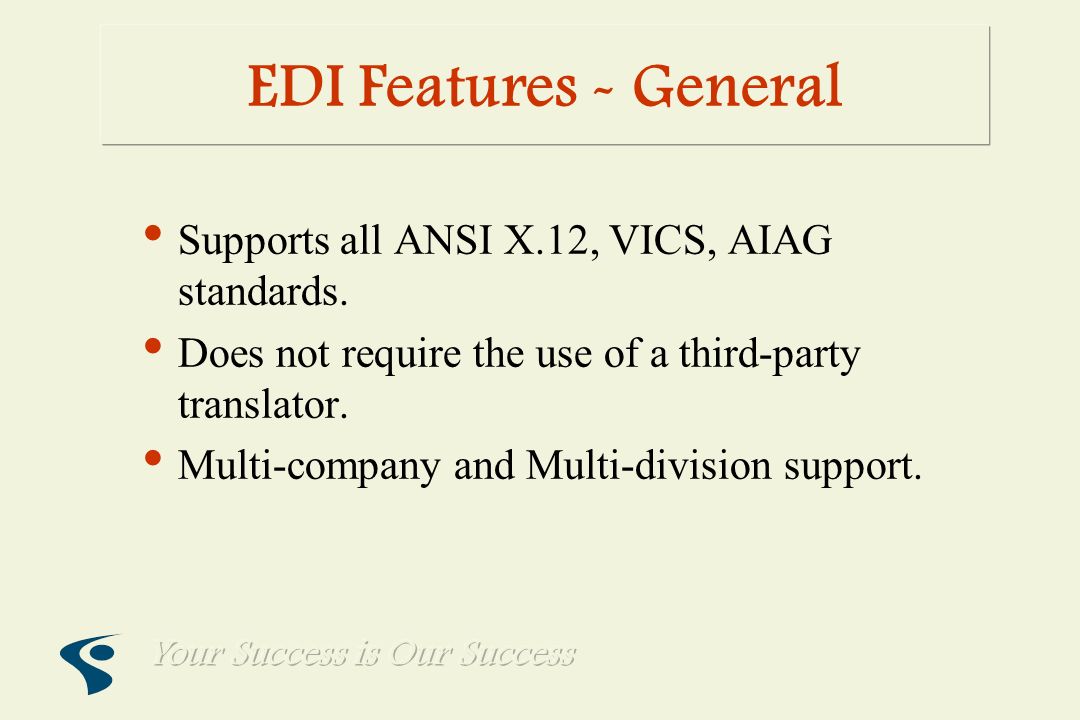

4. EDI Features - General Supports all ANSI X.12, VICS, AIAG standards. Does not require the use of a third-party translator. Multi-company and Multi-division support.

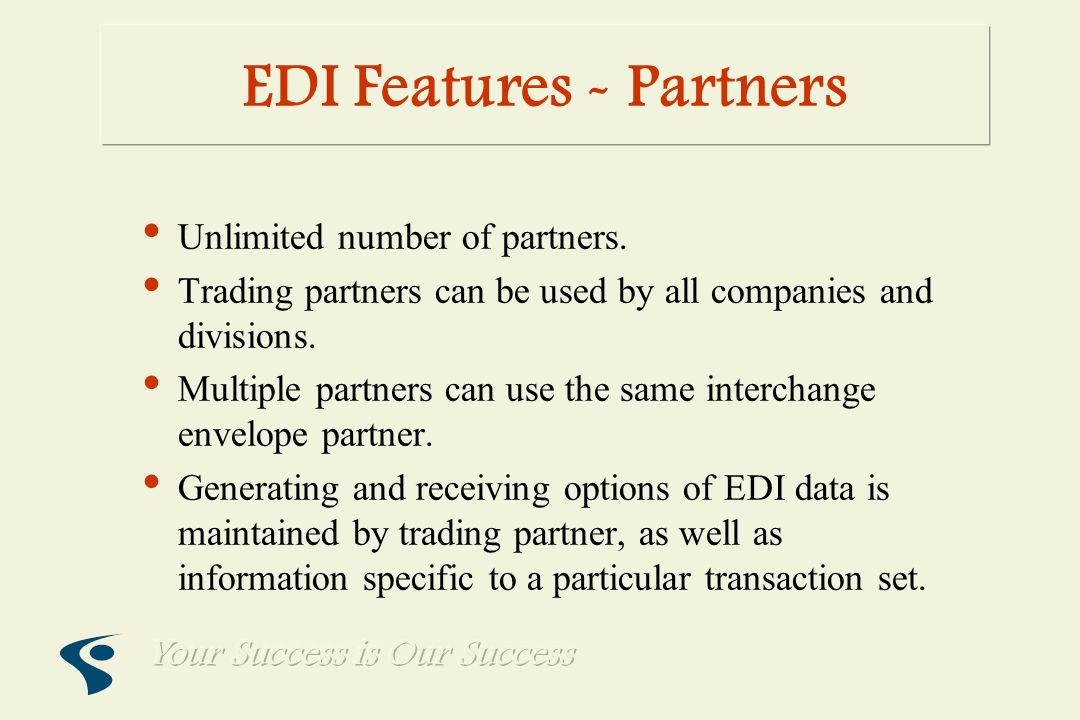

5. EDI Features - Partners Unlimited number of partners. Trading partners can be used by all companies and divisions. Multiple partners can use the same interchange envelope partner. Generating and receiving options of EDI data is maintained by trading partner, as well as information specific to a particular transaction set.

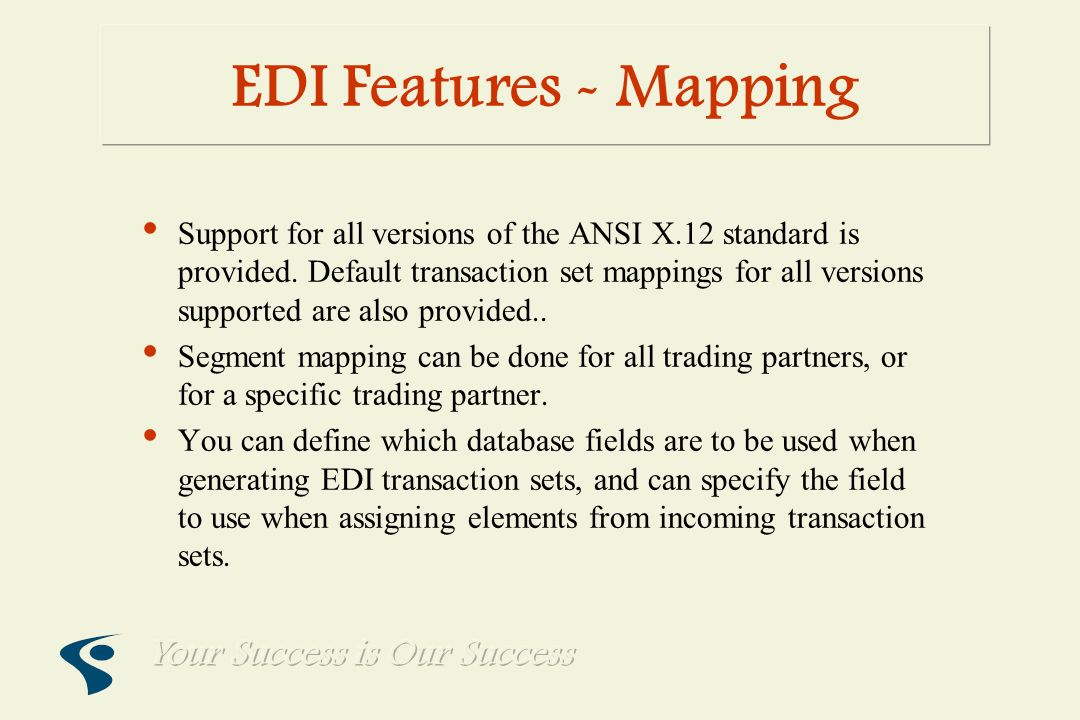

6. EDI Features - Mapping Support for all versions of the ANSI X.12 standard is provided. Default transaction set mappings for all versions supported are also provided.. Segment mapping can be done for all trading partners, or for a specific trading partner. You can define which database fields are to be used when generating EDI transaction sets, and can specify the field to use when assigning elements from incoming transaction sets.

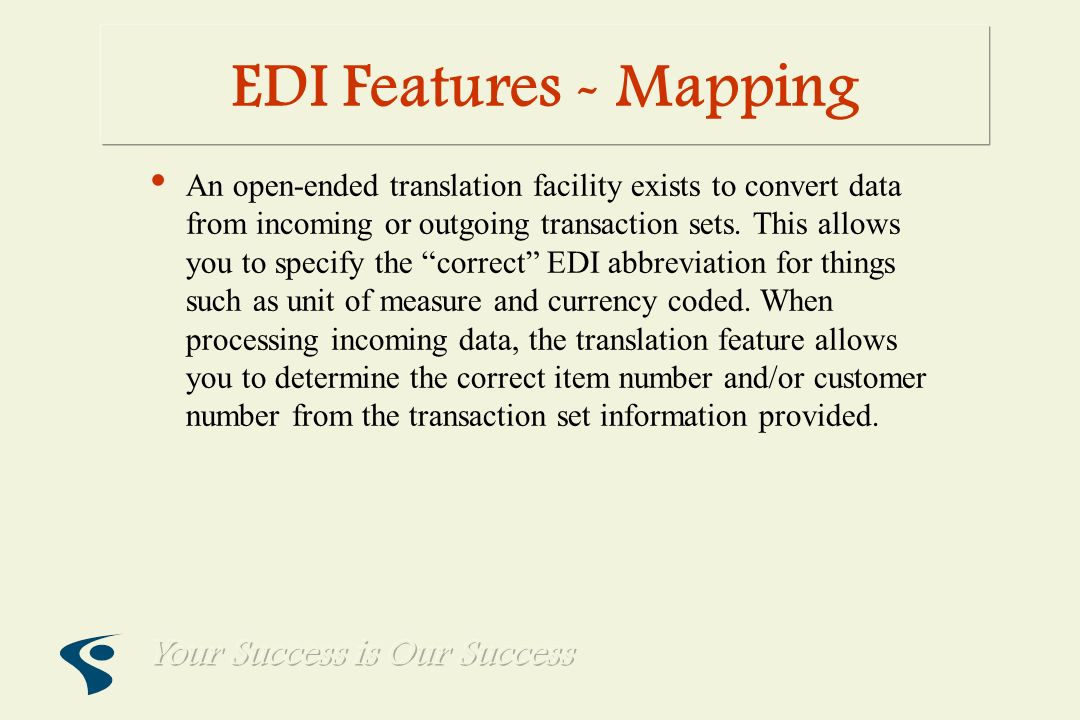

7. EDI Features - Mapping An open-ended translation facility exists to convert data from incoming or outgoing transaction sets. This allows you to specify the “correct” EDI abbreviation for things such as unit of measure and currency coded. When processing incoming data, the translation feature allows you to determine the correct item number and/or customer number from the transaction set information provided.

8. EDI Features - Mapping Formulas are used to specify the values to be placed in generated transaction sets. The formula can be up to 240 characters, can refer to database files, fields, constants, other formulas, and PROGRESS functions such as IF THEN ELSE, MINIMUM and MAXIMUM. Utilities are provided to copy system transaction set mappings to trading partners, and to copy a trading partners transaction set mappings to other trading partners..

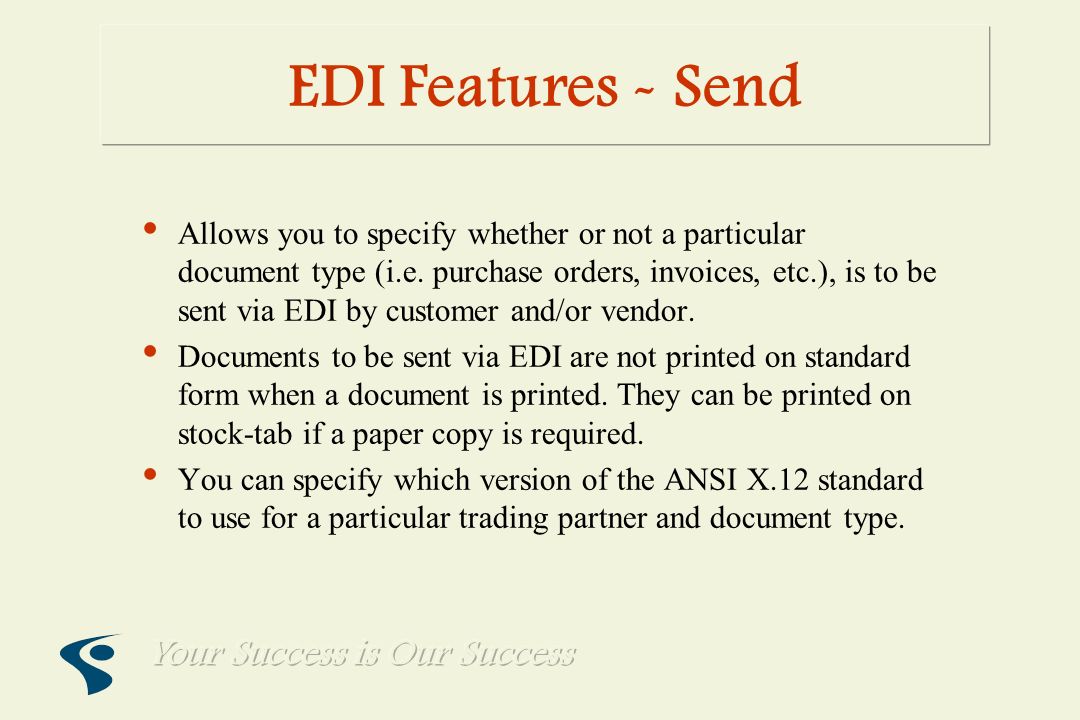

9. EDI Features - Send Allows you to specify whether or not a particular document type (i.e. purchase orders, invoices, etc.), is to be sent via EDI by customer and/or vendor. Documents to be sent via EDI are not printed on standard form when a document is printed. They can be printed on stock-tab if a paper copy is required. You can specify which version of the ANSI X.12 standard to use for a particular trading partner and document type.

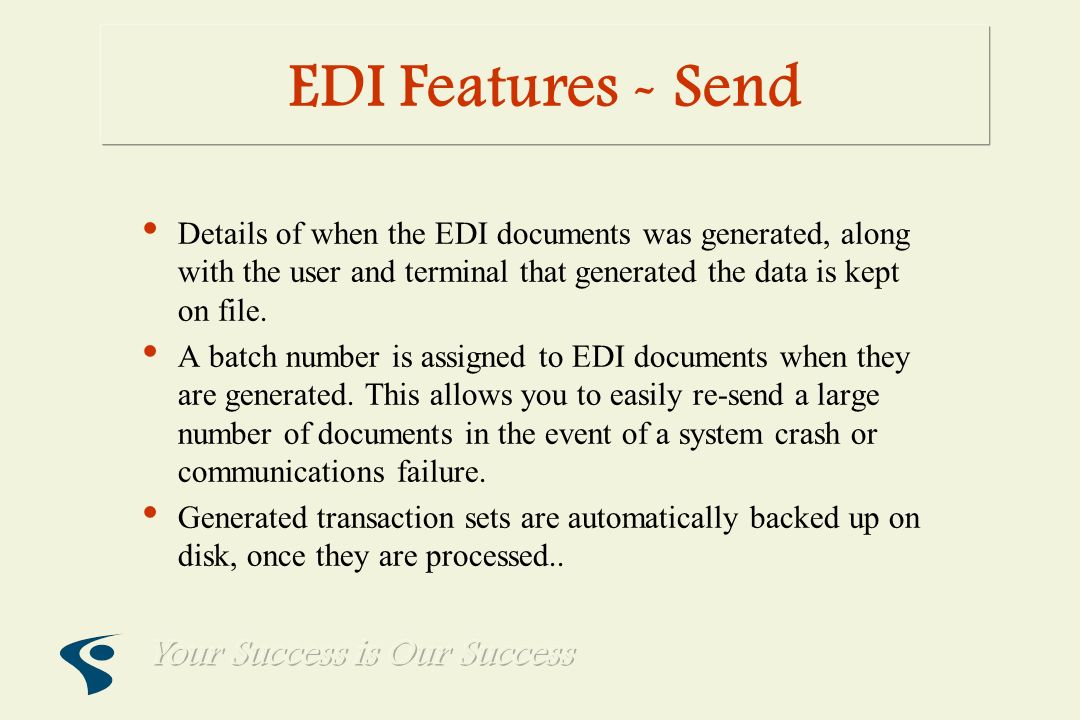

10. EDI Features - Send Details of when the EDI documents was generated, along with the user and terminal that generated the data is kept on file. A batch number is assigned to EDI documents when they are generated. This allows you to easily re-send a large number of documents in the event of a system crash or communications failure. Generated transaction sets are automatically backed up on disk, once they are processed..

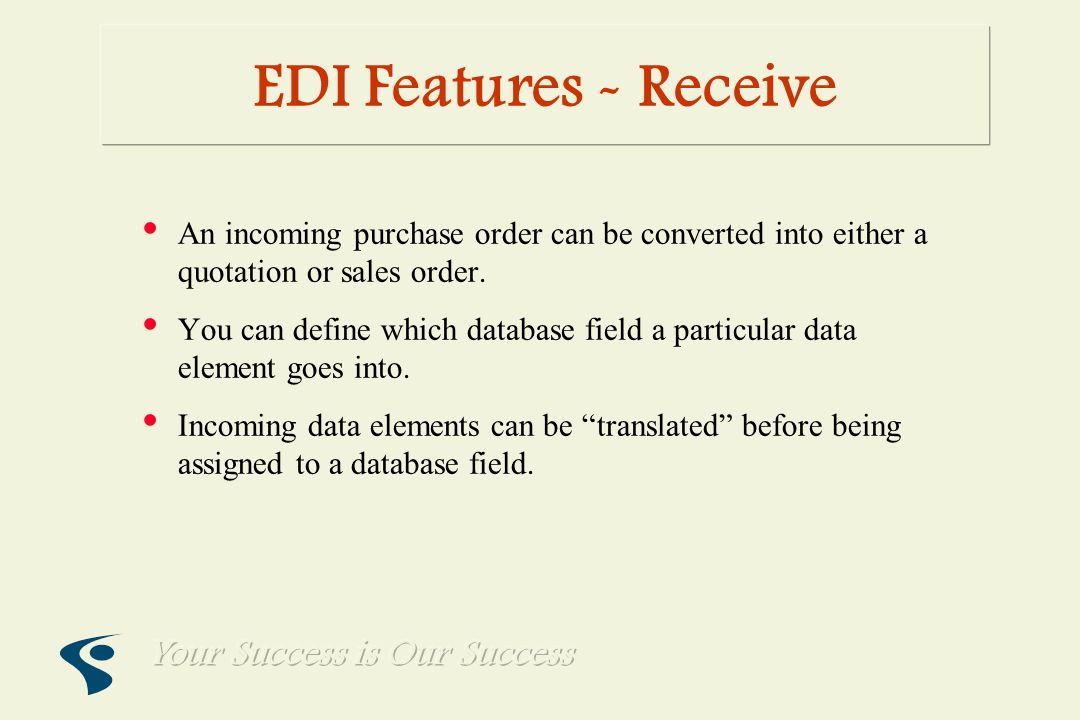

11. EDI Features - Receive An incoming purchase order can be converted into either a quotation or sales order. You can define which database field a particular data element goes into. Incoming data elements can be “translated” before being assigned to a database field.

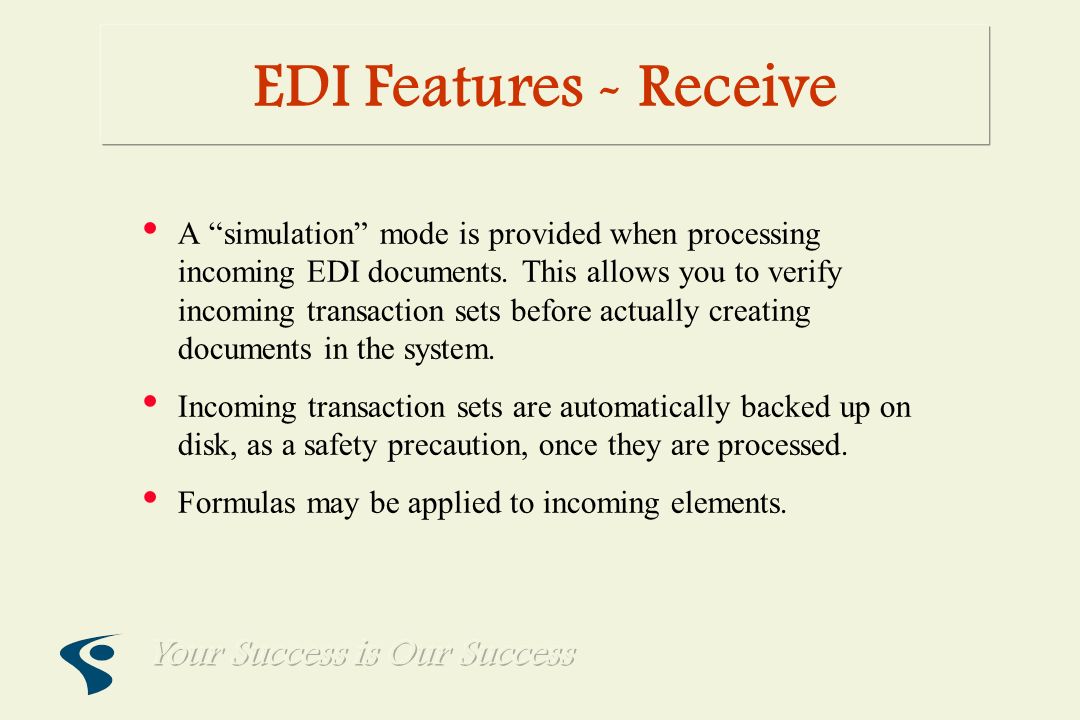

12. EDI Features - Receive A “simulation” mode is provided when processing incoming EDI documents. This allows you to verify incoming transaction sets before actually creating documents in the system. Incoming transaction sets are automatically backed up on disk, as a safety precaution, once they are processed. Formulas may be applied to incoming elements.

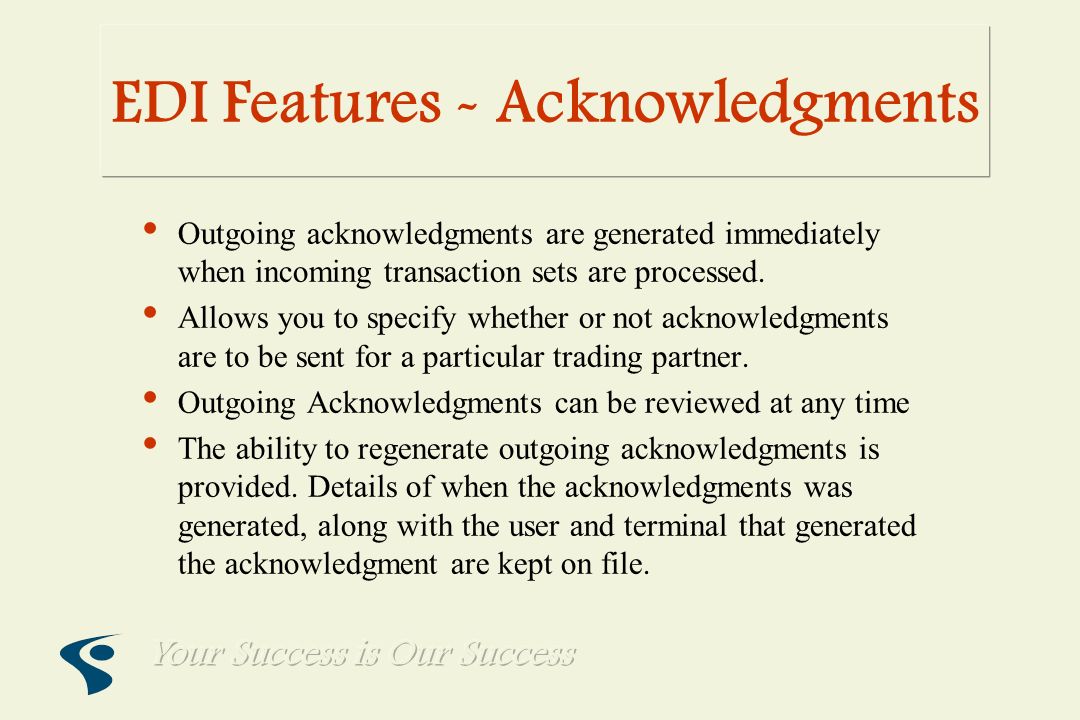

13. EDI Features - Acknowledgments Outgoing acknowledgments are generated immediately when incoming transaction sets are processed. Allows you to specify whether or not acknowledgments are to be sent for a particular trading partner. Outgoing Acknowledgments can be reviewed at any time The ability to regenerate outgoing acknowledgments is provided. Details of when the acknowledgments was generated, along with the user and terminal that generated the acknowledgment are kept on file.

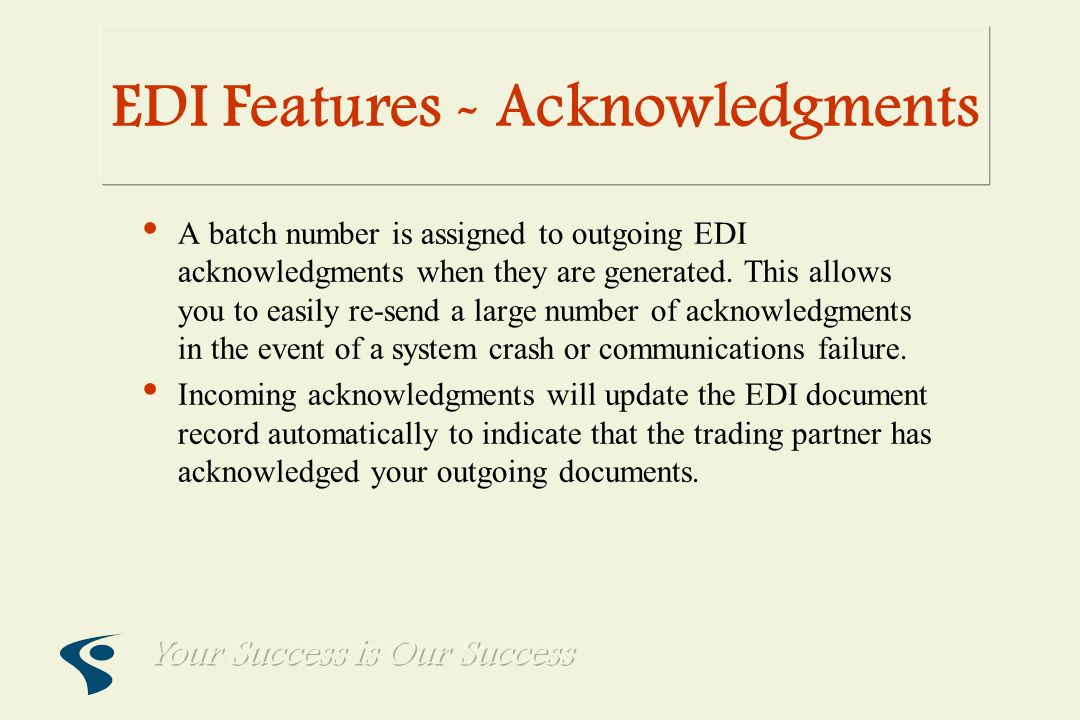

14. EDI Features - Acknowledgments A batch number is assigned to outgoing EDI acknowledgments when they are generated. This allows you to easily re-send a large number of acknowledgments in the event of a system crash or communications failure. Incoming acknowledgments will update the EDI document record automatically to indicate that the trading partner has acknowledged your outgoing documents.

15. New Enhancements The ability to define separate input/output directories by partner. Definition of a communication script to be executed after the generation process. Create “reversing” translation tables automatically.

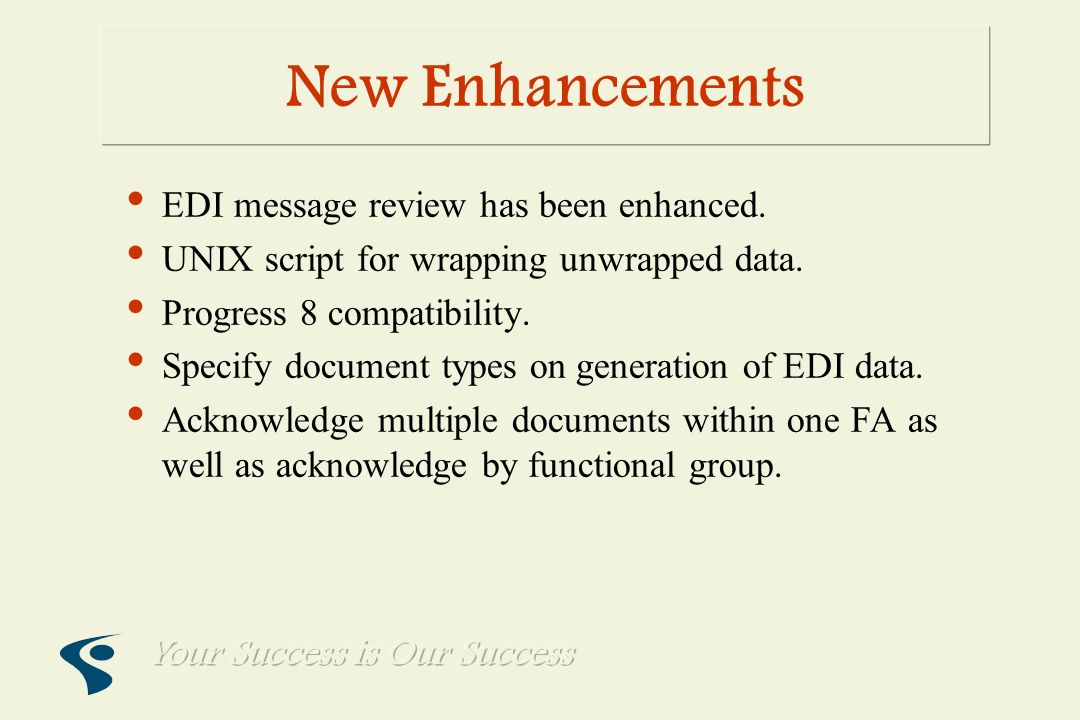

16. New Enhancements EDI message review has been enhanced. UNIX script for wrapping unwrapped data. Progress 8 compatibility. Specify document types on generation of EDI data. Acknowledge multiple documents within one FA as well as acknowledge by functional group.

17. ASN’s The Document from Hell There are many different shipping documents required by partners: Pick/Pack-different items/carton by pallet (tare)/carton (pack) /item Standard Pack-same item/carton by item/pallet (tare)/carton (pack)

18. FA Example ST AK1 AK2 AK5 AK9 SE ST......... ST AK1 AK2 AK5 AK2 AK5 AK9 SE ST AK1 AK9 SE Separate sets Multiple docs Single Group per document per Set

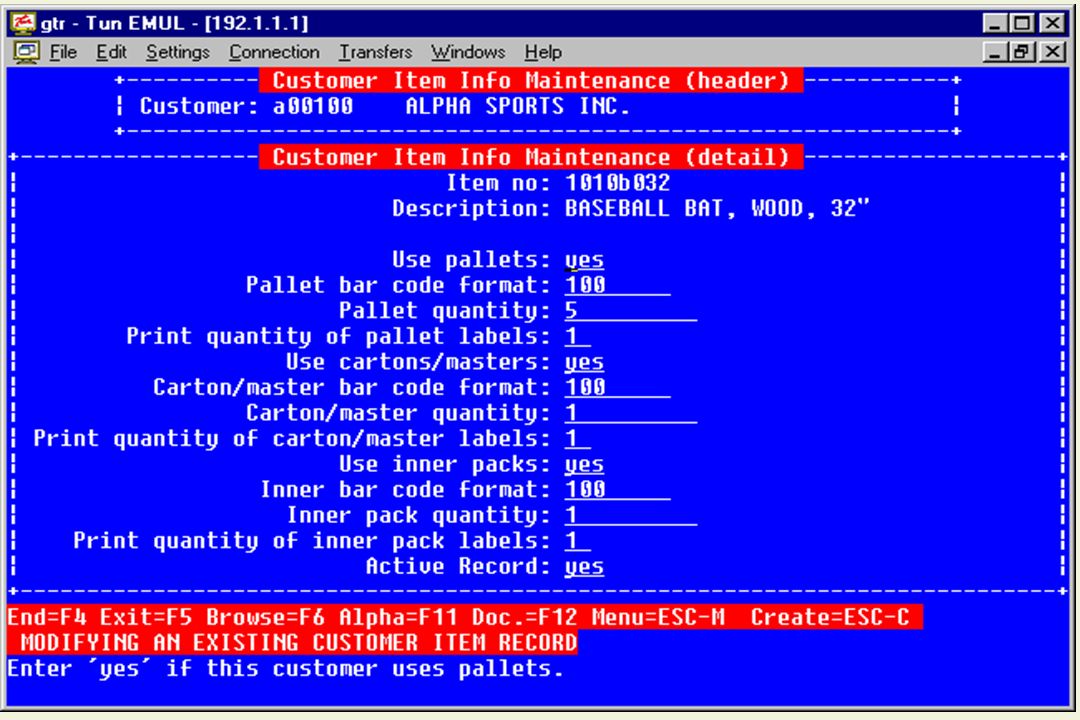

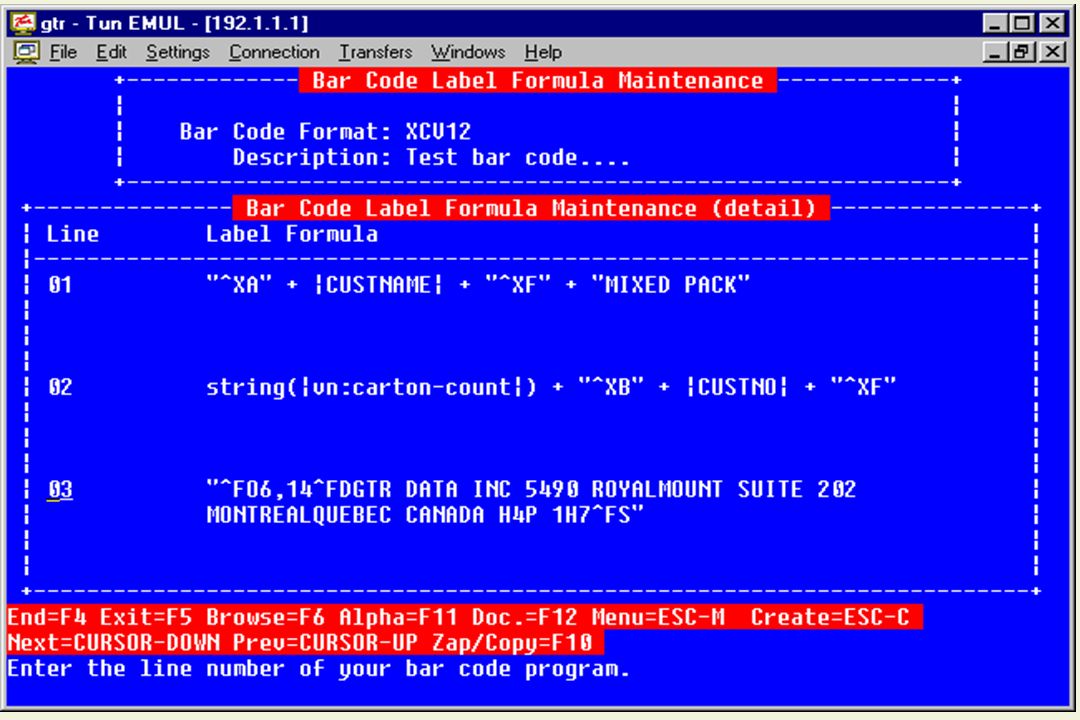

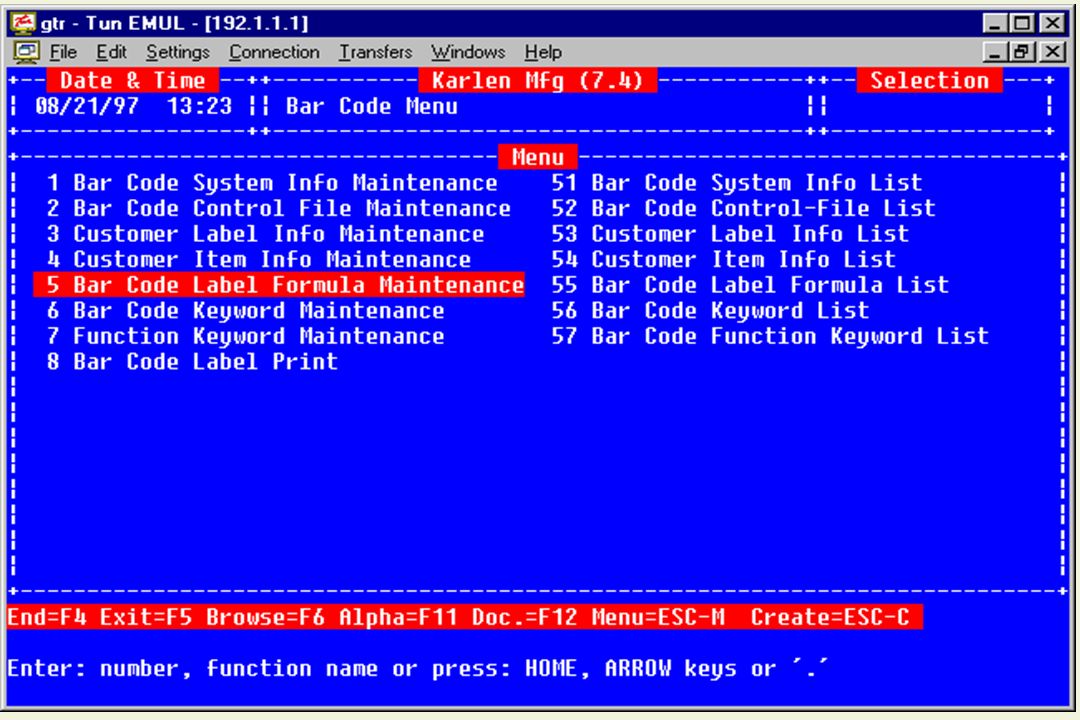

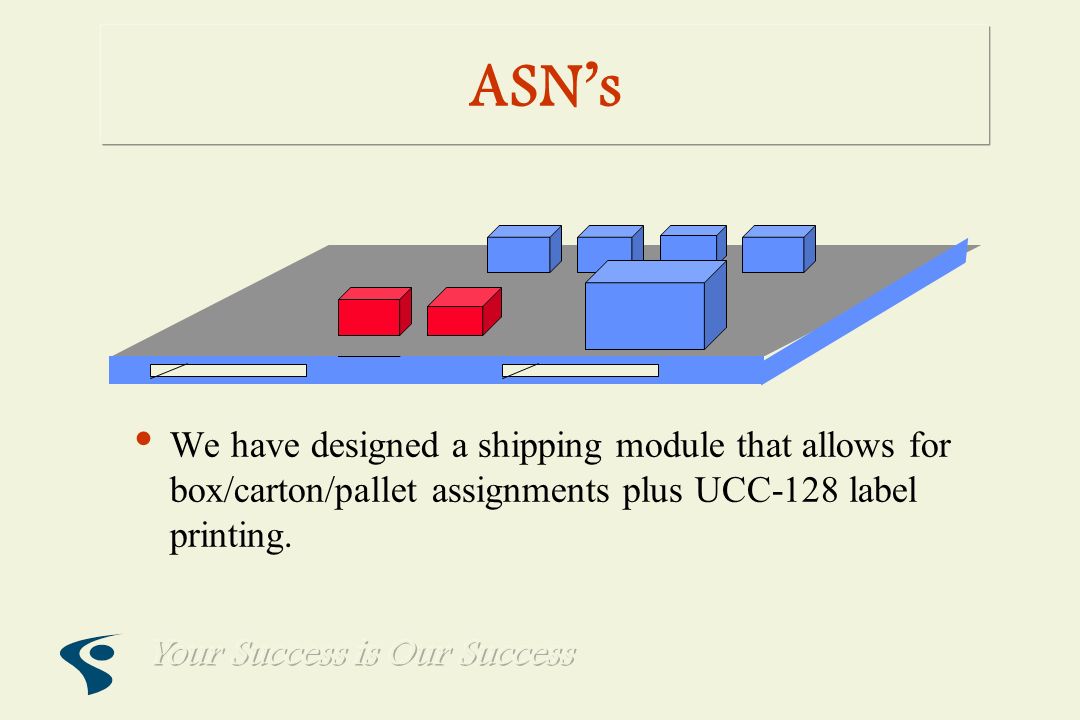

19. ASN’s We have designed a shipping module that allows for box/carton/pallet assignments plus UCC-128 label printing.

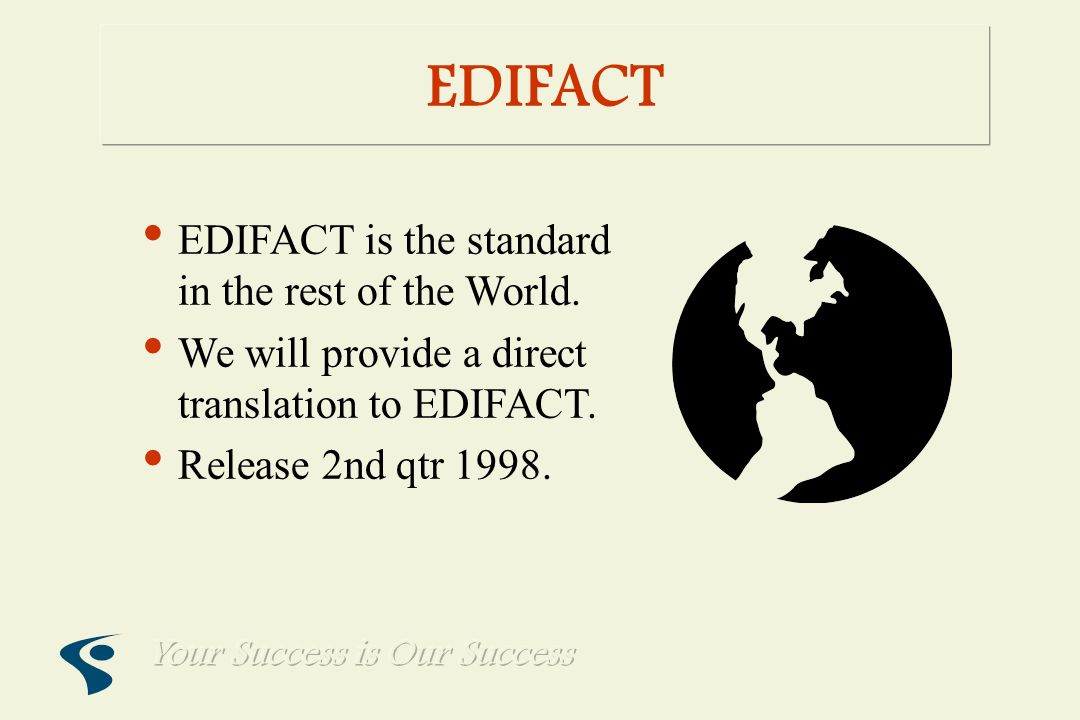

23. EDIFACT EDIFACT is the standard in the rest of the World. We will provide a direct translation to EDIFACT. Release 2nd qtr 1998.

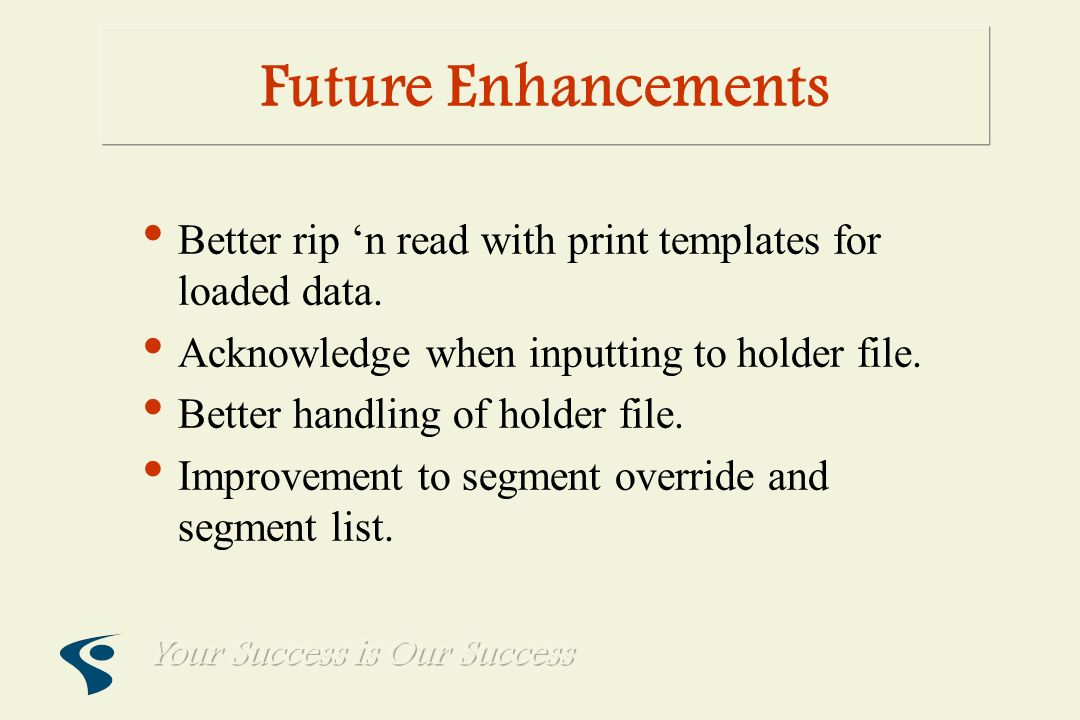

24. Future Enhancements Better rip ‘n read with print templates for loaded data. Acknowledge when inputting to holder file. Better handling of holder file. Improvement to segment override and segment list.

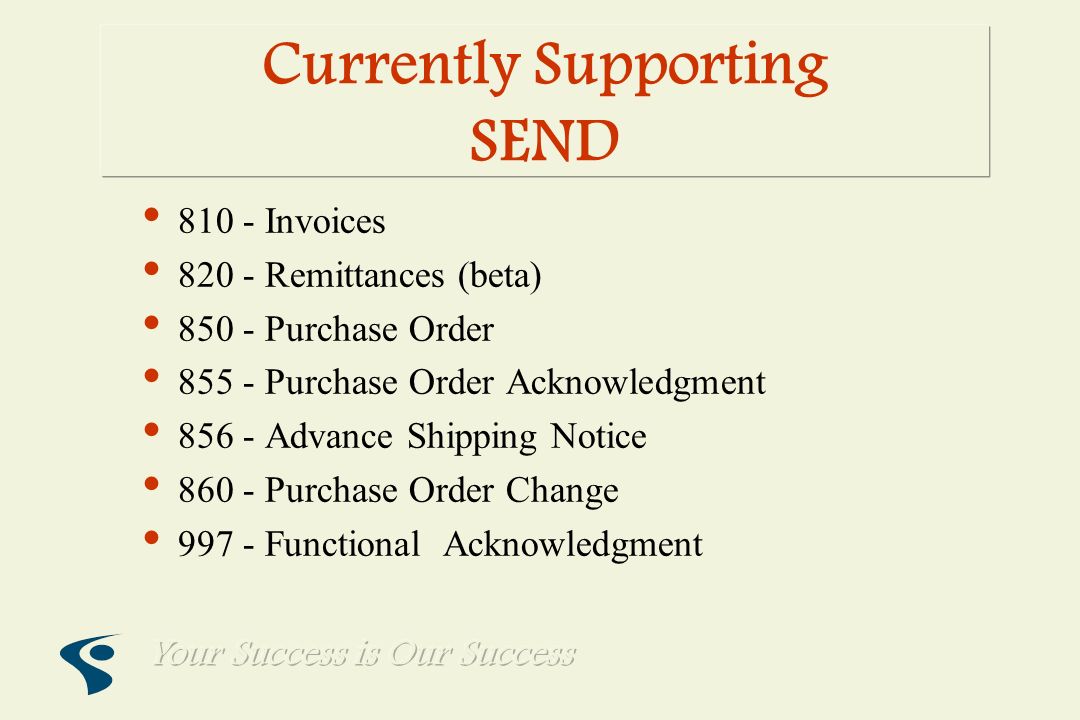

25. Currently Supporting SEND 810 - Invoices 820 - Remittances (beta) 850 - Purchase Order 855 - Purchase Order Acknowledgment 856 - Advance Shipping Notice 860 - Purchase Order Change 997 - Functional Acknowledgment

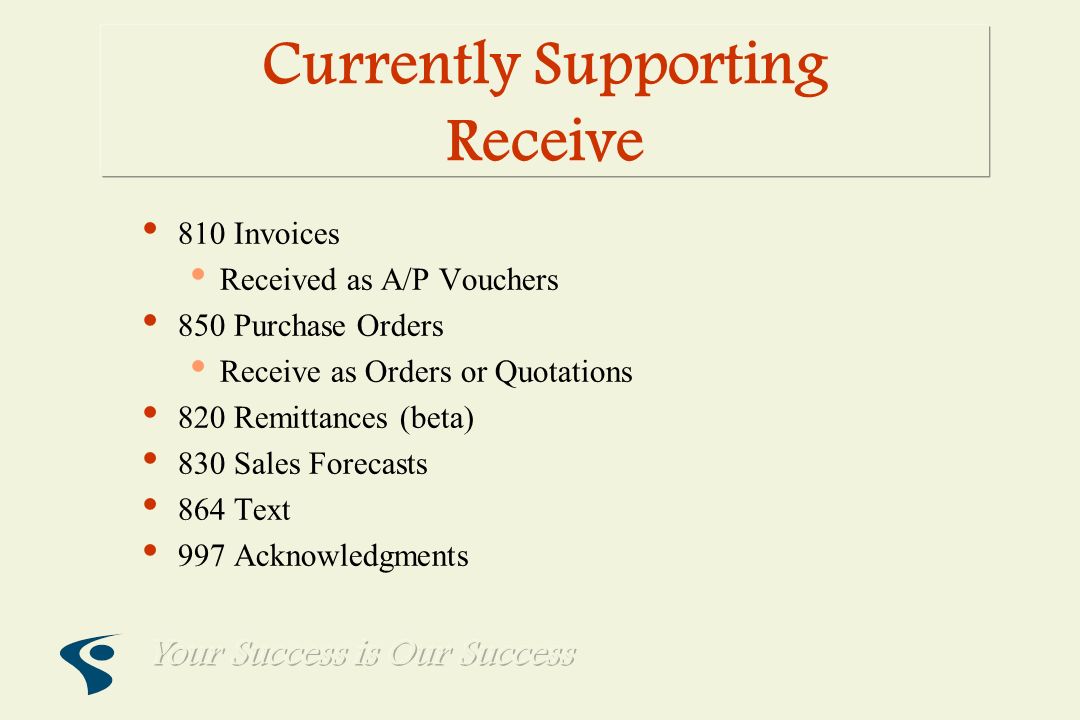

26. Currently Supporting Receive 810 Invoices Received as A/P Vouchers 850 Purchase Orders Receive as Orders or Quotations 820 Remittances (beta) 830 Sales Forecasts 864 Text 997 Acknowledgments

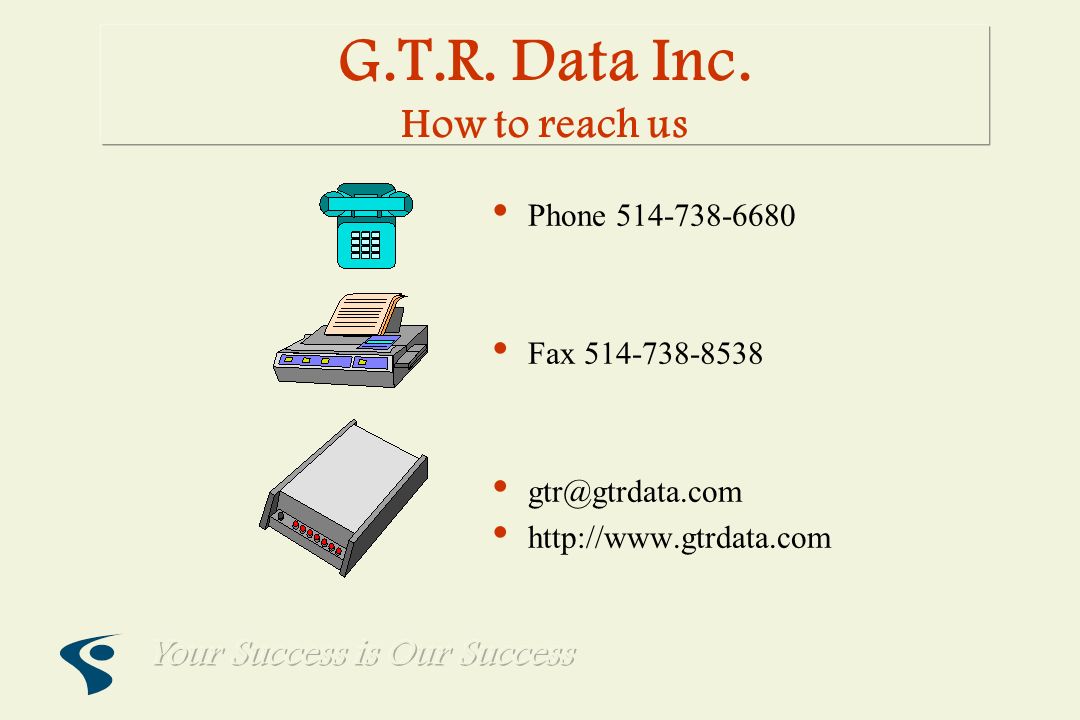

27. G.T.R. Data Inc. How to reach us Phone 514-738-6680 Fax 514-738-8538 gtr@gtrdata.com http://www.gtrdata.com

28. Thank You for Attending. Your feedback is important to us! Please complete and hand in your evaluation form at the end of this session.
