1. Birds – Part III VERTEBRATE ZOOLOGY (VZ Lecture25 – Spring 2012 Althoff - reference PJH Chapters 16-17) Bill Horn

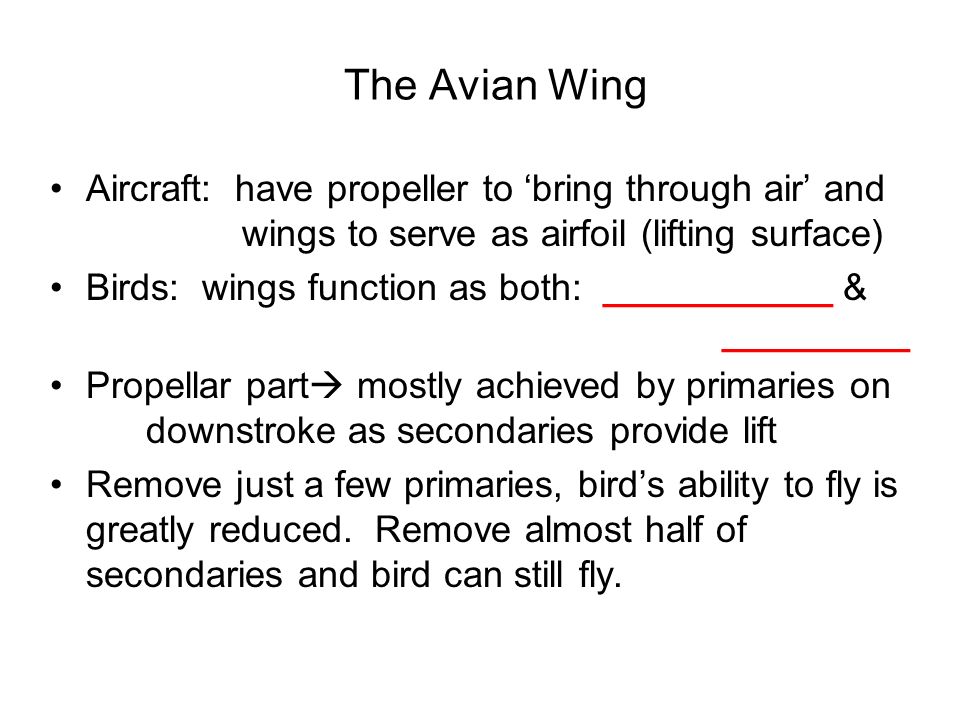

2. The Avian Wing Aircraft: have propeller to ‘bring through air’ and wings to serve as airfoil (lifting surface) Birds: wings function as both: ___________ & _________ Propellar part  mostly achieved by primaries on downstroke as secondaries provide lift Remove just a few primaries, bird’s ability to fly is greatly reduced. Remove almost half of secondaries and bird can still fly.

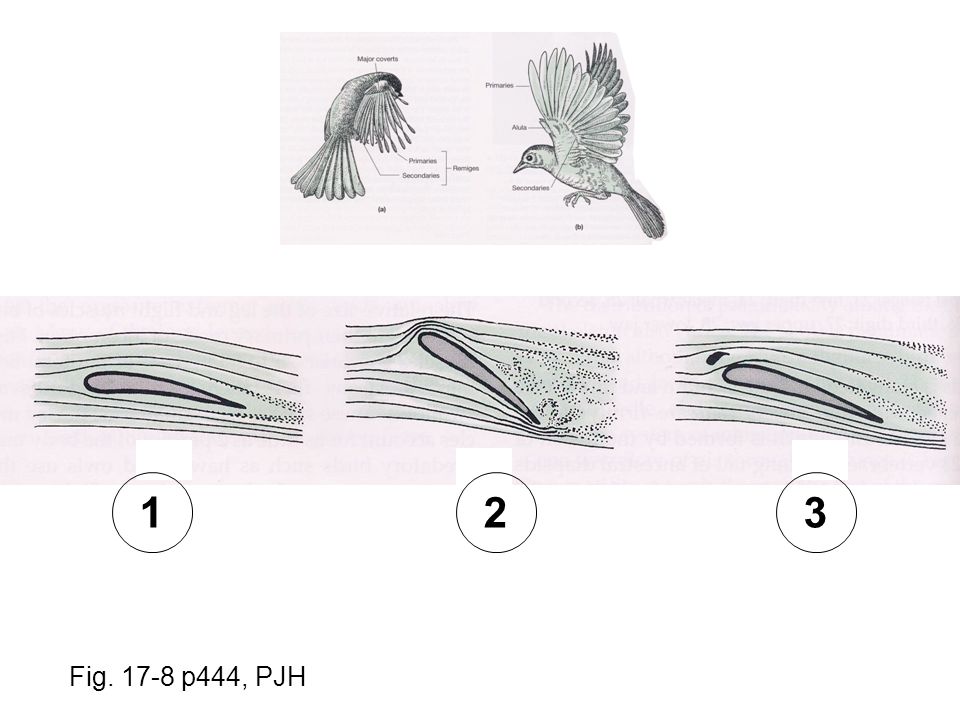

3. Fig. 17-8 p444, PJH 123

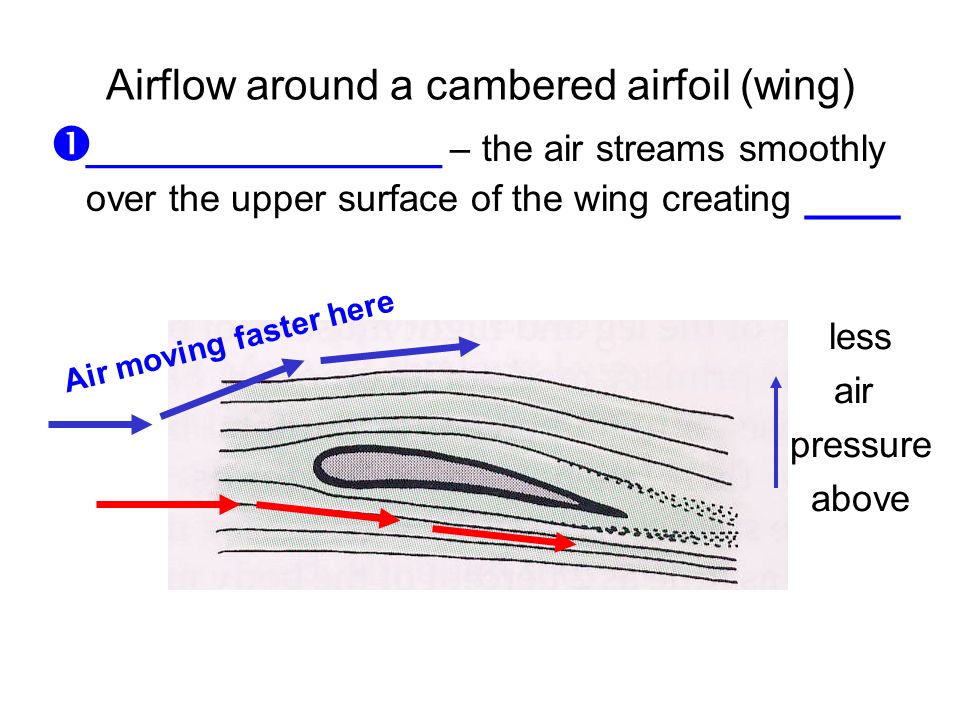

4. Airflow around a cambered airfoil (wing)  _________________ – the air streams smoothly over the upper surface of the wing creating ____ less air pressure above Air moving faster here

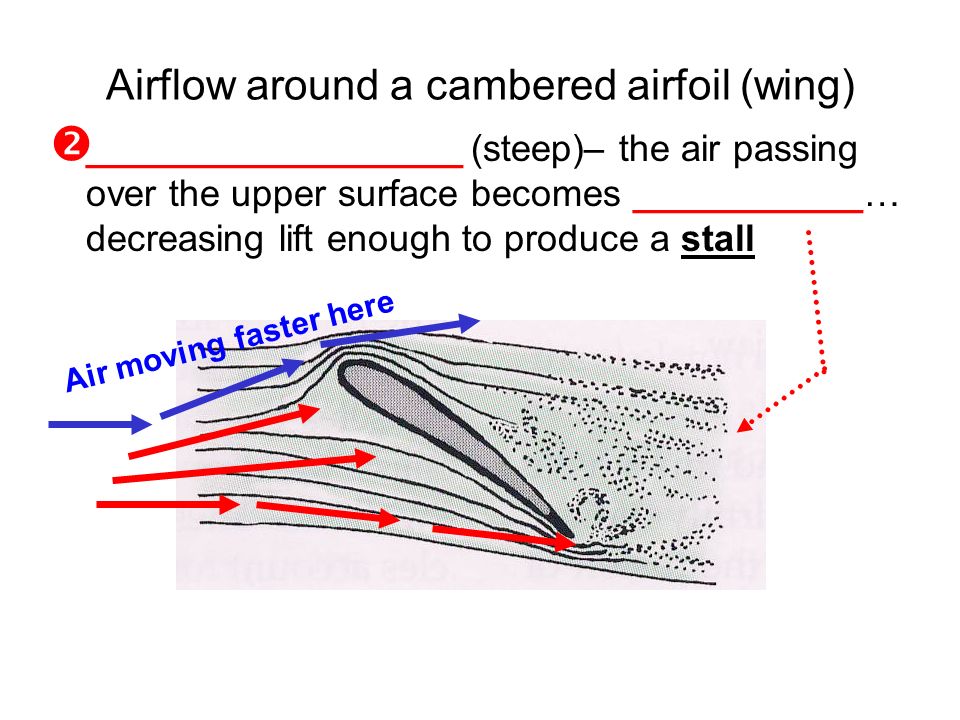

5. Airflow around a cambered airfoil (wing)  __________________ (steep)– the air passing over the upper surface becomes ___________… decreasing lift enough to produce a stall Air moving faster here

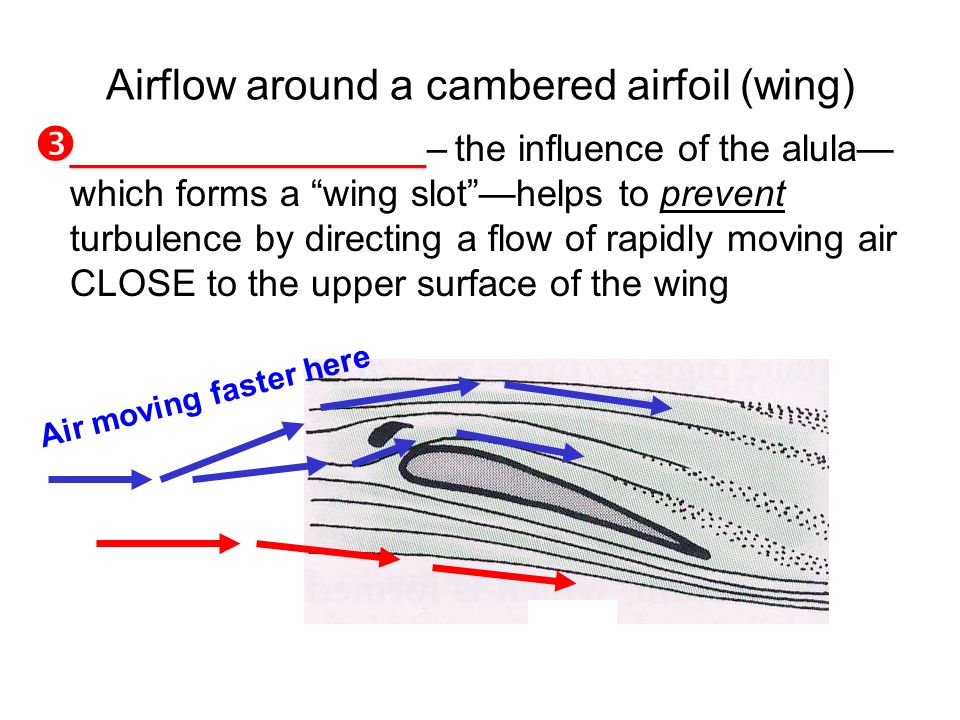

6. Airflow around a cambered airfoil (wing)  _________________– the influence of the alula— which forms a “wing slot”—helps to prevent turbulence by directing a flow of rapidly moving air CLOSE to the upper surface of the wing Air moving faster here

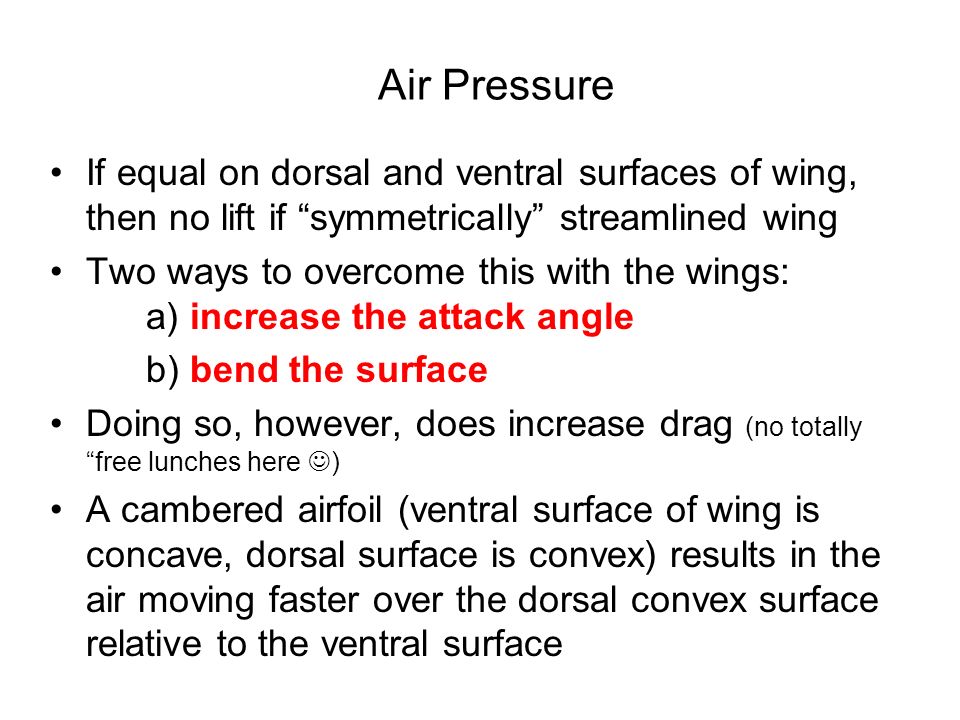

7. Air Pressure If equal on dorsal and ventral surfaces of wing, then no lift if “symmetrically” streamlined wing Two ways to overcome this with the wings: a) increase the attack angle b) bend the surface Doing so, however, does increase drag (no totally “free lunches here ) A cambered airfoil (ventral surface of wing is concave, dorsal surface is convex) results in the air moving faster over the dorsal convex surface relative to the ventral surface

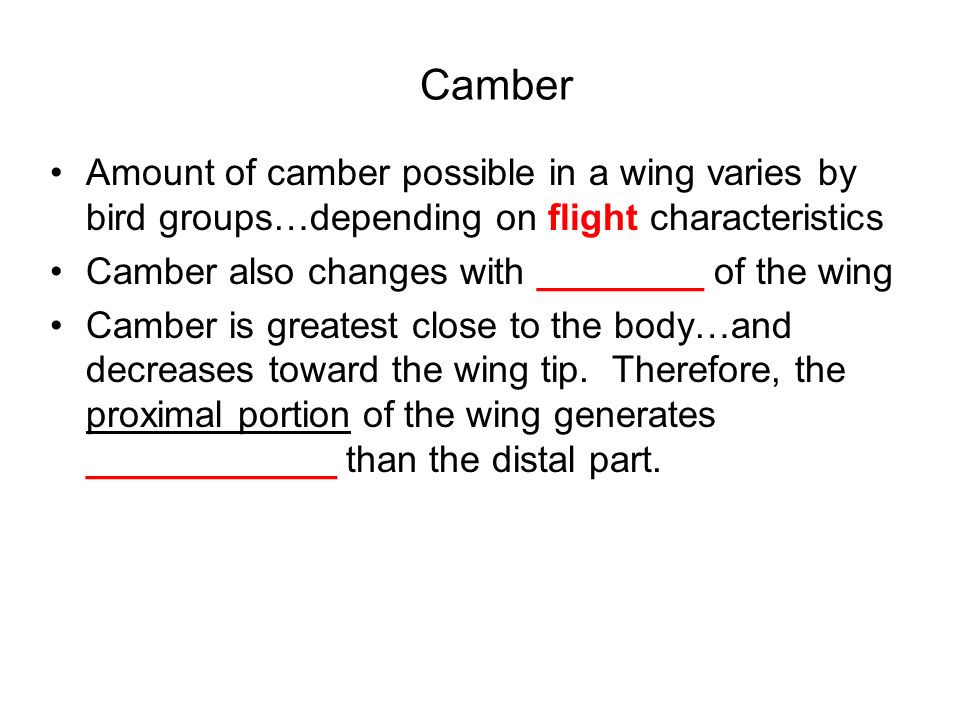

8. Camber Amount of camber possible in a wing varies by bird groups…depending on flight characteristics Camber also changes with ________ of the wing Camber is greatest close to the body…and decreases toward the wing tip. Therefore, the proximal portion of the wing generates ____________ than the distal part.

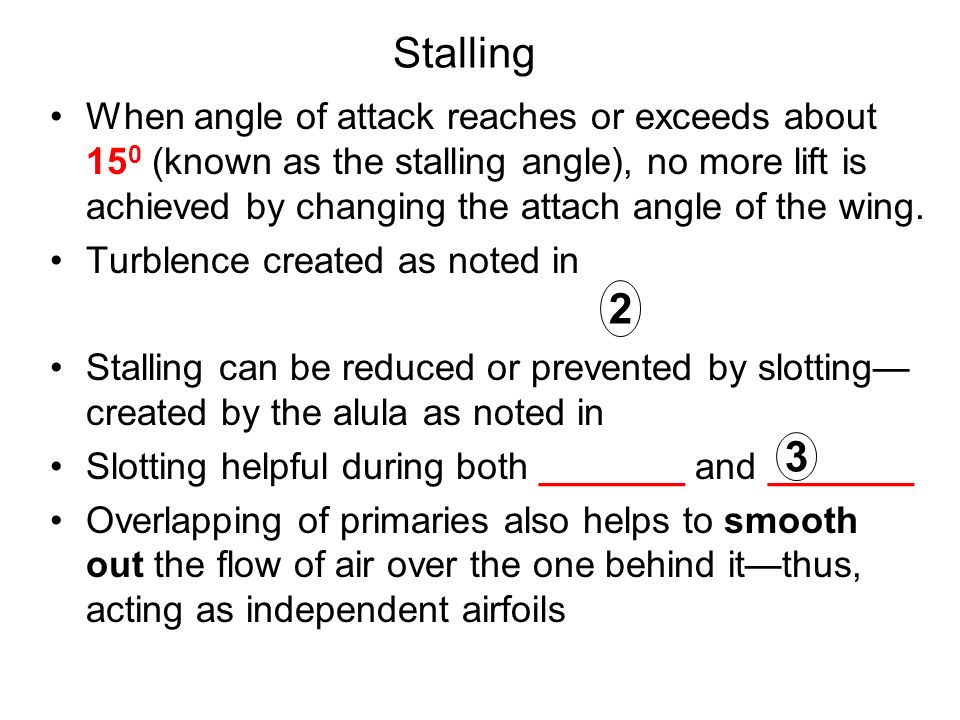

9. Stalling When angle of attack reaches or exceeds about 15 0 (known as the stalling angle), no more lift is achieved by changing the attach angle of the wing. Turblence created as noted in Stalling can be reduced or prevented by slotting— created by the alula as noted in Slotting helpful during both _______ and _______ Overlapping of primaries also helps to smooth out the flow of air over the one behind it—thus, acting as independent airfoils 2 3

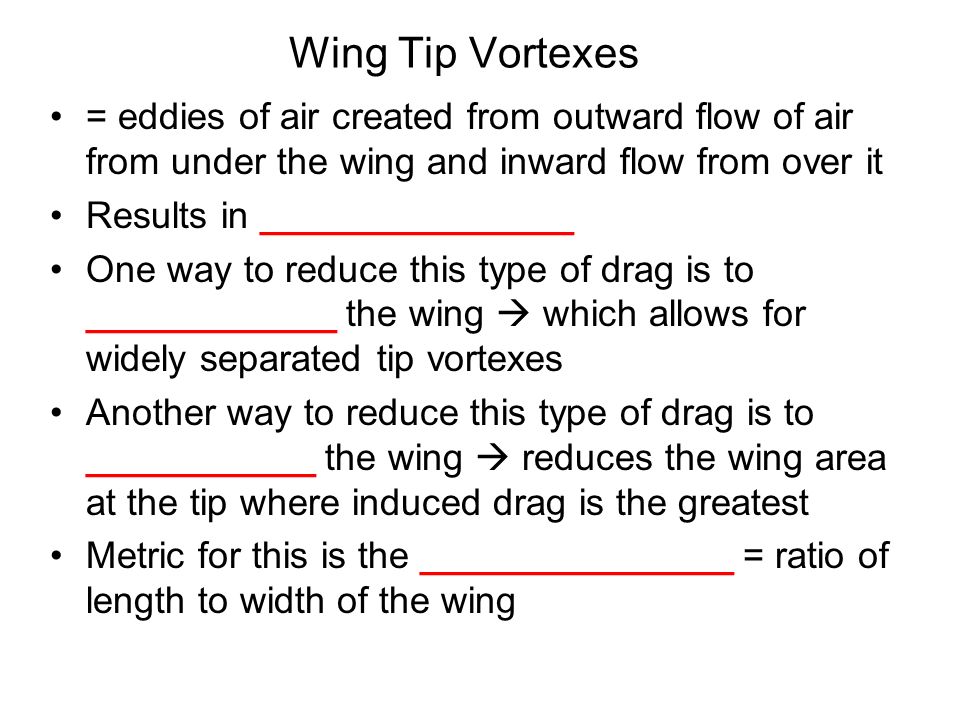

10. Wing Tip Vortexes = eddies of air created from outward flow of air from under the wing and inward flow from over it Results in _______________ One way to reduce this type of drag is to ____________ the wing  which allows for widely separated tip vortexes Another way to reduce this type of drag is to ___________ the wing  reduces the wing area at the tip where induced drag is the greatest Metric for this is the _______________ = ratio of length to width of the wing

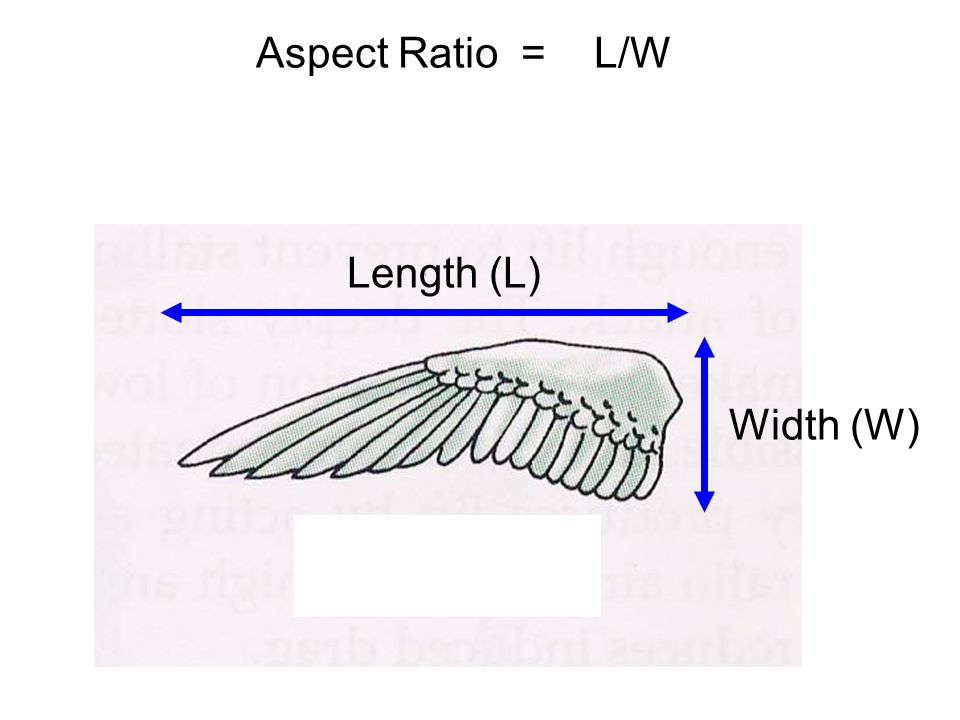

11. Aspect Ratio = L/W Length (L) Width (W)

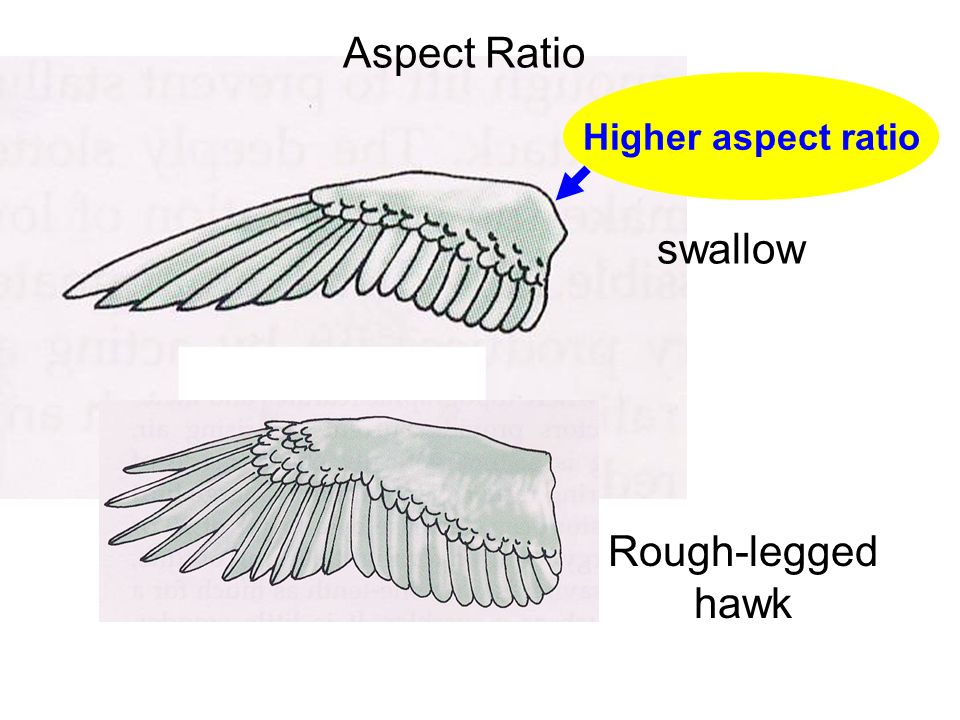

12. Aspect Ratio swallow Rough-legged hawk Higher aspect ratio

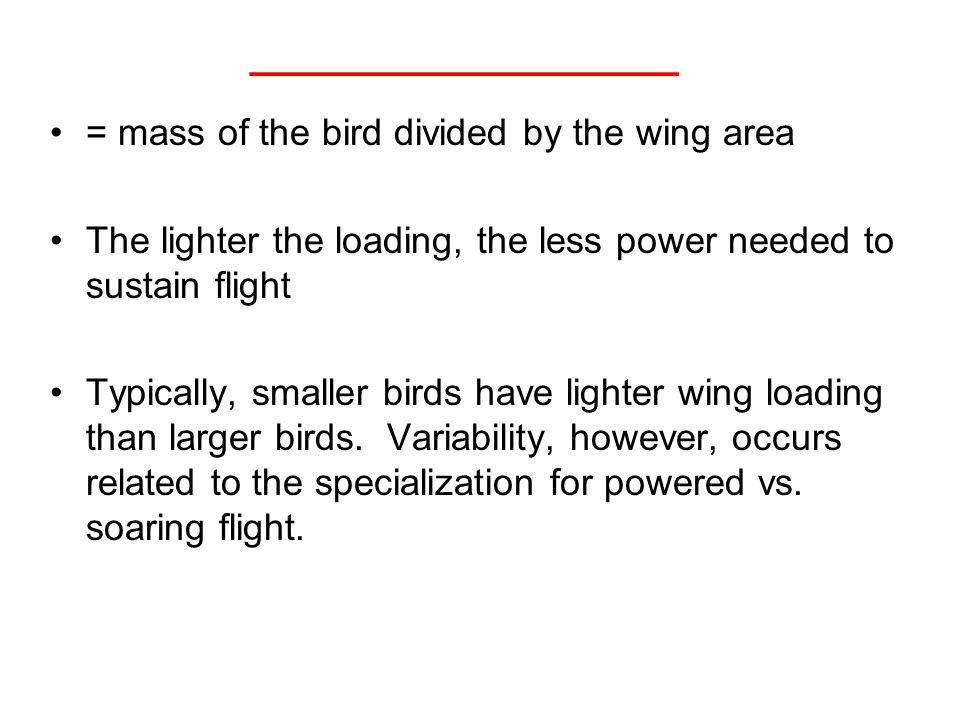

13. __________________ = mass of the bird divided by the wing area The lighter the loading, the less power needed to sustain flight Typically, smaller birds have lighter wing loading than larger birds. Variability, however, occurs related to the specialization for powered vs. soaring flight.

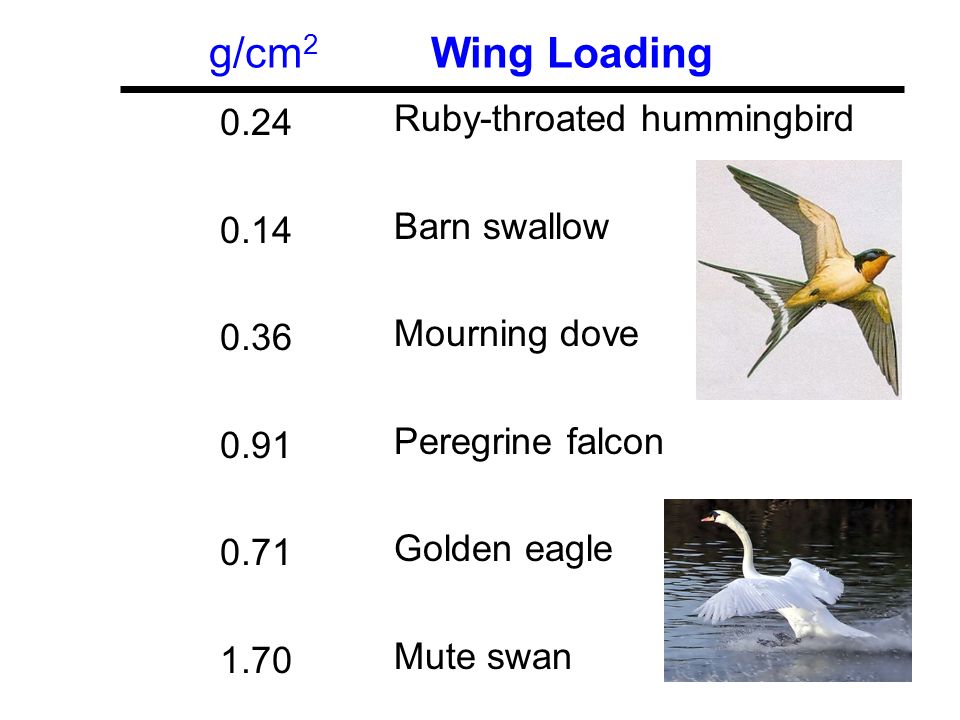

14. Wing Loading Ruby-throated hummingbird Barn swallow Mourning dove Peregrine falcon Golden eagle Mute swan g/cm 2 0.24 0.14 0.36 0.91 0.71 1.70

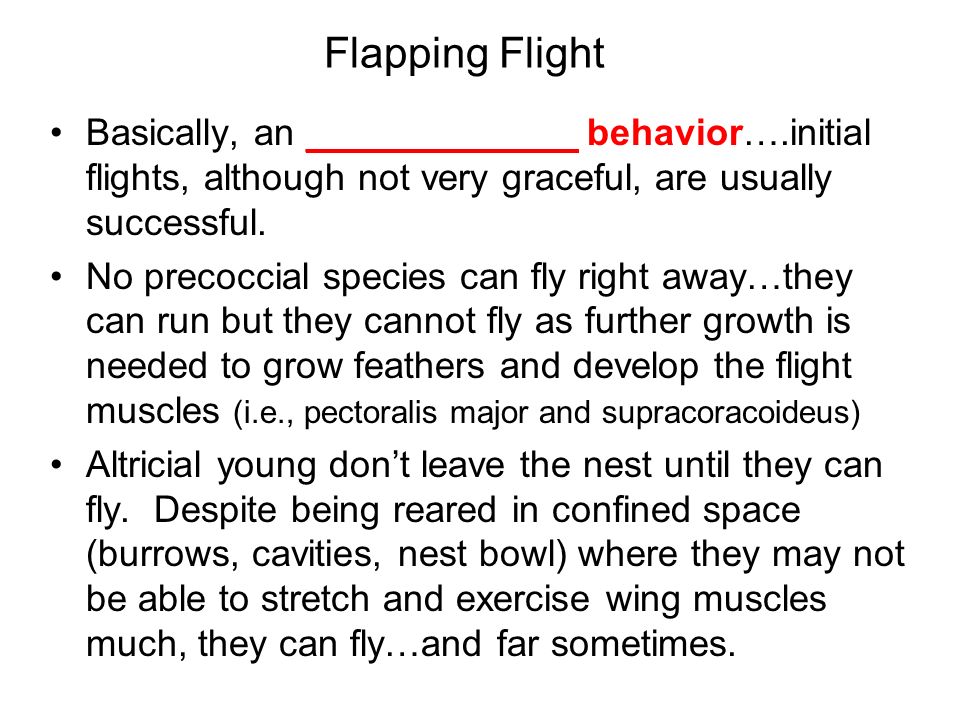

15. Flapping Flight Basically, an _____________ behavior….initial flights, although not very graceful, are usually successful. No precoccial species can fly right away…they can run but they cannot fly as further growth is needed to grow feathers and develop the flight muscles (i.e., pectoralis major and supracoracoideus) Altricial young don’t leave the nest until they can fly. Despite being reared in confined space (burrows, cavities, nest bowl) where they may not be able to stretch and exercise wing muscles much, they can fly…and far sometimes.

16. Diving Petrel: reared in burrows. First flight may be as far as 10 km !!! vs. California condor nestling spends weeks “flapping” wings” before 1 st flight

17. Flapping Flight A beating wing is flexible…and porous…and yields to air pressure (unlike the fixed wing of an airplane) All these things can change as the wing moves through the cycle of locomotion: a) shape b) wing loading c) camber d) angle relative to the body e) position of individual feathers …in other words, “lots of moving parts”

18. Flapping Flight…con’t Straight flight can only be achieved if a ______ is present to balance the drag operating against forward momentum The downward stroke provides the ________: * provided by ________…specifically the wing tips The ______ is provided by the inner wing: * provided by the __________

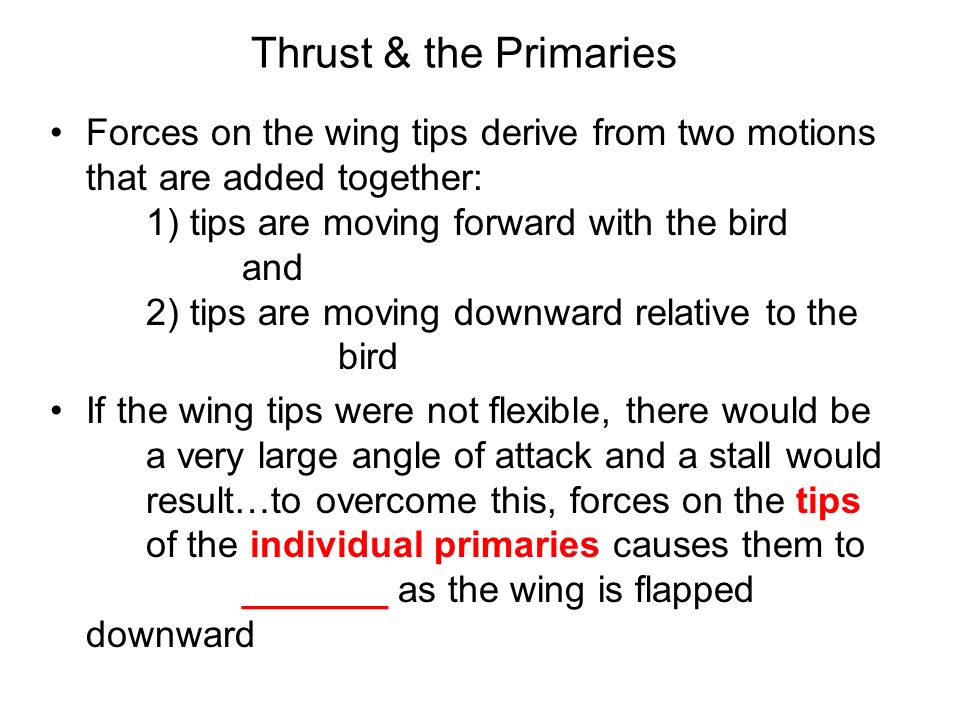

19. Thrust & the Primaries Forces on the wing tips derive from two motions that are added together: 1) tips are moving forward with the bird and 2) tips are moving downward relative to the bird If the wing tips were not flexible, there would be a very large angle of attack and a stall would result…to overcome this, forces on the tips of the individual primaries causes them to _______ as the wing is flapped downward

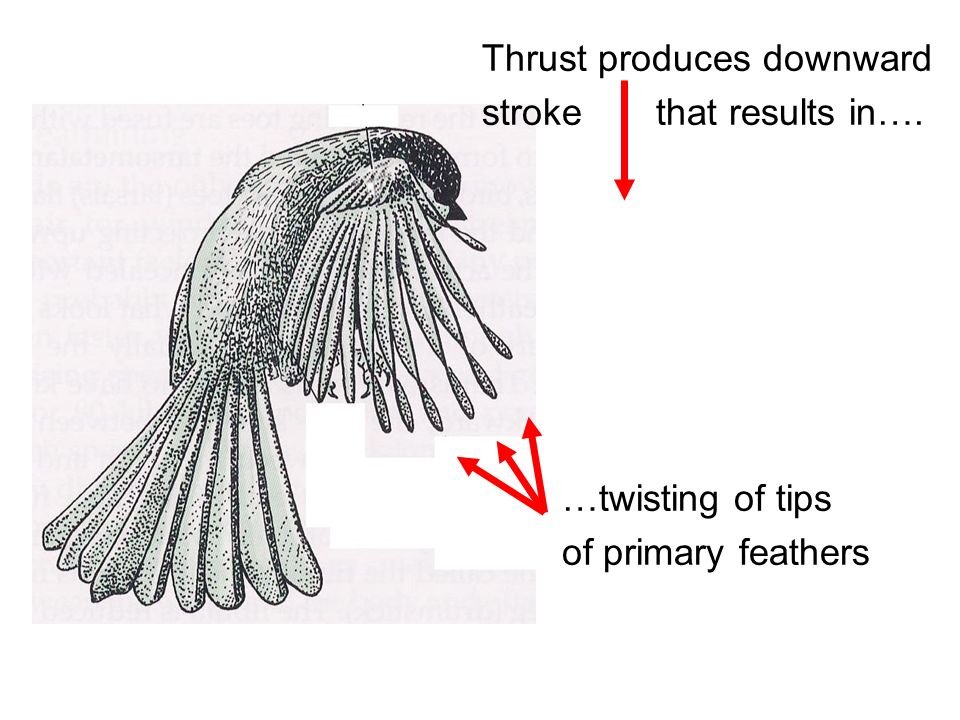

20. Thrust produces downward stroke that results in…. …twisting of tips of primary feathers

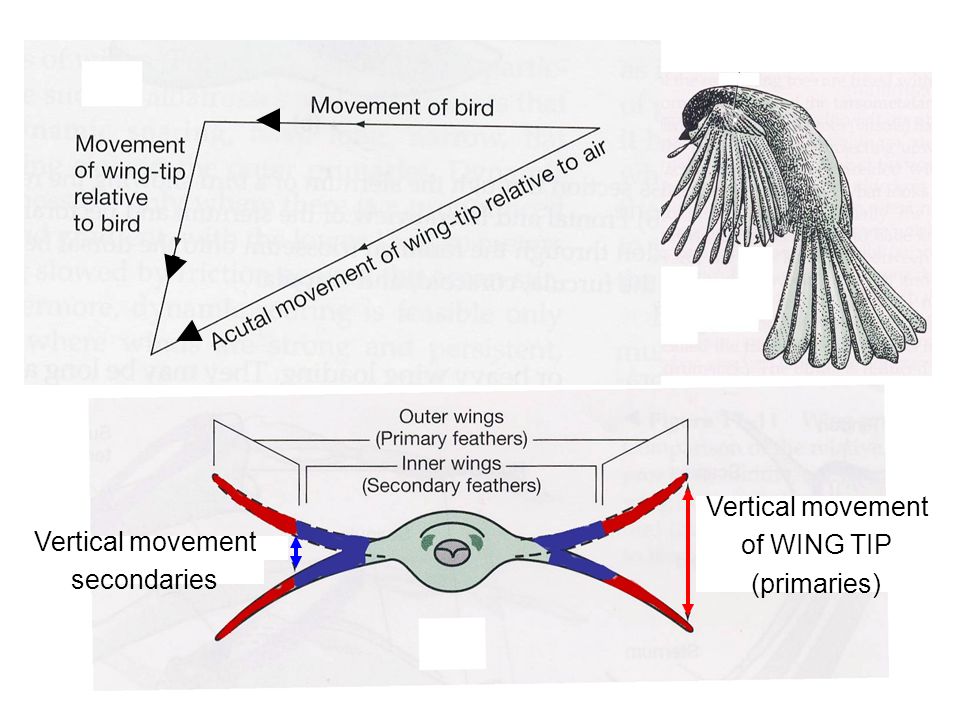

21. Vertical movement of WING TIP (primaries) Vertical movement secondaries

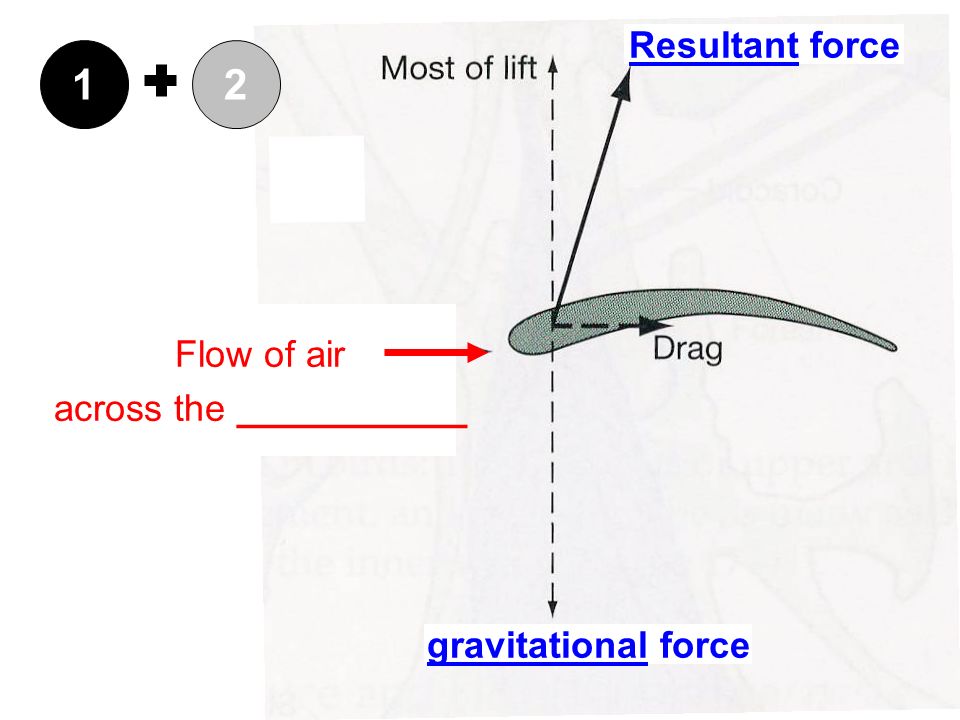

22. Flow of air across the ___________ Resultant force gravitational force 12

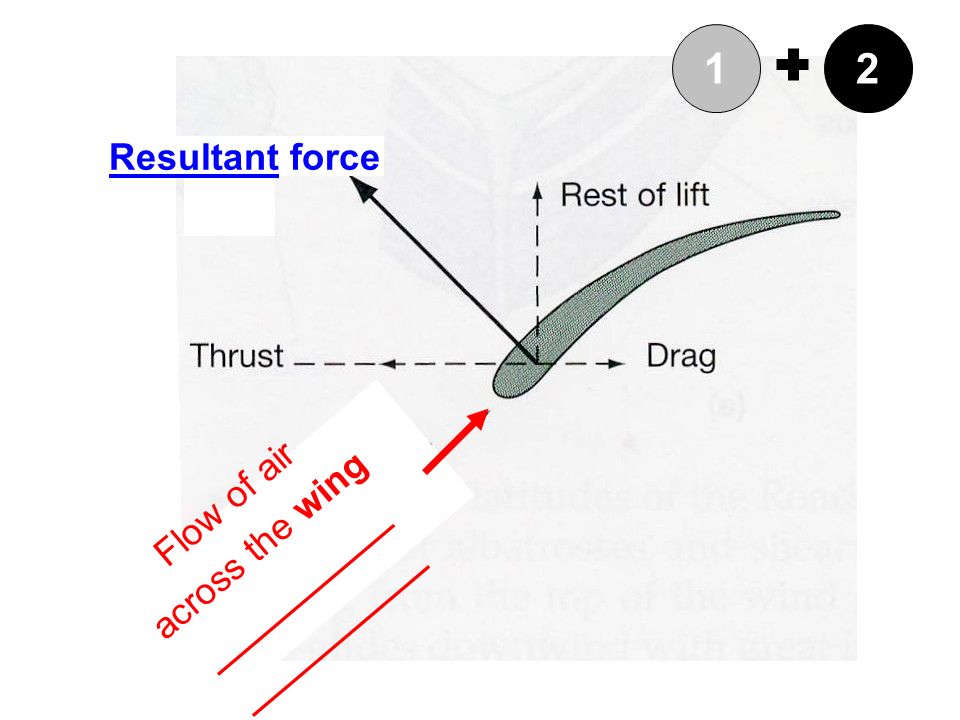

23. Flow of air across the wing ___________ Resultant force 12

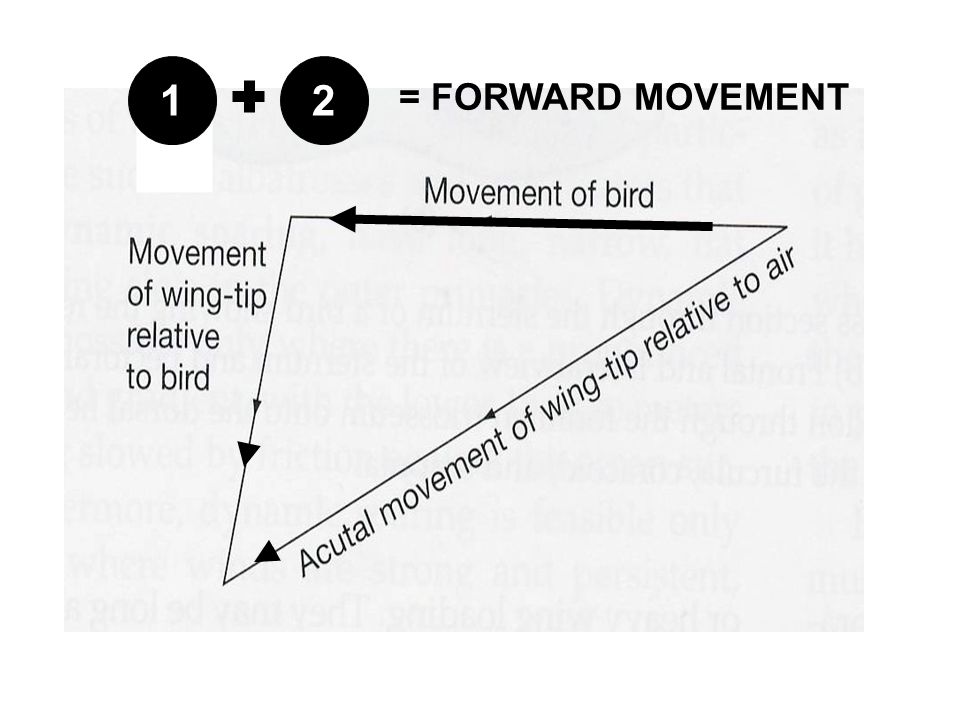

24. 12 = FORWARD MOVEMENT

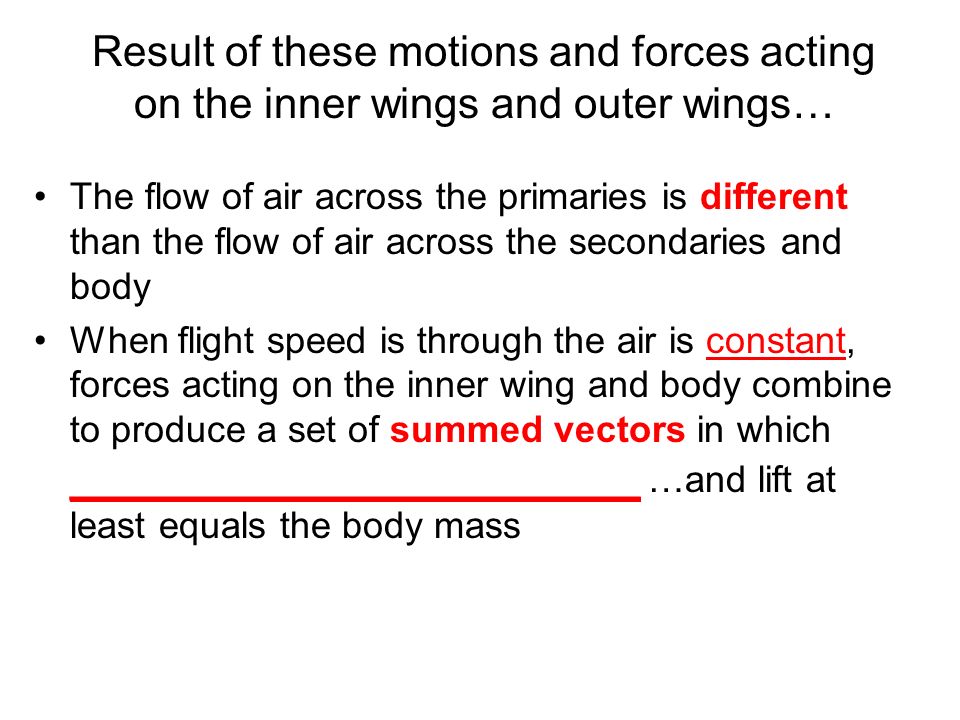

25. Result of these motions and forces acting on the inner wings and outer wings… The flow of air across the primaries is different than the flow of air across the secondaries and body When flight speed is through the air is constant, forces acting on the inner wing and body combine to produce a set of summed vectors in which ________________________ …and lift at least equals the body mass

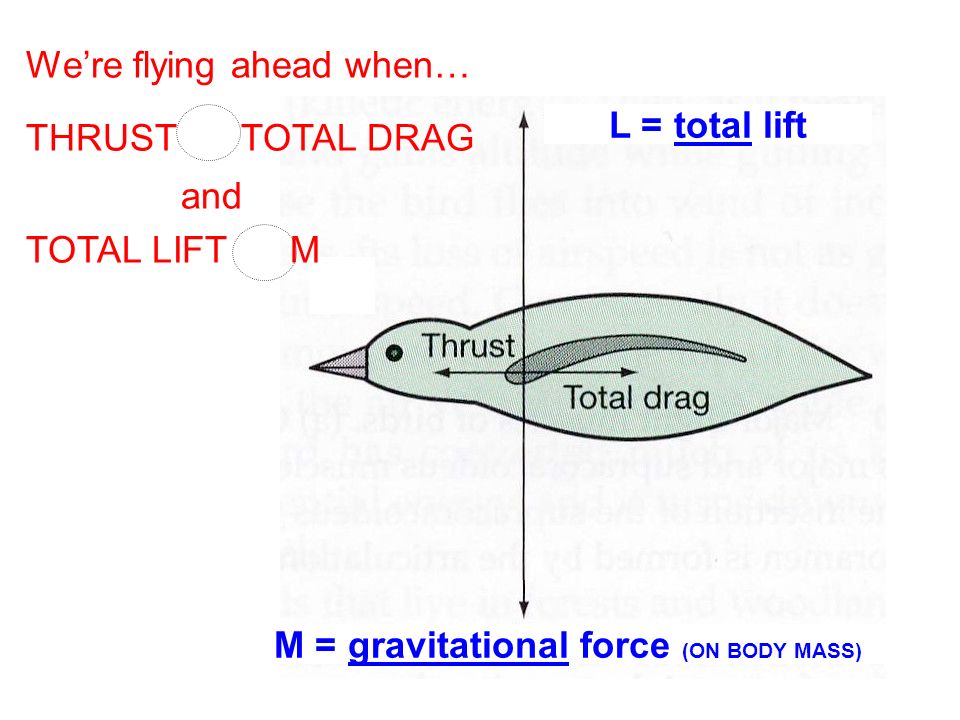

26. We’re flying ahead when… THRUST TOTAL DRAG and TOTAL LIFT M M = gravitational force (ON BODY MASS) L = total lift

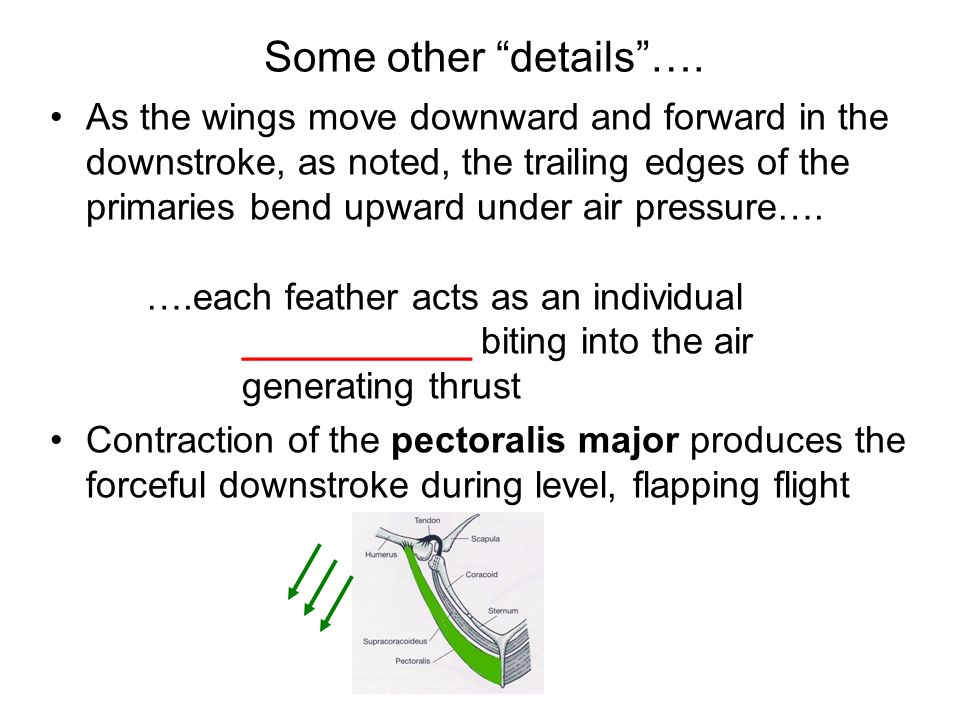

27. Some other “details”…. As the wings move downward and forward in the downstroke, as noted, the trailing edges of the primaries bend upward under air pressure…. ….each feather acts as an individual ___________ biting into the air generating thrust Contraction of the pectoralis major produces the forceful downstroke during level, flapping flight

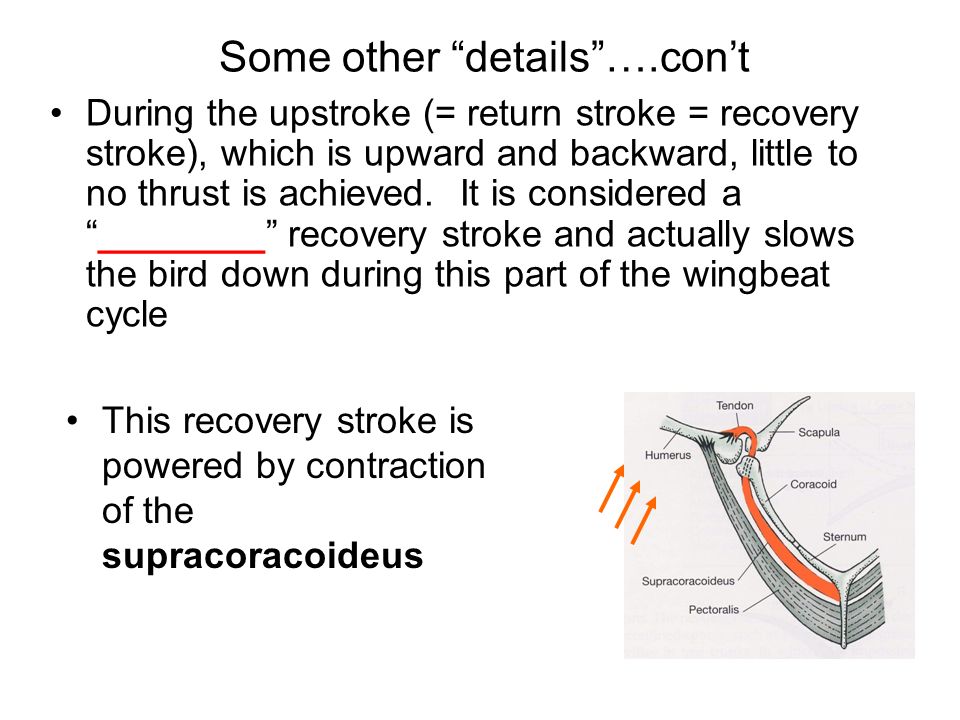

28. Some other “details”….con’t During the upstroke (= return stroke = recovery stroke), which is upward and backward, little to no thrust is achieved. It is considered a “________” recovery stroke and actually slows the bird down during this part of the wingbeat cycle This recovery stroke is powered by contraction of the supracoracoideus

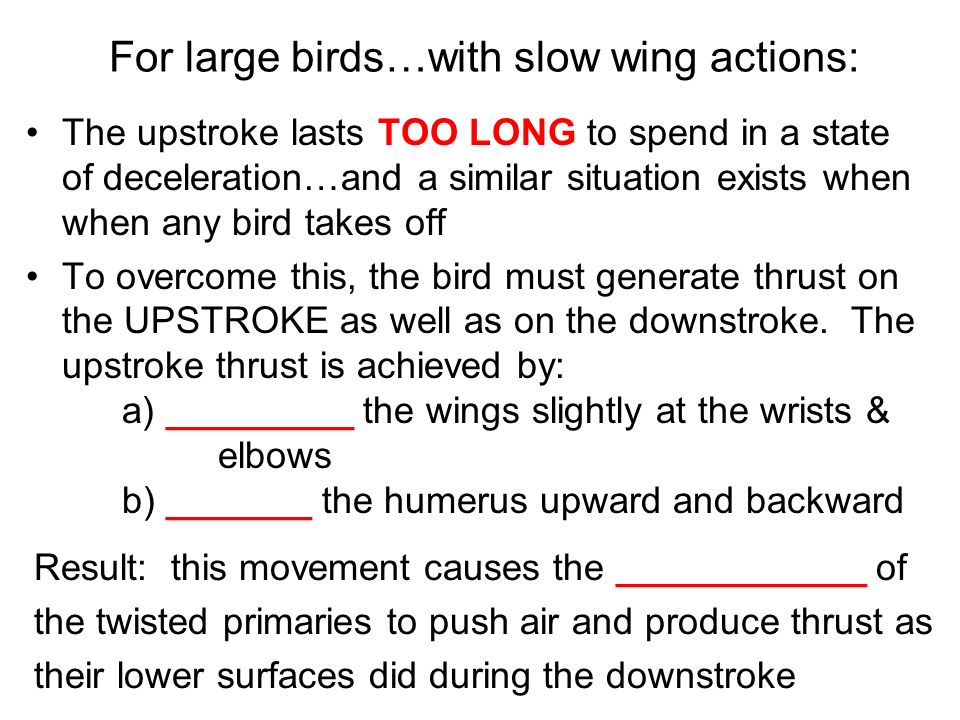

29. For large birds…with slow wing actions: The upstroke lasts TOO LONG to spend in a state of deceleration…and a similar situation exists when when any bird takes off To overcome this, the bird must generate thrust on the UPSTROKE as well as on the downstroke. The upstroke thrust is achieved by: a) _________ the wings slightly at the wrists & elbows b) _______ the humerus upward and backward Result: this movement causes the ____________ of the twisted primaries to push air and produce thrust as their lower surfaces did during the downstroke
