1. IDOT UPDATE Illinois Association of Aggregate Producers Eric E. Harm, PE Assistant Chief Engineer May 18, 2006

2. New Staffing Director of Highways – Milt Sees Chief of Staff – Clayton Harris III Chief of Operations – Brice Sheriff Engineer of Tests – Matt Mueller

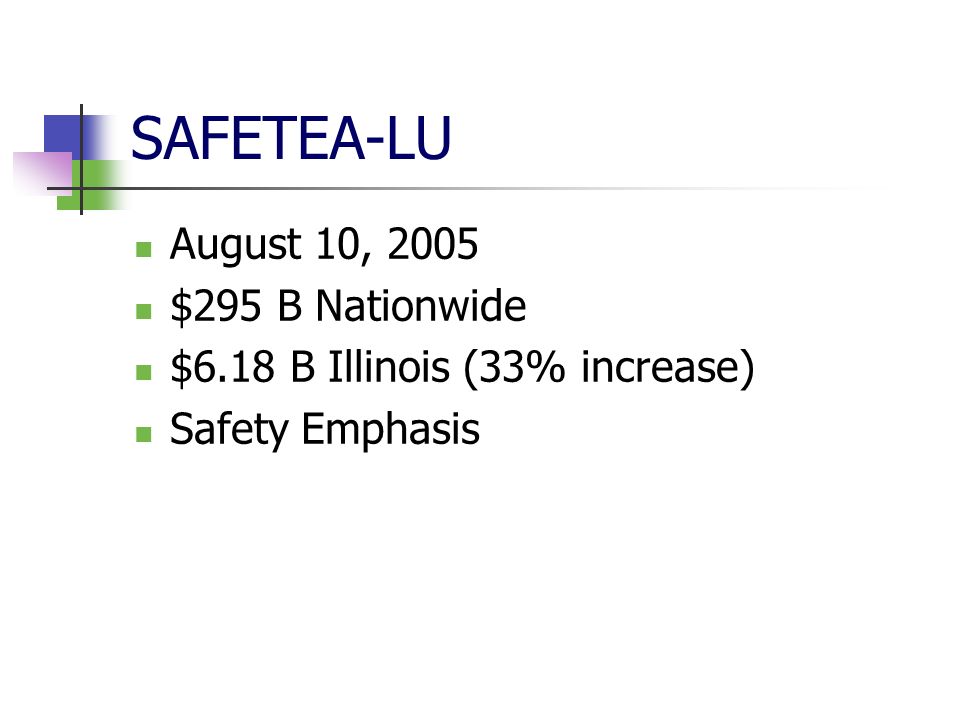

3. SAFETEA-LU August 10, 2005 $295 B Nationwide $6.18 B Illinois (33% increase) Safety Emphasis

4. Earmarks $1.25 B Highway Earmarks Over 300 Earmarks Required Match $315 M Shortfall ± $8 B

5. Downside Locals have to match Obligation Ceiling ≈ 85% Funds are not upfront Cost of projects up Mix of projects

6. High Profile Earmarks New Mississippi River Bridge $164 M plus $75 M for Missouri O’Hare Western Access $140 M Prairie Parkway $207 M River Bridge in Quad-Cities $12 M plus $48 M for Iowa

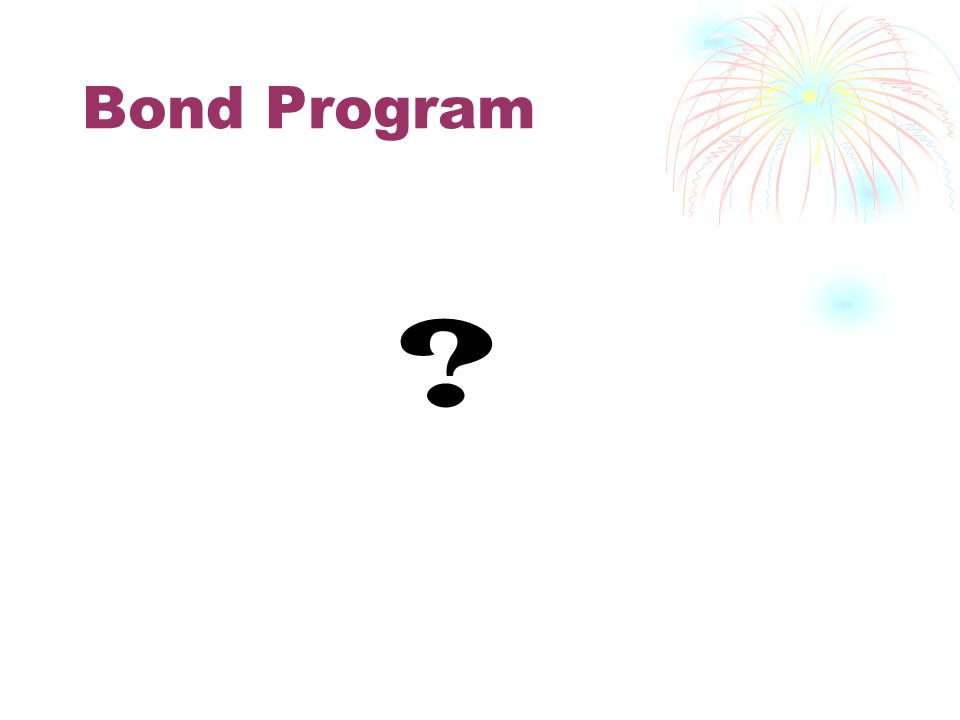

7. Bond Program ?

8. Recycling Reclaimed Asphalt Pavement (RAP)

9. Let’s Rap on RAP o Usage is in Chapter 53 BD&E Manual. o Used successfully for 20 years. o Improvements made over the years.

10. What’s Driving The Equation?  Aging system Few bare pavements to overlay (How many bare pavements did you drive over to get here?) Limited new construction Mill and Fill 1:1  Results in excess  Newer mixes with polymer limit RAP usage

11. What’s Driving The Equation?  Problem areas Currently urban State wide in future

12. More RAP’n o Some agencies are not allowing RAP by showing “0% RAP” on plans. o SB 120 introduced: All mixes to use RAP and Rubber Tires. Died in committee. o Need to follow sound usage of resources or it will be legislated to us.

13. S = I - O Storage=Inflow - Outflow Piles of RAP=Milling – Reuse Depends upon: Allowable RAP usage

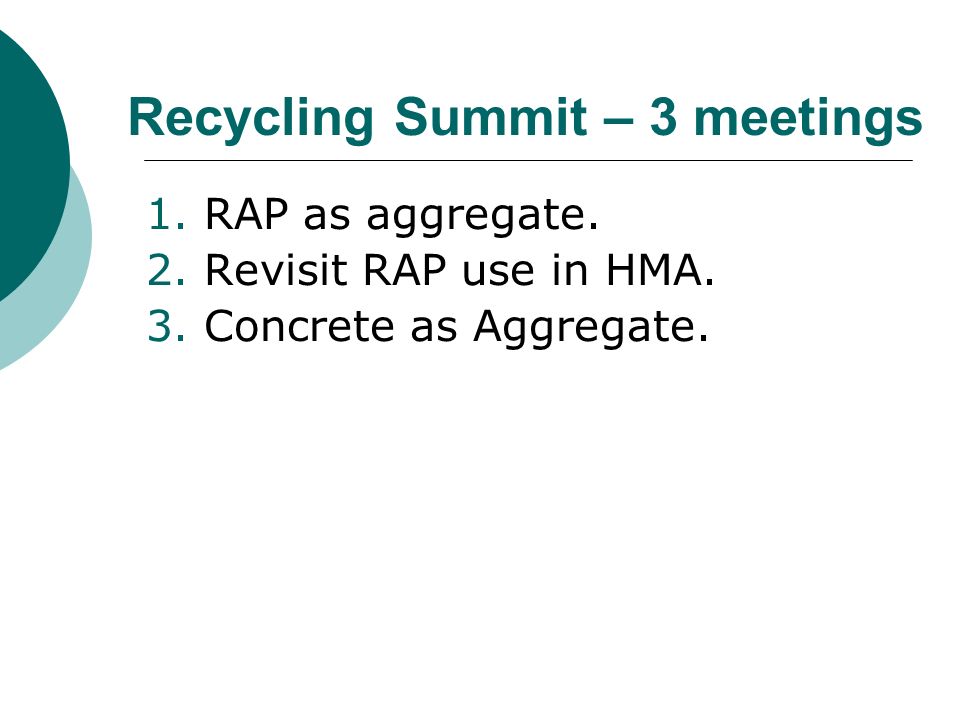

14. Recycling Summit – 3 meetings 1.RAP as aggregate. 2.Revisit RAP use in HMA. 3.Concrete as Aggregate.

15. RAP as an Aggregate  Increase usage for Non-Quality uses  Look into ways of testing for Quality uses

16. RAP into HMA  Increase %’s  Allow RAP in Polymer Mixes

17. Recycled Concrete as Aggregate  Change sampling stockpile to 10,000T  Use in HMA?

18. ASR Alkali Silica Reactivity

19. Alkali-Silica Reaction (ASR) Alkalies React with Silica –Alkalies from Cement/Cementitious Materials –Silica from Aggregate –Needs Water –Gel is Formed –Expands and Cracks The Concrete

20. ASR on IDOT System ASR Confirmed in Districts 3, 4, and 8 –Four bridge parapets –Two bridge medians –Two bridge decks –One pavement Constructed Between 1985 and 1997

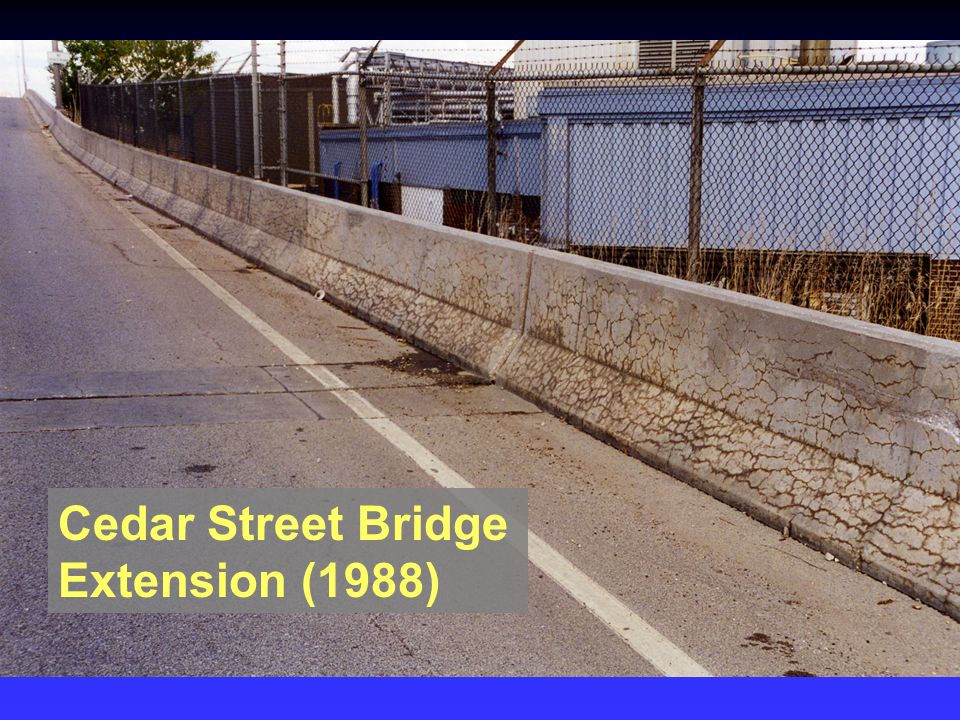

21. Cedar Street Bridge Extension (1988)

22. Cedar Street Bridge Median (1988)

23. I-255 Pavement (1985-86)

24. IL 116 over I-39 (1990)

25. IL 116 over I-39

26. Optical micrograph showing ASR gel fully filling circular void in center and partially filling circular void to left (width of field is 1.4 mm). IL 116 over I-39

27. IL 251 over Mackinaw River (1992)

28. CTL Report: Cracking Related to ASR IL 29 (1997)

29. Alkali-Silica Reaction (ASR) Why So Long to Find This Problem? –FHWA Training –ASR Takes 5-15 Years to Manifest Itself –Requires Cores (Assumed D-Cracking) –Luck Because Low Alkali Cements Have Been Used in Highly Reactive Locations

30. Alkali-Silica Reaction (ASR) Current Status –Specification Is In Final Draft Form –Industry Has Provided Numerous Suggestions For Development –Specification Intent Is To Provide Reasonable ASR Protection –No Intent To Burden Any One Industry

31. Quality Tests Streamlining

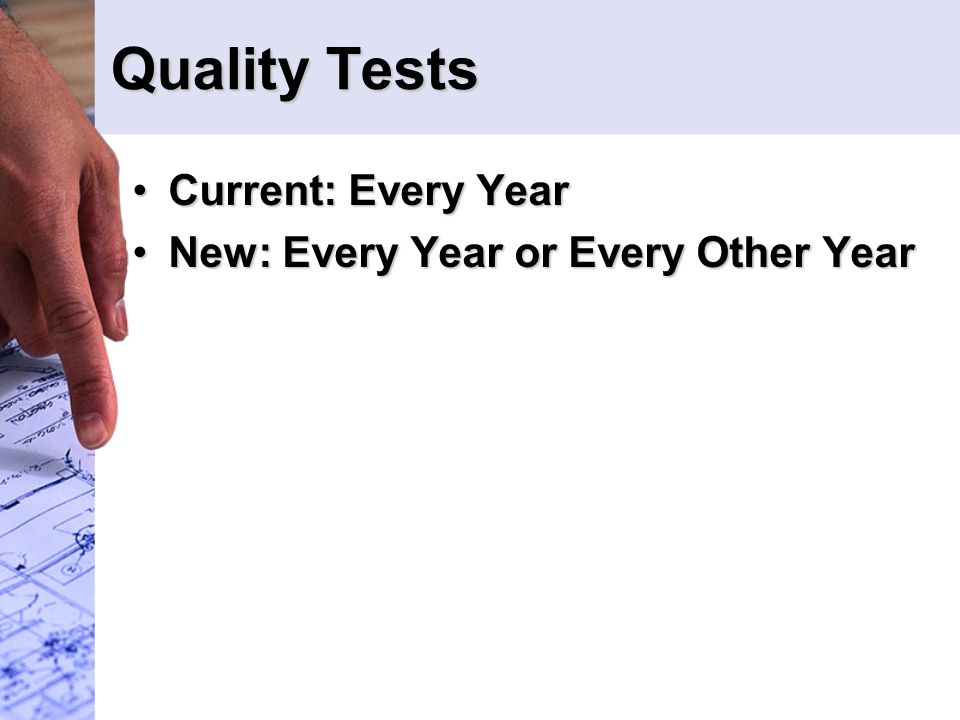

32. Quality Tests Current: Every YearCurrent: Every Year New: Every Year or Every Other YearNew: Every Year or Every Other Year

33. Quality Tests Will Not Apply To:Will Not Apply To: –Special Provision –Recycled Products

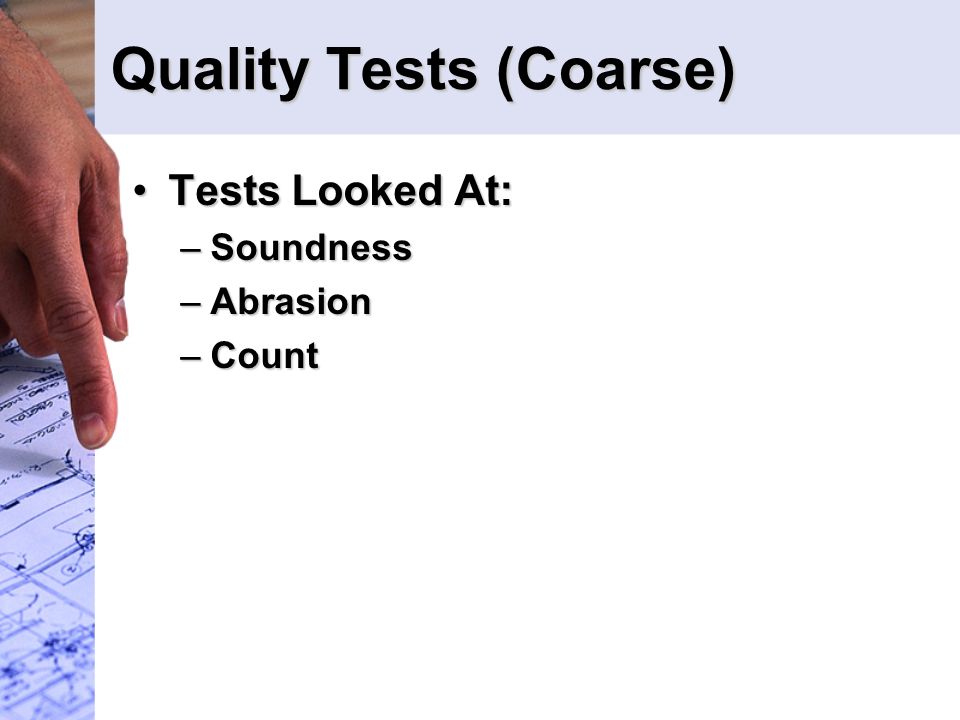

34. Quality Tests (Coarse) Tests Looked At:Tests Looked At: –Soundness –Abrasion –Count

35. Quality Tests (Fine) Tests Looked At:Tests Looked At: –Soundness –Count –Minus (-) #200

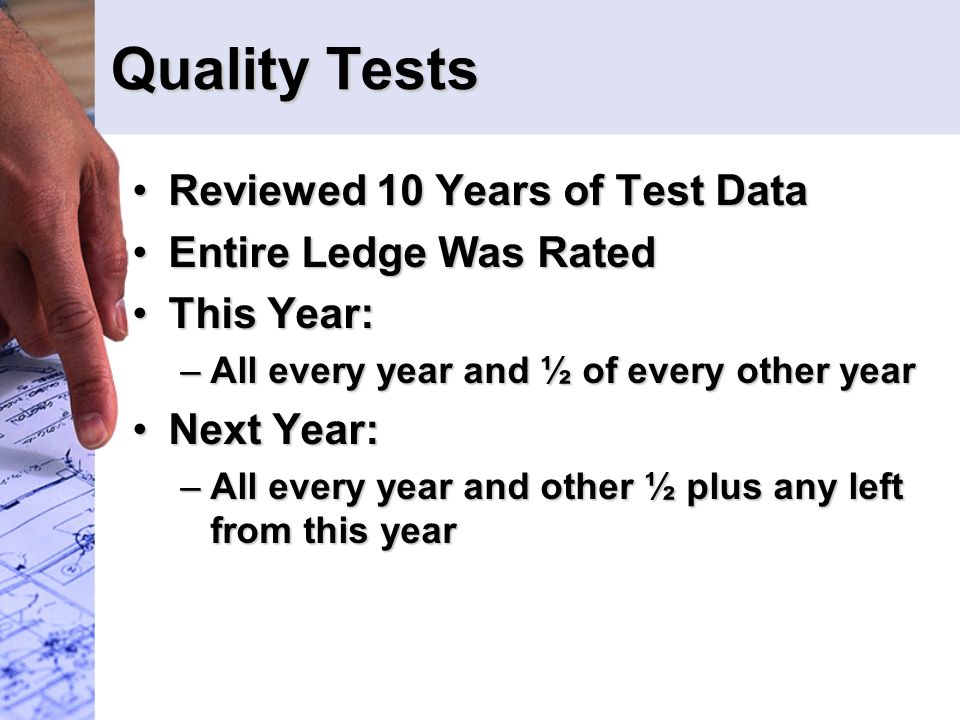

36. Quality Tests Reviewed 10 Years of Test DataReviewed 10 Years of Test Data Entire Ledge Was RatedEntire Ledge Was Rated This Year:This Year: –All every year and ½ of every other year Next Year:Next Year: –All every year and other ½ plus any left from this year

37. Freeze-thaw Tests Current FrequencyCurrent Frequency >0.030 – Every Year <0.030 – Every Other Year

38. Freeze-thaw Tests New FrequencyNew Frequency >0.030 – Every Year 0.015 – 0.030 – Every Other Year <0.015 – Every Three Years

39. Quality on Tickets

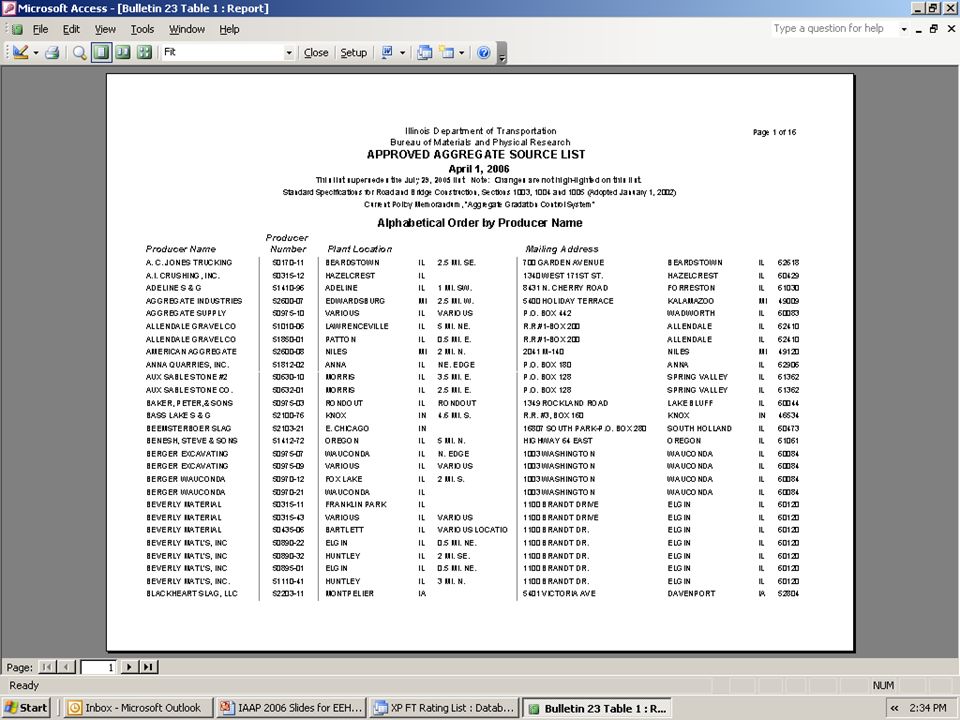

40. New Approved List Alphabetical P/S # Quality on Tickets (June 1, 2006) –Ticket Designation –Material Approval

44. Quality on Tickets Thanks Being rolled out this year!

45. Thank You!
