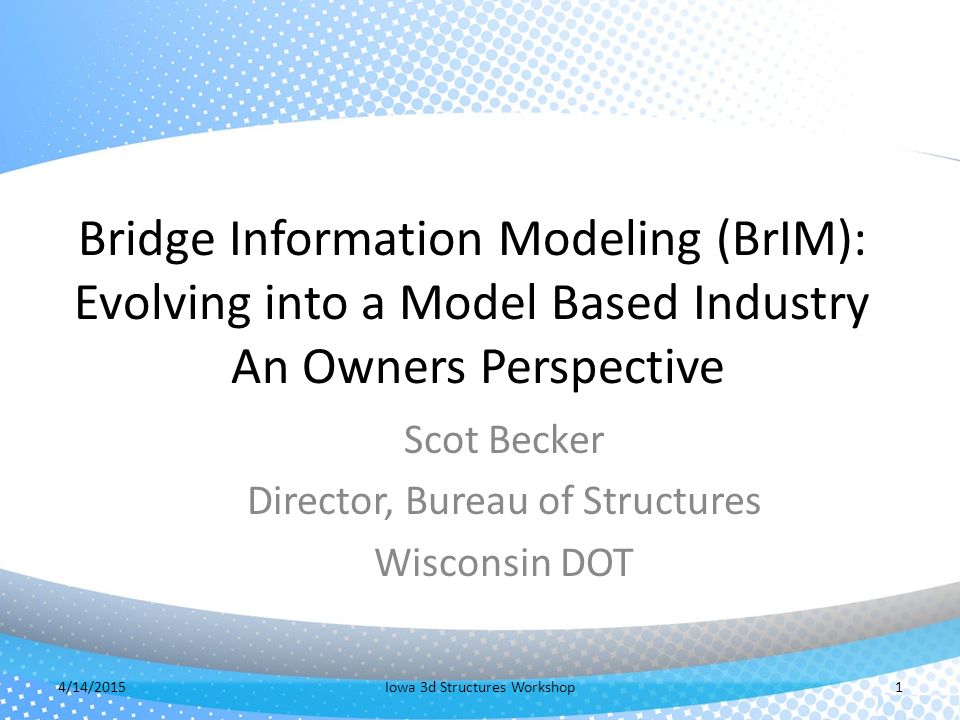

1. Bridge Information Modeling (BrIM): Evolving into a Model Based Industry An Owners Perspective Scot Becker Director, Bureau of Structures Wisconsin DOT 14/14/2015Iowa 3d Structures Workshop

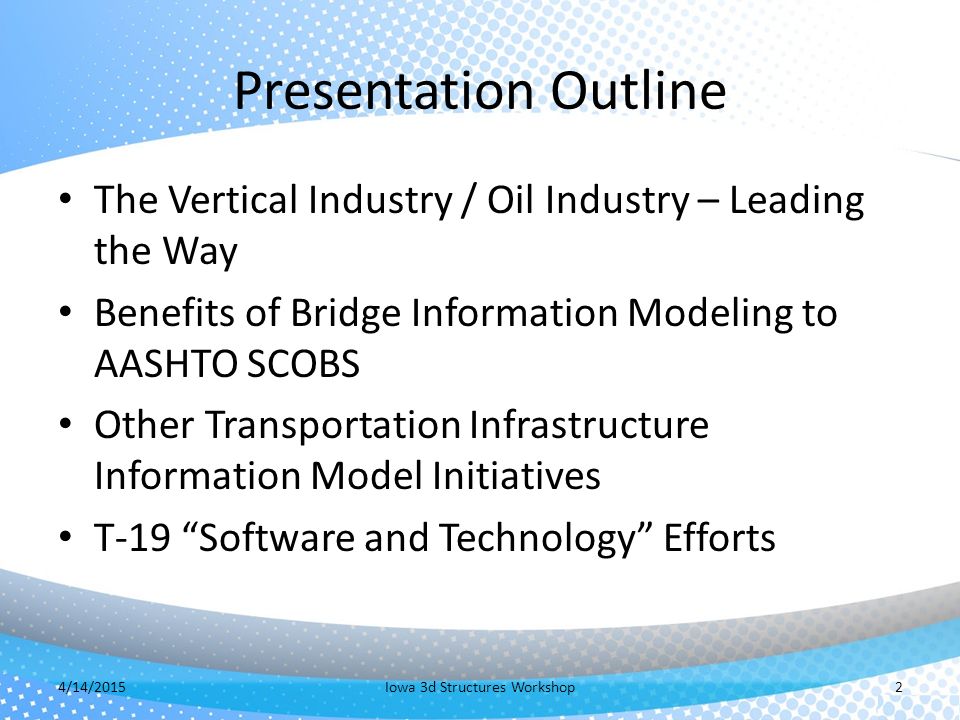

2. Presentation Outline The Vertical Industry / Oil Industry – Leading the Way Benefits of Bridge Information Modeling to AASHTO SCOBS Other Transportation Infrastructure Information Model Initiatives T-19 “Software and Technology” Efforts 24/14/2015Iowa 3d Structures Workshop

3. Information Modeling 34/14/2015Iowa 3d Structures Workshop

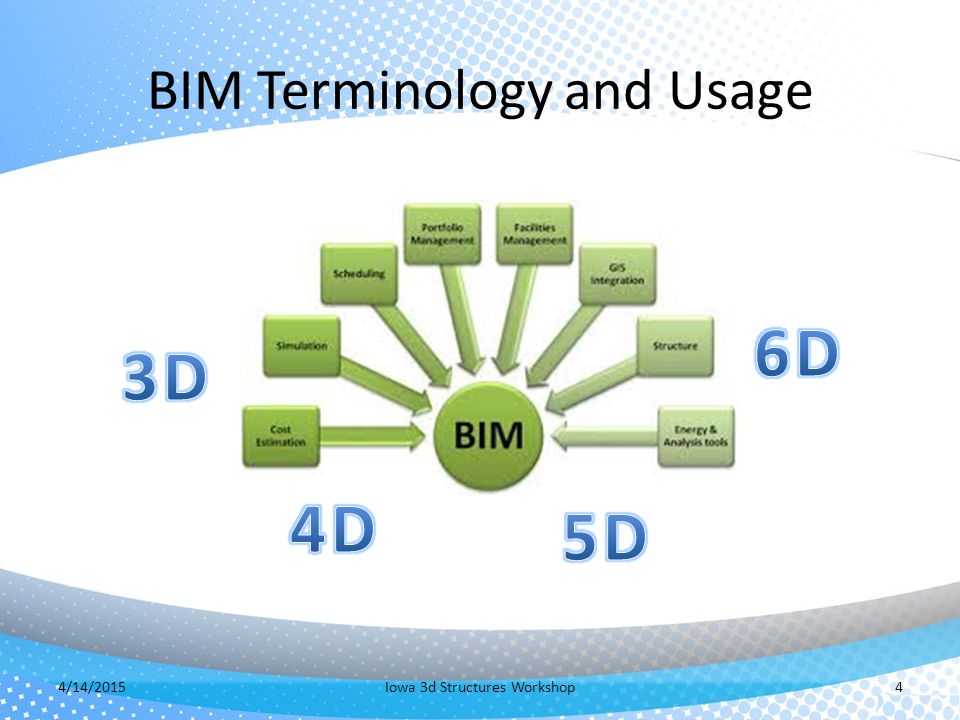

4. BIM Terminology and Usage 44/14/2015Iowa 3d Structures Workshop

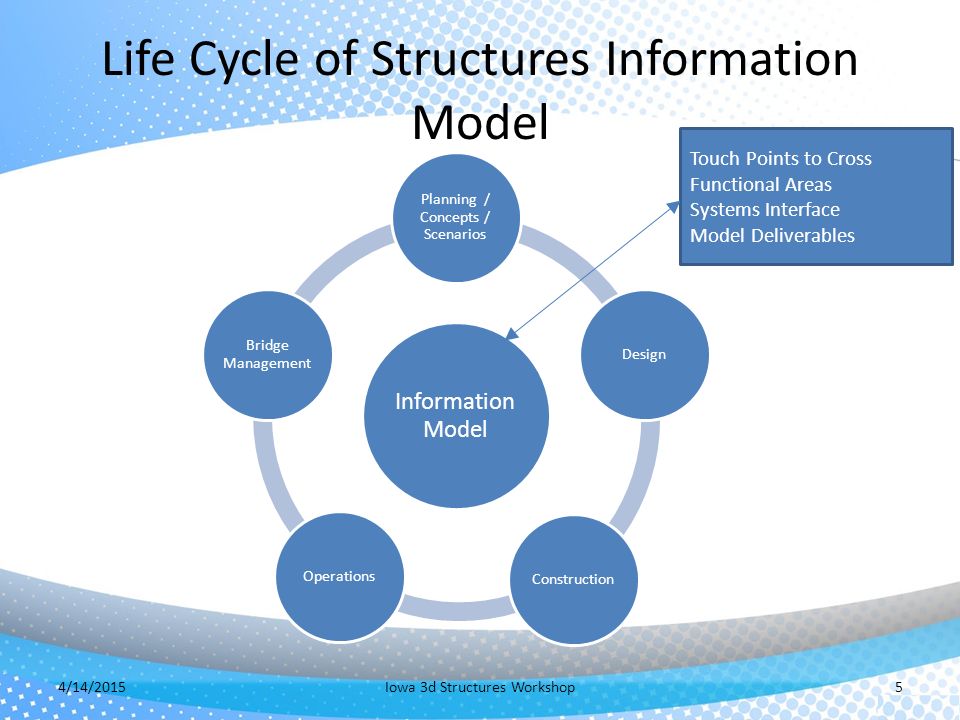

5. Life Cycle of Structures Information Model Information Model Planning / Concepts / Scenarios DesignConstructionOperations Bridge Management Touch Points to Cross Functional Areas Systems Interface Model Deliverables 54/14/2015Iowa 3d Structures Workshop

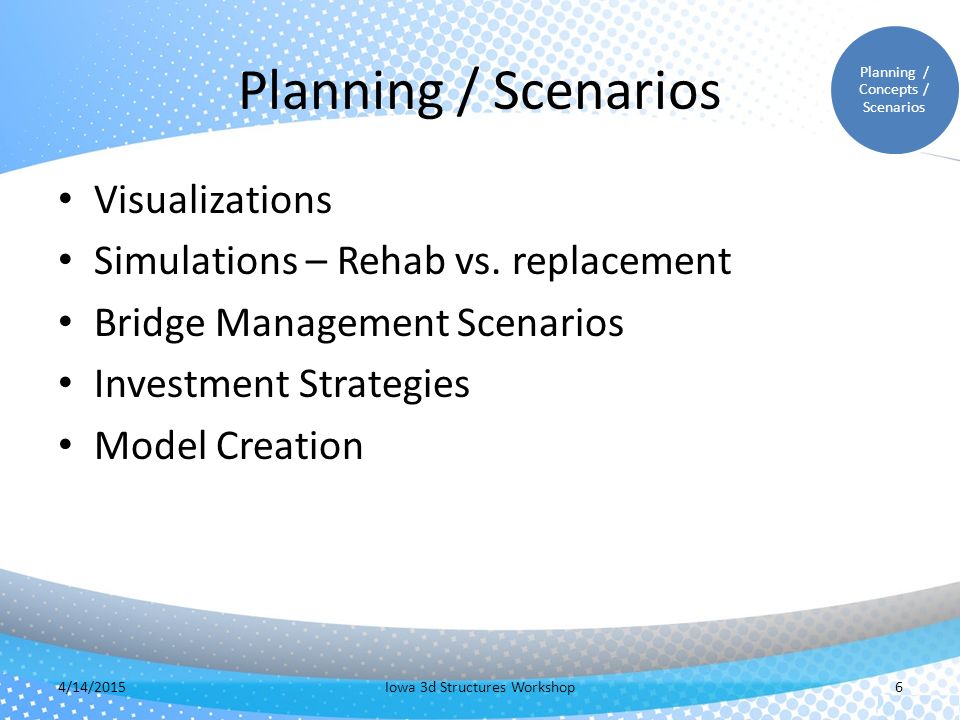

6. Planning / Scenarios Visualizations Simulations – Rehab vs. replacement Bridge Management Scenarios Investment Strategies Model Creation Planning / Concepts / Scenarios 64/14/2015Iowa 3d Structures Workshop

7. Visualizations Design 74/14/2015Iowa 3d Structures Workshop

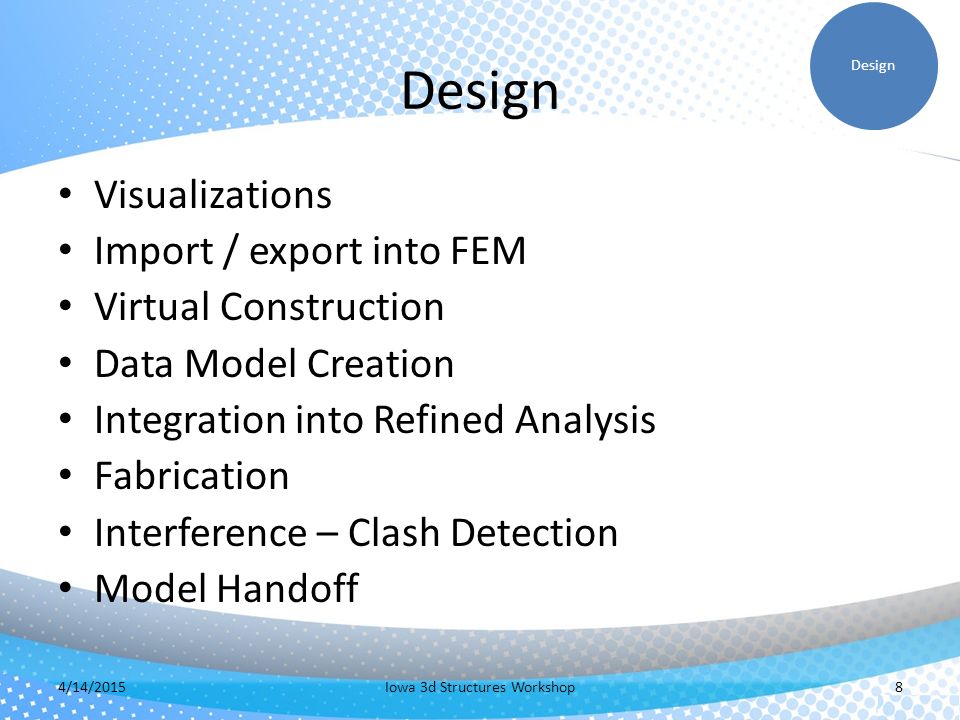

8. Design Visualizations Import / export into FEM Virtual Construction Data Model Creation Integration into Refined Analysis Fabrication Interference – Clash Detection Model Handoff Design 84/14/2015Iowa 3d Structures Workshop

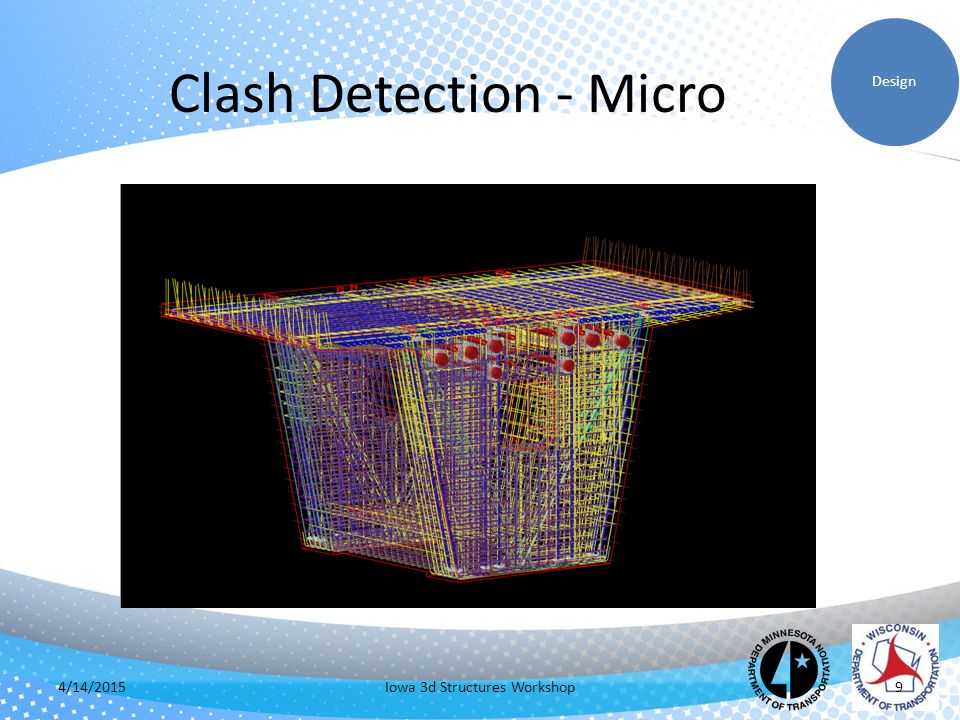

9. Clash Detection - Micro Design 94/14/2015Iowa 3d Structures Workshop

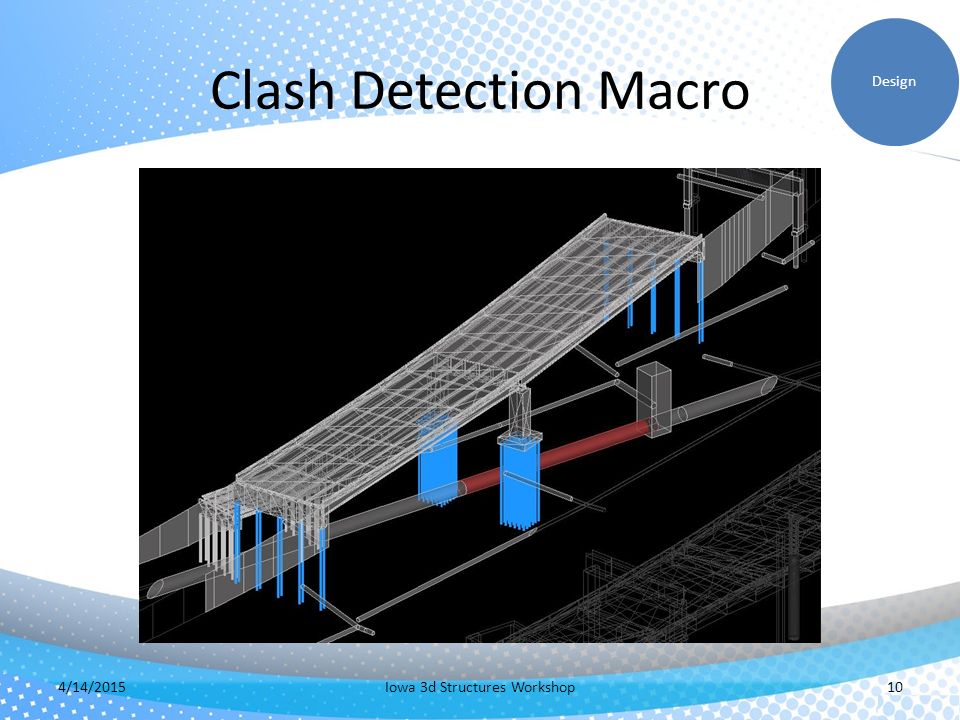

10. Clash Detection Macro Design 104/14/2015Iowa 3d Structures Workshop

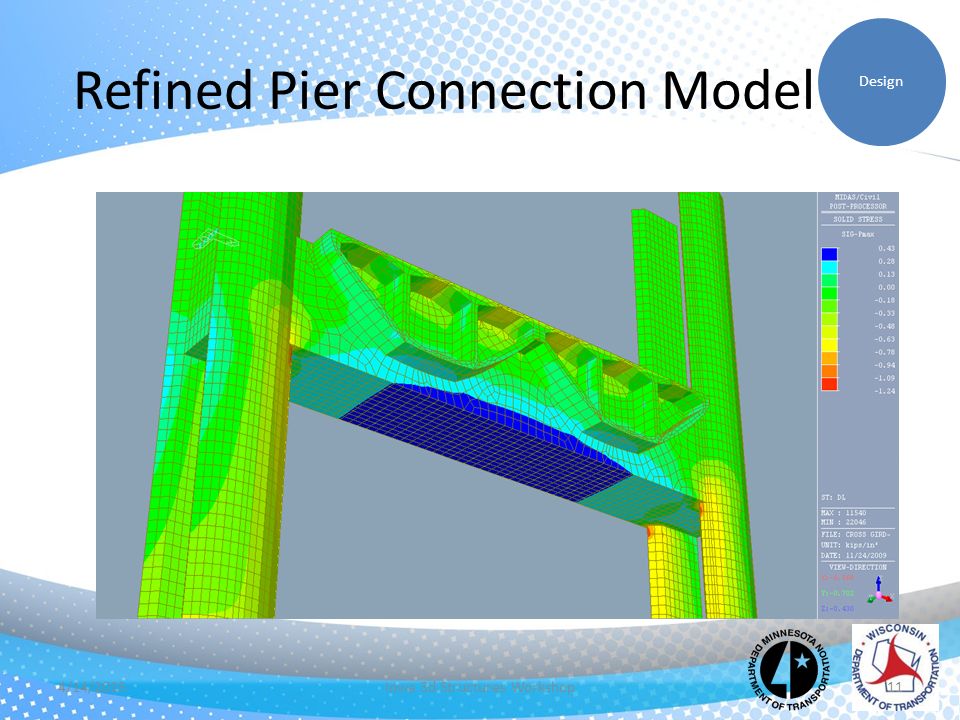

11. Refined Pier Connection Model Design 114/14/2015Iowa 3d Structures Workshop

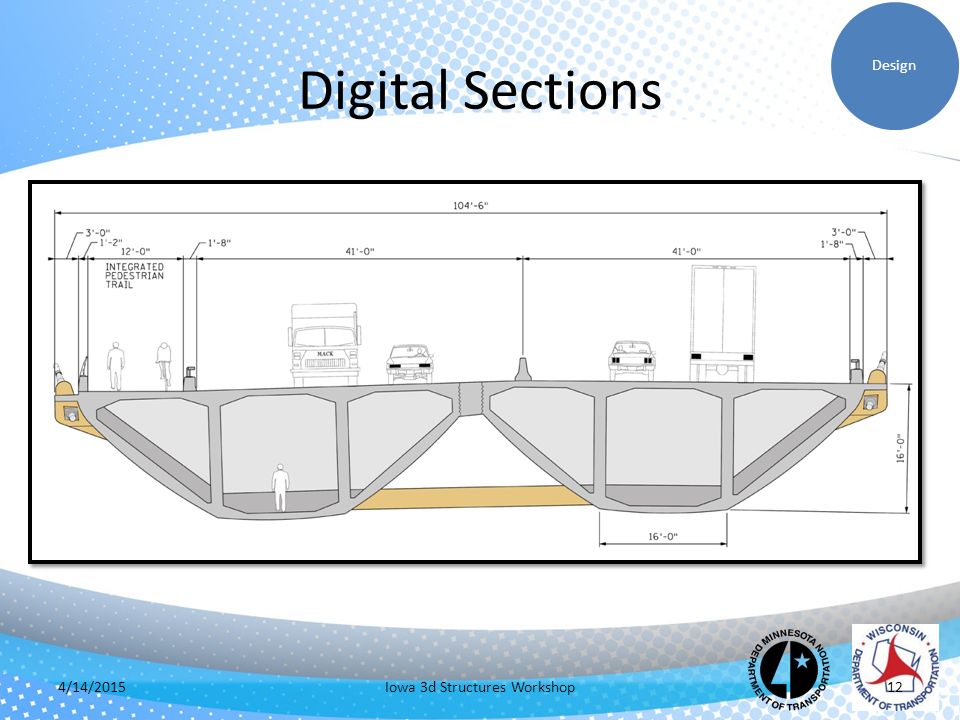

12. Digital Sections Design 124/14/2015Iowa 3d Structures Workshop

13. Interference (Tower – Crossbeam – Column Connection) Design 134/14/2015Iowa 3d Structures Workshop

14. Integration into Refined Analysis Design 144/14/2015Iowa 3d Structures Workshop

15. Construction Schedule Sequencing Demolition Planning Virtual Fit Up Bill of Materials Supplied Fabrication As built Conditions Model Handoff Construction 154/14/2015Iowa 3d Structures Workshop

16. Construction Schedule and Sequence Construction 164/14/2015Iowa 3d Structures Workshop

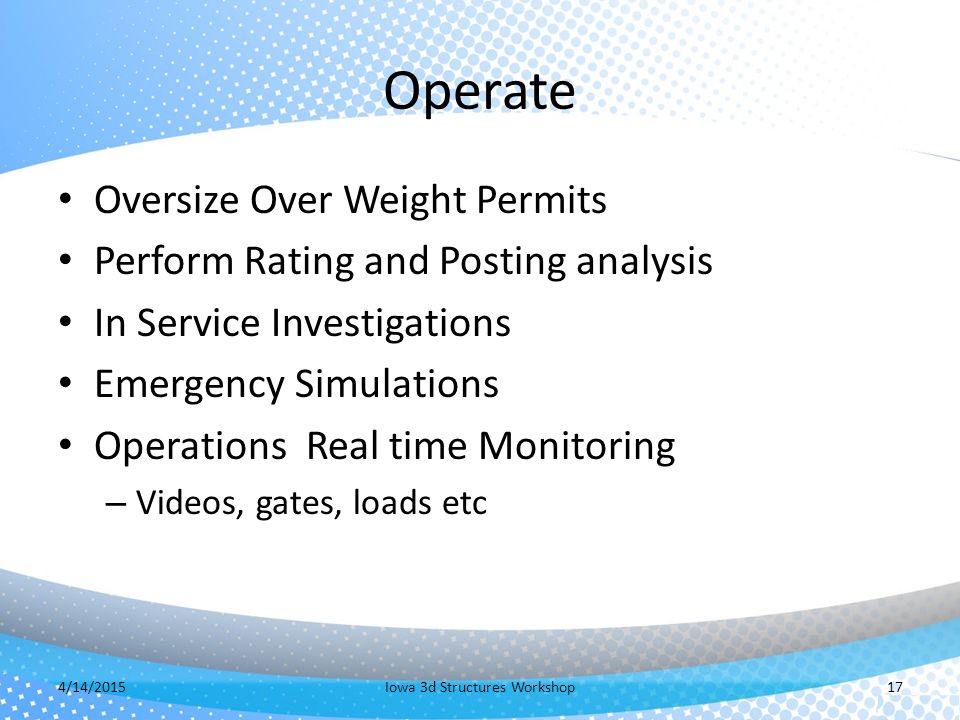

17. Oversize Over Weight Permits Perform Rating and Posting analysis In Service Investigations Emergency Simulations Operations Real time Monitoring – Videos, gates, loads etc Operate 174/14/2015Iowa 3d Structures Workshop

18. In Service Investigations 184/14/2015Iowa 3d Structures Workshop

19. Bridge Management, Preservation, and Maintenance Attach Information from / to Inspection Reports Bridge Management Cyclic Maintenance – Workflow In Service built Conditions Bridge Management 194/14/2015Iowa 3d Structures Workshop

20. Bridge Management 204/14/2015Iowa 3d Structures Workshop

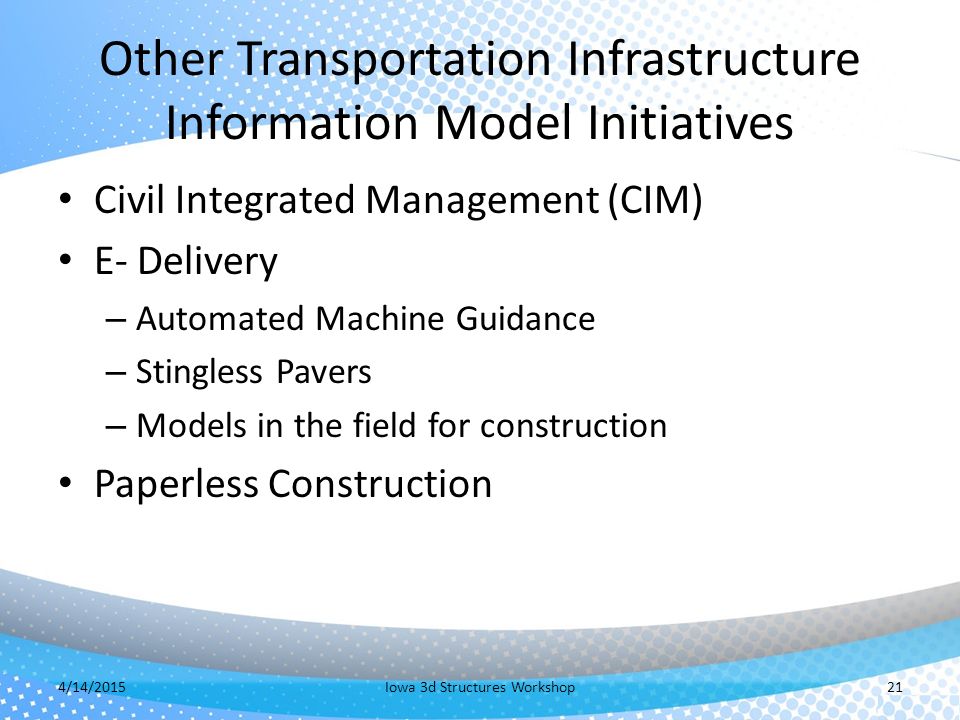

21. Other Transportation Infrastructure Information Model Initiatives Civil Integrated Management (CIM) E- Delivery – Automated Machine Guidance – Stingless Pavers – Models in the field for construction Paperless Construction 214/14/2015Iowa 3d Structures Workshop

22. What is T-19 doing? Educating SCOBS members on Information Modeling Working with Cross AASHTO and TRB committees Participating with FHWA in their Information Modeling efforts Resourcing a 20-07 to have workshop and provide road map of next steps for a standardized format 224/14/2015Iowa 3d Structures Workshop

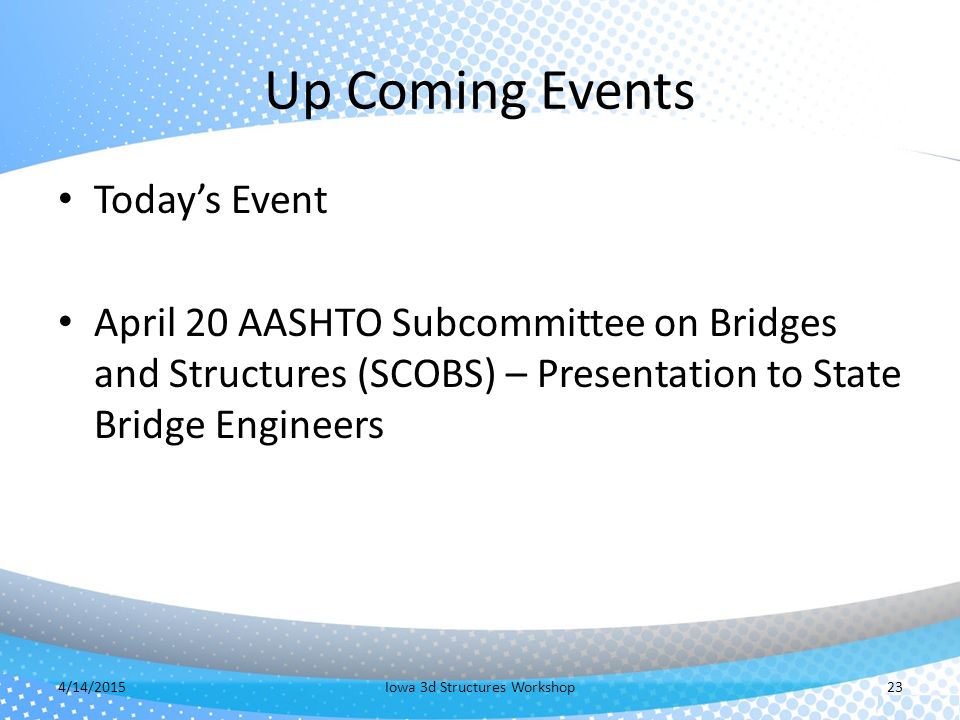

23. Up Coming Events Today’s Event April 20 AASHTO Subcommittee on Bridges and Structures (SCOBS) – Presentation to State Bridge Engineers 234/14/2015Iowa 3d Structures Workshop

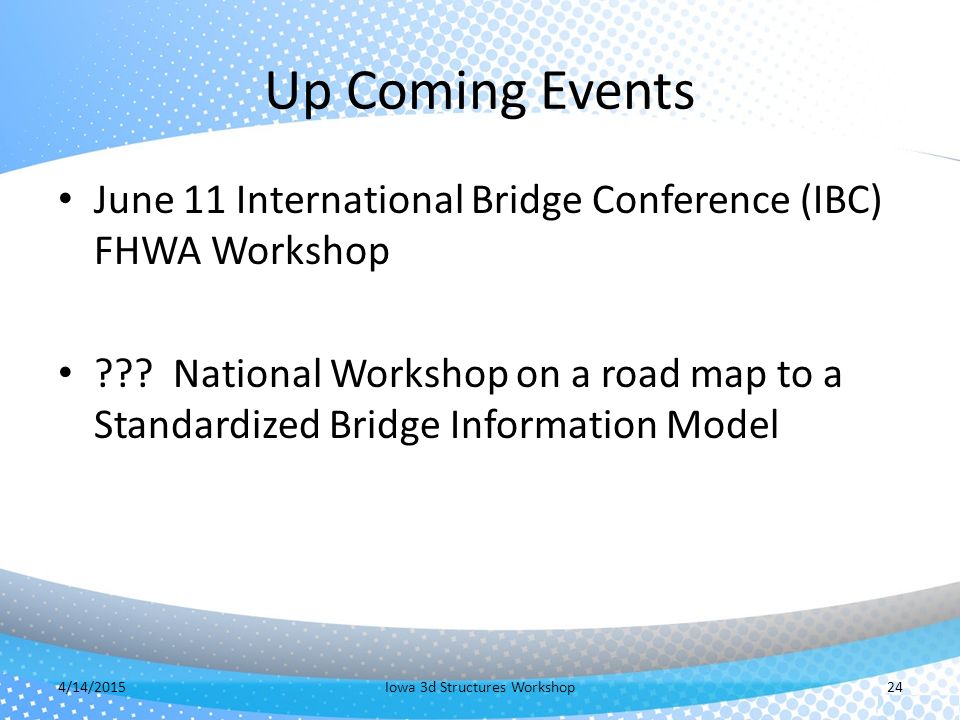

24. Up Coming Events June 11 International Bridge Conference (IBC) FHWA Workshop ??? National Workshop on a road map to a Standardized Bridge Information Model 4/14/2015Iowa 3d Structures Workshop24

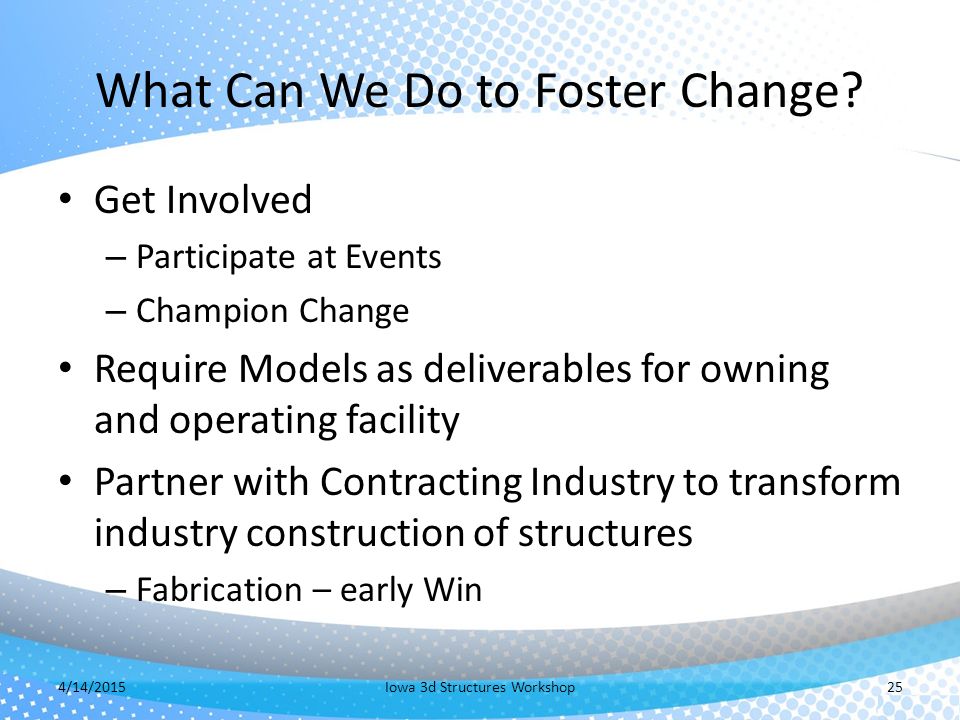

25. Get Involved – Participate at Events – Champion Change Require Models as deliverables for owning and operating facility Partner with Contracting Industry to transform industry construction of structures – Fabrication – early Win What Can We Do to Foster Change? 254/14/2015Iowa 3d Structures Workshop

26. Thank You 4/14/2015Iowa 3d Structures Workshop26
