1. Leading the pervasive adoption of grid computing for research and industry © 2005 Global Grid Forum The information contained herein is subject to change without notice JSDL Stephen McGough With thanks to: Ali Anjomshoaa, Fred Brisard, Michel Drescher, Donal K. Fellows, William Lee, An Ly, Darren Pulsipher, Andreas Savva, Chris Smith 10 May 2006

2. 2 Describing a Job Submission: JSDL Job Submission Description Language (JSDL) −A language for describing the requirements of jobs for submission −Declarative description A JSDL document describes the job requirements −Job identification information −Application (e.g., executable, arguments) −Required resources (e.g., CPUs, memory) −Input/output filesJob IT Infrastructure JSDL

3. 3 OGSA BES system WS Gateway WS Clients Job Manager A Grid Information Service Local Information Service Local resource (e.g., Supercomputer) Existing DRM Super Scheduler, or Broker, or … JSDL Here And Here JSDL Here And Here JSDL Document Usage

4. 4 JSDL Introduction JSDL stands for Job Submission Description Language −A language for describing the requirements of computational jobs for submission to Grids and other systems. A JSDL document describes the job requirements −What to do, not how to do it JSDL does not define a submission interface or what the results of a submission look like −Or how resources are selected, or … The JSDL-WG is now considering its next steps. JSDL 1.0 is published as GFD-R-P.56 −Includes description of JSDL elements and XML Schema −Available at http://www.ggf.org/gf/docs/?final

5. 5 Why do we need JSDL? There are many languages out there for submitting jobs to the Grid – so why do we need JSDL? −This is the problem. We didn’t have a standard for job submission −Each system uses its own language −Hence interoperability is difficult (if not impossible) We set out to develop one language for all to use −A standard language that we can use between systems −Or for submitting to any system This is especially important for Workflow

6. 6 JSDL Document (1) A JSDL document is an XML document It may contain −Generic (job) identification information −Application description −Resource requirements (main focus is computational jobs) −Description of required data files Out of scope, for JSDL version 1.0 −Scheduling −Workflow −Security −…

7. 7 JSDL Document (2) A JSDL document is a template … −It can be submitted multiple times; and therefore can be used to create multiple job instances … so JSDL 1.0 does not define attributes to describe the state of a running job −No start time, end time, submission status, or even JobID A JSDL document can be composed with other languages (open content model) −For example to express scheduling, security, etc, requirements in more detail −Within other documents - Workflows

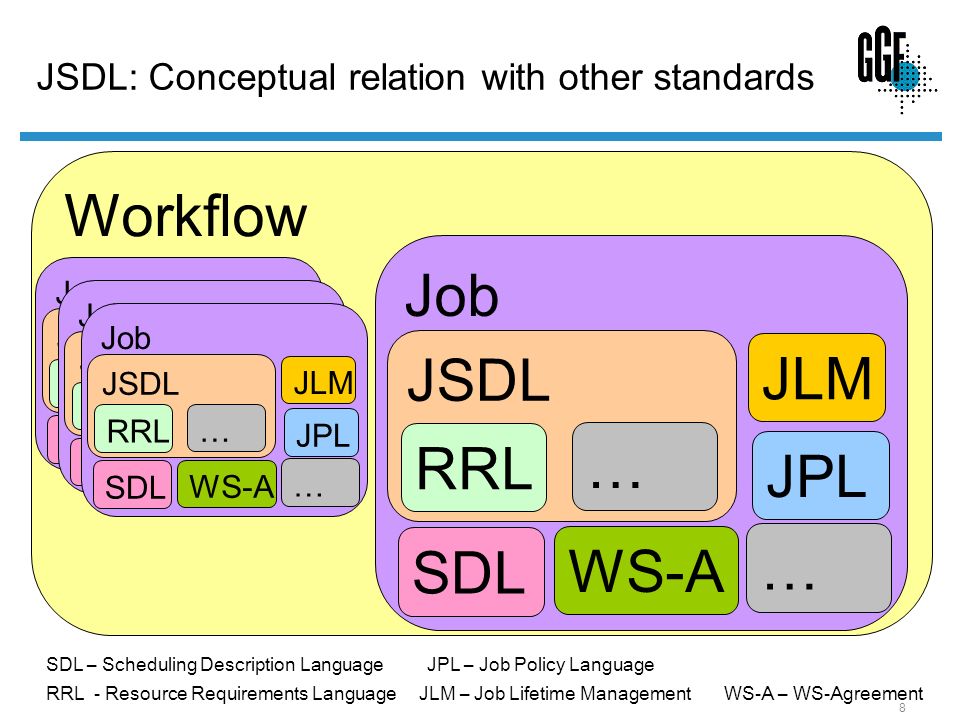

8. 8 Workflow Job JSDL: Conceptual relation with other standards JSDL RRL SDL WS-A JLM JPL … … Job JSDL RRL SDL WS-A JLM JPL … … Job JSDL RRL SDL WS-A JLM JPL … … Job JSDL RRL SDL WS-A JLM JPL … … SDL – Scheduling Description Language JPL – Job Policy Language RRL - Resource Requirements Language JLM – Job Lifetime Management WS-A – WS-Agreement

9. 9 BES JSDL Document Life Cycle A JSDL document may be −Abstract Only the minimum information necessary −For example, application name and input files Runnable at sites that understand this level of description −Refined More detail provided −Target site, number of CPUs, which data source May be refined several times −Tied to a specific site/system Incarnated (Unicore speak); or Grounded (Globus speak) This model is supported/allowed but not required by JSDL

10. 10 A few words on JSDL and BES JSDL is a language −No submission interface defined (on purpose) −JSDL is independent of submission interfaces BES is defining a Web Service interface which consumes JSDL documents −This is not the only use of JSDL −Though we do like it BES Container JSDL

11. 11 JSDL Document Structure Overview ? * Note: −None[1..1] −?[0..1] −* [0..n] −+ [1..n]

12. 12 Data Staging Requirement (1) Previous statements included: −“A JSDL document describes the job requirements What to do, not how to do it *” −“Workflow is out of scope.” But … data staging is a common requirement for any meaningful job submission −Especially for batch job submission −No standard to describe such data movements −Don’t want to do a ‘workflow’ language.

13. 13 Data Staging Requirement (2) Our solution −Assume simple model: Stage-in – Execute – Stage-Out −Files required for execution Files are staged-in before the job can start executing −Files to preserve Files are staged-out after the job finishes execution More complex approaches can be used −But this is outside JSDL −You don’t need to use the JSDL Data Staging Stage-InExecuteStage-Out

14. 14 JSDL & Workflow We hope that JSDL can be used as core elements within a workflow language −Such as BPEL −Etc… Action1 Action2 Action3 Action4 JSDL

15. 15 Example Case: GridSAM & Sedna JSDL Job Submission

16. 16 JSDL Adoption The following projects have presented at GGF JSDL sessions and are known to have implementations of some version of JSDL; not necessarily 1.0. −Business Grid −Grid Programming Environment (GPE) −GridSAM −HPC-Europa −Market for Computational Services −NAREGI −UniGrids The following groups also said they are or will be implementing JSDL: −DEISA −GridBus Project (see OGSA Roadmap, section 8) −gridMatrix (Cadence) (presentation) −Nordugrid Also within GGF a number of groups either use directly or have a strong interest or connection with JSDL: −BES-WG, CDDLM-WG, DRMAA-WG, GRAAP-WG, OGSA-WG, RSS-WG An up-to-date version of this list is on Gridforge: https://forge.gridforum.org/projects/jsdl-wg/document/JSDL-Adoption/en/

17. 17 JSDL Mappings ARC (NorduGrid) Condor eNANOS Fork Globus 2 GRIA provider Grid Resource Management System (GRMS) JOb Scheduling Hierarchically (JOSH) LSF Sun Grid Engine Unicore

18. 18 Questions
