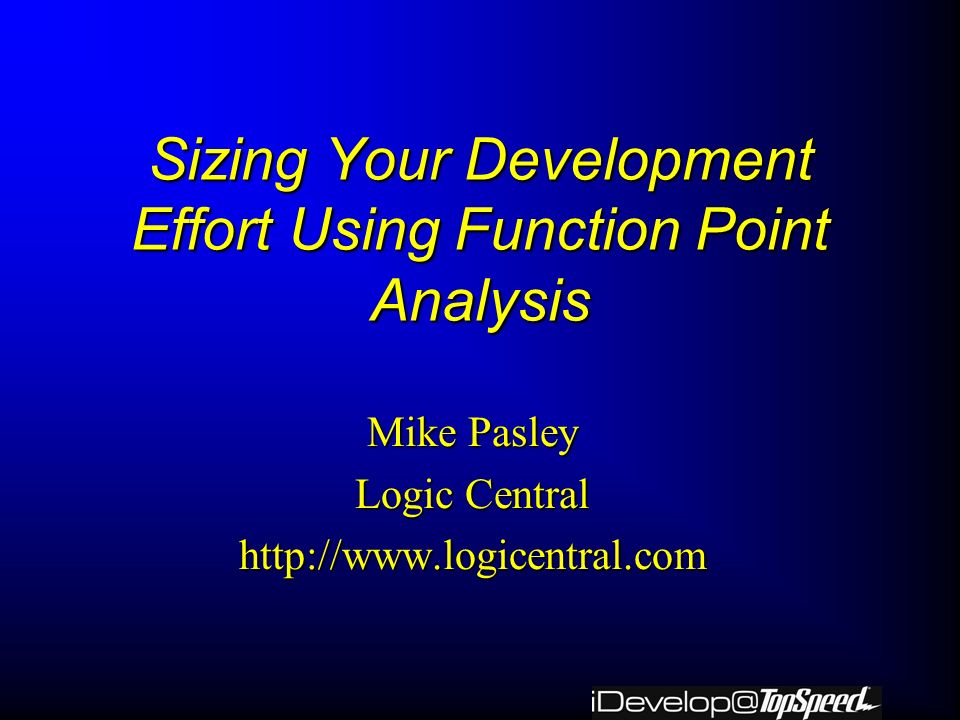

1. Sizing Your Development Effort Using Function Point Analysis Mike Pasley Logic Central http://www.logicentral.com

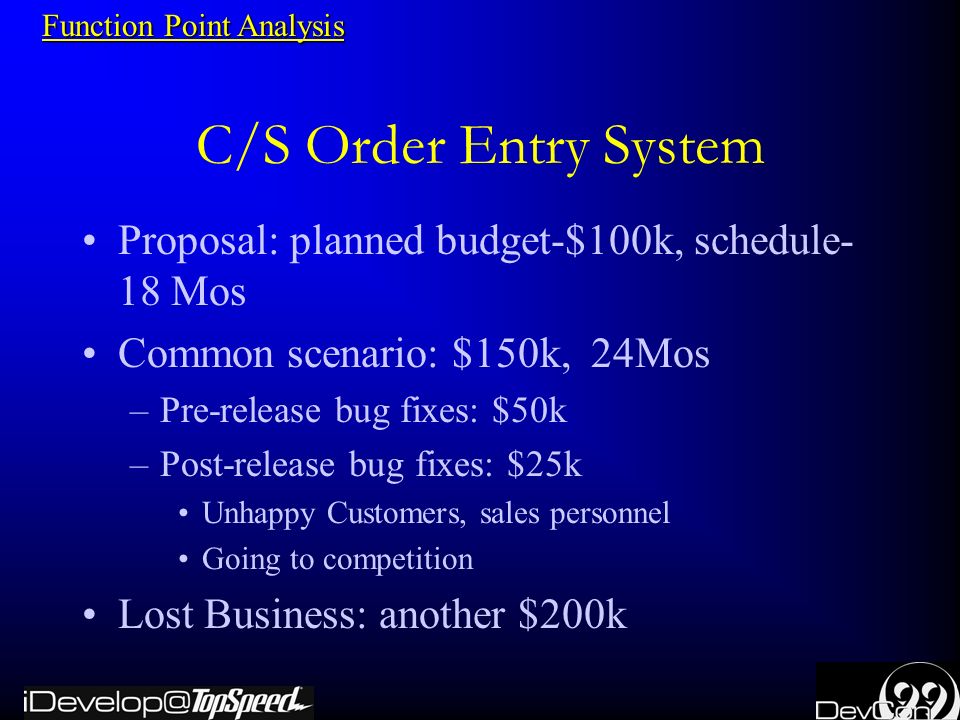

2. Function Point Analysis C/S Order Entry System Proposal: planned budget-$100k, schedule- 18 Mos Common scenario: $150k, 24Mos –Pre-release bug fixes: $50k –Post-release bug fixes: $25k Unhappy Customers, sales personnel Going to competition Lost Business: another $200k

3. Function Point Analysis C/S Order Entry System Does Not Have To Be That Way!! Other companies, same application –$75k or less, 16 Mos –All Defect Removal: $15k What are they doing differently? –5 Steps to Software Quality Control (Applied Software Measurements - Capers Jones)

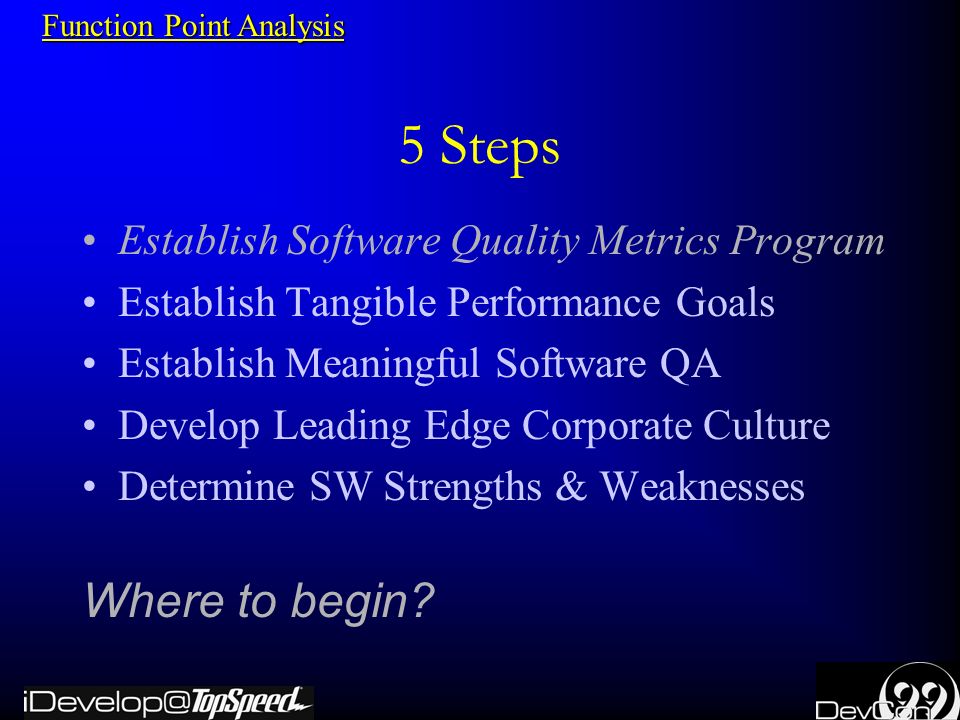

4. Function Point Analysis 5 Steps Establish Software Quality Metrics Program Establish Tangible Performance Goals Establish Meaningful Software QA Develop Leading Edge Corporate Culture Determine SW Strengths & Weaknesses Where to begin?

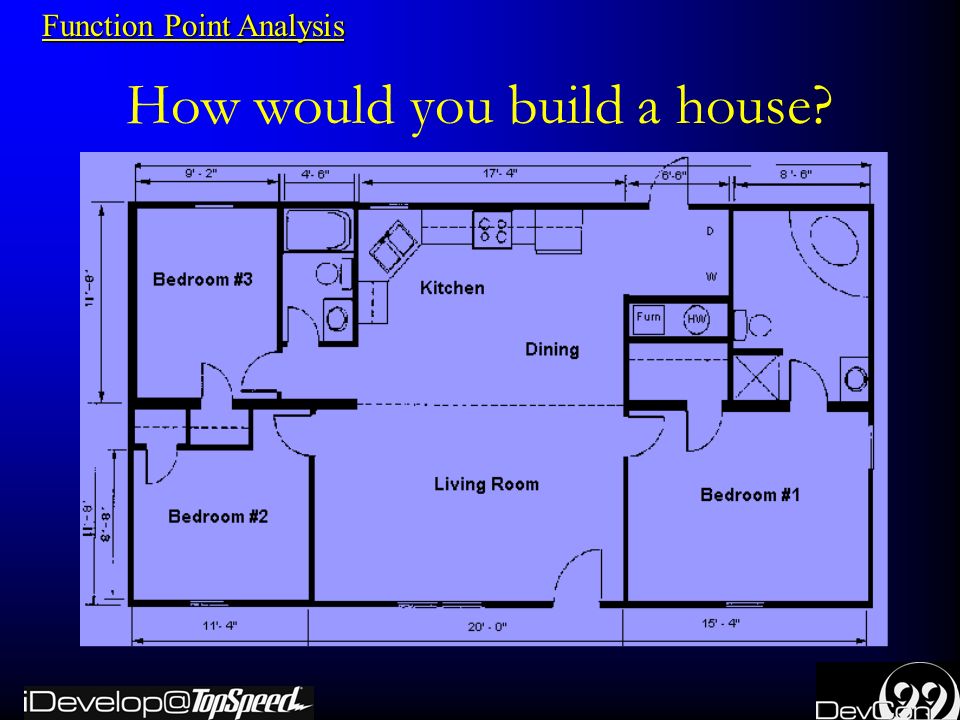

5. Function Point Analysis How would you build a house?

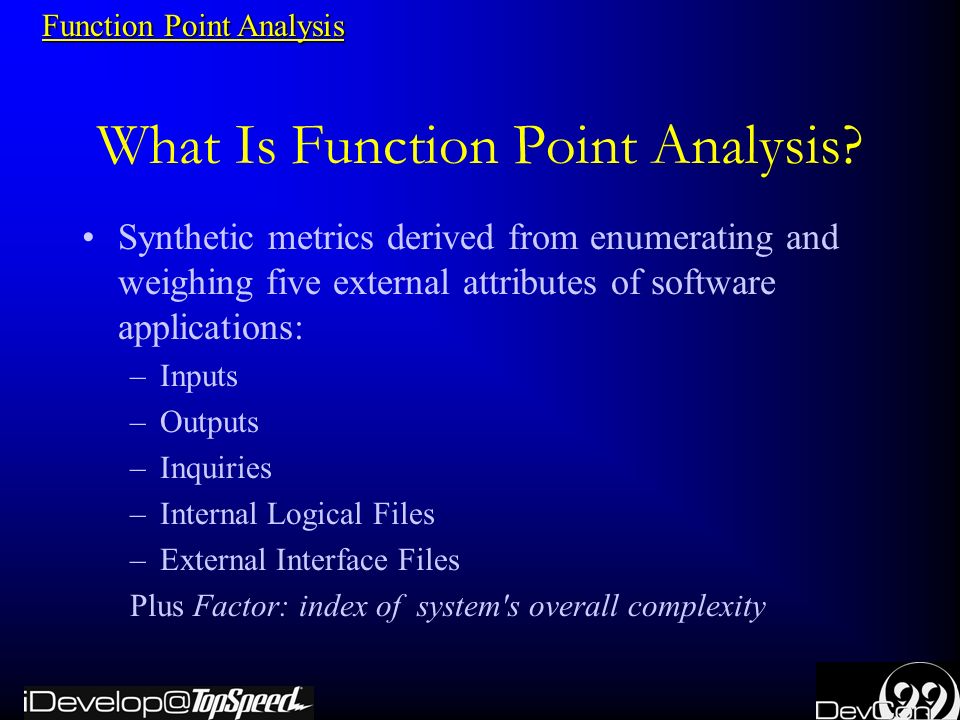

6. Function Point Analysis What Is Function Point Analysis? Synthetic metrics derived from enumerating and weighing five external attributes of software applications: –Inputs –Outputs –Inquiries –Internal Logical Files –External Interface Files Plus Factor: index of system's overall complexity

7. Function Point Analysis What Is Function Point Analysis? Function points are indicators of size based on the 'logical' view of a piece of software. Make it possible to measure the size of information systems according to what the user sees and interacts with –Quantify functionality delivered to user based primarily on logical design

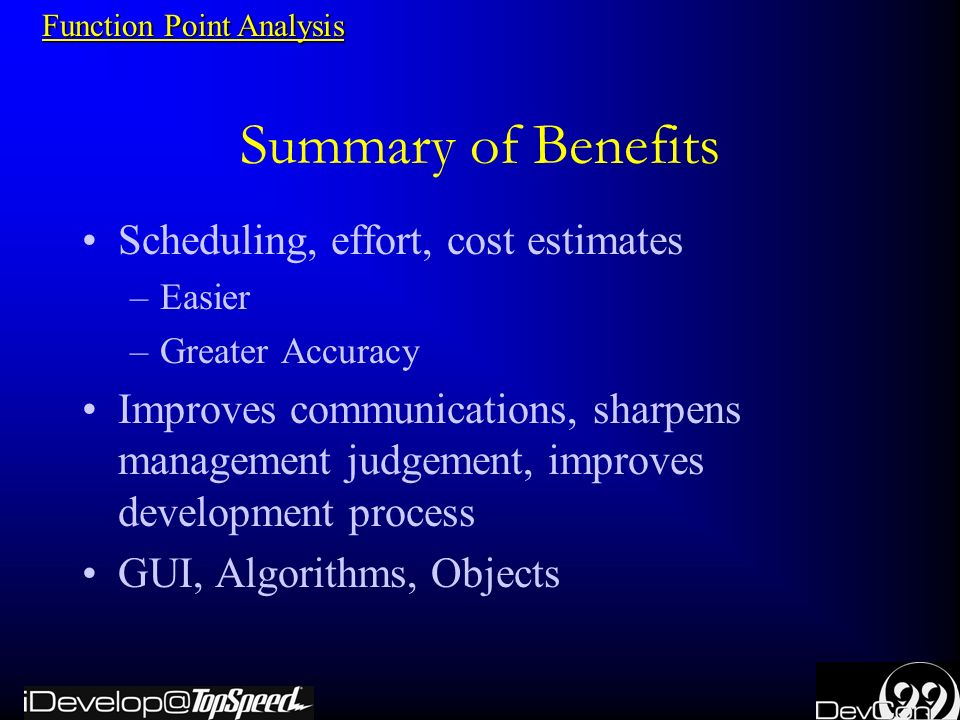

8. Function Point Analysis Summary of Benefits Scheduling, effort, cost estimates –Easier –Greater Accuracy Improves communications, sharpens management judgement, improves development process GUI, Algorithms, Objects

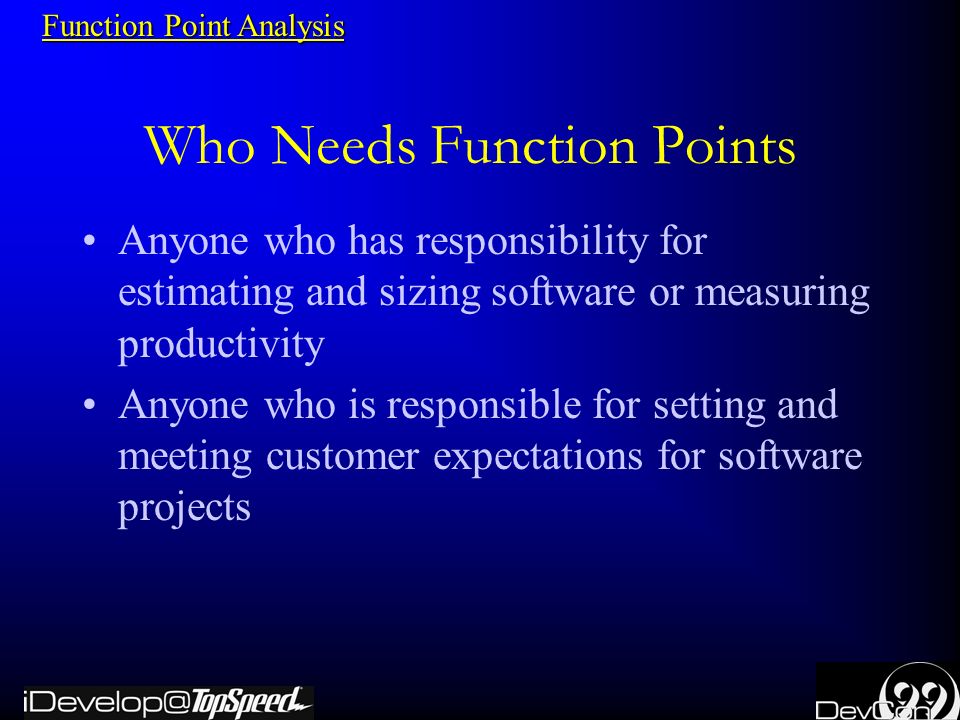

9. Function Point Analysis Who Needs Function Points Anyone who has responsibility for estimating and sizing software or measuring productivity Anyone who is responsible for setting and meeting customer expectations for software projects

10. Function Point Analysis FPA fits Engineering Method Use of heuristics (a decision-making aid) to cause the best change in a poorly understood system given available resources

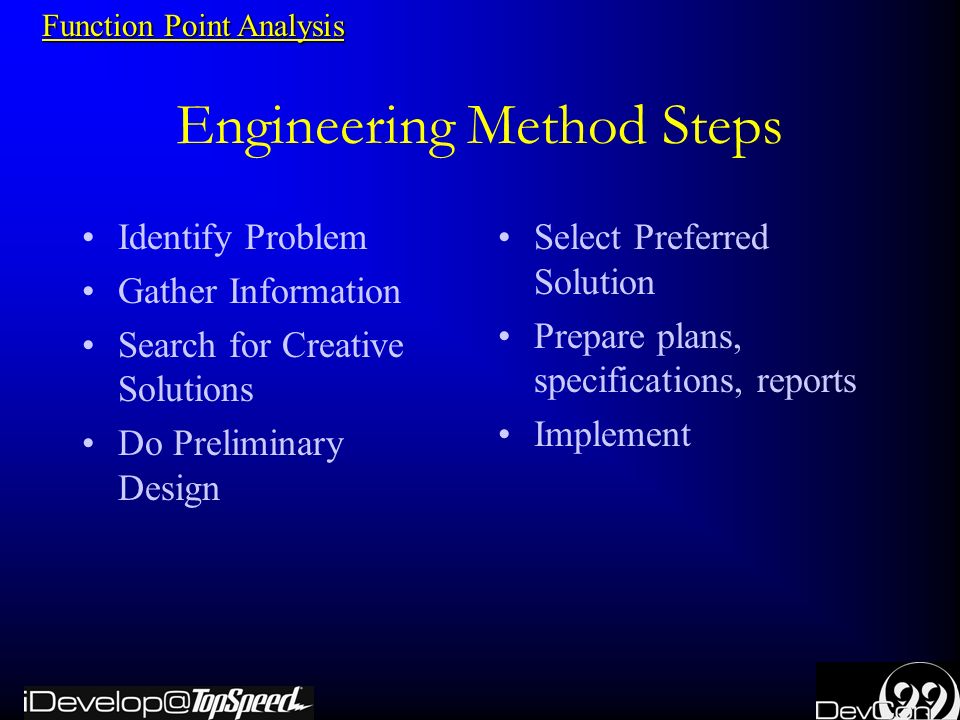

11. Function Point Analysis Engineering Method Steps Identify Problem Gather Information Search for Creative Solutions Do Preliminary Design Select Preferred Solution Prepare plans, specifications, reports Implement

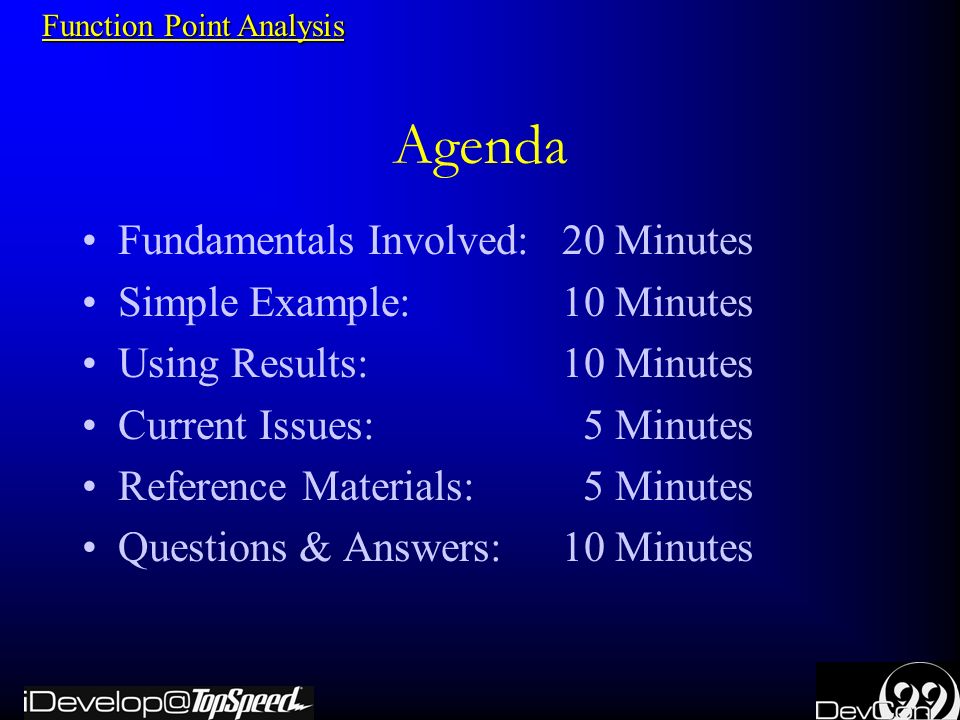

12. Function Point Analysis Agenda Fundamentals Involved: 20 Minutes Simple Example: 10 Minutes Using Results: 10 Minutes Current Issues: 5 Minutes Reference Materials: 5 Minutes Questions & Answers: 10 Minutes

13. Function Point Analysis Development Goals Software should be completed Software should work

14. Function Point Analysis Relationship Goals Clients should be satisfied Developers should be satisfied Clients/Developer relationship should be trusting, respectful

15. Function Point Analysis Connections If everyone understands size of project, all parties will work better together Three blind men/elephant effect: –One near the tail described it as a snake –One near the leg described it as a tree trunk –One near the side described it as a wall –Each description gives an accurate picture of some aspects of the elephant, but a false picture of the elephant as a whole.

16. Function Point Analysis User Viewpoint Productivity: “Goods or services produced per unit of labor or expense” Customers do not buy lines of code Customers care about functionality Focus: “What” is being delivered without clouding the issue with “how” it is being done. –User business function and exists for business reasons not just for technical or design reasons

17. Function Point Analysis Terminology Application Boundary Inputs Outputs Inquiries Internal Logical Files External Interface Files

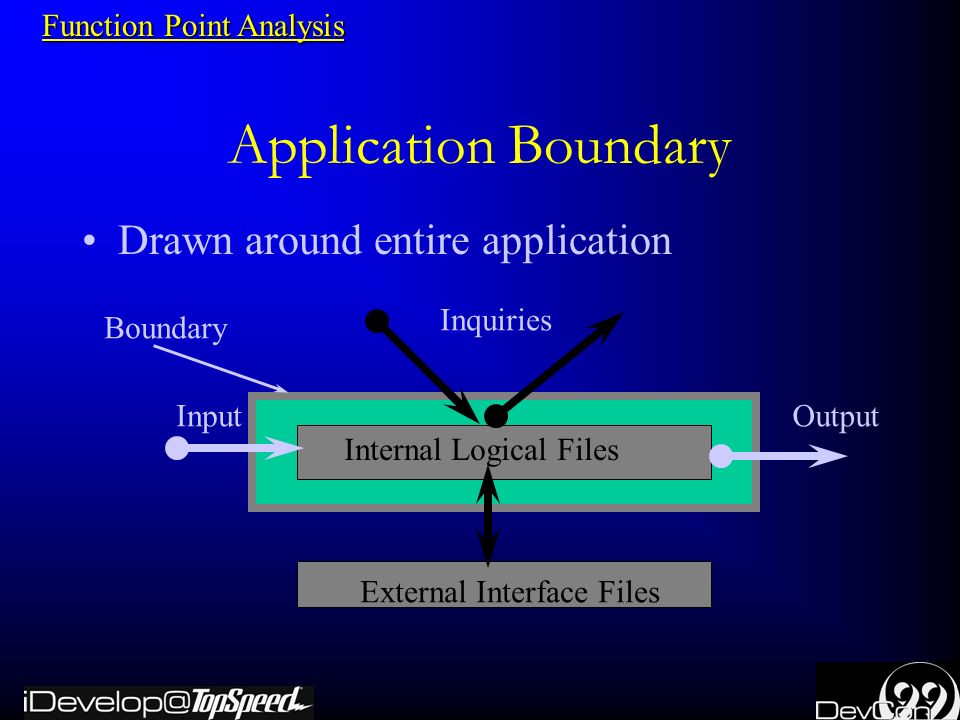

18. Function Point Analysis Application Boundary Drawn around entire application External Interface Files Internal Logical Files Inquiries InputOutput Boundary

19. Function Point Analysis External Inputs (EI) An elementary process in which data crosses the boundary from outside to inside. –Data input screen –Electronically –Another application –Business data: does update internal logical file –Control data: does not update internal logical file

20. Function Point Analysis External Outputs (EO) An elementary process in which derived data passes across the boundary from inside to outside. –Creates reports –Creates output files sent to other applications –Created from internal logical files/external interface file

21. Function Point Analysis External Inquiries (EQ) An elementary process with both input and output components that result in data retrieval from one or more internal logical files and external interface files Sent outside the application boundary –Input process does not update ILF –Output side does not contain derived data

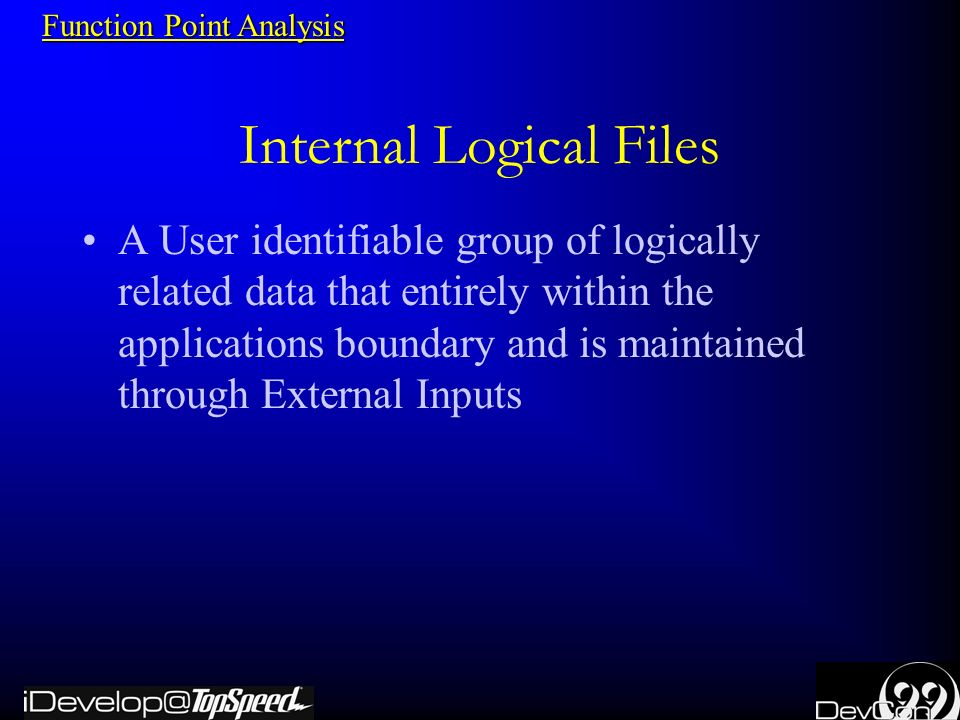

22. Function Point Analysis Internal Logical Files A User identifiable group of logically related data that entirely within the applications boundary and is maintained through External Inputs

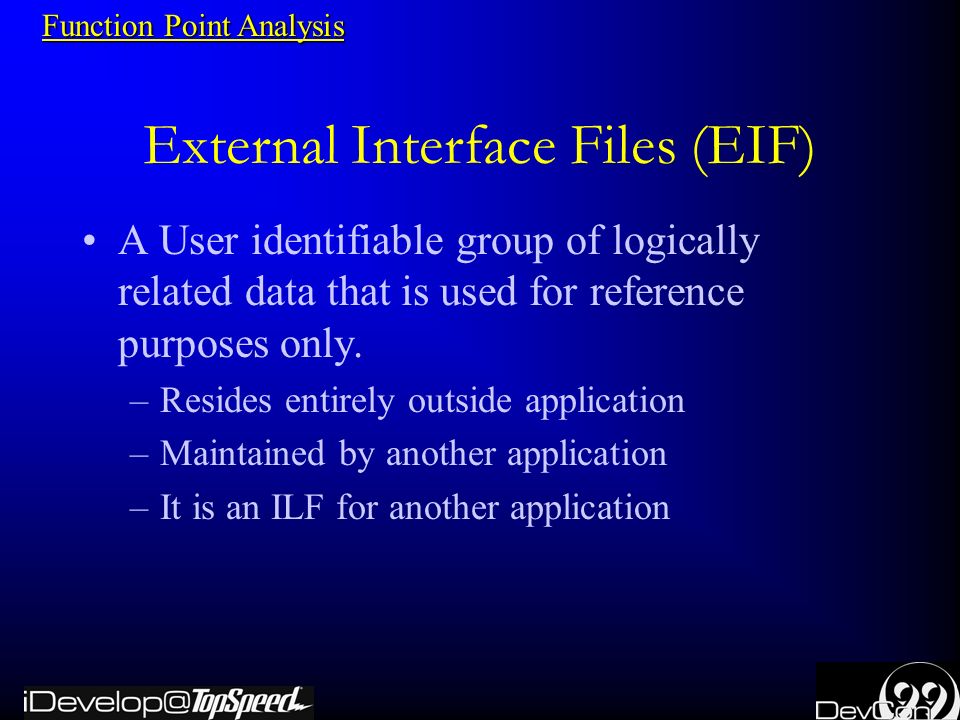

23. Function Point Analysis External Interface Files (EIF) A User identifiable group of logically related data that is used for reference purposes only. –Resides entirely outside application –Maintained by another application –It is an ILF for another application

24. Function Point Analysis Application Boundary Drawn around entire application External Interface Files Internal Logical Files Inquiries InputOutput Boundary

25. Function Point Analysis General System Characteristics Data communications Distributed functions Perfomance objectives Heavily used configuration Transaction rate On-line data entry End-user efficiency On-line update Complex processing Reusability Installation ease Operational ease Multiple sites Facilitate change

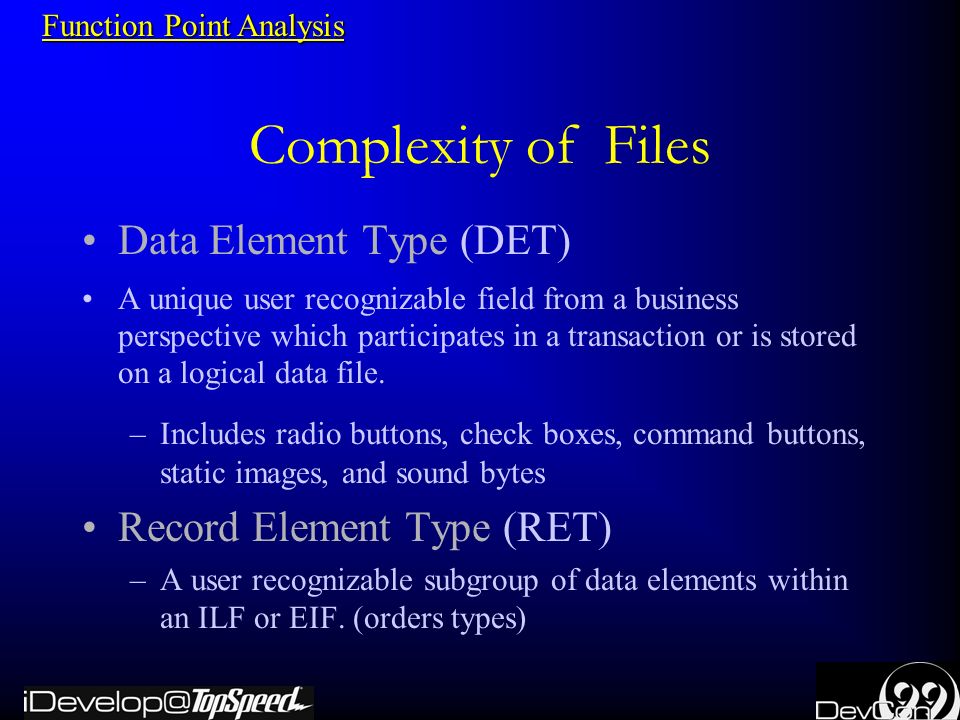

26. Function Point Analysis Complexity of Files Data Element Type (DET) A unique user recognizable field from a business perspective which participates in a transaction or is stored on a logical data file. –Includes radio buttons, check boxes, command buttons, static images, and sound bytes Record Element Type (RET) –A user recognizable subgroup of data elements within an ILF or EIF. (orders types)

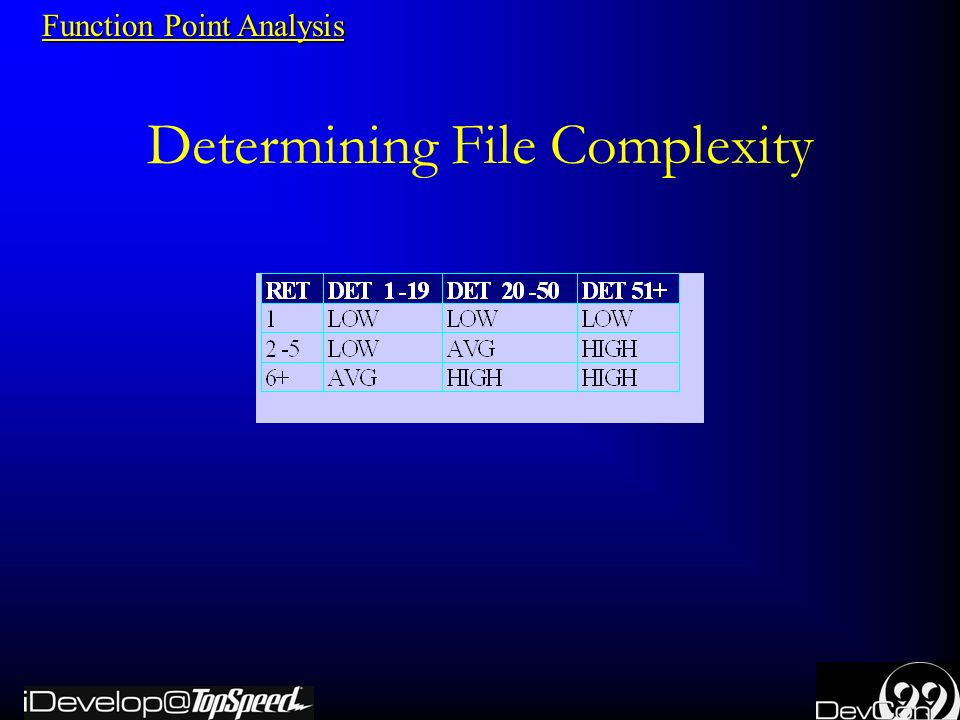

27. Function Point Analysis Determining File Complexity

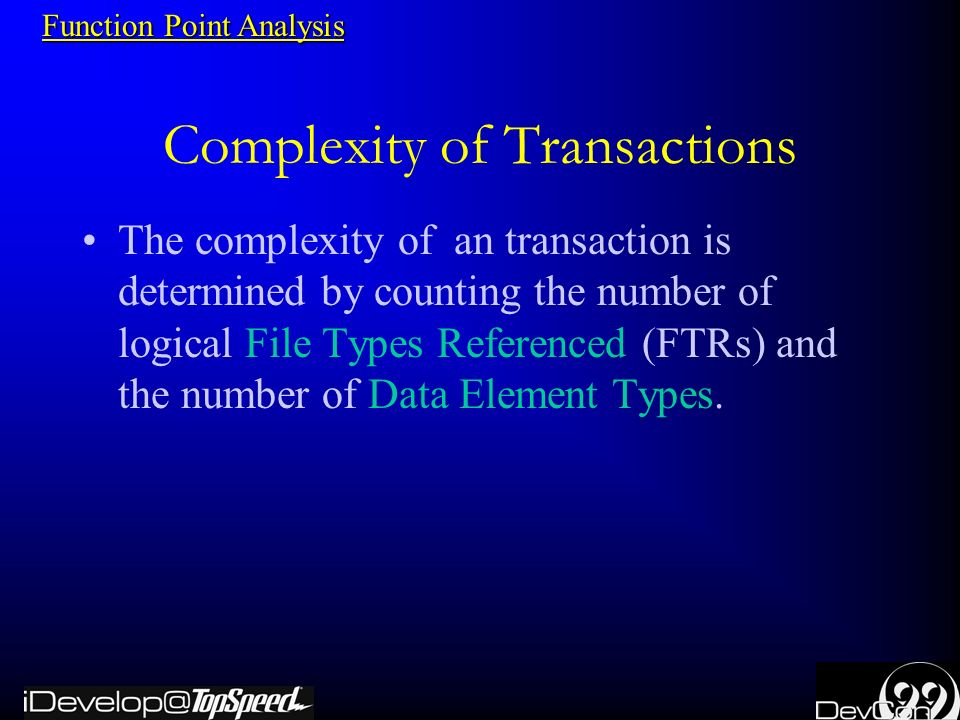

28. Function Point Analysis Complexity of Transactions The complexity of an transaction is determined by counting the number of logical File Types Referenced (FTRs) and the number of Data Element Types.

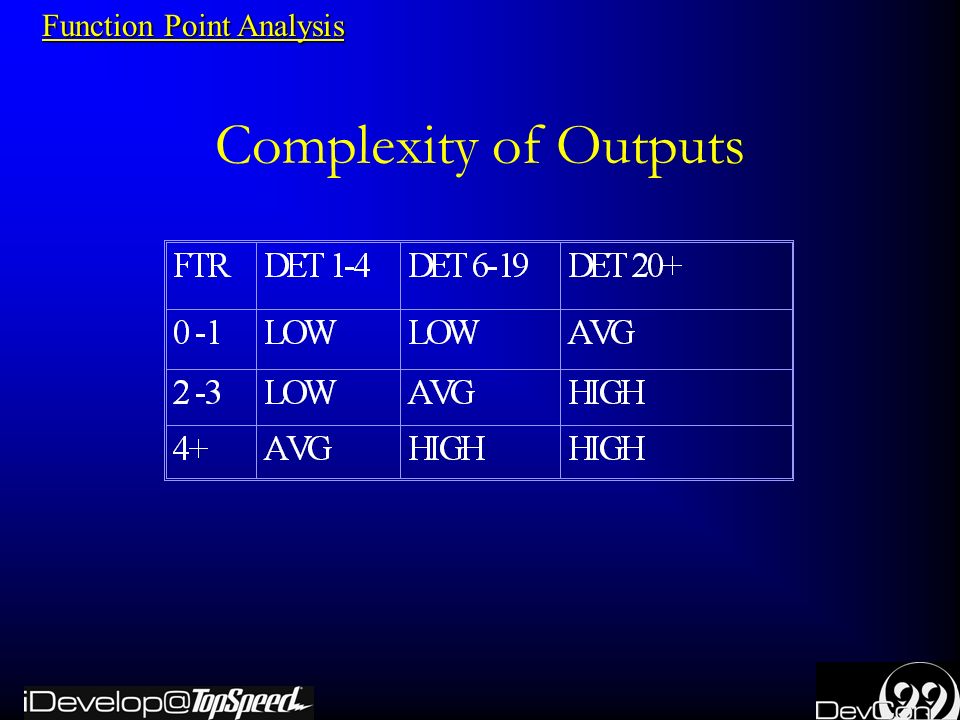

29. Function Point Analysis Complexity of Outputs

30. Function Point Analysis Complexity of Inputs

31. Function Point Analysis Complexity of Inquiries Determined by using the more complex of its input and output components (usually this is the output component).

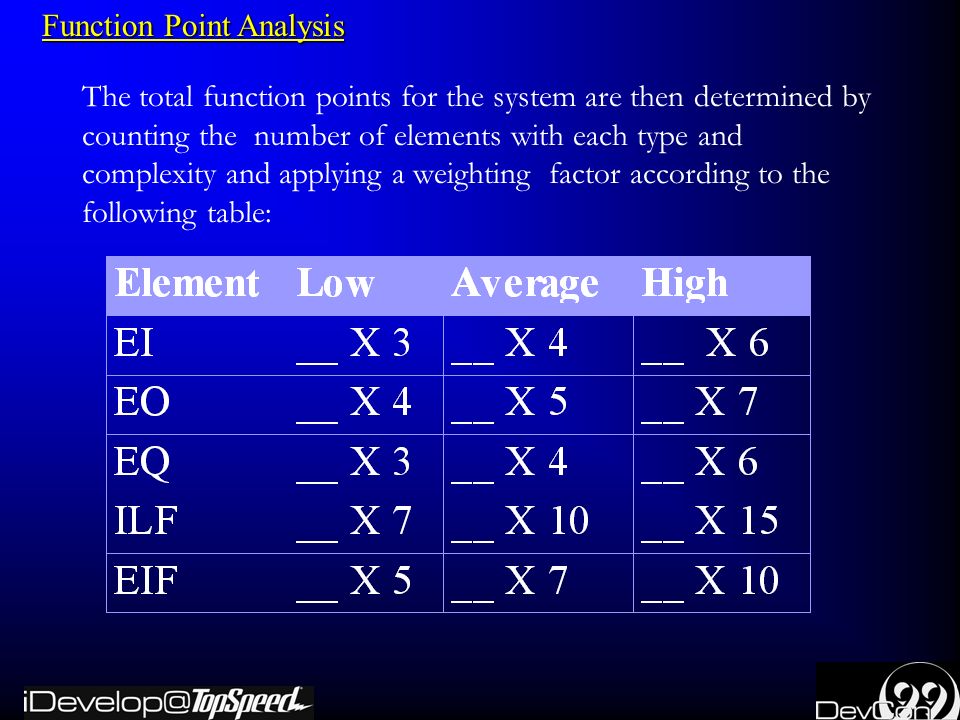

32. Function Point Analysis The total function points for the system are then determined by counting the number of elements with each type and complexity and applying a weighting factor according to the following table:

33. Function Point Analysis

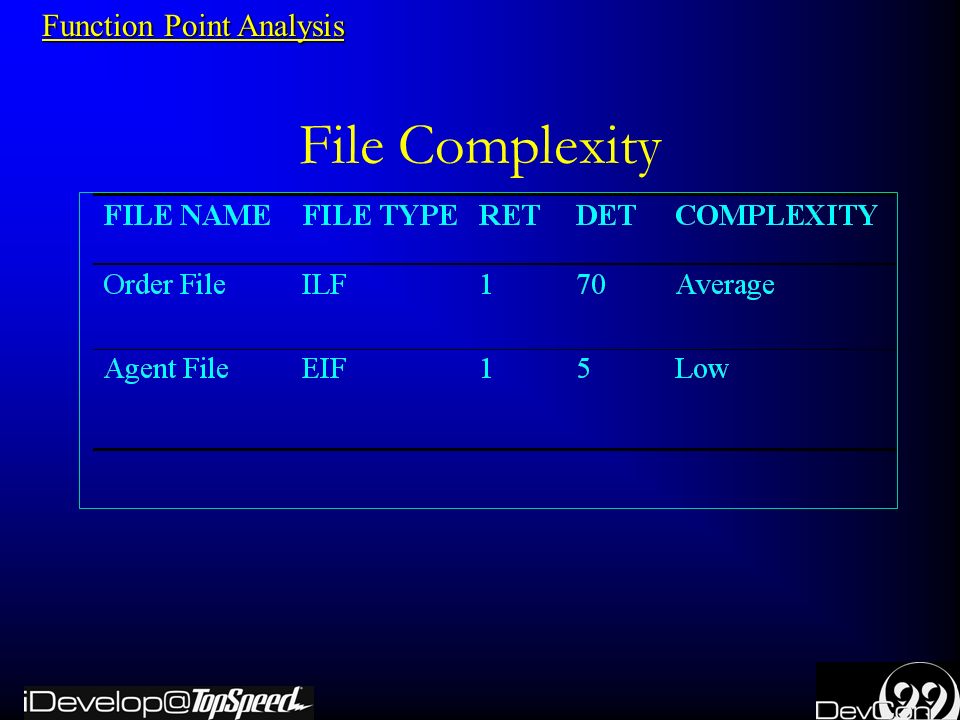

34. File Complexity

35. Function Point Analysis Transaction Complexity

36. Function Point Analysis The total function points for the system are then determined by counting the number of elements with each type and complexity and applying a weighting factor according to the following table:

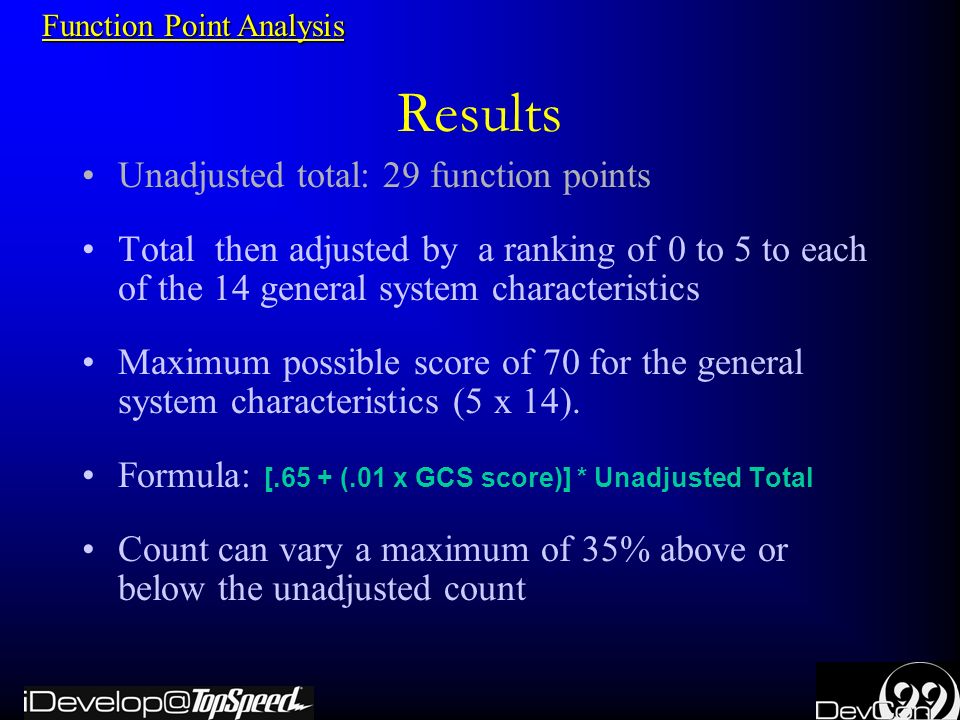

37. Function Point Analysis Results Unadjusted total: 29 function points Total then adjusted by a ranking of 0 to 5 to each of the 14 general system characteristics Maximum possible score of 70 for the general system characteristics (5 x 14). Formula: [.65 + (.01 x GCS score)] * Unadjusted Total Count can vary a maximum of 35% above or below the unadjusted count

38. Function Point Analysis Results Do The Sanity Check!!! –Validate Results Team Review All Components Included? User Viewpoint Only

39. Function Point Analysis Summary User Viewpoint Application Boundary –Transactions Inputs Outputs Inquiries –Files Internal External

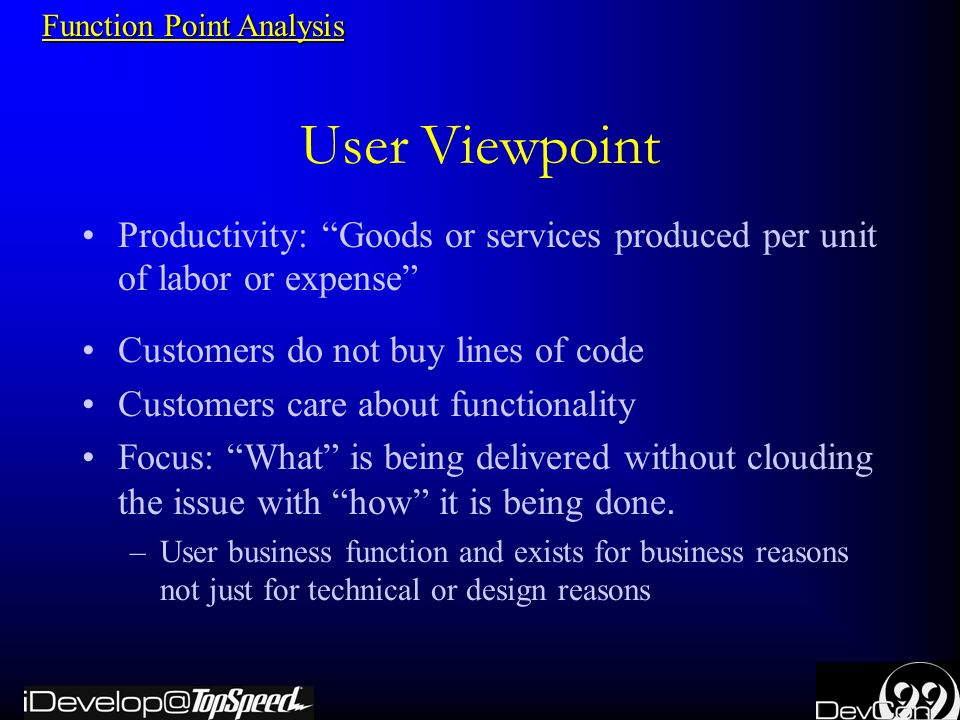

40. Function Point Analysis User Viewpoint Productivity: “Goods or services produced per unit of labor or expense” Customers do not buy lines of code Customers care about functionality Focus: “What” is being delivered without clouding the issue with “how” it is being done. –User business function and exists for business reasons not just for technical or design reasons

41. Function Point Analysis Application Boundary Drawn around entire application External Interface Files Internal Logical Files Inquiries InputOutput Boundary

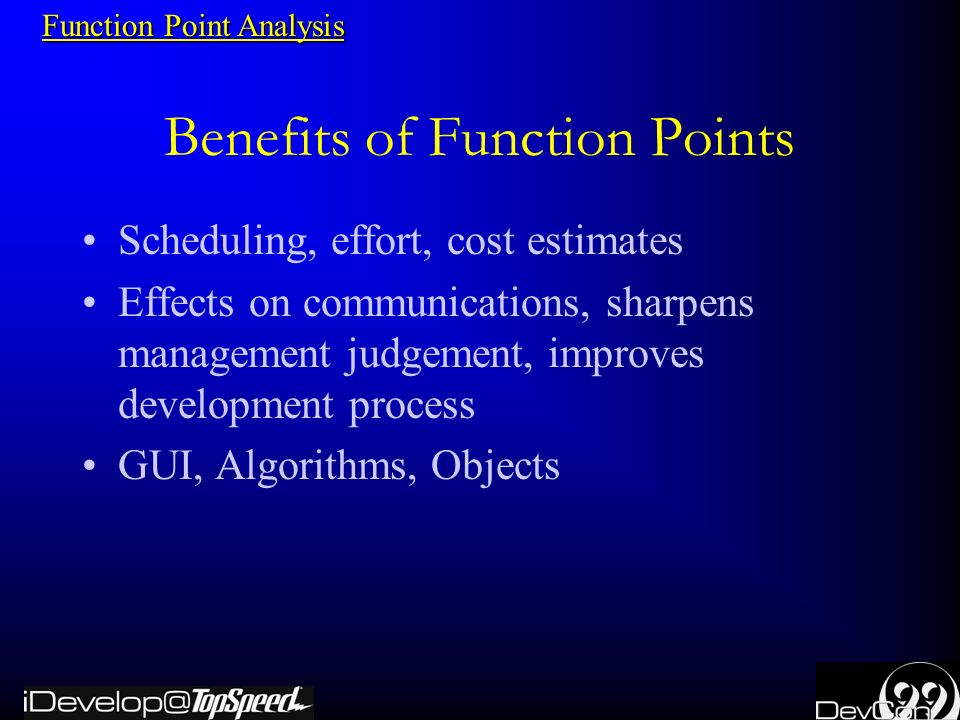

42. Function Point Analysis Benefits of Function Points Scheduling, effort, cost estimates Effects on communications, sharpens management judgement, improves development process GUI, Algorithms, Objects

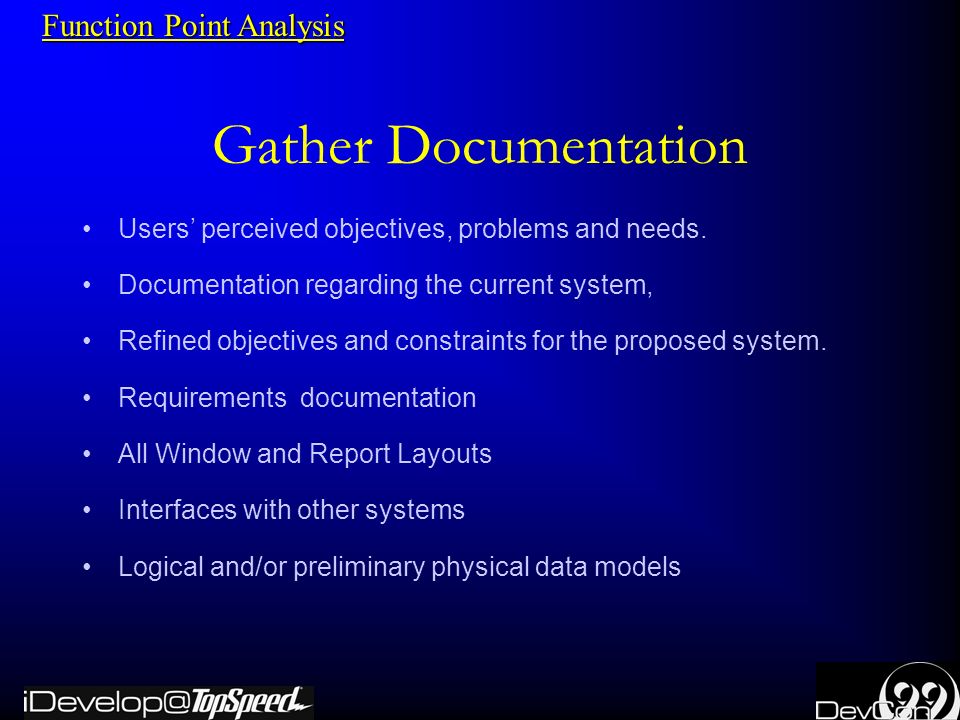

43. Function Point Analysis Gather Documentation Users’ perceived objectives, problems and needs. Documentation regarding the current system, Refined objectives and constraints for the proposed system. Requirements documentation All Window and Report Layouts Interfaces with other systems Logical and/or preliminary physical data models

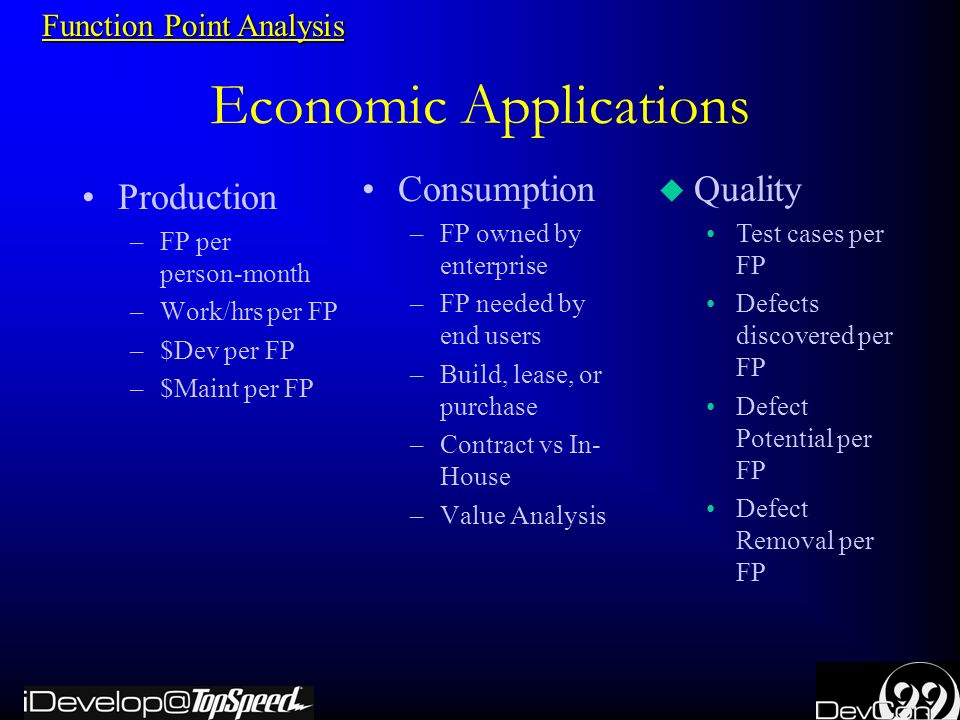

44. Function Point Analysis Economic Applications Production –FP per person-month –Work/hrs per FP –$Dev per FP –$Maint per FP Consumption –FP owned by enterprise –FP needed by end users –Build, lease, or purchase –Contract vs In- House –Value Analysis u Quality Test cases per FP Defects discovered per FP Defect Potential per FP Defect Removal per FP

45. Function Point Analysis Issues Too prone to human misinterpretation –the use of certification programs and exams has narrowed the range of counting variance to within about 10 percent. Too labor-intensive –automated counting tools Not adequate for non- business information systems –consumer devices, real -time, embedded –Continually revised, adapted (feature points, Engrg, object, etc) Standardization –20 variations, IFPUG dominant –International Standards Organization

46. Function Point Analysis Where to get more information and presentation references Int’l Function Point User Group (www.ifpug.org) Software Productivity Research (www.spr.com) Longstreet Consulting (www.ifpug.com) Geneer (www.geneer.com) Capers Jones Books on Software Quality –Software Quality, Analysis & Guidelines –Applied Software Measurement

47. Function Point Analysis Questions ????

48. Function Point Analysis Contact Information Mike Pasley Email Address: mpasley@logicentral.com Logic Central Web Page: http://www.logicentral.com
