1. 1 Metric Conversions, Roman Numerals, and Fractions

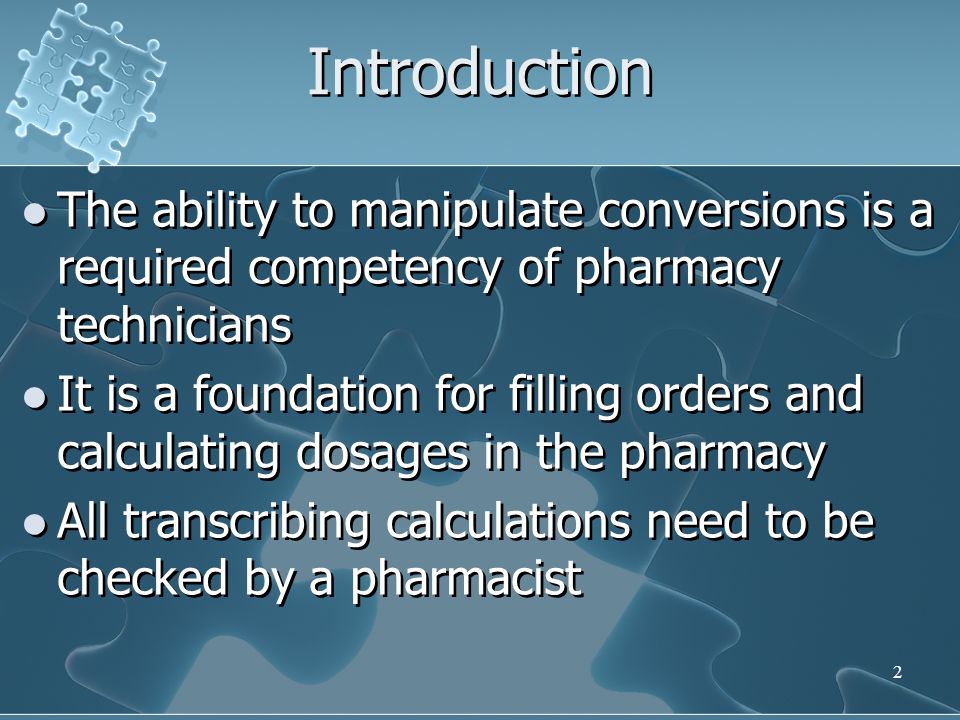

2. 2 Introduction The ability to manipulate conversions is a required competency of pharmacy technicians It is a foundation for filling orders and calculating dosages in the pharmacy All transcribing calculations need to be checked by a pharmacist The ability to manipulate conversions is a required competency of pharmacy technicians It is a foundation for filling orders and calculating dosages in the pharmacy All transcribing calculations need to be checked by a pharmacist

3. 3 Introduction (Continued) Pharmacy measurements come from different regions of the world The four most common types of calculation systems are: Metric system Household measurements Apothecary system Avoirdupois system Pharmacy measurements come from different regions of the world The four most common types of calculation systems are: Metric system Household measurements Apothecary system Avoirdupois system

4. 4 Introduction (Continued) A good way to become familiar with common pharmacy measurements is to start with what you know and then slowly build on that knowledge The pharmacy technician must translate the doctor’s orders into lay terms You must make the instructions easy enough for a child to understand A good way to become familiar with common pharmacy measurements is to start with what you know and then slowly build on that knowledge The pharmacy technician must translate the doctor’s orders into lay terms You must make the instructions easy enough for a child to understand

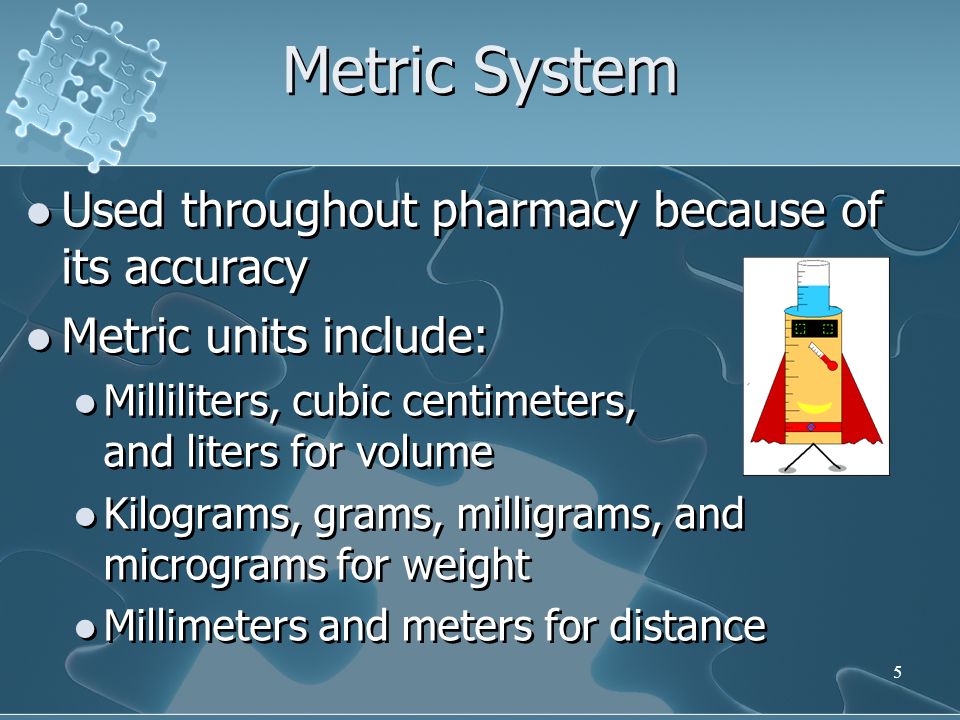

5. 5 Metric System Used throughout pharmacy because of its accuracy Metric units include: Milliliters, cubic centimeters, and liters for volume Kilograms, grams, milligrams, and micrograms for weight Millimeters and meters for distance Used throughout pharmacy because of its accuracy Metric units include: Milliliters, cubic centimeters, and liters for volume Kilograms, grams, milligrams, and micrograms for weight Millimeters and meters for distance

6. 6 Metric System (Continued) There is a 1000-unit difference between each measurement Most Common Metric Measurements kg______g________mg________mcg 1000x 1000x 1000x There is a 1000-unit difference between each measurement Most Common Metric Measurements kg______g________mg________mcg 1000x 1000x 1000x

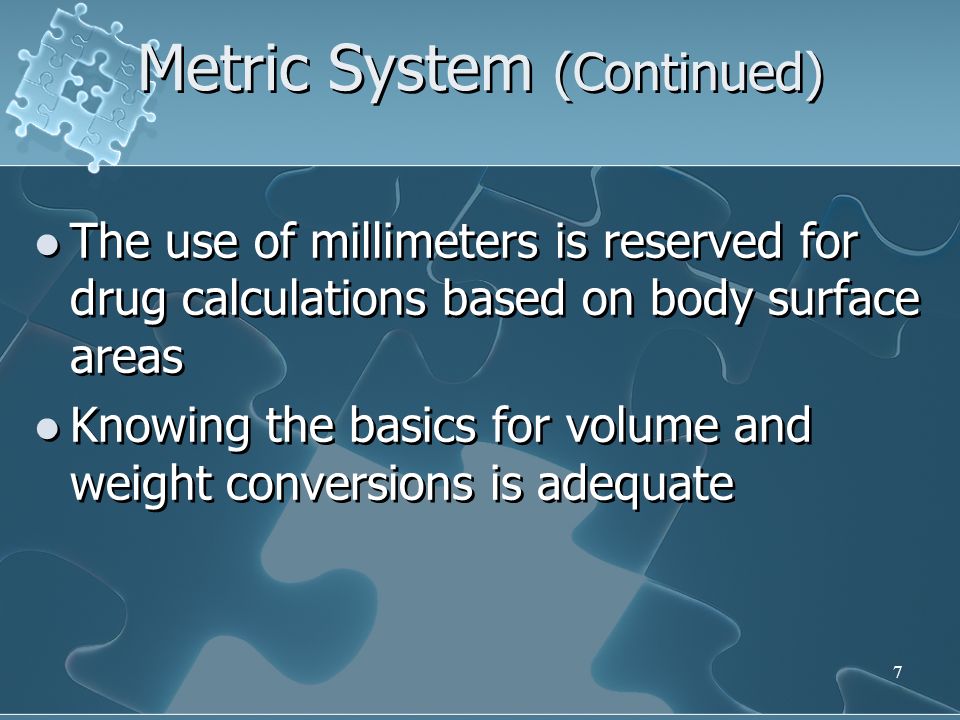

7. 7 Metric System (Continued) The use of millimeters is reserved for drug calculations based on body surface areas Knowing the basics for volume and weight conversions is adequate The use of millimeters is reserved for drug calculations based on body surface areas Knowing the basics for volume and weight conversions is adequate

8. 8 Writing Units Using Each System (Continued) Metric measurements cc and ml can be used interchangeably Dry weights use mcg, mg, g, and kg Liquid volumes use ml and L Metric measurements cc and ml can be used interchangeably Dry weights use mcg, mg, g, and kg Liquid volumes use ml and L

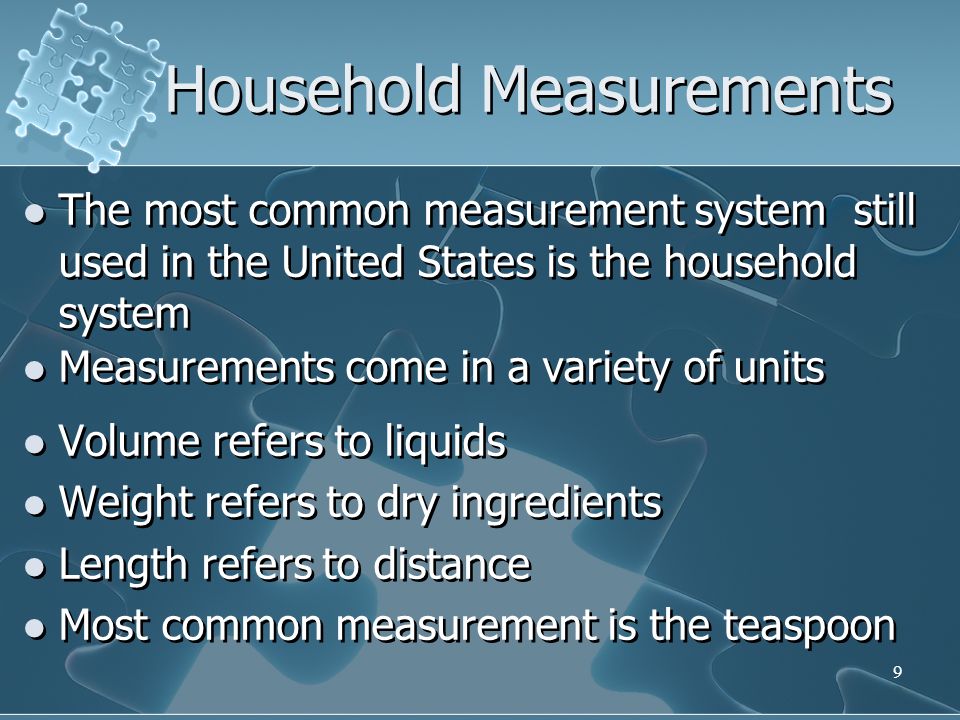

9. 9 Household Measurements The most common measurement system still used in the United States is the household system Measurements come in a variety of units Volume refers to liquids Weight refers to dry ingredients Length refers to distance Most common measurement is the teaspoon The most common measurement system still used in the United States is the household system Measurements come in a variety of units Volume refers to liquids Weight refers to dry ingredients Length refers to distance Most common measurement is the teaspoon

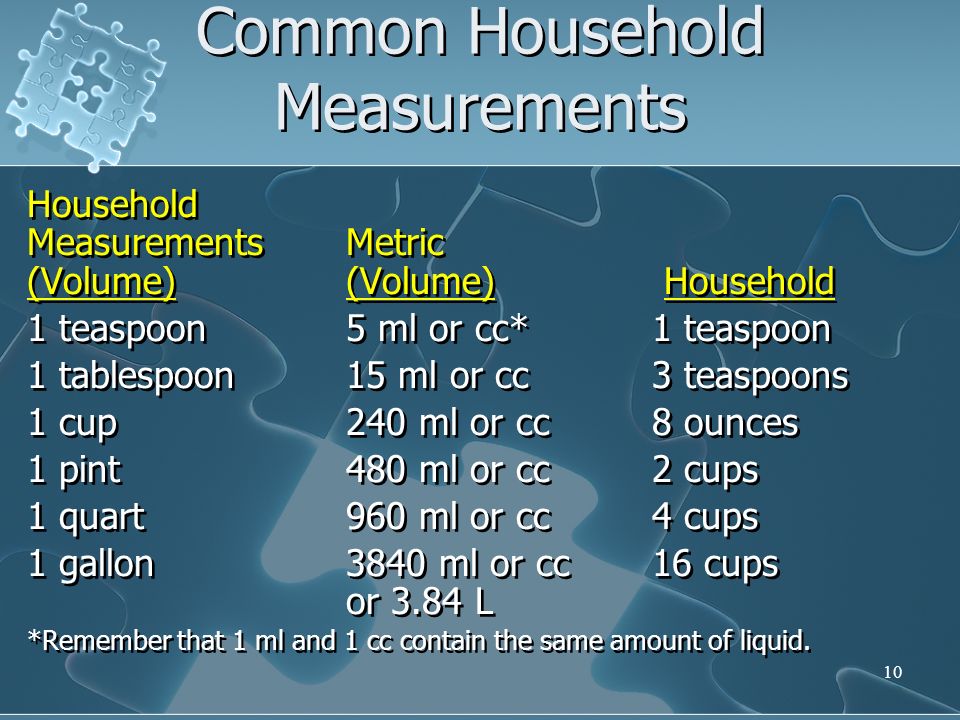

10. 10 Common Household Measurements Household MeasurementsMetric (Volume)(Volume) Household 1 teaspoon5 ml or cc*1 teaspoon 1 tablespoon15 ml or cc3 teaspoons 1 cup240 ml or cc8 ounces 1 pint480 ml or cc2 cups 1 quart960 ml or cc4 cups 1 gallon3840 ml or cc16 cups or 3.84 L *Remember that 1 ml and 1 cc contain the same amount of liquid. Household MeasurementsMetric (Volume)(Volume) Household 1 teaspoon5 ml or cc*1 teaspoon 1 tablespoon15 ml or cc3 teaspoons 1 cup240 ml or cc8 ounces 1 pint480 ml or cc2 cups 1 quart960 ml or cc4 cups 1 gallon3840 ml or cc16 cups or 3.84 L *Remember that 1 ml and 1 cc contain the same amount of liquid.

11. 11 Apothecary System Originated in Europe Units used in this system are grains and scruples for dry weight Drams and minims for liquids More common measurements include ounces and pounds Originated in Europe Units used in this system are grains and scruples for dry weight Drams and minims for liquids More common measurements include ounces and pounds

12. 12 Writing Units Using Each System (Continued) Apothecary measurements Dry weights use pounds, ounces, drams, scruples, and grains Liquid volume weights use gallons, pints, fluid ounces, fluid drams, and minims Apothecary measurements Dry weights use pounds, ounces, drams, scruples, and grains Liquid volume weights use gallons, pints, fluid ounces, fluid drams, and minims

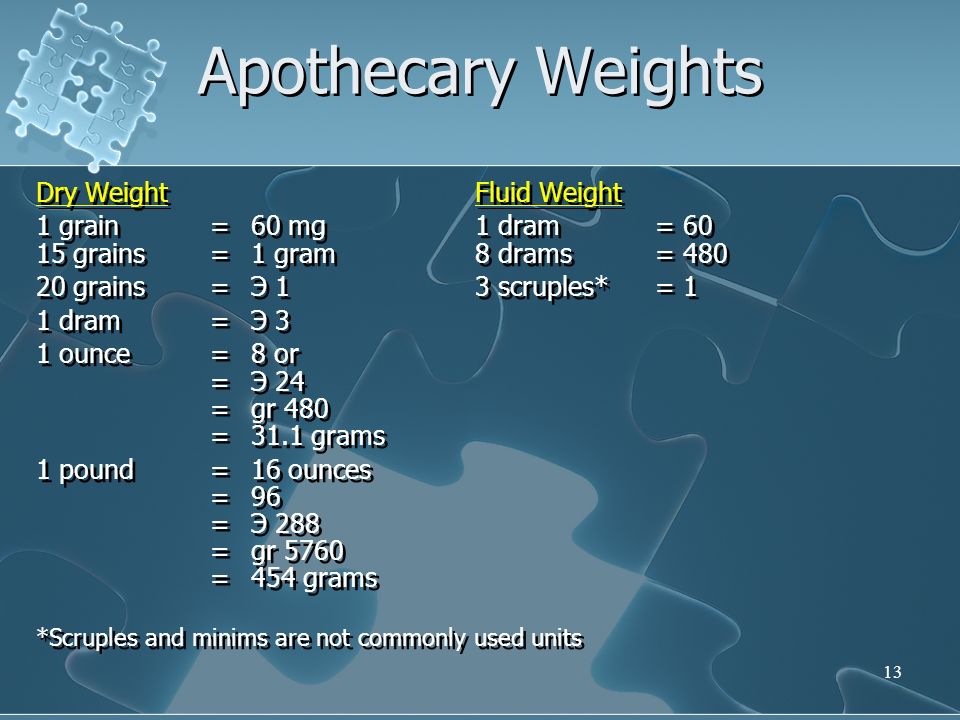

13. 13 Apothecary Weights Dry WeightFluid Weight 1 grain = 60 mg1 dram= 60 15 grains= 1 gram8 drams= 480 20 grains= Э 13 scruples*= 1 1 dram = Э 3 1 ounce = 8 or = Э 24 = gr 480 = 31.1 grams 1 pound= 16 ounces = 96 =Э 288 = gr 5760 = 454 grams *Scruples and minims are not commonly used units Dry WeightFluid Weight 1 grain = 60 mg1 dram= 60 15 grains= 1 gram8 drams= 480 20 grains= Э 13 scruples*= 1 1 dram = Э 3 1 ounce = 8 or = Э 24 = gr 480 = 31.1 grams 1 pound= 16 ounces = 96 =Э 288 = gr 5760 = 454 grams *Scruples and minims are not commonly used units

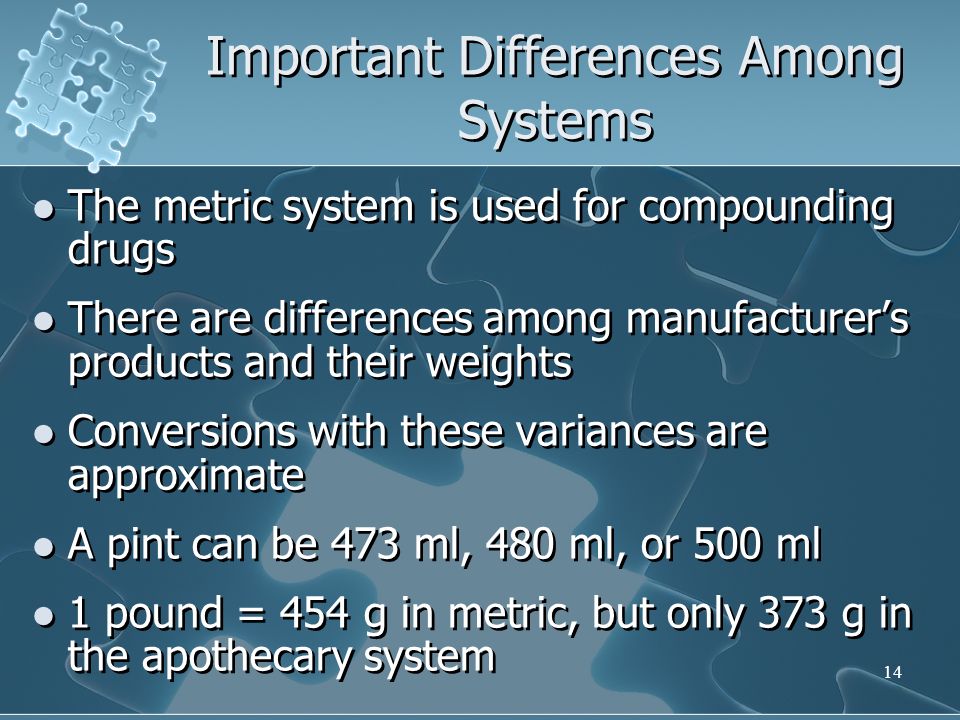

14. 14 Important Differences Among Systems The metric system is used for compounding drugs There are differences among manufacturer’s products and their weights Conversions with these variances are approximate A pint can be 473 ml, 480 ml, or 500 ml 1 pound = 454 g in metric, but only 373 g in the apothecary system The metric system is used for compounding drugs There are differences among manufacturer’s products and their weights Conversions with these variances are approximate A pint can be 473 ml, 480 ml, or 500 ml 1 pound = 454 g in metric, but only 373 g in the apothecary system

15. 15 Conversion Table: Apothecary/Metric/Household Apothecary Apothecary Metric Metric Common VolumeWeightVolume Weight Household 1130 ml 30 g 2 tbsp 4415 ml 15 g 1 tbsp 22 7.5 ml 7.5 g ½ tbsp 1gr 60 4 ml 4 g 1 tsp ½ gr 30 2 ml 2 g ½ tsp Apothecary Apothecary Metric Metric Common VolumeWeightVolume Weight Household 1130 ml 30 g 2 tbsp 4415 ml 15 g 1 tbsp 22 7.5 ml 7.5 g ½ tbsp 1gr 60 4 ml 4 g 1 tsp ½ gr 30 2 ml 2 g ½ tsp

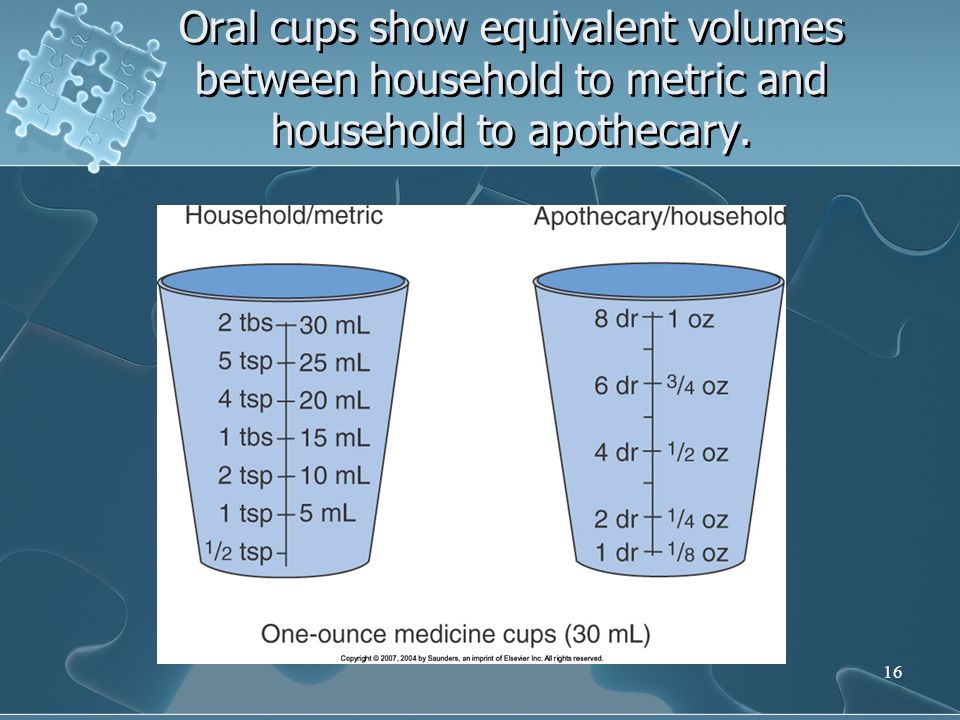

16. 16 Oral cups show equivalent volumes between household to metric and household to apothecary.

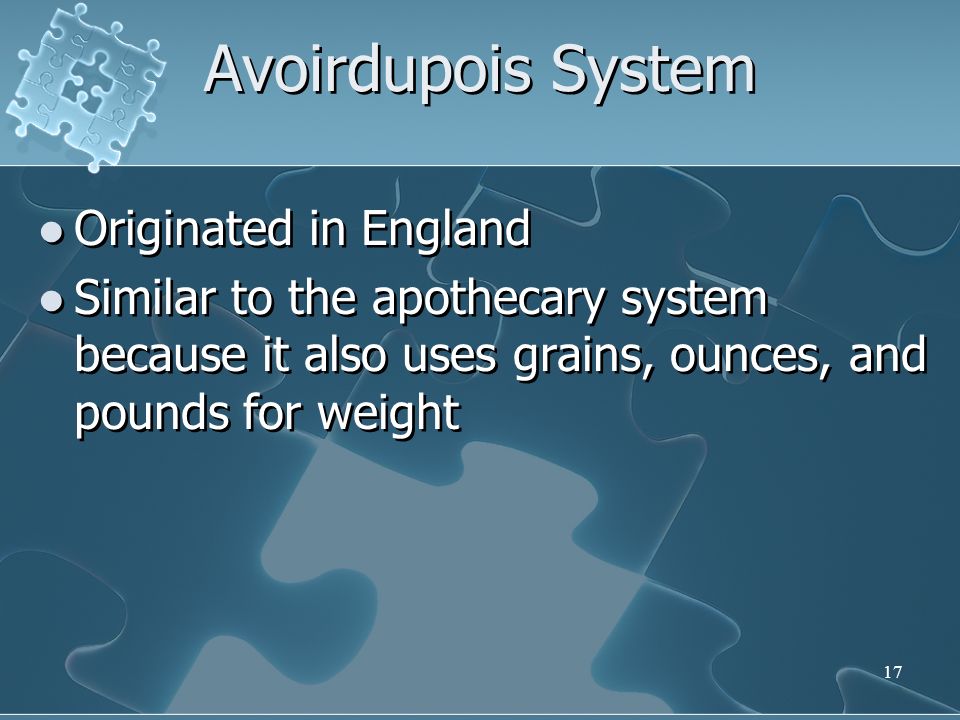

17. 17 Avoirdupois System Originated in England Similar to the apothecary system because it also uses grains, ounces, and pounds for weight Originated in England Similar to the apothecary system because it also uses grains, ounces, and pounds for weight

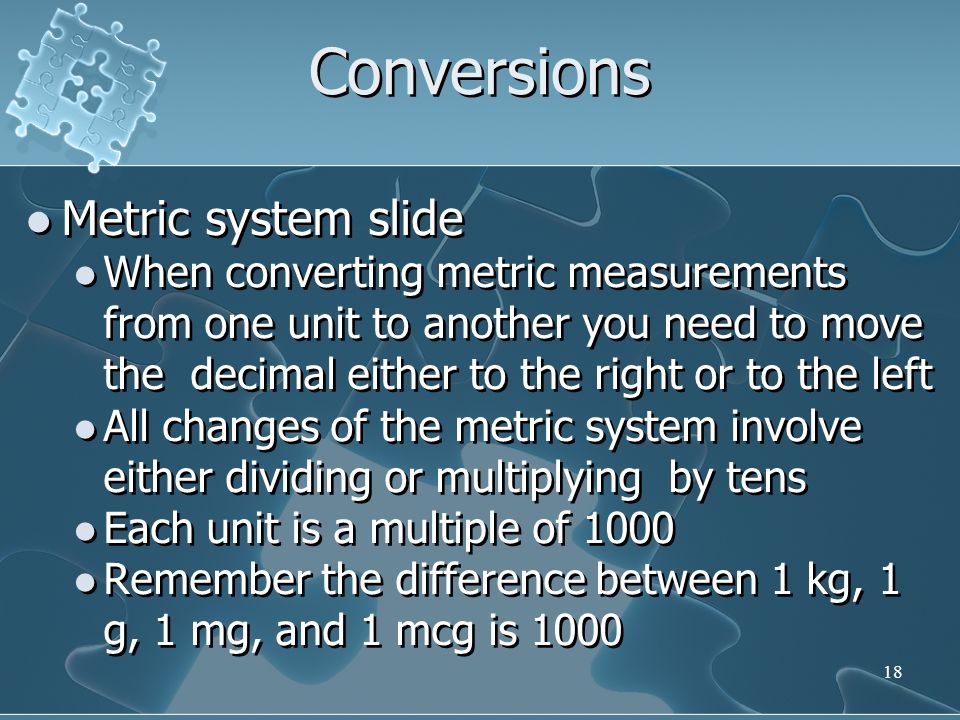

18. 18 Conversions Metric system slide When converting metric measurements from one unit to another you need to move the decimal either to the right or to the left All changes of the metric system involve either dividing or multiplying by tens Each unit is a multiple of 1000 Remember the difference between 1 kg, 1 g, 1 mg, and 1 mcg is 1000 Metric system slide When converting metric measurements from one unit to another you need to move the decimal either to the right or to the left All changes of the metric system involve either dividing or multiplying by tens Each unit is a multiple of 1000 Remember the difference between 1 kg, 1 g, 1 mg, and 1 mcg is 1000

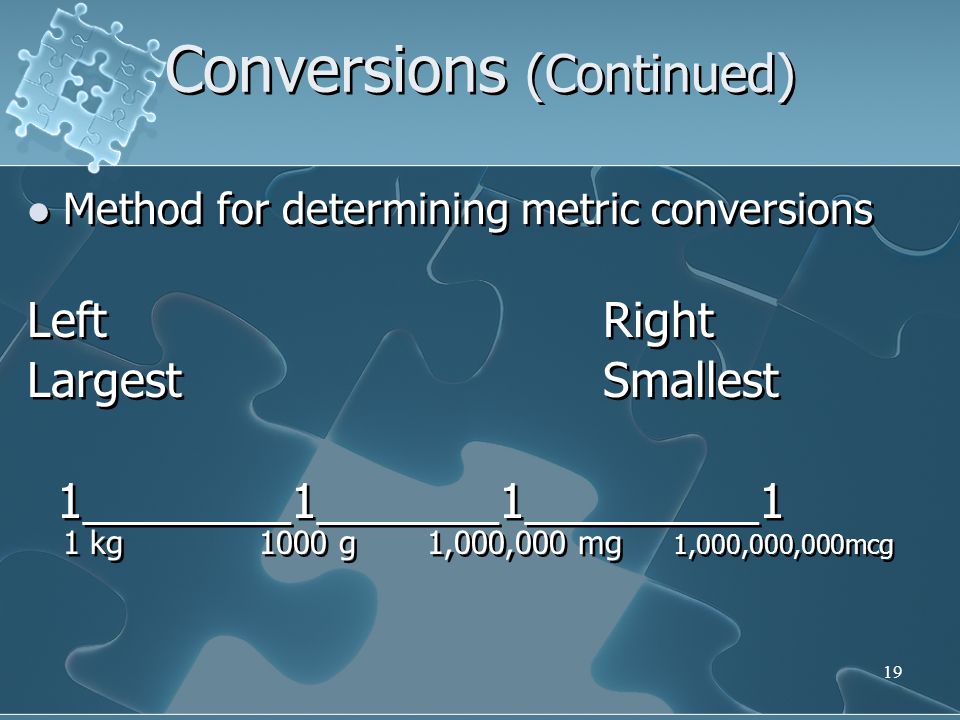

19. 19 Conversions (Continued) Method for determining metric conversions LeftRight LargestSmallest 1________1_______1_________1 1 kg 1000 g 1,000,000 mg 1,000,000,000mcg Method for determining metric conversions LeftRight LargestSmallest 1________1_______1_________1 1 kg 1000 g 1,000,000 mg 1,000,000,000mcg

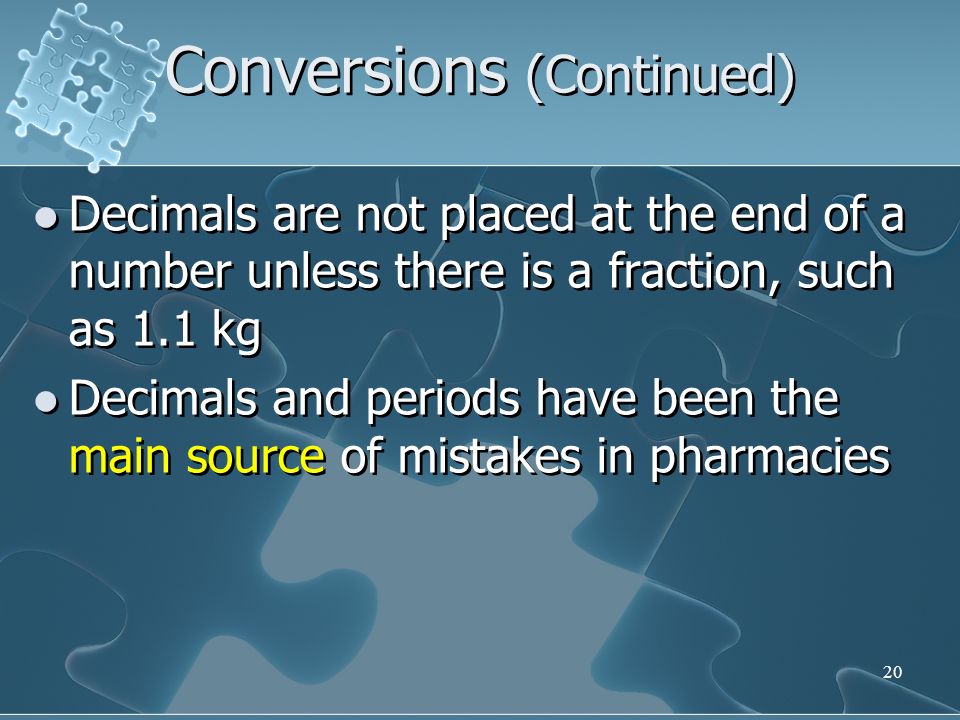

20. 20 Conversions (Continued) Decimals are not placed at the end of a number unless there is a fraction, such as 1.1 kg Decimals and periods have been the main source of mistakes in pharmacies Decimals are not placed at the end of a number unless there is a fraction, such as 1.1 kg Decimals and periods have been the main source of mistakes in pharmacies

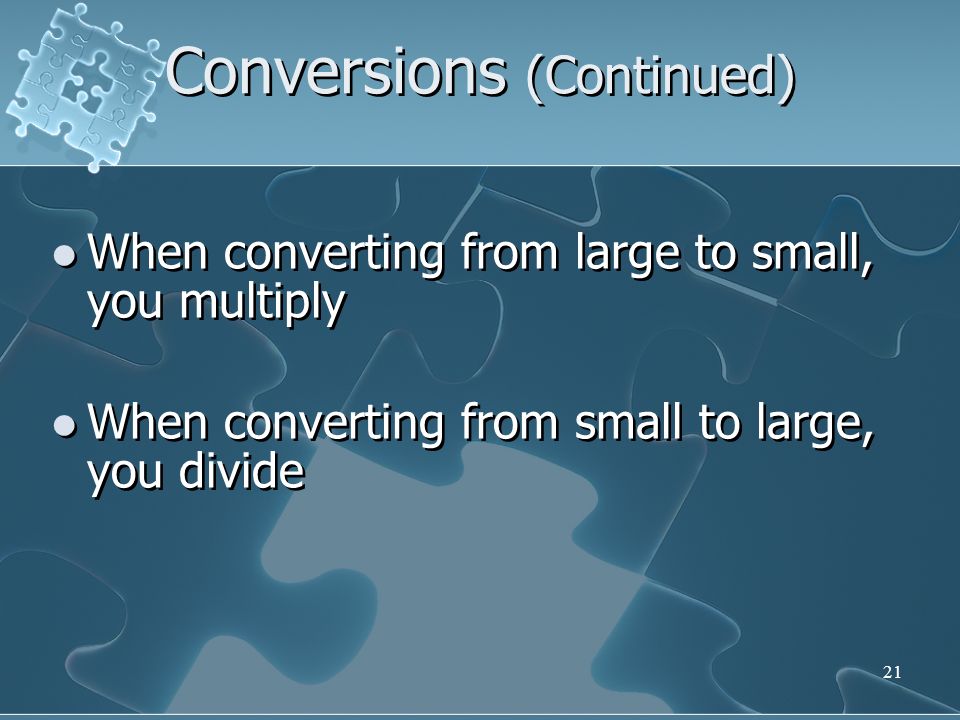

21. 21 Conversions (Continued) When converting from large to small, you multiply When converting from small to large, you divide When converting from large to small, you multiply When converting from small to large, you divide

22. 22 Conversions (Continued) Fractions Percentage is always a portion of 100 To convert a decimal into a percentage you simply multiply by 100 Fractions Percentage is always a portion of 100 To convert a decimal into a percentage you simply multiply by 100

23. 23 Determining Weight Because all manufacturers provide proper dosing regimens based on kilograms, it is necessary to convert pounds into kilograms There are 2.2 pounds per kilogram 16 ounces = 1 lb2.2 pounds = 1 kg To determine how many kg in 1 lb, divide To determine how many lbs in 1 kg, multiply Because all manufacturers provide proper dosing regimens based on kilograms, it is necessary to convert pounds into kilograms There are 2.2 pounds per kilogram 16 ounces = 1 lb2.2 pounds = 1 kg To determine how many kg in 1 lb, divide To determine how many lbs in 1 kg, multiply

24. 24 Roman Numerals The number system commonly used in the United States is the Arabic system, consisting of numbers 1, 2, 3, and so forth Many physicians use Roman numerals to indicate the quantity of tablets or capsules to be filled or to order the strength of medication The number system commonly used in the United States is the Arabic system, consisting of numbers 1, 2, 3, and so forth Many physicians use Roman numerals to indicate the quantity of tablets or capsules to be filled or to order the strength of medication

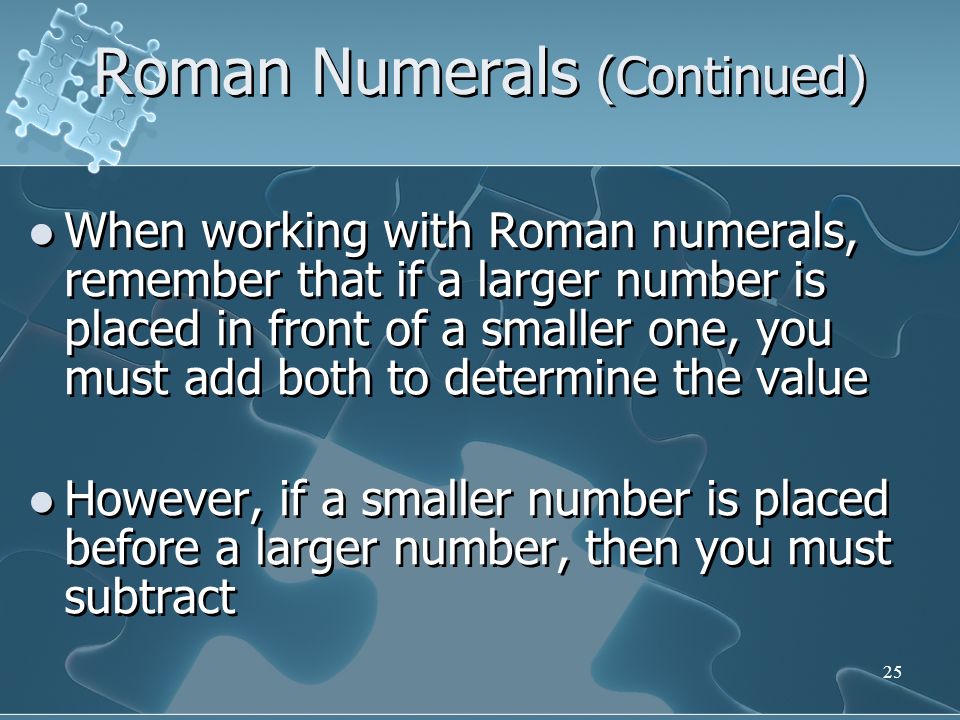

25. 25 Roman Numerals (Continued) When working with Roman numerals, remember that if a larger number is placed in front of a smaller one, you must add both to determine the value However, if a smaller number is placed before a larger number, then you must subtract When working with Roman numerals, remember that if a larger number is placed in front of a smaller one, you must add both to determine the value However, if a smaller number is placed before a larger number, then you must subtract

26. Roman Numerals (Continued) When a numeral is repeated, its value is repeated. A numeral may not be repeated more than 3 times. V, L, & D are never repeated. When a smaller numeral is placed before a larger numeral, it is subtracted from the larger numeral: Ex: XC=100-10=90 When a numeral is repeated, its value is repeated. A numeral may not be repeated more than 3 times. V, L, & D are never repeated. When a smaller numeral is placed before a larger numeral, it is subtracted from the larger numeral: Ex: XC=100-10=90 26

27. Roman Numerals cont’d When a smaller numeral is placed after a larger numeral, it is added to the larger numeral. Ex: CL=100+50=150 V, L, & D are never subtracted. Ex: LC is incorrect. Never subtract more than one numeral. When subtracting, only use a numeral before the next 2 higher-value numerals. Ex: use I before V & X, X before L & C, When a smaller numeral is placed after a larger numeral, it is added to the larger numeral. Ex: CL=100+50=150 V, L, & D are never subtracted. Ex: LC is incorrect. Never subtract more than one numeral. When subtracting, only use a numeral before the next 2 higher-value numerals. Ex: use I before V & X, X before L & C, 27

29. Roman Numeral Practice XIV = XC = CIV = XL = VIII = C = IV = XIV = XC = CIV = XL = VIII = C = IV = 29

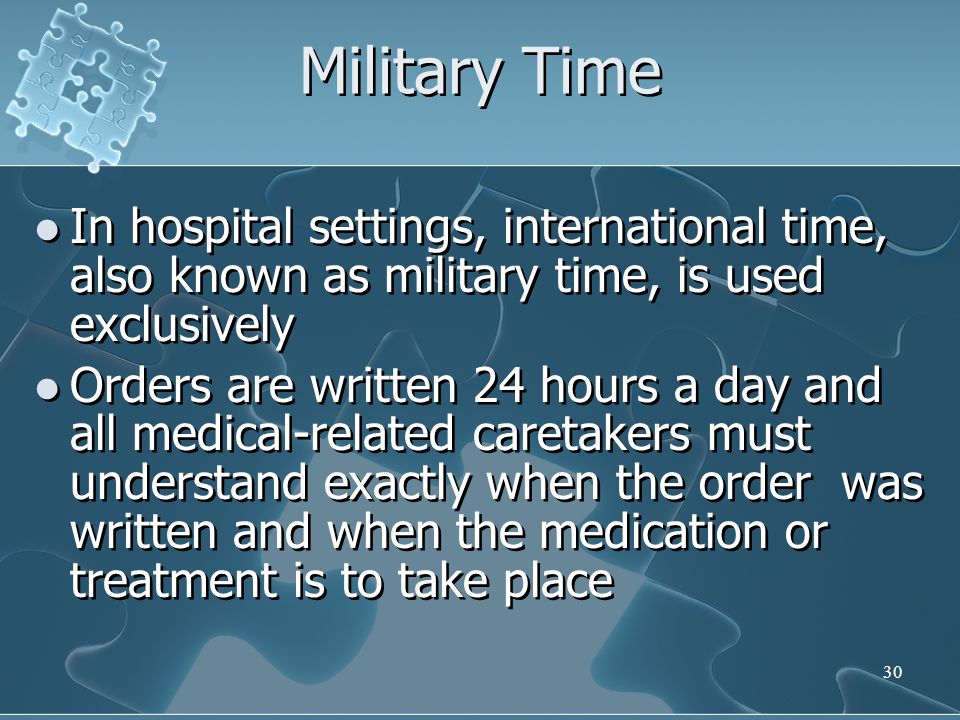

30. 30 Military Time In hospital settings, international time, also known as military time, is used exclusively Orders are written 24 hours a day and all medical-related caretakers must understand exactly when the order was written and when the medication or treatment is to take place In hospital settings, international time, also known as military time, is used exclusively Orders are written 24 hours a day and all medical-related caretakers must understand exactly when the order was written and when the medication or treatment is to take place

31. Military Time (Cont’d) The system is based on 100 Starting with the first hour of the day, the clock begins at 0100 (1 AM) through 2400 or 12 midnight By using this system there is never any question as to when an order was written or which order came first Never use a colon The system is based on 100 Starting with the first hour of the day, the clock begins at 0100 (1 AM) through 2400 or 12 midnight By using this system there is never any question as to when an order was written or which order came first Never use a colon

32. Your Assignments The room is separated in halves Students on the side of the room by the windows will create 15 practice exercises using Roman numbers (and an answer key) Students on the side of the room by the door will create 15 practice exercises converting military time to standard and standard to military (15 total exercises). When finished, work all problems on the document camera. Call on students using craft sticks or allow them to work as a team The room is separated in halves Students on the side of the room by the windows will create 15 practice exercises using Roman numbers (and an answer key) Students on the side of the room by the door will create 15 practice exercises converting military time to standard and standard to military (15 total exercises). When finished, work all problems on the document camera. Call on students using craft sticks or allow them to work as a team 32
