1. © ABB Month DD, YYYY | Slide 1 MG3 Thermal transfer printer Martinez, Marketing, 17/05/2013

2. © ABB Month DD, YYYY | Slide 2 MARKINGenius® MG3 is a high resolution printer based on thermal transfer technology to produce high quality identification and labelling for ABB terminal blocks and other manufacturers, cables and all the equipments of electrical panels. The thermal transfer technology principle is using the heat to transfer characters or symbols onto a plastic marker through an ink ribbon. Besides the excellent printing quality, there is no drying time and the markers are instantly usable. With MG3 thermal transfer printer forget about drying time and clogged printing heads problems. MG3 thermal transfer printer The versatile, compact and robust marking system

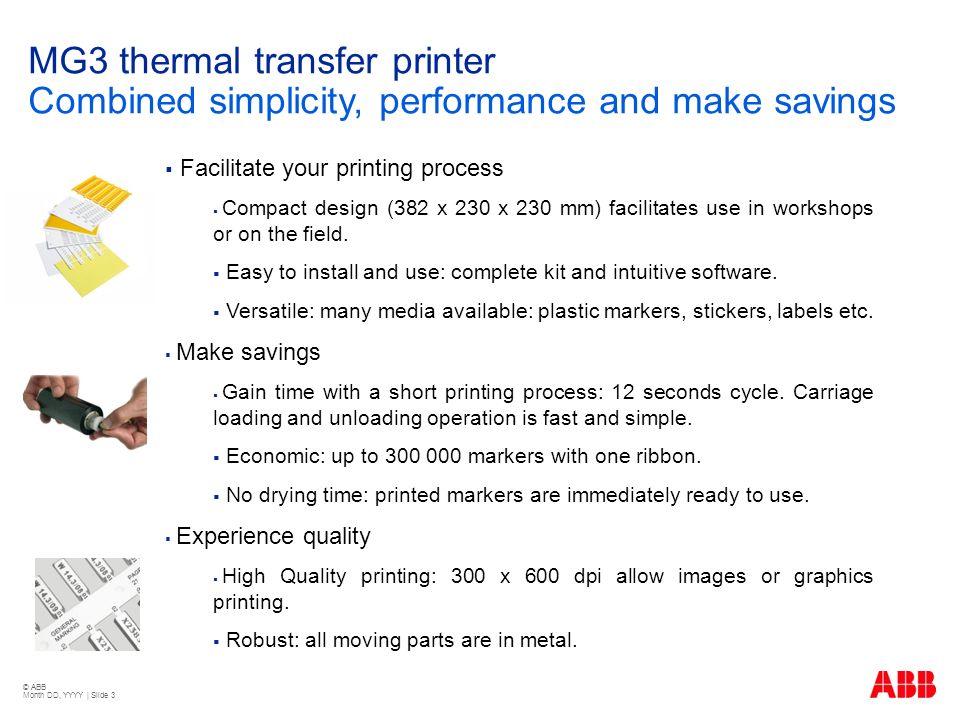

3. © ABB Month DD, YYYY | Slide 3 MG3 thermal transfer printer Combined simplicity, performance and make savings  Facilitate your printing process  Compact design (382 x 230 x 230 mm) facilitates use in workshops or on the field.  Easy to install and use: complete kit and intuitive software.  Versatile: many media available: plastic markers, stickers, labels etc.  Make savings  Gain time with a short printing process: 12 seconds cycle. Carriage loading and unloading operation is fast and simple.  Economic: up to 300 000 markers with one ribbon.  No drying time: printed markers are immediately ready to use.  Experience quality  High Quality printing: 300 x 600 dpi allow images or graphics printing.  Robust: all moving parts are in metal.

4. © ABB Month DD, YYYY | Slide 4 Simple and intuitive the Genius software benefits from a long field experience and requires the operator to have only basic computer skills in order to operate it. No major adjustment to be made No licence and register step to be done Importation of data from different file type (TXT, ACS, MTX, FNR, IGE-XAO, XLS, etc..) Control update of the software in real time MG3 thermal transfer printer Software

5. © ABB Month DD, YYYY | Slide 5 Enter the SW code (SoftWare code) listed in catalogues or brochure for a direct access to the right printing media in the software MG3 thermal transfer printer Software Brochure Genius software

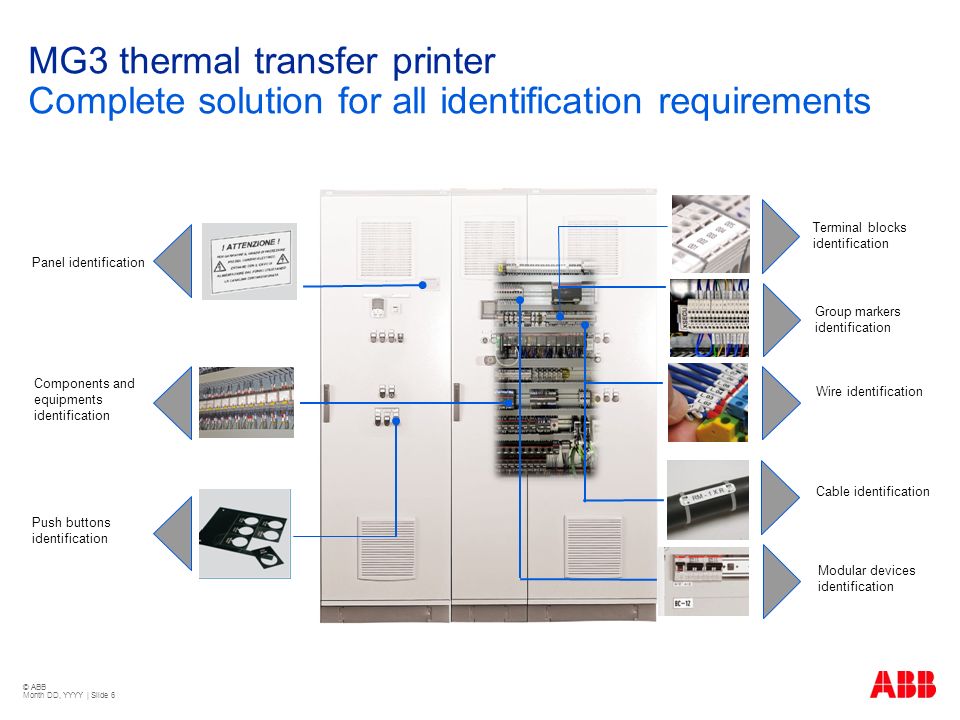

6. © ABB Month DD, YYYY | Slide 6 MG3 thermal transfer printer Complete solution for all identification requirements Terminal blocks identification Group markers identification Wire identification Cable identification Modular devices identification Panel identification Components and equipments identification Push buttons identification

7. © ABB Month DD, YYYY | Slide 7  MG-CPM  Rigid polycarbonate marker available in individual and strip markers.  Compatible with many type of terminal blocks  ABB terminal blocks: SNA series, SNK series  Others terminal blocks manufacturer: Phoenix, Weidmuller, Wago, Cabur, Conta Clip, Legrand, Siemens, Woertz, Connectwell, Wieland  MG-CPMF  PVC marker strip to be slided on various type of terminal blocks.  Compatible with many type of terminal blocks  ABB SNA series terminal blocks  Others terminal blocks manufacturer: Phoenix, Weidmuller, Wago  MG-CPMFA  Self adhesive PVC marker strip  Compatible with ABB SNK series terminal blocks MG3 thermal transfer printer Terminal blocks identification

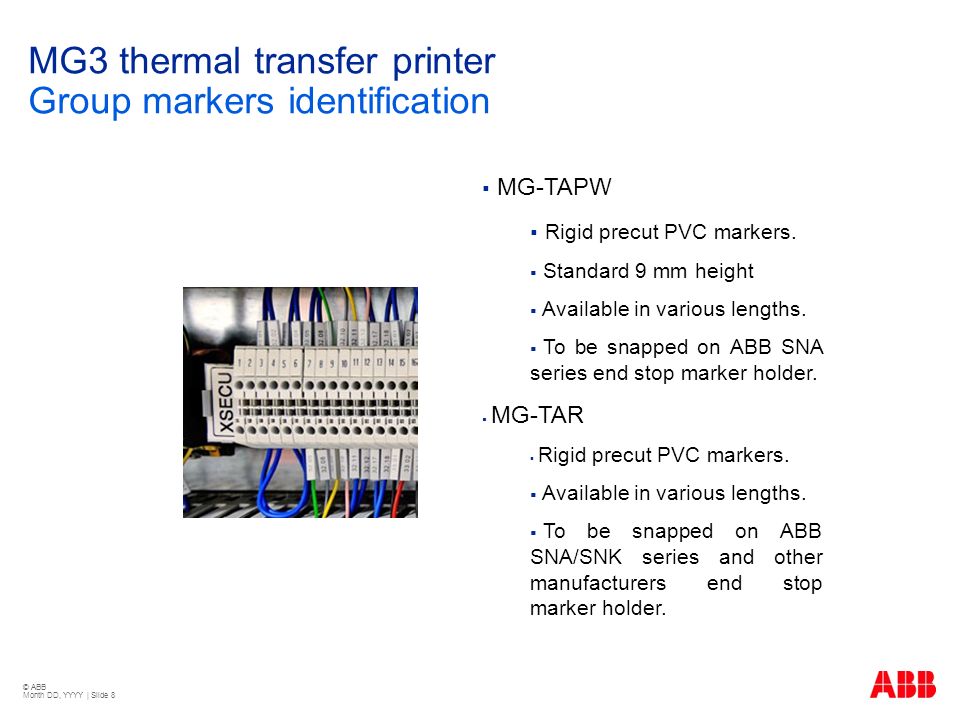

8. © ABB Month DD, YYYY | Slide 8  MG-TAPW  Rigid precut PVC markers.  Standard 9 mm height  Available in various lengths.  To be snapped on ABB SNA series end stop marker holder.  MG-TAR  Rigid precut PVC markers.  Available in various lengths.  To be snapped on ABB SNA/SNK series and other manufacturers end stop marker holder. MG3 thermal transfer printer Group markers identification

9. © ABB Month DD, YYYY | Slide 9  MG2-TDMO  Rigid polycarbonate marker to be directly printed and snaped on the wire  for 0.5 to 6 mm² wire.  Allow wire identification after connection  2 sizes : 4x12 and 4x16 mm.  MG-TDM  Rigid polycarbonate marker to be directly printed and slided on the wire  for 0.5 to 6 mm² wire.  2 sizes : 4x12 and 4x16 mm. MG3 thermal transfer printer Wire identification

10. © ABB Month DD, YYYY | Slide 10  MG-TPM  Rigid ABS marker to be inserted in PM transparent holder.  4 mm height with 3 different length (10, 12, 15 mm)  Large range of PM holder: for wires up to 240 mm²  MG-TPMF  Precut PVC marker to be inserted in PMF transparent holder for wires up to 70 mm².  Economic solution  4 mm height with 3 different length (10, 12, 15 mm) MG3 thermal transfer printer Wire identification PMF PM

11. © ABB Month DD, YYYY | Slide 11  MG-ETF  Rigid PVC marker for identification of large diameter cables, tubes or conduits.  13 x 57 mm.  To be used with cable ties.  MG-TPM  Rigid ABS marker to be inserted in PM transparent holder for cables up to 240 mm².  MG-TPMF  Precut PVC marker to be inserted in PMF transparent holder for cables up to 70 mm². MG3 thermal transfer printer Cable identification

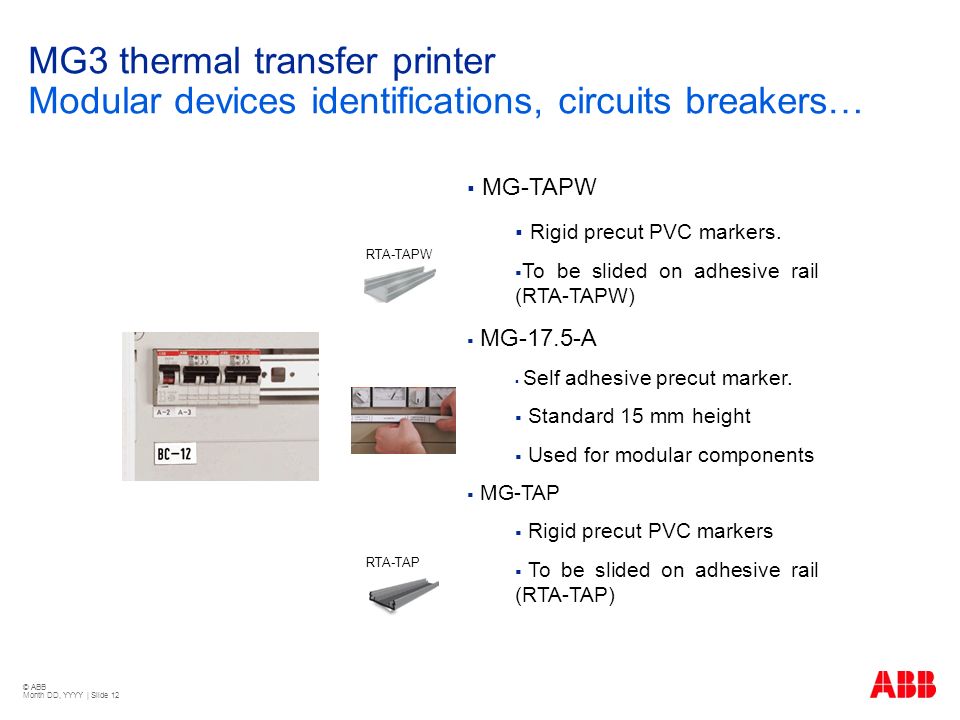

12. © ABB Month DD, YYYY | Slide 12  MG-TAPW  Rigid precut PVC markers.  To be slided on adhesive rail (RTA-TAPW)  MG-17.5-A  Self adhesive precut marker.  Standard 15 mm height  Used for modular components  MG-TAP  Rigid precut PVC markers  To be slided on adhesive rail (RTA-TAP) MG3 thermal transfer printer Modular devices identifications, circuits breakers… RTA-TAPW RTA-TAP

13. © ABB Month DD, YYYY | Slide 13  MG-TAA  Self adhesive precut marker in rigid PVC.  Available in different size  Used for relays, contactors etc…  MG-VYT  Self adhesive precut labels in PVC film  Available in different size  mainly used for internal marking MG3 thermal transfer printer Components and equipments identification

14. © ABB Month DD, YYYY | Slide 14  MG-PLC  Rigid precut PVC marker for PLC’s front faces.  Available in different size  Available in Siemens color (green)  MG-TAPW  Rigid precut PVC markers.  To be slided on adhesive rail (RTA-TAPW)  MG-TAP  Rigid precut PVC markers  To be slided on adhesive rail (RTA-TAP) MG3 thermal transfer printer Components and equipments identification RTA-TAPW RTA-TAP

15. © ABB Month DD, YYYY | Slide 15  MG-PTS  Rigid pre cut PVC markers for Dia. 22.5 push buttons  To be tightened with front face of push button  MG-TAP  Rigid pre cut PVC markers  Compatible with ABB push button plates type KA1-8120. MG3 thermal transfer printer Push buttons identifications

16. © ABB Month DD, YYYY | Slide 16  MG-VRT-A  Self adhesive rigid PVC panel plate used to identify electrical data or company logo  To be tightened with front face of push button  Dimensions: 52 x 107 mm MG3 thermal transfer printer Panel identification

17. © ABB Month DD, YYYY | Slide 17  MG3 thermal transfer printer is delivered with a full set of accessories for an easy start.  1 Software CD  1 Power supply cable and 1 USB cable  1 Installation, operating and maintenance and user documentation  1 Protective cover  1 Ribbon take up spool  1 MG2-QTB support template for terminal block markers (MG-CPM)  1 MG2-PWC support template for wire and cable markers (MG-TPM)  1 MG2-PLT support template for wire and cable markers (MG-TPMF) and various labels and signs  1 MG2-ETR Black printer ribbon. MG3 thermal transfer printer Accessories

18. © ABB Month DD, YYYY | Slide 18  Support template  Others support templates for others medias type available. MG3 thermal transfer printer Accessories  Printer ribbons  Monochrome ribbons for high quality print  Ribbon lenght 200 m, width 120 mm  Colour available : Black, White, Red, Green, Blue.

19. © ABB Month DD, YYYY | Slide 19 Installation in 5 steps MG3 thermal transfer printer Installation instructions Installation in 5 steps 1. Install the software 2. Install the printer driver 3. Configure the printer driver 4. Configure the USB connection 5. Configure the Genius program

20. © ABB Group 2009 Simple printing process… support templates are easily interchanged The printer will save in memory the last support plate used. If you leave the support and try to close the char 3, the alarm will sound. If this happens, just turn off the printer to reset, then turn it on and push the 1 button. MG3 thermal transfer printer Installation instructions: support template

21. © ABB Group 2009 MG3 thermal transfer printer Installation instructions: Ribbons

22. © ABB Group 2009 1. Menu, Command, function and Upgrade bars 2. Media favourite table 3. Data input table 4. Tool bars 5. Fast insert 6. Instant preview 7. Print preview MG3 thermal transfer printer Software interface instructions
