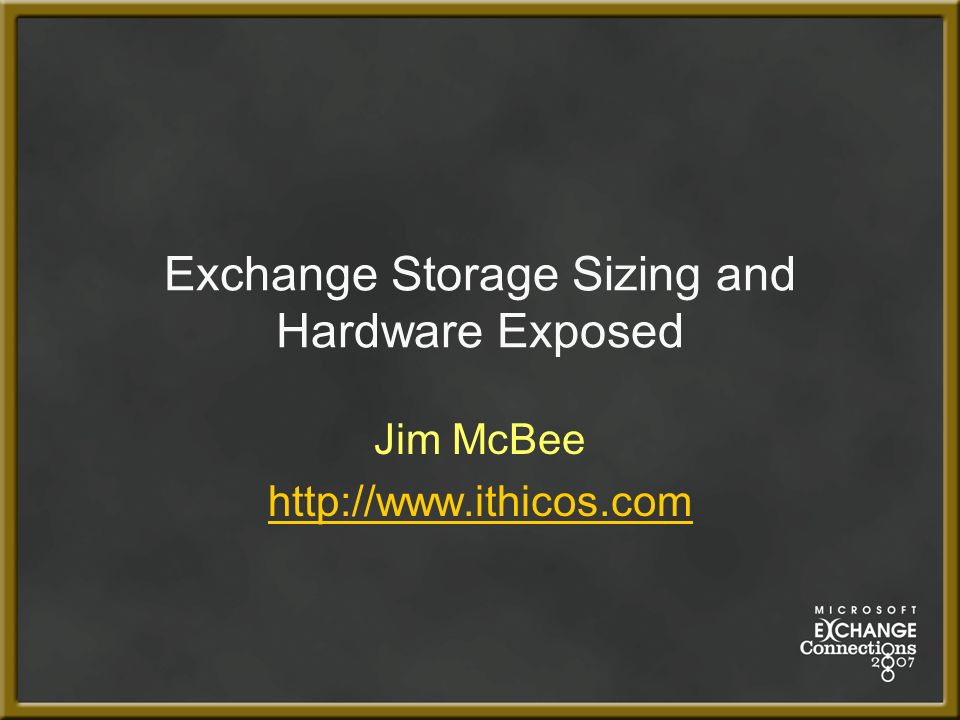

1. Exchange Storage Sizing and Hardware Exposed Jim McBee http://www.ithicos.com

2. Who is Jim McBee!!?? Consultant, Writer, MCSE, MVP and MCT – Honolulu, Hawaii Principal clients (Dell, Microsoft, SAIC, Servco Pacific) Author – Exchange 2003 Advanced Administration (Sybex) Contributor – Exchange and Outlook Administrator Blog ● http://mostlyexchange.blogspot.com http://mostlyexchange.blogspot.com ● http://www.directory-update.com http://www.directory-update.com

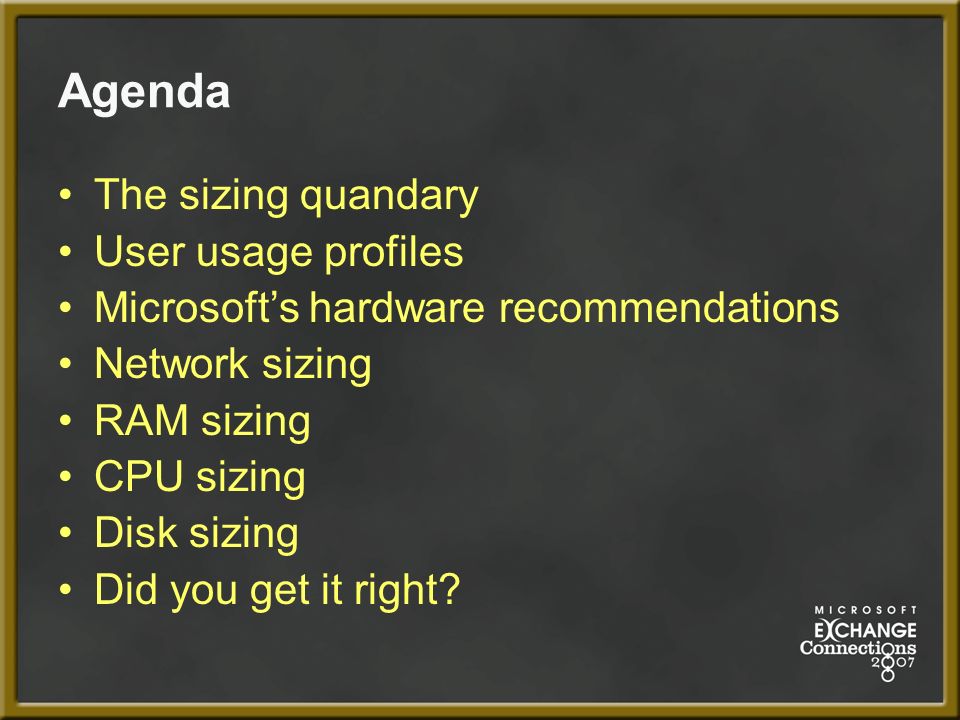

3. Agenda The sizing quandary User usage profiles Microsoft’s hardware recommendations Network sizing RAM sizing CPU sizing Disk sizing Did you get it right?

4. The sizing quandary

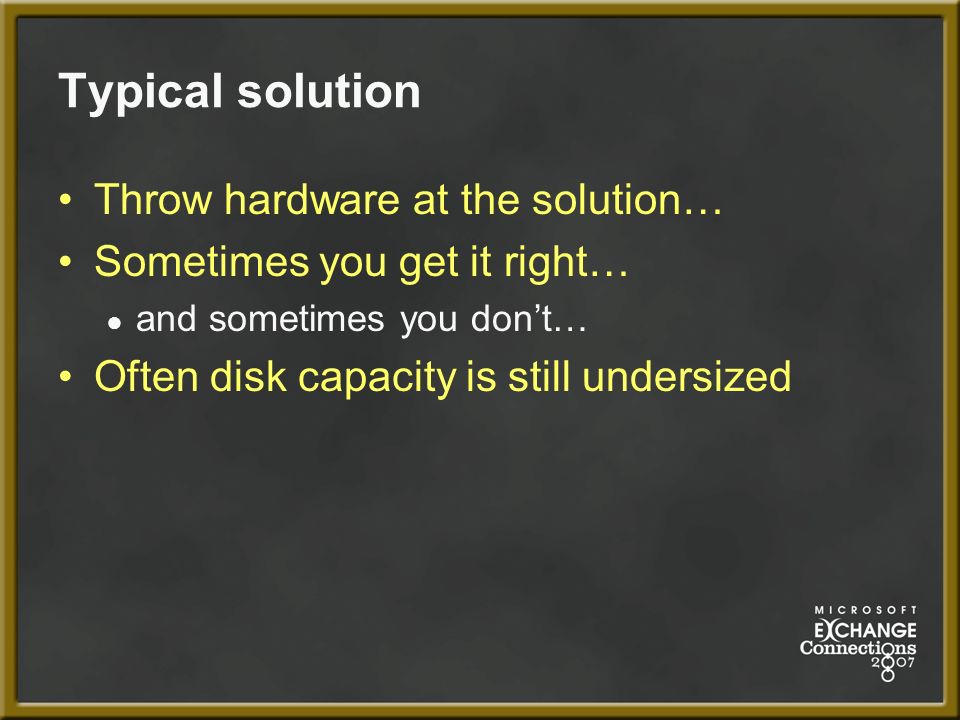

5. Typical solution Throw hardware at the solution… Sometimes you get it right… ● and sometimes you don’t… Often disk capacity is still undersized

6. Usage profiles

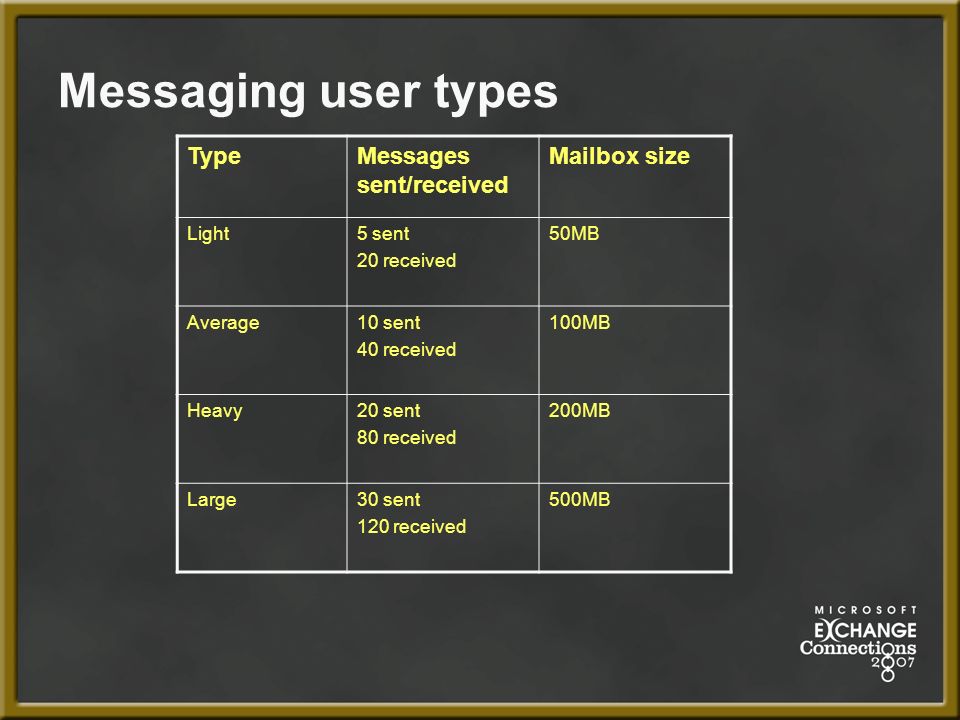

7. Messaging user types TypeMessages sent/received Mailbox size Light5 sent 20 received 50MB Average10 sent 40 received 100MB Heavy20 sent 80 received 200MB Large30 sent 120 received 500MB

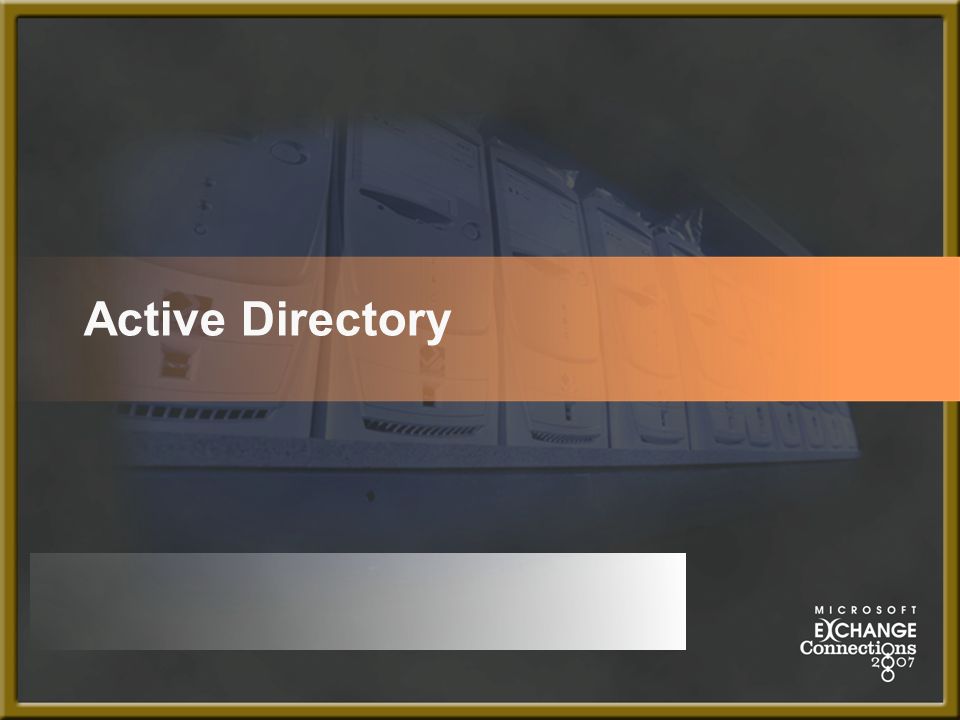

8. Active Directory

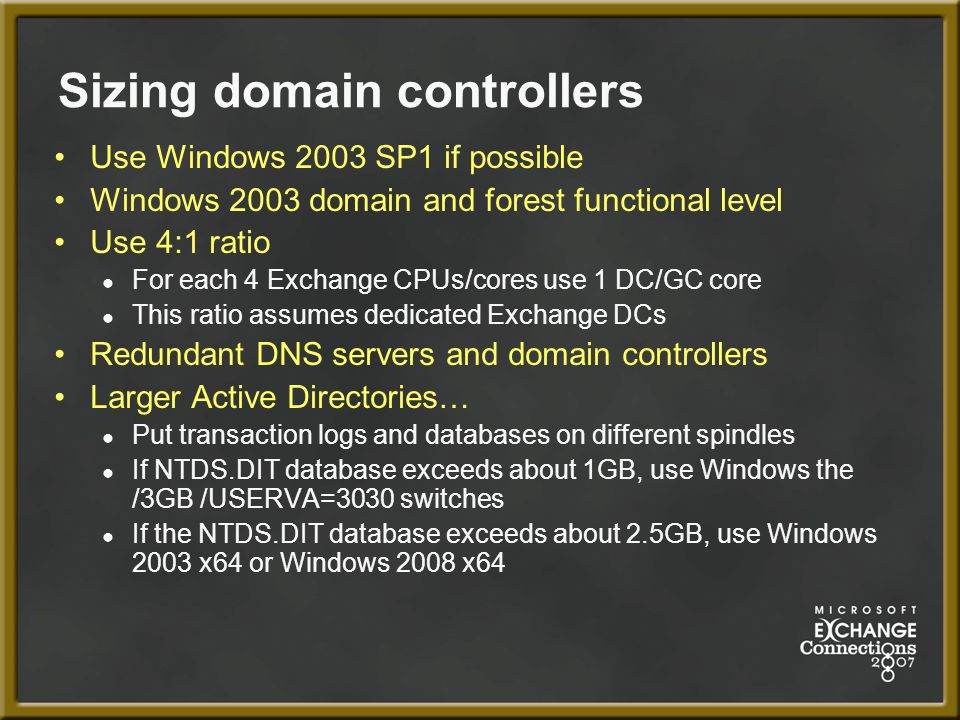

9. Sizing domain controllers Use Windows 2003 SP1 if possible Windows 2003 domain and forest functional level Use 4:1 ratio ● For each 4 Exchange CPUs/cores use 1 DC/GC core ● This ratio assumes dedicated Exchange DCs Redundant DNS servers and domain controllers Larger Active Directories… ● Put transaction logs and databases on different spindles ● If NTDS.DIT database exceeds about 1GB, use Windows the /3GB /USERVA=3030 switches ● If the NTDS.DIT database exceeds about 2.5GB, use Windows 2003 x64 or Windows 2008 x64

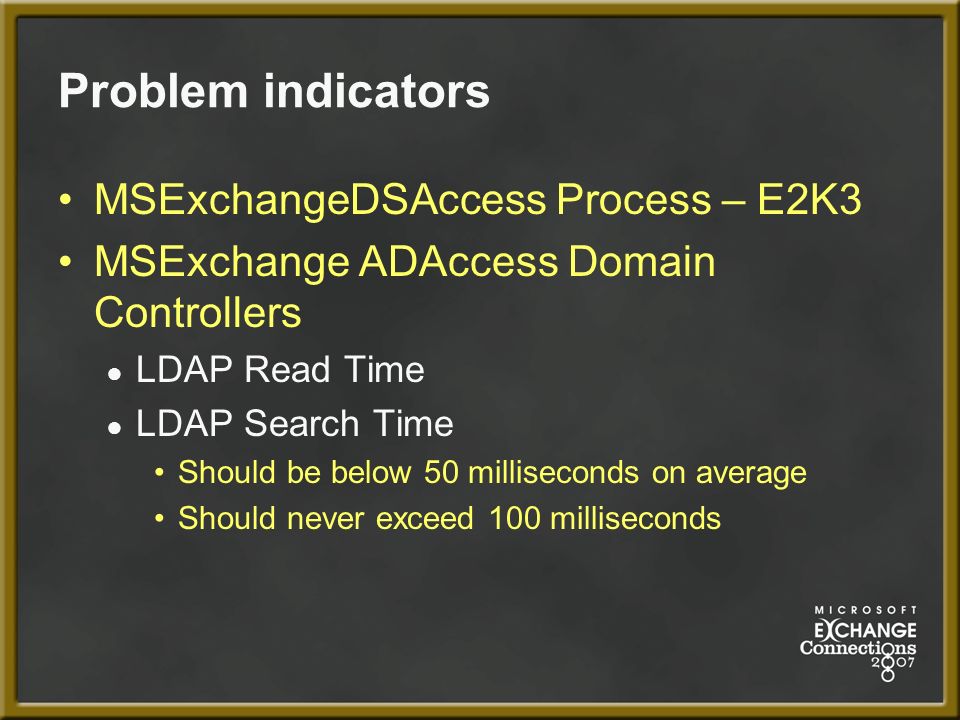

10. Problem indicators MSExchangeDSAccess Process – E2K3 MSExchange ADAccess Domain Controllers ● LDAP Read Time ● LDAP Search Time Should be below 50 milliseconds on average Should never exceed 100 milliseconds

11. Network sizing

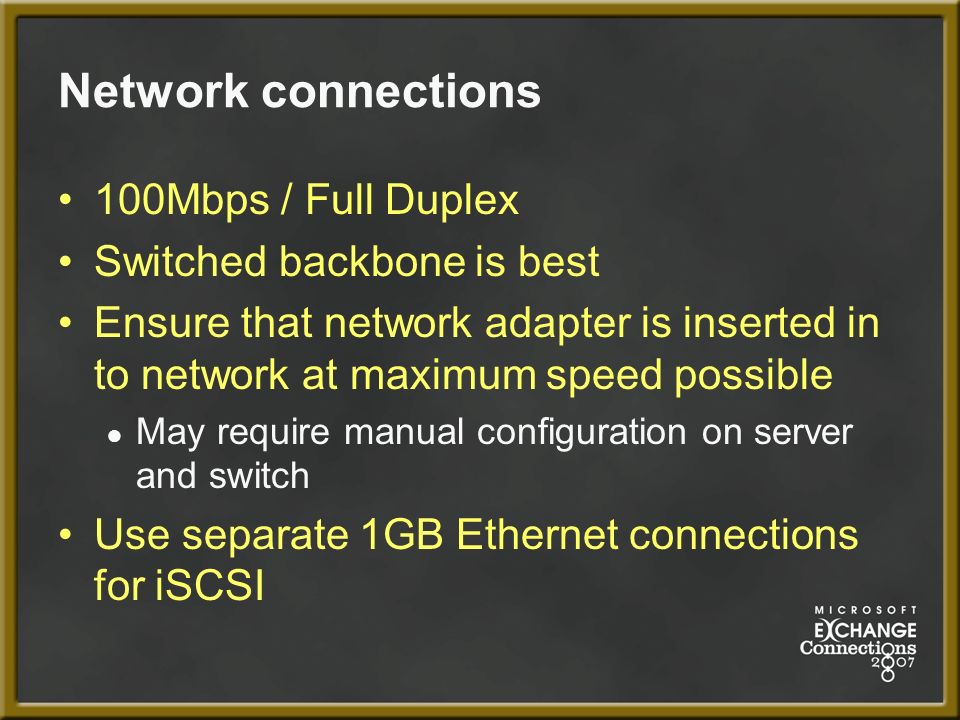

12. Network connections 100Mbps / Full Duplex Switched backbone is best Ensure that network adapter is inserted in to network at maximum speed possible ● May require manual configuration on server and switch Use separate 1GB Ethernet connections for iSCSI

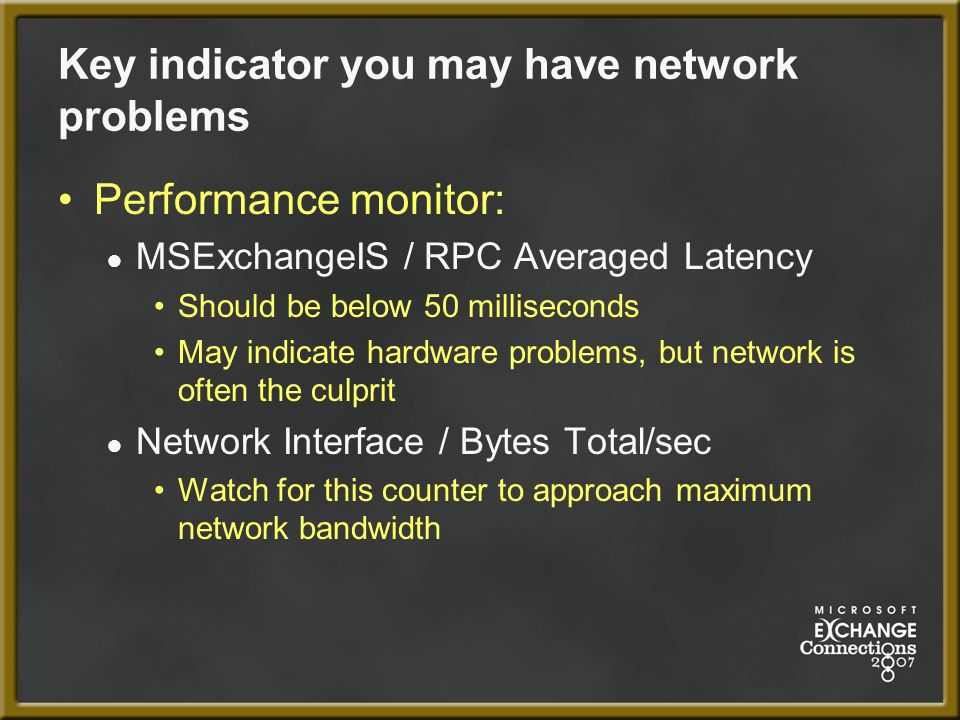

13. Key indicator you may have network problems Performance monitor: ● MSExchangeIS / RPC Averaged Latency Should be below 50 milliseconds May indicate hardware problems, but network is often the culprit ● Network Interface / Bytes Total/sec Watch for this counter to approach maximum network bandwidth

14. CPU sizing

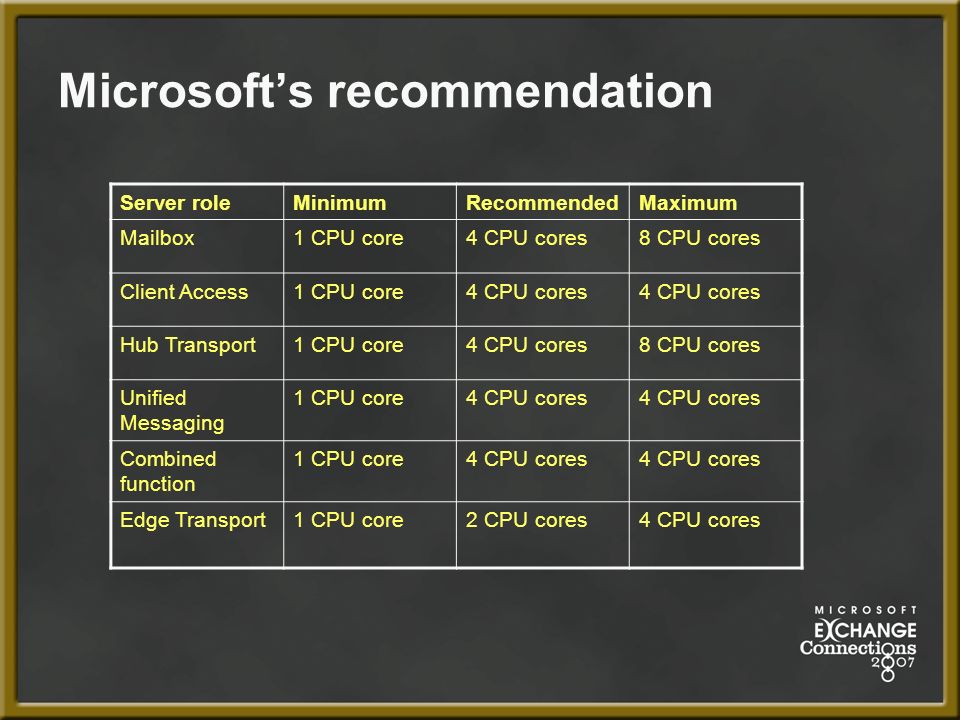

15. Microsoft’s recommendation Server roleMinimumRecommendedMaximum Mailbox1 CPU core4 CPU cores8 CPU cores Client Access1 CPU core4 CPU cores Hub Transport1 CPU core4 CPU cores8 CPU cores Unified Messaging 1 CPU core4 CPU cores Combined function 1 CPU core4 CPU cores Edge Transport1 CPU core2 CPU cores4 CPU cores

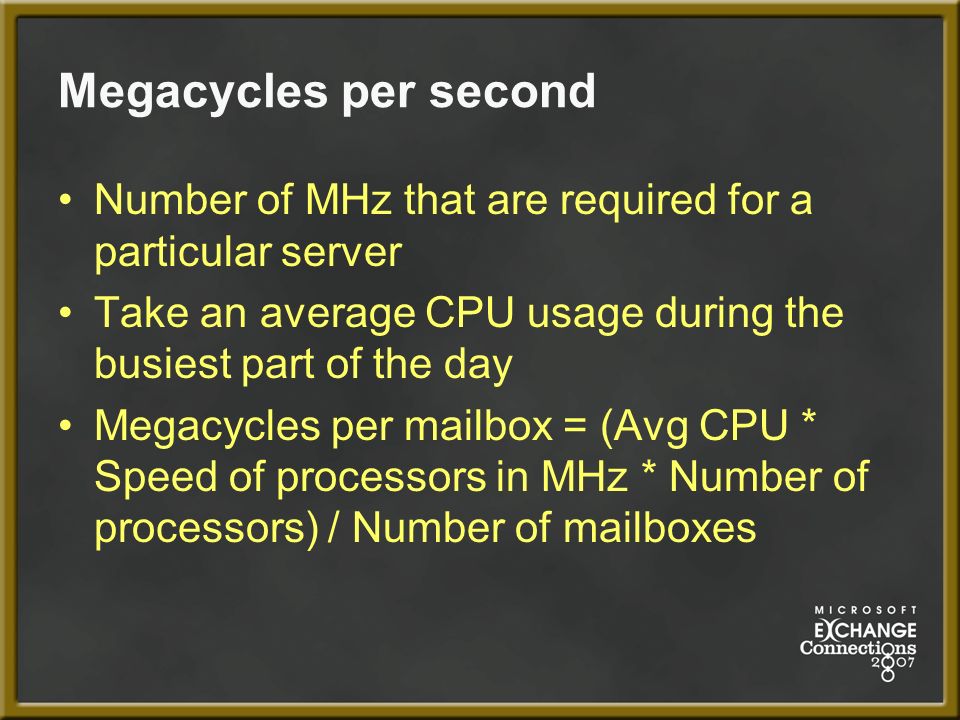

16. Megacycles per second Number of MHz that are required for a particular server Take an average CPU usage during the busiest part of the day Megacycles per mailbox = (Avg CPU * Speed of processors in MHz * Number of processors) / Number of mailboxes

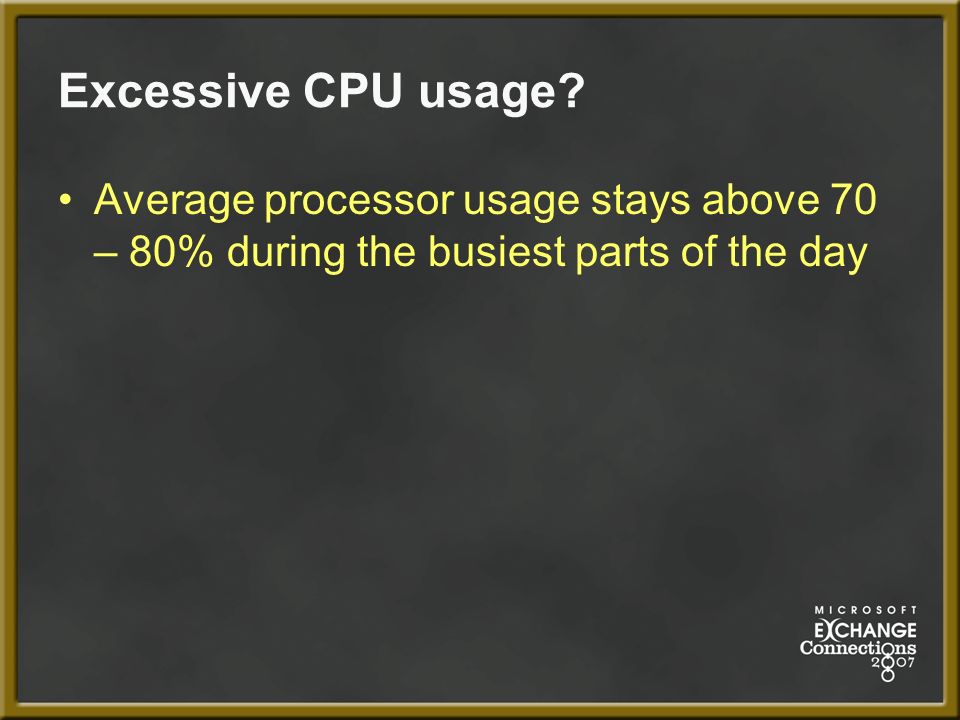

17. Excessive CPU usage? Average processor usage stays above 70 – 80% during the busiest parts of the day

18. Memory sizing

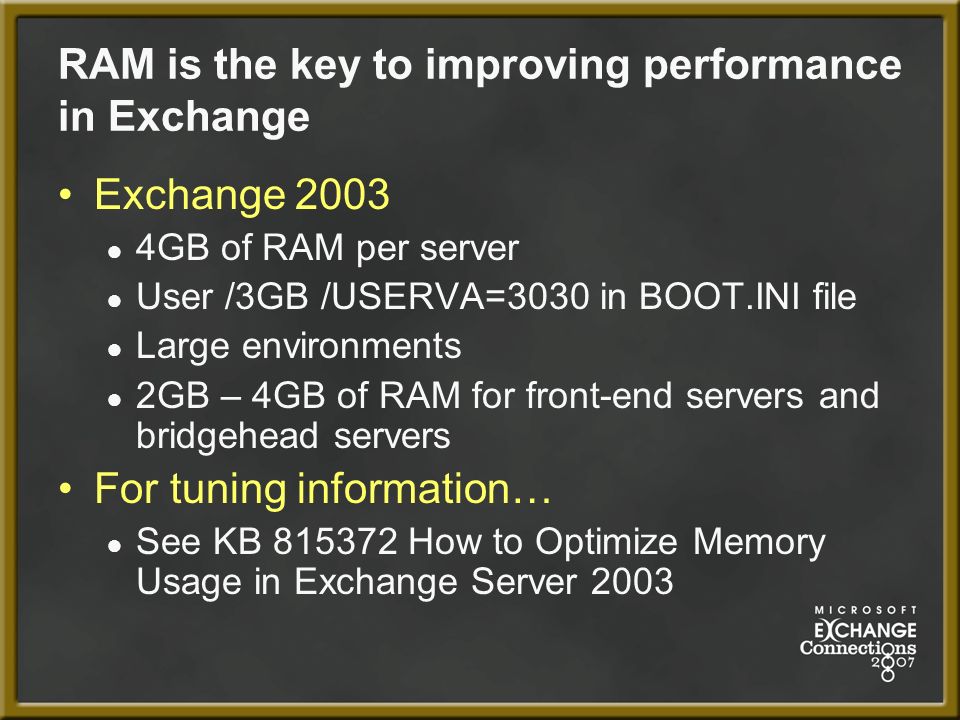

19. RAM is the key to improving performance in Exchange Exchange 2003 ● 4GB of RAM per server ● User /3GB /USERVA=3030 in BOOT.INI file ● Large environments ● 2GB – 4GB of RAM for front-end servers and bridgehead servers For tuning information… ● See KB 815372 How to Optimize Memory Usage in Exchange Server 2003

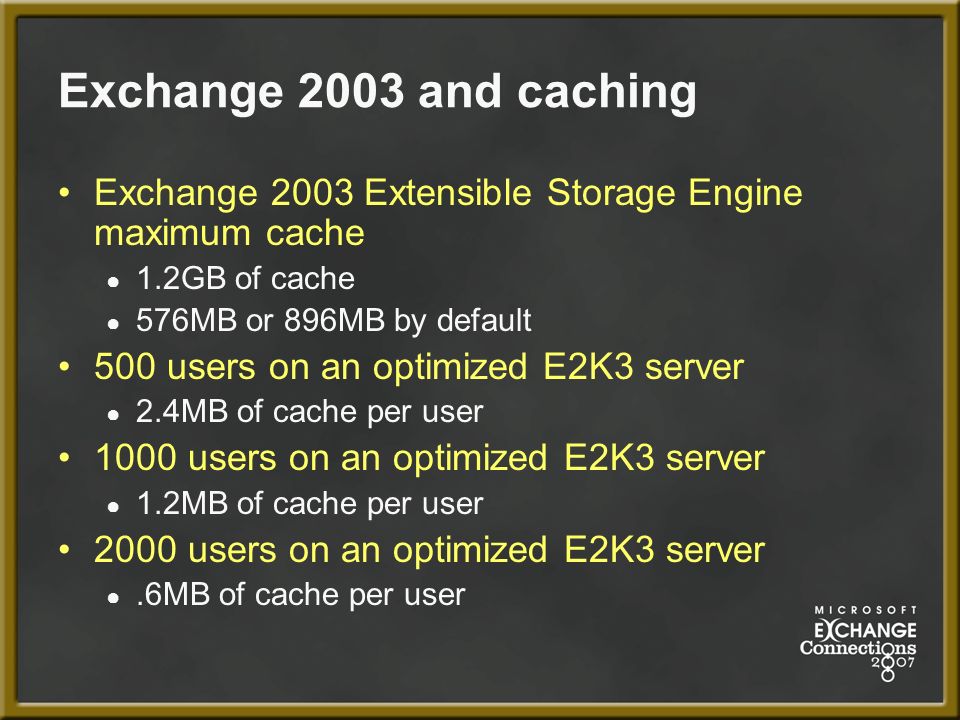

20. Exchange 2003 and caching Exchange 2003 Extensible Storage Engine maximum cache ● 1.2GB of cache ● 576MB or 896MB by default 500 users on an optimized E2K3 server ● 2.4MB of cache per user 1000 users on an optimized E2K3 server ● 1.2MB of cache per user 2000 users on an optimized E2K3 server ●.6MB of cache per user

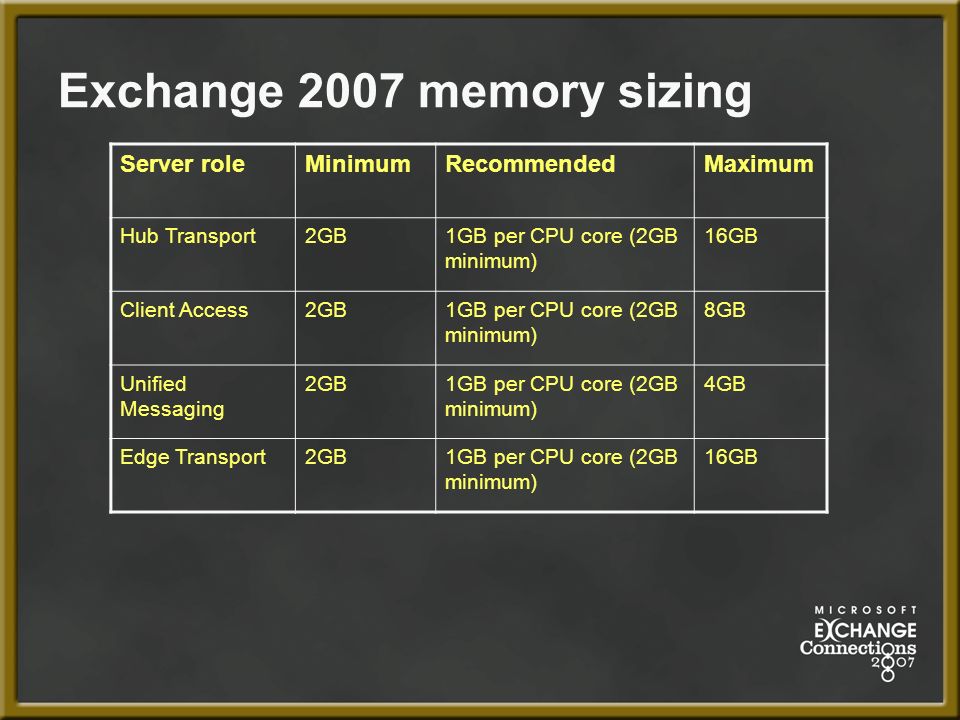

21. Exchange 2007 memory sizing Server roleMinimumRecommendedMaximum Hub Transport2GB1GB per CPU core (2GB minimum) 16GB Client Access2GB1GB per CPU core (2GB minimum) 8GB Unified Messaging 2GB1GB per CPU core (2GB minimum) 4GB Edge Transport2GB1GB per CPU core (2GB minimum) 16GB

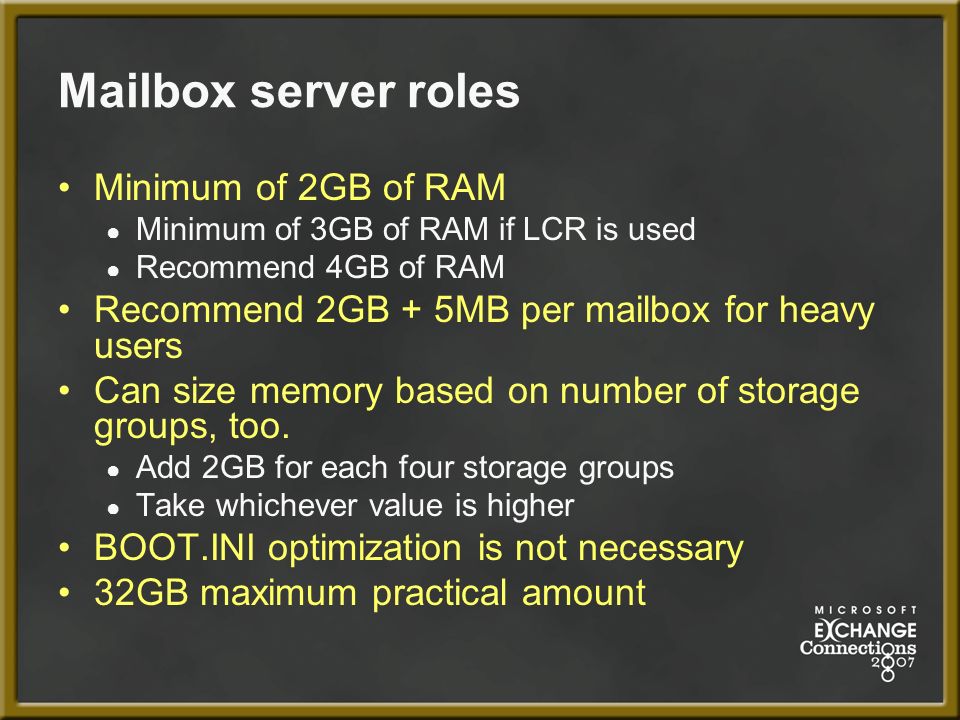

22. Mailbox server roles Minimum of 2GB of RAM ● Minimum of 3GB of RAM if LCR is used ● Recommend 4GB of RAM Recommend 2GB + 5MB per mailbox for heavy users Can size memory based on number of storage groups, too. ● Add 2GB for each four storage groups ● Take whichever value is higher BOOT.INI optimization is not necessary 32GB maximum practical amount

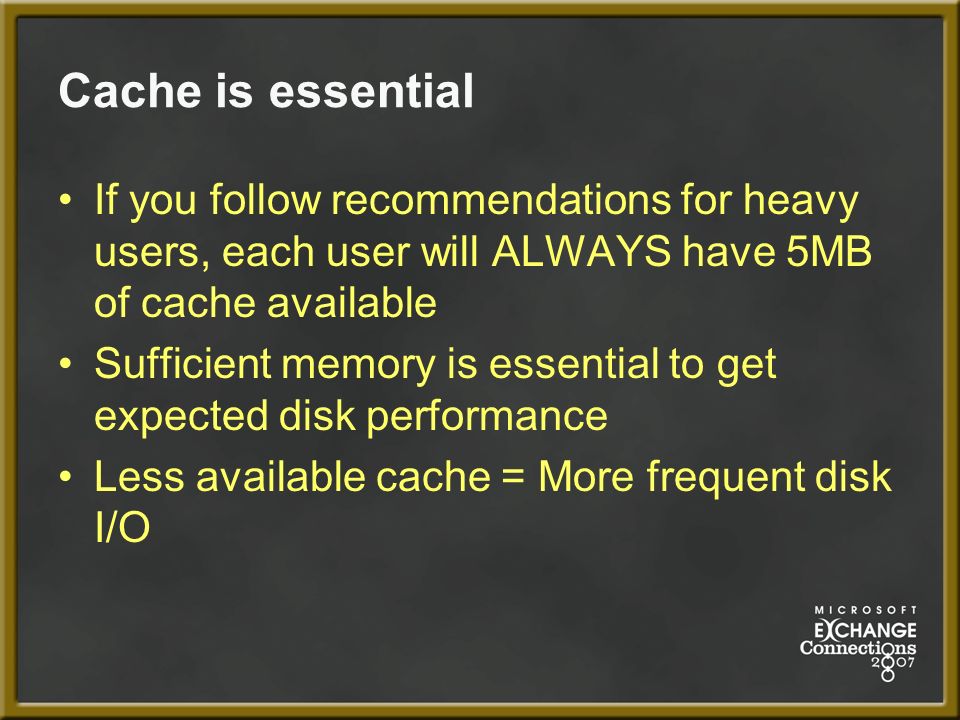

23. Cache is essential If you follow recommendations for heavy users, each user will ALWAYS have 5MB of cache available Sufficient memory is essential to get expected disk performance Less available cache = More frequent disk I/O

24. Disk sizing

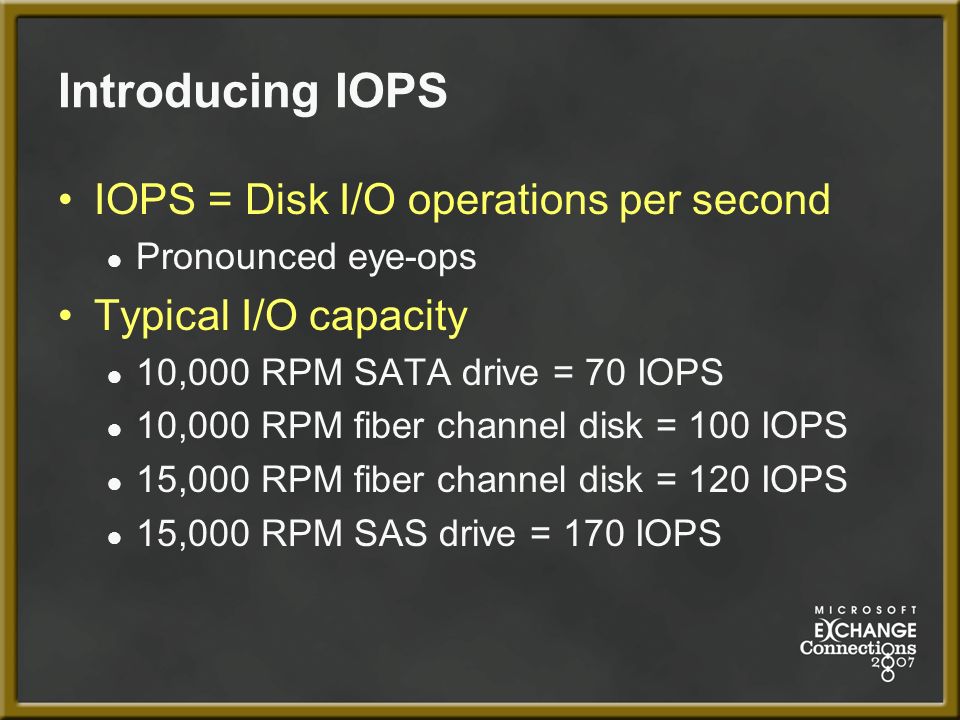

25. Introducing IOPS IOPS = Disk I/O operations per second ● Pronounced eye-ops Typical I/O capacity ● 10,000 RPM SATA drive = 70 IOPS ● 10,000 RPM fiber channel disk = 100 IOPS ● 15,000 RPM fiber channel disk = 120 IOPS ● 15,000 RPM SAS drive = 170 IOPS

26. Exchange 2003 IOPS Estimates User typeDatabase volume IOPS Light.5 Average.75 Heavy1.0 Large1.5

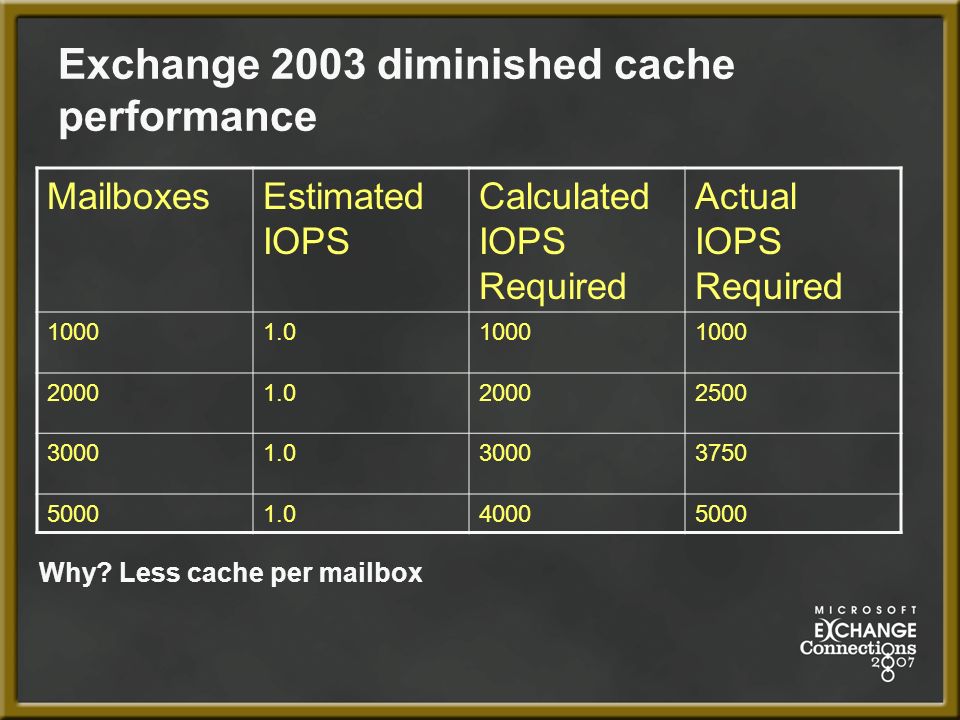

27. Exchange 2003 diminished cache performance MailboxesEstimated IOPS Calculated IOPS Required Actual IOPS Required 10001.01000 20001.020002500 30001.030003750 50001.040005000 Why? Less cache per mailbox

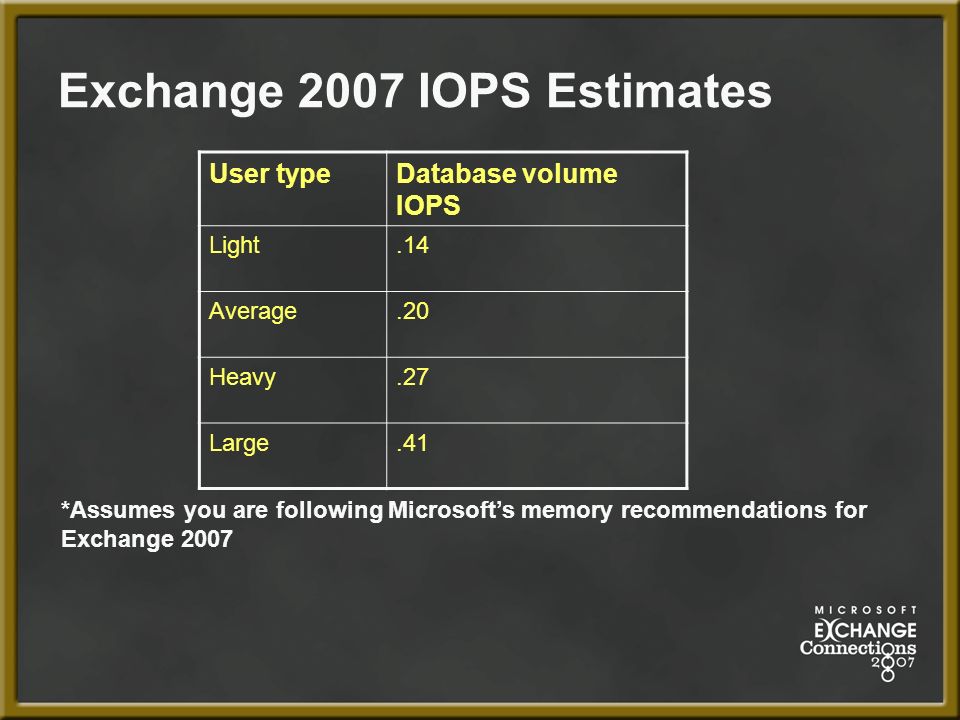

28. Exchange 2007 IOPS Estimates User typeDatabase volume IOPS Light.14 Average.20 Heavy.27 Large.41 *Assumes you are following Microsoft’s memory recommendations for Exchange 2007

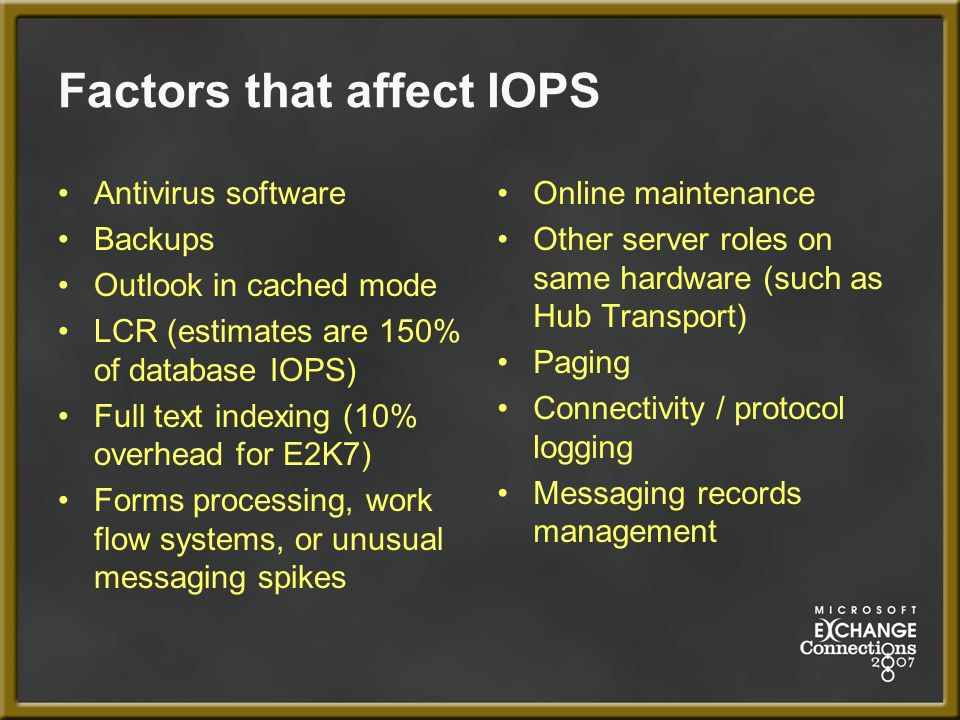

29. Factors that affect IOPS Antivirus software Backups Outlook in cached mode LCR (estimates are 150% of database IOPS) Full text indexing (10% overhead for E2K7) Forms processing, work flow systems, or unusual messaging spikes Online maintenance Other server roles on same hardware (such as Hub Transport) Paging Connectivity / protocol logging Messaging records management

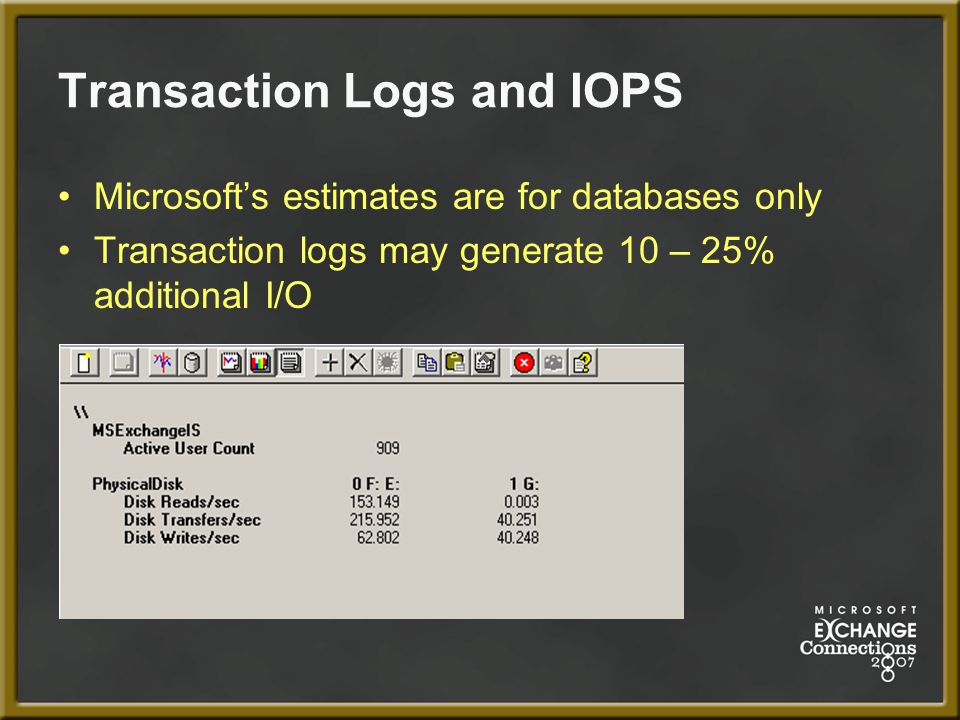

30. Transaction Logs and IOPS Microsoft’s estimates are for databases only Transaction logs may generate 10 – 25% additional I/O

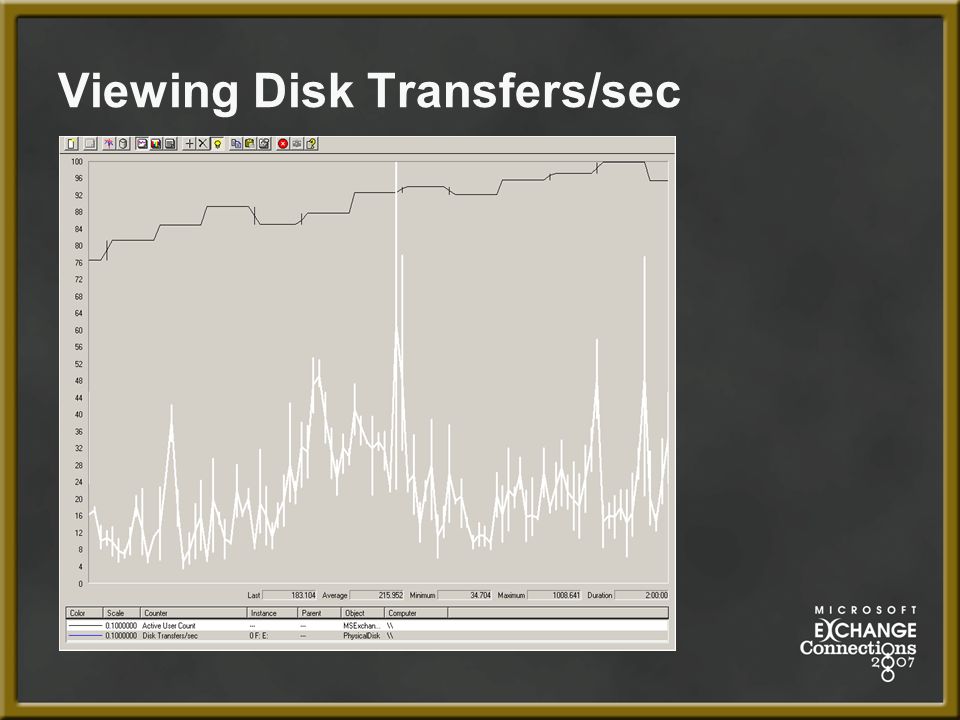

31. Viewing Disk Transfers/sec

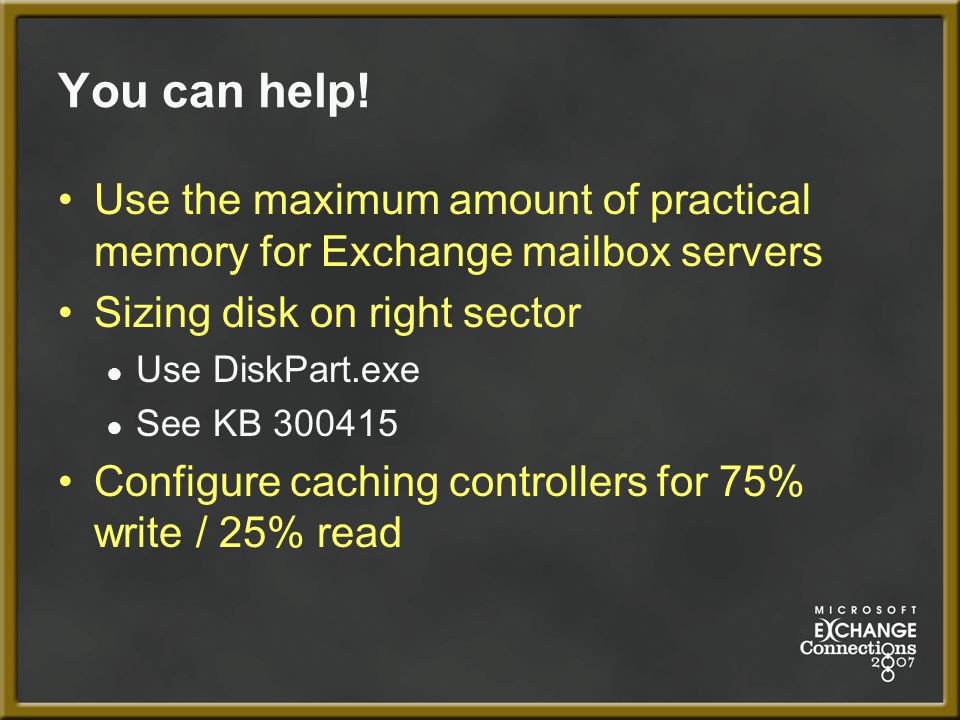

32. You can help! Use the maximum amount of practical memory for Exchange mailbox servers Sizing disk on right sector ● Use DiskPart.exe ● See KB 300415 Configure caching controllers for 75% write / 25% read

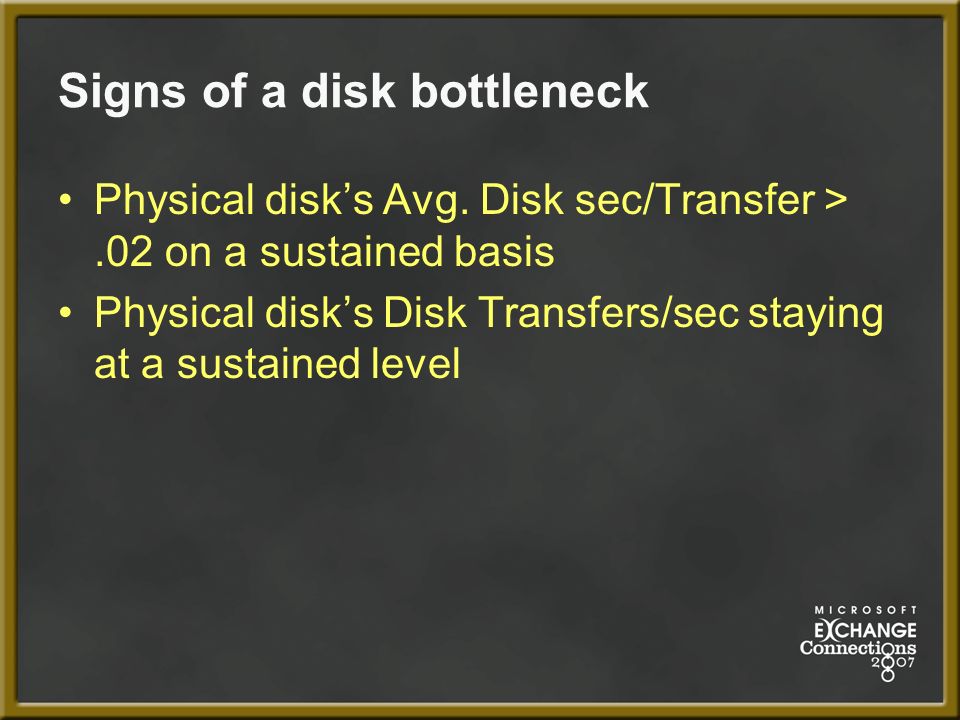

33. Signs of a disk bottleneck Physical disk’s Avg. Disk sec/Transfer >.02 on a sustained basis Physical disk’s Disk Transfers/sec staying at a sustained level

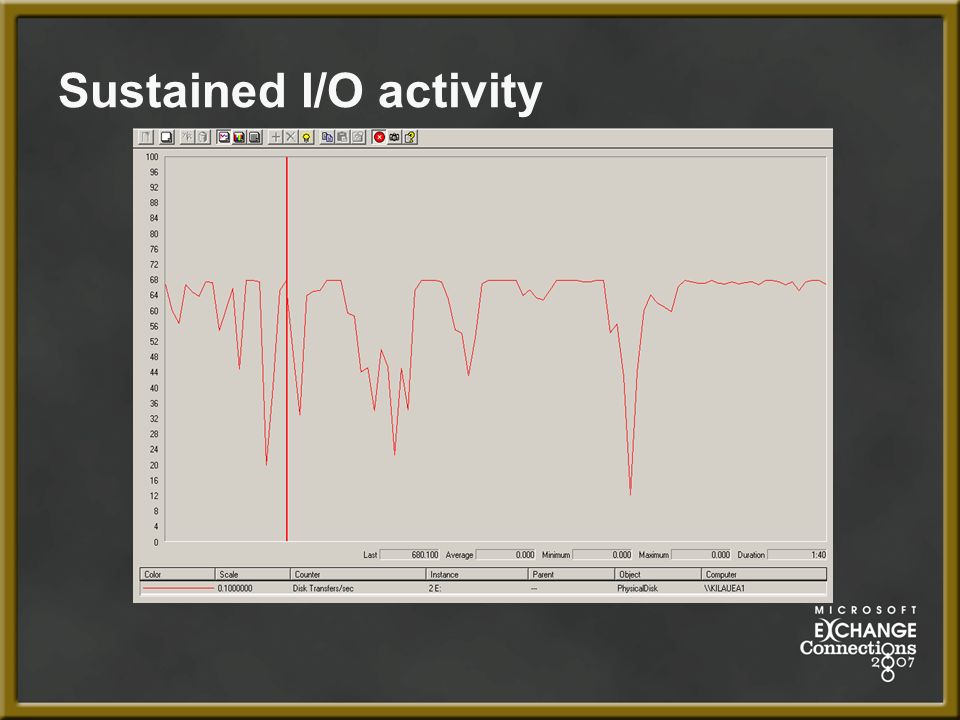

34. Sustained I/O activity

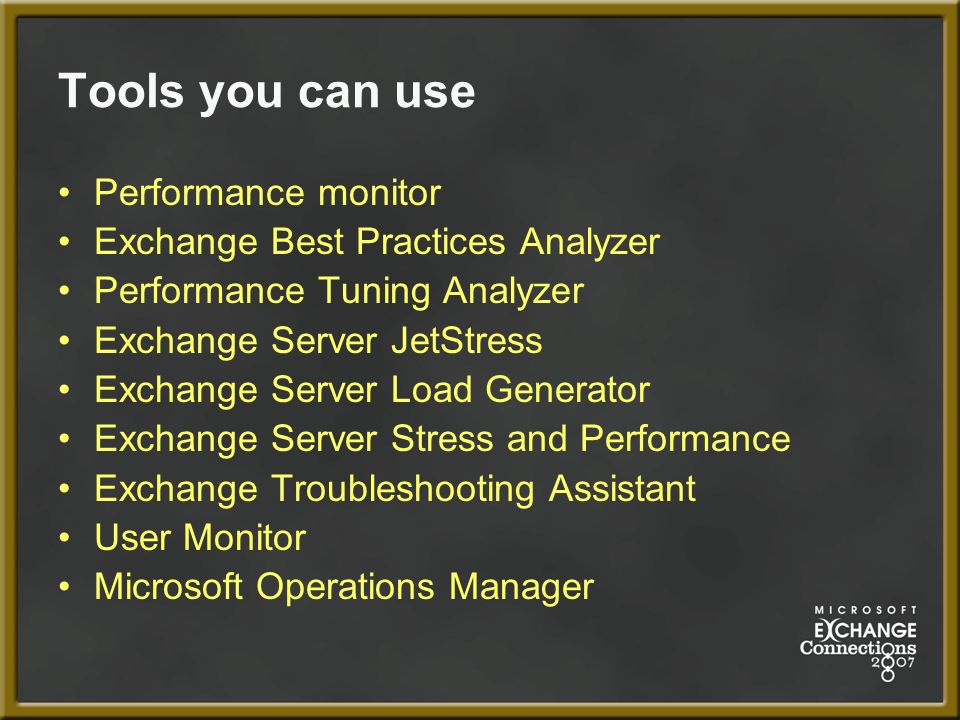

35. Tools you can use Performance monitor Exchange Best Practices Analyzer Performance Tuning Analyzer Exchange Server JetStress Exchange Server Load Generator Exchange Server Stress and Performance Exchange Troubleshooting Assistant User Monitor Microsoft Operations Manager

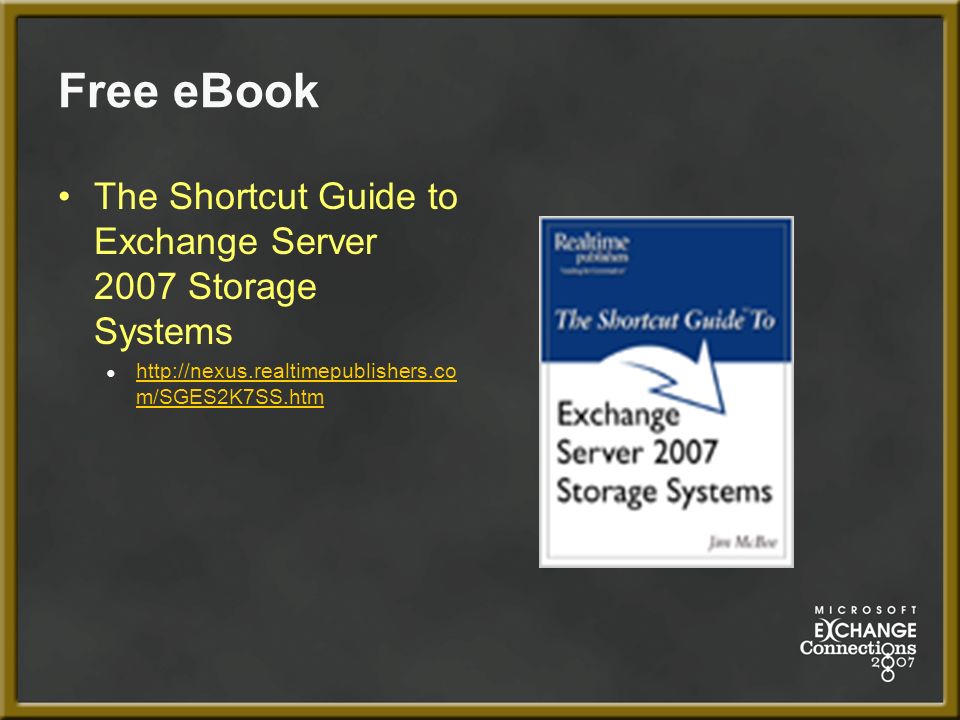

36. Free eBook The Shortcut Guide to Exchange Server 2007 Storage Systems ● http://nexus.realtimepublishers.co m/SGES2K7SS.htm http://nexus.realtimepublishers.co m/SGES2K7SS.htm

37. Questions? Thanks for attending!

38. Book giveaway and e-mail notice Please give me a piece of paper with your name for drawing Include your e-mail address or give me a business card if you want: ● 20% discount code for Directory Update software ● Notification e-mail when Mastering Exchange Server 2007 is available

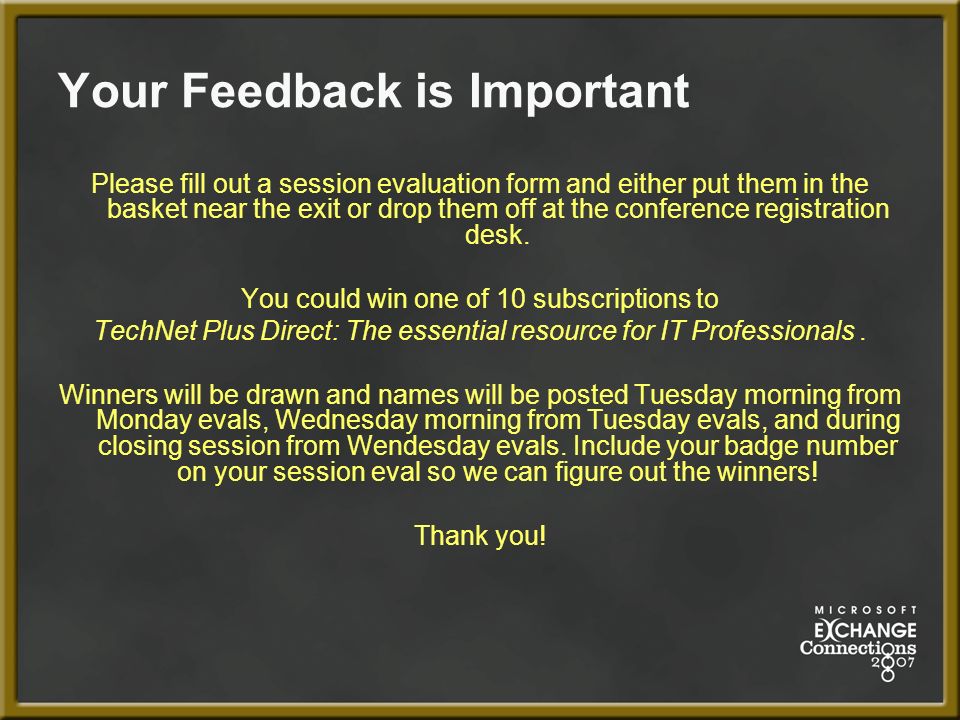

39. Your Feedback is Important Please fill out a session evaluation form and either put them in the basket near the exit or drop them off at the conference registration desk. You could win one of 10 subscriptions to TechNet Plus Direct: The essential resource for IT Professionals. Winners will be drawn and names will be posted Tuesday morning from Monday evals, Wednesday morning from Tuesday evals, and during closing session from Wendesday evals. Include your badge number on your session eval so we can figure out the winners! Thank you!
