1. Thomas Jefferson National Accelerator Facility Page 1 UITF Progress meeting Approved Labyrinth Fresh air pulled through “chicken wire” gate

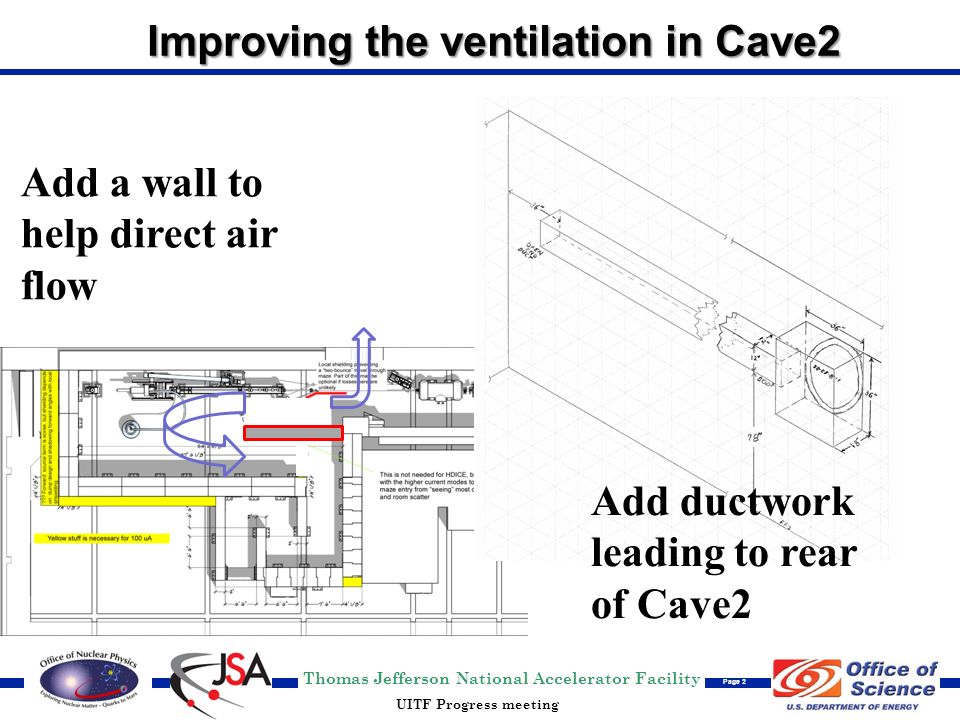

2. Thomas Jefferson National Accelerator Facility Page 2 UITF Progress meeting Improving the ventilation in Cave2 Add a wall to help direct air flow Add ductwork leading to rear of Cave2

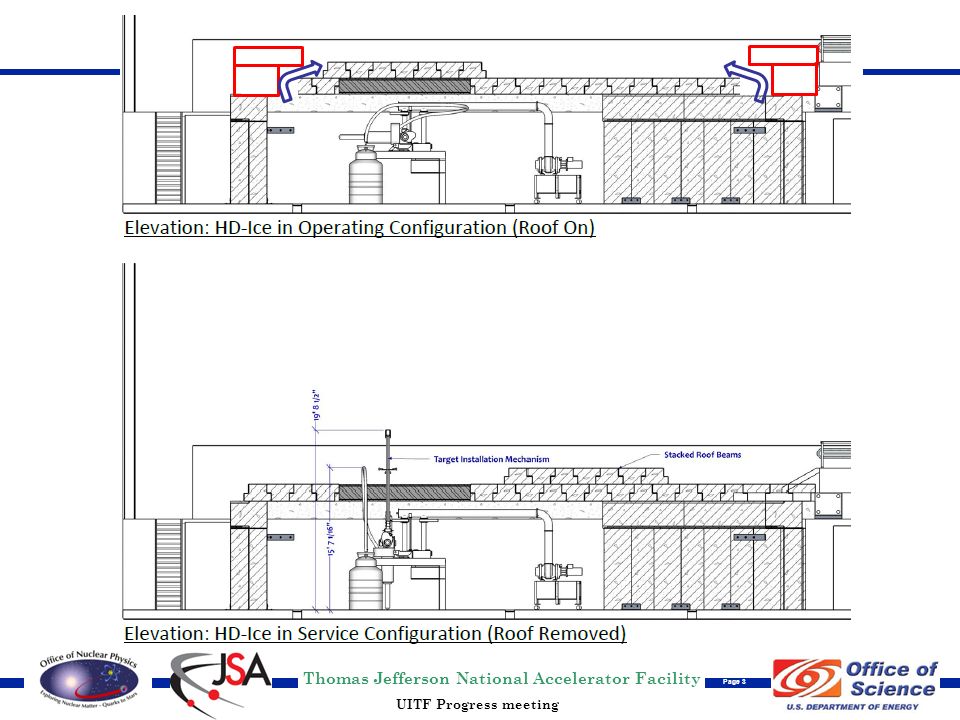

3. Thomas Jefferson National Accelerator Facility Page 3 UITF Progress meeting

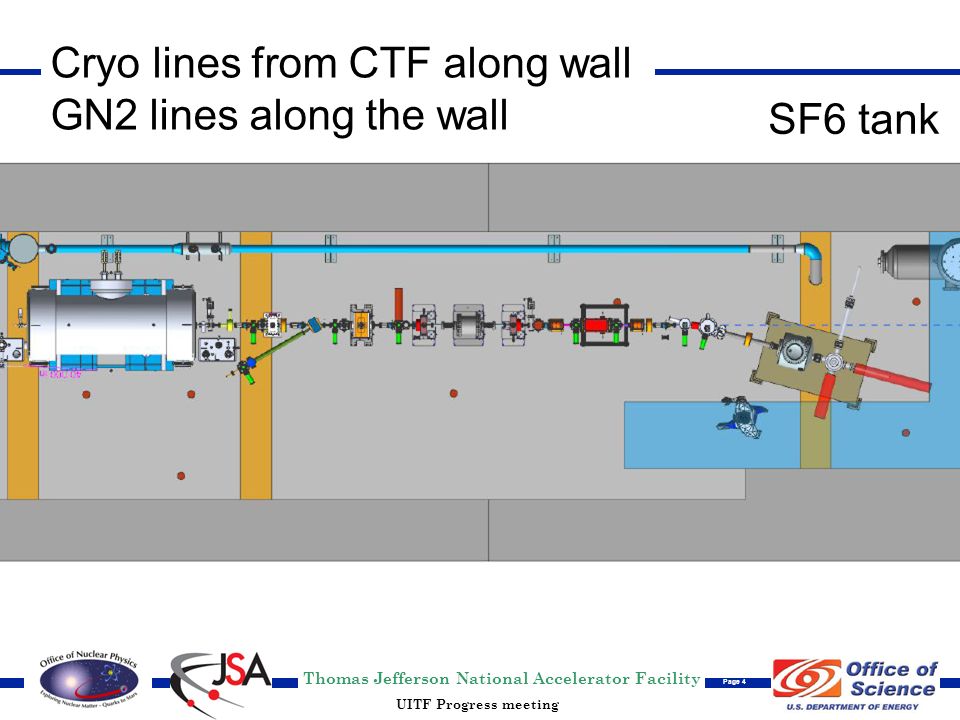

4. Thomas Jefferson National Accelerator Facility Page 4 UITF Progress meeting Cryo lines from CTF along wall GN2 lines along the wall SF6 tank

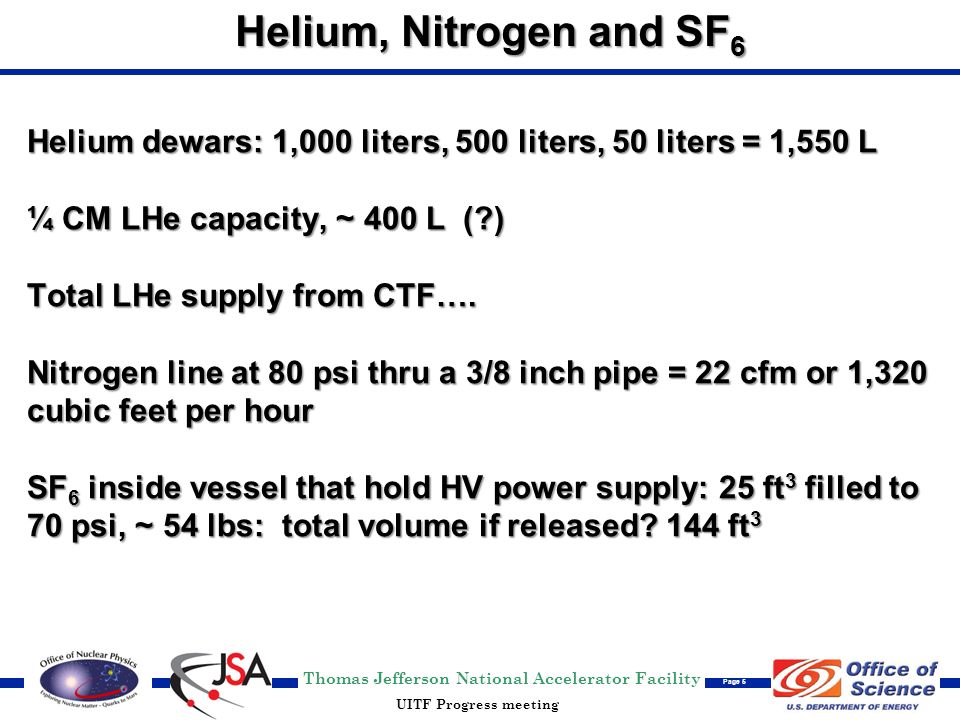

5. Thomas Jefferson National Accelerator Facility Page 5 UITF Progress meeting Helium dewars: 1,000 liters, 500 liters, 50 liters = 1,550 L ¼ CM LHe capacity, ~ 400 L (?) Total LHe supply from CTF…. Nitrogen line at 80 psi thru a 3/8 inch pipe = 22 cfm or 1,320 cubic feet per hour SF 6 inside vessel that hold HV power supply: 25 ft 3 filled to 70 psi, ~ 54 lbs: total volume if released? 144 ft 3 Helium, Nitrogen and SF 6

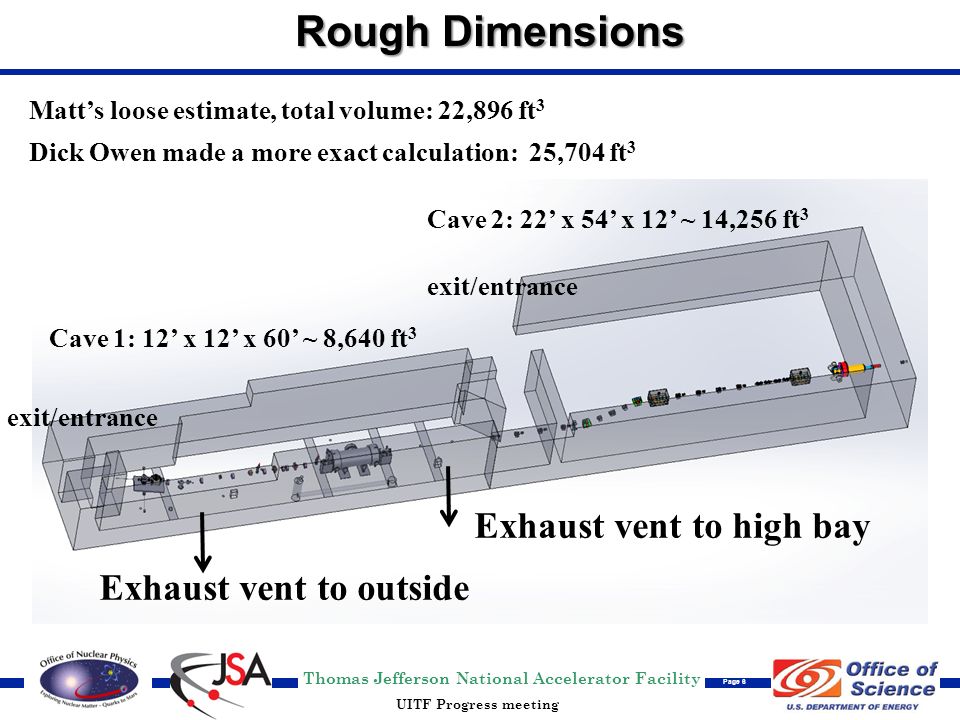

6. Thomas Jefferson National Accelerator Facility Page 6 UITF Progress meeting Rough Dimensions Cave 1: 12’ x 12’ x 60’ ~ 8,640 ft 3 Cave 2: 22’ x 54’ x 12’ ~ 14,256 ft 3 Dick Owen made a more exact calculation: 25,704 ft 3 Matt’s loose estimate, total volume: 22,896 ft 3 Exhaust vent to outside Exhaust vent to high bay exit/entrance

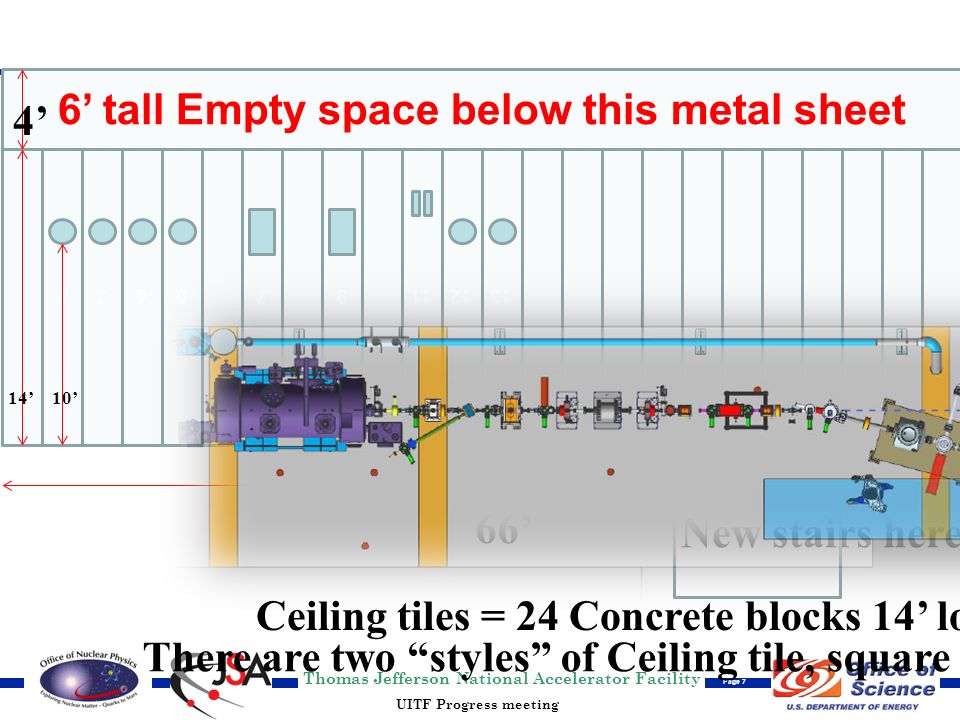

7. Thomas Jefferson National Accelerator Facility Page 7 UITF Progress meeting 131211975432 6’ tall Empty space below this metal sheet 66’ 14’ 4’ 10’ Ceiling tiles = 24 Concrete blocks 14’ long There are two “styles” of Ceiling tile, square and rectangular cross sections New stairs here

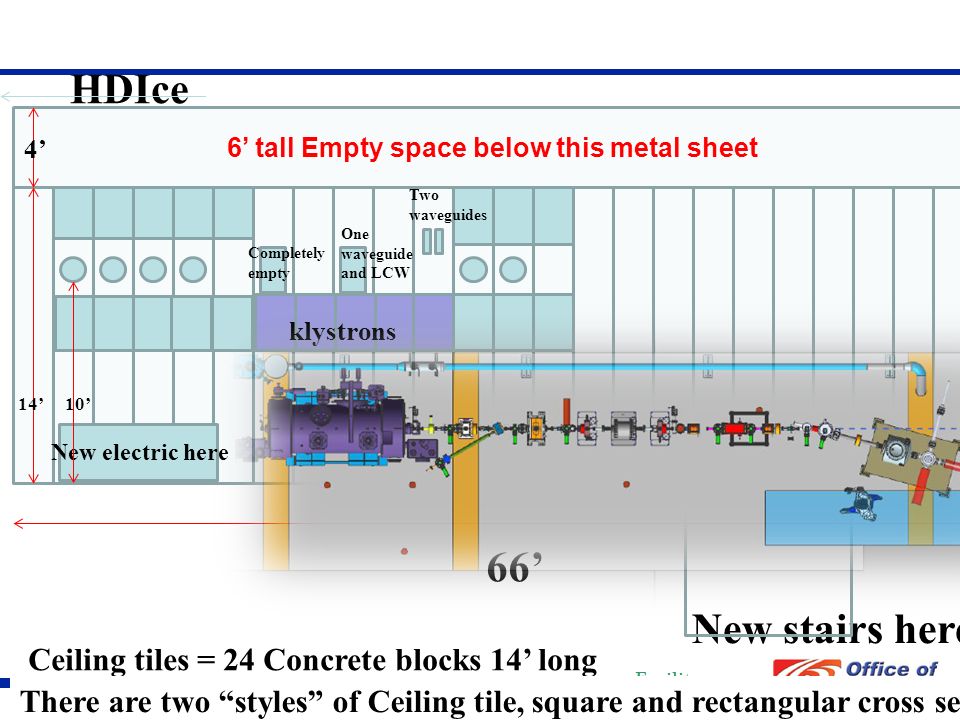

8. Thomas Jefferson National Accelerator Facility Page 8 UITF Progress meeting 131211975432 6’ tall Empty space below this metal sheet 66’ 4’ Ceiling tiles = 24 Concrete blocks 14’ long There are two “styles” of Ceiling tile, square and rectangular cross sections New stairs here klystrons Completely empty One waveguide and LCW Two waveguides New electric here HDIce 14’10’

9. Thomas Jefferson National Accelerator Facility Page 9 UITF Progress meeting

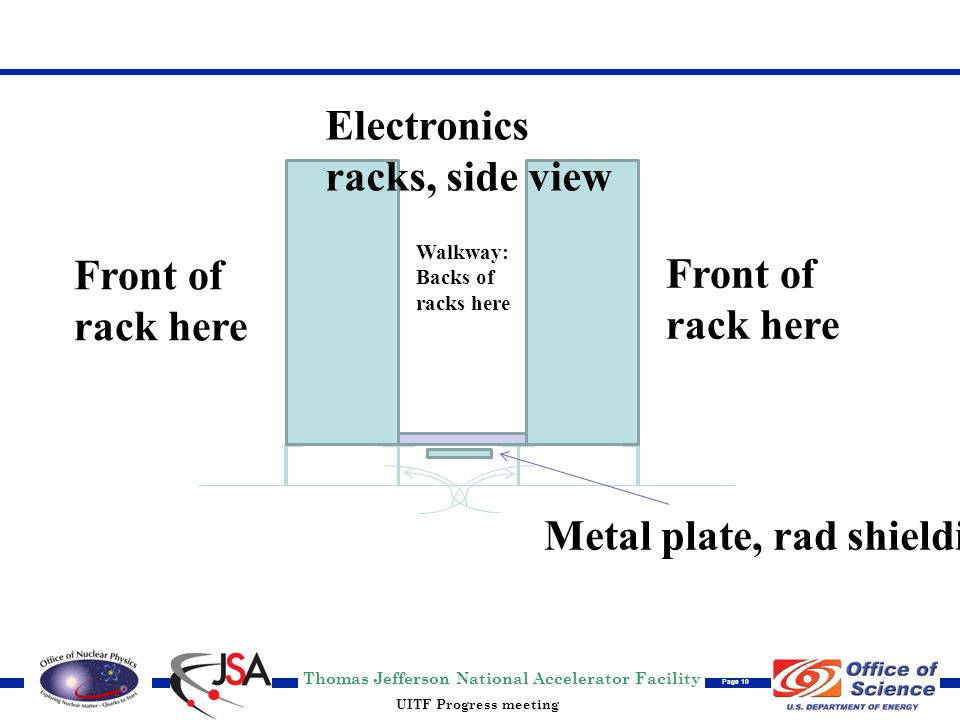

10. Thomas Jefferson National Accelerator Facility Page 10 UITF Progress meeting Walkway: Backs of racks here Metal plate, rad shielding Electronics racks, side view Front of rack here

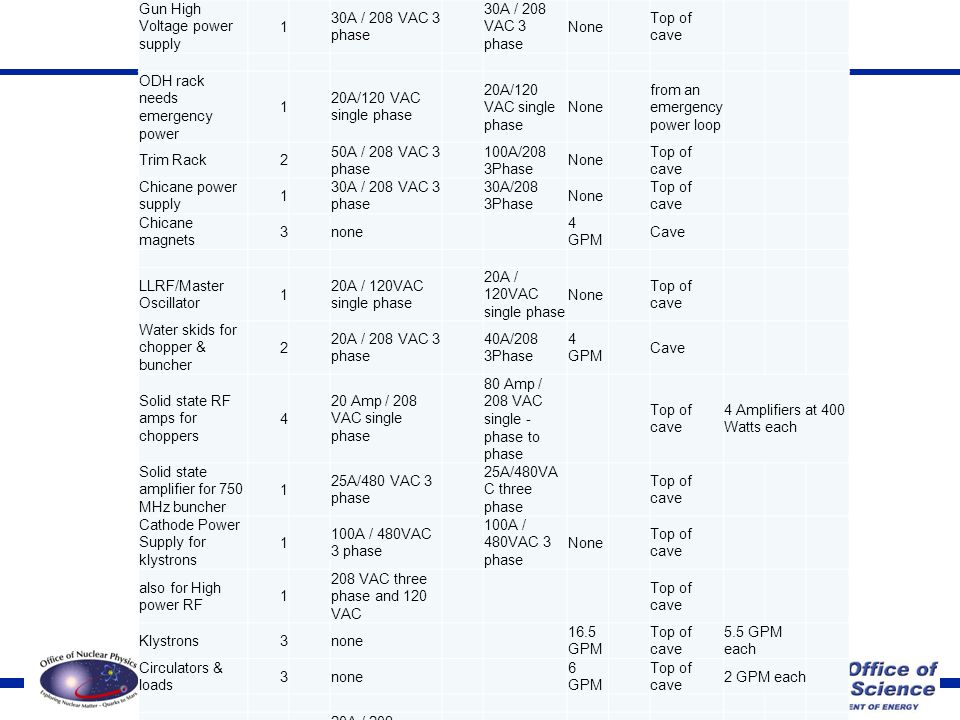

11. Thomas Jefferson National Accelerator Facility Page 11 UITF Progress meeting DeviceQtyAC Power Each Total AC Power LCWLocation Gun High Voltage power supply 1 30A / 208 VAC 3 phase None Top of cave ODH rack needs emergency power 1 20A/120 VAC single phase None from an emergency power loop Trim Rack2 50A / 208 VAC 3 phase 100A/208 3Phase None Top of cave Chicane power supply 1 30A / 208 VAC 3 phase 30A/208 3Phase None Top of cave Chicane magnets 3none 4 GPM Cave LLRF/Master Oscillator 1 20A / 120VAC single phase None Top of cave Water skids for chopper & buncher 2 20A / 208 VAC 3 phase 40A/208 3Phase 4 GPM Cave Solid state RF amps for choppers 4 20 Amp / 208 VAC single phase 80 Amp / 208 VAC single - phase to phase Top of cave 4 Amplifiers at 400 Watts each Solid state amplifier for 750 MHz buncher 1 25A/480 VAC 3 phase 25A/480VA C three phase Top of cave Cathode Power Supply for klystrons 1 100A / 480VAC 3 phase None Top of cave also for High power RF 1 208 VAC three phase and 120 VAC Top of cave Klystrons3none 16.5 GPM Top of cave 5.5 GPM each Circulators & loads 3none 6 GPM Top of cave 2 GPM each Cave Vacuum & Utility power 20A / 208 3Phase XX A / 240 VAC X circuits 20 A / 120 VAC 20A/208 3Phase 240 VAC Cave Ion Pump power supplies 1 20A 120VAC single phase none Top of cave Control Racks including cryo 12 20A / 120VAC single phase 12 circuits@ 120 VAC@ 20 Amps Top of cave Control Room1 20A / 120VAC single phase 4 circuits@ 120 VAC@ 20 Amps Control Room Inside the Cave 20A / 120VAC single phase 12 circuits@ 120 VAC@ 20 Amps along perimeter of the cave HDIce gets power from Big Bertha. Big Bertha will get power fed from a distribution panel in the annex. This distribution panel is attached to the generator. Ground isolated lines Walt thinks we might want two additional 480 VAC welding receptacles installed inside the cave too. These additional lines do not need to be attached to a generator.

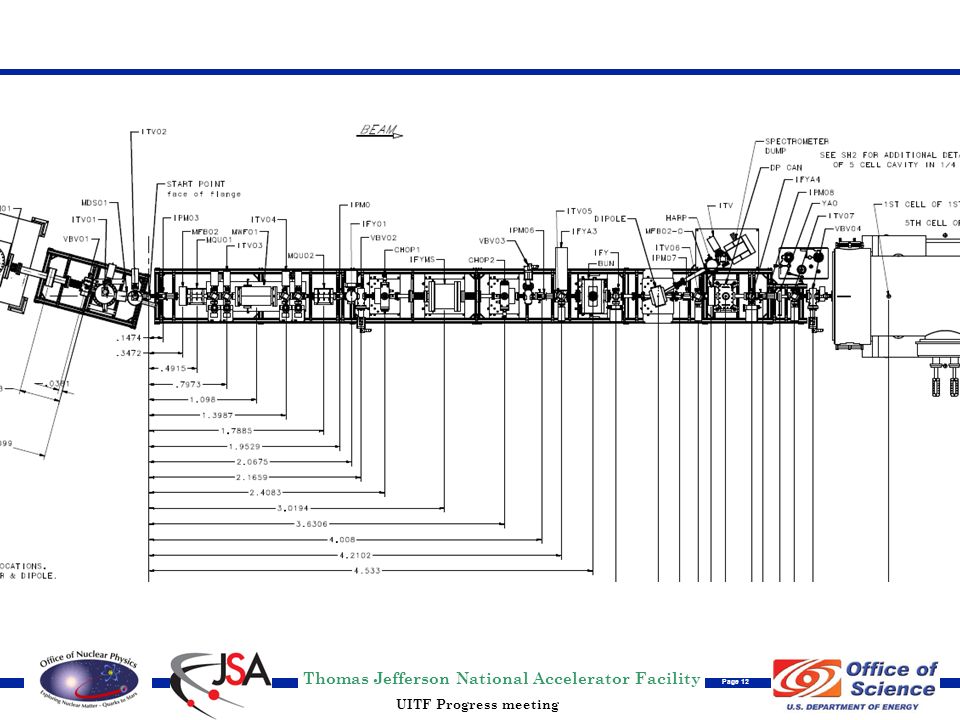

12. Thomas Jefferson National Accelerator Facility Page 12 UITF Progress meeting

13. Thomas Jefferson National Accelerator Facility Page 13 UITF Progress meeting Walt: electronics racks platform design, for Neil to build Neil Wilson: rack platform, unistrut to wall, temporary stairs, LCW, GN2 and compressed air Layout of utilities added to unistrut Have facilities remove stuff from control room wall exterior Find a concrete block for empty space near control room Have Walter move concrete block…
