1. AIRBUS LMS Customer Services 1 AIRBUS LMS C.B.T. Software Design - STDS2 Copyright © AIRBUS SAS 2003

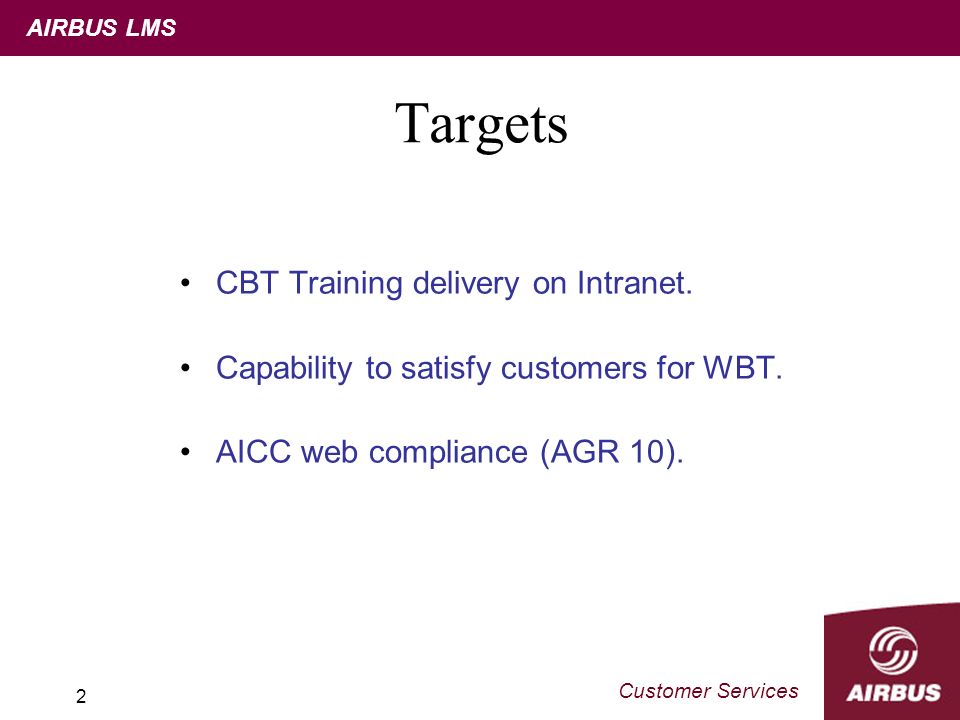

2. AIRBUS LMS Customer Services 2 Targets CBT Training delivery on Intranet. Capability to satisfy customers for WBT. AICC web compliance (AGR 10).

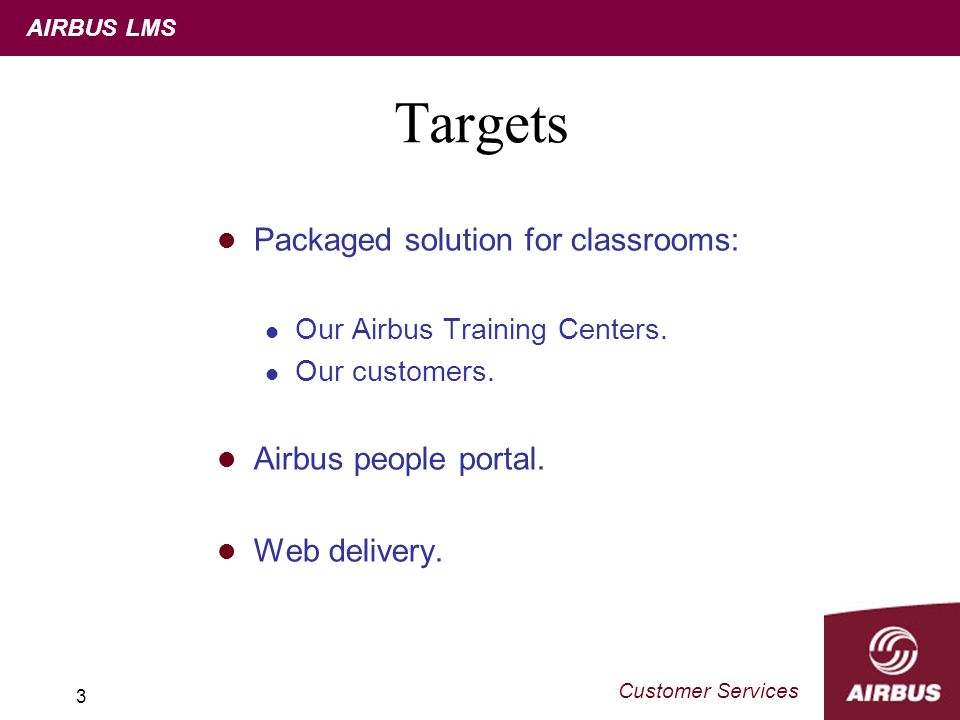

3. AIRBUS LMS Customer Services 3 Packaged solution for classrooms: Our Airbus Training Centers. Our customers. Airbus people portal. Web delivery. Targets

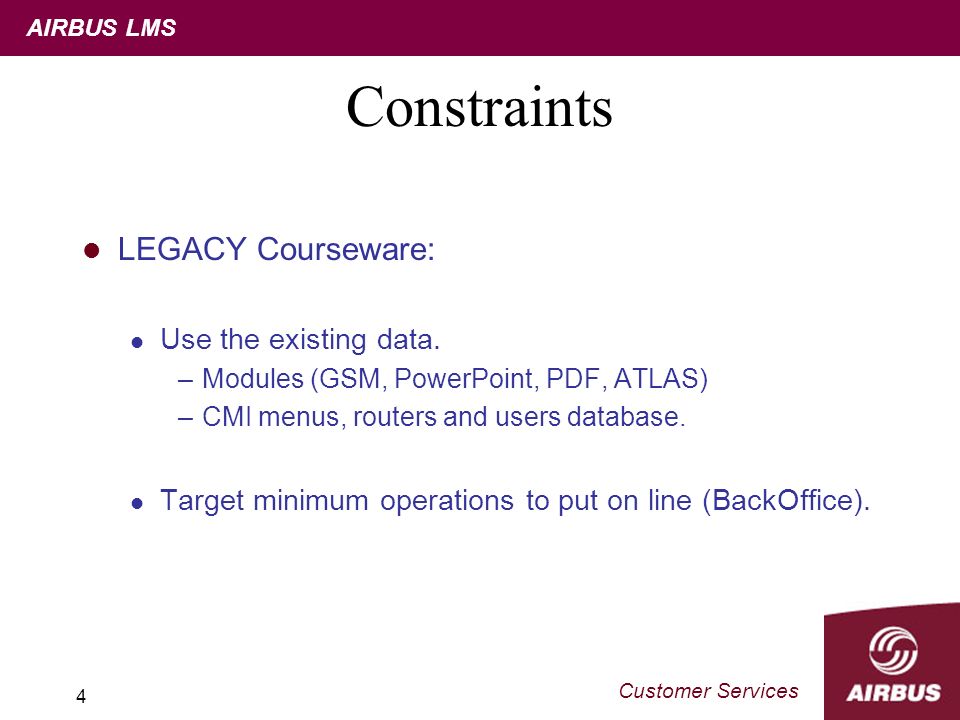

4. AIRBUS LMS Customer Services 4 Constraints LEGACY Courseware: Use the existing data. –Modules (GSM, PowerPoint, PDF, ATLAS) –CMI menus, routers and users database. Target minimum operations to put on line (BackOffice).

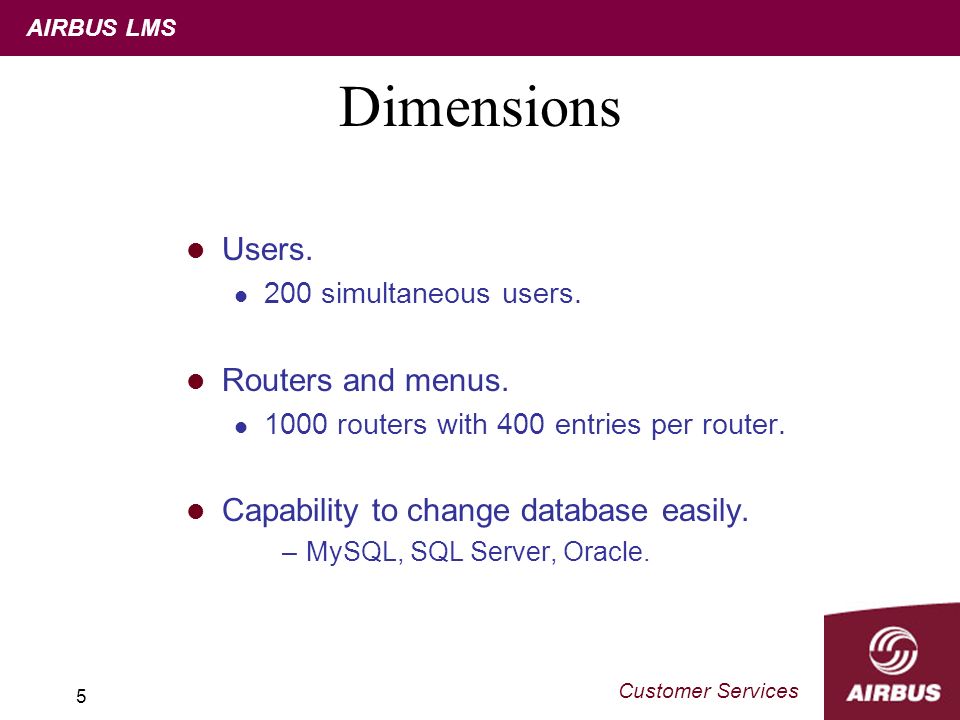

5. AIRBUS LMS Customer Services 5 Dimensions Users. 200 simultaneous users. Routers and menus. 1000 routers with 400 entries per router. Capability to change database easily. –MySQL, SQL Server, Oracle.

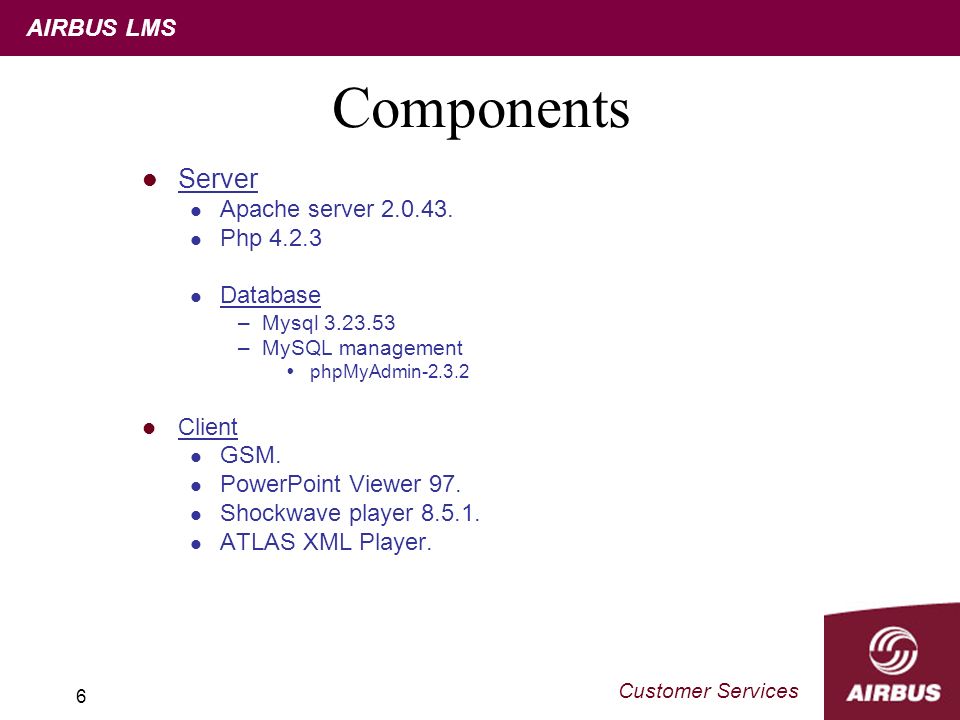

6. AIRBUS LMS Customer Services 6 Components Server Apache server 2.0.43. Php 4.2.3 Database –Mysql 3.23.53 –MySQL management  phpMyAdmin-2.3.2 Client GSM. PowerPoint Viewer 97. Shockwave player 8.5.1. ATLAS XML Player.

7. AIRBUS LMS Customer Services 7 Restrictions Only use with Microsoft Internet Explorer Version 5.5 or higher. Client components installation is allowed only in administrator mode on Windows 2000/XP secured platforms. Known constraints: - Restart the computer under Win9x after Microsoft PowerPoint setup. - Exit and close the browser after shockwave setup.

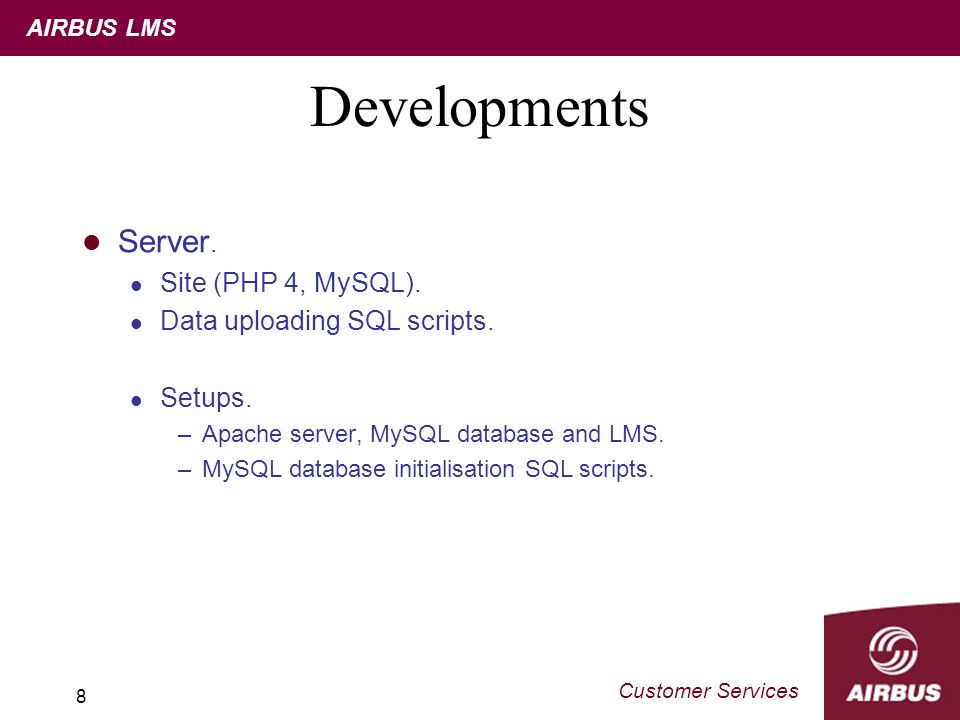

8. AIRBUS LMS Customer Services 8 Developments Server. Site (PHP 4, MySQL). Data uploading SQL scripts. Setups. –Apache server, MySQL database and LMS. –MySQL database initialisation SQL scripts.

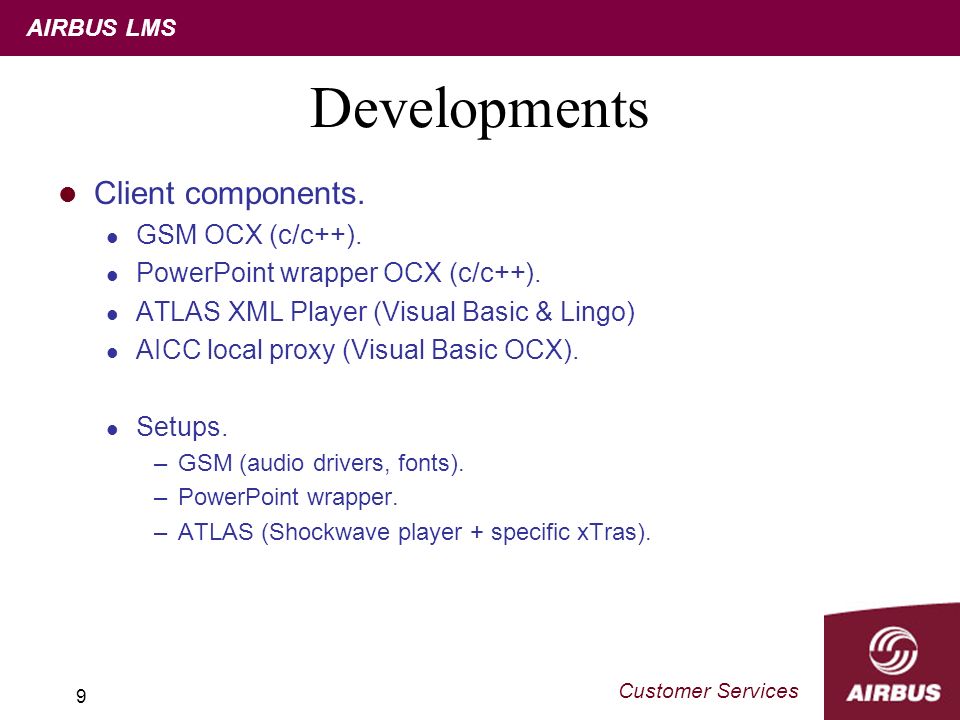

9. AIRBUS LMS Customer Services 9 Developments Client components. GSM OCX (c/c++). PowerPoint wrapper OCX (c/c++). ATLAS XML Player (Visual Basic & Lingo) AICC local proxy (Visual Basic OCX). Setups. –GSM (audio drivers, fonts). –PowerPoint wrapper. –ATLAS (Shockwave player + specific xTras).

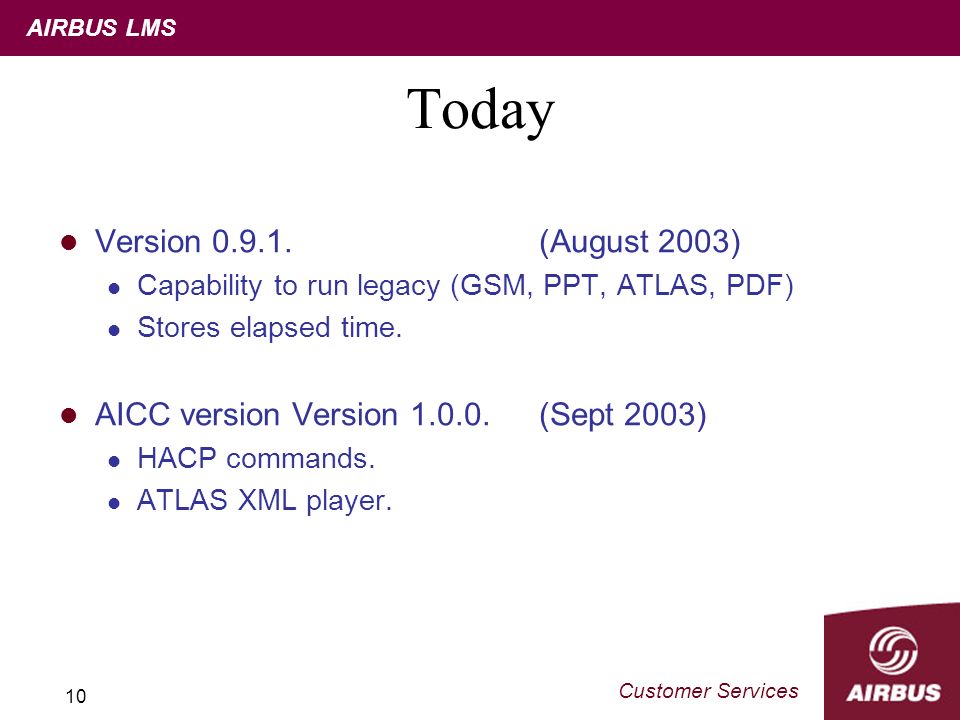

10. AIRBUS LMS Customer Services 10 Today Version 0.9.1.(August 2003) Capability to run legacy (GSM, PPT, ATLAS, PDF) Stores elapsed time. AICC version Version 1.0.0.(Sept 2003) HACP commands. ATLAS XML player.

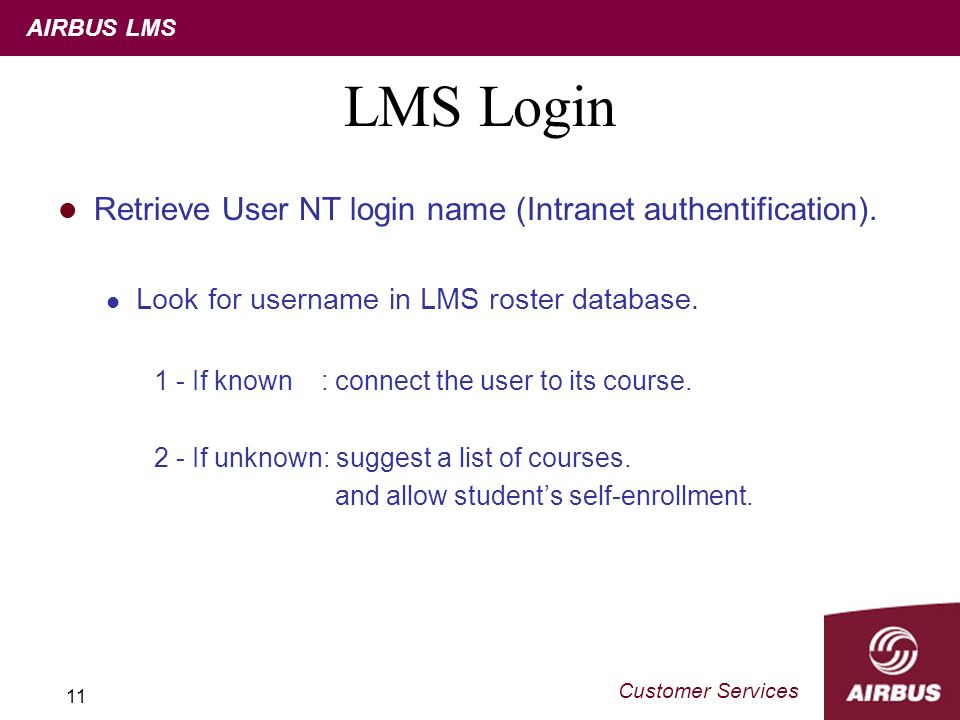

11. AIRBUS LMS Customer Services 11 LMS Login Retrieve User NT login name (Intranet authentification). Look for username in LMS roster database. 1 - If known : connect the user to its course. 2 - If unknown: suggest a list of courses. and allow student’s self-enrollment.

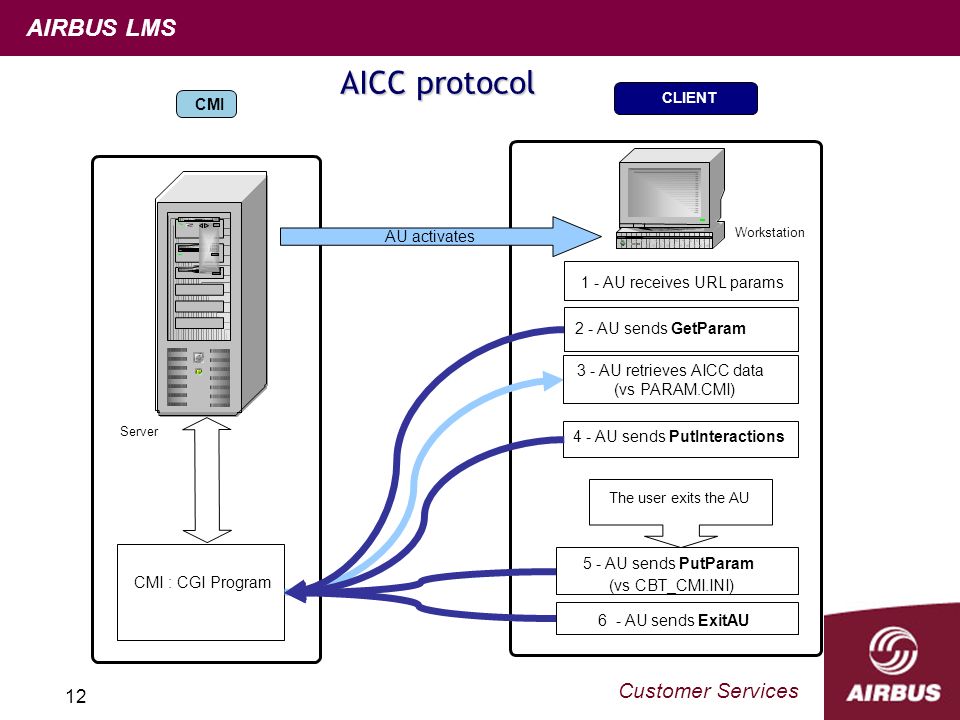

12. AIRBUS LMS Customer Services 12 text Server CMI CMI : CGI Program Workstation CLIENT AICC protocol AU activates 1 - AU receives URL params The user exits the AU 3 - AU retrieves AICC data (vs PARAM.CMI) 5 - AU sends PutParam 6 - AU sends ExitAU (vs CBT_CMI.INI) 2 - AU sends GetParam 4 - AU sends PutInteractions

13. AIRBUS LMS Customer Services 13 Administrator options Menu management Import a menu –From native CMI.MNU files. Delete Edit title Router Management Import a router –From.CSV files exported from CMI. Delete Edit title AU management Edit command line. Re-order. Delete. User management User class. Suspend flag.

14. AIRBUS LMS Customer Services 14 Roster Management Capability to manage users on LMS database: –Import CMI roster database. –Edit users (name, password, preferences…). –Modify user’s assignment to a course. –Suspend a user. –Edit groups. (add, delete). –Edit group shell. –Edit group auto-enroll description.

15. AIRBUS LMS Customer Services 15 Data upload process Operations: Export from CMI: –Prepare routers for web delivery (command lines). –Export routers to CSV format. Import into LMS: –Copy data on server (modules). –Import menus and routers (SQL scripts).  Create user group.  Declare if course available to self-enrollment.

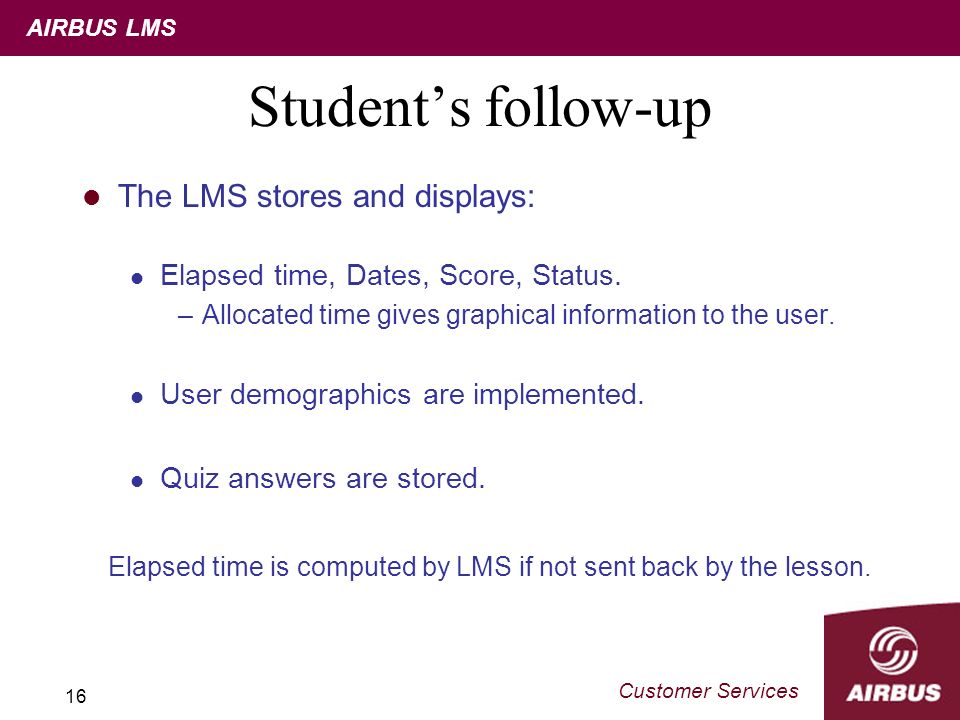

16. AIRBUS LMS Customer Services 16 Student’s follow-up The LMS stores and displays: Elapsed time, Dates, Score, Status. –Allocated time gives graphical information to the user. User demographics are implemented. Quiz answers are stored. Elapsed time is computed by LMS if not sent back by the lesson.

17. AIRBUS LMS Customer Services 17 Student’s results Capability to retrieve results. By student: –List of courses with data for this student.  Elapsed time, Score, Status. –Day by day reports. By course: –List of students. –List of modules:  Average time by module. Number of trainees. Date filter (start, end) will be applied for each request.

18. AIRBUS LMS Customer Services 18 Demo
