1. Manufacturer and supplier of Quartz Crystals Oscillators and Filters High Shock Resilience Special Product Selection Miniature Packages Crystals Oscillators Miniature Packages Military Specifications High Operating Temperature -55 ~ 220°C OCXO TCXO VCXO LVDS PECL LOW EMI Manufacturing and supplying quartz crystal products since 1982. Euroquartz offers a comprehensive, design-led support for all customers.

2. TYPICAL APPLICATIONS Military vehicles Smoke Detection Systems Radio Pagers Aerospace High Quality Audio Systems GPS Systems

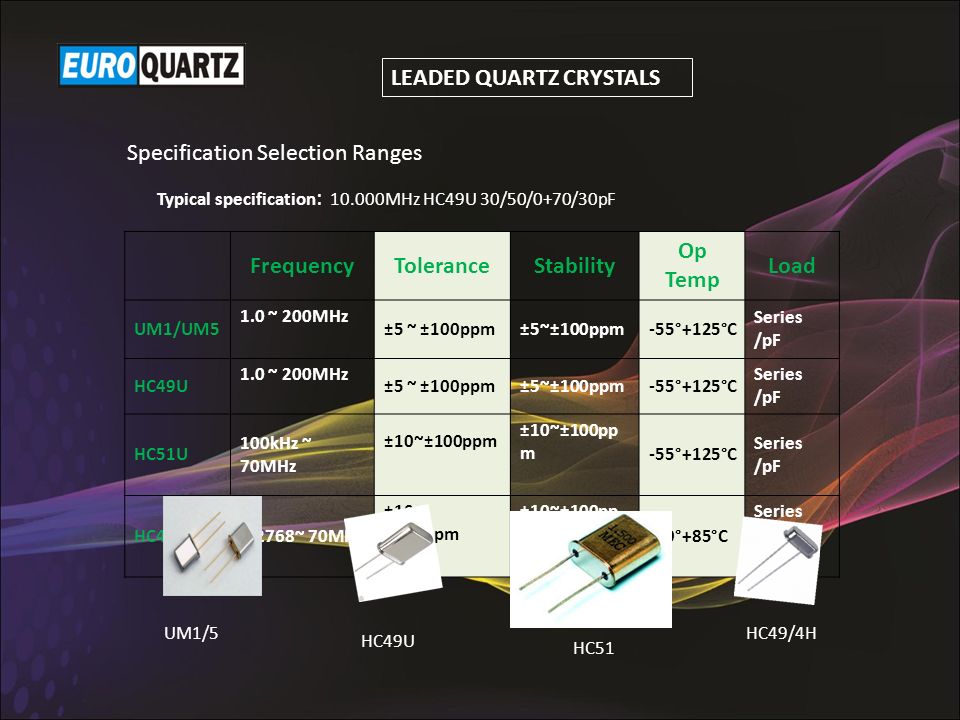

3. LEADED QUARTZ CRYSTALS FrequencyToleranceStability Op Temp Load UM1/UM5 1.0 ~ 200MHz ±5 ~ ±100ppm -55°+125°C Series /pF HC49U 1.0 ~ 200MHz ±5 ~ ±100ppm -55°+125°C Series /pF HC51U 100kHz ~ 70MHz ±10~±100ppm -55°+125°C Series /pF HC49-4H3.2768~ 70MHz ±10 ~ ±100ppm -40°+85°C Series /pF Specification Selection Ranges UM1/5 HC49U HC51 HC49/4H Typical specification : 10.000MHz HC49U 30/50/0+70/30pF

4. SURFACE MOUNT QUARTZ CRYSTALS Packag e Size mm FrequencyToleranceStability Op Temp Load 49USMX12.4 x 4.5 3.2 ~ 70MHz ±10~±100pp m -40°+85°C Series /pF MP 12.9 x 4.53.5 ~ 70MHz ±10~±100pp m -40°+85°C Series /pF MQ7.0 x 5.0 6.0~ 125MHz±10~±100pp m -55°+125°C Series /pF MF6.0 x 3.510.0~125MHz ±10~±100pp m -55°+125°C Series /pF MJ5.0 x 3.210.0~125MHz ±10~±100pp m -55°+125°C Series /pF X424.0 x 2.512.0~60.0MHz ±10~±100pp m -55°+105°C Series /pF MT/X323.2 x 2.512.0~60.0MHz ±10~±100pp m ±15~±100pp m -55°+105°C Series /pF X222.5 x 2.016.0~60.0MHz ±10~±100pp m ±15~±100pp m -55°+105°C Series /pF Specification Selection Ranges Typical Specification: 10.000MHz 49USMX 30/50/-20+70/18pF

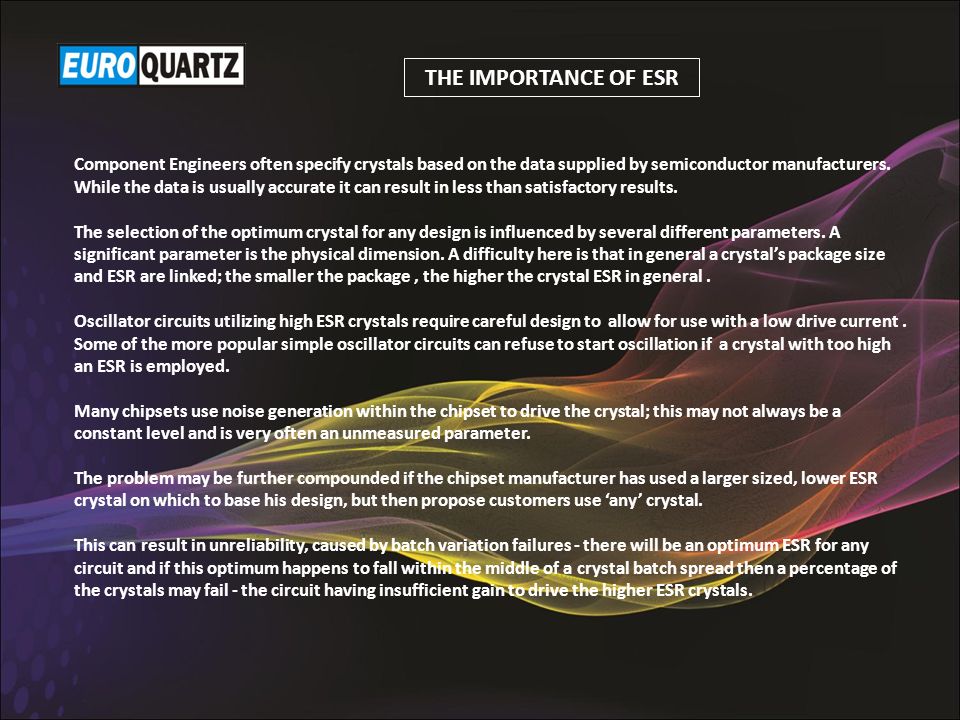

5. THE IMPORTANCE OF ESR Component Engineers often specify crystals based on the data supplied by semiconductor manufacturers. While the data is usually accurate it can result in less than satisfactory results. The selection of the optimum crystal for any design is influenced by several different parameters. A significant parameter is the physical dimension. A difficulty here is that in general a crystal’s package size and ESR are linked; the smaller the package, the higher the crystal ESR in general. Oscillator circuits utilizing high ESR crystals require careful design to allow for use with a low drive current. Some of the more popular simple oscillator circuits can refuse to start oscillation if a crystal with too high an ESR is employed. Many chipsets use noise generation within the chipset to drive the crystal; this may not always be a constant level and is very often an unmeasured parameter. The problem may be further compounded if the chipset manufacturer has used a larger sized, lower ESR crystal on which to base his design, but then propose customers use ‘any’ crystal. This can result in unreliability, caused by batch variation failures - there will be an optimum ESR for any circuit and if this optimum happens to fall within the middle of a crystal batch spread then a percentage of the crystals may fail - the circuit having insufficient gain to drive the higher ESR crystals.

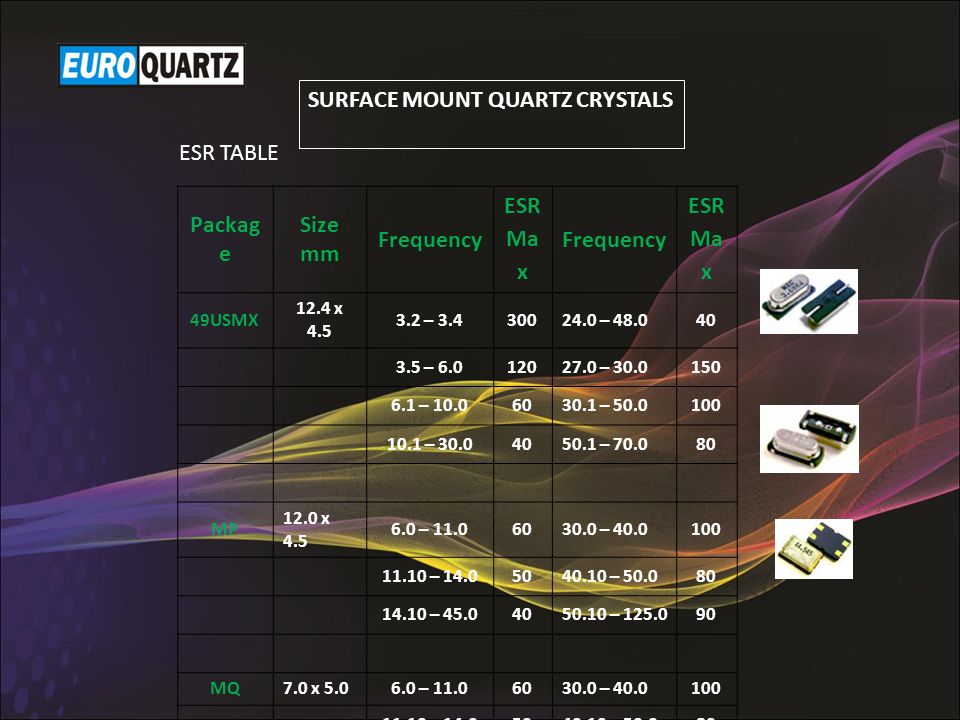

6. SURFACE MOUNT QUARTZ CRYSTALS Packag e Size mm Frequency ESR Ma x Frequency ESR Ma x 49USMX 12.4 x 4.5 3.2 – 3.430024.0 – 48.040 3.5 – 6.012027.0 – 30.0150 6.1 – 10.06030.1 – 50.0100 10.1 – 30.04050.1 – 70.080 MP 12.0 x 4.5 6.0 – 11.06030.0 – 40.0100 11.10 – 14.05040.10 – 50.080 14.10 – 45.04050.10 – 125.090 MQ7.0 x 5.06.0 – 11.06030.0 – 40.0100 11.10 – 14.05040.10 – 50.080 14.10 – 45.04050.10 – 125.090 ESR TABLE

7. SURFACE MOUNT QUARTZ CRYSTALS Packag e Size mm Frequency ESR Ma x Frequency ESR Ma x MF6.0 x 3.510.0 – 12.08030.0 – 40.0100 12.1 – 16.06040.1 – 50.080 16.1 -50.04050.1 -125.050 MJ5.0 x 3.210.0 – 12.08030.0 – 40.0100 12.1 – 16.06040.1 – 50.080 16.1 -50.04050.1 -125.050 X424.0 x 2.512.0 – 20.080 20.1 – 60.060 ESR TABLE

8. SURFACE MOUNT QUARTZ CRYSTALS Packag e Size mm Frequency ESR Ma x Frequency ESR Ma x MT/X323.2 x 2.516.0 – 20.0100 20.1 – 60.060 X222.2 x 2.016.0 – 21.0120 21.0 – 26.080 26.0 -60.060 X212.0 x 1.620.0 – 30.0120 30.1 – 54.080 ESR TABLE

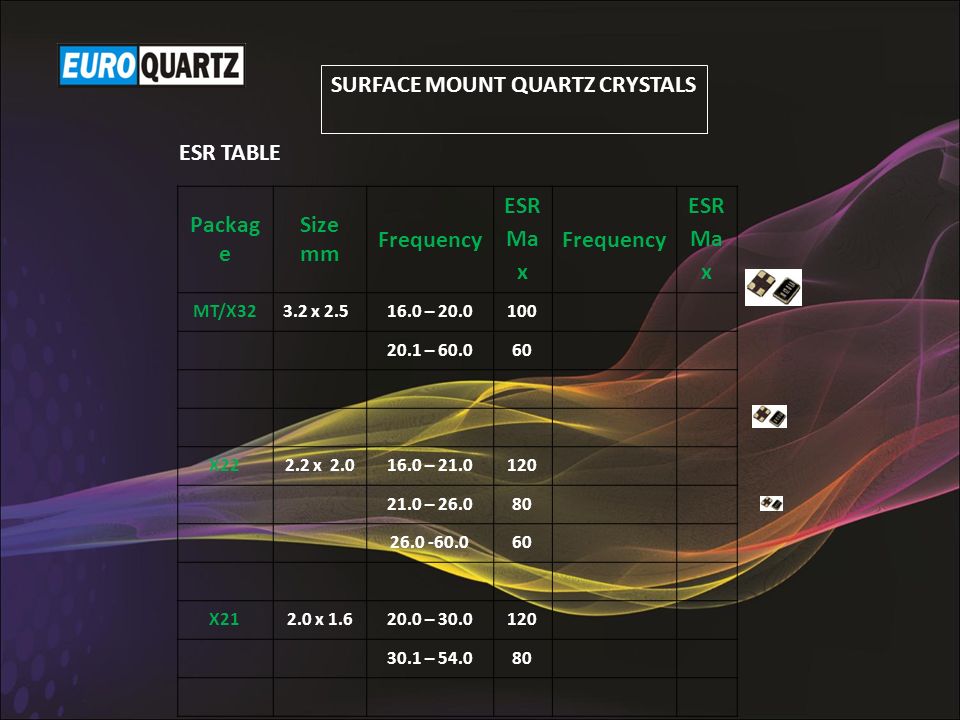

9. SURFACE MOUNT QUARTZ CRYSTALS Packag e Size mm Frequency ESR Ma x Frequency ESR Ma x MT/X323.2 x 2.516.0 – 20.0100 20.1 – 60.060 X222.2 x 2.016.0 – 21.0120 21.0 – 26.080 26.0 -60.060 X212.0 x 1.620.0 – 30.0120 30.1 – 54.080 ESR TABLE

10. NEW PRODUCT

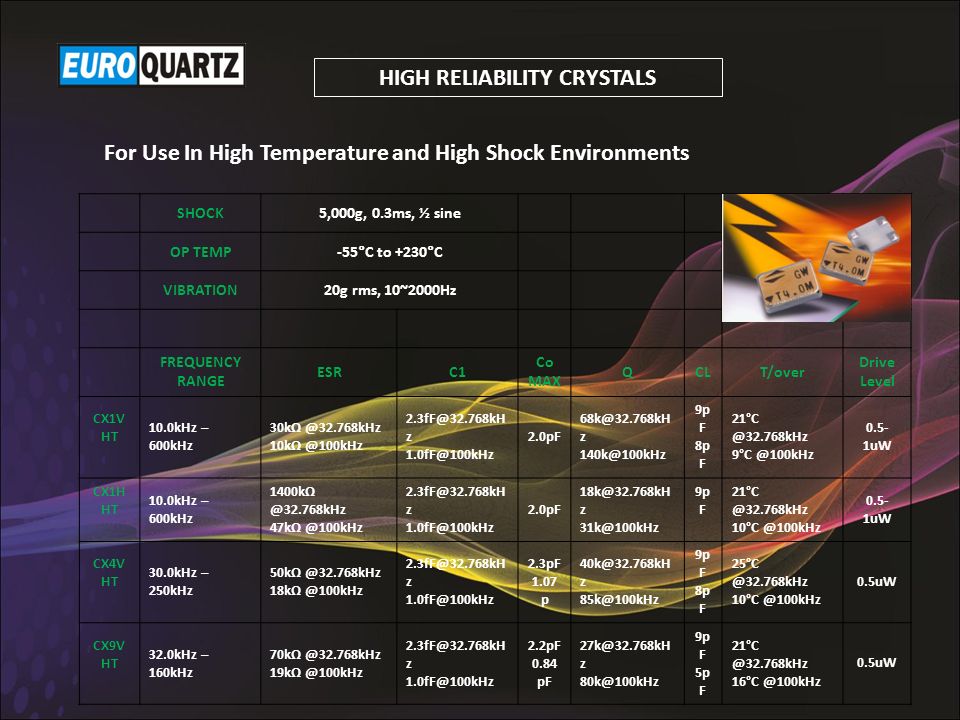

11. HIGH RELIABILITY CRYSTALS For Use In High Temperature and High Shock Environments SHOCK5,000g, 0.3ms, ½ sine OP TEMP -55°C to +230°C VIBRATION20g rms, 10~2000Hz FREQUENCY RANGE ESRC1 Co MAX QCLT/over Drive Level CX1V HT 10.0kHz – 600kHz 30kΩ @32.768kHz 10kΩ @100kHz 2.3fF@32.768kH z 1.0fF@100kHz 2.0pF 68k@32.768kH z 140k@100kHz 9p F 8p F 21°C @32.768kHz 9°C @100kHz 0.5- 1uW CX1H HT 10.0kHz – 600kHz 1400kΩ @32.768kHz 47kΩ @100kHz 2.3fF@32.768kH z 1.0fF@100kHz 2.0pF 18k@32.768kH z 31k@100kHz 9p F 21°C @32.768kHz 10°C @100kHz 0.5- 1uW CX4V HT 30.0kHz – 250kHz 50kΩ @32.768kHz 18kΩ @100kHz 2.3fF@32.768kH z 1.0fF@100kHz 2.3pF 1.07 p 40k@32.768kH z 85k@100kHz 9p F 8p F 25°C @32.768kHz 10°C @100kHz 0.5uW CX9V HT 32.0kHz – 160kHz 70kΩ @32.768kHz 19kΩ @100kHz 2.3fF@32.768kH z 1.0fF@100kHz 2.2pF 0.84 pF 27k@32.768kH z 80k@100kHz 9p F 5p F 21°C @32.768kHz 16°C @100kHz 0.5uW

12. 32.768kHz WATCH CRYSTALS Packag e Size mm StyleToleranceESROp TempLoad Cylinder3x8Leaded±5ppm ~ ±50ppm40kΩ-40 +85°6pF or 12.5pF Cylinder2x6Leaded±5ppm ~ ±50ppm40kΩ-40 +85°6pF or 12.5pF 90SMX8.7 x 3.8smd±20ppm-40 +85°12.5pF AG7.0 x 1.5smd±20ppm ~ ±50ppm65kΩ-40 +85°7pF or 12.5pF Cylinder2x6smd±20ppm35kΩ-40 +85°6pF or 12.5pF FC5 x 1.9smd±20ppm ~ ±50ppm65Ω-40 +85°7pF or 12.5pF EQ1563.2 x 1.5smd±20ppm70Ω-40 +85°7pF or 12.5pF EQ1582.05 x 1.2smd±20ppm ~ ±50ppm65Ω-40 +85°12.5pF RESPONSE CURVE

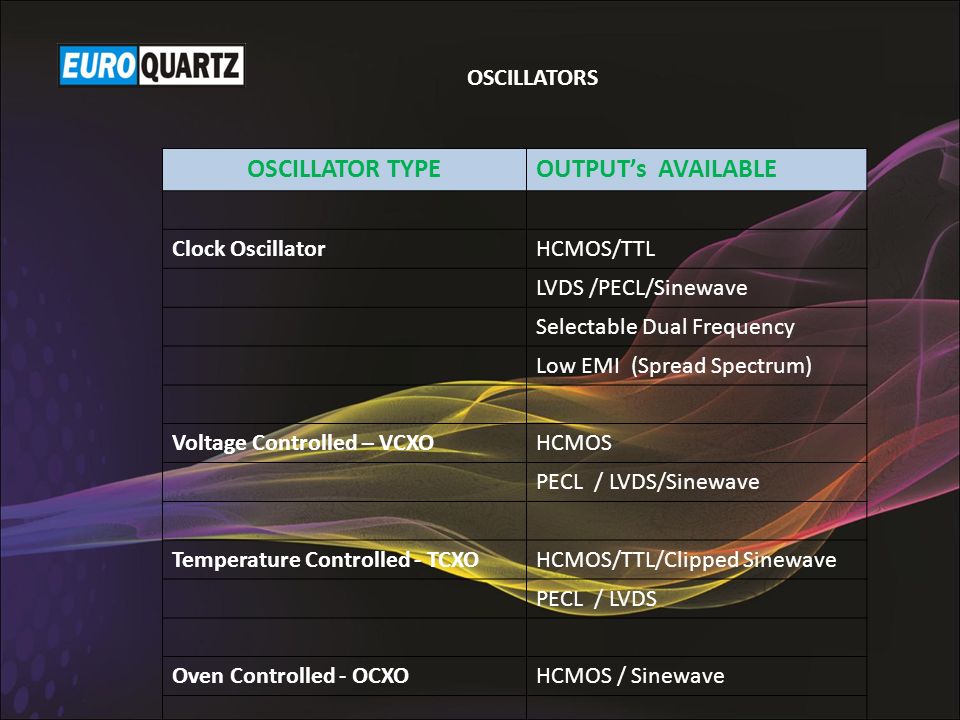

13. OSCILLATORS OSCILLATOR TYPEOUTPUT’s AVAILABLE Clock OscillatorHCMOS/TTL LVDS /PECL/Sinewave Selectable Dual Frequency Low EMI (Spread Spectrum) Voltage Controlled – VCXOHCMOS PECL / LVDS/Sinewave Temperature Controlled - TCXOHCMOS/TTL/Clipped Sinewave PECL / LVDS Oven Controlled - OCXOHCMOS / Sinewave

14. CLOCK OSCILLATORS SIZE mm STYLEFREQUENCYStability Temp Range Voltage EQXO100 0 20.2 x 10.7 14 pin Dip 20kHz ~ 160MHz ±10ppm to±100ppm -55 - +125°C 3.3V and 5V EQXO200 0 12.8 x 12.8 8 pin Dip20kHz ~ 160MHz ±10ppm to±100ppm -55 - +125°C 3.3V and 5V XO917 x 5Smd312.5kHz ~ 800MHz ±25ppm to±100ppm -55 - +105°C 1.0 to 5V XOK917 x 5 Smd low current 10MHz ~ 50MHz ±25ppm to±100ppm -55 - +105°C 1.8 to 3.3V XO535 x 3.2Smd1.0MHz ~ 125MHz ±25ppm to±100ppm -55 - +105°C 1.0 to 5V XOK535 x 3.2 Smd low current 16MHz ~ 75MHz ±25ppm to±100ppm -55 - +105°C 1.8 to 5V XO323.2 x 2.5Smd1.0MHz ~ 75MHz ±25ppm to±100ppm -55 - +105°C 1.0 to 5V XO222.5 x 2.0Smd1.0MHz ~ 75MHz ±25ppm to±100ppm -55 - +105°C 1.0 to 5V XO91 XO53 14 pin Dip 8pin Dip XO22 XO32 Typical Specification: 20.000MHz XO91050UCTA - 050 = stability, C= 0~70 and A= 3.3V

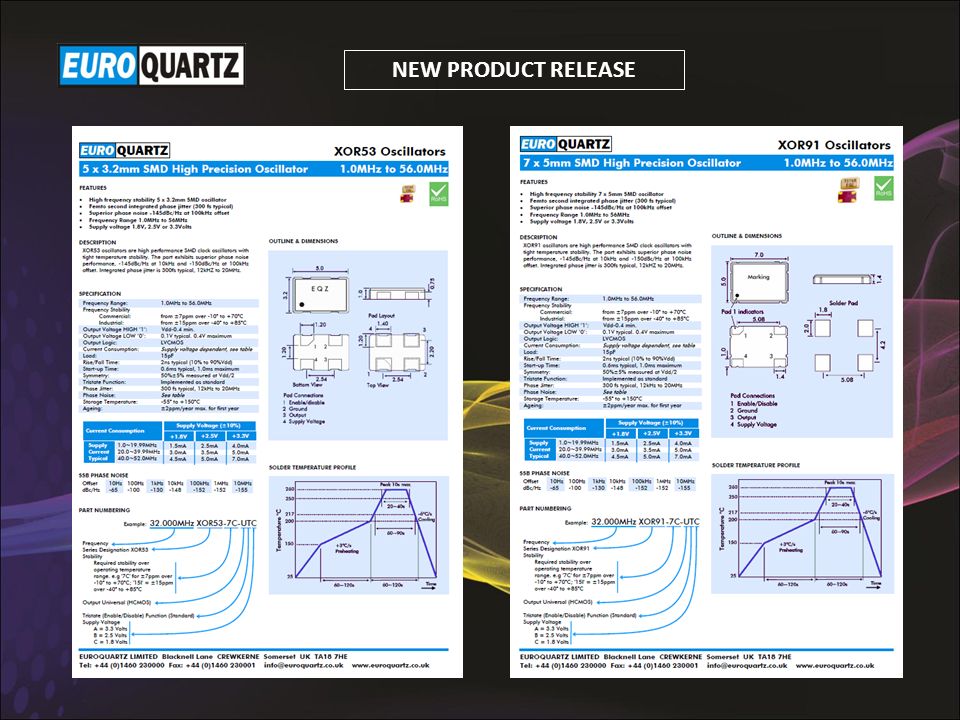

15. NEW PRODUCT RELEASE

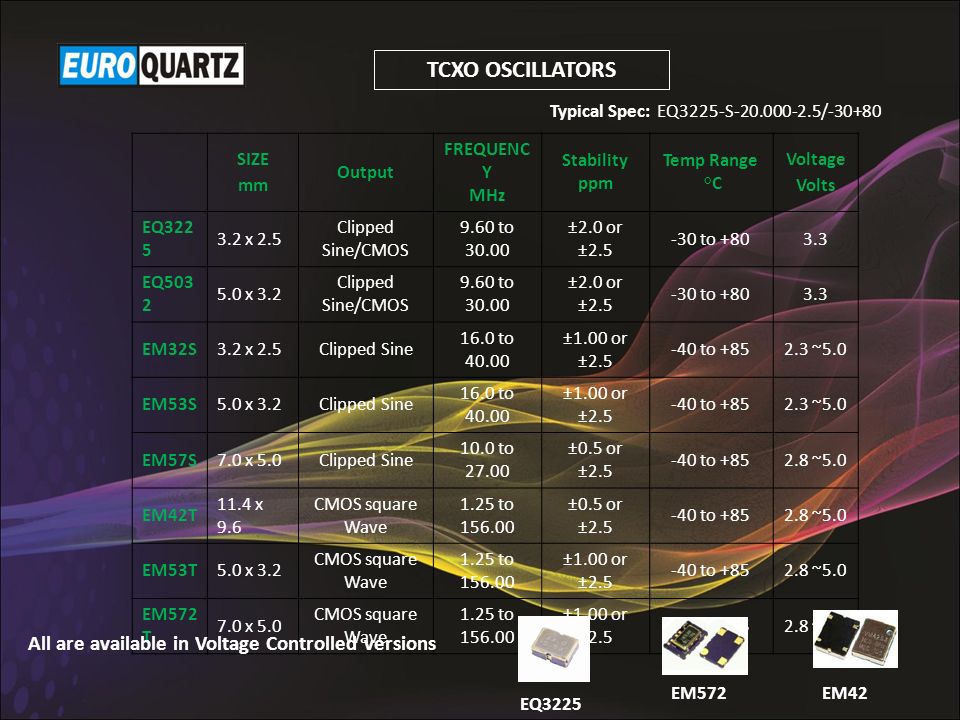

17. TCXO OSCILLATORS SIZE mm Output FREQUENC Y MHz Stability ppm Temp Range °C Voltage Volts EQ322 5 3.2 x 2.5 Clipped Sine/CMOS 9.60 to 30.00 ±2.0 or ±2.5 -30 to +803.3 EQ503 2 5.0 x 3.2 Clipped Sine/CMOS 9.60 to 30.00 ±2.0 or ±2.5 -30 to +803.3 EM32S3.2 x 2.5Clipped Sine 16.0 to 40.00 ±1.00 or ±2.5 -40 to +852.3 ~5.0 EM53S5.0 x 3.2Clipped Sine 16.0 to 40.00 ±1.00 or ±2.5 -40 to +852.3 ~5.0 EM57S7.0 x 5.0Clipped Sine 10.0 to 27.00 ±0.5 or ±2.5 -40 to +852.8 ~5.0 EM42T 11.4 x 9.6 CMOS square Wave 1.25 to 156.00 ±0.5 or ±2.5 -40 to +852.8 ~5.0 EM53T5.0 x 3.2 CMOS square Wave 1.25 to 156.00 ±1.00 or ±2.5 -40 to +852.8 ~5.0 EM572 T 7.0 x 5.0 CMOS square Wave 1.25 to 156.00 ±1.00 or ±2.5 -40 to +852.8 ~5.0 All are available in Voltage Controlled versions EM42EM572 EQ3225 Typical Spec: EQ3225-S-20.000-2.5/-30+80

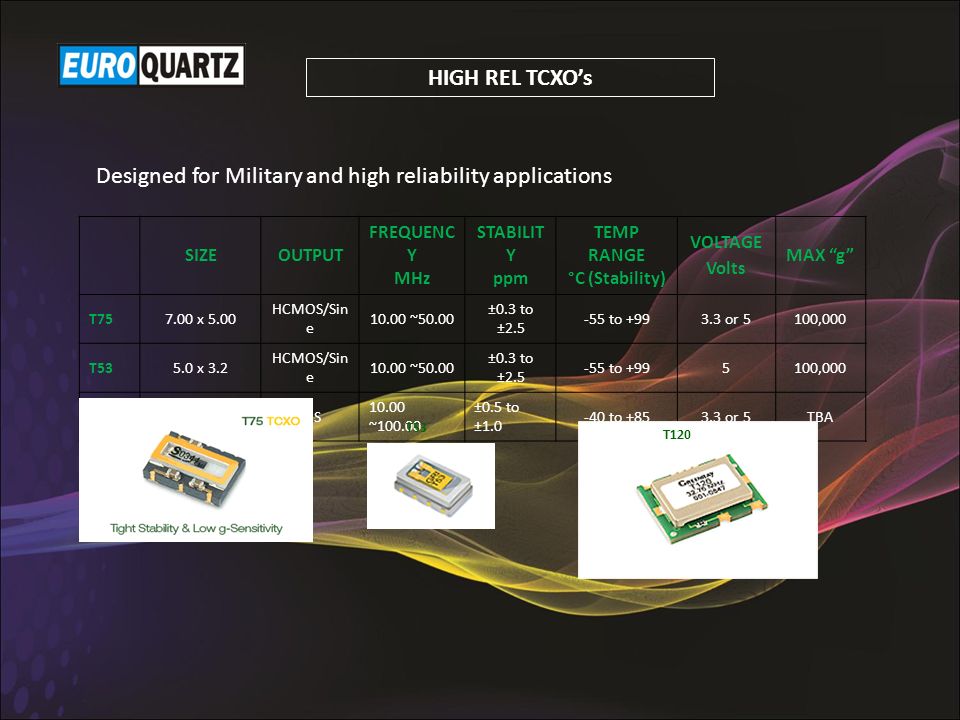

18. HIGH REL TCXO’s SIZEOUTPUT FREQUENC Y MHz STABILIT Y ppm TEMP RANGE °C (Stability) VOLTAGE Volts MAX “g” T757.00 x 5.00 HCMOS/Sin e 10.00 ~50.00 ±0.3 to ±2.5 -55 to +993.3 or 5100,000 T535.0 x 3.2 HCMOS/Sin e 10.00 ~50.00 ±0.3 to ±2.5 -55 to +995100,000 T12017.78x 17.78HCMOS 10.00 ~100.00 ±0.5 to ±1.0 -40 to +853.3 or 5TBA Designed for Military and high reliability applications T53 T120

19. VCXO OSCILLATORS SIZEOUTPUT FREQUENC Y MHz STABILITY ppm PULL RANGE ppm VOLTAG E Volts TEMP RANGE °C G1414 pin DILHCMOS/TTL 0.625 to50.00 ±25 to ±100±80 Min3.3-40 to +85 GPW1414 pin DILPECL0.750 to 700±25 to ±100±30 to 1503.3-40 to +85 GDA1414 pin DILLVDS60 to 240±25 to ±100±30 to 1503.3-40 to +85 GS1414 pin DILSinewave10.0 to 156±25 to ±100±80 Typ3.3 or 5-40 to +85 G88 pin DILHCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min3.3-40 to +85 GPW88 pin DILPECL0.750 to 700±25 to ±100±30 to 1503.3-40 to +85 GDA88 pin DILLVDS60 to 240±25 to ±100±30 to 1503.3-40 to +85 GS88 pin DILSinewave10.0 to 156±25 to ±100±80 Typ3.3 or 5-40 to +85 G3243.2 x 2.4HCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min1.8 to 5-40 to +85 G534 5.0 x 3.2 (4pad) HCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min1.8 to 5-40 to +85 G536 5.0 x 3.2 (6pad) HCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min1.8 to 5-40 to +85 GSR53 5.0 x 3.2 (4pad) Sinewave10.00 to 30.0±25 to ±100±100 Typ2.8 to 5-40 to +85 G5767.0 x 5.0HCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min1.8 to 5-40 to +85 GF5767.0 x 5.0HCMOS/TTL 0.625 to 50.00 ±25 to ±100±80 Min1.8 to 5-40 to +85 GPW57 6 7.0 x 5.0PECL0.750 to 800±25 to ±100±80 Min3.3-40 to +85 GDA57 6 7.0 x 5.0LVDS60.00 to 240±25 to ±100±80 Min3.3-40 to +85 GSR57 5.0 x 3.2 (4pad) Sinewave10.00 to 30.0±25 to ±100±100 Typ2.8 to 5-40 to +85 G576G14 G8G574 Typical Spec: 3G576B-80N-27.000

20. OCXO OSCILLATORS SIZEOUTPUT FREQUENC Y MHz STABILITY ppb TEMP RANGE °C (Stability) VOLTAG E V OC14T3314 Pin Dil CMOS/ TTL 1.25 - 10075 ~500-40 to +853.3 OC14T514 Pin Dil CMOS/ TTL 1.25 - 10075 ~500-40 to +855 OC18T12 15.2 x 15.2 CMOS/ TTL 1.25 - 10020 ~100-40 to +8512 OC18E12S 15.2 x 15.2 Sine10.0 – 10010 ~30-40 to +8512 OC22E12 A 50.8 x 50.8 Sine10.0 – 10010 ~30-40 to +8512 OC31E5S 36.2 x 27.7 Sine1.25 - 10010 ~30-40 to +855V Typical Spec: OC14GT33A-10.000-0.15/-20+70 OC18 OC31

21. FILTERS Euroquartz Manufacture and supply several types of filter. FrequencyPoles CRYSTAL21.4 ~ 1754 to 8Custom Filters available MONOLITHIC21.4, 21.7 and 45.02 to 8Through Hole and SMD CERAMIC450kHz to 10.7MHz2 to 6Through Hole and SMD COAXIAL652MHz to 5800MHz-Through Hole and SMD HELICAL1 MHz to 2600 MHz-Through Hole and SMD SAW30MHz to 2.4GHz Through Hole and SMD

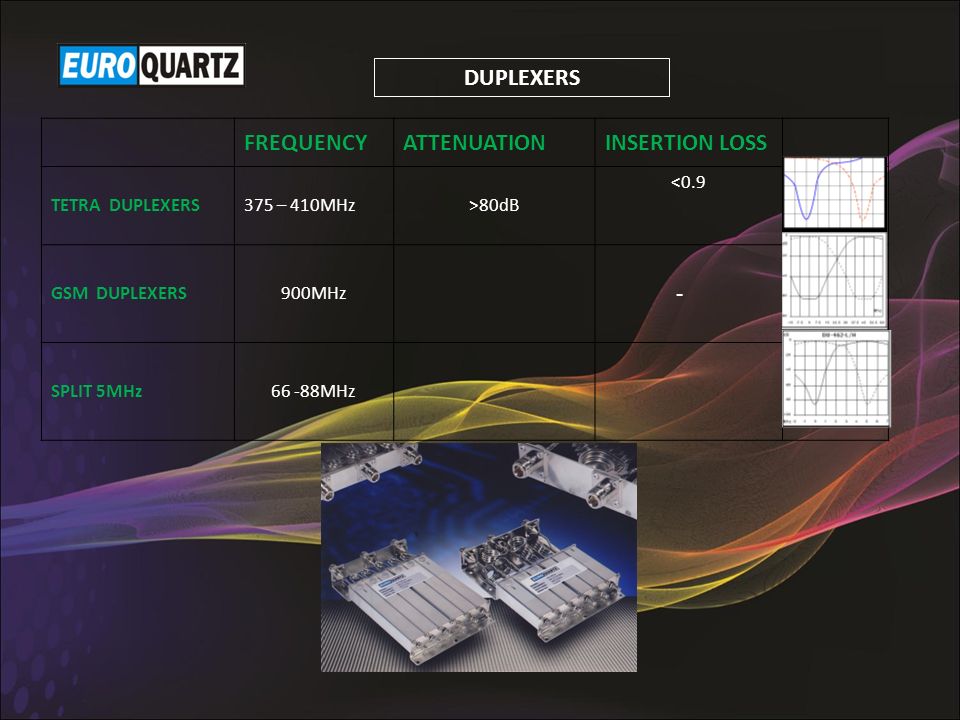

22. DUPLEXERS FREQUENCYATTENUATIONINSERTION LOSS TETRA DUPLEXERS375 – 410MHz>80dB <0.9 GSM DUPLEXERS900MHz - SPLIT 5MHz66 -88MHz

23. PARTNERSHIP COMPANY Euroquartz have a close partnership with Axtal Gmbh We offer this unique range of high-reliability OCXO’s in standard and custom formats. Location: Mosbach, Germany Applications: Military, Medical, High spec Industrial Product: OCXO’s Features: High Spec, High reliability and low phase noise Custom and standard product available. For the most exacting applications, we have a solution.

24. Please contact Saelig Co. Inc. for more information www.saelig.com 1-888-772-3544www.saelig.com
