1. HMA Construction Program
Module 4 – HMA Delivery

2. Delivery is the start of the HMA construction process.
Like any process, if it is planned properly, it will go smoothly.
The smoother the process, the better the product.

3. Module 4 – Objectives State the objective of HMA delivery
Four production rates needing coordination
Types and capacities of haul trucks
Dis/Advantages of each type
Proper loading of haul trucks
Proper haul truck operating techniques
Important areas of truck maintenance

4. Present the objectives
The theme to this module is looking at HMA construction as a process, and how keeping the process running smoothly lessens problems and improves the product.
Balance the haul rate with the others to produce the best job possible.
Ask: Why is consistent HMA delivery so important?
Ask: What works against keeping a steady supply of mix coming to the paver?

6. 3 primary types of HMA haul trucks
Each are loaded at the plant in the same manner from the silo or pugmill. The difference is in how they unload the mix at the paver.
This is an end dump truck.
End dump truck delivers mix directly to the paver hopper.
3 to 6 axles
Capacity: tonnes (more axles, more capacity)
Advantage: Shortest wheel base, easiest to maneuver
Disadvantage: Limited capacity

8. Semi-trailer truck–essentially a large end dump truck
Capacity: 18 to 23 tonnes
Advantage: capacity
Disadvantage:
more maneuvering skill needed (turns)
overhead obstructions (wires, bridges, trees)
greater segregation potential during loading
truck bed weighing on paver

10. Bottom (or belly) dump truck
Delivers load from beneath, into a windrow
Capacity: 18 to 23 tonnes
No truck contact with paver.
Keeping windrow correctly sized is ensures consistent mix supply to the paver.
(A windrow elevator loads the paver hopper.)

12. Horizontal discharge (or live bottom) truck
Conveyor belt or slat conveyor discharges mix from back, without raising bed, directly into paver.
Capacity varies; truck shown has 45 tonne payload, used only in Michigan.

14. Conveyor moves mix out the back end, directly into the paver hopper.

16. Double trailer combinations are used in some locations.
Must drop the pup to discharge the second load.
Ask: What types of trucks are used here for hauling HMA?

18. [Truck maintenance is next]
Trucks must be in mechanically sound condition.
Items to maintain include engine, drive train, hydraulic system, brakes, and lights.
Driver is responsible for maintenance.

20. Hydraulics must be checked daily.
Hydraulics raises and lowers bed. Problems with this could be dangerous.
Ask: What will happen to the pavement where this hydraulic fluid leaked?

22. The haul truck bed should be kept clean and free of deleterious materials.
Bed should be smooth and free from major dents or depressions where release agent and HMA can accumulate.

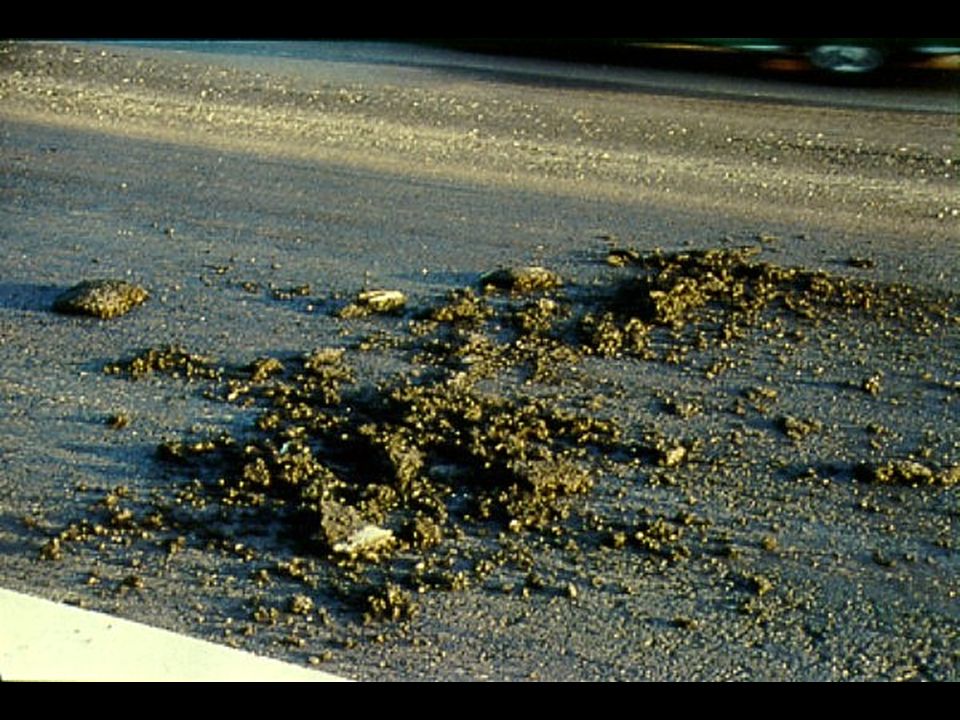

24. The outside of the truck should also be kept clean and free of extraneous materials.
Look for loose rock and dirt near the truck’s tail lights.
Ask: What effect will these materials have on your mat? Will they shake loose and break a windshield or cause an accident?

26. Where necessary, insulation should be added to keep the mix hot.
Insulation should be tight against the truck body, with no gaps.

28. Haul trucks should be equipped with tarps.
Tarps protect the mix during inclement weather.
Water-repellent, resist tearing, without holes.
Mechanically extendable tarps are preferred (to keep the driver off the side of the truck).
Ask: What are local requirements for tarps?
Must have?
Used when?

29. Balancing Production
HMA
Facility
Paving
Trucking
Compaction

30. Paving is a constant balancing act.
Mix production and delivery must be balanced with laydown and compaction to ensure a smooth operation and a high quality mat. (Details on each of these are covered later.)
Mix production: 200 to 700 tonnes per hour, plus silos
Haul trucks: Adequate numbers (and no pack driving!)
Laydown production: dependent on width and depth
Compaction: How many rollers do you need?

31. Extenuating Circumstances
What kind of situations
have you experienced?

32. Ask: What can cause a disruption in the balance of the process?
Examples include:
Rain delays (Ask if there are any local specifications about rainfall.)
Equipment breakdowns
Traffic delays

33. Scheduling Problem How do you determine the number of trucks needed to
balance production rates?

34. Complete the Mix Delivery Production example with the participants.
Use the figures from the Instructor’s example, or have the participants provide example numbers for the entire class.
Devote 15 minutes to completing this problem.

36. Next: Truck operating techniques
Drivers must be made part of the paving team from the beginning. They should understand their role and purpose in the team.
Safety is paramount around the jobsite. Drivers must act responsibly, and adequate traffic control must be available to ensure safe passage.
Truck tracking systems are now available.
Ask: Who uses a truck tracking system?

38. The truck bed must be inspected and properly cleaned prior to loading the HMA.
Free from old mix, extraneous materials, debris.
No dents or depressions.
Modified asphalts can cause greater sticking problems in the bed.
Ask: What release agents are used locally?

40. Once the bed is clean, apply an approved release agent.
Non-petroleum materials sprayed uniformly on the sides and bottom–just enough to coat the bed without runoff.
Diesel fuel can cause problems with the mix, and is hazardous to the environment.
Local agencies have different approved material lists.

42. Next we are going to look at truck loading practices.
This photo shows silo gates discharging mix into the truck.
This subject may seem to be fairly simple, but improper loading is a prime source for mix segregation.
Proper loading can help eliminate a segregation problem.
The loading plan should be discussed and agreed upon at the preconstruction conference.

43. Incorrect

44. (There are animation effects in the trucks
(There are animation effects in the trucks. Practice with them before using them in the classroom.)
Most trucks need to have the load slightly forward in the truck bed to comply with axle weights and load distribution regulations.
This load is centered too much in the truck bed.

45. Correct

46. This load is more properly placed–slightly forward of the center of the bed.

47. 3 2 1

48. The objective of truck loading is to get the mix loaded into the truck as uniformly as possible.
The greatest concern in uniformity is segregating the mix as it is loaded into the truck.
Getting the HMA against the front and back is an important consideration in preventing segregation. If the mix is not crowded to the ends, the larger rocks in the mix can roll down the slopes and gather in one place.
Especially for segregation-prone mixes, multiple drop procedures are recommended.
With multiple drops, end dump trucks are loaded at the front and rear of the bed, and then in the middle.

49. 2 1

50. Depending on the size of the truck, a two drop procedure may be appropriate.
This might also work for pugmill loading, if two batches would fill the truck.

51. Not recommended for segregation prone mixes1
Not recommended for segregation prone mixes

52. Single drop loading is especially not recommended for segregating mixes.
It can be tempting to load trucks this way when using a silo.
Show on the screen where the rolling of the aggregate would occur (at the back end).
Ask: Why would there be resistance in using multiple drop procedures? (Time, hassle of moving the truck, resistance to change)

53. 5 4 2 1 3

54. For larger capacity semi-trailer trucks, even more drops are necessary.
As with smaller end-dumps, the front and tailgate are loaded first; then the space between is loaded with small, separate piles.

55. Continuous drop while truck moves forward
Start
Finish

56. With loadout from a silo, the urge is to fill the truck from front to rear while the truck creeps forward.
Not recommended for segregation prone mixes.

57. Topping Off Overloading

58. Plant operators may want to top-off the truck to legal limits to reduce haul costs, especially if truck is sitting on the scale under the silo.
While good economics, it should not occur by dribbling mix into a nearly full truck.
Discharging small amounts of mix into the truck greatly increases the chance for mix segregation.
Overloading is not recommended as it is illegal and dangerous. Modern electronic scales and printed tickets have helped eliminate this practice.

60. Once the truck is loaded and ticketed (and tarped, if necessary), it should proceed immediately to the jobsite.
Haul trucks should park in designated areas, and minimize the tracking of tack coats.
Here, one truck has just finished loading the paver, and it pulls away as another truck waits.
The waiting truck was far enough ahead so not to interfere, but close enough to get to the paver and keep the operation moving smoothly.
Again, communication is the key–the drivers should be informed about the paving plan.
The paver is folding its wings while continuing to move forward.

62. The next truck slowly backs toward the paver, while the paver lowers its wings (to give the truck access to the hopper) and continues to move forward.

64. The truck brakes to a halt in front of paver, ready to be picked up on the fly.
It is important that the truck be centered on the paver before the paver makes contact. Damage to the mat and the paver can result from off-center positioning.
The area between the truck and paver is off limits to personnel. Too many accidents occur in this area.
Ask: Has anyone ever had a close call? (If so, possibly have them relate the story.)

66. Once the truck has stopped, the driver releases the brakes and the paver “picks up” the stopped truck. In this photo, the truck is also beginning to lift the bed.
The key is that the truck does not back into the paver and bump it. Bumping the paver can leave a screed mark and roughen the mat.
Once the paver picks up the truck, it pushes the truck forward. A light touch on the brakes keep the truck against the paver.
Ask: What should happen before the tailgate is released?

68. Answer: get and check the weigh ticket.
Check the ticket to make sure it contains the right mix for the job. Several mixes may be on the jobsite, and it is important to get the right mix in the right location.

70. With end dump trucks, the proper procedure for dumping the mix into the hopper is to raise the truck bed slightly and allow the mix to slide against the tailgate before it is released.
This procedure will allow the mix to flood the hopper–not allowing mix to dribble from the truck into the hopper before the bed is raised.
With live bottom trucks, try to use the same procedure to flood the hopper from the truck.

72. After the hopper is filled, the truck bed is gradually raised, continually charging the hopper and maintaining a smooth operation.

74. This truck has baffles just inside the tailgate.
Ask: Why?
Direct mix to the middle of the hopper.
Force mix from the trucks sides to the middle.
Ultimately–to help reduce segregation.

76. Mix can also be dumped into a material transfer vehicle.
Essentially a rolling surge bin, these vehicles receive the mix from the trucks, and then feed the paver.
This vehicle allows the paver to be operated almost continuously, as long as the mix is coming continuously from the plant.
This equipment also eliminates the exchange between the truck and paver, preventing any truck bumping or braking problems.

78. On the other end of the material transfer vehicle, a conveyor discharges mix into the paver hopper.
Note the oversized hopper insert used with this equipment.
Ask: Who has used a material transfer vehicle?
Good experiences? Types of projects?

80. Mix can also be charged into a paver from a windrow
Mix can also be charged into a paver from a windrow. The windrow can be sized in two ways.
One way uses a spreader box (windrow sizer). The mix is dumped into the box and placed uniformly on the roadway. The uniformity ensures the most accurate, constant supply of mix to the paver.
More typically, a bottom dump truck discharges the mix in the windrow on the pavement.
The gate opening and truck speed controls the amount of discharge and size of the windrow. More difficult to control.
For both methods, the windrow must be adjusted to the mat width and thickness.

82. The slat conveyor on the windrow elevator must be adjusted to pick all of the mix up from the pavement.
The windrow should be sized to keep the paver hopper 25 to 75 percent full.
Don’t overflow the hopper, and don’t show the slats.
Ask: has anyone had experience with windrows?
Sizing them?
Forming them from the truck?
Keeping them uniform?
Using a windrow elevator?

83. Dealing with Crusted Mix

84. No set distance limit for hauling HMA.
Workability through the paver and the ability to achieve compaction.
Both factors are highly dependent on mix temperature.
Any crust that does form during transport should break up completely as the mix is dumped into the paver and carried back to the screed.
The crust must not affect the mat behind the paver.
With Superpave and the increasing use of modified asphalt, mix temperature (and hence, possible crusting) may be more of a concern.

86. While paving, the truck driver must concentrate both ahead and behind.
The driver must steer between the “pull” of the paver, and keep slight pressure on the brakes to maintain contact with the paver.
Too much braking force may make the paver slip and affect the mat.

88. Ask: Ever have to shovel 2 tons of mix out in front of the paver because the truck driver didn’t keep his foot on the brake?

90. Always be wary of any possible obstructions on the paving site.

92. As the truck empties, the driver follows signals from the dump signaler to raise the bed and discharge all of the mix.

94. Once the truck is empty, the bed has to be lowered before pulling away.
Lowering the bed will allow the truck apron to clear the hopper guards.

96. Once the truck has cleared the paver, it should immediately depart from the area to a clean up station, and let the next truck back up.

98. And we’re back to the beginning of the cycle.
(Emphasize the continuous nature of the exchanges, another truck waiting as the finished one departs.)

100. There should be a designated clean up area for the drivers to clean any remaining mix from the rear of the truck, the apron, and the tailgate.
The clean up area is not the paving site.
Again, modified asphalt can make this a more troublesome task.

102. Aside from catching the paver hopper, another problem with not lowering the truck bed before pulling away is spilling mix onto the paving surface.
Any practice that spills mix onto the paving surface should be discouraged.

104. “Banging the gate” (leaving the truck bed up, speeding up, and then stopping quickly to allow the tail gate to bang the truck) should be discouraged.

106. If this does occur, the mix must be cleaned off the surface, not just paved over.
Ask: What could happen if this mix is allowed to stay on the pavement?

108. This truck is ready to leave the jobsite for another load
This truck is ready to leave the jobsite for another load. The back of the truck is clean. No mix is left to spill from the truck.
Once the truck has completed on-site cleanup, is should proceed immediately back to the asphalt plant.
The trucks should not delay departure, or the smooth, continuous nature of the entire operation could be affected.

109. Module 4 - Review Objectives
State the objective of HMA delivery
Four production rates needing coordination
Types and capacities of haul trucks
Dis/Advantages of each type
Proper loading of haul trucks
Proper haul truck operating techniques
Important areas of truck maintenance

110. Ask for specific responses to these questions.
Use questions that will help draw out responses, such as:
What do you remember?
How is it related to what you know?
How will you use this information in the future?
