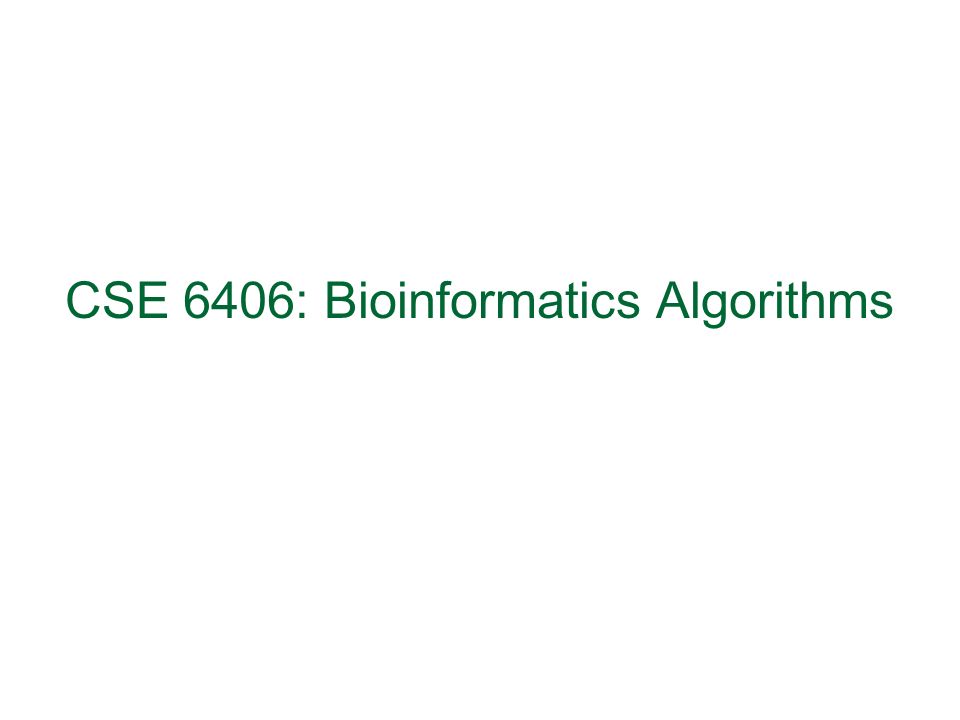

1. CSE 6406: Bioinformatics Algorithms

2. Course Outline http://203.208.166.84/masudhasan/cse6406_April_08.html

3. Why Bioinformatics ? New topic Huge scope in research, higher studies, and job market Expected to dominate in future research in computer science Scope for diversive research fields: AI Algorithms Database Data mining Software System biology Other hot topics of current time: Wireless communication, Ad-hoc networks, Sensor networks, Database …

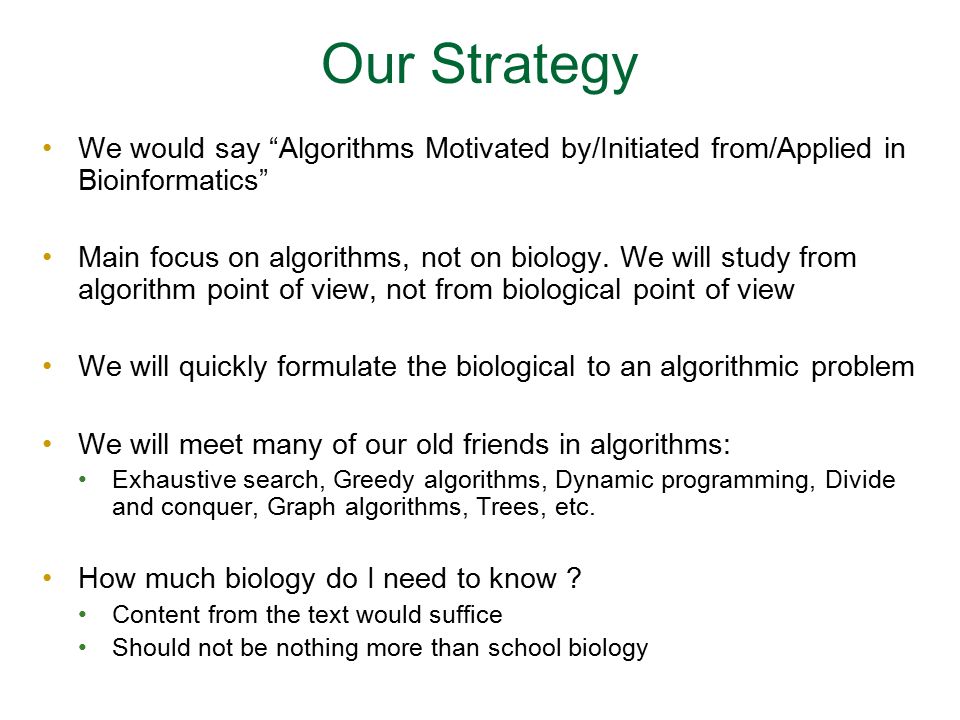

4. Our Strategy We would say “Algorithms Motivated by/Initiated from/Applied in Bioinformatics” Main focus on algorithms, not on biology. We will study from algorithm point of view, not from biological point of view We will quickly formulate the biological to an algorithmic problem We will meet many of our old friends in algorithms: Exhaustive search, Greedy algorithms, Dynamic programming, Divide and conquer, Graph algorithms, Trees, etc. How much biology do I need to know ? Content from the text would suffice Should not be nothing more than school biology

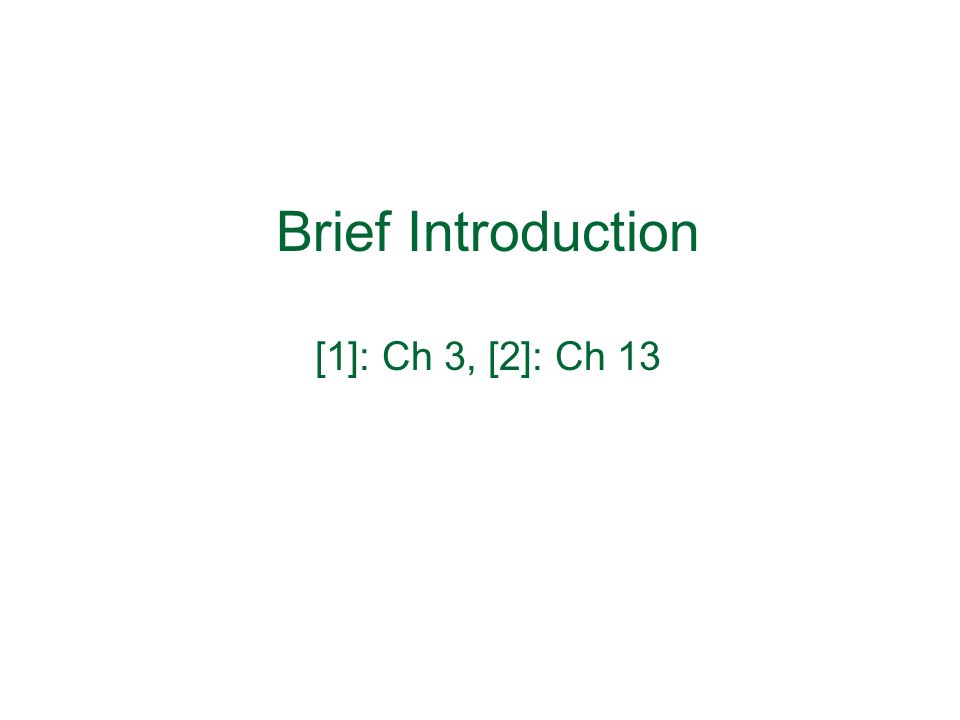

5. Brief Introduction [1]: Ch 3, [2]: Ch 13

6. What is Life made of?

7. All living things are made of Cells What is Inside the cell: DNA, RNA, Proteins

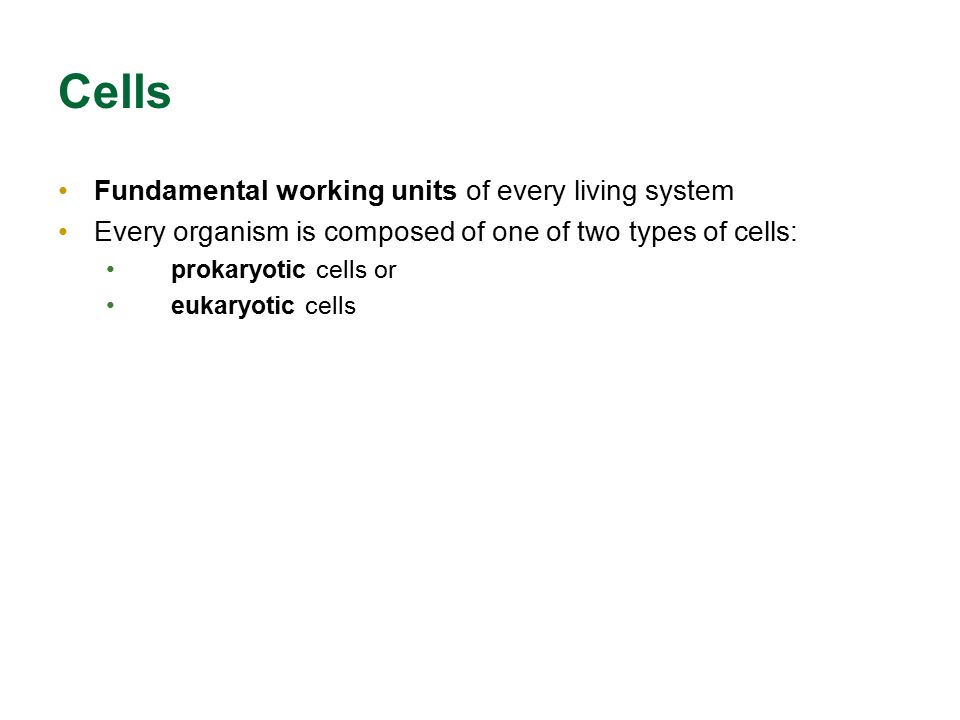

8. Cells Fundamental working units of every living system Every organism is composed of one of two types of cells: prokaryotic cells or eukaryotic cells

9. Life begins with Cell

10. Overview of organizations of life Nucleus = library Chromosomes = bookshelves Genes = books Almost every cell in an organism contains the same libraries and the same sets of books. Books represent all the information (DNA) that every cell in the body needs so it can grow and carry out its various functions.

11. More Terminology The genome is an organism’s complete set of DNA. a bacteria contains about 600,000 DNA base pairs human and mouse genomes have some 3 billion. Human genome has 24 distinct chromosomes. Each chromosome contains many genes. Gene basic physical and functional units of heredity. specific sequences of DNA bases that encode instructions on how to make proteins. Proteins Make up the cellular structure large, complex molecules made up of smaller subunits called amino acids.

12. All Life depends on 3 critical molecules DNA Hold information on how cell works RNA Act to transfer short pieces of information to different parts of cell Provide templates to synthesize into protein Protein Form enzymes that send signals to other cells and regulate gene activity Form body’s major components (e.g. hair, skin, etc.)

13. DNA: The Code of Life The structure and the four genomic letters code for all living organisms Adenine, Guanine, Thymine, and Cytosine which pair A-T and C-G on complimentary strands.

14. DNA, continued DNA has a double helix structure which composed of sugar molecule phosphate group and a base (A,C,G,T)

15. DNA, RNA, and the Flow of Information TranslationTranscription Replication

16. DNA the Genetics Makeup

17. DNA: The Basis of Life Humans have about 3 billion base pairs. How do you package it into a cell? How does the cell know where in the highly packed DNA where to start transcription? DNA size does not mean more complex Complexity of DNA Eukaryotic genomes consist of variable amounts of DNA Single Copy or Unique DNA Highly Repetitive DNA

18. RNA RNA is similar to DNA chemically. It is usually only a single strand. T(hyamine) is replaced by U(racil) Some forms of RNA can form secondary structures by “pairing up” with itself. This can have change its properties dramatically. DNA and RNA can pair with each other.

19. Protein Folding Proteins are not linear structures, though they are built that way Proteins tend to fold into the lowest free energy conformation. Its structure determines its function

20. DNA Operations Copying DNA Cutting and Pasting DNA Measuring DNA Length DNA sequencing Probing DNA

21. Genetic Variation Despite the wide range of physical variation, genetic variation between individuals is quite small. Out of 3 billion nucleotides, only roughly 3 million base pairs (0.1%) are different between individual genomes of humans. Although there is a finite number of possible variations, the number is so high (4 3,000,000 ) that we can assume no two individual people have the same genome. What is the cause of this genetic variation?

22. Sources of Genetic Variation Mutations are rare errors in the DNA replication process that occur at random. Recombination is the shuffling of genes that occurs through sexual mating and is the main source of genetic variation. Others…..

23. Molecular evolution can be visualized with phylogenetic tree.

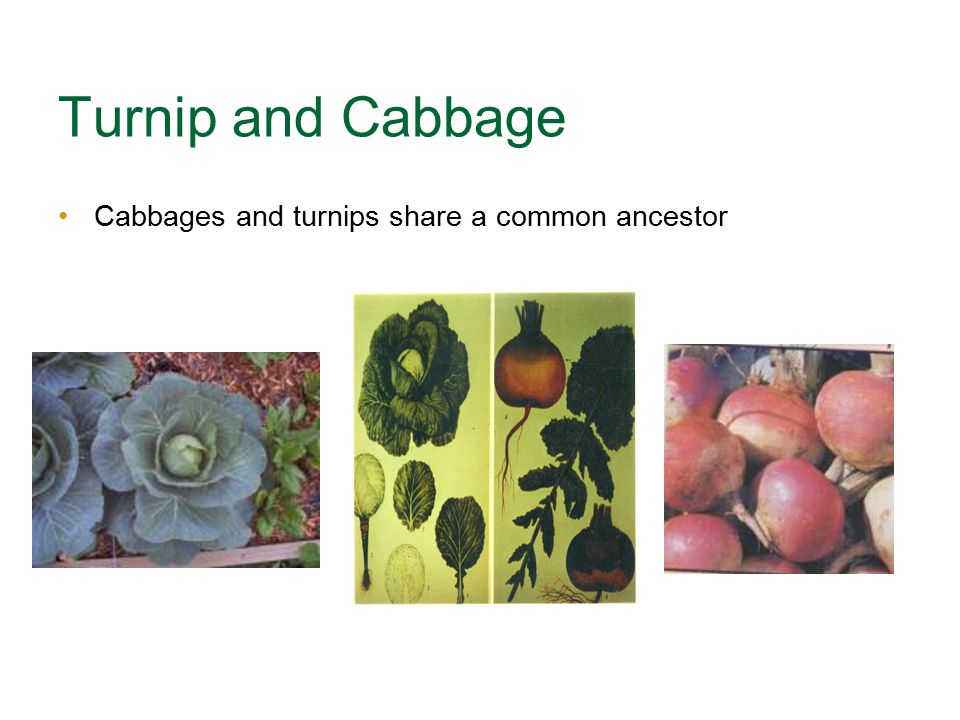

24. Turnip and Cabbage Cabbages and turnips share a common ancestor

25. Genetic Similarities Between Turnip and Cabbage In 1980s, scientists discovered evolutionary change in plants by comparing mitochondrial genomes of the cabbage and turnip 99% similarity between genes These more or less identical gene sequence surprisingly differed in gene order

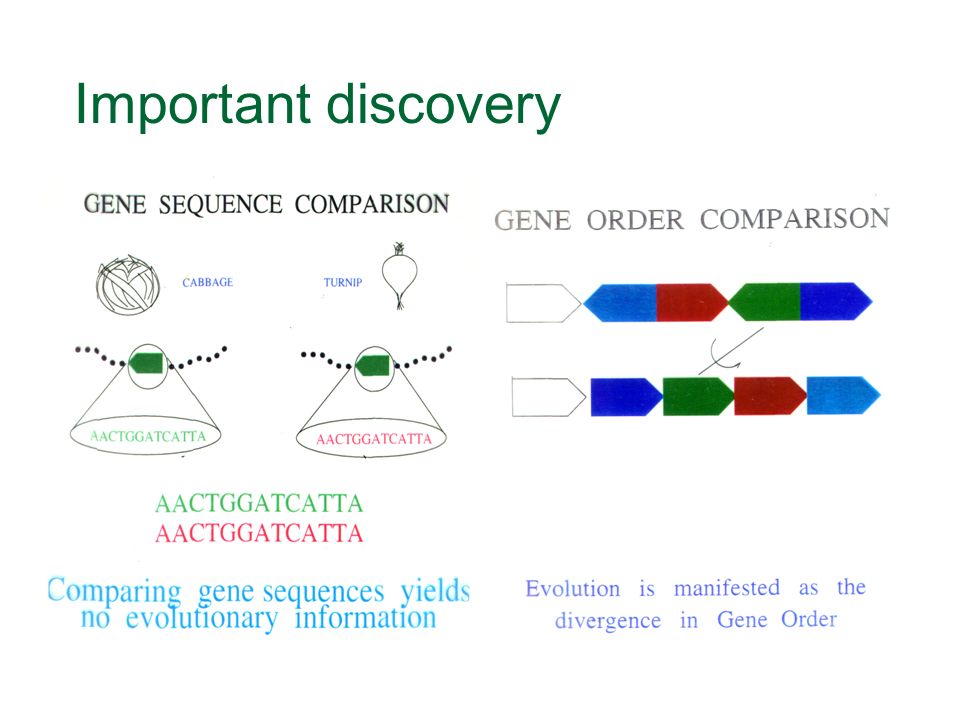

26. Important discovery

27. DNA Reversal 5’ A T G C C T G T A C T A 3’ 3’ T A C G G A C A T G A T 5’ 5’ A T G T A C A G G C T A 3’ 3’ T A C A T G T C C G A T 5’ Break and Invert

28. Algorithmic Problem Given two strings (of same set of characters) find a sequence of reversals of substrings that will transform one to other Biologist are interested in shortest such sequence Which makes the algorithm more challenging, and it is one of the most studied problem in algorithmic bioinformatics !!!

29. Thanks
