1. www.quintum.com Quintum Technologies, Inc. Risk Free VoIP

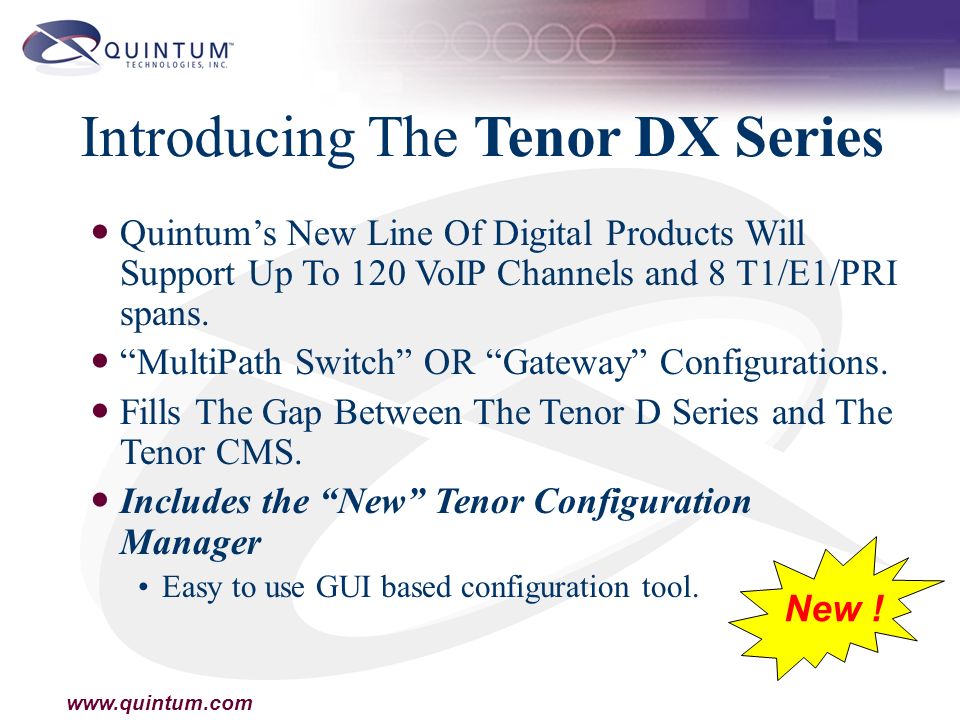

2. www.quintum.com Quintum’s New Line Of Digital Products Will Support Up To 120 VoIP Channels and 8 T1/E1/PRI spans. “MultiPath Switch” OR “Gateway” Configurations. Fills The Gap Between The Tenor D Series and The Tenor CMS. Includes the “New” Tenor Configuration Manager Easy to use GUI based configuration tool. Introducing The Tenor DX Series New !

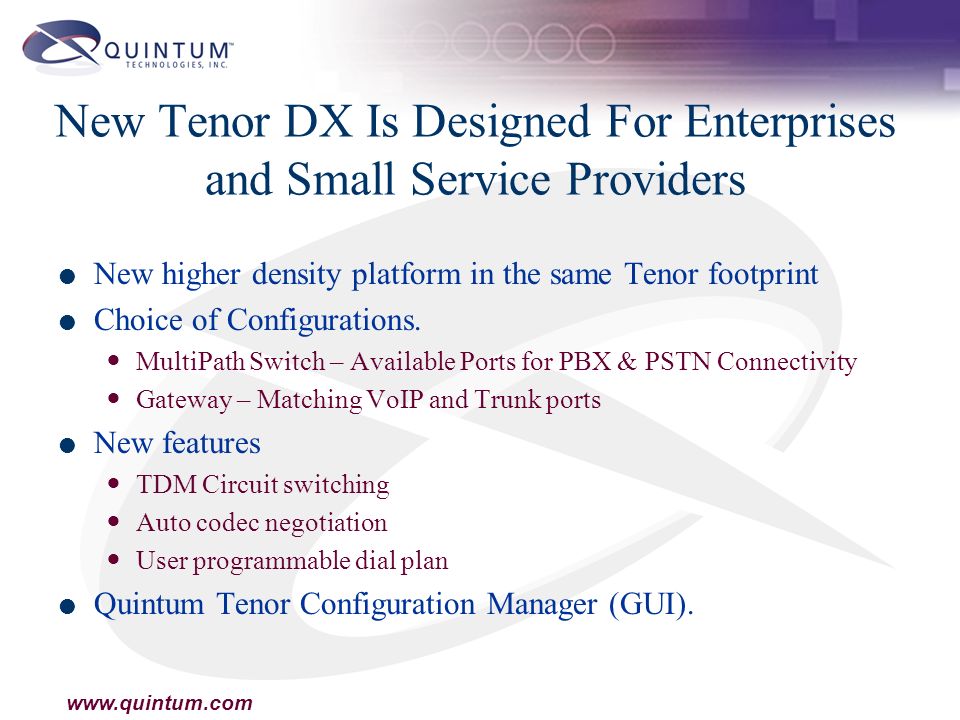

3. www.quintum.com New Tenor DX Is Designed For Enterprises and Small Service Providers  New higher density platform in the same Tenor footprint  Choice of Configurations. MultiPath Switch – Available Ports for PBX & PSTN Connectivity Gateway – Matching VoIP and Trunk ports  New features TDM Circuit switching Auto codec negotiation User programmable dial plan  Quintum Tenor Configuration Manager (GUI).

4. www.quintum.com Tenor DX Series Is Available With 1, 2, 3 or 4 Pairs of T1/E1/PRI Trunks 2 T1/E1 Ports 4 T1/E1 Ports 6 T1/E1 Ports 8 T1/E1 Ports

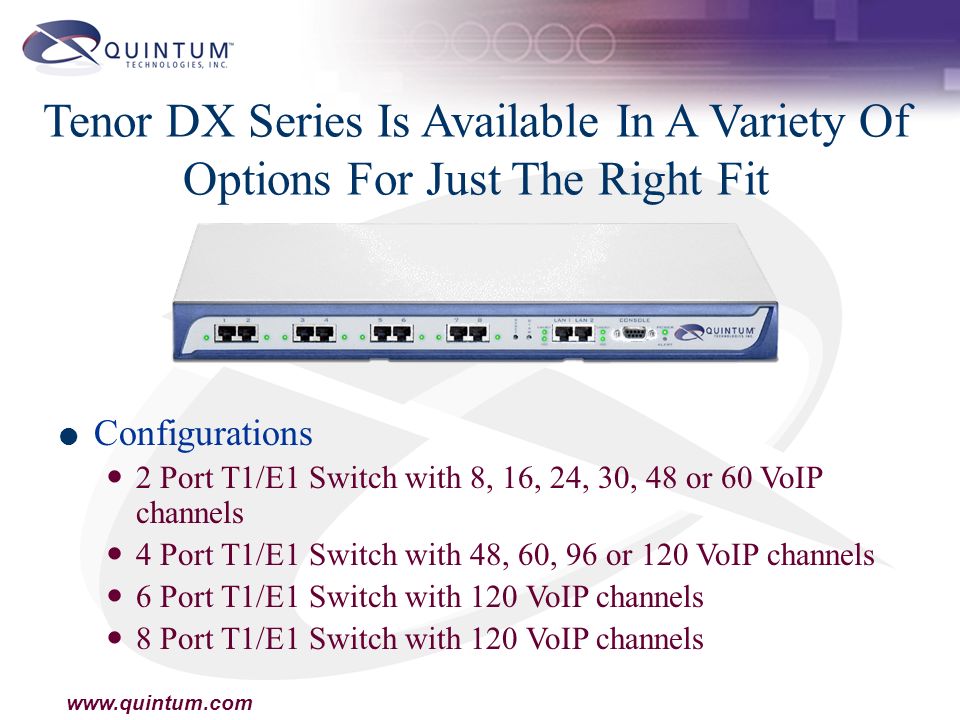

5. www.quintum.com Tenor DX Series Is Available In A Variety Of Options For Just The Right Fit  Configurations 2 Port T1/E1 Switch with 8, 16, 24, 30, 48 or 60 VoIP channels 4 Port T1/E1 Switch with 48, 60, 96 or 120 VoIP channels 6 Port T1/E1 Switch with 120 VoIP channels 8 Port T1/E1 Switch with 120 VoIP channels

6. www.quintum.com Tenor DX MultiPath Switch Configuration  VoIP MultiPath Switch Configuration Symmetrical configuration with equal numbers of station side T1/E1 ports and trunk side T1/E1 ports The number of VoIP ports is half the total number of telephony ports Calls can be routed in any direction between any of the ports Easy drop-in installation, no PBX changes required VoIP Gateway PSTN IP Network Station Side T1/E1 Ports PBX, Keyswitch, Phones Trunk Side T1/E1 Ports

7. www.quintum.com New Tenor DX Series “MultiPath Switch” Options  DX Series VoIP MultiPath Switches T1/E1 VoIP Application DX20082 8 T1/E1 DX20162 16 T1/E1 DX20242 24 T1 DX20302 30 E1 DX40484 48 2 x T1 DX40604 602 x E1 DX61206 120 T1/E1 DX81208 120T1/E1

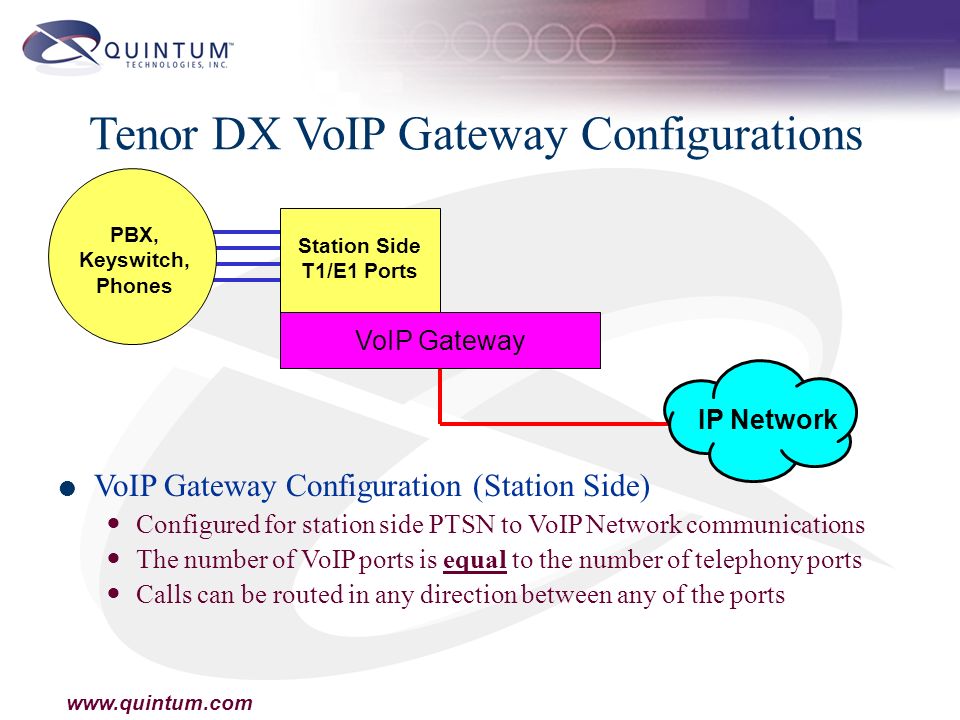

8. www.quintum.com Tenor DX VoIP Gateway Configurations  VoIP Gateway Configuration (Station Side) Configured for station side PTSN to VoIP Network communications The number of VoIP ports is equal to the number of telephony ports Calls can be routed in any direction between any of the ports VoIP Gateway IP Network Station Side T1/E1 Ports PBX, Keyswitch, Phones

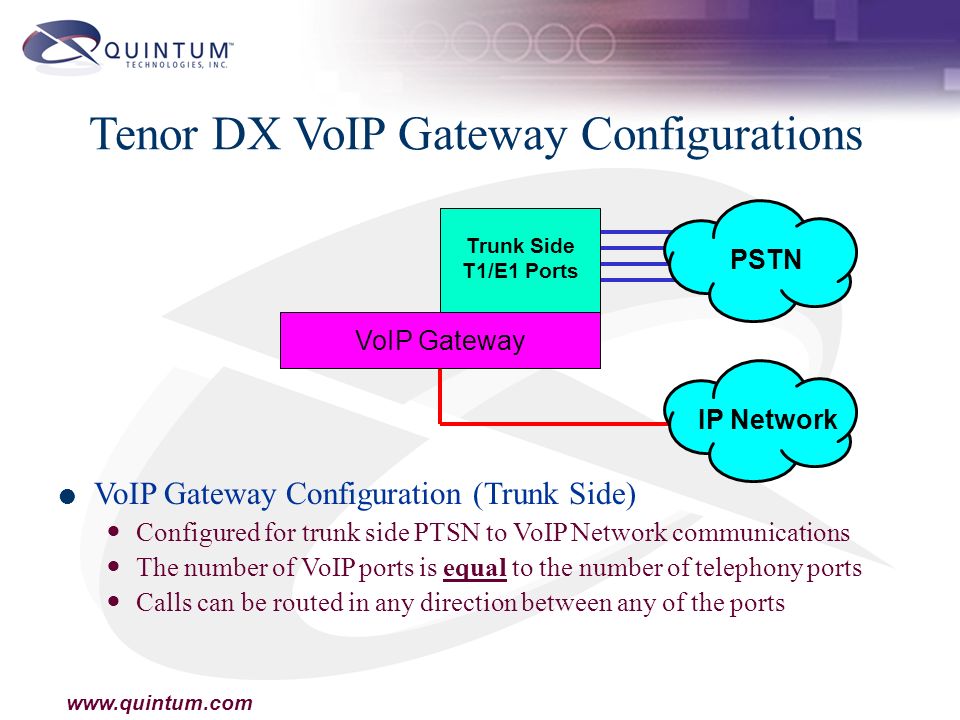

9. www.quintum.com Tenor DX VoIP Gateway Configurations VoIP Gateway PSTN IP Network Trunk Side T1/E1 Ports  VoIP Gateway Configuration (Trunk Side) Configured for trunk side PTSN to VoIP Network communications The number of VoIP ports is equal to the number of telephony ports Calls can be routed in any direction between any of the ports

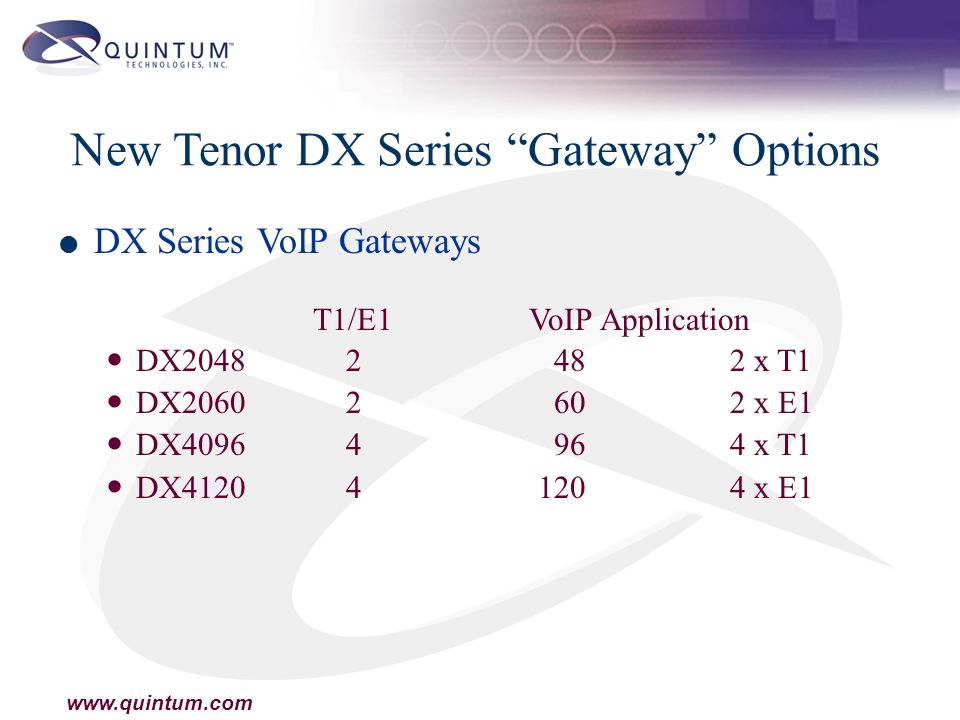

10. www.quintum.com New Tenor DX Series “Gateway” Options  DX Series VoIP Gateways DX20482 48 2 x T1 DX20602 60 2 x E1 DX40964 964 x T1 DX412041204 x E1 T1/E1 VoIP Application

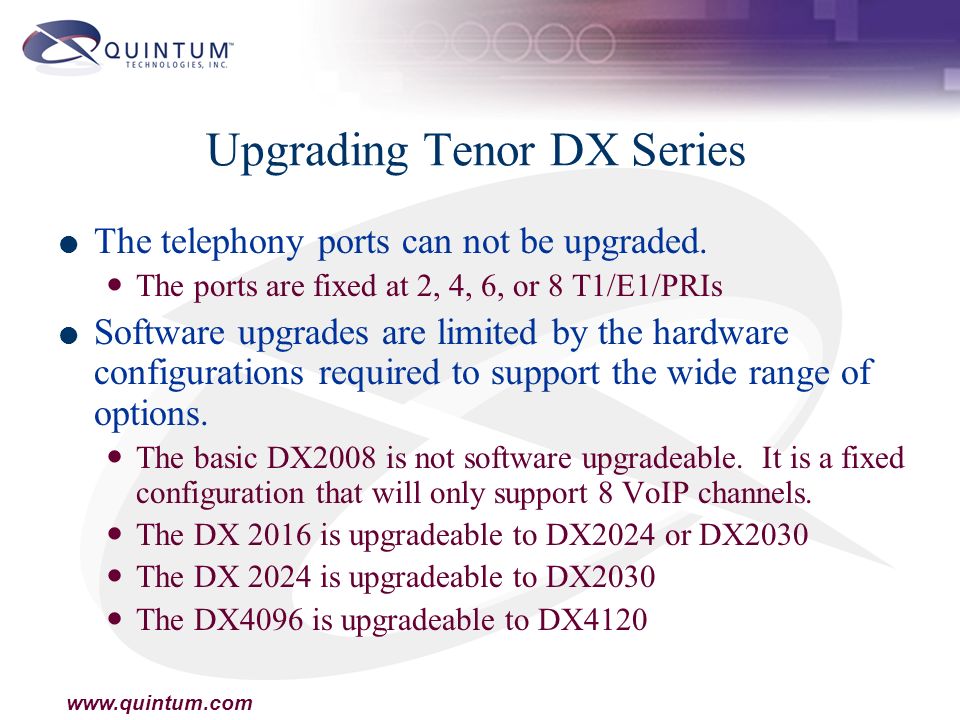

11. www.quintum.com Upgrading Tenor DX Series  The telephony ports can not be upgraded. The ports are fixed at 2, 4, 6, or 8 T1/E1/PRIs  Software upgrades are limited by the hardware configurations required to support the wide range of options. The basic DX2008 is not software upgradeable. It is a fixed configuration that will only support 8 VoIP channels. The DX 2016 is upgradeable to DX2024 or DX2030 The DX 2024 is upgradeable to DX2030 The DX4096 is upgradeable to DX4120

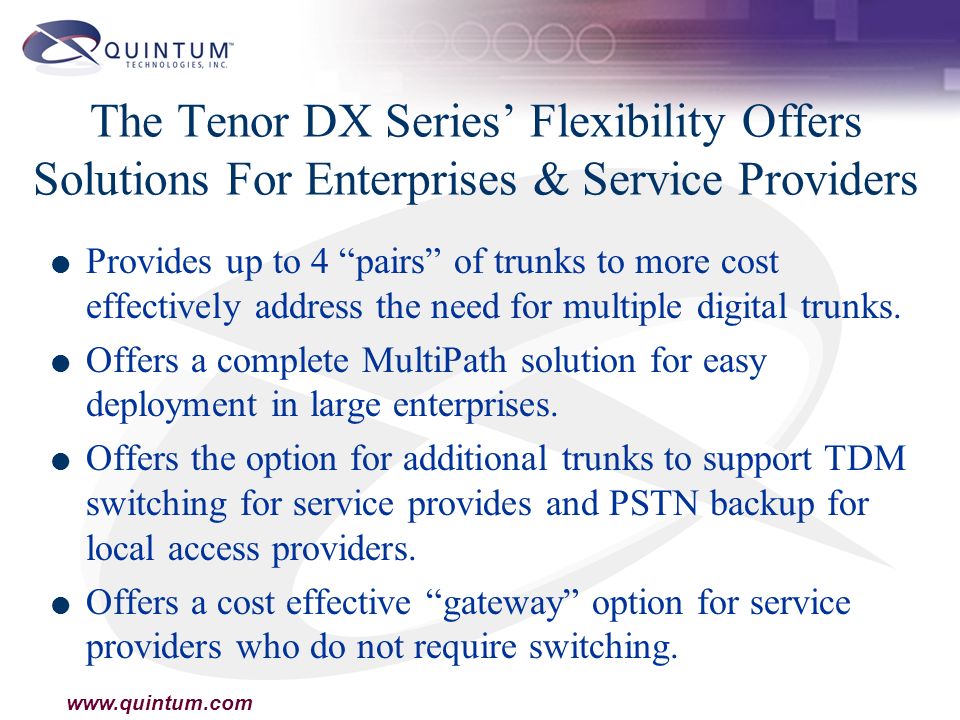

12. www.quintum.com The Tenor DX Series’ Flexibility Offers Solutions For Enterprises & Service Providers  Provides up to 4 “pairs” of trunks to more cost effectively address the need for multiple digital trunks.  Offers a complete MultiPath solution for easy deployment in large enterprises.  Offers the option for additional trunks to support TDM switching for service provides and PSTN backup for local access providers.  Offers a cost effective “gateway” option for service providers who do not require switching.

13. www.quintum.com Tenor Configuration Manager Makes Tenor Even Easier To Configure  Quintum has developed a completely new Graphical User Interface for the new DX Series products.  This web-based tool enables the user to set configuration parameters using an intuitive graphical interface.  The Tenor Configuration Manager can configure a remote unit anywhere in the IP network from the user’s PC.  The Tenor Configuration Manager consists of a Java application which can be loaded on any PC using Windows 2000 or Windows XP operating systems.

14. www.quintum.com The Tenor Configuration Monitor Offers A Easy To Use GUI

15. www.quintum.com The Tenor DX Series And Tenor Configuration Manager Are Now Available  Tenor DX Available – Now Official Announcement – November  The Tenor Configuration Manager will be included with the Tenor DX at no additional charge.
