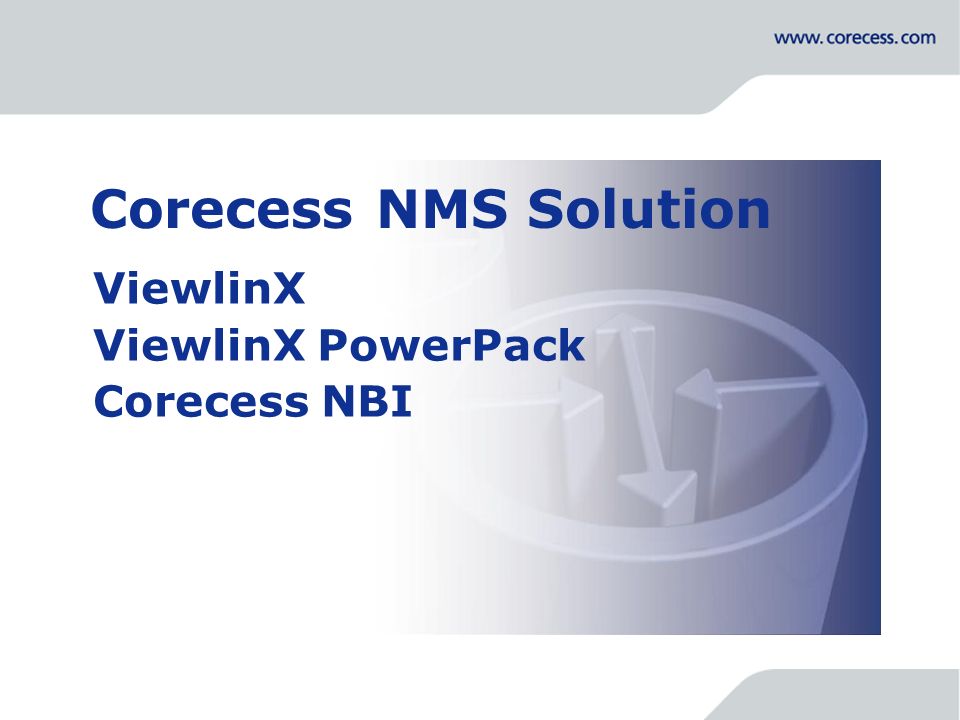

1 Simply Connecting the World Corecess NMS Solution ViewlinX ViewlinX PowerPack Corecess NBI

2 Your Success is Corecess TotalSolution Element/NetworkManagementSolution FCAPS and other network elements (ViewlinX, EMS/NMS) FCAPS and other network elements (ViewlinX, EMS/NMS) Business decision making Corecess network elements (NE) Unified repository DBMS (MySQL, ORACLE) Unified repository DBMS (MySQL, ORACLE) Corecess Strategy Service Management (PowerPack)

3 Your Success is Corecess Corecess Solution Target LevelTarget/UserFunctionsCorecessProduct Other Product Service Subscriber /Operator, Installer, Service Admin Subscriber Management Service Activation Accounting Billing Subscriber Support Not Available Telcordia OSMINE Digital Fairway eOSS Cisco Internet OSS Digiquant IMS Fujitsu ProactNes/SN & PN (IP-OSS) Service/Network Other Service Network Admin North-bound Advanced Admin Corecess NBI ViewlinX PowerPack KT ATM NMS Adapter KT IPNMS Driver Network Network /Network Admin FCAPS Node management Topology Fault management Performance mng. ViewlinX HP OpenView MicroMuse OMNIbus CiscoWorks Element NE /Network Admin NE Configuration ViewlinX EMS (GUI) Ex., EMS for CC6800 CIT with console (CLI) Integration with HP OpenView

4 Your Success is Corecess Overview Home DSL Modem Home Cable Modem DSL Router Small and Medium Office Workgroup Switch Enterprise Network Access Switch Backbone Switch Workgroup Switch PrivateNetwork Cable Modem Backbone Switch Fiber Line Edge Switch CMTS DSLAM HFC Network Core Network Public Network Apartment DX6512 Copper Line FX5408 NMS SNMP LibMIB BrowserTopologyAlarm Element Management Account Security DB Interface Network admin Internet Service Service Provider OSS ViewlinX

5 Your Success is Corecess Corecess NMS Architecture SNMP API Node Discover Node Monitor Basic Traffic Monitor EMS Launcher Topology Viewer Tree View Tool Manager Misc. Tools Manager Performance Manager Software Update Utility MIB Browser MIB Parser Network Tools SNMP Tools Fault Manager EMSs FX5400 Series FX5400 Series FX5400 Series FX5400 Series CC6800 CC8100 … Corecess North Bound Interface (JAVA API, XML Server) OSSUpper NMS DB Customer Provisioning Reporter Web based Management 2. ViewlinX Power Pack NE CIT 1. ViewlinX 3. Corecess NBI Service Level SLA Inventory Management

6 Your Success is Corecess  2004 Q1 First Release  Beta version is available now  Web based management tool  Reporter For fault, performance, inventory, user, and so on.  User provisioning  SLA ViewlinX Power Pack

7 Your Success is Corecess ViewlinX Power Pack

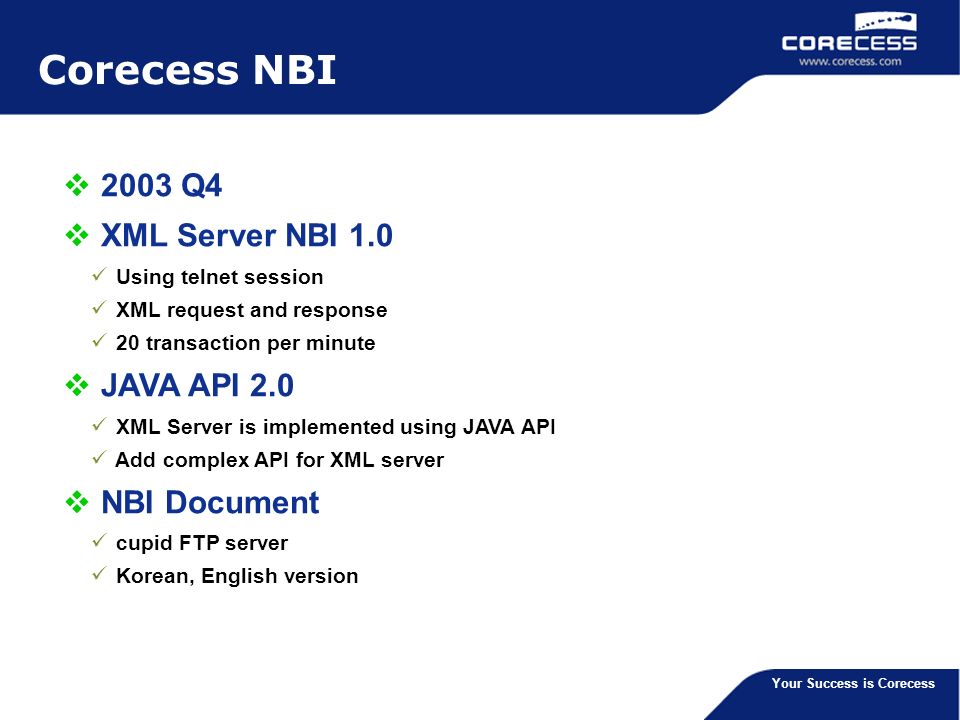

8 Your Success is Corecess  2003 Q4  XML Server NBI 1.0 Using telnet session XML request and response 20 transaction per minute  JAVA API 2.0 XML Server is implemented using JAVA API Add complex API for XML server  NBI Document cupid FTP server Korean, English version Corecess NBI

9 Your Success is Corecess Corecess NBI Object Implementation ORB CORE GIOP/IIOP DII IDL STUBS Object Adapter ORB Interface Client in args Operation() out args + return values DSI IDL Skeleton Calling Proc Called Proc Client Stub Network Library Client Stub Network Library Request & Reply Network Middleware Local Site Remote Site Library Application Network Element Call API’s Method SNMP’s MIB Get XML Server Client Network Element

10 Simply Connecting the World ViewlinX Platform Client/Server Architecture Look and Feel Components Node Manager Fault Manager Performance Manager Corecess EMS

11 Your Success is Corecess Platform independent JAVA Virtual Machine Manager EMS ViewlinX – PM, MIB Browser, SNMP API, ……

12 Your Success is Corecess Client/Server Architecture Unified Repository DBMS Network Server Clients Event/Collecting Clients NEs

13 Your Success is Corecess System Configuration DB Centralized DB DB1DB2DB3 Centralized Management C B A Single Management C B A Localized Management DB1 DB2 C B A Mixed Corecess 1000 Server Corecess 1000 Clients Equipments Groups

14 Your Success is Corecess Area, Type, Classify Tree Fault Management All EMS for Corecess products Real-Time Traffic Monitoring No limitation of manageable nodes Secure Management ViewlinX Look and Feel

15 Your Success is Corecess ViewlinX Components  Network Node Manager Security Manager  Fault Manager  Performance statistics manager  S/W Upgrade Utility Simplified s/w upgrade of multiple devices  EMS for all Corecess products  SNMP API, MIB Browser  Inventory Management Basic analysis of equipment components CC6800 series is available now

16 Your Success is Corecess Node Manager with topology View

17 Your Success is Corecess Node Manager with General View

18 Your Success is Corecess Fault Management

19 Your Success is Corecess Table View Graph View Performance Item Window Item Configuration Window Performance Manager  General performance monitoring tool

20 Your Success is Corecess  S/W Upgrade Utility For all Corecess products Batch Processing Software upgrade Utility

21 Your Success is Corecess  MIB Browser Basic tool for testing and managing NE SNMP API:compile, analysis and parsing MIB MIB Browser

22 Your Success is Corecess Corecess EMS Chassis View Slot View
