1 Knocking The Rust Off The Rust Belt Calfee, Halter & Griswold LLP, The Calfee Building, 1405 East Sixth Street, Cleveland, Ohio 44114 Cleveland | Columbus | Cincinnati | Calfee.com

2 Cleveland 1910-1920 Sixth-largest city in United States

3 Natural Gas Fuels Boom A new energy source

4 1916: Construction Begins

5 The Burnham Group Plan Includes City Hall, the Federal Courthouse, Public Auditorium, and the Board of Education building

6 1916-1959: East Ohio Gas Appliance showroom on lobby floor. Cashiers processed customer payments.

7 1960-1990s: WKY/WKYC

8 The Mike Douglas Show was taped in a studio on the second floor in the mid- 1960s.

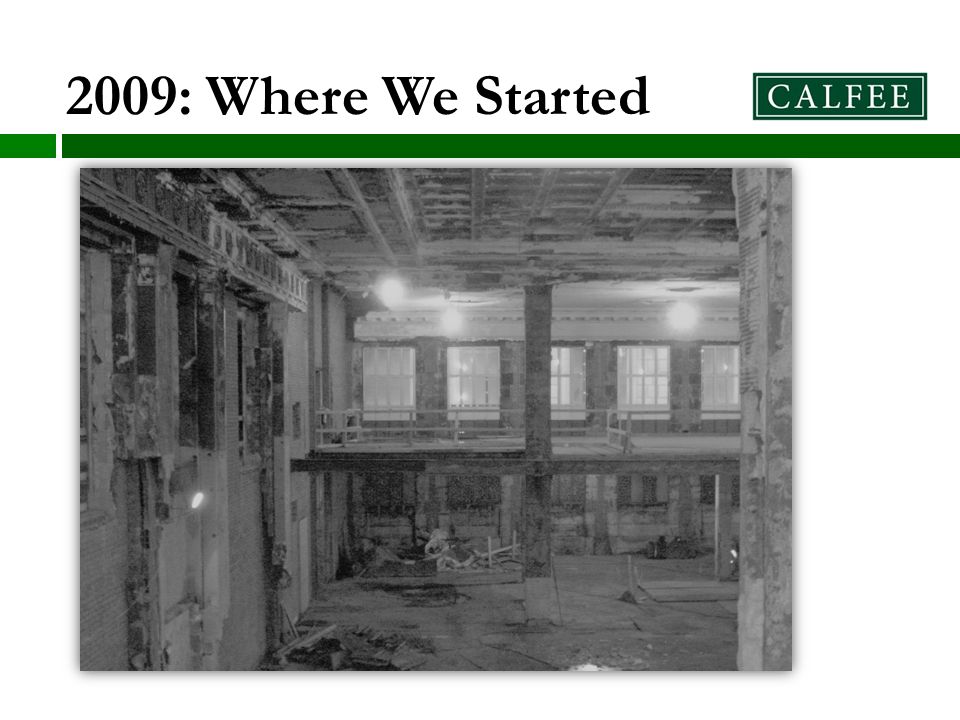

9 2009: Where We Started

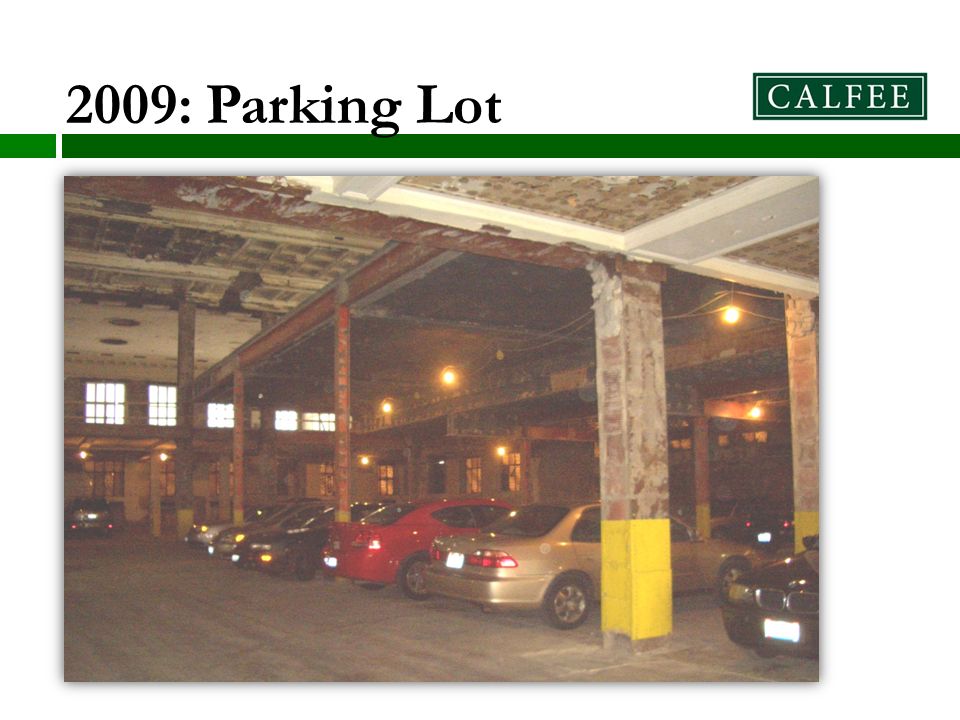

10 2009: Parking Lot

11 2009: Ruined Plasterwork

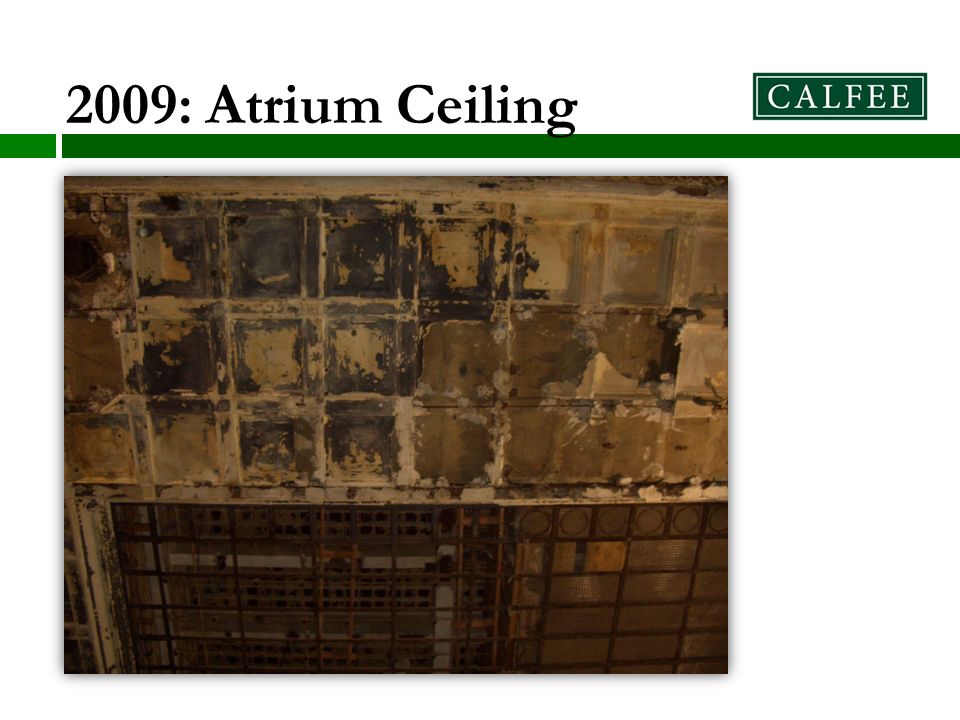

12 2009: Atrium Ceiling

13 2009: Where We Started

14 2010: Work Begins

15

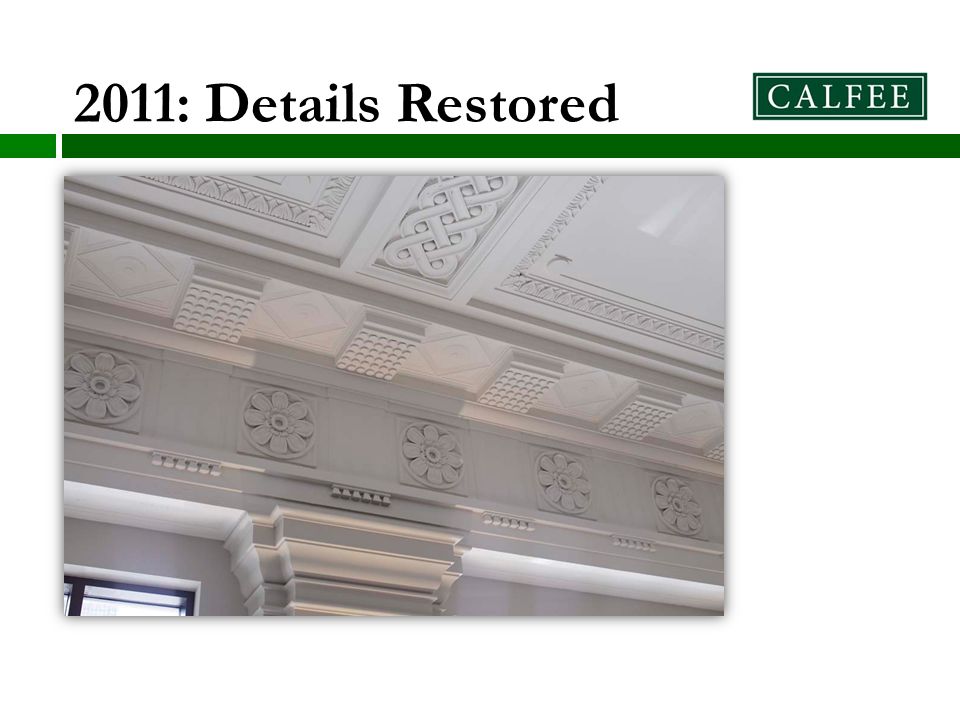

16 2011: Details Restored

17 2011: A Vision Realized 120,000 square feet. Seven floors above ground. Three levels below ground. Calfee is the sole tenant.

18 Partner’s Office

19 Café Area This table was custom- made by A Piece of Cleveland from reclaimed materials

20 Environmentally Conscious

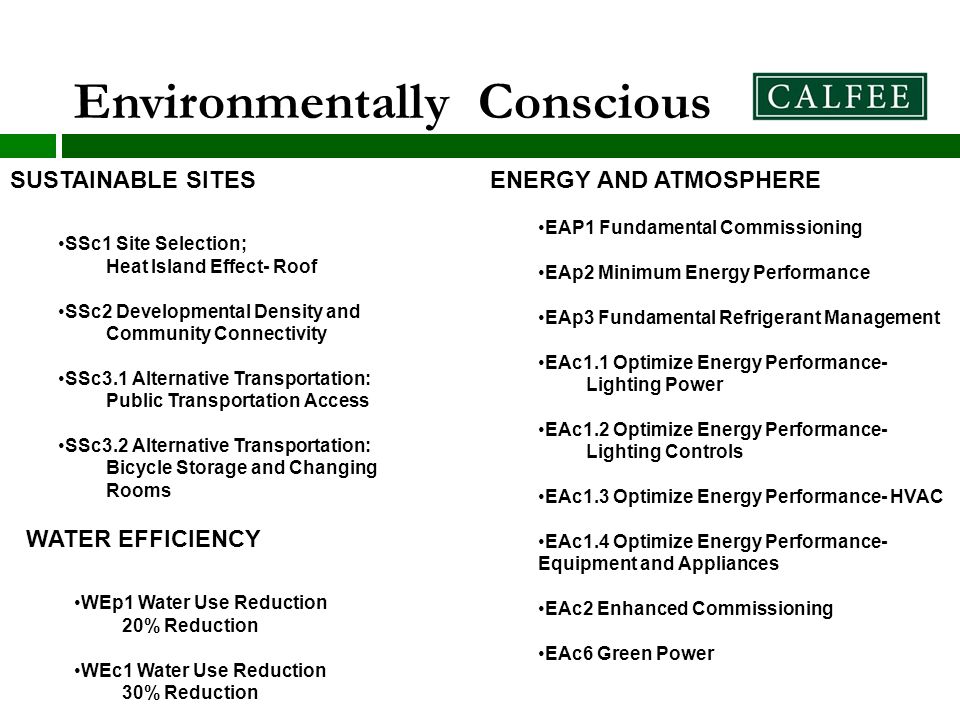

21 SUSTAINABLE SITES SSc1 Site Selection; Heat Island Effect- Roof SSc2 Developmental Density and Community Connectivity SSc3.1 Alternative Transportation: Public Transportation Access SSc3.2 Alternative Transportation: Bicycle Storage and Changing Rooms WATER EFFICIENCY WEp1 Water Use Reduction 20% Reduction WEc1 Water Use Reduction 30% Reduction ENERGY AND ATMOSPHERE EAP1 Fundamental Commissioning EAp2 Minimum Energy Performance EAp3 Fundamental Refrigerant Management EAc1.1 Optimize Energy Performance- Lighting Power EAc1.2 Optimize Energy Performance- Lighting Controls EAc1.3 Optimize Energy Performance- HVAC EAc1.4 Optimize Energy Performance- Equipment and Appliances EAc2 Enhanced Commissioning EAc6 Green Power

22 Environmentally Conscious MATERIALS AND RESOURCES MRp1 Storage and Collection of Recyclables MRc1.1 Tenant Space- Long Term Commitment MRc2 Construction Waste Management MRc4 Recycled Content Mrc5 Regional Materials INDOOR ENVIRONMENTAL QUALITY IEQp1 Minimum Indoor Air Quality Performance IEQp2 Environmental Tobacco Smoke Control IEQc1 Outdoor Air Delivery Monitoring IEQc4.1- 4.4 Low Emitting Materials Adhesives and Sealants Paints and Coatings Flooring Systems Composite Wood and Agri-fiber IEQc6.1 Controllability of Systems- Lighting IEQc6.2 Controllability of Systems- Thermal Comfort IEQc7.1- 7.2 Thermal Comfort- Design; Verification

23 Environmentally Conscious INNOVATION IN DESIGN IDc1.1 Regional Materials IDc1.2 Construction Waste Management IDc2 LEED Accredited Professional Regional Priority SSc2 Developmental Density MRc2 Construction Waste Management- 75% Diversion IEQc7.1 Thermal Comfort- Design

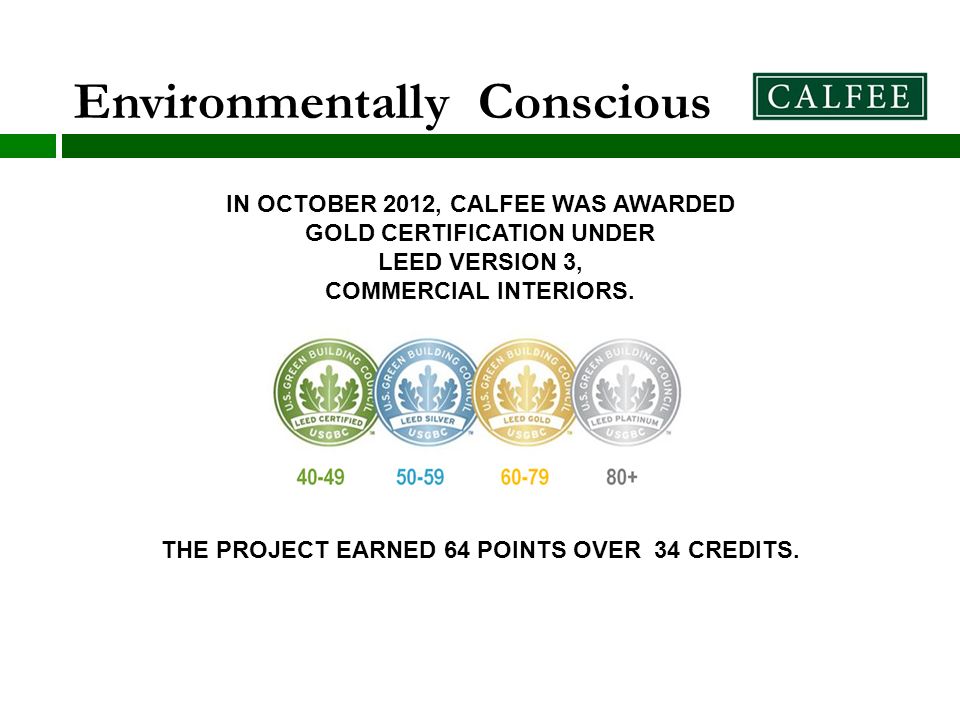

24 Environmentally Conscious IN OCTOBER 2012, CALFEE WAS AWARDED GOLD CERTIFICATION UNDER LEED VERSION 3, COMMERCIAL INTERIORS. THE PROJECT EARNED 64 POINTS OVER 34 CREDITS.

25 Environmentally Conscious METRICS AND THRESHOLDS MET Water Savings: 31% Reduction through use of water conserving fixtures Lighting Power: 21% Reduction of Connected Lighting Load Power HVAC: Met and exceeded requirement of efficiency outlined in the Advanced Buildings Core Performance Guide sections 1.4, 2.9, & 3.10. 92% of all installed equipment is Energy Star Rated. Purchase of 50% of the building’s power needs for the next two years from renewable sources. Construction Waste: 98% Diversion Rate. Achieved 17% recycled content threshold on all materials and furniture used on the project. 34% of all project materials and furniture on the project were manufactured and/or extracted within 500 miles of the site.

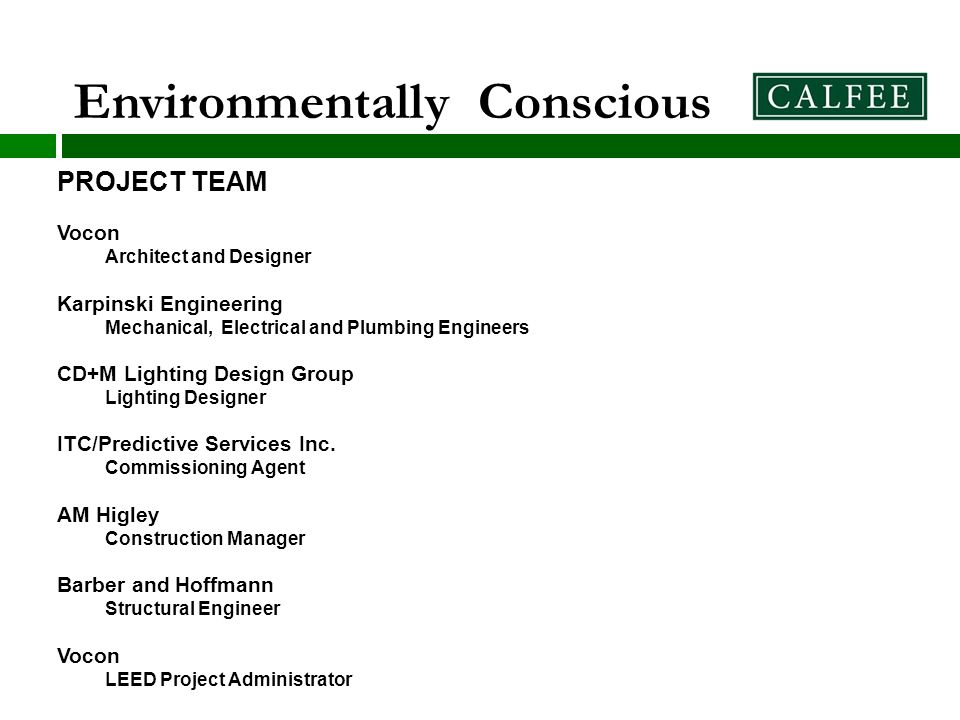

26 Environmentally Conscious PROJECT TEAM Vocon Architect and Designer Karpinski Engineering Mechanical, Electrical and Plumbing Engineers CD+M Lighting Design Group Lighting Designer ITC/Predictive Services Inc. Commissioning Agent AM Higley Construction Manager Barber and Hoffmann Structural Engineer Vocon LEED Project Administrator

27 Calfee Fitness Center

28 The 1903 Market

29 A 21st Century Law Firm

30 High Tech Connections Calfee’s Conference Center is equipped to handle audio and visual conferences.

31 Operating Costs

32

33

34 Committed to Cleveland
