1. Proton NMR Spectroscopy

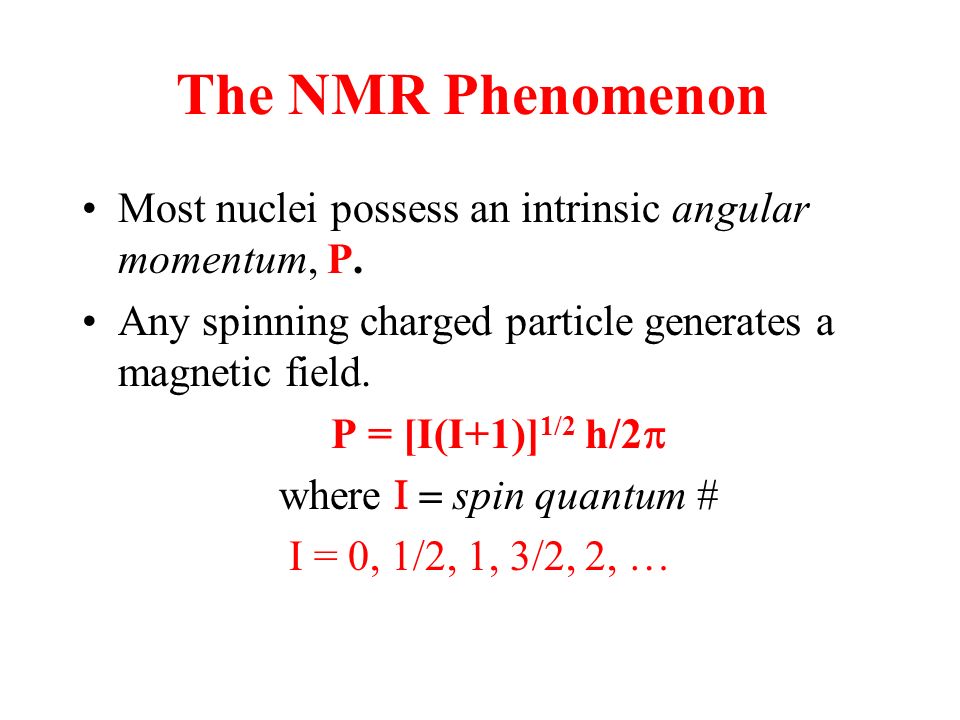

2. The NMR Phenomenon Most nuclei possess an intrinsic angular momentum, P. Any spinning charged particle generates a magnetic field. P = [I(I+1)] 1/2 h/2  where  spin quantum # I = 0, 1/2, 1, 3/2, 2, …

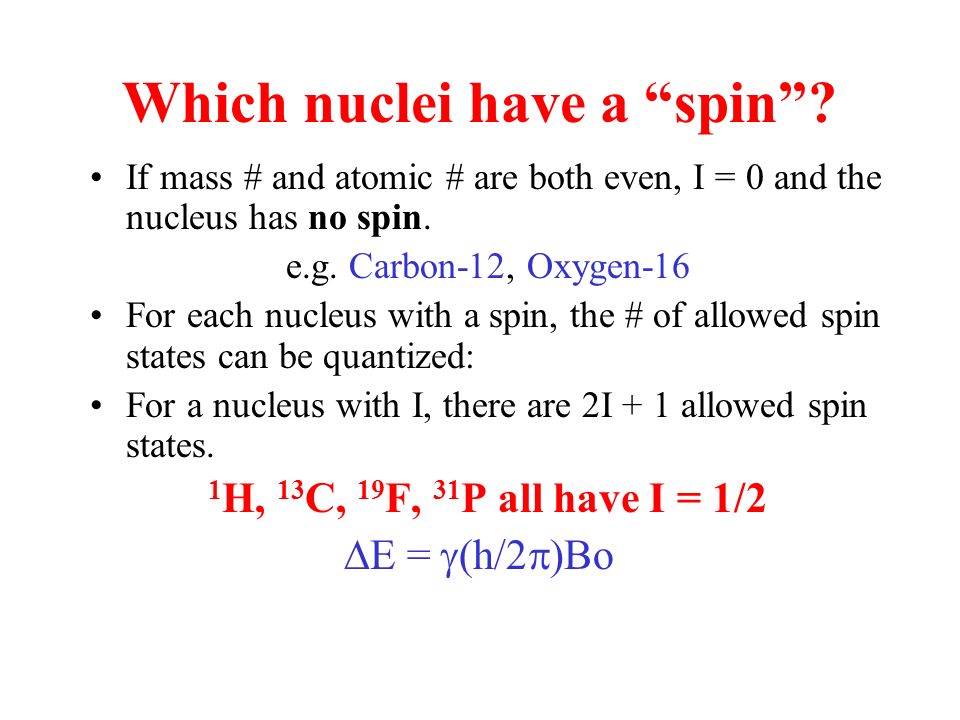

3. Which nuclei have a “spin”? If mass # and atomic # are both even, I = 0 and the nucleus has no spin. e.g. Carbon-12, Oxygen-16 For each nucleus with a spin, the # of allowed spin states can be quantized: For a nucleus with I, there are 2I + 1 allowed spin states. 1 H, 13 C, 19 F, 31 P all have I = 1/2  E =  h/2  )Bo

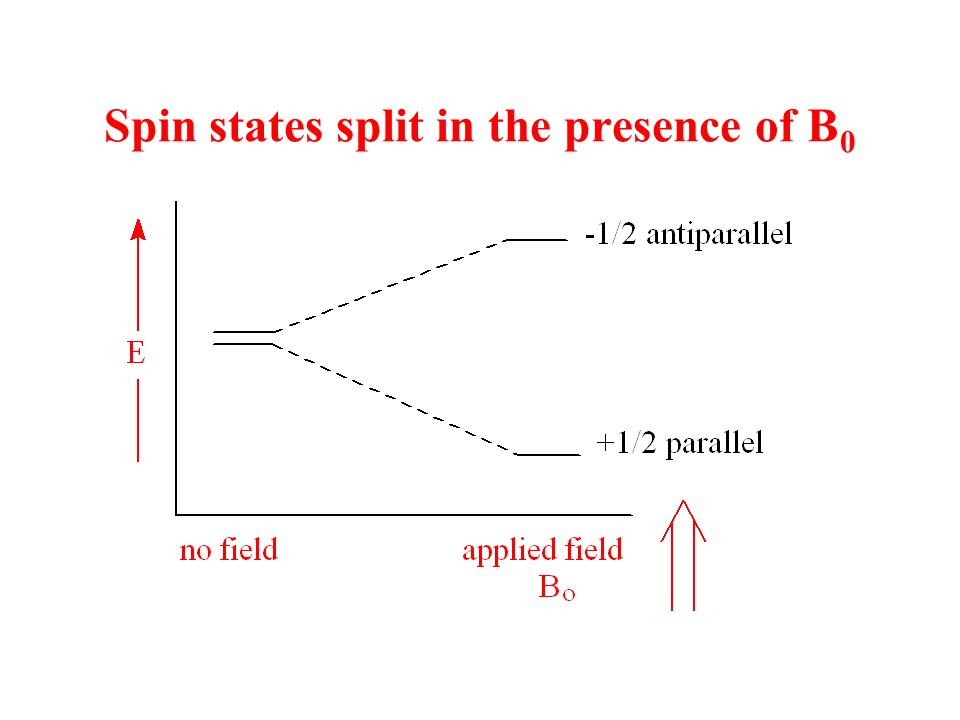

4. Spin states split in the presence of B 0

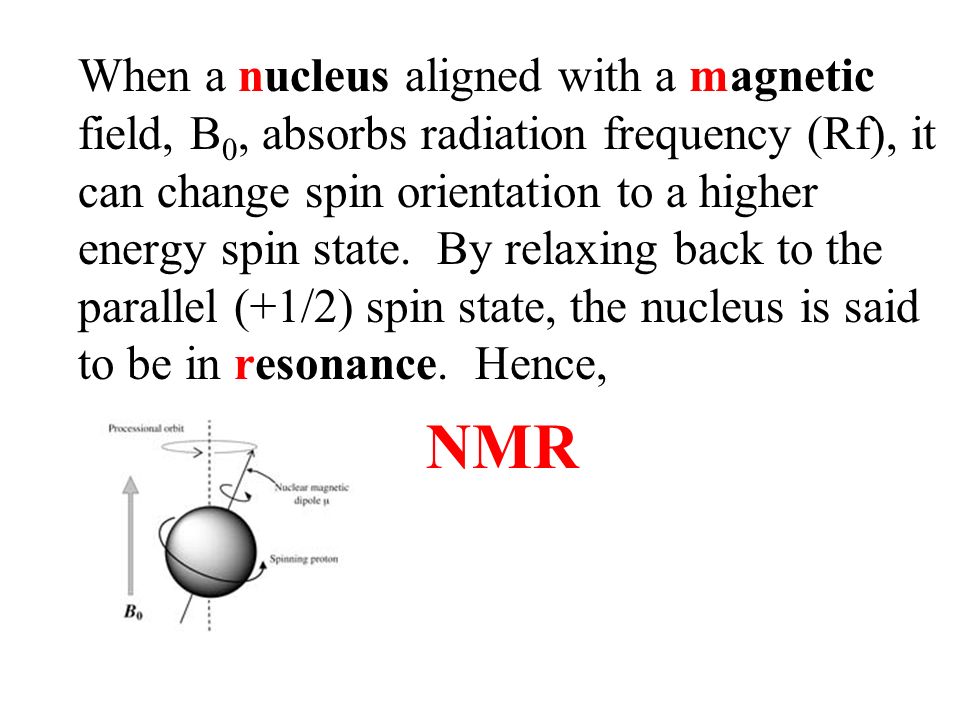

5. When a nucleus aligned with a magnetic field, B 0, absorbs radiation frequency (Rf), it can change spin orientation to a higher energy spin state. By relaxing back to the parallel (+1/2) spin state, the nucleus is said to be in resonance. Hence, NMR

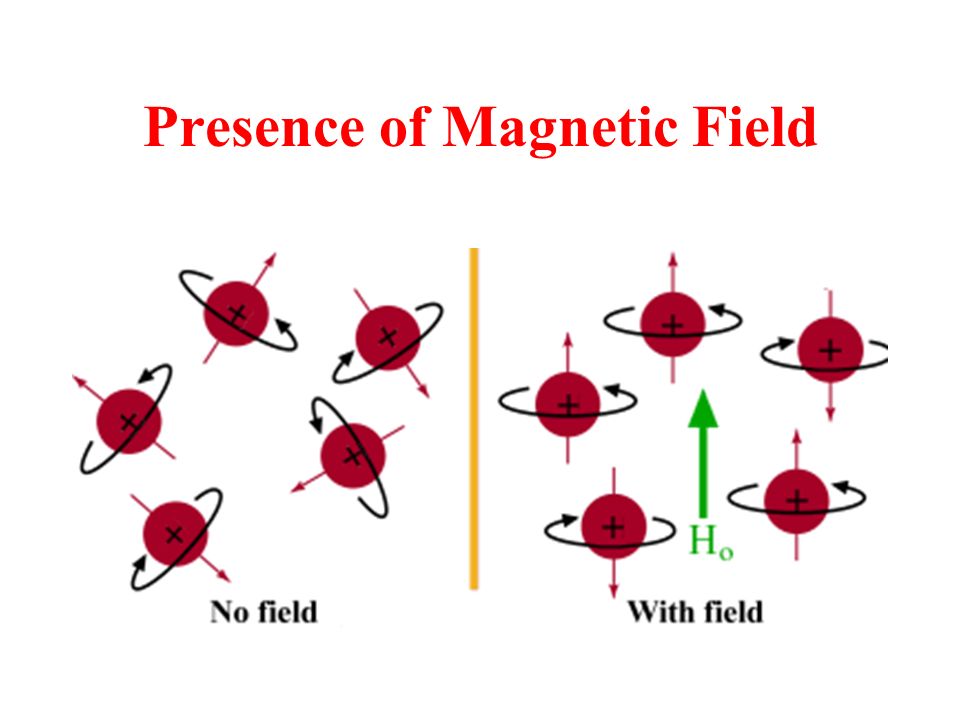

6. Presence of Magnetic Field

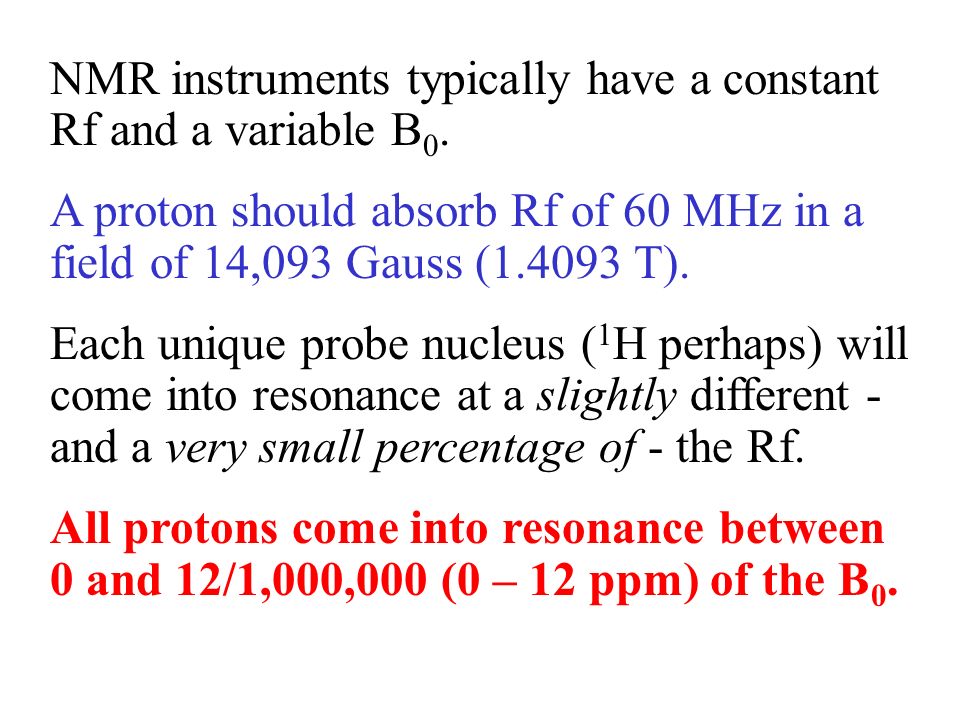

7. NMR instruments typically have a constant Rf and a variable B 0. A proton should absorb Rf of 60 MHz in a field of 14,093 Gauss (1.4093 T). Each unique probe nucleus ( 1 H perhaps) will come into resonance at a slightly different - and a very small percentage of - the Rf. All protons come into resonance between 0 and 12/1,000,000 (0 – 12 ppm) of the B 0.

8. Nuclei aligned with the magnetic field are lower in energy than those aligned against the field The nuclei aligned with the magnetic field can be flipped to align against it if the right amount of energy is added (DE) The amount of energy required depends on the strength of the external magnetic field

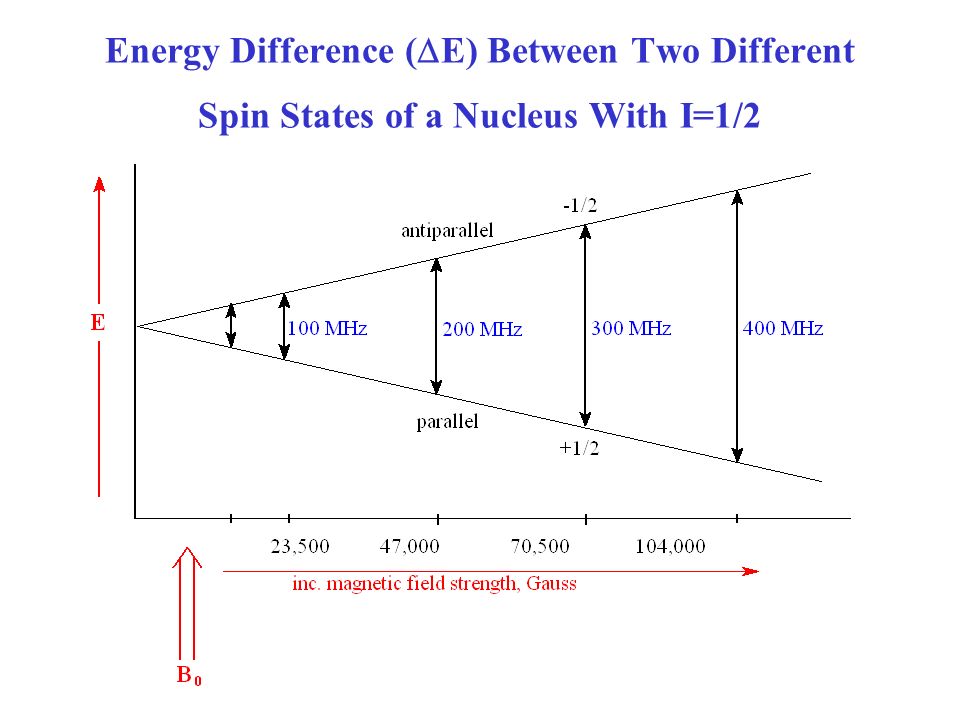

9. Energy Difference (  E) Between Two Different Spin States of a Nucleus With I=1/2

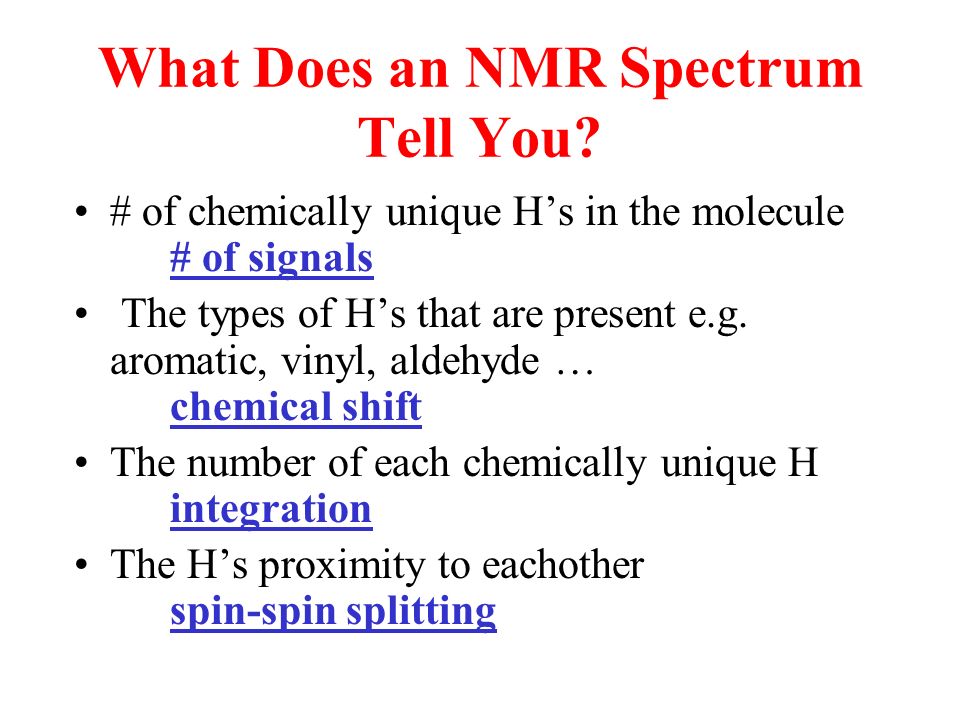

10. What Does an NMR Spectrum Tell You? # of chemically unique H’s in the molecule # of signals The types of H’s that are present e.g. aromatic, vinyl, aldehyde … chemical shift The number of each chemically unique H integration The H’s proximity to eachother spin-spin splitting

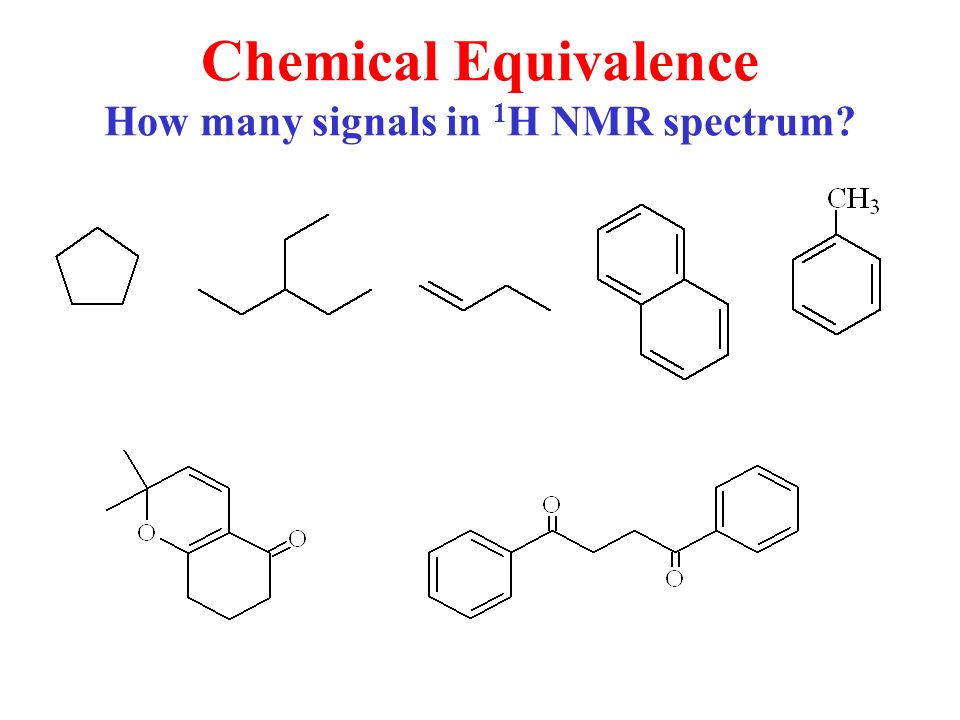

11. Chemical Equivalence How many signals in 1 H NMR spectrum?

12. Number of Equivalent Protons

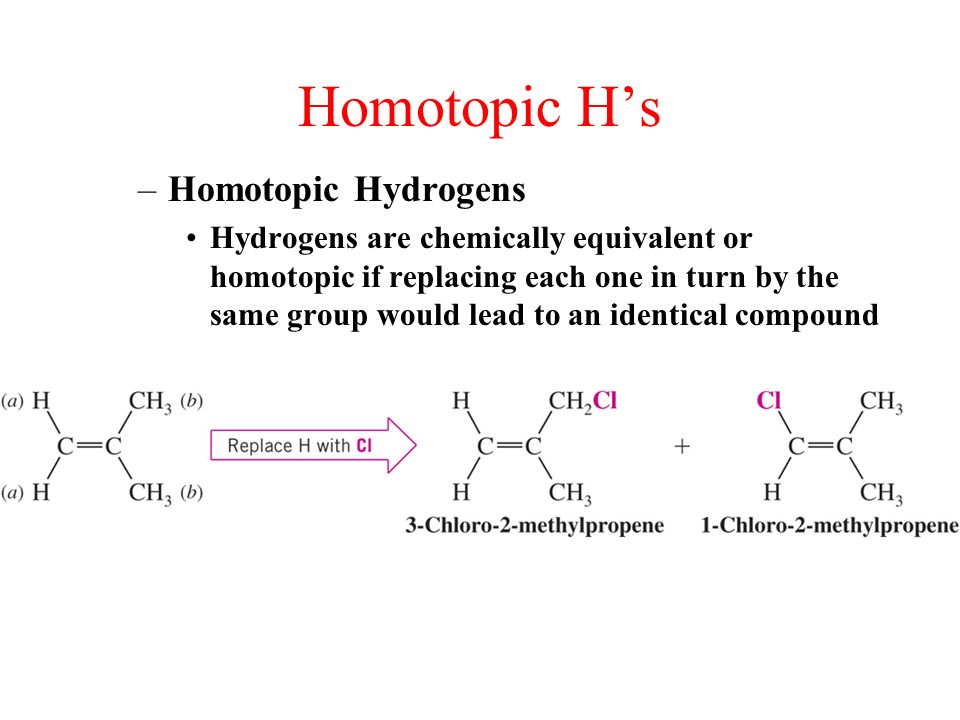

13. Homotopic H’s –Homotopic Hydrogens Hydrogens are chemically equivalent or homotopic if replacing each one in turn by the same group would lead to an identical compound

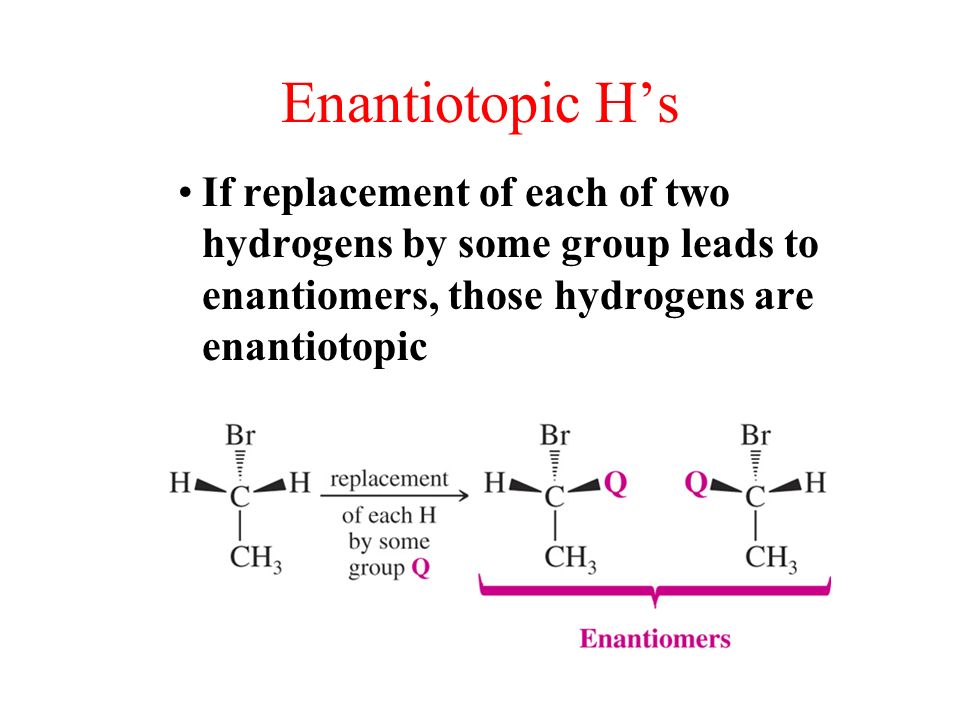

14. Enantiotopic H’s If replacement of each of two hydrogens by some group leads to enantiomers, those hydrogens are enantiotopic

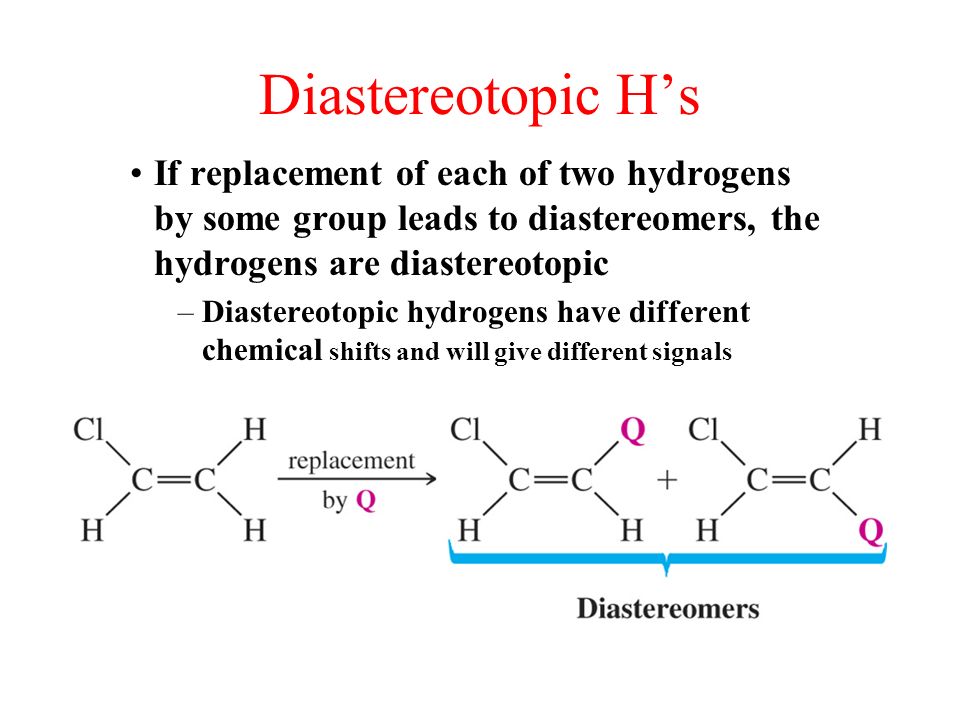

15. Diastereotopic H’s If replacement of each of two hydrogens by some group leads to diastereomers, the hydrogens are diastereotopic –Diastereotopic hydrogens have different chemical shifts and will give different signals

16. Vinyl Protons

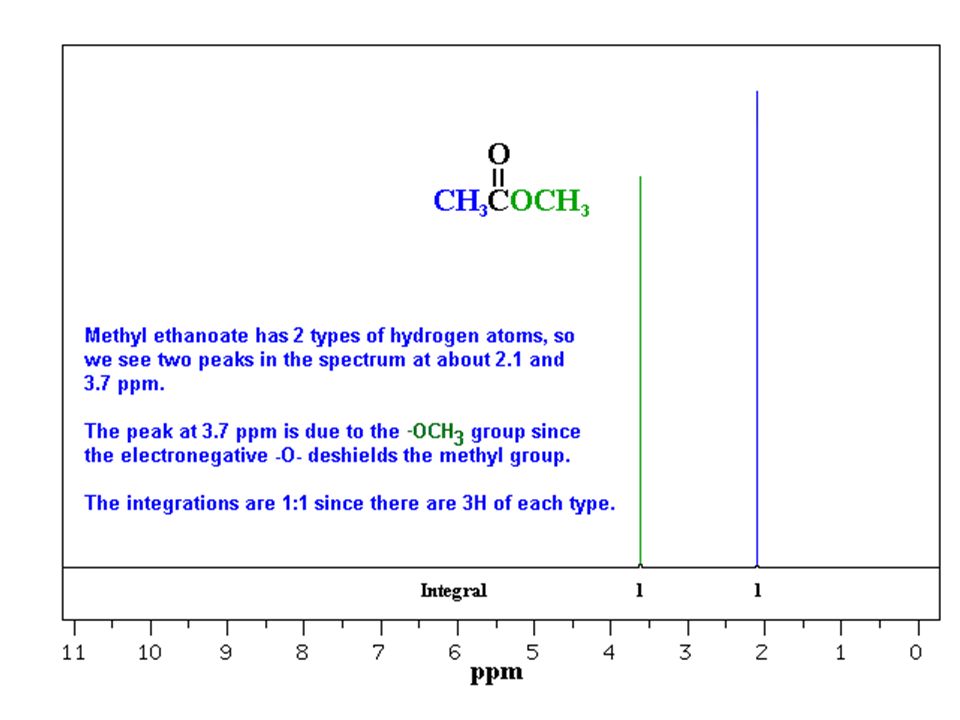

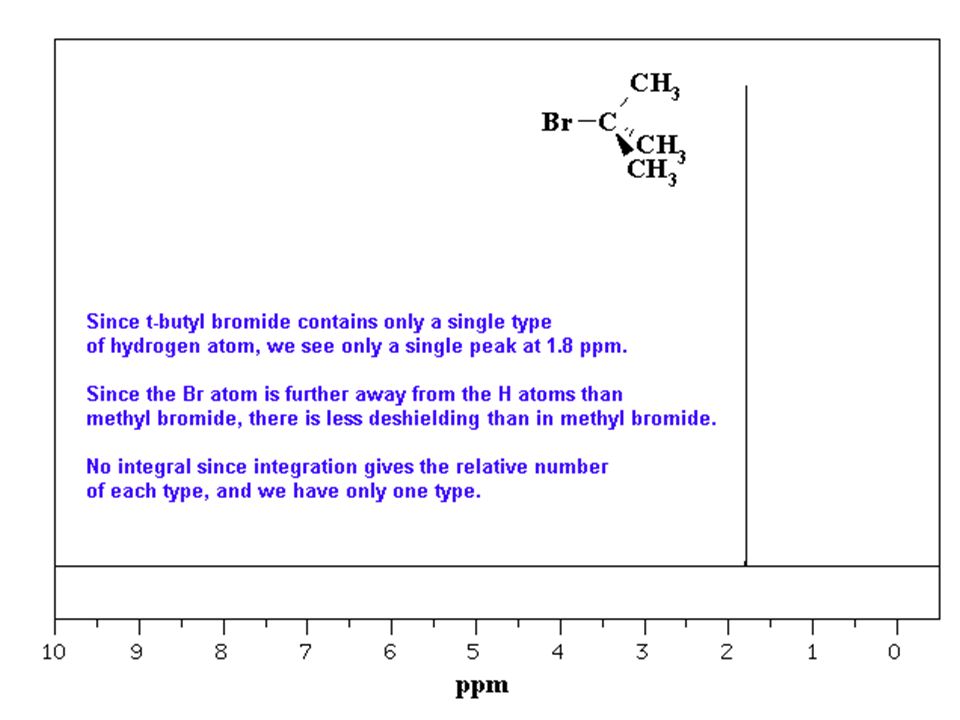

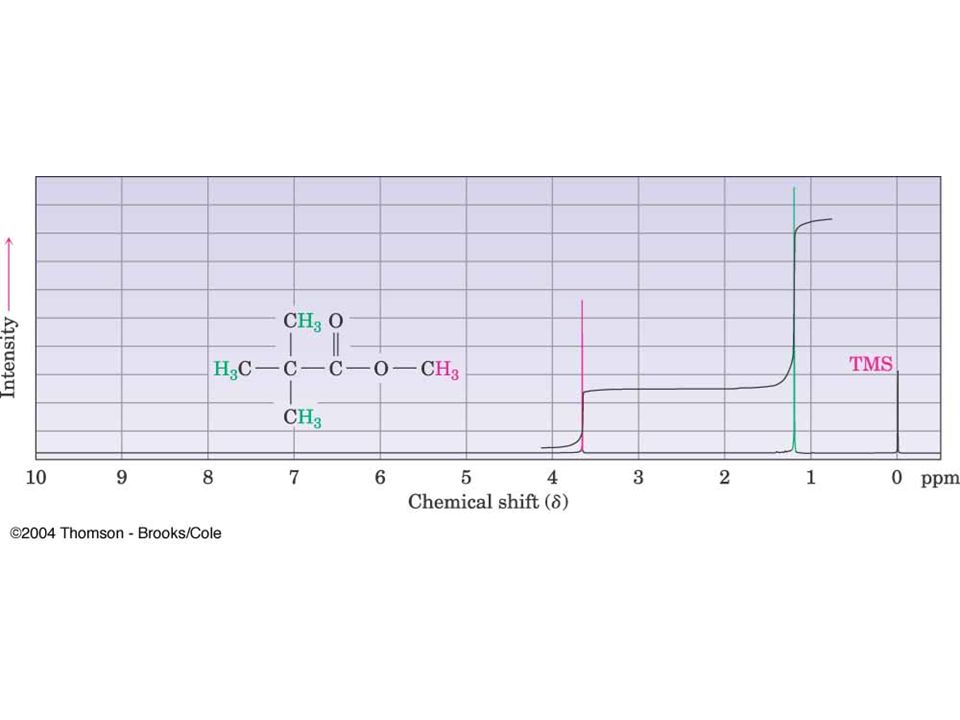

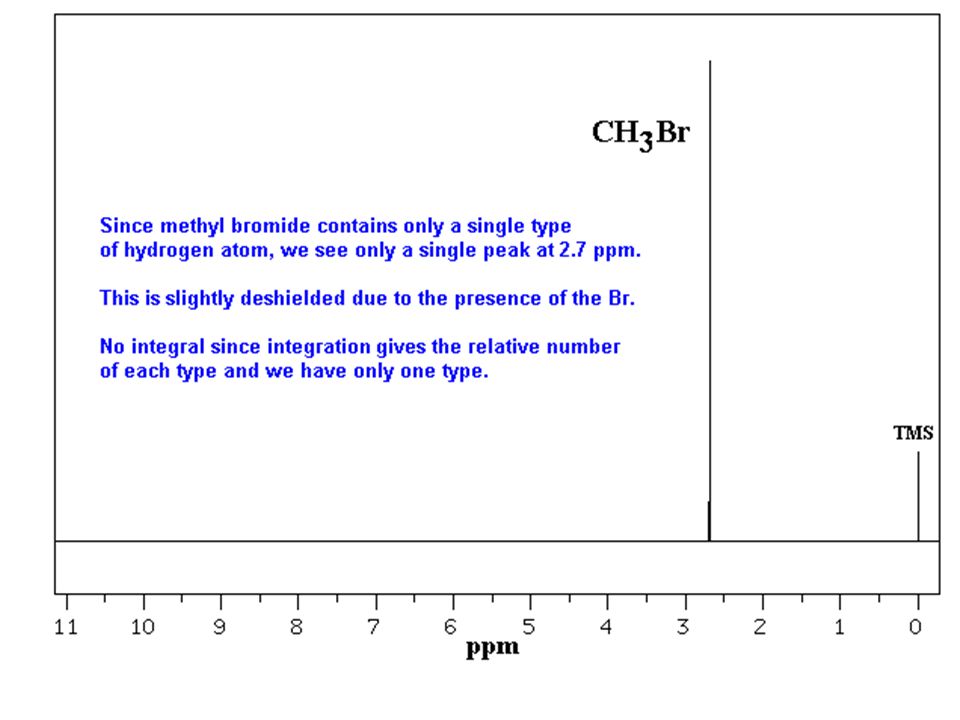

23. Typical 1H NMR Scale is 0-10 ppm

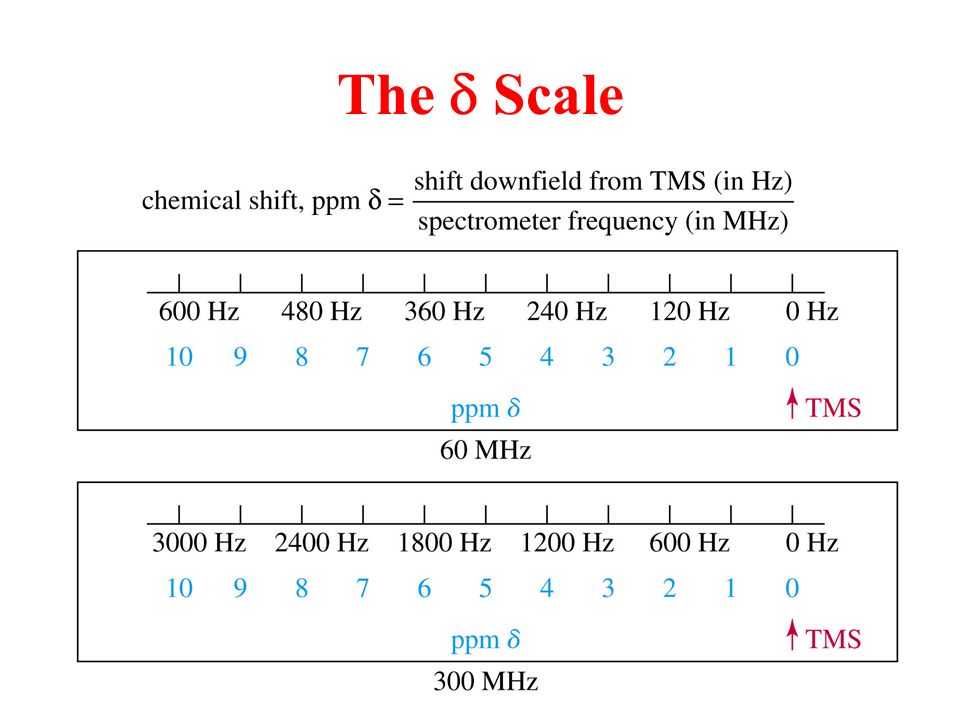

24. The  Scale

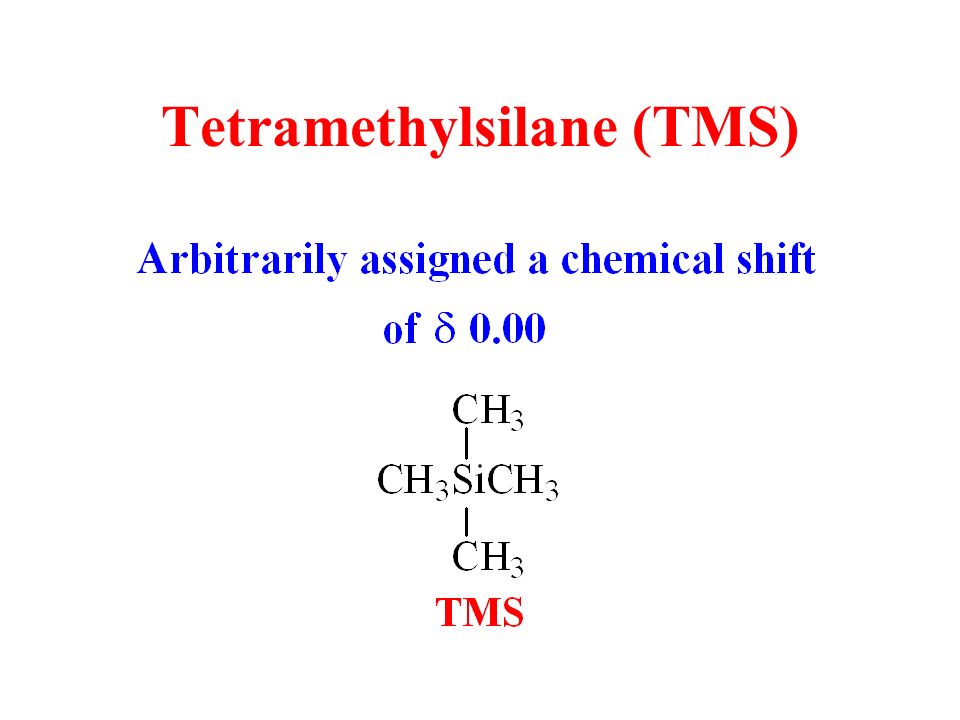

25. Tetramethylsilane (TMS)

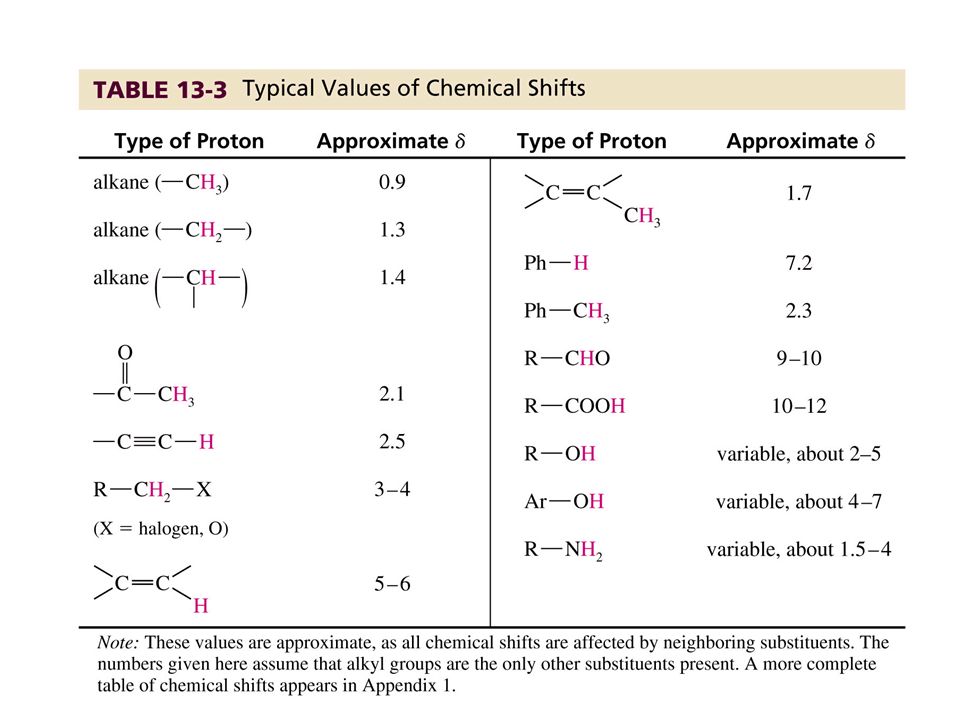

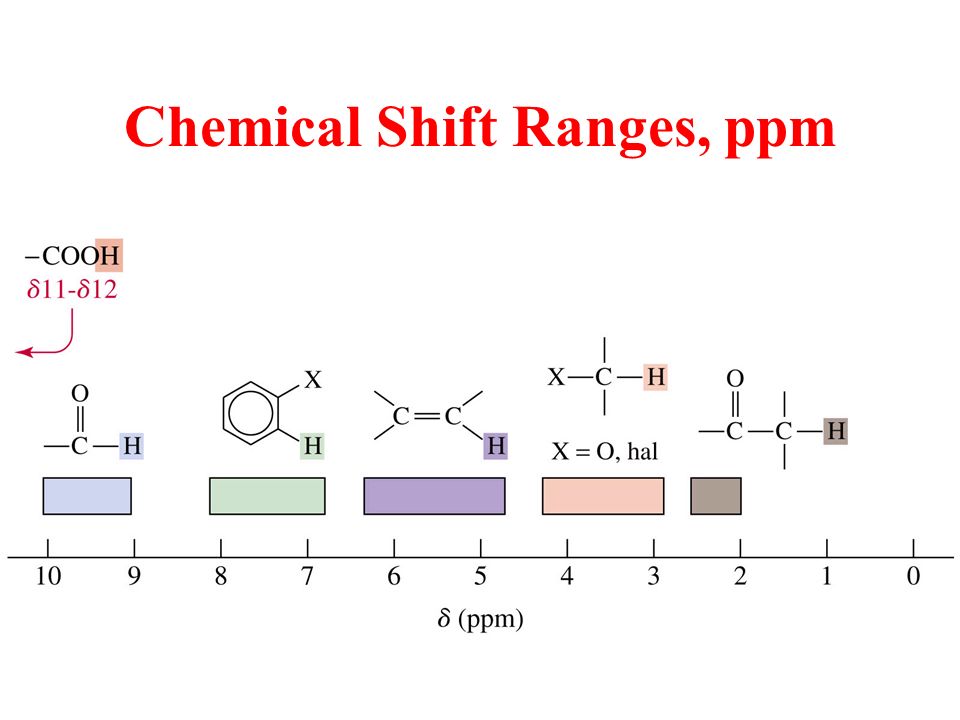

26. Chemical Shift Ranges, ppm

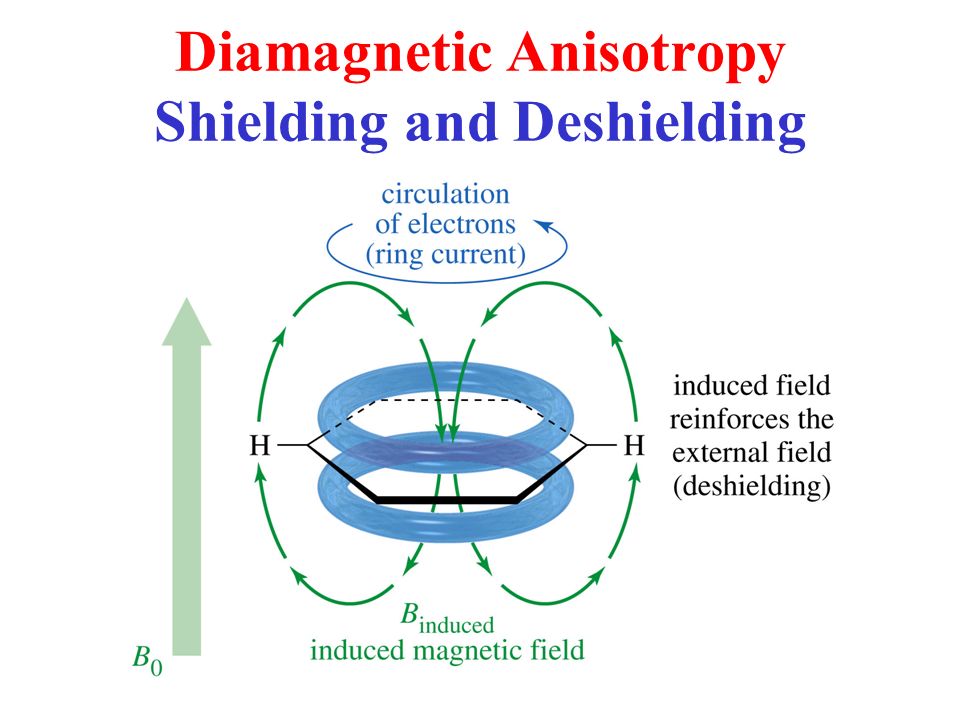

28. Diamagnetic Anisotropy Shielding and Deshielding

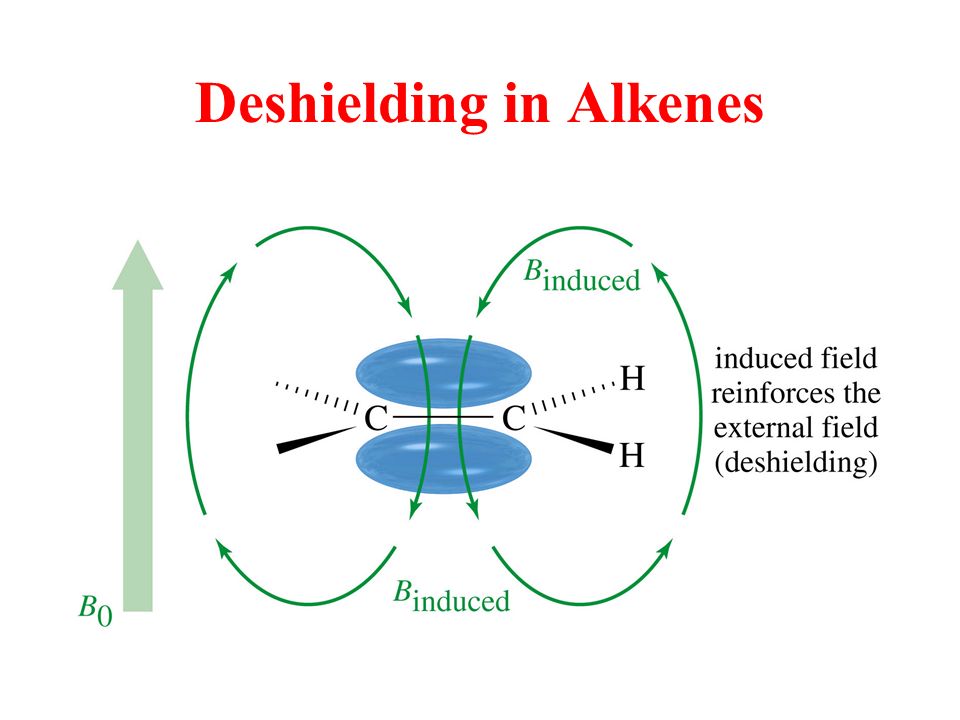

29. Deshielding in Alkenes

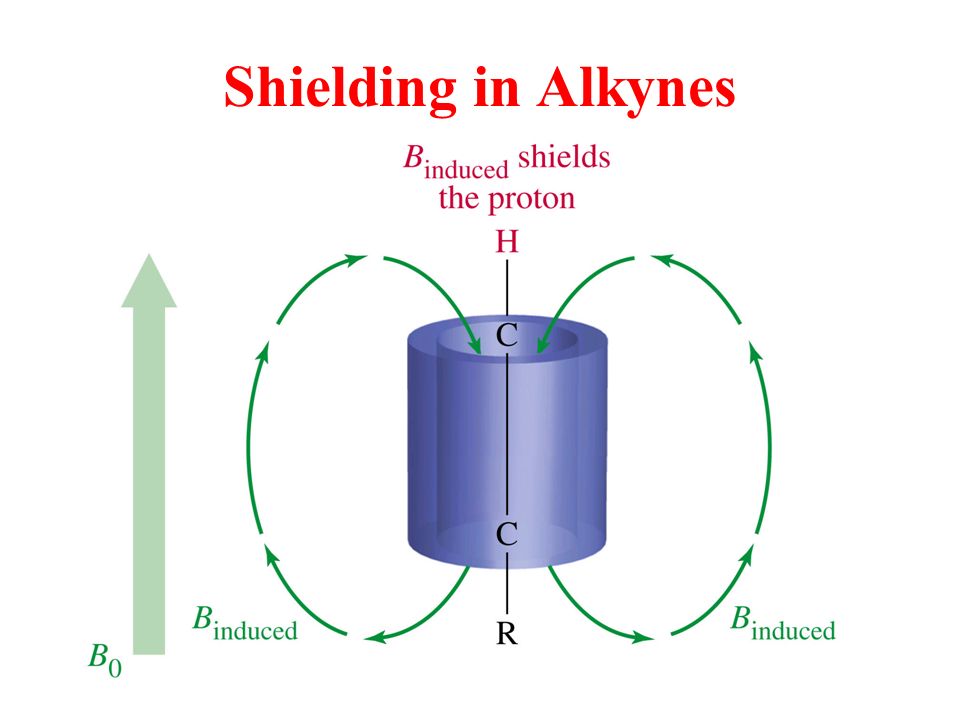

30. Shielding in Alkynes

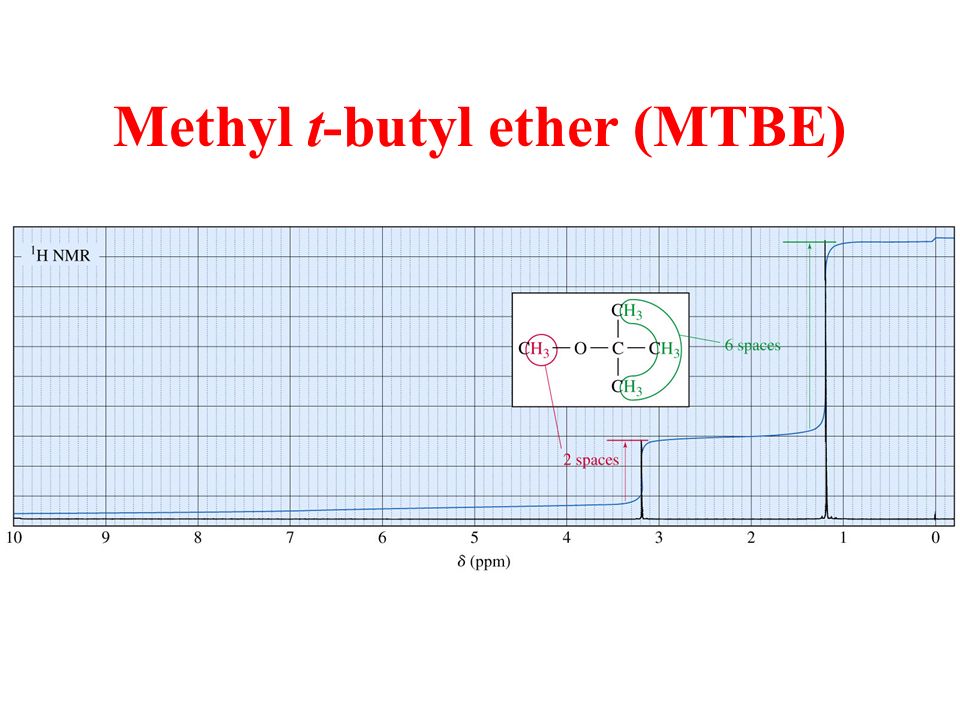

33. Methyl t-butyl ether (MTBE)

34. Toluene at Higher Field Splitting patterns in aromatic groups can be confusing A monosubstituted aromatic ring can appear as an apparent singlet or a complex pattern of peaks

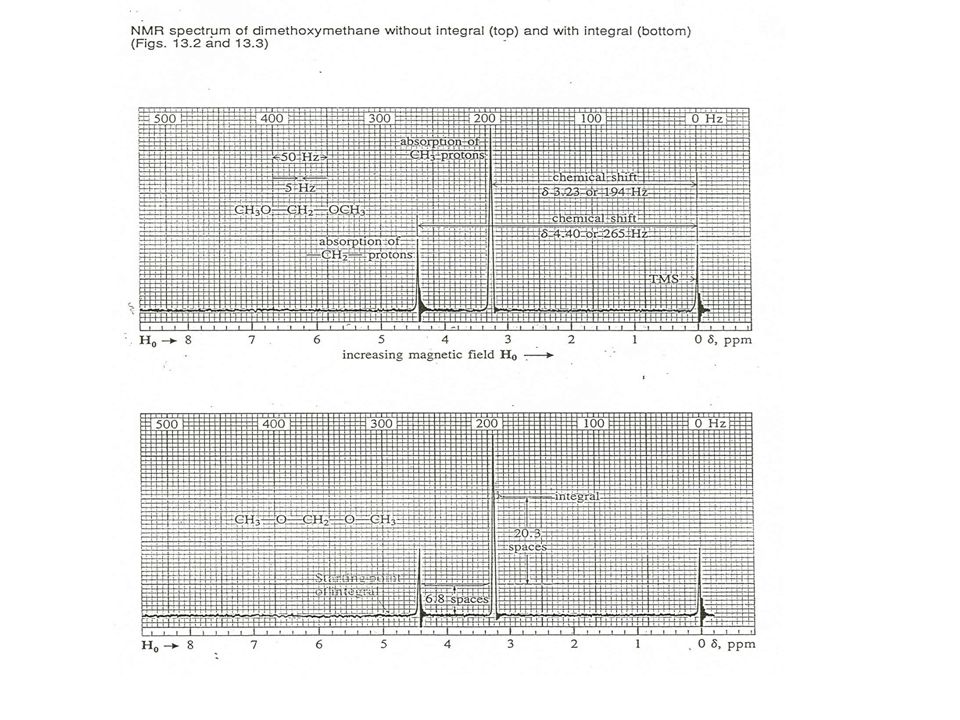

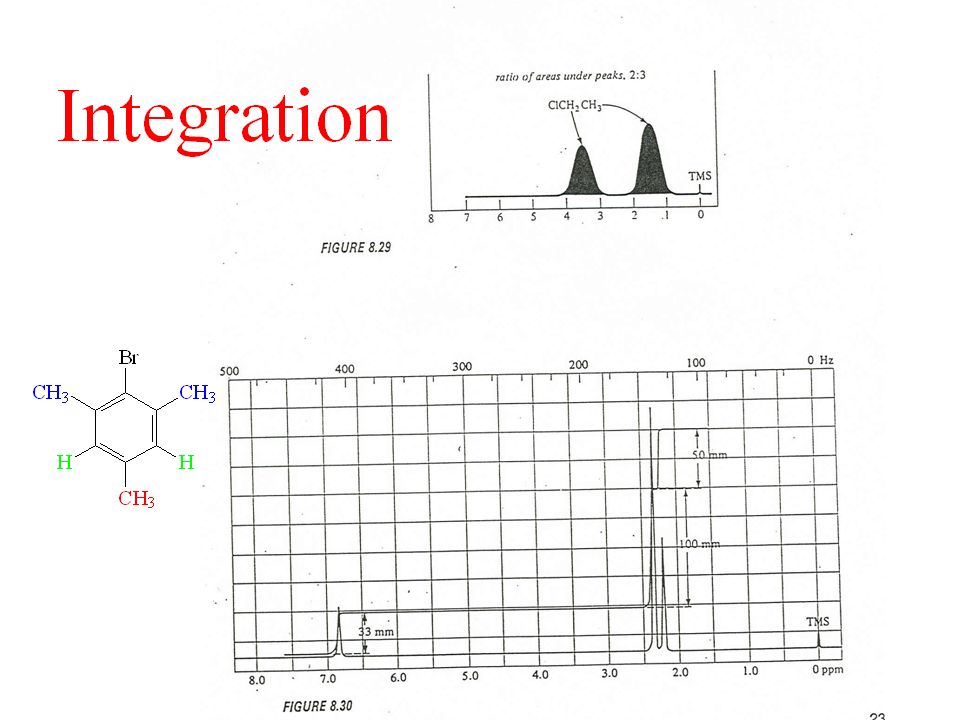

35. Integral Trace

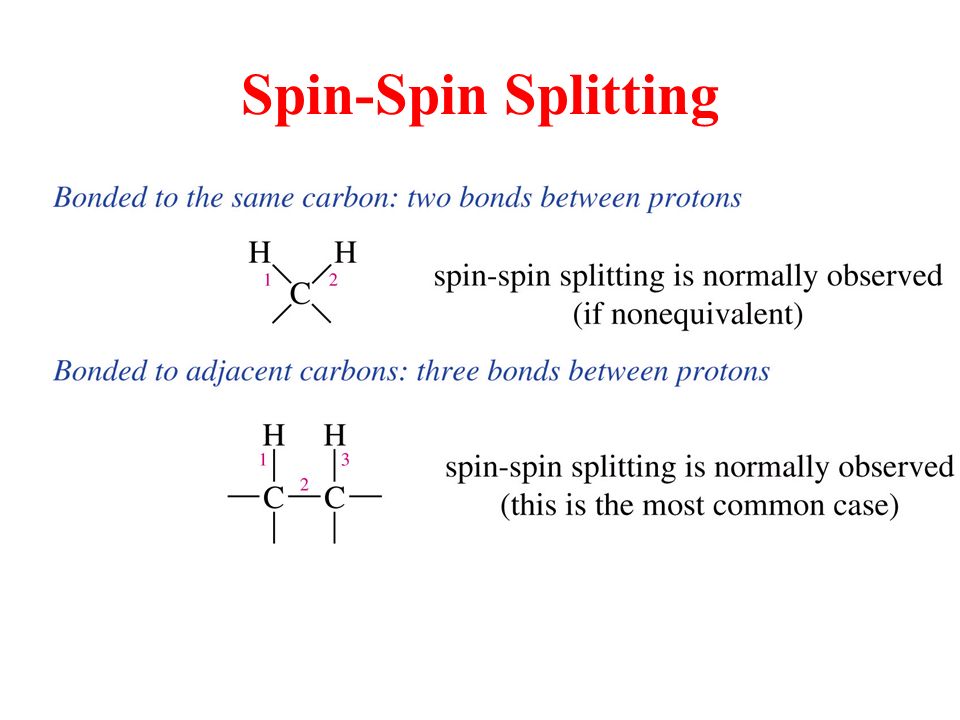

36. Spin-Spin Splitting

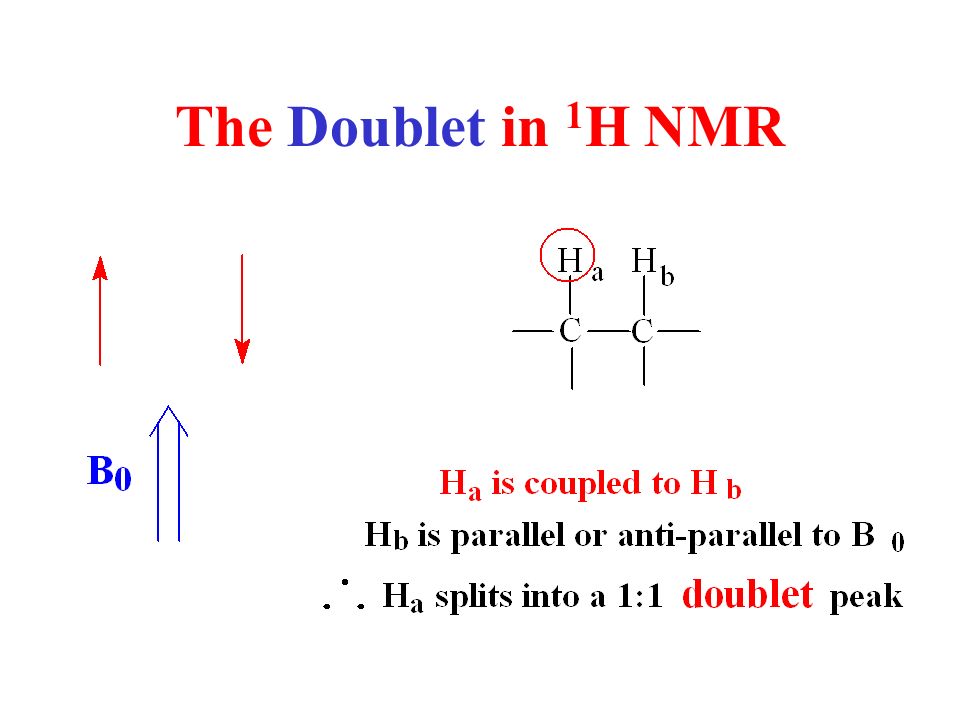

37. The Doublet in 1 H NMR

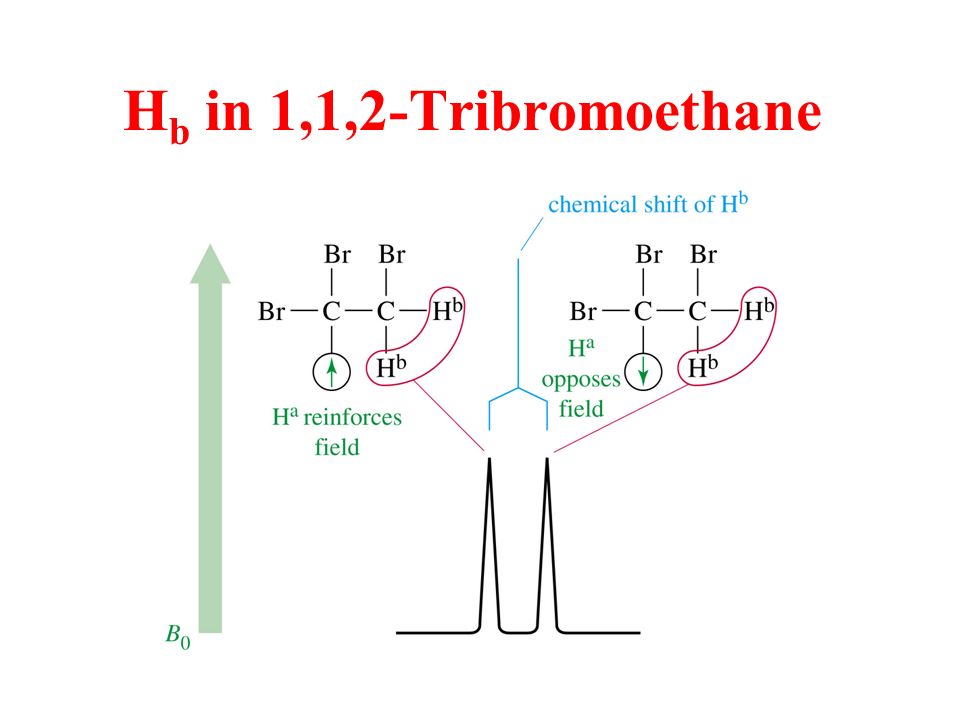

38. H b in 1,1,2-Tribromoethane

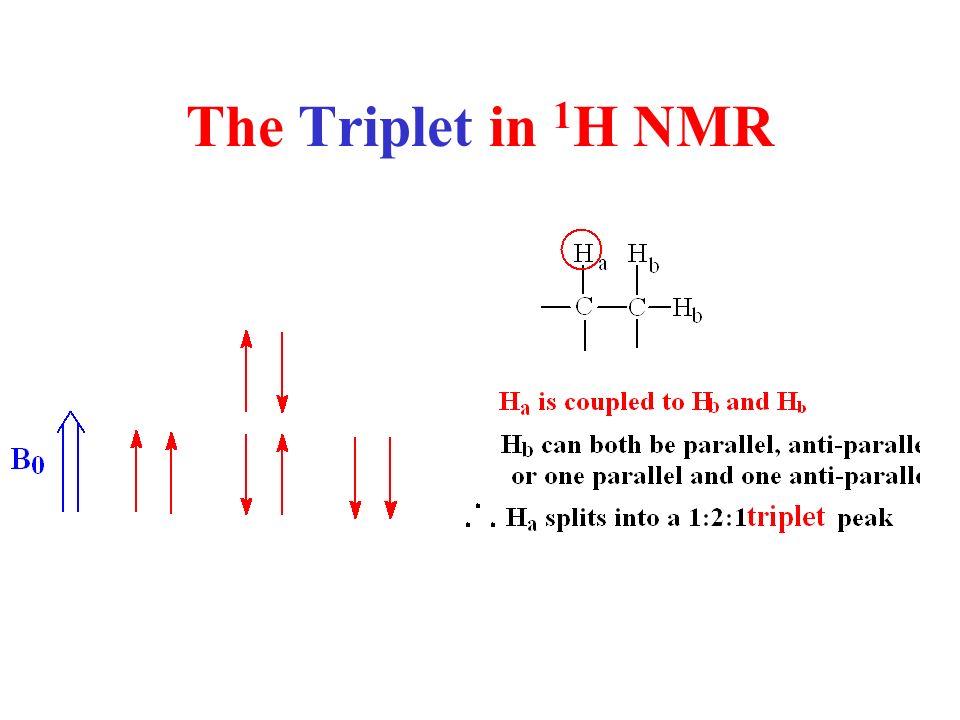

39. The Triplet in 1 H NMR

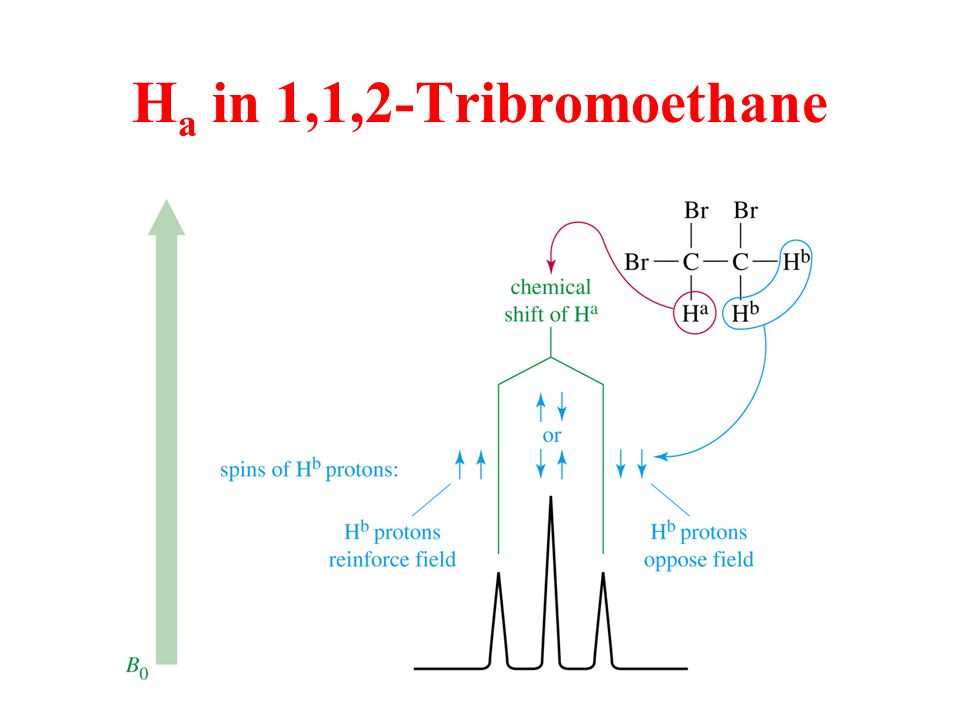

40. H a in 1,1,2-Tribromoethane

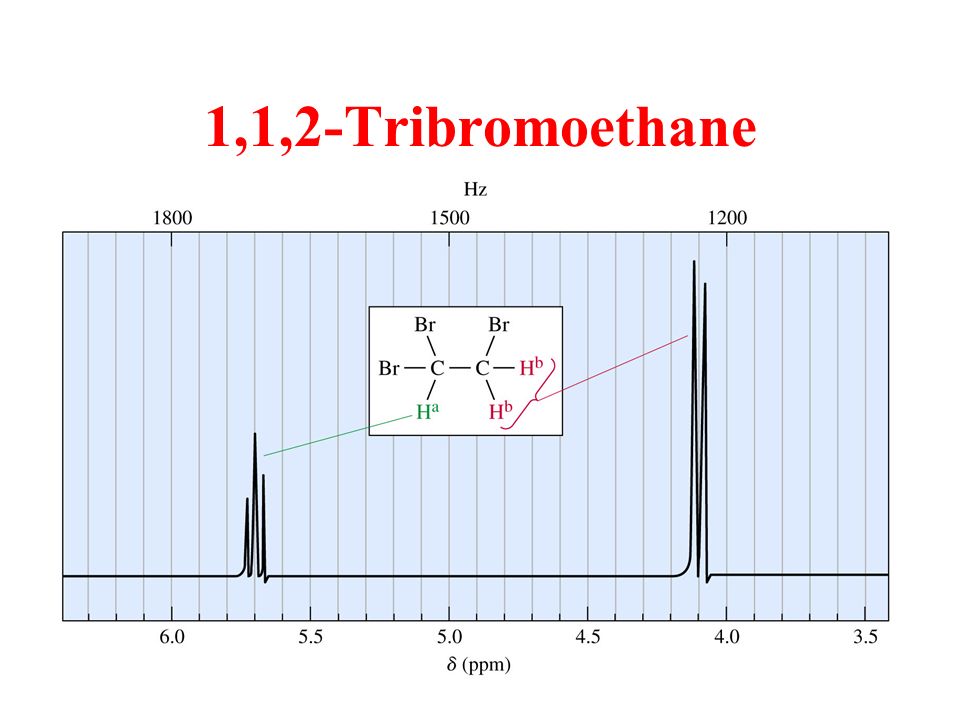

41. 1,1,2-Tribromoethane

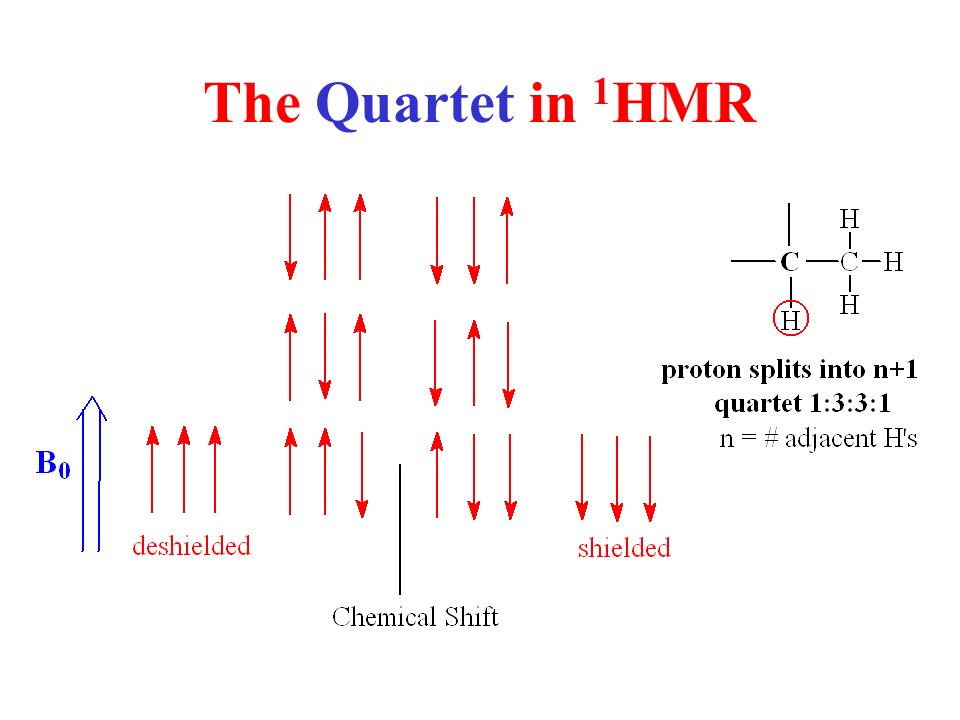

42. The Quartet in 1 HMR

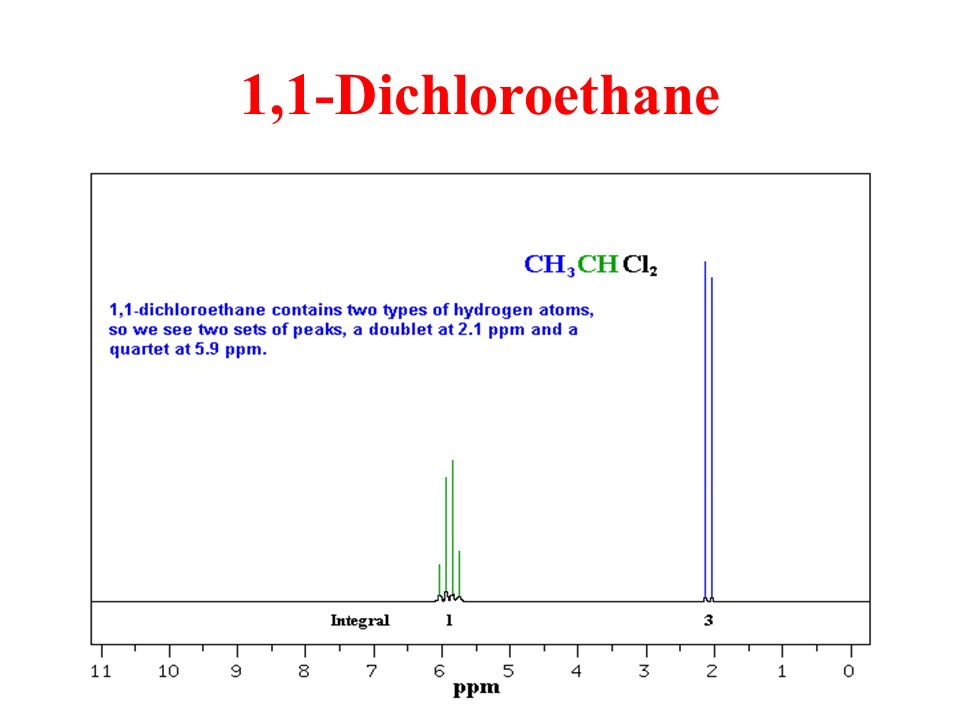

43. 1,1-Dichloroethane

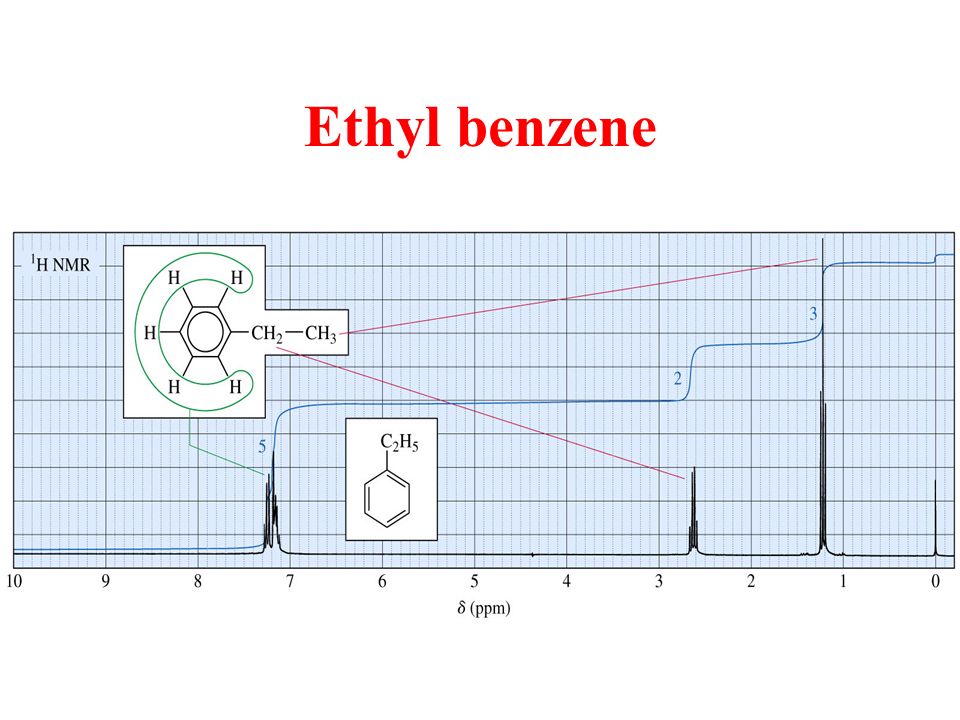

44. Ethyl benzene

45. CH 3 CH 2 OCH 3

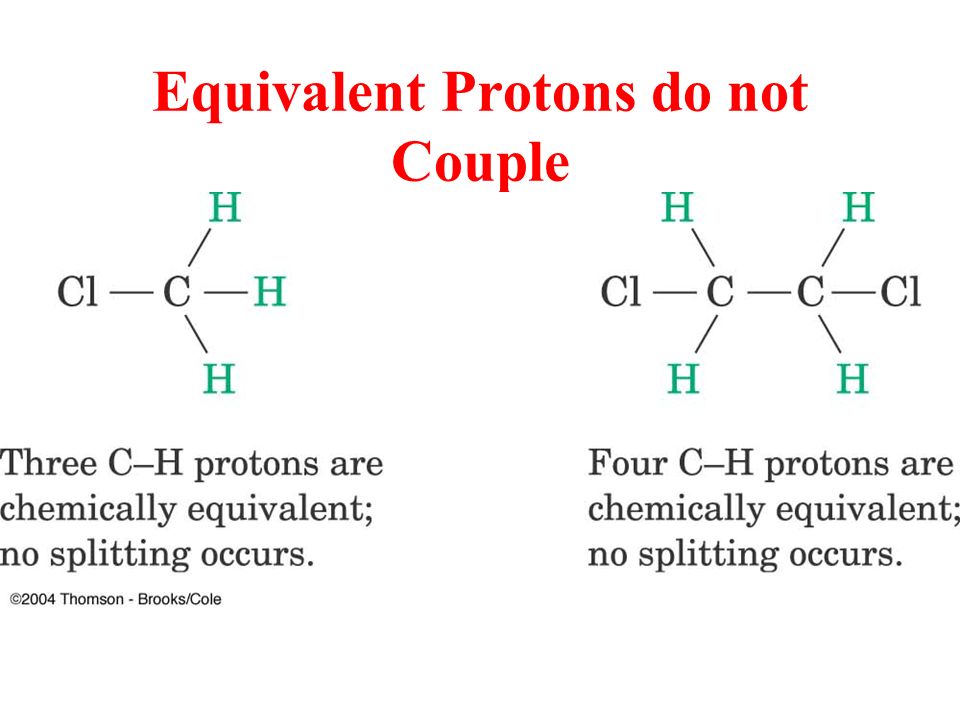

46. Equivalent Protons do not Couple

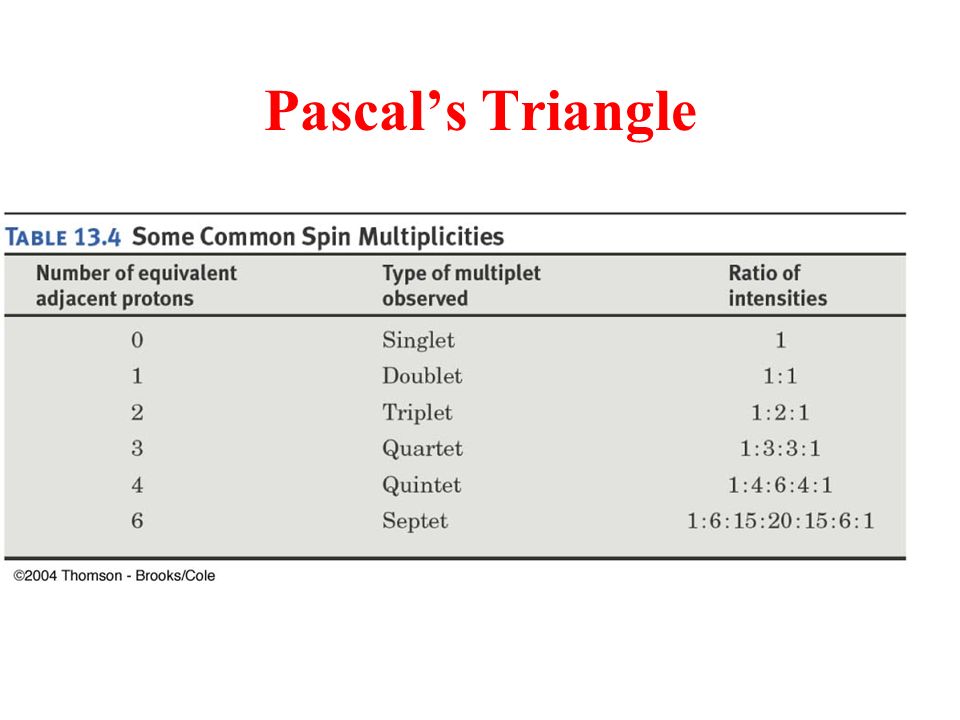

47. Pascal’s Triangle

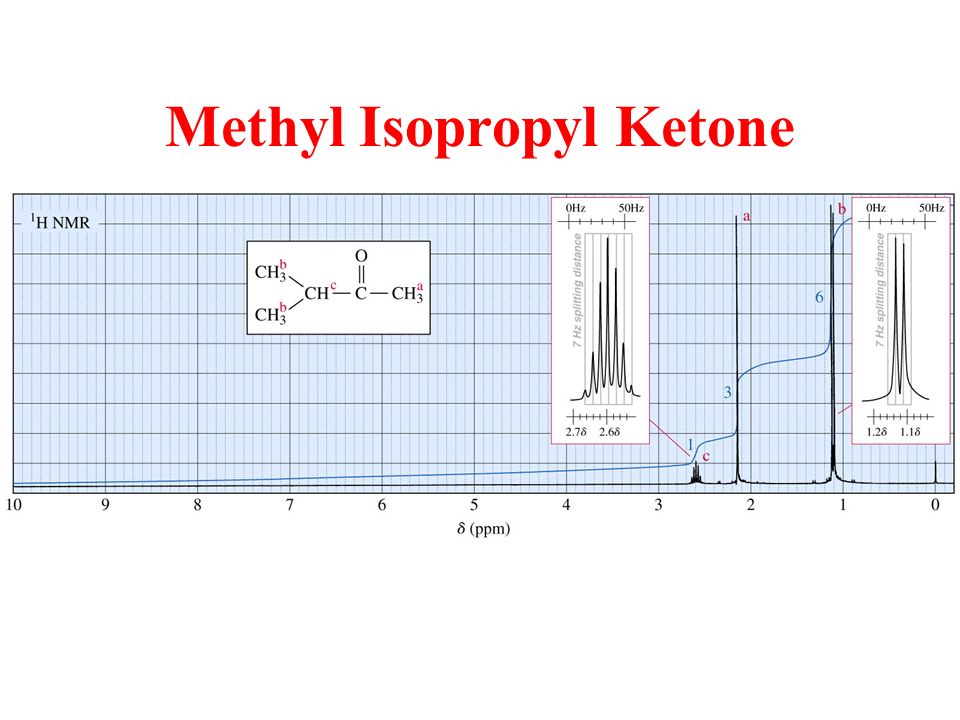

48. Methyl Isopropyl Ketone

49. 1-Nitropropane

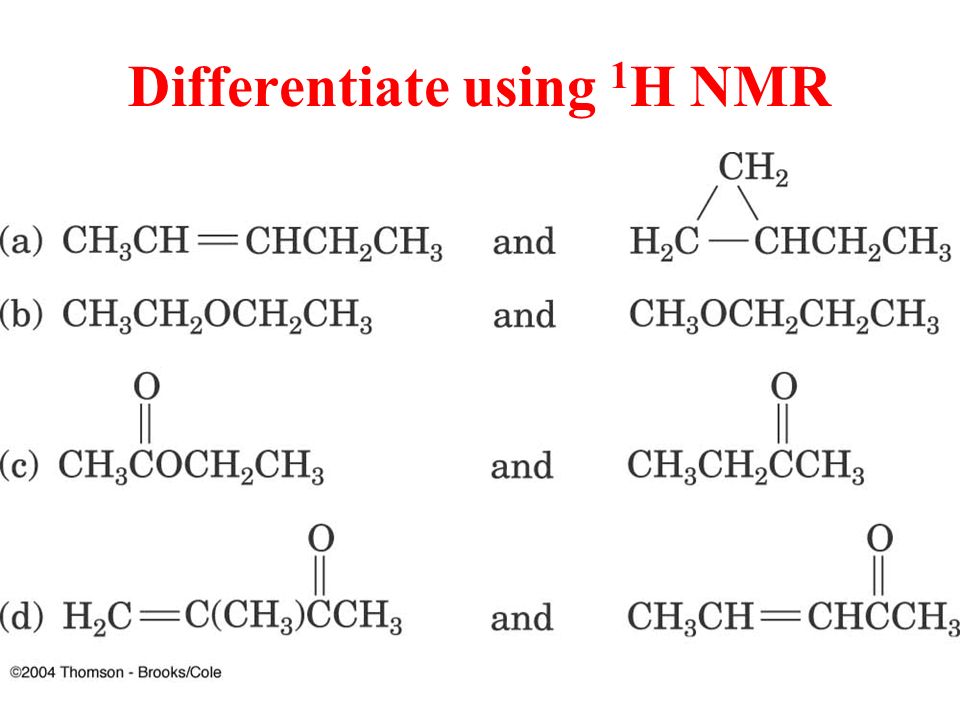

50. Differentiate using 1 H NMR

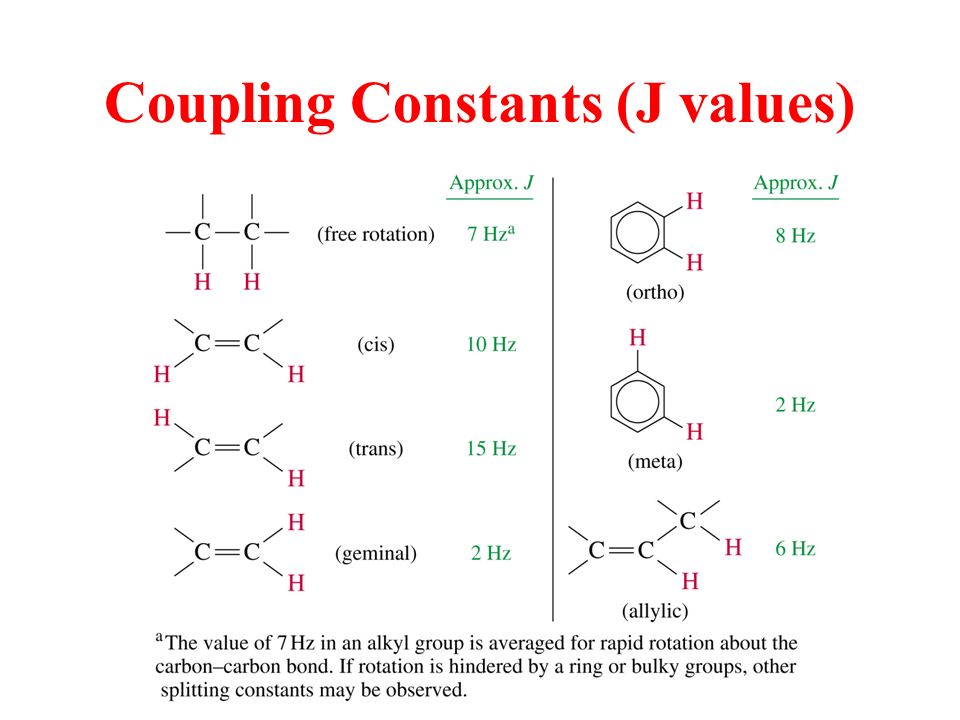

51. Coupling Constants (J values)

52. Para Nitrotoluene

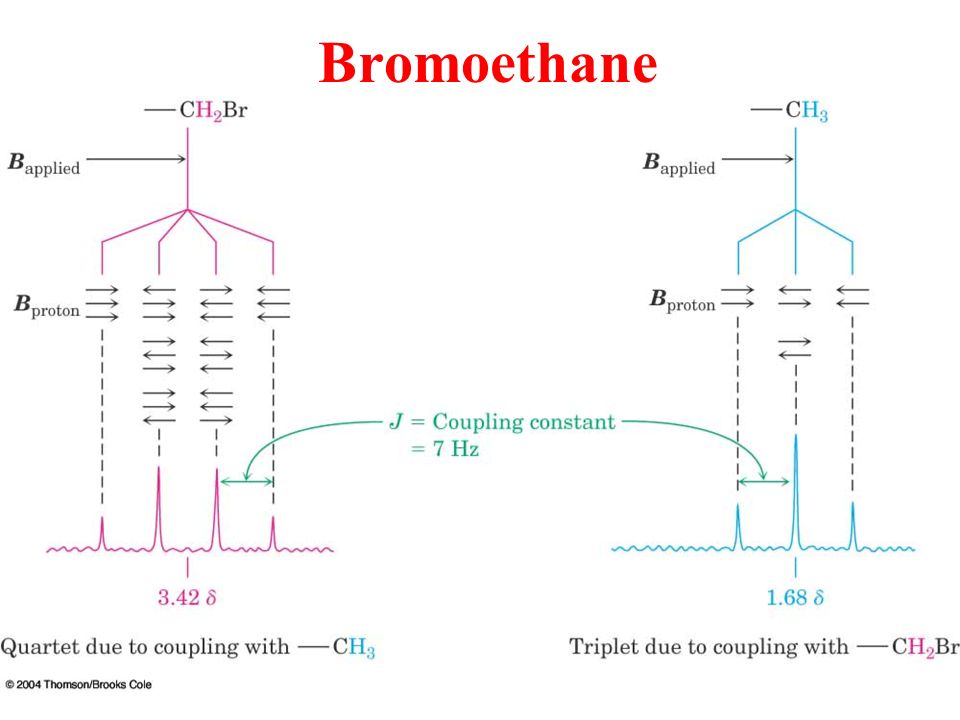

53. Bromoethane

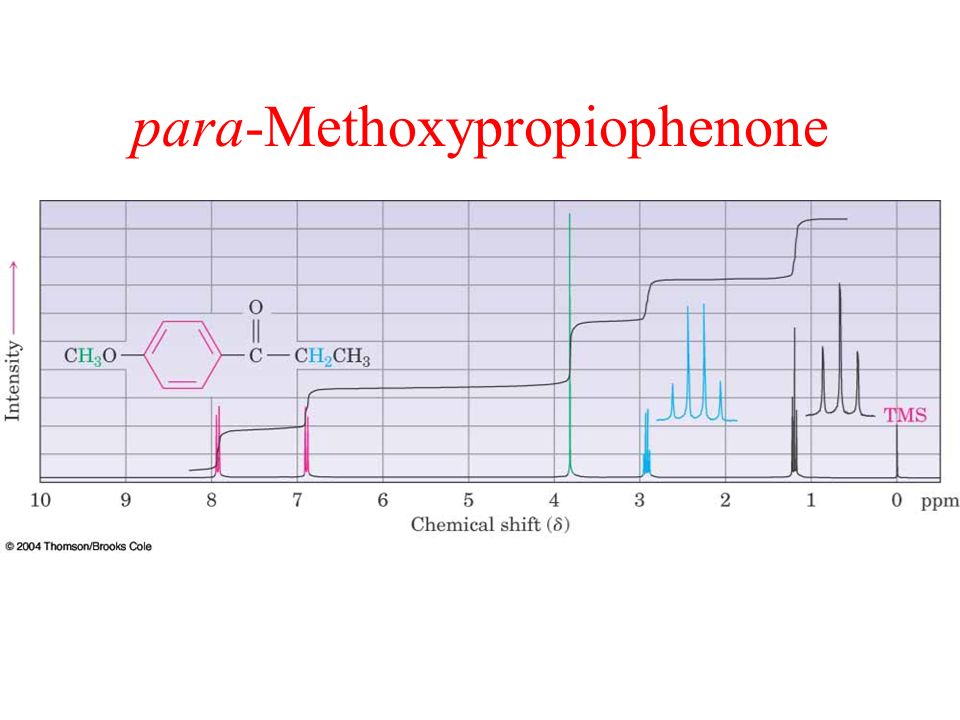

54. para-Methoxypropiophenone

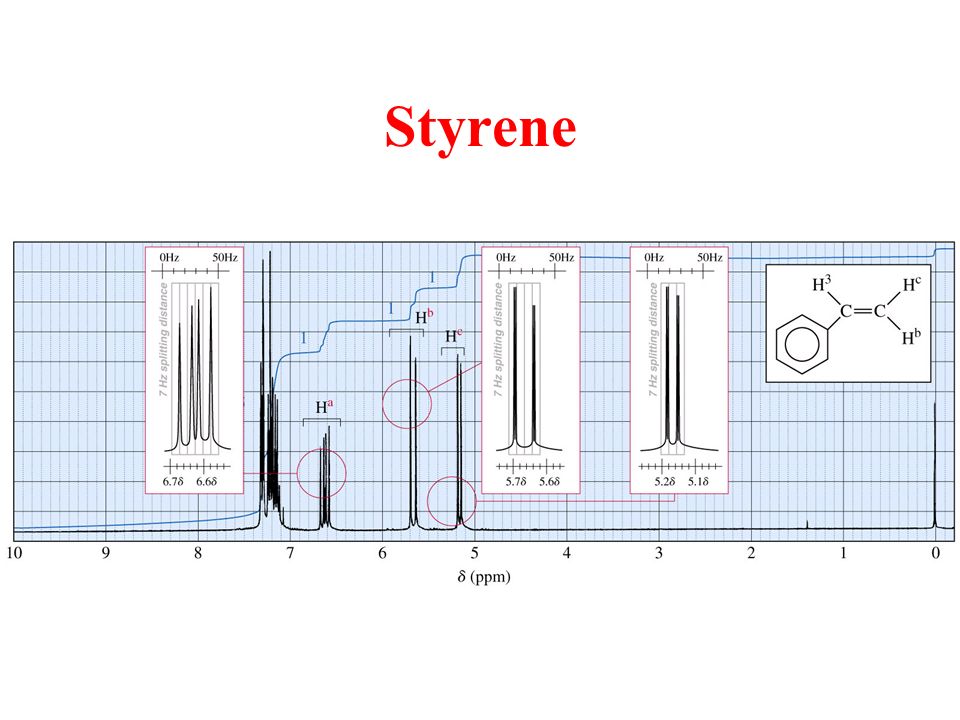

55. Styrene

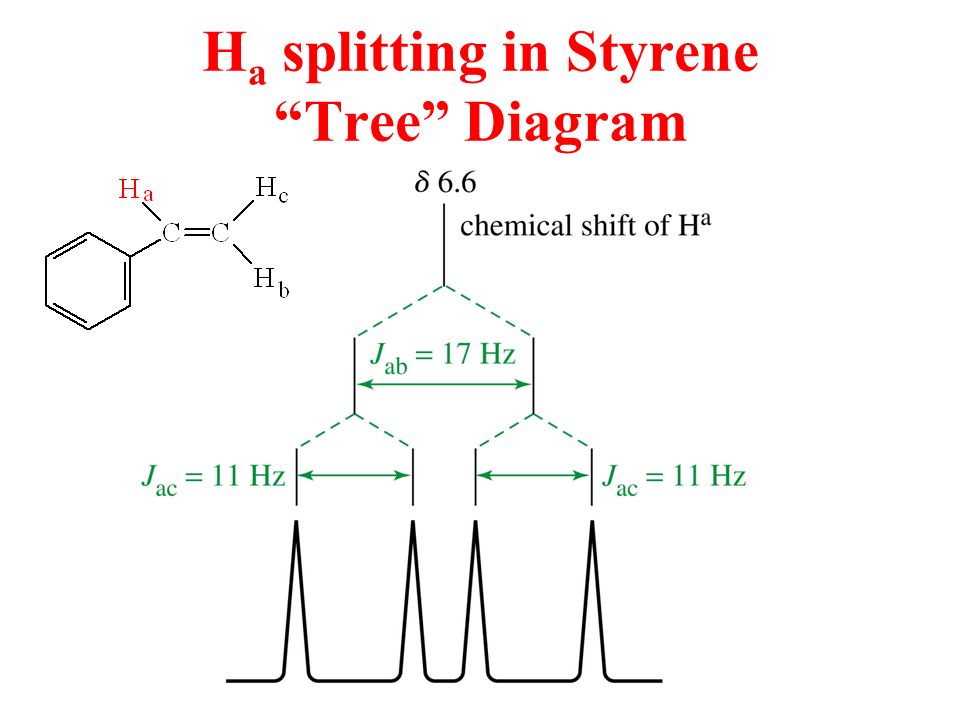

56. H a splitting in Styrene “Tree” Diagram

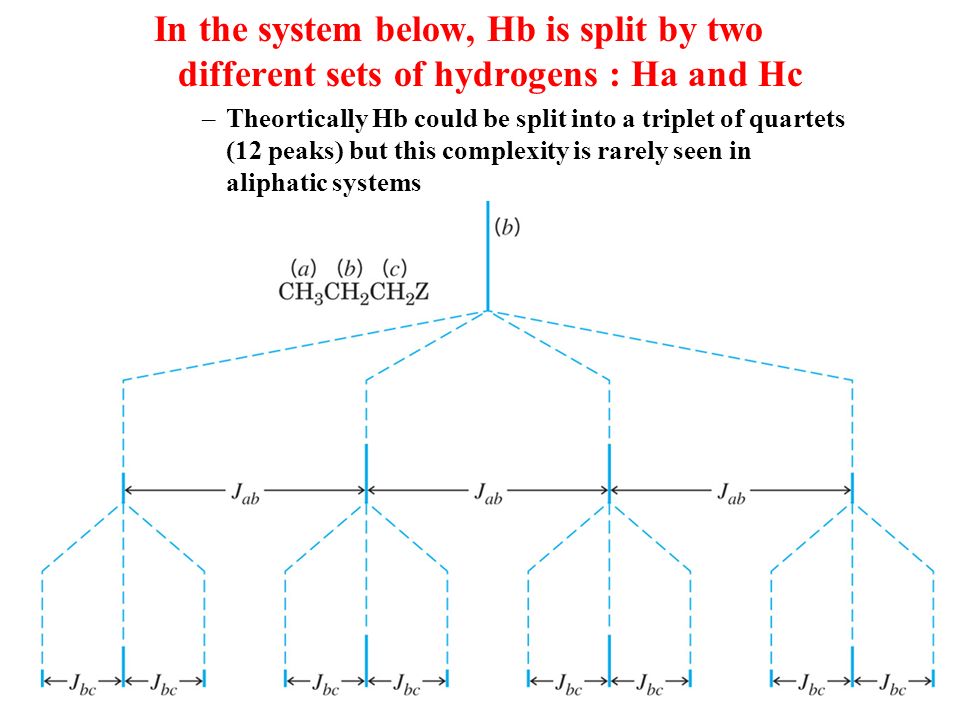

57. In the system below, Hb is split by two different sets of hydrogens : Ha and Hc –Theortically Hb could be split into a triplet of quartets (12 peaks) but this complexity is rarely seen in aliphatic systems

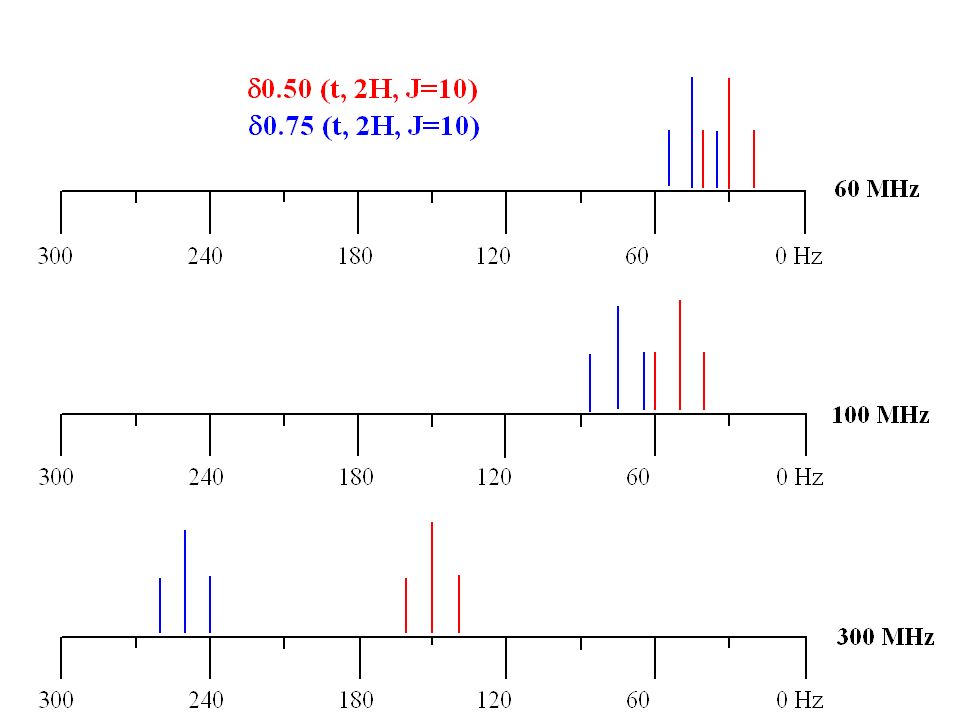

60. C-13 NMR Spectroscopy

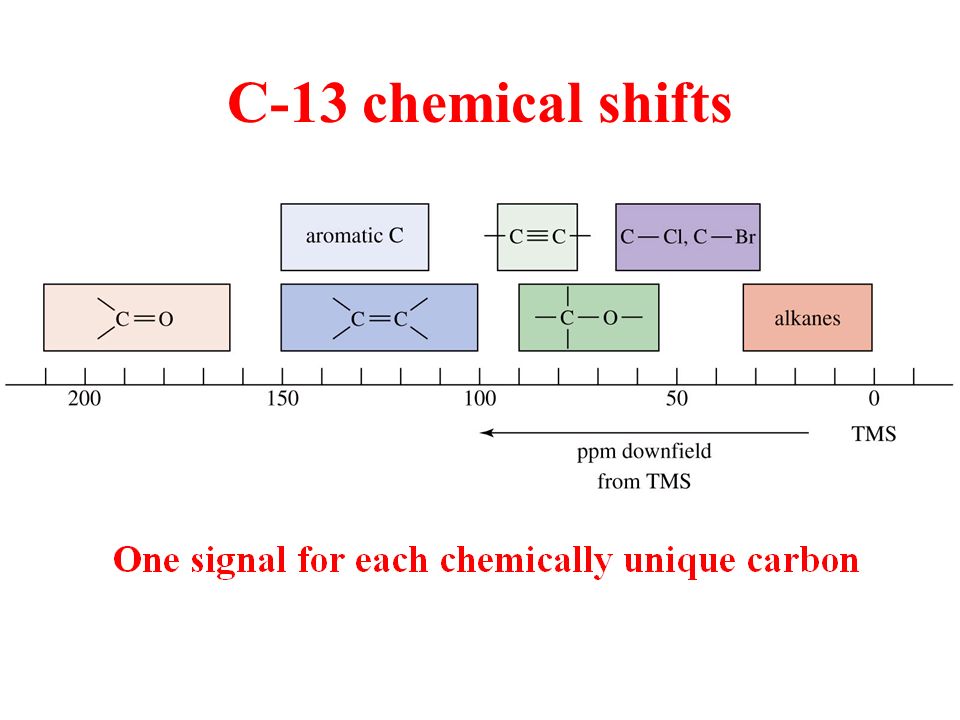

61. C-13 chemical shifts

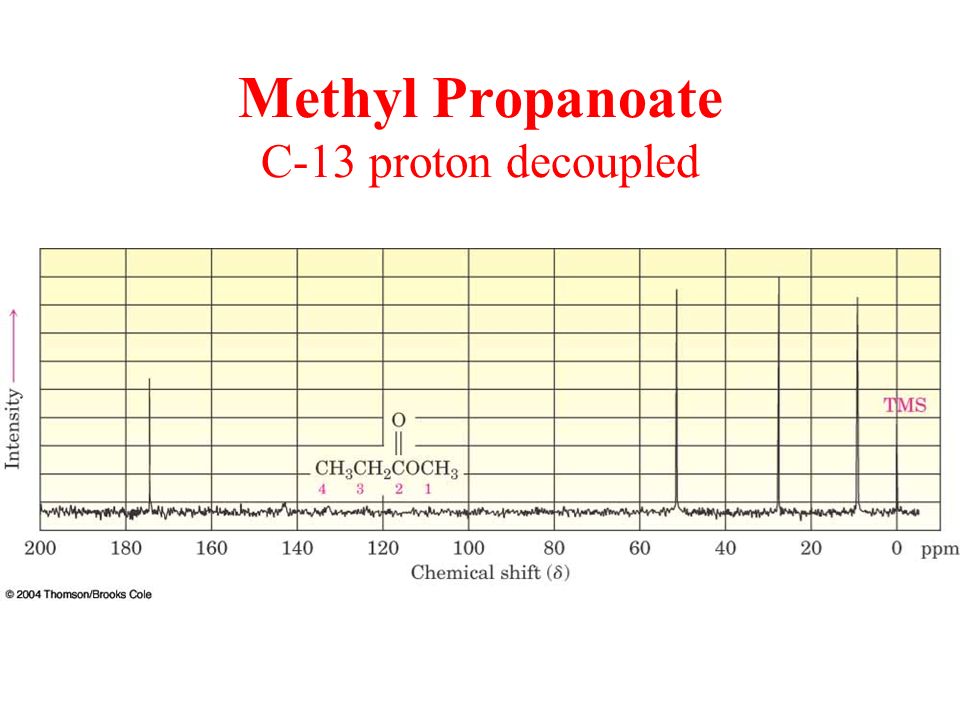

62. Methyl Propanoate C-13 proton decoupled

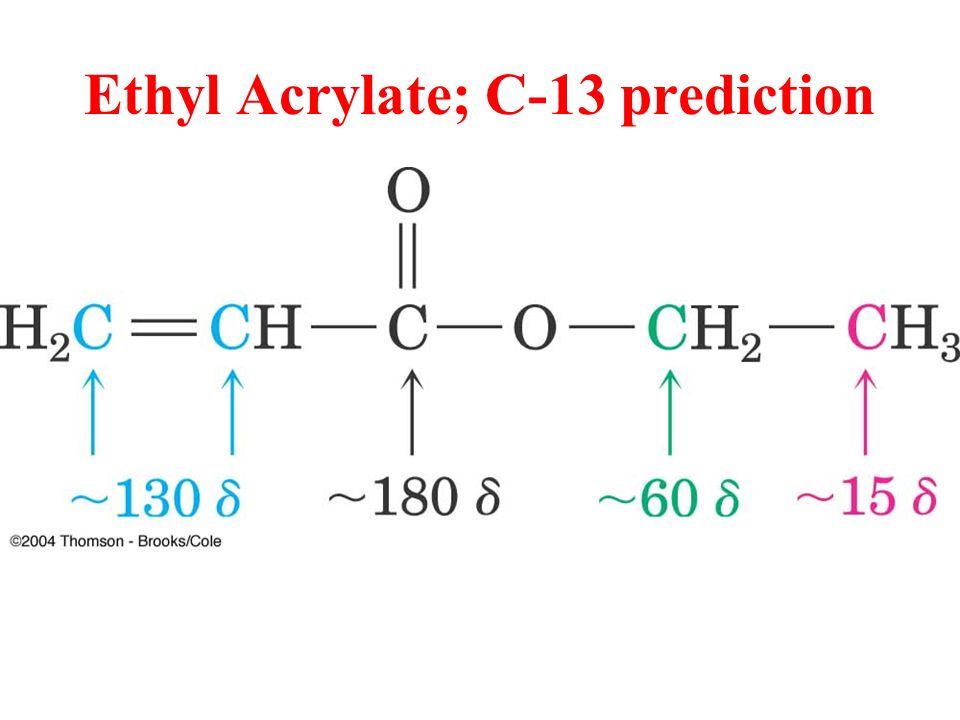

63. Ethyl Acrylate; C-13 prediction

64. Ethyl Acrylate; C-13 NMR

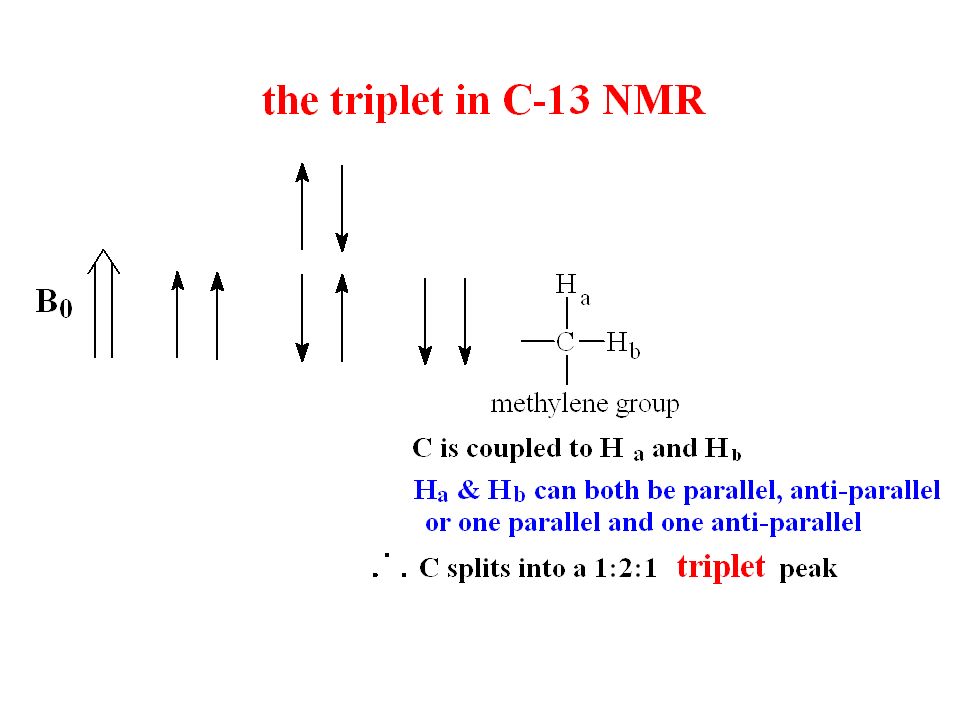

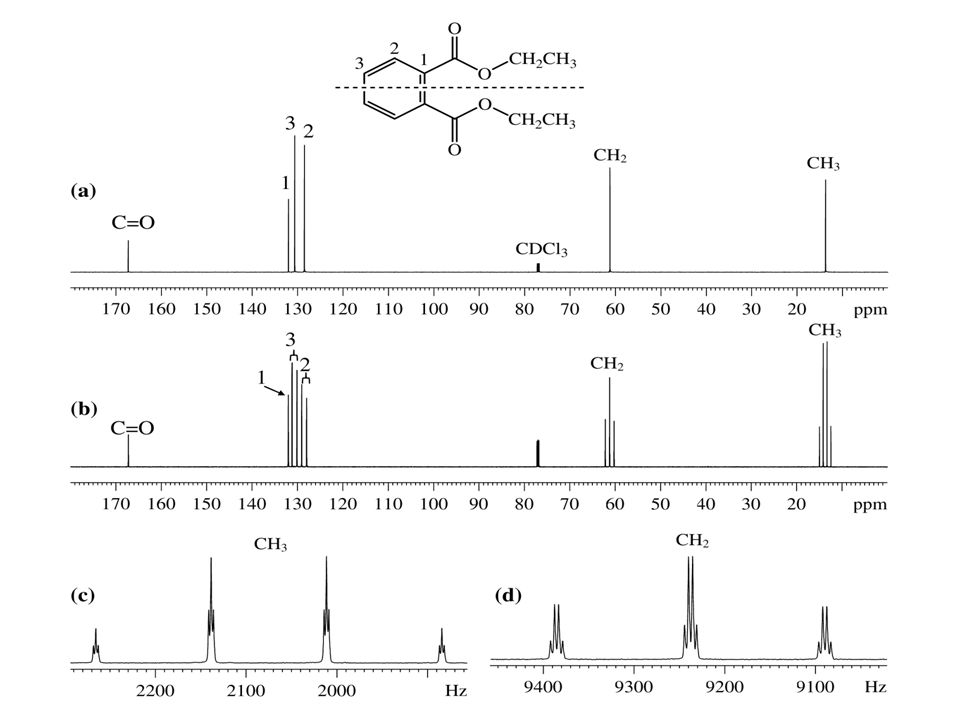

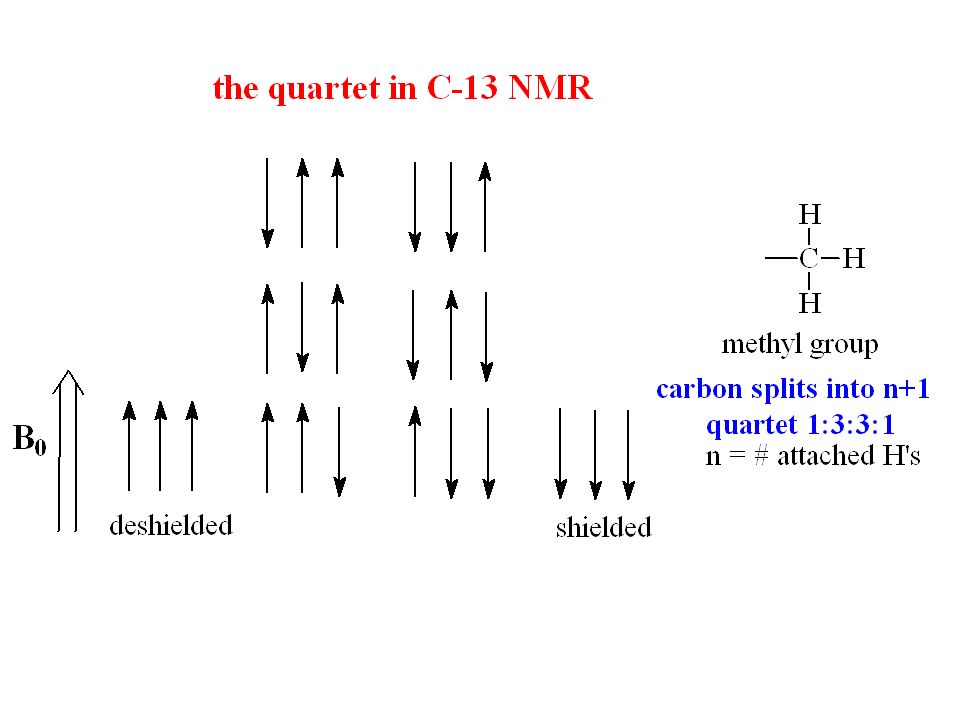

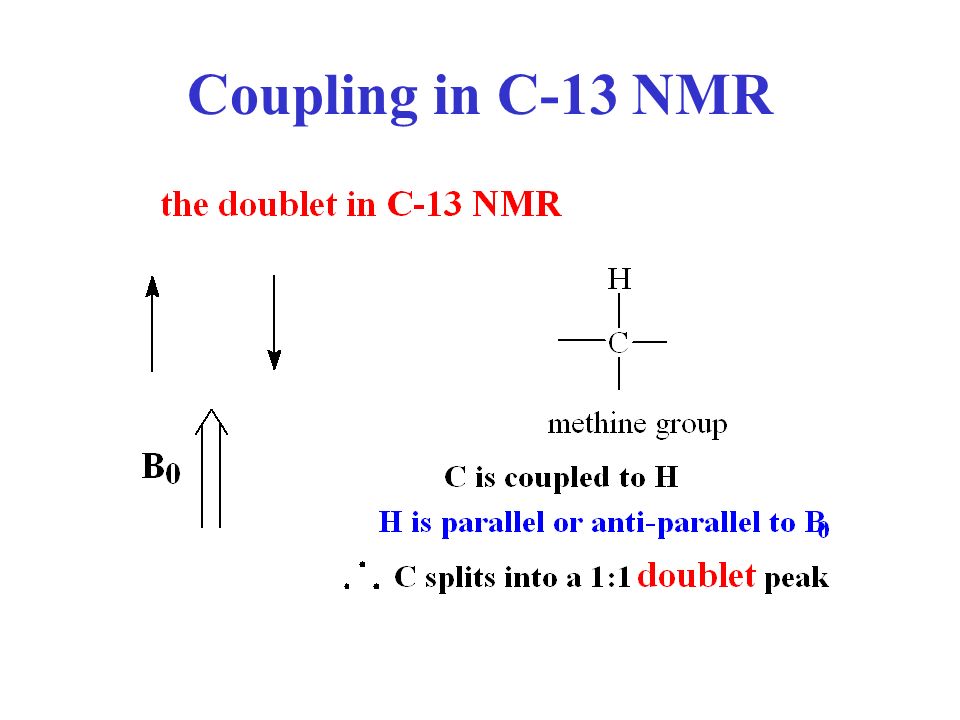

65. Coupling in C-13 NMR

68. Butanone - Coupled and Decoupled

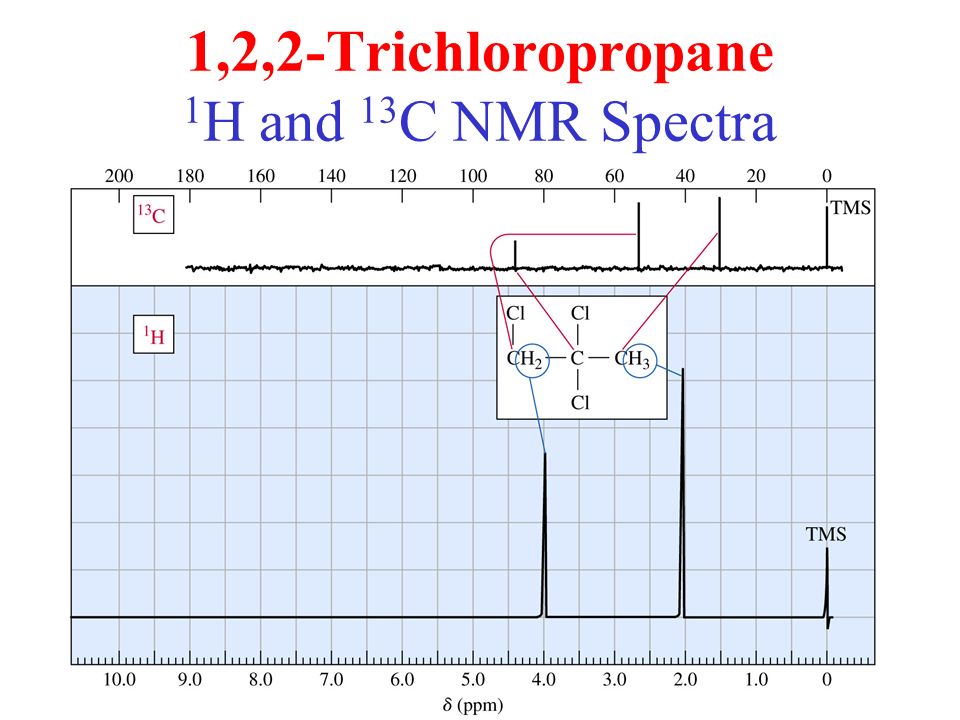

69. 1,2,2-Trichloropropane 1 H and 13 C NMR Spectra

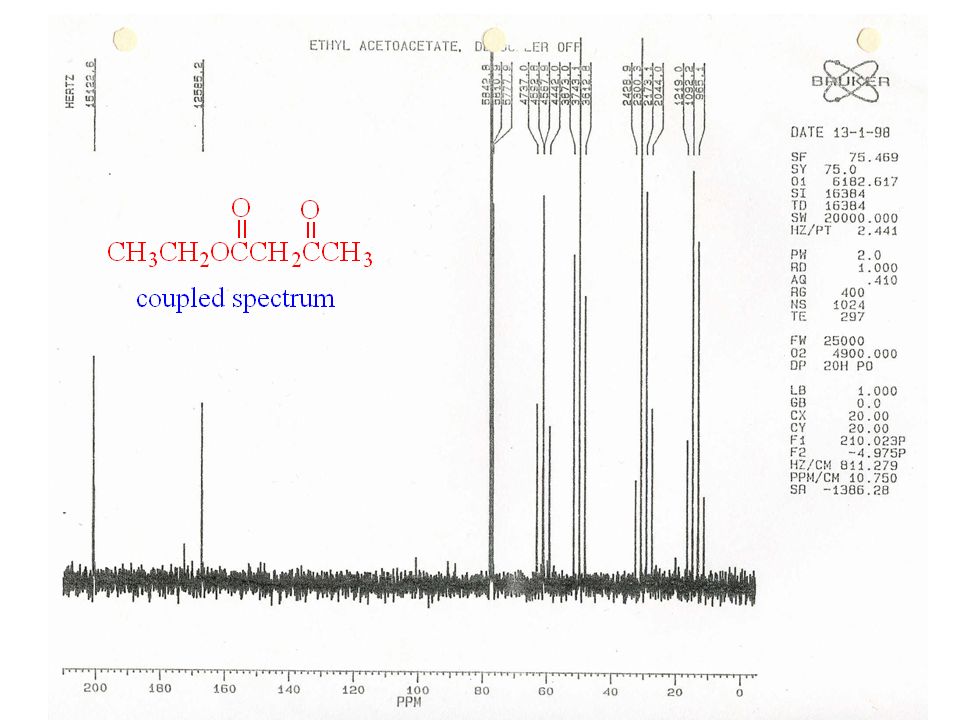

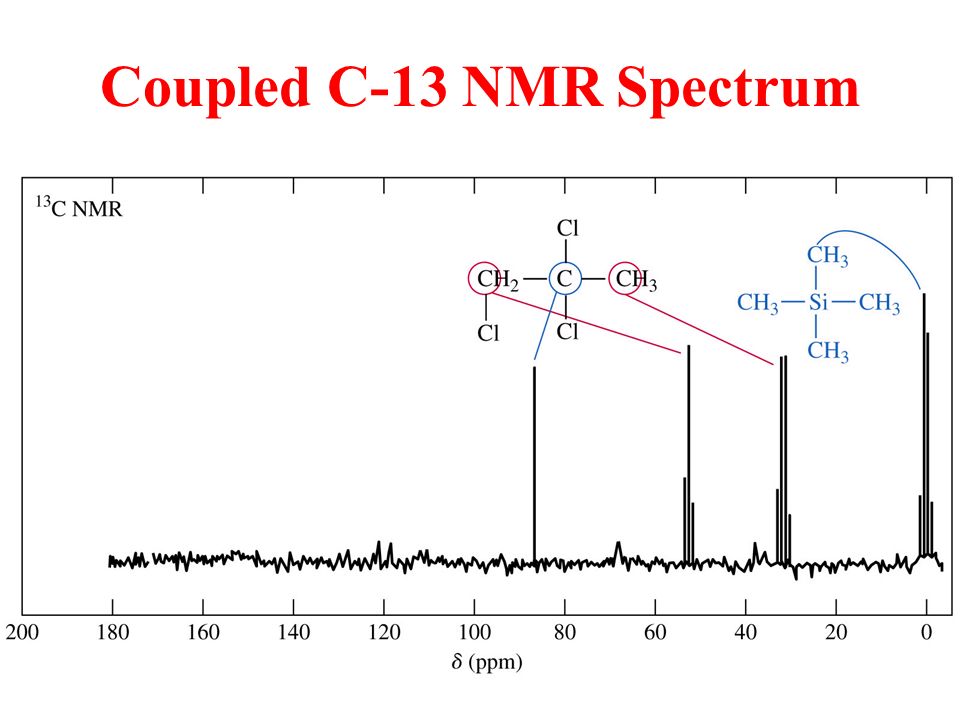

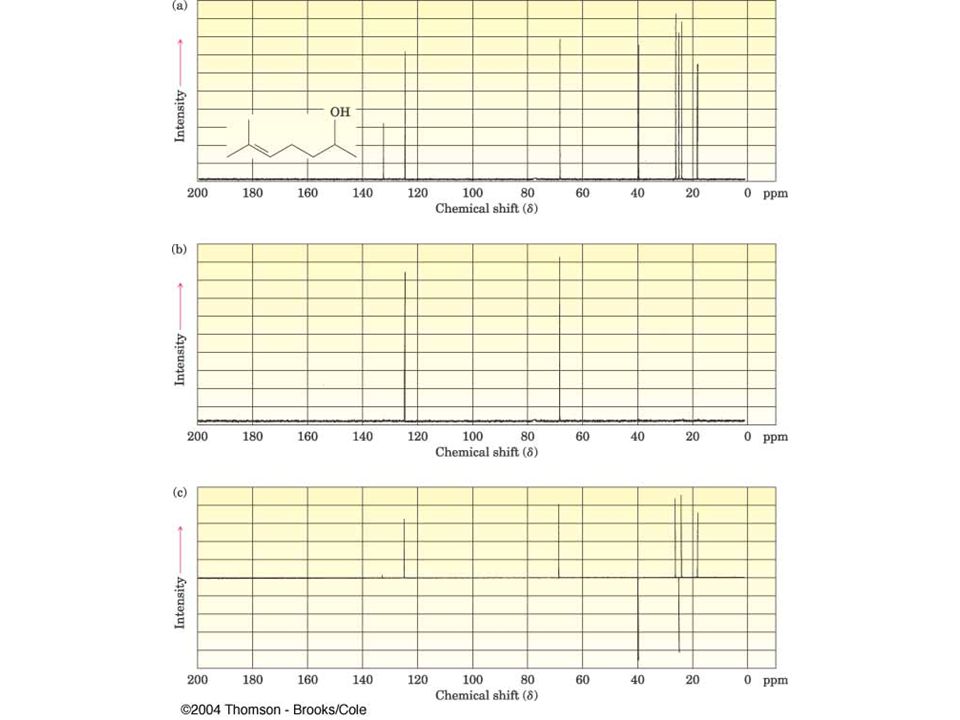

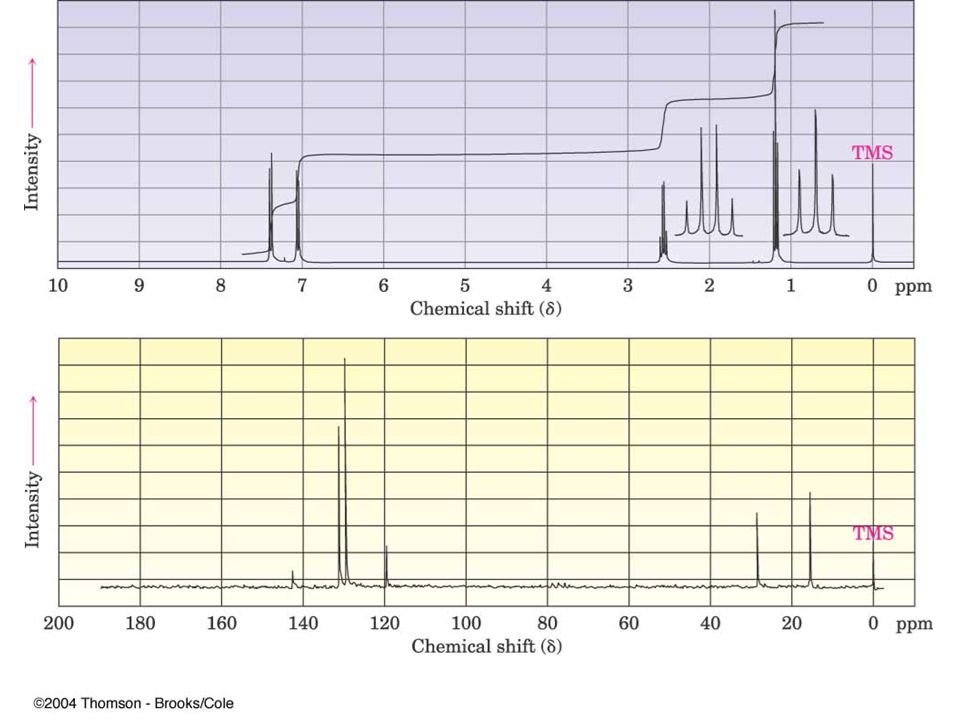

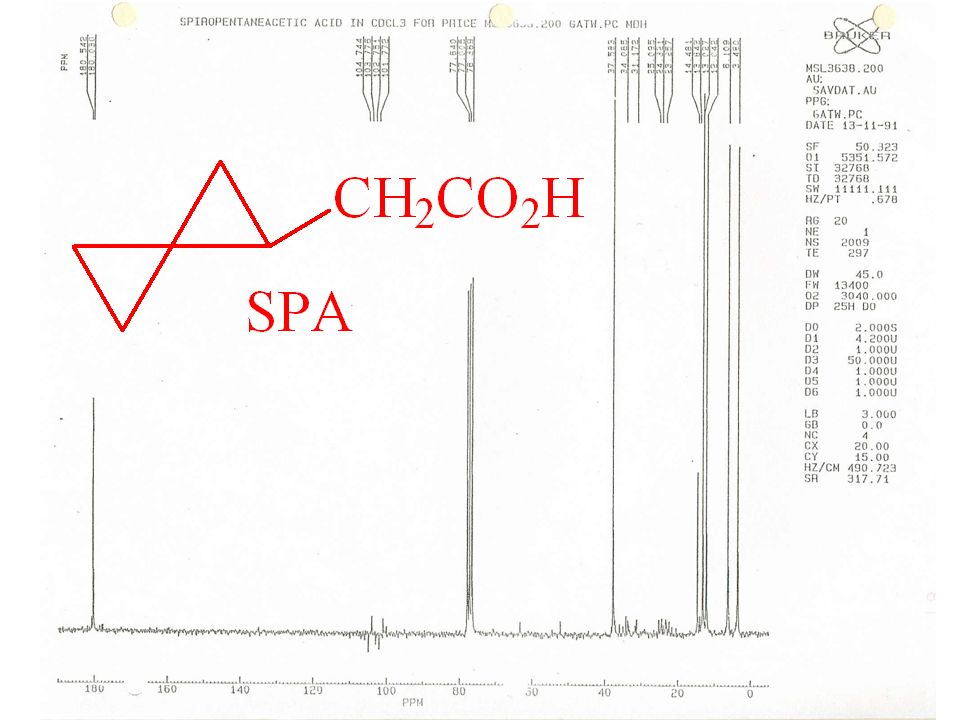

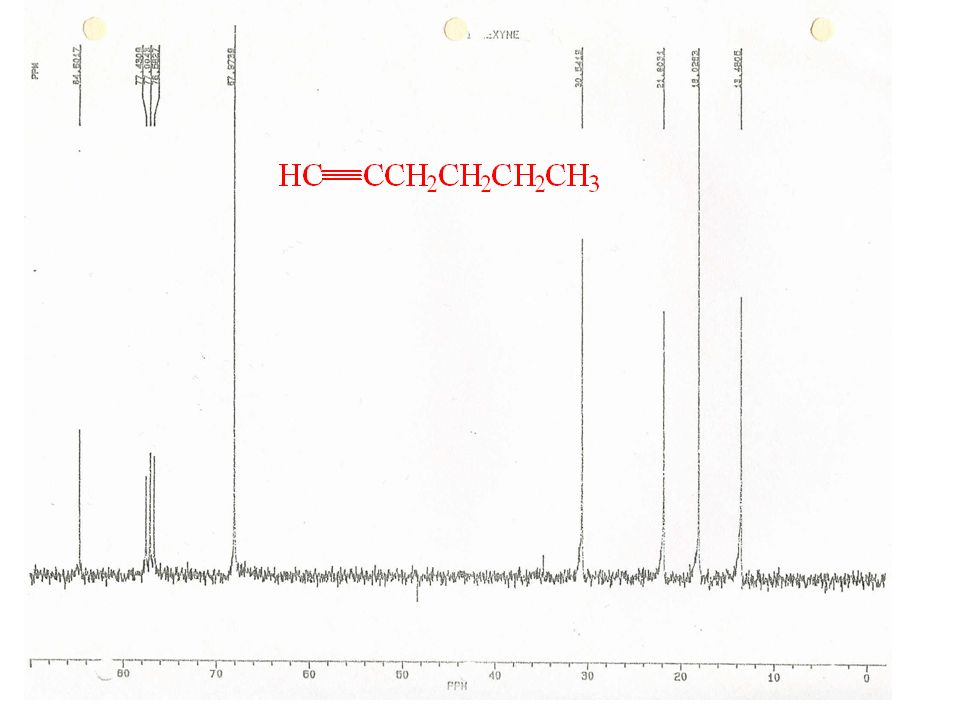

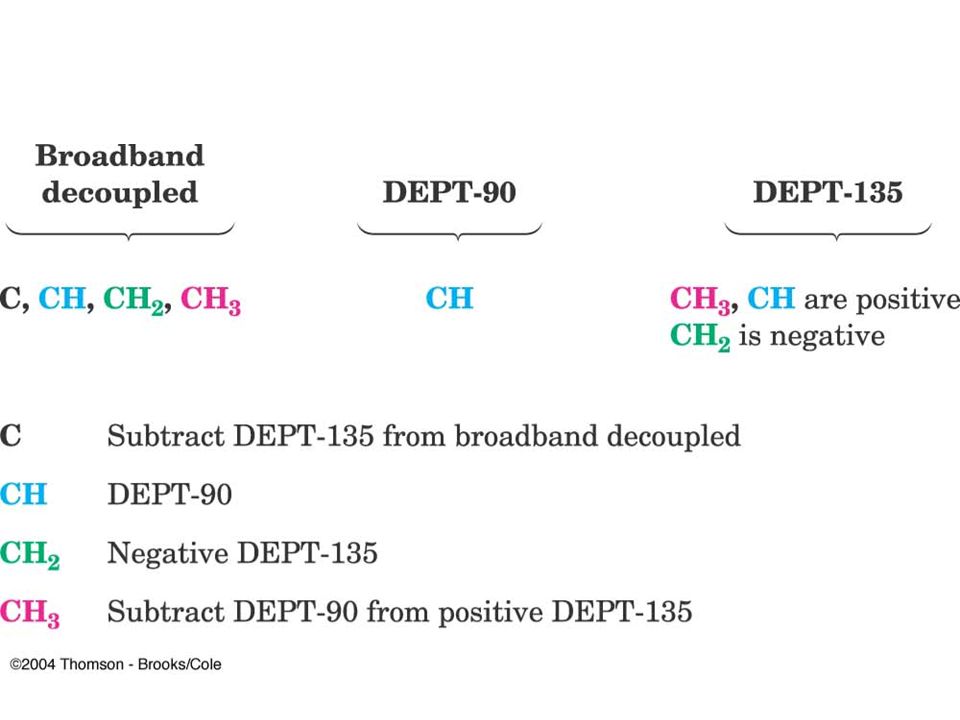

70. Coupled C-13 NMR Spectrum
