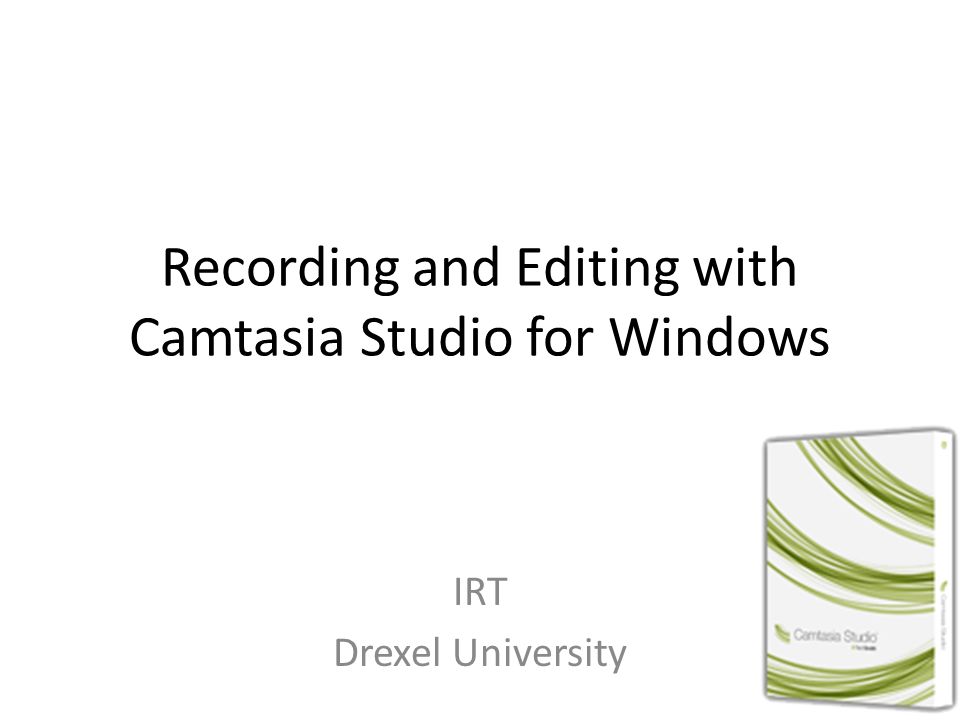

1. Recording and Editing with Camtasia Studio for Windows IRT Drexel University

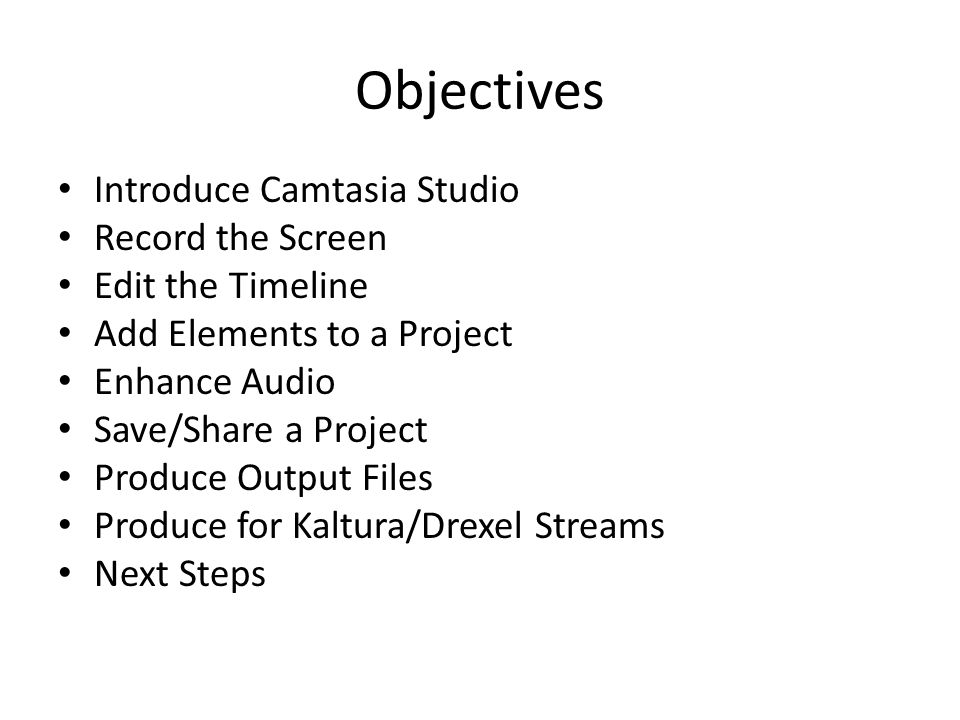

2. Objectives Introduce Camtasia Studio Record the Screen Edit the Timeline Add Elements to a Project Enhance Audio Save/Share a Project Produce Output Files Produce for Kaltura/Drexel Streams Next Steps

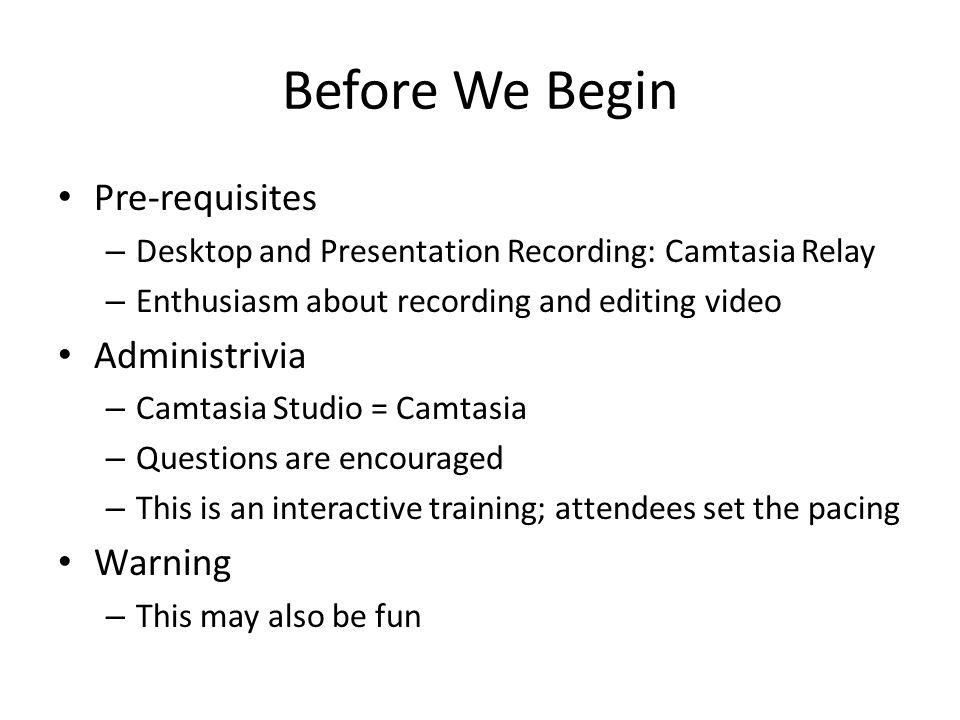

3. Before We Begin Pre-requisites – Desktop and Presentation Recording: Camtasia Relay – Enthusiasm about recording and editing video Administrivia – Camtasia Studio = Camtasia – Questions are encouraged – This is an interactive training; attendees set the pacing Warning – This may also be fun

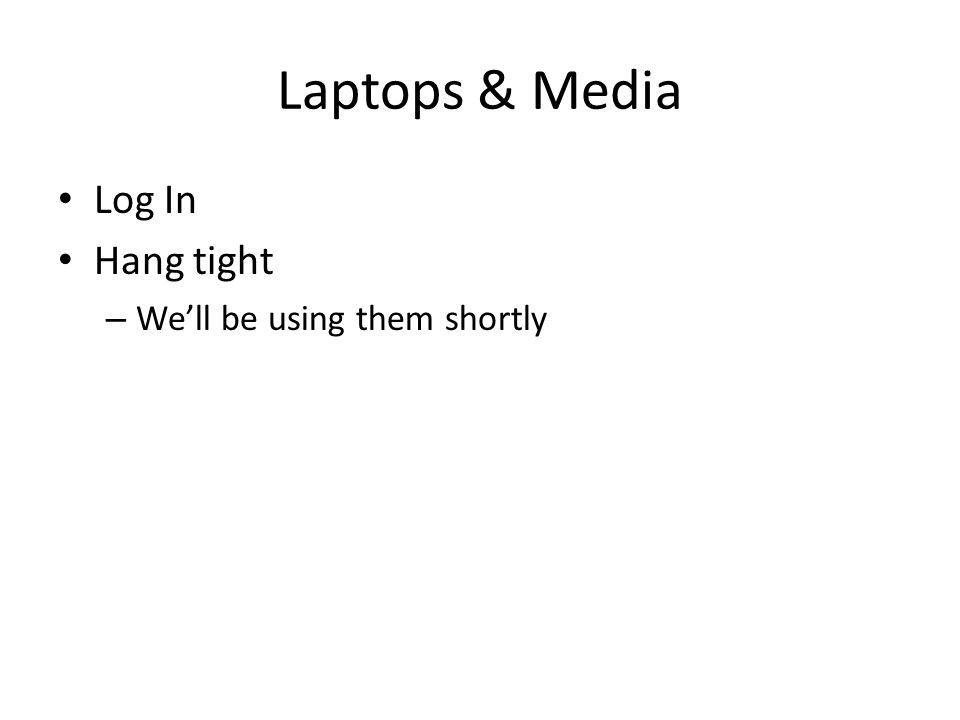

4. Laptops & Media Log In Hang tight – We’ll be using them shortly

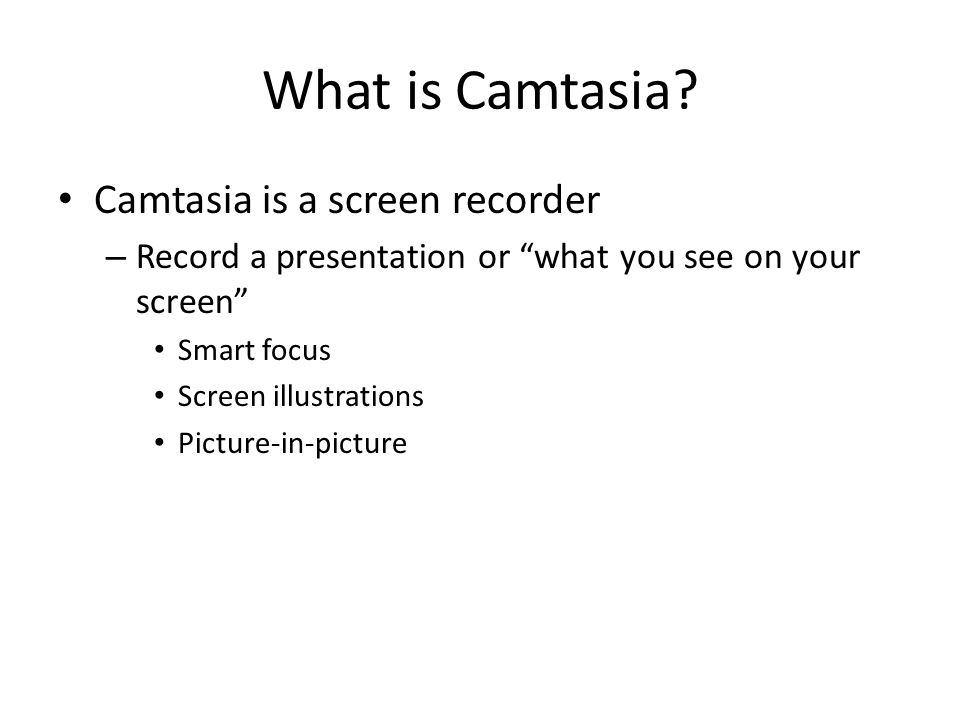

5. What is Camtasia? Camtasia is a screen recorder – Record a presentation or “what you see on your screen” Smart focus Screen illustrations Picture-in-picture

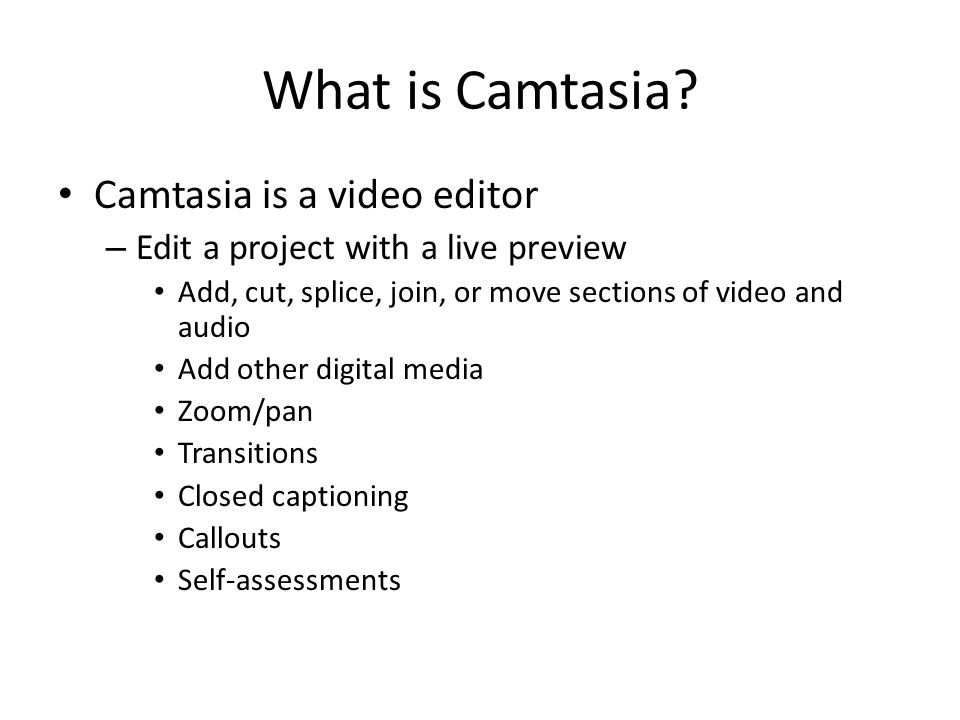

6. What is Camtasia? Camtasia is a video editor – Edit a project with a live preview Add, cut, splice, join, or move sections of video and audio Add other digital media Zoom/pan Transitions Closed captioning Callouts Self-assessments

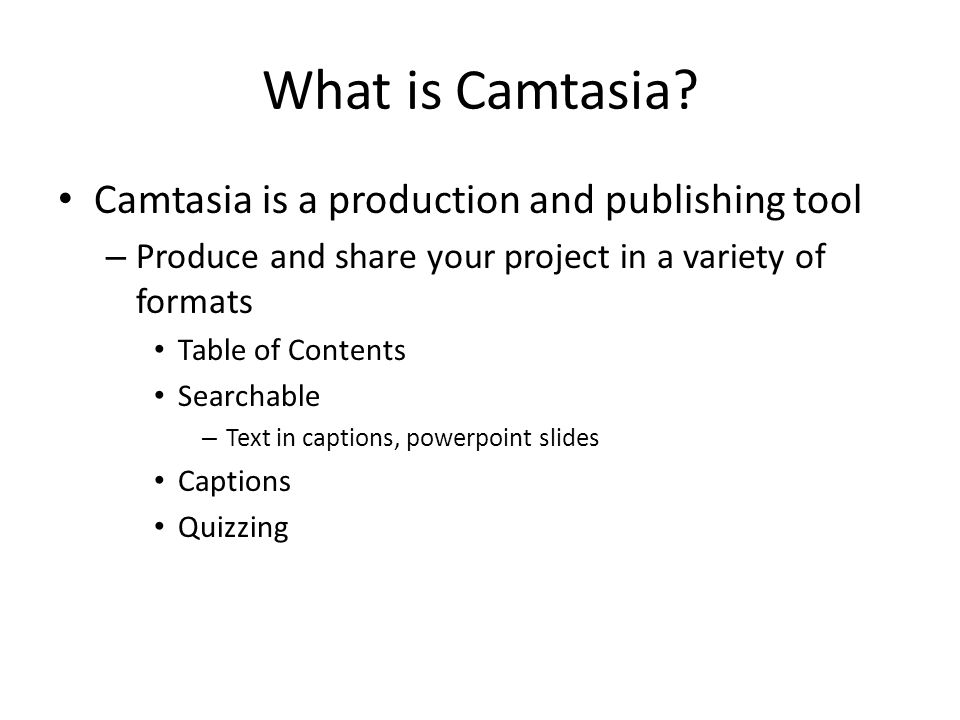

7. What is Camtasia? Camtasia is a production and publishing tool – Produce and share your project in a variety of formats Table of Contents Searchable – Text in captions, powerpoint slides Captions Quizzing

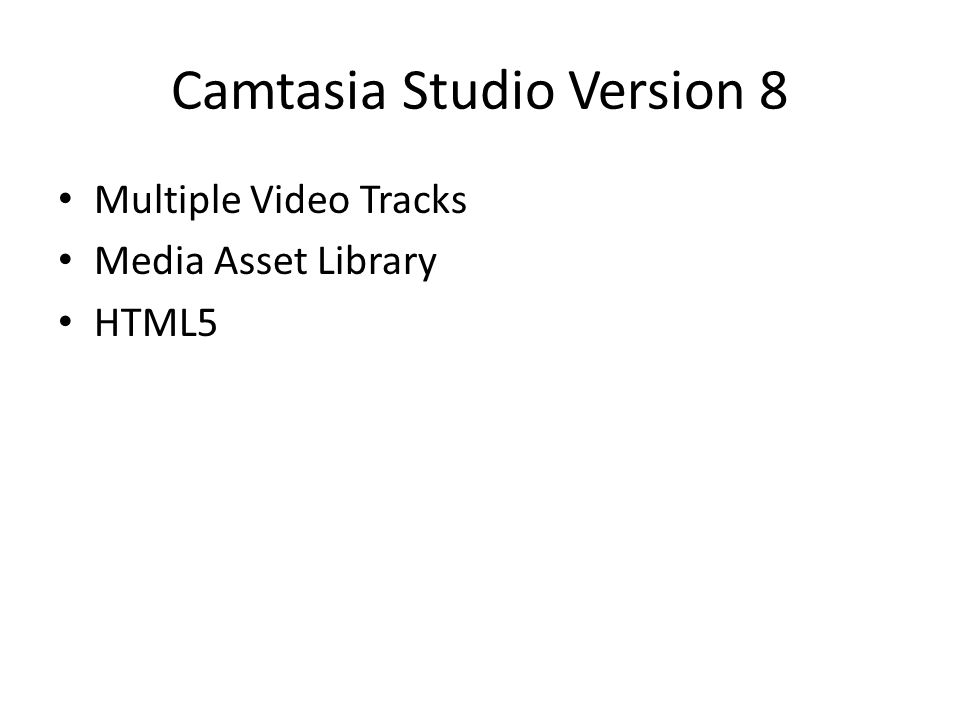

8. Camtasia Studio Version 8 Multiple Video Tracks Media Asset Library HTML5

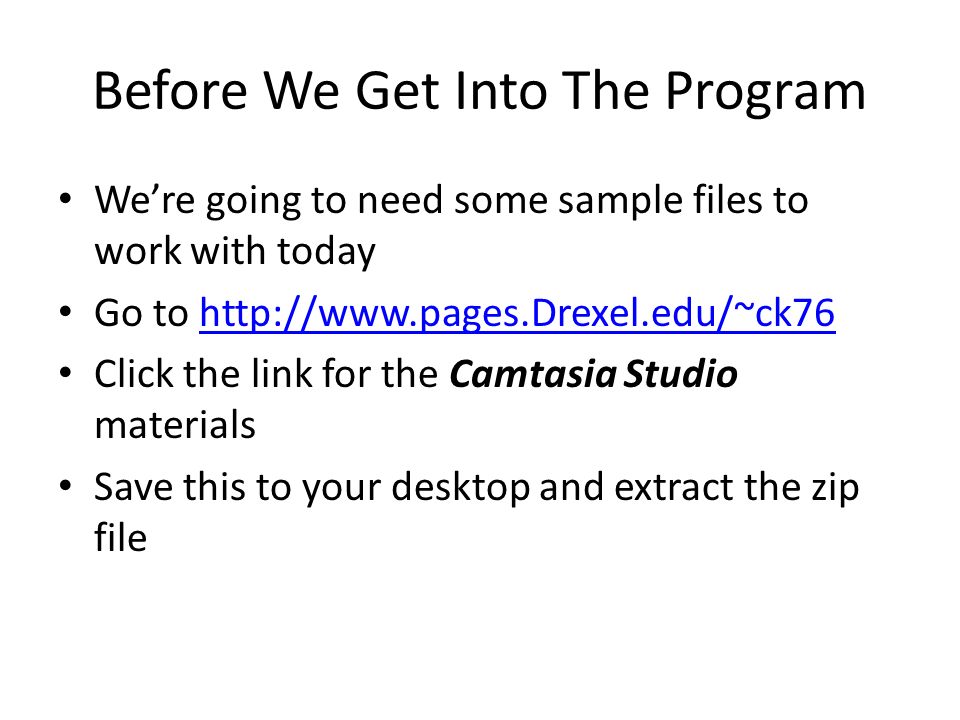

9. Before We Get Into The Program We’re going to need some sample files to work with today Go to http://www.pages.Drexel.edu/~ck76http://www.pages.Drexel.edu/~ck76 Click the link for the Camtasia Studio materials Save this to your desktop and extract the zip file

10. Recording The Screen

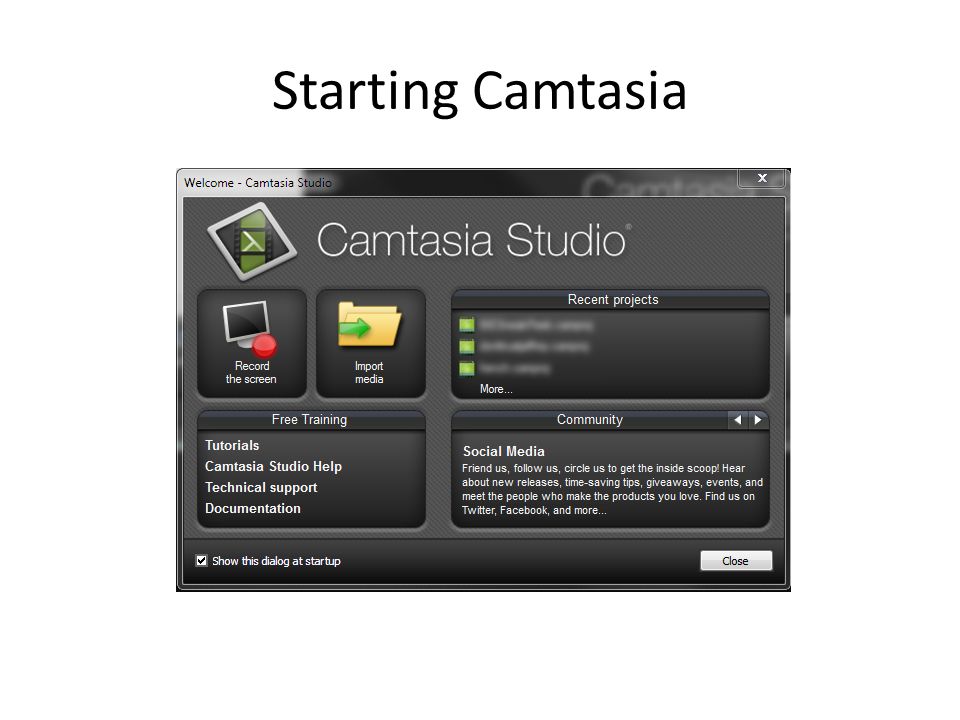

11. Starting Camtasia

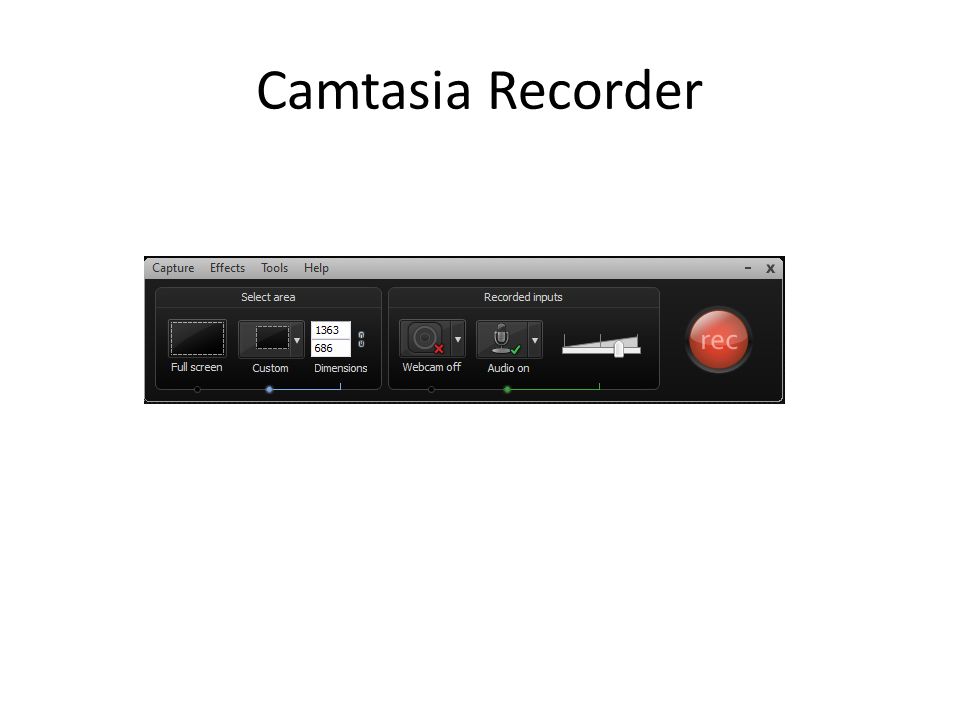

12. Camtasia Recorder

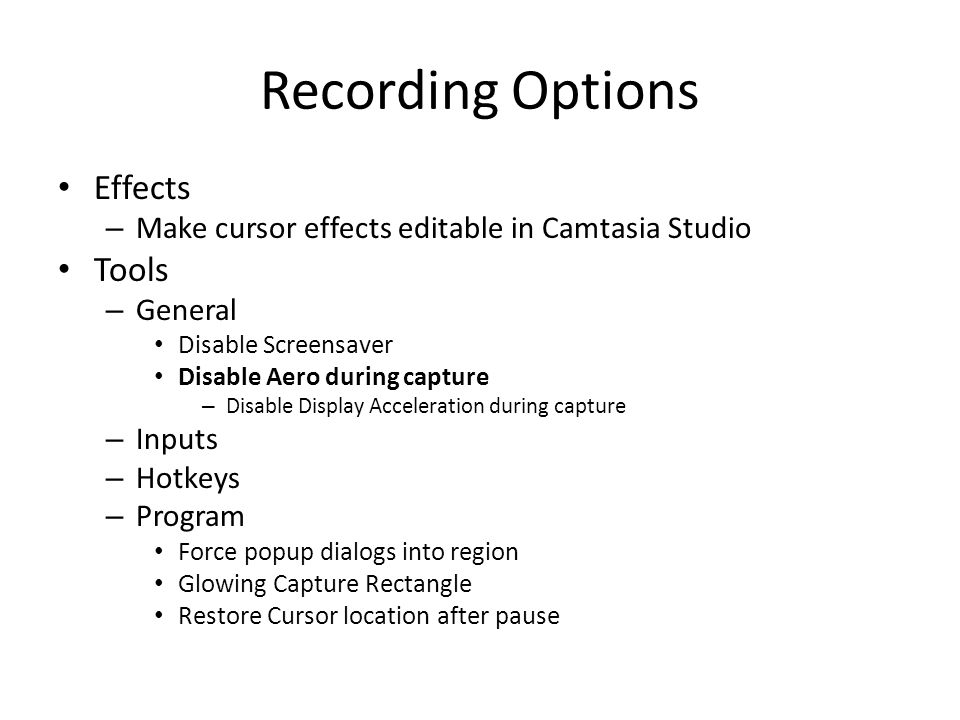

13. Recording Options Effects – Make cursor effects editable in Camtasia Studio Tools – General Disable Screensaver Disable Aero during capture – Disable Display Acceleration during capture – Inputs – Hotkeys – Program Force popup dialogs into region Glowing Capture Rectangle Restore Cursor location after pause

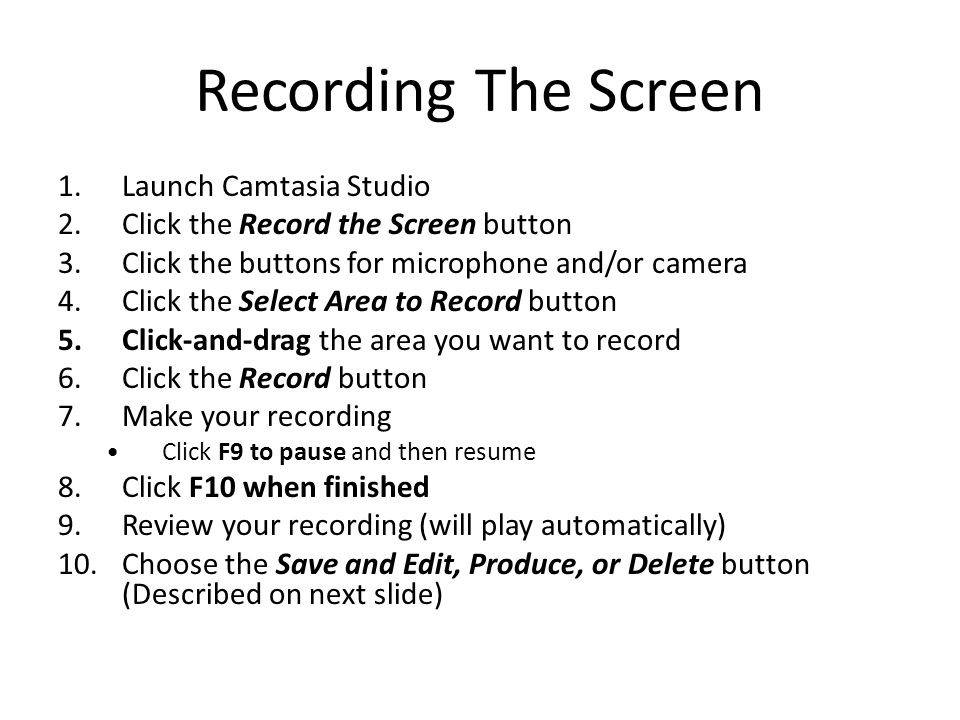

14. Recording The Screen 1.Launch Camtasia Studio 2.Click the Record the Screen button 3.Click the buttons for microphone and/or camera 4.Click the Select Area to Record button 5.Click-and-drag the area you want to record 6.Click the Record button 7.Make your recording Click F9 to pause and then resume 8.Click F10 when finished 9.Review your recording (will play automatically) 10.Choose the Save and Edit, Produce, or Delete button (Described on next slide)

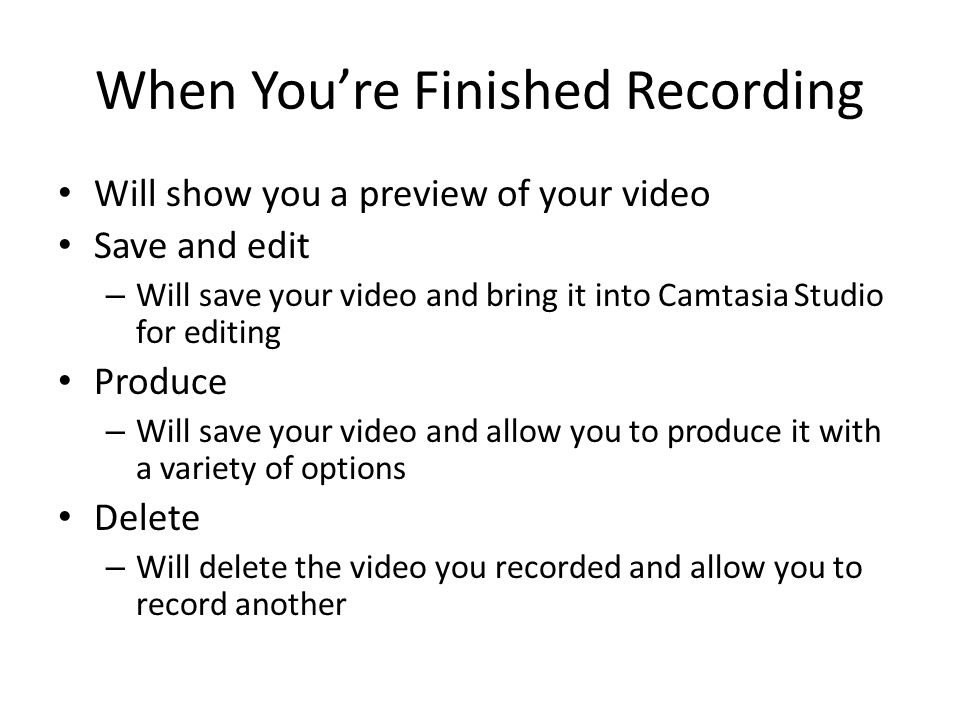

15. When You’re Finished Recording Will show you a preview of your video Save and edit – Will save your video and bring it into Camtasia Studio for editing Produce – Will save your video and allow you to produce it with a variety of options Delete – Will delete the video you recorded and allow you to record another

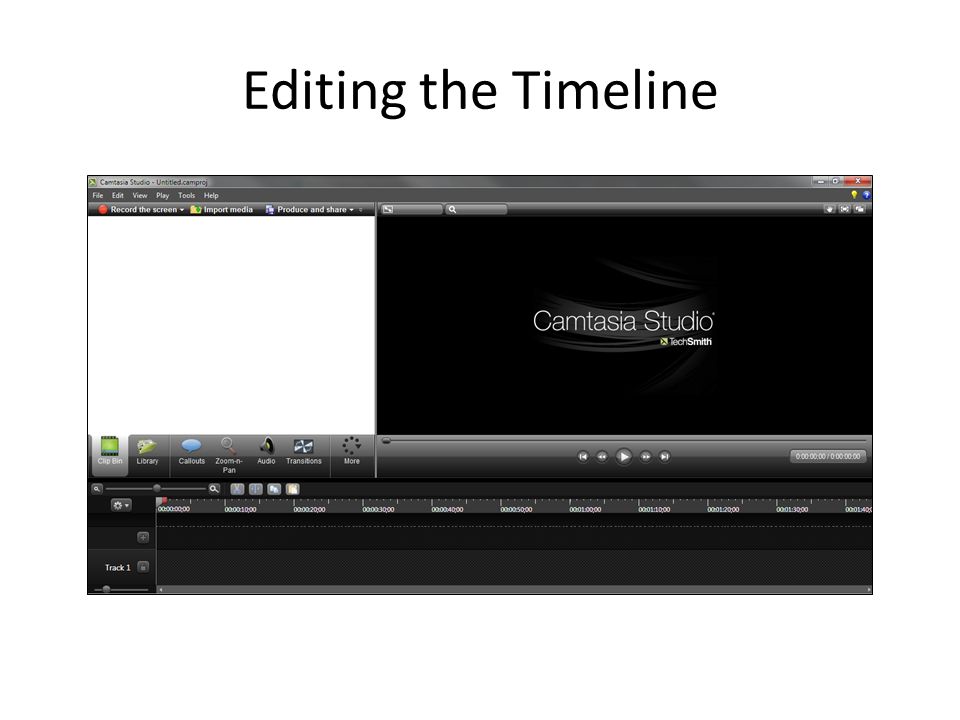

16. Editing the Timeline

17. Import Media Select Import Media from the Splash Screen – Or from the Top Bar in Camtasia Studio Select your file(s) from the Open Dialog – Video (camrec, avi, mp4, mpg, wmv, mov, swf) – Audio (wav, mp3, wma) – Image (bmp, gif, jpg, png) Files are added to the Clip Bin

18. Add Files from Clip Bin to Timeline Click and drag any media file from the clip bin to the timeline – Files (except for audio) can only be inserted at the beginning or end of a clip on the same track Or on to a new video track – Files can be added multiple times into the same timeline

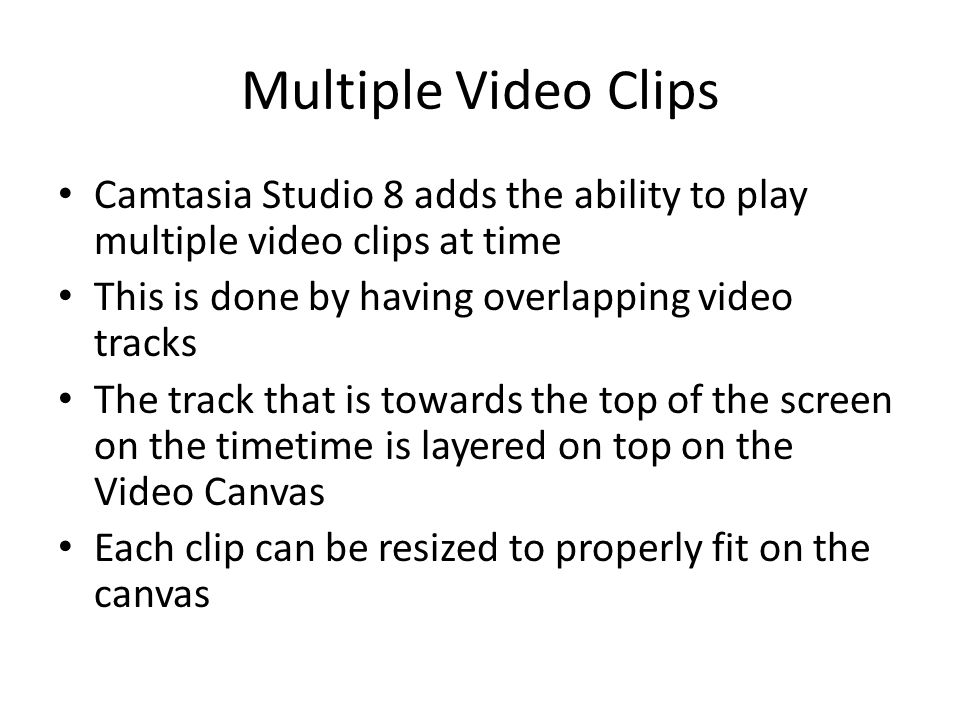

19. Multiple Video Clips Camtasia Studio 8 adds the ability to play multiple video clips at time This is done by having overlapping video tracks The track that is towards the top of the screen on the timetime is layered on top on the Video Canvas Each clip can be resized to properly fit on the canvas

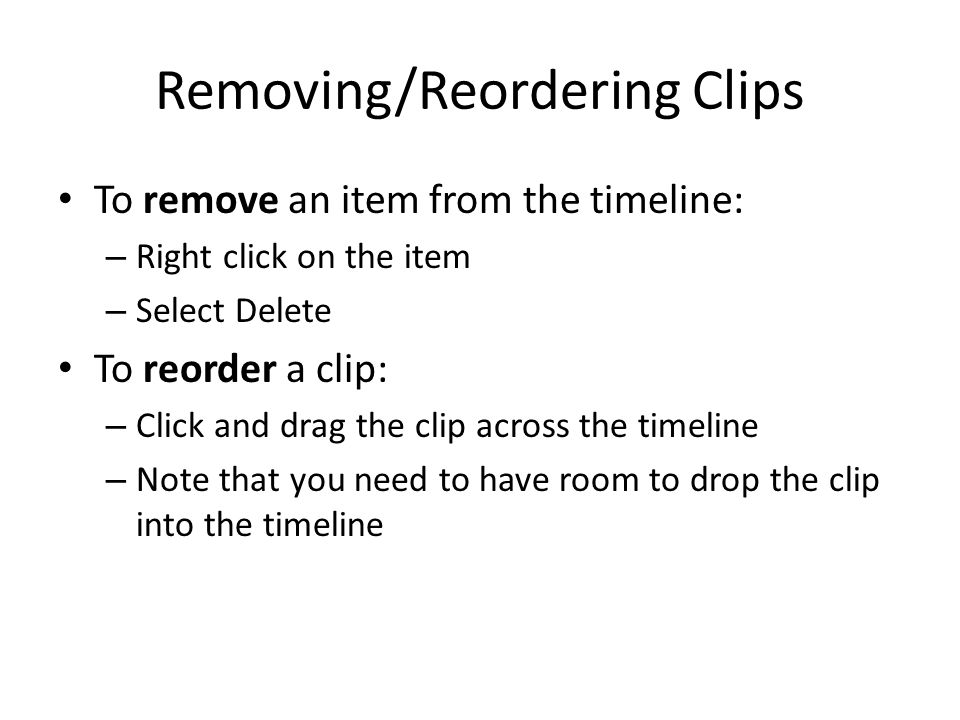

20. Removing/Reordering Clips To remove an item from the timeline: – Right click on the item – Select Delete To reorder a clip: – Click and drag the clip across the timeline – Note that you need to have room to drop the clip into the timeline

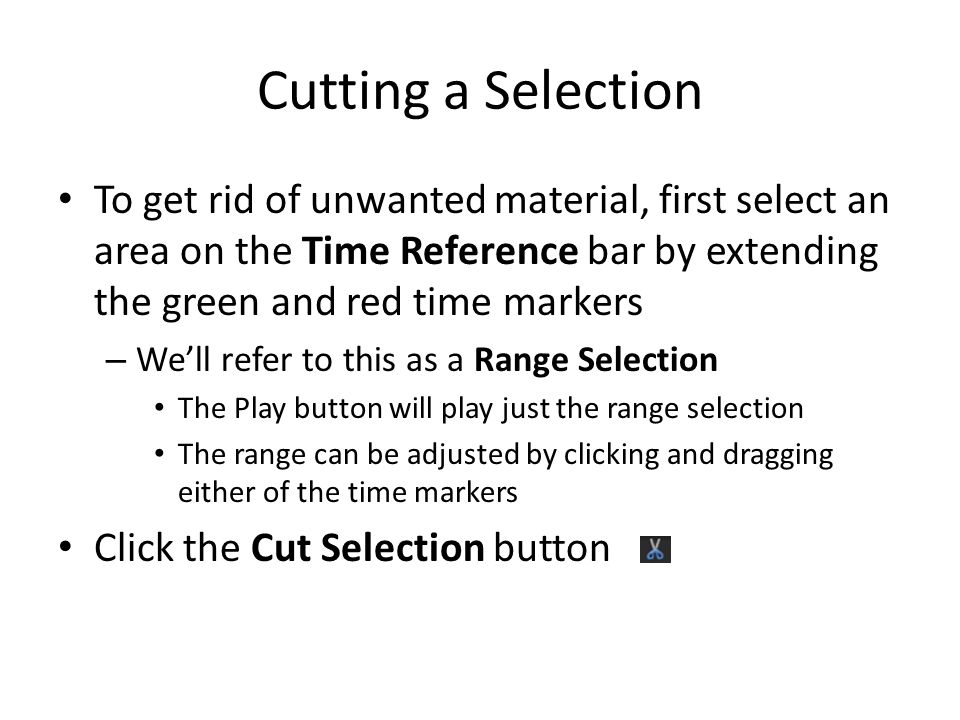

21. Cutting a Selection To get rid of unwanted material, first select an area on the Time Reference bar by extending the green and red time markers – We’ll refer to this as a Range Selection The Play button will play just the range selection The range can be adjusted by clicking and dragging either of the time markers Click the Cut Selection button

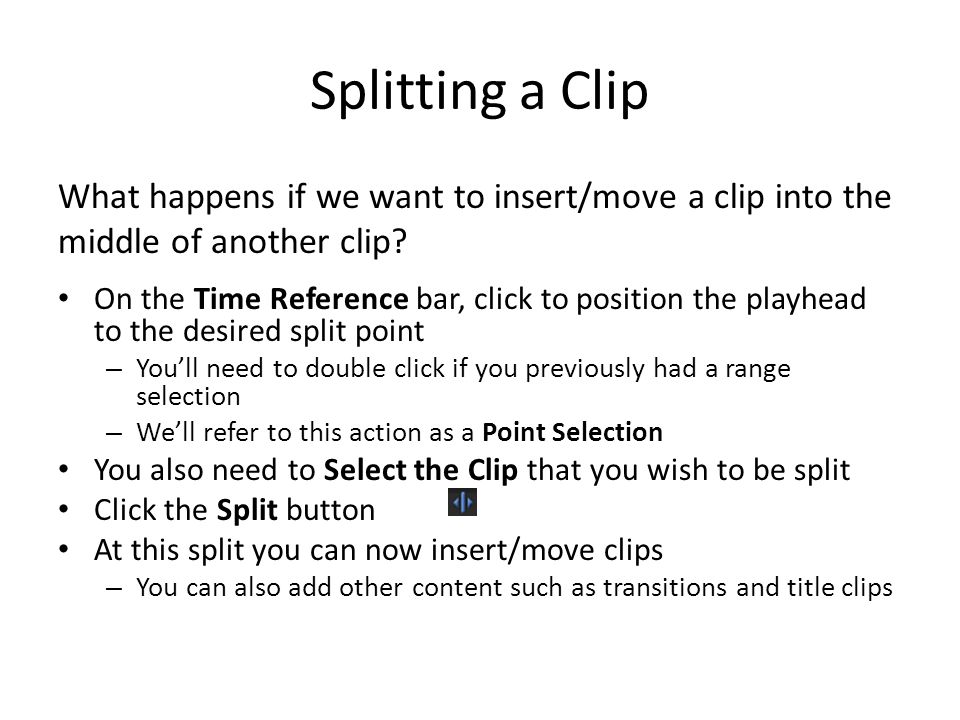

22. Splitting a Clip What happens if we want to insert/move a clip into the middle of another clip? On the Time Reference bar, click to position the playhead to the desired split point – You’ll need to double click if you previously had a range selection – We’ll refer to this action as a Point Selection You also need to Select the Clip that you wish to be split Click the Split button At this split you can now insert/move clips – You can also add other content such as transitions and title clips

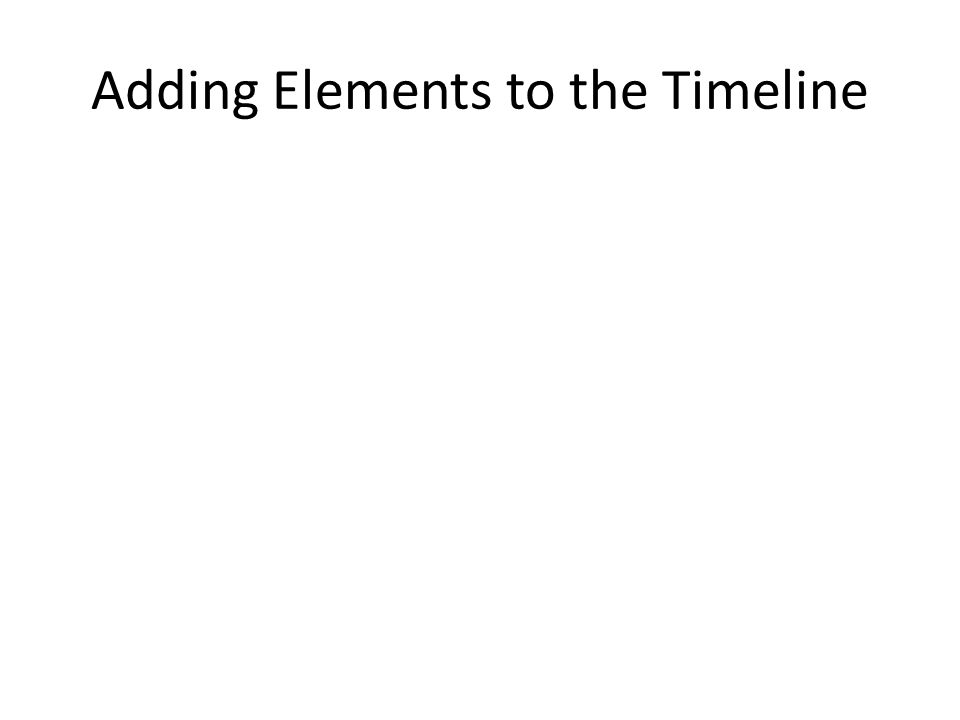

23. Adding Elements to the Timeline

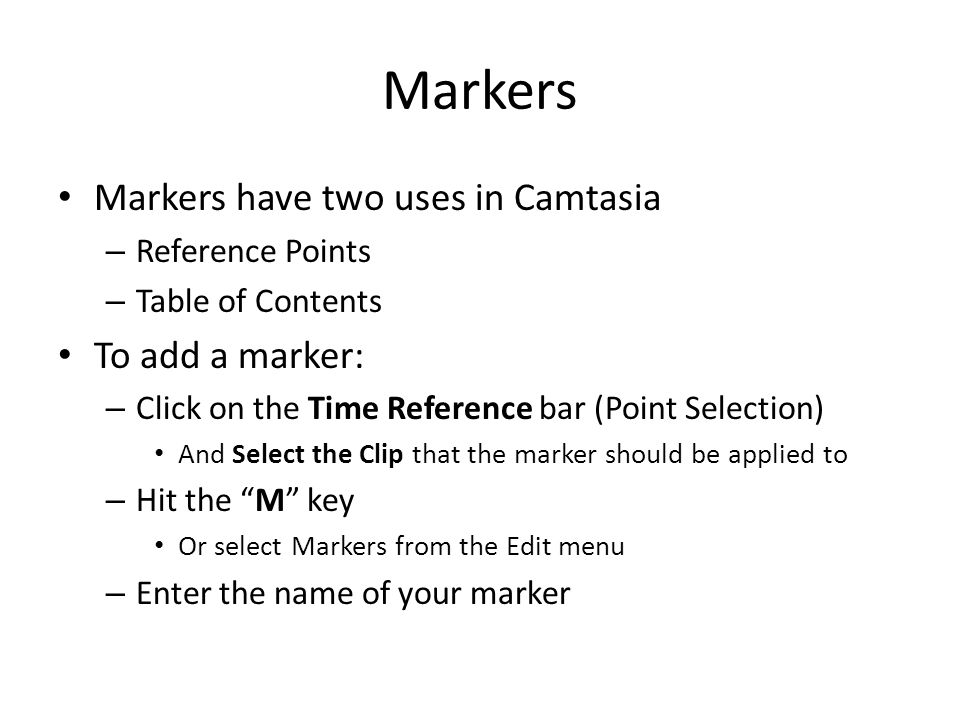

24. Markers Markers have two uses in Camtasia – Reference Points – Table of Contents To add a marker: – Click on the Time Reference bar (Point Selection) And Select the Clip that the marker should be applied to – Hit the “M” key Or select Markers from the Edit menu – Enter the name of your marker

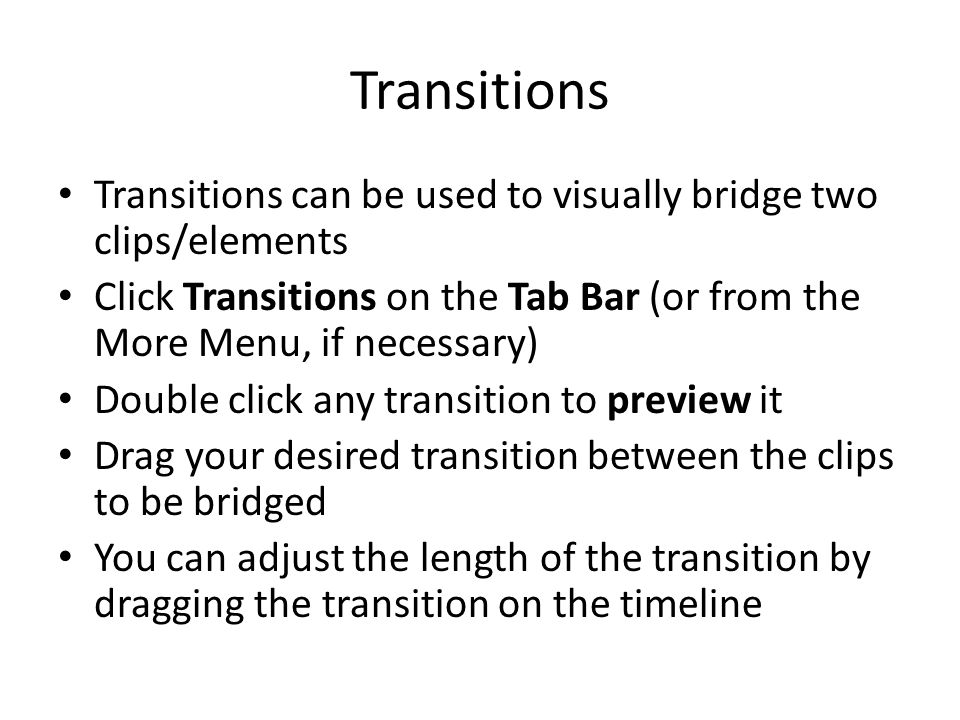

25. Transitions Transitions can be used to visually bridge two clips/elements Click Transitions on the Tab Bar (or from the More Menu, if necessary) Double click any transition to preview it Drag your desired transition between the clips to be bridged You can adjust the length of the transition by dragging the transition on the timeline

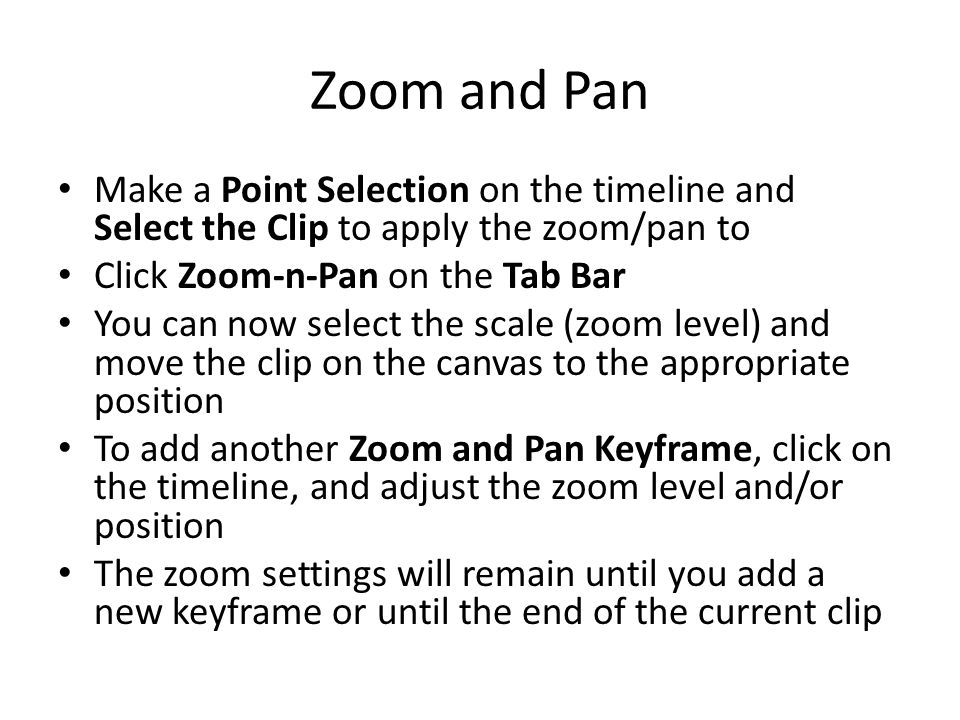

26. Zoom and Pan Make a Point Selection on the timeline and Select the Clip to apply the zoom/pan to Click Zoom-n-Pan on the Tab Bar You can now select the scale (zoom level) and move the clip on the canvas to the appropriate position To add another Zoom and Pan Keyframe, click on the timeline, and adjust the zoom level and/or position The zoom settings will remain until you add a new keyframe or until the end of the current clip

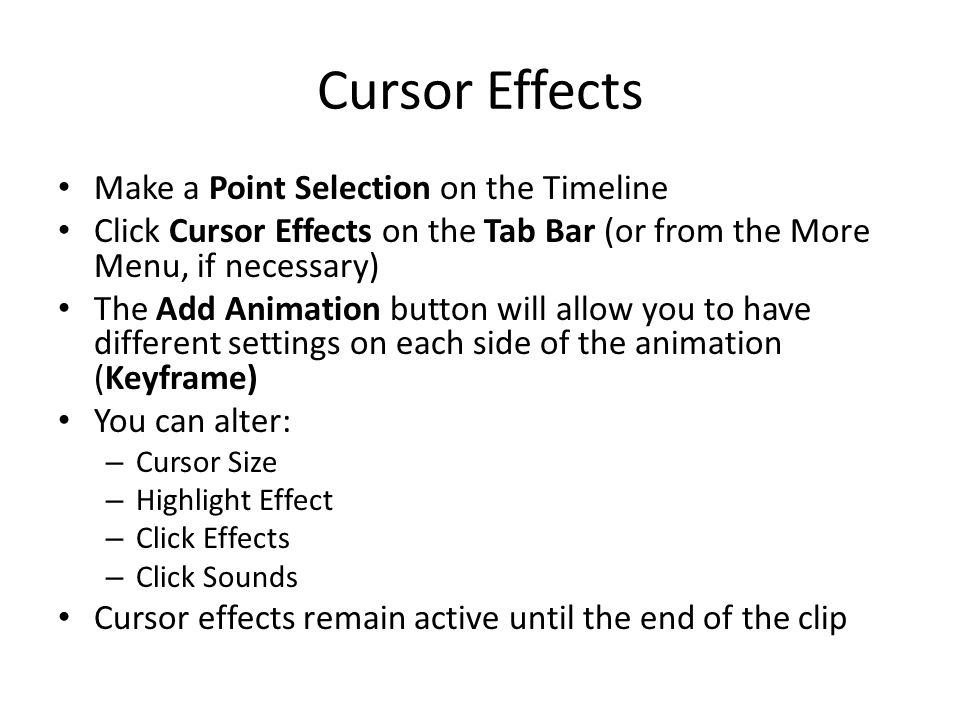

27. Cursor Effects Make a Point Selection on the Timeline Click Cursor Effects on the Tab Bar (or from the More Menu, if necessary) The Add Animation button will allow you to have different settings on each side of the animation (Keyframe) You can alter: – Cursor Size – Highlight Effect – Click Effects – Click Sounds Cursor effects remain active until the end of the clip

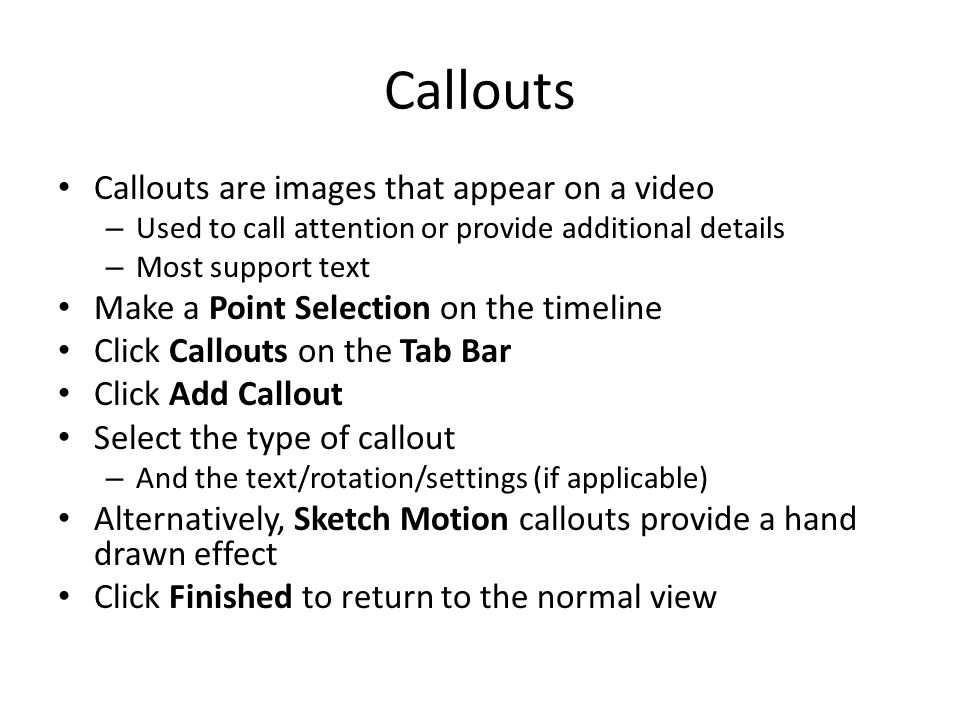

28. Callouts Callouts are images that appear on a video – Used to call attention or provide additional details – Most support text Make a Point Selection on the timeline Click Callouts on the Tab Bar Click Add Callout Select the type of callout – And the text/rotation/settings (if applicable) Alternatively, Sketch Motion callouts provide a hand drawn effect Click Finished to return to the normal view

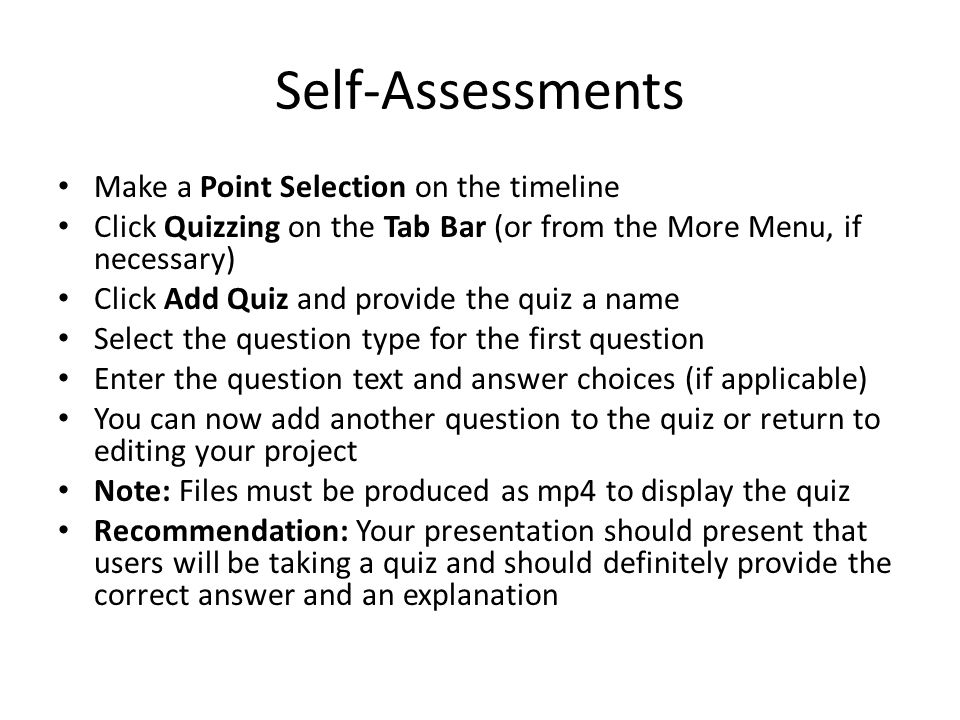

29. Self-Assessments Make a Point Selection on the timeline Click Quizzing on the Tab Bar (or from the More Menu, if necessary) Click Add Quiz and provide the quiz a name Select the question type for the first question Enter the question text and answer choices (if applicable) You can now add another question to the quiz or return to editing your project Note: Files must be produced as mp4 to display the quiz Recommendation: Your presentation should present that users will be taking a quiz and should definitely provide the correct answer and an explanation

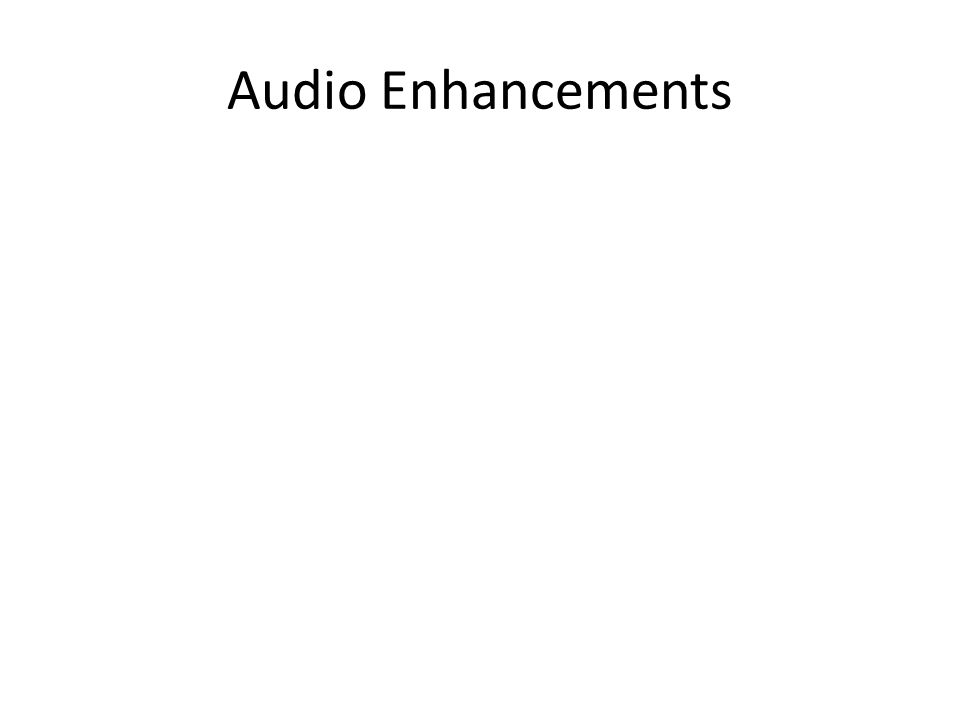

30. Audio Enhancements

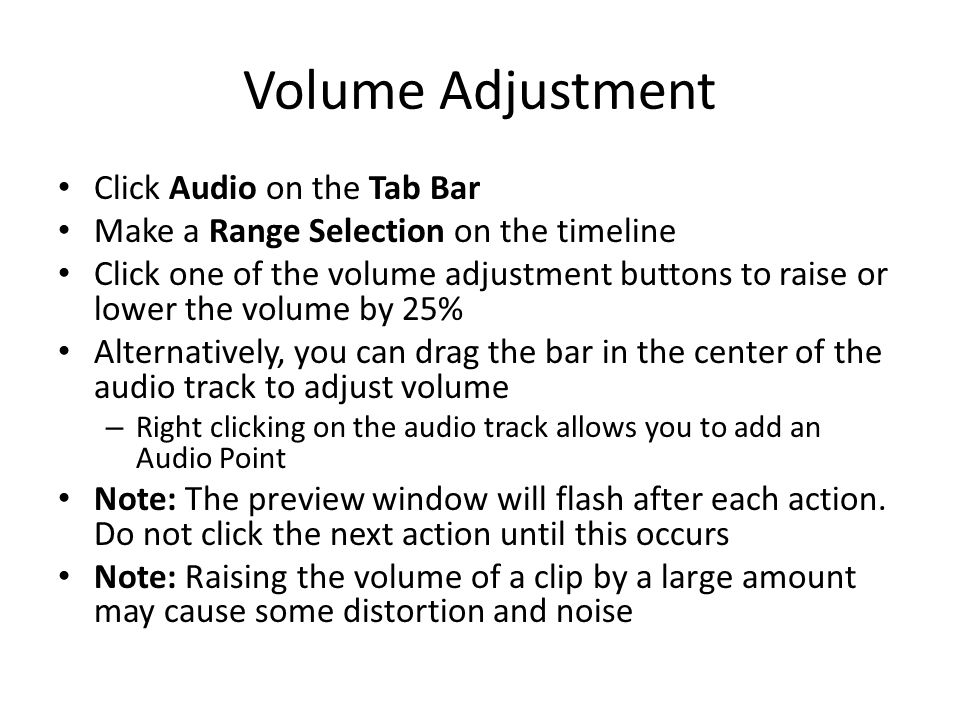

31. Volume Adjustment Click Audio on the Tab Bar Make a Range Selection on the timeline Click one of the volume adjustment buttons to raise or lower the volume by 25% Alternatively, you can drag the bar in the center of the audio track to adjust volume – Right clicking on the audio track allows you to add an Audio Point Note: The preview window will flash after each action. Do not click the next action until this occurs Note: Raising the volume of a clip by a large amount may cause some distortion and noise

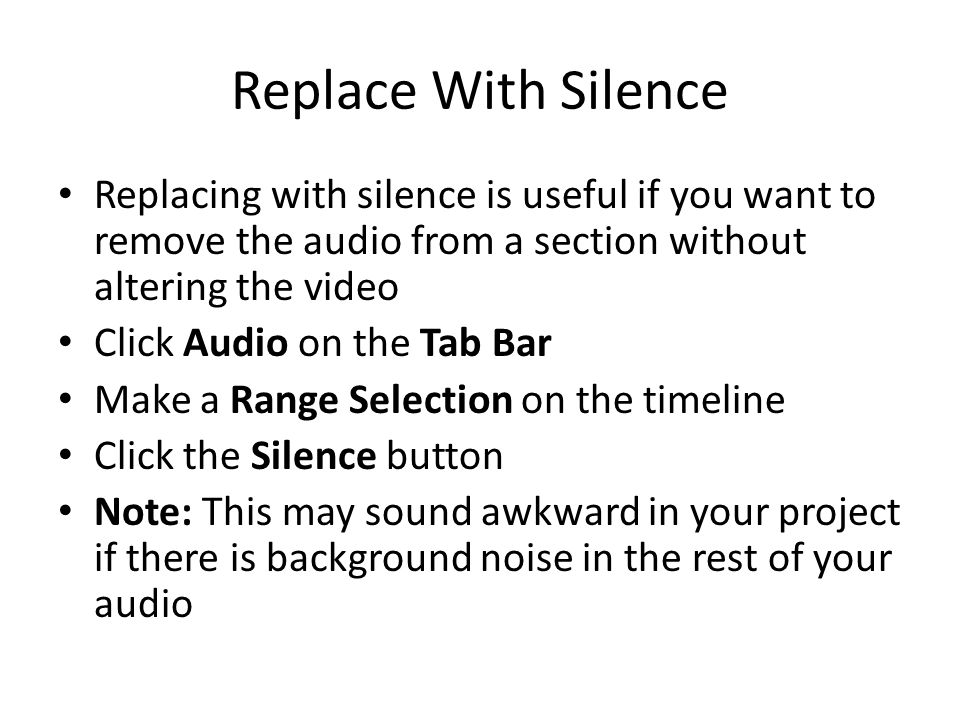

32. Replace With Silence Replacing with silence is useful if you want to remove the audio from a section without altering the video Click Audio on the Tab Bar Make a Range Selection on the timeline Click the Silence button Note: This may sound awkward in your project if there is background noise in the rest of your audio

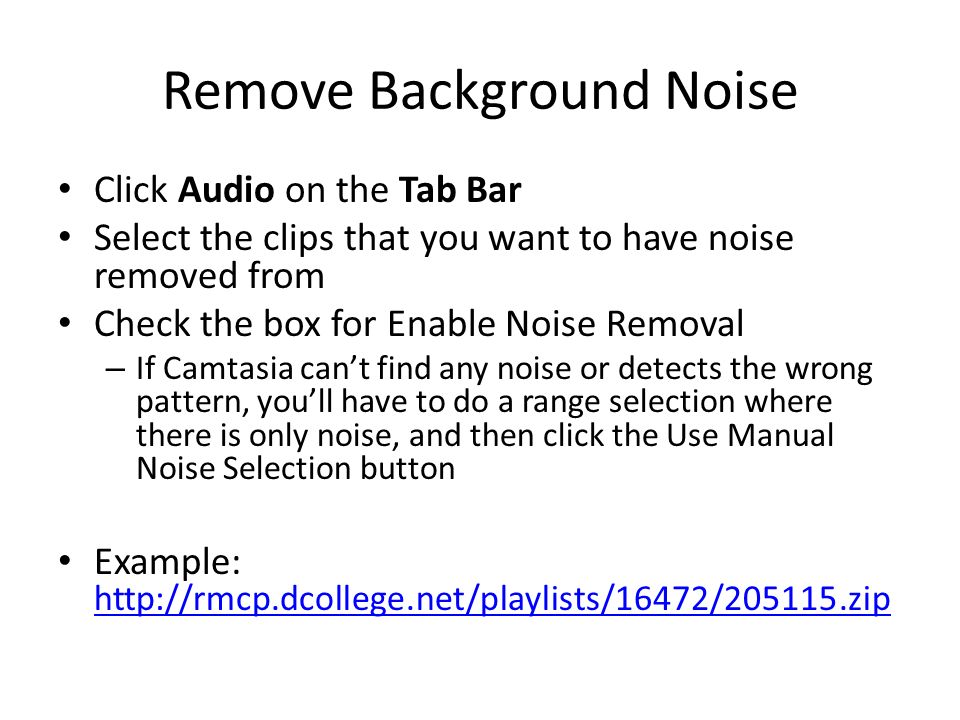

33. Remove Background Noise Click Audio on the Tab Bar Select the clips that you want to have noise removed from Check the box for Enable Noise Removal – If Camtasia can’t find any noise or detects the wrong pattern, you’ll have to do a range selection where there is only noise, and then click the Use Manual Noise Selection button Example: http://rmcp.dcollege.net/playlists/16472/205115.zip http://rmcp.dcollege.net/playlists/16472/205115.zip

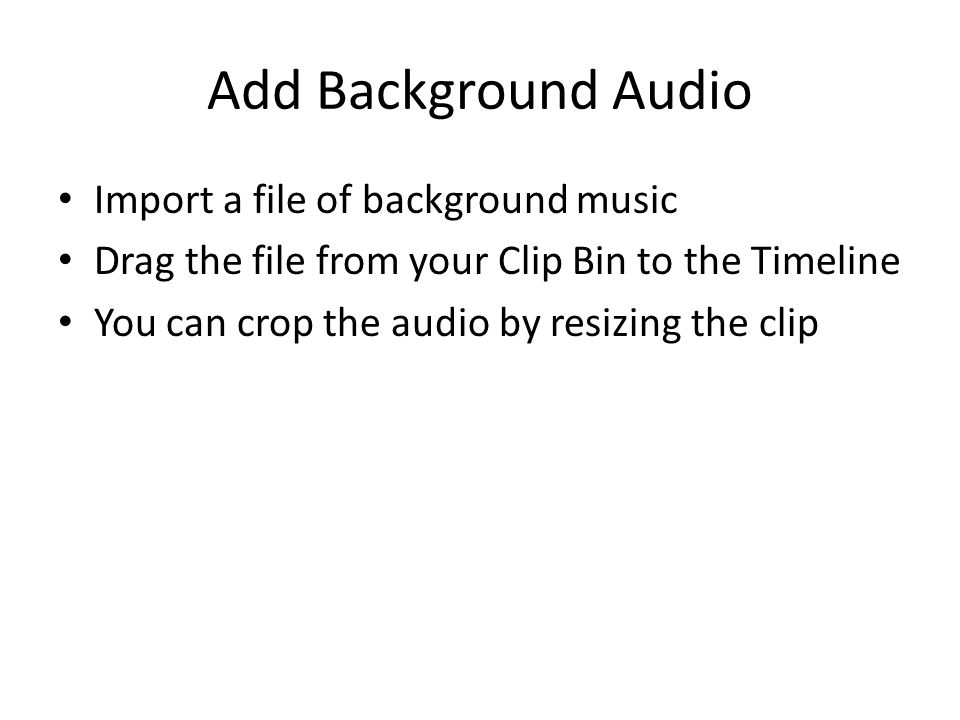

34. Add Background Audio Import a file of background music Drag the file from your Clip Bin to the Timeline You can crop the audio by resizing the clip

35. Adjust Volume of a Single Audio Track Assuming we’ve added a second audio track, doing a range selection and modifying the volume will alter both tracks simultaneously To adjust just the background track, first lock the primary audio track by clicking the Lock button on the far left of the timeline Make a Range Selection on the timeline Adjust the volume, as previously described

36. Fades Make a Range Selection on the timeline Click Audio on the Tab Bar Click one of the Fade buttons to add a fade in or fade out – A fade in will start at no volume and gradually increase to the volume at the end of the selection, over the length of the selection

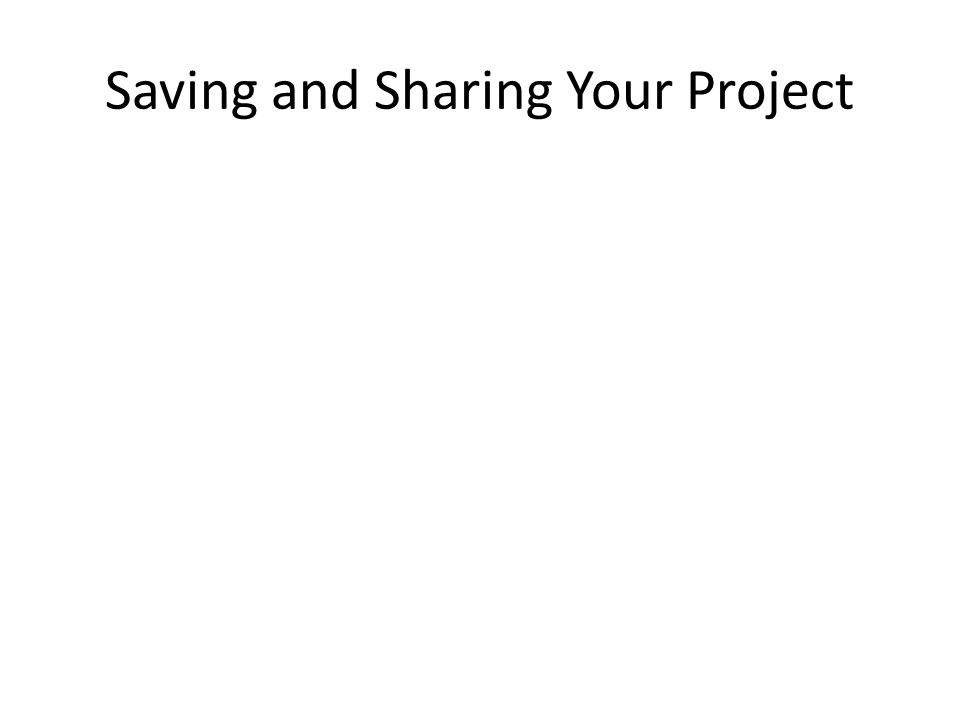

37. Saving and Sharing Your Project

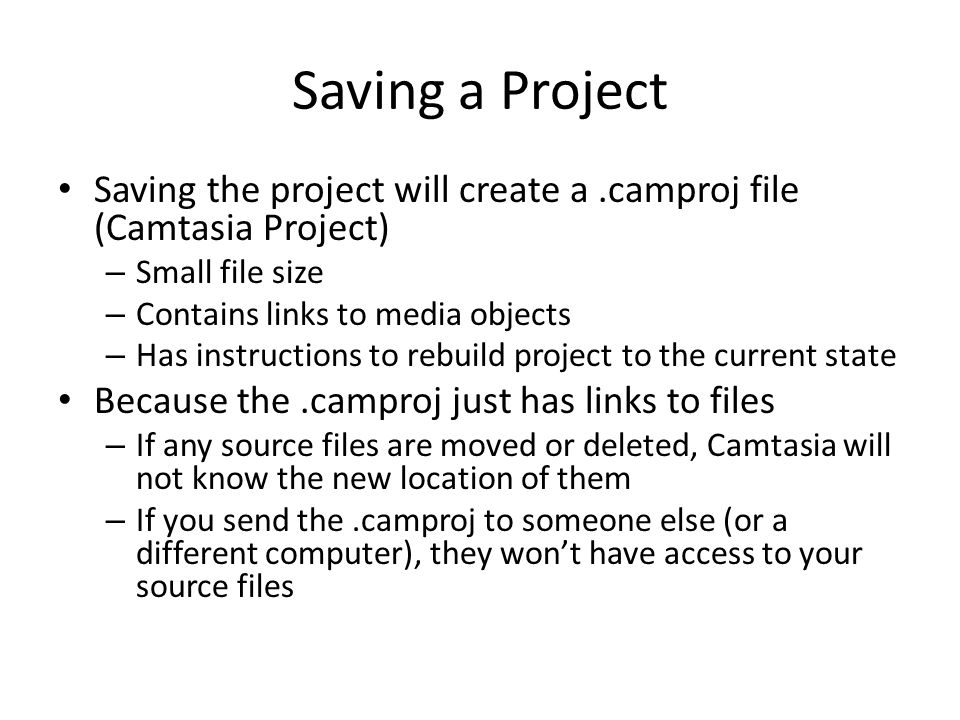

38. Saving a Project Saving the project will create a.camproj file (Camtasia Project) – Small file size – Contains links to media objects – Has instructions to rebuild project to the current state Because the.camproj just has links to files – If any source files are moved or deleted, Camtasia will not know the new location of them – If you send the.camproj to someone else (or a different computer), they won’t have access to your source files

39. Sharing a Project In the File menu, select Export Project as Zip You can Include All Files from Clip Bin if you want source files that weren’t on your timeline to be included as well The recipient of the zip file can go to the File menu and select Import Zipped Project – This will expand the zip, and recreate all of the links

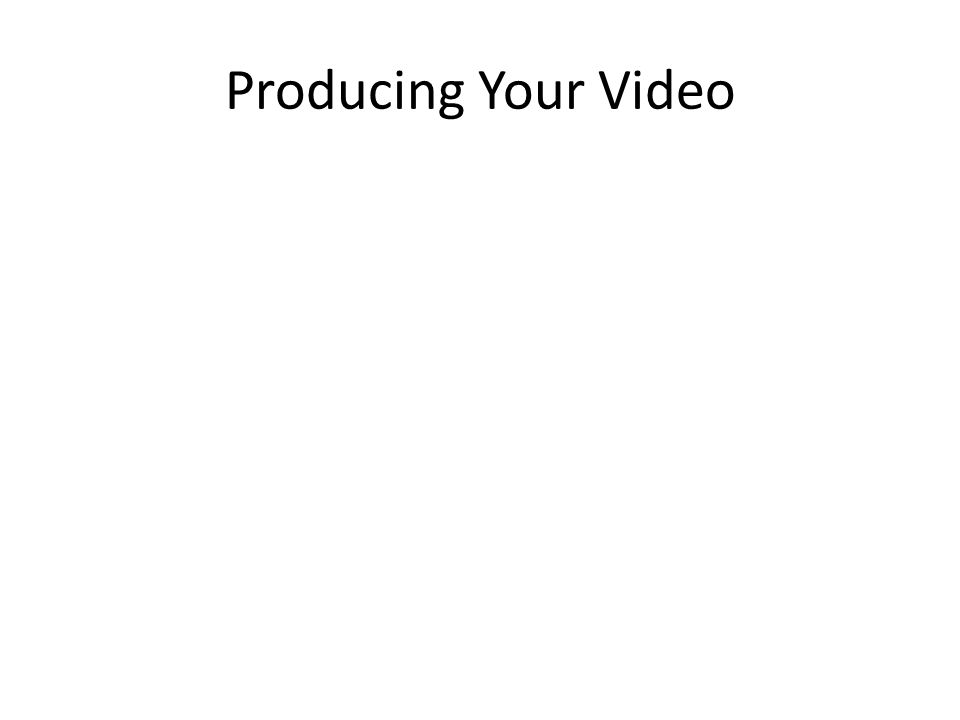

40. Producing Your Video

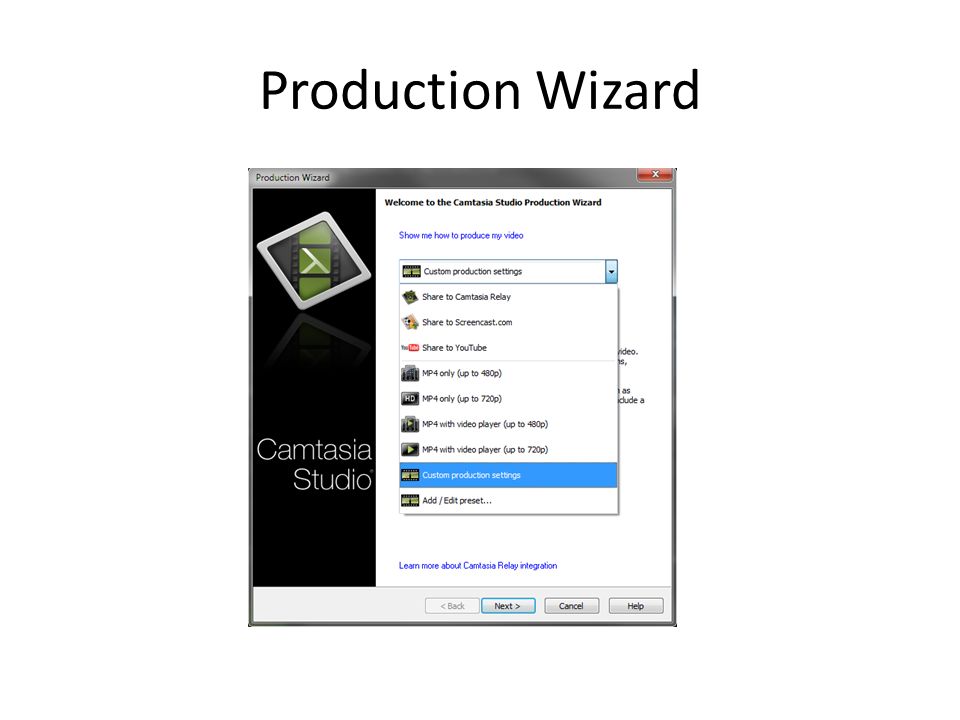

41. Production Wizard

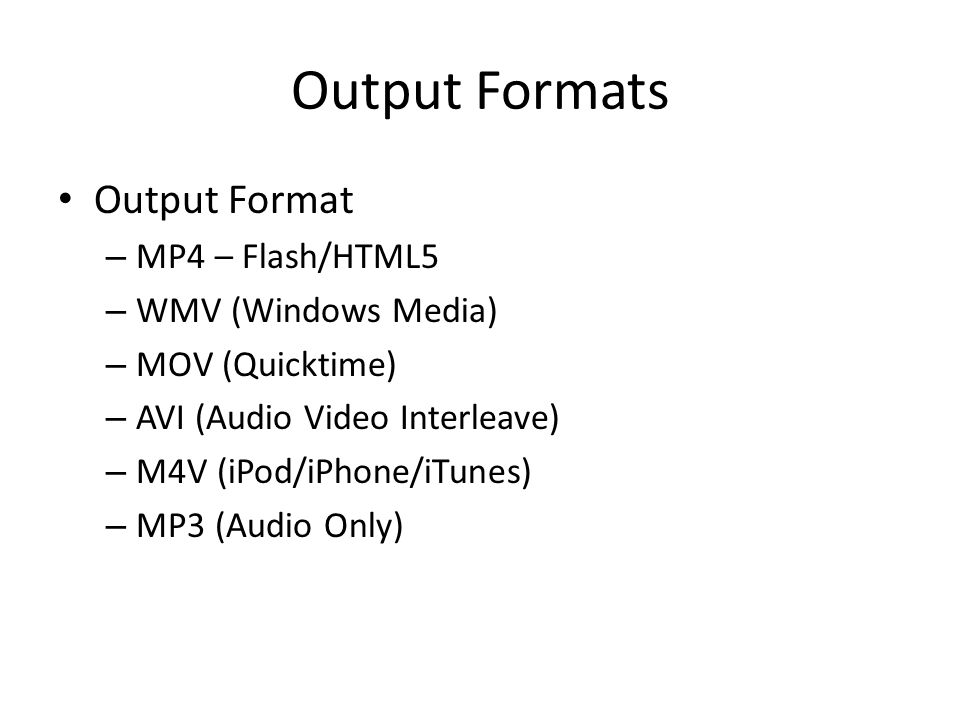

42. Output Formats Output Format – MP4 – Flash/HTML5 – WMV (Windows Media) – MOV (Quicktime) – AVI (Audio Video Interleave) – M4V (iPod/iPhone/iTunes) – MP3 (Audio Only)

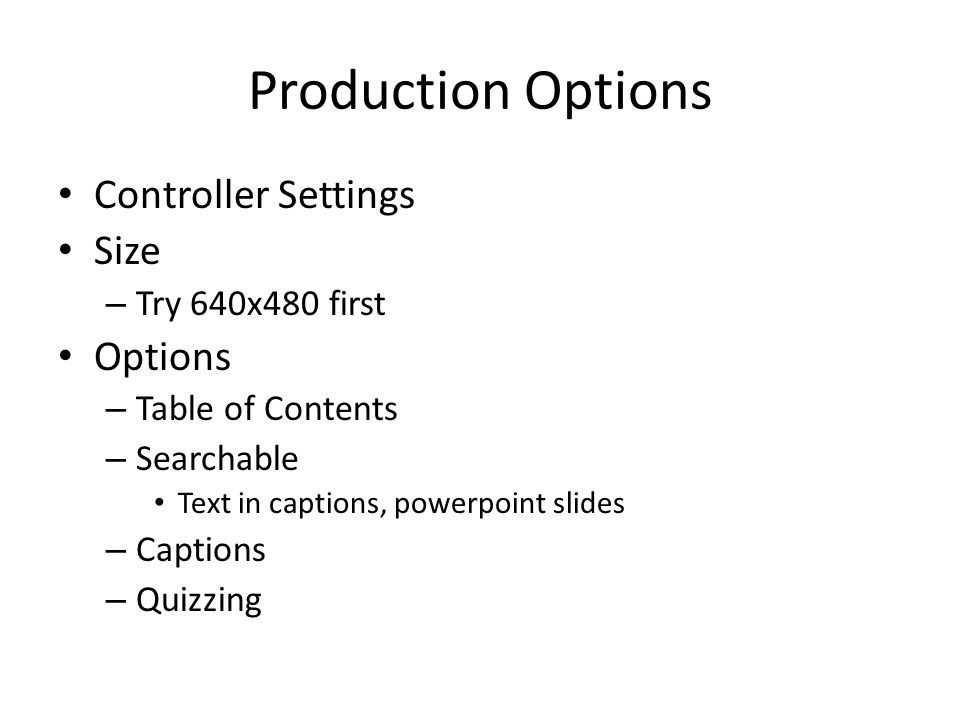

43. Production Options Controller Settings Size – Try 640x480 first Options – Table of Contents – Searchable Text in captions, powerpoint slides – Captions – Quizzing

44. What is Kaltura/Drexel Streams? Kaltura/Drexel Streams is… – Integrated into Learn and DrexelOne – Easily allows you to upload and stream videos to your course – Can generate an embed link for playback outside of Learn Instructions available on the Tech Support tab within Learn OR Attend a Kaltura training

45. Producing in Camtasia for Kaltura/Drexel Streams Ideal encoding settings: – 1280x720 (aka: 720p) – H.264 codec – MP4 container

46. Special Cases Kaltura doesn’t have support for: – Table of Contents – Quizzing If you’re using either of these – Screencast.com Owned by TechSmith Free accounts allow up to 2 GB of storage

47. Why you should use Kaltura? Built for streaming Seamless playback – Across devices Usage Reports – For media display within Learn – Per course

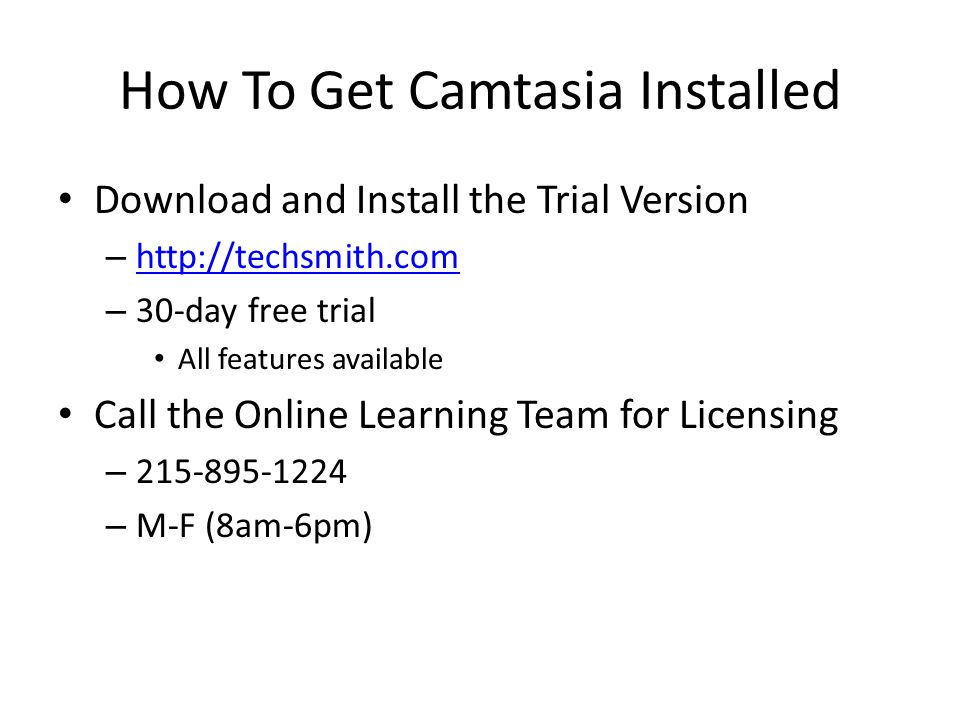

48. How To Get Camtasia Installed Download and Install the Trial Version – http://techsmith.com http://techsmith.com – 30-day free trial All features available Call the Online Learning Team for Licensing – 215-895-1224 – M-F (8am-6pm)

49. Q&A What else? Questions? Comments?

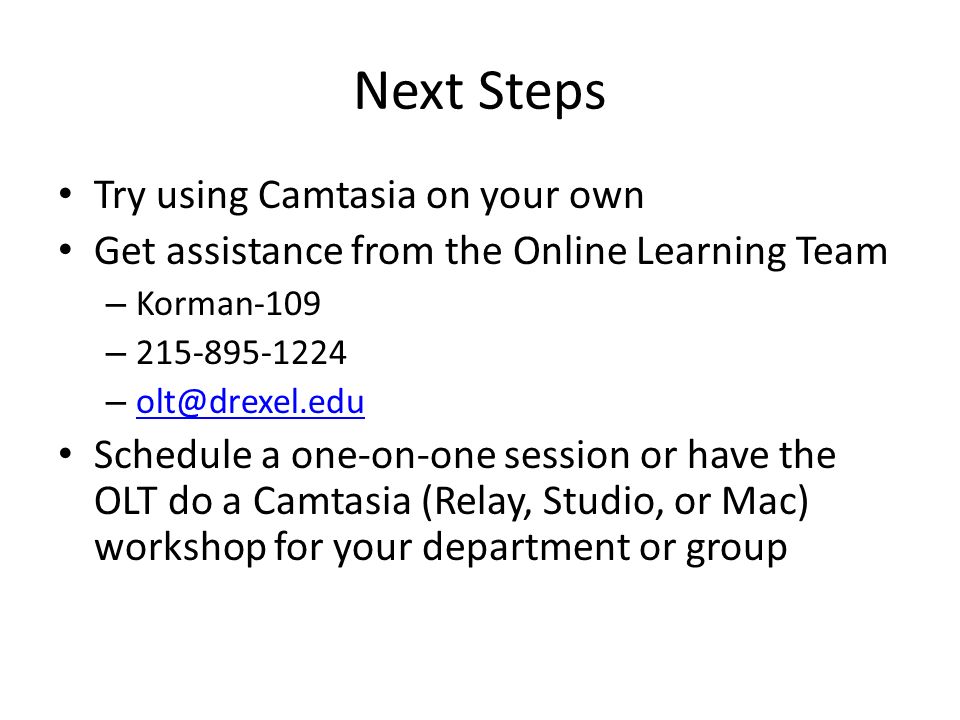

50. Next Steps Try using Camtasia on your own Get assistance from the Online Learning Team – Korman-109 – 215-895-1224 – olt@drexel.edu olt@drexel.edu Schedule a one-on-one session or have the OLT do a Camtasia (Relay, Studio, or Mac) workshop for your department or group

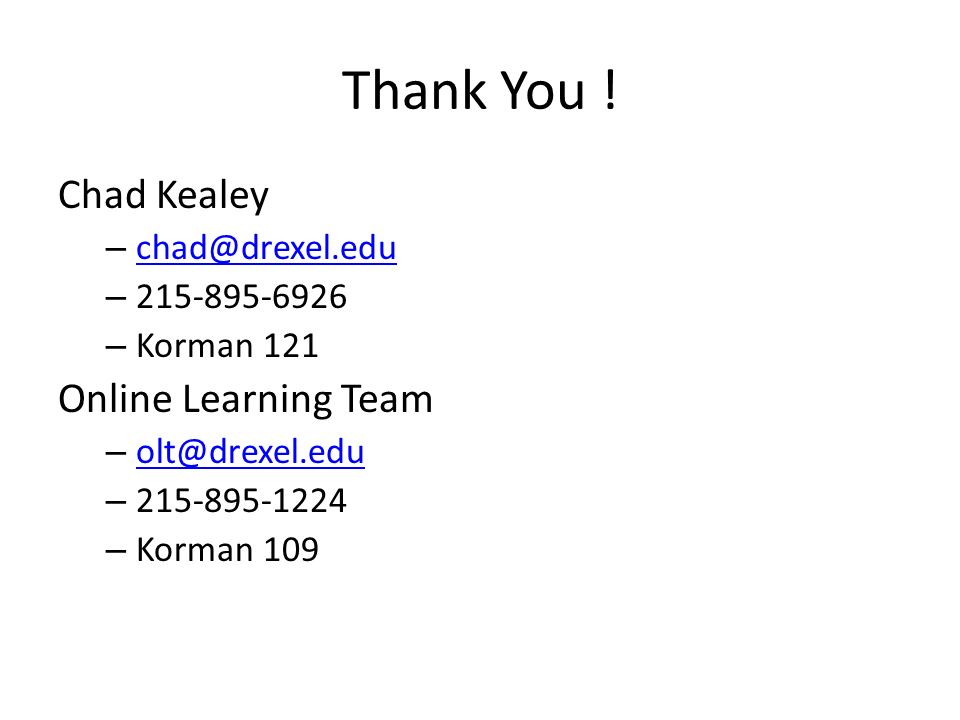

51. Thank You ! Chad Kealey – chad@drexel.edu chad@drexel.edu – 215-895-6926 – Korman 121 Online Learning Team – olt@drexel.edu olt@drexel.edu – 215-895-1224 – Korman 109
