1. Internet Engineering Portal

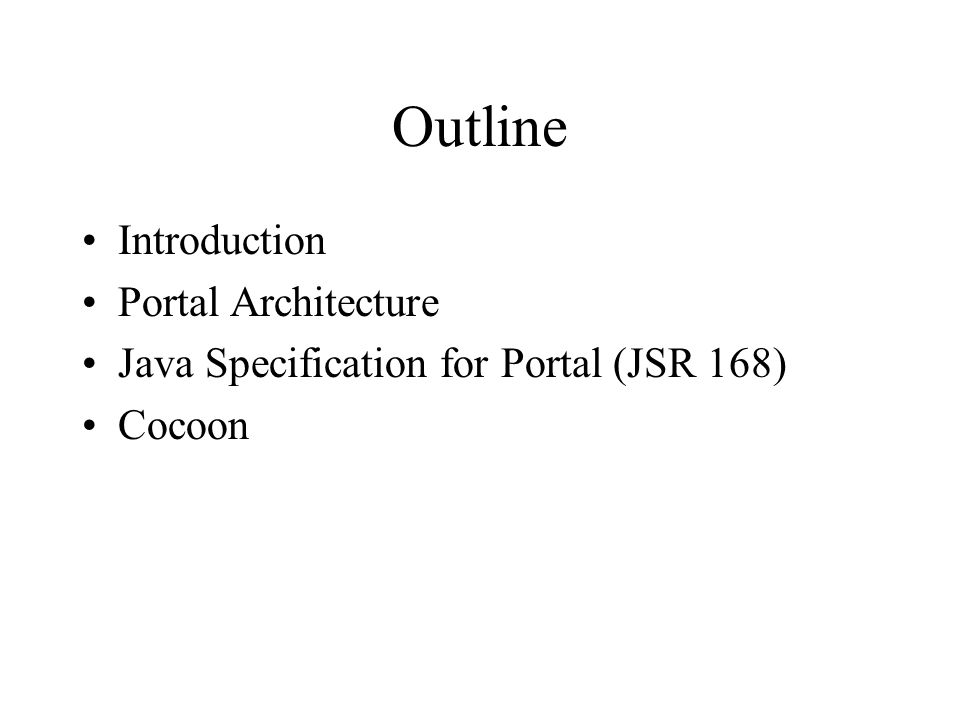

2. Outline Introduction Portal Architecture Java Specification for Portal (JSR 168) Cocoon

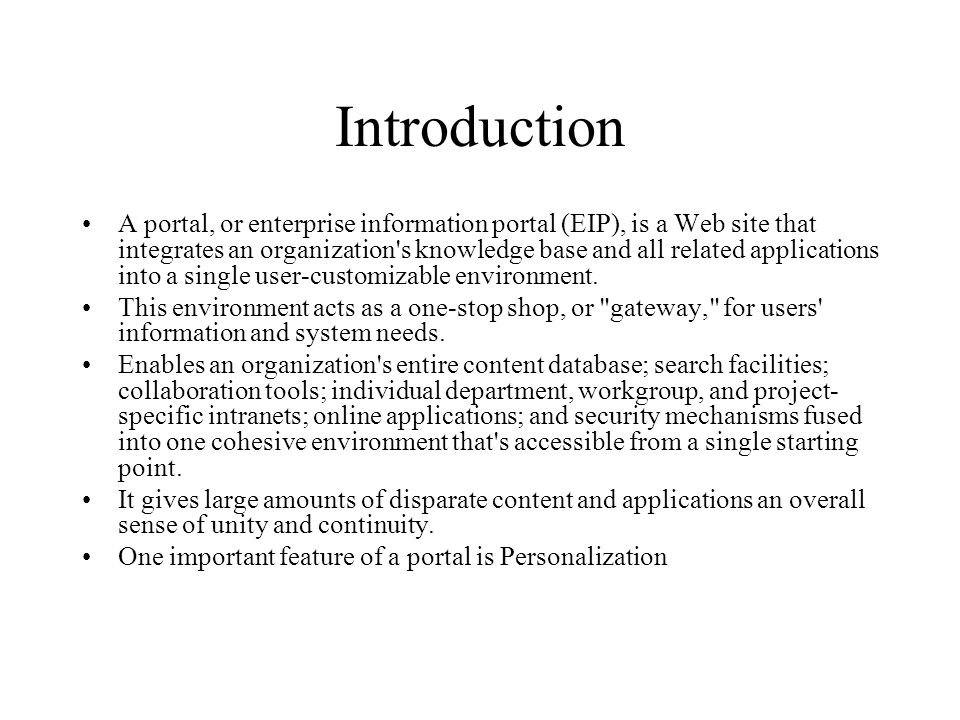

3. Introduction A portal, or enterprise information portal (EIP), is a Web site that integrates an organization's knowledge base and all related applications into a single user-customizable environment. This environment acts as a one-stop shop, or "gateway," for users' information and system needs. Enables an organization's entire content database; search facilities; collaboration tools; individual department, workgroup, and project- specific intranets; online applications; and security mechanisms fused into one cohesive environment that's accessible from a single starting point. It gives large amounts of disparate content and applications an overall sense of unity and continuity. One important feature of a portal is Personalization

4. Introduction (cont.) My Yahoo! and MSN are perfect examples of Internet portals. Users have the ability to select only the news that's of interest to them — news stories and weather reports in their home city, the results from their favorite sports teams, the latest from their industry, and their daily fix of stock quotes — without having to sift through mounds of content that's not relevant to them. EIPs are developed specifically to work within business environments, often integrating standard corporate collaboration tools — e-mail, shared calendars, discussion forums, and online meetings This not only eases software rollout and maintenance but also reduces total cost of ownership because you're dealing with one portal suite rather than separate software tools. Since portal software integrates various key components into one suite, you don't have to negotiate multiple licensing agreements and support contracts.

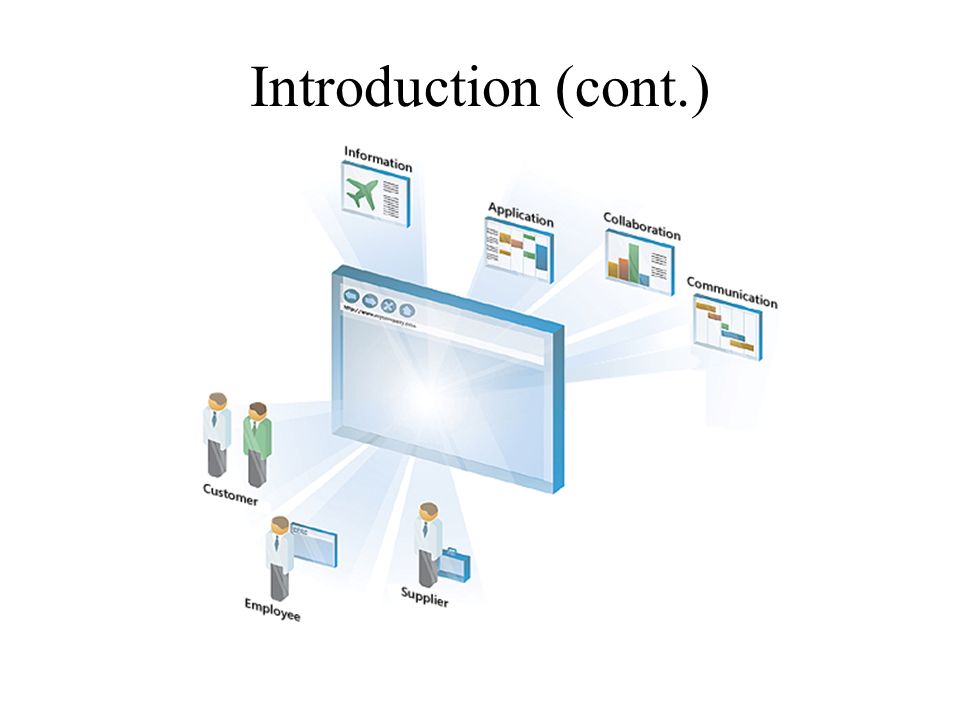

5. Introduction (cont.)

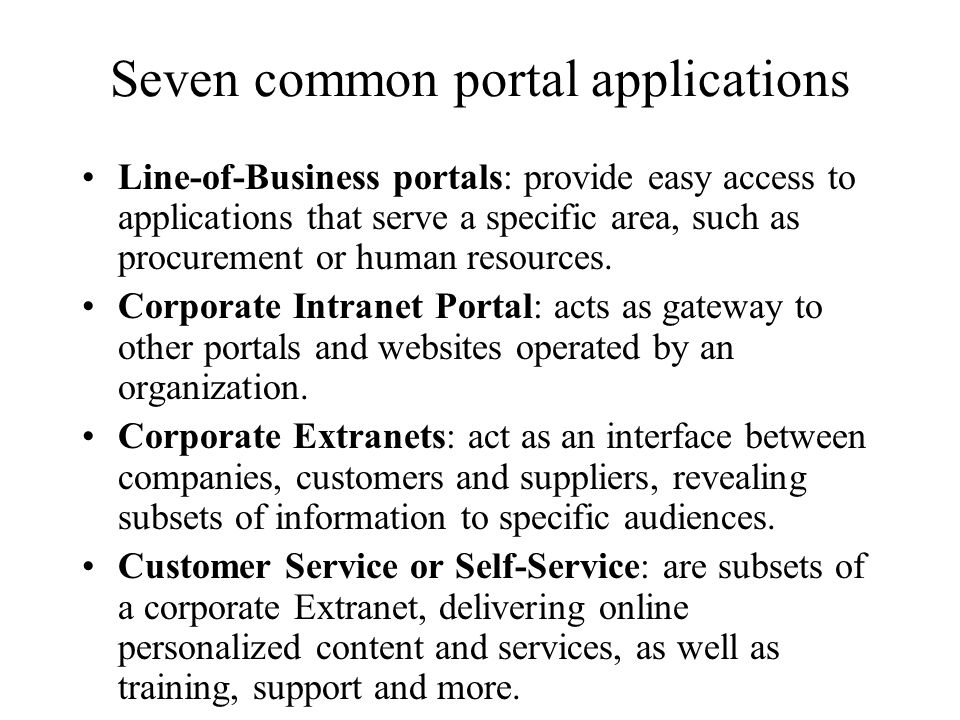

6. Seven common portal applications Line-of-Business portals: provide easy access to applications that serve a specific area, such as procurement or human resources. Corporate Intranet Portal: acts as gateway to other portals and websites operated by an organization. Corporate Extranets: act as an interface between companies, customers and suppliers, revealing subsets of information to specific audiences. Customer Service or Self-Service: are subsets of a corporate Extranet, delivering online personalized content and services, as well as training, support and more.

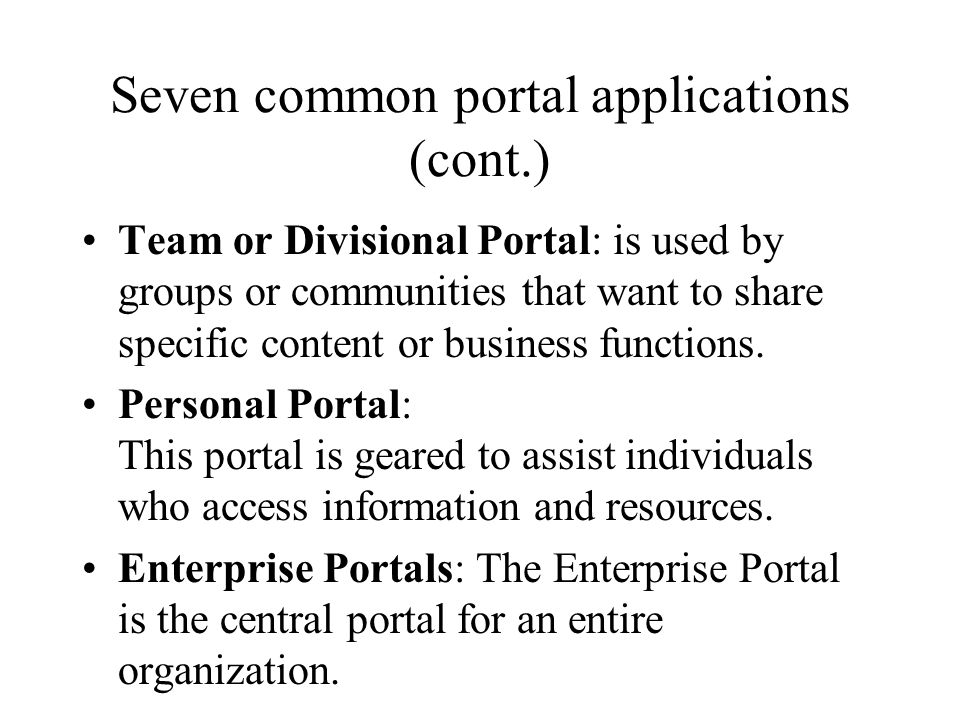

7. Seven common portal applications (cont.) Team or Divisional Portal: is used by groups or communities that want to share specific content or business functions. Personal Portal: This portal is geared to assist individuals who access information and resources. Enterprise Portals: The Enterprise Portal is the central portal for an entire organization.

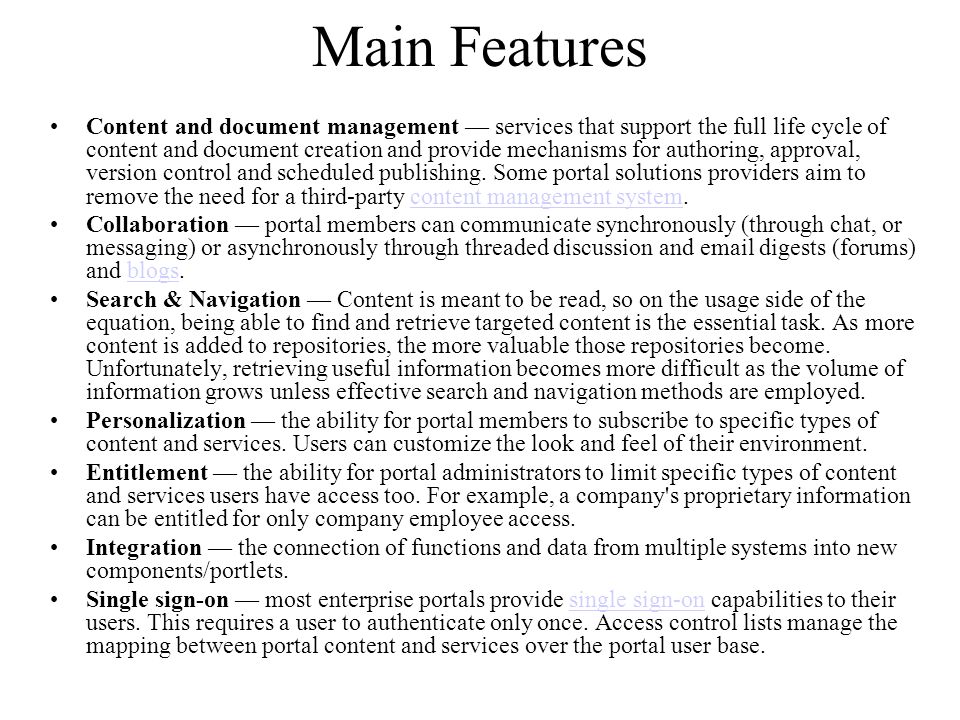

8. Main Features Content and document management — services that support the full life cycle of content and document creation and provide mechanisms for authoring, approval, version control and scheduled publishing. Some portal solutions providers aim to remove the need for a third-party content management system.content management system Collaboration — portal members can communicate synchronously (through chat, or messaging) or asynchronously through threaded discussion and email digests (forums) and blogs.blogs Search & Navigation — Content is meant to be read, so on the usage side of the equation, being able to find and retrieve targeted content is the essential task. As more content is added to repositories, the more valuable those repositories become. Unfortunately, retrieving useful information becomes more difficult as the volume of information grows unless effective search and navigation methods are employed. Personalization — the ability for portal members to subscribe to specific types of content and services. Users can customize the look and feel of their environment. Entitlement — the ability for portal administrators to limit specific types of content and services users have access too. For example, a company's proprietary information can be entitled for only company employee access. Integration — the connection of functions and data from multiple systems into new components/portlets. Single sign-on — most enterprise portals provide single sign-on capabilities to their users. This requires a user to authenticate only once. Access control lists manage the mapping between portal content and services over the portal user base.single sign-on

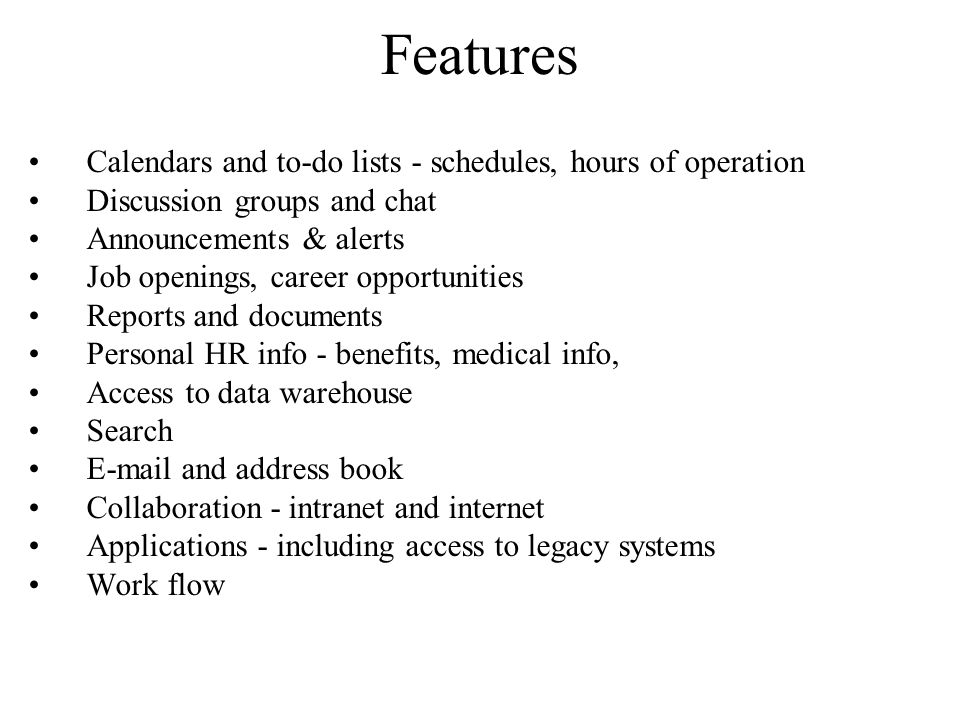

9. Features Calendars and to-do lists - schedules, hours of operation Discussion groups and chat Announcements & alerts Job openings, career opportunities Reports and documents Personal HR info - benefits, medical info, Access to data warehouse Search E-mail and address book Collaboration - intranet and internet Applications - including access to legacy systems Work flow

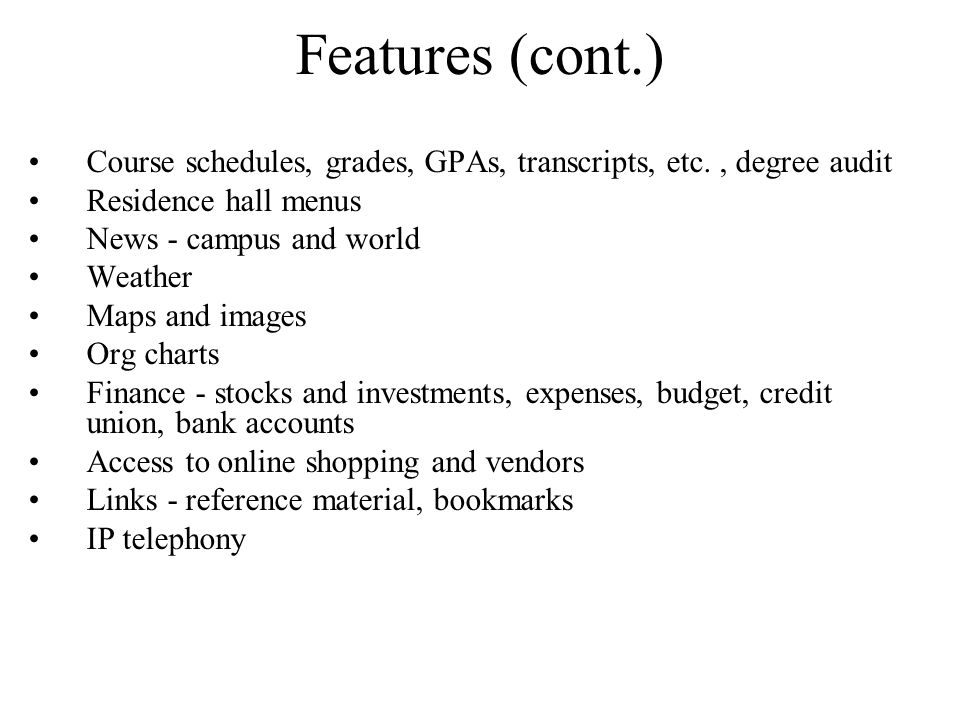

10. Features (cont.) Course schedules, grades, GPAs, transcripts, etc., degree audit Residence hall menus News - campus and world Weather Maps and images Org charts Finance - stocks and investments, expenses, budget, credit union, bank accounts Access to online shopping and vendors Links - reference material, bookmarks IP telephony

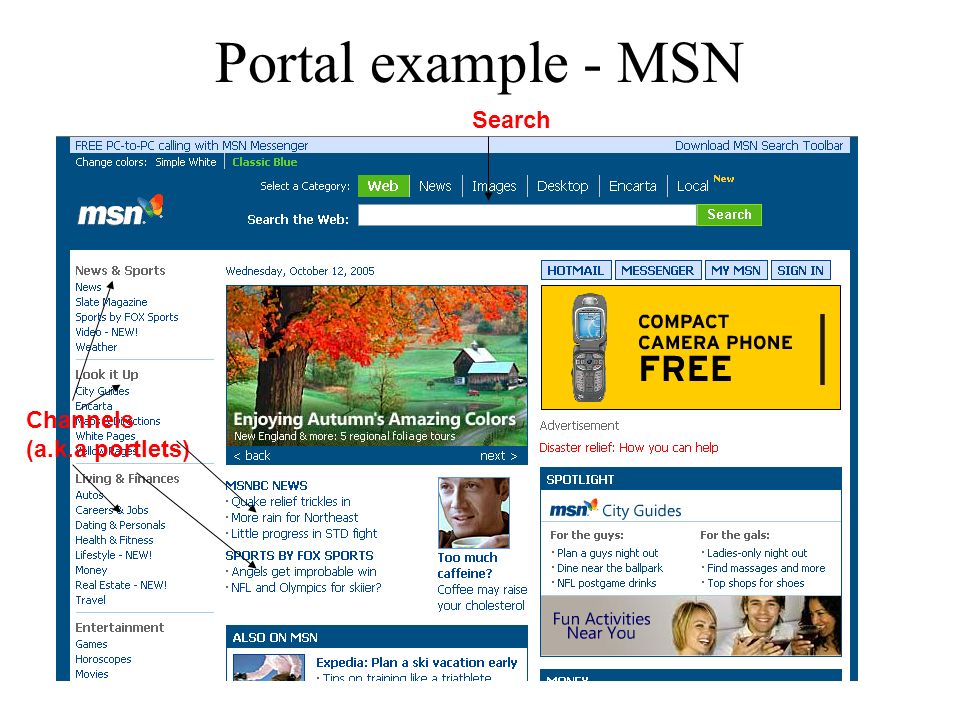

11. Portal example - MSN Channels (a.k.a portlets) Search

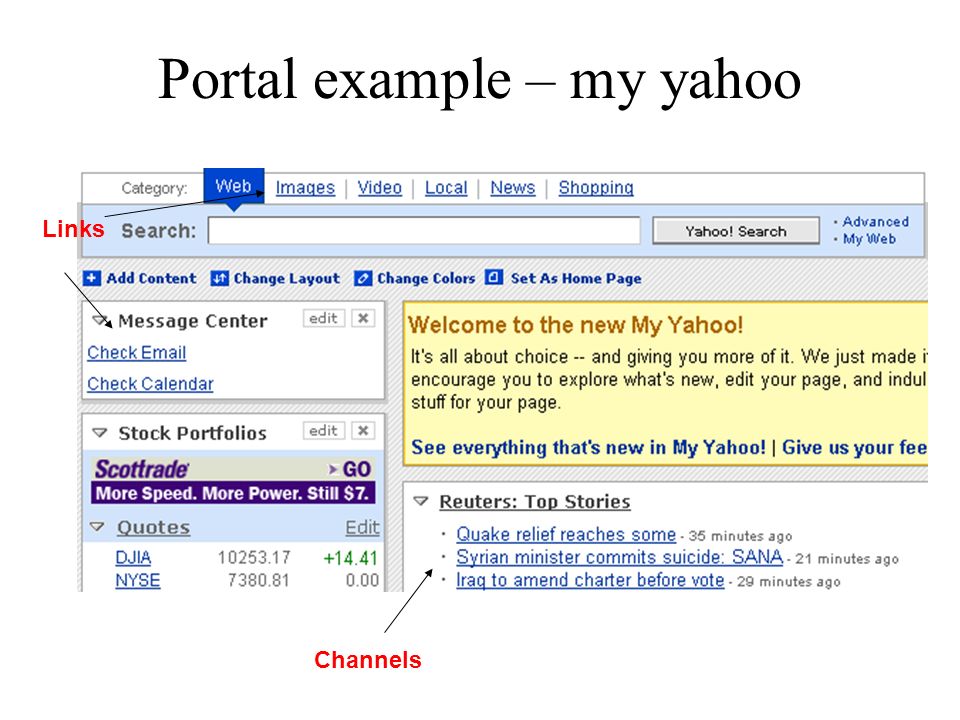

12. Portal example – my yahoo Links Channels

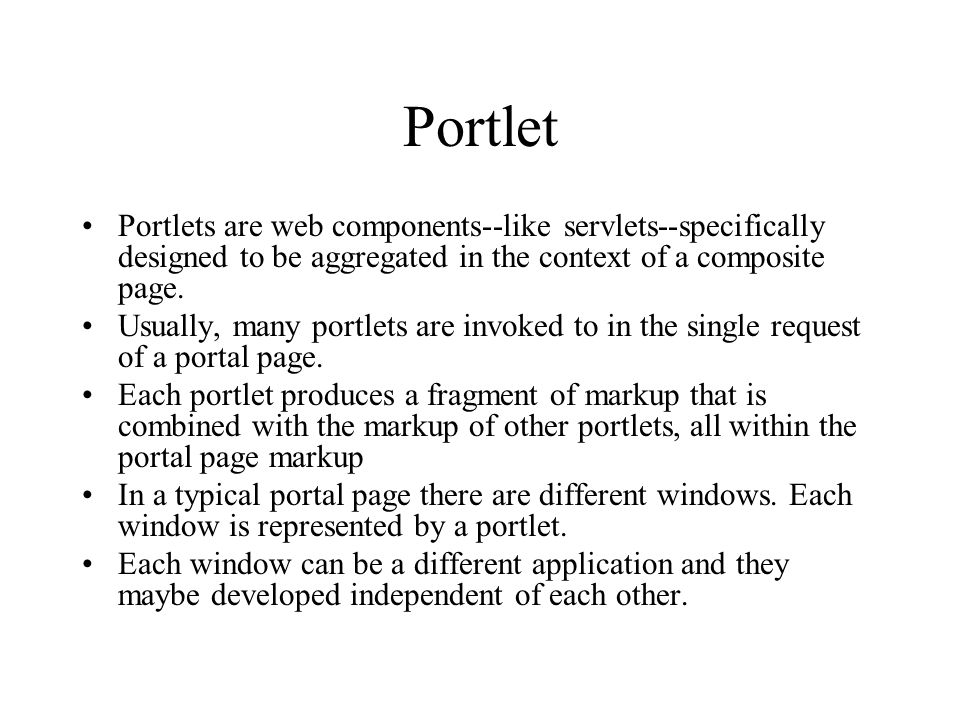

13. Portlet Portlets are web components--like servlets--specifically designed to be aggregated in the context of a composite page. Usually, many portlets are invoked to in the single request of a portal page. Each portlet produces a fragment of markup that is combined with the markup of other portlets, all within the portal page markup In a typical portal page there are different windows. Each window is represented by a portlet. Each window can be a different application and they maybe developed independent of each other.

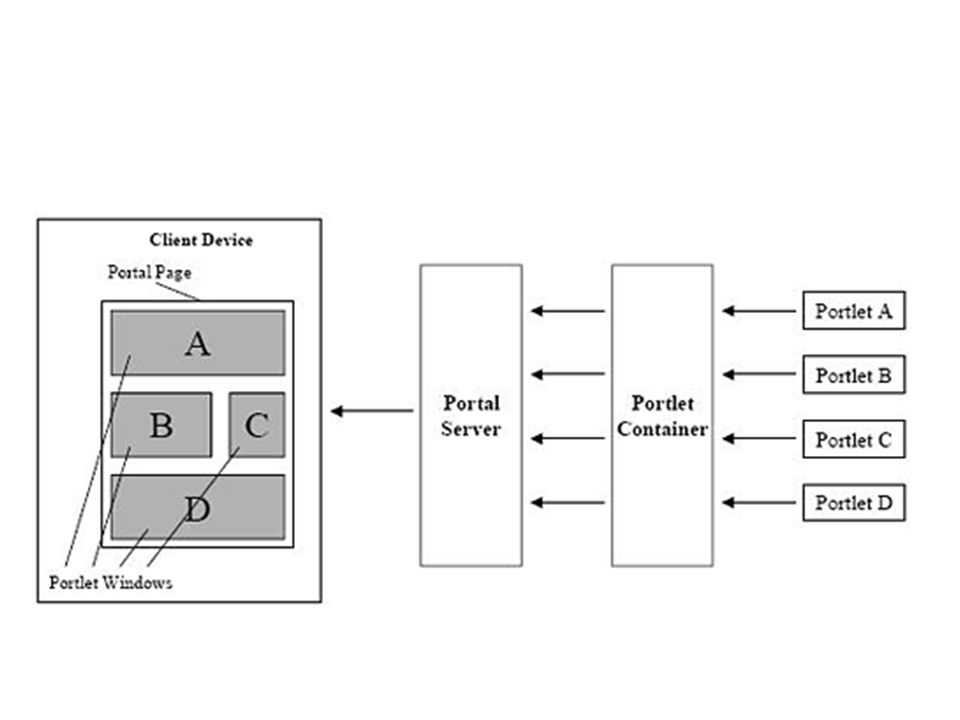

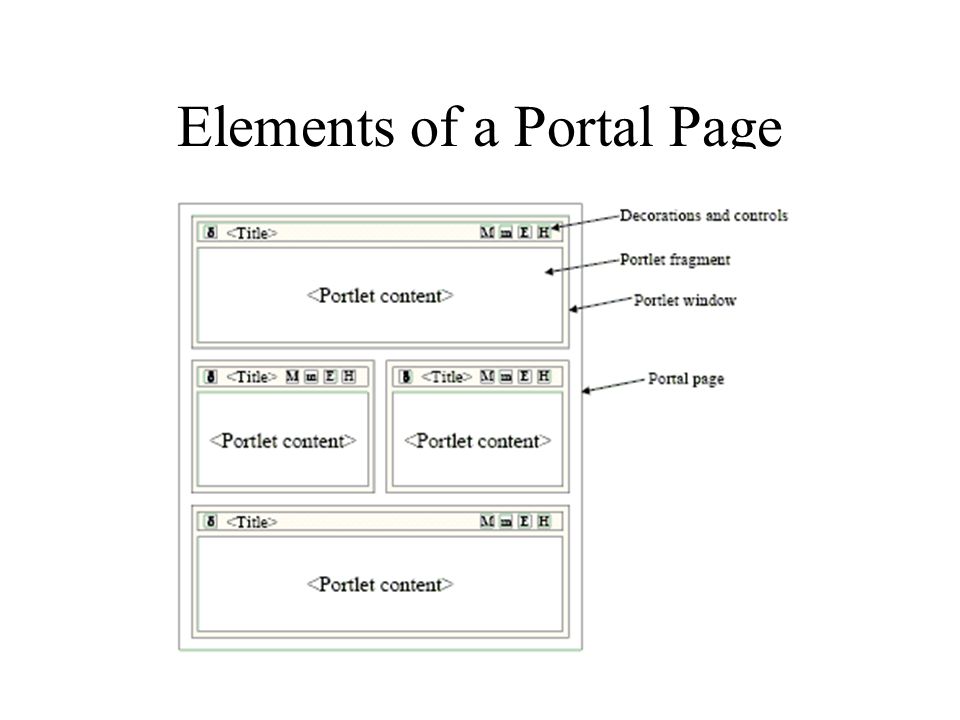

14. Elements of a Portal Page

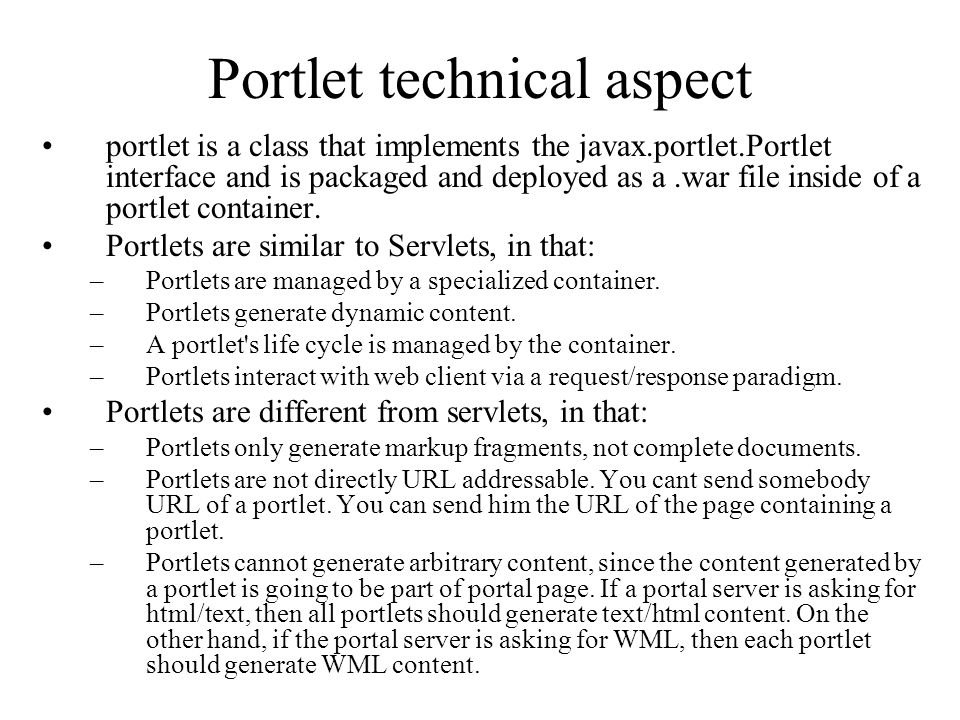

15. Portlet technical aspect portlet is a class that implements the javax.portlet.Portlet interface and is packaged and deployed as a.war file inside of a portlet container. Portlets are similar to Servlets, in that: –Portlets are managed by a specialized container. –Portlets generate dynamic content. –A portlet's life cycle is managed by the container. –Portlets interact with web client via a request/response paradigm. Portlets are different from servlets, in that: –Portlets only generate markup fragments, not complete documents. –Portlets are not directly URL addressable. You cant send somebody URL of a portlet. You can send him the URL of the page containing a portlet. –Portlets cannot generate arbitrary content, since the content generated by a portlet is going to be part of portal page. If a portal server is asking for html/text, then all portlets should generate text/html content. On the other hand, if the portal server is asking for WML, then each portlet should generate WML content.

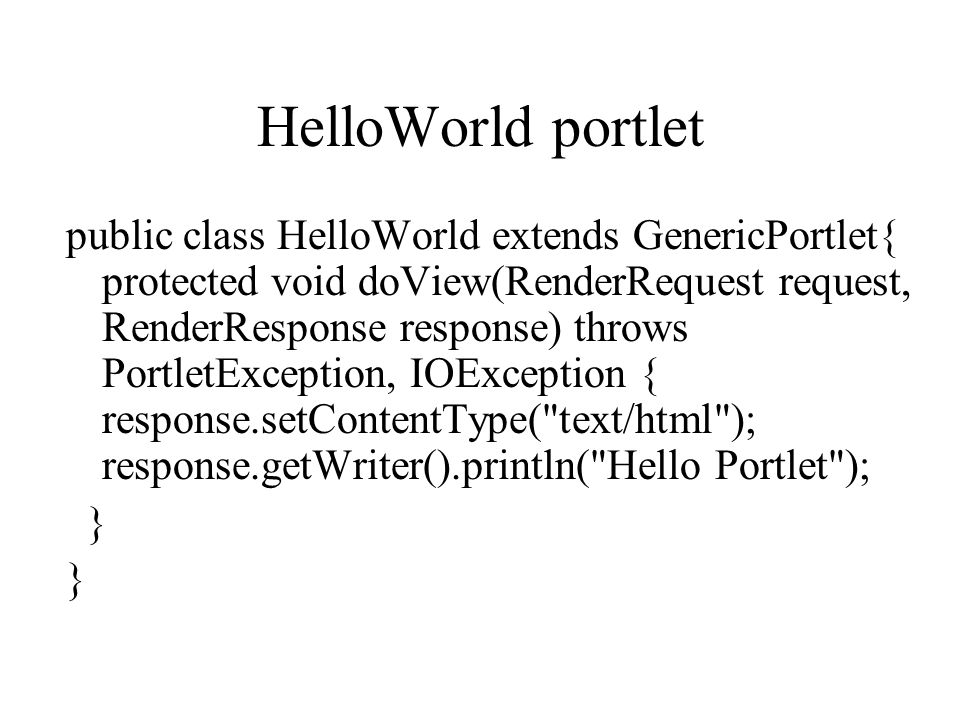

16. HelloWorld portlet public class HelloWorld extends GenericPortlet{ protected void doView(RenderRequest request, RenderResponse response) throws PortletException, IOException { response.setContentType("text/html"); response.getWriter().println("Hello Portlet"); }

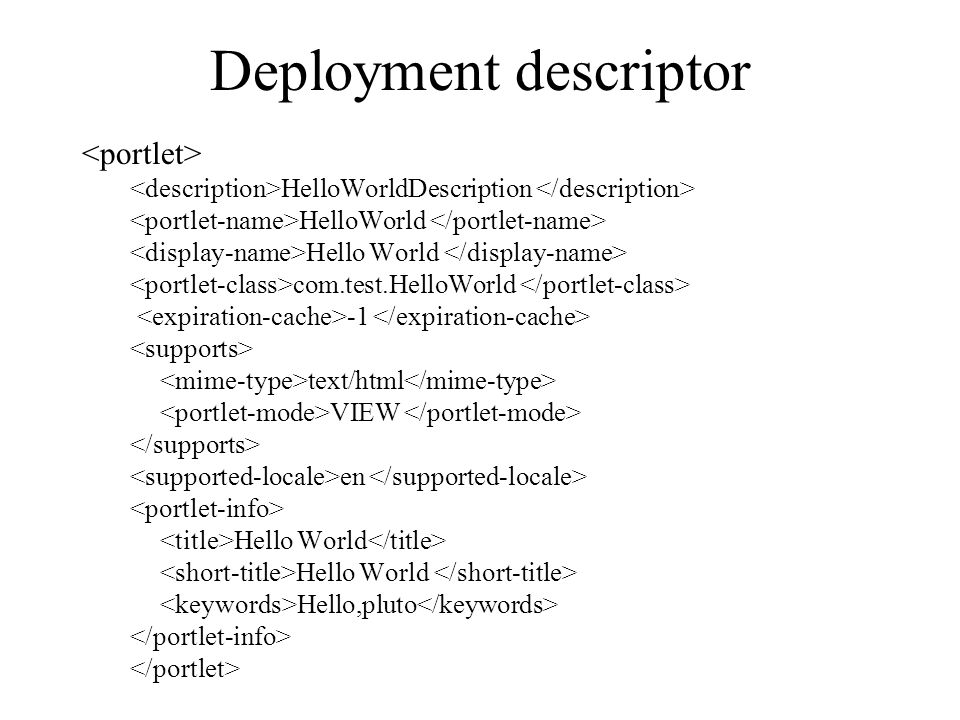

17. Deployment descriptor HelloWorldDescription HelloWorld com.test.HelloWorld text/html VIEW en Hello World Hello,pluto

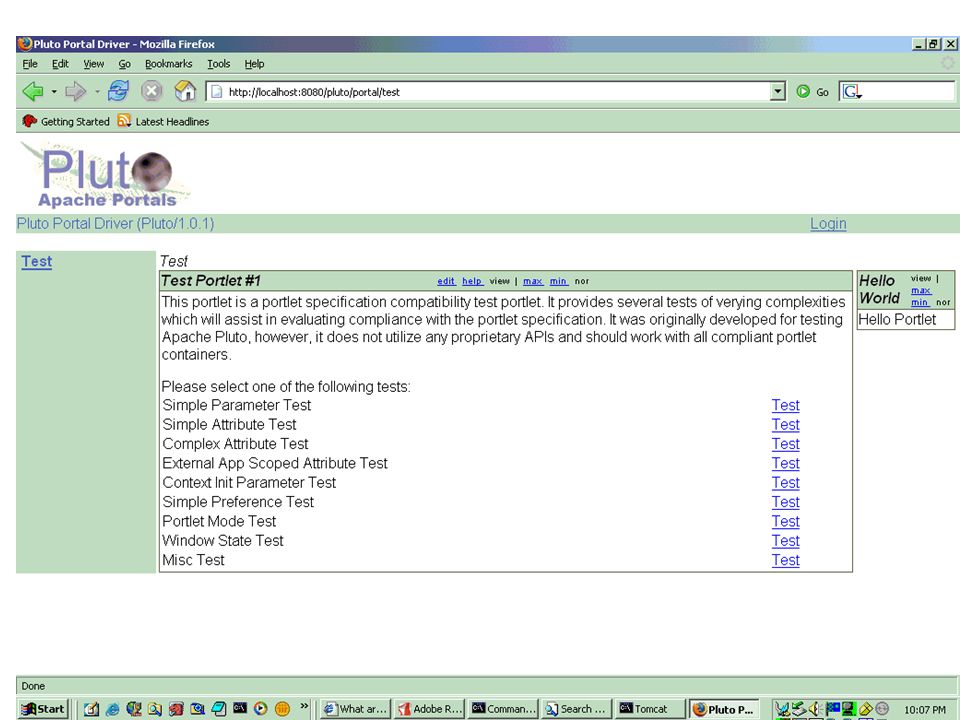

18. Deployment in Pluto Pluto is the reference implementation of JSR 168 (Portlet specification) portletentityregistry.xml : HelloWorld HelloWorld.HelloWorld

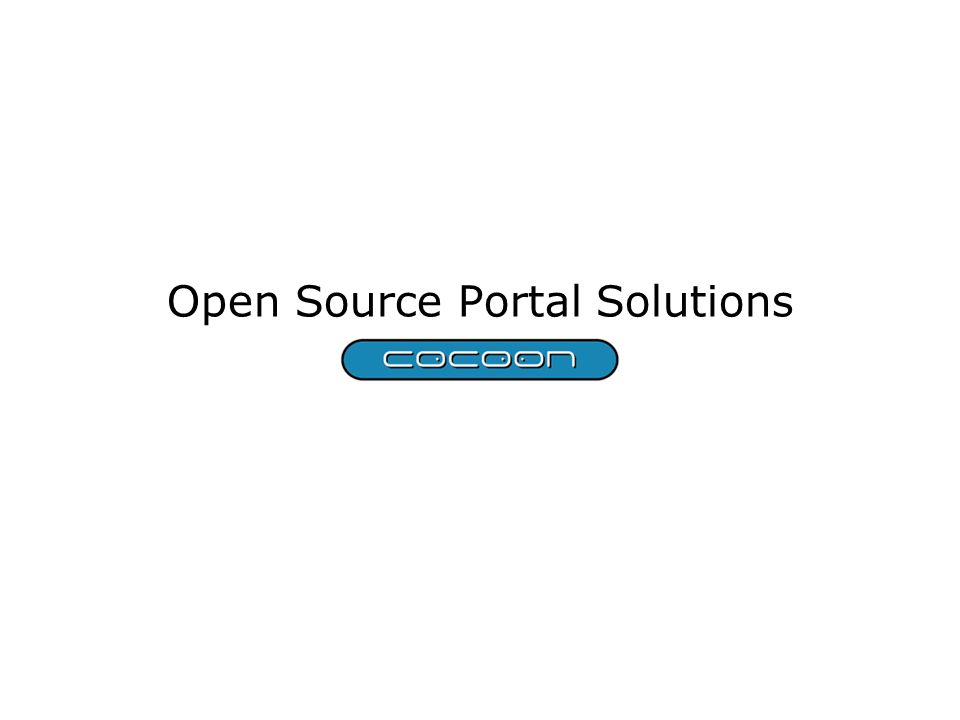

21. Open Source Portal Solutions

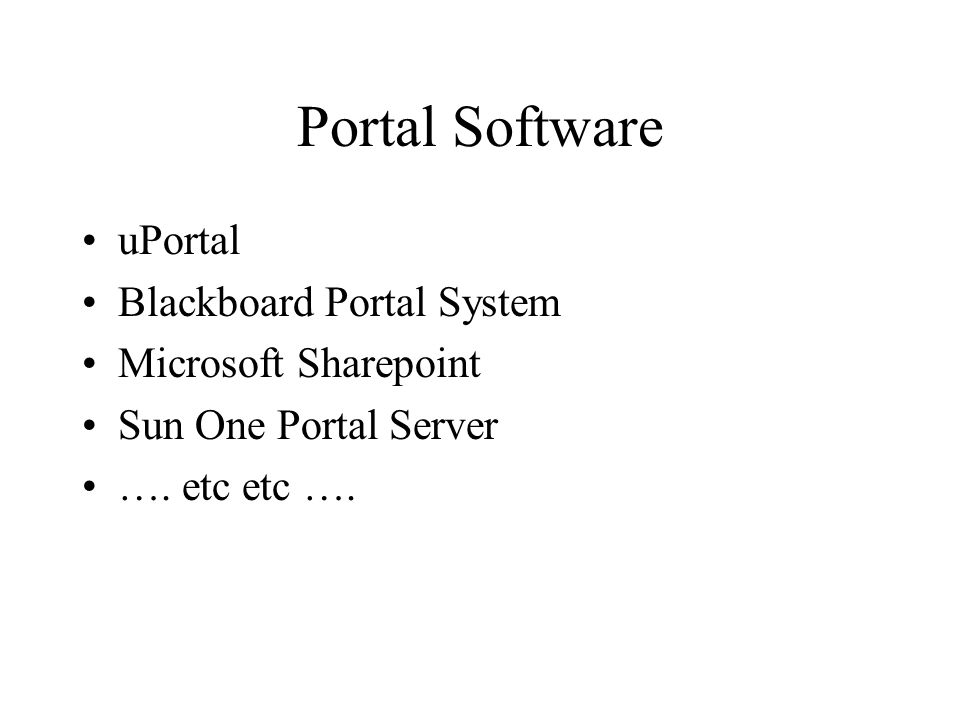

22. Portal Software uPortal Blackboard Portal System Microsoft Sharepoint Sun One Portal Server …. etc etc ….

23. Portals @ Apache Top-level ASF project Contains several portal-related sub-projects –Jetspeed 1 –Jetspeed 2 –Pluto –WSRP-4J (Web Services for Remote Portlets) Cross-pollination with other Apache projects –Maven –Jakarta Tomcat –Cocoon

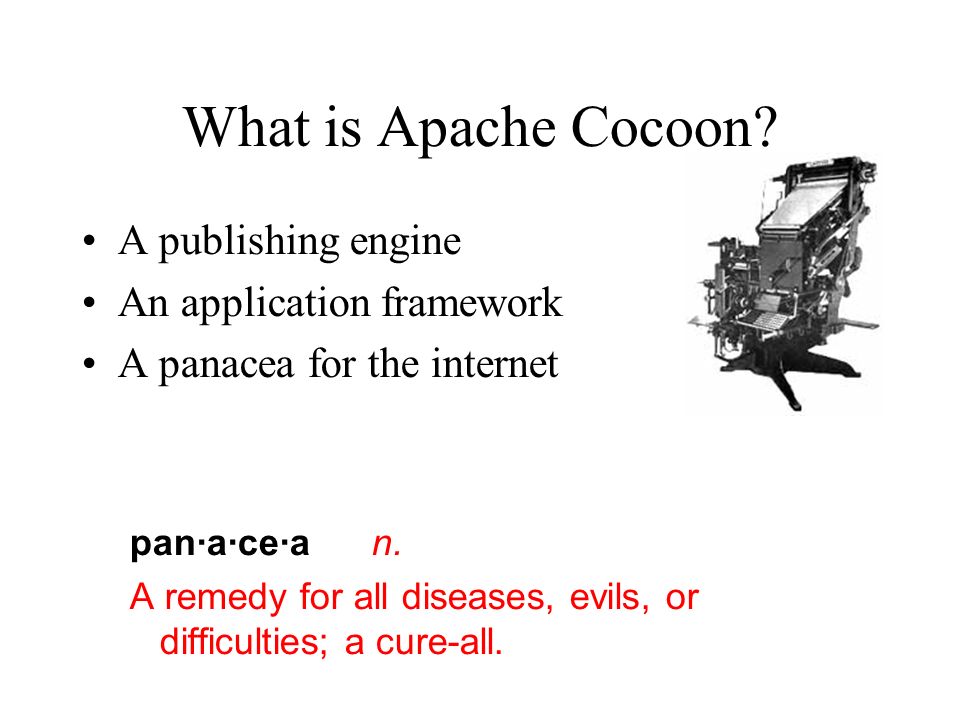

24. What is Apache Cocoon? A publishing engine An application framework A panacea for the internet pan·a·ce·a n. A remedy for all diseases, evils, or difficulties; a cure-all.

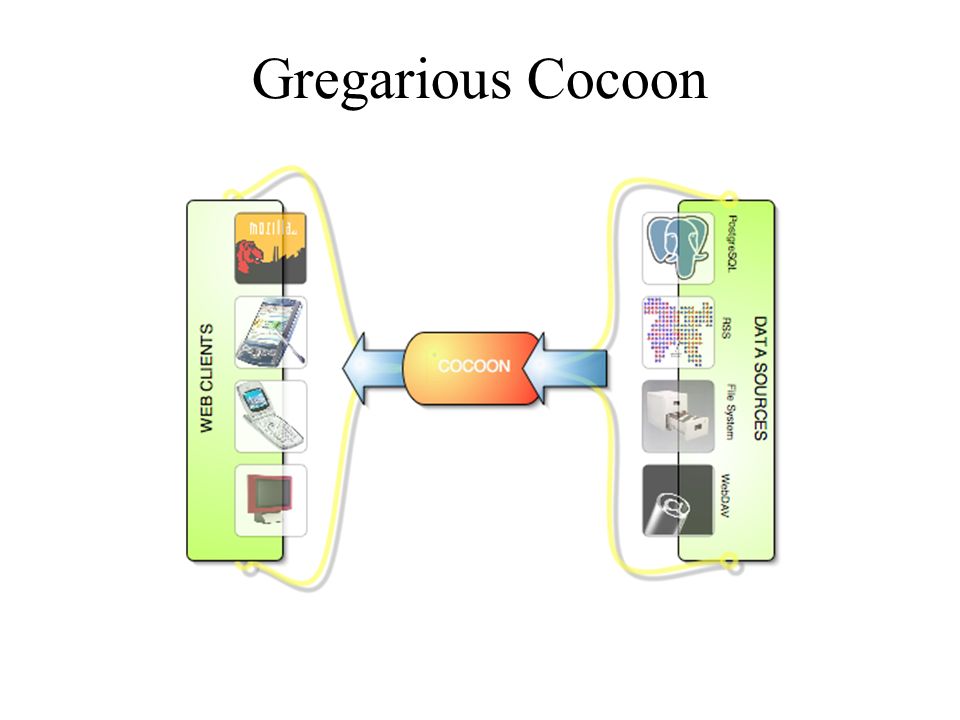

25. Gregarious Cocoon

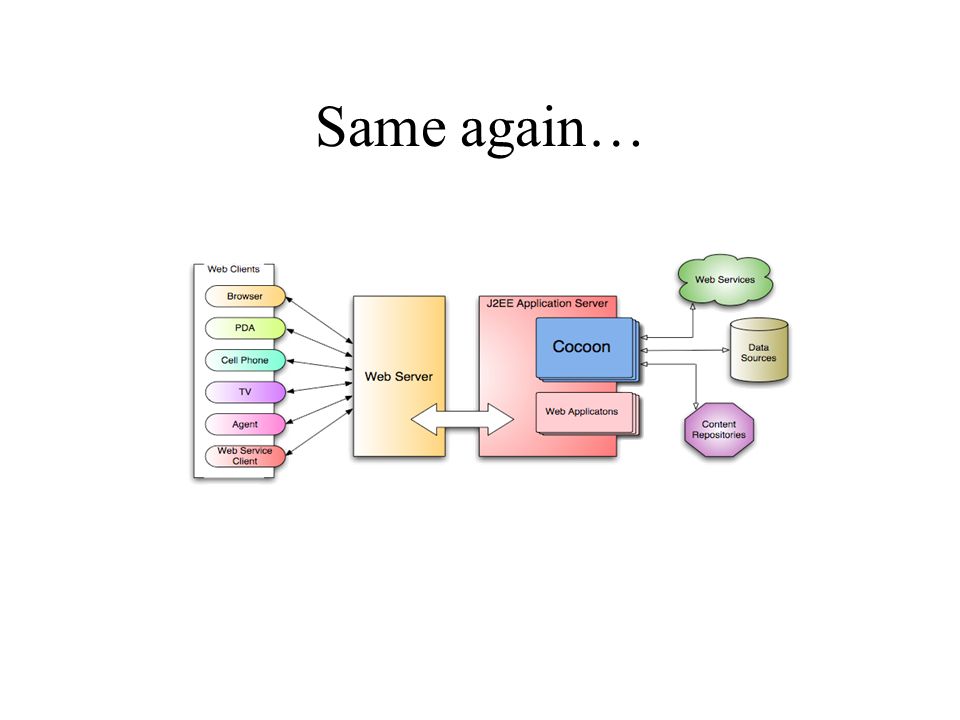

26. Same again…

27. Once more, different view

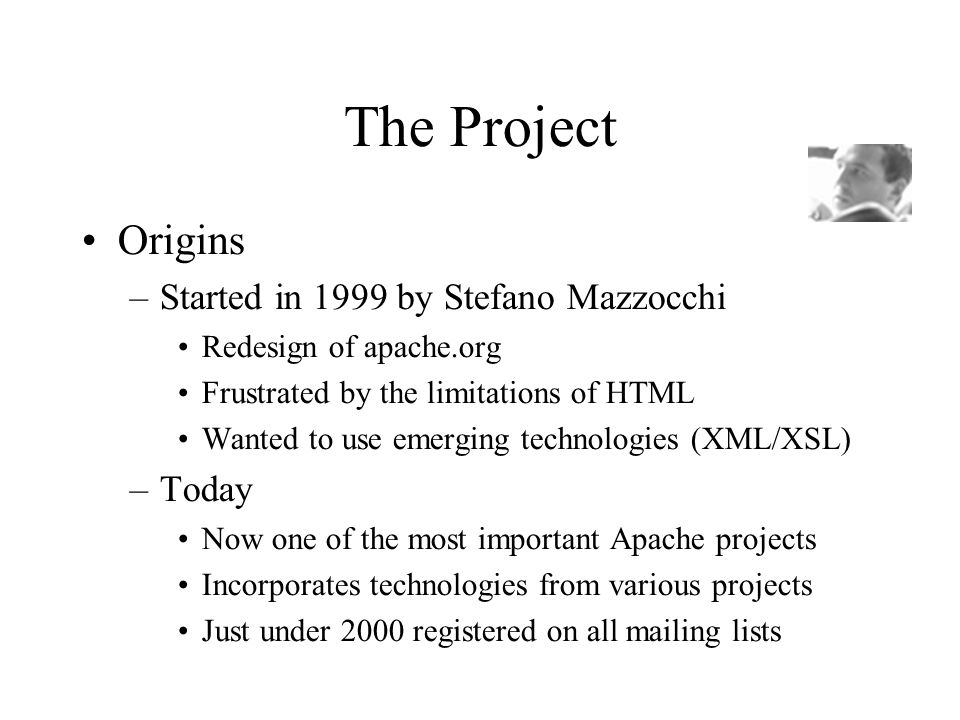

28. The Project Origins –Started in 1999 by Stefano Mazzocchi Redesign of apache.org Frustrated by the limitations of HTML Wanted to use emerging technologies (XML/XSL) –Today Now one of the most important Apache projects Incorporates technologies from various projects Just under 2000 registered on all mailing lists

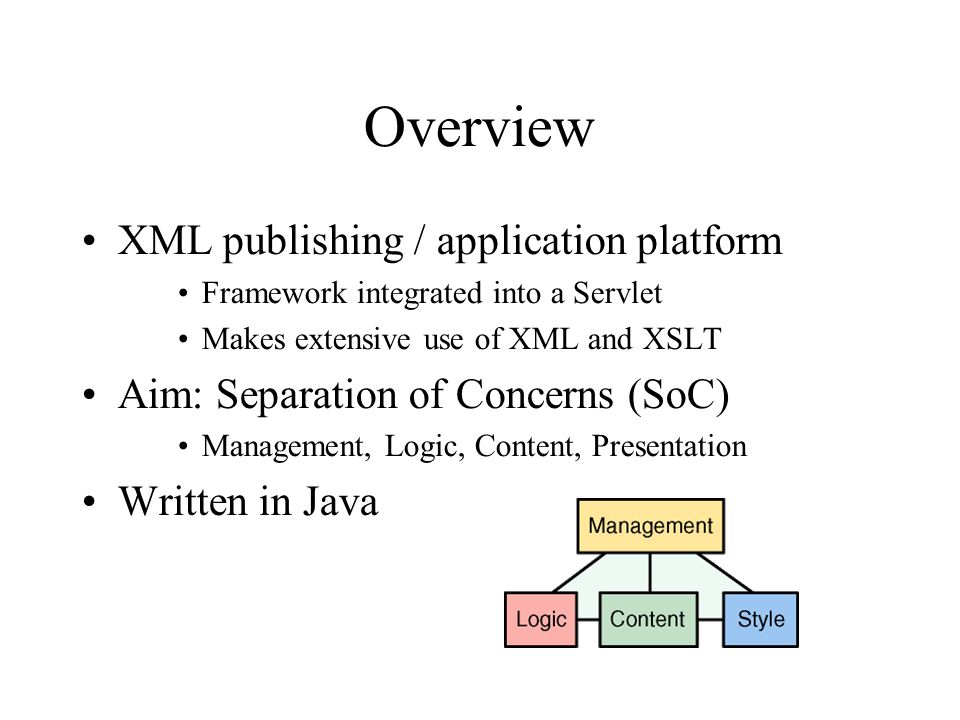

29. Overview XML publishing / application platform Framework integrated into a Servlet Makes extensive use of XML and XSLT Aim: Separation of Concerns (SoC) Management, Logic, Content, Presentation Written in Java

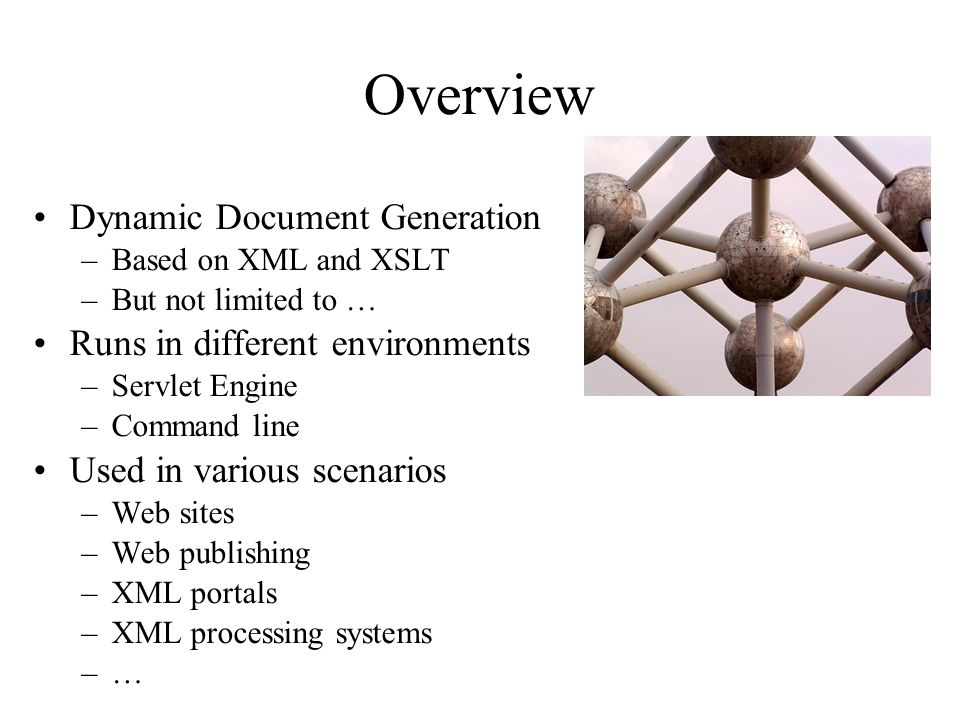

30. Overview Dynamic Document Generation –Based on XML and XSLT –But not limited to … Runs in different environments –Servlet Engine –Command line Used in various scenarios –Web sites –Web publishing –XML portals –XML processing systems –…

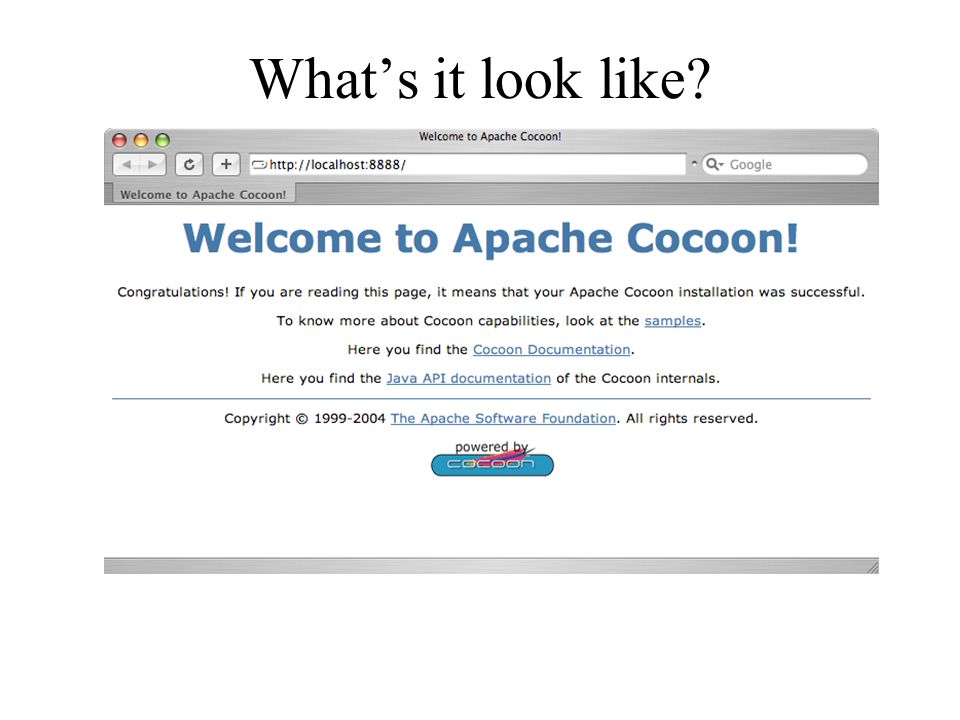

31. What’s it look like?

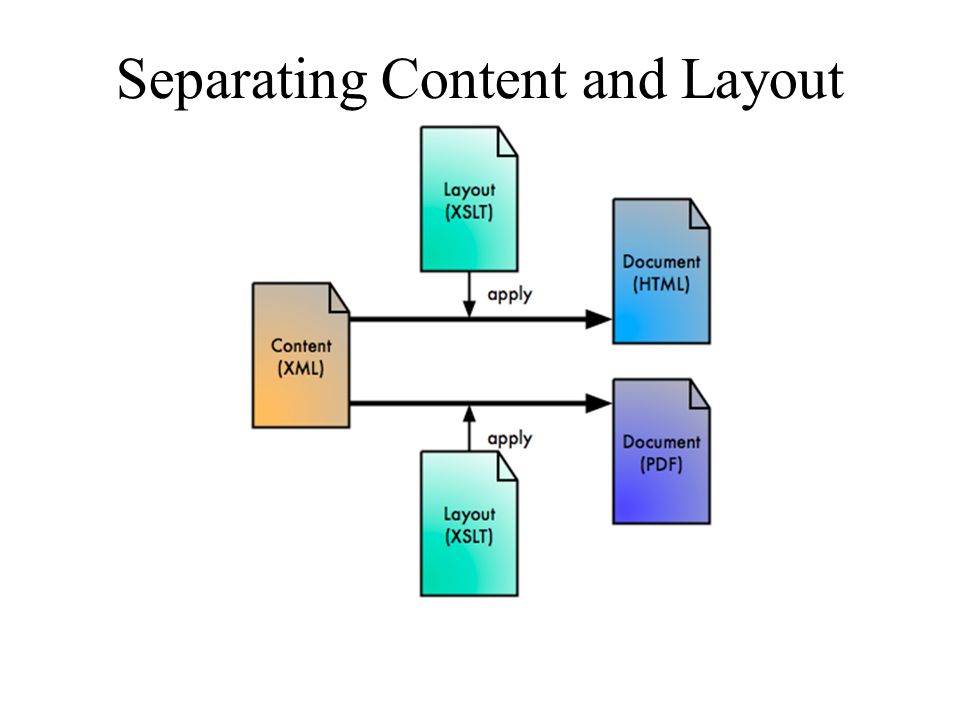

32. Separating Content and Layout

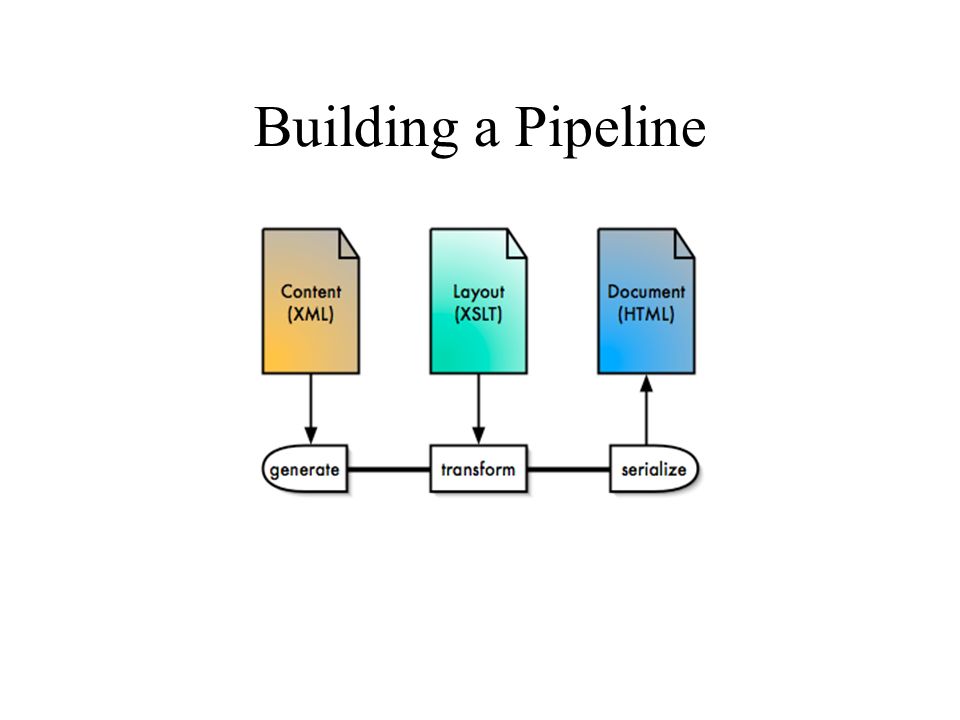

33. Building a Pipeline

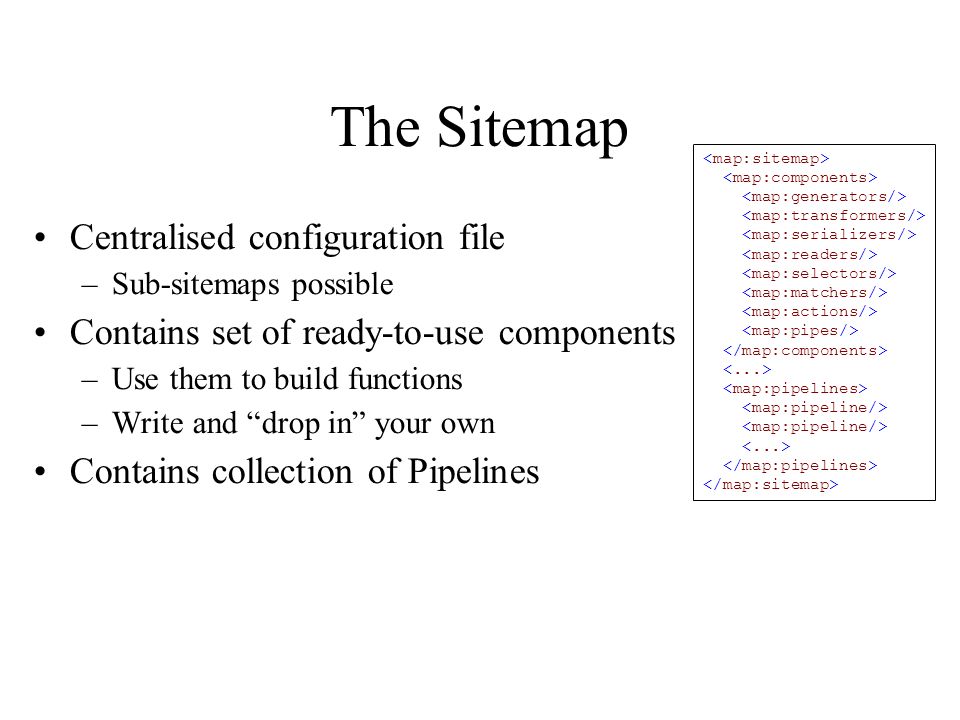

34. The Sitemap Centralised configuration file –Sub-sitemaps possible Contains set of ready-to-use components –Use them to build functions –Write and “drop in” your own Contains collection of Pipelines

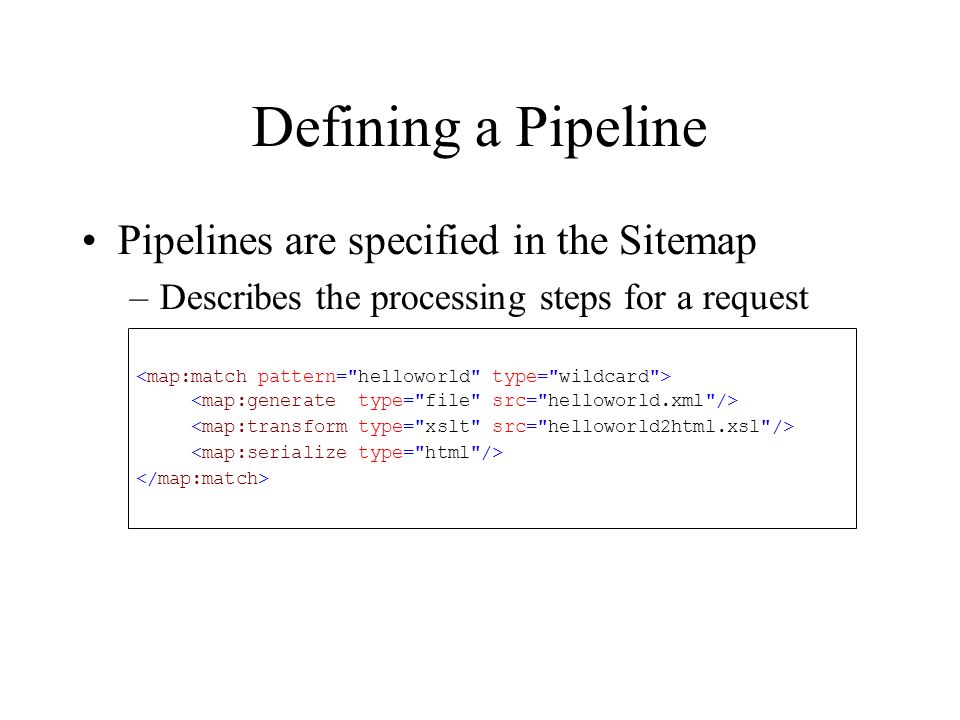

35. Defining a Pipeline Pipelines are specified in the Sitemap –Describes the processing steps for a request –Matches a pipeline to a request URI –Example: http://localhost:8888/helloworld

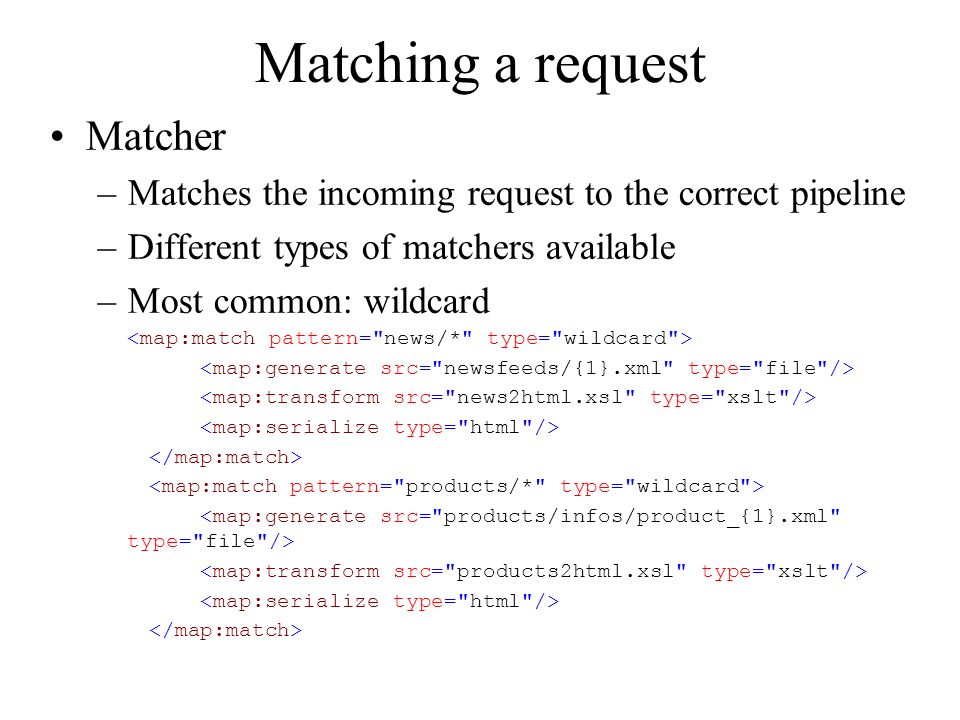

36. Matching a request Matcher –Matches the incoming request to the correct pipeline –Different types of matchers available –Most common: wildcard

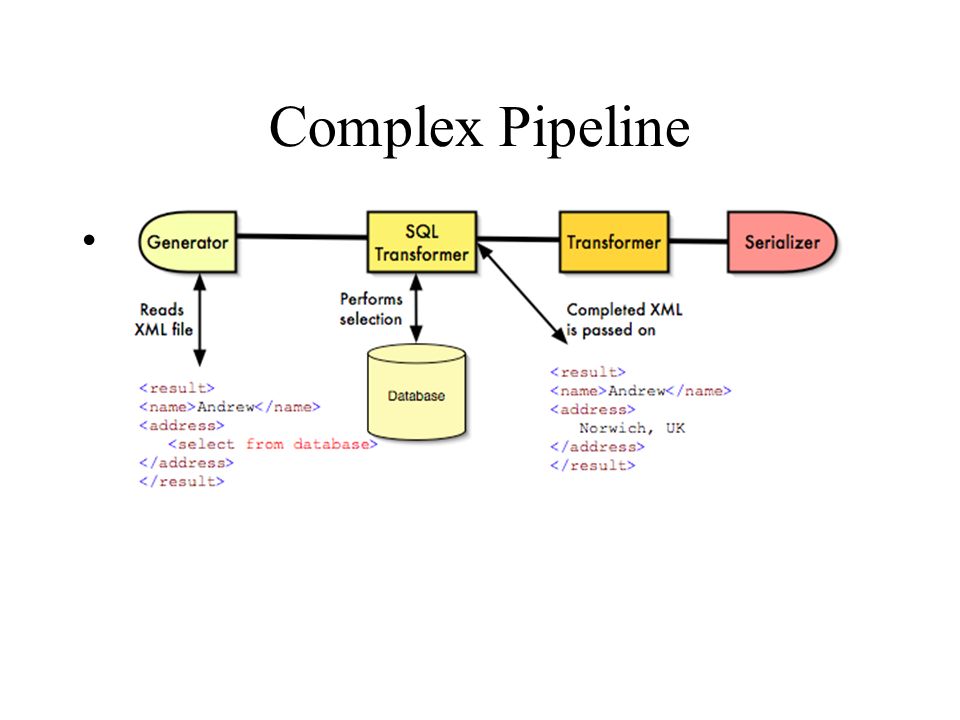

37. Complex Pipeline Transformer example with commands

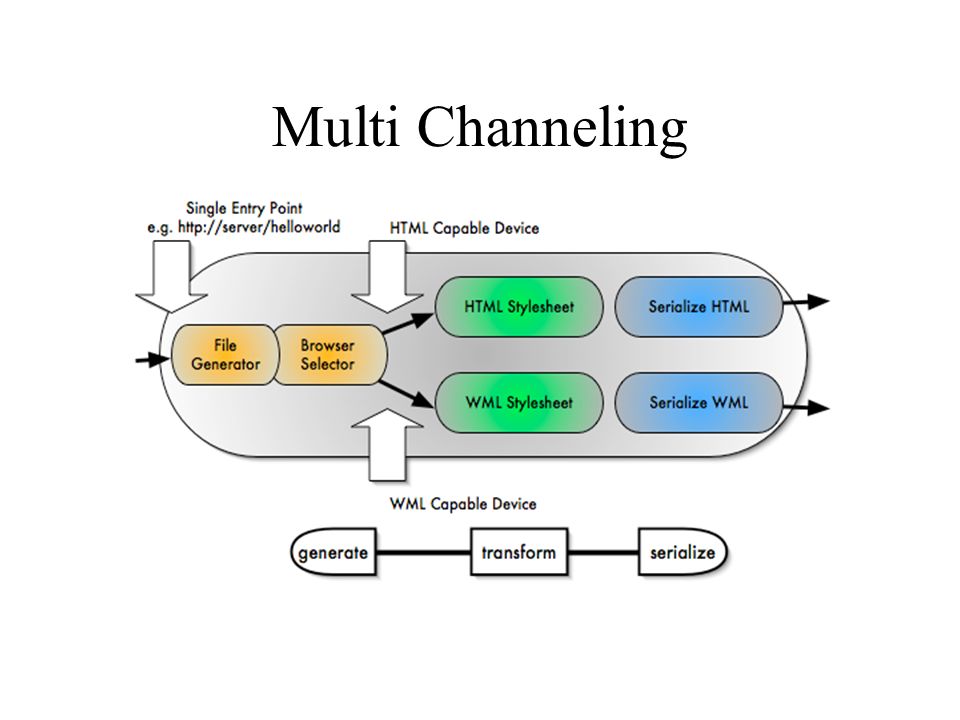

38. Multi Channeling

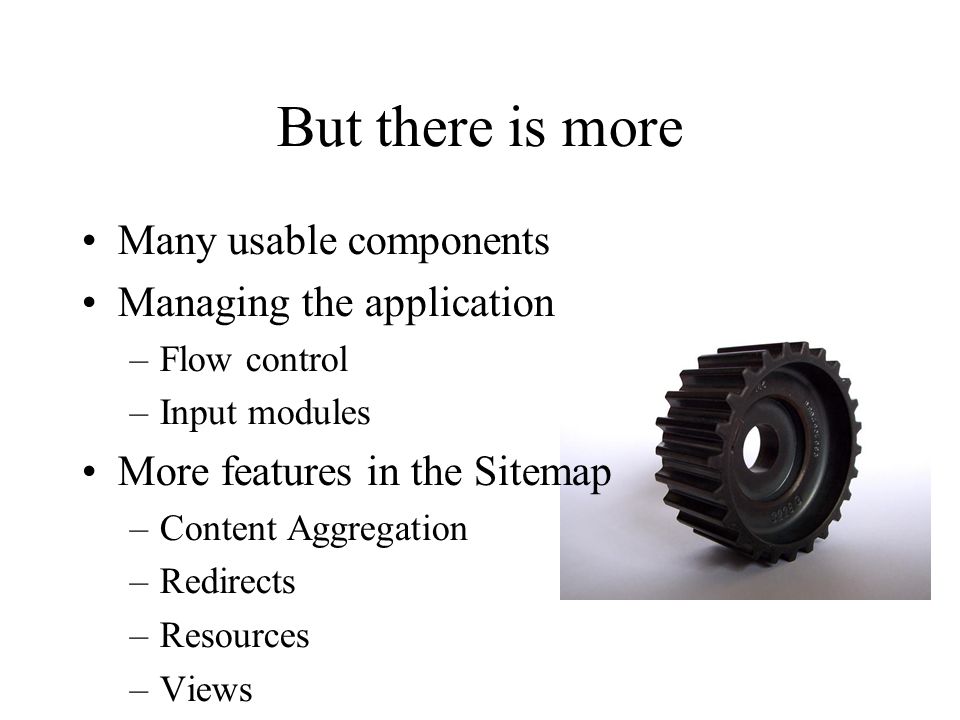

39. But there is more Many usable components Managing the application –Flow control –Input modules More features in the Sitemap –Content Aggregation –Redirects –Resources –Views

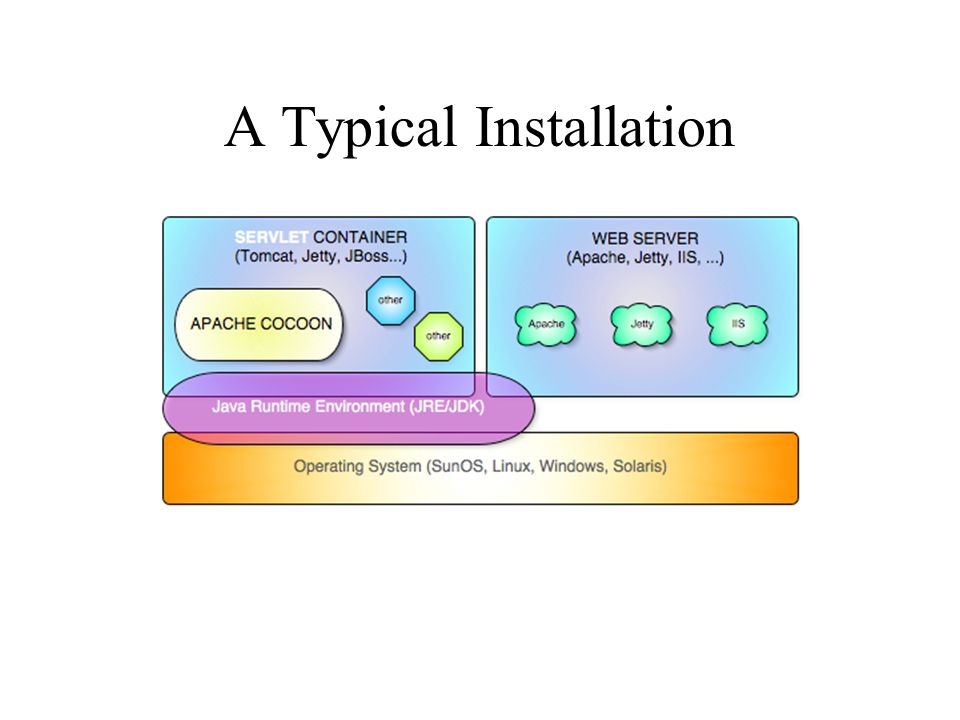

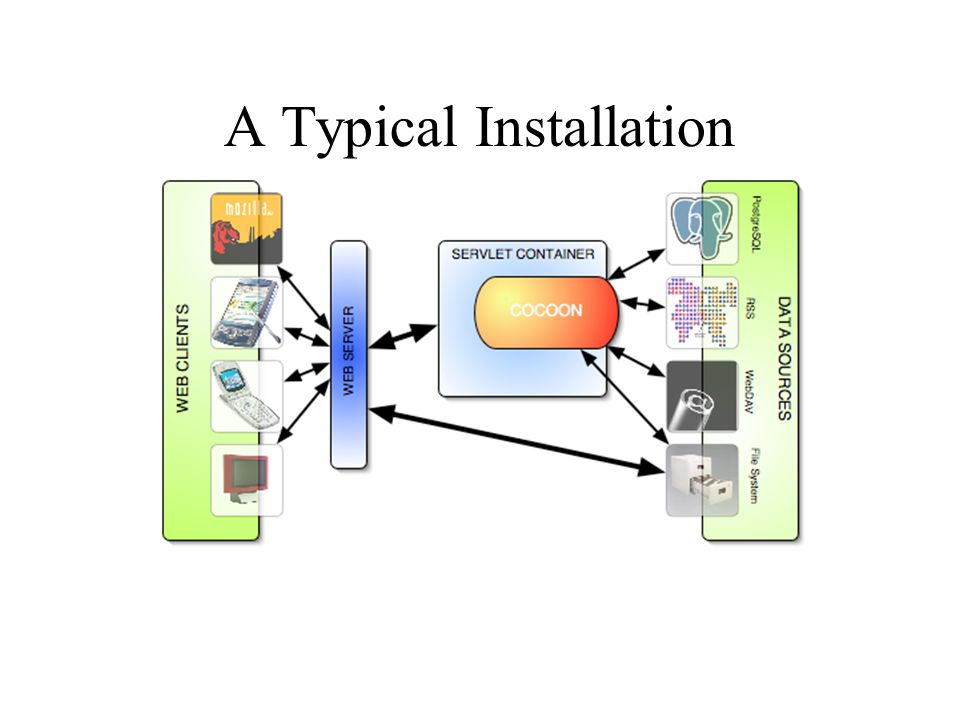

40. A Typical Installation

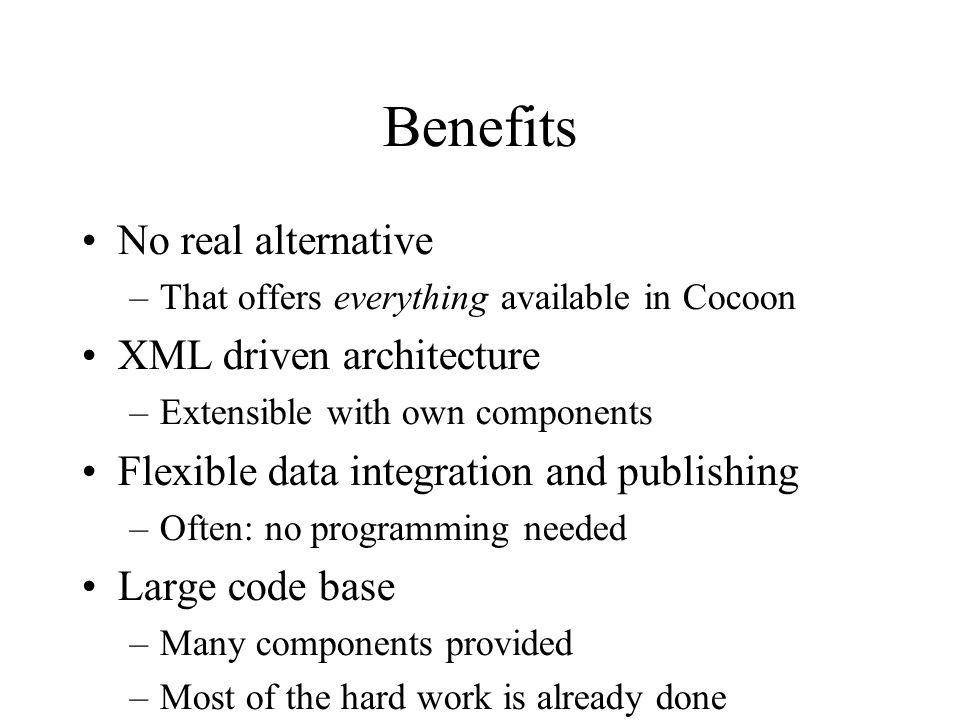

42. Benefits No real alternative –That offers everything available in Cocoon XML driven architecture –Extensible with own components Flexible data integration and publishing –Often: no programming needed Large code base –Many components provided –Most of the hard work is already done

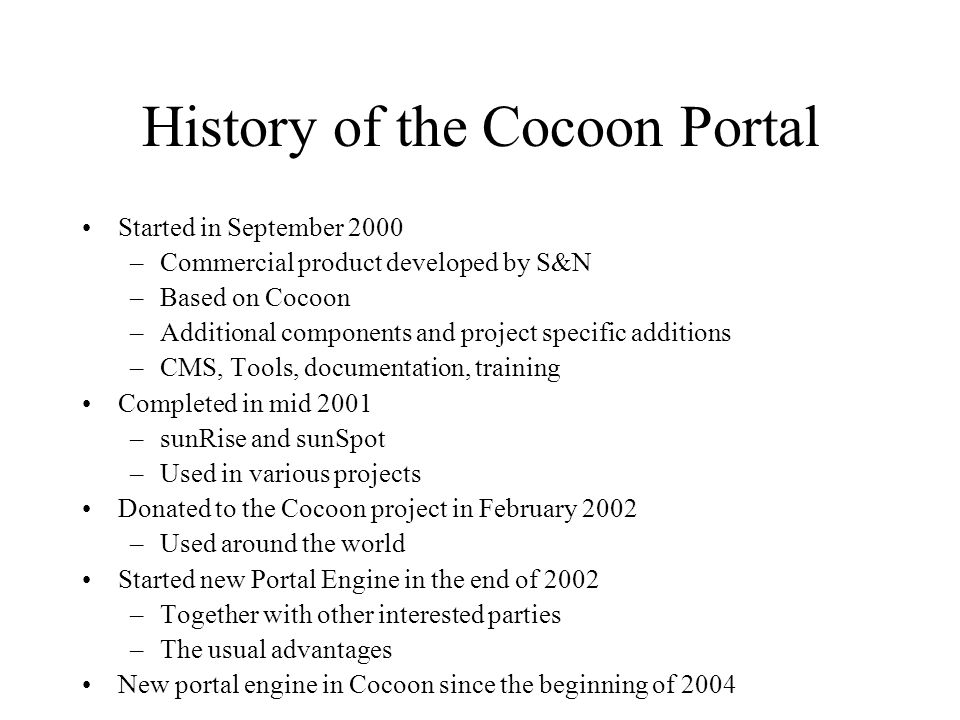

43. History of the Cocoon Portal Started in September 2000 –Commercial product developed by S&N –Based on Cocoon –Additional components and project specific additions –CMS, Tools, documentation, training Completed in mid 2001 –sunRise and sunSpot –Used in various projects Donated to the Cocoon project in February 2002 –Used around the world Started new Portal Engine in the end of 2002 –Together with other interested parties –The usual advantages New portal engine in Cocoon since the beginning of 2004

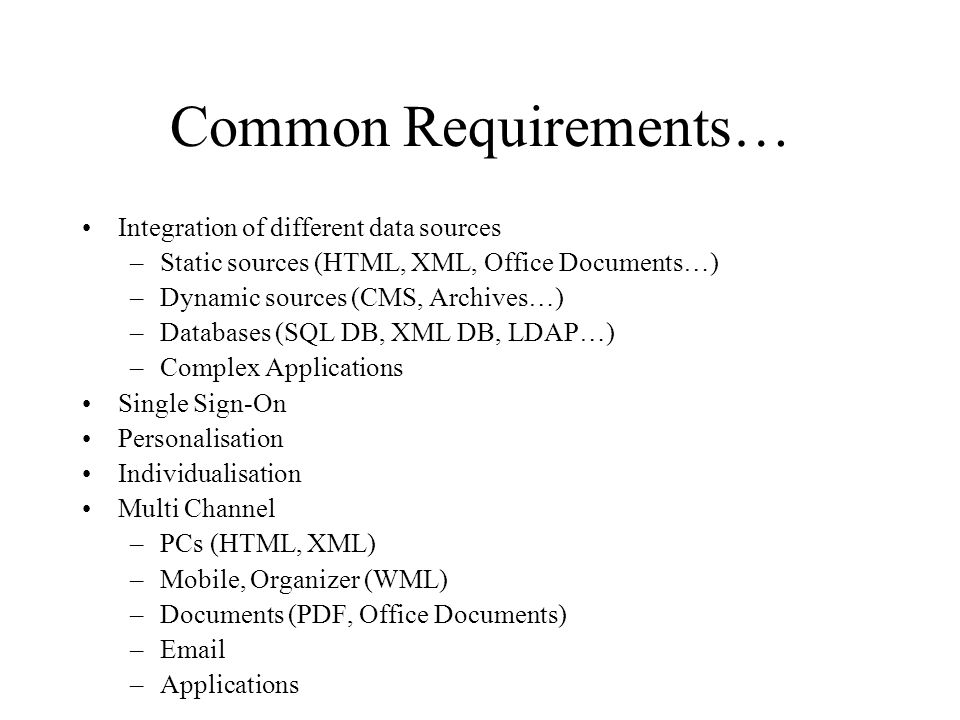

44. Common Requirements… Integration of different data sources –Static sources (HTML, XML, Office Documents…) –Dynamic sources (CMS, Archives…) –Databases (SQL DB, XML DB, LDAP…) –Complex Applications Single Sign-On Personalisation Individualisation Multi Channel –PCs (HTML, XML) –Mobile, Organizer (WML) –Documents (PDF, Office Documents) –Email –Applications

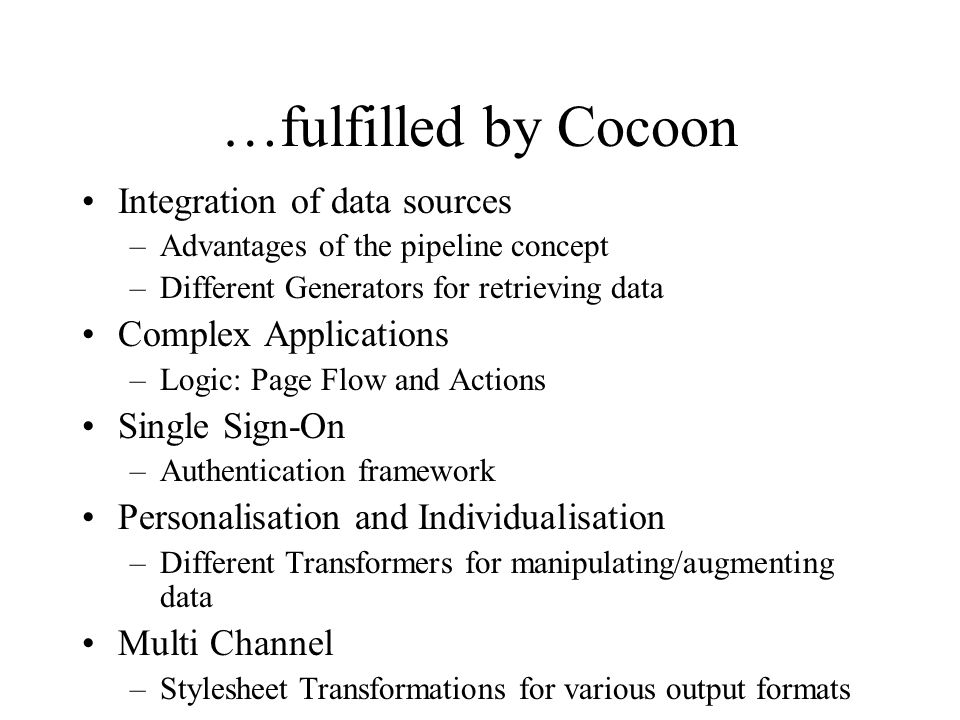

45. …fulfilled by Cocoon Integration of data sources –Advantages of the pipeline concept –Different Generators for retrieving data Complex Applications –Logic: Page Flow and Actions Single Sign-On –Authentication framework Personalisation and Individualisation –Different Transformers for manipulating/augmenting data Multi Channel –Stylesheet Transformations for various output formats

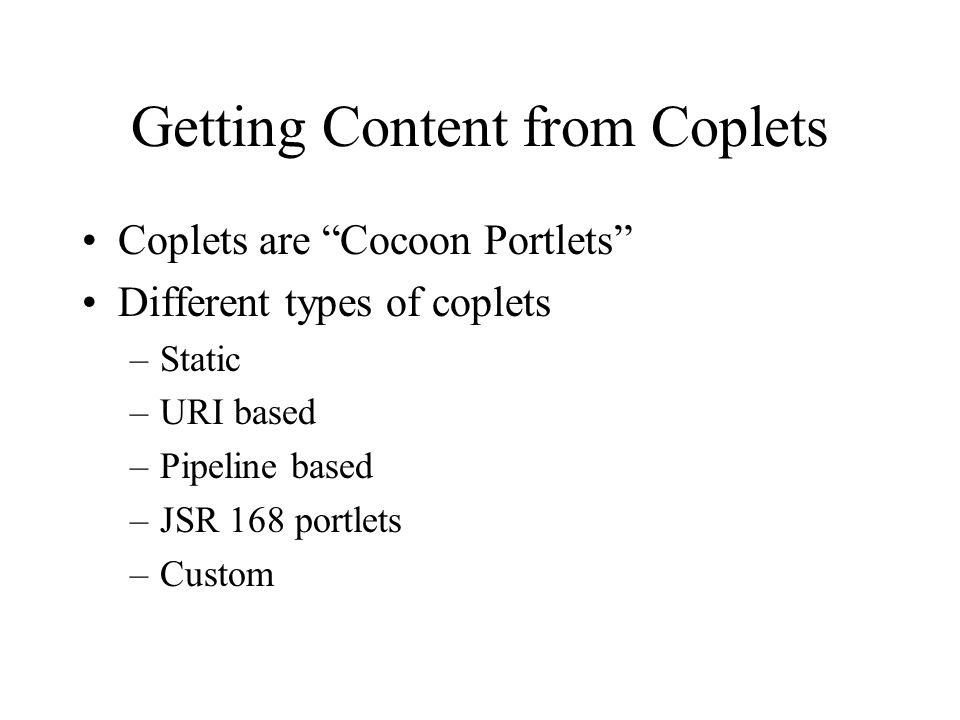

46. Getting Content from Coplets Coplets are “Cocoon Portlets” Different types of coplets –Static –URI based –Pipeline based –JSR 168 portlets –Custom

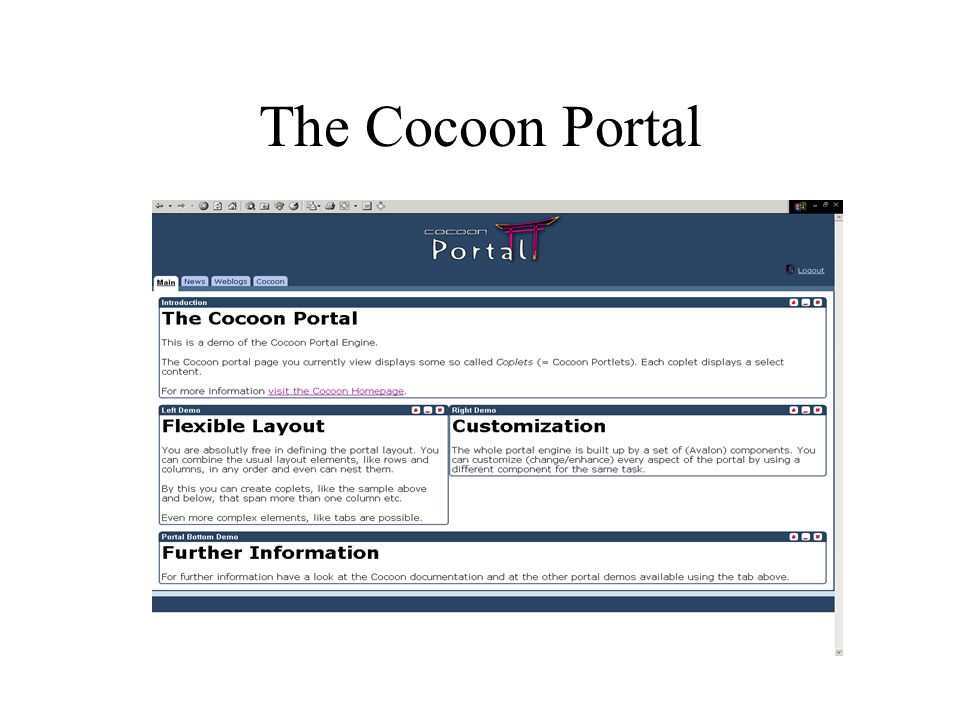

47. The Cocoon Portal

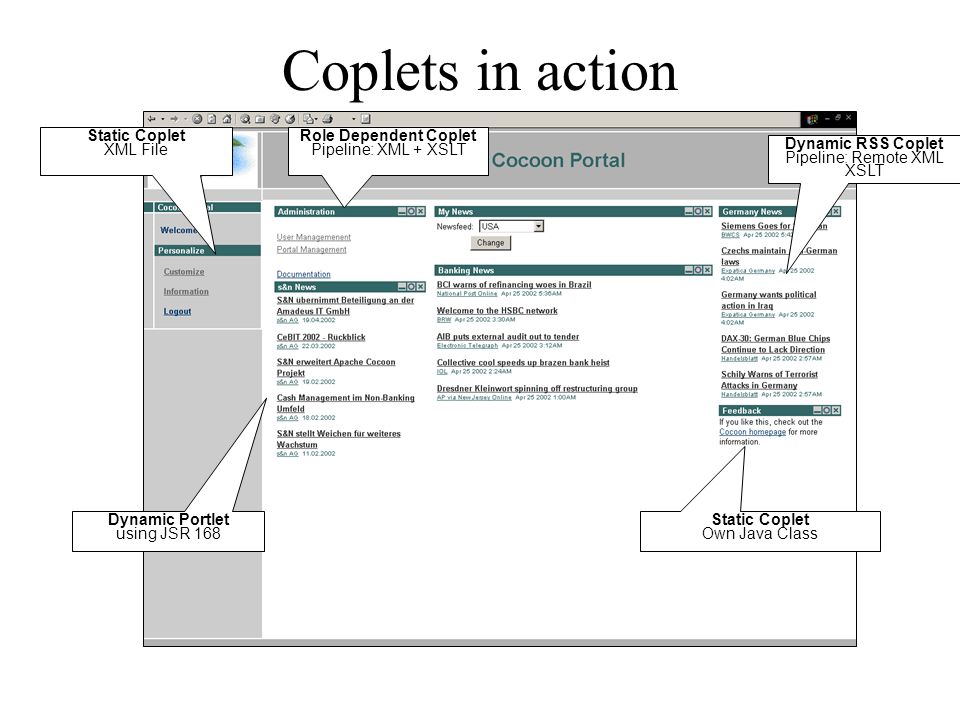

48. Coplets in action Static Coplet XML File Role Dependent Coplet Pipeline: XML + XSLT Dynamic RSS Coplet Pipeline: Remote XML XSLT Dynamic Portlet using JSR 168 Static Coplet Own Java Class

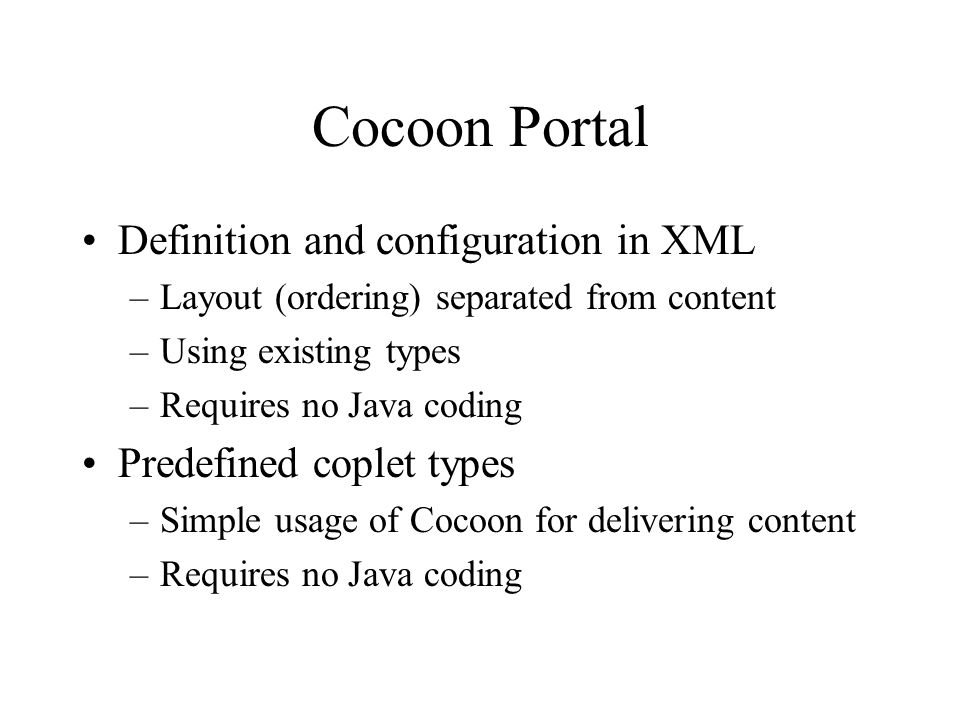

49. Cocoon Portal Definition and configuration in XML –Layout (ordering) separated from content –Using existing types –Requires no Java coding Predefined coplet types –Simple usage of Cocoon for delivering content –Requires no Java coding

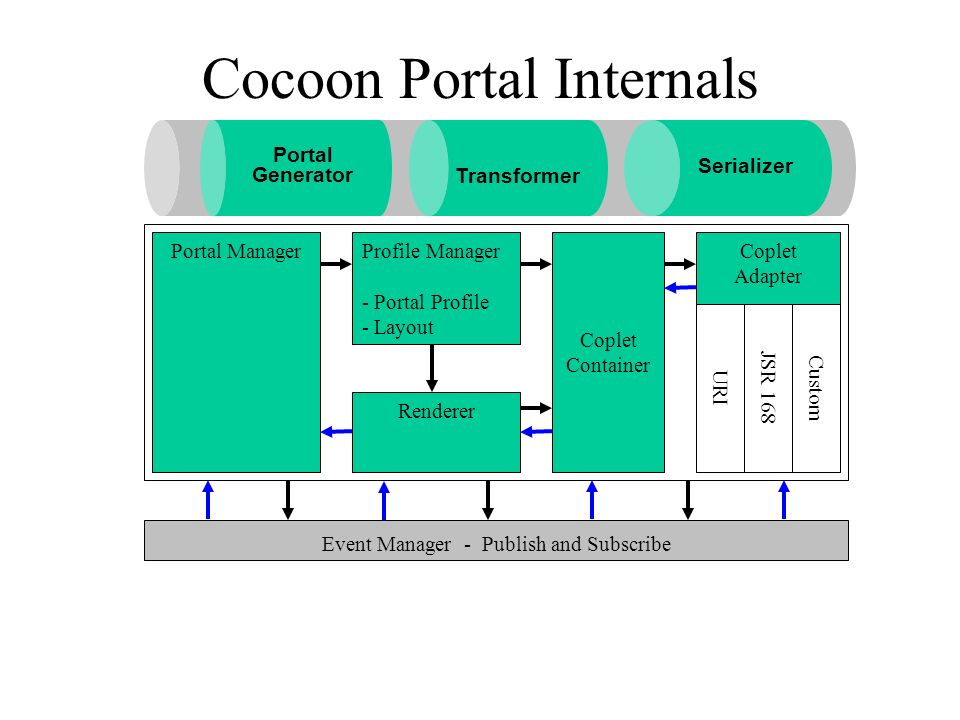

50. Cocoon Portal Internals Event Manager - Publish and Subscribe Portal Manager Serializer Transformer Portal Generator Profile Manager - Portal Profile - Layout Renderer Coplet Container Coplet Adapter Custom URI JSR 168

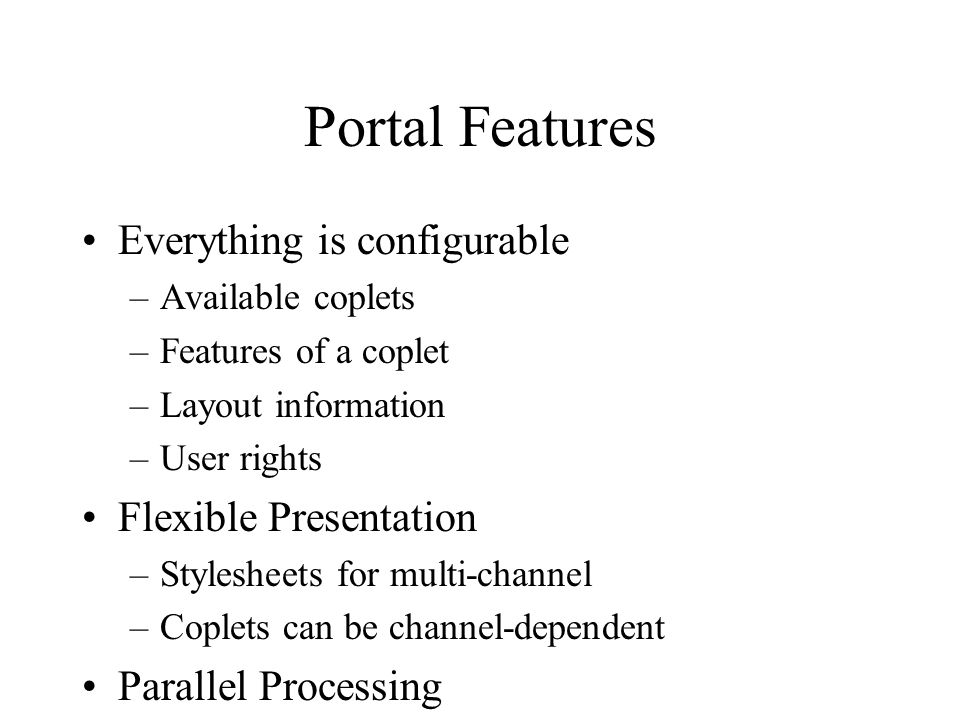

51. Portal Features Everything is configurable –Available coplets –Features of a coplet –Layout information –User rights Flexible Presentation –Stylesheets for multi-channel –Coplets can be channel-dependent Parallel Processing

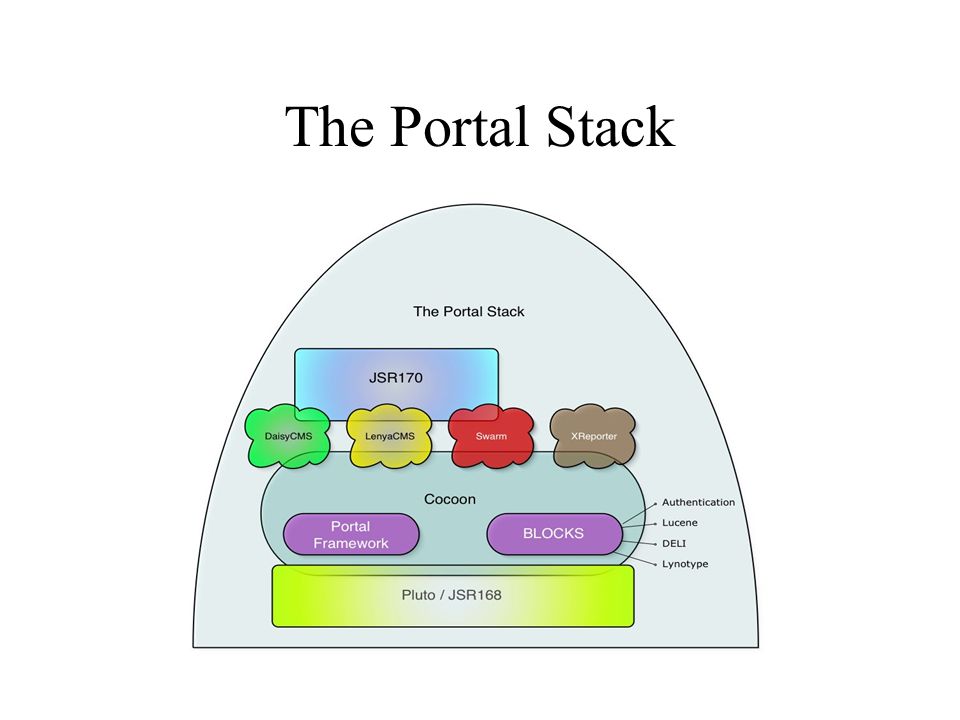

52. The Portal Stack

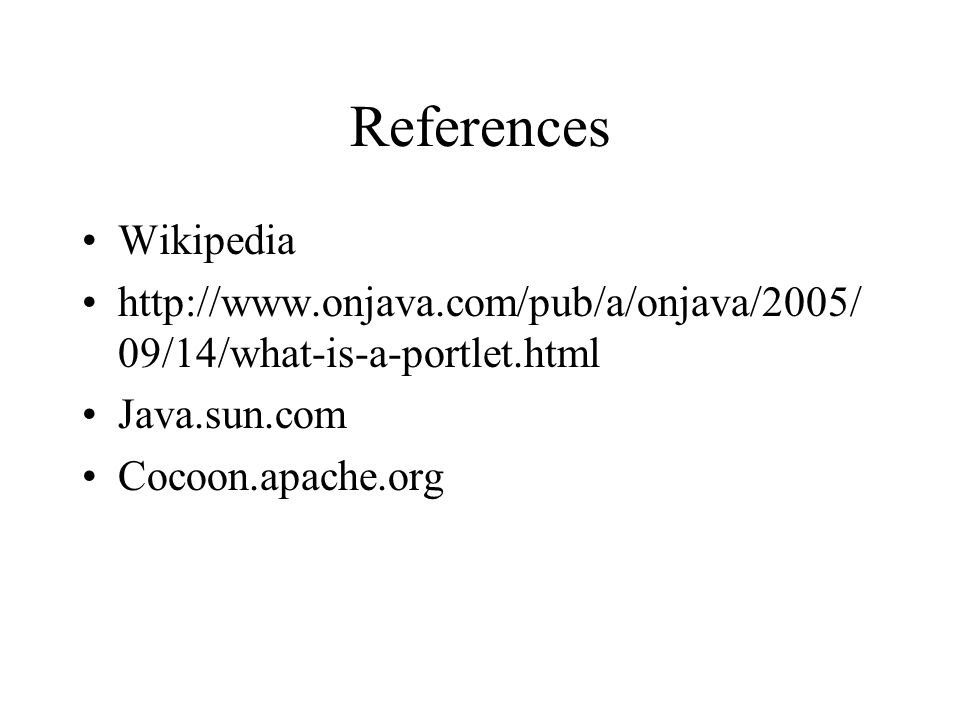

53. References Wikipedia http://www.onjava.com/pub/a/onjava/2005/ 09/14/what-is-a-portlet.html Java.sun.com Cocoon.apache.org
