EGTEI Methodology Work to update costs for LCP SO 2, NO x and PM abatement techniques 4th meeting 5 February 2013 UNECE Convention on Long-range Transboundary.

Published byLaurence Cannon Modified over 8 years ago

Similar presentations

Presentation on theme: "EGTEI Methodology Work to update costs for LCP SO 2, NO x and PM abatement techniques 4th meeting 5 February 2013 UNECE Convention on Long-range Transboundary."— Presentation transcript:

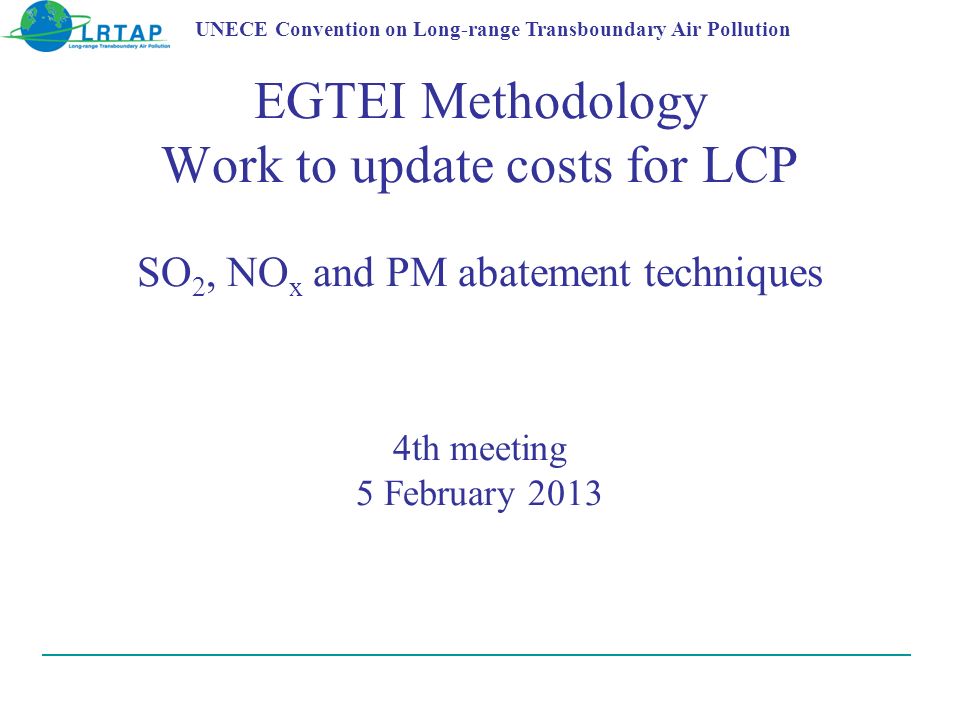

1 EGTEI Methodology Work to update costs for LCP SO 2, NO x and PM abatement techniques 4th meeting 5 February 2013 UNECE Convention on Long-range Transboundary Air Pollution

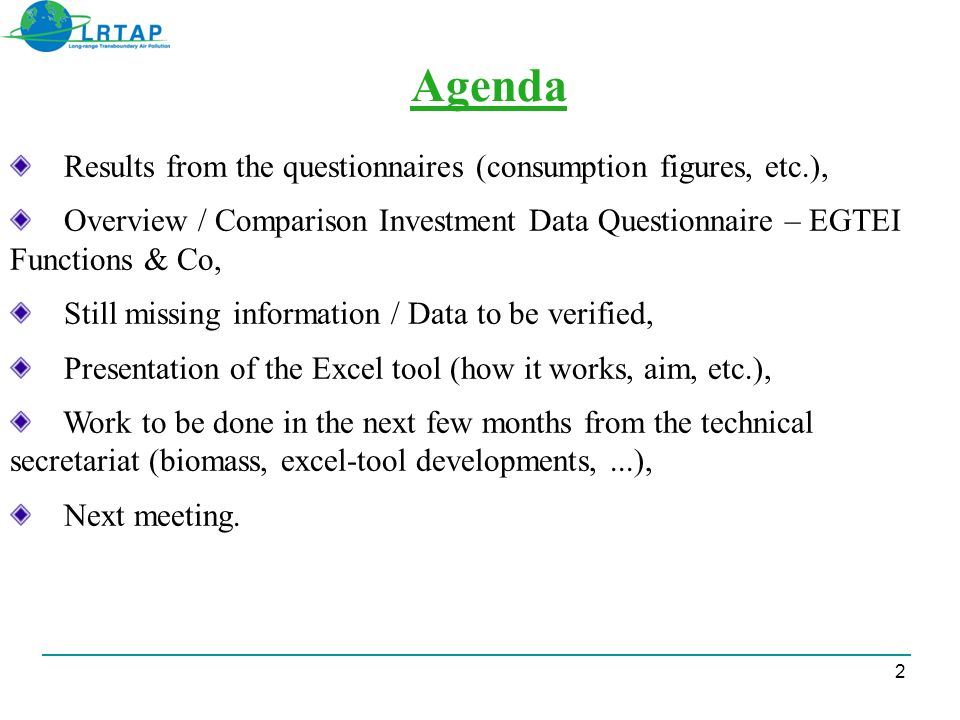

2 Agenda Results from the questionnaires (consumption figures, etc.), Overview / Comparison Investment Data Questionnaire – EGTEI Functions & Co, Still missing information / Data to be verified, Presentation of the Excel tool (how it works, aim, etc.), Work to be done in the next few months from the technical secretariat (biomass, excel-tool developments,...), Next meeting. 2

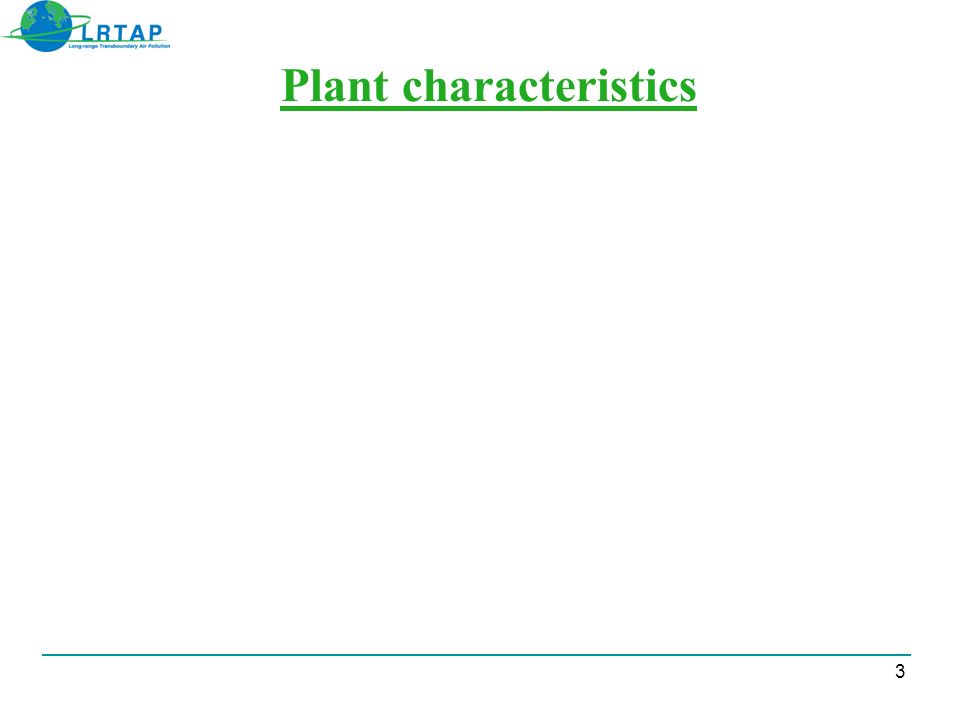

3 Plant characteristics 3

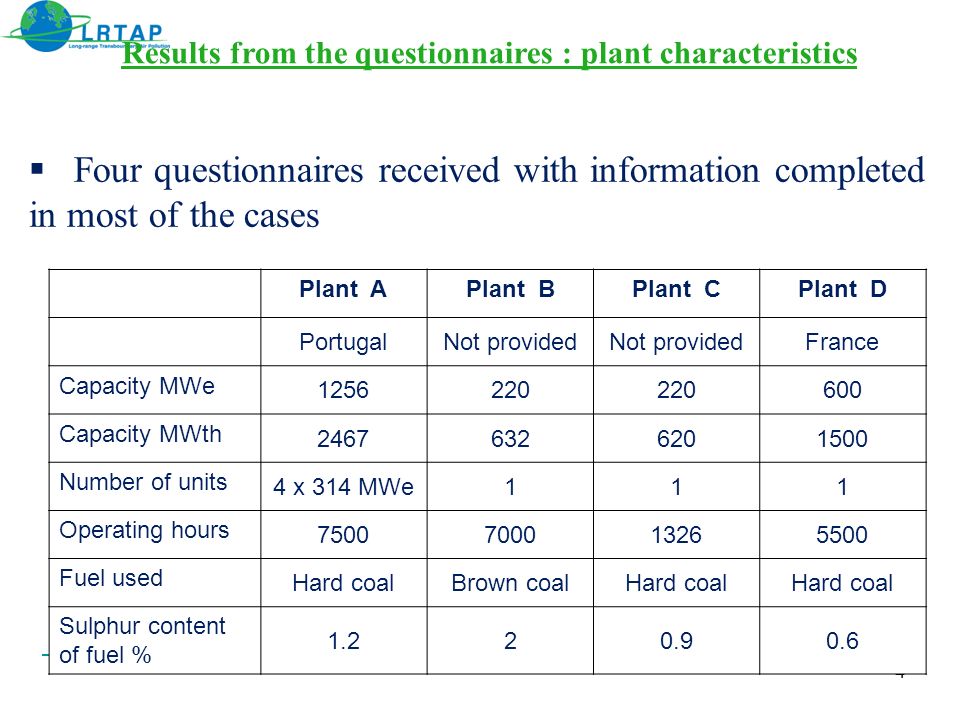

4 Results from the questionnaires : plant characteristics 4  Four questionnaires received with information completed in most of the cases Plant APlant BPlant CPlant D PortugalNot provided France Capacity MWe 1256220 600 Capacity MWth 24676326201500 Number of units 4 x 314 MWe111 Operating hours 7500700013265500 Fuel used Hard coalBrown coalHard coal Sulphur content of fuel % 1.220.90.6

5 FGD LSFO investments 5

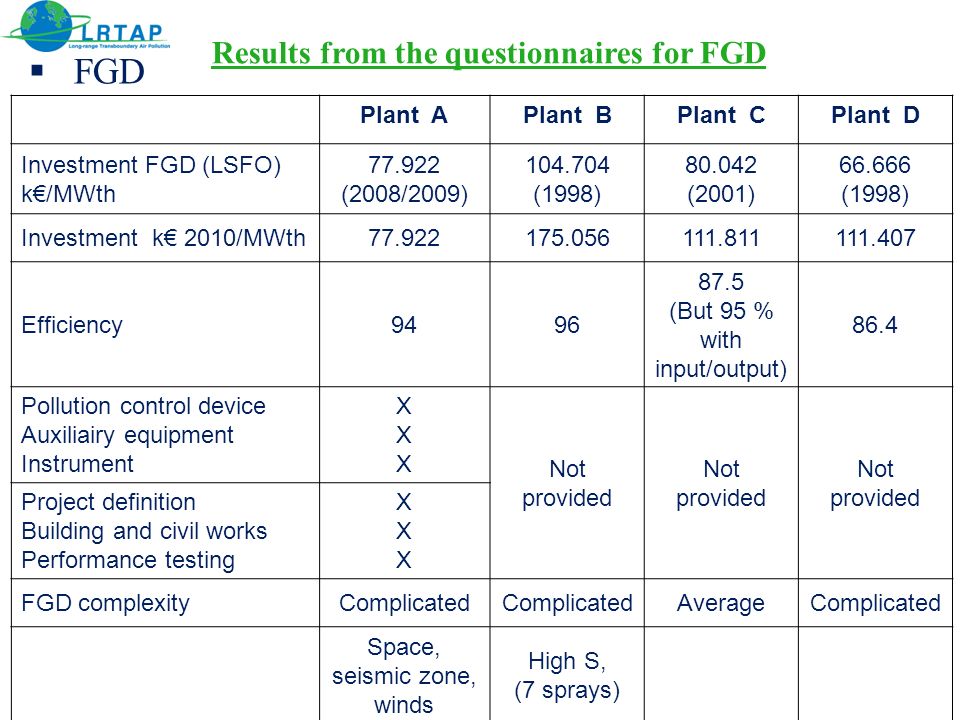

6 Results from the questionnaires for FGD 6  FGD Plant APlant BPlant CPlant D Investment FGD (LSFO) k€/MWth 77.922 (2008/2009) 104.704 (1998) 80.042 (2001) 66.666 (1998) Investment k€ 2010/MWth77.922175.056111.811111.407 Efficiency9496 87.5 (But 95 % with input/output) 86.4 Pollution control device Auxiliairy equipment Instrument XXXXXX Not provided Project definition Building and civil works Performance testing XXXXXX FGD complexityComplicated AverageComplicated Space, seismic zone, winds High S, (7 sprays)

7 Results from the questionnaires : FGD LSFO investments 7  FGD

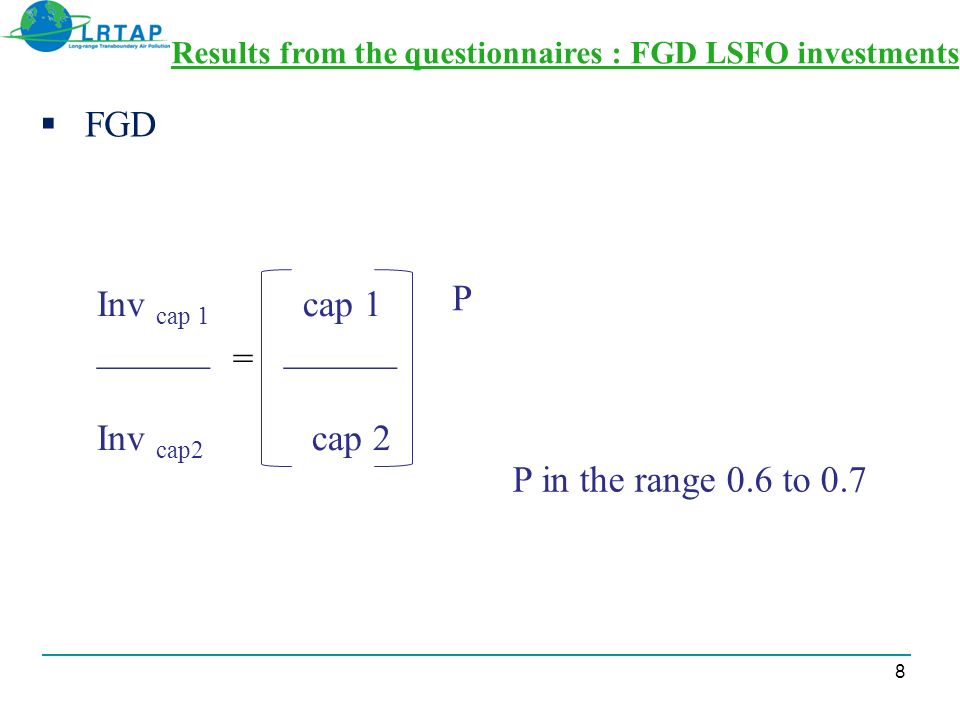

8 Results from the questionnaires : FGD LSFO investments 8  FGD Inv cap 1 cap 1 ______ Inv cap2 cap 2 = P P in the range 0.6 to 0.7

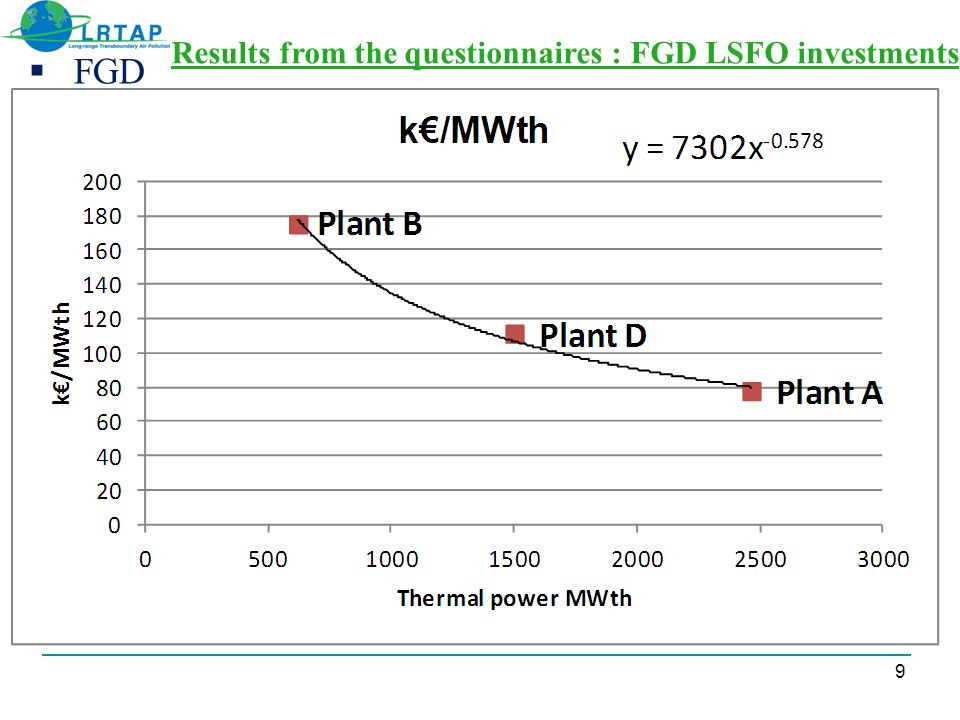

9 9  FGD Results from the questionnaires : FGD LSFO investments

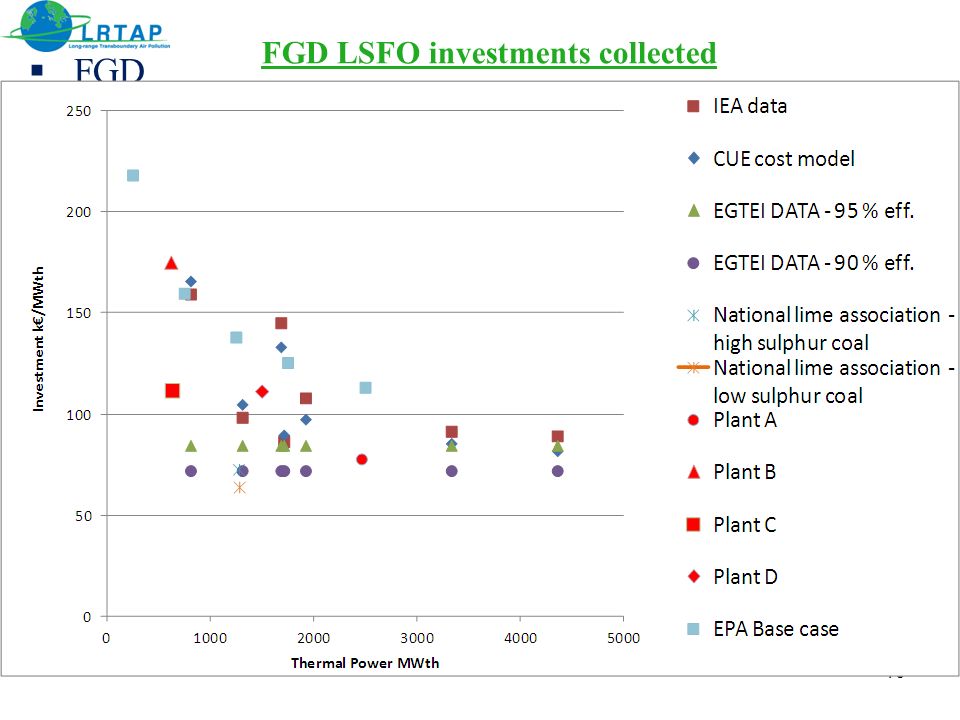

10 FGD LSFO investments collected 10  FGD

11 FGD investments collected: cost function determination 11  FGD

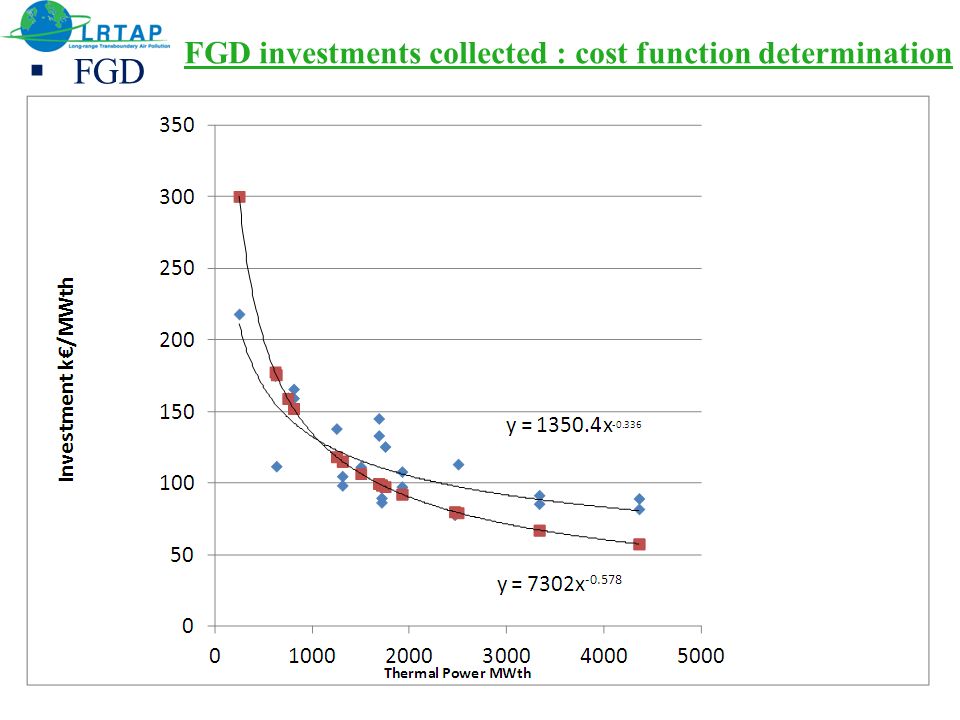

12 FGD investments collected : cost function determination 12  FGD

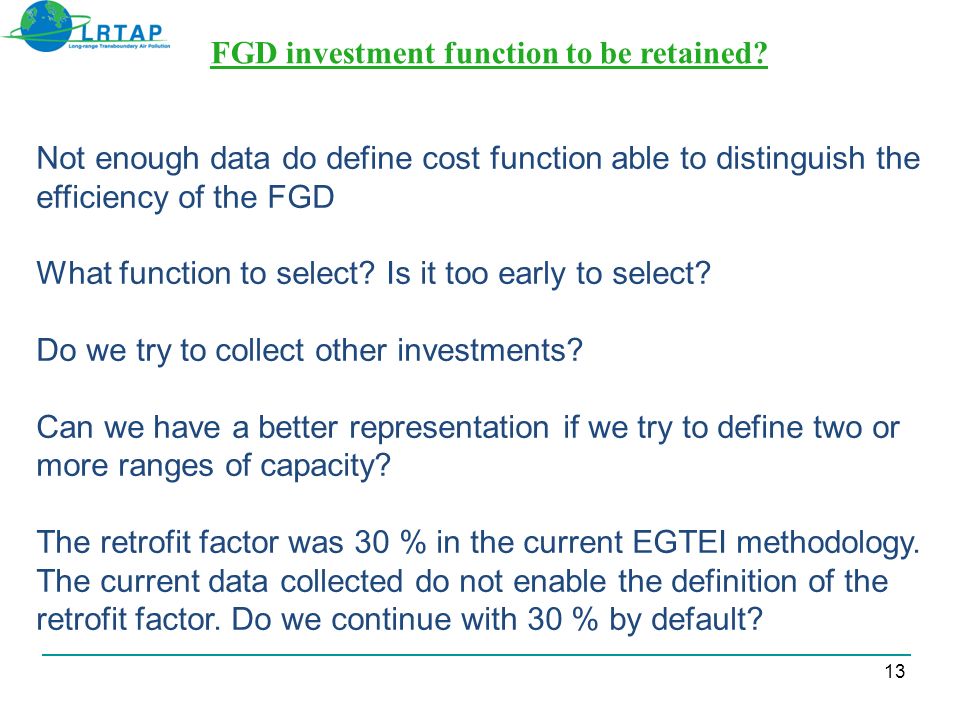

13 FGD investment function to be retained? 13 Not enough data do define cost function able to distinguish the efficiency of the FGD What function to select? Is it too early to select? Do we try to collect other investments? Can we have a better representation if we try to define two or more ranges of capacity? The retrofit factor was 30 % in the current EGTEI methodology. The current data collected do not enable the definition of the retrofit factor. Do we continue with 30 % by default?

14 FGD LSFO variable costs 14

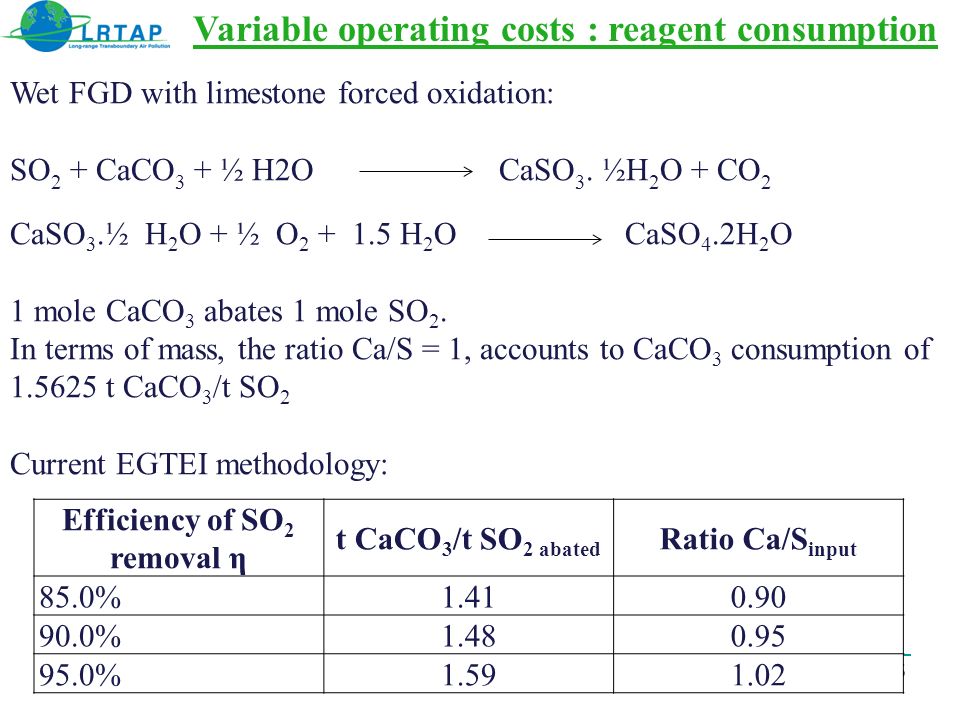

15 Variable operating costs : reagent consumption 15 Wet FGD with limestone forced oxidation: SO 2 + CaCO 3 + ½ H2O CaSO 3. ½H 2 O + CO 2 CaSO 3.½ H 2 O + ½ O 2 + 1.5 H 2 O CaSO 4.2H 2 O 1 mole CaCO 3 abates 1 mole SO 2. In terms of mass, the ratio Ca/S = 1, accounts to CaCO 3 consumption of 1.5625 t CaCO 3 /t SO 2 Current EGTEI methodology: Efficiency of SO 2 removal η t CaCO 3 /t SO 2 abated Ratio Ca/S input 85.0%1.410.90 90.0%1.480.95 95.0%1.591.02

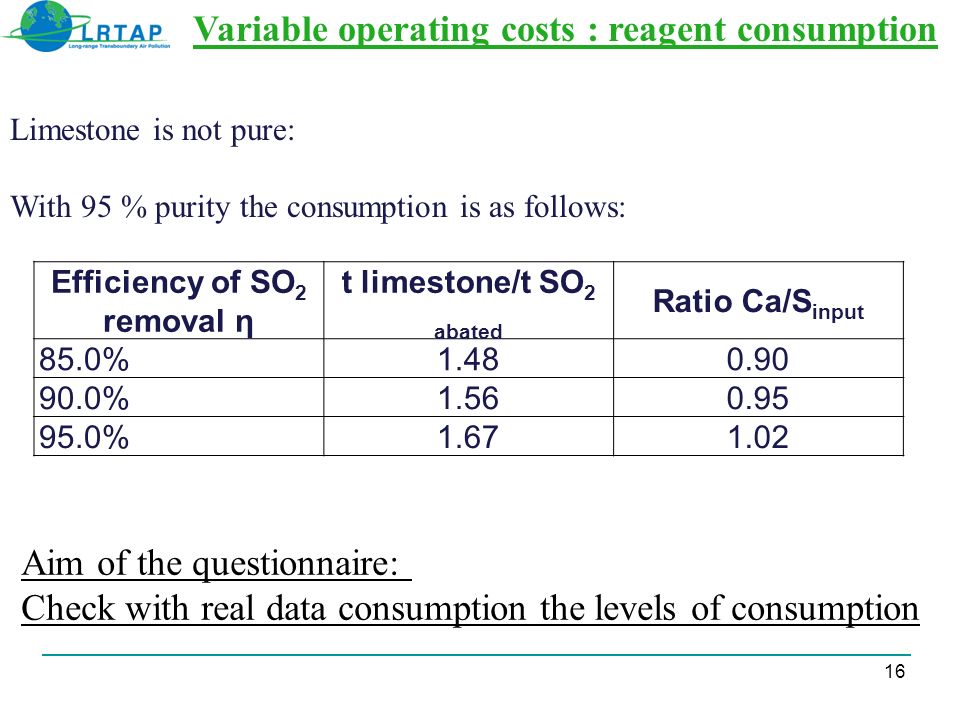

16 Variable operating costs : reagent consumption 16 Limestone is not pure: With 95 % purity the consumption is as follows: Efficiency of SO 2 removal η t limestone/t SO 2 abated Ratio Ca/S input 85.0%1.480.90 90.0%1.560.95 95.0%1.671.02 Aim of the questionnaire: Check with real data consumption the levels of consumption

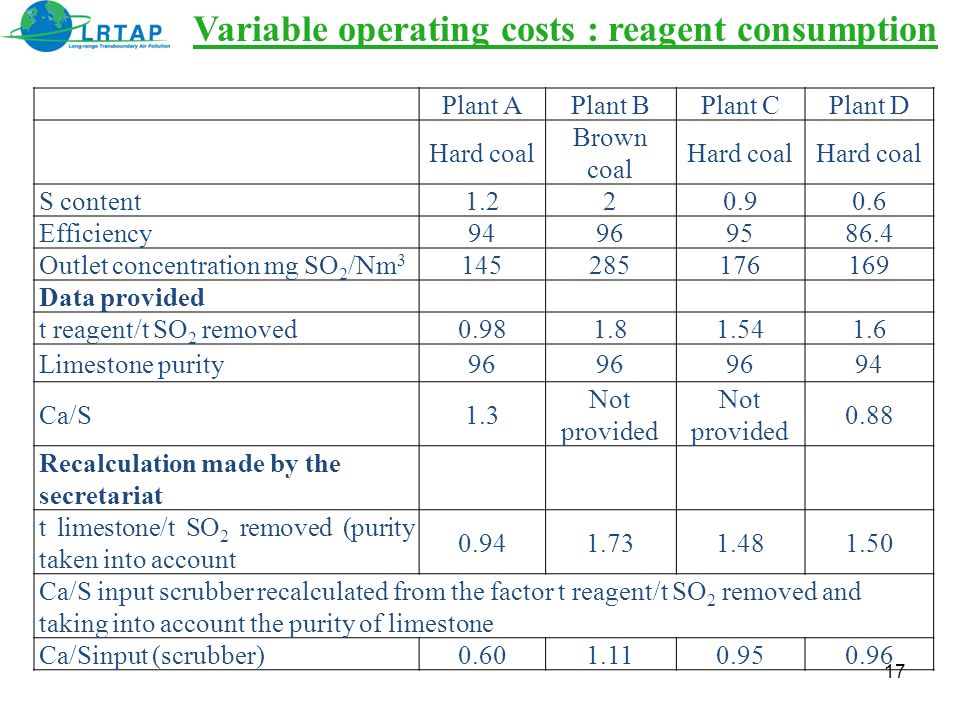

17 Variable operating costs : reagent consumption 17 Plant APlant BPlant CPlant D Hard coal Brown coal Hard coal S content1.220.90.6 Efficiency94969586.4 Outlet concentration mg SO 2 /Nm 3 145285176169 Data provided t reagent/t SO 2 removed0.981.81.541.6 Limestone purity96 94 Ca/S1.3 Not provided 0.88 Recalculation made by the secretariat t limestone/t SO 2 removed (purity taken into account 0.941.731.481.50 Ca/S input scrubber recalculated from the factor t reagent/t SO 2 removed and taking into account the purity of limestone Ca/Sinput (scrubber)0.601.110.950.96

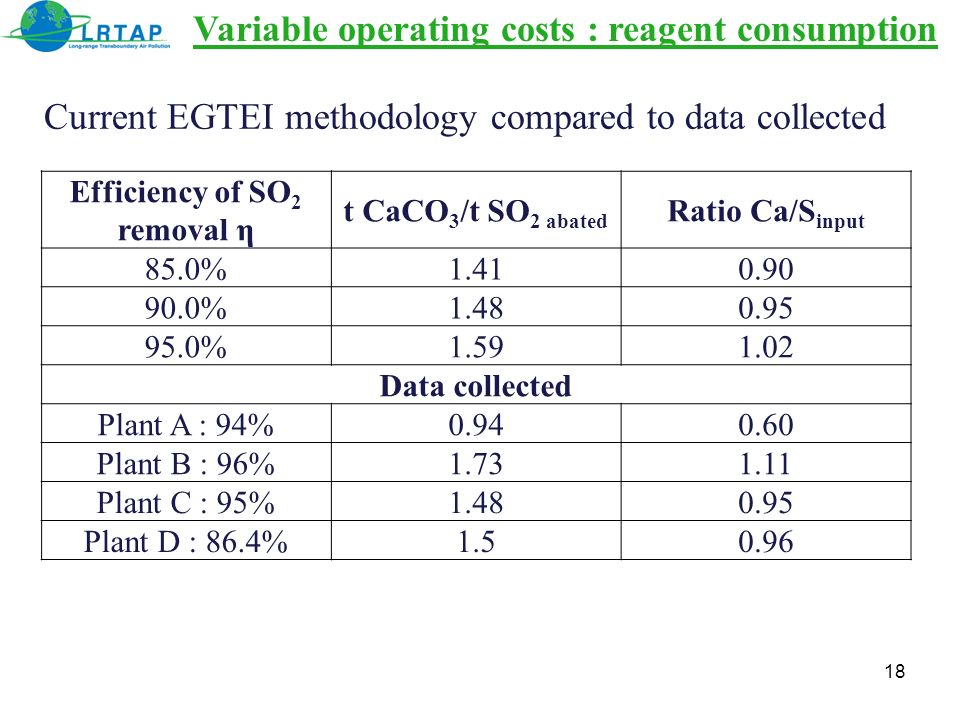

18 Variable operating costs : reagent consumption 18 Efficiency of SO 2 removal η t CaCO 3 /t SO 2 abated Ratio Ca/S input 85.0%1.410.90 90.0%1.480.95 95.0%1.591.02 Data collected Plant A : 94%0.940.60 Plant B : 96%1.731.11 Plant C : 95%1.480.95 Plant D : 86.4%1.50.96 Current EGTEI methodology compared to data collected

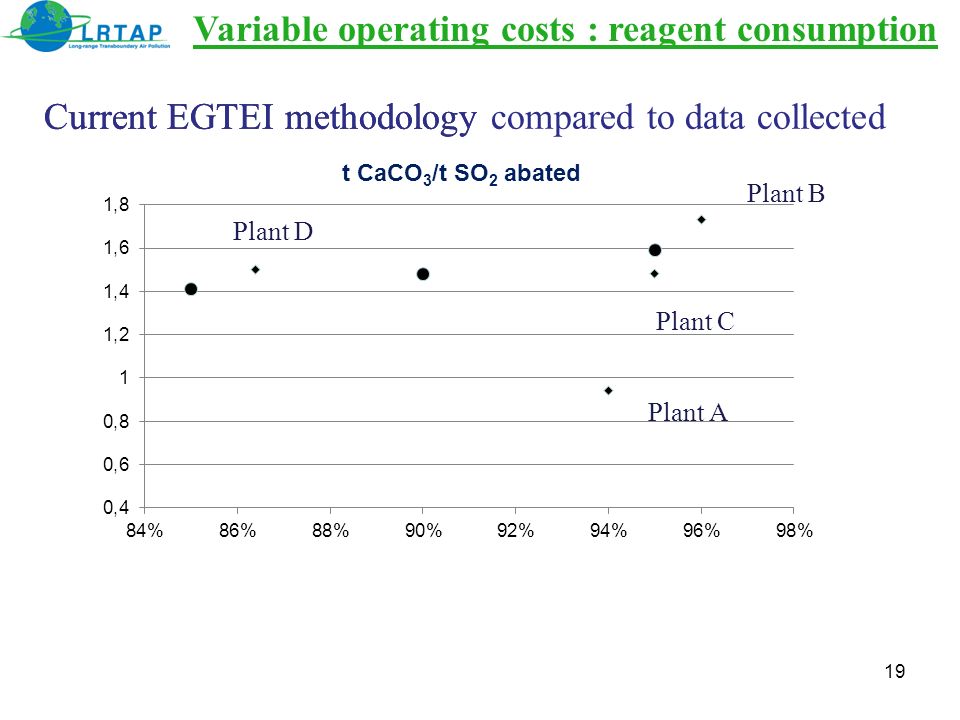

19 Variable operating costs : reagent consumption 19 Current EGTEI methodology Plant D Plant B Plant C Plant A Current EGTEI methodology compared to data collected

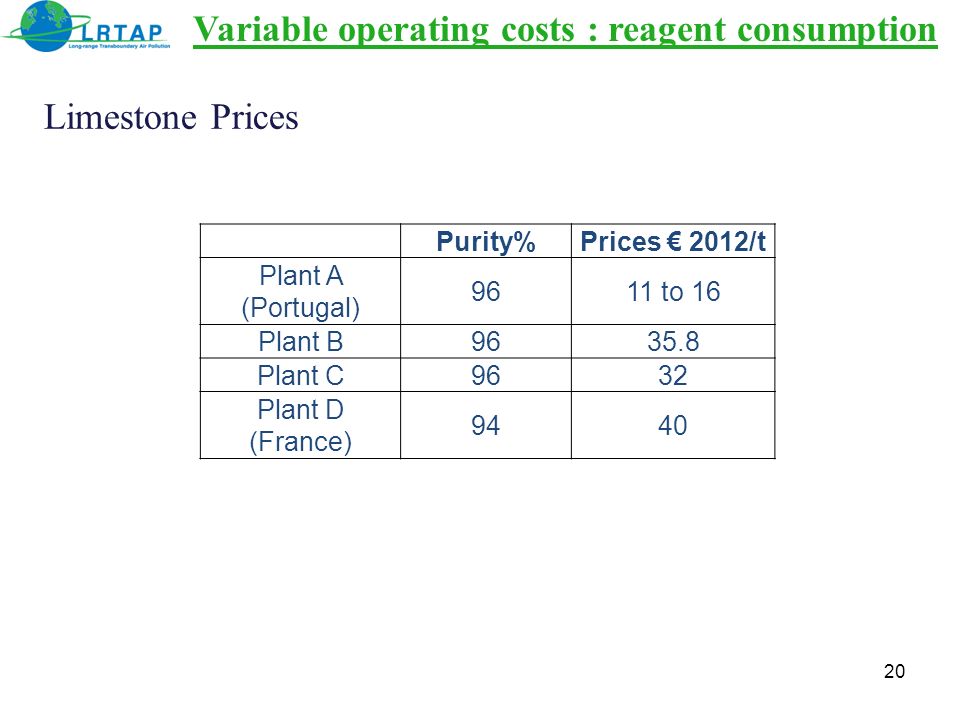

20 Variable operating costs : reagent consumption 20 Limestone Prices Purity%Prices € 2012/t Plant A (Portugal) 9611 to 16 Plant B9635.8 Plant C9632 Plant D (France) 9440

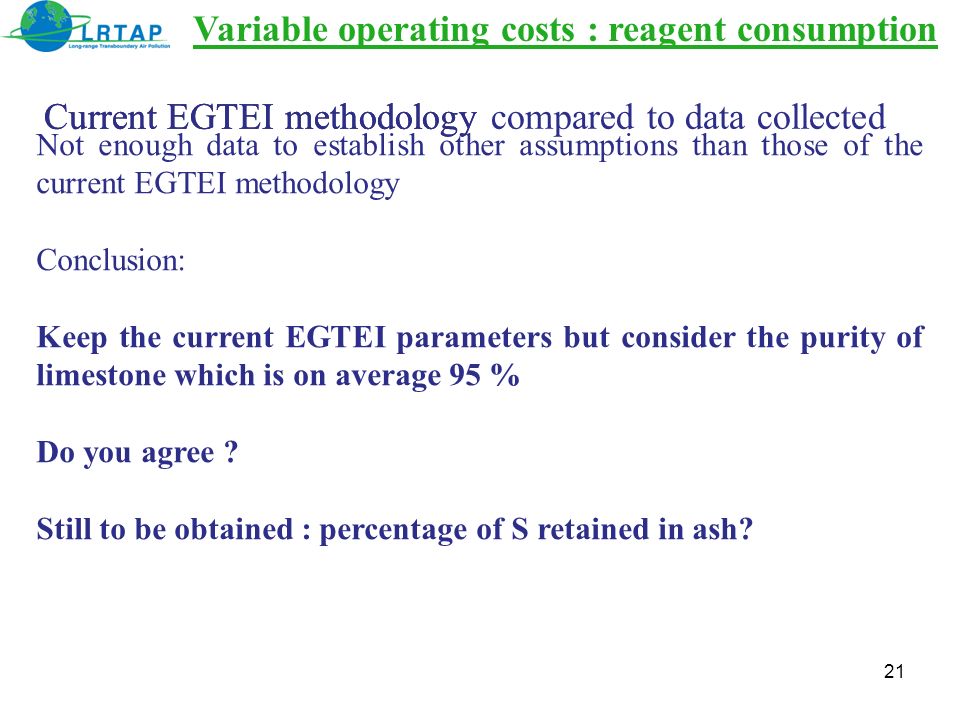

21 Variable operating costs : reagent consumption 21 Current EGTEI methodologyCurrent EGTEI methodology compared to data collected Not enough data to establish other assumptions than those of the current EGTEI methodology Conclusion: Keep the current EGTEI parameters but consider the purity of limestone which is on average 95 % Do you agree ? Still to be obtained : percentage of S retained in ash?

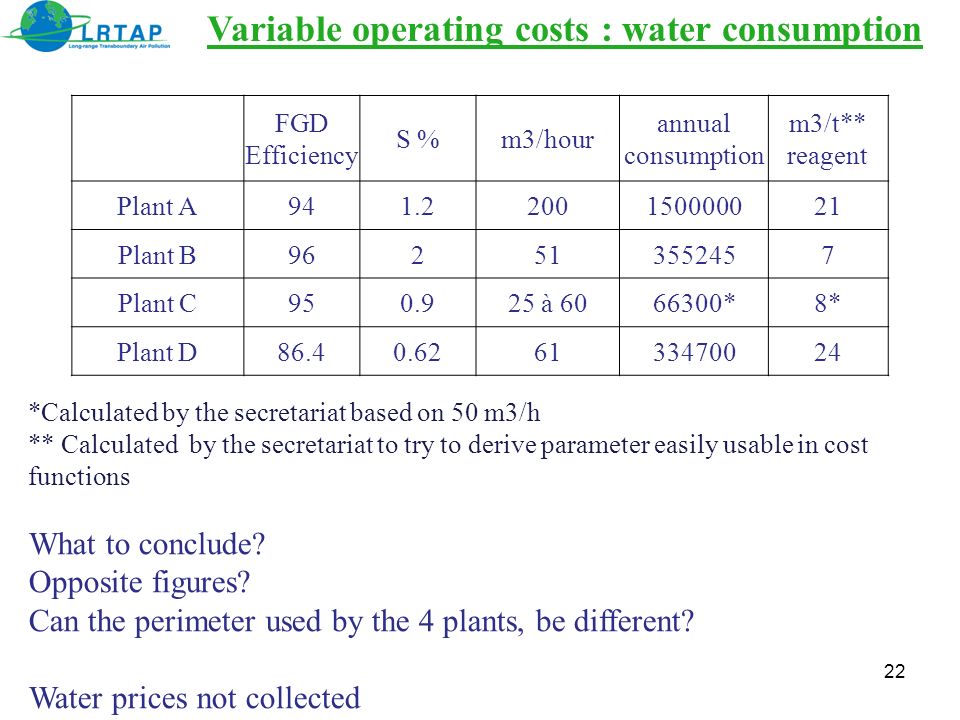

22 Variable operating costs : water consumption 22 FGD Efficiency S %m3/hour annual consumption m3/t** reagent Plant A941.2200150000021 Plant B962513552457 Plant C950.925 à 6066300*8* Plant D86.40.626133470024 *Calculated by the secretariat based on 50 m3/h ** Calculated by the secretariat to try to derive parameter easily usable in cost functions What to conclude? Opposite figures? Can the perimeter used by the 4 plants, be different? Water prices not collected

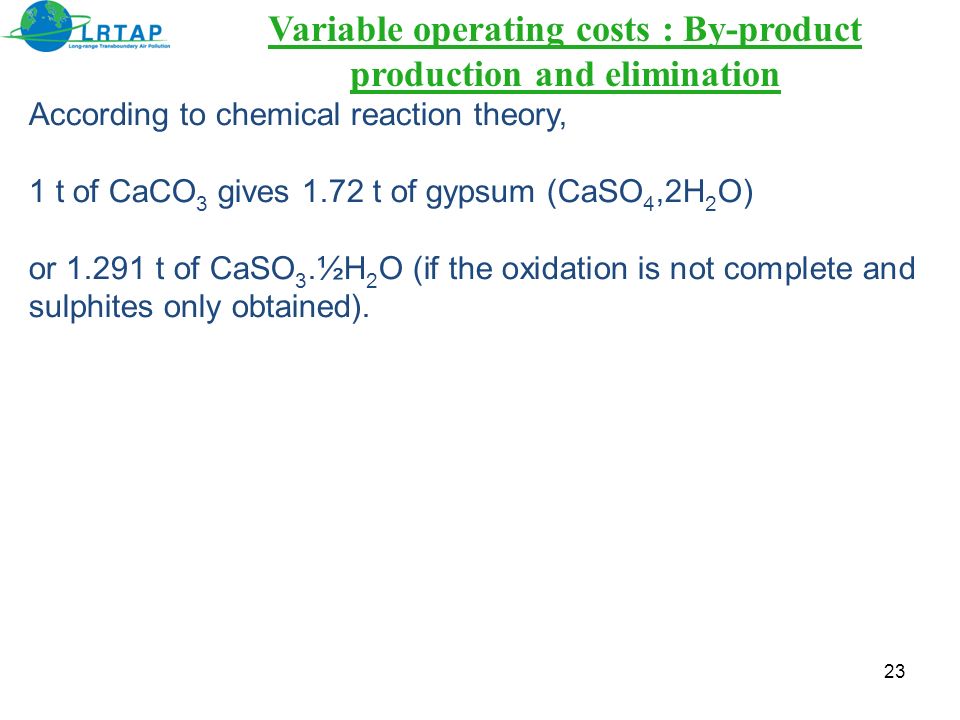

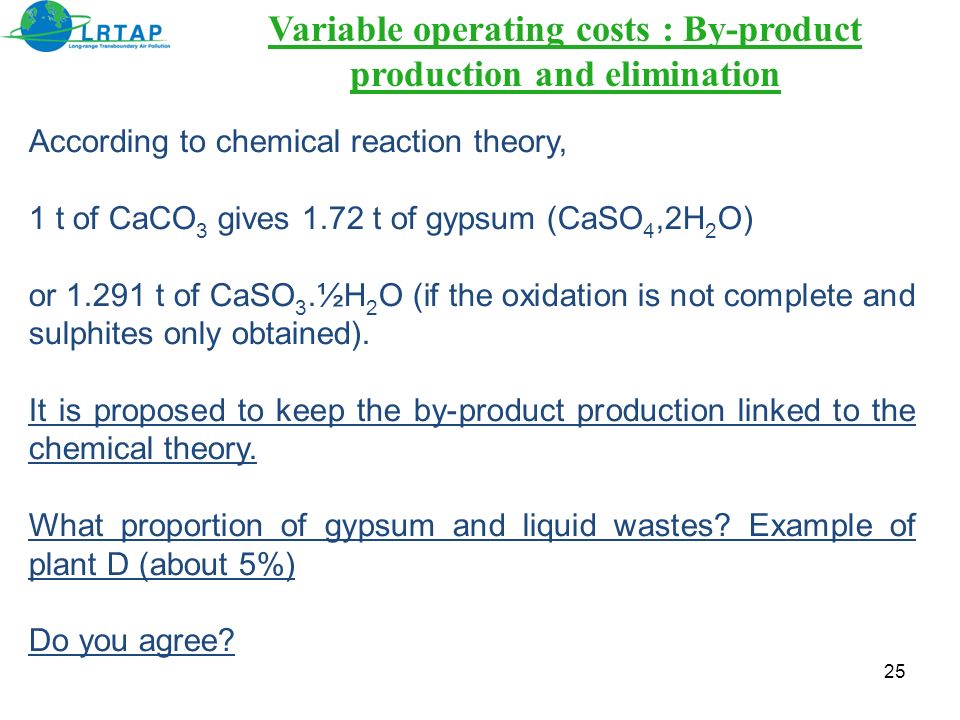

23 Variable operating costs : By-product production and elimination 23 According to chemical reaction theory, 1 t of CaCO 3 gives 1.72 t of gypsum (CaSO 4,2H 2 O) or 1.291 t of CaSO 3.½H 2 O (if the oxidation is not complete and sulphites only obtained).

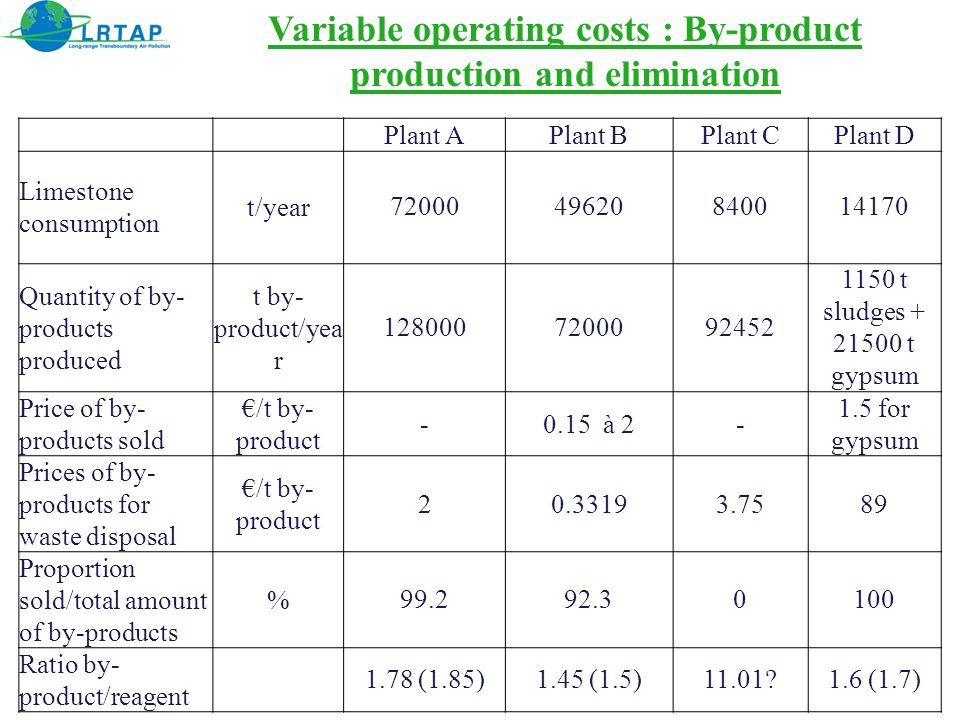

24 Variable operating costs : By-product production and elimination 24 Plant APlant BPlant CPlant D Limestone consumption t/year7200049620840014170 Quantity of by- products produced t by- product/yea r 1280007200092452 1150 t sludges + 21500 t gypsum Price of by- products sold €/t by- product -0.15 à 2- 1.5 for gypsum Prices of by- products for waste disposal €/t by- product 20.33193.7589 Proportion sold/total amount of by-products %99.292.30100 Ratio by- product/reagent 1.78 (1.85)1.45 (1.5)11.01?1.6 (1.7)

25 Variable operating costs : By-product production and elimination 25 According to chemical reaction theory, 1 t of CaCO 3 gives 1.72 t of gypsum (CaSO 4,2H 2 O) or 1.291 t of CaSO 3.½H 2 O (if the oxidation is not complete and sulphites only obtained). It is proposed to keep the by-product production linked to the chemical theory. What proportion of gypsum and liquid wastes? Example of plant D (about 5%) Do you agree?

26 Variable operating costs : electricity consumption 26 Plant APlant BPlant CPlant D CapacityMWe1256220 600 Thermal PowerMWth25646326201500 Operating power of the fan to overcome the pressure drop (flue gas handling) MW6.73.33.26.00 Operating power of other auxiliaries (absorption tower: spray headers, mist eliminator; by-products handling, slurry pumps, oxidation air compression…) MW6.54.7 not available 6.75 Average load of these equipments %0.898.0 Electricity consumptionMWh/year98850*55650* 2055.3 Not complete 57375 Cost of electricity€/kWh0.050.09550.050.001 Installed capacity of fans and auxiliaries / plant capacity 1%3.6%2.1

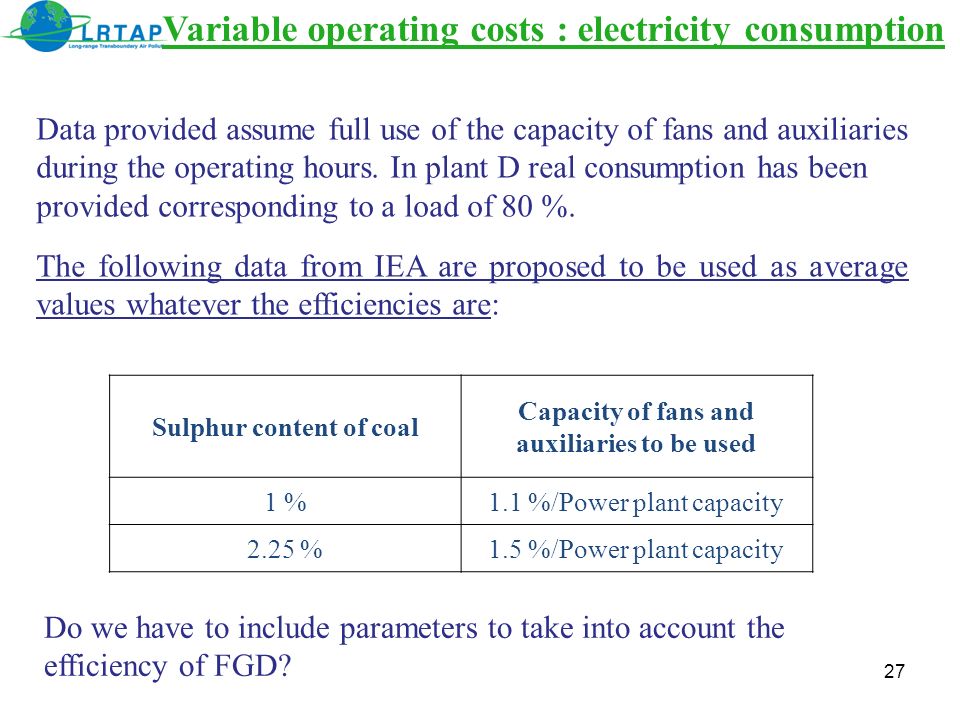

27 Variable operating costs : electricity consumption 27 Data provided assume full use of the capacity of fans and auxiliaries during the operating hours. In plant D real consumption has been provided corresponding to a load of 80 %. Sulphur content of coal Capacity of fans and auxiliaries to be used 1 %1.1 %/Power plant capacity 2.25 %1.5 %/Power plant capacity The following data from IEA are proposed to be used as average values whatever the efficiencies are: Do we have to include parameters to take into account the efficiency of FGD?

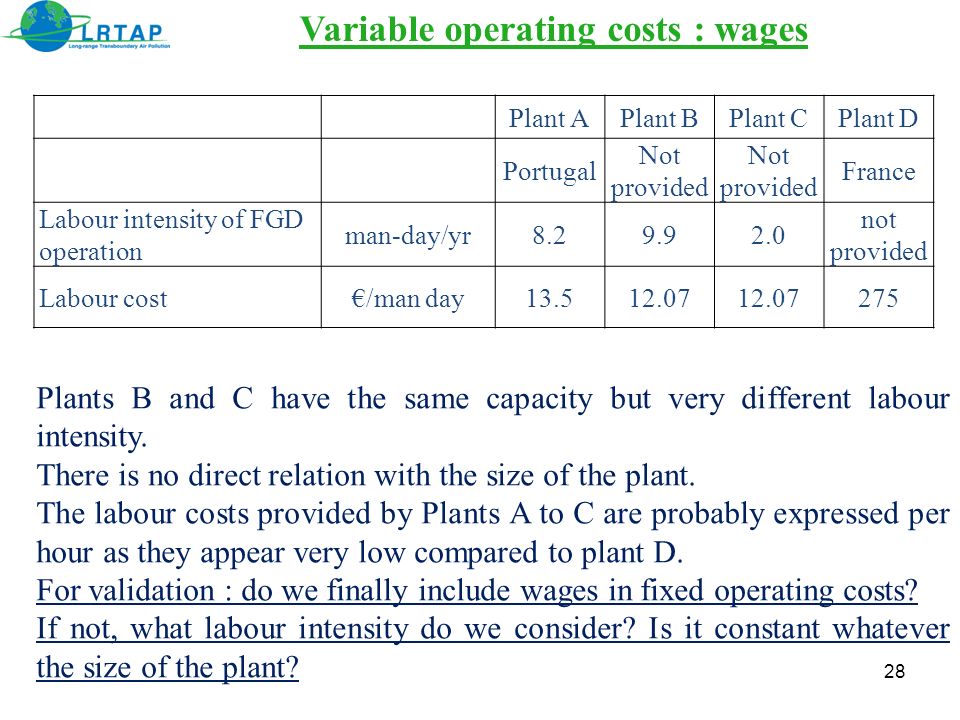

28 Variable operating costs : wages 28 Plant APlant BPlant CPlant D Portugal Not provided France Labour intensity of FGD operation man-day/yr8.29.92.0 not provided Labour cost€/man day13.512.07 275 Plants B and C have the same capacity but very different labour intensity. There is no direct relation with the size of the plant. The labour costs provided by Plants A to C are probably expressed per hour as they appear very low compared to plant D. For validation : do we finally include wages in fixed operating costs? If not, what labour intensity do we consider? Is it constant whatever the size of the plant?

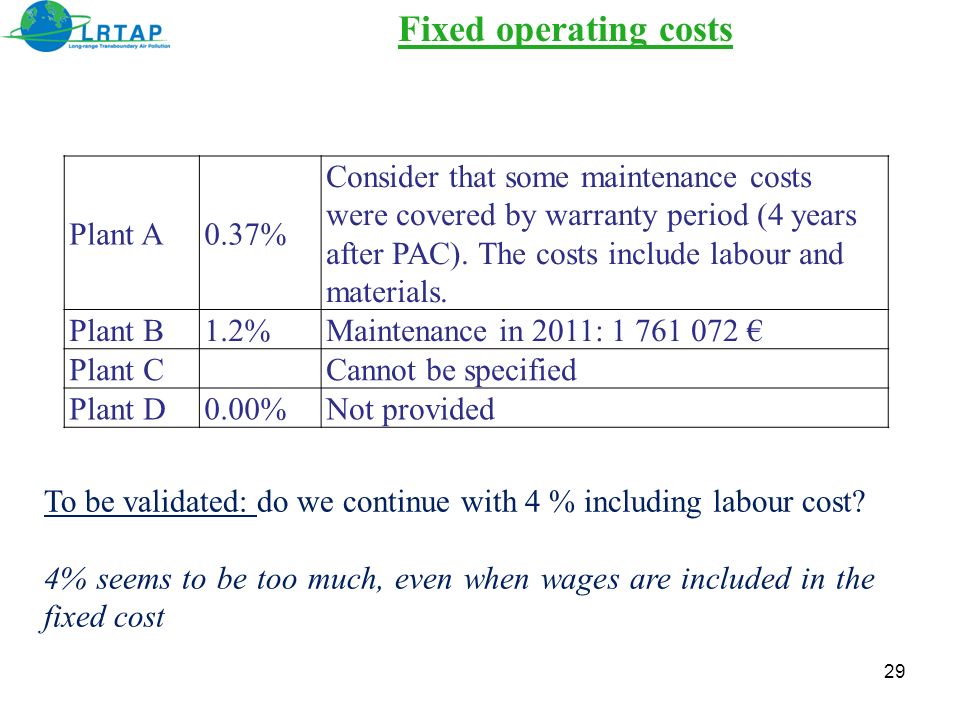

29 Fixed operating costs 29 Plant A0.37% Consider that some maintenance costs were covered by warranty period (4 years after PAC). The costs include labour and materials. Plant B1.2%Maintenance in 2011: 1 761 072 € Plant CCannot be specified Plant D0.00%Not provided To be validated: do we continue with 4 % including labour cost? 4% seems to be too much, even when wages are included in the fixed cost

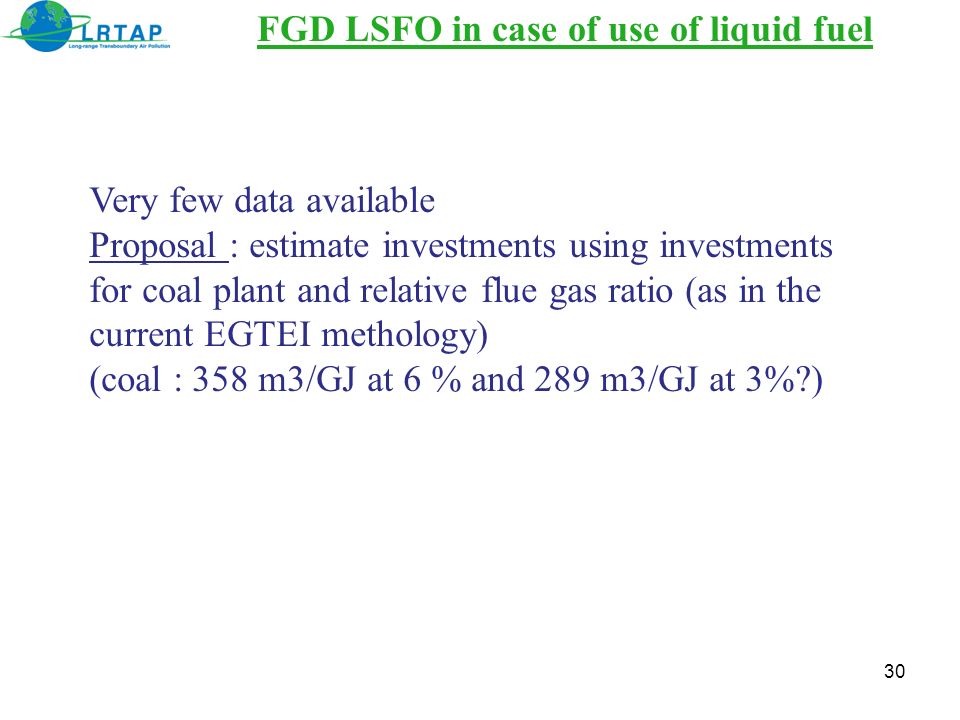

30 FGD LSFO in case of use of liquid fuel 30 Very few data available Proposal : estimate investments using investments for coal plant and relative flue gas ratio (as in the current EGTEI methology) (coal : 358 m3/GJ at 6 % and 289 m3/GJ at 3%?)

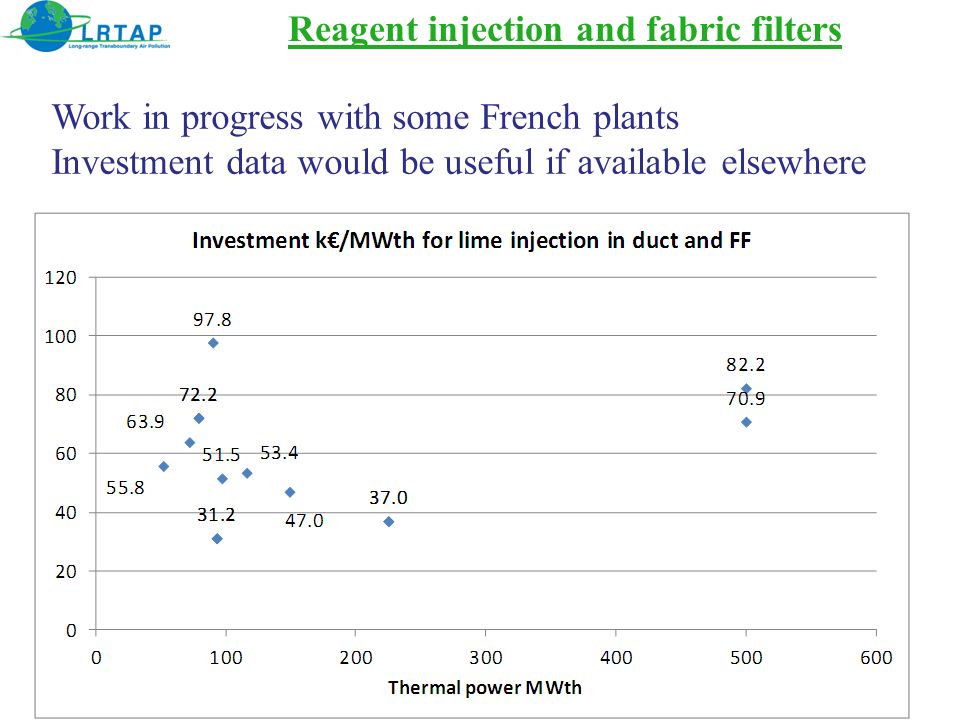

31 Reagent injection and fabric filters 31 Work in progress with some French plants Investment data would be useful if available elsewhere

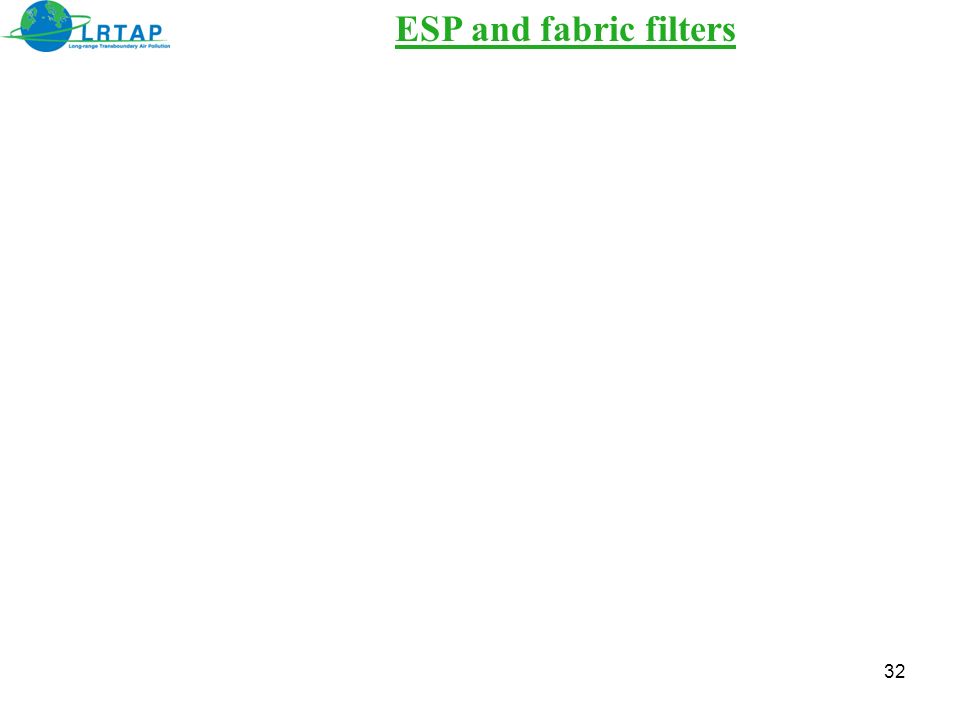

32 ESP and fabric filters 32

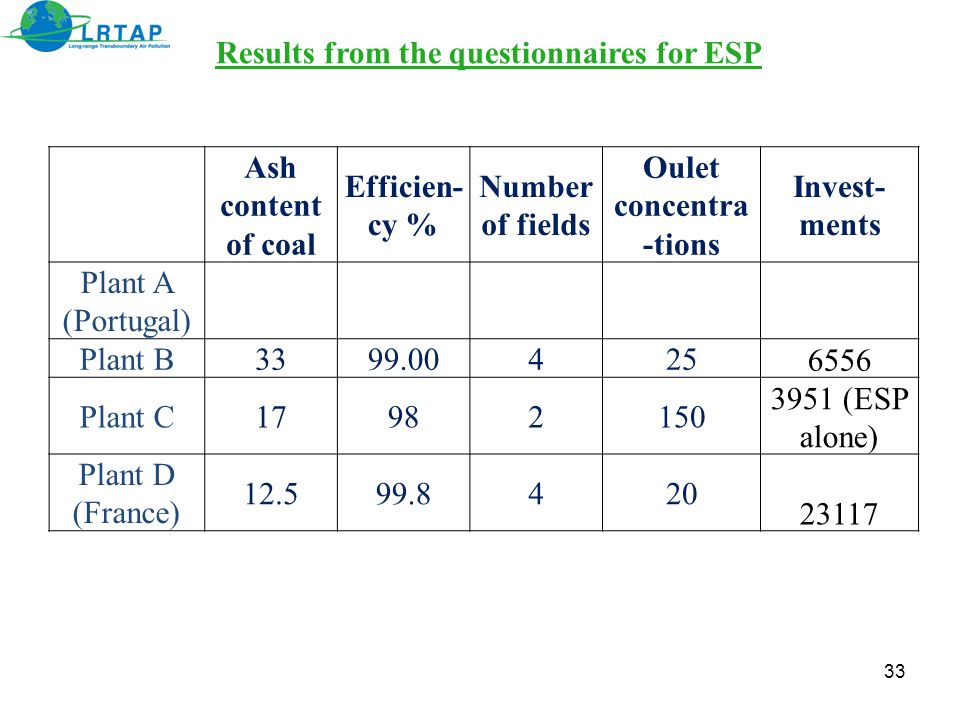

33 33 Ash content of coal Efficien- cy % Number of fields Oulet concentra -tions Invest- ments Plant A (Portugal) Plant B3399.004256556 Plant C17982150 3951 (ESP alone) Plant D (France) 12.599.8420 23117 Results from the questionnaires for ESP

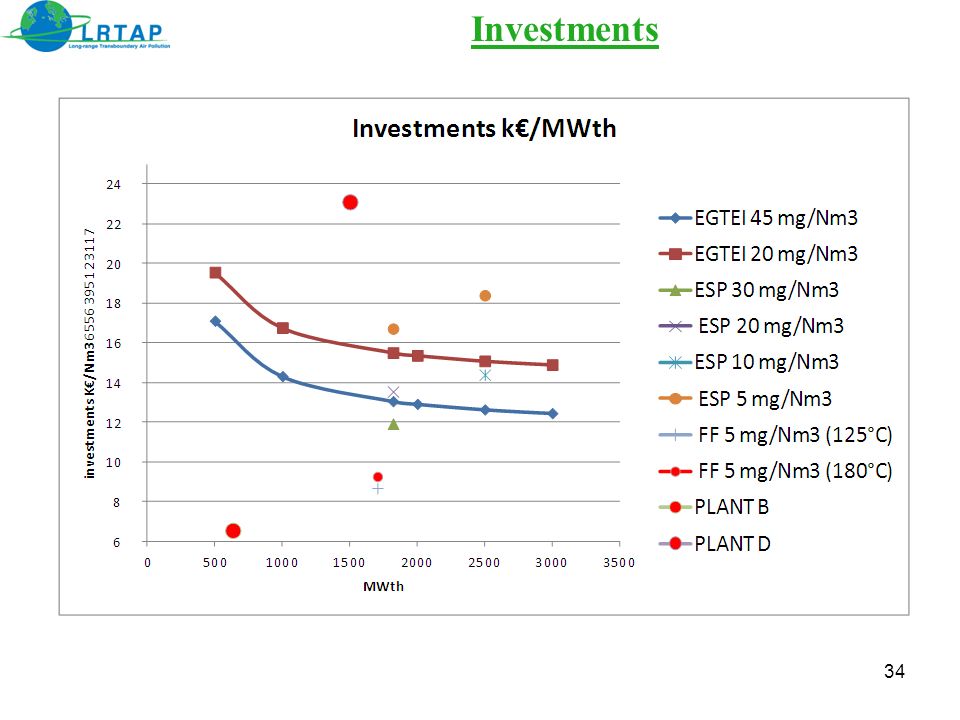

34 Investments 34

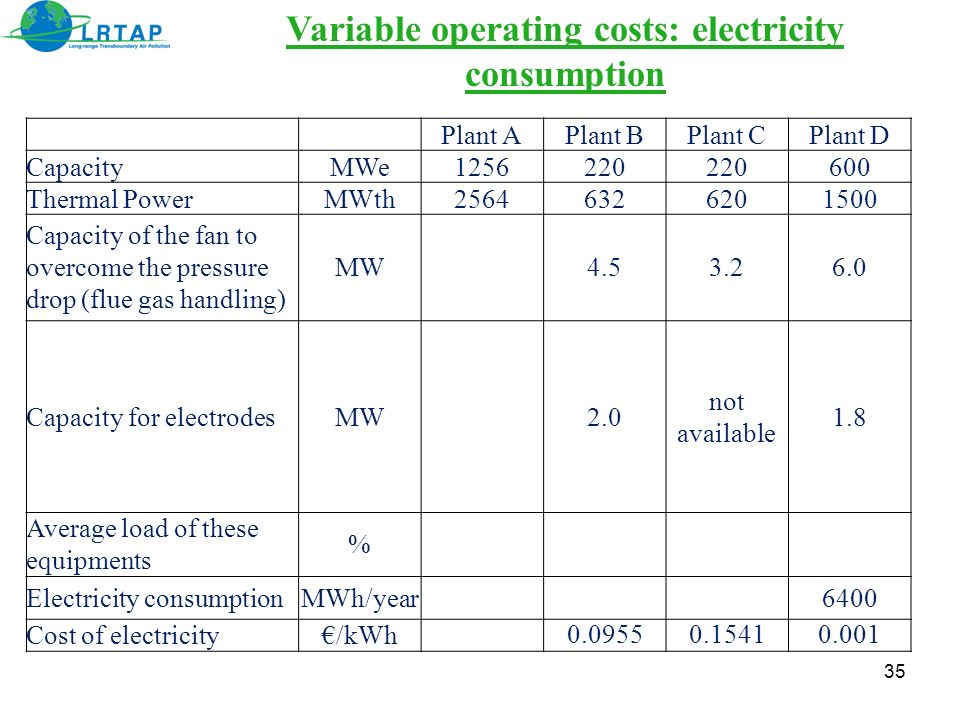

35 Variable operating costs: electricity consumption 35 Plant APlant BPlant CPlant D CapacityMWe1256220 600 Thermal PowerMWth25646326201500 Capacity of the fan to overcome the pressure drop (flue gas handling) MW4.53.26.0 Capacity for electrodesMW2.0 not available 1.8 Average load of these equipments % Electricity consumptionMWh/year6400 Cost of electricity€/kWh0.09550.15410.001

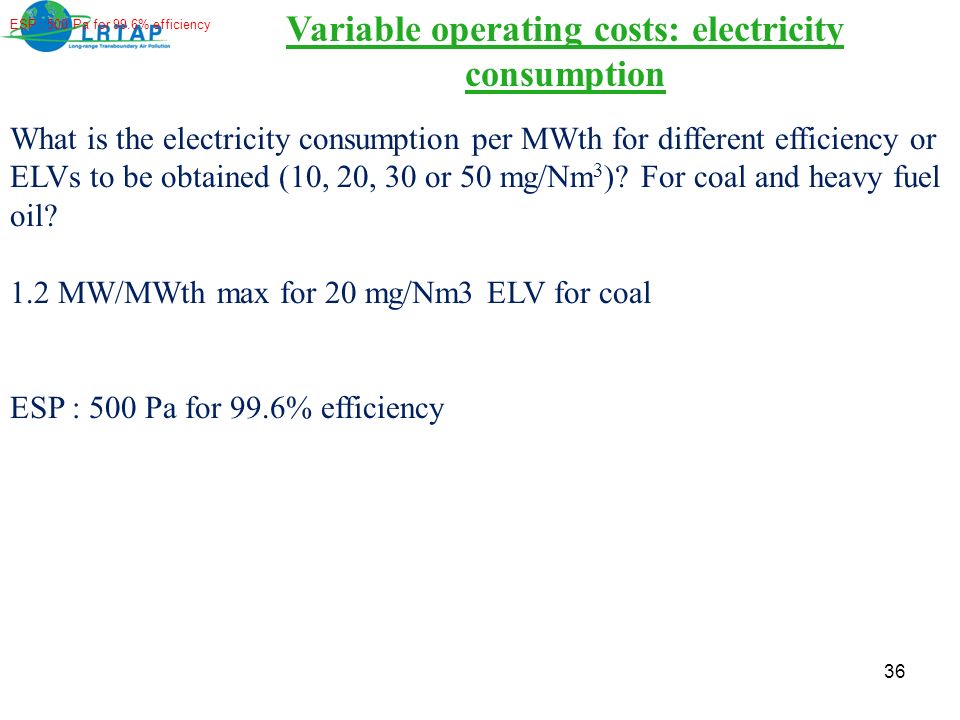

36 Variable operating costs: electricity consumption 36 ESP : 500 Pa for 99.6% efficiency What is the electricity consumption per MWth for different efficiency or ELVs to be obtained (10, 20, 30 or 50 mg/Nm 3 )? For coal and heavy fuel oil? 1.2 MW/MWth max for 20 mg/Nm3 ELV for coal ESP : 500 Pa for 99.6% efficiency

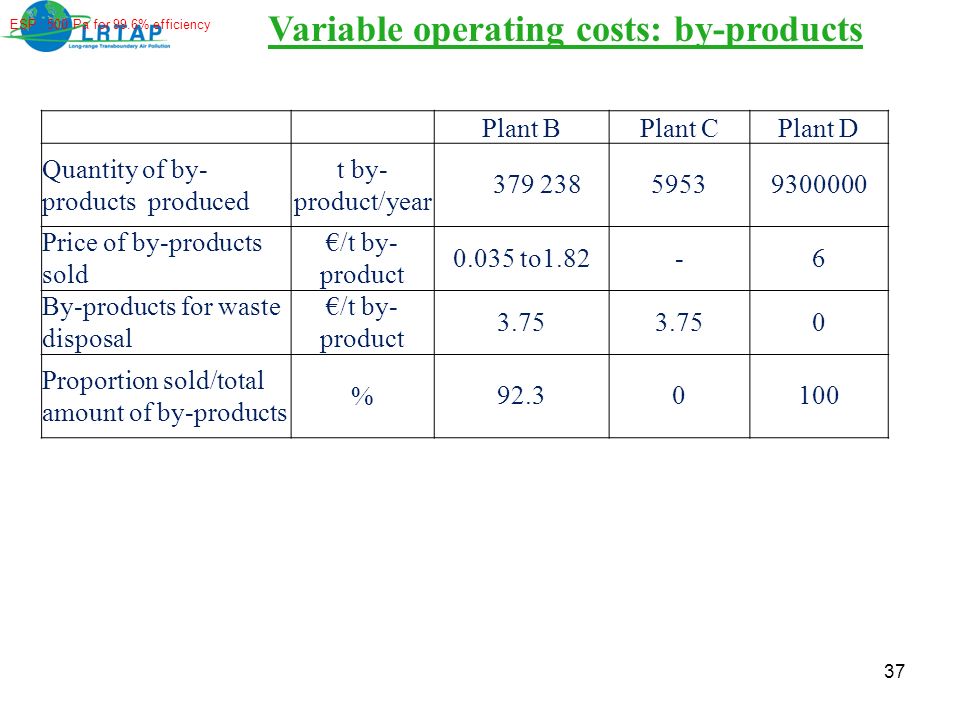

37 Variable operating costs: by-products 37 ESP : 500 Pa for 99.6% efficiency Plant BPlant CPlant D Quantity of by- products produced t by- product/year 379 23859539300000 Price of by-products sold €/t by- product 0.035 to1.82-6 By-products for waste disposal €/t by- product 3.75 0 Proportion sold/total amount of by-products %92.30100

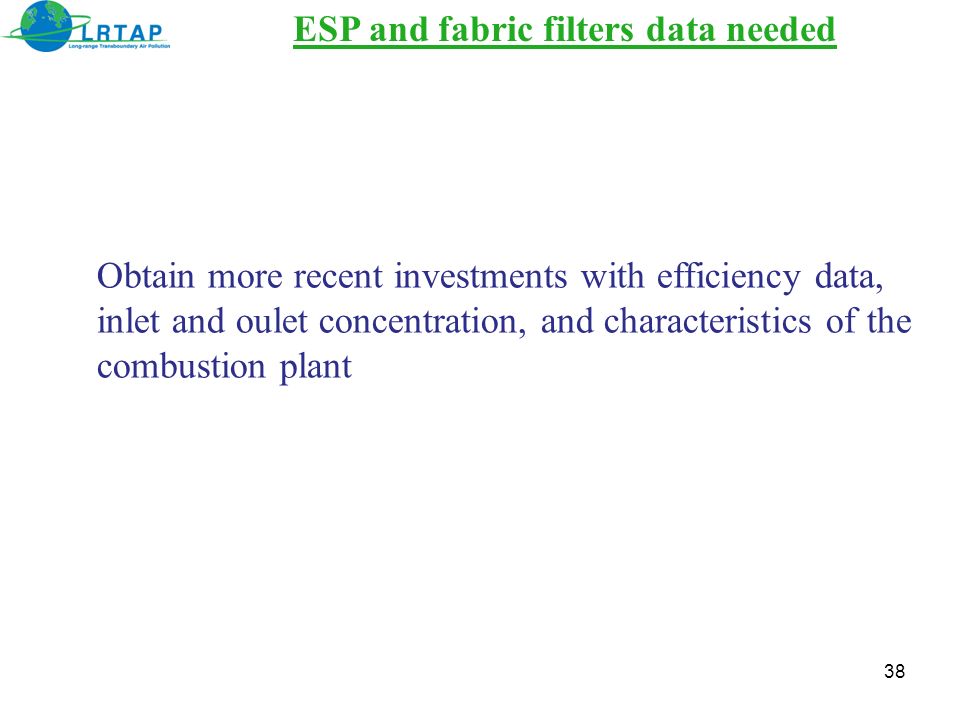

38 ESP and fabric filters data needed 38 Obtain more recent investments with efficiency data, inlet and oulet concentration, and characteristics of the combustion plant

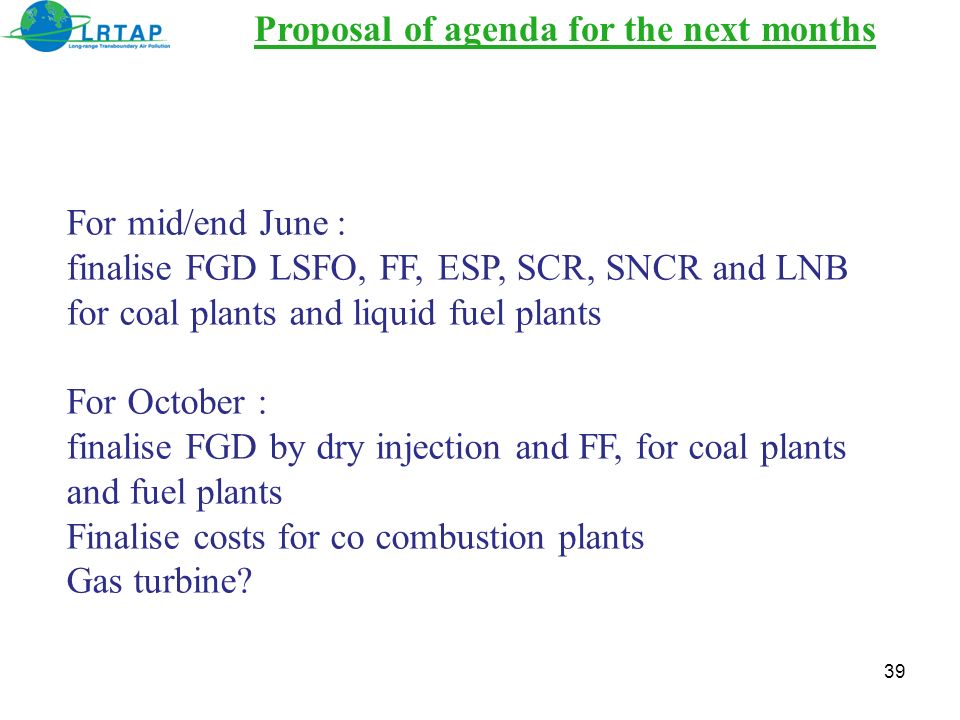

39 Proposal of agenda for the next months 39 For mid/end June : finalise FGD LSFO, FF, ESP, SCR, SNCR and LNB for coal plants and liquid fuel plants For October : finalise FGD by dry injection and FF, for coal plants and fuel plants Finalise costs for co combustion plants Gas turbine?
