1. www.quintum.com Quintum Technologies, Inc. Risk Free VoIP

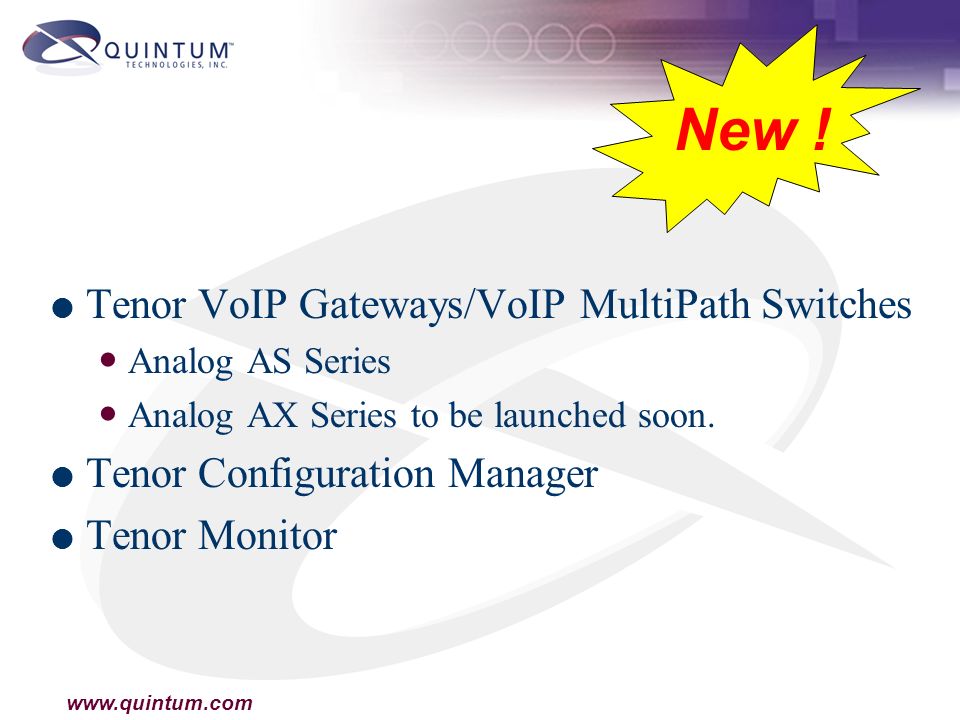

2. www.quintum.com New !  Tenor VoIP Gateways/VoIP MultiPath Switches Analog AS Series Analog AX Series to be launched soon.  Tenor Configuration Manager  Tenor Monitor

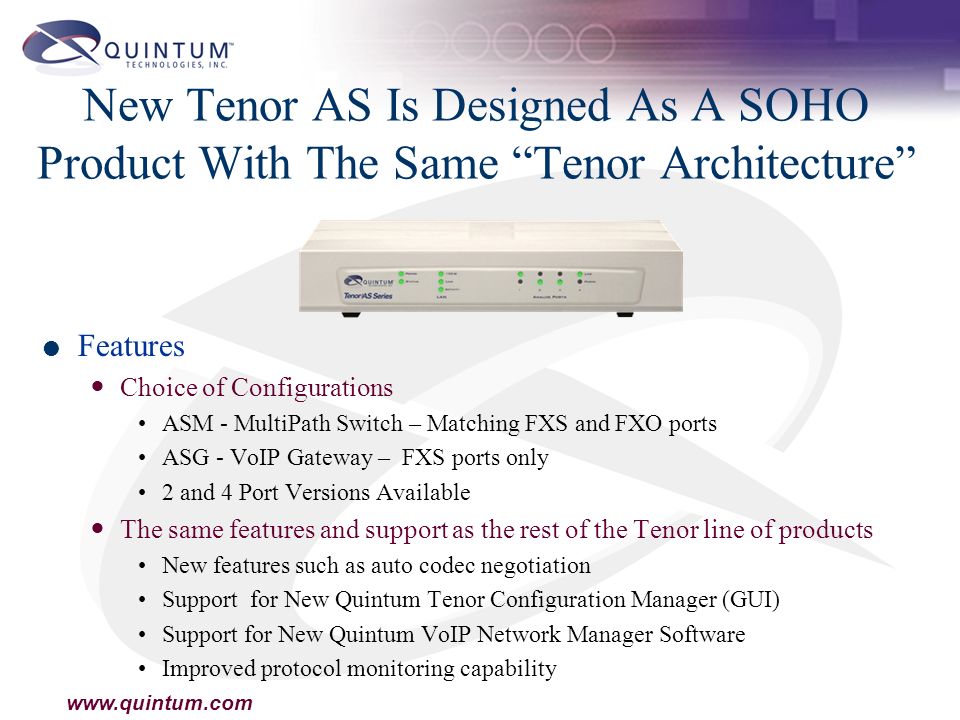

3. www.quintum.com New Tenor AS Is Designed As A SOHO Product With The Same “Tenor Architecture”  Features Choice of Configurations ASM - MultiPath Switch – Matching FXS and FXO ports ASG - VoIP Gateway – FXS ports only 2 and 4 Port Versions Available The same features and support as the rest of the Tenor line of products New features such as auto codec negotiation Support for New Quintum Tenor Configuration Manager (GUI) Support for New Quintum VoIP Network Manager Software Improved protocol monitoring capability

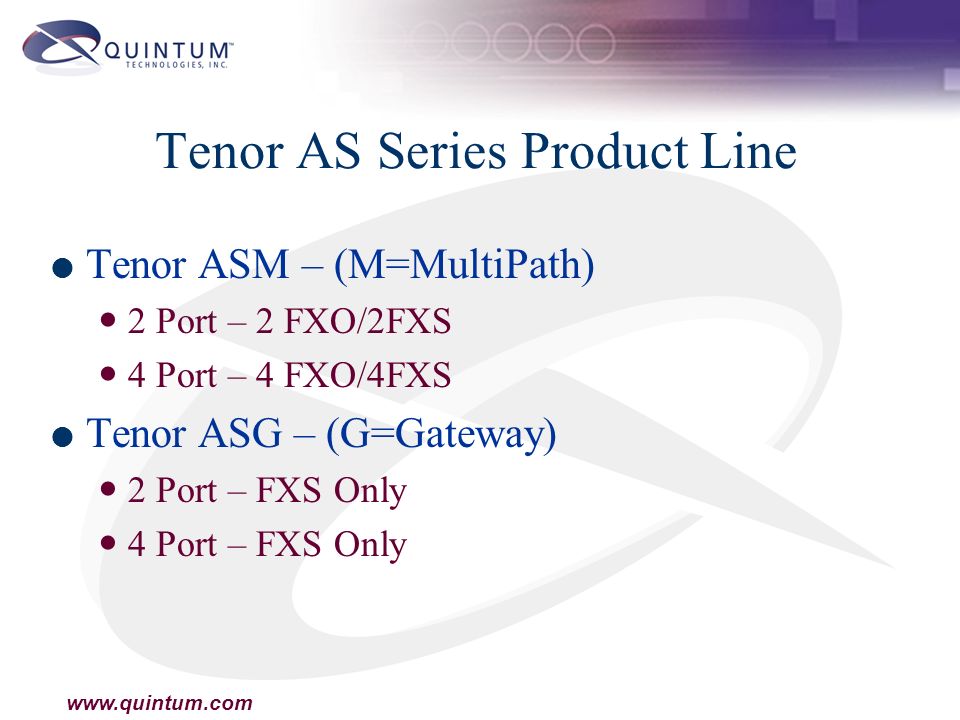

4. www.quintum.com Tenor AS Series Product Line  Tenor ASM – (M=MultiPath) 2 Port – 2 FXO/2FXS 4 Port – 4 FXO/4FXS  Tenor ASG – (G=Gateway) 2 Port – FXS Only 4 Port – FXS Only

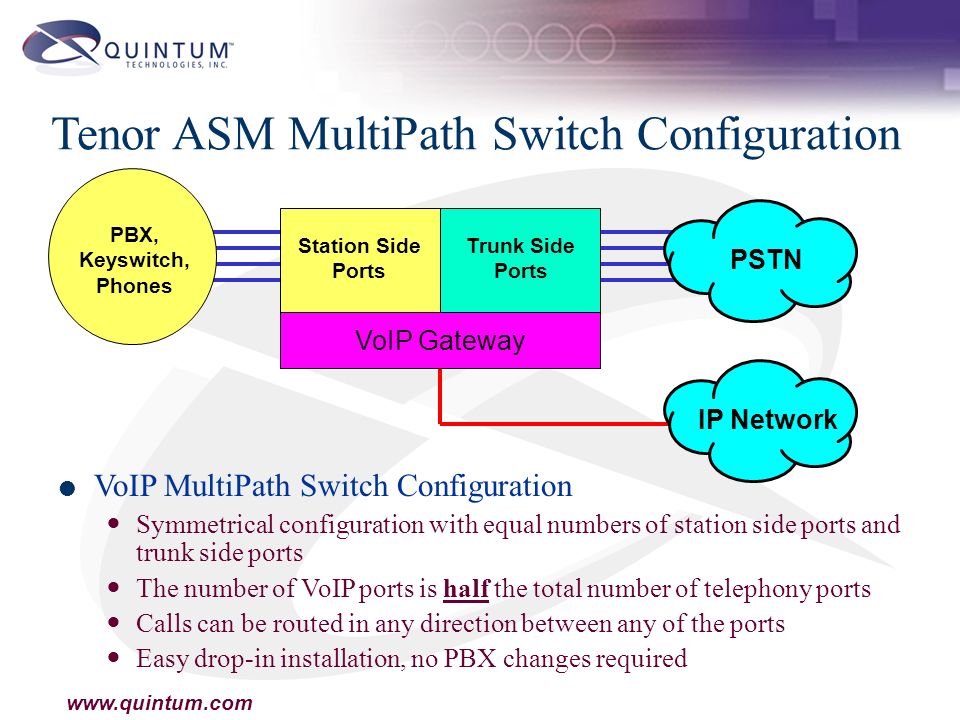

5. www.quintum.com Tenor ASM MultiPath Switch Configuration  VoIP MultiPath Switch Configuration Symmetrical configuration with equal numbers of station side ports and trunk side ports The number of VoIP ports is half the total number of telephony ports Calls can be routed in any direction between any of the ports Easy drop-in installation, no PBX changes required VoIP Gateway PSTN IP Network Station Side Ports PBX, Keyswitch, Phones Trunk Side Ports

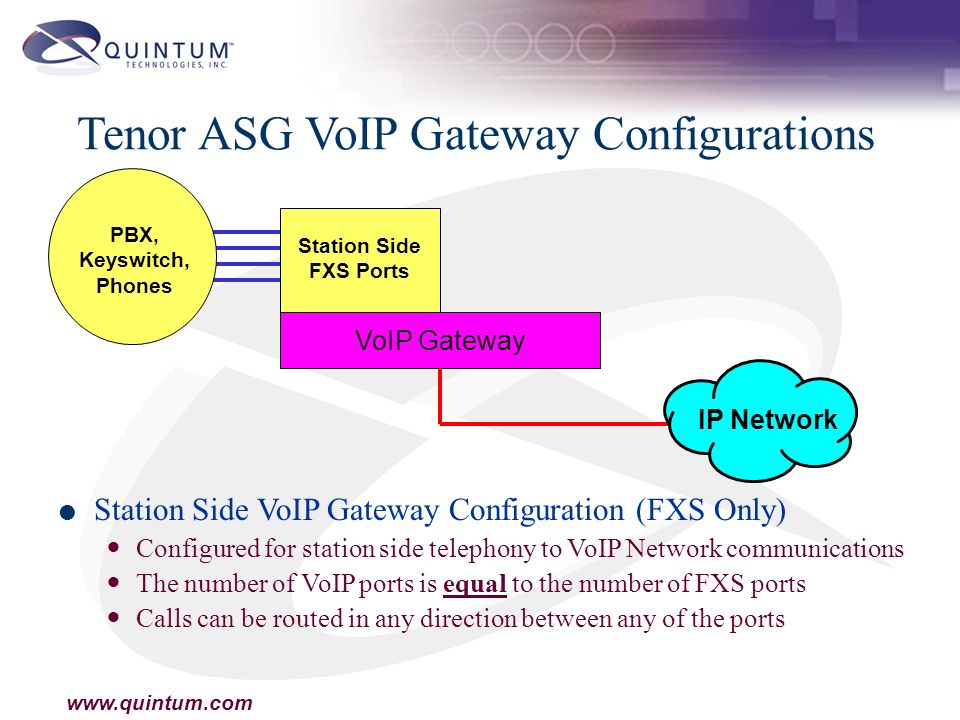

6. www.quintum.com Tenor ASG VoIP Gateway Configurations  Station Side VoIP Gateway Configuration (FXS Only) Configured for station side telephony to VoIP Network communications The number of VoIP ports is equal to the number of FXS ports Calls can be routed in any direction between any of the ports VoIP Gateway IP Network Station Side FXS Ports PBX, Keyswitch, Phones

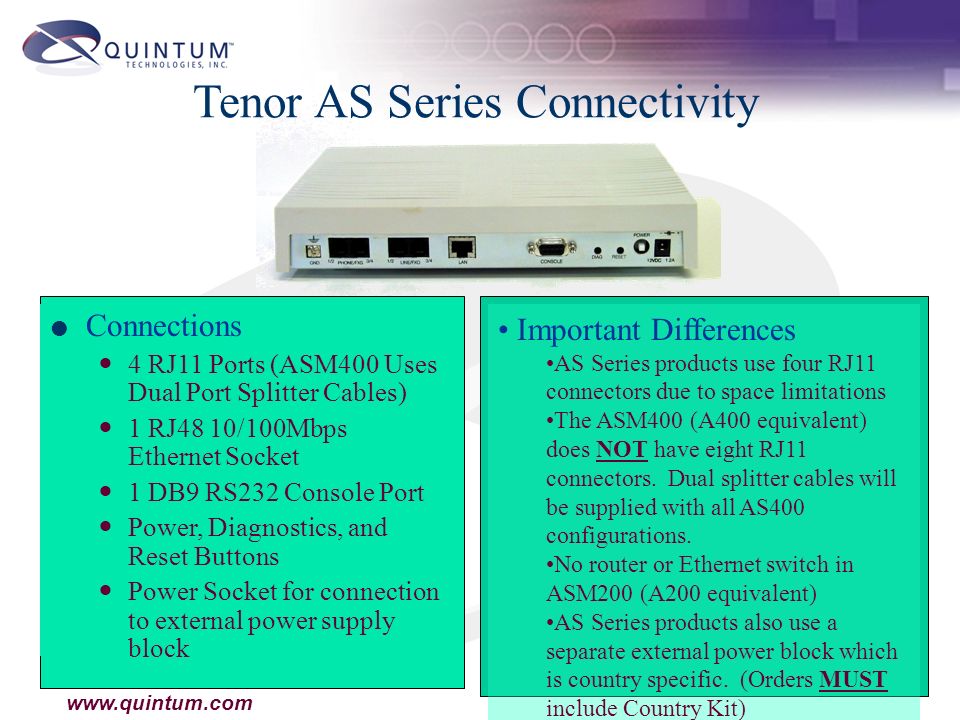

7. www.quintum.com Tenor AS Series Connectivity  Connections 4 RJ11 Ports (ASM400 Uses Dual Port Splitter Cables) 1 RJ48 10/100Mbps Ethernet Socket 1 DB9 RS232 Console Port Power, Diagnostics, and Reset Buttons Power Socket for connection to external power supply block Important Differences AS Series products use four RJ11 connectors due to space limitations The ASM400 (A400 equivalent) does NOT have eight RJ11 connectors. Dual splitter cables will be supplied with all AS400 configurations. No router or Ethernet switch in ASM200 (A200 equivalent) AS Series products also use a separate external power block which is country specific. (Orders MUST include Country Kit)

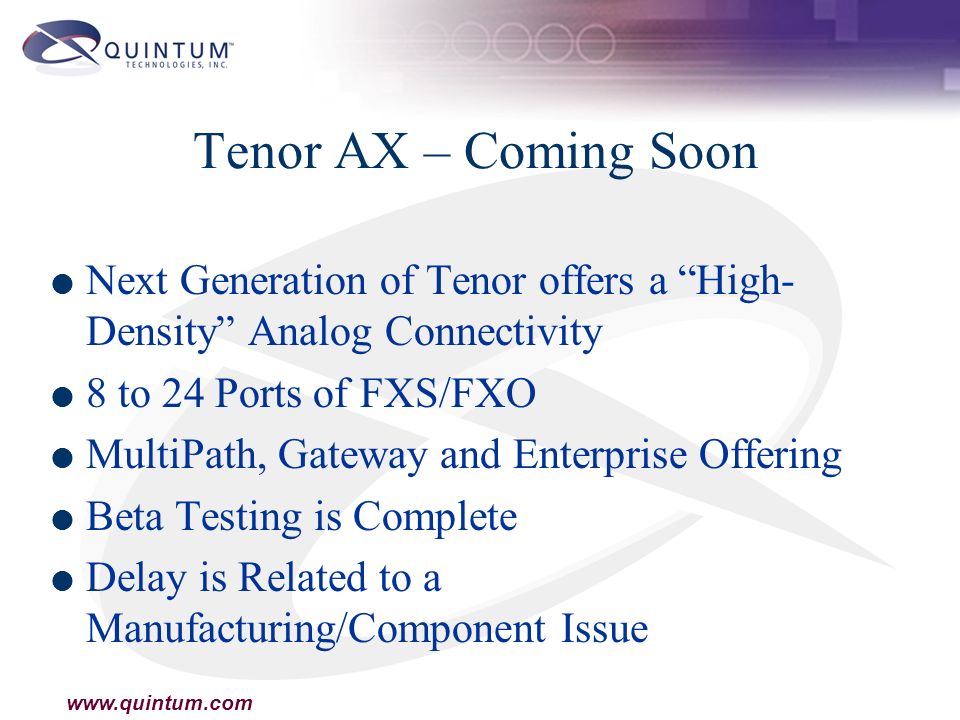

8. www.quintum.com Tenor AX – Coming Soon  Next Generation of Tenor offers a “High- Density” Analog Connectivity  8 to 24 Ports of FXS/FXO  MultiPath, Gateway and Enterprise Offering  Beta Testing is Complete  Delay is Related to a Manufacturing/Component Issue

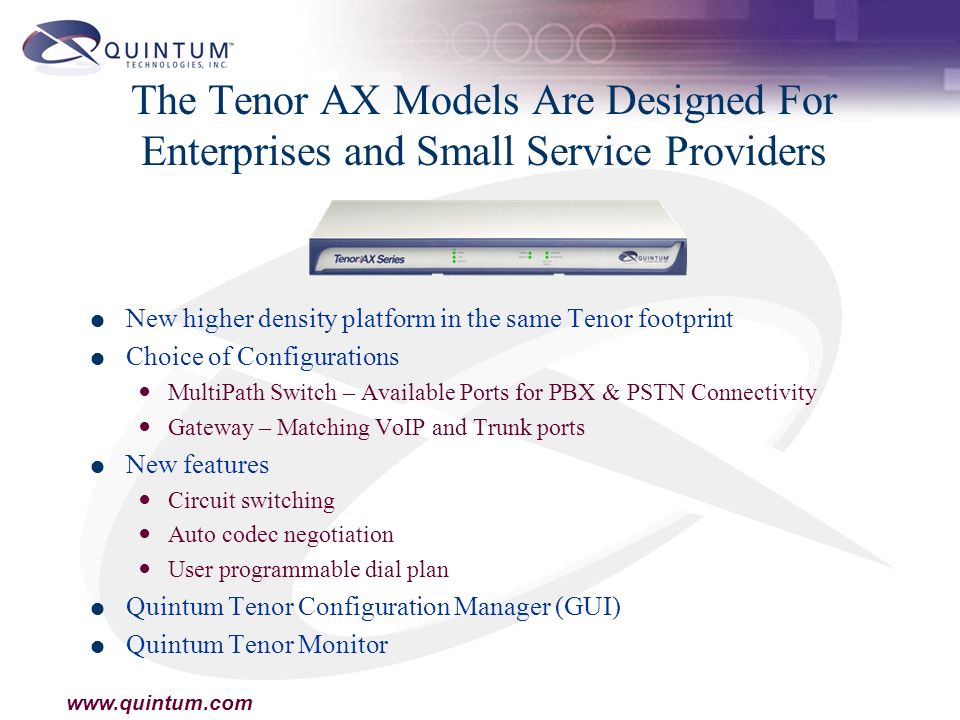

9. www.quintum.com The Tenor AX Models Are Designed For Enterprises and Small Service Providers  New higher density platform in the same Tenor footprint  Choice of Configurations MultiPath Switch – Available Ports for PBX & PSTN Connectivity Gateway – Matching VoIP and Trunk ports  New features Circuit switching Auto codec negotiation User programmable dial plan  Quintum Tenor Configuration Manager (GUI)  Quintum Tenor Monitor

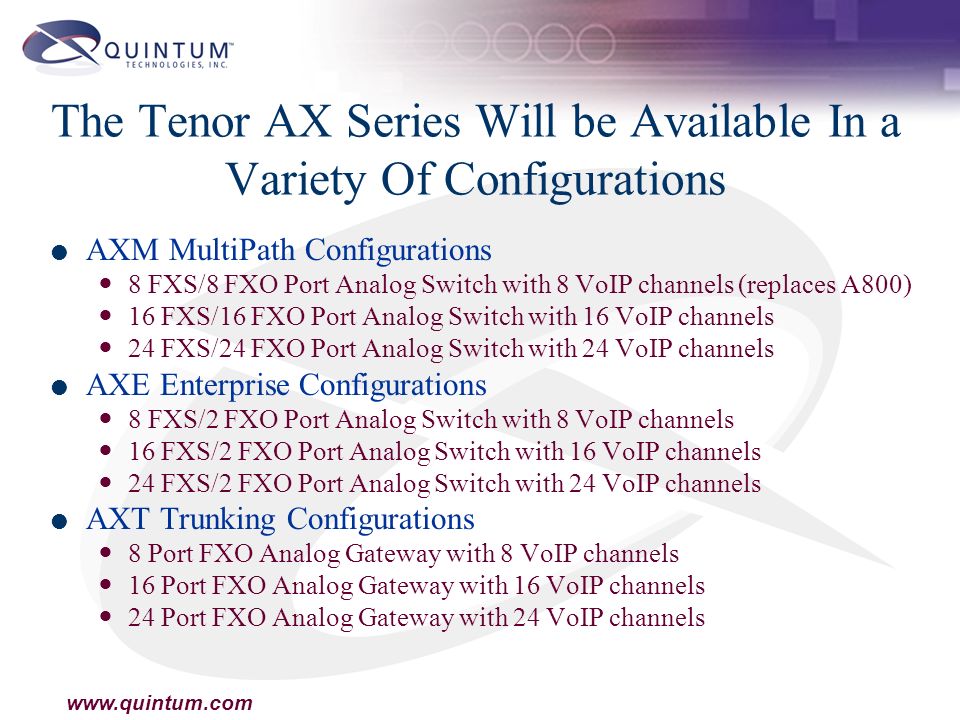

10. www.quintum.com The Tenor AX Series Will be Available In a Variety Of Configurations  AXM MultiPath Configurations 8 FXS/8 FXO Port Analog Switch with 8 VoIP channels (replaces A800) 16 FXS/16 FXO Port Analog Switch with 16 VoIP channels 24 FXS/24 FXO Port Analog Switch with 24 VoIP channels  AXE Enterprise Configurations 8 FXS/2 FXO Port Analog Switch with 8 VoIP channels 16 FXS/2 FXO Port Analog Switch with 16 VoIP channels 24 FXS/2 FXO Port Analog Switch with 24 VoIP channels  AXT Trunking Configurations 8 Port FXO Analog Gateway with 8 VoIP channels 16 Port FXO Analog Gateway with 16 VoIP channels 24 Port FXO Analog Gateway with 24 VoIP channels

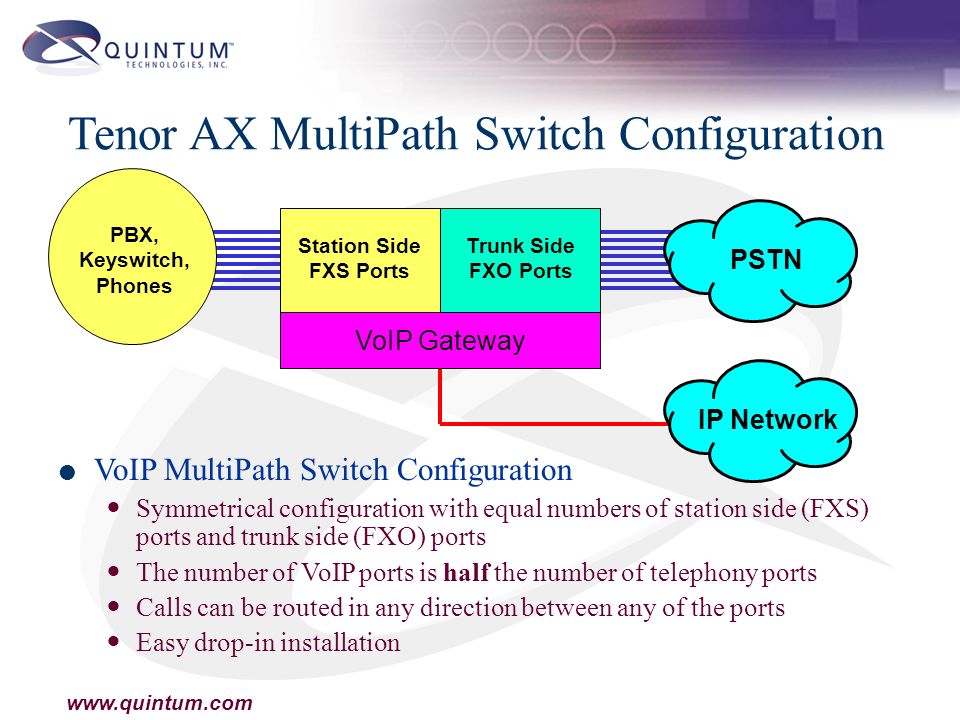

11. www.quintum.com Tenor AX MultiPath Switch Configuration  VoIP MultiPath Switch Configuration Symmetrical configuration with equal numbers of station side (FXS) ports and trunk side (FXO) ports The number of VoIP ports is half the number of telephony ports Calls can be routed in any direction between any of the ports Easy drop-in installation VoIP Gateway PSTN IP Network Station Side FXS Ports PBX, Keyswitch, Phones Trunk Side FXO Ports

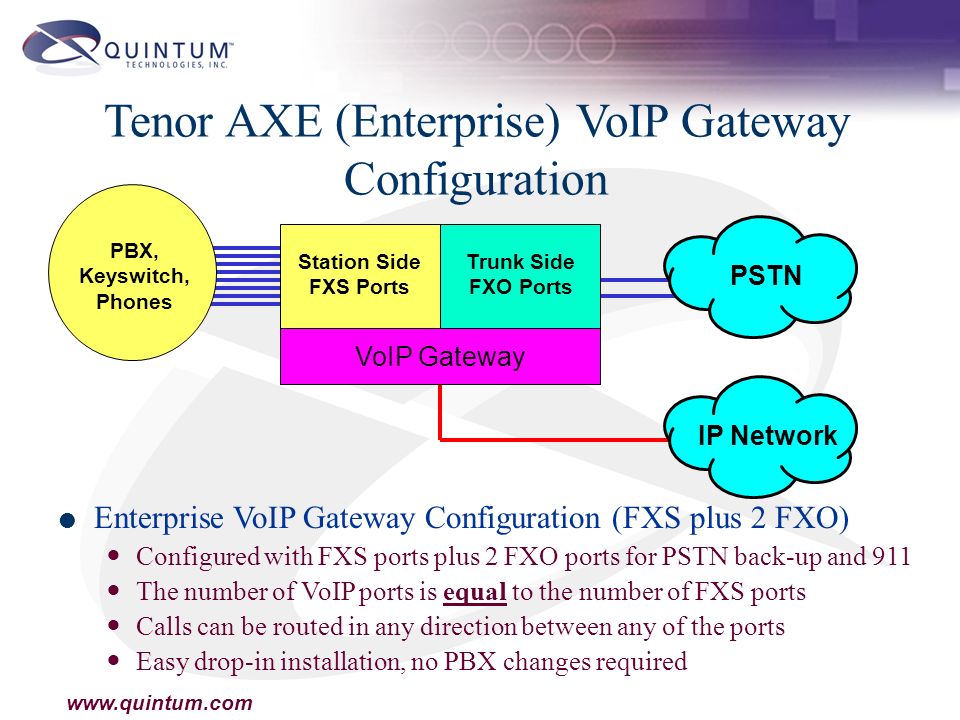

12. www.quintum.com Tenor AXE (Enterprise) VoIP Gateway Configuration  Enterprise VoIP Gateway Configuration (FXS plus 2 FXO) Configured with FXS ports plus 2 FXO ports for PSTN back-up and 911 The number of VoIP ports is equal to the number of FXS ports Calls can be routed in any direction between any of the ports Easy drop-in installation, no PBX changes required VoIP Gateway PSTN IP Network Station Side FXS Ports PBX, Keyswitch, Phones Trunk Side FXO Ports

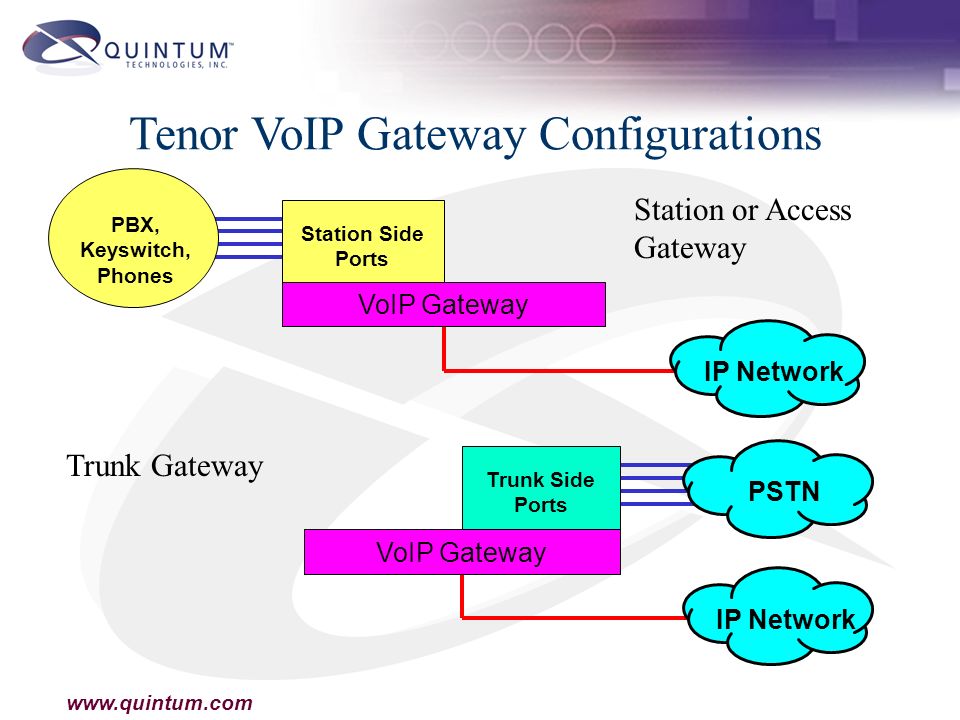

13. www.quintum.com Tenor VoIP Gateway Configurations VoIP Gateway IP Network Station Side Ports PBX, Keyswitch, Phones VoIP Gateway PSTN IP Network Trunk Side Ports Station or Access Gateway Trunk Gateway

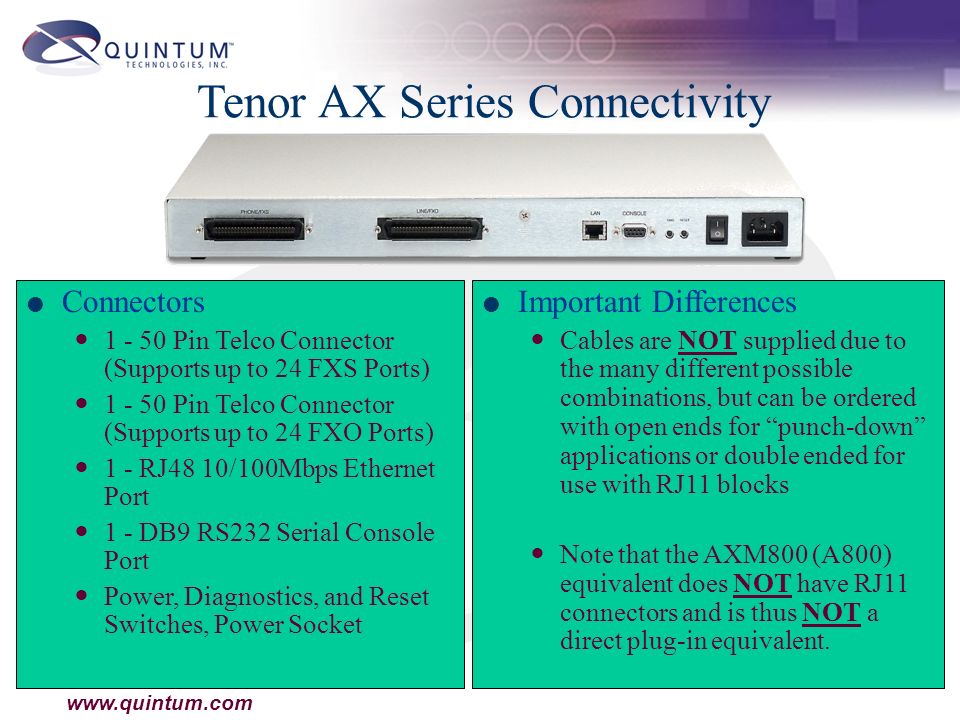

14. www.quintum.com Tenor AX Series Connectivity  Connectors 1 - 50 Pin Telco Connector (Supports up to 24 FXS Ports) 1 - 50 Pin Telco Connector (Supports up to 24 FXO Ports) 1 - RJ48 10/100Mbps Ethernet Port 1 - DB9 RS232 Serial Console Port Power, Diagnostics, and Reset Switches, Power Socket  Important Differences Cables are NOT supplied due to the many different possible combinations, but can be ordered with open ends for “punch-down” applications or double ended for use with RJ11 blocks Note that the AXM800 (A800) equivalent does NOT have RJ11 connectors and is thus NOT a direct plug-in equivalent.

15. www.quintum.com Tenor Configuration Manager Makes Tenor Even Easier To Configure  Quintum has developed a completely new Graphical User Interface for the new AS/AX/DX Series products.  This web-based management tool enables the user to set all the configuration parameters using an intuitive graphical interface.  The Tenor Configuration Manager can configure a remote unit anywhere in the IP network from the user’s PC.  The Tenor Configuration Manager consists of a Java application which can be loaded on any PC using Windows 2000 or Windows XP operating systems.  Will be available for these new Tenor products and the Tenor CMS.

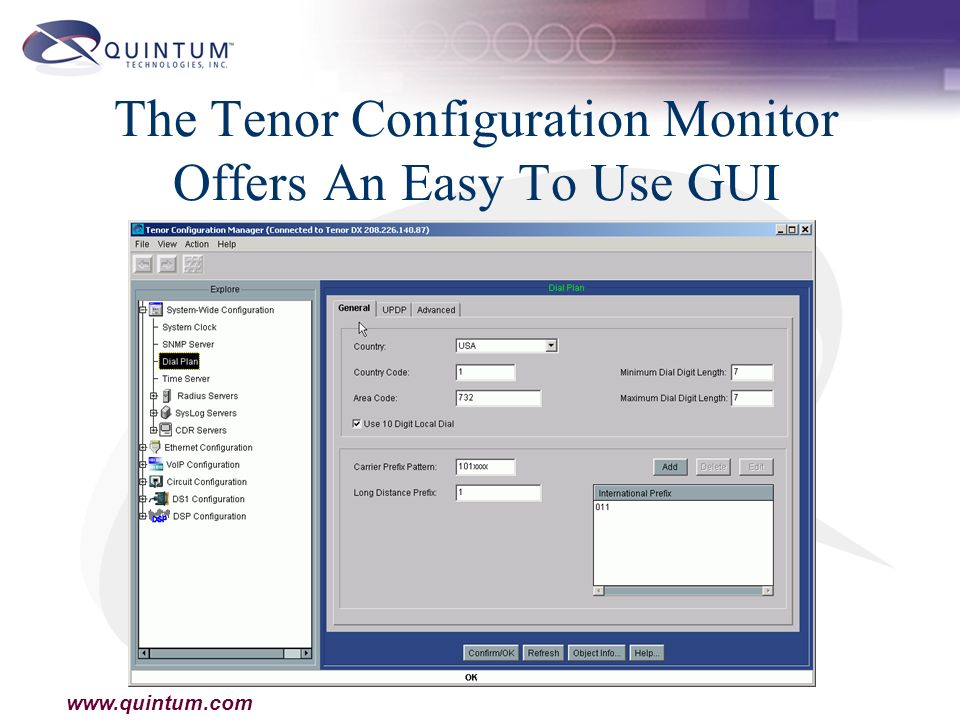

16. www.quintum.com The Tenor Configuration Monitor Offers An Easy To Use GUI

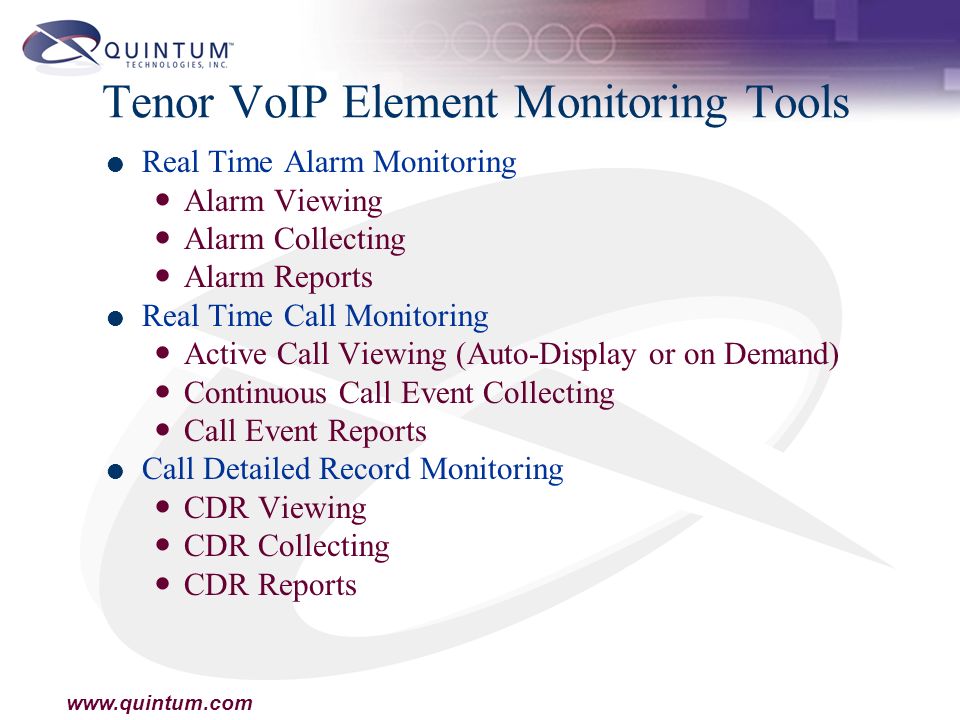

17. www.quintum.com Tenor VoIP Element Monitoring Tools  Real Time Alarm Monitoring Alarm Viewing Alarm Collecting Alarm Reports  Real Time Call Monitoring Active Call Viewing (Auto-Display or on Demand) Continuous Call Event Collecting Call Event Reports  Call Detailed Record Monitoring CDR Viewing CDR Collecting CDR Reports

18. www.quintum.com The Quintum Tenor Monitor Offers An Easy To Use GUI

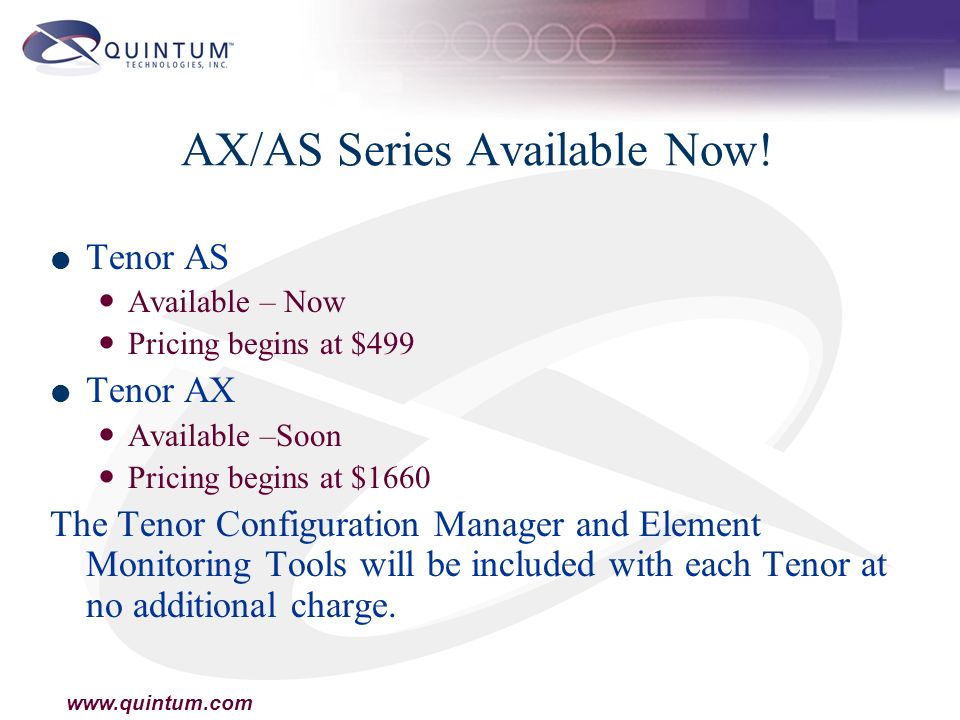

19. www.quintum.com AX/AS Series Available Now!  Tenor AS Available – Now Pricing begins at $499  Tenor AX Available –Soon Pricing begins at $1660 The Tenor Configuration Manager and Element Monitoring Tools will be included with each Tenor at no additional charge.
