1 COMP-TIA Standards

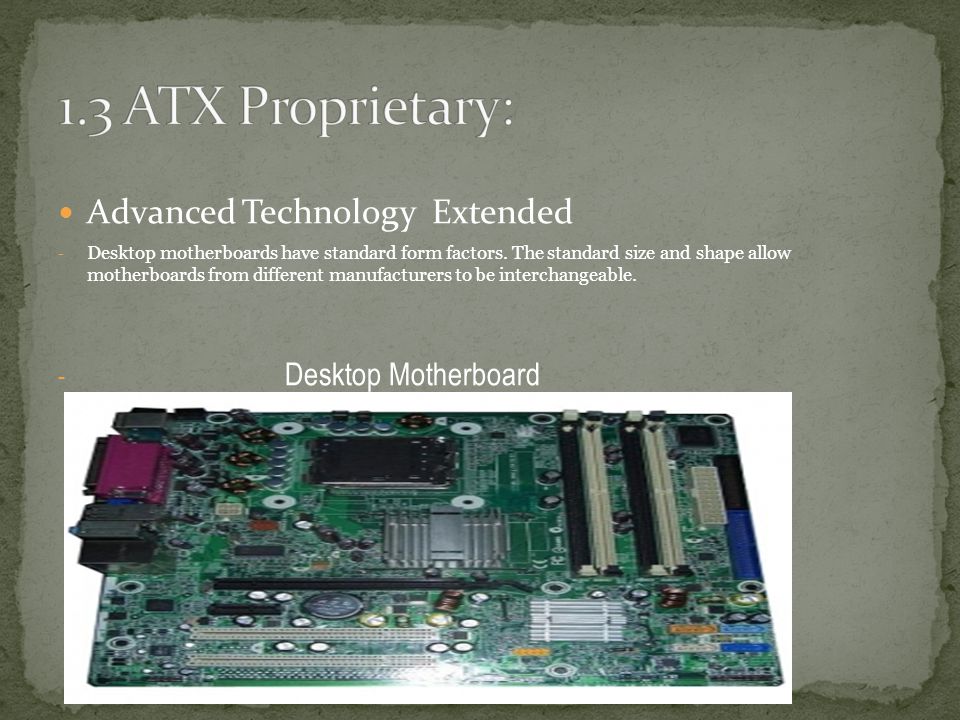

2 Advanced Technology Extended - Desktop motherboards have standard form factors. The standard size and shape allow motherboards from different manufacturers to be interchangeable. - Desktop Motherboard

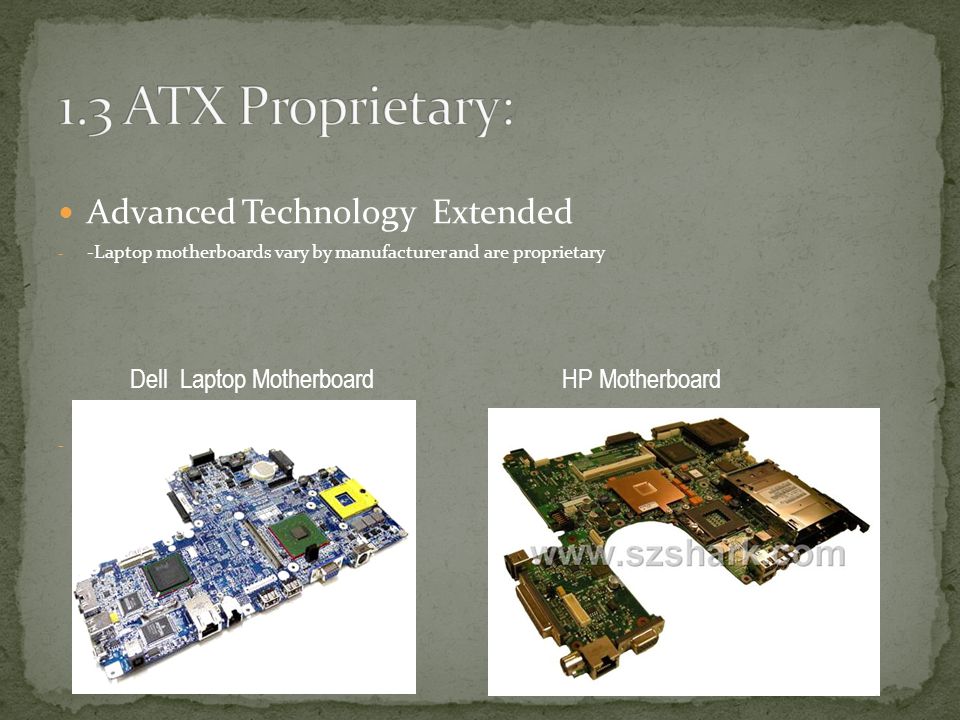

3 Advanced Technology Extended - -Laptop motherboards vary by manufacturer and are proprietary Dell Laptop Motherboard HP Motherboard -

4 Voltage- Voltage is the force that moves electrons through a circuit. The movement of electrons is called current.

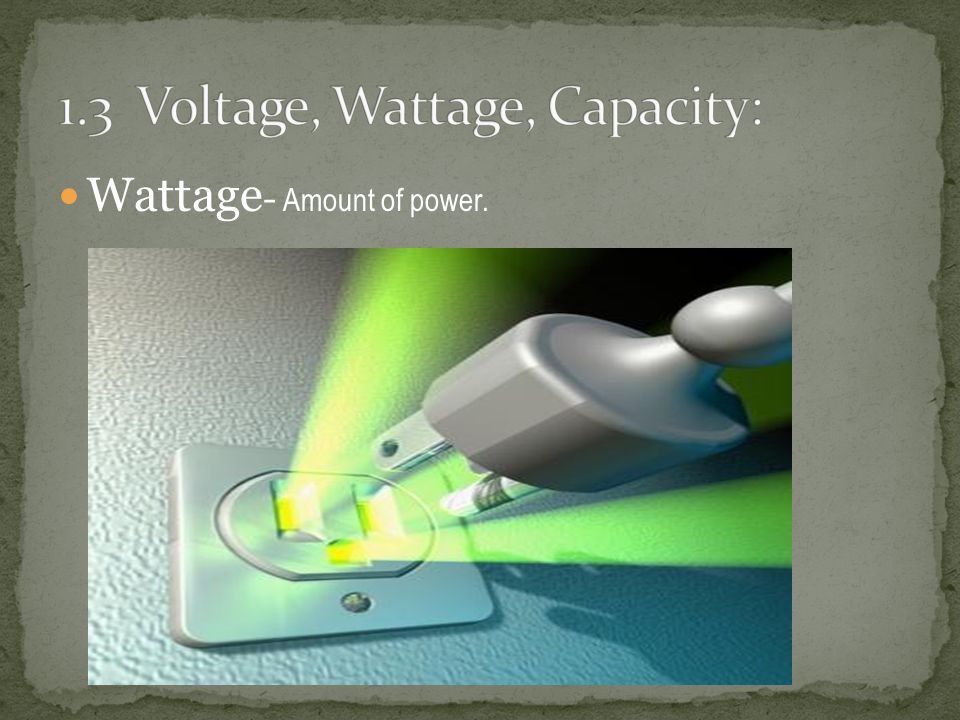

5 Wattage - Amount of power.

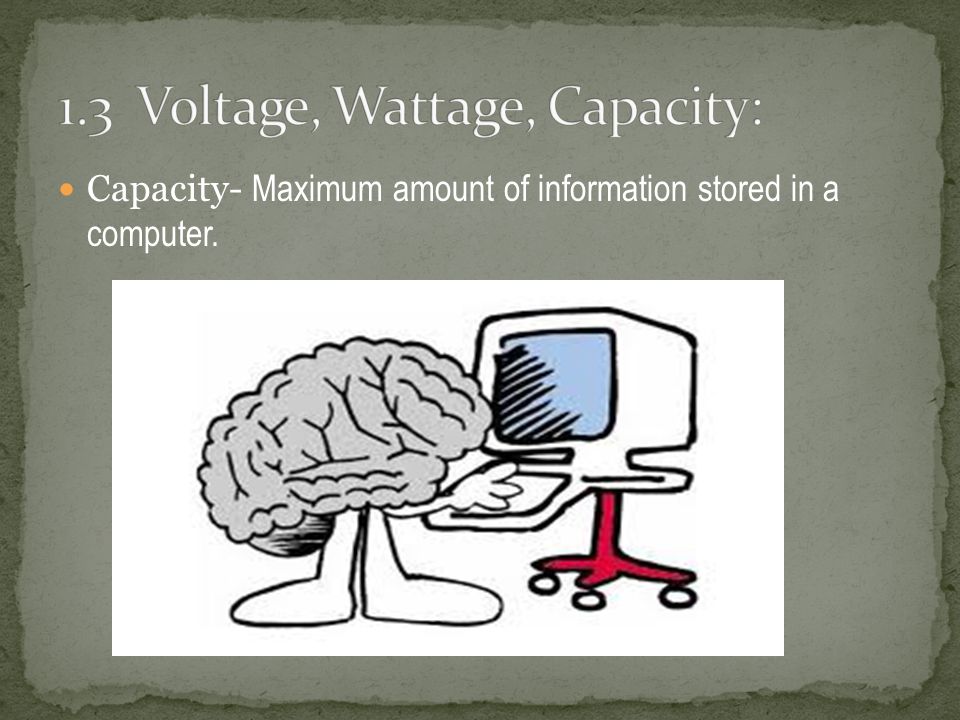

6 Capacity- Maximum amount of information stored in a computer.

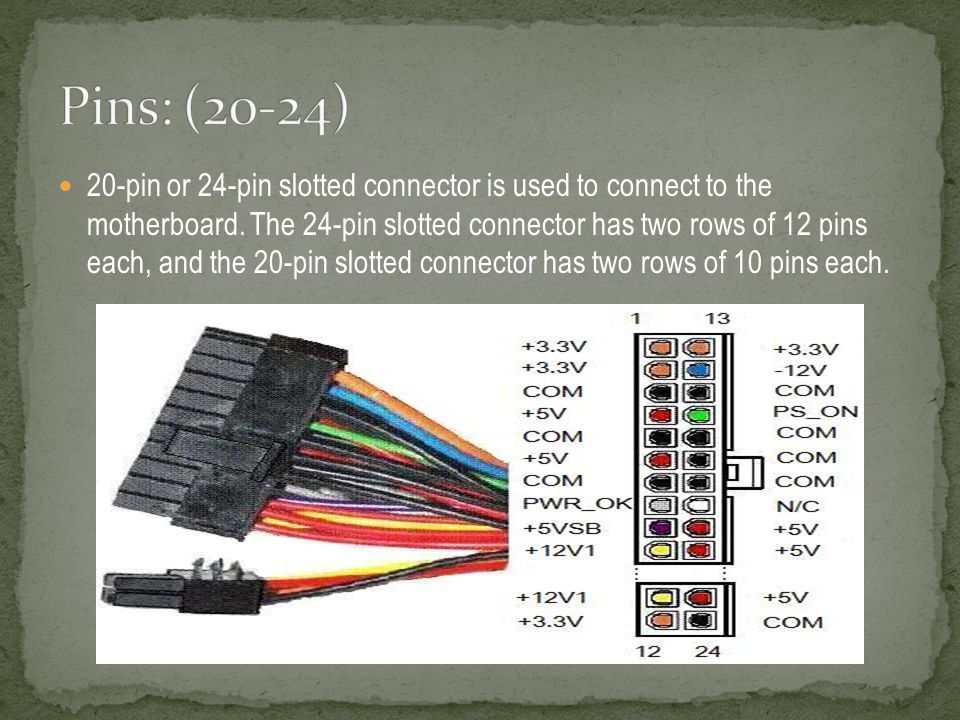

7 20-pin or 24-pin slotted connector is used to connect to the motherboard. The 24-pin slotted connector has two rows of 12 pins each, and the 20-pin slotted connector has two rows of 10 pins each.
