1. Make the most of your energy June 2008 Power Meter 800 PowerLogic ® Power Meter 8ECC

2. Schneider Electric 2 - Marketing – PM8ECC – June 2008 Outline ●This presentation will focus on the PM8ECC Ethernet communication card for PM800 series power meters ●Introduction ●Benefits ●Technical Specifications ●Mechanical View ●Application Example

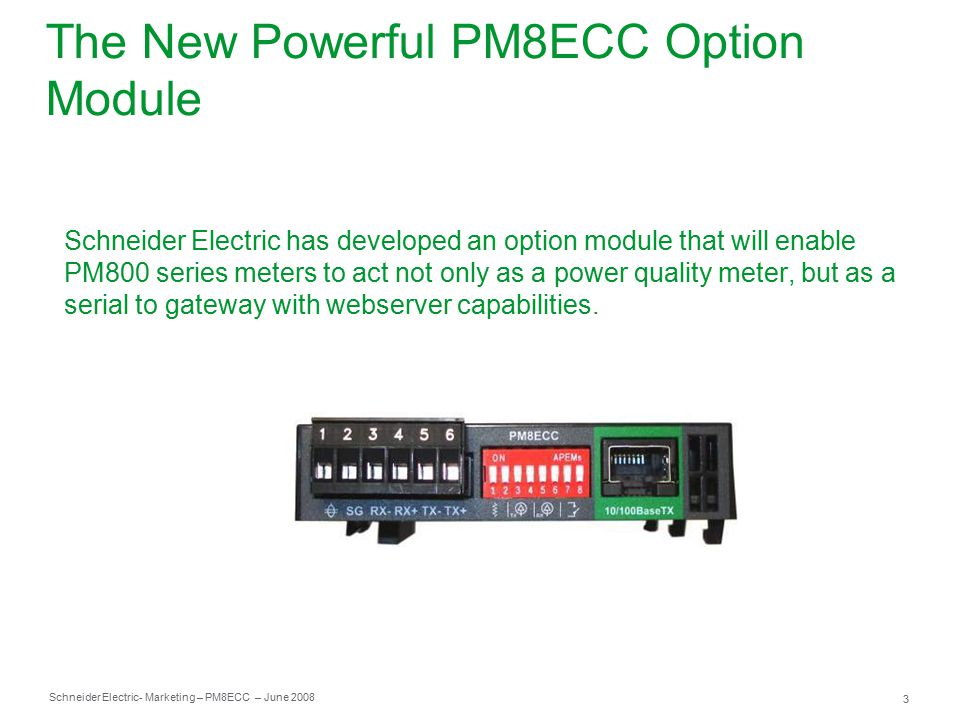

3. Schneider Electric 3 - Marketing – PM8ECC – June 2008 The New Powerful PM8ECC Option Module Schneider Electric has developed an option module that will enable PM800 series meters to act not only as a power quality meter, but as a serial to gateway with webserver capabilities.

4. Schneider Electric 4 - Marketing – PM8ECC – June 2008 Benefits ●Clean and efficient solution due to space constraint ●No extra gateway or power supply needed. IP based meter which allows easy integration into existing Ethernet infrastructure and management ●Easy access to the PM8ECC information by simply typing the IP address into the web browser ●Easy retrofit ability for existing PM800 series meter infrastructure ●Give users the ability to enhance their existing energy monitoring system network from serial to Ethernet

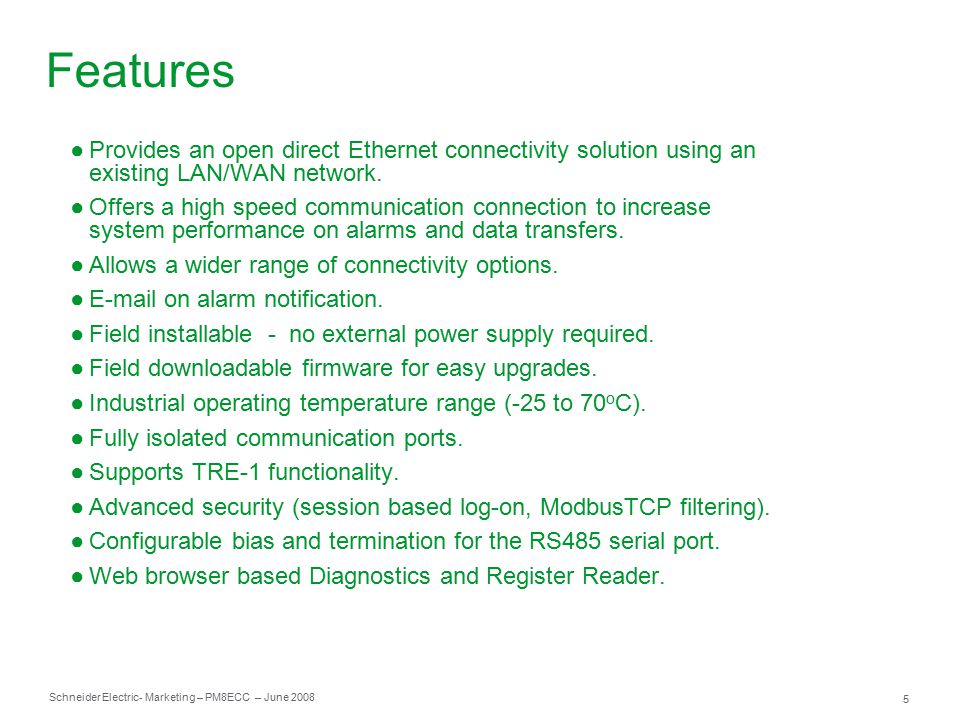

5. Schneider Electric 5 - Marketing – PM8ECC – June 2008 Features ●Provides an open direct Ethernet connectivity solution using an existing LAN/WAN network. ●Offers a high speed communication connection to increase system performance on alarms and data transfers. ●Allows a wider range of connectivity options. ●E-mail on alarm notification. ●Field installable - no external power supply required. ●Field downloadable firmware for easy upgrades. ●Industrial operating temperature range (-25 to 70 o C). ●Fully isolated communication ports. ●Supports TRE-1 functionality. ●Advanced security (session based log-on, ModbusTCP filtering). ●Configurable bias and termination for the RS485 serial port. ●Web browser based Diagnostics and Register Reader.

6. Schneider Electric 6 - Marketing – PM8ECC – June 2008 ●10/100BaseTx Ethernet ●Supported protocols: ModbusTCP/IP, FTP, SNMP MIB2, ARP, UDP, and HTTP ●LED indicators: Link, Tx, Rx, Link speed (10/100 differentiated by color) ●RS485 serial port ●Baud rates from 2400 to 38.4k ●Full optical Isolation ●Serial protocols include: Modbus/RTU, Modbus/ASCII, PowerLogic (RNIM), Jbus ●Screw terminal connector for RS485 ●Support for 2-wire and 4-wire daisy-chains ●Configurable bias and termination ●LED indicators: Tx, Rx Technical Specifications

7. Schneider Electric 7 - Marketing – PM8ECC – June 2008 Mechanical View RS485 serial port 10/100Base Tx Bias, Termination, & 2-wire / 4-wire jumper switches

8. Schneider Electric 8 - Marketing – PM8ECC – June 2008 Lateral Mechanical View LED indicators for serial communications LED indicators for Ethernet communications Power Status

9. Schneider Electric 9 - Marketing – PM8ECC – June 2008 Applications Industrial Application: ●A customer would like to monitor remotely a motor’s energy consumption with SAG and SWELL. They have invested in a large Ethernet backbone and would like to monitor through this network and have multiple users ●Solution: Purchase PM870 and PM8ECC ●PM870 is equipped with SAG/SWELL capabilities ●PM8ECC enables the meter to be viewed directly on Ethernet network

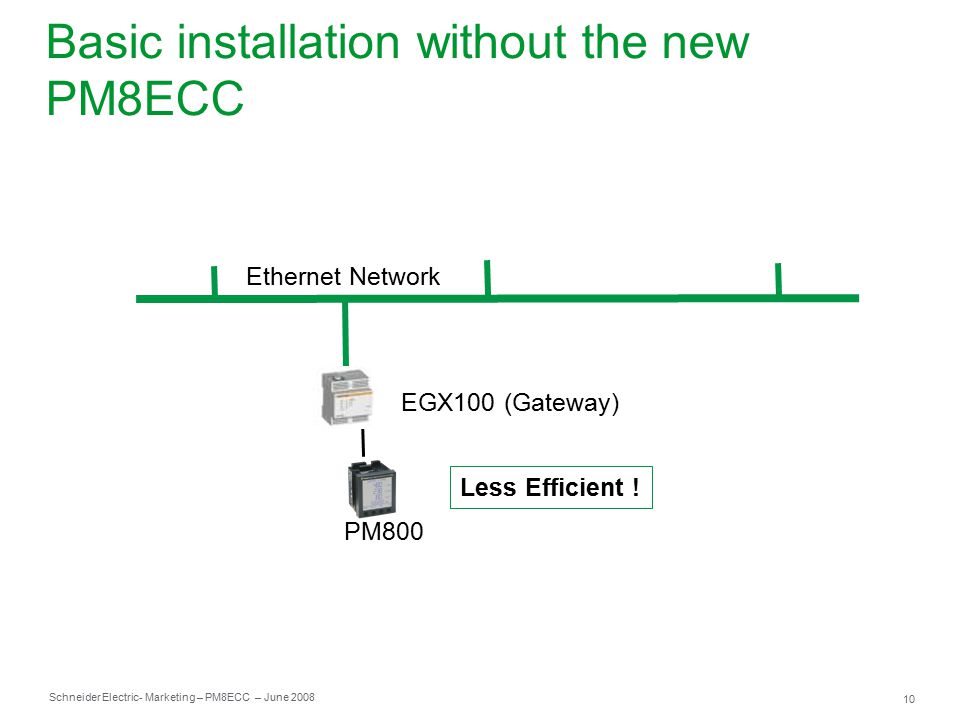

10. Schneider Electric 10 - Marketing – PM8ECC – June 2008 Basic installation without the new PM8ECC Less Efficient ! Ethernet Network PM800 EGX100 (Gateway)

11. Schneider Electric 11 - Marketing – PM8ECC – June 2008 Basic Installation with the new PM8ECC More Efficient! Less space required! Ethernet Network

12. Schneider Electric 12 - Marketing – PM8ECC – June 2008 Advance Ethernet Settings

13. Schneider Electric 13 - Marketing – PM8ECC – June 2008 Monitoring – Summary Displays

14. Schneider Electric 14 - Marketing – PM8ECC – June 2008 Monitoring – Summary Displays (cont)

15. Schneider Electric 15 - Marketing – PM8ECC – June 2008 Monitoring – ITIC SEMI Graph Sample screen – available 1Q08

16. Schneider Electric 16 - Marketing – PM8ECC – June 2008 ●Contact your local Schneider Electric sales representative at: ●Schneider Electric - Power Management Operation ●295 Tech Park Suite 100 ●LaVergne, TN 37086 ●Phone: Ph: 866-466-7627 ●Visit us on the web at: ●www.powerlogic.com More Information
