1. AVIATION RADIO 6 July 2004 Robin Gable & Paul F. Ryan © 7-6-2004 Paul F. Ryan

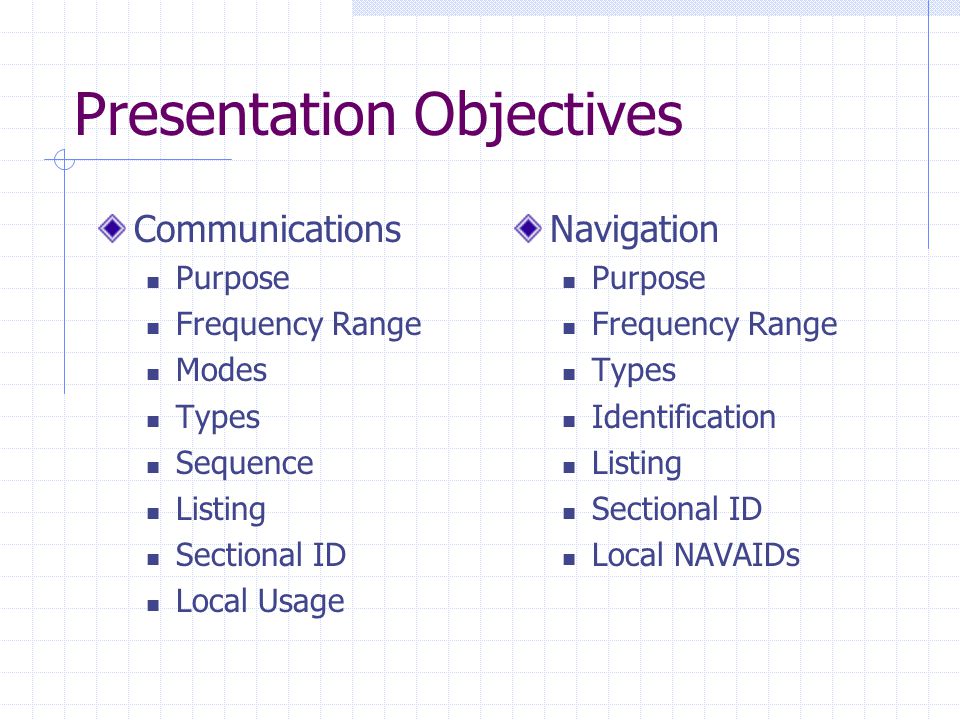

2. Presentation Objectives Communications Purpose Frequency Range Modes Types Sequence Listing Sectional ID Local Usage Navigation Purpose Frequency Range Types Identification Listing Sectional ID Local NAVAIDs

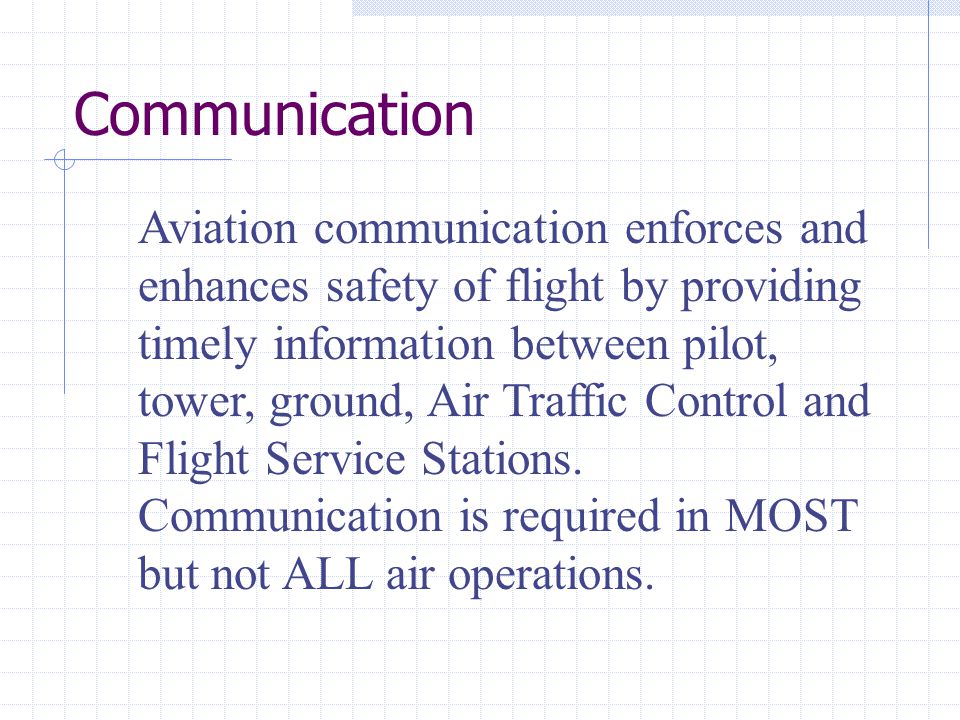

3. Communication Aviation communication enforces and enhances safety of flight by providing timely information between pilot, tower, ground, Air Traffic Control and Flight Service Stations. Communication is required in MOST but not ALL air operations.

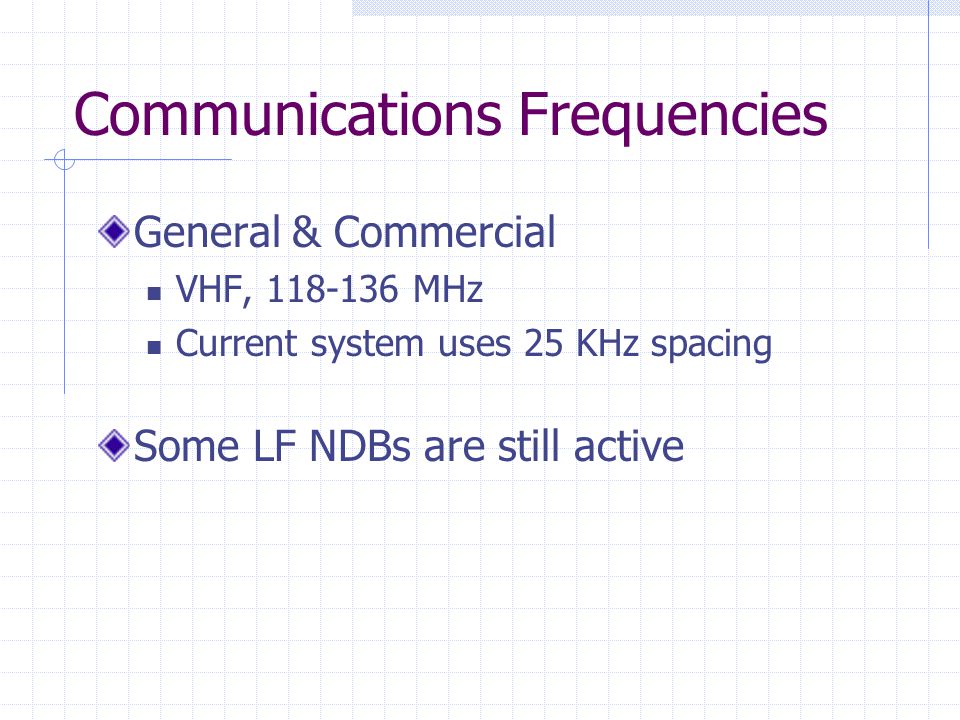

4. Communications Frequencies General & Commercial VHF, 118-136 MHz Current system uses 25 KHz spacing Some LF NDBs are still active

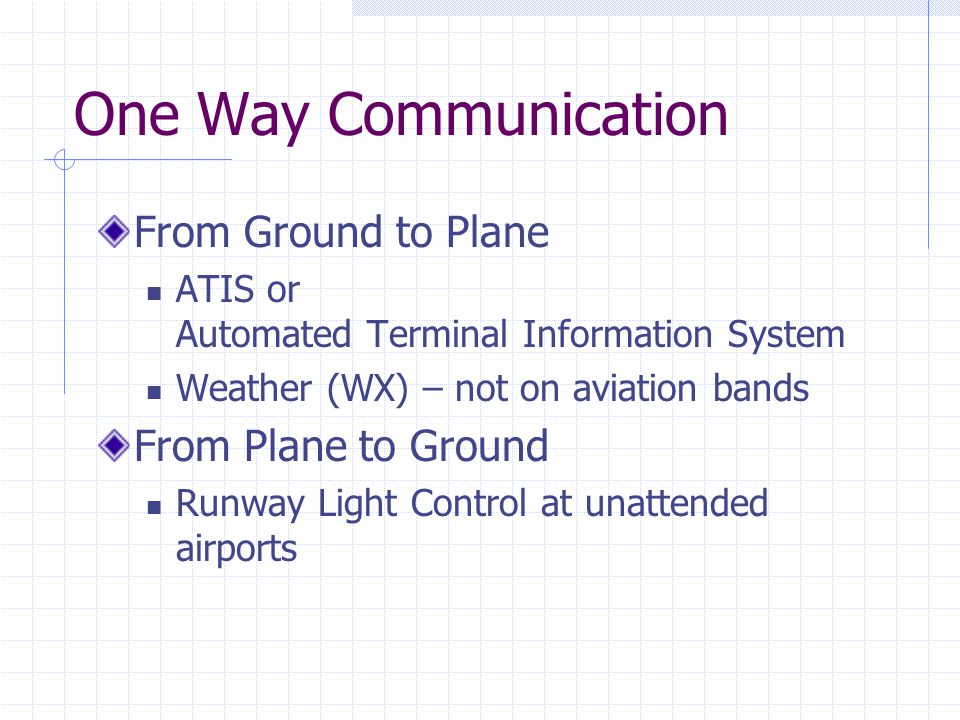

5. One Way Communication From Ground to Plane ATIS or Automated Terminal Information System Weather (WX) – not on aviation bands From Plane to Ground Runway Light Control at unattended airports

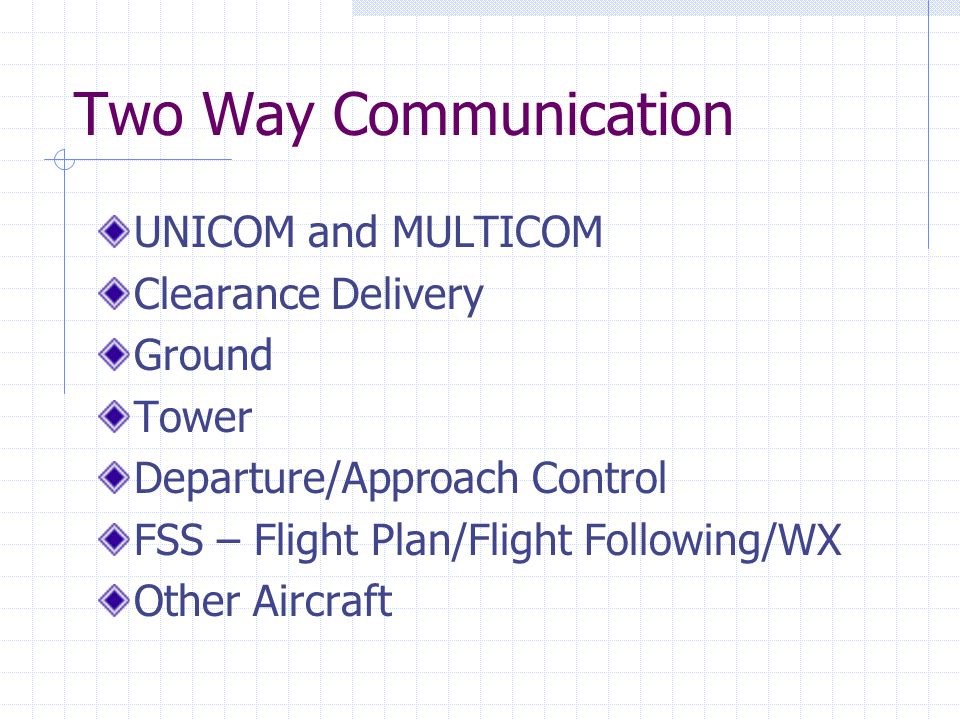

6. Two Way Communication UNICOM and MULTICOM Clearance Delivery Ground Tower Departure/Approach Control FSS – Flight Plan/Flight Following/WX Other Aircraft

7. Radio Data Airman’s Information Manual (AIM) Facilities Directory Sectional (most common)

8. Sectionals

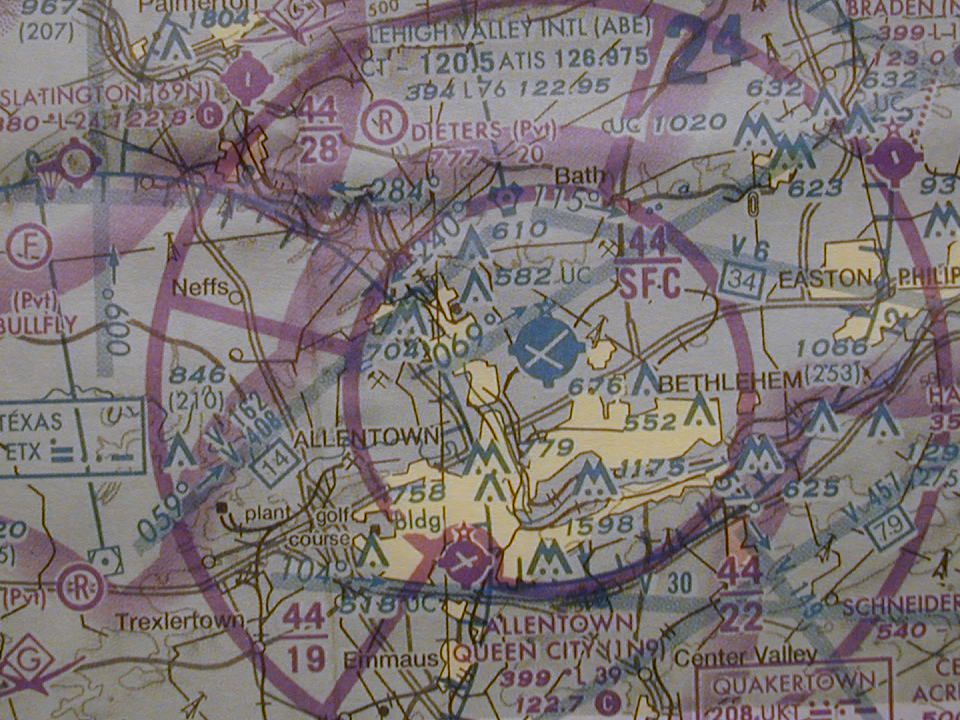

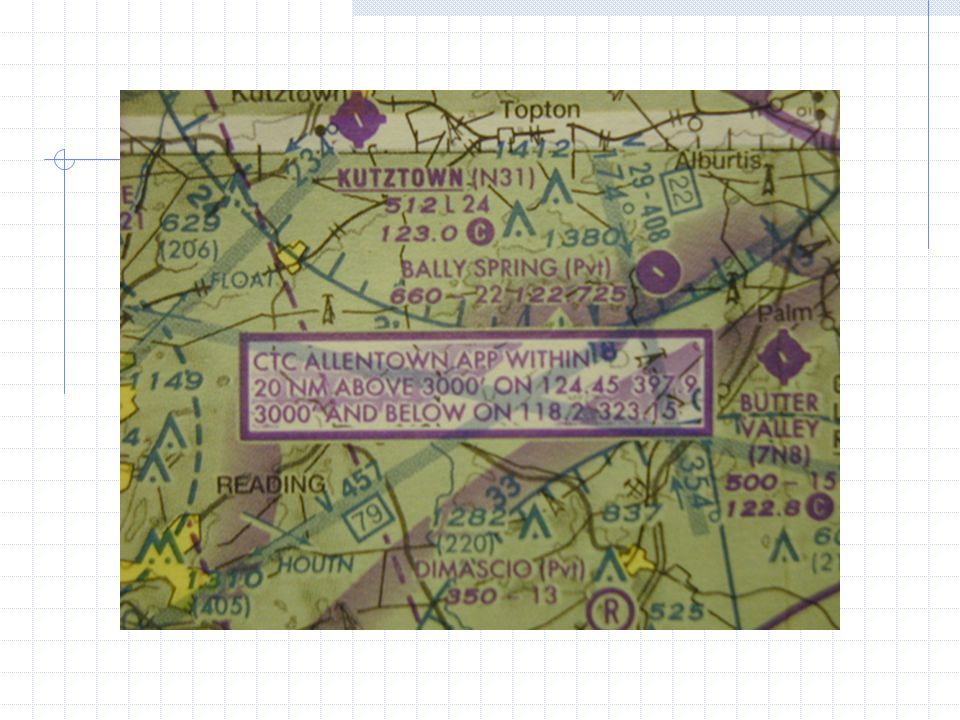

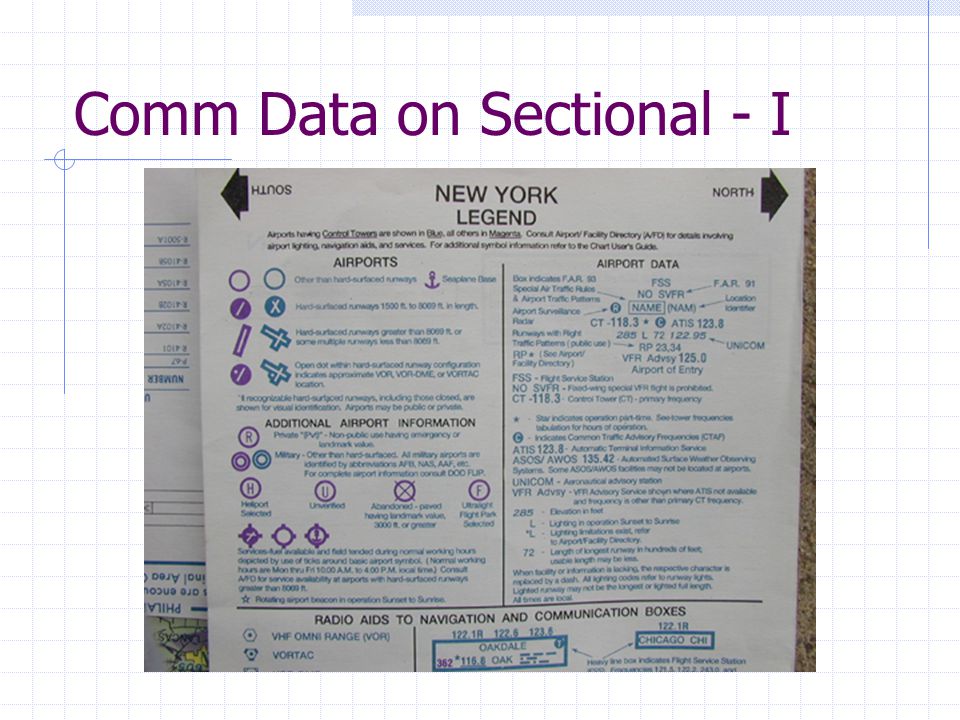

9. Comm Data on Sectional - I

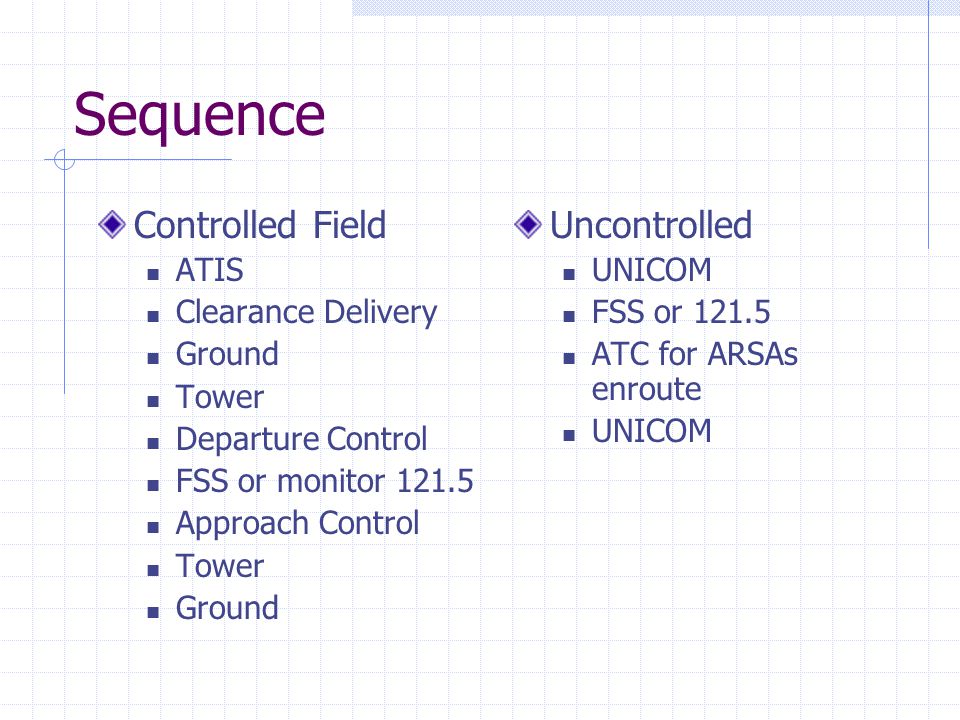

13. Sequence Controlled Field ATIS Clearance Delivery Ground Tower Departure Control FSS or monitor 121.5 Approach Control Tower Ground Uncontrolled UNICOM FSS or 121.5 ATC for ARSAs enroute UNICOM

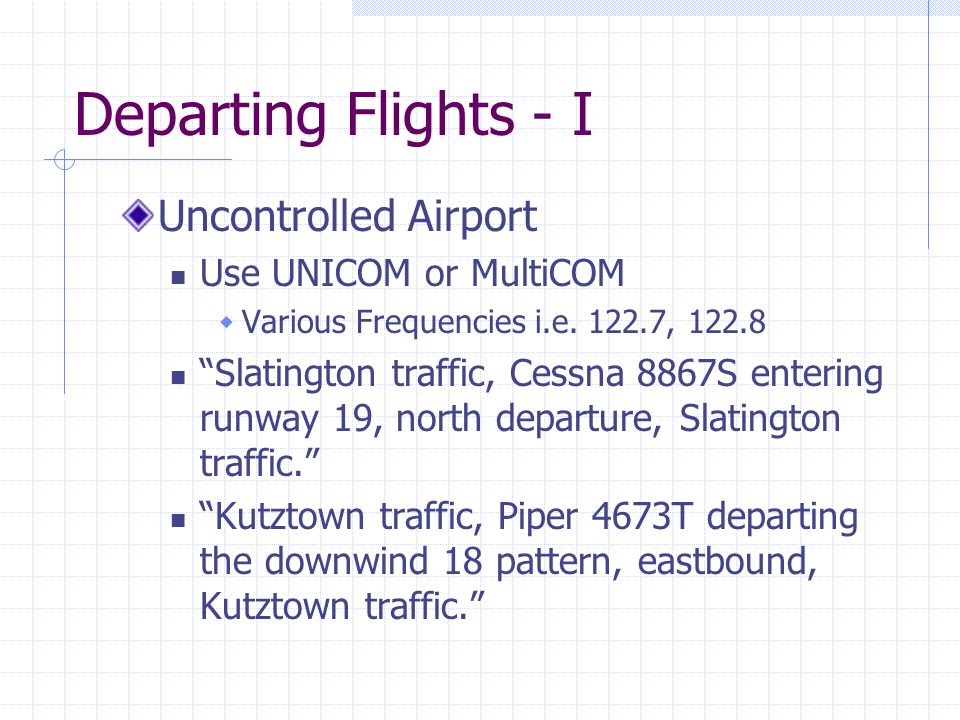

14. Departing Flights - I Uncontrolled Airport Use UNICOM or MultiCOM  Various Frequencies i.e. 122.7, 122.8 “Slatington traffic, Cessna 8867S entering runway 19, north departure, Slatington traffic.” “Kutztown traffic, Piper 4673T departing the downwind 18 pattern, eastbound, Kutztown traffic.”

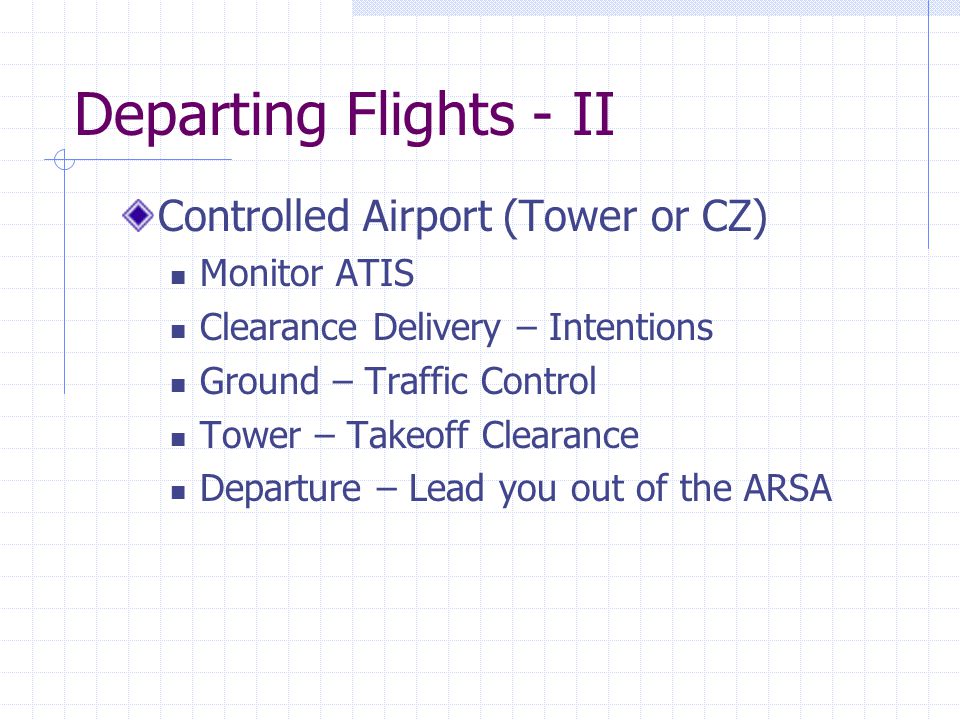

16. Departing Flights - II Controlled Airport (Tower or CZ) Monitor ATIS Clearance Delivery – Intentions Ground – Traffic Control Tower – Takeoff Clearance Departure – Lead you out of the ARSA

18. Enroute – I VFR Call FSS on 122.2 to open flight plan and request flight following “Flight service, Cessna 8867S listening on the Allentown omni.” “Cessna 8867S, Flight Service, go ahead.” “I’d like to open my flight plan, off Slatington field at 27 past the hour.” …

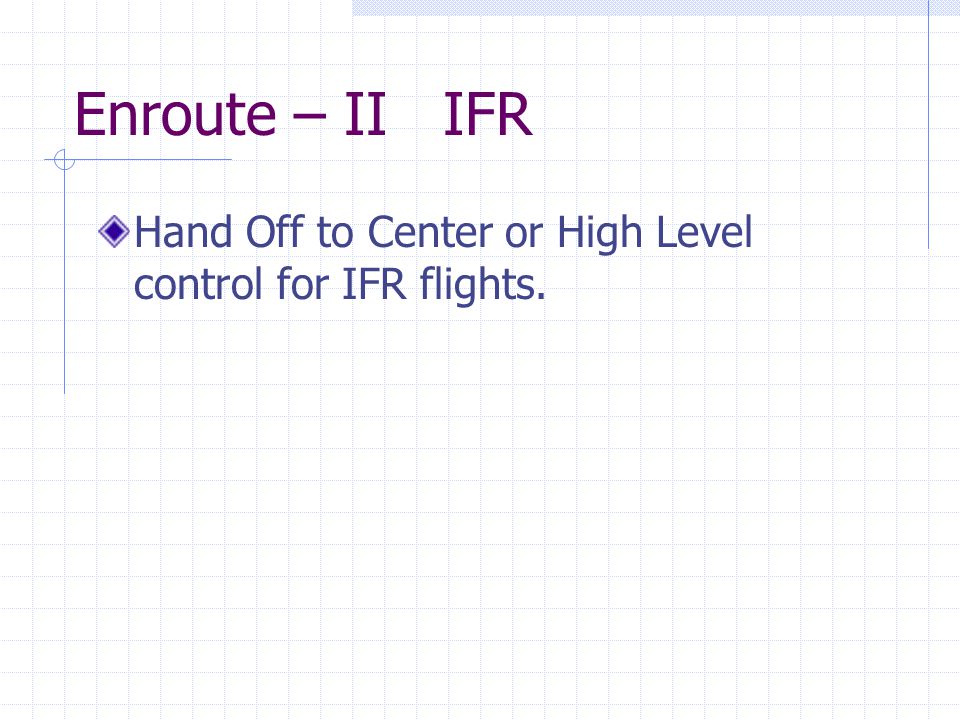

19. Enroute – II IFR Hand Off to Center or High Level control for IFR flights.

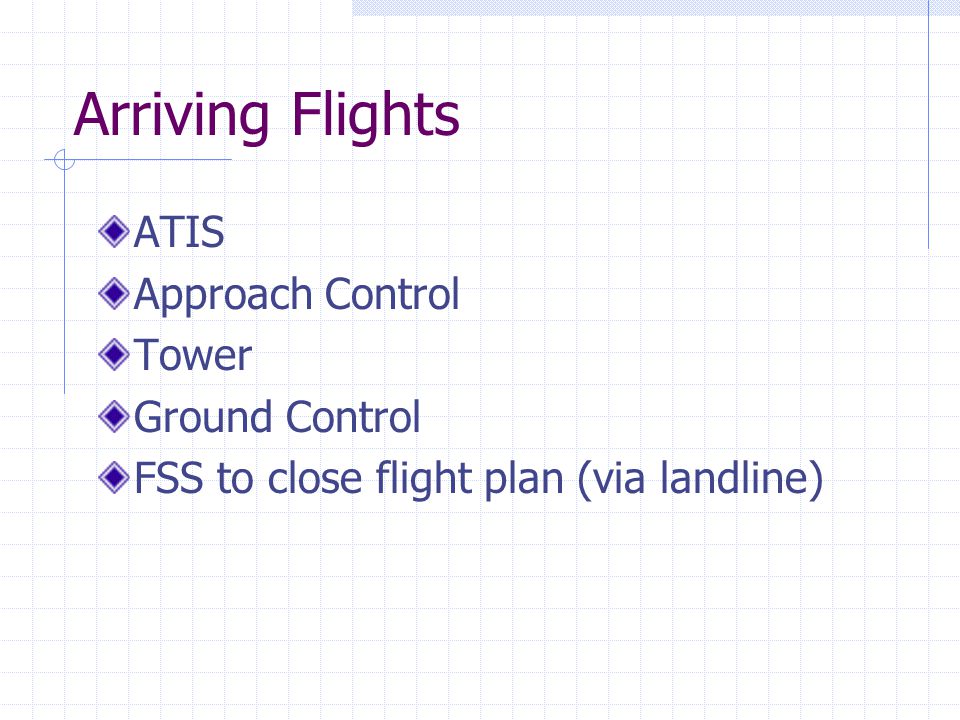

20. Arriving Flights ATIS Approach Control Tower Ground Control FSS to close flight plan (via landline)

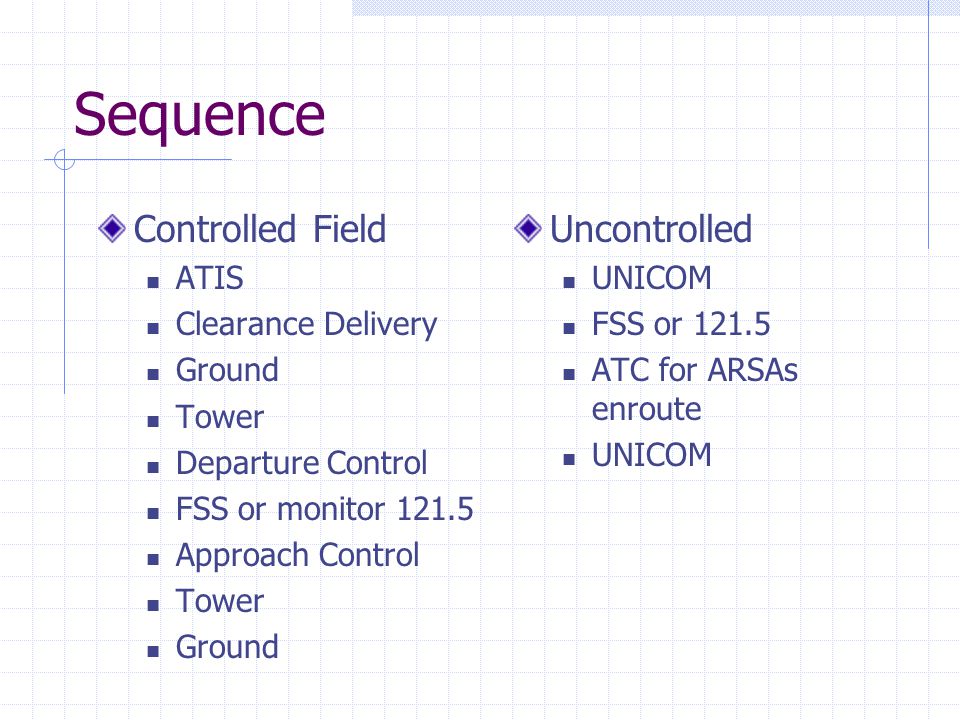

21. Sequence Controlled Field ATIS Clearance Delivery Ground Tower Departure Control FSS or monitor 121.5 Approach Control Tower Ground Uncontrolled UNICOM FSS or 121.5 ATC for ARSAs enroute UNICOM

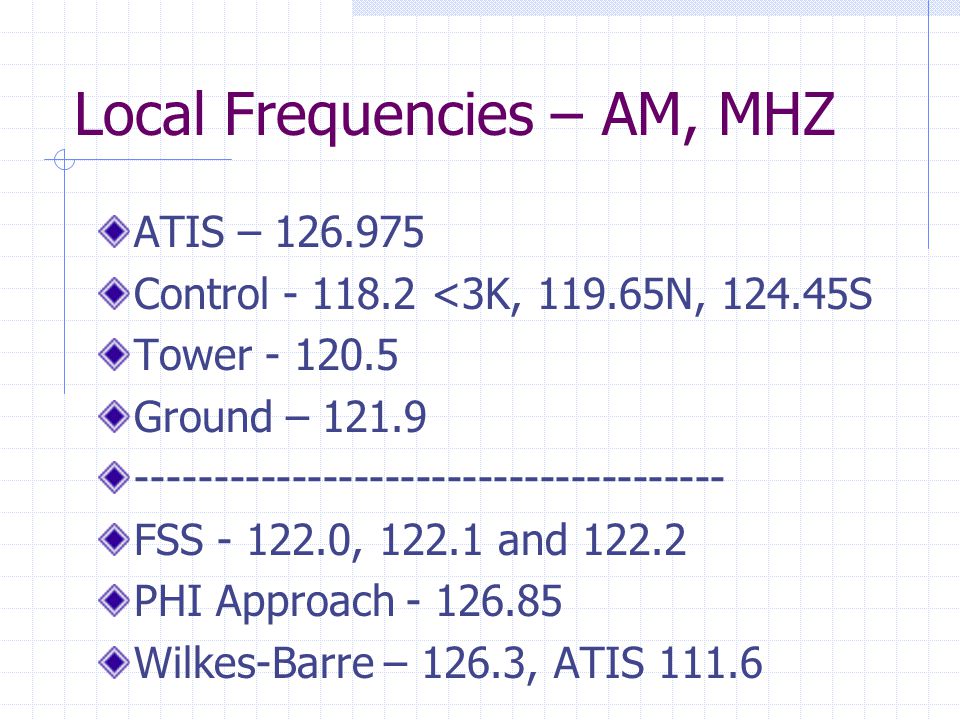

22. Local Frequencies – AM, MHZ ATIS – 126.975 Control - 118.2 <3K, 119.65N, 124.45S Tower - 120.5 Ground – 121.9 -------------------------------------- FSS - 122.0, 122.1 and 122.2 PHI Approach - 126.85 Wilkes-Barre – 126.3, ATIS 111.6

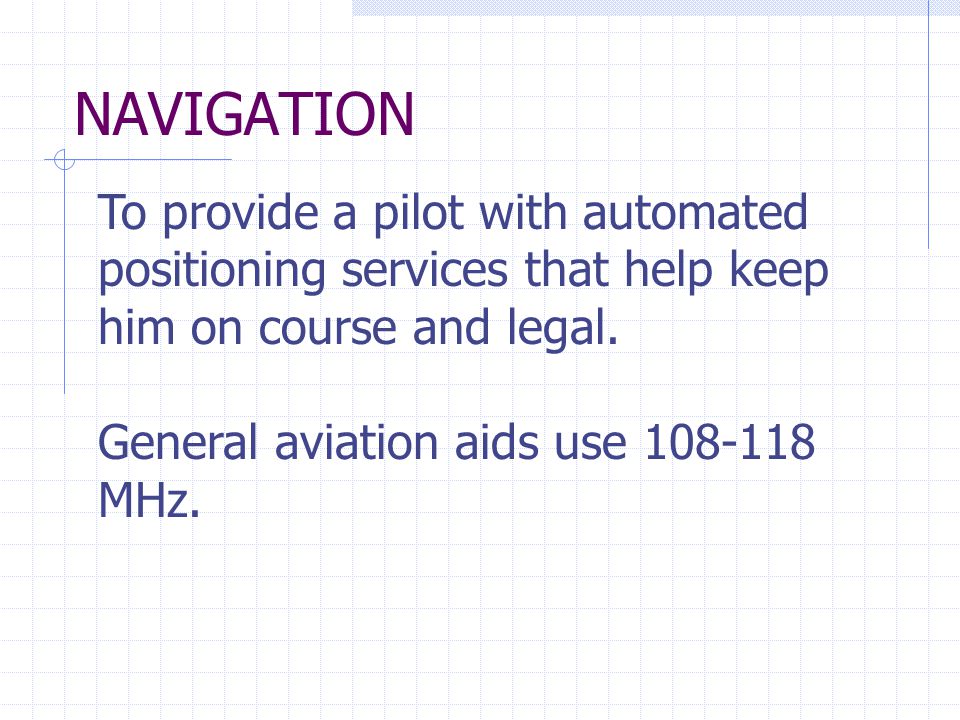

23. NAVIGATION To provide a pilot with automated positioning services that help keep him on course and legal. General aviation aids use 108-118 MHz.

24. Navigation Band Divisions Navigation 108-118 MHz LF/MF Beacons

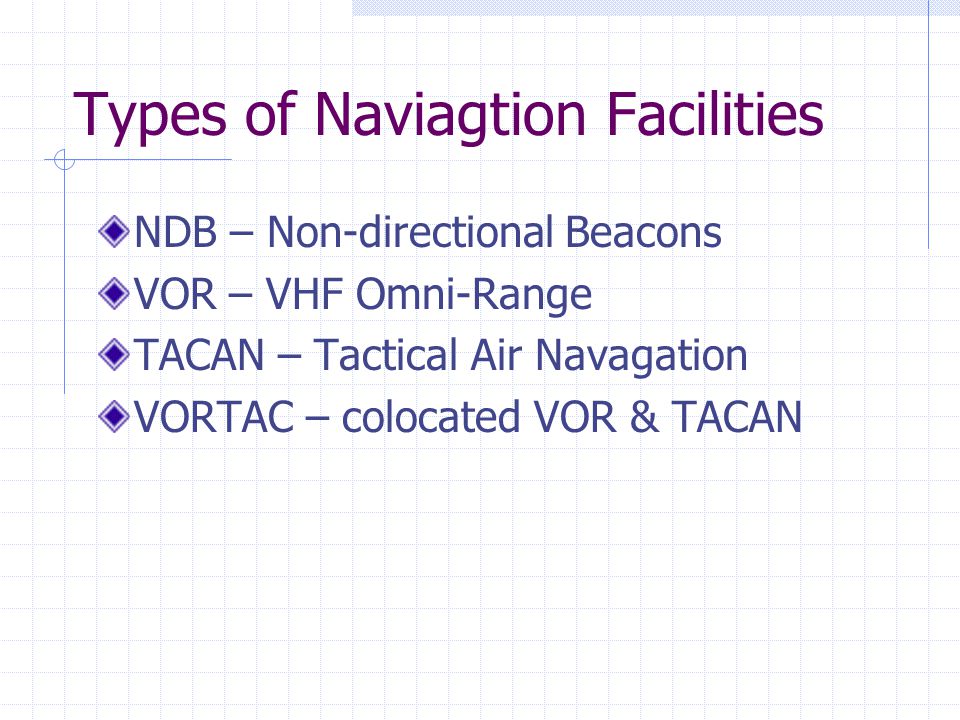

25. Types of Naviagtion Facilities NDB – Non-directional Beacons VOR – VHF Omni-Range TACAN – Tactical Air Navagation VORTAC – colocated VOR & TACAN

26. NAV Facilities - Legend

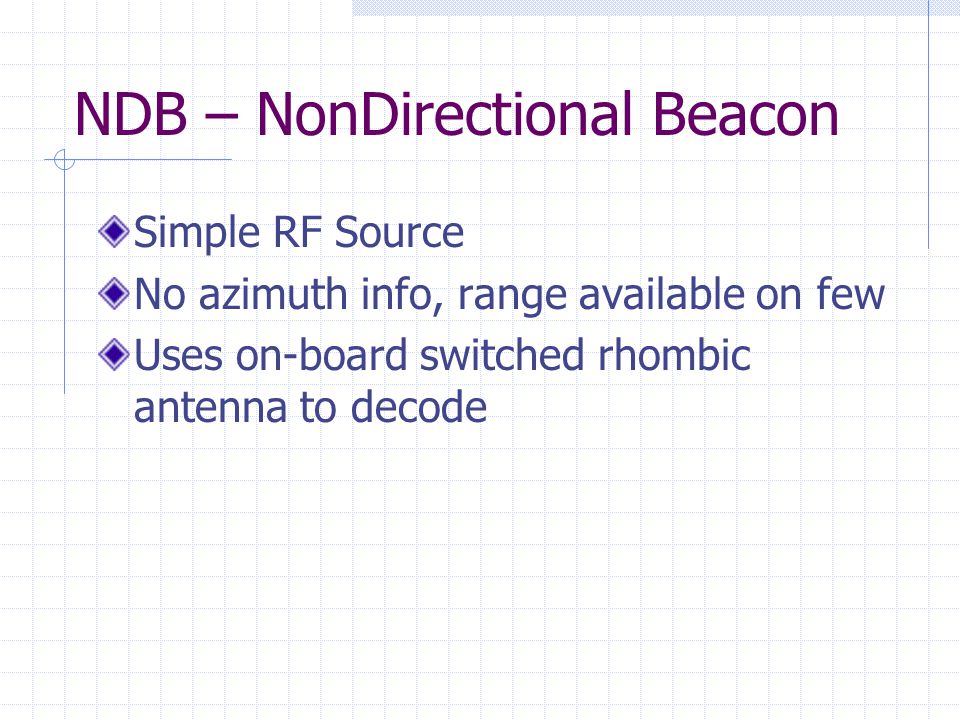

27. NDB – NonDirectional Beacon Simple RF Source No azimuth info, range available on few Uses on-board switched rhombic antenna to decode

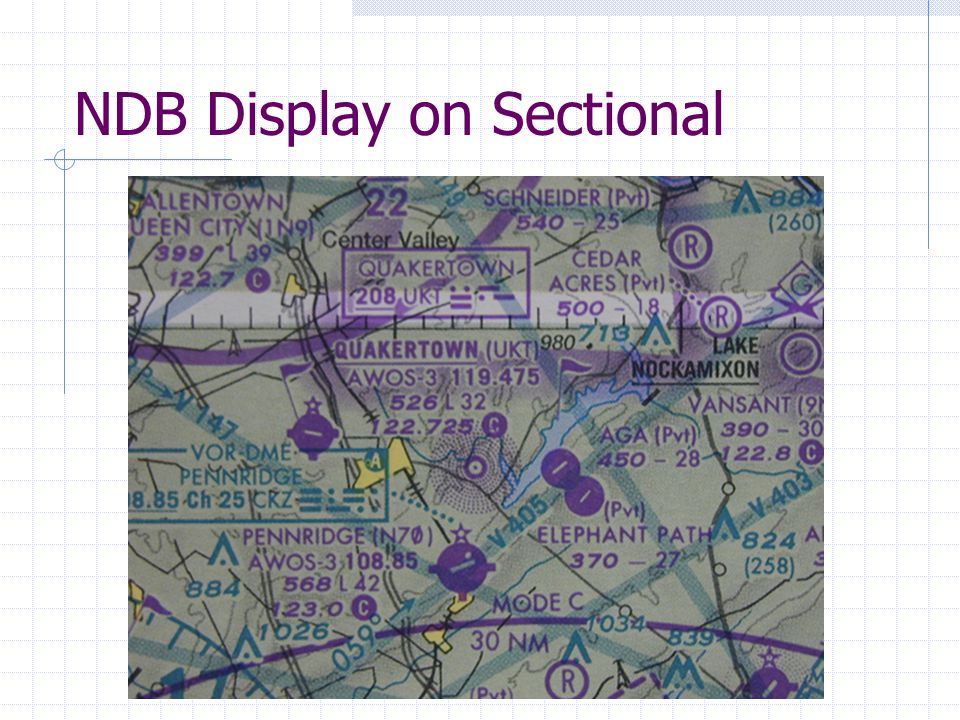

28. NDB Display on Sectional

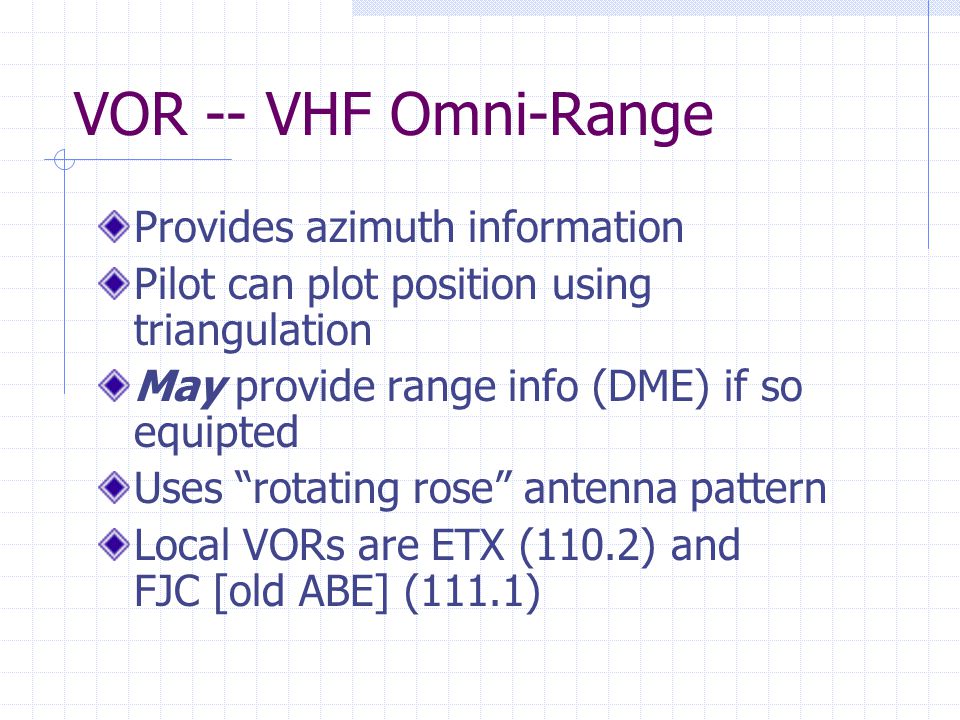

29. VOR -- VHF Omni-Range Provides azimuth information Pilot can plot position using triangulation May provide range info (DME) if so equipted Uses “rotating rose” antenna pattern Local VORs are ETX (110.2) and FJC [old ABE] (111.1)

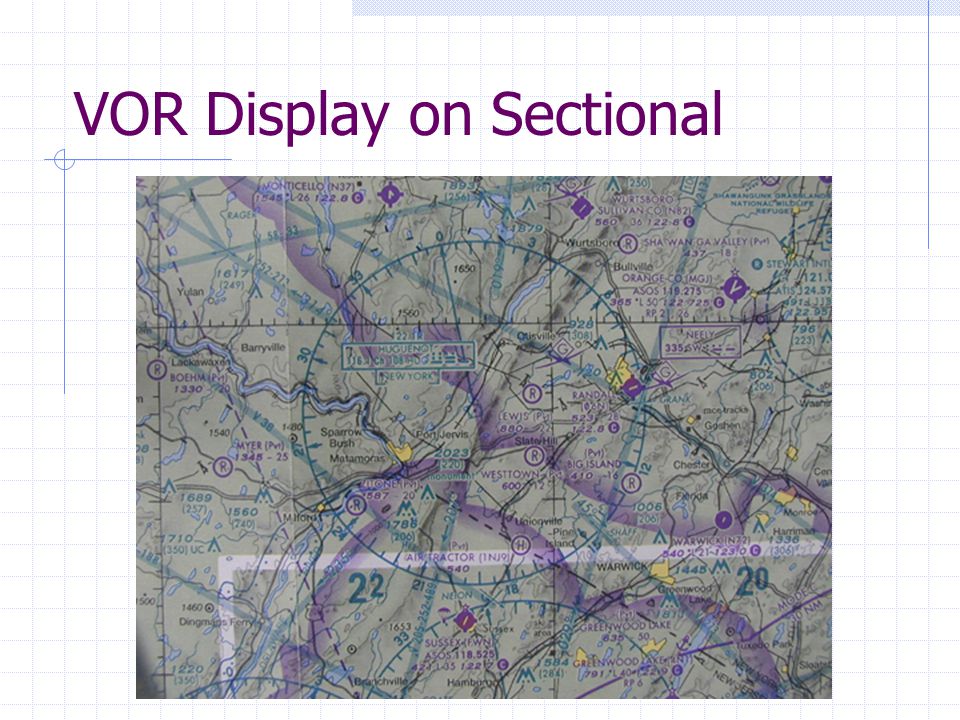

30. VOR Display on Sectional

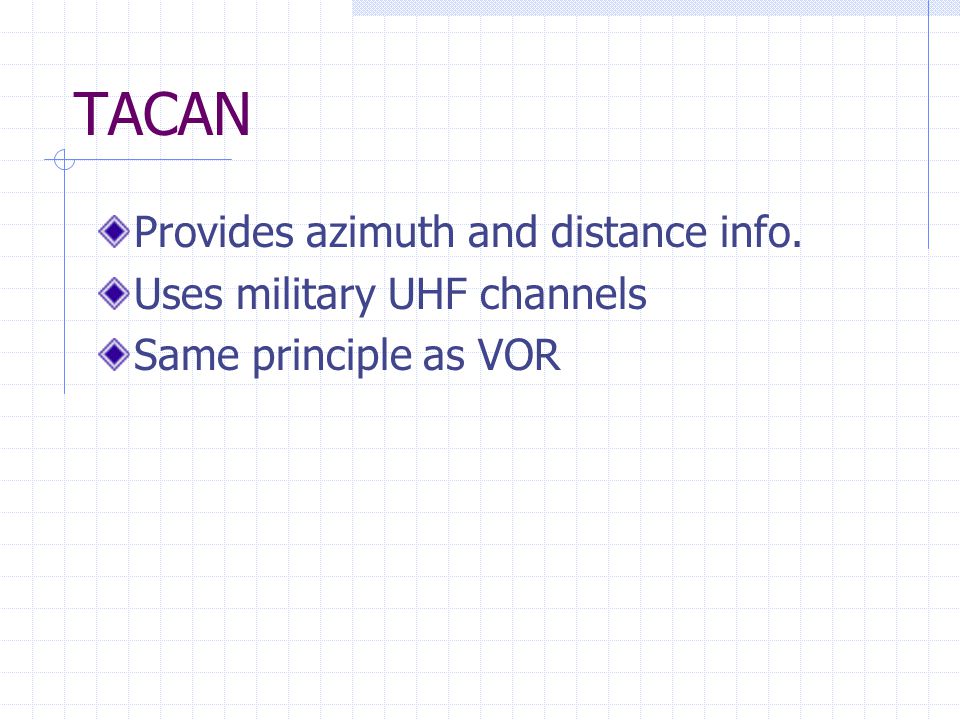

31. TACAN Provides azimuth and distance info. Uses military UHF channels Same principle as VOR

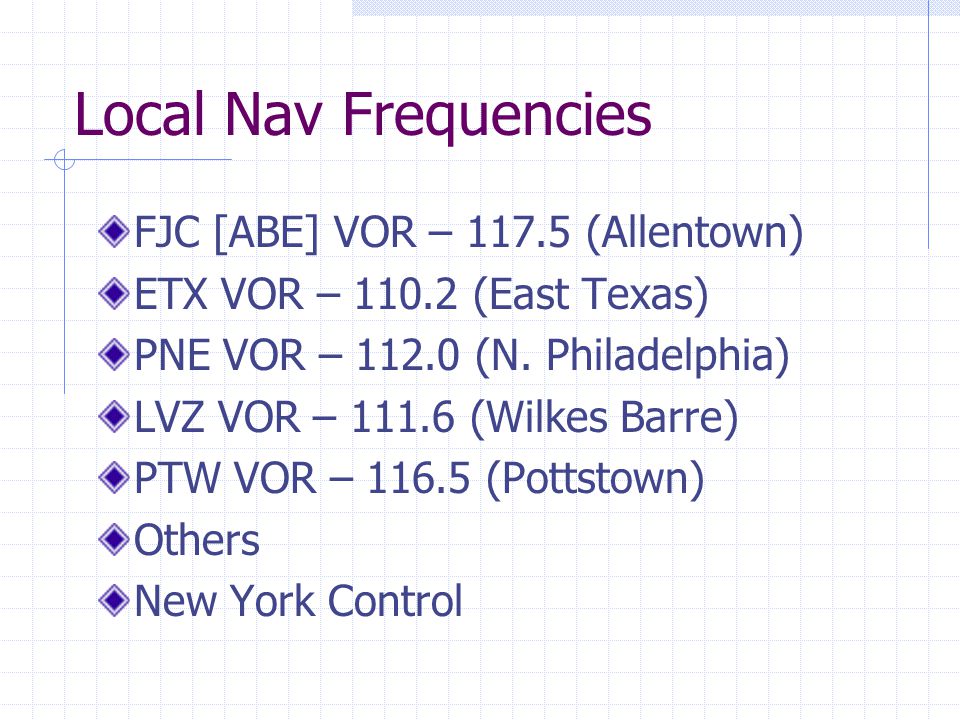

32. Local Nav Frequencies FJC [ABE] VOR – 117.5 (Allentown) ETX VOR – 110.2 (East Texas) PNE VOR – 112.0 (N. Philadelphia) LVZ VOR – 111.6 (Wilkes Barre) PTW VOR – 116.5 (Pottstown) Others New York Control

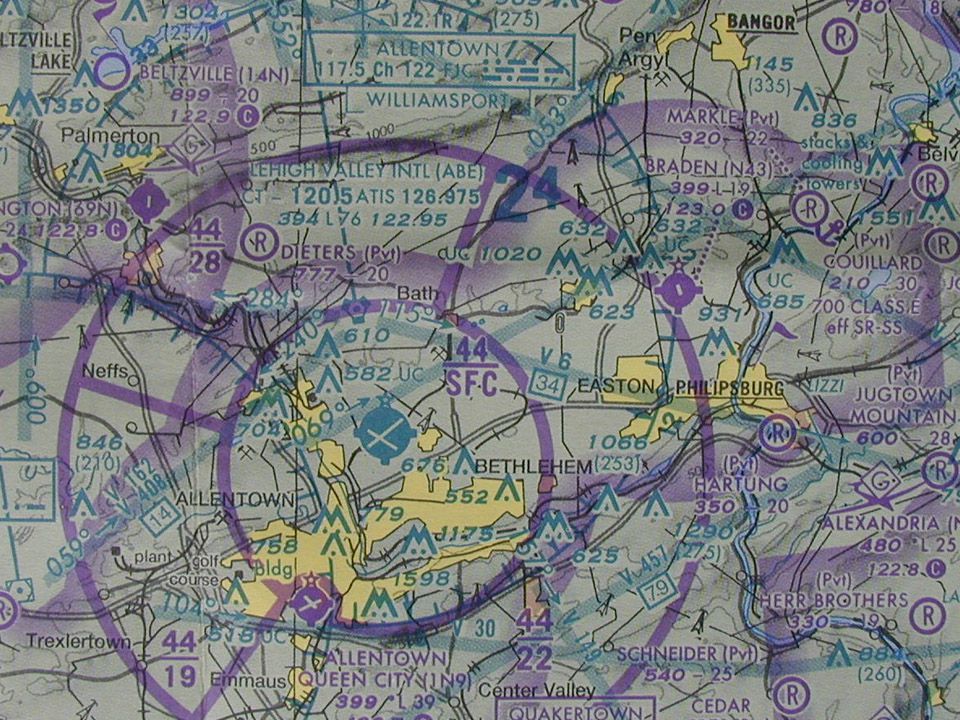

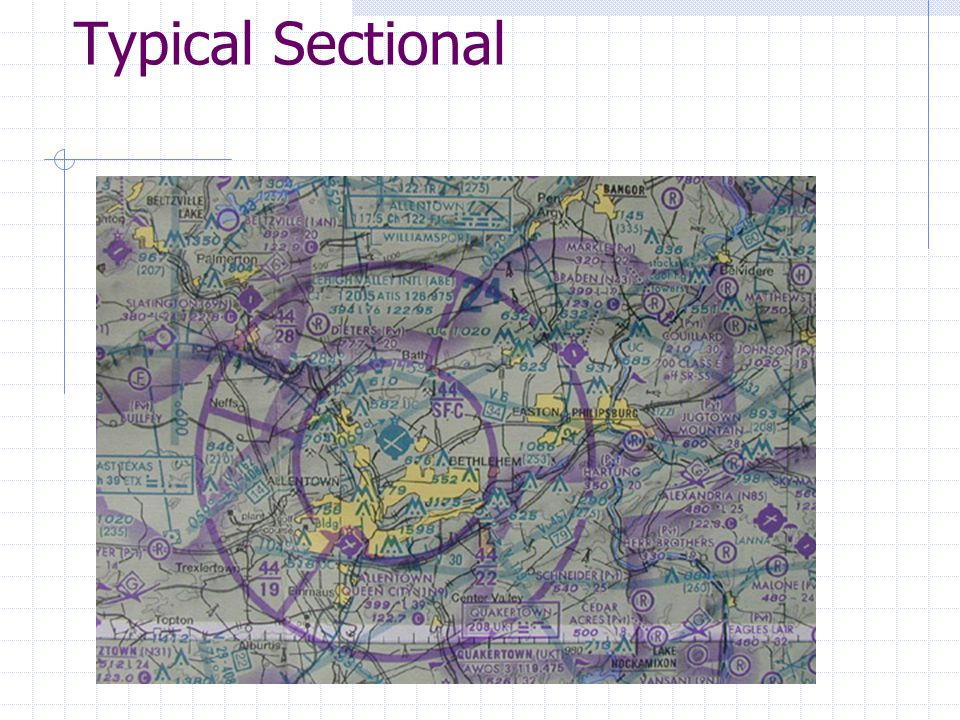

33. Typical Sectional
