10-21-11 Nitrogen Metabolism 1. Nitrogen Fixation 2. Amino Acid Biosynthesis.

Similar presentations

Presentation on theme: "10-21-11 Nitrogen Metabolism 1. Nitrogen Fixation 2. Amino Acid Biosynthesis."— Presentation transcript:

1 10-21-11 Nitrogen Metabolism 1. Nitrogen Fixation 2. Amino Acid Biosynthesis

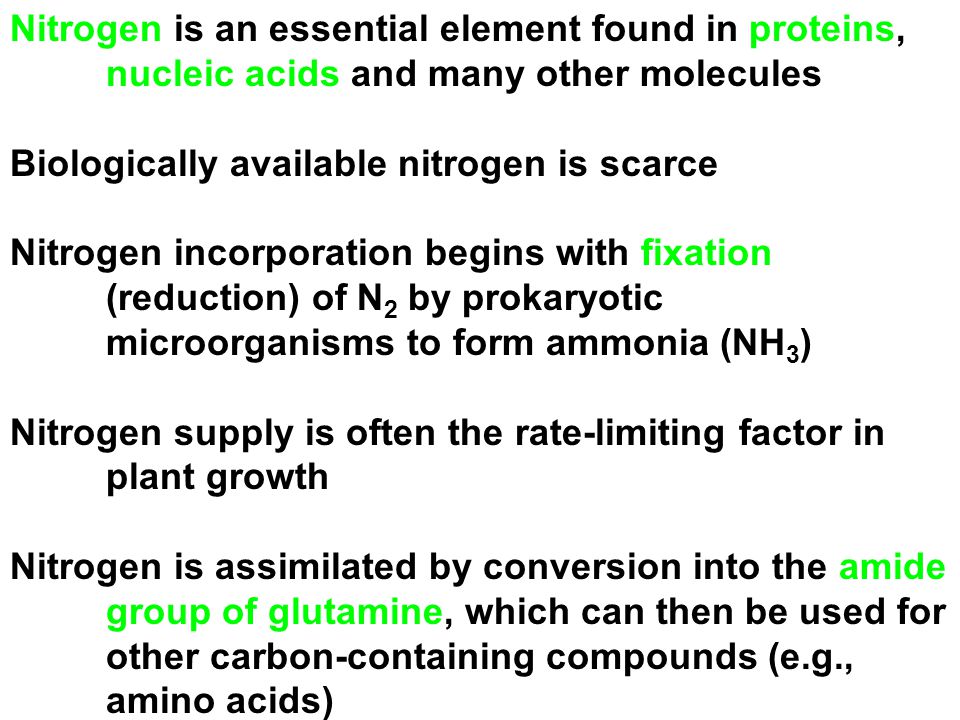

2 Nitrogen is an essential element found in proteins, nucleic acids and many other molecules Biologically available nitrogen is scarce Nitrogen incorporation begins with fixation (reduction) of N 2 by prokaryotic microorganisms to form ammonia (NH 3 ) Nitrogen supply is often the rate-limiting factor in plant growth Nitrogen is assimilated by conversion into the amide group of glutamine, which can then be used for other carbon-containing compounds (e.g., amino acids)

3 The nitrogen cycle is the complex process by which nitrogen is transferred throughout the living world Amino acid metabolism is an important process involving nitrogen Animals can only produce half of the amino acids required (nonessential amino acids); others must be obtained from diet (essential amino acids) Transamination reactions dominate amino acid metabolism (aminotransferases or transaminases)

4 Nitrogen fixation occurs industrially via the Haber reaction, accounting for 25% of earth’s yearly fixed nitrogen production as fertilizer N 2 + 3 H 2  2 NH 3 Lightning strikes and ultraviolet light produce another 15% of earth’s fixed nitrogen 500 o C 300 atmospheres

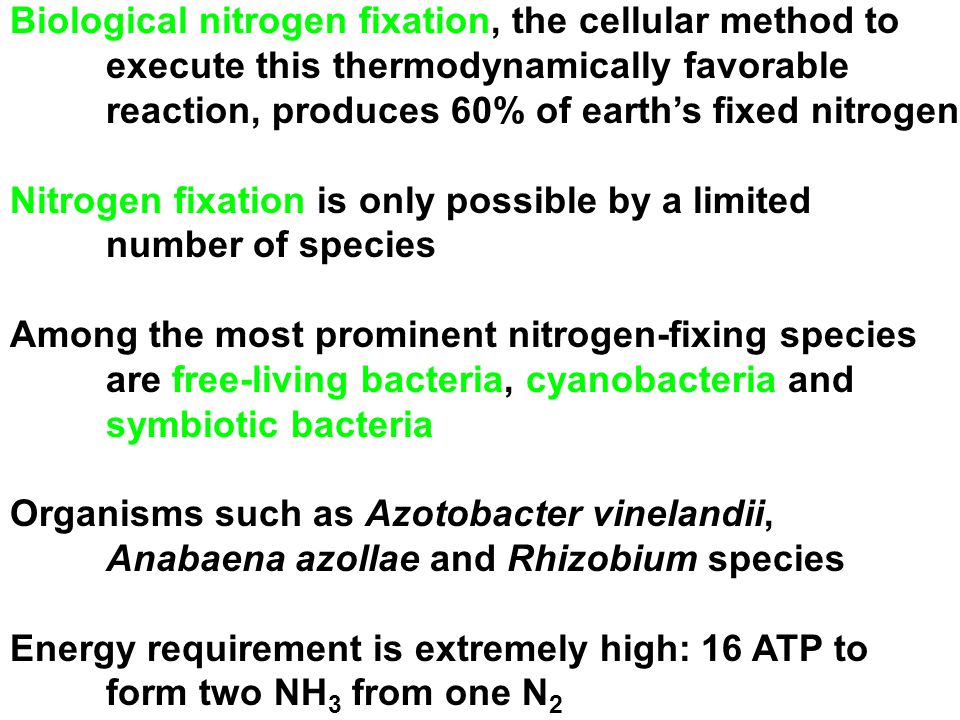

5 Biological nitrogen fixation, the cellular method to execute this thermodynamically favorable reaction, produces 60% of earth’s fixed nitrogen Nitrogen fixation is only possible by a limited number of species Among the most prominent nitrogen-fixing species are free-living bacteria, cyanobacteria and symbiotic bacteria Organisms such as Azotobacter vinelandii, Anabaena azollae and Rhizobium species Energy requirement is extremely high: 16 ATP to form two NH 3 from one N 2

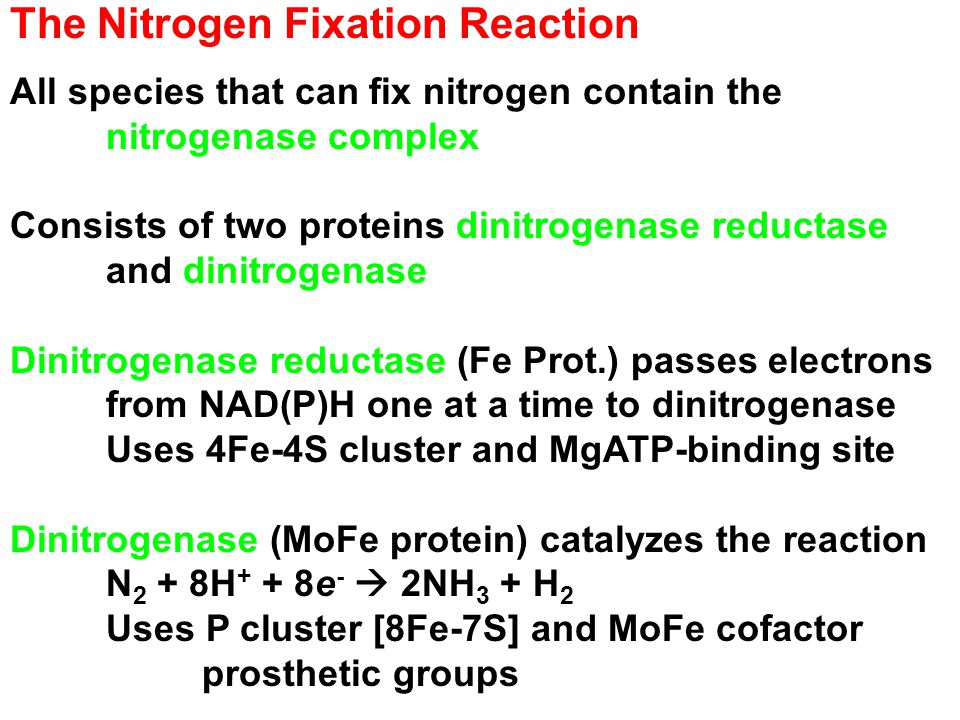

7 The Nitrogen Fixation Reaction All species that can fix nitrogen contain the nitrogenase complex Consists of two proteins dinitrogenase reductase and dinitrogenase Dinitrogenase reductase (Fe Prot.) passes electrons from NAD(P)H one at a time to dinitrogenase Uses 4Fe-4S cluster and MgATP-binding site Dinitrogenase (MoFe protein) catalyzes the reaction N 2 + 8H + + 8e -  2NH 3 + H 2 Uses P cluster [8Fe-7S] and MoFe cofactor prosthetic groups

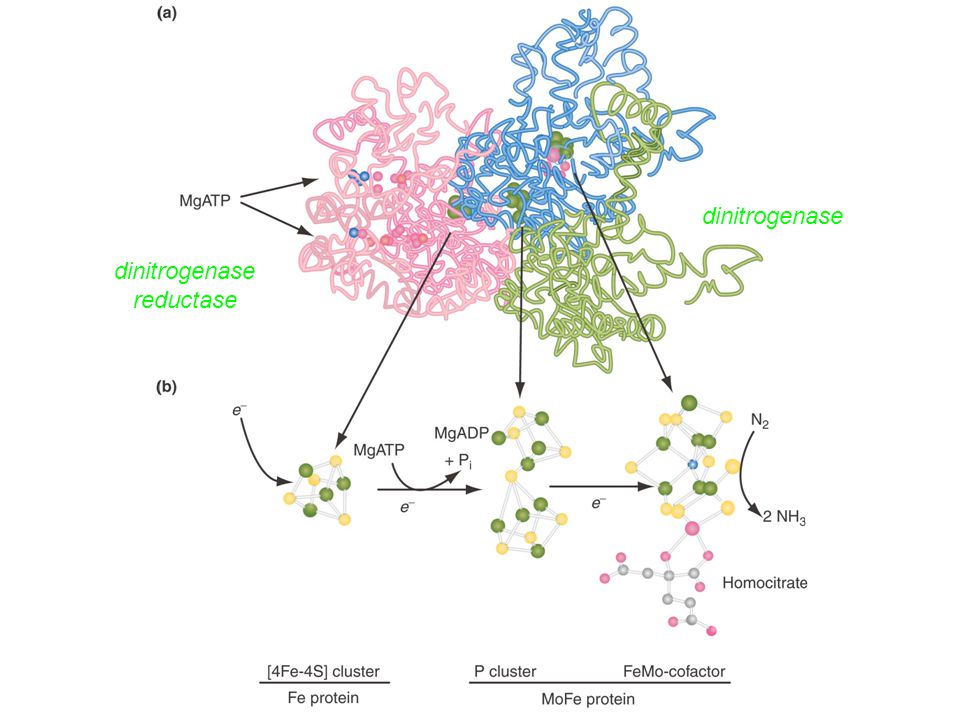

8 dinitrogenase reductase

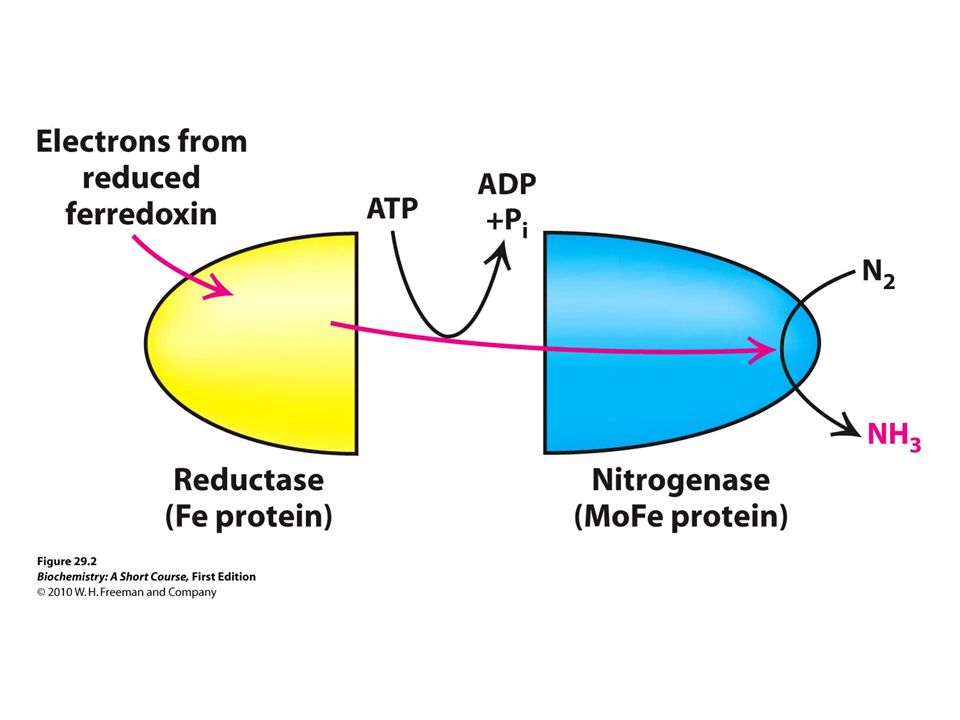

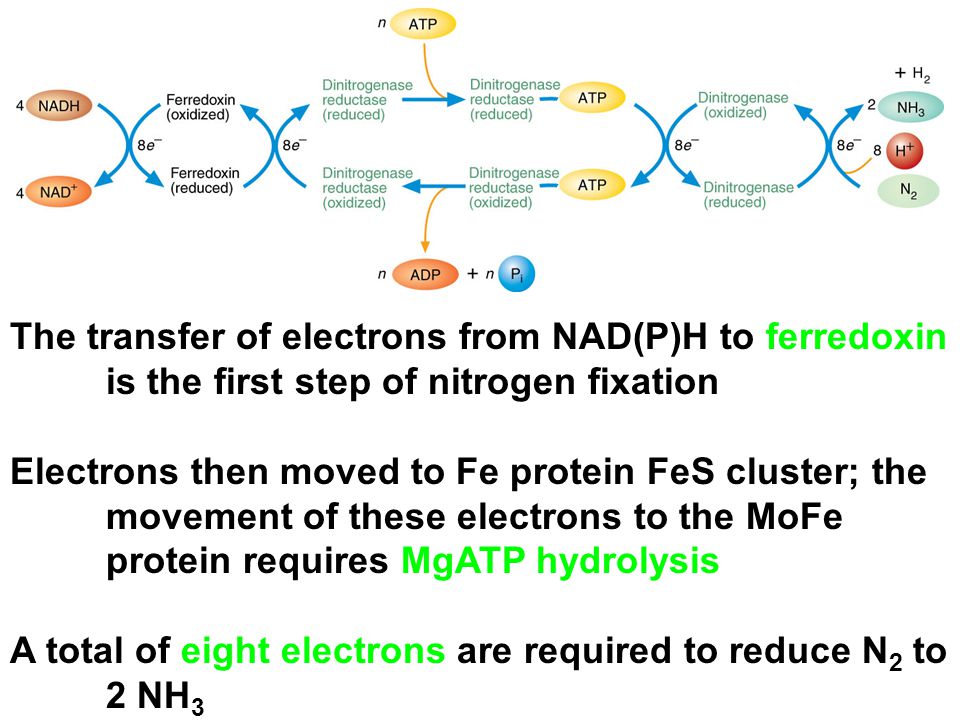

10 The transfer of electrons from NAD(P)H to ferredoxin is the first step of nitrogen fixation Electrons then moved to Fe protein FeS cluster; the movement of these electrons to the MoFe protein requires MgATP hydrolysis A total of eight electrons are required to reduce N 2 to 2 NH 3

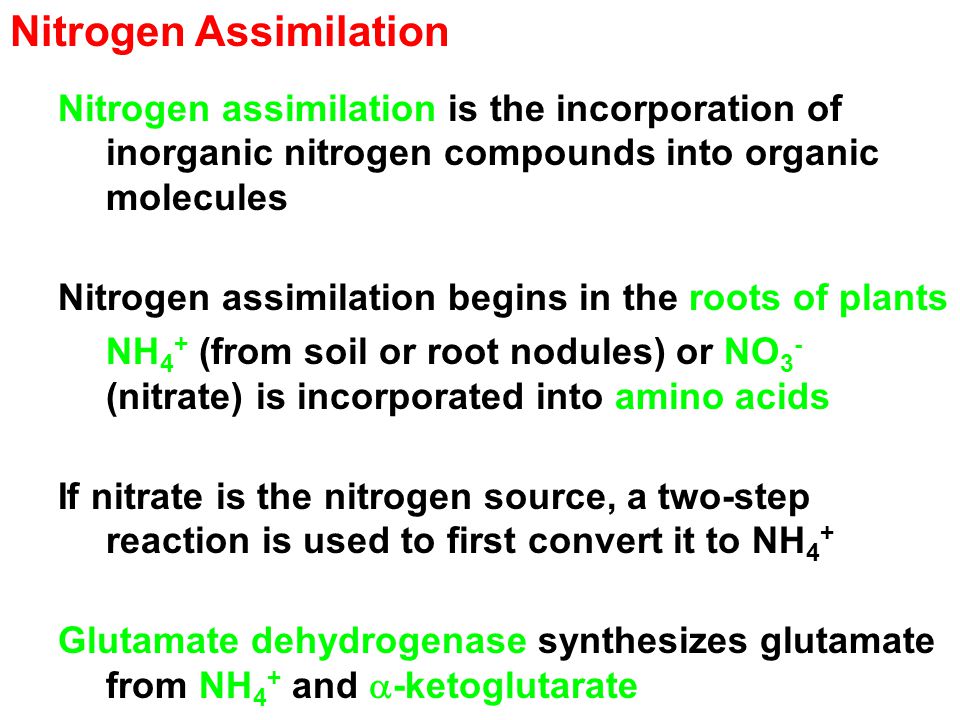

11 Nitrogen Assimilation Nitrogen assimilation is the incorporation of inorganic nitrogen compounds into organic molecules Nitrogen assimilation begins in the roots of plants NH 4 + (from soil or root nodules) or NO 3 - (nitrate) is incorporated into amino acids If nitrate is the nitrogen source, a two-step reaction is used to first convert it to NH 4 + Glutamate dehydrogenase synthesizes glutamate from NH 4 + and  -ketoglutarate

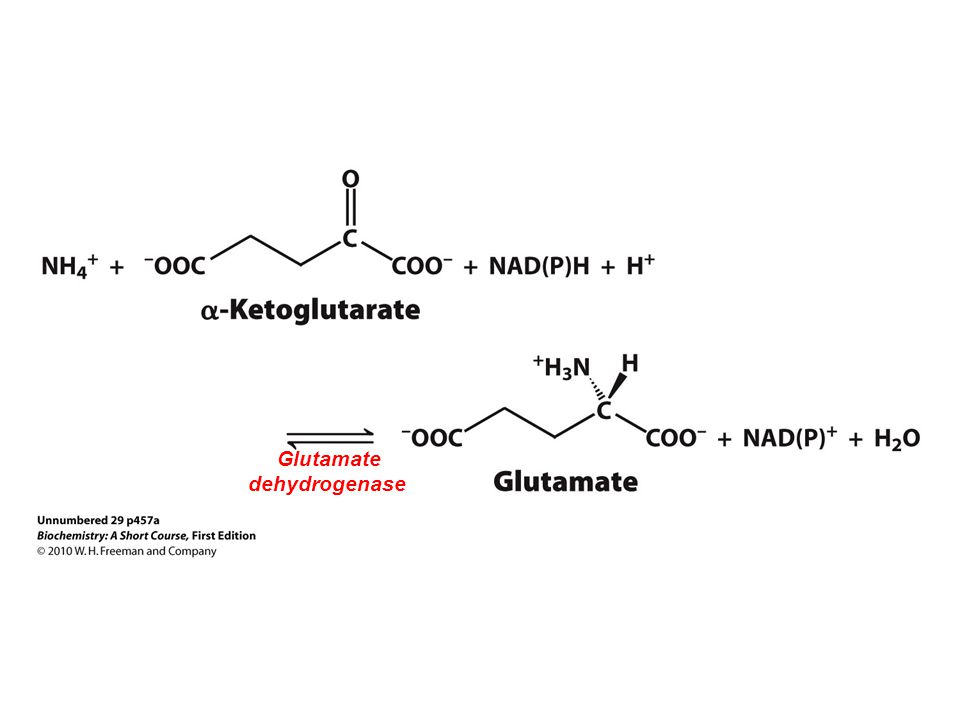

12 Glutamate dehydrogenase

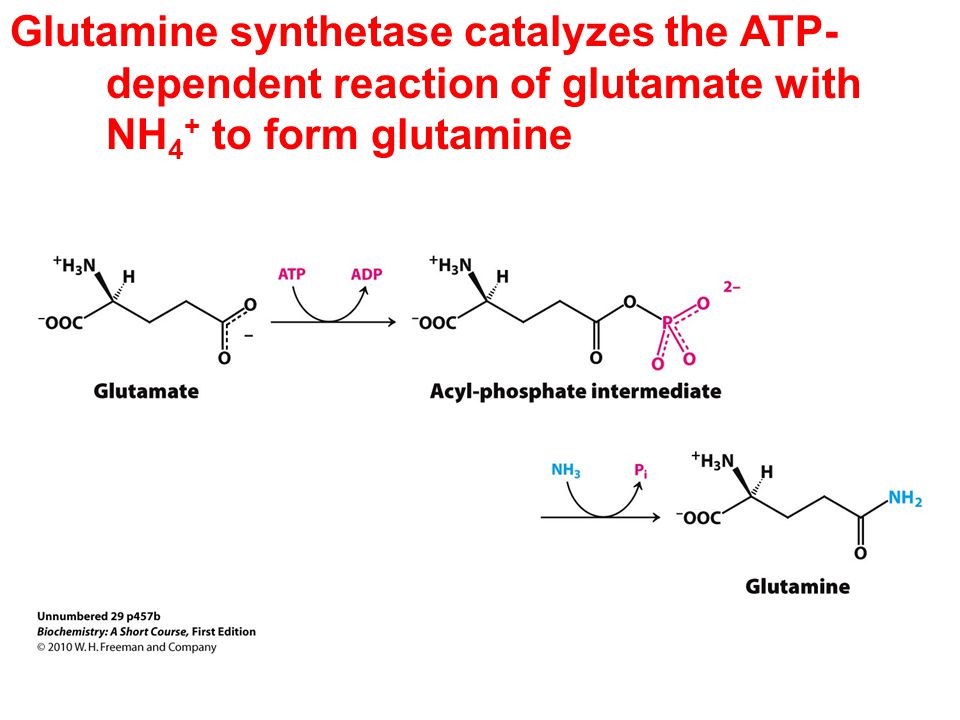

13 Glutamine synthetase catalyzes the ATP- dependent reaction of glutamate with NH 4 + to form glutamine

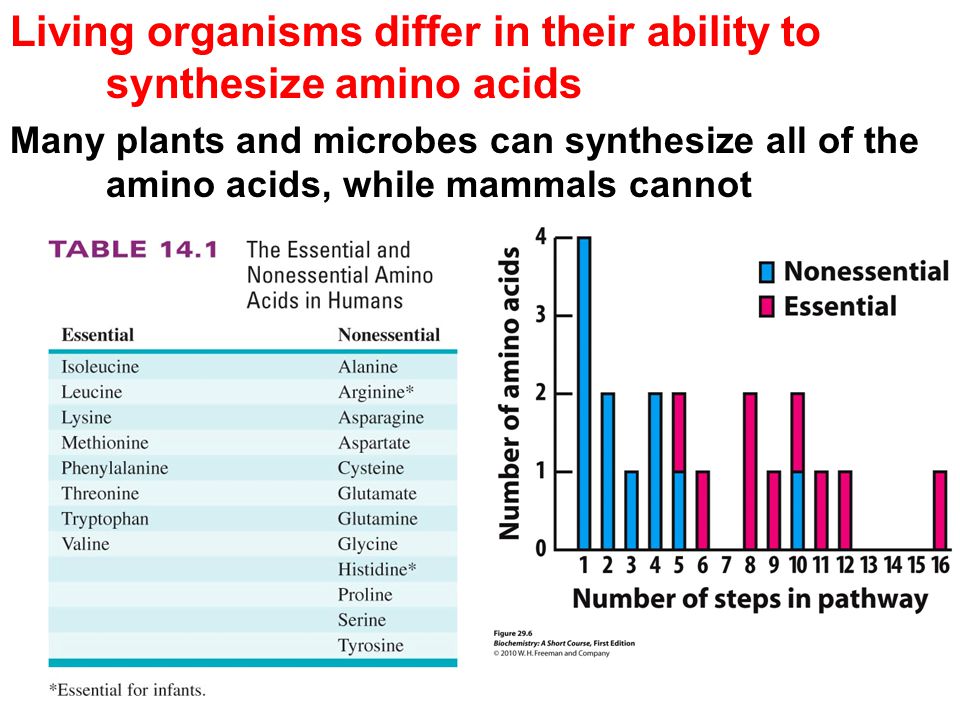

14 Living organisms differ in their ability to synthesize amino acids Many plants and microbes can synthesize all of the amino acids, while mammals cannot

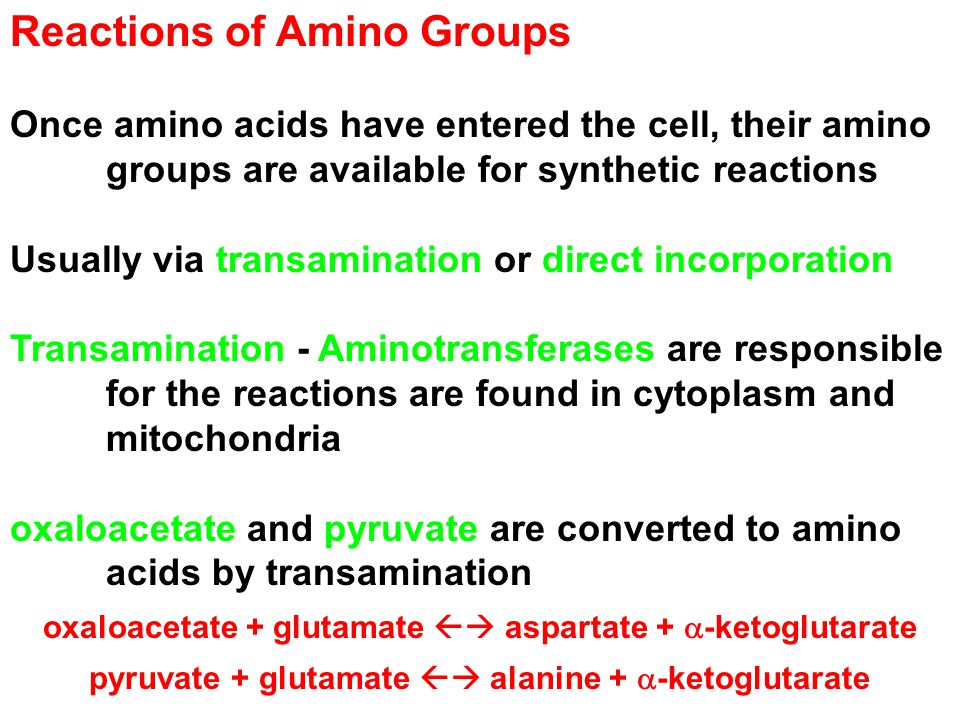

15 Reactions of Amino Groups Once amino acids have entered the cell, their amino groups are available for synthetic reactions Usually via transamination or direct incorporation Transamination - Aminotransferases are responsible for the reactions are found in cytoplasm and mitochondria oxaloacetate and pyruvate are converted to amino acids by transamination oxaloacetate + glutamate  aspartate +  -ketoglutarate pyruvate + glutamate  alanine +  -ketoglutarate

16 Most aminotransferases use glutamate as the amino group donor The glutamate/  -ketoglutarate pair play an important role in nitrogen metabolism Transamination reactions require the coenzyme pyridoxal-5 ʹ -phosphate (PLP), which is derived from pyridoxine(vitamin B 6 ) PLP accepts an amino group to form cofactor PMP

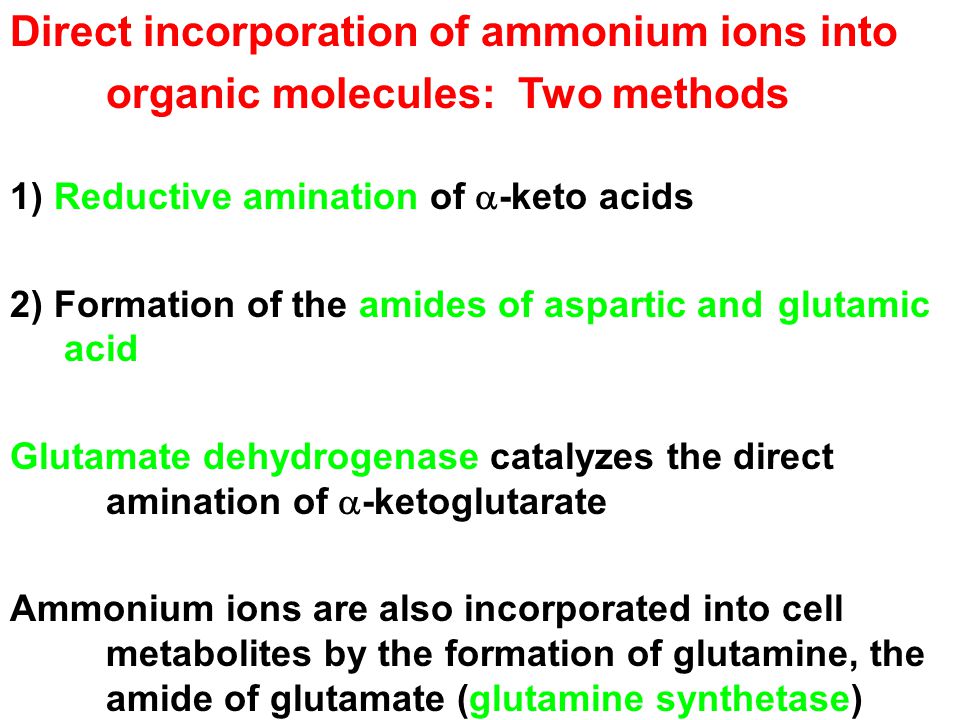

17 Direct incorporation of ammonium ions into organic molecules: Two methods 1) Reductive amination of  -keto acids 2) Formation of the amides of aspartic and glutamic acid Glutamate dehydrogenase catalyzes the direct amination of  -ketoglutarate Ammonium ions are also incorporated into cell metabolites by the formation of glutamine, the amide of glutamate (glutamine synthetase)

18 Glutamate dehydrogenase Glutamate synthetase

19 Synthesis of the Amino Acids Amino acids differ from other biomolecules in that each member is synthesized in a unique pathway On the basis of the similarities in their synthetic pathways, they can be grouped into six families Glutamate, serine, aspartate, pyruvate, the aromatics and histidine The amino acids in each family are ultimately derived from one precursor molecule

20 Amino acids are made from intermediates of major pathways Amino acids can be grouped on the basis of their metabolic origins, as follows Pathway origins are indicated in blue Amino acid precursors of other amino acids in yellow Essential amino acids in humans in bold

21 Aspartate family

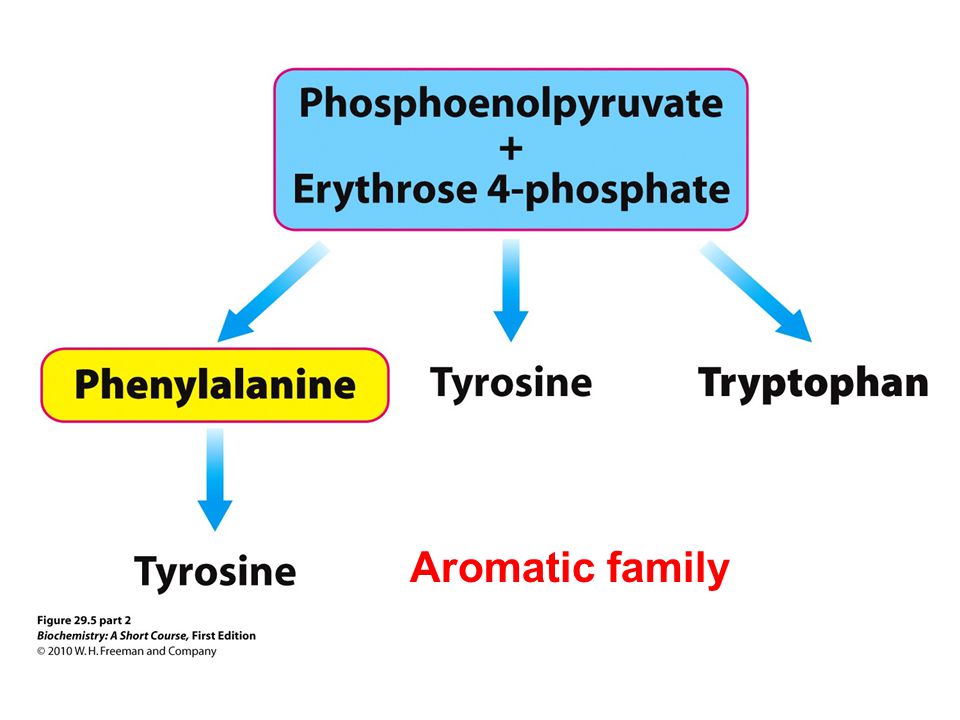

22 Aromatic family

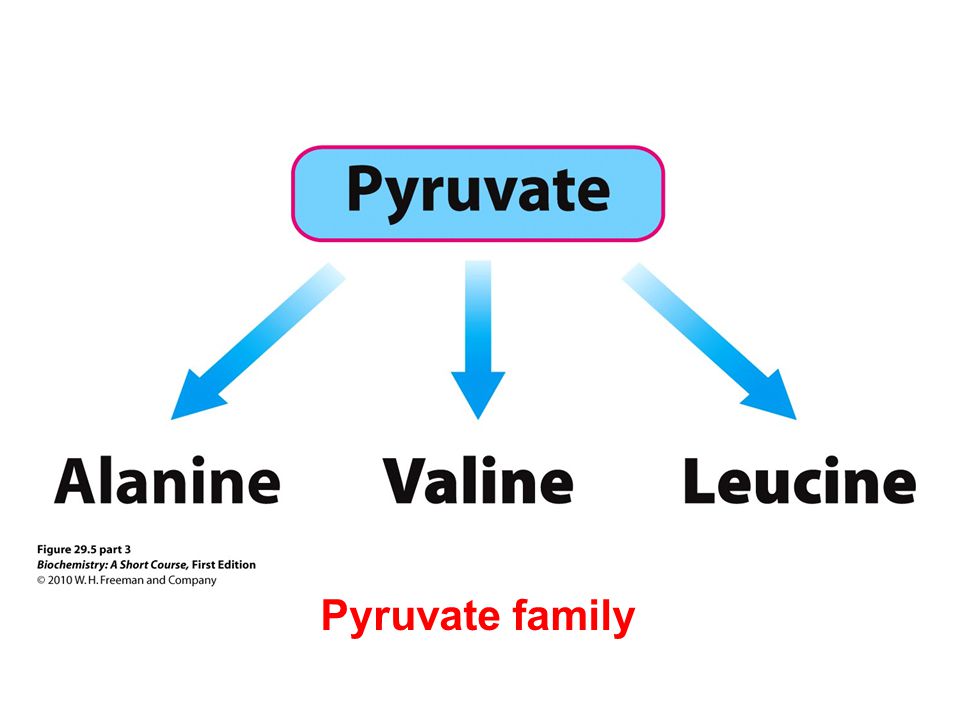

23 Pyruvate family

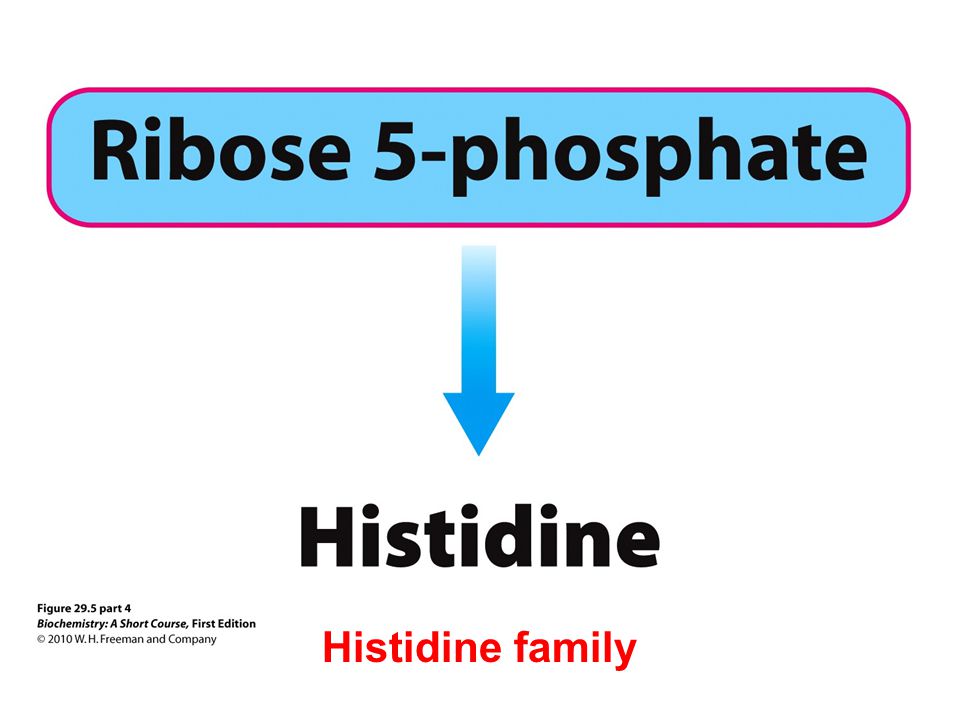

24 Histidine family

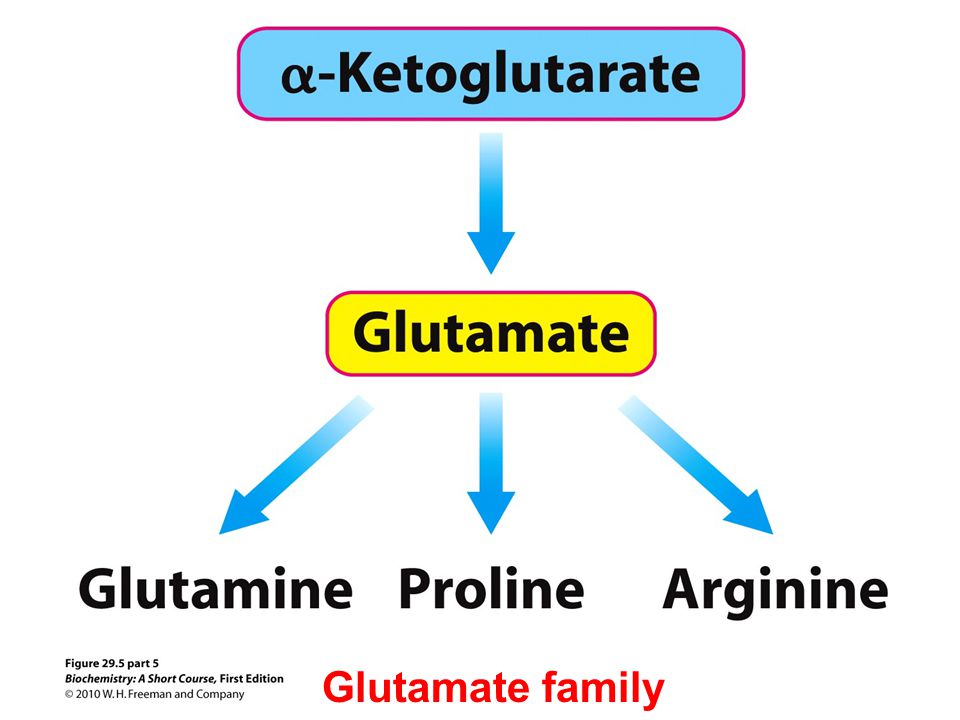

25 Glutamate family

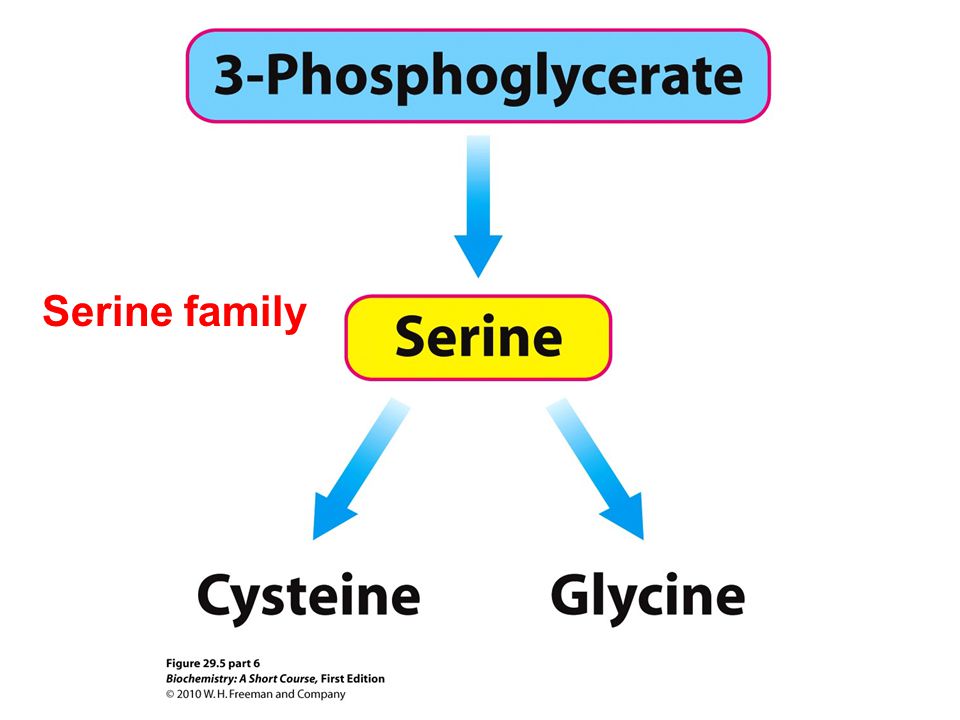

26 Serine family

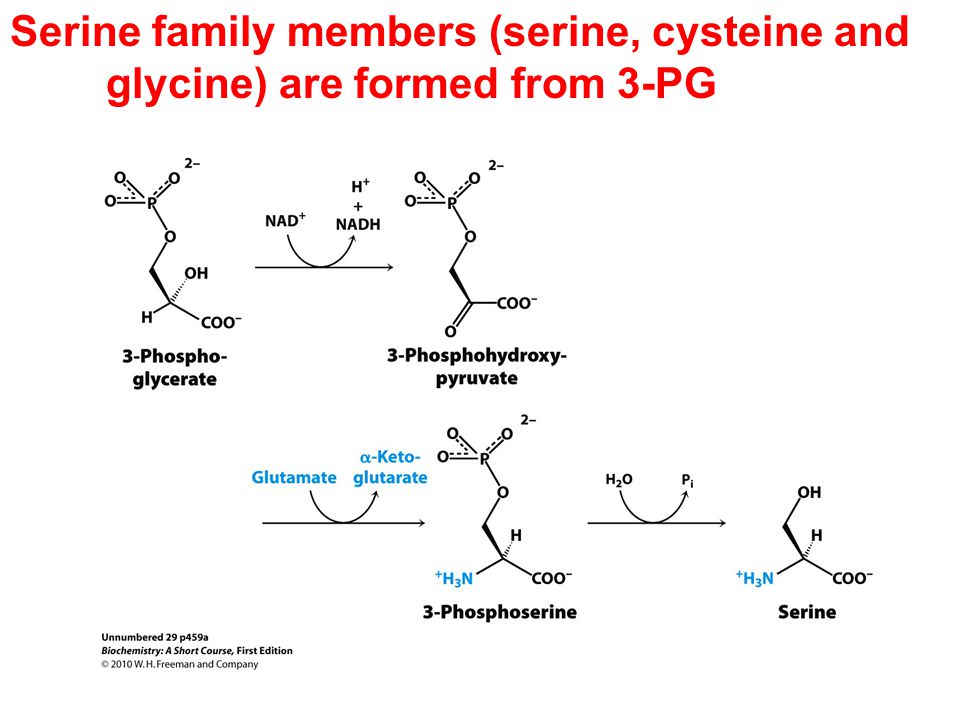

27 Serine family members (serine, cysteine and glycine) are formed from 3-PG

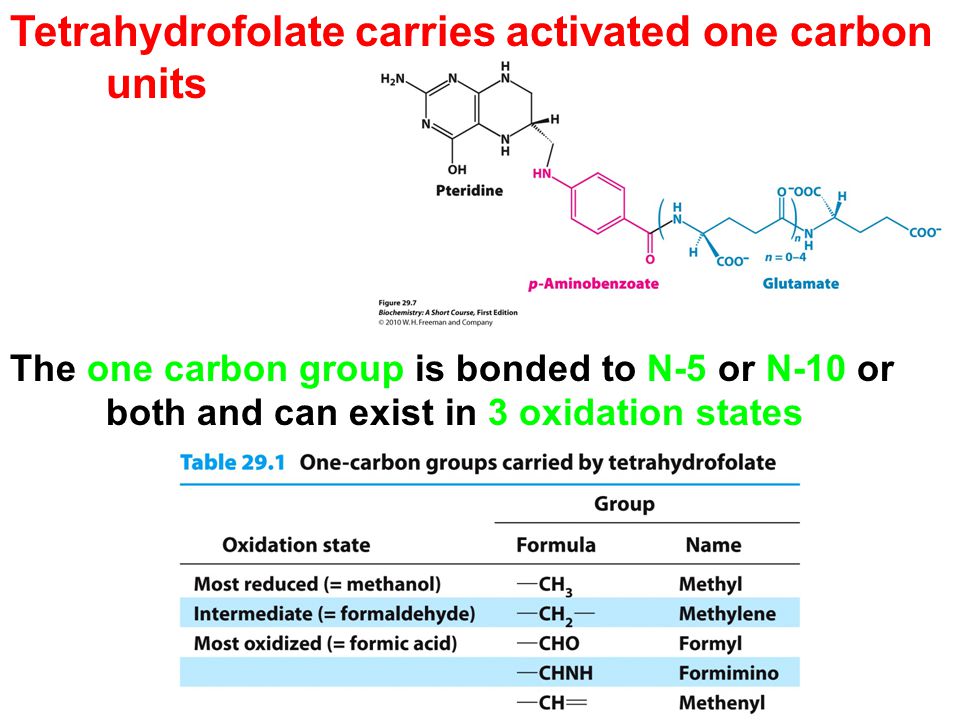

28 Tetrahydrofolate carries activated one carbon units The one carbon group is bonded to N-5 or N-10 or both and can exist in 3 oxidation states

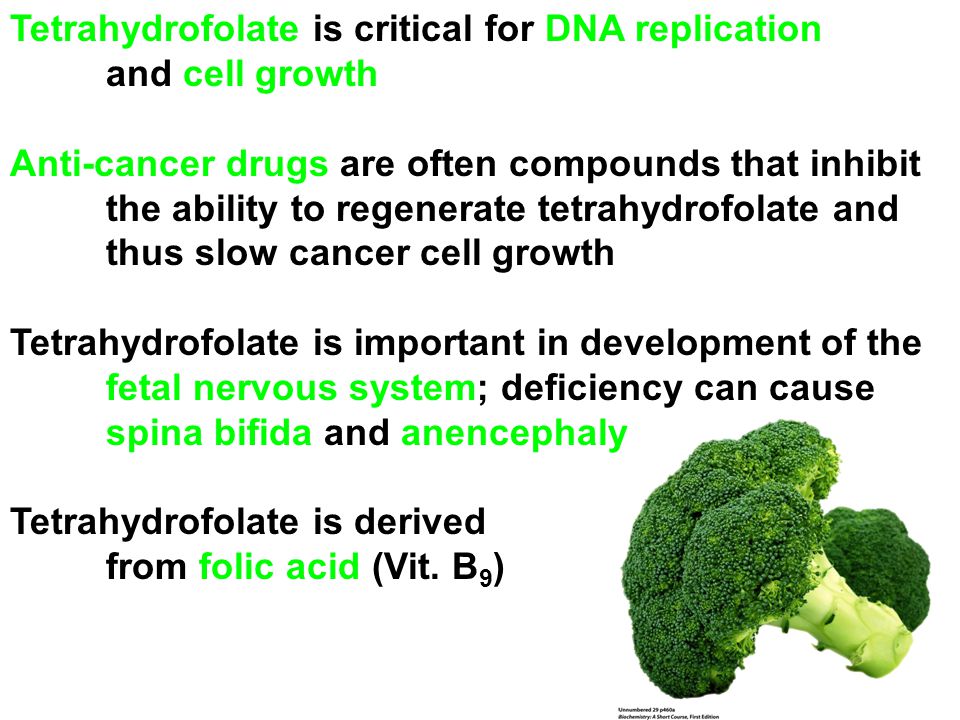

30 Tetrahydrofolate is critical for DNA replication and cell growth Anti-cancer drugs are often compounds that inhibit the ability to regenerate tetrahydrofolate and thus slow cancer cell growth Tetrahydrofolate is important in development of the fetal nervous system; deficiency can cause spina bifida and anencephaly Tetrahydrofolate is derived from folic acid (Vit. B 9 )

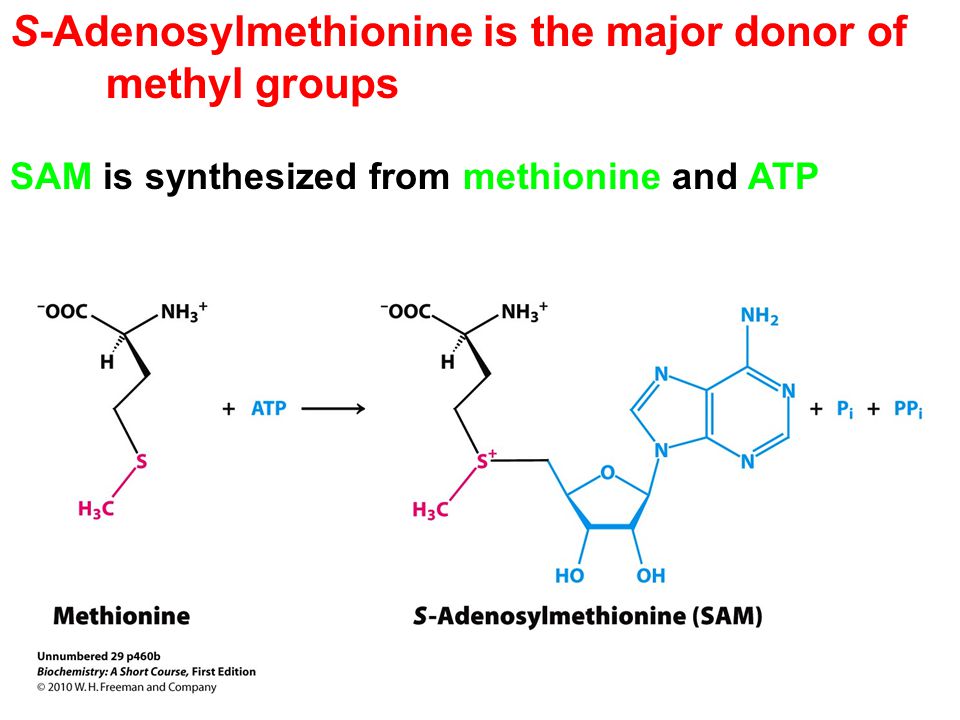

31 S-Adenosylmethionine is the major donor of methyl groups SAM is synthesized from methionine and ATP

32 The activated methyl group on SAM makes it a strong methyl group donor After methyl group transfer S-adenosyl homocysteine is hydrolyzed to adenosine and homocysteine

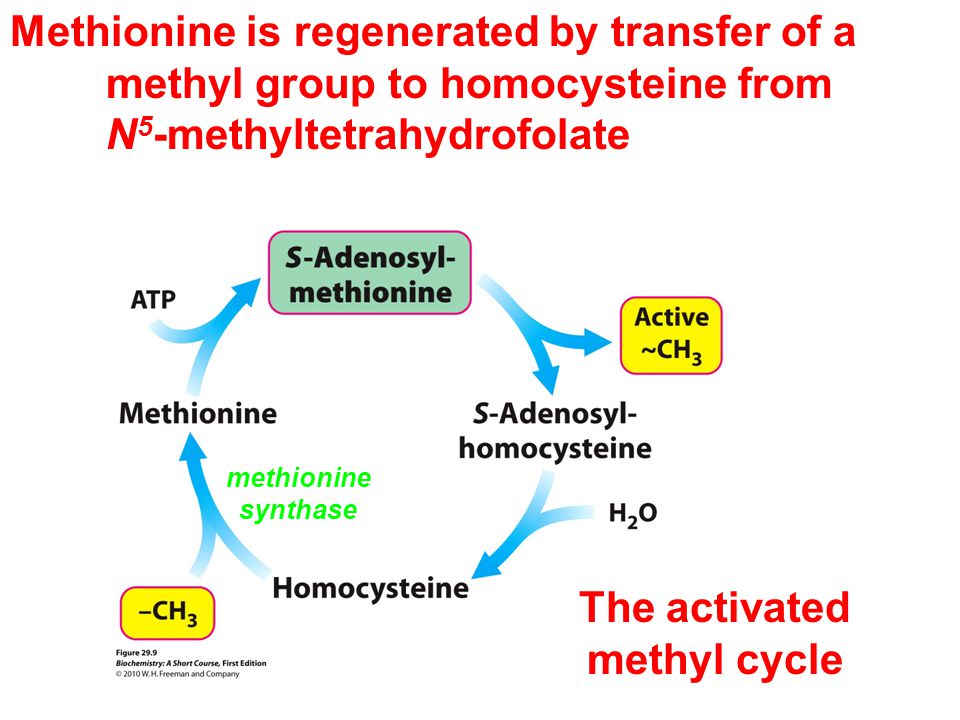

33 Methionine is regenerated by transfer of a methyl group to homocysteine from N 5 -methyltetrahydrofolate methionine synthase The activated methyl cycle

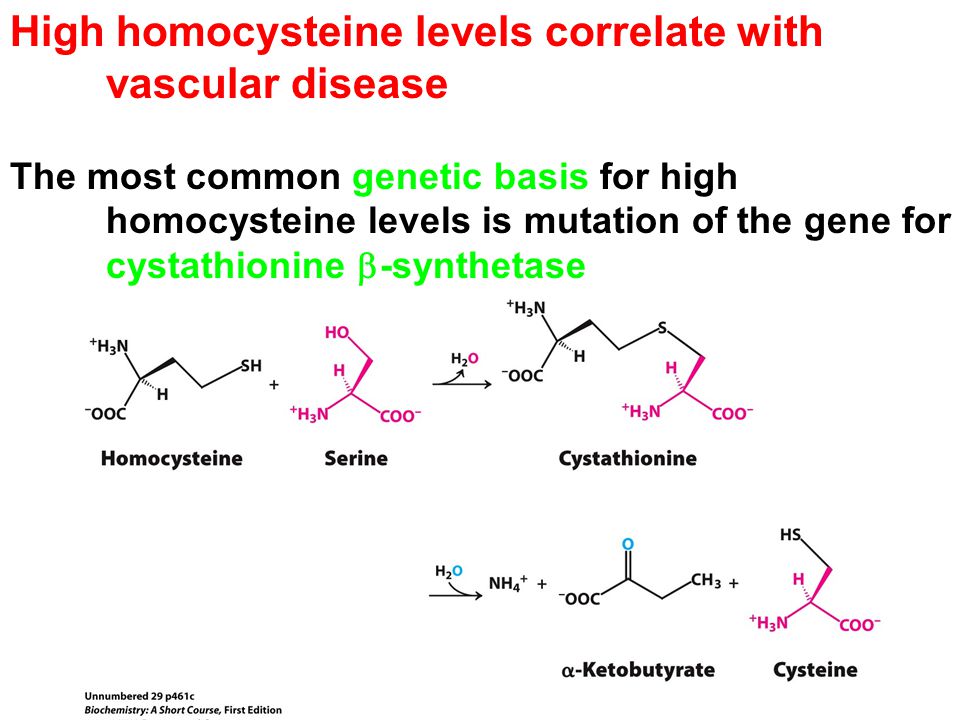

34 High homocysteine levels correlate with vascular disease The most common genetic basis for high homocysteine levels is mutation of the gene for cystathionine  -synthetase

35 High homocysteine levels may: Damage cells lining blood vessels Increase growth of vascular smooth muscle Increase oxidative stress Vitamin treatments are sometimes effective in reducing homocyteine levels Pyridoxal phosphate is needed by cystathionine  -synthetase THF and vitamin B12 support the methylation of homocysteine to methionine

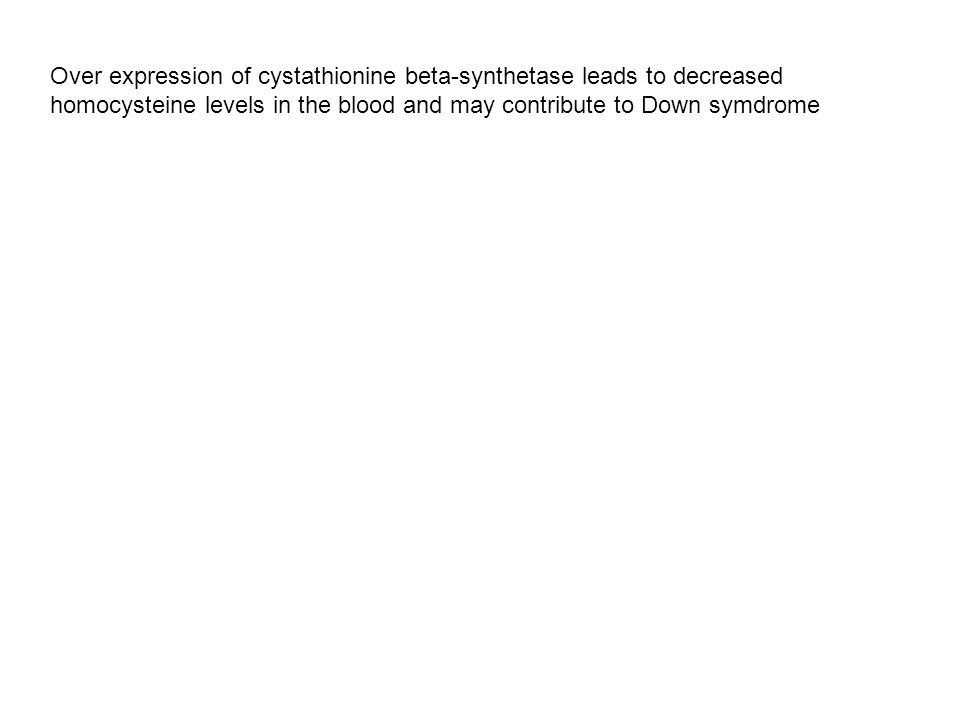

36 Over expression of cystathionine beta-synthetase leads to decreased homocysteine levels in the blood and may contribute to Down symdrome
