1 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Hydrogen Vehicles Road-Map in FIAT Giuseppe Rovera Centro Ricerche Fiat 1 st International Conference on Hydrogen Safety Pisa, Sept. 8-10 2005

2 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Fuel Cell Vehicles for Urban Transportation FCV development in Fiat is focused on urban vehicles: City Cars and Buses

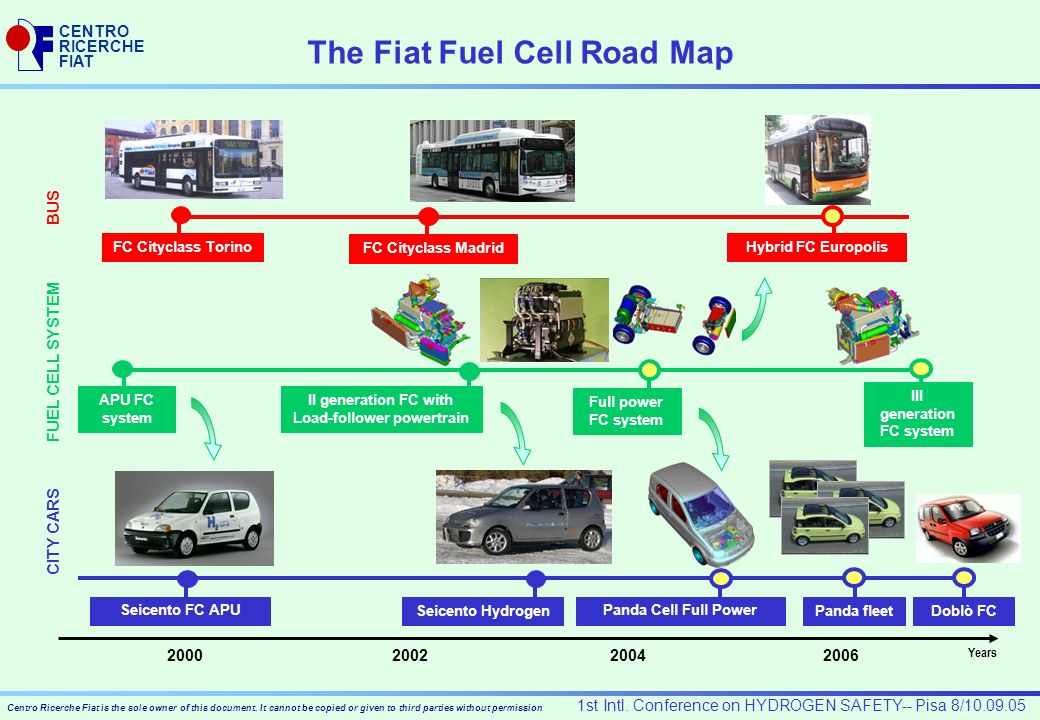

3 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 The Fiat Fuel Cell Road Map FC Cityclass Torino FC Cityclass Madrid 20022006 Hybrid FC Europolis Seicento FC APUPanda Cell Full Power 20002004 Seicento Hydrogen FUEL CELL SYSTEM APU FC system II generation FC with Load-follower powertrain Full power FC system Panda fleet III generation FC system BUS CITY CARS Years Doblò FC

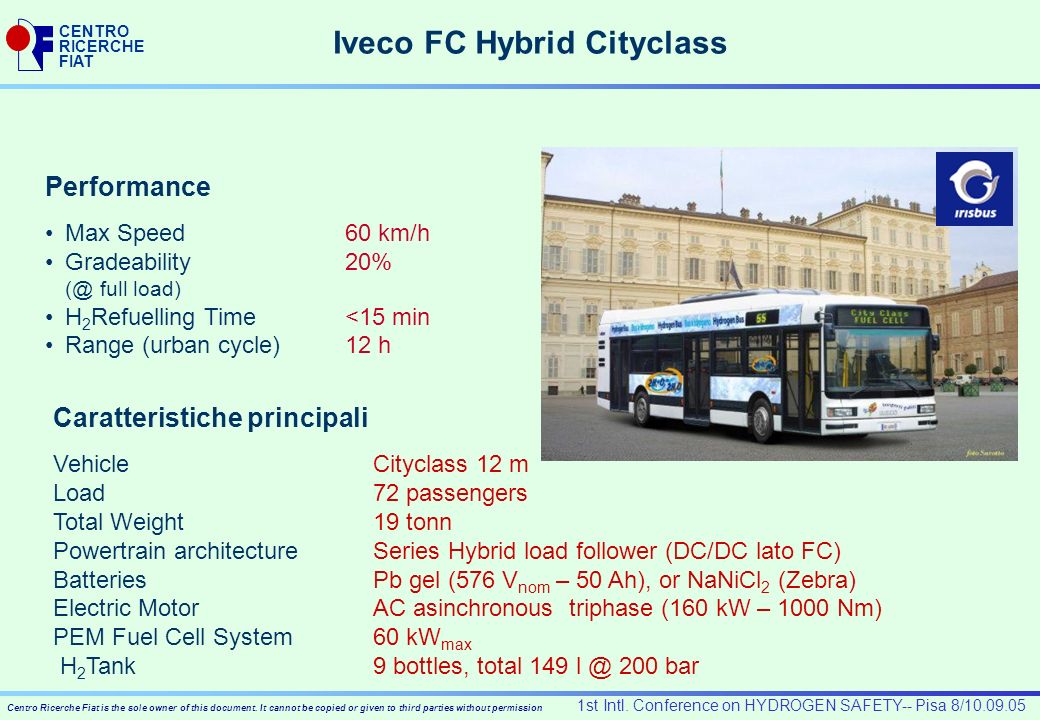

4 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Caratteristiche principali VehicleCityclass 12 m Load72 passengers Total Weight19 tonn Powertrain architectureSeries Hybrid load follower (DC/DC lato FC) BatteriesPb gel (576 V nom – 50 Ah), or NaNiCl 2 (Zebra) Electric MotorAC asinchronous triphase (160 kW – 1000 Nm) PEM Fuel Cell System60 kW max H 2 Tank 9 bottles, total 149 l @ 200 bar Performance Max Speed60 km/h Gradeability 20% (@ full load) H 2 Refuelling Time<15 min Range (urban cycle)12 h Iveco FC Hybrid Cityclass

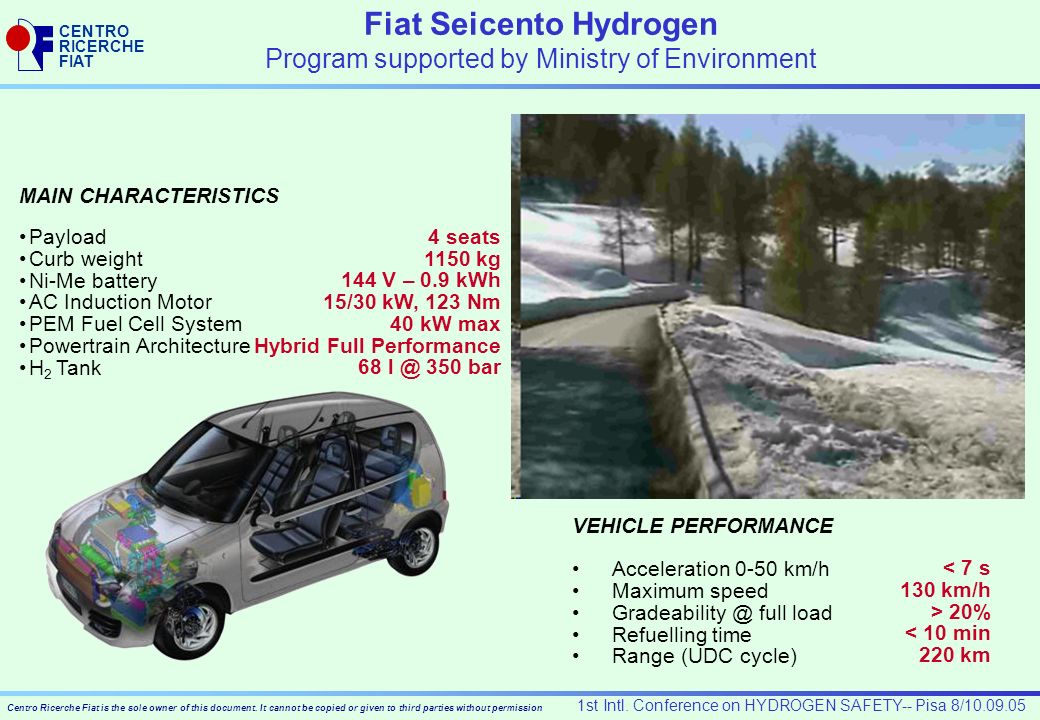

5 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 MAIN CHARACTERISTICS Payload Curb weight Ni-Me battery AC Induction Motor PEM Fuel Cell System Powertrain Architecture H 2 Tank 4 seats 1150 kg 144 V – 0.9 kWh 15/30 kW, 123 Nm 40 kW max Hybrid Full Performance 68 l @ 350 bar VEHICLE PERFORMANCE Acceleration 0-50 km/h Maximum speed Gradeability @ full load Refuelling time Range (UDC cycle) < 7 s 130 km/h > 20% < 10 min 220 km Fiat Seicento Hydrogen Program supported by Ministry of Environment

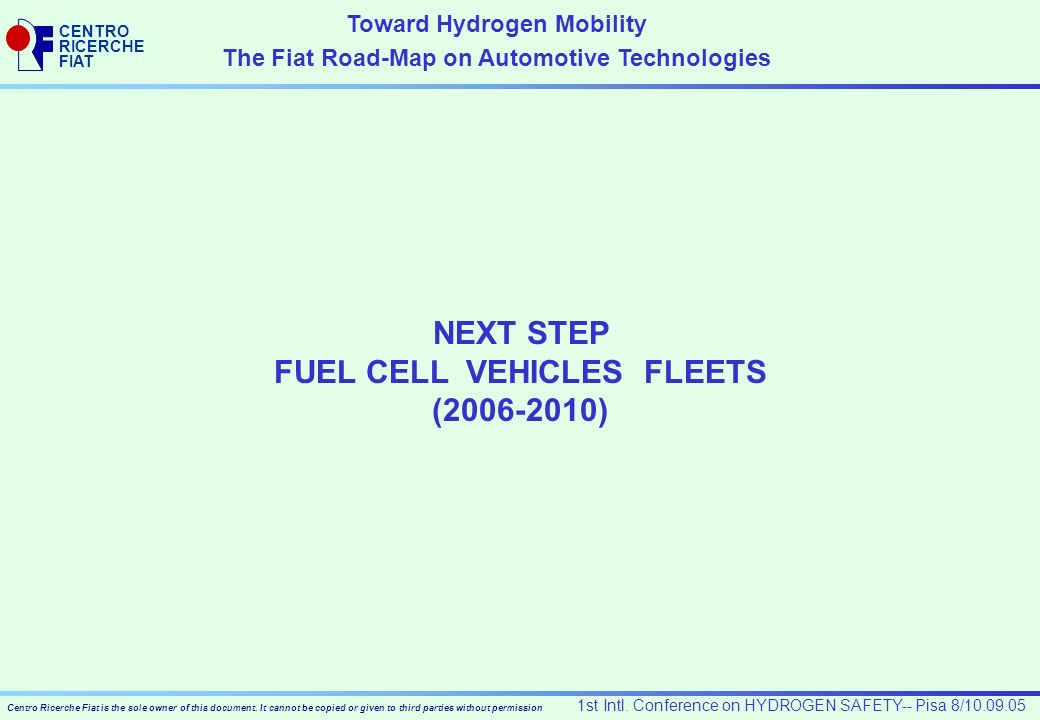

6 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 NEXT STEP FUEL CELL VEHICLES FLEETS (2006-2010) Toward Hydrogen Mobility The Fiat Road-Map on Automotive Technologies

7 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 The 3 d generation FCV: Panda Hydrogen Program supported by Ministry of Environment Main Features and Vehicle Performance Payload4 seats Curb Weight1150 kg Max Speed150 km/h Acceleration Time (0–50 km/h) 7 s Range (Urban Driving Cycle) > 220 km Gradeability @ full load23% Refuelling time< 5 min FC Powertrain ArchitectureFull Power FC Fuel Cell SystemNuvera PEM stacks Electric Motor AC Induction Hydrogen Tank68 l, 1.6 kg H 2 @ 350 bar Fiat Panda Hydrogen

8 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Project Goal Set up and test the Hydrogen chain for Transportation, from production to distribution Verify User Acceptance of Fuel Cell Vehicles, and functionality of related infrastructure and services Assess safety, cost issues, socio-economic and environmental impact The EU- Zero Regio Program FC Vehicles fleet demonstration (2006-2008) MANTOVA FRAKFURT CONSORTIUM Regione Lombardia Centro Recerche Fiat Eni Technology City of Mantova Sapio JRC, Ispra IEFE, Bocconi University Lund University Roskilde University Rhein Main Daimler Chrysler Fraport AG Agip Deutschland GmbH Infraserv GmbH & Co. Hoechst KG Linde AG Saviko Consultants TÜV Hessen GmbH

9 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 EUROPOLIS FUEL CELLS l System: series hybrid l Length:7.4 m. l Chassis:superlow (350 mm.) l Payload:> 30 passengers l Batteries:Ni-Cd / Ni-MeH l Range:> 200 km (hybrid mode) 60kW Hybrid Fuel Cell Modular System CRF

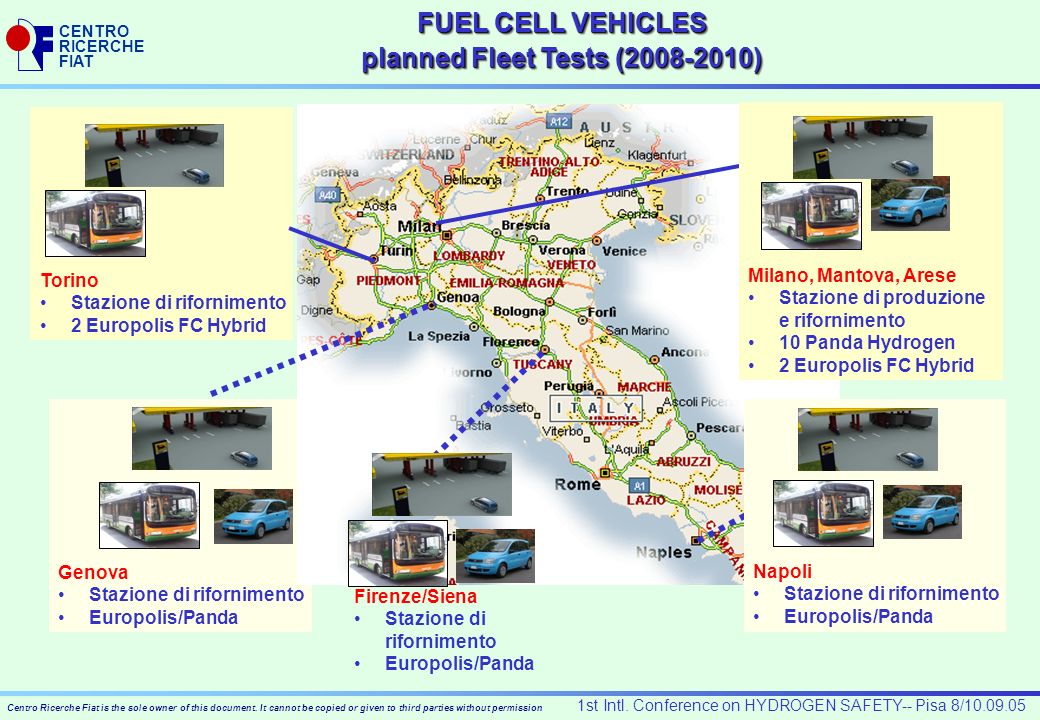

10 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Genova Stazione di rifornimento Europolis/Panda FUEL CELL VEHICLES planned Fleet Tests (2008-2010) FUEL CELL VEHICLES planned Fleet Tests (2008-2010) Torino Stazione di rifornimento 2 Europolis FC Hybrid Milano, Mantova, Arese Stazione di produzione e rifornimento 10 Panda Hydrogen 2 Europolis FC Hybrid Napoli Stazione di rifornimento Europolis/Panda Firenze/Siena Stazione di rifornimento Europolis/Panda

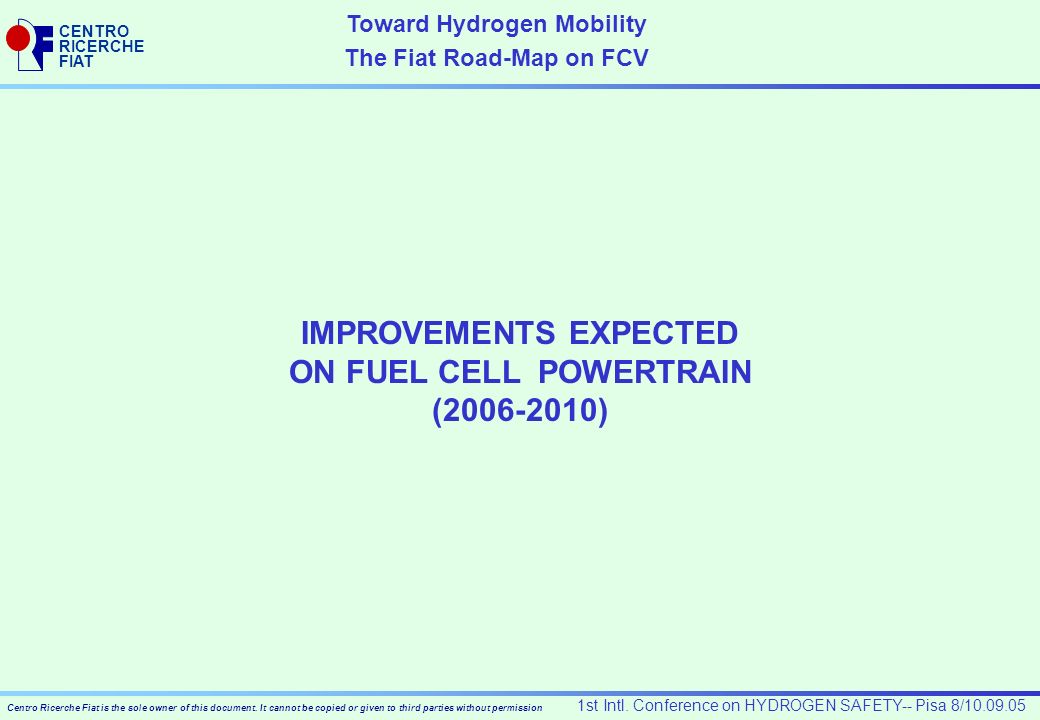

11 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 IMPROVEMENTS EXPECTED ON FUEL CELL POWERTRAIN (2006-2010) Toward Hydrogen Mobility The Fiat Road-Map on FCV

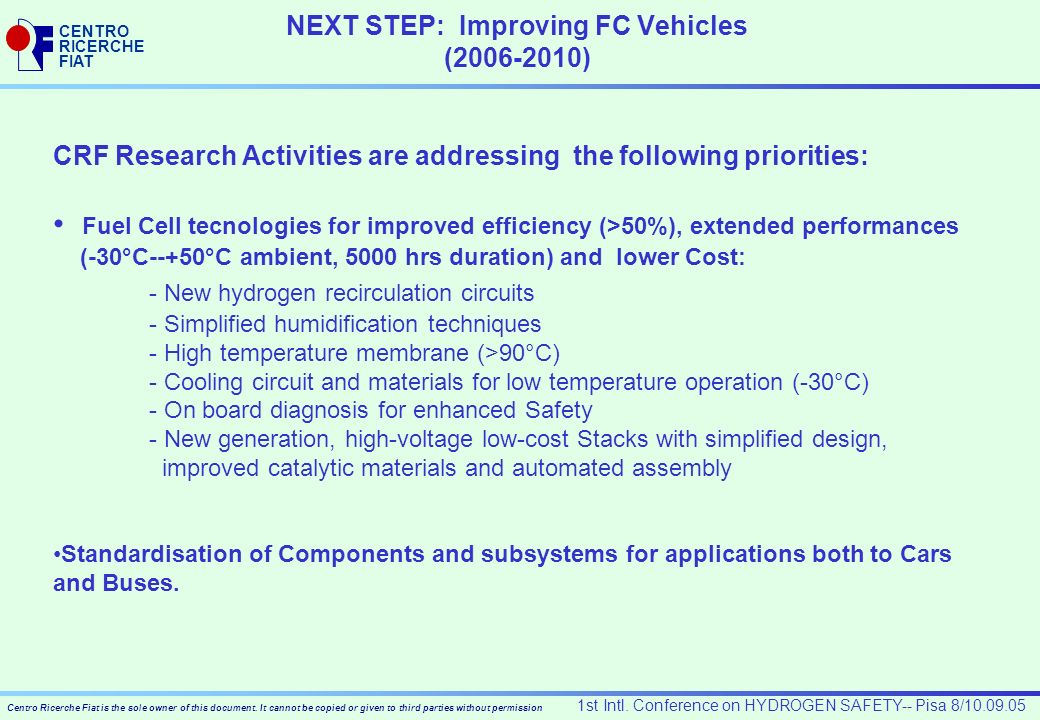

12 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 CRF Research Activities are addressing the following priorities: Fuel Cell tecnologies for improved efficiency (>50%), extended performances (-30°C--+50°C ambient, 5000 hrs duration) and lower Cost: - New hydrogen recirculation circuits - Simplified humidification techniques - High temperature membrane (>90°C) - Cooling circuit and materials for low temperature operation (-30°C) - On board diagnosis for enhanced Safety - New generation, high-voltage low-cost Stacks with simplified design, improved catalytic materials and automated assembly Standardisation of Components and subsystems for applications both to Cars and Buses. NEXT STEP: Improving FC Vehicles (2006-2010)

13 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 HYDROGEN SAFETY Toward Hydrogen Mobility The Fiat Road-Map on FCV

14 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 User Expectations for Hydrogen Vehicles : No additional tasks or responsibility during vehicle lifecycle, e.g. refuelling or maintenance No additional costs, including maintenance and repair Safety levels equal or better of current vehicles Hydrogen Vehicles Safety

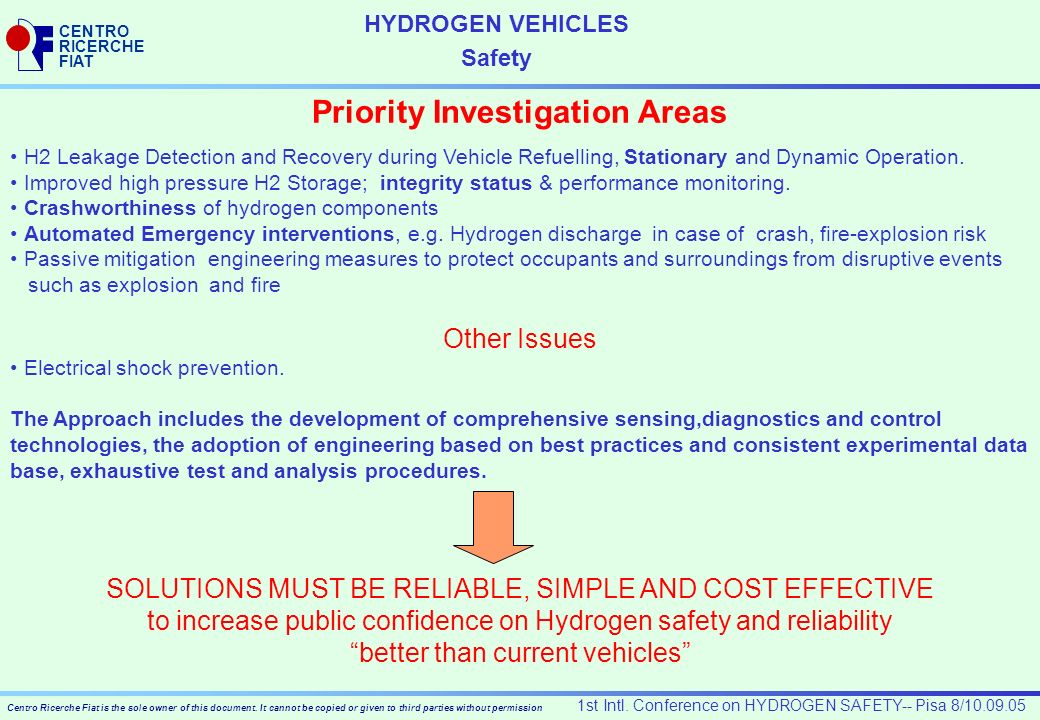

15 Centro Ricerche Fiat is the sole owner of this document. It cannot be copied or given to third parties without permission CENTRO RICERCHE FIAT 1st Intl. Conference on HYDROGEN SAFETY-- Pisa 8/10.09.05 Priority Investigation Areas H2 Leakage Detection and Recovery during Vehicle Refuelling, Stationary and Dynamic Operation. Improved high pressure H2 Storage; integrity status & performance monitoring. Crashworthiness of hydrogen components Automated Emergency interventions, e.g. Hydrogen discharge in case of crash, fire-explosion risk Passive mitigation engineering measures to protect occupants and surroundings from disruptive events such as explosion and fire Other Issues Electrical shock prevention. The Approach includes the development of comprehensive sensing,diagnostics and control technologies, the adoption of engineering based on best practices and consistent experimental data base, exhaustive test and analysis procedures. SOLUTIONS MUST BE RELIABLE, SIMPLE AND COST EFFECTIVE to increase public confidence on Hydrogen safety and reliability better than current vehicles HYDROGEN VEHICLES Safety
