1 Bone 2

2 Morphology of a Long Bone
Diaphysis Metaphysis Epiphysis Epiphyseal Plate

3

4 Diaphysis Bone shaft between epiphyseal plates
Mostly compact bone; metaphysis is spongy bone (cancellous) Periosteum Endosteum Marrow cavity

5 Articular cartilage Epiphysis Epiphyseal plate Perichondrium Metaphysis Medullary cavity Periosteum Diaphysis Endosteum Compact bone Cancellous bone Metaphysis Epiphyseal plate (hyaline cartilage) Epiphysis Cancellous bone Articular cartilage (hyaline cartilage)

6 Metaphysis Distal ends of diaphysis Spongy (cancellous) bone

7 Epiphysis Distal ends of long bones Articular cap of hyaline cartilage
Medullary cavity is cancellous and contains a marrow cavity

8 Epiphyseal plate Junction between diaphysis and epiphysis
Hyaline cartilage in child Responsible for bone growth Periosteum become continuous with a perichondrium

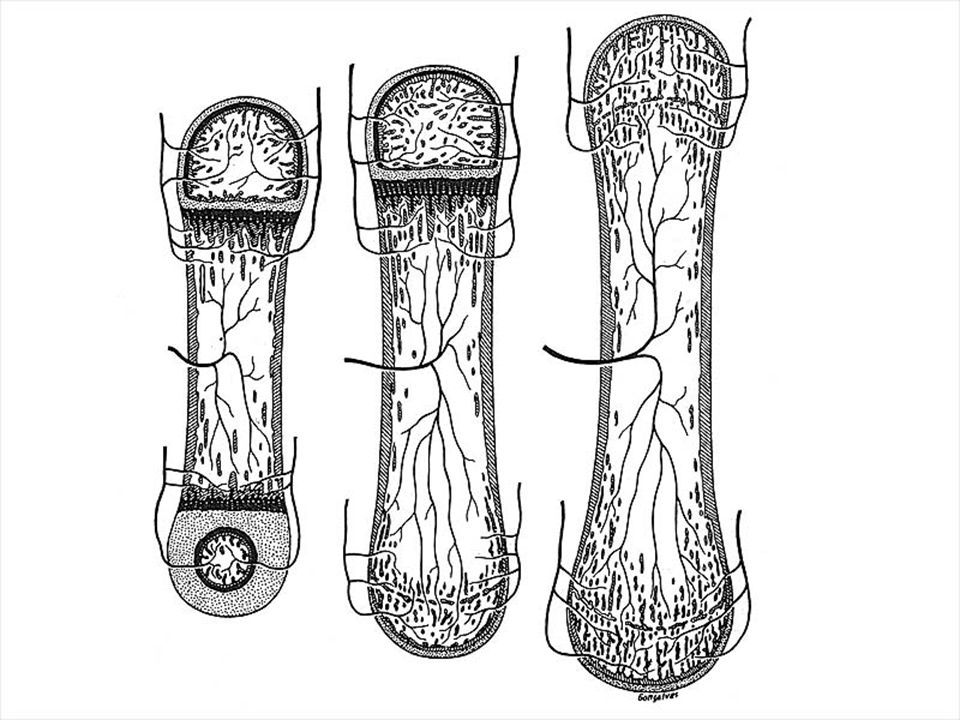

9

10 Compact bone Periosteum Endosteum Haversian system (osteon)
Volkmann’s canals Interstitial lamellae Outer circumferential lamellae Inner circumferential lamellae

11 Periosteum Fibrous (outer) layer Osteogenic (inner) layer
Fibroblasts; collagen; elastin Protection of bone Osteogenic (inner) layer Osteoblasts adjacent to bone surface Osteoprogenitor cells-precursors to osteoblasts Osteoclasts if remodeling is occurring

12

13 Periosteum Blood vessels & nerves present
Sharpey’s fibers: anchor periosteum to bone

14

15 Endosteum Between bone marrow and bone matrix
Layer of osteoblasts, osteoclasts, and a few osteogenic cells

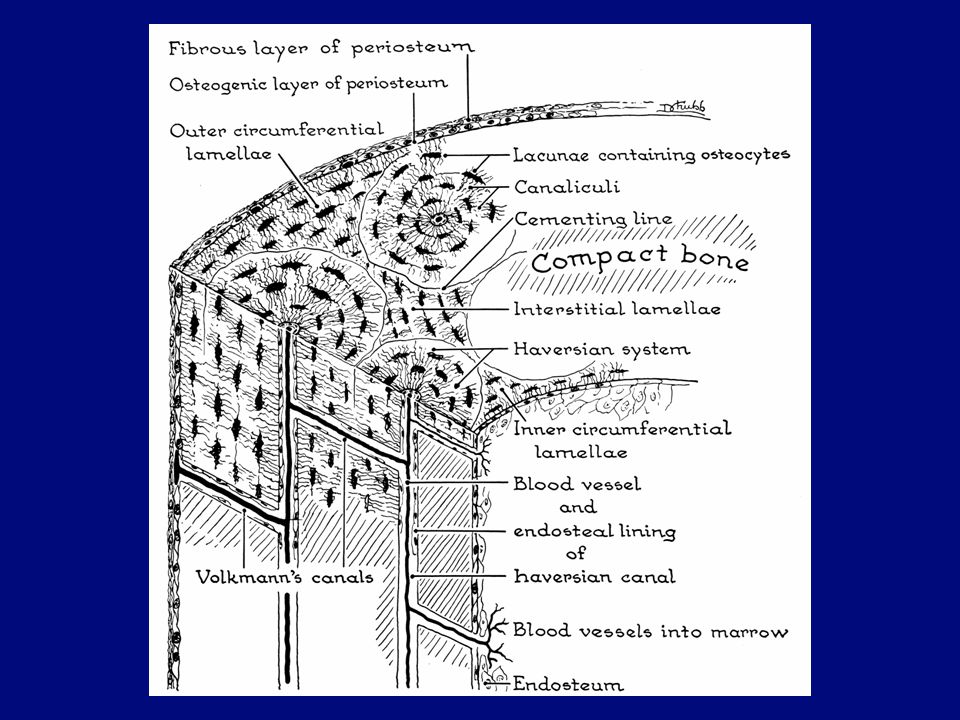

16

17 Interstitial lamellae Haversian system (osteon) Outer circumferential lamellae Inner circumferential lamellae Volkmann’s canal Haversian canal Periosteum

18 Haversian System (osteon)
Concentric lamellae of bone Up to ~ 10 lamellae/osteon Osteocytes and canaliculi Collagen planes in adjacent lamellae are perpendicular to each other Surround vascular passageways running longitudinally Contain blood vessels, nerves, lymphatics

19 Interstitial lamellae Haversian system (osteon) Outer circumferential lamellae Inner circumferential lamellae Volkmann’s canal Haversian canal Periosteum

20

21

22

23 Volkmann’s canals Observed in compact bone
Vascular passages that run radially Not surrounded by concentric lamellae Contain blood vessels, nerves, and lymphatics

24 Interstitial lamellae Haversian system (osteon) Outer circumferential lamellae Inner circumferential lamellae Volkmann’s canal Haversian canal Periosteum

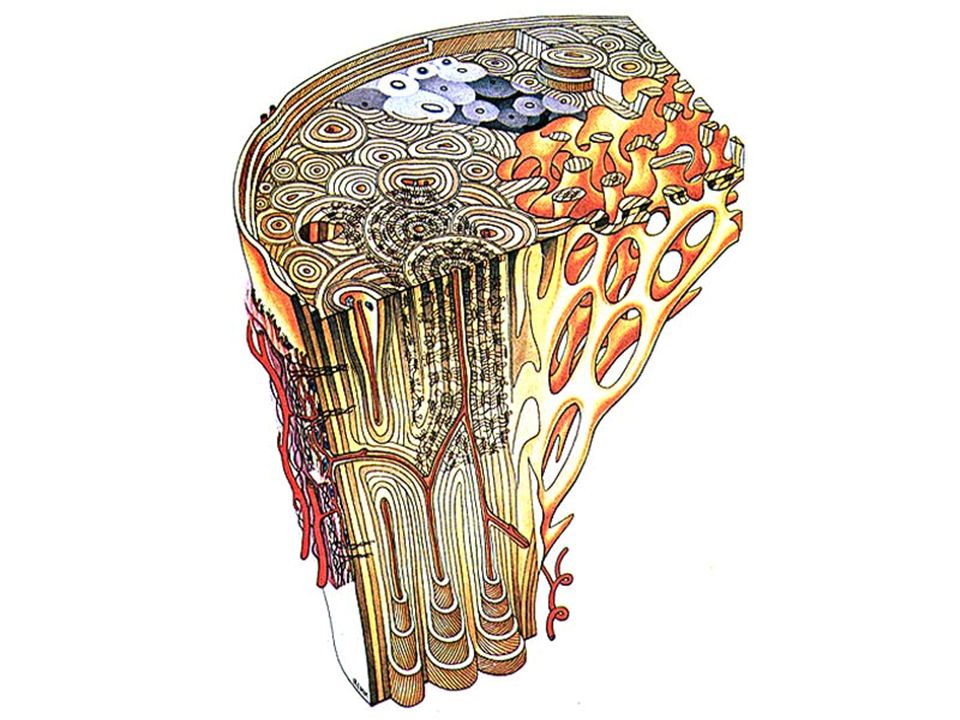

25

26

27

28 Interstitial lamellae
Remnants of partly resorbed osteons No vessels

29 Interstitial lamellae Haversian system (osteon) Outer circumferential lamellae Inner circumferential lamellae Volkmann’s canal Haversian canal Periosteum

30

31

32 Outer circumferential lamellae
Beneath periosteum Usually do not encircle entire bone shaft

33

34 Inner circumferential lamellae
Adjacent to endosteum Incomplete

35 Interstitial lamellae Haversian system (osteon) Outer circumferential lamellae Inner circumferential lamellae Volkmann’s canal Haversian canal Periosteum

36

37 Fully formed osteon Developing osteon Osteoblast Prebone Haversian canal (with capillary) Cementing line

38

39 End Bone 2

40

41 Haversian canal Lamellae Lacuna Cement Osteocytes Processes

42
