1. 4-1 4446 Design of Microprocessor-Based Systems Hardware Detail of Intel 8088 Dr. Esam Al_Qaralleh CE Department Princess Sumaya University for Technology

2. 4-2 8088 Pin Configuration

3. 10.3 CPU pin descriptions GND A14 A13 A12 A11 A10 A9 A8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 NMI INTR CLK GND Vcc A15 A16/S3 A17/S4 A18/S5 A19/S6 ___ SS0(HIGH) ___ MN/MX ___ RD ___ ____ HOLD(RQ/GT0) ___ ____ HLDA (RQ/GT1) ___ ______ WR(LOCK) __ __ IO/M(S2) __ __ DT/R(S1) ____ __ DEN(S0) ALE(QS0) _____ INTA(QS1) _____ TEST READY RESET 140 8088 2021 Minmode operation signals (MN/MX=1) Maxmode operation signals (MN/MX=0) Address Bus (outputs) Time-multiplexed Address (outputs)/ Data Bus (bidirectional) Hardware interrupt requests (inputs) 2...5MHz, 1/3 duty cycle (input) 0V=“0”, reference for all voltages 5V±10% Time- multiplexed Address Bus /Status signals (outputs) Status signals (outputs) Operation Mode, (input): 1 = minmode (8088 generates all the needed control signals for a small system), 0 = maxmode (8288 Bus Controller expands the status signals to generate more control signals) Interrupt acknowledge (output) Control Bus (in,out)

4. 4-4 8088 Pin Description GND: 1 & 20 Both need to be connected to ground VCC: 21 VCC = 5V CLK: 19 Input 33% duty cycle 1/3*T2/3*T MN/MX: 33 Input High  Minimum mode Low  Maximum mode RESET: 21 Input Reset 8088  Duration of logic high must be greater than 4*T  After reset, 8088 fetches instructions starting from memory address FFFF0H Pin NamePin Number Direction Description

5. 4-5 8088 Pin Description Pin NamePin Number Direction Description READY 22 Input Informs the processor that the selected memory or I/O device is ready for a data transfer 8088 Selected memory or I/O device Data bus READY wait for memory or I/O ready Start data transfer

6. 4-6 8088 Pin Description Pin NamePin Number Direction Description HOLD 31 Input The execution of the processor is suspended as long as HOLD is high HLDA 30 Output Acknowledges that the processor is suspended 8088 Memory HOLD HLDA Device 2 Bus  Procedure for Device 2 to use bus  Drive the HOLD signal of 8088 high  Wait for the HLDA signal of 8088 becoming high  Now, Device2 can send data to bus

7. 4-7 8088 Pin Description Pin NamePin Number Direction Description NMI 17 Input Causes a non-maskable type-2 interrupt INTR 18 Input Indicates a maskable interrupt request INTA 24 Output Indicates that the processor has received an INTR request and is beginning interrupt processing  NMI (non-maskable interrupt): a rising edge on NMI causes a type-2 interrupt  INTR: logic high on INTR poses an interrupt request. However, this request can be masked by IF (Interrupt enable Flag). The type of interrupt caused by INTR is read from data bus 8088 External device Data bus INTR INTA INTR INTA Data BusInt. type  INTA: control when the interrupt type should be loaded onto the data bus

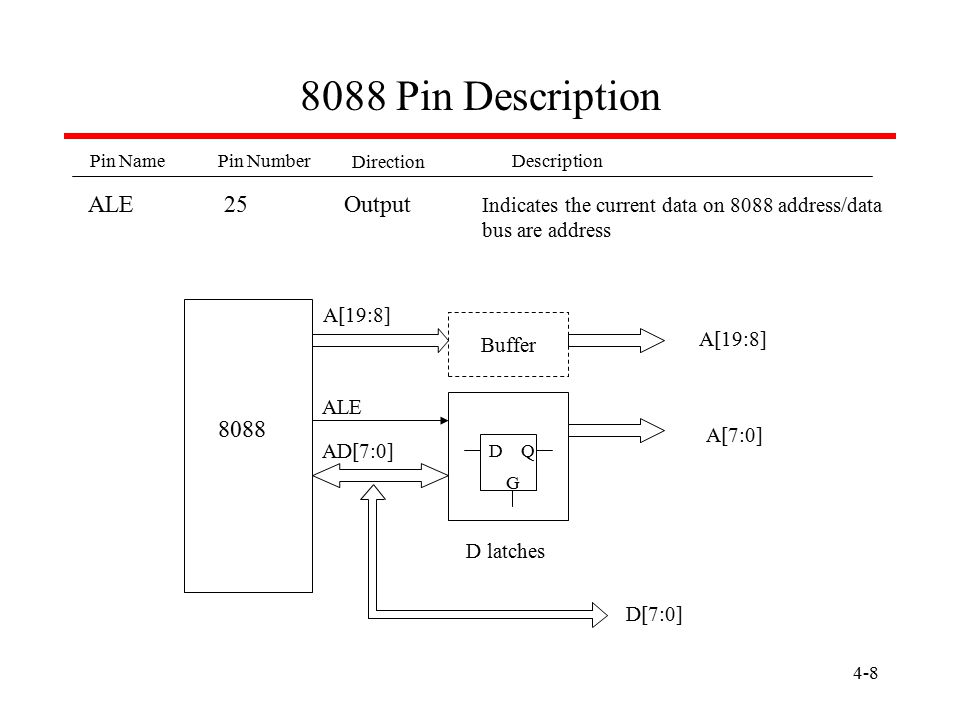

8. 4-8 8088 Pin Description Pin NamePin Number Direction Description ALE 25 Output Indicates the current data on 8088 address/data bus are address DQ G 8088 A[19:8] ALE AD[7:0] D[7:0] A[7:0] A[19:8] D latches Buffer

9. 4-9 8088 Pin Description Pin NamePin Number Direction Description DEN 26 Output Disconnects data bus connection DT / R 27 Output Indicates the direction of data transfer 8088 AD[7:0] Data bus D[7:0] DEN DT/R DENDT/ R DEN DT/R 1 X Disconnected 0 0 To 8088 0 1 From 8088

10. 4-10 8088 Pin Description Pin NamePin Number Direction Description WR 29 Output Indicates that the processor is writing to memory or I/O devices RD 32 Output IO/ M 28 Output Indicates that the processor is reading from memory or I/O devices Indicates that the processor is accessing whether memory (IO/M=0) or I/O devices (IO/M=1) WR RD IO/M 8088 Memory WE OE CS Addr. Dec. Addr. Dec. IO/M WR or RD I/O

11. 4-11 8088 Pin Description Pin NamePin Number Direction Description AD[7:0] 9-16 I/O Address / Data bus A[19:8] 2-8, 35-39 Input Address bus SS 0 34 Output TEST 23 Input Status Output It is examined by processor testing instructions LOCK 29 Input Lock output is used to lock peripherals off the system. Activated by using the LOCK: prefix on any instruction. QS1 and QS0 24, 25 Input The queue status bits show status of internal instruction queue. Provided for access by the numeric coprocessor (8087).

12. 10.3 CPU pin descriptions 8088 Status Signals Comparison of NMI and INTR 8088 Signal Summary IOWR IORD MEMWR MEMRD RD WR IO/M Decoding 8088 memory and I/O read/write signals

14. 4-14 8284 Clock Generator 510 100K 10uF +5V Ready1 Ready2 RES RDY1 RDY2 X1 X2 Ready CLK RESET CLK Ready 8284 8088  Generates 33% duty cycle clock signal  Generates RESET signal  Synchronizes ready signals from memory and I/O devices Basic functions: Clock generation. RESET synchronization. READY synchronization. Peripheral clock signal.

15. 10.4 The 8284 Clock Generator RDY1 RDY2 EFI CLK F/C CSYNC AEN1 AEN2 8284 ASYNC X1 READY X2 RES RESET 5V READY1 READY2 5V 10MHz 4K7 2X510 5V 10  F 100K 1N4148 CLK 8088 READY RESET t RES [V] t RESET 1L 0L 0 = crystal oscillator 1 = TTL clock on EFI, synchronized on CSYNC t X1,2 [V] qualifiers for READY1,-2 1 = one WAIT state forced by READY 0 = forces the  P to froze the current bus cycle inserting WAIT STATES (all signals keep their values), allowing slower devices time to properly answer. CLK 1/3 f osc 1/3 duty cycle

16. 4-16 8288 Bus Controller  Separate signals are used for I/O ( IORC and IOWC ) and memory ( MRDC and MWTC ).  Also provided are advanced memory ( AIOWC ) and I/O ( AIOWC ) write strobes plus INTA.

17. DEN DT/R MRDC ALE MWTC S0 IORC S1 8288 IOWC S2 INTA AMWC AIOWC IOB AEN CEN 10.5 The 8288 Bus Controller 8286 OE T 8282 STB OE D Q LE CPU Address Bus (A16-A19, if needed, should be latched the same way like AD0-AD7) CPU Data Bus A8-A15 AD0-AD7 8088 S0 S1 S2 Memory ReaD Command Memory WriTe Command Input/Output Read Command Input/Output Write Command INTerrupt Acknowledge Advanced Memory Write Command Advanced Input/Output Write Command Status Signals (codify the bus cycle type) Control Bus Max one active at a time, identifying Memory vs. I/O and Read vs. Write Identify the Memory Byte (one of 2 20 (2 16 in example)) OR the I/O port (one of 2 16 ) to be read OR write in the current bus cycle Advanced Write Commands, providing additional access time for the selected circuit Data to be transferred in the current bus cycle Data Transmit/Receive 5V CLK Address Latch Enable Data Enable Command Enable Address Enable I/O Bus only 74LS244 G1 G2

18. 4-18 System Timing Diagrams  T-State: — One clock period is referred to as a T-State T-State — An operation takes an integer number of T-States  CPU Bus Cycle: — A bus cycle consists of 4 or more T-States T1T2T3T4

19. 4-19 Dump address on address bus. Issue a read ( RD ) and set M/ IO to 1. Wait for memory access cycle. Memory Read Timing Diagrams

20. 4-20 Memory Read Timing Diagrams T1 T2 T3T4 CLK ALE A[19:16] S3-S6 A[15:8] AD[7:0]A[7:0]D[7:0] IO/M DT/R DEN RD WR A[15:8 ] AD[7:0] A[15:0] Buffer D latch Trans -ceiver D[7:0] DT/R DEN IO/M WR RD 8088 Memory

21. 4-21 Dump address on address bus. Dump data on data bus. Issue a write ( WR ) and set M/ IO to 1. Memory Write Timing Diagrams

22. 4-22 Memory Write Timing Diagrams T1 T2 T3T4 CLK ALE A[19:16] S3-S6 A[15:8] AD[7:0]A[7:0]D[7:0] IO/M DT/R DEN RD WR A[15:8 ] AD[7:0] A[15:0] Buffer D latch Trans -ceiver D[7:0] DT/R DEN IO/M WR RD 8088 Memory

23. 4-23 Bus Timing During T 1 : The address is placed on the Address/Data bus. Control signals M/ IO, ALE and DT/ R specify memory or I/O, latch the address onto the address bus and set the direction of data transfer on data bus. During T 2 : 8086 issues the RD or WR signal, DEN, and, for a write, the data. DEN enables the memory or I/O device to receive the data for writes and the 8086 to receive the data for reads. During T 3 : This cycle is provided to allow memory to access data. READY is sampled at the end of T 2. If low, T 3 becomes a wait state. Otherwise, the data bus is sampled at the end of T 3. During T 4 : All bus signals are deactivated, in preparation for next bus cycle. Data is sampled for reads, writes occur for writes.

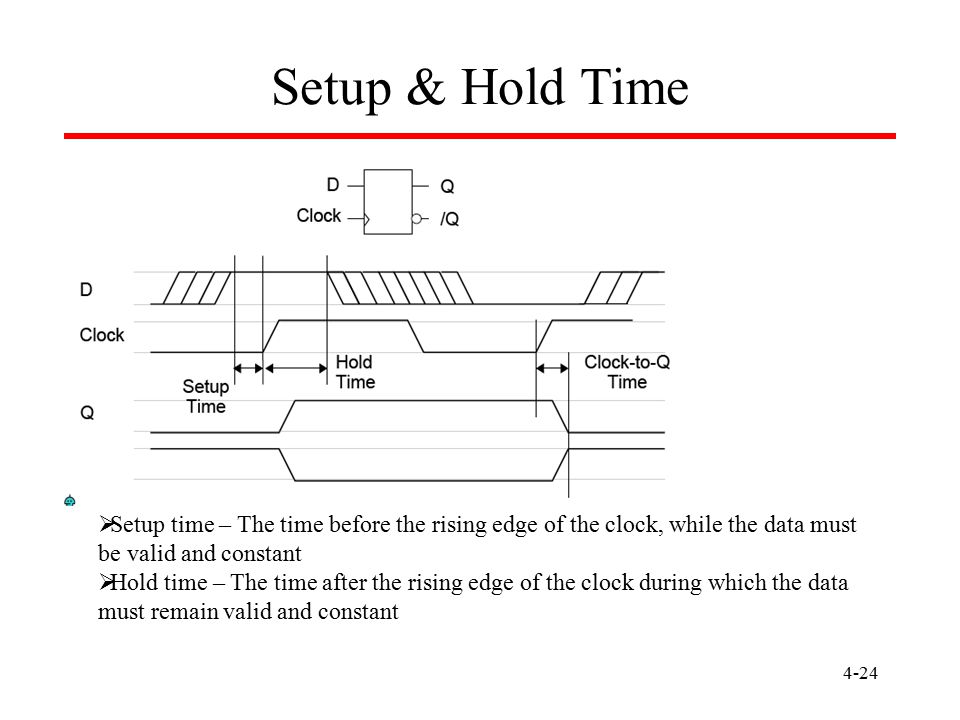

24. 4-24 Setup & Hold Time  Setup time – The time before the rising edge of the clock, while the data must be valid and constant  Hold time – The time after the rising edge of the clock during which the data must remain valid and constant

25. 4-25 Bus Timing Diagram

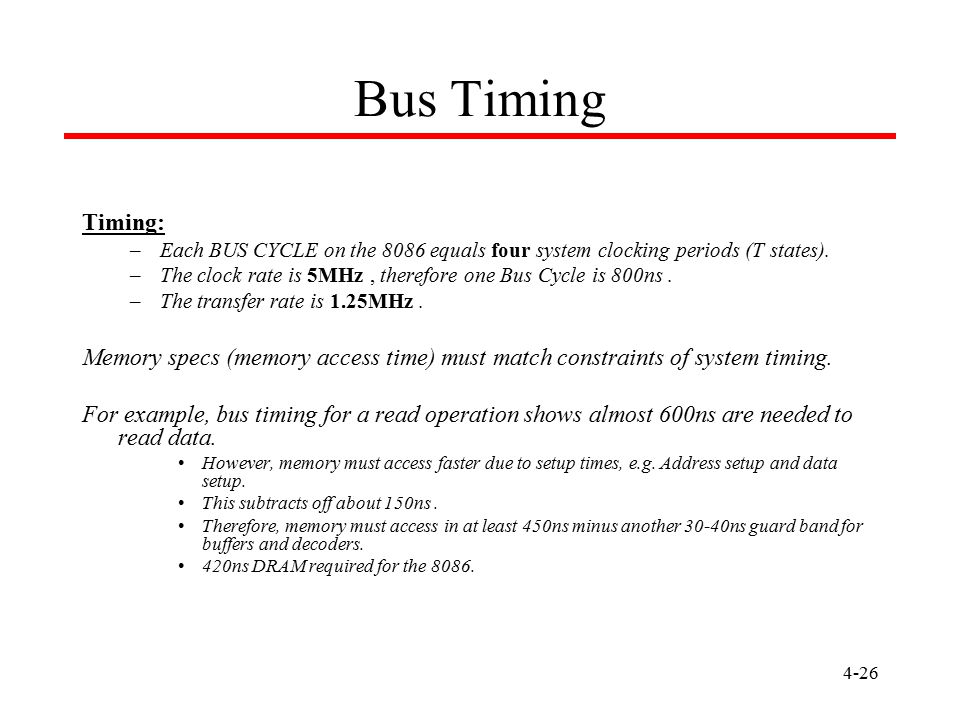

26. 4-26 Bus Timing Timing: –Each BUS CYCLE on the 8086 equals four system clocking periods (T states). –The clock rate is 5MHz, therefore one Bus Cycle is 800ns. –The transfer rate is 1.25MHz. Memory specs (memory access time) must match constraints of system timing. For example, bus timing for a read operation shows almost 600ns are needed to read data. However, memory must access faster due to setup times, e.g. Address setup and data setup. This subtracts off about 150ns. Therefore, memory must access in at least 450ns minus another 30-40ns guard band for buffers and decoders. 420ns DRAM required for the 8086.

27. 4-27

28. 10.6 System Time Diagrams - CPU Bus Cycle T2T2 T3T3 TWTW T4T4 Read Cycle (instruction fetch and memory operand read) A 8 - A 15 Address latches store the actual values Memory Cycle (I/O cycle is similar but IO/M = 1) S 3 - S 6 Tri-state A 16 -A 19 A 0 - A 7 T1T1 CLK ALE IO/M A 16 - A 19 A 8 - A 15 RD AD 0 - AD 7 DT/R READY DEN Direction “READ” for the Data BufferEnables Data Buffer WR AD 0 - AD 7 DT/R Write Cycle (memory operand write) A 0 - A 7 D 0 - D 7 (Data out) DEN Direction “READ” for the Data Buffer Enables Data Buffer Memory reads Data Bus The slow device drives READY= 0 the  P samples READY (if 0 a WAIT state follows) D 0 - D 7 (Data in)  P reads Data Bus

29. 4-29 Interrupt Acknowledge Timing Diagrams T1 T2 T3T4 CLK INTR INTA D[7:0] 8088 External device Data bus INTR INTA  It takes one bus cycle to perform an interrupt acknowledge  During T1, the process tri-states the address bus  During T2, INTA is pulled low and remains low until it becomes inactive in T4  The interrupting devices places an 8-bit interrupt type during INTA is active Int. Type

30. 4-30 HOLD/HLDA Timing Diagrams T2T3T4 CLK HOLD 8088 Memory HOLD HLDA Device 2 Bus HLDA Hold State  The processor will examine HOLD signal at every rising clock edge  If HOLD=1, the processor will pull HLDA high at the end of T4 state (end of the execution of the current instruction) and suspend its normal operation  If HOLD=0, the processor will pull down HLDA at the falling clock edge and resume its normal operation

31. 10.6 System Time Diagrams - INT and HOLD T4T4 T1T1 HOLD/HLDA Timing CLK HOLD HLDA HOLD state: the  P releases the Address, Data, Control and Status buses (these pins are tri-sated (high impedance) only after ending the current bus cycle CLK INTA AD 0 - AD 7 T2T2 T3T3 T4T4 T1T1 INT type Tri-state Minmode Interrupt acknowledge timing a single INTA cycle in minmode. CLK LOCK INTA AD 0 - AD 7 T2T2 T3T3 T4T4 T1T1 T2T2 T3T3 T4T4 T1T1 INT type First INTA cycle Second INTA cycle Tri-state Maxmode Interrupt acknowledge timing two INTA cycles in maxmode, the device requesting INT has to drive the “INT type” on the Data Bus, during the second cycle. Prevents  P to enter a HOLD state

32. 10.7 Personal Computer Bus Standards CPU Memory Bus Cash Memory Memory Controller  P Bus Main Memory I/O Bus Controller Plug-in I/O Boards I/O Bus Motherboard I/O Circuits CPU Memory I/O  P Bus CPU Cash Memory  P Bus Memory Bus Memory Controller Main Memory Bridge Controller Motherboard- and Fast Plug-in I/O Circuits PCI Bus I/O Bus Controller I/O Bus Slow Plug-in I/O Boards Simple  P System Architecture PCI (Peripheral Component Interconnect bus) based Architecture Medium Complexity PC Architecture - ISA = Industry Standard Architecture (8 data bits = PC-XT bus, or 16 data bits = PC-AT bus) - EISA = Extended ISA - MCA = Micro Channel Architecture (only IBM)

33. 4-33 Dual Independent Bus (DIB) Backside Bus Frontside Bus

34. 4-34 Different level of Busses
