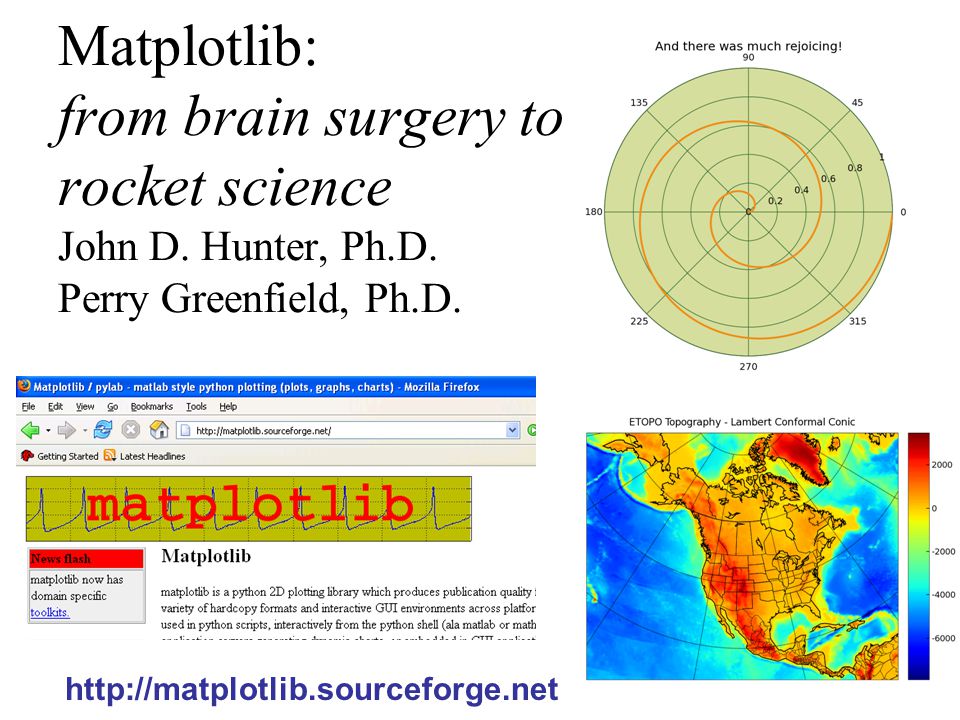

1. Matplotlib: from brain surgery to rocket science John D. Hunter, Ph.D. Perry Greenfield, Ph.D. http://matplotlib.sourceforge.net

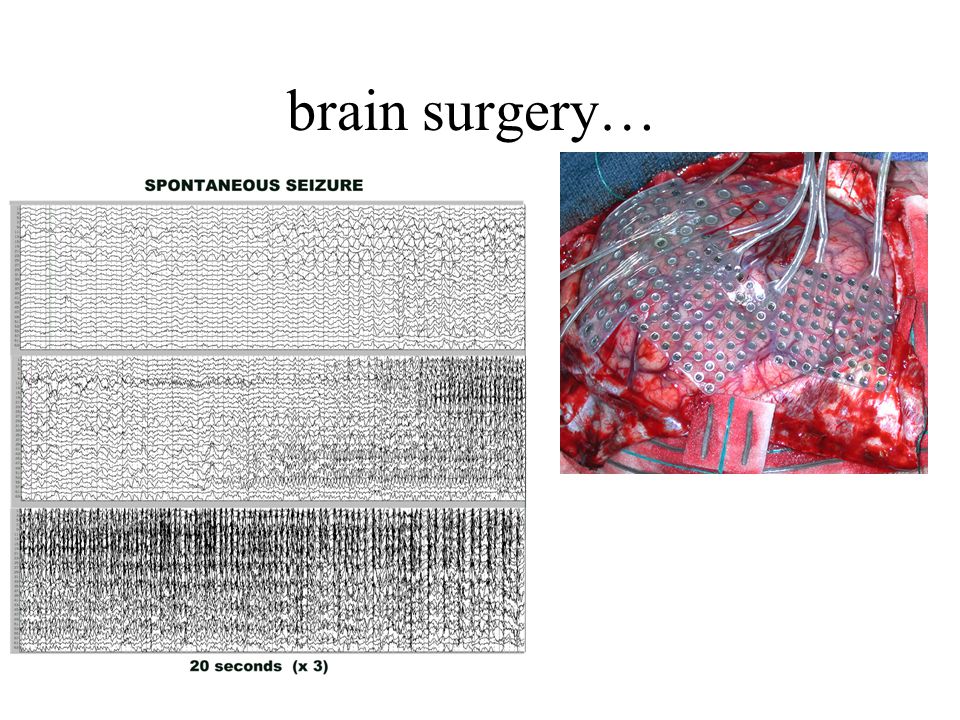

2. brain surgery…

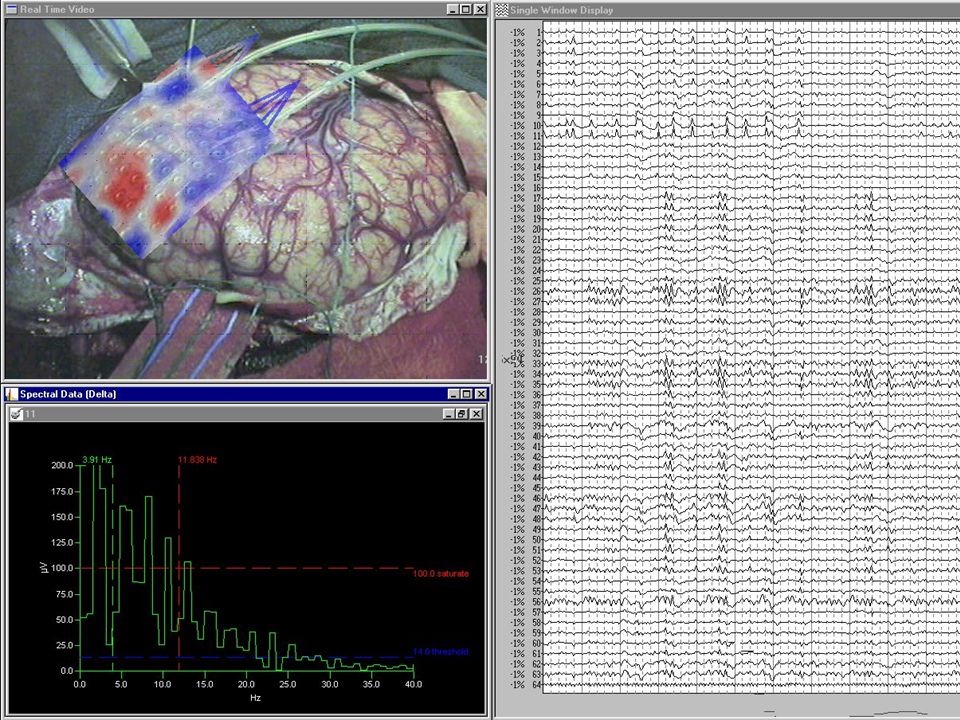

3. dongle

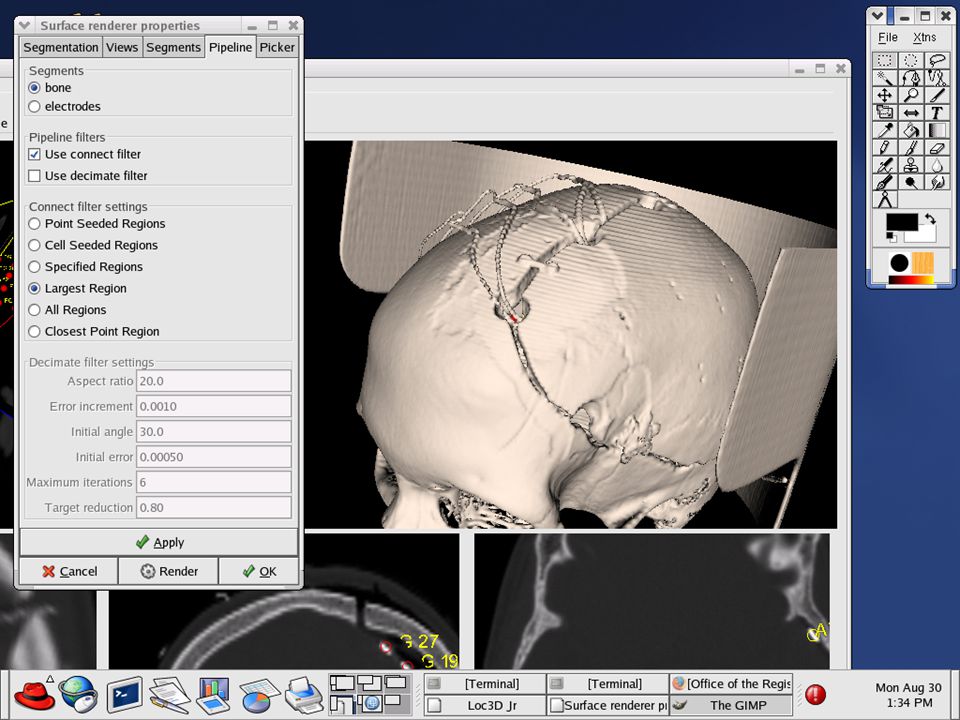

4. pbrain

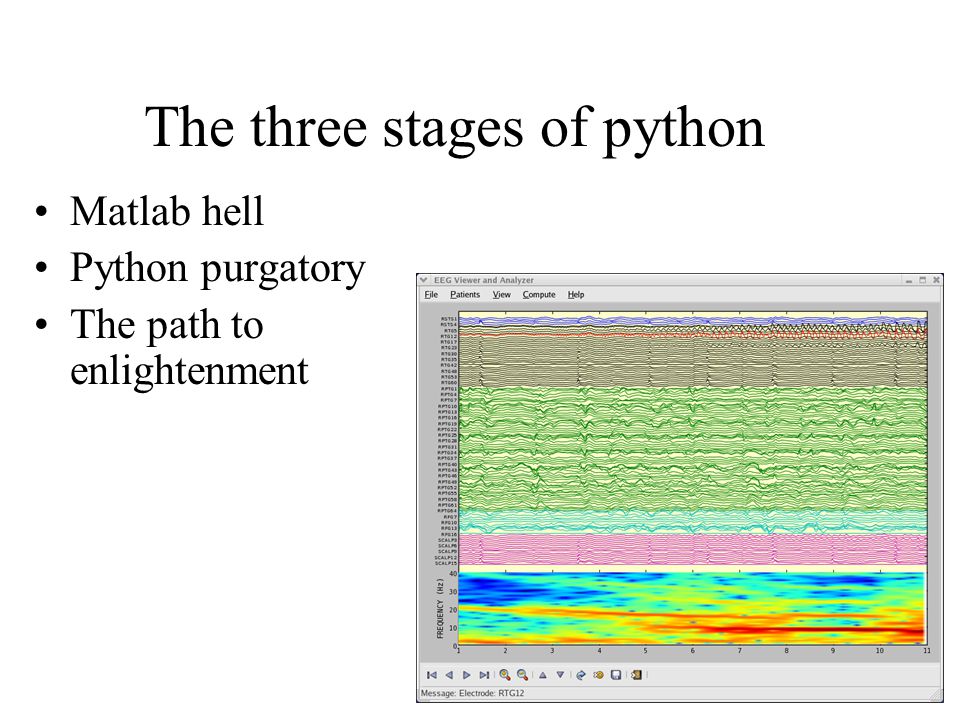

5. The three stages of python Matlab hell Python purgatory The path to enlightenment

6. 3D python fantastic, but 2D? PyX, ChartDirector, biggles, DISLIN, gnuplot, chaco, xplt, gplt, pyngl, ppgplot, tkinter canvas, gtk- extras, pychart, gist, piddle, graphite…. Multiple plotting idioms Cross platform Publication quality Permissive license Extensible (by me!) Easy plots should be easy (OO not always best) But app embedding should be supported (OO sometimes best) GUI agnosticism The curse of python

7. # matplotlib 0.1 ~/python/matplot_gtk12> ls README matplotlib.py subplot_demo.py data simple_plot.py view_data.py matplot.py stock_demo.py vline_demo.py # matplotlib 0.73 53 python modules 17 files of extension code 44,000 lines of code 130 examples 2-5 active developers at any time; 25 contributors Co-developed with NASA STScI and JPL 1200-1500 downloads/month approx 10 messages per/day on mailing list

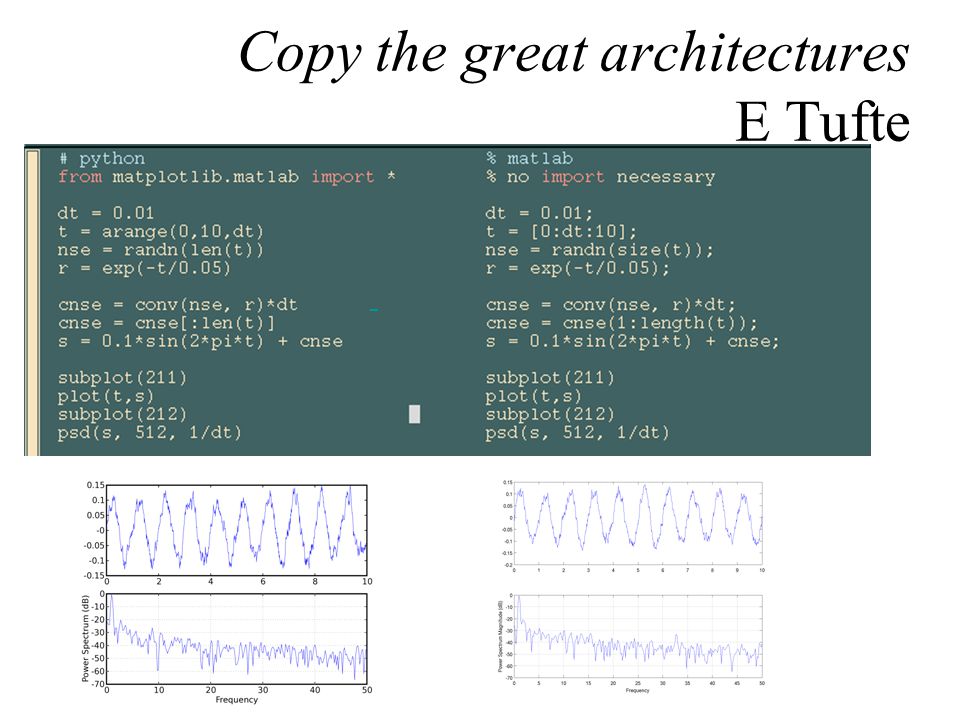

8. Copy the great architectures E Tufte

9. backends

10. The matplotlib API from matplotlib.backends.backend_agg import FigureCanvasAgg as FigureCanvas from matplotlib.figure import Figure fig = Figure() canvas = FigureCanvas(fig) ax = fig.add_subplot(111) ax.plot([1,2,3]) a ax.set_title('hi mom') ax.grid(True) ax.set_xlabel('time') ax.set_ylabel('volts') fig.savefig('test')

11. pylab interface Plotting should just work Easy plots should be easy GUI / interactive complexity should be managed ipython to the rescue IPython 0.6.12_cvs -- An enhanced Interactive Python. ? -> Introduction to IPython's features. %magic -> Information about IPython's 'magic' % functions. help -> Python's own help system. object? -> Details about 'object'. ?object also works, ?? prints more. Welcome to pylab, a matplotlib-based Python environment help(matplotlib) -> generic matplotlib information help(pylab) -> matlab-compatible commands from matplotlib help(plotting) -> plotting commands In [1]: plot([1,2,3])

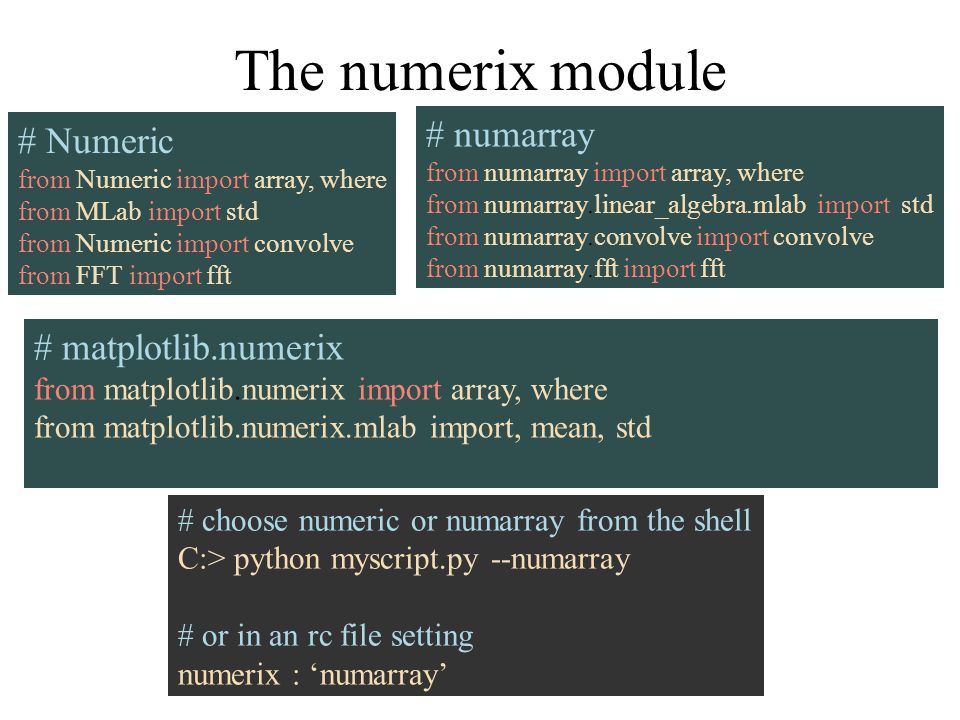

12. # Numeric from Numeric import array, where from MLab import std from Numeric import convolve from FFT import fft # numarray from numarray import array, where from numarray.linear_algebra.mlab import std from numarray.convolve import convolve from numarray.fft import fft # matplotlib.numerix from matplotlib.numerix import array, where from matplotlib.numerix.mlab import, mean, std # choose numeric or numarray from the shell C:> python myscript.py --numarray # or in an rc file setting numerix : ‘numarray’ The numerix module

13. font manager Cross platform font finding: win32, linux, OS X Configurable families: the font engine will pick the best font to match your requirements W3C compliant font.family : sans-serif font.style : normal font.variant : normal font.weight : medium font.stretch : normal font.size : medium font.serif : New Century Schoolbook, Century Schoolbook L, Utopia, ITC Bookman, Bookman, Bitstream Vera Serif, Nimbus Roman No9 L, Times New Roman, Times, Palatino, Charter, serif font.sans-serif : Lucida Grande, Verdana, Geneva, Lucida,

14. tex = r'$\cal{R}\prod_{i=\alpha_{i+1}}^\infty a_I … \rm{sin}(2 \pi f x_i)$' text(1, 1.6, tex, fontsize=30) mathtext demo

15. bar demo

16. stacked bar

17. pie demo

18. scatter demo

19. histogram demo

20. log demo

21. polar demo

22. layer image

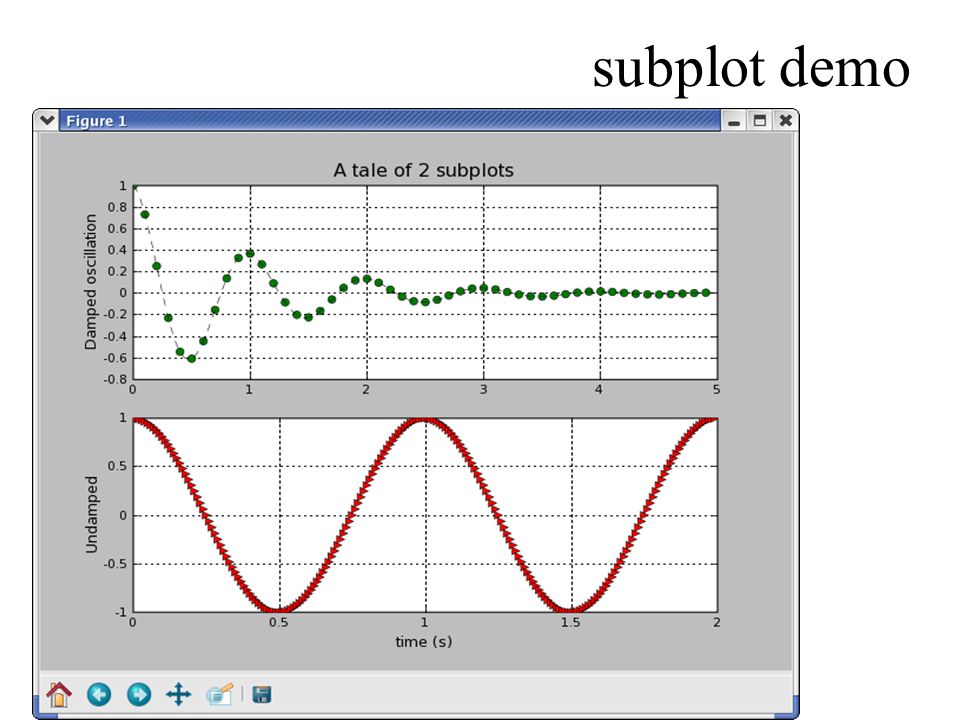

23. subplot demo

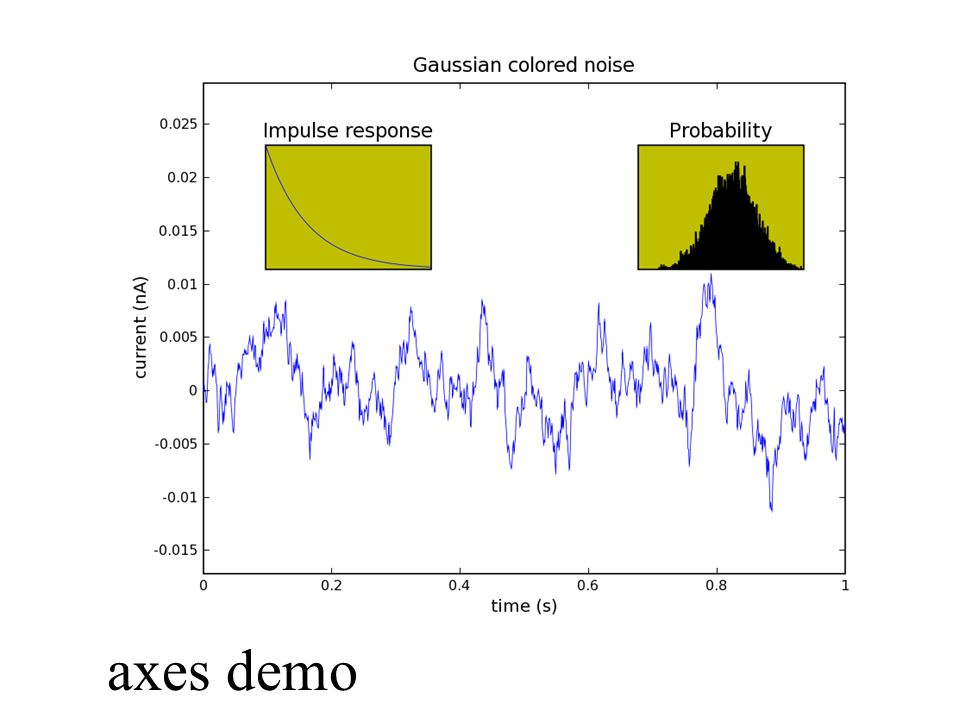

24. axes demo

25. legend demo

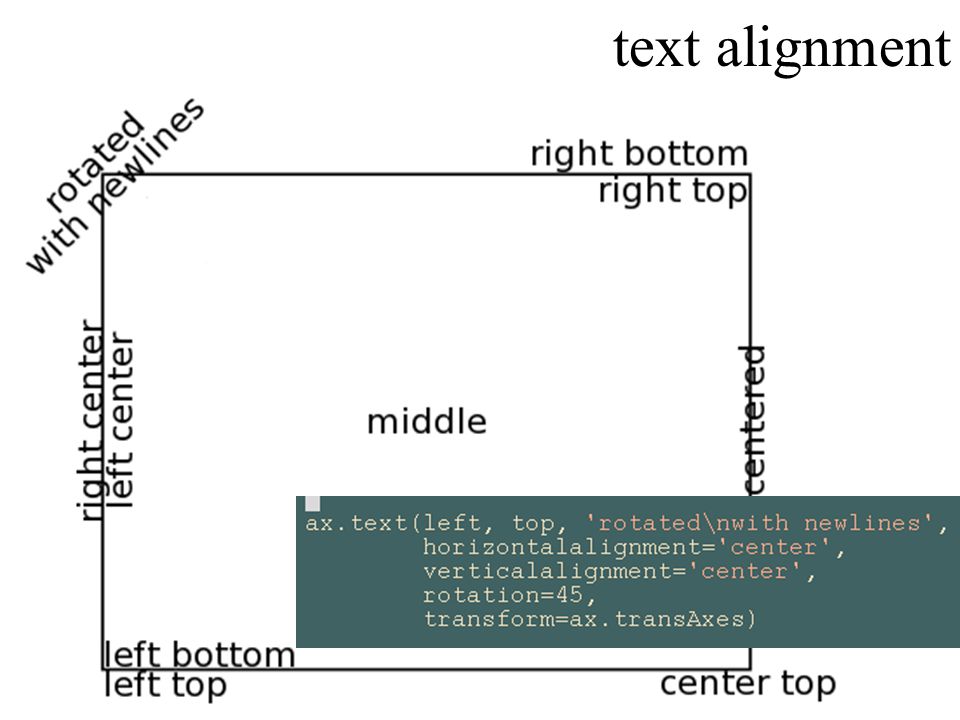

26. text alignment

27. mathtext demo2

28. cylindrical equidistant, mercator, lambert conformal conic, lambert azimuthal equal area, albers equal area conic and stereographic. basemap toolkit

29. stock demo

30. finance demo

31. MRI with eeg

32. EEG demo

33. VTK demo

34. Did I talk about? Event handling set/set Introspection RC configuration Embedding Dynamic/animated plots Math text Contouring Toolkits / basemap Font management

35. …from astronomy to zoology? Basic 3D Different colorspaces (CMYK) Arbitrary clipping paths, gradient/pattern fills Unicode support & better TeX support Domain specific toolkits SWF, PDF, Aqua, … Direction fields, arrows, etc

36. MATPLOTLIB CREDITS (in order of appearance…) Jeremy O'Donoghue wrote the wx backend Andrew Straw provided much of the log scaling architecture, the fill command, PIL support for imshow, and provided many examples Charles Twardy provided the impetus code for the legend class and has made countless bug reports and suggestions for improvement. Gary Ruben made many enhancements to errorbar to support x and y errorbar plots, and added a number of new marker types to plot. John Gill wrote the table class and examples David Moore wrote the paint backend Todd Miller contributed the TkAgg backend and the numerix module, which allows matplotlib to work with either numeric or numarray. He also ported image support to the postscript backend, with much pain and suffering. Paul Barrett overhauled font management to provide an improved, free-standing, platform independent font manager with a WC3 compliant font finder and cache mechanism and ported truetype and mathtext to PS Perry Greenfield overhauled and modernized the goals and priorities page, implemented an improved colormap framework, and has provided many suggestions and a lot of insight to the overall design and organization of matplotlib. Jared Wahlstrand wrote the SVG backend

37. MATPLOTLIB CREDITS (continued) Steve Chaplin is the GTK maintainer and wrote the Cairo and GTKCairo backends Jim Benson provided the patch to handle vertical mathttext Gregory Lielens provided the FltkAgg backend and several patches for the frontend, including contributions to toolbar2, and support for log ticking with alternate bases and major and minor log ticking Darren Dale did the work to do mathtext exponential labeling for log plots. Paul Mcguire provided the pyparsing module on which mathtext relies, and made a number of optimizations to the matplotlib mathtext grammar. Fernando Perez has provided numerous bug reports and patches for cleaning up backend imports and expanding pylab functionality, and provided matplotlib support in the pylab mode for ipython. He also provided the matshow command. Andrew Dalke of Dalke Scientific Software contributed the strftime formatting code to handle years earlier than 1900 Jochen Voss maintained the PS backend and has contributed several bugfixes. Nadia Dencheva of STScI provided the contouring and contour labeling code Baptiste Carvello provided the key ideas in a patch for proper shared axes support that underlies ganged plots and multiscale plots Sigve Tjoraand Ted Drain and colleagues at the JPL collaborated on the QtAgg backend Eric Firing added the contourf function and general contour refactoring

38. pie demo
