1. Mini-Baja Advisory Presentation April 27, 2007 Quentin Holmes Chris Meyer

2. Introduction  Overview of Competition Design Conditions Design Conditions Grading Criteria Grading Criteria  Our Participation  Drawings and Analysis  Timeline  Costs

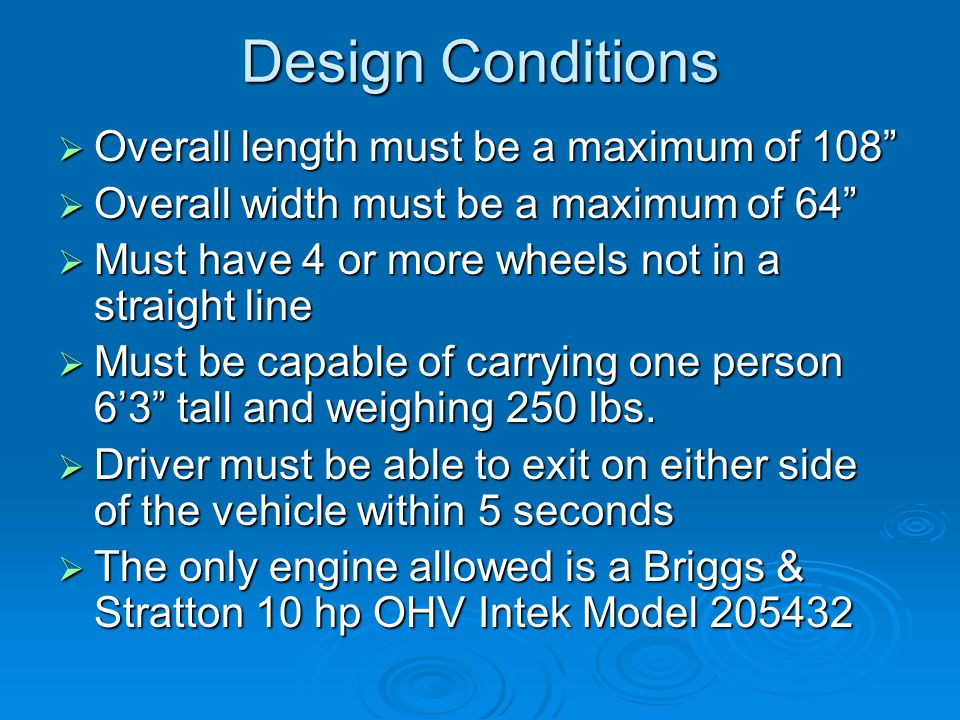

3. Design Conditions  Overall length must be a maximum of 108”  Overall width must be a maximum of 64”  Must have 4 or more wheels not in a straight line  Must be capable of carrying one person 6’3” tall and weighing 250 lbs.  Driver must be able to exit on either side of the vehicle within 5 seconds  The only engine allowed is a Briggs & Stratton 10 hp OHV Intek Model 205432

4. Grading Criteria:  Cost Report  Design Analysis  Acceleration  Braking  Traction  Land Maneuverability  Specialty Events  Endurance Race

5. What we do  Bring knowledge of mechanical systems  Fluent with engineering software  Ability to analyze components  Load testing  Laboratory resources  Manufacturing abilities

6. Manufacturing Methods  Primarily mandrel bent tubing with mig welded joints  Heim joint inserts into tubing with mig welded joints  End mill used to cut keyways in drive shafts  Water jet used to cut out all flat brackets and plates

7. Manufacturing Plan – Lower Frame   Cut tubes to length   Cut ends at a 45* angle   Bend sides to specified dimensions   Tack weld all tubes into place   Measure to assure the dimensions are correct   Mig weld all joints to finalize assembly

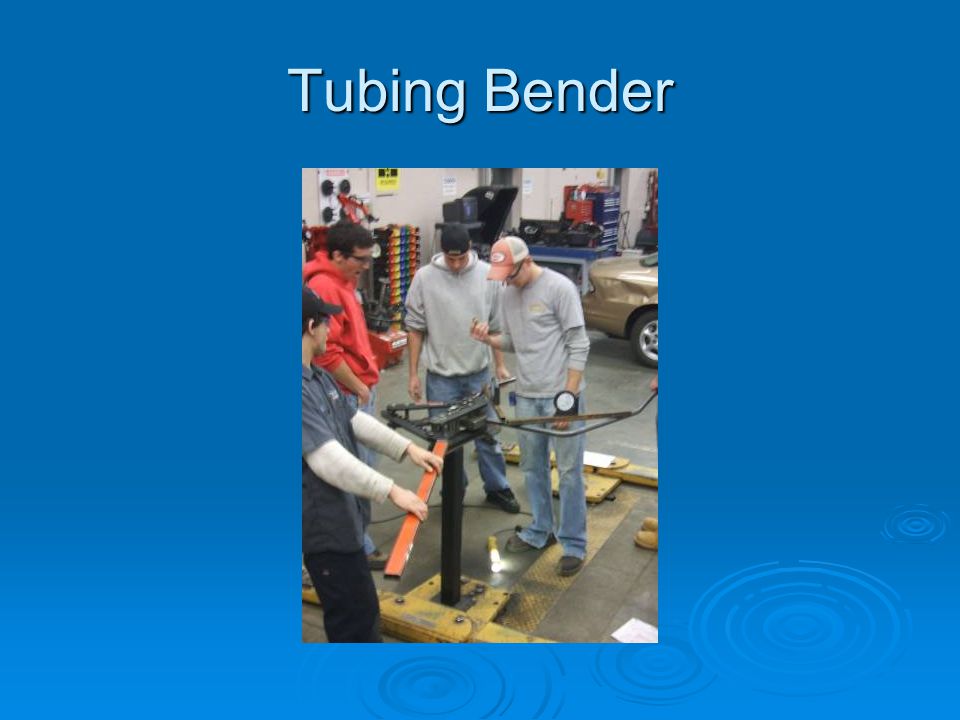

8. Tubing Bender

9. Tubing Coping

10. Mig Welding

11. Clutch

12. Frame Design

13. Drive Plates

14. Front Impact Member

15. Lower Frame

16. Shoulder Hoop

17. Side Impact Member

18. Lower A-arm

19. Upper A-arm

20. Rear Suspension Mounting Brackets

21. Lower A-arm Analysis

22. Front Impact Analysis

23. Side Impact Analysis

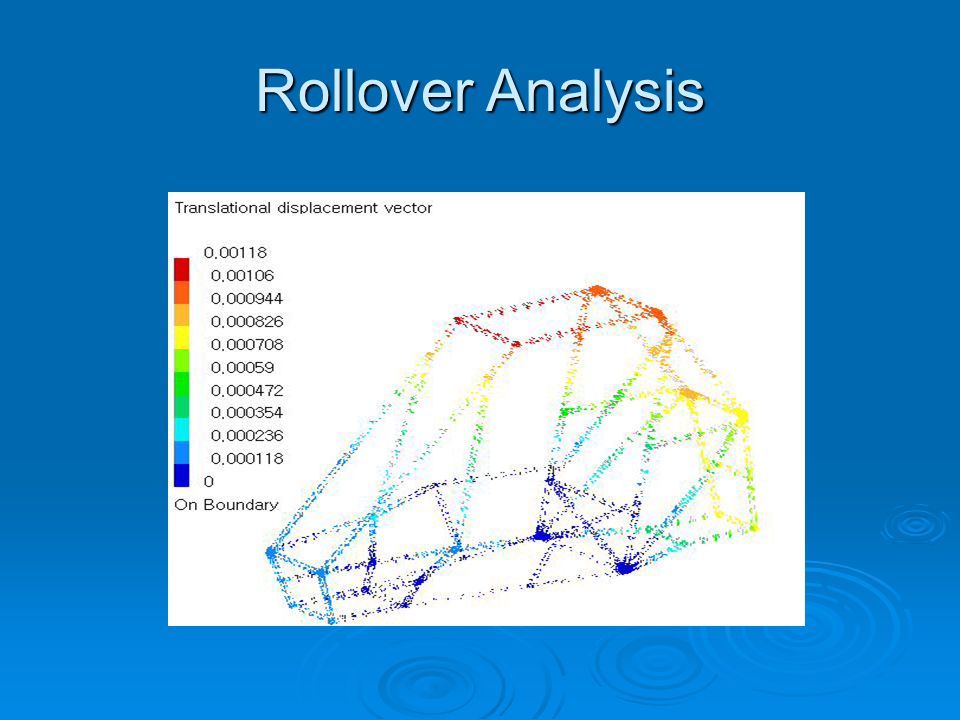

24. Rollover Analysis

25. Time Line Mini Baja Time Line SeptemberOctoberNovemberDecemberJanuaryFebruaryMarchAprilMayJune Budget Fundraising Frame Design Suspension Design Drive-line Design Assembly of Frame Assembly of Suspension Assembly of Drive-line Test Fit Test Run Tear Down Paint Final Assembly Rapid City, SD Rochester, NY

26. Conclusion  Learned how to deal with real world purchasing and procedures  Dealt with multiple styles of management  Followed a hierarchy of leadership  Worked in a team environment  Designed and built a car from start to finish

27. Questions? 
