King Fahd University of Petroleum & Minerals Mechanical Engineering Dynamics ME 201 BY Dr. Meyassar N. Al-Haddad Lecture # 7

2
From one particle to two particles

3
12.9 Absolute Dependent Motion Analysis of Two Particles The motion of one particle will depend on the corresponding motion of another particle Inextensible cords connection

4
Position How to establish the position coordinate –Reference from a fixed point (O) or fixed datum. –Measures along each inclined plane in the direction of motion –Has positive sense from C to A and from D to B. Establish a total cord length equation

5

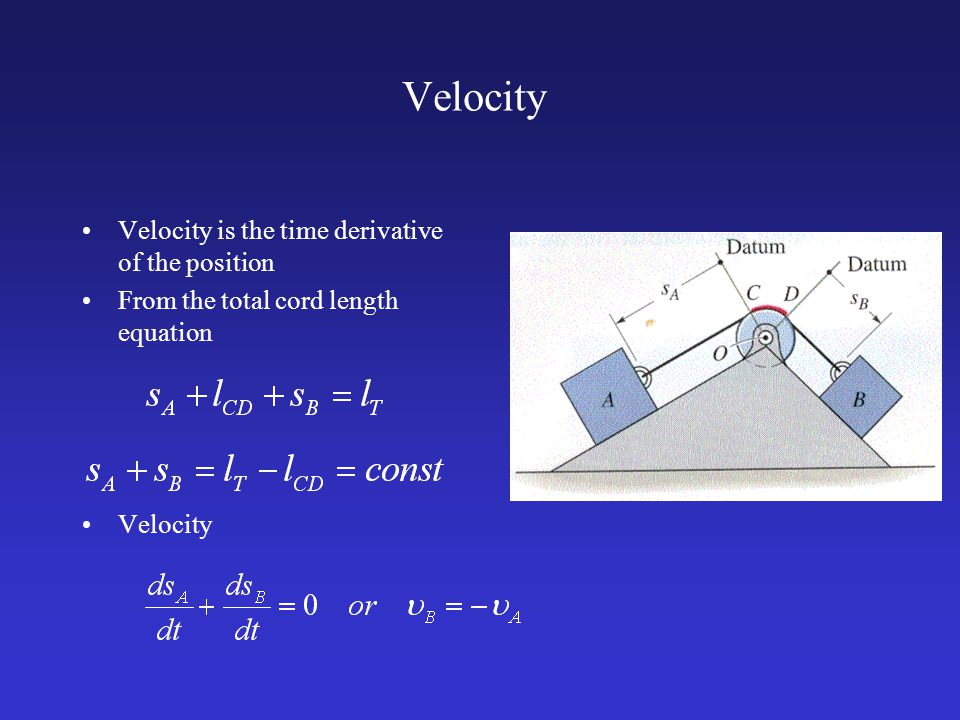

Velocity Velocity is the time derivative of the position From the total cord length equation Velocity

6
Acceleration Acceleration is the time derivative of the velocity From the velocity equation Acceleration

7
Example Position coordinate Velocity Acceleration

8
Example Position coordinate Velocity Acceleration Positive signs, why?

9
Example Position coordinate “ cord equation ” Velocity Acceleration

10
Example Position coordinate “ cord equation ” Velocity Acceleration

11
Position coordinate “ cord equation ” Example

13
Example 12.22 Establish a relation y = f(x) Cord =30 m
