1. Educause Security Professionals Conference Network Access Control through Quarantine, Remediation, and Verification Jonny Sweeny Incident Response Manager Office of the VP for IT Indiana University 5 May 2008 Copyright 2008, The Trustees of Indiana University. This work is the intellectual property of the author. Permission is granted for this material to be shared for non- commercial, educational purposes, provided that this copyright statement appears on the reproduced materials and notice is given that the copying is by permission of the author. To disseminate otherwise or to republish requires written permission from the author.

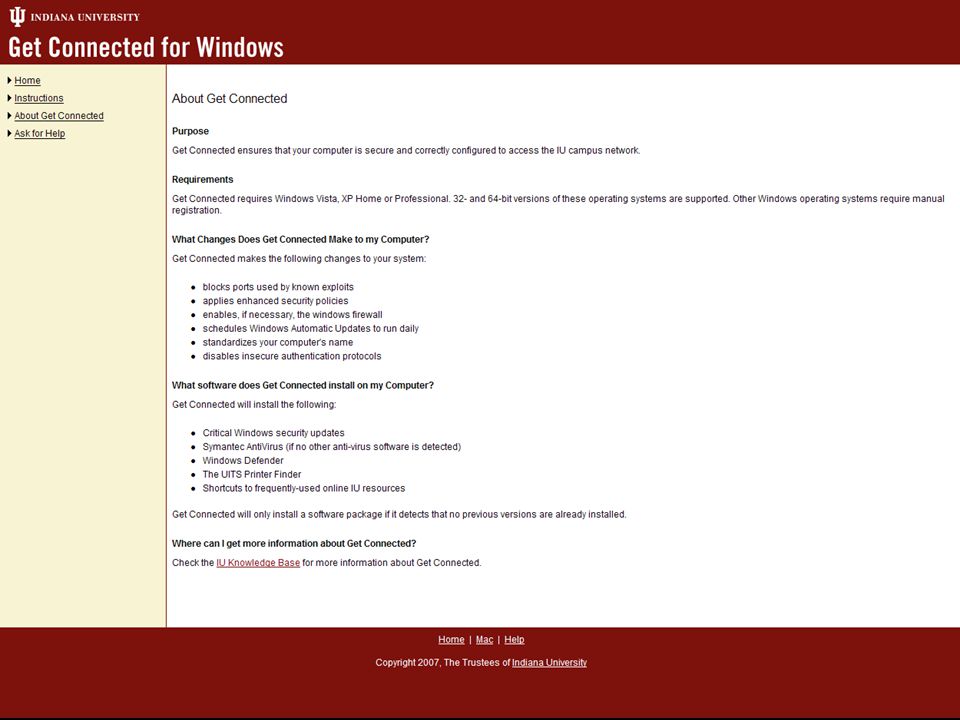

2. Overview IU’s Get Connected –Computers new to the network Blocking `bad` systems –Communication –Restoring access

4. Get Connected Stats 7,641 computers connected in 14 days Currently only required in Residence Halls on Windows wired connections 81% are laptops

5. Other reasons to restrict network access Compromised systems –detected by sensors Port scanning, high mailers, etc. –Detected by logs DNS botted, spyware, etc. Webmail compromised credentials Copyright Infringement

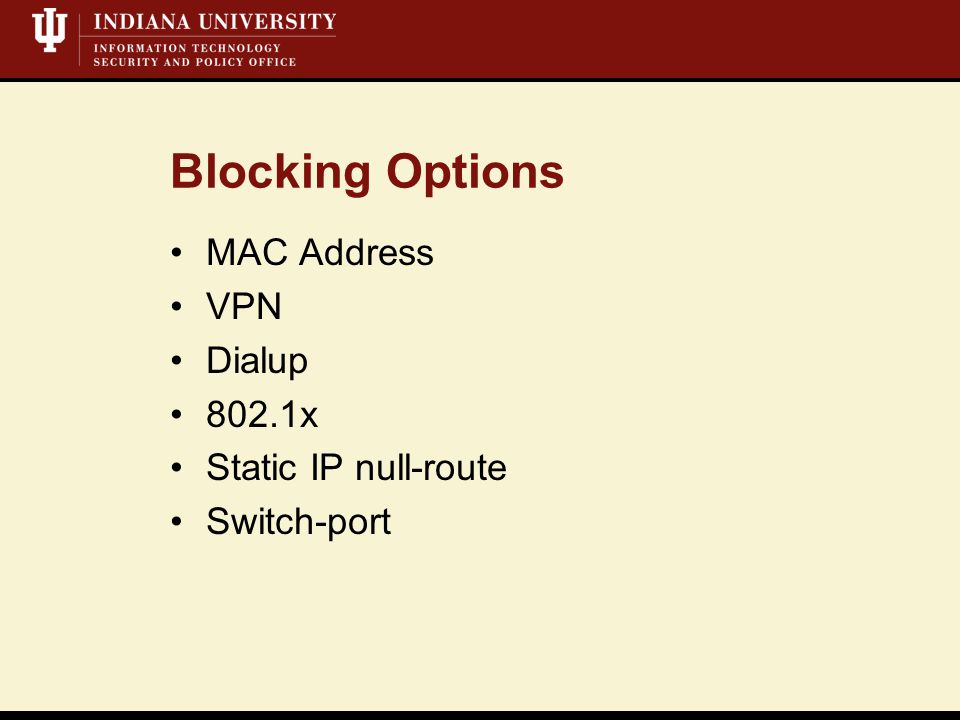

6. Blocking Options MAC Address VPN Dialup 802.1x Static IP null-route Switch-port

7. Communication User needs to know why machine is blocked –Sending an email to the user is not sufficient, however CC-ing their support provider helps –Redirecting to a self-service site is ideal. –Dynamically-assigned VLANs.

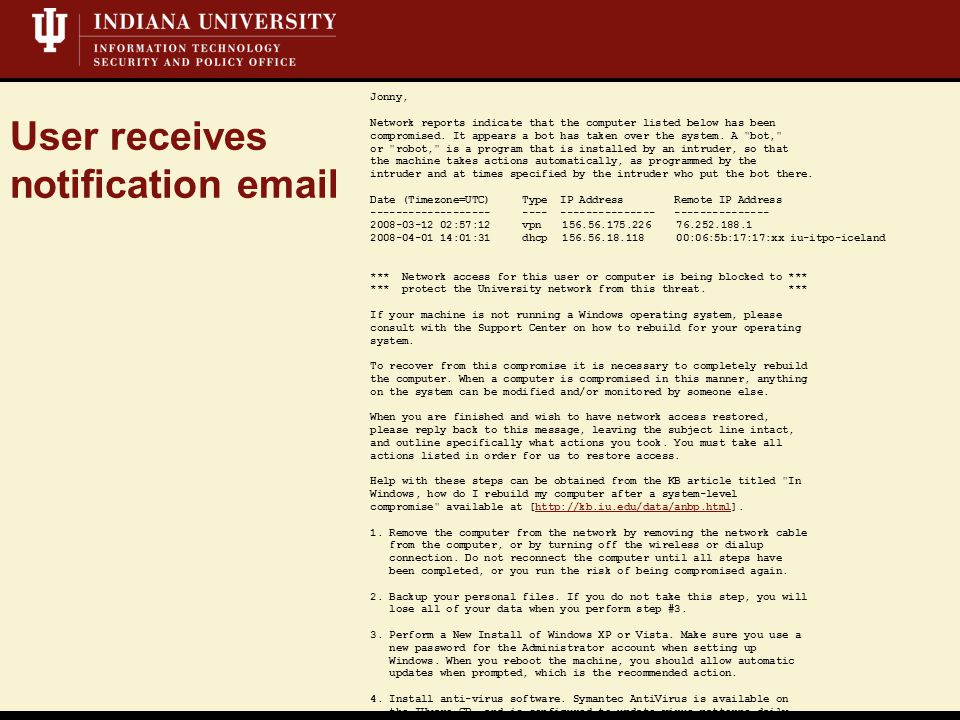

8. User receives notification email Jonny, Network reports indicate that the computer listed below has been compromised. It appears a bot has taken over the system. A "bot," or "robot," is a program that is installed by an intruder, so that the machine takes actions automatically, as programmed by the intruder and at times specified by the intruder who put the bot there. Date (Timezone=UTC) Type IP Address Remote IP Address ------------------- ---- --------------- --------------- 2008-03-12 02:57:12 vpn156.56.175.226 76.252.188.1 2008-04-01 14:01:31 dhcp156.56.18.118 00:06:5b:17:17:xx iu-itpo-iceland *** Network access for this user or computer is being blocked to *** *** protect the University network from this threat. *** If your machine is not running a Windows operating system, please consult with the Support Center on how to rebuild for your operating system. To recover from this compromise it is necessary to completely rebuild the computer. When a computer is compromised in this manner, anything on the system can be modified and/or monitored by someone else. When you are finished and wish to have network access restored, please reply back to this message, leaving the subject line intact, and outline specifically what actions you took. You must take all actions listed in order for us to restore access. Help with these steps can be obtained from the KB article titled "In Windows, how do I rebuild my computer after a system-level compromise" available at [http://kb.iu.edu/data/anbp.html].http://kb.iu.edu/data/anbp.html 1. Remove the computer from the network by removing the network cable from the computer, or by turning off the wireless or dialup connection. Do not reconnect the computer until all steps have been completed, or you run the risk of being compromised again. 2. Backup your personal files. If you do not take this step, you will lose all of your data when you perform step #3. 3. Perform a New Install of Windows XP or Vista. Make sure you use a new password for the Administrator account when setting up Windows. When you reboot the machine, you should allow automatic updates when prompted, which is the recommended action. 4. Install anti-virus software. Symantec AntiVirus is available on the IUware CD, and is configured to update virus patterns daily. If you do not use Symantec AntiVirus, make sure your software is configured to update daily. If you have any questions about these instructions, need help obtaining the IUware CD, or Windows XP/Vista, or would like assistance with the process, please consult with your Local Support Provider (LSP). If you do not have an LSP, please call the UITS Support Center at 855-6789 (IUB) or 274-4357 (IUPUI). Email: ithelp@iu.edu DO NOT CALL OR EMAIL US TO OBTAIN SUPPORT WE ARE NOT A SUPPORT UNIT. Please contact the Support Center for assistance. Only email us when you have completed these steps and are ready to get back on the network. Thank you for your immediate attention to this important matter. Please remember in your reply to outline *each* step you took. Simply replying with "I have completed all steps" is not enough. Regards, -- Jonny Sweeny IT Incident Response Manager IT Policy Office Office of the VP for IT Indiana University Incident Number: 85594

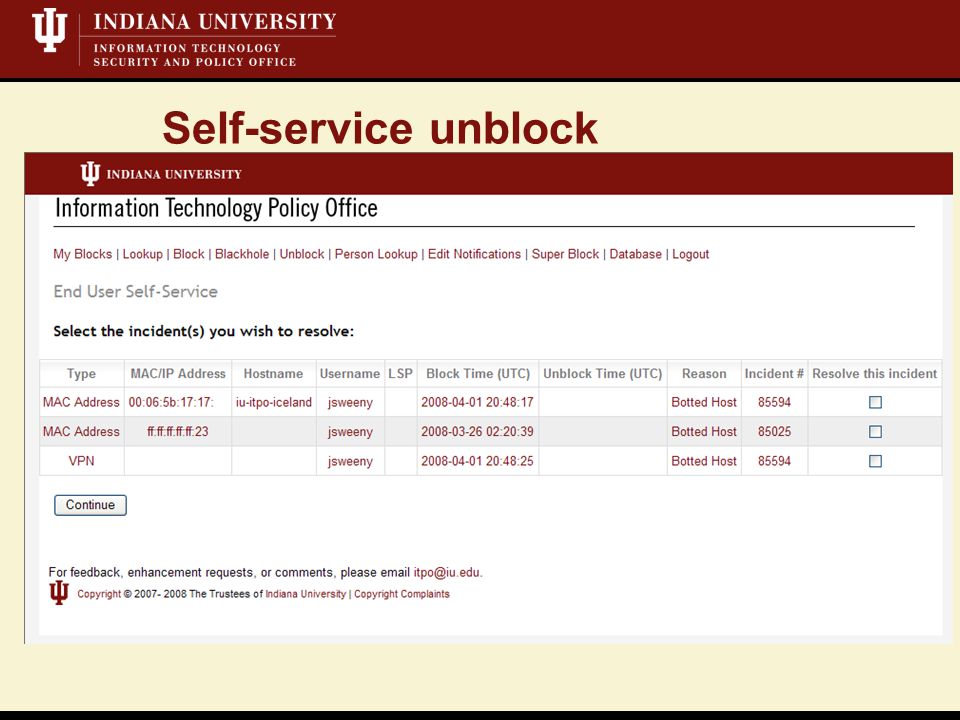

9. Self-service unblock

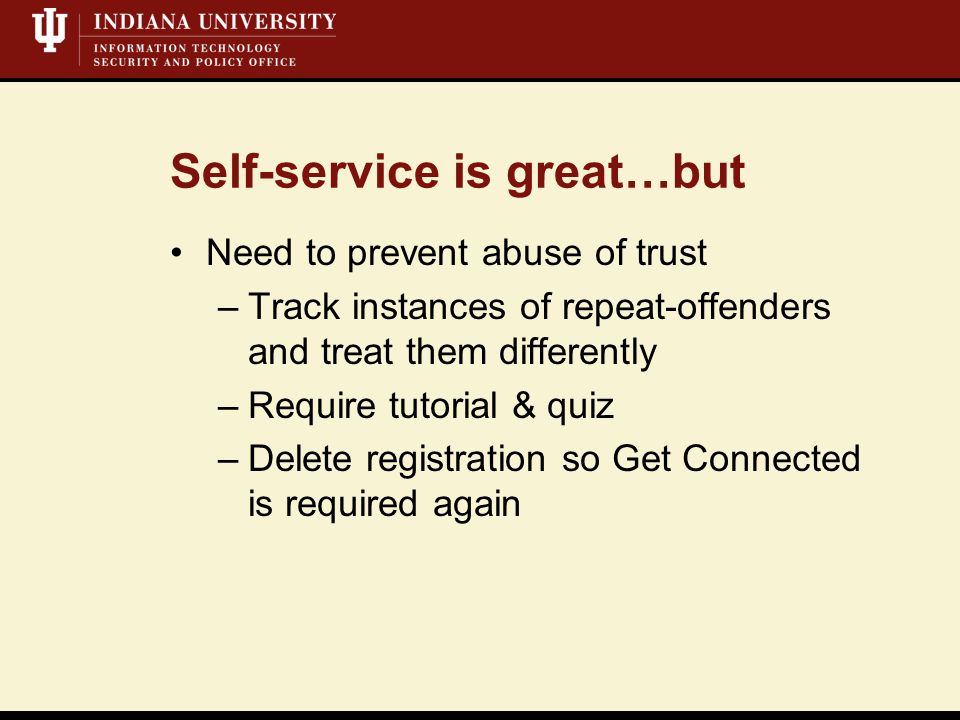

10. Self-service is great…but Need to prevent abuse of trust –Track instances of repeat-offenders and treat them differently –Require tutorial & quiz –Delete registration so Get Connected is required again

11. DMCA Quiz

12. Random comments about automation Good relationships with network staff translates to access to tools. –Null-route –MacMon –Arpfind –Router Configs –Syslogs –Dialup, VPN blocks –etc.

13. Random comments about automation Access to tools allows automation: –Block scanners, phishers, brute- forcers, etc. Blocking remainder of leases

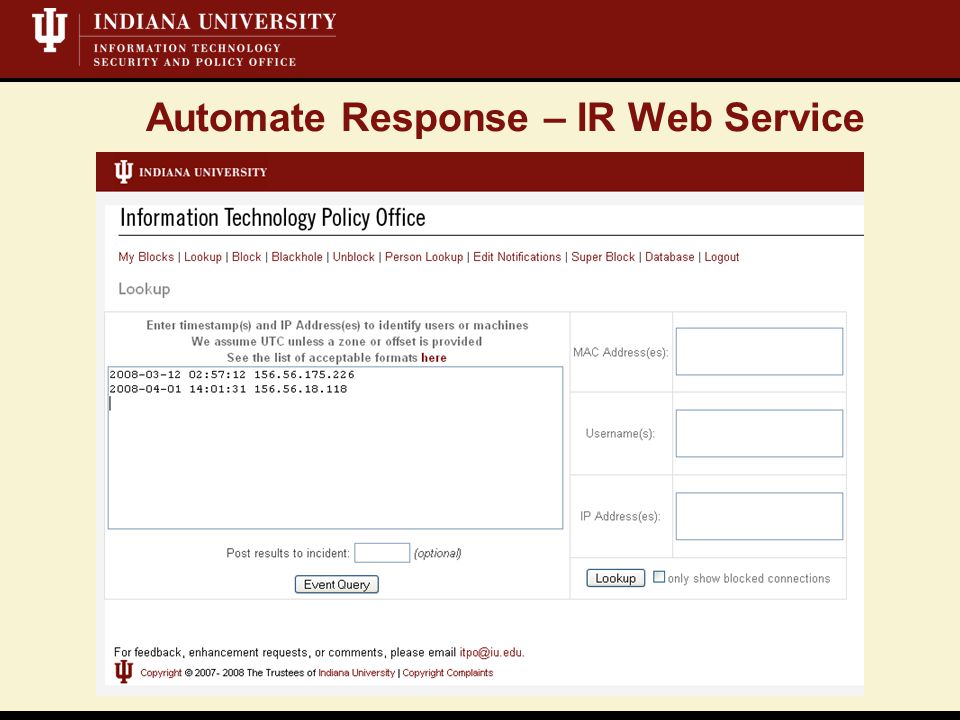

14. Automate Response – IR Web Service

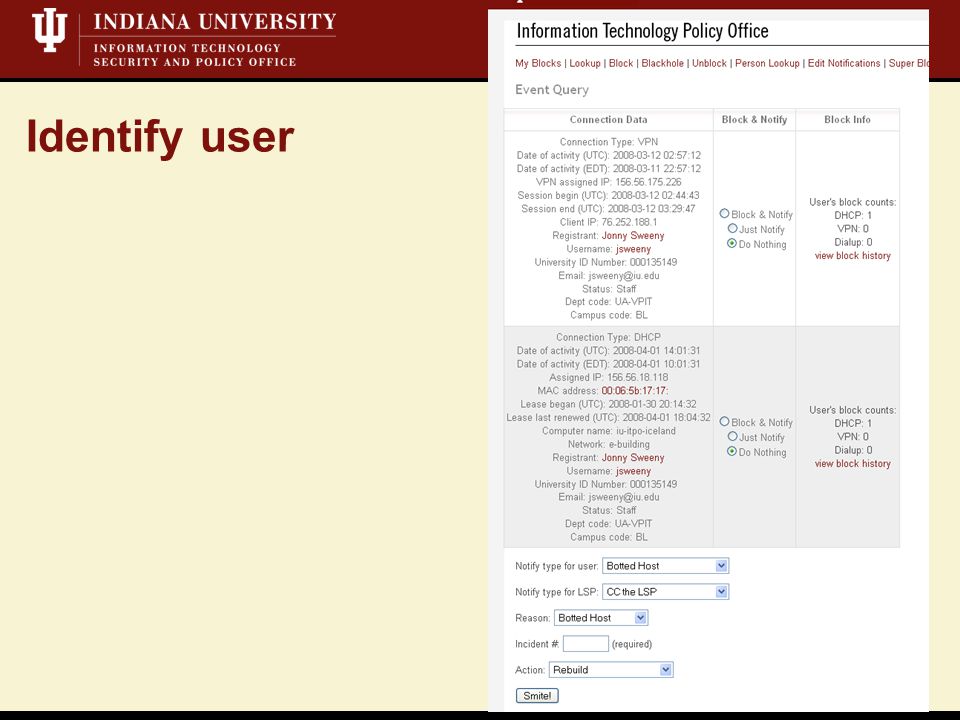

15. Identify user

16. User is blocked and notified

17. Final Thoughts 802.1x rolling out now –2,700 WAPs by fall Dean of Students NAC –Third copyright violation results in permanent ban from attaching personal device to University network

18. Questions Jonny Sweeny jsweeny@iu.edu
