Electrical Symbols Review Carlin Bright

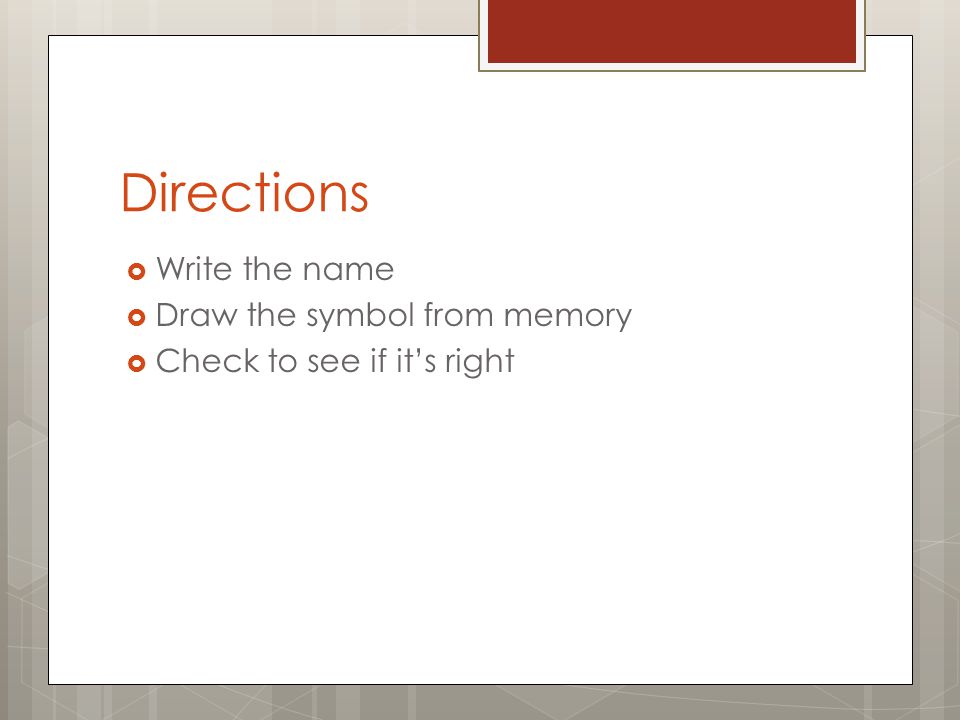

Directions Write the name Draw the symbol from memory Check to see if it’s right
Duplex Receptacle Outlet (Convenience Outlet) One outlet is always energized The other is controlled by a switch “Half Hot”

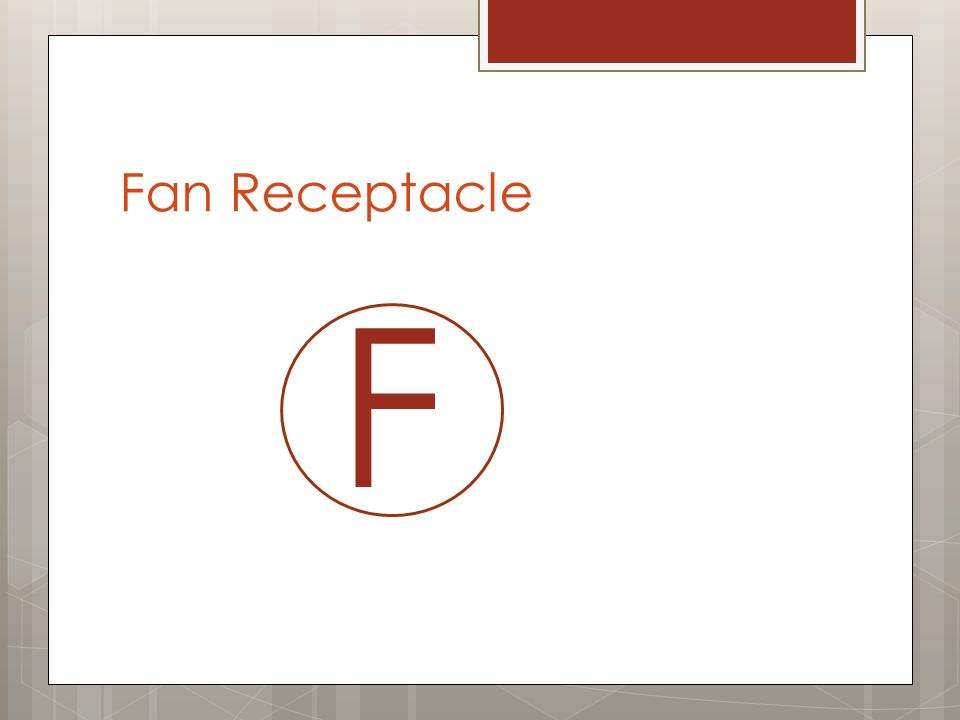

Fan Receptacle F
Three-Way Switch S 3 When you have 2 switches that both control the same light, they both need to be 3-way switches
Single Receptacle Outlet (Convenience Outlet)
Junction Box J
Four-Way Switch S 4 When you have 3 switches that both control the same light, 2 need to be 3- way switches, and the third must be a 4 way switch
Duplex Receptacle Outlet (Convenience Outlet) Both outlets are always energized
S Single-Pole Switch
Dimmer Switch S DM
Recessed Light Fixture R
Weatherproof Switch S WP
Duplex Receptacle Outlet (Convenience Outlet) Switch operated
Lighting Distribution Panel
Ceiling Light Fixture

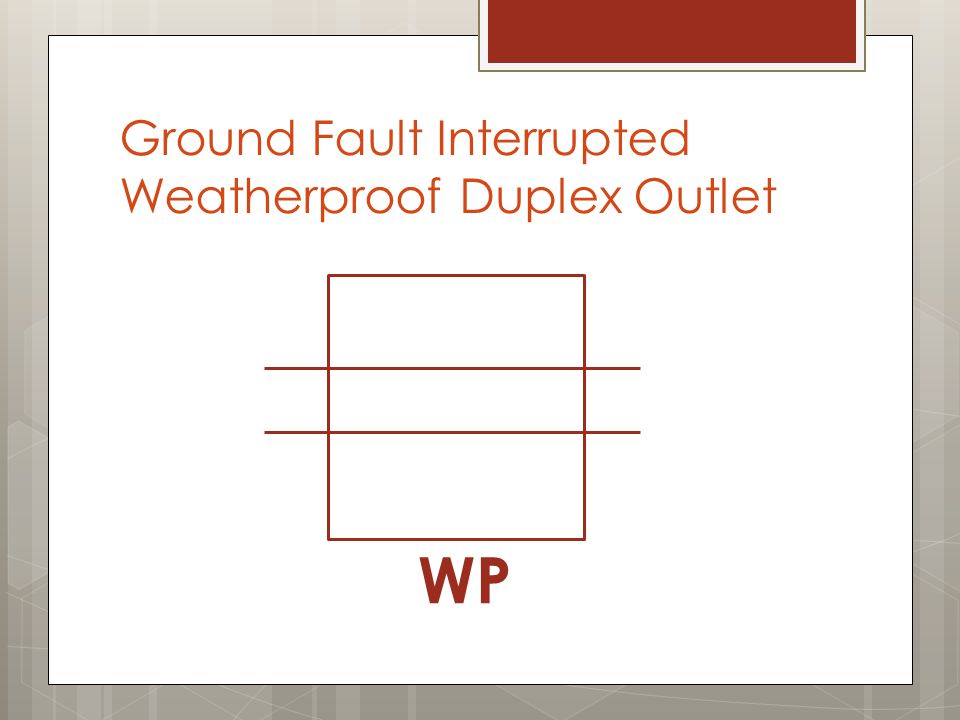

Ground Fault Interrupted Weatherproof Duplex Outlet WP
Smoke Detector SD SA

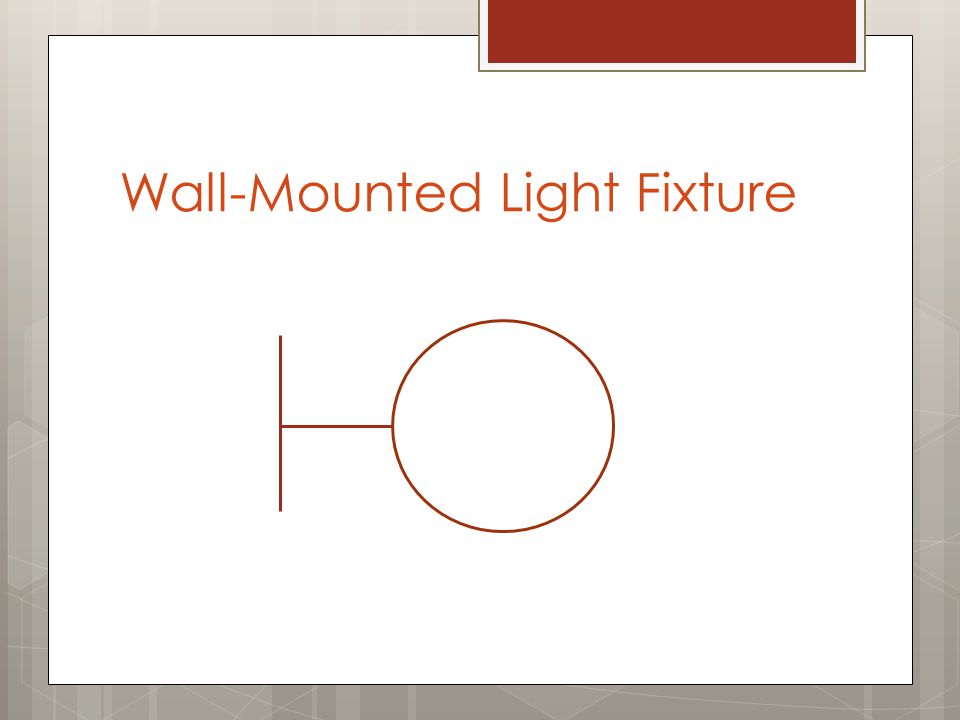

Wall-Mounted Light Fixture
220-Volt Outlet Receptacle 220
