1. The Antarctic Clouds Experiment: Cloud project(s) under development at AAD Simon Alexander and Andrew Klekociuk [with special thanks to Nick Chang for Davis lidar measurements] Australian Antarctic Division Hobart, Australia simon.alexander@aad.gov.au andrew.klekociuk@aad.gov.au

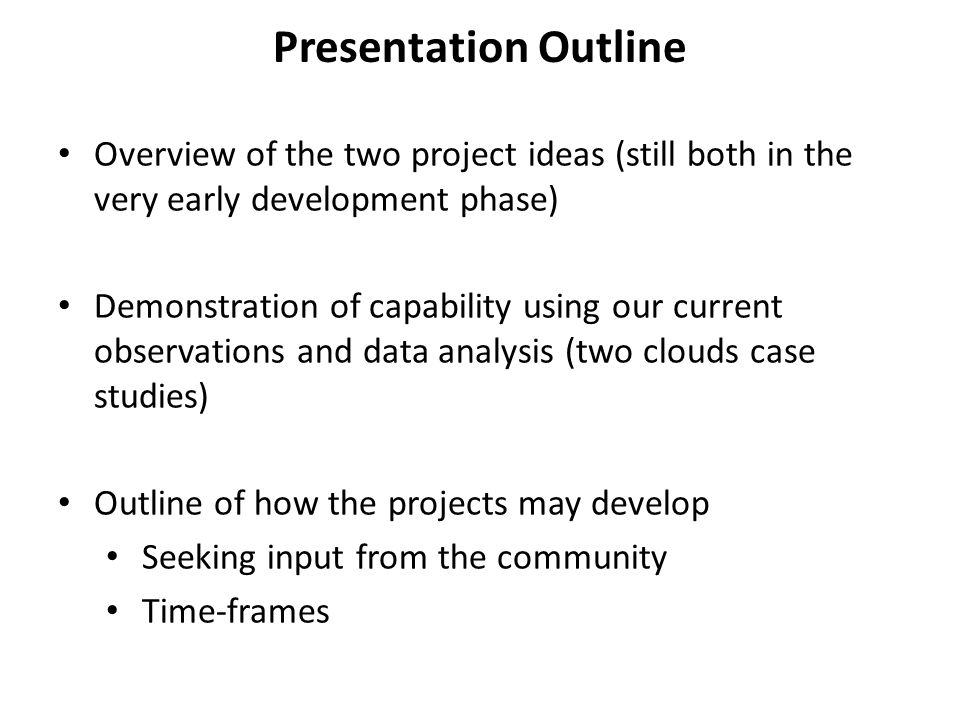

2. Overview of the two project ideas (still both in the very early development phase) Demonstration of capability using our current observations and data analysis (two clouds case studies) Outline of how the projects may develop Seeking input from the community Time-frames Presentation Outline

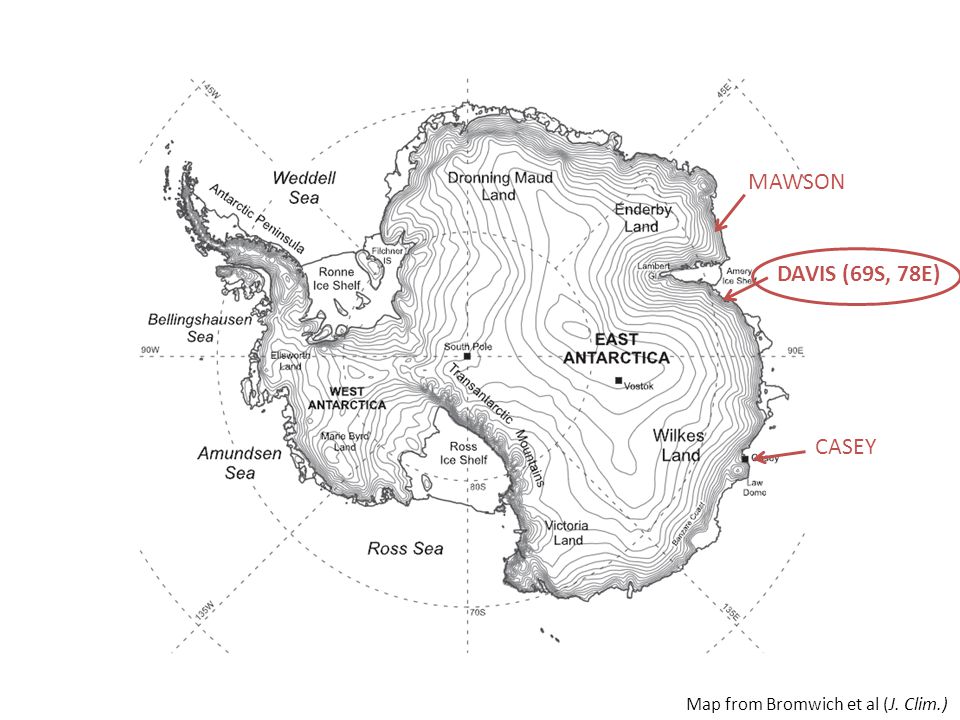

3. Map from Bromwich et al (J. Clim.) DAVIS (69S, 78E) CASEY MAWSON

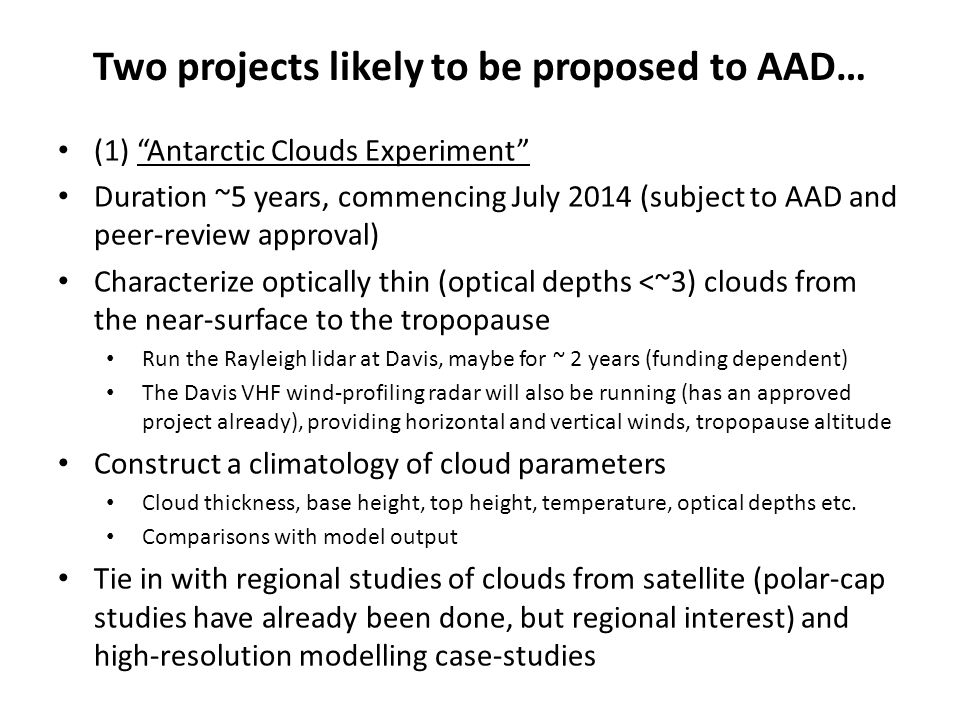

4. (1) “Antarctic Clouds Experiment” Duration ~5 years, commencing July 2014 (subject to AAD and peer-review approval) Characterize optically thin (optical depths <~3) clouds from the near-surface to the tropopause Run the Rayleigh lidar at Davis, maybe for ~ 2 years (funding dependent) The Davis VHF wind-profiling radar will also be running (has an approved project already), providing horizontal and vertical winds, tropopause altitude Construct a climatology of cloud parameters Cloud thickness, base height, top height, temperature, optical depths etc. Comparisons with model output Tie in with regional studies of clouds from satellite (polar-cap studies have already been done, but regional interest) and high-resolution modelling case-studies Two projects likely to be proposed to AAD…

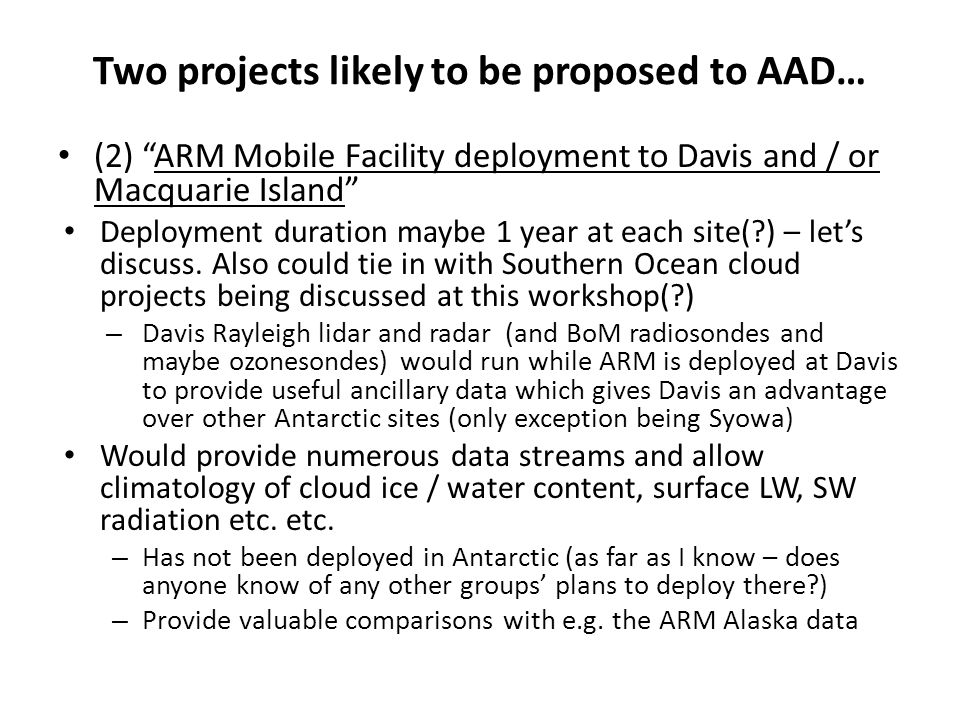

5. (2) “ARM Mobile Facility deployment to Davis and / or Macquarie Island” Deployment duration maybe 1 year at each site(?) – let’s discuss. Also could tie in with Southern Ocean cloud projects being discussed at this workshop(?) – Davis Rayleigh lidar and radar (and BoM radiosondes and maybe ozonesondes) would run while ARM is deployed at Davis to provide useful ancillary data which gives Davis an advantage over other Antarctic sites (only exception being Syowa) Would provide numerous data streams and allow climatology of cloud ice / water content, surface LW, SW radiation etc. etc. – Has not been deployed in Antarctic (as far as I know – does anyone know of any other groups’ plans to deploy there?) – Provide valuable comparisons with e.g. the ARM Alaska data

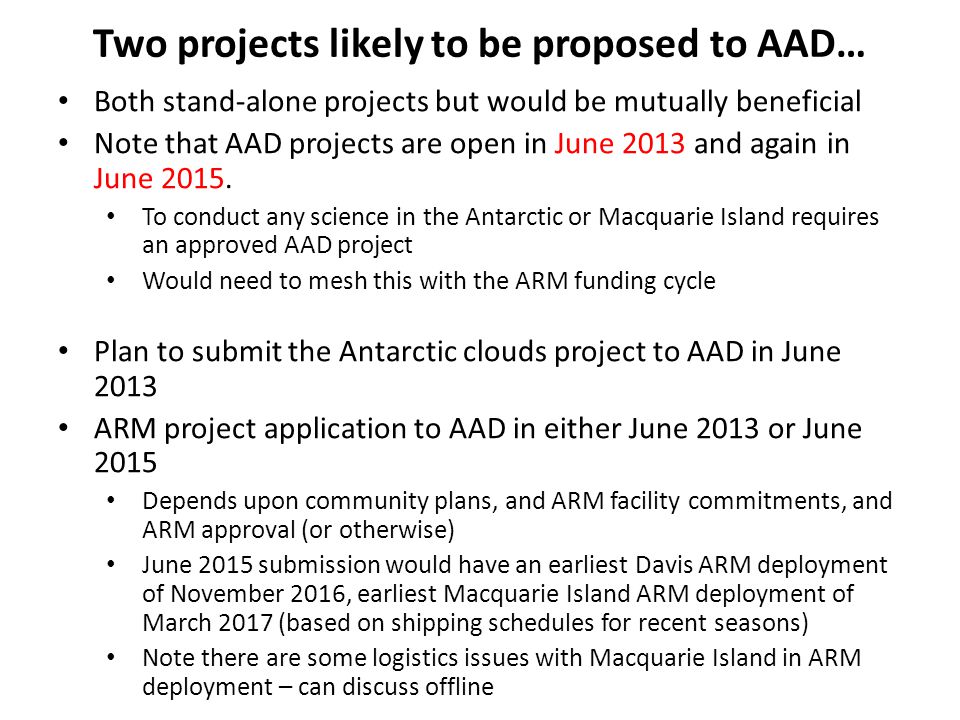

6. Both stand-alone projects but would be mutually beneficial Note that AAD projects are open in June 2013 and again in June 2015. To conduct any science in the Antarctic or Macquarie Island requires an approved AAD project Would need to mesh this with the ARM funding cycle Plan to submit the Antarctic clouds project to AAD in June 2013 ARM project application to AAD in either June 2013 or June 2015 Depends upon community plans, and ARM facility commitments, and ARM approval (or otherwise) June 2015 submission would have an earliest Davis ARM deployment of November 2016, earliest Macquarie Island ARM deployment of March 2017 (based on shipping schedules for recent seasons) Note there are some logistics issues with Macquarie Island in ARM deployment – can discuss offline Two projects likely to be proposed to AAD…

7. Davis lidar and wind-profiling radar Radar provides horizontal and vertical winds from ~ 2 – 15km Temporal resolution of minutes and vertical resolution of hundreds of meters Tropopause detection ~ an hour or two using echo power profiles Lidar provides cloud and temperature data Cloud resolution typically 37m x 60s Temperatures at nighttime, only in thin cloud, resolution ~ 1hr x 1km (N 2 Raman channel) BoM launches daily or twice-daily radiosondes and ozonesondes (various frequency) at Davis

8. Kingston Lidar Single channel multiplexed depolarisation using liquid crystal variable retarder. Telescope: 300 mm diameter. Laser: 532 nm, 50 mJ per pulse, 50 Hz (2.5 W average power). Bistatic arrangement (sky-scanning capability - later).

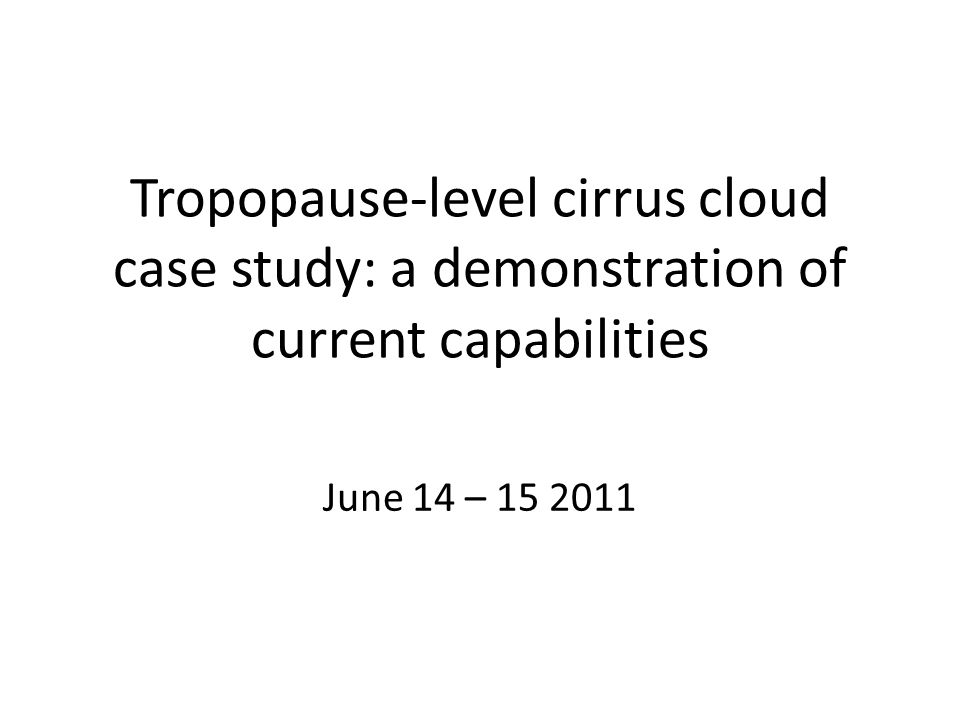

9. Tropopause-level cirrus cloud case study: a demonstration of current capabilities June 14 – 15 2011

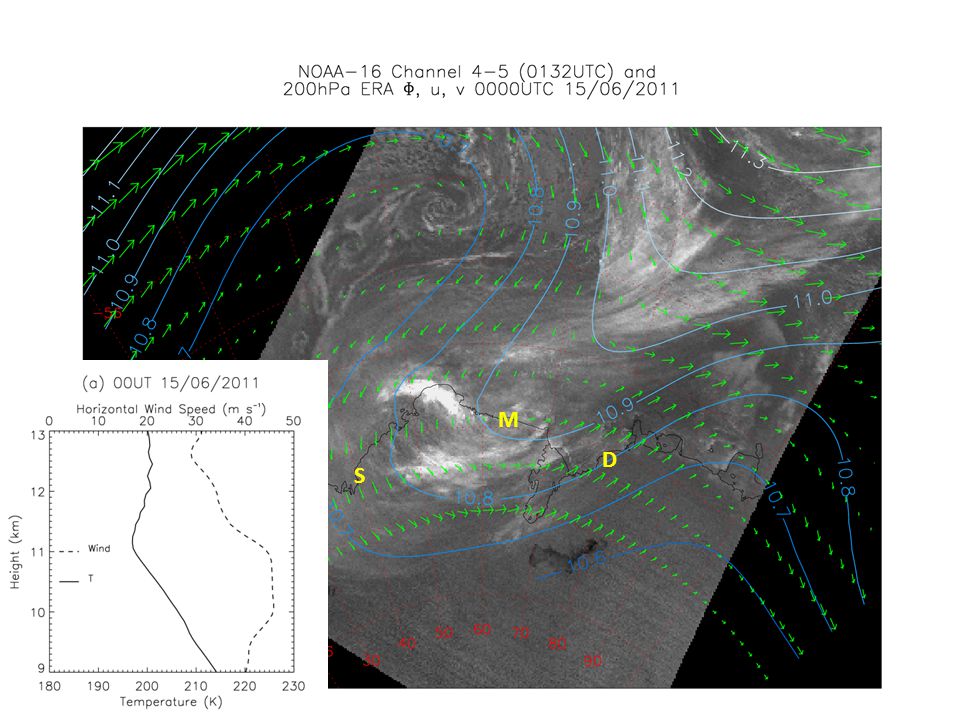

10. D S M

11. 32 hours of cirrus cloud observations, 14-15 June 2011 (sun always below the horizon) Fall streaks: ice particles grow in size and sediment out, then evaporate at lower altitudes Gravity waves may assist the formation of some cirrus clouds Very thin clouds above the tropopause White dots: radar tropopause, red dots: thermal tropopause

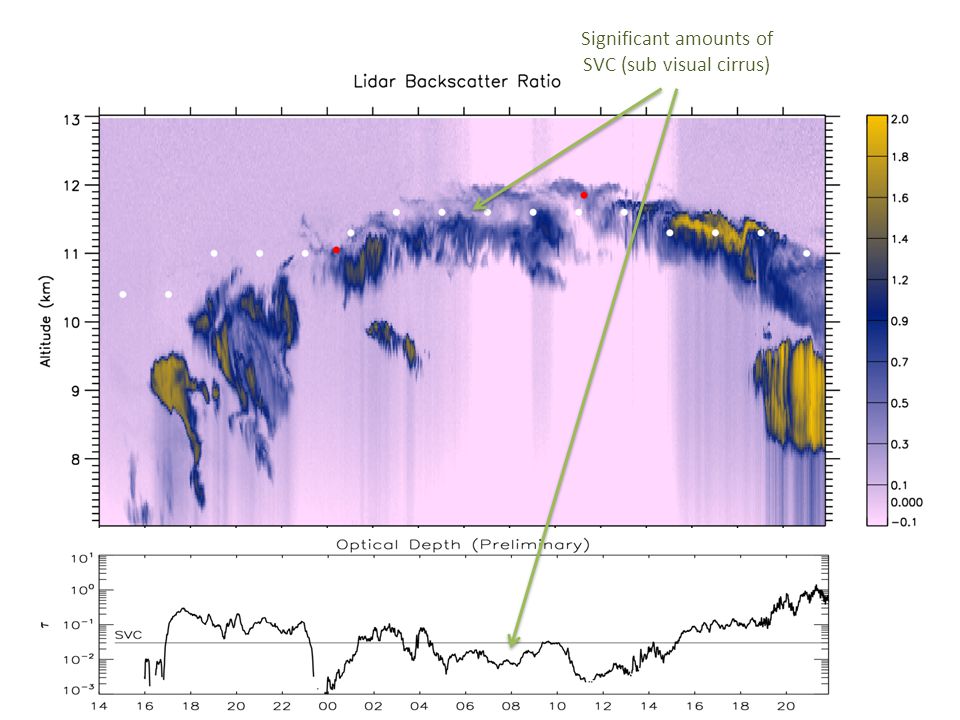

12. Significant amounts of SVC (sub visual cirrus)

13. Development of a polarization lidar: Observations of clouds throughout the troposphere 21 October 2012 Clouds on 21/10/12 at Davis, photo: Nick Chang

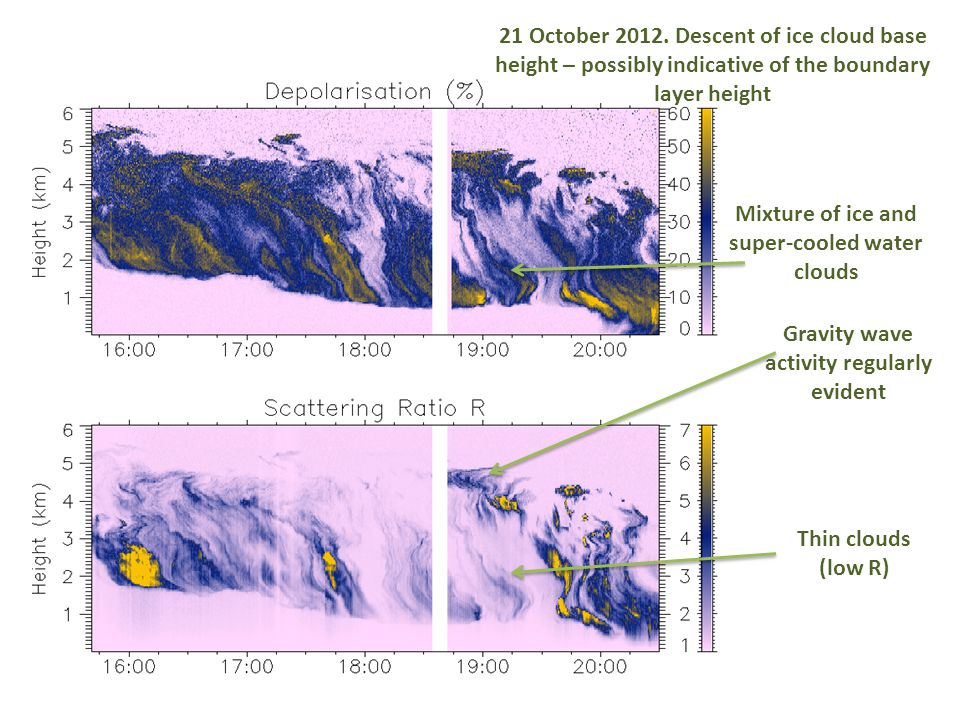

14. 21 October 2012. Descent of ice cloud base height – possibly indicative of the boundary layer height Gravity wave activity regularly evident Thin clouds (low R) Mixture of ice and super-cooled water clouds

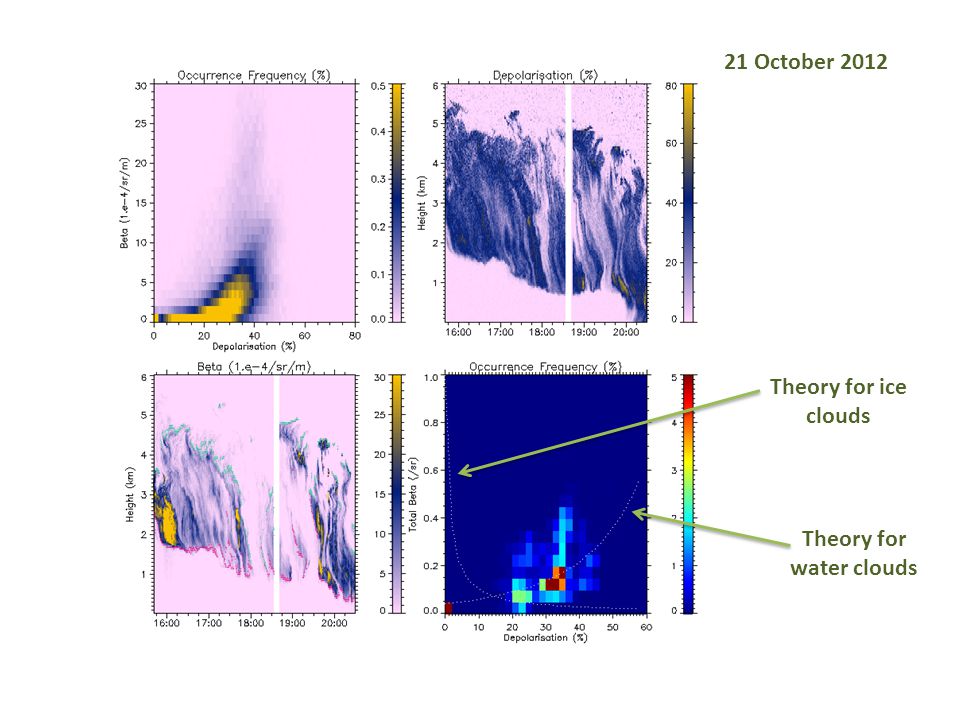

15. Theory for water clouds Theory for ice clouds 21 October 2012

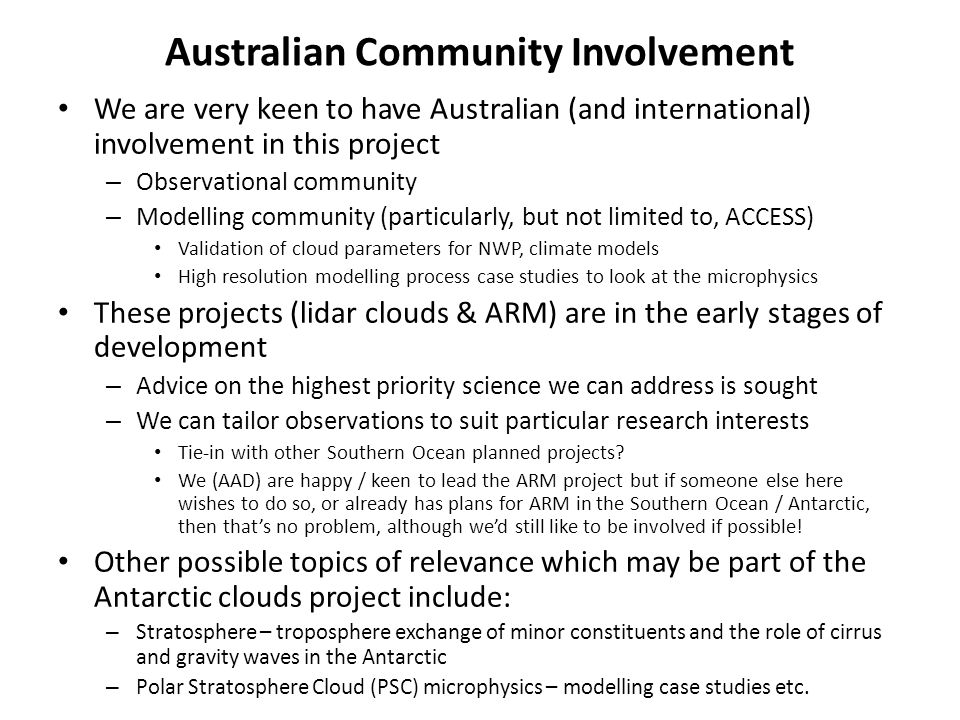

16. Australian Community Involvement We are very keen to have Australian (and international) involvement in this project – Observational community – Modelling community (particularly, but not limited to, ACCESS) Validation of cloud parameters for NWP, climate models High resolution modelling process case studies to look at the microphysics These projects (lidar clouds & ARM) are in the early stages of development – Advice on the highest priority science we can address is sought – We can tailor observations to suit particular research interests Tie-in with other Southern Ocean planned projects? We (AAD) are happy / keen to lead the ARM project but if someone else here wishes to do so, or already has plans for ARM in the Southern Ocean / Antarctic, then that’s no problem, although we’d still like to be involved if possible! Other possible topics of relevance which may be part of the Antarctic clouds project include: – Stratosphere – troposphere exchange of minor constituents and the role of cirrus and gravity waves in the Antarctic – Polar Stratosphere Cloud (PSC) microphysics – modelling case studies etc.
