1 Lidar observations of mixed-phase clouds Robin Hogan, Anthony Illingworth, Ewan OConnor & Mukunda Dev Behera University of Reading UK Overview Enhanced algorithm for supercooled liquid water detection (Hogan et al. 2003, QJ in press) Specular reflection from horizontally aligned plate crystals: A blessing or a curse? Global distribution of stratiform supercooled water clouds from spaceborne lidar

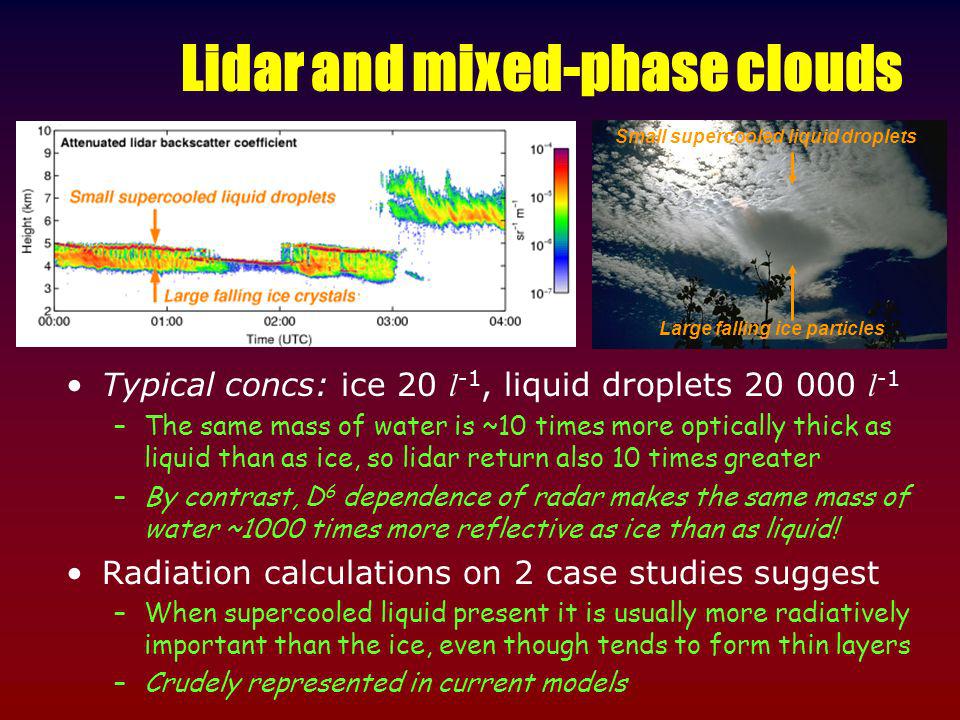

2 Lidar and mixed-phase clouds Typical concs: ice 20 l -1, liquid droplets l -1 –The same mass of water is ~10 times more optically thick as liquid than as ice, so lidar return also 10 times greater –By contrast, D 6 dependence of radar makes the same mass of water ~1000 times more reflective as ice than as liquid! Radiation calculations on 2 case studies suggest –When supercooled liquid present it is usually more radiatively important than the ice, even though tends to form thin layers –Crudely represented in current models Small supercooled liquid droplets Large falling ice particles

3 Integrated lidar backscatter The integrated backscatter through a cloud of optical depth of is approximately (Platt 1973): –k = extinction/backscatter ratio (18.75 sr for droplets) – = multiple scattering factor (~0.7 for Chilbolton lidar ) For large optical depth it reduces to = (2k) -1 If z 1 and z 2 encompass the 300 m around the strongest echo in a profile, we can identify thin liquid water layers with greater than, say, 0.7

4 Example of supercooled water detection at Chilbolton Lidar echo Integrated lidar echo Microwave radiometer LWP

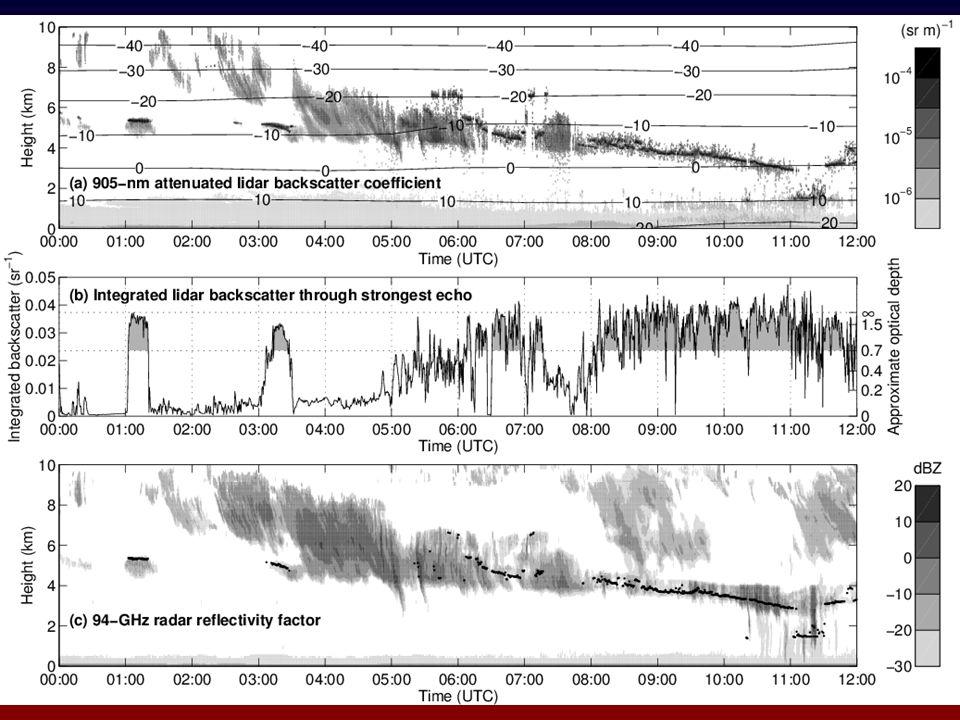

5

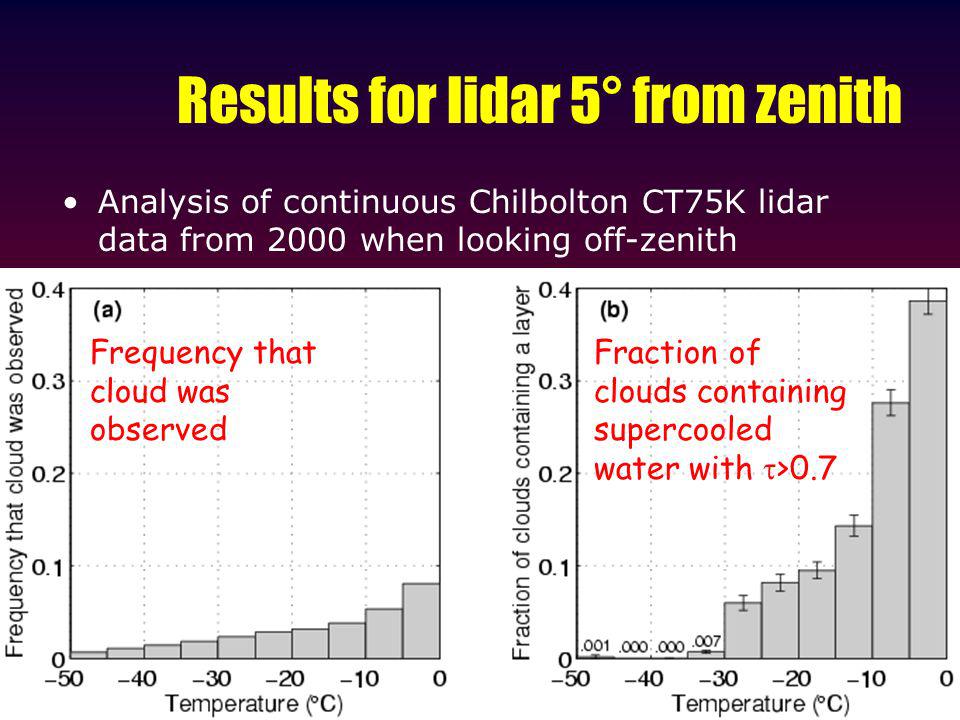

6 Results for lidar 5° from zenith Analysis of continuous Chilbolton CT75K lidar data from 2000 when looking off-zenith Frequency that cloud was observed Fraction of clouds containing supercooled water with >0.7

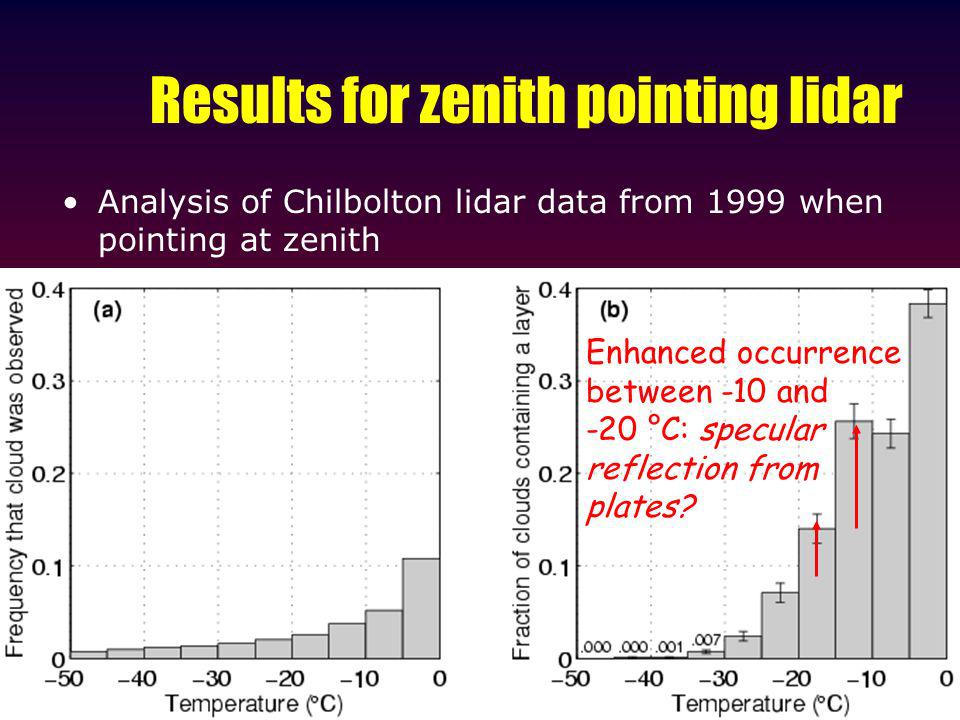

7 Results for zenith pointing lidar Analysis of Chilbolton lidar data from 1999 when pointing at zenith Enhanced occurrence between -10 and -20 °C: specular reflection from plates?

8 Supercooled water in models A year of data from the Met Office and ECMWF –Easy to calculate occurrence of supercooled water with > 0.7 Prognostic ice and liquid+vapour variables Prognostic cloud water: ice/liquid diagnosed from temperature

9 Specular reflection Specular reflection from planar crystals can occur within 1° of zenith or nadir –Enhanced backscatter with no accompanying increase in extinction (very low k): radiative properties difficult to infer –Integrated backscatter in ice can exceed the asymptote corresponding to optically thick liquid cloud (recall ~(2 k) -1 ) –Is locating plate crystals useful? Currently nadir viewing is being considered for spaceborne lidars Calipso and EarthCARE To quantify, require lidar to be precisely at zenith: 20 days of data analysed so far at Chilbolton –Algorithm calculates integrated backscatter from 2 km up –Specular reflection deemed to occur if this integral is more than 1.05 times the asymptote for liquid water –Excess above this value is attributed to pixels with highest

10

11 Probable plate crystals

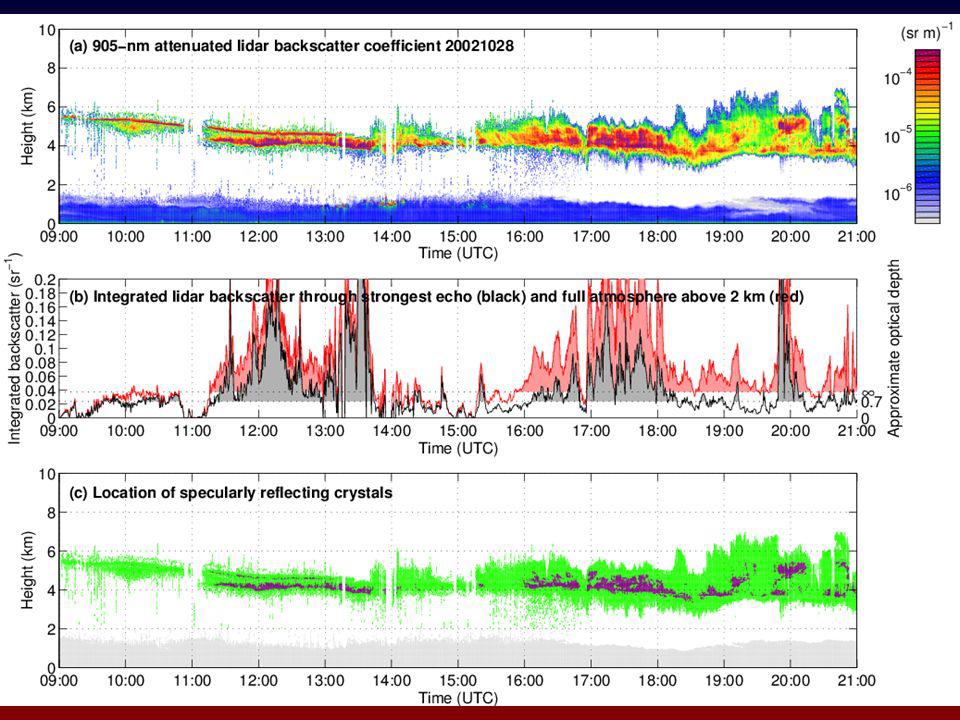

12

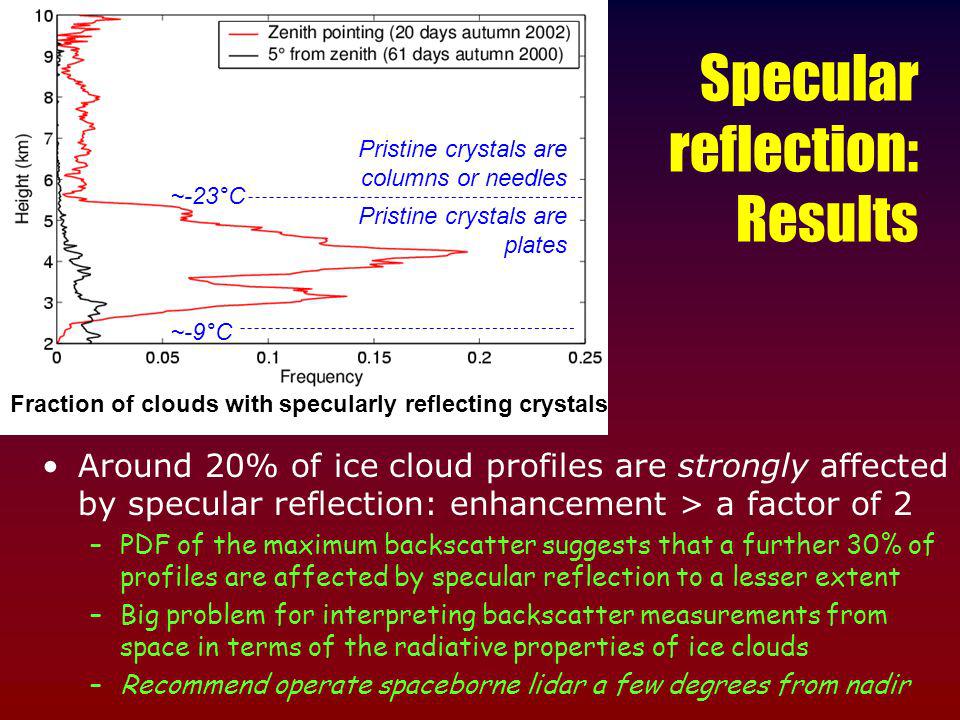

13 Specular reflection: Results Around 20% of ice cloud profiles are strongly affected by specular reflection: enhancement > a factor of 2 –PDF of the maximum backscatter suggests that a further 30% of profiles are affected by specular reflection to a lesser extent –Big problem for interpreting backscatter measurements from space in terms of the radiative properties of ice clouds –Recommend operate spaceborne lidar a few degrees from nadir ~-23°C Pristine crystals are columns or needles Pristine crystals are plates Fraction of clouds with specularly reflecting crystals ~-9°C

14 Supercooled liquid water from the LITE lidar on the space shuttle in 1994 LITE took 45 hours of data 9-20 September 1994 We use 532 nm channel: appeared most sensitive Frequent changes in gain: only 10.5 hrs of data for which saturation level high enough to detect supercooled layers unambiguously Even then liquid water often saturated receiver, and multiple scattering more uncertain from space, so integral method not reliable km of ground covered: equivalent to 160 days of surface observation!

15

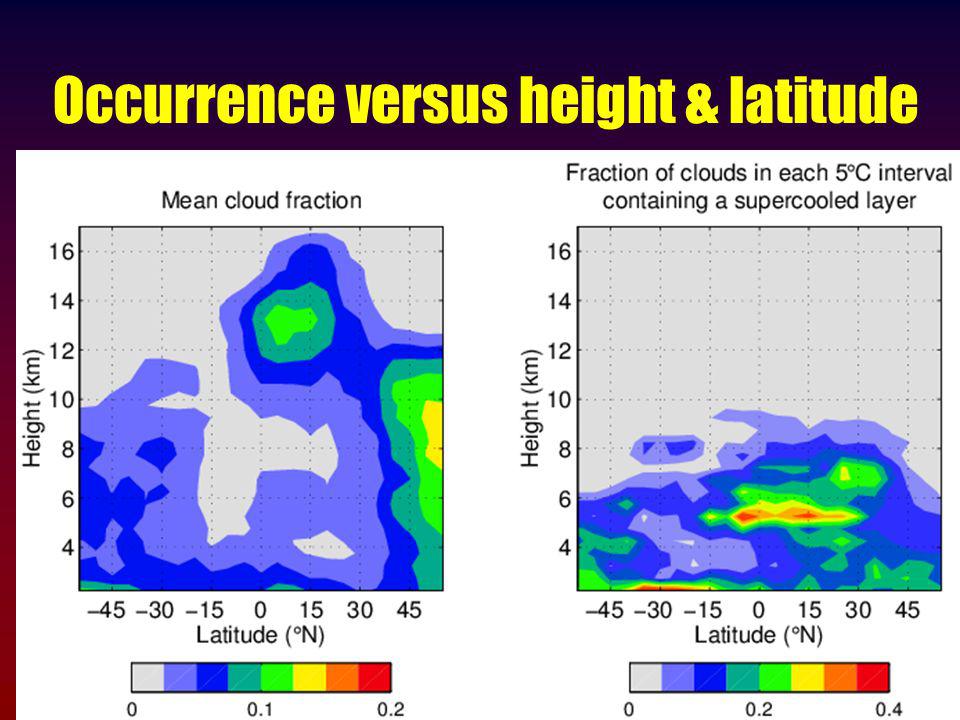

16 Occurrence versus height & latitude

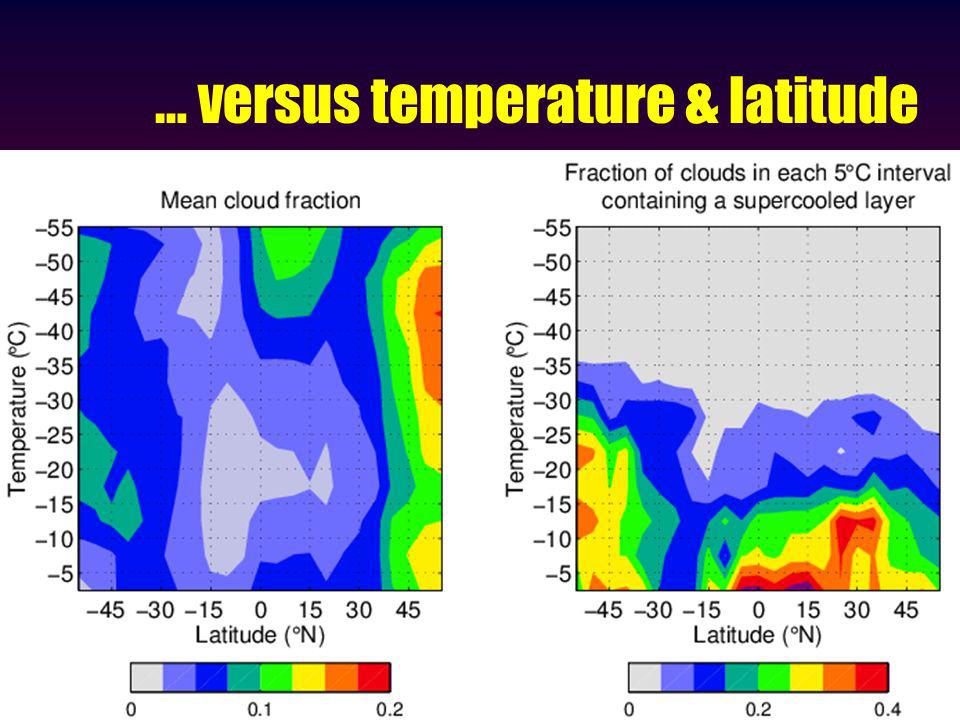

17 … versus temperature & latitude

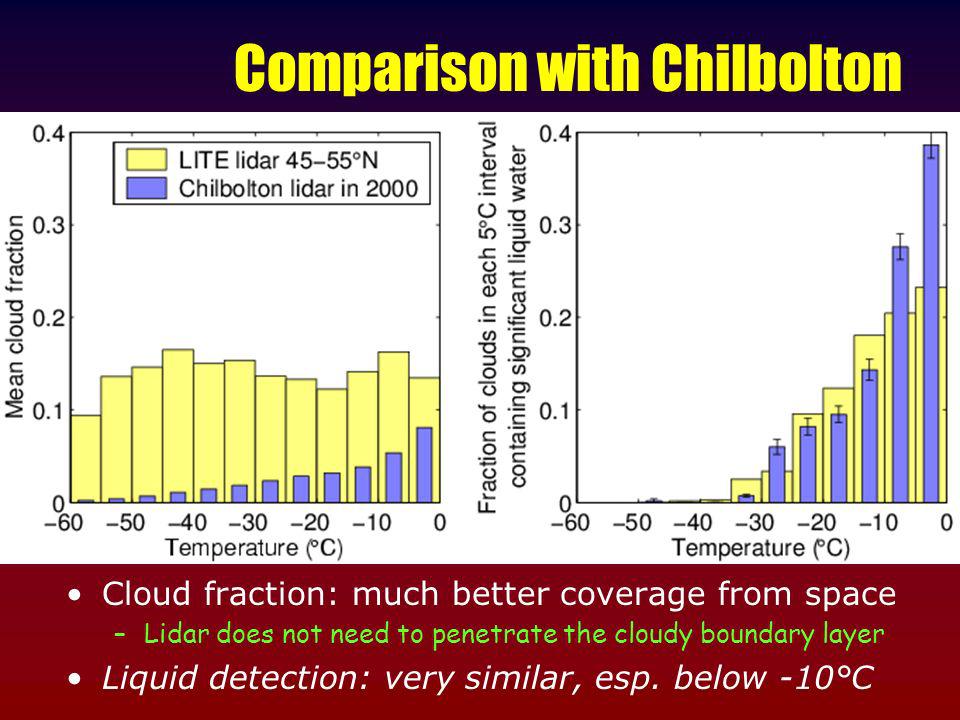

18 Comparison with Chilbolton Cloud fraction: much better coverage from space –Lidar does not need to penetrate the cloudy boundary layer Liquid detection: very similar, esp. below -10°C

19 Conclusions Have shown that spaceborne lidar can identify supercooled liquid water clouds across the globe –Problems with LITE: saturation & severe multiple scattering We will use long-term spaceborne lidar data: IceSat: launched 12 Jan 2003: High polar orbit, 2 wavelengths Calipso: launch in Dec 2004: Includes depolarisation channel
